JVC GZ-VX700, GZ-VX705 User Guide

Download

HD MEMORY CAMERA

Detailed User Guide

GZ-VX700/GZ-VX705

LYT2463-031A

Table of Contents

Beginner’s Guide ........................................................... 5

Charging .................................................................................. 5

Recording ................................................................................ 5

Playback .................................................................................. 5

Shooting Tips ........................................................................... 5

Holiday Season/Christmas ...................................................... 6

Wedding .................................................................................. 7

Travel ....................................................................................... 8

Amusement Park ................................................................... 10

Using Wi-Fi

Wi-Fi Capabilities ................................................................... 11

Operating Environment .......................................................... 12

Precautions on Using Wi-Fi ................................................... 12

Image Monitoring via Direct Connection (DIRECT

MONITORING) .................................................................. 13

Recording the Location Information ....................................... 16

Image Monitoring via an Access Point at Home (OUTSIDE

MONITORING) .................................................................. 17

Image Monitoring via the Internet (OUTSIDE MONITORING)

............................................................................................ 19

Send Still Images via E-mail upon Detection of Face or Movement

(DETECT/MAIL SETTING) ................................................ 23

Record and Send Videos via E-mail (VIDEO MAIL ATTN.) ... 24

Changing the Settings ........................................................... 26

Setting the Password (OUT MONITORING SET) .............. 28

Setting the UPnP of this Camera (OUT MONITORING SET)

........................................................................................ 28

Obtaining a Dynamic DNS (DDNS) Account ...................... 29

Setting Dynamic DNS (DDNS) on this Camera (OUT

MONITORING SET) ....................................................... 29

Setting the Sender’s E-mail Address .................................. 30

Registering the Recipient’s E-mail Address ....................... 33

Setting the Detection Method of this Camera (DETECT/MAIL

SETTING) ....................................................................... 34

Setting the Detection Interval of this Camera (DETECT/MAIL

SETTING) ....................................................................... 34

Setting Self Recording on this Camera (DETECT/MAIL

SETTING) ....................................................................... 35

Registering the Access Points to Connect (“ACCESS POINTS”

) ...................................................................................... 35

Setting the Password (DIRECT MONITORING) ................. 40

Setting the Enforced Group Owner (DIRECT MONITORING)

........................................................................................ 41

Checking the MAC Address of this Camera ....................... 41

Protecting the Network Settings with a Password .............. 42

Initializing the Network Settings ......................................... 42

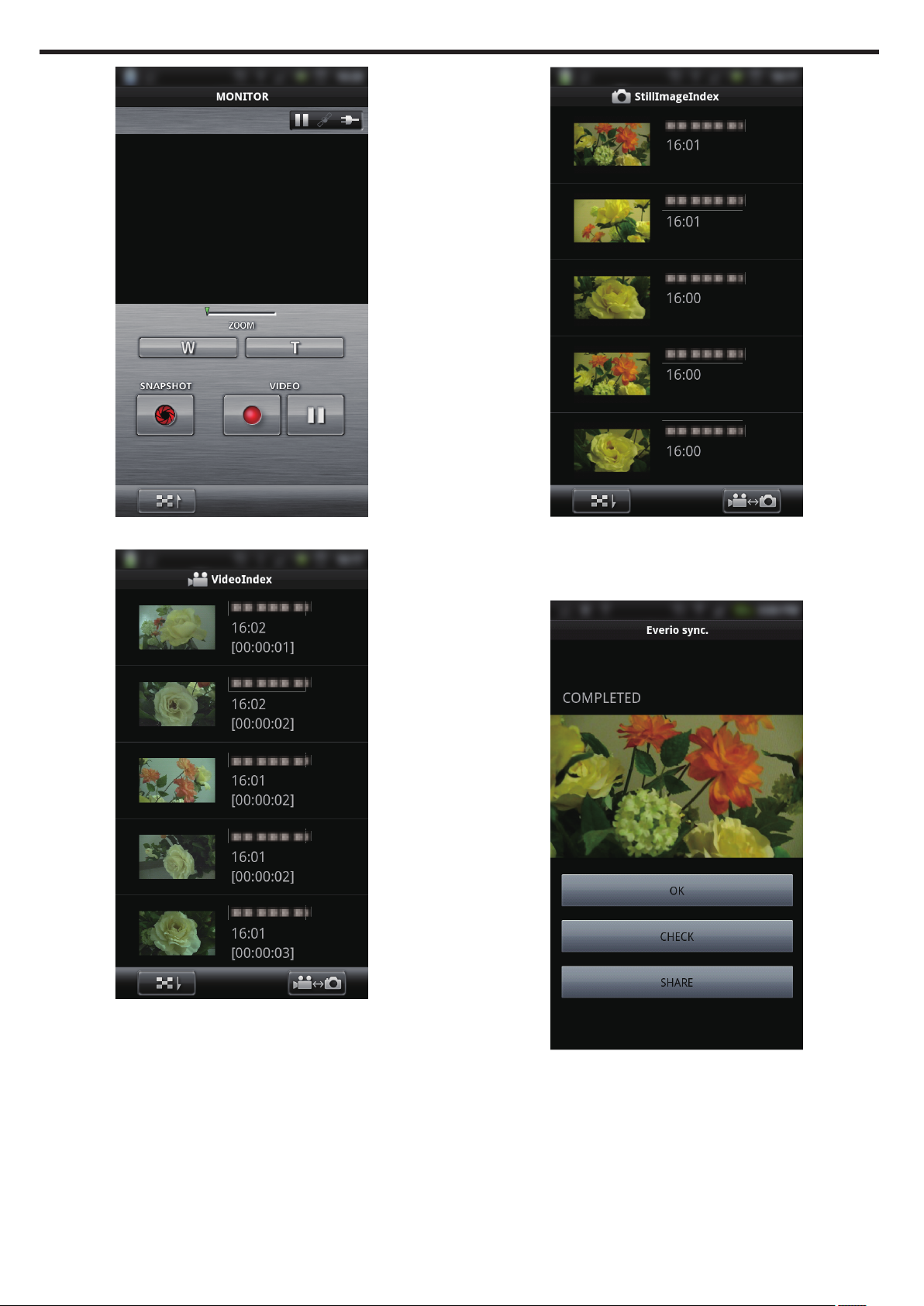

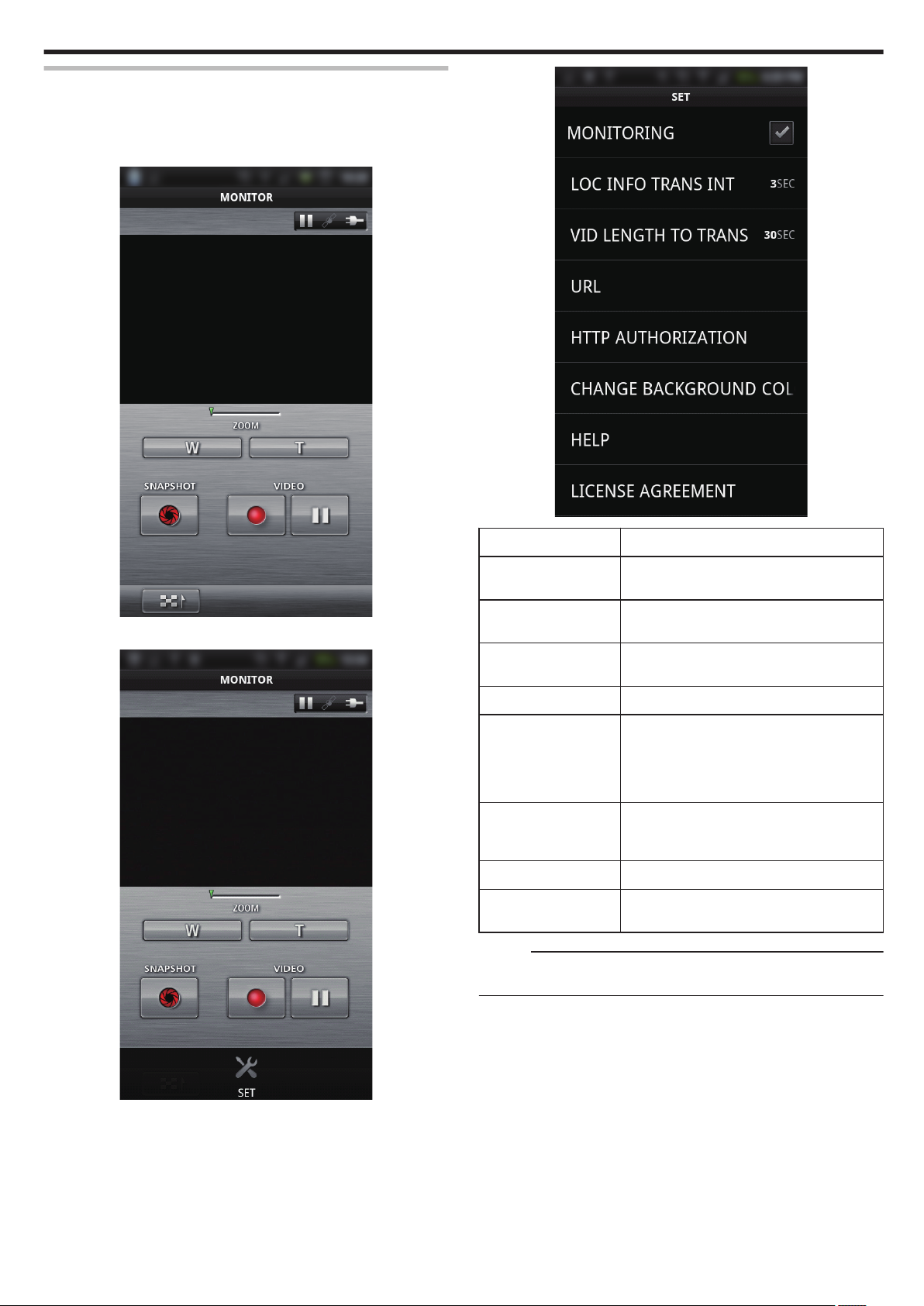

Using Smartphone Applications ............................................. 43

Indications on the Screen ................................................... 43

Transferring Videos ............................................................ 44

Transferring Still Images .................................................... 45

Changing the Settings ........................................................ 47

Using the Wi-Fi Function from a Web Browser ...................... 49

Indications on the Screen ................................................... 49

Making Camera Settings from a Web Browser .................. 51

Troubleshooting ..................................................................... 56

Wi-Fi Specifications ............................................................... 59

Getting Started

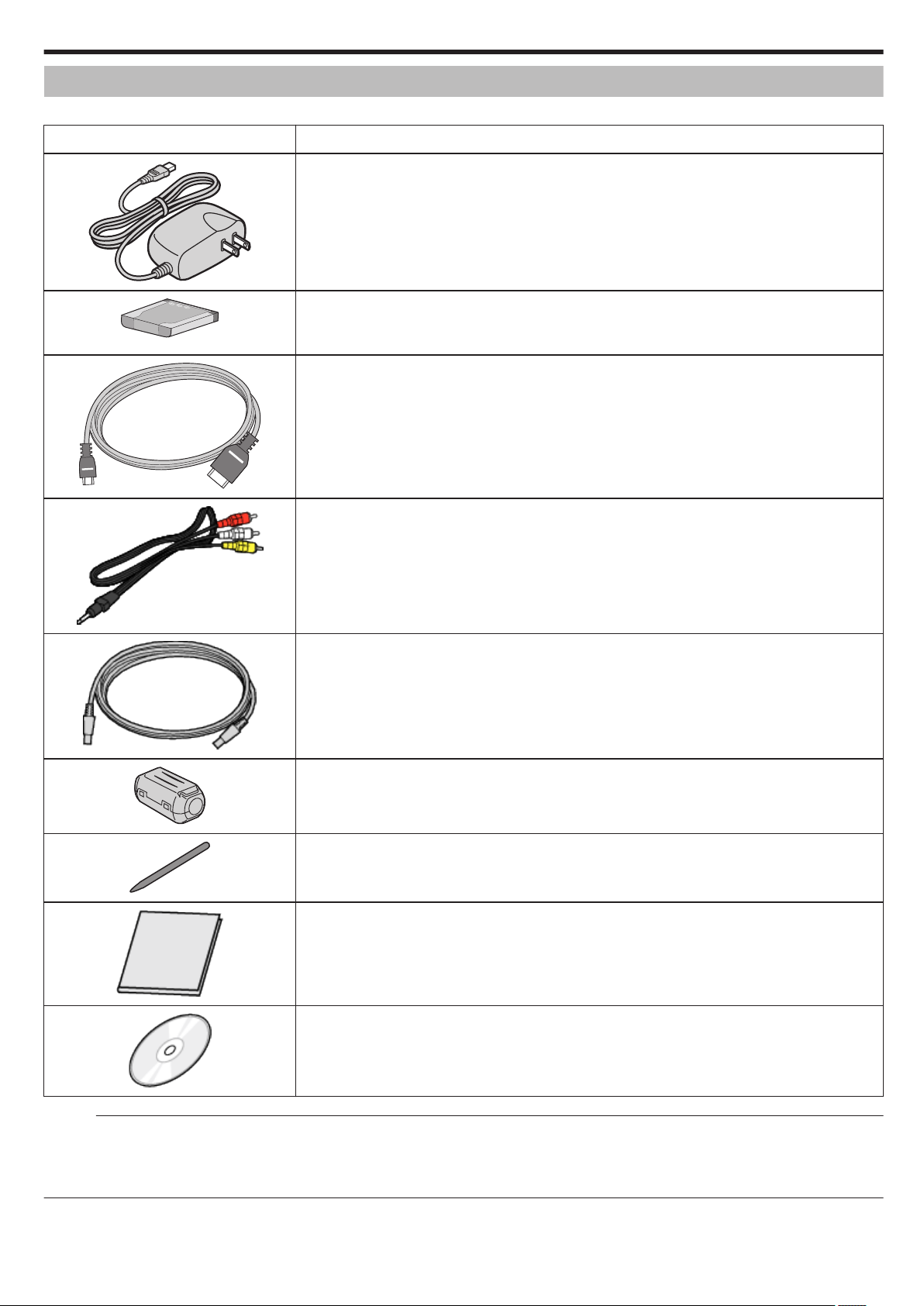

Verifying the Accessories ...................................................... 61

Attaching the Core Filter ..................................................... 62

Charging the Battery Pack ..................................................... 63

Grip Adjustment ..................................................................... 64

Using as a Hand Strap ....................................................... 64

Inserting an SD Card ............................................................. 65

Types of Usable SD Card ................................................... 65

Using the Touch Screen ........................................................ 66

Names of Buttons and Functions on the LCD Monitor ....... 67

Clock Setting ......................................................................... 68

Resetting the Clock ............................................................ 69

Changing the Display Language ............................................ 70

Holding this Unit .................................................................... 70

Tripod Mounting .................................................................... 70

Using this Unit Overseas ....................................................... 71

Charging the Battery Pack Overseas ................................. 71

Setting the Clock to Local Time when Traveling ................. 71

Setting Daylight Saving Time ............................................. 72

Optional Accessories ............................................................. 72

Recording

Taking Videos in Auto Mode .................................................. 73

Zooming ............................................................................. 75

Capturing Still Images During Video Recording ................. 75

Taking Still Images in Auto Mode ........................................... 76

Zooming ............................................................................. 79

Manual Recording ................................................................. 79

Shooting According to Scene (Subject) ............................. 80

Adjusting Focus Manually .................................................. 82

Adjusting Brightness .......................................................... 83

Setting Shutter Speed ........................................................ 84

Setting Aperture ................................................................. 85

Setting White Balance ........................................................ 86

Setting Backlight Compensation ........................................ 87

Taking Close-up Shots ....................................................... 88

Recording with Effects ........................................................... 89

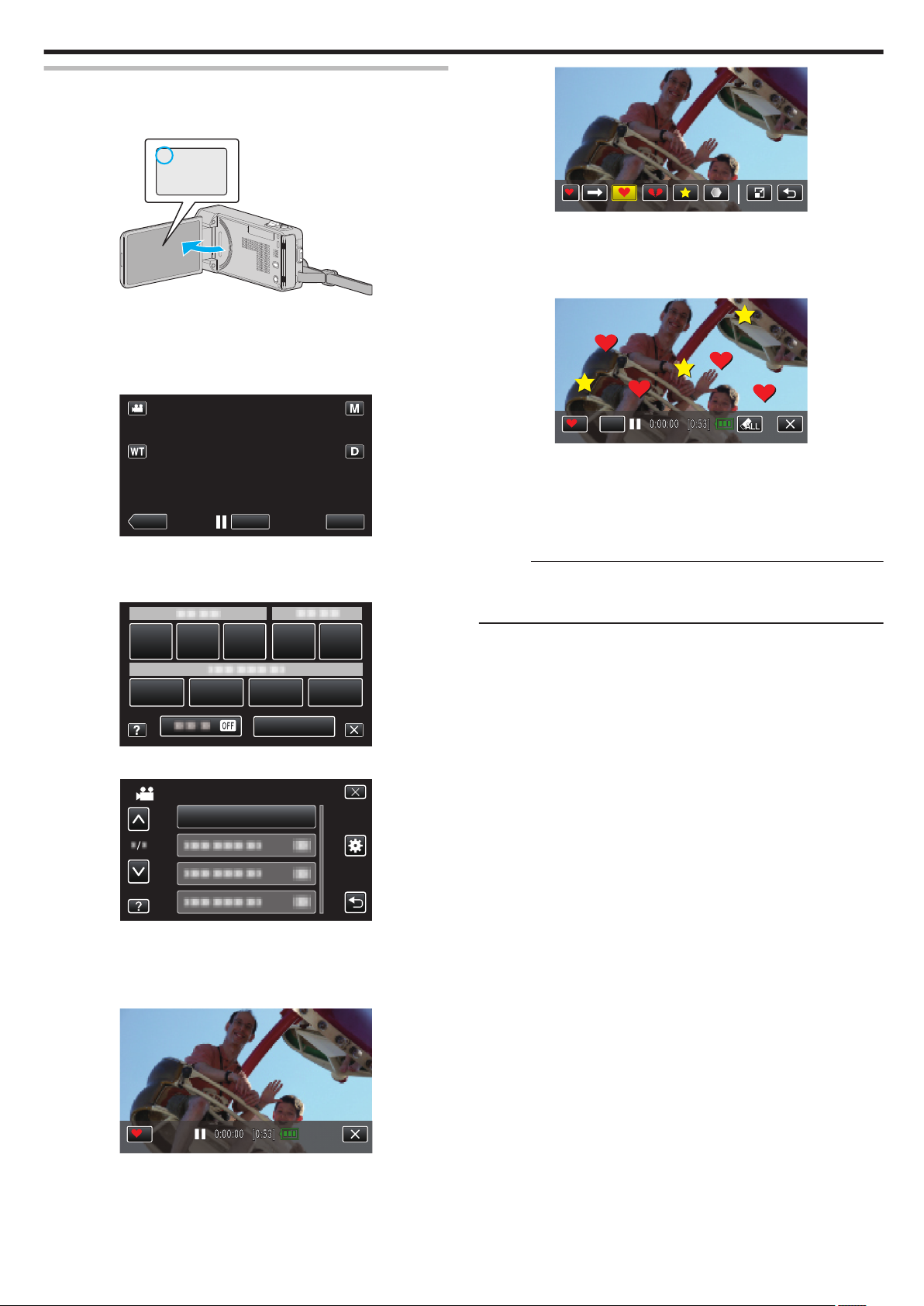

Recording with Animation Effects ...................................... 89

Recording with Face Decorations ...................................... 92

Recording with Decorative Stamps .................................... 93

Recording with Personal Handwriting ................................ 94

Capturing Subjects Clearly (TOUCH PRIORITY AE/AF) ....... 95

Capturing Smiles Automatically (SMILE SHOT) ................. 96

Capturing Pets Automatically (PET SHOT) ........................ 97

Recording while Displaying a Magnified View of a Selected

Face (FACE SUB-WINDOW) ......................................... 98

Registering Human Face Personal Authentication Information

.......................................................................................... 100

Setting SMILE%/NAME DISPLAY .................................... 102

Editing the Registered Face Information .......................... 103

Reducing Camera Shake ..................................................... 104

Slow-motion (High-speed) Recording .................................. 105

Recording at Intervals (TIME-LAPSE RECORDING) ........... 106

Recording Automatically by Sensing Movements (AUTO REC)

.......................................................................................... 107

Taking Group Shots (Self-timer) .......................................... 109

Recording Videos with Date and Time ................................. 111

Checking the Remaining Recording Time ........................... 112

Playback

Playing Back Videos ............................................................ 114

Checking the Recording Date and Other Information ....... 116

Checking the Content of Videos Quickly (Digest Playback)

...................................................................................... 116

Playing a Video with Defective Management Information . 117

Playing Back Still Images ..................................................... 118

Slideshow Playback ......................................................... 119

Searching for a Specific Video/Still Image by Date .............. 120

Connecting to and Viewing on TV ........................................ 120

Connecting via the HDMI Mini Connector ........................ 121

Connecting via the AV Connector .................................... 122

Playing Back Playlists .......................................................... 122

Playing Back a DVD or Blu-ray Disc Created on this Unit .... 123

Digest Playback on a Blu-ray or DVD Player .................... 123

Editing

Deleting Unwanted Files ...................................................... 124

Deleting the Currently Displayed File ............................... 124

Deleting Selected Files .................................................... 124

Protecting Files .................................................................... 125

Protecting/Releasing Protection of the Currently Displayed

File ................................................................................ 125

Protecting/Releasing Protection of Selected Files ............ 126

Capturing a Still Image in the Video During Playback .......... 127

Capturing a Required Part in the Video (TRIMMING) .......... 127

Capturing Videos for Uploading to YouTube ........................ 128

Creating Playlists from the Recorded Videos ....................... 130

Creating Playlists with Selected Files ............................... 130

Creating Playlists by Date ................................................ 131

Editing Playlists ................................................................ 132

Deleting Playlists .............................................................. 133

Copying

Creating Discs with a DVD Writer ........................................ 134

Preparing a DVD Writer (CU-VD3) ................................... 135

Preparing a DVD Writer (CU-VD50) ................................. 135

Creating a Disc ................................................................. 136

Playing Back with a DVD Writer ....................................... 140

Creating Discs with a BD Writer (External Blu-ray Drive) ..... 141

Preparing a BD Writer (External Blu-ray Drive) ................ 141

Creating a Disc ................................................................. 142

Playing Back with a BD Writer (External Blu-ray Drive) .... 147

Creating a Disc Using a Connected Blu-ray Recorder ......... 147

Dubbing Files to a Disc by Connecting to a DVD Recorder . 148

Dubbing Files to a VHS Tape by Connecting to a VCR ........ 148

Using a USB External Hard Disk Drive ................................ 149

Preparing a USB External Hard Disk Drive ....................... 149

Copying All Files .............................................................. 150

Playing Back Files in the USB External Hard Disk Drive .. 151

Deleting Folders in the USB External Hard Disk Drive ..... 151

Formatting the USB External Hard Disk Drive .................. 152

Importing Files from the USB External Hard Disk Drive .... 152

Copying to Windows PC ...................................................... 154

Verifying System Requirements (Guideline) ..................... 154

Installing the Provided Software ....................................... 155

Backing Up All Files ......................................................... 156

Organizing Files ............................................................... 157

Recording Videos to Discs ............................................... 158

Backing Up Files Without Using Provided Software ......... 159

List of Files and Folders ................................................... 161

Copying to Mac Computer ................................................... 162

Menu Settings

Operating the Menu ............................................................. 163

Operating the Shortcut Menu ........................................... 163

Operating the Main Menu ................................................. 164

Operating the Common Menu .......................................... 164

Recording Menu (Video) ...................................................... 165

INFO. ............................................................................... 167

SCENE SELECT .............................................................. 168

FOCUS ............................................................................ 168

BRIGHTNESS ADJUST ................................................... 168

SHUTTER SPEED ........................................................... 168

APERTURE PRIORITY .................................................... 168

WHITE BALANCE ............................................................ 168

BACKLIGHT COMP. ........................................................ 168

TELE MACRO .................................................................. 168

TOUCH PRIORITY AE/AF ............................................... 168

LIGHT .............................................................................. 168

GAIN UP .......................................................................... 169

WIND CUT ....................................................................... 169

ANIMATION EFFECT ...................................................... 169

DECORATE FACE EFFECT ............................................ 169

STAMP ............................................................................ 169

HANDWRITING EFFECT ................................................ 170

HIGH SPEED RECORDING ............................................ 170

TIME-LAPSE RECORDING ............................................. 170

AUTO REC ...................................................................... 170

Wi-Fi ................................................................................ 170

DATE/TIME RECORDING ............................................... 170

FACE SUB-WINDOW ...................................................... 170

SHUTTER MODE ............................................................ 170

SMILE SHOT ................................................................... 171

SMILE%/NAME DISPLAY ................................................ 171

FACE REGISTRATION .................................................... 171

PET SHOT ....................................................................... 171

VIDEO QUALITY .............................................................. 171

ZOOM .............................................................................. 172

x.v.Color ........................................................................... 173

ZOOM MIC ...................................................................... 173

Recording Menu (Still Image) .............................................. 174

SCENE SELECT .............................................................. 175

FOCUS ............................................................................ 175

BRIGHTNESS ADJUST ................................................... 175

SHUTTER SPEED ........................................................... 175

APERTURE PRIORITY .................................................... 175

WHITE BALANCE ............................................................ 175

BACKLIGHT COMP. ........................................................ 175

TELE MACRO .................................................................. 175

TOUCH PRIORITY AE/AF ............................................... 175

FLASH (GZ-VX705) ......................................................... 176

LIGHT (GZ-VX700) .......................................................... 176

SELF-TIMER .................................................................... 177

GAIN UP .......................................................................... 177

AUTO REC ...................................................................... 177

SHUTTER MODE ............................................................ 178

CONT. SHOOTING SPEED ............................................. 178

SMILE SHOT ................................................................... 179

SMILE%/NAME DISPLAY ................................................ 179

FACE REGISTRATION .................................................... 179

PET SHOT ....................................................................... 179

IMAGE SIZE ..................................................................... 179

Playback Menu (Video) ........................................................ 180

FILE INFORMATION ....................................................... 181

SEARCH DATE ................................................................ 181

DISPLAY DATE/TIME ...................................................... 181

DIGEST PLAYBACK ........................................................ 182

PLAYBACK PLAYLIST .................................................... 182

EDIT PLAYLIST ............................................................... 182

PROTECT/CANCEL ........................................................ 182

TRIMMING ....................................................................... 182

UPLOAD SETTINGS ....................................................... 182

PLAYBACK OTHER FILE ................................................ 182

K2 TECHNOLOGY .......................................................... 182

Playback Menu (Still Image) ................................................ 183

FILE INFORMATION ....................................................... 183

SEARCH DATE ................................................................ 183

SLIDE SHOW EFFECTS ................................................. 183

PROTECT/CANCEL ........................................................ 184

Common Menu .................................................................... 185

CLOCK ADJUST .............................................................. 187

DATE DISPLAY STYLE ................................................... 187

LANGUAGE ..................................................................... 187

MONITOR BRIGHTNESS ................................................ 187

OPERATION SOUND ...................................................... 188

SILENT MODE ................................................................. 188

AUTO POWER OFF ......................................................... 189

QUICK RESTART ............................................................ 189

DEMO MODE .................................................................. 190

TOUCH SCREEN ADJUST ............................................. 190

DISPLAY ON TV .............................................................. 191

VIDEO OUTPUT .............................................................. 192

HDMI OUTPUT ................................................................ 192

HDMI CONTROL ............................................................. 193

FACTORY PRESET ......................................................... 193

UPDATE .......................................................................... 193

FORMAT SD CARD ......................................................... 194

MOBILE USER GUIDE .................................................... 194

Names of Parts

Front .................................................................................... 195

Rear ..................................................................................... 195

Bottom ................................................................................. 196

Interior ................................................................................. 196

LCD Monitor ........................................................................ 197

Indications on the LCD monitor

Common Recording Indications .......................................... 198

Video Recording .................................................................. 198

Still Image Recording ........................................................... 199

Video Playback .................................................................... 199

Still Image Playback ............................................................ 200

Troubleshooting

When the unit is not working properly .................................. 200

Battery Pack ........................................................................ 201

Recording ............................................................................ 201

Card ..................................................................................... 202

Playback .............................................................................. 202

Editing/Copying ................................................................... 203

Computer ............................................................................. 203

Screen/Image ...................................................................... 204

Other Problems ................................................................... 204

Error Message? ................................................................... 205

Maintenance

Specifications

Charging

Refer to the operating instructions found in the animation on the Detailed User Guide.

Recording

Refer to the operating instructions found in the animation on the Detailed User Guide.

Playback

Refer to the operating instructions found in the animation on the Detailed User Guide.

Shooting Tips

Basic Way to Hold a Camcorder ~ Recording Stable Images ~

Beginner’s Guide

[Getting Ready]

A Open your feet to the width of your shoulders. B Extend your right hand and hold the camcorder over your head. C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Caution :

Use this way of shooting only as a last resort as it is difficult to achieve stable images.

Set to the wide angle as much as possible as the image will be prone to camera shake.

Be considerate. Do not inconvenience the people around you.

Squatting and Shooting at Eye Level

This is the standard way of shooting while standing up. Be sure to master this basic technique in order to achieve stable images.

[Getting Ready]

A Open your feet to the width of your shoulders. B Keep the elbow of your right arm, which is holding the camcorder, close

to your side.

C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Extending Your Hands to Shoot ~ High-Angle Shooting ~

Staying low is a common position to take when shooting small children. By recording from the eye level of the child, you can capture all his cute expressions clearly.

[Getting Ready]

A Kneel down with your left knee while keeping your right foot on the

ground.

B Place the elbow of your right arm, which is holding the camcorder, on

your right knee.

C Hold the LCD monitor with your left hand and adjust the angle

accordingly.

Panning

Refer to the operating instructions found in the animation on the Detailed User Guide.

Use this method to shoot a wide angle of view.

[Getting Ready]

A Shoot by rotating your body instead of moving your arms while keeping

the basic way of holding a camcorder as stated above.

B Stand facing the direction where the rotation will stop. C Twist your upper body to the direction where recording will start. D Press the start button and record for 2 seconds, then slowly twist back

your body to face the front. Record for another 2 seconds while facing the front, then press the stop button. (The 90 degrees rotation should take about 5 seconds, giving the feeling of a slow motion.)

Extend your hand when your subject is being hidden behind a crowd of

people.

Useful Shooting Techniques

Holiday Season/Christmas

Record the happy Christmas celebration with your family!

Decorating the Tree and Preparing the Dinner

The decoration of tree and preparation of dinner are part of the joy of Christmas. Be sure to record these happy family times!

Decorating the tree

Recording the Christmas Party

After all preparations, it is finally the Christmas party itself. Not only should you record the candle-blowing scene, but also the smiles of the family while being surrounded by good food, or even the father who is slightly drunk from champagne!

Finding the Presents

A tree is the most important thing to bring out the mood of Christmas.

Simply the scene of all family members engaging in the decorating of a fir tree with various colorful ornaments is full of the feeling of happiness.

Preparing the Dinner

Record the scenes as everyone helps to prepare the feast of the night. You can film the mother who is cooking, the children who are helping, and of course, the process of making a cake!

For children, the greatest joy of Christmas is receiving presents the next

morning. Their expression of delight when finding a present next to their pillow is a recording opportunity not to be missed. Get ready to shoot before the children wake up!

Useful Shooting Techniques

Wedding

Create an awesome wedding video for the bride and groom!

Discussing and Planning Before the Event

Before the day of the wedding reception, it is important to discuss with the bride and groom about various details such as the order of the ceremony and whether there are any entertainment programs or change of clothes. By understanding the preferences of the bride and groom, you will be able to shoot more appropriately.

Finding out the route of entrance

Recording the Expressions and Comments of Guests

Setting the shot from eye level to chest level

You can record comments from the guest by going around asking, "Please say a few words for the bride and groom". This can be done at the guests' waiting room, when the bride and groom are changing, or during the entertainment programs.

The highlight of a wedding reception is the entrance of the bride and groom.

Find out which door they will enter from and the route they will take from the person-in-charge of the wedding hall in advance. Set up the tripod at a place where you can follow the couple using zoom without having to move around.

Number of times and timing of clothes-changing

Find out the timing of any changing of clothes so as to capture the scene well when the bride and groom enter again. You can also make use the time while the bride and groom are changing to record comments of well wishes from the guests.

Finding the Right Angle to Capture Both Bride and Groom

Composing the picture with the guests in front and the bride and groom at the back

The main characters of a wedding are of course the bride and groom. Record their expressions clearly during the toast, speech, entertainment programs, and other scenes. Another recommendation is to capture the face shots of the guests, then pan towards the groom. Picture composition containing the crowd of guests only lacks fun, so be sure to pay attention to the shooting angle and size.

Useful Shooting Techniques

Advanced Operation with Two Camcorders

If video-editing is to be done, record using two camcorders so that a video with varying scenes can be created. You can try asking a close friend who has a camcorder at home. Set the borrowed camcorder on a tripod to focus on taking close-up shots of the bride and groom. In this way, the other camcorder can be moved around to record other scenes, enabling an interesting video with changing scenes to be created through editing and compilation. As most people own at least a digital camera nowadays, even if you are really unable to find an extra camcorder, inserting still pictures to the video at various points is also a good way to add variety. Do give it a try!

<Camcorder 1> Closing up on the bride and groom all the time

<Camcorder 2> Recording the congratulatory messages from friends at the same time

Travel

Capture all the good times of your domestic or overseas trips!

Bringing the Necessary Equipment

The necessary things to bring on a trip depends on your traveling purpose and the destination. For overseas trips in particular, you have to think about what to bring in accordance to the local conditions. Here are some suggestions for your consideration.

Camcorder

Think about how many hours of shooting you will usually perform in a day. Be sure to prepare enough recording medium especially for long overseas trips. If you are recording in SD cards, get ready the sufficient number of cards, including some for backup.

Battery Pack

Prepare a battery pack that is ready for double the expected recording time in a day. For example, if you plan to record for 2 hours a day, prepare a battery pack that is ready for 4 hours (actual recording time). For a day trip, you can prepare a battery with low capacity but for a long trip, do prepare a few batteries with high capacities.

AC Adapter

The JVC AC adapter supports voltages from 110 V to 240 V, and hence can be used anywhere in the world. Bring along the adapter if you are traveling for a long time. Charge the battery pack while sleeping so that you can record with full battery power the next day.

Power Plug Adapter

The shape of the power plug varies according to countries. Be sure to check the shape of the power plug beforehand, and bring the appropriate power plug adapter. “Charging the Battery Pack Overseas” (A p. 71)

Tripod

Useful Shooting Techniques

Using Pan at the Places of Interest

Tourists spots with beautiful scenery or historical sites are places that you would certainly want to record. To capture the magnificence of a scene which cannot be fitted into a single frame, try the panning technique. Refer to “Shooting Tips” found in the “Beginner’s Guide” on this website on how to use panning effectively. In addition, you may also like to take a shot of the signs or monuments that can often be found at the tourist spots.

A tripod is an essential item to take stable images. Select an appropriate

tripod in accordance to your purpose and style of traveling, such as a compact one to be used on a table or one that is at least 1 m tall.

Recording the Excitement Before Departure

It may be a little abrupt to start your travel video at the destination suddenly. Record also the preparations prior to departure if it is a family trip, or the time when everyone is gathered at the meeting place if you are traveling with your friends. For overseas trips, taking a shot of the signs and displays at the airport of the flight you are taking may be useful for future reference.

Showing Everyone Having a Good Time

When taking a video, it is rather dull to shoot only the scenery or historical sites. Talk about your feelings while recording the breath-taking scenery of an attraction so that it will be an interesting scene to view later.

Useful Shooting Techniques

Amusement Park

Take more shots of the smiling faces of everyone in the family!

Taking Videos or Still Images According to the Attraction

You may choose to take videos all the time. However, you may want to take some still images too. The following section explains the scenarios suitable for taking videos or still images.

Scenarios suitable for taking videos

Inducing Responses by Calling Out

Videos with no waving of hands nor laughter are not only dull when you view them later, but also put the capability of the audio-recording function of the camcorder to a waste. When recording, induce more reactions by enthusiastically waving your hands or shouting out "Is it fun?" and the like.

Capturing the Best Moment in a Video as a Still Image

Shots with the eyes closed are often taken by accident. To reduce such mistakes, make use of the function to capture still images from videos. As videos are actually continuous recording of 60 still images within 1 minute, using this function allows you to select the best moment and save it as a still image. “Capturing a Still Image in the Video During Playback” (A p. 127)

Scenarios with changes in body movement are suitable for taking videos.

This includes situations where there are rapid changes in facial expressions or voices of surprise and delight. *Some amusement parks do not allow passengers to perform any recording. Be sure to check beforehand. [Examples]

Merry-go-round, go kart, coffee cup, etc.

Scenarios suitable for taking still images (photos)

Scenarios with little movement of the subject are suitable for taking still images. Try to take the still images from an angle such that the surroundings can be seen clearly. [Examples]

Carousal, ferris wheel, fun bicycle rides, etc.

Advanced Operation with Backlight Compensation

When the subject’s face is in backlight or when the expression cannot be seen clearly, the Intelligent Auto function of this unit automatically increases its brightness for recording. If Intelligent Auto fails to function as expected or if the brightness correction is insufficient, you can increase the brightness by using backlight compensation in the Manual mode. “Setting Details” (A p. 87)

Wi-Fi Capabilities

This unit is equipped with Wi-Fi function. You can do the following using a smartphone or computer via wireless connection.

Name of Function Capability

Using Wi-Fi

Direct Monitoring

GPS Recording

Outside Monitoring

Notification Mail

Video Mail

You can check the image on the camera via direct 1-to-1 connection (Wi-Fi Direct) with a smartphone (or computer), without the need for an access point (wireless LAN router). Recording of videos and still images may be performed while monitoring.

“Image Monitoring via Direct Connection (DIRECT MONITORING)” (A p. 13)

You can record the location information of the venue where recording is taking place via direct connection (Wi-Fi Direct) with a smartphone. The recorded location information can be used on the Everio MediaBrowser 4 software provided with this unit.

“Recording the Location Information” (A p. 16)

You can check the image on the camera with a smartphone (or computer) via an access point at home using wireless LAN router. Recording of videos and still images may be performed while monitoring.

“Image Monitoring via an Access Point at Home (OUTSIDE MONITORING)” (A p. 17)

You can check the image on the camera via internet connection with a smartphone (or computer) while you are outside. Recording of videos and still images may be performed while monitoring.

“Image Monitoring via the Internet (OUTSIDE MONITORING)” (A p. 19)

A still image is automatically captured and sent via e-mail when faces or movements are detected by the camera. You can also set to record videos on the camera during detection.

“Send Still Images via E-mail upon Detection of Face or Movement (DETECT/MAIL SETTING)” (A p. 23)

Videos of up to 15 seconds can be recorded and sent via e-mail.

“Record and Send Videos via E-mail (VIDEO MAIL ATTN.)” (A p. 24)

VIDEO TRANSFER・STILL IMAGE TRANSFER

You can transfer recorded videos or still images using smartphone applications (or computer browsers).

Terms Used in this Guide：

In this guide, operations on the touch panel are described as “tap”.

While the names of the buttons on a smartphone are written as “MENU” or “RETURN”, they may vary according to the smartphone in use.

Refer also to the instruction manual of your smartphone.

Using Wi-Fi

Operating Environment

To use the smartphone application “Everio sync.”, it is necessary to meet the following requirements.

Android Smartphone

A OS: Android2.1 or higher

(This unit is not guaranteed to operate with all models.)

B Supports GPS function (for GPS recording) C Able to connect to the internet or “Android Market™” (required for

software installation)

iPhone/iPad/iPod touch

A OS: iOS4.3.5 or higher

(This unit is not guaranteed to operate with all models.)

B Able to connect to the internet or “App Store™” (required for software

installation)

Computer

To check the image on the camera from a computer browser and to transfer videos/still images, it is necessary to meet the following requirements.

A OS: Windows 7 B Supports wireless LAN or wired LAN

(For direct connections between the camera and computer, support for wireless LAN is required.)

C Installation of Windows Media Player 12 or later

Confirmed operating environment: Internet Explorer 9 or later

Caution :

There is no guarantee that the operations will work with all computer environments. For example, the video download feature of mobile safari browser, etc. is not supported.

Precautions on Using Wi-Fi

Cautions on Wi-Fi Function

Operation is not guaranteed on all devices.

This function is not designed for disaster or crime prevention.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

Communication may not be carried out properly near radio equipment or broadcasting stations. In this case, change the location accordingly.

Radio wave interference by Bluetooth devices Bluetooth devices make use of the same frequency bandwidth (2.4 GHz) as that of Wi-Fi devices. Using this product near such devices may cause radio wave interference, and result in a drop in communication speed or connection failure. In this case, turn off the power of devices that are not in use.

Security of Wireless LAN An advantage of wireless LAN is that instead of using a LAN cable, it transmits information using radio waves, thus enabling LAN connection to be established within the area covered by the radio waves. However, as radio waves penetrate through objects (such as walls) within the range that they cover, security issues, such as interception of transmission or illegal access, may arise if security settings are not configured. Before you connect to the network in a wireless LAN environment, read through the instruction manual for the wireless LAN device in use, and configure the security settings accordingly. Failure to do so may increase the risk of personal information being intercepted, such as user names, passwords, and the content of your mails, or illegal access to the network.

Due to the design of wireless LAN, note that security may be breached by unusual or unforeseeable means.

For more details on wireless LAN and network security, please consult the manufacturer of your wireless LAN device.

JVC shall not be liable for any security issues, troubles, damages or losses arising from the use of this feature.

Radio Waves Used by this Product

This product makes use of radio waves in the ISM band (2.4 GHz). Although a radio station license is not required for using this product, please take note of the following.

Do not use this product near the following places.

Industrial, scientific, or medical equipment, such as microwave ovens and pacemakers

Specified low-power radio stations (radio station license not required)

Bluetooth devices

Equipment such as the above mentioned devices makes use of the same frequency bandwidth as that of Wi-Fi. Using this product near the above equipment may cause radio wave interference, and result in communication failure or a drop in communication speed.

Avoid using this product near a TV or radio set.

TV or radio sets make use of a radio wave frequency bandwidth that is different from that of Wi-Fi, and therefore has no effect on communication by this product or the TV/radio set. However, when a TV/radio set is placed close to a Wi-Fi product, electromagnetic waves emitted by the Wi-Fi product may cause noise to occur in the sound or images of the TV/radio.

Radio signals are unable to penetrate through reinforced steel, metal, or concrete.

The radio waves used by this product are unable to penetrate through reinforced steel, metal, or concrete materials. It may difficult for communication to be established if two rooms or floors are separated by these materials. *Communication may also get weaker when there are human subjects or parts of the body in between the Wi-Fi devices.

Do not connect to wireless networks that you do not have authorization for.

Once connected, it may be considered as unauthorized access and legal actions can be taken against you.

REC

≪PLAY

Do not use the Wi-Fi function outside the country of purchase.

Depending on the country, there may be restrictions on the use of radio waves and any violations could be punishable by law.

Exporting/Bringing the Unit Overseas

Permission from the U.S. government may be required when bringing the unit to an export controlled country set by the U.S. government (such as Cuba, Iraq, North Korea, Iran, Rwanda, and Syria. As of November, 2011). For more information, consult the U.S. Embassy Commercial Service.

Using Wi-Fi

Image Monitoring via Direct Connection (DIRECT MONITORING)

You can check the image on the camera via direct connection (Wi-Fi Direct) with a smartphone (or computer), without the need for an access point (wireless LAN router).

Recording of videos and still images may be performed while monitoring.

Caution :

This function is not designed for disaster or crime prevention.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Recording stops when the smartphone (or computer) is disconnected.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

You may have difficulty establishing a connection via direct monitoring in an environment where the camera is placed away from the smartphone (or computer). In this case, connect using the access point (wireless LAN router).

“Image Monitoring via an Access Point at Home (OUTSIDE MONITORING)” (A p. 17)

What You Need

Smartphone or Windows computer (A wireless LAN that is compatible with WPA2 is necessary.)

Necessary Settings

To operate, it is necessary to connect a smartphone (or computer) to the camera. There are 2 ways to connect, namely “Wi-Fi Protected Setup (WPS)” and “Search and Connect”. Select the appropriate method of connection according to the device.

Wi-Fi Protected Setup (WPS)

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “DIRECT MONITORING” (S) in the shortcut menu. (Operation on this camera)

Tap “WPS”. (Operation on this camera)

********************************

WPSSTOP

PASS:********************************

SSID:********************************

CONNECTING

DIRECT MONITORING

CONTROLLED BY REMOTE

CAMERA NETWORK INFO.

CAMERA OPERATION

STOP

CURRENTLY BEING

DIRECT MONITORING

REC

≪PLAY

WPSQUIT

********************************

PASS:********************************

SSID:********************************

CONNECTING

DIRECT MONITORING

CONTROLLED BY REMOTE

CURRENTLY BEING

CAMERA NETWORK INFO.

CAMERA OPERATION

QUIT

DIRECT MONITORING

Using Wi-Fi

Activate WPS on the smartphone (or computer) within 2 minutes. (Operation on the smartphone (or computer))

To activate WPS, refer to the instruction manual of the device in use.

A connection is established and Q appears on the camera’s screen.

Search and Connect

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “DIRECT MONITORING” (S) in the shortcut menu. (Operation on this camera)

Check the SSID and PASS shown on the camera’s screen, then add the smartphone (or computer) to connect. (Operation on the smartphone (or computer))

For details on connecting your smartphone (or computer) to a Wi-Fi network, please refer to the instruction manual of the phone terminal in use.

A connection is established and Q appears on the camera’s screen.

Operation Method

CONTROLLED BY REMOTE

CURRENTLY BEING

CAMERA NETWORK INFO.

CAMERA OPERATION

QUIT

DIRECT MONITORING

Smartphone (Android / iPhone)

Memo :

It is necessary to install the application on the smartphone.

“Installing Smartphone Applications” (A p. 43)

Start “Everio Sync.” on the smartphone after setting direct monitoring.

The smartphone starts to search for the camera automatically.

Using Wi-Fi

The URL for the computer to connect to appears.

Check the URL. (Adds network information screen.)

After checking the URL, tap “QUIT” to return to the previous screen.

Start Internet Explorer (web browser) on the computer and enter the URL.

Using the Wi-Fi function from the web browser

“Using the Wi-Fi Function from a Web Browser” (A p. 49)

To end operations, tap “STOP”.

Once the camera is found, it will be connected.

A connection is established. (Adds application screen on the smartphone.)

Tap “CAMERA OPERATION” on the camera to enable operations from it. When operating from the camera, tap J on the camera to enable operations from the smartphone application.

Using smartphone applications

“Using Smartphone Applications” (A p. 43)

To end operations, tap “STOP”.

Computer (Windows 7)

Tap “CAMERA NETWORK INFO.” after setting direct monitoring. (Operation on this camera)

GPS

REC

≪PLAY

WPSQUIT

********************************

PASS:********************************

SSID:********************************

CONNECTING

DIRECT MONITORING

REC

≪PLAY

WPSQUIT

********************************

PASS:********************************

SSID:********************************

CONNECTING

DIRECT MONITORING

Using Wi-Fi

Recording the Location Information

You can record the location information of the venue where recording is taking place via direct connection (Wi-Fi Direct) with a smartphone.

Memo :

To obtain the location information, it is necessary to start the smartphone application and connect it to the camera. Also, setting the “LOC INFO TRANS INT” for the smartphone application is necessary.

“Using Smartphone Applications” (A p. 43)

Activate the GPS function of the smartphone in advance.

The recorded location information can be used on the software provided with this unit. For more information, refer to “MediaBrowser Help”.

What You Need

Smartphone

Activate WPS on the smartphone within 2 minutes. (Operation on the smartphone)

To activate WPS, refer to the instruction manual of the device in use.

A connection is established and Q appears on the camera’s screen.

Search and Connect

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “DIRECT MONITORING” (S) in the shortcut menu. (Operation on this camera)

Necessary Settings

To operate, it is necessary to connect a smartphone to the camera. There are 2 ways to connect, namely “Wi-Fi Protected Setup (WPS)” and “Search and Connect”. Select the appropriate method of connection according to the device.

Wi-Fi Protected Setup (WPS)

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “DIRECT MONITORING” (S) in the shortcut menu.

(Operation on this camera)

Check the SSID and PASS shown on the camera’s screen, then register them on the smartphone to connect. (Operation on the smartphone)

A connection is established and Q appears on the camera’s screen.

For details on connecting your smartphone to a Wi-Fi network, please refer to the instruction manual of the phone terminal in use.

Tap “WPS”.

(Operation on this camera)

CONTROLLED BY REMOTE

CURRENTLY BEING

CAMERA NETWORK INFO.

CAMERA OPERATION

QUIT

DIRECT MONITORING

11:00AM

Using Wi-Fi

Operation Method

Tap “CAMERA OPERATION” after setting direct monitoring. (Operation on this camera)

The recording mode starts on this camera.

Activate the GPS function of the smartphone and start the application on it. (Check the “LOC INFO TRANS INT”)

“Using Smartphone Applications” (A p. 43)

Start recording. (Operation on this camera)

Image Monitoring via an Access Point at Home (OUTSIDE MONITORING)

You can check the image on the camera with a smartphone (or computer) via an access point at home using wireless LAN router.

Recording of videos and still images may be performed while monitoring.

Caution :

This function is not designed for disaster or crime prevention.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Recording stops when the smartphone (or computer) is disconnected.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

Z appears on the camera’s screen.

Tap J to return to the previous screen.

To end operations, tap “STOP”.

Memo :

Manual recording cannot be performed.

It is not possible to switch to the playback mode.

When operations from this unit are enabled, operations from the smartphone do not work. To operate from a smartphone, tap J.

What You Need

Smartphone or Windows computer

Wireless LAN router (use a product that has a Wi-Fi certification logo)

Memo :

Depending on the wireless LAN router in use and signal strength, you may experience connection problems or slow connections.

Necessary Settings

To operate, it is necessary to register the access point (wireless LAN router) for the camera to connect to.

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

In addition, it is also necessary to connect the smartphone (or computer) to the access point in advance.

*The above settings are not necessary if they have already been set for other functions.

For details on connecting your smartphone (or computer) to a Wi-Fi network, please refer to the instruction manual of the phone terminal in use.

REC

≪PLAY

OUTSIDE MONITORING

Wi-Fi

Using Wi-Fi

Operation Method

Smartphone (Android / iPhone)

Memo :

It is necessary to install the application on the smartphone.

“Installing Smartphone Applications” (A p. 43)

Tap “MENU”.

(Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “OUTSIDE MONITORING”.

(Operation on this camera)

Start “Everio Sync.” on the smartphone.

The smartphone starts to search for the camera automatically.

If the camera cannot be found, enter the URL (LAN) displayed in “CAMERA NETWORK INFO.” directly. To display “CAMERA NETWORK INFO.”, refer to “Computer (Windows 7)”.

The username is “everio” and the default password is “0000”.

“Changing the Settings” (A p. 27)

Using smartphone applications

“Using Smartphone Applications” (A p. 43)

To end operations, tap “STOP”.

Computer (Windows 7)

Tap “MENU”. (Operation on this camera)

REC

≪PLAY

OUTSIDE MONITORING

Wi-Fi

CAMERA NETWORK INFO.

QUIT

CONTROLLED BY REMOTE

CURRENTLY BEING

OUTSIDE MONITORING

QUIT

CAMERA NETWORK INFO.

URL(LAN):http://***************

***************/

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “OUTSIDE MONITORING”. (Operation on this camera)

Tap “CAMERA NETWORK INFO.”. (Operation on this camera)

The URL (LAN) for the computer to connect to appears.

Check the URL (LAN).

Using Wi-Fi

Image Monitoring via the Internet (OUTSIDE MONITORING)

You can check the image on the camera via internet connection with a smartphone (or computer). *Connection to the internet is established via a wireless LAN router.

Recording of videos and still images may be performed while monitoring.

Caution :

Too much usage may cause high communication fees to be incurred, and there may be a limit to the volume of communication. For more details, please check your Internet or smartphone subscription.

If the network connection is slow, video images may appear jumpy, or audio sound may be interrupted or delayed.

This function is not designed for disaster or crime prevention.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Recording stops when the smartphone (or computer) is disconnected.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

To monitor images while you are out, make sure in advance that you can establish a connection via the Internet by entering the URL (WAN) displayed in “Network Information”. However, you cannot monitor (operate) in the same way as while you are out when your smartphone (or computer) is connected to a home network via Wi-Fi.

Start using after changing the password. If the password is not changed, there is a high risk of unauthorized access from others. Also, avoid using easily guessable passwords, such as birth dates. You are recommended to change your password periodically.

“Setting the Password (OUT MONITORING SET)” (A p. 28)

There is no guarantee that the operations will work with all computer environments. For example, the video download feature of mobile safari browser, etc. is not supported.

After checking the URL, tap “QUIT” to return to the previous screen.

Start Internet Explorer (web browser) on the computer and enter the URL.

The username is “everio” and the default password is “0000”.

“Changing the Settings” (A p. 27)

Using the Wi-Fi function from the web browser

“Using the Wi-Fi Function from a Web Browser” (A p. 49)

To end operations, tap “STOP”.

Setting Multiple Cameras in the Same Network： Take note of the following.

When UPnP is in use, cameras that are connected to the network later will be connected via the internet.

To set up multiple cameras, you need to fix the IP address for each of the cameras (configure the LAN settings of the access point manually). In addition, it is also necessary to perform settings of the wireless LAN router in use manually. (For setting details, refer to the instruction manual of the wireless LAN router in use.)

“Editing LAN Settings of Access Points (Wireless LAN Router)” (A p. 39)

REC

≪PLAY

OUTSIDE MONITORING

Wi-Fi

CAMERA NETWORK INFO.

QUIT

CONTROLLED BY REMOTE

CURRENTLY BEING

OUTSIDE MONITORING

URL(LAN):http://***************

***************/

QUIT

***************/

URL(WAN):http://***************

CAMERA NETWORK INFO.

Using Wi-Fi

What You Need

Smartphone or Windows computer

Wireless LAN router that supports UPnP (use a product that has a Wi-Fi certification logo)

To check whether UPnP is supported, please refer to the instruction manual of the wireless LAN router in use.

Internet connection with an obtainable global IP address

Memo :

Depending on the wireless LAN router in use and signal strength, you may experience connection problems or slow connections.

Necessary Settings

To operate, it is necessary to connect the camera to the internet via an access point (UPnP compatible wireless LAN router) in the house. As such, the following settings are required. *The above settings are not necessary if they have already been set for other functions.

Registering an access point

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

Obtaining a dynamic DNS account

“Obtaining a Dynamic DNS (DDNS) Account” (A p. 29)

Setting the account on this camera

“Setting Dynamic DNS (DDNS) on this Camera (OUT MONITORING SET)” (A p. 29)

Caution :

Even if registration is done correctly to the camera, access may be temporarily unavailable such as when the dynamic DNS server is down. To check whether the dynamic DNS server is working properly, access and check the DDNS server with a computer, etc.

Operation Method

Smartphone (Android / iPhone)

Memo :

It is necessary to install the application on the smartphone.

“Installing Smartphone Applications” (A p. 43)

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “OUTSIDE MONITORING”. (Operation on this camera)

Tap “CAMERA NETWORK INFO.”. (Operation on this camera)

The URL (WAN) for the smartphone to connect to appears. (Does not appear if DDNS is not set or set incorrectly.)

[LUPnP] is displayed when UPnP cannot be used.

Check the URL (WAN).

After checking the URL, tap “QUIT” to return to the previous screen.

Start “Everio Sync.” on the smartphone.

Using Wi-Fi

Enter the confirmed URL (WAN) directly.

“Changing the Settings” (

Using smartphone applications

A p. 27)

“Using Smartphone Applications” (A p. 43)

To end operations, tap “STOP”.

The username is “everio” and the default password is “0000”.

REC

≪PLAY

OUTSIDE MONITORING

Wi-Fi

CAMERA NETWORK INFO.

QUIT

CONTROLLED BY REMOTE

CURRENTLY BEING

OUTSIDE MONITORING

URL(LAN):http://***************

***************/

QUIT

***************/

URL(WAN):http://***************

CAMERA NETWORK INFO.

Using Wi-Fi

Computer (Windows 7)

Tap “MENU”.

(Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “OUTSIDE MONITORING”.

(Operation on this camera)

To end operations, tap “STOP”.

Tap “CAMERA NETWORK INFO.”.

(Operation on this camera)

The URL (WAN) for the computer to connect to appears. (Does not appear if DDNS is not set or set incorrectly.)

Check the URL (WAN).

After checking the URL, tap “QUIT” to return to the previous screen.

Start Internet Explorer (web browser) on the computer and enter the

URL.

The username is “everio” and the default password is “0000”.

“Changing the Settings” (A p. 27)

Using the Wi-Fi function from the web browser

“Using the Wi-Fi Function from a Web Browser” (A p. 49)

Send Still Images via E-mail upon Detection

REC

≪PLAY

DETECT/MAIL SETTING

Wi-Fi

RECIPIENT'S EMAIL

DETECT/MAIL SETTING

SET

RECIPIENT'S EMAIL

of Face or Movement (DETECT/MAIL SETTING)

Using Wi-Fi

Memo :

The size of the still image that is captured in “DETECT/MAIL SETTING” is 640 x 360.

Operation via connection to a smartphone (or computer) using “OUTSIDE MONITORING” may be performed even during detection standby.

When the camera is connected to a smartphone (or computer), “DETECT/ MAIL SETTING” will be temporarily unavailable.

You can set to record videos on this unit automatically during detection.

“Recording on this unit” (A p. 27)

To prevent too many e-mails from being sent in case of detections occurring frequently, you can set the interval of e-mail delivery.

“Setting detection interval” (A p. 27)

Caution :

This function is not designed for disaster or crime prevention.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

While on standby for notification mails, the focus is fixed. Perform the camera settings first, then enable notification mails. Focus may not be set correctly if the notification mails start before camera settings are made. In this case, disable notification mails temporarily, then enable it again.

Be careful not to cause too much sending of e-mails. Depending on the internet provider that provides the e-mail service, the e-mails may be marked as spam or the usage limited may be exceeded. Be sure to check the terms of the internet provider in advance to find out if there are any restrictions on the number or size of e-mails that can be sent.

When setting another person as the recipient, be sure to obtain his/her consent in advance.

If you reply to the received e-mail by using this unit, the receiver can not check your replied e-mail by using this unit. Check the e-mails sent by this unit from computer, etc.

JVC will not be responsible for any trouble that occurs upon the sending of mails.

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “DETECT/MAIL SETTING”. (Operation on this camera)

Tap “RECIPIENT'S EMAIL”. (Operation on this camera)

What You Need

Wireless LAN router (use a product that has a Wi-Fi certification logo)

Internet connection

Account for sending e-mails (Supports SMTP. E-mail services that is only accessible from the web cannot be used.)

Necessary Settings

To send e-mails, the following settings are required. *The above settings are not necessary if they have already been set for other functions.

Registering an access point

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

Setting the account for sending e-mails

“Setting the Sender’s E-mail Address” (A p. 30)

Registering the recipient’s e-mail address

“Registering the Recipient’s E-mail Address” (A p. 33)

Selecting the Recipient’s E-mail Address

Tap “MENU”. (Operation on this camera)

Tap the e-mail address to be set as recipient. (Operation on this camera)

An icon a appears beside the recipient’s e-mail address.

After setting, tap “SET”.

Settings will not be saved until “SET” is tapped.

REC

≪PLAY

DETECT/MAIL

Wi-Fi

Using Wi-Fi

Operation Method

Set up the camera at the recording location.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “DETECT/MAIL”.

(Operation on this camera)

Images are captured automatically when moving subjects or human faces appear on the camera’s screen. (The PHOTO icon appears on the screen upon detection.)

“Changing the Settings” (A p. 27)

The captured still images will be sent via e-mail to the selected recipients.

Record and Send Videos via E-mail (VIDEO MAIL ATTN.)

Videos of up to 15 seconds can be recorded and sent via e-mail. With this function, short videos can be delivered easily even on a daily basis, such as to show the growing up of small children to their distant grandparents.

Memo :

Specifications of the videos sent via video mail are as follows: System: MP4 Video:

- H.264/MPEG-4 AVC baseline profile codec

- 640 x 360 resolution

- 30p frame rate

- 1 Mbps bit rate Audio:

- Advanced Audio Coding (AAC) system

- 48 kHz sampling rate

- 16 bit

- 2 channels

Caution :

When setting another person as the recipient, be sure to obtain his/her consent in advance.

Depending on the e-mail service provider, the sending of video mail may not be supported.

Too much usage may cause high communication fees to be incurred, and there may be a limit to the volume of communication. For more details, please check your Internet or smartphone subscription.

If you reply to the received e-mail by using this unit, the receiver can not check your replied e-mail by using this unit. Check the e-mails sent by this unit from computer, etc.

JVC will not be responsible for any trouble that occurs upon the sending of mails.

Videos captured via video mail are not saved to the camera or SD card.

Videos that have already been captured cannot be sent.

What You Need

Wireless LAN router (use a product that has a Wi-Fi certification logo)

Internet connection

Account for sending e-mails (Supports SMTP. E-mail services that is only accessible from the web cannot be used.)

REC

≪PLAY

VIDEO MAIL ATTN.

Wi-Fi

SET

VIDEO MAIL ATTN.

REC

≪PLAY

REC

0:00:15

VIDEO MAIL

Using Wi-Fi

Necessary Settings

To send e-mails, the following settings are required. *The above settings are not necessary if they have already been set for other functions.

Registering an access point

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

Setting the account for sending e-mails

“Setting the Sender’s E-mail Address” (A p. 30)

Registering the recipient’s e-mail address

“Registering the Recipient’s E-mail Address” (A p. 33)

Selecting the Recipient’s E-mail Address

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Operation Method

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “VIDEO MAIL” (R) in the shortcut menu. (Operation on this camera)

Start recording.

Tap “VIDEO MAIL ATTN.”. (Operation on this camera)

Tap the e-mail address to be set as recipient. (Operation on this camera)

Recording starts after the countdown (5 seconds).

0 0 0

An icon a appears beside the recipient’s e-mail address. After setting, tap “SET”. Settings will not be saved until “SET” is tapped.

You can allow the recording to be performed for 15 seconds or press the START/STOP button to stop.

Tap “SEND”. (Operation on this camera)

PLAY TO CHECK

STOP

SEND

SEND THIS VIDEO?

VIDEO MAIL

Using Wi-Fi

Sending of the video mail starts.

To check the file, tap “PLAY TO CHECK”.

When it is complete, tap “OK”.

Changing the Settings

To use the Wi-Fi function, it may be necessary to perform some settings on the camera and smartphone (or computer).

Registering the access points to connect (wireless LAN router)

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

Obtaining a dynamic DNS account

“Obtaining a Dynamic DNS (DDNS) Account” (A p. 29)

Setting the account on this camera

“Setting Dynamic DNS (DDNS) on this Camera (OUT MONITORING SET)” (A p. 29)

Setting the sender’s e-mail address

“Setting the Sender’s E-mail Address” (A p. 30)

Registering the recipient’s e-mail address

“Registering the Recipient’s E-mail Address” (A p. 33)

Menu Settings

Setting Details

OUT MONITORING SET Configures various settings related to outside monitoring.

PASSWORD (Default: “0000”) Selects the password to access the camera.

“Setting the Password (OUT MONITORING SET)” (A p. 28)

UPnP (Default: “ON”) Sets the UPnP of the camera.

・OFF: Disables UPnP. ・ON: Enables UPnP.

“Setting the UPnP of this Camera (OUT MONITORING SET)” (A p. 28)

DDNS SETTING Configures various settings related to DDNS.

“Setting Dynamic DNS (DDNS) on this Camera (OUT MONITORING SET)” (A p. 29)

Using Wi-Fi

VIDEO MAIL ATTN. Selects the recipient’s e-mail address for video mails.

DETECT/MAIL SETTING Configures various settings related to notification mails.

NETWORK SETTINGS Configures various settings related to the network.

“Record and Send Videos via E-mail (VIDEO MAIL ATTN.)” (A p. 25)

RECIPIENT'S EMAIL Selects the recipient’s e-mail address for notification mails.

“Registering the Recipient’s E-mail Address” (A p. 33)

DETECTION METHOD (Default: “MOTION DETECTION”) Sets the detection method to start recording.

・MOTION DETECTION: Starts recording upon detection of subject’s movements. ・FACE DETECTION: Starts recording upon detection of human faces.

“Setting the Detection Method of this Camera (DETECT/MAIL SETTING)” (A p. 34)

DETECTION INTERVAL (Default: “10 minutes”) Sets the time period to enable detection again after the previous one.

“Setting the Detection Interval of this Camera (DETECT/MAIL SETTING)” (A p. 34)

SELF RECORDING (Default: “ON”) Sets whether to record videos on this camera during detection.

・OFF: Does not record videos on this camera. ・ON: Records videos on this camera.

“Setting Self Recording on this Camera (DETECT/MAIL SETTING)” (A p. 35)

ACCESS POINTS Adds, deletes, or perform LAN settings of access points (wireless LAN router).

“Registering the Access Points to Connect (“ACCESS POINTS”)” (A p. 35)

Wi-Fi DIRECT SETTING Configures various settings related to direct monitoring.

・PASSWORD

Sets the password for direct monitoring. ENFORCED GROUP OWNER (Default: “ON”) Sets whether to enforce authorization of the group owner.

・OFF: Set this if connection to devices that support Wi-Fi Direct fails. (When set to OFF, connection to

devices that do not support Wi-Fi Direct will be disabled.)

・ON: It is recommended to set this usually.

“Setting the Password (DIRECT MONITORING)” (A p. 40) “Setting the Enforced Group Owner (DIRECT MONITORING)” (A p. 41)

MAIL SETTING Sets the e-mail addresses of the sender and recipient.

“Setting the Sender’s E-mail Address” (A p. 30) “Registering the Recipient’s E-mail Address” (A p. 33)

MAC ADDRESS Displays the MAC address of the camera. (The above shows the MAC address when connected to an access point, while the below shows the address during direct connection.)

“Checking the MAC Address of this Camera” (A p. 41)

SET FROM WEB BROWSER Enables configuration of the camera settings from a web browser.

“Using the Wi-Fi Function from a Web Browser” (A p. 49)

LOCK SETTINGS Sets a password to prevent others from seeing the network settings.

“Protecting the Network Settings with a Password” (A p. 42)

INITIALIZATION Returns the network settings to their default values.

“Initializing the Network Settings” (A p. 42)

REC

≪PLAY

OUT MONITORING SET

Wi-Fi

OUT MONITORING SET

PASSWORD

SET

DELETE

PASSWORD

SET

CANCEL

REC

≪PLAY

OUT MONITORING SET

Wi-Fi

SET

UPnP

OUT MONITORING SET

Using Wi-Fi

Setting the Password (OUT MONITORING SET)

Sets the password to access the camera. (Not more than 8 characters)

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “OUT MONITORING SET”.

(Operation on this camera)

Setting the UPnP of this Camera (OUT MONITORING SET)

Sets the UPnP of the camera.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “OUT MONITORING SET”. (Operation on this camera)

Tap “PASSWORD”.

(Operation on this camera)

Enter the password.

(Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “UPnP”.

(Operation on this camera)

0 0 0 0

Tap “ON” or “OFF”. Select “ON” to enable UPnP. Select “OFF” to disable UPnP. After setting, tap “SET”.

REC

≪PLAY

OUT MONITORING SET

Wi-Fi

OUT MONITORING SET

DDNS SETTING

SET

DOMAIN NAME

PASSWORD

USERNAME

STREAM SERVER SETTING

DDNS

Using Wi-Fi

Obtaining a Dynamic DNS (DDNS) Account

By obtaining a dynamic DNS account, this unit may be used on the web as usual even if the IP address changes when it is connected to the internet.

Only the JVC dynamic DNS service can be set on this camera.

To obtain (register) an account, perform the following steps.

Access the following URL and register for an account. (Operation on a computer or smartphone)

https://dd3.jvckenwood.com/user/

Set your e-mail address as the username.

Check that you have received a confirmation e-mail to the address used in registration, and access the URL stated in the e-mail. (Operation on a computer or smartphone)

Set the username and password used in registration on the camera. (Operation on this camera)

“Setting Dynamic DNS (DDNS) on this Camera (OUT MONITORING SET)” (A p. 29)

Execute “OUTSIDE MONITORING”. (Operation on this camera)

If “OUTSIDE MONITORING” is executed while dynamic DNS settings are enabled, the camera will access the dynamic DNS server.

Tap “CAMERA NETWORK INFO.” to check that the URL (WAN) is displayed. (Registration complete)

“Image Monitoring via the Internet (OUTSIDE MONITORING)” (A p. 19)

Caution :

Registration will be canceled if you do not access the dynamic DNS server from the camera within 3 days. Perform the registration again in this case.

Registration will not be complete if the username and password set on this camera are incorrect. Be sure to check that they are correct.

Successful registration will be canceled too if you do not access the dynamic DNS server for 1 year.

Setting Dynamic DNS (DDNS) on this Camera (OUT MONITORING SET)

Sets the dynamic DNS information of the obtained account on the camera.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “OUT MONITORING SET”. (Operation on this camera)

Tap “DDNS SETTING”. (Operation on this camera)

Tap “DDNS”, then tap “ON”. (Operation on this camera)

CANCELSET

DELETE

USERNAME

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

MAIL SETTING

NETWORK SETTINGS

SENDER'S EMAIL

RECIPIENT'S EMAIL

MAIL SETTING

Using Wi-Fi

Enter the DDNS settings (username/password).

(Operation on this camera)

Tap “USERNAME” or “PASSWORD” to display the respective input screens.

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Memo :

Only the JVC dynamic DNS service can be set on this camera.

Setting the Sender’s E-mail Address

Sets the address to be used for sending e-mails on the camera.

Memo :

By using Gmail as the sender’s mail address, some of the settings can be omitted. Use of Gmail is recommended for users who have a Gmail account.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “MAIL SETTING”. (Operation on this camera)

Tap “SENDER'S EMAIL”. (Operation on this camera)

Enter the e-mail address and tap “SET”.

SENDER'S EMAIL

CANCEL

SET

DELETE

SMTP SERVER

MAIL SETTING

CANCEL

SET

DELETE

SMTP SERVER

SET

SMTP PORT

MAIL SETTING

CANCEL

SET

DELETE

SMTP PORT

AUTHENTICATE METHOD

SET

MAIL SETTING

SMTP(TLS)

SMTP(SSL)

SMTP

NONE

AUTHENTICATE METHOD

USERNAME

AUTHENTICATE METHOD

MAIL SETTING

CANCEL

SET

DELETE

USERNAME

PASSWORD

MAIL SETTING

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “SMTP SERVER” (not necessary in the case of Gmail) (Operation on this camera)

Using Wi-Fi

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “AUTHENTICATE METHOD” (not necessary in the case of Gmail)

Tap the desired “AUTHENTICATE METHOD”.

Enter the SMTP server and tap “SET”.

This is automatically configured if the sender’s mail address is Gmail.

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “SMTP PORT” (not necessary in the case of Gmail)

Change the SMTP port number (if necessary) and tap “SET”.

This is automatically configured if the sender’s mail address is Gmail.

Tap “USERNAME”.

Enter the username and tap SET.

For Gmail mail addresses, enter the name to the left of “@”.

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “PASSWORD”.

This is automatically configured if the sender’s mail address is Gmail.

Enter the password and tap “SET”.

CANCEL

SET

DELETE

PASSWORD

SET

SMTP PORT

SMTP SERVER

RECIPIENT'S EMAIL

MAIL SETTING

Using Wi-Fi

SENDER'S EMAIL Enter the sender’s e-mail address.

SMTP SERVER Enter the SMTP server address.

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

After setting all the necessary items, tap “SET”.

Settings will not be saved until “SET” is tapped.

SMTP PORT Set this when the SMTP port number needs to be

AUTHENTICATE METHOD

USERNAME Enter the username.

PASSWORD Enter the password.

changed.

Set this when the authentication method needs to be changed.

Caution :

It is necessary to obtain an e-mail account in advance.

Some web-based mail addresses do not support this feature.

These are Gmail settings as of January 2012. Perform setting manually if changes have been made to the Gmail specifications.

To make use of addresses other than Gmail, please consult the mail service provider (Internet provider, etc.) for information on the settings.

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

MAIL SETTING

NETWORK SETTINGS

SENDER'S EMAIL

RECIPIENT'S EMAIL

MAIL SETTING

ADD

RECIPIENT'S EMAIL

CANCELSET

DELETE

RECIPIENT'S EMAIL

Using Wi-Fi

Registering the Recipient’s E-mail Address

Registers the e-mail addresses of recipients on the camera.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “MAIL SETTING”. (Operation on this camera)

Tap “ADD”. (Operation on this camera)

Enter the recipient’s e-mail address.

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Memo :

Up to 8 e-mail addresses can be registered as recipients.

Caution :

When setting another person as the recipient, be sure to obtain his/her consent in advance.

Check whether notifications indicating errors have been sent to the sender’s e-mail address. (Make use of a computer or similar devices as it is not possible to check from the camera.)

If no notifications are received: Refer to “Unable to send e-mails.” and adjust the settings accordingly. If notifications are received: Check the content of the notification.

Tap “RECIPIENT'S EMAIL”. (Operation on this camera)

*Note Do not continue sending e-mails with the same settings if you receive error notifications. Depending on the provider, you may be marked as a sender of spam (junk mail).

REC

≪PLAY

DETECT/MAIL SETTING

Wi-Fi

DETECTION METHOD

DETECT/MAIL SETTING

REC

≪PLAY

DETECT/MAIL SETTING

Wi-Fi

DETECT/MAIL SETTING

DETECTION INTERVAL

Using Wi-Fi

Setting the Detection Method of this Camera (DETECT/MAIL SETTING)

Sets the detection method to start recording.

Tap “MENU”.

(Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “DETECT/MAIL SETTING”.

(Operation on this camera)

Setting the Detection Interval of this Camera (DETECT/MAIL SETTING)

Sets the time period to enable detection again after the previous one.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “DETECT/MAIL SETTING”. (Operation on this camera)

Tap “DETECTION METHOD”.

(Operation on this camera)

Tap “MOTION DETECTION” or “FACE DETECTION”.

Select “MOTION DETECTION” to start recording upon detection of subject’s movements.

Select “FACE DETECTION” to start recording upon detection of human faces.

Tap “DETECTION INTERVAL”. (Operation on this camera)

Set the interval to perform detection. By default, it is set to 10 minutes.

REC

≪PLAY

DETECT/MAIL SETTING

Wi-Fi

SELF RECORDING

DETECT/MAIL SETTING

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

Using Wi-Fi

Setting Self Recording on this Camera (DETECT/MAIL SETTING)

Sets whether to record videos on this camera during detection.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “DETECT/MAIL SETTING”. (Operation on this camera)

Registering the Access Points to Connect (“ACCESS POINTS”)

There are 4 ways to register the access points (wireless LAN router) for connection.

Wi-Fi Protected Setup (WPS) Registration

This is the easiest way of registration. Authentication method and wireless LAN setup are performed automatically in WPS, allowing easy registration of connection settings between devices.

Search and Register

A search is conducted to locate access points. Select and register an access point from the list of search results.

Manual Registration

WPS PIN Registration

Enter the name and authentication method manually to register an access point.

Enter the WPS PIN code of the camera to the access point to register.

Memo :

By registering multiple access points, you can change connection to another access point by tapping on the desired one from the list.

Wi-Fi Protected Setup (WPS) Registration

Tap “MENU”. (Operation on this camera)

Tap “SELF RECORDING”. (Operation on this camera)

Tap “ON” or “OFF”.

Select “ON” to record videos on this camera.

Select “OFF” not to record videos on this camera.

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

ACCESS POINTS

NETWORK SETTINGS

ADD

ACCESS POINTS

EZ REGISTRATION WPS

ADD



WPS

WPA2

ENCRYPTION METHOD

SSID:********************************

REGISTERED

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

ACCESS POINTS

NETWORK SETTINGS

ADD

ACCESS POINTS

Using Wi-Fi

Tap “ACCESS POINTS”.

(Operation on this camera)

Tap “ADD”.

(Operation on this camera)

Tap “EZ REGISTRATION WPS”.

(Operation on this camera)

Search and Register

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Activate WPS of the access point (wireless LAN router) within 2 minutes.

To activate WPS, refer to the instruction manual of the device in use.

After registration is complete, tap “OK” on the camera’s screen.

(Operation on this camera)

Tap “ACCESS POINTS”. (Operation on this camera)

Tap “ADD”. (Operation on this camera)

ADD

SEARCH AGAIN

DELETE

PASSWORD

SET

CANCEL



WPS

WPA2

ENCRYPTION METHOD

SSID:********************************

REGISTERED

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

ACCESS POINTS

NETWORK SETTINGS

ADD

ACCESS POINTS

MANUAL

ADD

Tap “SEARCH”. (Operation on this camera)

The search results appear on the camera’s screen.

Tap the name (SSID) of the desired access point from the list of search results. (Operation on this camera)

Manual Registration

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Using Wi-Fi

Enter the password. (Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

The password is not required if the wireless LAN router is not security protected.

After registration is complete, tap “OK” on the camera’s screen. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “ACCESS POINTS”. (Operation on this camera)

Tap “ADD”. (Operation on this camera)

Tap “MANUAL”. (Operation on this camera)

SSID

CANCELSET

DELETE

NONE

TYPE OF SECURITY

WPA2

WPA

WEP

DELETE

PASSWORD

SET

CANCEL



WPS

WPA2

ENCRYPTION METHOD

SSID:********************************

REGISTERED

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

ACCESS POINTS

NETWORK SETTINGS

ADD

ACCESS POINTS

Using Wi-Fi

Enter the name (SSID) of the access point (wireless LAN router) and tap

“SET”.

(Operation on this camera)

WPS PIN Registration

Tap “MENU”. (Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

Select the type of authentication method (security). (Operation on this camera)

Select according to the setting of your router.

When authentication method is not set to “NONE”, enter a password and tap “SET”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “ACCESS POINTS”. (Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After registration is complete, tap “OK” on the camera’s screen. (Operation on this camera)

Tap “ADD”. (Operation on this camera)

WPS PIN

ADD

QUIT

THEN TOUCH "START"

TO ACCESS POINT

ENTER THIS NUMBER

PIN:********

WPS PIN

START



WPS

WPA2

ENCRYPTION METHOD

SSID:********************************

REGISTERED

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

ACCESS POINTS

NETWORK SETTINGS

MyHome

DELETE

ADD

UPDATE

ACCESS POINTS

SET

SUBNET MASK

IP ADDRESS

OFF

DHCP

LAN SETTINGS

Using Wi-Fi

Tap “WPS PIN”. (Operation on this camera)

The PIN code appears.

Enter the PIN code displayed on the camera to the access point (wireless LAN router).

For details on how to enter the PIN code, refer to the instruction manual of the device in use.

Tap “START”. (Operation on this camera)

Tap “START” after entering PIN code to the wireless LAN router. (Connection cannot be established if “START” is tapped before entering the code.)

After registration is complete, tap “OK” on the camera’s screen. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “ACCESS POINTS”. (Operation on this camera)

Tap “UPDATE”. (Operation on this camera)

Tap 3 or 2 to select an item to edit or delete.

To change connection to another access point, tap on the desired access point.

Perform the LAN settings. (when “DHCP” is set to “OFF”) (Operation on this camera)

Editing LAN Settings of Access Points (Wireless LAN Router)

Change accordingly such as when you want to fix the IP address for the camera.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

After setting, tap “SET”.

LAN settings comprise of the following items.

DHCP

ON: Obtains IP address from the DHCP server automatically. OFF: Settings of “IP ADDRESS”, “SUBNET MASK”, “DEFAULT GATEWAY”, “PRIMARY DNS”, and “SECONDARY DNS” are required.

IP ADDRESS Enter the IP address.

SUBNET MASK Enter the subnet mask.

DEFAULT

Enter the default gateway.

GATEWAY

PRIMARY DNS / SECONDARY DNS

Enter the IP addresses of the primary and secondary DNS servers.

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

Wi-Fi DIRECT SETTING

PASSWORD

SET

DELETE

PASSWORD

SET

CANCEL

Using Wi-Fi

Setting the Password (DIRECT MONITORING)

Sets the password for direct monitoring. (8 to 32 characters)

Tap “MENU”.

(Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “NETWORK SETTINGS”.

(Operation on this camera)

Tap “Wi-Fi DIRECT SETTING”.

(Operation on this camera)

Tap “PASSWORD”.

(Operation on this camera)

Enter the password.

(Operation on this camera)

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

Wi-Fi DIRECT SETTING

SET

ENFORCED GROUP OWNER

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

MAC ADDRESS

Using Wi-Fi

Setting the Enforced Group Owner (DIRECT MONITORING)

Sets whether to enforce authorization of the group owner.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Checking the MAC Address of this Camera

Displays the MAC address of the camera.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “Wi-Fi DIRECT SETTING”. (Operation on this camera)

Tap “ENFORCED GROUP OWNER”. (Operation on this camera)

Tap “ON” or “OFF”.

It is recommended to select “ON” usually. If connection to devices that support Wi-Fi Direct fails, set to “OFF”.

After setting, tap “SET”.

Memo :

When set to “OFF”, connection to devices that do not support Wi-Fi Direct will be disabled.

Tap “MAC ADDRESS”. (Operation on this camera)

The MAC address of the camera appears. (The above shows the MAC address when connected to an access point, while the below shows the address during direct connection.)

After setting, tap “SET”.

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

LOCK SETTINGS

123

456

789

SET CANCEL

DELETE

PASSWORD

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

INITIALIZATION

NETWORK SETTINGS

NOYES

RESET TO THE FACTORY PRESET?

DO YOU WANT THE SETTINGS

INITIALIZATION

Using Wi-Fi

Protecting the Network Settings with a Password

Sets a password to lock and protect the network settings.

Tap “MENU”.

(Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Tap “NETWORK SETTINGS”.

(Operation on this camera)

Initializing the Network Settings

Returns the network settings to their default values.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu.

(Operation on this camera)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “LOCK SETTINGS”.

(Operation on this camera)

Enter the password.

(Operation on this camera)

Tap on the on-screen keyboard to enter characters. The character changes with every tap.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap E or F to move one space to the left or right.

After setting, tap “SET”.

Tap “INITIALIZATION”. (Operation on this camera)

Tap “YES”. (Operation on this camera)

To cancel, tap “NO”.

When “YES” is tapped, the network settings return to their default values.

To Index Screen

Still Image Recording Button

Video Recording Stop Button

Video Recording Start Button

Zoom Button

Zoom Position

Enable/Disable GPS (icon shown is when disabled)

Running on Battery (icon shown on left is when battery power is less than 30 %)

Running on AC Adapter

Recording in Progress

Record-Standby

To Still Image Index Screen

To Recording Screen

Recording Date/Time

Thumbnail

To Recording Screen

Recording Date/Time

Thumbnail

To Video Index Screen

To Still Image Index Screen

To Video Index Screen

To Settings Screen

Using Wi-Fi

Using Smartphone Applications

By using smartphone applications, you can connect to the camera and make use of the Wi-Fi function.

Installing Smartphone Applications

Android Smartphone

Tap [Market] on the application list.

Search for the “Everio Sync.” application.

Tap on the “Everio Sync.” application.

The detailed information of the application is displayed.

Tap [Download].

For applications that access data or functions of this unit, a screen that shows the data or functions that will be used is displayed.

Confirm the content and tap [Agree and Download].

Downloading starts.

Deleting the Application

A Tap [Market] on the application list. B Press the menu button and tap [My apps].

A list of previously downloaded applications is displayed.

C Tap on the “Everio Sync.” application. D Tap [Uninstall], then tap [OK].

Memo :

The specifications of Android Market™ are subject to changes without prior notice. For operating details, refer to the help file of Android Market™.

Indications on the Screen

Android Smartphone

Recording Screen

Video Index Screen

iPhone/iPad/iPod touch

Tap [App Store] on the home screen.

Search for the “Everio Sync.” application.

Tap on the “Everio Sync.” application.

The detailed information of the application is displayed.

Tap [FREE]F[INSTALL].

Enter your password on the password entry screen.

Downloading starts.

The downloaded application will be added to the home screen automatically.

Deleting the Application

A Press and hold the “Everio Sync.” application on the home screen. B Tap L to confirm the deletion.

Memo :

The specifications of App Store™ are subject to changes without prior notice. For operating details, refer to the help file of App Store™.

Operating the Smartphone Applications

Indications on the screen

“Indications on the Screen” (A p. 43)

Transferring videos

“Transferring Videos” (A p. 44)

Transferring still images

“Transferring Still Images” (A p. 45)

Changing the settings

“Changing the Settings” (A p. 47)

Still Image Index Screen

To exit the application, press the “Return” button.

iPhone/iPad/iPod touch

Recording Screen

To Still Image Index Screen

To Recording Screen

To Video Index Screen

To Recording Screen

Using Wi-Fi

Caution :

“Everio Sync.” for iPhone/iPad cannot be used when the iPhone/iPad is connected to the mobile phone network. To make use of this feature, connect to the camera or an access point via Wi-Fi.

Video Index Screen

Still Image Index Screen

To exit the application, press the “Home” button.

Transferring Videos

You can transfer recorded videos to your smartphone.

The video to be forwarded is converted to the following format. System: MP4 Video:

- H.264/MPEG-4 AVC baseline profile codec

- 640 x 360 resolution

- 30p frame rate

- 1 Mbps bit rate Audio:

- Advanced Audio Coding (AAC) system

- 48 kHz sampling rate

- 16 bit

- 2 channels

Start “Everio Sync.” on the smartphone.

Tap on the thumbnail to transfer.

Tap U.

Tap on the start point (starting time) of the video to transfer.

Using Wi-Fi

The start point and length of video are displayed in the unit set in “VID LENGTH TO TRANS”. (Display shown is when set to 30 seconds)

To have a more detailed setting for the start point and length of video, tap “MANUAL”.

A progress status is displayed on the smartphone during preparation for the transfer and while transferring.

To cancel the transfer, tap “CANCEL”.

Set the start point and length of video, then tap “TRANSFER”. (only when MANUAL is tapped in step 4)

To play back the video, tap “CHECK”. (Android only)

To upload (share) the video, tap “SHARE”. (Android only) Tap the desired service to start the uploading process. To make use of a service, it is necessary to perform registration beforehand.

Transferring Still Images

You can transfer recorded still images to your smartphone.

Start “Everio Sync.” on the smartphone.

(For Android) Tap U. (For iPhone) Tap B.

A progress status is displayed on the smartphone during preparation for the transfer and while transferring.

To cancel the transfer, tap “CANCEL”.

After transferring is complete, tap “OK”.

Using Wi-Fi

Tap V. (Android only)

A progress status is displayed on the smartphone during preparation for the transfer and while transferring.

To cancel the transfer, tap “CANCEL”.

After transferring is complete, tap “OK”.

Tap on the thumbnail to transfer.

To play back the still image, tap “CHECK”. (Android only)

To upload (share) the still image, tap “SHARE”. (Android only) Tap the desired service to start the uploading process. To make use of a service, it is necessary to perform registration beforehand.

Changing the Settings

You can change the settings of the smartphone applications.

Android Smartphone

Press the MENU button.

Using Wi-Fi

Tap “SET”.

Item Details

MONITORING Turns monitoring of the recording screen on/

off.

LOC INFO TRANS INT Sets the time interval for sending location

information.

VID LENGTH TO

Sets the length of video to transfer.

TRANS

URL Enter the URL when using outside monitoring.

HTTP AUTHORIZATION

Enter the required username and password when using outside monitoring. The username is “everio” (fixed) and the default password is “0000”. (can be changed from camera)

CHANGE

Changes the background. BACKGROUND COLOR

HELP Display how to use the Everio sync..

LICENSE AGREEMENT

Displays the license agreement of the

smartphone application.

Memo :

When connecting to outside monitoring, you will be prompted to enter the URL or HTTP authorization if they are not entered or entered incorrectly.

Change the settings on the menu as desired.

Using Wi-Fi

iPhone/iPad/iPod touch

Tap “Q”.

Item

MONITORING Turns monitoring of the recording screen on/

off.

Details

Change the settings on the menu as desired.

LOC INFO TRANS INT Sets the time interval for sending location

CHANGE BACKGROUND COLOR

LENGTH OF VIDEO Sets the length of video to transfer.

URL Enter the URL when using outside monitoring.

USERNAME Enter the required username when using

PASSWORD Enter the required password when using

HELP Display how to use the Everio sync..

information.

Changes the background.

outside monitoring. The username is “everio”. (fixed)

outside monitoring. By default, the password is “0000”. (can be changed from camera)

Memo :

When connecting to outside monitoring, you will be prompted to enter the URL, username, or password if they are not entered or entered incorrectly.

Using the Wi-Fi Function from a Web Browser

Full HD: 1920x1080 / MPEG-2 TS format

MotionJPEG: 640x360 / MotionJPEG format

SD: 720x480 / MPEG-2 TS format

Stream Format Selection (click “SET” to apply)Select the video format when monitoring from a browser.

To Still Image Index Screen

To DETECT/MAIL SETTING Screen

To Video Index Screen

Full Screen(press ESC or double left click to return)

Reload

You can connect to the camera and make use of the Wi-Fi function from the web browser of a computer.

Indications on the screen

“Indications on the Screen” (A p. 49)

Changing the settings

“Making Camera Settings from a Web Browser” (A p. 51)

Indications on the Screen

Recording Screen

Using Wi-Fi

Memo :

The full screen button is not displayed when the stream format is MotionJPEG.

Caution :

Features of the stream format are as follows: Full HD/SD (MPEG-2 TS format)

- Sound of the camera can be checked from the browser.

- Recording and zoom operations cannot be performed from the browser. MotionJPEG

- Sound of the camera cannot be played back from the browser.

- Recording and zoom operations can be performed from the browser.

The monitor’s image stops automatically after monitoring is performed continuously for 12 hours in Full HD or SD. (To resume, press the reload button)

To use Full HD or SD, it is necessary to install Media Player 12 in advance.

When the video recording quality is set to SSW/SEW on the camera, Full HD will not take effect even if selected.

Lagging of the screen may be caused by the network speed or computer performance.

If lagging is severe, reload the screen regularly. (It may take some time for the screen to be displayed after reloading.)

For Full HD, make use of a computer with the following system requirements. CPU Intel Core 2 Duo 2 GHz or higher 2 GB memory or higher

Page Forward/Back

To Recording Screen

*A check mark appears on the selected address.

Registered e-mail addresses of recipients in Everio (Up to 8)

(click “REG.” to apply)

Notification Mail Settings

Using Wi-Fi

Video Index Screen

To download a video, click on the thumbnail.

Still Image Index Screen

To download a still image, click on the thumbnail.

DETECT/MAIL SETTING Screen

Notification mail settings such as detection method and recipient’s e-mail address can be changed even when the camera is out of reach.

Making Camera Settings from a Web Browser

REC

≪PLAY

Wi-Fi

NETWORK SETTINGS

SET FROM WEB BROWSER

WPS

********************************

QUIT

PASS:********************************

SSID:********************************

CONNECT USING Wi-Fi

SET FROM WEB BROWSER

QUIT

FROM YOUR WEB BROWSER

TO THE FOLLOWING URL

CHANGE SETTING BY CONNECTING

SET FROM WEB BROWSER

http://***.***.***.***:*****/

You can change the camera settings from a web browser.

Tap “MENU”. (Operation on this camera)

The shortcut menu appears.

Tap “Wi-Fi” (Q) in the shortcut menu. (Operation on this camera)

Using Wi-Fi

To exit, tap “QUIT”.

You can change the Wi-Fi function of the camera from a web browser.

“Adding/Changing/Deleting an Access Point” (A p. 52) “ OUT MONITORING SET ” (A p. 53) “ Wi-Fi DIRECT SETTING ” (A p. 53) “Mail Setting” (A p. 53)

Tap “NETWORK SETTINGS”. (Operation on this camera)

Tap “SET FROM WEB BROWSER”. (Operation on this camera)

Check the SSID and PASS shown on the camera’s screen, then register them on the computer to connect. (Operation on this camera)

When the computer is connected to the camera, a URL appears on the camera.

Check the URL shown on the camera’s screen, then enter it on the Internet Explorer (web browser). (Operation on this camera)

Using Wi-Fi

Adding/Changing/Deleting an Access Point

To search and add “ACCESS POINTS”

Click “ACCESS POINTS”.

Click “SEARCH”.

Click on the access point you want to add.

Click “ADD”.

Enter “SSID”, “TYPE OF SECURITY”, and “PASSWORD”, and click “REG.”.

Click “SEARCH AGAIN” to perform search for an access point again.

Enter the password, and click “REG.”.

Password entry is not required if the access point is security protected.

Click “OK”.

To configure the LAN settings manually, set “DHCP” to OFF, and enter the necessary information manually.

Click “OK”.

To change (or delete) an “ACCESS POINTS” registration

Click “ACCESS POINTS”.

To add “ACCESS POINTS” manually

Click “ACCESS POINTS”.

Click on a registered access point.

Using Wi-Fi

After changes are made, click “REG.”.

Click “DELETE” on this screen to delete the registered access point.

Click “OK”.

Wi-Fi DIRECT SETTING

To change “Wi-Fi DIRECT SETTING”

Click “Wi-Fi DIRECT SETTING”.

After changes are made, click “REG.”.

Click “DELETE” on this screen to delete the registered access point.

Click “OK”.

OUT MONITORING SET

To change “OUT MONITORING SET”

Click “OUT MONITORING SET”.

After changes are made, click “REG.”.

Click “DELETE” on this screen to delete the registered access point.

Click “OK”.

Mail Setting

To change “SENDER'S EMAIL” settings

Click“Mail Setting”.

Click “SENDER'S EMAIL”.

Using Wi-Fi

Enter the necessary information, and click “REG.”.

Click “OK”.

To add a “RECIPIENT'S EMAIL”

Click“Mail Setting”.

Select the checkbox for “VIDEO MAIL” and “DETECT/MAIL” to set the address as the recipient.

Click “OK”.

To change or delete a “RECIPIENT'S EMAIL”

Click“Mail Setting”.

Click “RECIPIENT'S EMAIL”.

Click “ADD”.

Enter the mail address, and click “REG.”.

Click on the mail address you want to change.

After changes are made, click “REG.”.

Click “DELETE” on this screen to delete the registered address.

Click “OK”.

Using Wi-Fi

To change “VIDEO MAIL ATTN.” settings

Click “Mail Setting”.

Click “VIDEO MAIL ATTN.”.

After changes are made, click “REG.”.

Click “OK”.

To change “DETECT/MAIL SETTING”

Click“Mail Setting”.

Click “DETECT/MAIL SETTING”.

Using Wi-Fi

Troubleshooting

Direct Monitoring

Trouble Action

Unable to connect to camera. (URL required)

Operations from this unit do not work when direct monitoring is in use.

Recording stops when the Android / iPhone application or web browser is closed.

Unable to browse internet on the computer when it is connected to the camera.

Video or audio is interrupted or delayed

Check whether the Wi-Fi connection is established successfully.

Check whether Wi-Fi is connected to “DIRECT-**EVERIO”.

Check whether the smartphone (or computer) is connected to the camera.

Try again after powering off and on the camera and the terminal (smartphone or computer).

Operations cannot be performed from this unit when direct monitoring is in use. Tap “CAMERA OPERATION” on the screen to enable operations from this unit. When operations from this unit are enabled, operations from the smartphone (or computer) do not work.

When the Android / iPhone application or web browser is closed during recording, the camera gets disconnected and recording stops.

The camera operates as an access point during direct monitoring. Most computers (or smartphones) cannot be connected to multiple access points at the same time. As such, internet browsing becomes temporarily unavailable if the computer (or smartphone) has been connected to the internet via wireless LAN.

Reconnect the computer to the wireless LAN router that is usually used for internet connection. If the computer connects to the camera unintentionally, remove the camera connection from the computer. (The registered name is “DIRECT-**EVERIO”.)

Stop direct monitoring on the camera.

If the network speed is slow, videos and audio sound may be interrupted, or delay may become significant.

(For web browser) Lagging may become significant due to the performance of the computer. If the stream format is set to “Full HD”, change to “SD” or “Motion-JPEG” and try again.

“Wi-Fi Specifications” (A p. 59)

(For web browser) If lagging is severe, reload the screen regularly.

(For smartphone) Try to change the place and time to locate an environment with good signal strength.

The unit turns off automatically.

Unable to set focus.

Connection gets disconnected, or a “UNABLE TO CONNECT” message is displayed

Access Point (Wireless LAN Router)

Trouble

Unable to find an access point (wireless LAN router).

Unable to connect to access point (wireless LAN router).

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

Establish connection again at a place with good signal strength. Transmission speed may drop, or connection may fail if the devices are placed too far away from each other, when there are objects in between, or when microwave ovens or other wireless devices are in use.

If connection cannot be established again, restart the terminal (smartphone or computer).

If the camera is too far away from the smartphone (or computer), connection for direct monitoring may be difficult to be established depending on the environment. In this case, connect via an access point (wireless LAN router).

Action

Check whether the distance from the access point (wireless LAN router) is too far, or whether there are shielding materials in between.

If the access point (wireless LAN router) in use goes into the SSID stealth mode, perform manual registration or disable the stealth mode temporarily before registering.

In an environment with multiple access points, you may not be able to find the desired access point through searching. In this case, add the access point manually.

Check that the password is correct.

For manual connection, check that the SSID or authentication method is correct.

Unsure of which access point (wireless LAN router) to use.

If the settings of the access point (wireless LAN router) have never been changed from their default values, check the following.

- Check whether an adhesive label indicating the initial settings is attached to the body of the access point (wireless LAN router).

- Check for the default settings in the instruction manual of the access point (wireless LAN router).

Using Wi-Fi

Unsure of password for the access point (wireless LAN router).

Unable to connect via Wi-Fi Protected Setup (WPS).

Refer to the instruction manual of the access point (wireless LAN router) in use.

Simple connection methods other than WPS are not supported. Conduct a search for the access point to connect.

Turn off the power of the camera, then try again.

Outside Monitoring (Connection in the House)

Trouble Action

Unable to connect to camera. (URL required)

Unsure of URL to access from a web browser.

No image and sound when accessing from a web browser.

Unable to access the entered URL. (cannot be found)

Check whether the Wi-Fi connection is established successfully.

Check to ensure that the camera and the terminal (smartphone or computer) are connected to the same access point.

Try again after powering off and on the camera and the terminal (smartphone or computer).

After outside monitoring is started, tap “CAMERA NETWORK INFO.” shown on the camera’s screen. Enter the address as shown in “URL(LAN):” into the web browser to access it.

If you have installed third-party video players, images and sounds may not be played back properly.

If the stream format is set to “Motion-JPEG” when transferring to the web browser, no sound will be output from the browser.

If recording of the video is in progress, no sound will be output from the browser.

Check that the camera is properly connected to an access point (wireless LAN router). (Q appears on the camera’s screen.)

Check that the computer is properly connected to an access point (wireless LAN router). Connection should be possible if it is connected to the internet.

Check that the URL is correct.

Unable to access the entered URL. (password required)

Operations from this unit do not work when outside monitoring is in use.

Recording stops when the Android / iPhone application or web browser is closed.

Video or audio is interrupted or delayed

The unit turns off automatically.

Unable to set focus.

Connection gets disconnected, or a “UNABLE TO CONNECT” message is displayed

Enter your username and password. The username is “everio” (fixed) and the default password is “0000” (can be changed).

Operations cannot be performed from this unit when outside monitoring is in use. Operate from the Android / iPhone application or web browser.

When the Android / iPhone application or web browser is closed during recording, the camera gets disconnected and recording stops.

If the network speed is slow, videos and audio sound may be interrupted, or delay may become significant.

(For web browser) Lagging may become significant due to the performance of the computer. If the stream format is set to “Full HD”, change to “SD” or “Motion-JPEG” and try again.

“Wi-Fi Specifications” (A p. 59)

(For web browser) If lagging is severe, reload the screen regularly.

(For smartphone) Try to change the place and time to locate an environment with good signal strength.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

If connection cannot be established again, restart the terminal (smartphone or computer).

Screen does not refresh or remains black

Check if the camera and the access point are properly connected. Images cannot be detected on the terminal (smartphone or computer) if the camera is disconnected from the access point halfway through.

Using Wi-Fi

Outside Monitoring (Connection from the Internet)

Trouble Action

Unsure of URL to access from a web browser.

The URL (WAN) does not appear in the network information.

Unable to access the entered URL. (cannot be found)

Video or audio is interrupted or delayed

After outside monitoring is started, tap “CAMERA NETWORK INFO.” shown on the camera’s screen. Enter the address as shown in “URL(WAN):” into the web browser to access it.

The URL (WAN) will not appear if dynamic DNS is not set on the camera. To set dynamic DNS, perform the following steps.

1. Obtain an account with JVC dynamic DNS service using your computer. (URL?)

2. Log in to JVC DNS and obtain the dynamic DNS service. (How?)

3. Set the obtained dynamic DNS username and password on the camera. *Only the JVC dynamic DNS service can be set on this camera.

This function cannot be used in an environment with two or more routers.

Check that the dynamic DNS username and password are correct.

The router in use is not compatible with UPnP, or UPnP is turned off. Check the instruction manual of the router in use, and turn on UPnP.

The “UPnP” of the camera is set to “OFF”. (By default, it is set to “ON”.) Set “UPnP” to “ON”.

Depending on the terms of service with your provider, it may not be possible to obtain a global IP address.

“Confirming global IP address” (A p. 20)

Check whether a terminal that uses port 80, such as web servers, has been set in the network. If it is set, change the port number of the terminal.

When a specfic terminal has been set to use port 80 on the router, change the setting such that port 80 can be used by the camera.

Try again after powering off and on the camera and the terminal (smartphone or computer).

If the network speed is slow, videos and audio sound may be interrupted, or delay may become significant.

(For web browser) Lagging may become significant due to the performance of the computer. If the stream format is set to “Full HD”, change to “SD” or “Motion-JPEG” and try again.

“Wi-Fi Specifications” (A p. 59)

(For web browser) If lagging is severe, reload the screen regularly.

(For smartphone) Try to change the place and time to locate an environment with good signal strength.

The unit turns off automatically.

Unable to set focus.

Connection gets disconnected, or a “UNABLE TO CONNECT” message is displayed

Screen does not refresh or remains black

[LUPnP] is displayed. This appears when UPnP has failed.

Unable to connect although [LUPnP] is displayed.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

When not monitoring from a smartphone (or computer), the focus of the camera is fixed.

Even when monitoring from a smartphone (or computer), the focus of the camera will be fixed if not operated for more than 3 hours. (Focus works again when the camera is operated.)

If connection cannot be established again, restart the terminal (smartphone or computer).

Check whether the wireless LAN router in use is compatible with UPnP. (Refer to the instruction manual of the wireless LAN router in use, or consult the manufacturer of the router.)

When the wireless LAN router in use is compatible with UPnP, turn on the UPnP function.

If the icon does not disappear even when the UPnP function is enabled, turn off and on the power of the wireless LAN router in use as well as the camera, then try again.

When “UPnP” is set to “OFF”, [LUPnP] will not appear. Set “UPnP” to “ON”.

When port 80 has been used by other devices via UPnP, connection cannot be established. Reconnect the camera.

E-mail (Notification Mail, Video Mail)

Trouble Action

Using Wi-Fi

Unable to send e-mails.

Sent e-mails are not received.

Unable to attach images to e-mails.

The unit turns off automatically.

Unable to set focus. (For DETECT/MAIL SETTING)

Check that the settings of the e-mail server are correct.

Check that the settings of the sender’s e-mail address are correct.

Check that the username and password are correct.

If you are using an e-mail service that is not from your provider, it may be necessary to change the SMTP settings.

Some free e-mail services from web browsers or e-mail softwares (SMTP) may have default SMTP settings that do not allow e-mails to be sent. Change the SMTP settings to allow sending of e-mails before use.

Check whether notifications indicating errors have been sent to the sender’s e-mail address. (Make use of a computer or similar devices as it is not possible to check from the camera.)

- If no notifications are received: Refer to “Unable to send e-mails.” and adjust the settings accordingly.

- If notifications are received: Check the content of the notification. *Note: Do not continue sending e-mails with the same settings if you receive error notifications. Depending on the provider, you may be marked as a sender of spam (junk mail).

Depending on the provider, some attached files may be deleted. Make use of other free e-mail services.

To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.

Vide/Still Image Transmission

Trouble Action

Unable to transfer videos and still images to smartphone (or computer).

Check the amount of remaining free space in the destination medium (smartphone or computer).

Wi-Fi Specifications

Item Details

Wireless LAN Standard IEEE802.11b/g/n (2.4GHz band)

DIRECT MONITORING / OUTSIDE MONITORING

When Using Everio sync.

Item

Supported Terminals iPhone/iPad/iPod touch: iOS 4.3.5 or later

Android: Android 2.1 or later

There is no guarantee that the operations will work with all terminals.

“Everio Sync.” for iPhone/iPad cannot be used when the iPhone/iPad is connected to the mobile phone network. To make use of this feature, connect to the camera or an access point via Wi-Fi.

A network environment with a minimum line speed of about 5.3 Mbps is recommended for both the camera sending the data and the smartphone terminal receiving the data. If the network speed is too low, video images may appear jumpy, or audio sound may be interrupted or delayed.

Details

Monitor Screen Video: JPEG 640x360 max. 15 fps

Audio: linear PCM 8kHz 16 bits 1ch

Video Transmission Video: MP4-compliant H.264 Baseline Profile 640x360 30p

Audio: AAC 48kHz 16 bits 2ch

Still Image Transmission JPEG format

Using Wi-Fi

When Using Web Browser

Item Details

Operating Environment Windows 7:

Monitor Screen

Video Transmission MPEG-2TS format (no conversion)

Still Image Transmission JPEG format (no conversion)

Internet Explorer 9 or a later version, and Windows Media Player 12 or a later version are installed

For Full HD, make use of a computer with the following system requirements.

- CPU: Intel Core 2 Duo 2 GHz or higher

- Memory: 2 GB or higher

A network environment with the following line speed is recommended for both the camera sending the data and the PC receiving the data.

- MotionJPEG: approx. 1.7 Mbps or higher

- Full HD: approx. 10 Mbps or higher

- SD: approx. 3 Mbps or higher If the network speed is too low, video images may appear jumpy, or audio sound may be interrupted or delayed.

MotionJPEG Video: JPEG 640x360 max. 5 fps Audio: nil

Full HD Video: MPEG-2 TS compliant H.264 High Profile 1920x1080 60i Audio: AAC 48kHz 16 bits 2ch

SD Video: MPEG-2 TS compliant H.264 Main Profile 720x480 60i Audio: AAC 48kHz 16 bits 2ch

VIDEO MAIL

Item Details

Video MP4-compliant H.264 Baseline Profile 640x360 30p

Audio AAC 48kHz 16 bits 2ch

Time Max. 15 seconds

RECIPIENT'S EMAIL

Item Details

Still Image Transmission JPEG 640x360

Verifying the Accessories

If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.

Illustration Description

AC Adapter AP-V30U

Connects to this unit to charge the battery pack. It can also be used when recording or playing back videos indoors.

Battery Pack

BN-VG212U

Attaches to this unit to supply power.

HDMI Mini Cable

Connects this unit to a TV to play back recorded images on the TV in a better quality.

Getting Started

AV Cable

Connects this unit to a TV to play back recorded images on the TV.

USB Cable (Type A - Mini Type B)

Connects this unit to a computer.

Core Filter (for USB Cable) Core Filter (for AC Adapter)

The core filter reduces interference when this unit is connected to other devices.

Stylus Pen

Use this for operations on the touch screen.

Basic User Guide

Read well and keep in a safe place where it can be accessed easily when necessary.

CD-ROM

For installing the provided software on a computer.

Memo :

SD cards are sold separately.

“Types of Usable SD Card” (A p. 65)

When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.

“Charging the Battery Pack Overseas” (A p. 71)

3 cm

Release the stopper

To be connected to this unit

Wind once

Getting Started

Attaching the Core Filter

Attach a core filter to the power cord of the AC adapter and the end of the USB cable that is connected to this unit. The core filter reduces interference when this unit is connected to other devices.

Charging the Battery Pack

AC Adapter To AC Outlet (110 V to 240 V)

Charge the battery pack immediately after purchase and when the remaining battery power is low. The battery pack is not charged at the time of purchase.

Open the battery cover.

Slide open the battery cover in the direction of the arrow while pressing it with your fingers.

Attach the battery pack.

Getting Started

If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed.

Charging time: Approx. 3 h 30 m (using supplied battery pack) The charging time is when the unit is used at 25°C. If the battery pack is charged outside the room temperature range of 10°C to 35°C, charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature.

Be sure to use the supplied AC adapter.

If you use any other AC adapters besides the supplied AC adapter, malfunctions may occur.

Align the terminal of the battery pack with this unit.

Close the battery cover.

Connect the AC adapter to the DC connector and plug in the power.

The charging lamp blinks when charging is in progress. It goes out when charging is finished.

Memo :

To attach any other battery packs besides the supplied one, open the SD card cover before attaching.

Make sure not to insert the battery pack in the wrong direction. It may cause damage to the unit and battery pack.

Caution :

Be sure to use JVC battery packs.

Warning

  

Getting Started

Rechargeable Batteries：

When using the battery in a low temperature environment (10°C or below), the operating time may be shortened, or it may not function properly. When using this unit outdoors in the winter weather, warm the battery, such as by placing it in the pocket, before attaching it. (Keep away from direct contact with a warm pack.)

Do not expose the battery to excessive heat, such as direct sunlight or fire.

After removing the battery, store it in a dry place between 15°C to 25°C.

Keep a 30 % battery level (X) if the battery pack is not to be used for a long period of time. In addition, fully charge and then fully discharge the battery pack every 6 months, then continue to store it at a 30 % battery level (X).

Memo :

You can connect this unit to the AC adapter to record for long hours indoors. (Battery charging begins when the LCD monitor is closed.)

Detaching the Battery Pack

To detach the battery pack, perform the above steps in reverse order.

Grip Adjustment

A Open the lever on the strap lock B Adjust the length of the belt C Close the lever

Caution :

Be sure to fasten the grip belt properly. If the belt is loose, this unit may drop and result in injuries or damages.

Using as a Hand Strap

Adjust the length of the belt and loop it around your wrist.

If it is difficult to detach the battery pack, open the SD card cover on the base.

Approximate Battery Charging Time (Using AC Adapter)

Battery Pack Charging Time

BN-VG212U (Supplied)

BN-VG226U 5 h 30 m

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

* The charging time is when the unit is used at 25°C. If the battery pack is charged outside the room temperature range of 10°C to 35°C, charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature. “Approximate Recording Time (Using Battery)” (A p. 113)

3 h 30 m

Inserting an SD Card

Label

Insert a commercially available SD card before recording. “Types of Usable SD Card” (A p. 65) “Approximate Video Recording Time” (A p. 113)

Close the LCD monitor.

Open the SD card cover.

Insert an SD card.

Getting Started

TOSHIBA

SanDisk

SD Card

This unit supports 256 MB to 2 GB SD cards.

Use a Class 4 or higher compatible SD card (2 GB) for video recording.

SDHC Card

Warning

Make sure not to insert the SD card in the wrong direction. It may cause damage to the unit and SD card.

Turn off the power of this unit before inserting or removing an SD card.

Do not touch the metal contact area when inserting the SD card.

This unit is not guaranteed to operate with all SD cards. Some SD cards may not work due to specification changes, etc.

Memo :

Both videos and still images can be recorded on one SD card. It is recommended to confirm the video operation of the SD card before usage.

To record to the SD card, it is necessary to perform media settings.

To use SD cards that have been used on other devices, it is necessary to format (initialize) the SD card using “FORMAT SD CARD” from media settings.

“ FORMAT SD CARD ” (A p. 194)

Removing the Card

Push the SD card inward once, then pull it out straight.

Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video recording.

SDXC Card

Use a Class 4 or higher compatible SDXC card (Max. 64 GB) for video recording.

Memo :

Using SD cards (including SDHC/SDXC cards) other than those specified above may result in recording failure or data loss.

This unit is not guaranteed to operate with all SD cards. Some SD cards may not work due to specification changes, etc.

To record videos with “VIDEO QUALITY” set to “UXP”, use of a Class 6 or higher compliant SDHC/SDXC card is recommended.

Class 4 and Class 6 are guaranteed to have a minimum transfer rate of 4 MB/s and 6 MB/s respectively during reading or writing of data.

You can also use a Class 10 compliant SDHC/SDXC card.

Both videos and still images can be recorded on one SD card. It is recommended to confirm the video operation of the SD card before usage.

To protect the data, do not touch the terminals of the SD card.

UHS-I SDHC/SDXC cards can be used in the same manner as standard SDHC/SDXC cards. UHS Speed Class is not supported.

Types of Usable SD Card

The following SD cards can be used on this unit. Operations are confirmed on the SD cards from the following manufacturers.

Panasonic

When your computer cannot recognize the SDXC card

Confirm and update the OS of your computer.

≪REC

0:01:23 0:12:340:01:23 0:12:34

≪REC

≪PLAY

REC

Index ScreenPlayback ScreenRecording Screen

Getting Started

Windows XP /

Necessary to update to SP2 or higher.

Windows XP SP1

Windows XP SP2 / Windows XP SP3

Necessary to download the update software. (KB955704)

http://www.microsoft.com/downloads/details.aspx? FamilyID=1cbe3906-ddd1-4ca2-b727c2dff5e30f61&displaylang=en

Windows Vista Necessary to update to SP1 or higher.

Windows Vista SP1 / Windows Vista SP2

Necessary to download the upgrade software. (KB975823)

32 bit version

http://www.microsoft.com/downloads/en/ details.aspx?FamilyID=2d1abe01-0942-4f8aabb2-2ad529de00a1

64 bit version

http://www.microsoft.com/downloads/en/ details.aspx?FamilyID=7d54c53f-017c-4ea5ae08-34c3452ba315

Windows 7 Necessary to download the upgrade software.

(KB976422)

32 bit version

http://www.microsoft.com/downloads/en/ details.aspx?FamilyID=3ee91fc2-a9bc-4ee1aca3-2a9aff5915ea

64 bit version

http://www.microsoft.com/downloads/en/ details.aspx?FamilyID=73f766dd-7127-4445b860-47084587155f

Mac OS X 10.4

Not compatible.

Tiger / Mac OS X

10.5 Leopard

Using the Touch Screen

Icon operation buttons, thumbnails, and menu items are displayed on the touch screen according to the mode in use.

There are two ways to operate the touch screen, namely “tap” and “drag”. The following are some examples.

A Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection. B Drag the thumbnails on the touch screen to search for the desired file.

Memo :

The touch screen of this unit is pressure-sensitive. When the touch screen does not respond smoothly, apply slightly more force to your fingertip or the stylus pen.

Tap the buttons (icons) on the touch screen accurately. The buttons may not respond if they are not tapped on the right area.

Do not press or rub with excessive force.

Do not operate the touch screen using an object with a sharp tip.

Pressing two or more places at a time may cause a malfunction.

Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is misaligned with the touched area. (Adjust by lightly tapping with the stylus pen. Do not press with an object with a sharp tip or do not press hard.)

“ TOUCH SCREEN ADJUST ” (A p. 190)

It is recommended to use the stylus pen for handwriting effect.

Mac OS X 10.6 Snow Leopard

Necessary to update to 10.6.5 or later.

REC

≪PLAY

≪REC

00:01:23 00:12:34

≪REC

Getting Started

Names of Buttons and Functions on the LCD Monitor

The following screens are displayed during the video and still image modes, and operate as the touch screens.

Recording Screen (Video/Still Image)

Video/Still Image Mode Button

Switches between video and still image modes.

Zoom Button

“Zooming” (A p. 75)

Playback Mode Button

Switches to the playback mode.

Recording Start/Stop Button

6: Video Recording Start Button

7: Video Recording Stop Button

: Still Image Recording Button

Menu Button

“Operating the Menu” (A p. 163)

Display Button

Switches the display between full (m) and simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Recording Mode Button

Switches the recording mode between P Intelligent Auto and H Manual.

Playback Screen (Video)

Video/Still Image Mode Button

Switches between video and still image modes.

Recording Mode Button

Switches to the recording mode.

Index Screen Button

“Operation Buttons for Video Playback” (A p. 114)

Delete Button

“Deleting the Currently Displayed File” (A p. 124)

Menu Button

“Operating the Menu” (A p. 163)

Operation Buttons

“Operation Buttons for Video Playback” (A p. 114)

Playback Screen (Still Image)

Video/Still Image Mode Button

Switches between video and still image modes.

Group Playback Button

Continuous playback of still images that are recorded continuously within 2 seconds or with the continuous shooting mode.

“Playing Back Still Images” (A p. 118)

Rotate Button

Rotates a still image 90°. (Clockwise/Counterclockwise)

Recording Mode Button

Switches to the recording mode.

Index Screen Button

“Operation Buttons for Still Image Playback” (A p. 118)

Delete Button

“Deleting the Currently Displayed File” (A p. 124)

Menu Button

“Operating the Menu” (A p. 163)

Operation Buttons

“Operation Buttons for Still Image Playback” (A p. 118)

≪REC

NOYES

SET DATE/TIME!

201211000

TIMEDATE

CLOCK SETTING

JAN

SET

GMT

SAVE

CLOCK/AREA SETTING

Getting Started

Index Screen

Video/Still Image Mode Button

Switches between video and still image modes.

Date Button

“Operation Buttons for Video Playback” (A p. 114) “Operation Buttons for Still Image Playback” (A p. 118)

Playback Mode Button

Switches to the playback mode.

Delete Button

“Deleting Selected Files” (A p. 124)

Menu Button

“Operating the Menu” (A p. 163)

Page Forward/Back Button

“Operation Buttons for Video Playback” (A p. 114) “Operation Buttons for Still Image Playback” (A p. 118)

Clock Setting

The “SET DATE/TIME!” screen appears when you turn on this unit for the first time after purchase, when it has not been used for a long time, or when the clock is not set yet. Set the clock before recording.

Open the LCD monitor.

The unit turns on.

When the LCD monitor is closed, the unit turns off.

Tap “YES” when “SET DATE/TIME!” is displayed.

Set the date and time.

Menu Screen

Help Button

Menu Items

Return Button

Common Menu Button

“Operating the Menu” (A p. 163)

Close Button

When the year, month, day, hour, or minute item is tapped, “3” and “2” will be displayed.

Tap 3 or 2 to adjust the year, month, day, hour, and minute.

After setting the date and time, tap “SET”.

Select the region where you live and tap “SAVE”.

The city name and time difference are displayed.

Tap 0 or 1 to select the city name.

Memo :

The clock can be reset again later.

“Resetting the Clock” (A p. 69)

When using this unit overseas, you can set it to the local time for recording.

“Setting the Clock to Local Time when Traveling” (A p. 71)

“SET DATE/TIME!” is displayed when you turn on this unit after it has not been used for a prolonged period. Connect the AC adapter for more than 24 hours to charge the internal clock battery of this unit before setting the clock.

REC

≪PLAY

CLOCK ADJUST

COMMON

CLOCK SETTING

CLOCK ADJUST

201211000

TIMEDATE

CLOCK SETTING

JAN

SET

GMT

SAVE

CLOCK/AREA SETTING

Getting Started

Resetting the Clock

Set the clock with “CLOCK ADJUST” from the menu.

Tap “MENU”.

When entering from the recording mode, tap “MENU” again as the shortcut menu appears.

Tap “Q”.

Tap “CLOCK ADJUST”.

Set the date and time.

When the year, month, day, hour, or minute item is tapped, “3” and “2” will be displayed.

Tap 3 or 2 to adjust the year, month, day, hour, and minute.

After setting the date and time, tap “SET”.

Select the region where you live and tap “SAVE”.

The city name and time difference are displayed.

Tap 0 or 1 to select the city name.

Tap 3 or 2 to move upward or downward for more selection.

Tap “CLOCK SETTING”.

REC

≪PLAY

LANGUAGE

COMMON

LANGUAGE

ENGLISH

Getting Started

Changing the Display Language

The language on the display can be changed.

Tap “MENU”.

When entering from the recording mode, tap “MENU” again as the shortcut menu appears.

Tap “Q”.

Tap “LANGUAGE”.

Tap 3 or 2 to move upward or downward for more selection.

Tap to the desired language.

Holding this Unit

When holding this unit, keep your elbows close to your sides to prevent camera shake.

Hold the LCD monitor with your left hand and adjust the angle accordingly. Holding the LCD monitor with your left hand helps to stabilize the camera for recording.

Caution :

Be careful not to drop this unit during transportation.

Guardians should pay close attention when this unit is being used by children.

Memo :

If camera shake is excessive, use the image stabilizer.

“Reducing Camera Shake” (A p. 104)

Tripod Mounting

This unit can be mounted on a tripod (or monopod). This is useful for preventing camera shake and recording from the same position.

Tap 3 or 2 to move upward or downward for more selection.

To prevent this unit from falling off, check the tripod mounting screw holes and positioning holes on the unit carefully before mounting, and turn the screws until they are fastened firmly.

Caution :

There is only one tripod mounting hole on this unit. As such, large tripods that require two mounting holes cannot be used.

To prevent injuries or damages which may result if this unit falls off, read the instruction manual of the tripod (or monopod) to be used and make sure that it is securely attached.

Memo :

It is recommended to use a tripod or monopod when recording in conditions prone to camera shake (such as in dark places or when zoomed to the telephoto end).

Set the image stabilizer to b (OFF) when using a tripod for recording.

“Reducing Camera Shake” (A p. 104)

ABBFCO

Morocco

Mozambique

Republic of South Africa

Tanzania

Zambia

Kenya

Guinea

Egypt

Algeria

Africa

Jordan

Kuwait

Iran

Israel

Middle East

Peru

Venezuela

Brazil

Puerto Rico

Bahamas

Panama

Haiti

Chile

Jamaica

Colombia

Argentina

Latin

Fiji

New Zealand

Ton g a

Tahiti

Guam

Australia

Oceania

Romania

Portugal

Poland

Belgium

France

Finland

Hungary

Norway

Germany

Denmark

Spain

Sweden

Switzerland

Greece

Canary Islands

Netherlands

Austria

Italy

United Kingdom

Ireland

Iceland

Europe

Malaysia

Macau Special

Administrative Region

Hong Kong Special

Administrative Region

Vietnam

Philippines

Bangladesh

Pakistan

Nepal

China

South Korea

Thailand

Sri Lanka

Singapore

Indonesia

India

Asia

Mexico

United States

North America

Canada

REC

≪PLAY

CLOCK ADJUST

COMMON

CLOCK ADJUST

AREA SETTING

GMT

SAVE

AREA SETTING

Getting Started

Using this Unit Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet. “Charging the Battery Pack Overseas” (A p. 71) Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. “Setting the Clock to Local Time when Traveling” (A p. 71) When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead. “Setting Daylight Saving Time” (A p. 72)

Charging the Battery Pack Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet.

Setting the Clock to Local Time when Traveling

Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. Restore the region settings after you returned from the trip.

Tap “MENU”.

When entering from the recording mode, tap “MENU” again as the shortcut menu appears.

Tap “Q”.

Tap “CLOCK ADJUST”.

Tap 3 or 2 to move upward or downward for more selection.

Tap “AREA SETTING”.

Select the area you are traveling to and tap “SAVE”.

The city name and time difference are displayed.

Tap 0 or 1 to select the city name.

Memo :

Setting “AREA SETTING” changes the clock time such that time difference is accounted for. After returning to your country, re-select the region that was set initially to restore the original clock settings.

REC

≪PLAY

CLOCK ADJUST

COMMON

DST SETTING

CLOCK ADJUST

OFFON

CURRENT SETTING: OFF

DAYLIGHT SAVING TIME (DST)

DST SETTING

Getting Started

Setting Daylight Saving Time

When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is set 1 hour ahead.

Tap “MENU”.

When entering from the recording mode, tap “MENU” again as the shortcut menu appears.

Tap “Q”.

Tap “CLOCK ADJUST”.

Optional Accessories

You can record for a longer time by using the optional battery pack.

Product Name Description

Battery Pack

BN-VG212U

BN-VG226U

HDMI Mini Cable

VX-HD310

VX-HD315

Memo :

The optional accessories above may not be supported in some regions.

For more information, refer to the catalog.

For details on the provided accessories, refer to “Verifying the Accessories”.

“Verifying the Accessories” (A p. 61)

Approximate Recording Time (Using Battery)

Battery

Pack

BNVG212U (Supplied)

Provides a longer recording time. It can also be used as a spare battery pack.

Allows viewing in high picture quality when connected to a TV.

Transmits video, audio, and control signals between devices.

Actual Recording Time Continuous Recording

45 m 1 h 20 m

Time

Tap 3 or 2 to move upward or downward for more selection.

Tap “DST SETTING”.

Tap “ON”.

BNVG226U

The above are values when “LIGHT” is set to “OFF” and “MONITOR BRIGHTNESS” is set to “3” (standard).

The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly. (It is recommended to prepare battery packs ready for three times the expected recording time.)

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

1 h 40 m 3 h

Memo :

What is daylight saving time? Daylight saving time is the system of setting the clock 1 hour ahead for a fixed period in summer. It is used mainly in the Western countries.

Restore the daylight saving time settings after you returned from the trip.

REC

≪PLAY

intelligent AUTO

MANUAL

0:00:00 [2:04]

10:10

REC

≪PLAY

Recording

Taking Videos in Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions.

In case of specific shooting scenes such as person etc., its icon is displayed on the screen.

Before recording an important scene, it is recommended to conduct a trial recording.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Check if the recording mode is P Intelligent Auto.

Memo :

Depending on the subject and shooting conditions, recording may not be performed properly even in the Intelligent Auto mode.

Caution :

While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Do not use this unit with the LCD monitor reversed and closed for long periods of time.

The power may turn off to protect the circuit if the temperature of this unit rises too much.

Indications During Video Recording

Display Icon Description

Video Quality Displays the icon of the “VIDEO QUALITY”

setting selected in the recording menu.

“ VIDEO QUALITY ” (A p. 171)

If the mode is H Manual, tap H on the recording screen to display the mode switching screen. Tap P to switch the recording mode to Intelligent Auto.

Start recording.

Press again to stop.

Some displays disappear after approximately 3 seconds. Use the n button to change the displays.

After recording, close the lens cover.

“Lens Cover Switch” (A p. 195)

TOUCH PRIORITY AE/AF

Displays the setting of “TOUCH PRIORITY AE/

AF”. By default, it is set to “FACE TRACKING”

“Capturing Subjects Clearly (TOUCH

PRIORITY AE/AF)” (A p. 95)

Time Displays the current time.

“Clock Setting” (A p. 68)

Image Stabilizer Displays the image stabilizer setting.

“Reducing Camera Shake” (A p. 104)

Recording Media Displays the icon of the media where videos

are recorded to.

The recording media can be changed.

Battery Indicator Displays the approximate remaining battery

power.

Recording Mode Displays the current recording mode of P

(Intelligent Auto) or H (Manual).

Remaining Recording Time

Displays the remaining time for video

recording.

“Checking the Remaining Recording Time”

(A p. 112)

Scene Counter (Recorded Time)

Displays the elapsed time of the video that is

currently being recorded.

MENUREC

REC

≪PLAY

Recording

Scenes of Intelligent Auto

Display Icon Description

Operation Buttons for Video Recording

Captures one’s skin beautifully.

Allows people to be captured naturally.

Focuses at a far distance and captures a sharp image with vivid colors.

Records with minimal noise in the overall image.

Allows night scenes to be captured accurately with minimal noise in the overall image.

Prevents colors from fading even when recording in a bright environment.

Records while focusing on a near object.

Reproduces the green color of trees vividly.

Reproduces the colors of sunset naturally.

Adjusts settings so that the subject does not appear too dark due to backlight.

Allows people to be captured naturally with minimal noise in the overall image.

Records while focusing on a near object even in a dark environment.

Memo :

Scenes can be detected according to the shooting conditions and automatically adjusted in Intelligent Auto mode.

Some functions may not work properly depending on the shooting conditions.

Operation

Button

Video/Still Image Mode

T/W Zoom Allows the same functions as the zoom

Playback Mode Switches to the playback mode.

D / E Recording Start

Record-Standby

MENU Displays the various menus of video

Display Button n Switches the display between full (m) and

Description

Switches between video and still image modes.

lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 75)

Functions as the START/STOP button.

recording. “Operating the Menu” (A p. 163)

simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Recording Mode P/H

Switches the recording mode.

TelephotoWide Angle

≪PLAY

REC

Zoom Button (T/W)

Recording

Using the Silent Mode

When the Silent mode is used, the LCD monitor darkens and operation sounds will not be output. Use this mode to record quietly in dark places such as during a performance.

T appears when “SILENT MODE” is set to “ON”.

“ SILENT MODE ” (A p. 188)

Useful Settings for Recording

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

“ QUICK RESTART ” (A p. 189)

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 189)

When “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 95)

When “DATE/TIME RECORDING” is used, the date and time can be recorded together with the video.

“Recording Videos with Date and Time” (A p. 111)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Leave the LCD monitor open when using this unit in places exposed to direct sunlight or high temperatures.

The power may turn off to protect the circuit if the temperature of this unit rises too much.

Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable.

“ACCESS (Access) Lamp” (A p. 195)

This unit is a microcomputer-controlled device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such a case, turn off the power, then remove the AC adapter and battery pack. This unit will be reset.

Make a backup of important recorded data.

- It is recommended to copy your important recorded data to a DVD or other recording media for storage.

- JVC will not be responsible for any lost data.

Memo :

Check the remaining recording time in the media before you start shooting. If there is not enough space, move (copy) the data to a computer or disc.

When there are many files in the media, it may take time for them to be displayed on the playback screen. Wait for a while as the access lamp appears blinking, which indicates normal operation.

Do not forget to make copies after recording!

Recording stops automatically as it cannot be performed for 12 or more consecutive hours according to specifications. (It may take some time to resume recording.)

For long recordings, the file is split into two or more files if the size exceeds 4 GB.

You can connect this unit to the AC adapter to record for long hours indoors.

Depending on the shooting conditions, the four corners of the screen may appear dark, but this is not a malfunction. In this case, change the shooting conditions by moving the zoom lever, etc.

Zooming

The angle of view can be adjusted using zoom.

Use the W end (wide angle end) to shoot a wider field of view.

Use the T end (telephoto end) to magnify the subject for shooting.

The following zoom options are available:

- Optical Zoom (1 - 10x)

- Digital Zoom (11 – 200x)

You can also use the zoom (T/W) button on the touch screen to zoom.

Memo :

When digital zoom is used, the image becomes grainy as it is digitally enlarged.

The zoom ratio range can be changed.

“ ZOOM ” (A p. 172)

Capturing Still Images During Video Recording

Still images can be captured by pressing the SNAPSHOT button while in the video mode (standby or recording).

“PHOTO” lights up on the screen when a still image is being captured.

The still images captured during video recording are saved to the destination set in “REC MEDIA FOR IMAGE”.

Memo :

The size of the still image that is captured in the video mode is 1920 x

1080.

Operation is invalid under the following conditions:

- when menu is being displayed

- when remaining recording time or battery power is being displayed

- when “TIME-LAPSE RECORDING” is in use

- when “FACE SUB-WINDOW” is set

- when “ANIMATION EFFECT” is set

- when “HIGH SPEED RECORDING” is set

- when “DECORATE FACE EFFECT” is set

- when “STAMP” is set

- when “HANDWRITING EFFECT” is set

- when “AUTO REC” is set

- when “DATE/TIME RECORDING” is set

≪PLAY

intelligent AUTO

MANUAL

Press halfway

Press fully

[6630]

1/125

10:10

F1.8

≪PLAY

Recording

Taking Still Images in Auto Mode

You can record without worrying about the setting details by using the Intelligent Auto mode.

Open the LCD monitor.

Check if the recording mode is B.

If the mode is A video, tap A on the recording screen to display the mode switching screen. Tap B to switch the mode to still image.

Check if the recording mode is P Intelligent Auto.

Take a still image.

PHOTO lights up when a still image is being captured.

Some displays disappear after approximately 3 seconds. Use the n button to change the displays.

After recording, close the lens cover.

Memo :

Depending on the subject and shooting conditions, recording may not be performed properly even in the Intelligent Auto mode.

Image stabilization only starts when the button is pressed halfway.

Indications During Still Image Recording

If the mode is H Manual, tap H on the recording screen to display the mode switching screen. Tap P to switch the recording mode to Intelligent Auto.

Set the focus on the subject.

When focused, the focus icon lights up in green.

Display Icon Description

Image Size Displays the icon of the image size.

The size of still images can be changed.

“ IMAGE SIZE ” (A p. 179)

TOUCH PRIORITY AE/AF

Displays the setting of “TOUCH PRIORITY AE/ AF”. By default, it is set to “FACE TRACKING” . “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 95)

Time Displays the current time.

“Clock Setting” (A p. 68)

Recording Media Displays the icon of the media where still

images are recorded to. The recording media can be changed.

Battery Indicator Displays the approximate remaining battery

power. Details of the battery power can be displayed by pressing the INFO button. Displays the approximate remaining battery power.

Recording Mode Displays the current recording mode of P

(Intelligent Auto) or H (Manual).

Remaining Number of Shots

Displays the remaining number of shots for still image recording. “Approximate Number of Still Images (Unit: Number of Shots)” (A p. 113)

Recording in Progress

“PHOTO” appears when a still image is being captured.

Focus Lights up in green when focused.

Aperture Value Displays the aperture value.

Shutter Speed Displays the shutter speed.

Scenes of Intelligent Auto

Display Icon Description

Captures one’s skin beautifully.

Allows people to be captured naturally.

Recording

Focuses at a far distance and captures a sharp image with vivid colors.

Records with minimal noise in the overall image.

Allows night scenes to be captured accurately with minimal noise in the overall image.

Prevents colors from fading even when recording in a bright environment.

Records while focusing on a near object.

Reproduces the green color of trees vividly.

Reproduces the colors of sunset naturally.

Adjusts settings so that the subject does not appear too dark due to backlight.

Allows people to be captured naturally with minimal noise in the overall image.

Records while focusing on a near object even in a dark environment.

Memo :

Scenes can be detected according to the shooting conditions and automatically adjusted in Intelligent Auto mode.

Some functions may not work properly depending on the shooting conditions.

[6630]

≪PLAY

Recording

Operation Buttons for Still Image Recording

Operation

Button

Video/Still Image Mode

T/W Zoom Allows the same functions as the zoom

Playback Mode Switches to the playback mode.

Snapshot

MENU Displays the various menus of still image

Display Button n Switches the display between full (m) and

Recording Mode P/H

Switches between video and still image modes.

lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. “Zooming” (A p. 79)

Functions as the SNAPSHOT button. However, focus cannot be set by pressing halfway.

recording. “Operating the Menu” (A p. 163)

simple (n) with every tap of the button.

Simple display: Some displays disappear after approximately 3 seconds.

Full display: Displays everything. The display button changes from n to m.

When the power is turned off, simple display (n) will be set.

Switches the recording mode.

Description

Using the Silent Mode

When the Silent mode is used, the LCD monitor darkens and operation sounds will not be output. Use this mode to record quietly in dark places such as during a performance.

T appears when “SILENT MODE” is set to “ON”.

“ SILENT MODE ” (A p. 188)

Useful Settings for Recording

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

“ QUICK RESTART ” (A p. 189)

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

“ AUTO POWER OFF ” (A p. 189)

When “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”, this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 95)

Caution :

Do not expose the lens to direct sunlight.

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

The power may turn off to protect the circuit if the temperature of this unit rises too much.

Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable.

“ACCESS (Access) Lamp” (A p. 195)

Memo :

Before recording an important scene, it is recommended to conduct a trial recording.

Depending on the shooting conditions, the four corners of the screen may appear dark, but this is not a malfunction. In this case, change the shooting conditions by moving the zoom lever, etc.

TelephotoWide Angle

≪PLAY

Zoom Button (T/W)

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

Recording

Zooming

The angle of view can be adjusted using zoom.

Use the W end (wide angle end) to shoot a wider field of view.

Use the T end (telephoto end) to magnify the subject for shooting.

The following zoom options are available:

- Optical Zoom (1 - 10x)

You can also use the zoom (T/W) button on the touch screen to zoom.

Memo :

Only optical zoom is available in the still image recording mode.

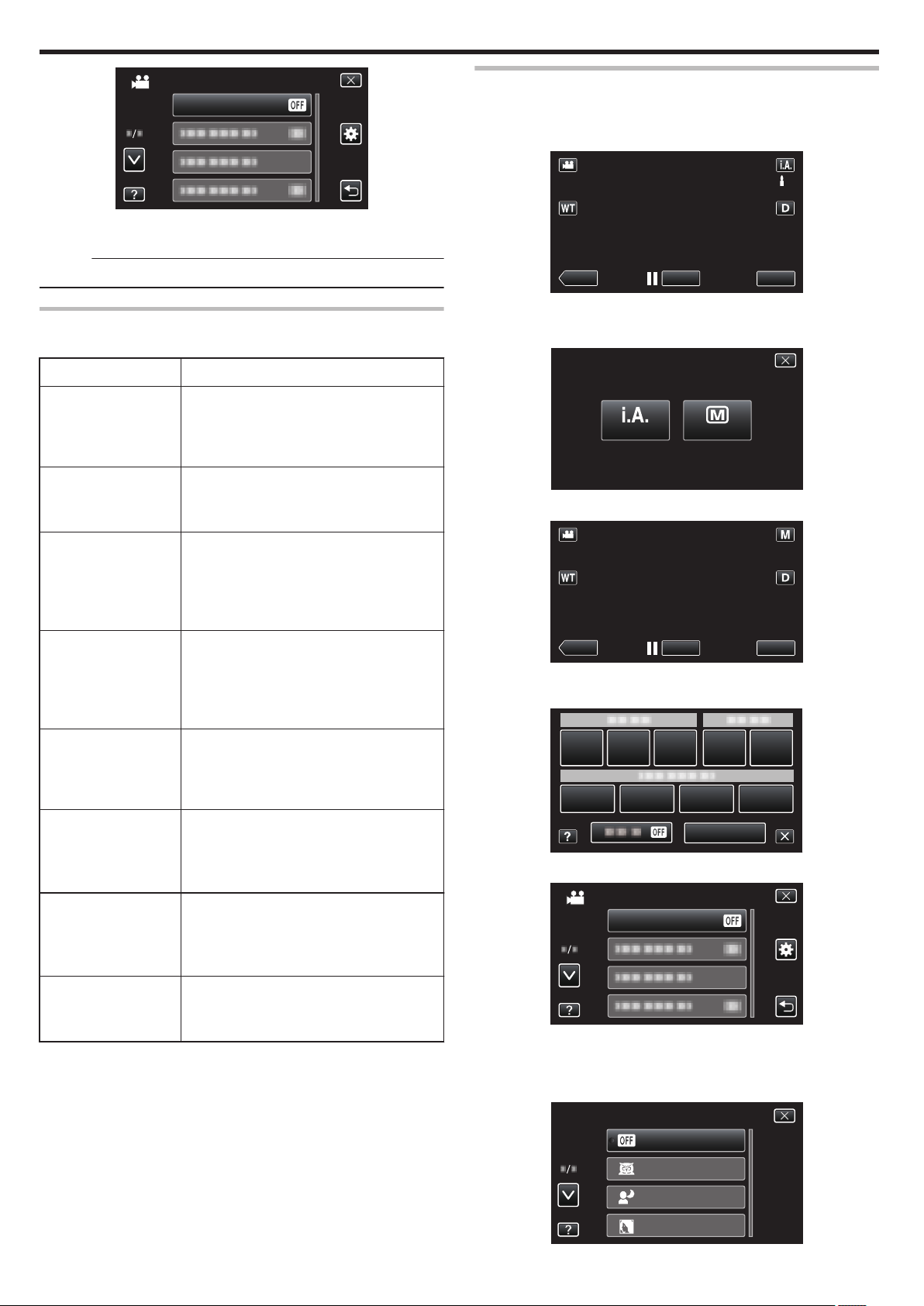

Manual Recording

You can adjust settings, such as brightness and shutter speed, by using the manual mode. Manual recording can be set for both video and still image modes.

Open the LCD monitor.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap the item to set manually.

SCENE SELECT

VIDEO

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

SCENE SELECT

VIDEO

NIGHTALIVE

OFF

SCENE SELECT

PORTRAIT

NIGHT

Recording

For details on the various manual settings, refer to “Manual Recording Menu”.

Memo :

The manual settings are displayed only in the manual mode.

Manual Recording Menu

The following items can be set.

Name Description

Shooting According to Scene (Subject)

Common scenes that are often encountered can be recorded with the most suitable settings.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

SCENE SELECT

FOCUS

BRIGHTNESS ADJUST

SHUTTER SPEED

APERTURE PRIORITY

WHITE BALANCE

Recordings that suit the shooting conditions can be performed easily.

“Shooting According to Scene (Subject)” (A p. 80)

Use manual focus if the subject is not focused automatically.

“Adjusting Focus Manually” (A p. 82)

Overall brightness on the screen can be adjusted.

Use this when recording in a dark or bright location.

“Adjusting Brightness” (A p. 83)

Shutter speed can be adjusted.

Use this when shooting a fast-moving subject or to emphasize the subject’s movement.

“Setting Shutter Speed” (A p. 84)

You can adjust the aperture to capture an image with only the subject in focus while blurring the surroundings.

“Setting Aperture” (A p. 85)

Overall color on the screen can be adjusted.

Use this when the color on the screen appears differently from the actual color.

“Setting White Balance” (A p. 86)

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “SCENE SELECT”.

BACKLIGHT COMP.

TELE MACRO

Corrects the image when the subject appears dark due to backlight.

Use this when shooting against the light.

“Setting Backlight Compensation” (A p. 87)

Use this to take close-up (macro) shots of the subject.

“Taking Close-up Shots” (A p. 88)

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the appropriate scene.

Recording

Tap “OFF” to cancel the selection.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

*The image is only an impression.

Setting Effect

b NIGHTALIVE Increases gain and brightens the scene

automatically using a slow shutter when the surrounding is dark. To prevent camera shake, use a tripod.

t NIGHT

w PORTRAIT

Captures night scenes naturally.

Blurs the background to bring out the people in the picture.

u SPORTS

Captures fast-moving subjects clearly in every single frame.

v SNOW

Prevents the subject from appearing too dark when recording snow scenes on a sunny day.

g SPOTLIGHT Prevents the human subject from appearing too

bright under light.

Memo :

All scenes of “SCENE SELECT” cannot be set during “TIME-LAPSE RECORDING”.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

FOCUS

VIDEO

MANUAL

AUTO

FOCUS

≪PLAY

REC

SET

REC

≪PLAY

Recording

Adjusting Focus Manually

Set this when the focus is not clear in Intelligent Auto or when manual focusing is desired.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Adjust the focus.

Tap E to focus on a distant subject. If E appears blinking, focus cannot be set any further.

Tap p to focus on a near subject. If p appears blinking, focus cannot be set any nearer.

Tap “SET” to confirm.

When focus is confirmed, the focusing frame disappears and E and p are displayed.

Memo :

A subject that is focused at the telephoto (T) end remains in focus when it is zoomed out to the wide angle (W) end.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “FOCUS”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

BRIGHTNESS ADJUST

VIDEO

MANUAL

AUTO

BRIGHTNESS ADJUST

≪PLAY

REC

SET

≪PLAY

REC

Recording

Adjusting Brightness

You can adjust the brightness to your preferred level.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Adjust the brightness value.

Compensation range during video recording: -2.0 to +2.0

Compensation range during still image recording: -2.0 to +2.0

Tap 3 to increase the brightness.

Tap 2 to decrease the brightness.

Tap “SET” to confirm.

Memo :

Settings can be adjusted separately for videos and still images.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “BRIGHTNESS ADJUST”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

VIDEO

SHUTTER SPEED

MANUAL

AUTO

SHUTTER SPEED

1/30

≪PLAY

REC

SET

1/30

≪PLAY

REC

Recording

Setting Shutter Speed

You can set the shutter speed to suit the type of subject.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Adjust the shutter speed.

Shutter speed can be set from 1/2 to 1/4000.

Tap 3 to increase the shutter speed.

Tap 2 to decrease the shutter speed.

Tap “SET” to confirm.

Memo :

Settings can be adjusted separately for videos and still images.

“SHUTTER SPEED” can only be set to a maximum of 1/125 when “FLASH” is not set to “OFF” in the still image recording mode.

While fast-moving subjects can be captured clearly by increasing “SHUTTER SPEED”, the screen may appear darker. When recording in dark places such as indoors, check the brightness of the LCD monitor and set “SHUTTER SPEED” accordingly.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “SHUTTER SPEED”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

APERTURE PRIORITY

VIDEO

MANUAL

AUTO

APERTURE PRIORITY

F1.8

≪PLAY

REC

SET

F1.8

≪PLAY

REC

Recording

Setting Aperture

You can adjust the aperture to change the area of focus.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “MENU”.

Adjust the aperture.

Aperture can be set from F1.2 to F5.6.

If you want the background to be in focus as well (larger aperture value), tap 3.

If you want the background to appear blurry (smaller aperture value), tap 2.

Tap “SET” to confirm.

Memo :

Settings can be adjusted separately for videos and still images.

When zoomed to the telephoto end, the aperture value is set according to the zoom and indicated in yellow. Set the zoom to the wide angle end to enable the smallest F-number to be set.

The larger the aperture value, the darker the subject may appear.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “APERTURE PRIORITY”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “MANUAL”.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

WHITE BALANCE

VIDEO

REC

CLOUD

FINE

MWB

AUTO

Recording

Setting White Balance

You can set the color tone to suit the light source.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap 3 or 2 to move the cursor.

Setting Details

AUTO Adjusts automatically to the natural colors.

MWB Use this when the problem of unnatural colors is

not resolved.

FINE Set this when shooting outdoors on a sunny day.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

CLOUD Set this when shooting on a cloudy day or inside a

shade.

HALOGEN Set this when shooting under illumination such as

a video light.

MARINE:BLUE Set this when shooting the sea at deep water area

(water appears blue) using an optional marine case.

MARINE:GREEN Set this when shooting the sea at shallow water

area (water appears green) using an optional marine case.

Using MWB

Hold a sheet of plain white paper in front of the lens so that the white paper fills the screen.

Tap “MWB” and keep touching while the icon appears and blinks.

Release your touch after the menu disappears and o lights up.

Memo :

The setting will not change if “MWB” is being tapped too fast (less than 1 second).

Tap “WHITE BALANCE”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the appropriate shooting environment.

Setting Backlight Compensation

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

BACKLIGHT COMP.

VIDEO

OFF

BACKLIGHT COMP.

You can correct the image when the subject appears too dark due to backlight.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

After setting, the backlight icon l appears.

Recording

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “BACKLIGHT COMP.”.

0 0 0

Tap “ON”.

Tap 3 or 2 to move upward or downward for more selection. Tap L to exit the menu. Tap J to return to the previous screen.

REC

≪PLAY

intelligent AUTO

MANUAL

REC

≪PLAY

TELE MACRO

VIDEO

OFF

TELE MACRO

Recording

Taking Close-up Shots

You can take close-up shots of an object using the tele macro function.

*The image is only an impression.

Select the Manual recording mode.

If the mode is P Intelligent Auto, tap P on the recording screen to display the mode switching screen. Tap H to switch the recording mode to Manual.

Tap “ON”.

After setting, the tele macro icon o appears.

Setting Details

OFF Enables close-up shots up to 1 m at the telephoto (T) end.

Enables close-up shots up to 5 cm at the wide angle (W) end.

ON Enables close-up shots up to 50 cm at the telephoto (T) end.

Enables close-up shots up to 5 cm at the wide angle (W) end.

Caution :

When you are not taking close-up shots, set “TELE MACRO” to “OFF”. Otherwise, the image may be blur.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “TELE MACRO”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

REC

≪PLAY

ANIMATION EFFECT

VIDEO

SET

Recording

Recording with Effects

You can add animation effects to video recordings. The animation effects appear when smiles are detected or when the screen is touched.

Type of Effect Description of Effect

ANIMATION EFFECT Records videos with animation effects.

DECORATE FACE EFFECT

STAMP Records videos with various decorative

HANDWRITING EFFECT

“Recording with Animation Effects” (A p. 89)

Detects faces and enables decorations such as sunglasses to be added. “Recording with Face Decorations” (A p. 92)

stamps. “Recording with Decorative Stamps” (A p. 93)

Records videos with your personal handwriting or drawing. “Recording with Personal Handwriting” (A p. 94)

Recording with Animation Effects

You can add animation effects to video recordings. The animation effects appear when smiles are detected or when the screen is touched.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU”. (Go to step 4.) Alternatively, tap 4 in the shortcut menu. (Go to step 5.)

Tap “ANIMATION EFFECT”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select a desired effect and tap “SET”.

Tap 0 or 1 to change the effect.

Press the START/STOP button the camera to start recording. Press again to stop.

Recording

To perform operations other than recording, tap L to cancel the “ANIMATION EFFECT” first.

During Setting After Setting Note

. .

Recording

Animation (effect) appears when smiles are detected.

. .

Animation (effect) appears when smiles are detected.

Animation (effect) appears when the screen is touched.

. .

Animation (effect) appears when the screen is touched.

REC

≪PLAY

DECORATE FACE EFFECT

VIDEO

SET

Recording

Recording with Face Decorations

Detects faces and enables decorations such as sunglasses to be added.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

To perform operations other than recording, tap L to cancel the “DECORATE FACE EFFECT” first.

The shortcut menu appears.

Tap “MENU”. (Go to step 4.) Alternatively, tap “DECORATE FACE EFFECT”(5) in the shortcut menu. (Go to step 5.)

Tap “DECORATE FACE EFFECT”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select a desired effect and tap “SET”.

0 0

Tap 0 or 1 to select an item. Press the START/STOP button the camera to start recording.

Press again to stop.

Recording with Decorative Stamps

REC

≪PLAY

STAMP

VIDEO

0:00:00ޓ[0:53]

ON/ OFF

Records videos with various decorative stamps.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU”. (Go to step 4.) Alternatively, tap “STAMP”(7) in the shortcut menu. (Go to step 5.)

Recording

Tap I to scroll through the list of stamps.

Tap M to change the size of stamps.

Tap J to return to the previous screen.

Tap on the screen to add a stamp.

Tap Jto delete the stamp.

Tap “ON/OFF” to display/hide the stamps.

Press the START/STOP button the camera to start recording. Press again to stop.

To perform operations other than recording, tap L to cancel the “STAMP” first.

Memo :

Up to 50 stamps may be added.

The added stamps are deleted when the stamp mode ends or when power is turned off.

Tap “STAMP”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select a stamp.

Tap K to start selecting a stamp. Tap on the desired stamp to use. The number indicates the size of the stamp.

REC

≪PLAY

HANDWRITING EFFECT

VIDEO

0:00:00ޓ[0:53]

ON/ OFF

Recording

Recording with Personal Handwriting

Records videos with your personal handwriting or drawing.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the recording mode.

Tap “MENU”.

You can select a color from white, gray, black, etc.

Select P to tap and erase part of the line.

Tap H to select the line color. Tap I to scroll through the list of colors.

Tap L to select the line thickness.

Tap J to return to the previous screen.

Start writing and drawing with the provided stylus.

The shortcut menu appears.

Tap “MENU”. (Go to step 4.) Alternatively, tap “HANDWRITING EFFECT”(6) in the shortcut menu. (Go to step 5.)

Tap “HANDWRITING EFFECT”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Select a line.

Tap J to delete all the lines.

Tap “ON/OFF” to display/hide the lines.

Press the START/STOP button the camera to start recording. Press again to stop.

To perform operations other than recording, tap L to cancel the “HANDWRITING EFFECT” first.

Memo :

If the writings and drawings appear to be misaligned, correct the touch position.

“ TOUCH SCREEN ADJUST ” (A p. 190)

The writings and drawings are deleted when the handwriting mode ends or when the power is turned off.

Tap G to select the line color and thickness. The number indicates the thickness of the line.

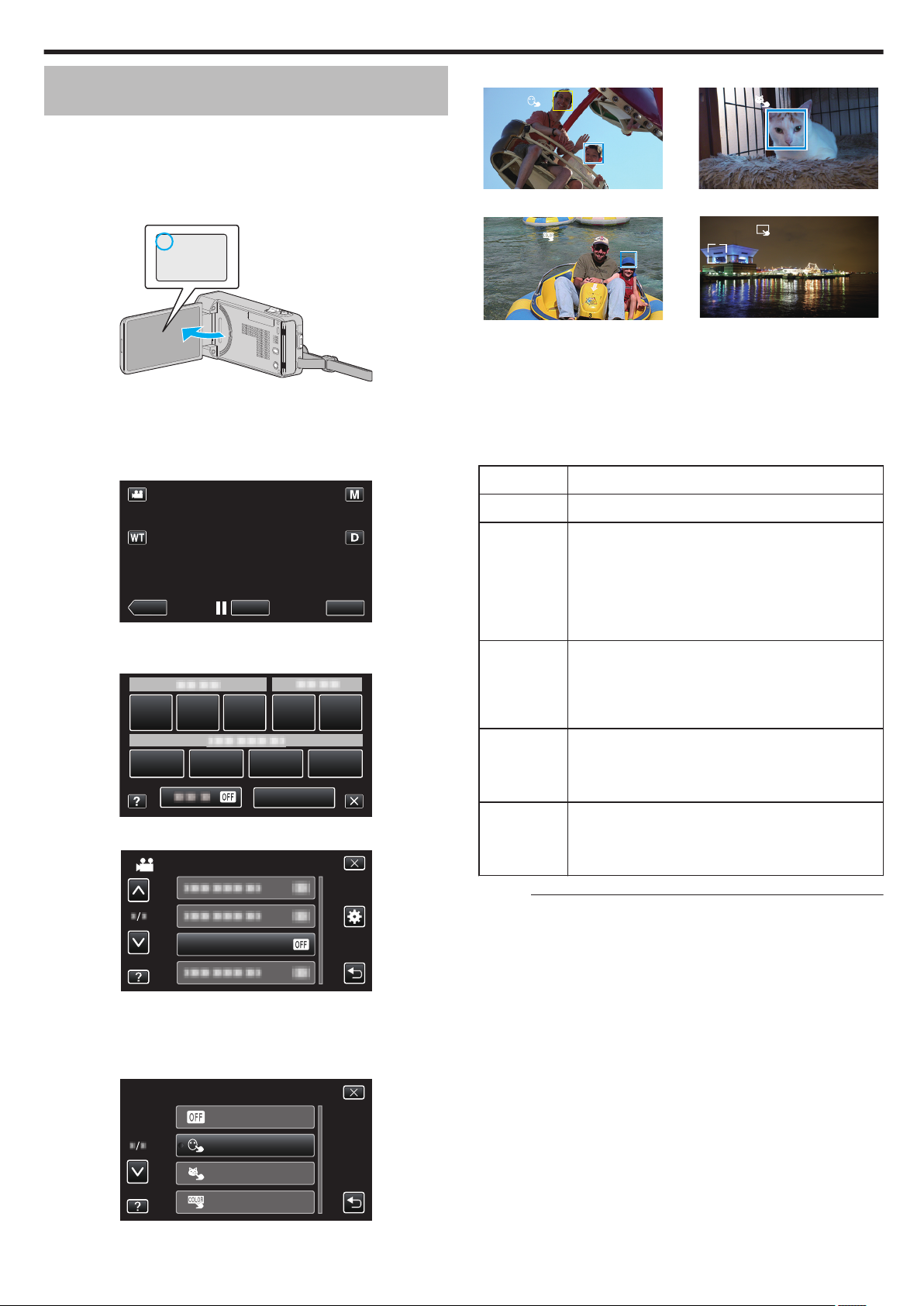

Capturing Subjects Clearly (TOUCH PRIORITY

REC

≪PLAY

TOUCH PRIORITY AE/AF

VIDEO

COLOR TRACKING

PET TRACKING

FACE TRACKING

OFF

TOUCH PRIORITY AE/AF

AREA SELECTCOLOR TRACKING

PET TRACKINGFACE TRACKING

AE/AF)

“TOUCH PRIORITY AE/AF” is a function that adjusts focus and brightness based on a tapped position. By registering the face of a person beforehand, you can enable tracking of the person even without specific selection during recording. This function is available for both videos and still images.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

Focus and brightness will be adjusted automatically based on the tapped position (face/color/area). A blue frame appears around the selected subject (face/color), while a white frame appears around the selected area.

To reset, tap the desired position (face/color/area) again.

To cancel “FACE TRACKING”, “PET TRACKING”, or “COLOR TRACKING”, tap the blue frame.

To cancel “AREA SELECT”, tap the white frame.

Setting Details

Recording

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “TOUCH PRIORITY AE/AF”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap the desired setting.

OFF Deactivates the function.

FACE TRACKING

PET TRACKING

COLOR TRACKING

AREA SELECT

e appears on the screen. Recording is performed while tracking and automatically adjusting the tapped face (subject) with appropriate focus and brightness. In addition, a blue frame appears around the tapped face (subject). (When the face of a person is registered, it becomes the main subject and the blue frame appears even without specific selection.)

N appears on the screen. Recording is performed while tracking and automatically adjusting the tapped pet (subject) with appropriate focus and brightness. In addition, a blue frame appears around the tapped pet (subject).

f appears on the screen. Recording is performed while tracking and automatically adjusting the tapped color (subject) with appropriate brightness. In addition, a blue frame appears around the tapped color (subject).

g appears on the screen. Recording is performed while automatically adjusting the tapped area (fixed position) with appropriate focus and brightness. In addition, a white frame appears around the tapped area.

Memo :

When “TOUCH PRIORITY AE/AF” is set, “FOCUS” will be set to “AUTO” automatically.

Tap the selected position (face/color/area) again to cancel the setting. (Setting remains for registered faces.)

Tap on an unselected position (face/color/area) to reset.

If the camera loses track of a subject, tap the subject again.

Settings are canceled when zoom operation is performed. (“AREA SELECT” only)

When “FACE TRACKING” is set after face registration, the blue frame appears around the face with the highest priority registered.

When recording registered faces using “FACE TRACKING”, focus and brightness will be adjusted automatically even without specific selection. In addition, registered faces may be tracked back again even if they are lost. Therefore, it is recommended to register the faces that are often being recorded by this camera beforehand.

“Registering Human Face Personal Authentication Information” (A p. 100)

When “COLOR TRACKING” is set, the targeted subject (color) may change if similar colors are detected. In this case, tap the subject again.

REC

≪PLAY

SMILE SHOT

VIDEO

OFF

SMILE SHOT

Recording

The targeted subject (color) may also be tracked back again if it appears in the center of the screen within a specific time.

Caution :

Subjects near the sides of the LCD monitor may not respond or be recognized when tapped. In this case, move the subject to the center and tap again.

“FACE TRACKING” may not work properly depending on the shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces in backlight.

“PET TRACKING” may not work properly depending on the type of pet, shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces of pets that are totally black, covered in long hair, or in backlight.

“COLOR TRACKING” may not function properly in the following cases:

- when recording subjects with no contrast

- when recording subjects that are moving at high speed

- when recording in a dark place

- when the surrounding brightness changes

When “FACE TRACKING” is set, the subject may be lost if the camera is moved vertically or horizontally very fast. For unregistered faces, they cannot be tracked back again. To track back the subject, tap on it again. For registered faces, focus and brightness will be adjusted automatically even without specific selection. In addition, registered faces may be tracked back again even if they are lost. Therefore, it is recommended to register the faces that are often being recorded by this camera beforehand.

“Registering Human Face Personal Authentication Information” (A p. 100)

Capturing Smiles Automatically (SMILE SHOT)

“SMILE SHOT” automatically captures a still image upon detection of a smile. This function is available for both videos and still images. Set “TOUCH PRIORITY AE/AF” to “FACE TRACKING” before selecting “SMILE SHOT”. “Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 95)

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU”. (Go to step 4.) Alternatively, tap “SMILE SHOT”(8) in the shortcut menu. (Go to step

5.)

Tap “SMILE SHOT”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “ON”.

≪PLAY

REC

≪PLAY

PET SHOT

VIDEO

OFF

PET SHOT

Tap L to exit the menu as the previous screen appears.

Point the camera toward the human subject.

A still image is automatically captured when smiles are detected.

PHOTO lights up when a still image is being captured.

You can display the name and smile level (%) together with the frame by setting “SMILE%/NAME DISPLAY” in the menu to “ON” before recording.

“Setting SMILE%/NAME DISPLAY” (A p. 102)

Memo :

The camera is able to detect up to 16 faces. Smile levels will be displayed for up to 3 of the largest faces displayed on the screen.

This function may not work properly depending on the shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, smile level, etc.). It is also difficult to detect a smile in backlight.

After a smile is detected and captured, it takes time before the next recording may be performed.

“SMILE SHOT” does not work in the following cases:

- when menu is being displayed

- when remaining recording time or battery power is being displayed

- when “FACE SUB-WINDOW” is set

- when “ANIMATION EFFECT” is set

- when “DECORATE FACE EFFECT” is set

- when “STAMP” is set

- when “HANDWRITING EFFECT” is set

- when “AUTO REC” is set

- when “DATE/TIME RECORDING” is set

“Recording while Displaying a Magnified View of a Selected Face (FACE SUB-WINDOW)” (A p. 98) “Recording with Animation Effects” (A p. 89)

Recording

Capturing Pets Automatically (PET SHOT)

“PET SHOT” automatically captures a still image upon detection of the face of a pet, such as dogs or cats. This function is available for both videos and still images.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Caution :

If “TOUCH PRIORITY AE/AF” is not set to “FACE TRACKING”, “SMILE SHOT” will not work.

If appropriate results cannot be obtained, record with “SMILE SHOT” set to “OFF”.

Tap “PET SHOT”.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “ON”.

Tap L to exit the menu as the previous screen appears.

Point the camera toward the pet.

≪PLAY

REC

≪PLAY

FACE SUB-WINDOW

VIDEO

0:00:00 [0:54]

≪PLAY

REC

Recording

A still image is automatically captured when faces of pets are detected.

PHOTO lights up when a still image is being captured.

Memo :

The camera is able to detect up to 6 faces of pets.

“PET SHOT” may not work properly depending on the type of pet, shooting conditions (distance, angle, brightness, etc.) and the subject (direction of face, etc.). It is also particularly difficult to detect faces of pets that are totally black, covered in long hair, or in backlight.

Subjects other than your pet may be detected by mistake sometimes. Make use of “PET SHOT” only for pets such as dogs or cats.

After a pet is detected and captured, it takes time before the next recording may be performed.

“PET SHOT” does not work in the following cases:

- when menu is being displayed

- when remaining recording time is being displayed

- when “FACE SUB-WINDOW” is set

- when “ANIMATION EFFECT” is set

- when “DECORATE FACE EFFECT” is set

- when “STAMP” is set

- when “HANDWRITING EFFECT” is set

- when “AUTO REC” is set

- when “DATE/TIME RECORDING” is set

“Recording while Displaying a Magnified View of a Selected Face (FACE SUB-WINDOW)” (A p. 98) “Recording with Effects” (A p. 89)

Caution :

When “PET SHOT” is set to “ON”, “TOUCH PRIORITY AE/AF” will be set to “PET TRACKING” automatically. Even when “PET SHOT” is set to “ON” , if “TOUCH PRIORITY AE/AF” is not set to “PET TRACKING”, “PET SHOT” will be set to “OFF” automatically.

If appropriate results cannot be obtained, record with “PET SHOT” set to “OFF”.

Recording while Displaying a Magnified View of a Selected Face (FACE SUB-WINDOW)

You can record while viewing both the overall image of the scene and magnified image of a subject’s expression. Frames appear around the faces that can be magnified. Tap a frame to track and magnify the face in a subwindow.

Open the LCD monitor.

Check if the recording mode is A.

If the mode is B still image, tap B on the recording screen to display the mode switching screen. Tap A to switch the mode to video.

Tap “MENU”.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “FACE SUB-WINDOW”.

Tap on the frame of the face to magnify.

When the face within a frame is tapped, it is displayed in a subwindow. The display position of the sub-window is set automatically according to the position of the tapped face.

The frame of the tapped face changes to blue.

When the tapped face disappears from the screen, the sub-window disappears too. When the face reappears on the screen., the subwindow is displayed again automatically.

To exit “FACE SUB-WINDOW”, tap “L”.

Caution :

Take note of the following when “FACE SUB-WINDOW” is set.

- Functions such as digital zoom, zoom operation on the touch screen, simultaneous still image recording, “TIME-LAPSE RECORDING”, “HIGH SPEED RECORDING”, “DECORATE FACE EFFECT”, “STAMP”, “HANDWRITING EFFECT”, “DATE/TIME RECORDING”, and “AUTO REC” are not available.

- Settings such as “FOCUS” and “BRIGHTNESS ADJUST” are set to “AUTO” automatically.

- If “TOUCH PRIORITY AE/AF” is set to FACE TRACKING, appropriate focus and brightness will be adjusted for the person displayed in the subwindow.

- “ANIMATION EFFECT” is not available.

The sub-window display will also be recorded.

Memo :

When a face is magnified and displayed in the sub-window, only the name of the person will be displayed. (When a face is not registered, the name of the person will not be displayed.)

The face sub-window mode is canceled when the power is turned off.

Frames do not appear around the faces in the face sub-window mode as easily as in the other modes. They appear around the faces that can be magnified only. The frames do not appear in the following cases:

- when the face of the subject is extremely small

- when the surrounding is too dark or too bright

- when the face appears horizontal or slanted

- when the face appears bigger than the sub-window (such as when it is zoomed in)

- when a part of the face is hidden

“Registering Human Face Personal Authentication Information” (A p. 100)

Recording

REC

≪PLAY

FACE REGISTRATION

VIDEO

CANCEL

EDIT

FACE REGISTRATION

STOP

NEED TO FIT FACE IN FRAME

STOP

RECORD

RECORD THE FRONT VIEW

NOYES

CONTINUE RECORDING?

FACE RECOGNITION ACCURACY,

MORE FACE DATA WILL IMPROVE

CURRENT RECORDING IS OK,

STOP

ROTATE THE FACE SLOWLY

Recording

Registering Human Face Personal Authentication Information

By registering the face of a person beforehand, focus and brightness can be adjusted automatically by the face tracking function. Up to 3 faces, together with names and priority levels, can be registered. It is recommended to register the faces that are often being recorded by this camera beforehand.

Open the LCD monitor.

Set the recording mode to either A video or B still image.

To switch the mode between video and still image, tap A or B on the recording screen to display the mode switching screen. Tap A or B to switch the mode to video or still image respectively.

Tap “MENU”.

Point the camera toward the human subject.

Information is collected before face registration recording. The frame appears blinking while information is being collected.

Adjust to fit the face within the frame while it is blinking. The frame stops blinking and lights up after information collection is complete.

To cancel the registration, tap “STOP”. When “CANCEL FACE RECOGNITION?” appears, tap “YES” to return to the normal recording mode.

Tap “RECORD” and record the face from the front.

The shortcut menu appears.

Tap “MENU” in the shortcut menu.

Tap “FACE REGISTRATION”.

A face is captured to be used on the face registration index screen.

Other than tapping “RECORD”, you can also record by pressing the SNAPSHOT button fully.

A sound can be heard when recording is complete.

To cancel the registration, tap “STOP”. When “CANCEL FACE RECOGNITION?” appears, tap “YES” to return to the normal recording mode.

Tap “YES” to continue recording.

To proceed to collect face information in the four directions of up, down, left, and right, tap “YES”. It is recommended to continue recording to increase the accuracy of face recognition.

To end face registration recording, tap “NO”. Go to step 11.

Rotate the face slowly in four directions to register the face information.

Tap 3 or 2 to move upward or downward for more selection.

Tap L to exit the menu.

Tap J to return to the previous screen.

Tap “REGISTER NEW FACE”.

100

Rotate the face slowly while looking at the camera. A sound can be heard when recording is complete for each direction. (4 times in total) Repeat the step until recording (registration) is complete for all directions.

Registration of the four directions may fail depending on the shooting environment. In this case, tap “STOP” to cancel recording, then tap “NO” and go to step 11.

If the face cannot be properly recognized during recording, register the face again.

Face the camera with a smiling face.

JVC GZ-VX700, GZ-VX705 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Charging

Recording

Playback
