JVC GZ-HM550 User Guide

Download

HD MEMORY CAMERA

GZ-HM550

Detailed User Guide

LYT2119-002A

Table of Contents

Beginner's Guide ............................................................ 4

Charging .................................................................................. 4

Recording ................................................................................ 4

Playback .................................................................................. 4

Shooting Tips .......................................................................... 4

Useful Shooting Techniques

Holiday Season/Christmas ...................................................... 5

Wedding .................................................................................. 6

Travel ...................................................................................... 7

Amusement Park ..................................................................... 9

Getting Started

Verifying the Accessories ...................................................... 11

Charging the Battery Pack .................................................... 12

Grip Adjustment .................................................................... 13

Using the Hand Strap ........................................................ 13

Inserting an SD Card ............................................................. 13

Types of Usable SD Card .................................................. 14

Clock Setting ......................................................................... 14

Resetting the Clock ........................................................... 15

Changing the Display Language ........................................... 15

Using the Operation Buttons ................................................. 16

Using the Slider ..................................................................... 16

Holding this Unit .................................................................... 16

Tripod Mounting .................................................................... 16

Using the Remote Control ..................................................... 17

Using Bluetooth-compliant Devices ...................................... 18

Registering a Bluetooth-compliant Device ......................... 19

Connecting to a Registered Device ................................... 20

Transferring Still Images to Bluetooth-compliant Devices

........................................................................................ 22

Operation Using a Smartphone ......................................... 23

Radio Waves Used by this Product ................................... 23

Using this Unit Overseas ....................................................... 24

Charging the Battery Pack Overseas ................................ 24

Setting the Clock to Local Time when Traveling ............... 25

Setting Daylight Saving Time ............................................ 25

Optional Accessories ............................................................ 26

Recording

Taking Videos in Auto Mode ................................................. 27

Zooming ............................................................................. 29

Capturing Still Images During Video Recording ................ 29

Reducing Camera Shake .................................................. 29

Checking the Captured Image Immediately ...................... 29

Taking Still Images in Auto Mode .......................................... 30

Zooming ............................................................................. 31

Checking the Captured Image Immediately ...................... 31

Manual Recording ................................................................. 32

Scene Selection ................................................................. 33

Adjusting Focus Manually .................................................. 34

Using Focus Assist ............................................................ 34

Adjusting Brightness .......................................................... 35

Setting Shutter Speed ....................................................... 35

Setting White Balance ....................................................... 36

Setting Backlight Compensation ........................................ 36

Setting Metering Area ........................................................ 37

Recording with Effects ....................................................... 37

Taking Close-up Shots ...................................................... 38

Capturing Human Subjects Clearly (Face Detection AE/AF)

............................................................................................ 38

Taking Group Shots (Self-timer) ........................................... 39

Registering Files to Events Before Recording ...................... 41

Taking Videos in YouTube Format ........................................ 41

Taking Videos in iTunes Format ........................................... 42

Slow-motion (High-speed) Recording ................................... 43

Recording at Intervals (TIME-LAPSE RECORDING) ........... 44

Recording Automatically by Sensing Movements (AUTO REC)

............................................................................................ 46

Remaining Recording Time/Battery Power ........................... 47

Playback

Playing Back Videos ............................................................. 49

Checking the Content of Videos Quickly ........................... 50

Playing a Video with Defective Management Information

........................................................................................ 50

Playback with Special Effects ............................................ 51

Playing Back Still Images ...................................................... 52

Slideshow Playback ........................................................... 53

Face Detection Zoom ........................................................ 53

Searching for a Specific Video/Still Image ............................ 54

Group Search .................................................................... 54

Date Search ....................................................................... 55

Event and Date Search ..................................................... 55

Connecting to and Viewing on TV ......................................... 56

Connecting via the HDMI Mini Connector ......................... 56

Connecting via the Component Connector ........................ 57

Connecting via the AV Connector ..................................... 58

Playing Back Playlists ........................................................... 58

Playing Back a BD/DVD Created on this Unit ....................... 59

Digest Playback on a DVD Player ..................................... 60

Editing

Deleting Unwanted Files ....................................................... 61

Deleting the Currently Displayed File ................................ 61

Deleting Selected Files ...................................................... 61

Deleting All Files ................................................................ 62

Protecting Files ..................................................................... 63

Protecting the Currently Displayed File ............................. 63

Protecting Selected Files ................................................... 63

Protecting All Files ............................................................. 64

Releasing Protection of All Files ........................................ 65

Changing Event Registration of Videos ................................ 65

Changing the Event of the Currently Displayed File .......... 65

Changing the Event of the Selected Files ......................... 66

Capturing a Still Image in the Video during Playback ........... 67

Dividing Files ......................................................................... 68

Combining Videos Recorded by Seamless Recording ......... 69

Capturing a Required Part in the Video ................................ 70

Capturing Videos for Uploading to YouTube ......................... 71

Preparing Videos to Transfer to iTunes ................................ 73

Creating Playlists from the Recorded Videos ........................ 74

Creating Playlists with Selected Files ................................ 75

Creating Playlists by Group ............................................... 76

Creating Playlists by Date ................................................. 77

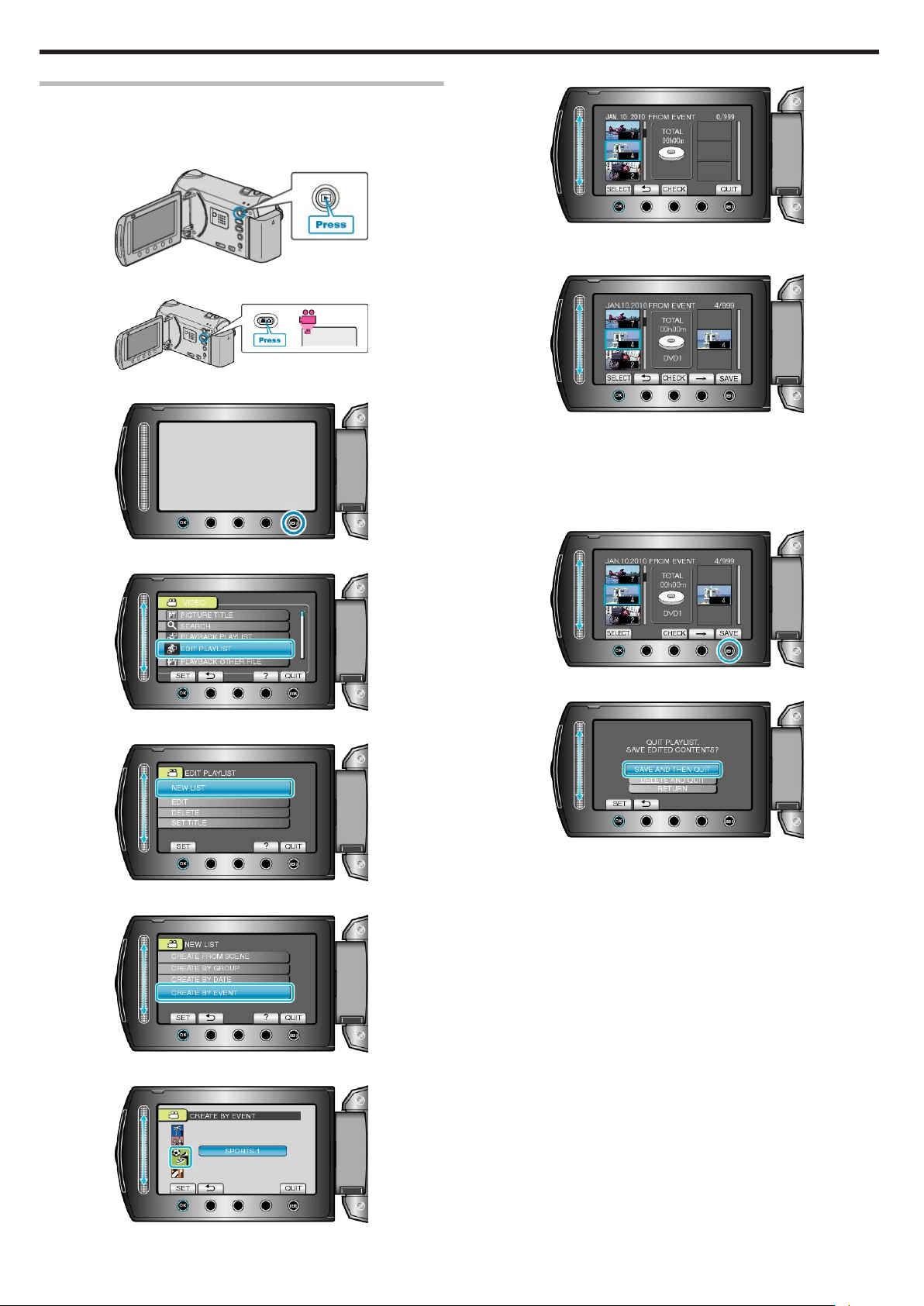

Creating Playlists by Event ................................................ 78

Editing Playlists ................................................................. 79

Deleting Playlists ............................................................... 80

Adding Title Screens to Playlists ....................................... 81

Creating a Playlist with Title .................................................. 81

Copying

Copying Files to Card ............................................................ 82

Copying All Files ................................................................ 82

Copying Selected Files ...................................................... 83

Moving Files .......................................................................... 84

Moving All Files ................................................................. 84

Moving Selected Files ....................................................... 85

Creating Discs with a DVD Writer or External Blu-ray Drive

............................................................................................ 86

Preparing a DVD Writer (CU-VD50U) ............................... 86

Preparing a DVD Writer (CU-VD3U) ................................. 87

Preparing an External Blu-ray Drive .................................. 87

Changing Recording Media (video mode only) ................. 88

Copying All Files ................................................................ 88

Copying Files by Date ....................................................... 89

Copying Files by Event ...................................................... 90

Copying Selected Playlists ................................................ 91

Copying Selected Files ...................................................... 93

Finalizing Discs After Copying ........................................... 94

Using a USB External Hard Disk Drive ................................. 94

Preparing a USB External Hard Disk Drive ....................... 95

Copying All Files ................................................................ 95

Playing Back Files in the USB External Hard Disk Drive

........................................................................................ 96

Deleting Folders in the USB External Hard Disk Drive

........................................................................................ 96

Formatting the USB External Hard Disk Drive ................... 97

Creating a Disc Using a Connected Blu-ray Recorder .......... 97

Dubbing Files to a DVD Recorder or VCR ............................ 98

Copying to Windows PC ....................................................... 99

Verifying System Requirements (Guideline) .................... 100

Installing the Provided Software ...................................... 100

Backing Up All Files ......................................................... 101

Organizing Files ............................................................... 102

Recording Videos to Discs .............................................. 103

JVC Software Licence Agreement ................................... 104

Backing Up Files Without Using Provided Software ........ 105

List of Files and Folders .................................................. 105

Copying to Mac Computer .................................................. 106

Menu Settings

Operating the Menu ............................................................ 107

Recording Menu (Video) ..................................................... 108

FACE PRIORITY AE/AF .................................................. 109

LIGHT .............................................................................. 109

VIDEO QUALITY ............................................................. 109

ZOOM .............................................................................. 110

GAIN UP .......................................................................... 110

HIGH SPEED RECORDING ........................................... 111

TIME-LAPSE RECORDING ............................................ 111

AUTO REC ...................................................................... 111

SEAMLESS RECORDING .............................................. 111

SHUTTER MODE ............................................................ 112

x.v.Color .......................................................................... 112

WIND CUT ....................................................................... 113

Recording Menu (Still Image) .............................................. 114

FACE PRIORITY AE/AF .................................................. 115

FLASH ............................................................................. 115

SELF-TIMER ................................................................... 115

SHUTTER MODE ............................................................ 115

IMAGE SIZE .................................................................... 116

IMAGE QUALITY ............................................................. 116

GAIN UP .......................................................................... 117

AUTO REC ...................................................................... 117

Manual Settings Menu ........................................................ 118

SCENE SELECT ............................................................. 118

FOCUS ............................................................................ 118

FOCUS ASSIST .............................................................. 118

BRIGHTNESS ADJUST .................................................. 118

SHUTTER SPEED .......................................................... 118

WHITE BALANCE ........................................................... 118

BACKLIGHT COMP. ....................................................... 118

METERING AREA/TYPE ................................................ 118

EFFECT ........................................................................... 118

TELE MACRO ................................................................. 118

Playback Menu (Video) ....................................................... 119

DELETE ........................................................................... 120

PICTURE TITLE .............................................................. 120

SEARCH .......................................................................... 120

PLAYBACK PLAYLIST .................................................... 120

EDIT PLAYLIST ............................................................... 120

PLAYBACK OTHER FILE ............................................... 120

EDIT ................................................................................ 120

SEAMLESS RECORDING .............................................. 121

WIPE/FADER .................................................................. 121

ON-SCREEN DISPLAY ................................................... 121

Playback Menu (Still Image) ............................................... 122

DELETE ........................................................................... 122

SEARCH DATE ............................................................... 122

EDIT ................................................................................ 122

SLIDE SHOW EFFECTS ................................................. 123

ON-SCREEN DISPLAY ................................................... 123

STILL IMAGE TRANSFER .............................................. 123

Display Settings Menu ........................................................ 124

LANGUAGE ..................................................................... 124

DATE DISPLAY STYLE .................................................. 124

MONITOR BRIGHTNESS ............................................... 124

LCD BACKLIGHT ............................................................ 125

FOCUS ASSIST COLOR ................................................ 125

CLOCK ADJUST ................................................................. 125

Basic Settings Menu ........................................................... 126

CONT. SHOOTING SPEED ............................................ 127

DEMO MODE .................................................................. 127

AUTO POWER OFF ........................................................ 128

OPERATION SOUND ..................................................... 128

RECORD BUTTON ......................................................... 129

QUICK RESTART ........................................................... 129

REMOTE ......................................................................... 130

AUTO FINALIZE .............................................................. 130

UPDATE .......................................................................... 131

FACTORY PRESET ........................................................ 131

Connection Settings Menu .................................................. 132

Bluetooth ......................................................................... 133

Bluetooth MIC AUDIO ..................................................... 133

DISPLAY ON TV ............................................................. 133

VIDEO OUTPUT .............................................................. 134

COMPONENT OUTPUT ................................................. 134

HDMI OUTPUT ................................................................ 135

HDMI CONTROL ............................................................. 135

Media Settings Menu .......................................................... 136

REC MEDIA FOR VIDEO ................................................ 136

REC MEDIA FOR IMAGE ............................................... 136

FORMAT BUILT-IN MEM. ............................................... 137

FORMAT SD CARD ........................................................ 137

ERASE ALL DATA .......................................................... 138

Names of Parts

Front .................................................................................... 139

Rear .................................................................................... 139

Bottom ................................................................................. 140

Interior ................................................................................. 140

LCD Monitor ........................................................................ 141

Indications on the LCD monitor

Common Recording Indications .......................................... 142

Video Recording .................................................................. 142

Still Image Recording .......................................................... 143

Video Playback ................................................................... 143

Still Image Playback ............................................................ 144

Troubleshooting

Battery Pack ........................................................................ 145

Recording ............................................................................ 145

Card .................................................................................... 146

Playback .............................................................................. 146

Editing/Copying ................................................................... 147

PC ....................................................................................... 147

Screen/Image ...................................................................... 148

Other Problems ................................................................... 148

Error Message? ................................................................... 149

Maintenance ................................................................ 150

Specifications ............................................................. 151

Beginner's Guide

Charging

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Recording

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Playback

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Shooting Tips

Basic Way to Hold a Camcorder ~ Recording Stable Images ~

■ [Getting Ready]

① Open your feet to the width of your shoulders. ② Extend your right hand and hold the camcorder over your head. ③ Hold the LCD monitor with your left hand and adjust the angle ac-

cordingly.

CAUTION:

●

Use this way of shooting only as a last resort as it is difficult to achieve stable images.

●

Set to the wide angle as much as possible as the image will be prone to camera shake.

●

Be considerate. Do not inconvenience the people around you.

Squatting and Shooting at Eye Level

This is the standard way of shooting while standing up.

Be sure to master this basic technique in order to achieve stable images.

■ [Getting Ready]

① Open your feet to the width of your shoulders. ② Keep the elbow of your right arm, which is holding the camcorder,

close to your side.

③ Hold the LCD monitor with your left hand and adjust the angle ac-

cordingly.

Extending Your Hands to Shoot ~ High-Angle Shooting ~

Staying low is a common position to take when shooting small children.

By recording from the eye level of the child, you can capture all his cute expressions clearly.

■ [Getting Ready]

① Kneel down with your left knee while keeping your right foot on the

ground.

② Place the elbow of your right arm, which is holding the camcorder,

on your right knee.

③ Hold the LCD monitor with your left hand and adjust the angle ac-

cordingly.

Panning

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Use this method to shoot a wide angle of view.

■ [Getting Ready]

Shoot by rotating your body instead of moving your arms while keeping the basic way of holding a camcorder as stated above.

① Stand facing the direction where the rotation will stop. ② Twist your upper body to the direction where recording will start. ③ Press the start button and record for 2 seconds, then slowly twist

back your body to face the front. Record for another 2 seconds while facing the front, then press the stop button. (The 90 degrees rotation should take about 5 seconds, giving the feeling of a slow motion.)

Extend your hand when your subject is being hidden behind a crowd of

people.

Useful Shooting Techniques

Holiday Season/Christmas

Record the happy Christmas celebration with your family!

Photo by 101st CAB, Wings of Destiny

Creative Commons Attribution-No Derivative Works 3.0

Decorating the Tree and Preparing the Dinner

The decoration of tree and preparation of dinner are part of the joy of Christmas. Be sure to record these happy family times!

■ Decorating the tree

Recording the Christmas Party

Photo by InnerSpirit

Creative Commons Attribution-No Derivative Works 3.0

After all preparations, it is finally the Christmas party itself. Not only should you record the candle-blowing scene, but also the smiles of the family while being surrounded by good food, or even the father who is slightly drunk from champagne!

Finding the Presents

A tree is the most important thing to bring out the mood of Christmas.

Simply the scene of all family members engaging in the decorating of a fir tree with various colorful ornaments is full of the feeling of happiness.

■ Preparing the Dinner

Photo by Manicosity

Creative Commons Attribution-No Derivative Works 3.0

Record the scenes as everyone helps to prepare the feast of the night. You can film the mother who is cooking, the children who are helping, and of course, the process of making a cake!

For children, the greatest joy of Christmas is receiving presents the next

morning. Their expression of delight when finding a present next to their pillow is a recording opportunity not to be missed. Get ready to shoot before the children wake up!

Useful Shooting Techniques

Wedding

Create an awesome wedding video for the bride and groom!

Discussing and Planning Before the Event

Before the day of the wedding reception, it is important to discuss with the bride and groom about various details such as the order of the ceremony and whether there are any entertainment programs or change of clothes. By understanding the preferences of the bride and groom, you will be able to shoot more appropriately.

Finding the Right Angle to Capture Both Bride and Groom

■ Composing the picture with the guests in front and the

bride and groom at the back

Closing Up on the Bride's Face During the Thank You Speech

The climax of the event finally comes during the bride and groom's thank you speech and presentation of flowers. The touching words of appreciation from the bride and tears of joy from the parents are scenes that must not be missed. Start by closing up on the bride's face using zoom. As the tears start to form in the bride's eyes, continue shooting for a little longer. Then, slowly zoom out to the wide angle to show the parents who are moved by the speech.

Advanced Operation with Two Camcorders

■ <Camcorder 1>

Closing up on the bride and groom all the time

■ <Camcorder 2>

Recording the congratulatory messages from friends at the same time

The main characters of a wedding are of course the bride and groom. Re-

cord their expressions clearly during the toast, speech, entertainment programs, and other scenes. Another recommendation is to capture the face shots of the guests, then pan towards the groom. Picture composition containing the crowd of guests only lacks fun, so be sure to pay attention to the shooting angle and size.

Recording the Expressions and Comments of Guests

■ Setting the shot from eye level to chest level

If video-editing is to be done, record using two camcorders so that a vid-

eo with varying scenes can be created. You can try asking a close friend who has a camcorder at home. Set the borrowed camcorder on a tripod to focus on taking close-up shots of the bride and groom. In this way, the other camcorder can be moved around to record other scenes, enabling an interesting video with changing scenes to be created through editing and compilation. As most people own at least a digital camera nowadays, even if you are really unable to find an extra camcorder, inserting still pictures to the video at various points is also a good way to add variety. Do give it a try!

You can record comments from the guest by going around asking,

"Please say a few words for the bride and groom". This can be done at the guests' waiting room, when the bride and groom are changing, or during the entertainment programs.

Travel

Capture all the good times of your domestic or overseas trips!

Useful Shooting Techniques

■ Battery Charger

Bringing the Necessary Equipment

The necessary things to bring on a trip depends on your traveling purpose and the destination. For overseas trips in particular, you have to think about what to bring in accordance to the local conditions. Here are some suggestions for your consideration.

■ Camcorder

Think about how many hours of shooting you will usually perform in a day. Be sure to prepare enough recording medium especially for long overseas trips. If you are recording in SD cards, get ready the sufficient number of cards, including some for backup.

■ Battery Pack

Prepare a battery pack that is ready for double the expected recording time in a day. For example, if you plan to record for 2 hours a day, prepare a battery pack that is ready for 4 hours (actual recording time). For a day trip, you can prepare a battery with low capacity but for a long trip, do prepare a few batteries with high capacities.

■ AC Adapter

The JVC AC adapter supports voltages from 100 V to 240 V, and hence can be used anywhere in the world. Bring along the adapter if you are traveling for a long time. Charge the battery pack while sleeping so that you can record with full battery power the next day.

■ Power Plug Adapter

Recording cannot be performed when an AC adapter is connected to the

camcorder for battery charging. You can bring an additional battery charger to charge battery packs if you plan to use the camcorder for recording at night. You can also charge multiple battery packs by using both the battery charger and this camcorder at the same time.

■ Tripod

A tripod is an essential item to take stable images. Select an appropriate tripod in accordance to your purpose and style of traveling, such as a compact one to be used on a table or one that is at least 1 m tall.

Recording the Excitement Before Departure

It may be a little abrupt to start your travel video at the destination suddenly. Record also the preparations prior to departure if it is a family trip, or the time when everyone is gathered at the meeting place if you are traveling with your friends. For overseas trips, taking a shot of the signs and displays at the airport of the flight you are taking may be useful for future reference.

The shape of the power plug varies according to countries. Be sure to

check the shape of the power plug beforehand, and bring the appropriate power plug adapter. "Charging the Battery Pack Overseas" （A P.24）

Useful Shooting Techniques

Using Pan at the Places of Interest

Tourists spots with beautiful scenery or historical sites are places that you would certainly want to record. To capture the magnificence of a scene which cannot be fitted into a single frame, try the panning technique. Refer to the "Shooting Tips" found in this website on how to use panning effectively. In addition, you may also like to take a shot of the signs or monuments that can often be found at the tourist spots.

Showing Everyone Having a Good Time

When taking a video, it is rather dull to shoot only the scenery or historical sites. Talk about your feelings while recording the breath-taking scenery of an attraction so that it will be an interesting scene to view later.

Useful Shooting Techniques

Amusement Park

Take more shots of the smiling faces of everyone in the family!

Taking Videos or Still Images According to the Attraction

You may choose to take videos all the time. However, you may want to take some still images too. The following section explains the scenarios suitable for taking videos or still images.

■ Scenarios suitable for taking videos

Inducing Responses by Calling Out

Videos with no waving of hands nor laughter are not only dull when you view them later, but also put the capability of the audio-recording function of the camcorder to a waste. When recording, induce more reactions by enthusiastically waving your hands or shouting out "Is it fun?" and the like.

Capturing the Best Moment in a Video as a Still Image

Shots with the eyes closed are often taken by accident. To reduce such mistakes, make use of the function to capture still images from videos. As videos are actually continuous recording of 60 still images within 1 minute, using this function allows you to select the best moment and save it as a still image. "Capturing a Still Image in the Video during Playback" （A P.67）

Scenarios with changes in body movement are suitable for taking videos.

This includes situations where there are rapid changes in facial expressions or voices of surprise and delight. *Some amusement parks do not allow passengers to perform any recording. Be sure to check beforehand. [Examples]

●

Merry-go-round, go kart, coffee cup, etc.

■ Scenarios suitable for taking still images (photos)

Scenarios with little movement of the subject are suitable for taking still images. Try to take the still images from an angle such that the surroundings can be seen clearly. [Examples]

●

Carousal, ferris wheel, fun bicycle rides, etc.

Photo by justthatgoodguyjim

Creative Commons Attribution-No Derivative Works 3.0

Video Playback in Progress

Photo by talkrhubarb

Creative Commons Attribution-No Derivative Works 3.0

Capturing a Still Image

Photo by justthatgoodguyjim

Creative Commons Attribution-No Derivative Works 3.0

Video Playback in Progress

Useful Shooting Techniques

Advanced Operation with Backlight Compensation

It is useful to make use of backlight compensation when the subject's face is in backlight or when the expression cannot be seen clearly. Increase the brightness of the whole image by setting “BACKLIGHT COMP.” if the faces appear too dark. Even the expressions of faces under shadows can be captured brightly and clearly. "Setting Details" （A P.36）

■ <Without backlight compensation>

■ <With backlight compensation>

Verifying the Accessories

If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.

Illustration Description

AC Adapter AP-V30U

●

Connects to this unit to charge the battery pack. It can also be used when recording or playing back videos indoors.

Battery Pack BN-VG114U

●

Attaches to this unit to supply power.

Remote Control RM-V760U

●

Operates certain functions from a distance.

Getting Started

AV Cable

●

Connects this unit to a TV to play back recorded images on the TV.

Component Cable

●

Connects this unit to a TV to play back recorded images on the TV in a better quality.

USB Cable (Type A - Mini Type B)

●

Connects this unit to a PC.

CD-ROM

●

For installing the provided software "Everio MediaBrowser" on a PC.

Basic User Guide

●

Read well and keep in a safe place where it can be accessed easily when necessary.

Memo:

SD cards are sold separately. "Types of Usable SD Card" （A P.14） When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit. "Charging the Battery Pack Overseas" （A P.24）

Getting Started

Charging the Battery Pack

Charge the battery pack immediately after purchase and when the remaining battery power is low. The battery pack is not charged at the time of purchase.

Attach the battery pack.

●

Align the top of the battery with this unit, and slide in until the battery clicks into place.

Connect the AC adapter to the DC terminal.

Plug in the power.

Detaching the Battery Pack

Slide the battery release lever to detach the battery from this unit.

Approximate Battery Charging Time

Battery Pack Charging Time

BN-VG114U (Supplied)

BN-VG121U

●

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

* The charging time is when the unit is used at 25°C (77°F). If the battery pack is charged outside the room temperature range of 10°C to 35°C (50°F to 95°F), charging may take a longer time or it may not start.The recordable and playable time may also be shortened under some usage conditions such as at low temperature. "Approximate Recording Time (Using Battery)" （A P.48）

2 h 30 m

3 h 30 m

●

The charging lamp blinks when charging is in progress. It goes out when charging is finished.

CAUTION:

Be sure to use JVC battery packs.

●

If you use any other battery packs besides JVC battery packs, safety and performance can not be guaranteed.

●

Charging time: approx. 2 h 30 m (using supplied battery pack) The charging time is when the unit is used at 25°C (77°F). If the battery pack is charged outside the room temperature range of 10°C to 35°C (50°F to 95°F), charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature.

Rechargeable Batteries：

●

When using the battery in a low temperature environment (10°C (50°F) or below), the operating time may be shortened, or it may not function properly. When using this unit outdoors in the winter weather, warm the battery, such as by placing it in the pocket, before attaching it. (Keep away from direct contact with a warm pack.)

●

Do not expose the battery to excessive heat, such as direct sunlight or fire.

●

After removing the battery, store it in a dry place between 15°C to 25°C (59°F to 77°F).

●

If the battery pack is not to be used for a long time, use up the charge completely and detach it from this unit to prevent deterioration.

Memo:

●

You can connect this unit to the AC adapter to record for long hours indoors. (Battery charging begins when the LCD monitor is closed.)

Getting Started

Grip Adjustment

① Flip the grip belt over. ② Adjust the length of the belt. ③ Fasten the grip belt.

CAUTION:

●

Be sure to fasten the grip belt properly. If the belt is loose, this unit may drop and result in injuries or damages.

Using the Hand Strap

When using the hand strap, loop it around your wrist.

Inserting an SD Card

When a commercially available SD card is inserted, recordings can still be made to the card without stopping when the remaining recording time on the built-in memory runs out. "Types of Usable SD Card" （A P.14） "Approximate Video Recording Time" （A P.48）

Close the LCD monitor.

Open the slot cover.

Removing the Strap

●

While pressing A, pull B and remove the strap.

Attaching the Strap

Push in firmly until it clicks into place.

Insert an SD card.

●

Insert with the label facing outward.

Warning

●

Make sure not to insert the card in the wrong direction. It may cause damage to the unit and card.

●

Turn off the power of this unit before inserting or removing a card.

●

Do not touch the metal contact area when inserting the card.

Memo:

●

To record to the card, it is necessary to perform media settings. When no card is available, set media settings to “BUILT-IN MEMORY” for recording.

"REC MEDIA FOR VIDEO" （A P.136） "REC MEDIA FOR IMAGE" （A P.136）

●

To use cards that have been used on other devices, it is necessary to format (initialize) the card using “FORMAT SD CARD” from media settings.

"FORMAT SD CARD" （A P.137）

Getting Started

Removing the Card

Push the SD card inward once, then pull it out straight.

Types of Usable SD Card

The following SD cards can be used on this unit. Operations are confirmed on the SD cards from the following manufacturers.

●

Panasonic

●

TOSHIBA

●

SanDisk

●

ATP

SDHC Card

Clock Setting

The “SET DATE/TIME!” screen appears when you turn on this unit for the first time after purchase, when it has not been used for a long time, or when the clock is not set yet. Set the clock before recording.

Open the LCD monitor.

●

This unit turns on.

●

When the LCD monitor is closed, this unit turns off.

Select “YES” and touch C.

Set the date and time.

●

Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video recording.

●

To record videos with “VIDEO QUALITY” set to “UXP”, use of a Class 6 compliant SDHC card is recommended.

●

You can also use a Class 10 compliant SDHC card.

SD Card

●

This unit supports 256 MB to 2 GB SD cards.

Memo:

●

Using SD cards (including SDHC cards) other than those specified above may result in recording failure or data loss.

●

Class 4 and Class 6 are guaranteed to have a minimum transfer rate of 4 MB/s and 6 MB/s respectively during reading or writing of data.

●

Use the slider to adjust the year, month, day, hour, and minute in order.

●

Touch the operation buttons "E" / "F" to move the cursor.

●

After setting the date and time, touch C.

Select the region where you live and touch C.

●

The city name and time difference are displayed.

●

Touch C after the color of the selected region changes.

Memo:

●

The clock can be reset again later.

"Resetting the Clock" （A P.15）

●

When using this unit overseas, you can set it to the local time for recording.

"Setting the Clock to Local Time when Traveling" （A P.25）

●

“SET DATE/TIME!” is displayed when you turn on this unit after it has not been used for a prolonged period. Charge this unit for more than 24 hours before setting the clock.

"Charging the Battery Pack" （A P.12）

●

You can turn on or off the clock display during playback mode.

"ON-SCREEN DISPLAY" （A P.121）

●

Touch the slider and buttons around the screen with your fingers.

●

The slider and buttons do not function if you touch them with your fingernails or with gloves on.

●

The displays on the screen do not work even if you touch them.

Getting Started

Resetting the Clock

Set the clock with “CLOCK ADJUST” from the menu.

Touch D to display the menu.

Select “CLOCK ADJUST” and touch C.

Select “CLOCK SETTING” and touch C.

Changing the Display Language

The language on the display can be changed.

Touch D to display the menu.

Select “DISPLAY SETTINGS” and touch C.

Select “LANGUAGE” and touch C.

Set the date and time.

●

Use the slider to adjust the year, month, day, hour, and minute in order.

●

Touch the operation buttons "E" / "F" to move the cursor.

●

After setting the date and time, touch C.

Select the region where you live and touch C.

●

The city name and time difference are displayed.

●

Touch C after the color of the selected region changes.

Select the desired language and touch C.

Getting Started

Using the Operation Buttons

Functions of the operation buttons may be displayed on the screen according to the feature in use.

●

To operate, touch the slider and buttons around the screen lightly with your fingers.

Memo:

●

"Touch" denotes the touching of the operation buttons lightly.

●

The slider and buttons do not function if you touch them with your fingernails or with gloves on.

●

The displays on the screen do not work even if you touch them.

Using the Slider

Slide the ball of your finger along the slider for smooth operations. While the slider is being pressed, the cursor moves automatically. Fine operations such as moving the cursor one by one can be performed by touching the slider.

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Memo:

●

The slider and buttons do not function if you touch them with your fingernails or with gloves on.

●

The displays on the screen do not work even if you touch them.

Holding this Unit

When holding this unit, keep your elbows close to your sides to prevent camera shake.

CAUTION:

●

Be careful not to drop this unit during transportation.

●

Guardians should pay close attention when this unit is being used by children.

Memo:

●

If camera shake is excessive, use the digital image stabilizer.

"Reducing Camera Shake" （A P.29）

Tripod Mounting

This unit can be mounted on a tripod. This is useful for preventing camera shake and recording from the same position.

●

To prevent this unit from falling off, check the tripod mounting screw holes and positioning holes on the unit carefully before mounting, and turn the screws until they are fastened firmly.

CAUTION:

●

To prevent injuries or damages which may result if this unit falls off, read the instruction manual of the tripod to be used and make sure that it is securely attached.

Memo:

●

It is recommended to use the tripod when recording in conditions prone to camera shake (such as in dark places or when zoomed to the telephoto end).

●

Set "DIS" to Z (OFF) when using a tripod for recording.

"Reducing Camera Shake" （A P.29）

Getting Started

Using the Remote Control

You can operate this unit from a distance away using the supplied remote control.

Memo:

●

Point the remote control toward the sensor directly and use it within 5 m from this unit.

●

The transmitted beam may not be effective or may cause incorrect operation when the sensor is directly exposed to sunlight or powerful lighting.

Preparing the Remote Control

Using the Remote Control for the First Time

Operation Buttons on Remote Control Unit

Recording Start/Stop Button

●

Starts/stops video recording.

Still Image Button

●

Takes a still image.

Zoom Button

●

T: Zooms in

●

W: Zooms out

Basic Playback Operations

Operation Button Description

Playback/Pause Button d / e

Left Button j

Right Button i

●

Starts/pauses playback of videos or slideshows.

●

Moves the cursor to the left.

●

Performs reverse search during playback.

●

Moves the cursor to the right.

●

Performs forward search during playback.

●

A button battery (CR2025) is included inside the remote control at the time of purchase. Remove the insulation sheet before use.

Reinserting the Battery

●

Pull out the battery holder by pressing the lock tab.

●

Insert the button battery with the + side facing upward.

T Button N

●

Zooms in. (during pause)

●

Turns up (+) the volume during video playback.

W Button O

●

Zooms out. (during pause)

●

Turns down (-) the volume during video playback.

Index Button

●

Stops playback and returns to thumbnail display.

Info Button

●

Recording: Displays the remaining time (for video only) and battery power.

●

Playback: Displays file information such as recording date.

Getting Started

Using Bluetooth-compliant Devices

This unit is equipped with Bluetooth function. You can do the following using a Bluetooth-compliant device via wireless connection.

Capabilities of Bluetooth-compliant Devices

Capability Bluetooth-compliant Device

Control the camcorder

Monitor the image during recording

Import recorded still images

Record the location information *1

Listen to audio sound/Record audio sound

*1 The recorded location information can be used on the software provided with this unit. For more information, refer to the help file of Everio MediaBrowser.

Using a Bluetooth-compliant Device

For smartphones, install its exclusive application.

"Registering a Bluetooth-compliant Device" （A P.19）

Connect the Bluetooth-compliant device to the camcorder.

"Connecting to a Registered Device" （A P.21）

Perform some rehearsals (test recordings) before the actual shooting.

Perform the actual shooting (operations).

●

Smartphone

●

Smartphone

●

Smartphone

●

BIP/OPP-compliant device (such as some mobile phones)

●

Smartphone

●

GPS Receiver

●

Headset

Improving the Communication

① Some connected devices may not be able to support the capabilities

of this unit.

●

Verify the compatibility before using.

② Make sure that there are no obstacles between the Bluetooth-com-

pliant device and the camcorder.

●

Position the Bluetooth-compliant device such that it can be seen by the camcorder.

●

Any obstacles or human subjects between the Bluetooth-compliant device and the camcorder will interrupt the communication.

●

When using a headset, use it while facing this unit directly.

③ Make use of the Bluetooth-compliant device as near to the camcor-

der as possible.

●

Although connections within a range of 10 m may be supported by this unit, the nearer the device, the better the communication.

*If the communication is weak, data transfer may take a longer time or there may be noise in the audio sound.

Getting Started

Compliant Bluetooth Devices

This unit can be connected to the following Bluetooth-compliant devices for use. Refer to the instruction manual of the device, except smartphones, to check its Bluetooth profile.

Device Selection

Target Device/Compliant Profile

(Bluetooth setting on

this unit)

Smartphone

RIM

●

BlackBerry Bold 9000

●

BlackBerry Curve 8900

●

BlackBerry Curve 8310

HTC

●

Touch Diamond

●

Touch Pro

BIP/OPP BIP (Basic Imaging Profile, Imaging Re-

sponsor) OPP (Object Push Profile, Push Server)

GPS Receiver SPP (Serial Port Profile, Device B)

Headset HSP (Headset Profile, HS)

CAUTION:

●

When registering a device, be sure to select the correct target device in Bluetooth settings. If the target device is wrong, connection cannot be established even if the device is registered.

●

Although connections within a range of 10 m may be supported by this unit, the nearer the device, the better the communication.

●

Perform communication at a location that is at least 2 m away from other electrical products, such as AV or OA equipment. In particular, communication by this product is susceptible to influences by microwave ovens. In this case, allow a distance of at least 3 m. Failure to do so may result in communication errors. Also, reception of a TV or radio set may deteriorate if it is placed near this product.

●

Communication may not be carried out properly near radio equipment or broadcasting stations. In this case, change the location accordingly.

●

Radio wave interference by wireless LAN equipment Wireless LAN equipment makes use of the same frequency bandwidth (2.4 GHz) as that of the Bluetooth devices. Using this product near such equipment may cause radio wave interference, and result in a drop in communication speed or connection failure. In this case, turn off the power of devices that are not in use.

Registering a Bluetooth-compliant Device

In order to use a Bluetooth-compliant device with this unit, it is necessary to perform registration (pairing) on this unit.

Touch D to display the menu.

Select “CONNECTION SETTINGS” and touch C.

Select “Bluetooth” and touch C.

Select the type of device to register and touch “REG.”

Headset

GPS Receiver

BIP/OPP

Smartphone

You can use a headset (headphone that is integrated with a microphone) to listen to the recorded audio sound during shooting. By configuring the “Bluetooth MIC AUDIO” setting in advance, you can insert narration into the movie while shooting.

You can use the GPS receiver to record the location information of a recorded movie or still image.

Transfers still image data to a Bluetooth-compliant device.

You can use a registered mobile phone as a remote control for this unit using the pre-installed application on the phone.

Getting Started

Select to enable search for the device to register and touch C.

●

The system starts to search for Bluetooth-compliant devices in the area that can be registered.

●

The method of setting varies with the device. Refer also to the instruction manual of the device.

Select the device to register, and touch C.

●

If the device to register cannot be found, check the device settings again and restart search.

●

Up to nine device names can be displayed at a time.

●

If the device name cannot be acquired, the Bluetooth device address (BD address) will appear instead.

●

Characters in the device name that cannot be displayed are shown as □.

Enter the passkey for the device to register.

Connecting to a Registered Device

To use a Bluetooth-compliant device on this unit, it is necessary to establish connection with the device after registering it. To establish connection with a Bluetooth-compliant device, make use of the menu to set the connection with the device to ON.

Touch D to display the menu.

Select “CONNECTION SETTINGS” and touch C.

Select “Bluetooth” and touch C.

●

Use the slider to select a numeric value, and touch C to enter it.

●

Touch “CLE” to clear the last numeric character.

●

After input of the numeric characters is complete, touch “SET”.

●

The number of digits in a passkey varies with the device to register.

●

If authentication of the device is not necessary, the passkey entry screen will not appear.

●

A passkey is also known as a "PIN code".

●

For details on the passkey, refer to the instruction manual of the device to register.

●

After registration of the device is complete, touch C.

Memo:

●

Registration may fail depending on the device you are using. In addition, connection may fail to establish even if the device is registered.

●

You can register up to two headsets and only one GPS receiver, BIP/ OPP-compliant device, or smartphone.

●

You can connect up to two headsets at the same time. Connection cannot be established if the device types are different. Disconnect the connected device and make a new connection.

●

Results of device search vary according to the selected device, condition of signals, and position of the device.

●

The auto power off, power-saving, and demo modes are not available during registration of a Bluetooth device.

Select the device to connect and touch C.

●

The icon changes from OFF to ON after connection with the device is established successfully. For headsets, GPS receivers, and smartphones, an icon indicating the radio reception status is displayed.

Getting Started

CAUTION:

●

“UNABLE TO COMMUNICATE WITH THE Bluetooth DEVICE” appears when a device that cannot be supported by this unit is registered and connected. Check the registered device and register again.

●

Up to two Bluetooth-compliant headsets can be connected to this unit.

●

Different types of Bluetooth-compliant devices cannot be connected to this unit at the same time. (E.g. connecting a headset and a smartphone at the same time)

●

Sending or receiving of audio data using the headset is not possible in the still image recording mode.

●

When “FACTORY PRESET” in the basic settings menu is executed, all information of the registered Bluetooth-compliant devices will be erased.

●

The auto power off, power-saving and demo modes are not available when a Bluetooth device is connected.

About Disconnections： Connection of this unit with the Bluetooth-compliant device will be cut off automatically in the following cases.

●

When the power of this unit is turned off

●

When this unit is connected to a DVD writer or PC with a USB cable

●

When time-lapse shooting is performed

●

When “FACTORY PRESET” in the basic settings menu is executed

Memo:

●

When communication with the connected device fails, this unit will disconnect the device after about 10 seconds.

●

As different types of Bluetooth-compliant devices cannot be connected to this unit at the same time, disconnect the device that was connected earlier when connecting a device of a different type.

●

All connected Bluetooth devices will be disconnected when time-lapse shooting is performed, a USB cable is connected, or the factory preset setting is executed. *When the factory preset setting is executed, registered information will also be erased.

Indications when a Bluetooth-compliant Device is Connected

You can check the Bluetooth connection status on the recording screen.

Table of Compatible Connections

Number of Con-

nections

Connection Case Case1Case2Case3Case4Case5Case

Headset 1

Headset 2 －

GPS Receiver －－

BIP/OPP －－－

Smartphone －－－－

1 1 1 1 1 2

－－－－

－－－

－－

－

When Two Headsets are Registered

When two headsets are registered, the microphone can only make use of one of them. The microphone can be used with the headset that is indicated with a microphone icon beside it.

●

To select the other headset for use with the microphone, do so by touching “MIC.”

Memo:

●

You can change the Bluetooth microphone audio setting.

"Bluetooth MIC AUDIO" （A P.133）

Icon Display Description

Radio Reception Status

GPS Communication Status

Displays the radio reception status of the Bluetooth connection.

Displays the communication status with the GPS. The icon will appear blinking if location information cannot be acquired from the GPS.

Bluetooth Microphone Volume

Displays the microphone’s volume level when the Bluetooth microphone is enabled.

Memo:

●

The radio reception status is only a guide. It is not displayed in realtime.

●

Indications may not be updated according to the condition of signals. The response is especially slow when the radio reception status changes from weak to strong.

●

The radio reception status is not displayed during BIP/OPP connection.

●

As communication with the connected device is necessary to retrieve radio reception status, the status may not be updated if communication is interrupted suddenly such as by turning off the power.

Getting Started

Transferring Still Images to Bluetooth-compliant Devices

When Bluetooth connection is established with a BIP/OPP-compliant device, you can transfer recorded still image data to this device.

Select the playback mode.

Select still image mode.

Touch D to display the menu.

Select “STILL IMAGE TRANSFER” and touch C.

Memo:

●

If the connected device is compliant with both BIP and OPP, BIP connection takes priority. Selection of connection is not possible. OPP connection will only take place if BIP connection fails.

●

Before starting image transfer, be sure to turn on the Bluetooth connectivity of the connected device and set it to the data reception mode. Transmission will fail if the Bluetooth connectivity is set after image transfer starts.

●

Only one still image can be transferred at a time. To transfer more still images, repeat the same steps.

●

Still images cannot be transferred from the connected device to the camcorder.

●

Depending on the specifications of the connected device, you may not be able to see or edit the file even if it is transferred successfully. To see or edit the file on the connected device, refer to the instruction manual of the connected device for the compatible image size. Set to the same or smaller image size when recording.

About BIP Connection：

●

The conditions (image size, data size) for still image transfer are obtained from the connected device. Still images are then transferred as follows according to the obtained conditions. (1) If the image size meets the conditions, the image will be transferred without any changes. (2) If the image size is too big, the image will be reduced to VGA (640×480) or FWVGA (854×480). (3) If the data size is too big, the image will also be reduced to VGA (640×480) or FWVGA (854×480).

About OPP Connection：

●

Still image transfer may fail even if the connected device is compliant with OPP connection. It depends on the file format that can be received by the device.

●

Regardless of the image size, the still image to transfer will be reduced to the following sizes.

・ For still images with 4:3 aspect ratio: VGA (640×480) ・ For still images with 16:9 aspect ratio: FWVGA (854×480)

Set the connected device to the data reception mode.

●

For detailed operating instructions, refer to the instruction manual of the connected device.

Check to ensure that the image to be transferred is correct, select

“YES”, and touch C.

●

The image to be transferred is displayed on this screen.

●

Touch the operation buttons "E" / "F" to select the previous or next file.

●

After image transfer is complete, touch C.

Getting Started

Operation Using a Smartphone

You can use a smartphone as a remote control for this unit using the preinstalled application on the phone. This unit supports the following smartphones.

Manufacturer Recommended Products

RIM

HTC

●

BlackBerry Bold 9000

●

BlackBerry Curve 8900

●

BlackBerry Curve 8310

●

Touch Diamond

●

Touch Pro

Memo:

●

For smartphone application software downloads and usage, refer to the following.

http://www.jvc-victor.co.jp/english/download/bluetooth/index.html (effective March 5, 2010)

CAUTION:

●

When a smartphone is used as a remote control, the simultaneous still image recording function on this unit will be disabled.

Memo:

●

Data packet charges may be incurred when using GPS.

●

When the smartphone is connected to other Bluetooth-compliant devices, connection of the phone with this unit may fail.

●

When the smartphone is connected to this unit, connection of the phone with other Bluetooth-compliant devices may fail.

●

Disconnection may occur due to requests from the smartphone. Restart the application on the phone if it is disconnected.

Radio Waves Used by this Product

This product makes use of radio waves in the ISM band (2.4 GHz). Although a radio station license is not required for using this product, please take note of the following.

■ Do not use this product near the following places.

●

Industrial, scientific, or medical equipment, such as microwave ovens and pacemakers

●

In-plant radio stations for detecting moving objects, such as those employed in the manufacturing lines of plants (radio station license required)

●

Specified low-power radio stations (radio station license not required)

●

Wireless LAN equipment

Equipment such as the above mentioned devices makes use of the same frequency bandwidth as that of Bluetooth. Using this product near the above equipment may cause radio wave interference, and result in communication failure or a drop in communication speed.

■ Avoid using this product near a TV or radio set.

TV or radio sets make use of a radio wave frequency bandwidth that is different from that of Bluetooth, and therefore has no effect on communication by this product or the TV/radio set. However, when a TV/radio set is placed close to a Bluetooth product, electromagnetic waves emitted by the latter may cause noise to occur in the sound or images of the TV/radio.

■ Radio signals are unable to penetrate through reinforced

steel, metal, or concrete.

The radio waves used by this product are unable to penetrate through reinforced steel, metal, or concrete materials. Communication cannot be established if two rooms or floors are separated by these materials. *Communication also gets weaker when there are human subjects or parts of the body in between the Bluetooth devices. Make sure that there are no obstructions in between the devices when in use.

Getting Started

Using this Unit Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet. "Charging the Battery Pack Overseas" （A P.24） Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. "Setting the Clock to Local Time when Traveling" （A P.25） When “ON” is selected in “SET FOR DAYLIGHT SAVING TIME” of “CLOCK ADJUST”, the time is set 1 hour ahead. "Setting Daylight Saving Time" （A P.25）

Charging the Battery Pack Overseas

The shape of the power outlet varies according to countries and regions. To charge the battery pack, you need a converter plug that matches the shape of the outlet.

Getting Started

Setting the Clock to Local Time when Traveling

Change the date and time display to the local time by selecting your travel destination in “AREA SETTING” of “CLOCK ADJUST”. Restore the region settings after you returned from the trip.

Touch D to display the menu.

Select “CLOCK ADJUST” and touch C.

Select “AREA SETTING” and touch C.

Setting Daylight Saving Time

When “ON” is selected in “SET FOR DAYLIGHT SAVING TIME” of “CLOCK ADJUST”, the time is set 1 hour ahead.

Touch D to display the menu.

Select “CLOCK ADJUST” and touch C.

Select “SET FOR DAYLIGHT SAVING TIME” and touch C.

Select the area you are traveling to and touch C.

●

The city name and time difference are displayed.

Memo:

●

Setting “AREA SETTING” changes the clock time such that time difference is accounted for. After returning to your country, re-select the region that was set initially to restore the original clock settings.

Set daylight saving time and touch C.

Memo:

●

What is daylight saving time? Daylight saving time is the system of setting the clock 1 hour ahead for a fixed period in summer. It is used mainly in the Western countries.

●

Restore the daylight saving time settings after you returned from the trip.

Getting Started

Optional Accessories

You can record for a longer time by using the optional battery pack.

Product Name Description

Battery Pack

●

BN-VG114U

●

BN-VG121U

●

Provides a longer recording time than the battery pack that comes with this unit. It can also be used as a spare battery pack.

Battery Charger

●

AA-VG1U

DVD Writer

●

CU-VD3U

DVD Writer

●

CU-VD50U

●

Enables the battery pack to be charged without using this unit.

●

Enables the images recorded on this unit to be copied to a DVD without using a PC.

●

Creates DVDs and functions as an external DVD drive when connected to a PC. In addition, created DVDs can be played back by connecting the CU-VD50U to a TV.

Component Cable

●

QAM1266-001

USB Cable

●

QAM0852-001

●

For viewing in high picture quality.

●

Connects this unit to a BD writer or a recommended USB external hard disk drive (see table below).

Memo:

●

For more information, refer to the catalog.

●

BN-VG114U is the same battery pack that comes with this unit.

Approximate Recording Time (Using Battery)

Battery Pack Actual Recording

Time

BN-VG114U

45 m 1 h 20 m

(Supplied)

BN-VG121U

●

The above are values when “LIGHT” is set to “OFF” and “LCD BACK-

1 h 10 m 2 h 5 m

LIGHT” is set to “STANDARD”.

●

The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly. (It is recommended to prepare battery packs ready for three times the expected recording time.)

●

When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

Continuous Record-

ing Time

Recording

Taking Videos in Auto Mode

You can record without worrying about the setting details by using the auto mode.

Open the LCD monitor and select the video mode.

●

The video mode icon appears.

Check if the recording mode is Auto.

●

If the mode is Manual, touch the G/H button. The mode changes between Auto and Manual with every touch.

Start recording.

●

Press again to stop.

Indications During Video Recording

Display Icon Description

Recording Mode

Video Quality

Remaining Time (Recordable Time)

Recording in Progress

Record-Standby

Scene Counter (Recorded Time)

Recording Media

Battery Indicator

Press the G/H button to switch the recording mode between G (Auto) and H (Manual).

Displays the icon of the “VIDEO QUALITY” setting selected in the recording menu. "VIDEO QUALITY" （A P.109）

Displays the remaining time for video recording.

Appears when video recording is in progress.

Appears when video recording is paused.

Displays the elapsed time of the video that is currently being recorded.

Displays the icon of the media where videos are recorded to. The recording media can be changed. "REC MEDIA FOR VIDEO" （A P.136）

Displays the approximate remaining battery power. Details of the battery power can be displayed by pressing the INFO button. "Remaining Recording Time/Battery Power" （A P.47）

Recording

Operation Buttons for Video Recording

Operation Button Description

T/W Zoom

Allows the same functions as the zoom lever to be performed. Camera shake that often occurs when using the zoom lever can be minimized. "Zooming" （A P.29）

DIS

Sets whether to reduce camera shake. "Reducing Camera Shake" （A P.29）

Recording Start/ Stop

Quick Review

Functions as the START/STOP button. "RECORD BUTTON" （A P.129）

Enables the most recently captured video to be viewed. "Checking the Captured Image Immediately" （ A P.29）

Auto/Manual

Switches the recording mode between Auto and Manual.

Memo:

●

The slider operation button cannot be used when the LCD monitor is flipped.

●

The zoom appears when the slider is touched.

Useful Settings for Recording

●

Videos can be found easily during playback by categorizing them when recording.

"Registering Files to Events Before Recording" （A P.41）

●

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

"QUICK RESTART" （A P.129）

●

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

"AUTO POWER OFF" （A P.128）

●

When “FACE PRIORITY AE/AF” is set to “ON” (default setting), this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

"Capturing Human Subjects Clearly (Face Detection AE/AF)" （A P.38）

●

If the remaining space on the recording media runs out while “SEAMLESS RECORDING” is set to “ON”, recording continues after switching to another recording media.

"SEAMLESS RECORDING" （A P.111）

CAUTION:

●

Do not expose the lens to direct sunlight.

●

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

●

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

●

The access lamp lights up when video recording is in progress. Do not remove the battery pack, AC adapter, or SD card when the lamp is lighted.

●

Make a backup of important recorded data It is recommended to copy your important recorded data to a DVD or other recording media for storage. JVC will not be responsible for any lost data.

Memo:

●

Before recording an important scene, it is recommended to conduct a trial recording.

●

Check the remaining recording time in the media before you start shooting. If there is not enough space, move (copy) the data to a PC or disc.

●

Do not forget to make copies after recording!

●

Recording stops automatically as it cannot be performed for 12 or more consecutive hours according to specifications. (It may take some time to resume recording.)

●

For long recordings, the file is split into two or more files if the size exceeds 4 GB.

●

You can connect this unit to the AC adapter to record for long hours indoors.

Recording

Zooming

The angle of view can be adjusted using zoom.

●

Use the W end (wide angle end) to shoot a wider field of view.

●

Use the T end (telephoto end) to magnify the subject for shooting.

●

You can also use the slider's T/W zoom to zoom.

Memo:

●

You can expand the zoom area without degrading the image quality by using dynamic zoom.

●

When digital zoom is used, the image becomes grainy as it is digitally enlarged.

●

The zoom ratio range can be changed.

"ZOOM" （A P.110）

Reducing Camera Shake

When DIS is turned on, camera shake during recording can be effectively reduced.

●

The setting of DIS switches with every touch.

Display Setting

X (Image stabilizer

Activates image stabilizer.

Y (Image stabilizer

Reduces camera shake more effectively when shooting bright scenes on the wide angle end. *Only on the wide angle end (approx. 5x)

Z (OFF)

Deactivates image stabilizer.

Memo:

●

It is recommended to switch off this mode when using a tripod and recording a subject with little movement.

●

Complete stabilization may not be possible if camera shake is excessive.

●

This setting is effective for video recording only.

Checking the Captured Image Immediately

You can check the most recently captured images while in the recording mode. (Quick Review)

Capturing Still Images During Video Recording

Still images can be captured by pressing the SNAPSHOT button while in the video mode (standby or recording).

●

"PHOTO" lights up on the screen when a still image is being captured.

●

The still images captured during video recording are saved to the destination set in media settings.

"REC MEDIA FOR IMAGE" （A P.136）

Memo:

●

The size of the still image that is captured in the video mode is 3200 x

1800.

●

Setting “SHUTTER MODE” to “CONTINUOUS SHOOTING” enables you to take continuous shots of still images.

"SHUTTER MODE" （A P.112）

●

The picture quality varies with the “IMAGE QUALITY” setting.

"IMAGE QUALITY" （A P.116）

●

When an effect (black and white/sepia) is applied to the video, the same effect will be applied to the still image.

"EFFECT" （A P.118）

Memo:

●

You can also delete the image after checking.

●

Quick Review can no longer recall the most recently captured image once the power is turned off. Use the playback mode to check the image in this case.

●

Still Image

"Checking the Captured Image Immediately(Still Image)" （A P.31）

Recording

Taking Still Images in Auto Mode

You can record without worrying about the setting details by using the auto mode.

Open the LCD monitor and select the still image mode.

●

The still image mode icon appears.

Check if the recording mode is Auto.

●

If the mode is Manual, touch the G/H button. The mode changes between Auto and Manual with every touch.

Set the focus on the subject.

●

When focused, the focus icon lights up in green.

Take a still image.

●

PHOTO lights up when a still image is being captured.

Indications During Still Image Recording

Display Icon Description

Recording Mode

Image Size

Image Quality

Number of Shots (Recordable Number of Shots)

Shutter Speed

Focus

Recording in Progress

Recording Media

Battery Indicator

Press the G/H button to switch the recording mode between G (Auto) and H (Manual).

Displays the icon of the image size.

●

The size of still images can be changed.

"IMAGE SIZE" （A P.116）

Displays the icon of the “IMAGE QUALITY” setting selected in the recording menu. "IMAGE QUALITY" （A P.116）

Displays the remaining number of shots for still image recording.

Displays the shutter speed.

Lights up in green when focused.

Appears when a still image is being captured.

Displays the icon of the media where still images are recorded to. The recording media can be changed. "REC MEDIA FOR IMAGE" （A P.136）

Displays the approximate remaining battery power. Details of the battery power can be displayed by pressing the INFO button M. "Remaining Recording Time/Battery Power" （A P.47）

Recording

Operation Buttons for Still Image Recording

Operation Button Description

T/W Zoom

Functions as the zoom lever. "Zooming" （A P.31）

Quick Review

Enables the most recently captured still image to be viewed. "Checking the Captured Image Immediately" （ A P.31）

Auto/Manual

Switches the recording mode between Auto and Manual.

Memo:

●

The slider operation button cannot be used when the LCD monitor is flipped.

●

The zoom appears when the slider is touched.

Useful Settings for Recording

●

When “QUICK RESTART” is set to “ON”, this unit turns on immediately if you open the LCD monitor within 5 minutes after the power is turned off by closing the monitor.

"QUICK RESTART" （A P.129）

●

When “AUTO POWER OFF” is set to “ON”, this unit turns itself off automatically to conserve power when it is not operated for 5 minutes. (only when using the battery pack)

"AUTO POWER OFF" （A P.128）

●

When “FACE PRIORITY AE/AF” is set to “ON” (default setting), this unit detects faces and automatically adjusts its brightness and focus to record the faces more clearly.

"Capturing Human Subjects Clearly (Face Detection AE/AF)" （A P.38）

●

To perform recording in a dark location, do so after setting “FLASH”.

"FLASH" （A P.115）

CAUTION:

●

Do not expose the lens to direct sunlight.

●

Do not use this unit in the rain, snow, or places with high humidity like the bathroom.

●

Do not use this unit in places subject to excessive humidity or dust, as well as places exposed to steam or smoke directly.

●

The access lamp lights up when still image recording is in progress. Do not remove the battery pack, AC adapter, or SD card when the lamp is lighted.

Memo:

●

Before recording an important scene, it is recommended to conduct a trial recording.

●

DIS does not work when recording still images.

Zooming

The angle of view can be adjusted using zoom.

●

Use the W end (wide angle end) to shoot a wider field of view.

●

Use the T end (telephoto end) to magnify the subject for shooting.

●

You can also use the slider's T/W zoom to zoom.

Memo:

●

Only optical zoom is available in the still image recording mode.

Checking the Captured Image Immediately

You can check the most recently captured images while in the recording mode. (Quick Review)

Memo:

●

You can also delete the image after checking.

●

Quick Review can no longer recall the most recently captured image once the power is turned off. Use the playback mode to check the image in this case.

●

Video

"Checking the Captured Image Immediately(Video)" （A P.29）

Recording

Manual Recording

You can adjust settings, such as brightness and shutter speed, by using the manual mode. Manual recording can be set for both video and still image modes.

Select video or still image mode.

●

The video or still image mode icon appears.

Select the Manual recording mode.

●

The mode changes between Auto and Manual with every touch.

Start recording.

●

Press again to stop.

Memo:

●

The manual settings are displayed only in the manual mode.

Manual Recording Menu

The following items can be set.

Name Description

SCENE SELECT

FOCUS

FOCUS ASSIST Focused subject is outlined in color for more

BRIGHTNESS ADJUST

SHUTTER SPEED

WHITE BALANCE

BACKLIGHT COMP.

METERING AREA/ TYPE

EFFECT

TELE MACRO

●

Recordings that suit the shooting conditions can be performed easily.

"Scene Selection" （A P.33）

●

Use manual focus if the subject is not focused automatically.

"Adjusting Focus Manually" （A P.34）

precise focus. "Using Focus Assist" （A P.34）

●

Overall brightness on the screen can be adjusted.

●

Use this when recording in a dark or bright location.

"Adjusting Brightness" （A P.35）

●

Shutter speed can be adjusted.

●

Use this when shooting a fast-moving subject or to emphasize the subject's movement.

"Setting Shutter Speed" （A P.35）

●

Overall color on the screen can be adjusted.

●

Use this when the color on the screen appears differently from the actual color.

"Setting White Balance" （A P.36）

●

Corrects the image when the subject appears dark due to backlight.

●

Use this when shooting against the light.

"Setting Backlight Compensation" （A P.36）

●

Brightness of a specified area can be set as the standard.

"Setting Metering Area" （A P.37）

●

Images that look like old photographs or black-and-white movies can be taken.

"Recording with Effects" （A P.37）

●

Use this to take close-up (macro) shots of the subject.

"Taking Close-up Shots" （A P.38）

Scene Selection

Common scenes that are often encountered can be recorded with the most suitable settings.

Touch D to display the menu.

Recording

*The image is only an impression.

Setting Effect

NIGHT EYE Increases gain and brightens the scene automat-

ically using a slow shutter when the surrounding is dark. To prevent camera shake, use a tripod.

Select “MANUAL SETTING” and touch C.

Select “SCENE SELECT” and touch C.

Select the scene and touch C.

NIGHT Captures night scenes naturally.

PORTRAIT Blurs the background to bring out the people in

the picture.

SPORTS Captures fast-moving subjects clearly in every

single frame.

●

After setting, touch D.

SNOW Prevents the subject from appearing too dark

when recording snow scenes on a sunny day.

SPOTLIGHT Prevents the human subject from appearing too

bright under light.

Recording

Adjusting Focus Manually

Set this when the focus is not clear in “AUTO” or when manual focusing is desired.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “FOCUS” and touch C.

Using Focus Assist

Focused subject is outlined in color for more precise focus.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “FOCUS ASSIST” and touch C.

Select “MANUAL” and touch C.

Adjust the focus with the slider.

●

Slide upward to focus on a distant subject.

●

Slide downward to focus on a near subject.

Touch C to confirm.

Adjust the focus with the slider.

●

Slide upward to focus on a distant subject.

●

Slide downward to focus on a near subject.

Touch C to confirm.

Memo:

●

The image becomes black and white while the outline of the focused object is displayed in the selected color. Change outline color if it becomes difficult to see.

"FOCUS ASSIST COLOR" （A P.125）

Memo:

●

A subject that is focused at the telephoto (T) end remains in focus when it is zoomed out to the wide angle (W) end.

Recording

Adjusting Brightness

You can adjust the brightness to your preferred level.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “BRIGHTNESS ADJUST” and touch C.

Setting Shutter Speed

You can set the shutter speed to suit the type of subject.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “SHUTTER SPEED” and touch C.

Select “MANUAL” and touch C.

Select the brightness value with the slider.

●

Compensation range during video recording: -6 to +6

●

Compensation range during still image recording: -2.0 to +2.0 Slide upward to increase the brightness.

●

Slide downward to decrease the brightness.

●

Touch C to confirm.

Select “MANUAL” and touch C.

Select the shutter speed with the slider.

●

Shutter speed can be set from 1/2 to 1/4000. (Up to 1/500 for still image.)

●

Slide upward to increase the shutter speed.

●

Slide downward to decrease the shutter speed.

Touch C to confirm.

Memo:

●

Settings can be adjusted separately for videos and still images.

Memo:

●

Settings can be adjusted separately for videos and still images.

Recording

Setting White Balance

You can set the color tone to suit the light source.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “WHITE BALANCE” and touch C.

Setting Backlight Compensation

You can correct the image when the subject appears too dark due to backlight.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “BACKLIGHT COMP.” and touch C.

Select the white balance setting and touch C.

Setting Details

AUTO Adjusts automatically to the natural colors.

MWB Use this when the problem of unnatural colors is not re-

solved.

FINE Set this when shooting outdoors on a sunny day.

CLOUD Set this when shooting on a cloudy day or inside a shade.

HALOGEN Set this when shooting under illumination such as a video

light.

Using MWB

Hold a sheet of plain white paper in front of the lens so that the white

paper fills the screen.

Select “MWB” and keep touching C.

●

The cursor blinks.

Release C after the menu disappears.

Select “ON” and touch C.

Recording

Setting Metering Area

You can set the brightness of a specified area as the standard.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “METERING AREA/ TYPE” and touch C.

Recording with Effects

You can add various effects to videos and still images to create a different atmosphere from the usual recording.

*The image is only an impression.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Select “SPOT” and touch C.

●

When “SPOT” is selected, select the position of the spot frame by touching the operation buttons "E"/"F". After selecting, touch C to confirm.

Select “EFFECT” and touch C.

Select the effect setting and touch C.

Setting

Details

OFF No effect.

SEPIA Gives images a brownish tint like old photographs.

BLACK &

Records in black and white like old TV images.

WHITE

CLASSIC FILM Skips frames to give images of the effect of an old

movie.

●

This can only be set in the video mode.

STROBE Enables the image to look like a series of consecu-

tive snapshots by skipping frames.

●

This can only be set in the video mode.

Memo:

●

Settings can be adjusted separately for videos and still images.

Recording

Taking Close-up Shots

You can take close-up shots of an object using the tele macro function.

*The image is only an impression.

Touch D to display the menu.

Select “MANUAL SETTING” and touch C.

Capturing Human Subjects Clearly (Face Detection AE/AF)

“FACE PRIORITY AE/AF” automatically adjusts the detected face with an appropriate focus to brightness. This function is available for both movies and still images.

Select video or still image mode.

Touch D to display the menu.

Select “FACE PRIORITY AE/AF” and touch C.

Select “TELE MACRO” and touch C.

Select “ON” and touch C.

Setting

Details

OFF Enables close-up shots up to 1 m at the telephoto (T) end.

Enables close-up shots up to 5 cm at the wide angle (W) end.

ON Enables close-up shots up to 60 cm at the telephoto (T) end.

Enables close-up shots up to 5 cm at the wide angle (W) end.

Select “ON” and touch C.

Point the camera toward the human subject.

●

A frame appears around the face of the subject, and the focus and brightness are automatically adjusted.

●

If multiple faces are detected, the face that is closest to the camera will be focused.

CAUTION:

●

When you are not taking close-up shots, set TELE MACRO to “OFF”. Otherwise, the image may be blur.

Start recording.

CAUTION:

●

When “FACE PRIORITY AE/AF” is set to “ON”, the following settings will change. ・ If “SCENE SELECT” is set to “SPOTLIGHT”, it will be switched to “OFF”.

・ If “FOCUS” is set to “MANUAL”, it will be switched to “AUTO”. ・ If “BACKLIGHT COMP.” is set to “ON”, it will be switched to “OFF”. ・ If “METERING AREA/ TYPE” is set to “SPOT”, it will be switched to

“ENTIRE SCREEN”.

●

When the following settings are made, “FACE PRIORITY AE/AF” will switch to “OFF”.

・ When “SCENE SELECT” is set to “SPOTLIGHT” ・ When “FOCUS” is set to “MANUAL” ・ When “FOCUS ASSIST” is selected ・ When “BACKLIGHT COMP.” is set to “ON” ・ When “METERING AREA/ TYPE” is set to “SPOT”

Memo:

●

The camera is able to detect up to 16 faces.

●

Some faces may not be detected depending on the recording environment.

●

If appropriate results cannot be obtained, record with “FACE PRIORITY AE/AF” set to “OFF”.

Recording

Taking Group Shots (Self-timer)

The 10-second self-timer and Face Detection self-timer are convenient functions for taking group photos. The 2-second self-timer is useful for preventing camera shake caused by pressing the shutter button.

Memo:

When shooting a photo using the self-timer function, use of a tripod is recommended. "Tripod Mounting" （A P.16）

Using the 2-/10-second Self-timer

Select still image mode.

Touch D to display the menu.

Select “SELF-TIMER” and touch C.

Select “2SEC” or “10SEC”, and touch C.

Set the focus on the subject.

●

When focused, the focus icon lights up in green.

Take a still image.

●

A timer appears and countdown to shooting starts.

●

To stop the self-timer, press the SNAPSHOT button again.

Recording

Using the Face Detection Self-timer

Pressing the SNAPSHOT button starts face detection, and shooting is performed three seconds after another person enters the frame. This function is useful when you want to include the photographer in the group photo.

Select still image mode.

Touch D to display the menu.

Select “SELF-TIMER” and touch C.

After making sure that everyone is facing the camera, press the

SNAPSHOT button.

●

Frames appear around the faces of the subjects.

●

Pressing the SNAPSHOT button again with the frames around the faces starts the 10-second self-timer.

The photographer enters the frame.

Select “FACE DETECTION” and touch C.

●

The shutter is released three seconds after the photographer enters the frame.

●

To stop the self-timer, press the SNAPSHOT button again.

Memo:

●

The “FACE DETECTION” function may fail to detect faces depending on the shooting environment.

Recording

Registering Files to Events Before Recording

Videos can be found easily during playback by categorizing them when recording.

Select video mode.

Touch D to display the menu.

Select “REGISTER EVENT” and touch C.

Taking Videos in YouTube Format

You can share your enjoyable memories with family and friends easily by posting your videos on the video sharing website YouTube. Through upload shooting, videos that are suitable for uploading to YouTube (within 10 minutes) may be taken directly.

Memo:

For more information on YouTube, please visit the following website.

http://www.youtube.com/

Select video mode.

●

The video mode icon appears.

Press the UPLOAD/EXPORT button to display the “UPLOAD SHOOT-

ING”/“EXPORT SHOOTING” menu.

Select “UPLOAD SHOOTING” and touch the C button.

Select the event type and touch C.

Event Type

VACATION

HOLIDAY

SPORTS

ANNIVERSARY

CONGRATULATIONS

BABY

SON

DAUGHTER

BIRTHDAY

GRADUATION

●

An icon appears on the screen and the video is recorded under the selected event. (Videos will continue to be recorded to the same event until a change is made.)

Memo:

●

To cancel event registration, touch “CANCEL” in step 4.

●

The registered event can be changed again later.

"Changing the Event of the Currently Displayed File" （A P.65） "Changing the Event of the Selected Files" （A P.66）

●

The mode switches between ON and OFF with every press.

●

When set to ON, a "p" mark appears on the screen.

●

To cancel this setting, set to "OFF".

●

After setting, touch the J button.

Start recording.

●

Press again to stop.

●

The maximum recording length of a video in upload mode is 10 minutes. Recording stops automatically after 10 minutes.

Recording

Memo:

●

Upload recording can only be performed for up to 10 minutes, the time limit of YouTube.

●

Changing videos to the file format for uploading cannot be performed on this unit. To upload video files, refer to "Uploading Videos" below.

●

The upload recording icon disappears when recording stops. To record another video in upload mode, perform the settings again.

Uploading Videos

You can upload your videos to YouTube using the provided software "Everio MediaBrowser". Install the software on your PC and connect this unit to the PC.

●

For details on how to use the software, refer to the help file.

"Installing the Provided Software" （A P.100） "Connecting this Unit to PC" （A P.101）

Trouble with Uploading Videos

●

Check if you have created an account with YouTube. (You need a YouTube account to upload files to YouTube.)

●

Refer to "Q&A", "Latest Information", "Download Information", etc. in "Click for Latest Product Info" in the help file of the provided software "Everio MediaBrowser".

Taking Videos in iTunes Format

By recording with the EXPORT setting turned on, you can transfer the videos to Apple's software "iTunes" when this unit is connected to a PC. "LIB." is displayed when recording videos in iTunes format. Use the provided software to transfer the videos. "Installing the Provided Software" （A P.100）

Memo:

For more information on iTunes and iPod, please visit the following website.

http://www.apple.com/itunes/

Select video mode.

●

The video mode icon appears.

Press the UPLOAD/EXPORT button to display the “UPLOAD SHOOT-

ING”/“EXPORT SHOOTING” menu.

Select “EXPORT SHOOTING” and touch the C button.

●

The mode switches between ON and OFF with every press.

●

When set to ON, a "LIB." mark appears on the screen.

●

To cancel this setting, set to "OFF".

●

After setting, touch the J button.

Start recording.

●

Press again to stop.

Memo:

●

The export mode icon disappears when recording stops. To record another video in export mode, perform the settings again.

Recording

Transferring Recorded Videos to iPod

You can export videos to iTunes using the provided software "Everio MediaBrowser". Install the software on your PC and connect this unit to the PC.

●

For details on how to use the software, refer to the help file.

●

For details on transferring files to iPod, refer to the help file of iTunes.

"Installing the Provided Software" （A P.100） "Backing Up All Files" （A P.101）

Trouble with Exporting Files to iTunes

●

Refer to "Q&A", "Latest Information", "Download Information", etc. in "Click for Latest Product Info" in the help file of the provided software "Everio MediaBrowser".

Slow-motion (High-speed) Recording

You can increase the recording speed or emphasize the movements using slow-motion recording. This is a handy function for checking movements, such as golf swings.

Select video mode.

Touch D to display the menu.

Select “HIGH SPEED RECORDING” and touch C.

Select a recording speed and touch C.

Start recording.

●

Recording starts by counting down to the end of the maximum duration. Shooting stops when the timer reaches “0:00:00”.

●

After recording is complete, it will be saved as a movie.

●

Pressing the START/STOP button during countdown of the timer stops the recording process.

●

The high-speed setting you have selected will be stored on the camera. To cancel the setting, set “HIGH SPEED RECORDING” to “OFF”.

Recording

Recording Speed Maximum Duration Movie Playback Time

120fps Up to 4 seconds 2 times of recording

300fps Up to 4 seconds 5 times of recording

600fps Up to 2.4 seconds 10 times of recording

Memo:

●

“VIDEO QUALITY” is automatically set to “XP”.

"VIDEO QUALITY" （A P.109）

●

When high-speed recording is enabled, only the optical zoom can be used.

●

Recording is performed at a resolution that is lower than the standard setting, and the video is stored after being converted into the high-definition quality. As such, images may appear grainier than other movies, and a black frame appears around the image.

●

Audio sound is not recorded together with the video.

●

Increasing to a higher recording speed results in grainier and darker images. During high-speed recording, it is recommended that a tripod be used, and recording be performed in a bright location with the subject magnified as much as possible.

"Tripod Mounting" （A P.16）

duration (up to 8 seconds)

duration (up to 20 seconds)

duration (up to 24 seconds)

Recording at Intervals (TIME-LAPSE RECORDING)

This function enables the changes of a scene that occur slowly over a long period to be shown within a short time by taking frames of it at a certain interval. This is useful for making observations such as the opening of a flower bud.

Select video mode.

Touch D to display the menu.

Select “TIME-LAPSE RECORDING” and touch C.

Select a recording interval (1 to 80 seconds) and touch C.

●

The greater the number of seconds, the longer the recording interval.

Start recording.

●

A frame is taken at intervals of the selected period.

●

When the recording interval is set to “20SEC INTERVAL” or higher, this unit switches to the power-saving mode between recordings. At the next point to record, the power-saving mode will be turned off and recording will start automatically.

●

Press the START/STOP button again to stop recording.

Recording

Indications During Time-Lapse Recording

Display Description

Speed Indicator

Video Quality

Remaining Recording Time

Recording in Progress

Record-Standby

Actual Elapsed Time

Recorded Time

Displays the recording interval that is set.

Displays the icon of the video quality that is set.

Remaining time left to record with the currently selected video quality.

Appears when video recording is in progress. When in the power-saving mode, it blinks.

Appears when video recording is paused.

Displays the actual elapsed time after recording starts.

Displays the actual recorded time of the video. Recorded time increases in units of frames.

Time-Lapse Setting

The greater the number of seconds, the longer the recording interval.

Setting Details

OFF

1SEC INTERVAL

Deactivates the function.

Takes a frame at 1-second intervals. Recorded videos will be played back at 30 times speed.

2SEC INTERVAL

Takes a frame at 2-second intervals. Recorded videos will be played back at 60 times speed.

5SEC INTERVAL

Takes a frame at 5-second intervals. Recorded videos will be played back at 150 times speed.

10SEC INTERVAL

Takes a frame at 10-second intervals. Recorded videos will be played back at 300 times speed.

20SEC INTERVAL

Takes a frame at 20-second intervals. Recorded videos will be played back at 600 times speed.

40SEC INTERVAL

Takes a frame at 40-second intervals. Recorded videos will be played back at 1 200 times speed.

80SEC INTERVAL

Takes a frame at 80-second intervals. Recorded videos will be played back at 2 400 times speed.

CAUTION:

●

Audio cannot be recorded during time-lapse recording.

●

Zooming, simultaneous still image recording, and DIS are not available in time-lapse recording.

●

When recording is stopped with the recorded time less than "0:00:00:17", the video will not be saved.

●

Automatic switching of recording media is disabled in seamless recording.

Memo:

●

Settings of time-lapse recording are saved even when the power is turned off. When the power is turned on, "TIME LAPSE" appears on the screen.

●

Recording stops automatically 99 hours after it is started.

●

Make use of a tripod and AC adapter for time-lapse recordings with long intervals. It is also recommended to fix the focus and white balance manually.

"Tripod Mounting" （A P.16） "Adjusting Focus Manually" （A P.34） "Setting White Balance" （A P.36）

Recording

Recording Automatically by Sensing Movements (AUTO REC)

This function enables the unit to record automatically by sensing the changes in subject's movement (brightness) within the red frame displayed on the LCD monitor. (AUTO REC) It can be set for both video and still image modes.

Select video or still image mode.

Compose the picture according to the subject.

●

Adjust the angle of view with the zoom, etc.

Touch D to display the menu.

Select “AUTO REC” and touch C.

The rest are all set to “AUTO”.

●

Digital zoom, DIS, self-timer, and continuous shooting are not available after AUTO REC is set.

●

AUTO REC cannot be used together with TIME-LAPSE RECORDING. When both are set, priority is given to TIME-LAPSE RECORDING.

●

IMAGE SIZE cannot be changed after AUTO REC is selected. Set it before selecting AUTO REC.

●

The auto power off and power-saving modes are not available after AUTO REC is set.

Memo:

●

Recording stops when there are no changes for 5 seconds during video recording.

●

Recording may not start when the movements of the subject within the red frame are too fast or the changes in brightness are too small.

●

Recording may start due to changes in brightness even if there is no movement within the red frame.

●

While zooming, recording cannot be started.

Select “ON” and touch C.

Recording starts automatically when the subject within the red frame

moves.

●

A red frame appears 2 seconds after the menu display disappears.

●

For video recording, recording continues while there are still movements of the subject (changes in brightness) within the red frame. When there are no more movements of the subject (changes in brightness) within the red frame, recording will stop in 5 seconds.

●

To stop video recording manually, press the START/STOP button. However, as the AUTO REC setting remains at ON even after the video recording is stopped, recording starts again when movements of the subject (changes in brightness) are detected within the red frame. To cancel AUTO REC, set it to “OFF”.

CAUTION:

●

The only manual recording setting available is “TELE MACRO”.

Remaining Recording Time/Battery Power

You can check the remaining video recording time on the built-in memory and SD card as well as the remaining battery power.

Select video or still image mode.

Press the M button.

●

If in the still image mode, go directly to step 4.

Display the remaining recording time.

Recording

●

The remaining recording time is displayed only in the video recording mode.

●

Press the M button to check the remaining recording time of each recording media.

●

While the remaining recording time is being displayed, touch the operation button "BATTERY ICON" to display the remaining battery power.

●

To exit the display, touch the D button.

Display the remaining battery power.

●

To exit the display, press the M button or touch the D button.

●

Remaining battery power will not be displayed when the AC adapter is connected.

Memo:

●

You can change the video quality from the remaining recording time display. Select the video quality with the slider and touch C.

Recording

Approximate Video Recording Time

Quality Built-in Memory

(32 GB)

UXP

●

The actual recording time may shorten depending on the shooting environment.

2 h 57 m 21 m 44 m 1 h 29 m 2 h 58 m

4 h 9 m 31 m 1 h 2 m 2 h 5 m 4 h 12 m

5 h 54 m 43 m 1 h 28 m 2 h 58 m 5 h 57 m

14 h 45 m 1 h 49 m 3 h 41 m 7 h 26 m 14 h 53 m

Approximate Number of Still Images (Unit: Number of Shots)

Image Size Quality

3520×2640 (4:3)

3072×2304 (4:3)

2592×1944 (4:3)

1600×1200 (4:3)

640×480 (4:3)

3520×1984 (16:9)

3072×1728 (16:9)

2592×1456 (16:9)

1920×1080 (16:9)

1280×720 (16:9)

●

When the number of recordable still images is more than 10000, "9999" is displayed on the screen. The file number returns to "0001" after 9999 still images are recorded.

FINE 940 1900 3800 7690 7610

STANDARD 1460 2940 5890 9999 9999

FINE 1230 2490 4980 9999 9960

STANDARD 1960 3960 7920 9999 9999

FINE 1740 3500 7000 9999 9999

STANDARD 2720 5490 9999 9999 9999

FINE 4440 8950 9999 9999 9999

STANDARD 7500 9999 9999 9999 9999

FINE 9999 9999 9999 9999 9999

STANDARD 9999 9999 9999 9999 9999

FINE 1250 2510 5030 9999 9999

STANDARD 1960 3960 7920 9999 9999

FINE 1660 3350 6710 9999 9999

STANDARD 2610 5250 9999 9999 9999

FINE 2260 4560 9120 9999 9999

STANDARD 3530 7100 9999 9999 9999

FINE 4140 8330 9999 9999 9999

STANDARD 6310 9999 9999 9999 9999

FINE 8570 9999 9999 9999 9999

STANDARD 9999 9999 9999 9999 9999

SDHC Card SDHC Card SDHC Card SDHC Card

4 GB 8 GB 16 GB 32 GB

SDHC Card SDHC Card SDHC Card SDHC Card

4 GB 8 GB 16 GB 32 GB

Built-in Memory

(32 GB)

Approximate Recording Time (Using Battery)

Battery Pack

BN-VG114U

45 m 1 h 20 m

(Supplied)

BN-VG121U

●

The above are values when “LIGHT” is set to “OFF” and “LCD BACKLIGHT” is set to “STANDARD”.

●

The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly.

1 h 10 m 2 h 5 m

(It is recommended to prepare battery packs ready for three times the expected recording time.)

Actual Recording Time Continuous Recording Time

Playback

Playing Back Videos

You can select and play back the recorded videos from an index screen (thumbnail display). The contents of the saving destination selected in “REC MEDIA FOR VIDEO” are displayed on the index screen. "REC MEDIA FOR VIDEO" （A P.136）

Select the playback mode.

Select video mode.

Select the desired video and touch C.

●

When faces are detected in a recorded video, the faces are zoomed in and displayed in the thumbnail.

●

Touch f to stop playback.

Operation Buttons for Video Playback

During Index Screen Display

During Video Playback

Display Description

d / e

Playback/pause

Stop (returns to thumbnail display)

Advances to the next video

Returns to the beginning of the scene

Forward search

Reverse search

Forward slow-motion

Reverse slow-motion

Memo:

●

Touch the slider and buttons around the screen with your fingers.

●

The slider and buttons do not function if you touch them with your fingernails or with gloves on.

●

The displays on the screen do not work even if you touch them.

●

You can search for a specific file by the recording date or registered category (event). This is useful when searching from a large number of files.

"Group Search" （A P.54） "Date Search" （A P.55） "Event and Date Search" （A P.55）

CAUTION:

●

Make a backup of important recorded data It is recommended to copy your important recorded data to a DVD or other recording media for storage. JVC will not be responsible for any lost data.

Display Description

DIGEST

Starts playback of the selected file.

You can play back a digest of the recorded videos.

You can search for a specific file by the recording date or registered category (event).

J / K

Deletes the selected file.

Press and hold to move the pages of the index screen.

Checking the Recording Date and Other Information

Press M. You can display the recording date and duration of the selected file.

Increasing/Decreasing the Number to Display on the Index Screen.

Operate the zoom lever when the index screen is displayed (thumbnail display) to change the number of files on the screen in the following order: 6 files → 12 files → 3 files.

●

Information of the files also appear when 3 files are displayed.

Playback

Checking the Content of Videos Quickly

You can play back a digest of the recorded videos (Digest Playback). This is useful for checking the content of the videos quickly.

●

To start Digest Playback, touch the DIGEST button.

Operation Buttons for Digest Playback

Playing a Video with Defective Management Information

Plays videos with defective management information.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “PLAYBACK OTHER FILE” and touch C.

Display Description

d / e

Playback/pause

Stop (returns to thumbnail display)

Returns to normal playback.

NORM

Advances to the next video

Returns to the beginning of the scene

Forward search

Reverse search

Forward slow-motion

Reverse slow-motion

Select the desired video and touch C.

"Playing Back Videos" （A P.49）

Playback with Special Effects

You can add effects to the beginning and end of recorded videos.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “WIPE/FADER” and touch C.

Playback

Select the desired video and touch C.

Setting Details

OFF Turns off the effect.

FADER-WHITE Fades in or out with a white screen.

FADER-BLACK Fades in or out with a black screen.

WIPE-SLIDE Wipes in from right to left, or wipes out in the op-

WIPE-DOOR Wipes in as the two halves of a black screen

WIPE-SCROLL Wipes in from the bottom to the top of a black

WIPE-SHUTTER Wipes in from the center of a black screen to-

Memo:

●

The effect will not be applied to a recorded video less than 7 seconds.

●

The wipe/fader effects are temporary. They do not affect the images directly, and can be disabled when the function is set to “OFF”.

●

These effects will not be reflected when you create a disc using a DVD writer or external Blu-ray drive.

posite way.

which open to the left and right revealing the scene, or wipes out in the opposite way.

screen, or wipes out in the opposite way.

ward the top and bottom, or wipes out in the opposite way.

Select a desired effect and touch C.

Playback

Playing Back Still Images

You can select and play back the recorded still images from an index screen (thumbnail display). The contents of the saving destination selected in “REC MEDIA FOR IMAGE” are displayed on the index screen. "REC MEDIA FOR IMAGE" （A P.136）

Select the playback mode.

Select still image mode.

Select a still image and touch C to start playback.

●

Touch f to stop playback.

Operation Buttons for Still Image Playback

During Index Screen Display

During Still Image Playback

Display Description

d / e

Start/pause slideshow

Stop (returns to thumbnail display)

Advances to the next still image

Returns to the previous still image

Plays back in reverse order during a slideshow.

Plays back in normal ascending order during a slideshow.

Face Detection Zoom "Face Detection Zoom" （A P.53）

Memo:

●

Touch the slider and buttons around the screen with your fingers.

●

The slider and buttons do not function if you touch them with your fingernails or with gloves on.

●

The displays on the screen do not work even if you touch them.

●

You can search for a specific file by the recording date. This is useful when searching from a large number of files.

"Date Search" （A P.55）

Display Description

J / K

Starts playback of the selected file.

You can search for a specific file by the recording date.

Deletes the selected file.

Press and hold to move the pages of the index screen.

Checking the Recording Date and Other Information

Press M. You can display the recording date of the selected file.

Increasing/Decreasing the Number to Display on the Index Screen.

Operate the zoom lever when the index screen is displayed (thumbnail display) to change the number of files on the screen in the following order: 6 files → 12 files → 3 files.

●

Information of the files also appear when 3 files are displayed.

Playback

Slideshow Playback

Still images can be played back in a slideshow. Start the slideshow by pressing the C button during still image playback.

"Operation Buttons for Still Image Playback" （A P.52）

Memo:

●

Effects can be added to the transitions in slideshow playback.

"SLIDE SHOW EFFECTS" （A P.123）

Face Detection Zoom

You can enlarge the part including a face in a still image and save it as a new file.

Select the playback mode.

Select still image mode.

Select a still image and touch C to start playback.

Touch P.

●

A frame appears around the face of the subject.

Select the face to zoom and touch C.

●

The face that is highlighted in red is zoomed in.

Touch C repeatedly to change the zoom ratio.

●

You can select a different subject using the slider.

●

To end playback, touch J.

Playback

Saving Zoomed Images of Subject’s Faces

① After step 6, touch “SAVE”.

●

Zoom images are saved in 16:9 aspect regardless of the original aspect.

② Select “YES” and touch C.

Searching for a Specific Video/Still Image

When there is a large number of recorded videos and still images, it is difficult to look for the desired file from the index screen. Use the search function to find the file you want.

●

For videos, you can search by “GROUP”, “SEARCH DATE”, or “SEARCH EVENT”.

●

For still images, you can search by “SEARCH DATE”.

"To search by groups with similar recording dates" （A P.54） "To search by recording dates" （A P.55） "To search by events and recording dates" （A P.55）

Group Search

You can search and play videos which are automatically grouped according to similar recording dates.

●

The contents of the saving destination selected in “REC MEDIA FOR VIDEO” are searched.

Display the search function.

●

You can also display the search menu by selecting “SEARCH” on the playback menu.

Select “GROUP” and touch C.

Select from the index screen (thumbnails) and touch C to start play-

back.

●

The video starts playing.

●

Touch f to stop playback.

Memo:

●

Touch “DIGEST” to play back a few seconds from each video, allowing you to check the contents of many videos in a short time.

●

Groups are created automatically according to recording dates.

●

The group may change when the recording is continued.

Playback

Date Search

You can search and play videos or still images according to recording dates.

●

The contents of the saving destination selected in “REC MEDIA FOR VIDEO” or “REC MEDIA FOR IMAGE” are searched.

●

Still images can only be searched by “SEARCH DATE”.

Display the search function.

●

You can also display the search menu by selecting “SEARCH” on the playback menu. For still images, select “SEARCH DATE” on the menu.

●

Searching can be performed in both the video and still image modes. *The image shows the video mode.

Select “SEARCH DATE” and touch C.

Event and Date Search

You can search and play videos according to events and recording dates.

●

The contents of the saving destination selected in “REC MEDIA FOR VIDEO” are searched.

●

Events that are not registered will not appear.

"Registering Files to Events Before Recording" （A P.41）

Display the search function.

●

You can also display the search menu by selecting “SEARCH” on the playback menu.

Select “SEARCH EVENT” and touch C.

Select a recording date and touch C.

●

The starting day of the week on the calendar switches between Sunday and Monday with every touch of the p button.

Select the desired video or still image and touch C to start playback.

●

You can select videos in the video mode and still images in the still image mode.

●

Only the videos recorded on the selected date are displayed.

Deleting Files of a Selected Date： Select “DELETE” from the playback menu to delete unwanted files. "Deleting Unwanted Files" （A P.61）

Select the event type and touch C.

Select a recording date and touch C.

●

Only the videos recorded on the selected date are displayed.

●

The starting day of the week on the calendar switches between Sunday and Monday with every touch of the p button.

Select the desired file and touch C to start playback.

Deleting Files of a Selected Date： Select “DELETE” from the playback menu to delete unwanted files. "Deleting Unwanted Files" （A P.61）

Playback

Connecting to and Viewing on TV

You can output images from the HDMI connector, COMPONENT connector, or AV connector. Select the connector that best suits your TV.

●

Refer also to the instruction manual of the TV in use.

"Connecting via the HDMI Mini Connector" （A P.56） "Connecting via the Component Connector" （A P.57） "Connecting via the AV Connector" （A P.58）

Unnatural Displays on TV

Trouble Action

Images do not appear on the TV properly.

Images are projected vertically on the TV.

Images are projected horizontally on the TV.

The color of images looks strange.

●

Disconnect the cable and connect again.

●

Turn off and on this unit again.

●

When connected via the component connector, check if the setting of “COMPONENT OUTPUT” in the connection settings menu suits the connected TV. (Set to “1080i” by default)

"COMPONENT OUTPUT" （A P.134）

●

Set “VIDEO OUTPUT” in the connection settings menu to “4:3”.

"VIDEO OUTPUT" （A P.134）

●

Adjust the TV's screen accordingly.

●

If the video was recorded with “x.v.Color” set to “ON”, set the x.v.Color setting of the TV to on.

"x.v.Color" （A P.112）

●

Adjust the TV's screen accordingly.

Connecting via the HDMI Mini Connector

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI terminal.

●

We recommend using the Category 2 HDMI cable (High Speed cable).

●

Refer also to the instruction manual of the TV in use.

Connect to the TV.

●

Press and hold the power button for 2 seconds or more to turn off the power.

Connect the AC adapter to this unit.

Press the external input button on the TV to switch to the input from

this unit via the connected terminal.

HDMI-CEC functions do not work properly, and the TV does not work in conjunction with this unit.

The language on the display changed.

●

TVs may operate differently depending on the specifications, even if they are HDMI-CEC compliant. Therefore, the HDMI-CEC functions of this unit cannot be guaranteed to operate in combination with all the TVs. In such cases, set “HDMI CONTROL” to “OFF”.

"HDMI CONTROL" （A P.135）

●

It may occur when you connect this unit to a TV with different language setting using an HDMI mini cable.

Play back a file.

"Playing Back Videos" （A P.49） "Playing Back Still Images" （A P.52）

Memo:

●

To play back with date/time display, set “DISPLAY ON TV” in the connection settings menu to “ON”. Set “ON-SCREEN DISPLAY” in the playback menu to “DISPLAY ALL” or “DISPLAY DATE ONLY”.

"DISPLAY ON TV" （A P.133） "ON-SCREEN DISPLAY" （A P.121）

●

Change the settings in “HDMI OUTPUT” according to the connection.

"HDMI OUTPUT" （A P.135）

●

When connecting to the HDMI mini cable, the image or sound may not appear on the TV properly depending on the TV connected. In such cases, perform the following operations.

1) Disconnect the HDMI mini cable and connect it again.

2) Turn off and on this unit again.

●

For questions about the TV or method of connection, contact your TV's manufacturer.

Playback

Operating in Conjunction with TV via HDMI

Connecting this unit to an HDMI-CEC-enabled TV using the HDMI cable allows linked operations with the TV to be performed.

●

HDMI-CEC (Consumer Electronics Control) is an industry standard that enables interoperability between HDMI-CEC compliant devices that are connected via HDMI cables.

Memo:

●

Not all HDMI-control devices comply with the HDMI-CEC standard. The HDMI control function of this unit will not work when connected to these devices.

●

This unit is not guaranteed to operate with all HDMI-CEC-enabled devices.

●

Depending on the specifications of each HDMI-CEC-enabled device, some functions may not work with this unit. (For details, refer to the instruction manual of your TV.)

●

Unintended operations may occur with some connected devices. In these cases, set “HDMI CONTROL” to “OFF”.

"HDMI CONTROL" （A P.135）

Preparations

●

Connect an HDMI cable between this unit and the TV.

"Connecting via the HDMI Mini Connector" （A P.56）

●

Turn on the TV and set the HDMI-CEC related setting to “ON”. (For details, refer to the instruction manual of the TV.)

●

Turn on this unit and set “HDMI CONTROL” to “ON”.

"HDMI CONTROL" （A P.135）

Operation Method 1

Turn on this unit.

Select the playback mode.

Connect the HDMI cable.

●

TV turns on automatically and switches to HDMI input mode when this unit is turned on.

Connecting via the Component Connector

You can connect this camera to the component terminal of a TV to play back videos in analog high-definition quality.

●

Refer also to the instruction manual of the TV in use.

Connect to the TV.

●

Press and hold the power button for 2 seconds or more to turn off the power.

Connect the AC adapter to this unit.

Press the external input button on the TV to switch to the input from

this unit via the connected terminal.

Operation Method 2

Turn off the TV.

●

This unit turns off automatically.

Memo:

●

Depending on the TV connected, the display language of this unit will automatically switch to the language that is selected for the TV when this unit is turned on. (This is applicable only if this unit supports the language selected for the TV.) To use this unit with a language that differs from the display language of the TV, set “HDMI CONTROL” to “OFF”.

●

The display language of the TV will not switch automatically, even if the display language of this unit is changed.

●

These functions may not work correctly when devices such as amplifier and selector are connected. Set “HDMI CONTROL” to “OFF”.

●

If HDMI-CEC does not work properly, turn off and on this unit again.

CAUTION:

●

Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing files. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium to use the medium again.

Play back a file.

"Playing Back Videos" （A P.49） "Playing Back Still Images" （A P.52）

Memo:

●

"DISPLAY ON TV" （A P.133） "ON-SCREEN DISPLAY" （A P.121）

●

When playing back in HD quality, set “COMPONENT OUTPUT” in the connection settings menu to “1080i”.

●

The video is output in standard quality if the setting remains at “480i”.

"COMPONENT OUTPUT" （A P.134）

●

For questions about the TV or method of connection, contact your TV's manufacturer.

Playback

Connecting via the AV Connector

By connecting the supplied AV cable to the video terminal, videos can be played back on a TV.

●

Refer also to the instruction manual of the TV in use.

Connect to the TV.

●

Press and hold the power button for 2 seconds or more to turn off the power.

Connect the AC adapter to this unit.

Press the external input button on the TV to switch to the input from

this unit via the connected terminal.

Playing Back Playlists

Play back the playlists that you have created.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “PLAYBACK PLAYLIST” and touch C.

Play back a file.

"Playing Back Videos" （A P.49） "Playing Back Still Images" （A P.52）

Memo:

●

"DISPLAY ON TV" （A P.133） "ON-SCREEN DISPLAY" （A P.121）

●

For questions about the TV or method of connection, contact your TV's manufacturer.

Select the desired playlist and touch C to start playback.

"Playing Back Videos" （A P.49）

●

Touch “CHECK” to check the content of the selected playlist.

●

To exit the playback, touch D.

Creating Playlists： "Creating Playlists from the Recorded Videos" （A P.74） "Creating a Playlist with Title" （A P.81）

Playing Back a BD/DVD Created on this Unit

BD/DVDs created using the backup function on this unit can be played back on TV using an optional DVD writer (DVDs only) with playback function (CU-VD50U) or a normal BD/DVD player. DVDs can also be played back on this unit by connecting the optional DVD writer with playback function.

Playback Device DVD

(DVD-Vid-

eo format)

DVD writer connected to

P P

this unit

External Blu-ray drive con-

P P P

nected to this unit

DVD player/

DVD recorder

Blu-ray player/

Blu-ray recorder

DVD writer with playback

P P

function (CU-VD50U)

*Only for AVCHD compatible devices

CAUTION:

●

DVDs that are created in AVCHD format cannot be played back on DVD players with standard quality. You may not be able to remove the disc from the player.

DVD

(AVCHD

format)

P *

Blu-ray

Disc

Playback

Open the LCD monitor.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

Select “PLAYBACK” and touch C.

●

Playback starts.

"Operation Buttons for Video Playback" （A P.49）

Playing Back with an External Blu-ray Drive

Close the LCD monitor and connect.

Playing Back with a DVD Writer

Close the LCD monitor and connect.

① Connect the AC adapter to this unit. ② Connect the AC adapter of the DVD writer. ③ Connect the USB cable provided with the DVD writer.

●

To view on a TV, connect this unit to the TV.

"Connecting to and Viewing on TV" （A P.56）

Load a DVD created on this unit into the DVD writer.

① Press the power button to turn on the power. ② Press the eject button to open the disc tray. ③ Pull out the tray completely and load a new disc properly. ④ Push the disc tray in until it clicks into place.

① Connect the AC adapter to this unit. ② Connect the AC adapter of the external Blu-ray drive. ③ Connect the USB cable of the external Blu-ray drive to this unit.

●

Refer also to the instruction manual of the external Blu-ray drive.

●

To view on a TV, connect this unit to the TV.

"Connecting to and Viewing on TV" （A P.56）

Load a Blu-ray disc created on this unit into the external Blu-ray drive.

●

Press the power button on the external Blu-ray drive to turn on the power.

① Press the eject button to open the disc tray. ② Pull out the tray completely and load a new disc properly. ③ Push the disc tray in until it clicks into place.

Playback

Open the LCD monitor.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

Select “PLAYBACK” and touch C.

Digest Playback on a DVD Player

You can play back a few seconds from each scene of the recorded videos in the created DVD.

Load the created DVD on a DVD player.

Select “DIGEST PLAYBACK” on the TV.

●

The digest is played back continuously.

●

Playback starts.

"Operation Buttons for Video Playback" （A P.49）

CAUTION:

●

Be sure to turn off the power when connecting the devices. Otherwise, electric shocks or malfunctions may occur.

Memo:

●

Only DVDs and Blu-ray discs created on this unit can be played back.

●

Chapters are not displayed on the menu.

Digest Playback on a DVD Writer

You can view a few seconds of each video in the disc continuously by playing back the created disc in a player and selecting “DIGEST PLAYBACK” from the top menu. Use this to check the content of videos or to look for the desired scene.

●

To return to normal playback, press the top menu button on the remote control of the player and select “TO NORMAL PLAYBACK”.

(The screen does not appear on this unit.)

Memo:

●

To normal playback/To index menu

1) Press the top menu button on the remote control of the DVD device during digest playback.

2) Select the desired item.

●

“DIGEST PLAYBACK” menu is not available when the DVD is created using the provided Everio MediaBrowser software.

Deleting Unwanted Files

Delete unwanted videos and still images when the space in the recording media is running out. The capacity of the recording media can be restored after deleting the files. "Deleting the Currently Displayed File" （A P.61） "Deleting Selected Files" （A P.61） "Deleting All Files" （A P.62）

Memo:

●

Deleted files cannot be restored.

●

When files in a playlist are deleted, the playlist changes.

●

Files that are protected cannot be deleted. Release protection before deleting the file.

"Protecting Files" （A P.63）

●

Be sure to back up important files on a PC.

"Backing Up All Files" （A P.101）

Deleting the Currently Displayed File

Deletes the currently displayed file.

CAUTION:

●

Deleted files cannot be restored.

Select the playback mode.

Check that it is the file to delete, select “YES” and touch C.

●

The file to delete appears on this screen.

●

Touch the operation buttons "E" / "F" to select the previous or next file.

●

After deleting, touch D.

Memo:

●

When files in a playlist are deleted, the playlist changes.

●

Files that are protected cannot be deleted. Release protection before deleting the file.

"Protecting Files" （A P.63）

Deleting Selected Files

Deletes the selected files.

CAUTION:

●

Deleted files cannot be restored.

Select the playback mode.

Editing

Select video or still image mode.

Touch D to display the menu.

Select “DELETE” and touch C.

Select “CURRENT” and touch C.

Select video or still image mode.

Touch D to display the menu.

Select “DELETE” and touch C.

Editing

Select “FILE SELECT” and touch C.

Select the desired file and touch C.

Deleting All Files

Deletes all files.

CAUTION:

●

Deleted files cannot be restored.

Select the playback mode.

Select video or still image mode.

●

A delete mark appears on the selected file. To remove the delete mark, touch C again.

●

Touch “CHECK” to check the selected file.

After selecting all the files to delete, touch “EXEC”.

Select “YES” and touch C.

●

After deleting, touch C.

Memo:

●

When files in a playlist are deleted, the playlist changes.

●

Files that are protected cannot be deleted. Release protection before deleting the file.

"Protecting Files" （A P.63）

Touch D to display the menu.

Select “DELETE” and touch C.

Select “DELETE ALL” and touch C.

Select “YES” and touch C.

●

After deleting, touch C.

Memo:

●

When files in a playlist are deleted, the playlist changes.

●

Files that are protected cannot be deleted. Release protection before deleting the file.

"Protecting Files" （A P.63）

Protecting Files

Prevent important videos/still images from being deleted accidently by protecting them. "Protecting the Currently Displayed File" （A P.63） "Protecting Selected Files" （A P.63） "Protecting All Files" （A P.64） "Releasing Protection of All Files" （A P.65）

CAUTION:

●

When the recording media is formatted, even the protected files will be deleted.

Protecting the Currently Displayed File

Protects or releases protection of the currently displayed file.

Select the playback mode.

Select video or still image mode.

Check that it is the file to protect, select “YES” and touch C.

●

The file to protect appears on this screen.

●

Touch the operation buttons "E" / "F" to select the previous or next file.

●

After setting, touch C.

●

To exit the screen, touch D.

Protecting Selected Files

Protects or releases protection of the selected files.

Select the playback mode.

Editing

Touch D to display the menu.

Select “EDIT” and touch C.

Select “PROTECT/CANCEL” and touch C.

Select video or still image mode.

Touch D to display the menu.

Select “EDIT” and touch C.

Select “PROTECT/CANCEL” and touch C.

Select “CURRENT” and touch C.

Editing

Select “FILE SELECT” and touch C.

Select the desired file and touch C.

●

A protect mark appears on the selected file. To remove the protect mark, touch C again.

●

Touch “CHECK” to check the selected file.

After selecting all the files to protect or release protection of, touch D.

Protecting All Files

Protects all files.

Select the playback mode.

Select video or still image mode.

Touch D to display the menu.

Select “EDIT” and touch C.

Select “PROTECT/CANCEL” and touch C.

Select “PROTECT ALL” and touch C.

Select “YES” and touch C.

●

After setting, touch C.

Editing

Releasing Protection of All Files

Releases protection of all files.

Select the playback mode.

Select video or still image mode.

Touch D to display the menu.

Select “EDIT” and touch C.

Changing Event Registration of Videos

Find your recorded videos for playback easily by registering them to suitable items from the list of various events. "Changing the Event of the Currently Displayed File" （A P.65） "Changing the Event of the Selected Files" （A P.66）

Memo:

●

You can also register files to events before recording if the content has been decided.

"Registering Files to Events Before Recording" （A P.41）

Changing the Event of the Currently Displayed File

Checks and changes the event of the currently displayed file.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “PROTECT/CANCEL” and touch C.

Select “CANCEL ALL” and touch C.

Select “YES” and touch C.

Select “EDIT” and touch C.

Select “CHANGE EVENT REG.” and touch C.

Select “CURRENT” and touch C.

●

After setting, touch C.

Editing

Select “YES” and touch C.

●

Touch the operation buttons "E" / "F" to select the previous or next file.

Select a new event and touch C.

●

You can cancel the registered event by touching “CANCEL”.

●

After setting, touch C.

●

To exit the screen, touch D.

Changing the Event of the Selected Files

Changes the event of multiple files by specifying a range.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT” and touch C.

Select “CHANGE EVENT REG.” and touch C.

Select “TO RESET RANGE” and touch C.

Select the first file of the range and touch C.

●

Touch “CHECK” to check the selected file.

Select the last file of the range and touch C.

Select a new event and touch C.

Editing

Capturing a Still Image in the Video during Playback

You can capture still images of the scenes you like in the recorded videos.

Select the playback mode.

Select video mode.

●

You can cancel the registered event by touching “CANCEL”.

●

After setting, touch C.

●

To exit the screen, touch D.

Select the desired video and touch C.

Touch pause at the desired scene during playback.

●

After pausing the video, you can fine-tune the point to capture by using the forward slow-motion k and reverse slow-motion l operation buttons.

Capture a still image.

Memo:

●

Still images are captured with a size of 1920×1080.

●

Captured still images are stored in the media specified in “REC MEDIA FOR IMAGE”.

"REC MEDIA FOR IMAGE" （A P.136）

Editing

Dividing Files

You can divide a selected video into two.

●

The original video cannot be recovered after it is divided.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT” and touch C.

Touch C to pause playback, then touch “SET” at the point you want to

divide the file.

●

The actual division point may differ slightly from the point that is set.

Select “DIVIDE HERE” and touch C.

●

To select the division point again, select “CANCEL”.

●

After dividing, touch C.

●

The original image is now replaced by two divided images.

Memo:

●

When playing back the divided file, the recording date of the division point is displayed.

●

The division point may deviate slightly from the selected scene.

●

Videos cannot be divided if the upload or EXPORT settings are enabled.

●

Upload or EXPORT settings are disabled if videos are divided.

Select “DIVIDE” and touch C.

Select the desired video and touch C.

●

Playback of the selected video starts.

Combining Videos Recorded by Seamless Recording

Videos that are recorded on two separate media and with “SEAMLESS RECORDING” in the video recording menu enabled can be combined into a single video. "SEAMLESS RECORDING" （A P.111）

Select the playback mode.

Select video mode.

Touch D to display the menu.

Editing

Select the media for copying and touch C.

Select “YES” and touch C.

●

Combining of the videos starts.

●

After videos are combined, touch C.

Memo:

●

Seamless videos cannot be combined if there is not enough free space in the built-in memory or SD card. Check the amount of remaining free space before combining.

Select “SEAMLESS REC CTRL” and touch C.

Select “COMBINE SCENES” and touch C.

●

This unit starts a search to detect seamless videos. Combining cannot be performed if no seamless videos are found.

Select “YES” and touch C.

How to Enable Seamless Video Recording Again

To start seamless recording again after the previous session is complete, it is necessary to combine seamless videos, or delete the combination information of the seamless videos. To delete the combination information of seamless videos, select “DEL SCENE COMBI INFO” in step 5.

Editing

Capturing a Required Part in the Video

Select the required part of a video and save it as a new video file.

●

The original video remains in its existing location.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Touch C to pause playback, then touch “SET” to set the start point.

●

Touch C to resume playback.

"Playing Back Videos" （A P.49）

Touch C to pause playback, then touch “SET” to set the point to stop

copying.

●

To reset the start point, touch CANCEL.

Select “CAPTURE TRIMMED FILE” and touch C.

Select “EDIT” and touch C.

Select “TRIMMING” and touch C.

Select the desired video and touch C.

Select “YES” and touch C.

●

After copying, touch C.

●

When copying finishes, the copied file is added to the index screen.

●

To exit the screen, touch D.

Memo:

●

The division point may deviate slightly from the selected scene.

●

Playback of the selected video starts.

Capturing Videos for Uploading to YouTube

Capture and copy a part of a recorded video (maximum 10 minutes) for uploading to YouTube, and save it as a YouTube video. When capturing videos for YouTube, the duration cannot be longer than 10 minutes.

Select the playback mode.

Select video mode.

Press the UPLOAD/EXPORT button to display the UPLOAD SET-

TINGS/EXPORT SETTINGS menu.

Select “UPLOAD SETTINGS” and touch C.

Editing

Touch C to pause playback, then touch “SET” to set the start point to

copy.

●

Resume playback after setting the start point.

"Playing Back Videos" （A P.49）

Touch C to pause playback, then touch “SET” to set the point to stop copying.

●

To reset the start point, touch “CANCEL”.

●

When capturing videos for YouTube, the duration cannot be longer than 10 minutes.

Select “CAPTURE TRIMMED FILE” and touch C.

Select the desired video and touch C.

Select “TRIM” and touch C.

●

When trimming is not necessary, select “DO NOT TRIM” and touch C to complete the setting.

●

If the selected video is more than 10 minutes, trimming is necessary.

Select “YES” and touch C.

●

When copying finishes, the copied file is added to the index screen.

●

To exit the screen, touch D.

Memo:

●

The division point may deviate slightly from the selected scene.

●

You can take videos in YouTube format by setting upload shooting before recording.

"Taking Videos in YouTube Format" （A P.41）

Editing

Uploading Videos to YouTube

You can upload your videos to YouTube using the provided software "Everio MediaBrowser". Install the software on your PC and connect this unit to the PC.

●

For details on how to use the software, refer to the help file.

"Installing the Provided Software" （A P.100） "Connecting this Unit to PC" （A P.101）

Trouble with Uploading Videos：

●

Check if you have created an account with YouTube. (You need a YouTube account to upload files to YouTube.)

●

Refer to "Q&A", "Latest Information", "Download Information", etc. in "Click for Latest Product Info" in the help file of the provided software "Everio MediaBrowser".

Editing

Preparing Videos to Transfer to iTunes

Set EXPORT attributes to the recorded videos by adding a "LIB." mark. When EXPORT attributes are set, the videos can be registered to iTunes easily using the supplied software on a PC.

Select the playback mode.

Select video mode.

Press the UPLOAD/EXPORT button to display the UPLOAD SET-

TINGS/EXPORT SETTINGS menu.

Select “EXPORT SETTINGS” and touch C.

Transferring Converted Videos to iPod

You can export videos to iTunes using the provided software "Everio MediaBrowser". Install the software on your PC and connect this unit to the PC.

●

For details on how to use the software, refer to the help file.

●

For details on transferring files to iPod, refer to the help file of iTunes.

"Installing the Provided Software" （A P.100） "Backing Up All Files" （A P.101）

Trouble with Exporting Files to iTunes：

●

Refer to "Q&A", "Latest Information", "Download Information", etc. in "Click for Latest Product Info" in the help file of the provided software "Everio MediaBrowser".

Select the desired video and touch C.

●

A "LIB." mark appears on the selected file. To remove the "LIB." mark, touch C again.

●

Touch “CHECK” to check the selected file.

●

To exit EXPORT SETTINGS, touch D.

Memo:

●

You can take videos in iTunes format by setting EXPORT shooting before recording.

"Taking Videos in iTunes Format" （A P.42）

●

The format of recorded videos changes when they are transferred to a PC using the supplied software. Files that are stored on this unit will not be affected.

●

The "LIB." mark does not appear on other index screens.

Editing

Creating Playlists from the Recorded Videos

A list created by selecting your favorite videos from the recorded ones is called a playlist. By creating a playlist, you can play back only your favorite videos in the order you like. The original video file remains even when it is registered to a playlist.

●

To create a new playlist

"Creating Playlists with Selected Files" （A P.75） "Creating Playlists by Group" （A P.76） "Creating Playlists by Date" （A P.77） "Creating Playlists by Event" （A P.78）

●

To edit or delete a created playlist

"Editing Playlists" （A P.79） "Deleting Playlists" （A P.80） "Adding Title Screens to Playlists" （A P.81）

Memo:

●

When a video file is deleted or moved, the same file will be removed from the playlist.

Creating Playlists with Selected Files

Create a playlist by arranging the files one by one.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Touch C to insert the video onto the right side.

●

Repeat steps 7-8 and arrange the videos in the playlist.

●

To change the position of a video, select the insertion point with the slider after step 7 and touch C.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

After arranging, touch D.

Select “SAVE AND THEN QUIT” and touch C.

Editing

Select “NEW LIST” and touch C.

Select “CREATE FROM SCENE” and touch C.

Select the file to add to playlist and touch C.

●

Touch “CHECK” to check the selected video.

Editing

Creating Playlists by Group

Create a playlist by arranging multiple files according to group.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Touch C to insert the video onto the right side.

●

Repeat steps 7-8 and arrange the videos in the playlist.

●

To change the position of a video, select the insertion point with the slider after step 7 and touch C.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

After arranging, touch D.

Select “SAVE AND THEN QUIT” and touch C.

Select “NEW LIST” and touch C.

Select “CREATE BY GROUP” and touch C.

Select the group to add to playlist and touch C.

●

Touch “CHECK” to check the selected video.

Creating Playlists by Date

Create a playlist by arranging multiple files according to recording date.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Touch C to insert the video onto the right side.

●

Repeat steps 7-8 and arrange the videos in the playlist.

●

To change the position of a video, select the insertion point with the slider after step 7 and touch C.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

After arranging, touch D.

Select “SAVE AND THEN QUIT” and touch C.

Editing

Select “NEW LIST” and touch C.

Select “CREATE BY DATE” and touch C.

Select the date to add to playlist and touch C.

●

Touch “CHECK” to check the selected video.

Editing

Creating Playlists by Event

Create a playlist by arranging multiple files according to events and recording dates.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Select the date to add to playlist and touch C.

●

Touch “CHECK” to check the selected video.

Touch C to insert the video onto the right side.

●

Repeat steps 8-9 and arrange the videos in the playlist.

●

To change the position of a video, select the insertion point with the slider after step 8 and touch C.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

After arranging, touch D.

Select “NEW LIST” and touch C.

Select “CREATE BY EVENT” and touch C.

Select an event and touch C.

Select “SAVE AND THEN QUIT” and touch C.

Editing Playlists

You can change the content of a created playlist.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Touch C to insert the video onto the right side.

●

Repeat steps 7-8 and arrange the videos in the playlist.

●

To change the position of a video, select the insertion point with the slider after step 7 and touch C.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

After arranging, touch D.

Select “SAVE AND THEN QUIT” and touch C.

Editing

Select “EDIT” and touch C.

Select the playlist you want to edit and touch C.

Select the file to add to playlist and touch C.

●

Touch “CHECK” to check the selected video.

Editing

Deleting Playlists

Delete the playlists that you have created.

Select the playback mode.

Select video mode.

Touch D to display the menu.

●

After deleting, touch D.

Select “EDIT PLAYLIST” and touch C.

Select “DELETE” and touch C.

Select the playlist you want to delete and touch C.

●

All created playlists will be deleted when “DELETE ALL” is selected.

Select “YES” and touch C.

●

After deleting is complete, the screen returns to the delete playlist selection screen.

Editing

Adding Title Screens to Playlists

Add a title screen to a created playlist.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “EDIT PLAYLIST” and touch C.

Creating a Playlist with Title

Create a playlist simply by selecting a recording date and a title screen from the list.

Select the playback mode.

Select video mode.

Touch D to display the menu.

Select “PICTURE TITLE” and touch C.

Select “SET TITLE” and touch C.

Select the desired playlist and touch C.

●

Touch “CHECK” to check the content of the selected playlist.

Select a title and touch C.

●

Touch “CHECK” to check the title.

●

To delete the title, select "NO TITLE".

Select a title and touch C.

●

Touch “CHECK” to check the title.

Select the desired recording date and touch C.

●

Touch “CHECK” to check the selected video.

Memo:

●

Play back the DVD created from a playlist with title on a DVD player. The title will not be played back if you connect this unit to a DVD writer (optional).

●

To add a title to a playlist that is already created, refer to the following.

"Adding Title Screens to Playlists" （A P.81）

Copying

Copying Files to Card

You can copy videos and still images to another SD card. "Copying All Files" （A P.82） "Copying Selected Files" （A P.83）

Copying All Files

Copies all videos and still images to another media.

Select the playback mode.

Select video or still image mode.

Touch D to display the menu.

Select “COPY ALL” and touch C.

Select “YES” and touch C.

●

Copying starts.

●

After copying, touch C.

Select “EDIT” and touch C.

Select “COPY” and touch C.

Select the direction of copying and touch C.

Copying Selected Files

Copies selected videos and still images to another media.

Select the playback mode.

Select video or still image mode.

Touch D to display the menu.

Select the desired file and touch C.

●

A check mark appears on the selected file. To remove the check mark, touch C again.

After selecting all the files to copy, touch “EXEC”.

Select “YES” and touch C.

Copying

Select “EDIT” and touch C.

Select “COPY” and touch C.

Select the direction of copying and touch C.

●

Copying starts.

●

After copying, touch C.

Select “SELECT AND COPY” and touch C.

Copying

Moving Files

You can move videos and still images to another SD card. Files that are moved will be deleted from the original media. Moving still images to SD cards makes it convenient to bring them to the shop for printing (developing). "Moving All Files" （A P.84） "Moving Selected Files" （A P.85）

Moving All Files

Moves all videos and still images to another media. Files that are moved will be deleted from the original media. Files with a protect mark will not be deleted from the original media.

Select the playback mode.

Select video or still image mode.

Select “MOVE ALL” and touch C.

Select “YES” and touch C.

●

Moving of files starts.

●

After moving, touch C.

Touch D to display the menu.

Select “EDIT” and touch C.

Select “MOVE” and touch C.

Select the direction of moving and touch C.

Moving Selected Files

Moves selected videos and still images to another media. Files that are moved will be deleted from the original media.

Select the playback mode.

Select video or still image mode.

Touch D to display the menu.

Select the desired file and touch C.

●

A check mark appears on the selected file. To remove the check mark, touch C again.

After selecting all the files to move, touch EXEC.

Select “YES” and touch C.

Copying

Select “EDIT” and touch C.

Select “MOVE” and touch C.

Select the direction of moving and touch C.

●

Moving of files starts.

●

After moving, touch C.

Select “SELECT AND MOVE” and touch C.

Copying

Creating Discs with a DVD Writer or External Blu-ray Drive

You can copy the recorded files to discs using an optional DVD writer or External Blu-ray Drive.

Compatible DVD Writers

Product Name Description

DVD Writer

●

CU-VD3U

DVD Writer

●

CU-VD50U

Compatible External Blu-ray Drive

●

LG: Model No. BE06LU10

Creating Discs with a DVD Writer or External Blu-ray Drive

■ Preparing a DVD Writer or External Blu-ray Drive

"Preparing a DVD Writer (CU-VD50U)" （A P.86） "Preparing a DVD Writer (CU-VD3U)" （A P.87） "Preparing an External Blu-ray Drive" （A P.87） "Changing Recording Media (video mode only)" （A P.88）

■ Copying to BD/DVD

"Copying All Files" （A P.88） "Copying Files by Date" （A P.89） "Copying Files by Event" （A P.90） "Copying Selected Playlists" （A P.91） "Copying Selected Files" （A P.93）

■ Other Operations

"Playing Back a BD/DVD Created on this Unit" （A P.59） "Digest Playback on a DVD Player" （A P.60） "Finalizing Discs After Copying" （A P.94）

Memo:

●

The recordable time on the disc varies according to the way of recording.

●

Enables the images recorded on this unit to be copied to a DVD without using a PC.

●

Creates DVDs and functions as an external DVD drive when connected to a PC. In addition, created DVDs can be played back by connecting the CU-VD50U to a TV.

Preparing a DVD Writer (CU-VD50U)

Close the LCD monitor and connect.

① Connect the AC adapter to this unit. ② Connect the AC adapter of the DVD writer. ③ Connect the USB cable provided with the DVD writer.

●

Refer also to the instruction manual of the DVD writer.

Turn on the DVD writer and insert a new disc.

Open the LCD monitor.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

CAUTION:

●

Be sure to turn off the power when connecting the devices. Otherwise, electric shocks or malfunctions may occur.

Memo:

●

When connected to this unit, all buttons on the DVD writer CU-VD50U, other than the power and eject buttons, will not work.

Copying

Preparing a DVD Writer (CU-VD3U)

Close the LCD monitor and connect.

① Connect the AC adapter to this unit. ② Connect the AC adapter of the DVD writer. ③ Connect the USB cable of the DVD writer to this unit.

●

Refer also to the instruction manual of the DVD writer.

Insert a new disc.

① Press the eject button to open the disc tray. ② Pull out the tray completely and load a new disc properly. ③ Push the disc tray in until it clicks into place.

Open the LCD monitor.

Preparing an External Blu-ray Drive

Memo:

When connecting to the external Blu-ray drive, use a USB cable with Mini-A (Male) – B (Male) connectors. The USB cable bundled with this camera cannot be used. To use the USB cable provided with the external Blu-ray drive, purchase the USB extension cable.

●

Mini-A (Male) – A (Female) (Part number: QAM0852-001)

Close the LCD monitor and connect.

① Connect the AC adapter to this unit. ② Connect the AC adapter of the external Blu-ray drive. ③ Connect the USB cable of the external Blu-ray drive to this unit.

●

Refer also to the instruction manual of the external Blu-ray drive.

Insert a new disc.

●

Press the power button on the external Blu-ray drive to turn on the power.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

CAUTION:

●

Be sure to turn off the power when connecting the devices. Otherwise, electric shocks or malfunctions may occur.

① Press the eject button to open the disc tray. ② Pull out the tray completely and load a new disc properly. ③ Push the disc tray in until it clicks into place.

Open the LCD monitor.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

CAUTION:

●

Be sure to turn off the power when connecting the devices. Otherwise, electric shocks or malfunctions may occur.

Copying

Changing Recording Media (video mode only)

Set the type and video quality of the disc to be created using a BD/DVD writer. Adjustment is necessary when making DVDs with a BD writer or DVDs in standard quality with a DVD writer.

Select video or still image mode.

Select “CHANGE REC. MEDIA” and touch C.

■ Backing Up Videos with a DVD Writer

Setting Details

DVD(AVCHD) Saves videos in a DVD in the high-definition

DVD-Video Saves videos in a DVD after converting to

quality.

the standard image quality.

Copying All Files

All videos and still images recorded on this unit will be copied. You can also select and copy only the videos or still images that have never been copied.

Select video or still image mode.

Select “CREATE FROM ALL” (video) or “SAVE ALL” (still image), and

touch C.

Select the media for copying and touch C.

■ Backing Up Videos with a BD Writer

Setting

Blu-ray DISC Saves videos in a BD in the high-definition

quality.

DVD(AVCHD) Saves videos in a DVD in the high-definition

quality.

DVD-Video Saves videos in a DVD after converting to

the standard image quality.

Cautions when Backing Up in the DVD-Video Format：

●

It takes about 1.2 times the recording time to convert a video from highdefintion to standard image quality. (The original video remains in highdefinition quality.)

●

Each scene is saved as a chapter. The video pauses at the switching of scenes, but this is not a malfunction.

●

Videos cannot be saved to DVD-R DL (double layer) discs. Use a DVD-R or DVD-RW disc.

Details

Memo:

●

DVDs that are created with “DVD-Video” selected can be played back on normal DVD players.

●

When backing up still images, “Blu-ray DISC” or “DVD” can be selected. Image quality of the still images will not be changed.

Select the desired menu and touch C.

“ALL SCENES” (video)/“ALL IMAGES” (still image):

All videos and still images in this unit are copied.

“UNSAVED SCENES” (video)/“UNSAVED IMAGES” (still image):

Videos and still images that have never been copied are automatically selected and copied.

Select “EXECUTE” and touch C.

●

The number of discs required to copy the files is displayed. Prepare the discs accordingly.

Select “YES” or “NO” and touch C. (A mode only)

Copying

Copying Files by Date

Videos are sorted and copied according to the date on which they were recorded.

Select video or still image mode.

●

When “YES” is selected, videos with similar recording dates are displayed in groups.

●

When “NO” is selected, videos are displayed according to recording dates.

Select “EXECUTE” and touch C.

●

When “INSERT NEXT DISC” appears, change the disc.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

Memo:

●

To check the created disc, select “PLAYBACK” in step 1.

Select “SELECT AND CREATE” (video) or “SELECT AND SAVE” (still

image), and touch C.

Select the media for copying and touch C.

Select “CREATE BY DATE” and touch C.

Select the desired recording date and touch C.

When “DO YOU WANT TO FINALIZE?” appears

This appears when “AUTO FINALIZE” in the camera settings menu is set to “OFF”. "AUTO FINALIZE" （A P.130）

●

To play back on other devices, select “YES” and touch C.

●

To add more files to the DVD later, select “NO” and touch C.

Memo:

●

When two or more DVDs are created simultaneously, all the discs other than the last one will be finalized automatically even when “AUTO FINALIZE” is set to “OFF”.

●

You can finalize a DVD even when “FINALIZE” is selected in the “BACK-UP” menu.

"Finalizing Discs After Copying" （A P.94）

●

To play back a BD-R disc on other devices, select “FINALIZE” after creating the disc. (The “AUTO FINALIZE” function on the camera settings menu can only be used for creating DVDs.)

●

You cannot select more than one recording date for copying.

Select “EXECUTE” and touch C.

●

The number of discs required to copy the files is displayed. Prepare the discs accordingly.

●

Touch “CHECK” to check the file to copy.

Copying

Select “YES” or “NO” and touch C. (A mode only)

Copying Files by Event

Videos are sorted and copied according to the registered event.

Select video mode.

●

When “YES” is selected, videos with similar recording dates are displayed in groups.

●

When “NO” is selected, videos are displayed according to recording dates.

Select “EXECUTE” and touch C.

●

When “INSERT NEXT DISC” appears, change the disc.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

Memo:

●

To check the created disc, select “PLAYBACK” in step 1.

Select “SELECT AND CREATE” and touch C.

Select the media for copying and touch C.

Select “CREATE BY EVENT” and touch C.

Select the desired event and touch C.

When “DO YOU WANT TO FINALIZE?” appears

This appears when “AUTO FINALIZE” in the camera settings menu is set to “OFF”. "AUTO FINALIZE" （A P.130）

●

To play back on other devices, select “YES” and touch C.

●

To add more files to the DVD later, select “NO” and touch C.

Memo:

●

When two or more DVDs are created simultaneously, all the discs other than the last one will be finalized automatically even when “AUTO FINALIZE” is set to “OFF”.

●

You can finalize a DVD even when “FINALIZE” is selected in the “BACK-UP” menu.

"Finalizing Discs After Copying" （A P.94）

●

To play back a BD-R disc on other devices, select “FINALIZE” after creating the disc. (The “AUTO FINALIZE” function on the camera settings menu can only be used for creating DVDs.)

Select “EXECUTE” and touch C.

●

The number of discs required to copy the files is displayed. Prepare the discs accordingly.

●

Touch “CHECK” to check the file to copy.

Select “YES” or “NO” and touch C.

Copying Selected Playlists

Arrange and copy the created playlists in the order you like.

Select video mode.

Copying

●

When “YES” is selected, videos with similar recording dates are displayed in groups.

●

When “NO” is selected, videos are displayed according to recording dates.

Select “EXECUTE” and touch C.

●

When “INSERT NEXT DISC” appears, change the disc.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

Memo:

●

To check the created disc, select “PLAYBACK” in step 1.

●

To register files to events

"Registering Files to Events Before Recording" （A P.41） "Changing Event Registration of Videos" （A P.65）

Select “SELECT AND CREATE” and touch C.

Select the media for copying and touch C.

Select “CREATE BY PLAYLIST” and touch C.

Select the desired playlists and touch C.

When “DO YOU WANT TO FINALIZE?” appears

This appears when “AUTO FINALIZE” in the camera settings menu is set to “OFF”. "AUTO FINALIZE" （A P.130）

●

To play back on other devices, select “YES” and touch C.

●

To add more files to the DVD later, select “NO” and touch C.

Memo:

●

When two or more DVDs are created simultaneously, all the discs other than the last one will be finalized automatically even when “AUTO FINALIZE” is set to “OFF”.

●

You can finalize a DVD even when “FINALIZE” is selected in the “BACK-UP” menu.

"Finalizing Discs After Copying" （A P.94）

●

To play back a BD-R disc on other devices, select “FINALIZE” after creating the disc. (The “AUTO FINALIZE” function on the camera settings menu can only be used for creating DVDs.)

●

Touch “CHECK” to check the selected playlist.

Select the insertion point and touch C.

●

The selected videos are added to the playlist on the right.

●

To delete a video from the playlist, touch "F" to select the video and touch C.

●

Repeat steps 4-5 and arrange the videos in the playlist.

Copying

After arranging, touch “SAVE”.

Select “EXECUTE” and touch C.

●

The number of discs required to copy the files is displayed. Prepare the discs accordingly.

●

Touch “CHECK” to check the file to copy.

Select “EXECUTE” and touch C.

When “DO YOU WANT TO FINALIZE?” appears

This appears when “AUTO FINALIZE” in the camera settings menu is set to “OFF”. "AUTO FINALIZE" （A P.130）

●

To play back on other devices, select “YES” and touch C.

●

To add more files to the DVD later, select “NO” and touch C.

Memo:

●

When two or more DVDs are created simultaneously, all the discs other than the last one will be finalized automatically even when “AUTO FINALIZE” is set to “OFF”.

●

You can finalize a DVD even when “FINALIZE” is selected in the “BACK-UP” menu.

"Finalizing Discs After Copying" （A P.94）

●

To play back a BD-R disc on other devices, select “FINALIZE” after creating the disc. (The “AUTO FINALIZE” function on the camera settings menu can only be used for creating DVDs.)

●

When “INSERT NEXT DISC” appears, change the disc.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

Memo:

●

A list of playlists is displayed on the top menu of the created DVD.

●

To check the created disc, select “PLAYBACK” in step 1.

●

To create a playlist

"Creating Playlists from the Recorded Videos" （A P.74） "Creating a Playlist with Title" （A P.81）

Copying Selected Files

Select and copy the desired videos.

Select video or still image mode.

Select “EXECUTE” and touch C.

Copying

Select “SELECT AND CREATE” (video) or “SELECT AND SAVE” (still

image), and touch C.

Select the media for copying and touch C.

Select “SELECT FROM SCENES” (videos) or “SELECT FROM IM-

AGES” (still images), and touch C.

●

The number of discs required to copy the files is displayed. Prepare the discs accordingly.

●

Touch “CHECK” to check the file to copy.

Select “YES” or “NO” and touch C. (A mode only)

●

When “YES” is selected, videos with similar recording dates are displayed in groups.

●

When “NO” is selected, videos are displayed according to recording dates.

Select “EXECUTE” and touch C.

Select the video or still image to save, and touch C.

●

A check mark appears on the selected video. To remove the check mark, touch C.

●

Touch “CHECK” to check the video.

After selecting, touch “SAVE”.

●

When “INSERT NEXT DISC” appears, change the disc.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

Memo:

●

To check the created disc, select “PLAYBACK” in step 1.

Copying

When “DO YOU WANT TO FINALIZE?” appears

This appears when “AUTO FINALIZE” in the camera settings menu is set to “OFF”. "AUTO FINALIZE" （A P.130）

●

To play back on other devices, select “YES” and touch C.

●

To add more files to the DVD later, select “NO” and touch C.

Memo:

●

When two or more DVDs are created simultaneously, all the discs other than the last one will be finalized automatically even when “AUTO FINALIZE” is set to “OFF”.

●

You can finalize a DVD even when “FINALIZE” is selected in the “BACK-UP” menu.

"Finalizing Discs After Copying" （A P.94）

●

To play back a BD-R disc on other devices, select “FINALIZE” after creating the disc. (The “AUTO FINALIZE” function on the camera settings menu can only be used for creating DVDs.)

Finalizing Discs After Copying

Finalizes the disc after copying is finished. This enables the disc to be played back using this unit, on PC, BD/DVD writer or BD/DVD player that supports the BD-MV and AVCHD formats.

Select video or still image mode.

Select “FINALIZE” and touch C.

Select “YES” and touch C.

●

After finalizing, touch C.

Using a USB External Hard Disk Drive

You can copy video and still image files to a USB external hard disk drive from this unit. You can also play the files in the USB external hard disk drive on this unit.

●

Refer also to the instruction manual of the external hard disk drive.

Compatible External Hard Disk Drives

●

Seagate: FreeAgent™ Desk series

●

LaCie: Design by Neil Poulton series

USB external hard disk drives with the capacity over 2 TB cannot be used.

Copying and Playback with a USB External Hard Disk Drive

"Preparing a USB External Hard Disk Drive" （A P.95） "Copying All Files" （A P.95） "Playing Back Files in the USB External Hard Disk Drive" （A P.96） "Deleting Folders in the USB External Hard Disk Drive" （A P.96）

Memo:

●

Format the USB external hard disk drive when connecting it to this unit for the first time. (All data is deleted.)

"Formatting the USB External Hard Disk Drive" （A P.97）

●

Refer to the help file of the provided Everio MediaBrowser software when you use the PC to operate the data in the USB external hard disk drive directly copied from this unit.

CAUTION:

●

Disconnect the USB external hard disk drive when using other USB devices such as a BD/DVD writer or another USB external hard disk drive.

●

Avoid the following operations during copying and playing back.

- Turning off the unit or the USB external hard disk drive.

- Disconnecting the USB cable.

●

Files deleted from this unit cannot be written to a disc using a BD/DVD writer even if they have been copied to the USB external hard disk drive.

●

Do not format the USB external hard disk drive using the PC. If you did, format again using this unit. (All the data in the USB external hard disk drive will be erased.)

●

Avoid the following operations using the PC.

- Deleting files or folders in the USB external hard disk drive.

- Moving files or folders in the USB external hard disk drive.

- Changing the name of files or folders in the USB external hard disk drive. These operations make the data impossible to be played back on this unit.

●

When you use the PC to edit the data in the USB external hard disk drive, copy the data to the PC before editing. Editing the data in the USB external hard disk drive directly from the PC makes the data impossible to be played back on this unit.

Preparing a USB External Hard Disk Drive

Memo:

To use the USB cable provided with the external hard disk drive, purchase the following USB extension cable.

●

Mini-A (Male) – A (Female) (Part number: QAM0852-001)

Close the LCD monitor and connect.

Select the desired menu and touch C.

Copying

① Connect the AC adapter to this unit. ② Connect the AC adapter of the USB external hard disk drive. ③ Connect the USB cable provided with the USB external hard disk

drive.

●

Refer also to the instruction manual of the external hard disk drive.

Turn on the external hard disk drive.

Open the LCD monitor.

●

This unit turns on and the BACK-UP menu appears.

●

While the USB cable is connected, the BACK-UP menu is displayed.

CAUTION:

●

Be sure to turn off the power when connecting the devices. Otherwise, electric shocks or malfunctions may occur.

●

Do not connect a USB hub between this unit and the USB external hard disk drive.

Copying All Files

All videos and still images recorded on this unit will be copied. You can also select and copy only the videos or still images that have never been copied.

Select video or still image mode.

“ALL SCENES” (video)/“ALL IMAGES” (still image):

All videos and still images in this unit are copied.

“UNSAVED SCENES” (video)/“UNSAVED IMAGES” (still image):

Videos and still images that have never been copied are automatically selected and copied.

Start backup.

●

Check that there is sufficient remaining space on the HDD, select “OK”, and touch C.

After copying, touch C.

Close the LCD monitor, then disconnect the USB cable.

CAUTION:

●

Do not turn off the power or remove the USB cable until copying is complete.

●

Files that are not on the index screen during playback cannot be copied.

●

Copying may take time. (For example, saving 1 hour video in XP mode takes about 20 minutes.)

Select “BACK UP” and touch C.

Select the media for copying and touch C.

Copying

Playing Back Files in the USB External Hard Disk Drive

Videos or still images saved in an external hard disk drive can be played back on this camera.

Select video or still image mode.

Select “PLAYBACK” and touch C.

Select the desired folder and touch C.

Deleting Folders in the USB External Hard Disk Drive

Files that are copied to the external hard disk drive can be deleted.

CAUTION:

●

Deleted files cannot be restored.

●

Be sure to back up important files on a PC.

"Backing Up All Files" （A P.101）

Select video or still image mode.

Select “DELETE” and touch C.

Select the desired folder and touch C.

Select the desired file and touch C.

●

Touch f to stop playback.

Memo:

●

Sound or video may be interrupted during playback.

Select “DELETE” and touch C.

●

After deleting, touch C.

Copying

Formatting the USB External Hard Disk Drive

All files on the external hard disk drive can be deleted.

CAUTION:

●

All data on the external hard disk drive will be deleted when it is formatted. Copy all files on the card to a PC before formatting.

Select video or still image mode.

Select “FORMAT” and touch C.

Select “YES” and touch C.

Creating a Disc Using a Connected Blu-ray Recorder

You can create discs using a Blu-ray recorder by connecting it to this camera using a USB cable.

Close the LCD monitor and connect.

① Connect the AC adapter to this unit. ② Connect using the provided USB cable.

Open the LCD monitor.

●

The USB MENU appears.

Select “BACK UP” and touch C.

●

After formatting, touch C.

Perform dubbing on the Blu-ray recorder.

●

Refer also to the instruction manual of the Blu-ray recorder.

Copying

Dubbing Files to a DVD Recorder or VCR

You can dub videos by connecting to a DVD recorder or VCR.

●

Refer also to the instruction manuals of the TV, DVD recorder, VCR, etc.

Connect to a VCR/DVD recorder.

① Press and hold the power button for 2 seconds or more to turn off

the power.

② Connect the AC adapter to this unit. ③ Connect using the provided AV cable. ④ Press and hold the power button for 2 seconds or more to turn on

the unit.

Select the playback mode.

Prepare the TV/VCR for recording.

●

Switch to a compatible external input.

●

Insert a DVD-R or video tape.

Prepare this unit for playback.

●

Set “VIDEO OUTPUT” in the connection settings menu to the aspect ratio (4:3 or 16:9) of the connecting TV.

"VIDEO OUTPUT" （A P.134）

●

To include the date during dubbing, set “DISPLAY ON TV” in the connection settings menu to “ON”. Set “ON-SCREEN DISPLAY” in the playback menu to “DISPLAY DATE ONLY”.

"DISPLAY ON TV" （A P.133） "ON-SCREEN DISPLAY" （A P.121）

Start recording.

●

Start playback on this unit and press the record button on the VCR/ DVD recorder.

"Playing Back Videos" （A P.49）

●

After playback is complete, stop the recording.

Memo:

●

When there are many videos to dub, you can create a playlist in advance and play it back so that all your favorite videos can be dubbed at once.

"Creating Playlists with Selected Files" （A P.75） "Playing Back Playlists" （A P.58）

Copying to Windows PC

You can copy files to a PC using the provided software. DVDs can also be created using the PC's DVD drive. If the provided software is not installed, this unit will be recognized as an external storage when connected.

Memo:

●

To record to discs, a recordable BD/DVD drive is required for the PC in use.

●

Still images cannot be recorded to discs using the provided software.

Trouble with Using the Provided Software Everio MediaBrowser

Consult the customer service center below.

●

Pixela User Support Center

Telephone

Homepage

●

For details on how to upload to Youtube or transfer files to iTunes, refer to "MediaBrowser Help" in the "Help" menu of Everio MediaBrowser.

USA and Canada (English): +1-800-458-4029 (toll-free) Europe (UK, Germany, France, and Spain) (English/German/French/Spanish): +800-1532-4865 (toll-free) Other Countries in Europe (English/German/French/Spanish): +44-1489-564-764 Asia (Philippines) (English): +63-2-438-0090 China (Chinese): 10800-163-0014 (toll-free)

http://www.pixela.co.jp/oem/jvc/mediabrowser/e/

Copying

Verifying System Requirements (Guideline)

Right-click on “Computer” (or “My Computer”) in the “Start” menu and select “Properties” to check the following items.

Windows Vista/Windows 7

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Windows XP

●

Refer to the operating instructions found in the animation on the Detailed User Guide.

Windows Vista/Windows 7 Windows XP

OS Windows Vista 32/64-bit

Home Basic or Home Premium (Pre-installed versions only) Service Pack 2 Windows 7 32/64-bit Home Premium (Pre-installed versions only)

CPU Intel Core Duo CPU 1.66 GHz or higher

Intel Core 2 Duo CPU 2.13 GHz or higher recommended

RAM At least 1 GB (1024 MB) At least 512 MB

Memo:

●

If your PC does not meet the above system requirements, operations of the provided software cannot be guaranteed.

●

For more information, contact your PC's manufacturer.

Windows XP Home Edition or Professional (Pre-installed versions only)Service Pack 3

Intel Core Duo CPU 1.66 GHz or higher Intel Core 2 Duo CPU 2.13 GHz or higher recommended

Installing the Provided Software

You can display the recorded images in calendar format and perform simple editing using the provided software.

Windows Vista / Windows 7

●
