COMP ACT VHS CAMCORDER

GR-AX96

Compact VHS



INSTRUCTIONS

For Customer Use:

Enter below the Serial Nos. of the GR-AX96U camcorder and the AA-V11U AC Power Adapter/Charger. The serial numbers are located on the bottom of the GR-AX96U, and the AAV11U.

Model No.

Serial No.

GR-AX96U

AA-V11U

LYT0002-077A

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents (

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

...... refer to the Index (

familiarize yourself with button locations, etc. before use.

...... read thoroughly the Safety Precautions and Safety

Instructions that follow. They contain extremely important information regarding the safe use of your new camcorder.

You are recommended to carefully read the cautions on pages 51 and 52 before use.

Z pg. 7).

Z pgs. 47 – 50) and

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 

NO USER-SERVICEABLE PARTS INSIDE.



The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. 

 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The AA-V11U AC Power Adapter/Charger should be used with: AC 120 V`, 60 Hz in the USA and Canada, AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V11U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V11U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace the battery with Panasonic (Matsushita Electric), Sanyo or Maxell CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This Class B digital apparatus meets all requirements of the Canadian Interference – Causing Equipment Regulations.

“Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.“

This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V12U/V18U/V22U/V25U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future

reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided

or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line

surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING  CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

USE

1. Accessories To avoid personal injury:

•Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

•Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

•Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

•Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING (Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

QUICK OPERATION GUIDE

SUPPLY POWER

Hook on.

Push in.

BATT. RELEASE

Using the battery pack

Hook-on the battery pack’s top end to the camcorder. (Charging procedure, Z pg. 8)

2 Push in the battery pack until it locks into

place.

To remove the battery pack

Slide BATT. RELEASE and pull out the battery pack.

PLAYBACK

STOP

REW

PLAY/PAUSE

Set to “PLAY”

1 Set the power switch to “PLAY”. 2 Press REW.

— The tape will automatically stop at the

beginning of the tape.

3 Press PLAY/PAUSE.

— Playback starts and the playback picture

appears in the viewfinder.

•To stop playback, press STOP.

(For more details, Z pg. 34.)

Or simply play back the tape on a VHS

VCR using the Cassette Adapter (VHS Playpak). Z pg. 32

INSERTING A VIDEO CASSETTE

EJECT

PUSH

1 Slide EJECT. 2 Insert a video cassette. 3 Press PUSH.

(For more details, Z pg. 12)

SHOOTING

Insert.

LENS COVER open/close knob

Set to “CAMERA”

Recording Start/Stop button

1 Slide the LENS COVER open/close knob to

open the lens cover.

2 Set the power switch to “CAMERA”.

— The power indicator will light and an

image will appear in the viewfinder.

3 Press the Recording Start/Stop button.

— Recording starts.

•To stop recording temporarily, momentarily press the Recording Start/Stop button once again. (For more details, Z pg. 14)

MAJOR FEATURES

REMEMBER

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

Program AE with Special Effects (

n Auto Mode Lock n Auto Mode Release n Electronic Fog Filter n ND Effect n Sepia n Twilight n Sports n 1/1000 sec. High Speed Shutter n 1/2000 sec. High Speed Shutter

Picture Stabilizer (Z pg. 22)

Z pg. 18)

Integrated Auto Light (Z pg. 17)

Program Manager

Z pg. 18 – 31)

(

Program AE with special effects, Focus, Picture Stabilizer, Exposure Control, Fade/Wipe, Wide, Instant Title, Date/ Time Character Insert, White Balance Adjustment, Menu Adjustment

Digital Hyper Zoom

Z pg. 15)

(

Zoom-in

Zoom-out

Random Assemble Editing

Z pg. 37 – 39)

(

882

554411663

PROVIDED ACCESSORIES

•AC Power Adapter/ Charger AA-V11U

•DC Cord

•Cassette Adapter (VHS PlayPak) C-P7U

•Lithium Battery CR2025

Cassettes marked can be used with this camcorder.

•Battery Pack BN-V18U

•Shoulder Strap

CONTENTS

GETTING STARTED

Power..................................................................................... 8

Clock (Lithium) Battery Insertion/Removal........................................ 10

Viewfinder Adjustment ............................................................... 10

Date/Time Setting .................................................................... 11

Tape Length Setting ................................................................... 12

Recording Mode Setting .............................................................. 12

Loading/Unloading A Cassette ...................................................... 12

Grip Adjustment ....................................................................... 13

Shoulder Strap Attachment........................................................... 13

Tripod Mounting ....................................................................... 13

RECORDING

Basic Recording ........................................................................ 14

Basic Features.......................................................................... 15

Advanced Features .................................................................... 18

PLAYBACK

Using The Cassette Adapter.......................................................... 32

Basic Connections...................................................................... 33

Basic Playback ......................................................................... 34

Features ................................................................................ 35

EDITING

Tape Dubbing........................................................................... 36

Random Assemble Editing (R.A.Edit)................................................ 37

USING REMOTE CONTROL UNIT RM-V700U (optional)

Insert Editing........................................................................... 42

Audio Dubbing ......................................................................... 43

USER MAINTENANCE TROUBLESHOOTING INDEX

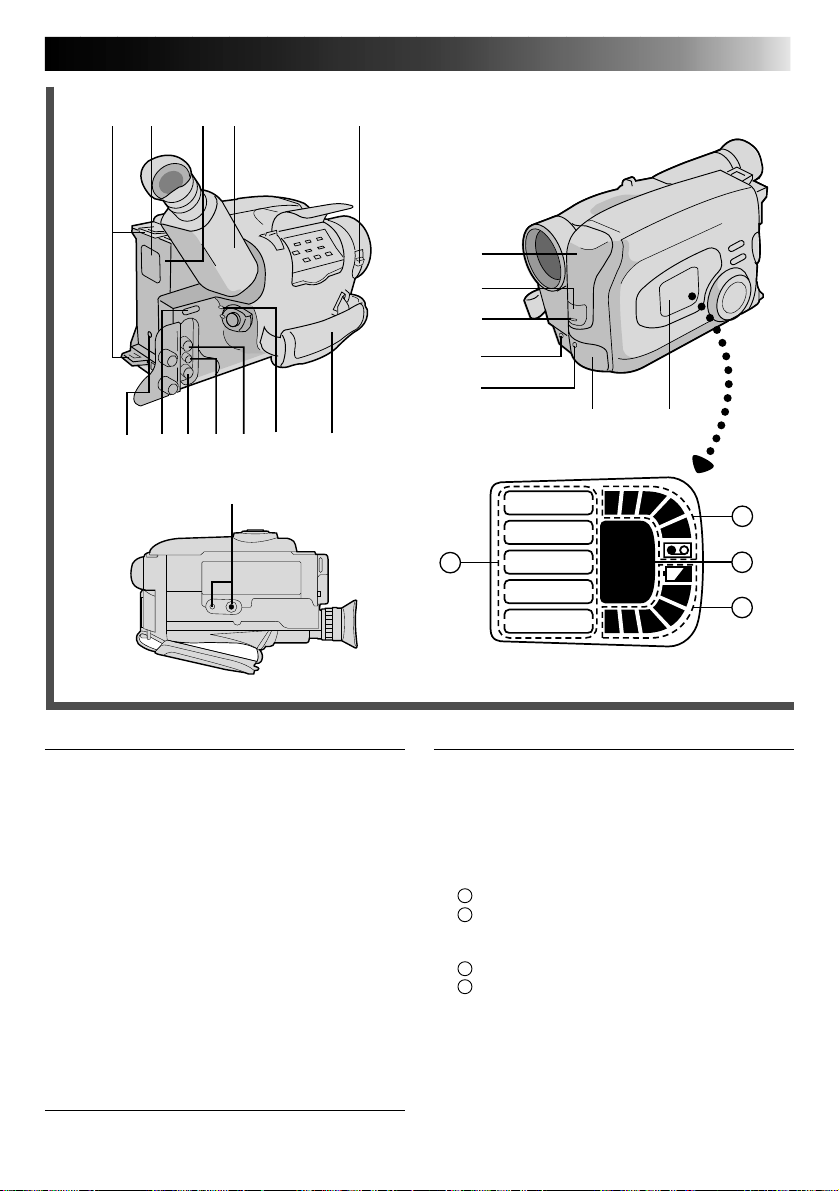

Viewfinder ............................................................................. 47

Controls................................................................................. 48

Connectors.............................................................................. 49

Indicators ............................................................................... 49

Other Parts............................................................................. 49

Terms .................................................................................... 50

CAUTIONS SPECIFICATIONS OPTIONAL ACCESSORIES ESPAÑOL FOR SERVICING (Only in U.S.A.) WARRANTY (Only in U.S.A.)

GETTING STARTED

RECORDING

PLAYBACK

EDITING

44 45 47

51 53 53 54 56 57

END indicator

CHG. (charge) indicator

Marks

POWER indicator

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other equipment.

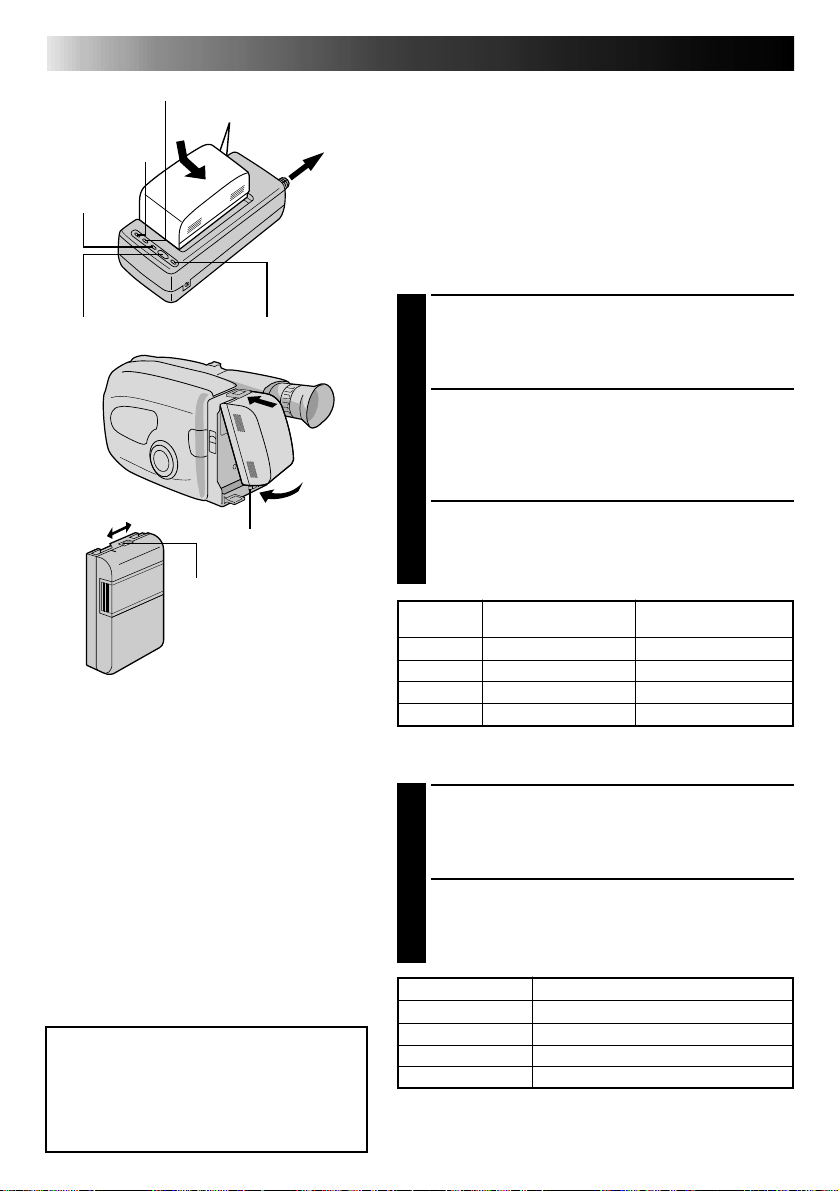

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet. The power indicator lights.

REFRESH indicatorREFRESH switch

Charge marker

** CHARGE MARKER

(OPTIONAL BATTERY PACK ONLY)

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colors are provided (red and black)—you choose which one means charged and which means discharged.

• The battery pack BN-V18U does not have a charge marker.

Hook on.

Push in.

BATT. RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place. The CHG. indicator lights.

DETACH BATTERY PACK

When charging is completed, the END indicator

lights. Slide the battery pack opposite the direction of the arrow.

BATT. PACK CHARGE DISCHARGE

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V18U approx. 1 hr. 40 min. approx. 5 hrs. 30 min. BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs. BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

BATT. PACK APPROXIMATE RECORDING TIME

BN-V12U 1 hr. (35 min.) BN-V18U 1 hr. 40 min. (1hr.) BN-V22U 2 hrs. 10 min. (1hr. 20 min.) BN-V25U 2 hrs. 50 min. (1hr. 50 min.)

( ): when the video light is on.

**REFRESH

The AC power adapter features a REFRESH function that allows you to fully discharge the battery pack before recharging.

To discharge the battery . . .

...... attach the battery pack to the adapter as shown in the

illustration to the left. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record/Standby mode and the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 8 are for fully discharged battey pack, and discharging times are for fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to continue.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should light during recharging. If not, contact your nearest JVC dealer.

USING A CAR BATTERY

DC OUT terminal

To DC in jack

DC cord

Car Battery Cord AP-V7U (optional)

To AC outlet

AC Power Adapter/Charger AA-V11U

To car’s cigarette lighter socket

Use the optional Car Battery Cord or Car Battery Charger/Adapter (connect as shown in the illustration to the left).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3U) can also be used to charge the battery pack.

●

When using the optional Car Battery Charger or Car Battery Cord (AP-V7U), refer to the respective instruction booklet.

USING AC POWER

Use the AC Power Adapter (connect as shown in the illustration to the left).

NOTE:

The supplied AC Power Adapter/Charger features

Car Battery Charger/Adapter BH-V3U (optional)

automatic voltage selection in the AC range from 110 V to 240 V.

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment (A) and pull the battery out.

INSERT BATTERY

Ensuring the plus (+) side is up, insert a CR2025

lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

NOTE:

See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries.

Set POWER to “CAMERA”.

Viewfinder Adjustment

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration at left).

SELECT MODE

Set the power switch to CAMERA.

ADJUST DIOPTER

Turn the diopter adjustment control until the

indications in the viewfinder are clearly focused.

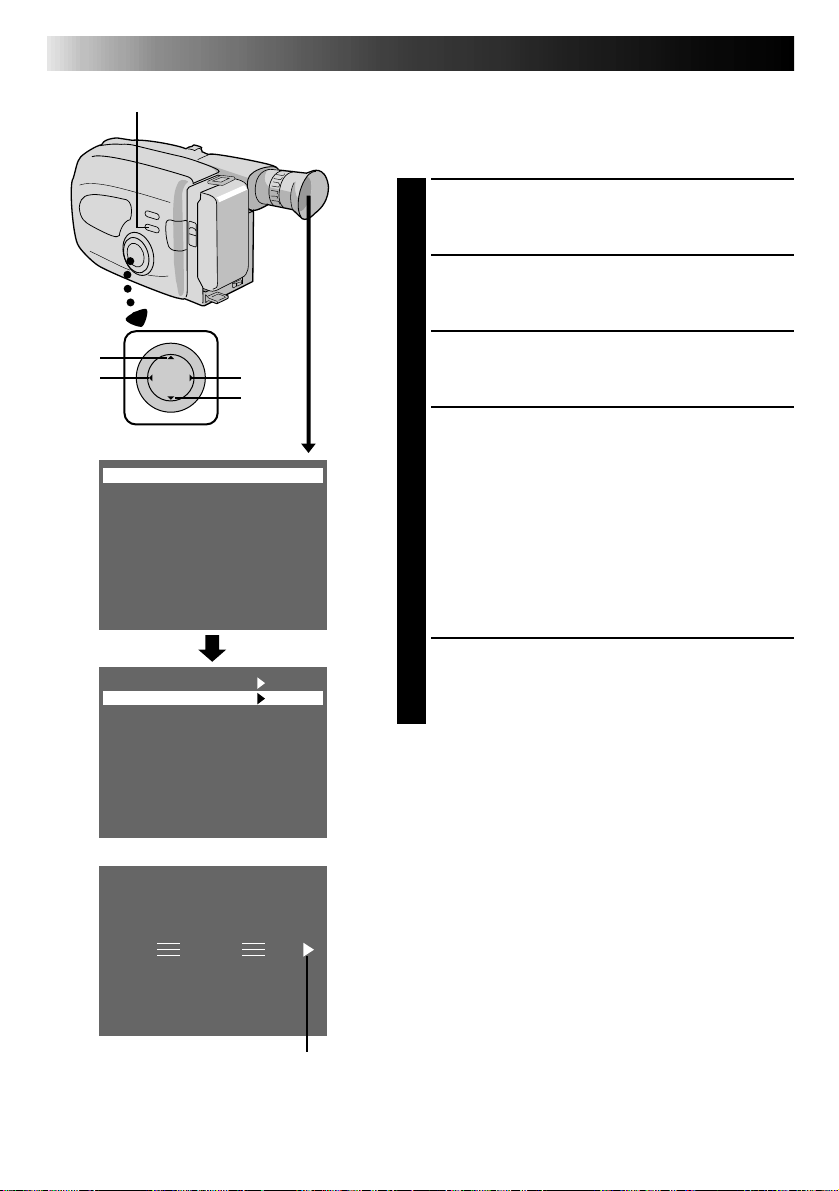

Date/Time Setting

FAR

–

Menu Screen

PROGRAM AE select dial

NEAR

Gain Up S.LX Tele Macro OFF Interval Timer OFF Rec Time OFF JLIP ID NO. 07 Tally ON Set Character 

Date/Time 

END :MENU KEY

SELECT MODE

First set the power switch to “CAMERA”. Turn the

PROGRAM AE select dial to any position except AUTO LOCK.

ACCESS MENU SCREEN

Press MENU.

SELECT FUNCTION

Press – to move the highlight bar down to “Date/

Time”, then press NEAR. The Set Date And Time screen appears.

SET DATE/TIME

Press FAR or NEAR until the item you want to set

begins blinking, then press + or – until the correct setting appears.

•If you decide you want to return the date and time

to the previous settings, press FAR or NEAR to move the highlight bar to “Cancel”, then press MENU.

•If you’re satisfied with the settings, go on to step 5.

START CLOCK OPERATION

Once you’ve set the month, day, year and time,

press FAR or NEAR until “Set” begins to blink, then press MENU. The Menu screen reappears.

CLOSE MENU

Press MENU.

Set Time and Date Screen

Date

Month/Day/Year

Time

12-hour indication with AM or PM

JAN 1.00 AM 12:00

Set Cancel

NOTES:

●

To display the date and time in the viewfinder and on a connected TV, see “Date/Time Insert” (Z pg. 26).

●

If, in step 4, you input an invalid date (FEB 30, JUN 31, etc.) and perform step 5, “Input Error” appears blinking at the bottom of the screen. Press +, –, FAR or NEAR to input the correct number.

T20•30•40 tape length select button

Tape length indicator

SP-EP recording mode button

Set POWER to “CAMERA”.

T30

T20

T30 T40

GETTING STARTED

(cont.)

Tape Length Setting

Set the tape length according to the length of the tape used.

SET TAPE LENGTH

Press T20•30•40 until the required indication

appears in the veiwfinder. T20 = 20 minutes of recording time, T30 = 30 minutes, and T40 = 40 minutes (in SP).

NOTE:

The tape remaining time (Z pg. 14) displayed in the viewfinder is correct only if the correct tape length has been selected.

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

Press SP•EP button. “SP” (Standard Play) provides

higher picture and sound quality and is better for dubbing, while “EP” (Extended Play) is more economical, recording at 1/3 the speed of SP.

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Recording mode indicator

Erase Protection

Turn to take up slack.

Gear

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

●

The cassette holder can’t be opened while the camcorder is in the record mode.

Recording Start/Stop button

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop button and Power Zoom lever. Refasten the Velcro strip.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back and thread it through the keeper 2, and then through the buckle 3. Repeat the procedure to attach the other end of the strap to the other eyelet, making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1, then

slide both keepers snug against the eyelets to prevent slipping 2.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

Tape remaining time indicator

25min

-min

*(Now calculating)

120min 119min

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (Z pg. 8)

●

Date/Time Setting (Z pg. 11)

●

Tape Length setting (Z pg. 12)

●

Recording Mode Setting (Z pg. 12)

●

Grip Adjustment (Z pg. 13)

Power indicator

3min 2min (Blinking) 1min (Blinking) 0min (Blinking)

LENS COVER switch

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

ENTER RECORD–STANDBY MODE

Slide the LENS COVER open/close switch to open

the lens cover, then set the power switch to “CAMERA”.

•The power indicator lights and the camcorder enters the Record–Standby Mode.

•The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

START SHOOTING

Press the Start/Stop button.

POWER

Start/Stop button

•The tally lamp lights while recording is in progress,

REC

and “

” appears in the viewfinder.

STOP RECORDING

Press the Start/Stop button again to stop recording.

Tally lamp

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the holder opens. Do not use force.

●

The tape’s remaining time is displayed in the viewfinder as shown.

●

The indicated remaining time is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time displayed in the viewfinder is correct only if the correct tape length has been selected (Z pg. 12).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.

●

If you’re recording on a cassette from the middle, use the RETAKE function (Z pg. 15) to find the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 10 seconds when the camcorder is turned on, when the cover is closed.

•The camcorder re-enters the Record-Standby mode.

RECORDING

Zoom-in

RETAKE (R/F)

Power Zoom Lever

Basic Features

Zoom-out

Zoom indicator bar

Zoom Level indicator

FEATURE: Zooming PURPOSE: To produce the zoom in/out effect, or

OPERATION: 36X Hyper zoom

NOTES: ●

FEATURE: Quick Review PURPOSE: To check the end of the last

OPERATION: 1)Press “

NOTE:

FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1)Make sure the camcorder is in the

NOTE:

an instantaneous change in image magnification.

Digital circuitry doubles the maximum 18x magnification offered by optical zoom.

1) To zoom in, slide the Zoom Lever

toward “T”.

2) To zoom out, slide toward “W”.

During Hyper Zoom, the speed increases the further you slide the Zoom Lever.

●

Focusing may become unstable during Hyper Zoom. In this case, set the zoom while in Record– Standby, set manual focus or Focus Lock (Z pg. 20, 21), then zoom in or out in Record mode.

●

The Zoom Level Indicator (5) only moves during optical zoom. Once the Zoom Level indicator reaches the top of the zoom indicator bar, all magnification from that point is through digital processing.

●

During digital image processing, the quality of the image may suffer.

recording.

during the Record–Standby mode.

•Tape is rewound for about 2

Distortion may occur at start of playback. This is normal.

Record–Standby mode.

2) Press either RETAKE button to

reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses it.

3) Press Recording Start/Stop to start

recording.

Noise may appear during Retake. This is normal.

” and release quickly

seconds and played back automatically, then pauses in Record–Standby mode for the next shot.

RECORDING

QUICK REC FEATURE: Quick Rec

PURPOSE: To record a scene for 5 seconds,

OPERATION: 1)During Record–Standby, press and

NOTES: ●

Basic Features (cont.)

providing quick scene transitions like those seen in TV programs.

release QUICK REC. Recording starts, and after 5-second recording is finished, the camcorder reenters the Record–Standby mode automatically.

•To continue shooting longer than 5 seconds, press and hold QUICK REC. Recording continues as long as QUICK REC is kept pressed.

The Fade/Wipe (Z pg. 23) cannot be activated by pressing QUICK REC.

●

QUICK REC cannot be used during Animation and Time-Lapse (Z pg. 31).

LIGHT OFF/AUTO/ON

Video Light

When natural lighting is too dim, you can brighten the scene by using the built-in video light.

SET VIDEO LIGHT

Set the LIGHT OFF/AUTO/ON as required.

ON : Always keeps the light on as long as the

camcorder is turned on.

AUTO : Automatically turns on the light when the

camcorder senses insufficient lighting on the subject.

OFF : Turns off the light.

•The video light can be used with the camcorder’s power on.

•It is recommended to set the white balance (Z pg. 27) to indoor mode ( ) when you use the video light.

•When not using the video light, turn it off to save battery power.

NOTES:

●

Even if the battery indicator ( ) does not blink in the viewfinder, if the battery pack’s charge is low, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.

●

When the LIGHT OFF/AUTO/ON switch is set to “AUTO”:

•

Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using the LIGHT OFF/ AUTO/ON switch.

•

While the Sports or High-Speed Shutter mode (Z pg. 19) is engaged, the light is likely to stay on.

•

While the Twilight mode (Z pg. 19) is engaged, the light will not activate.

DANGER

•The video light become extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

•Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot.

•When operating, keep a distance of about 30 cm. (1 ft.) between the video light and people or objects.

•Do not use near flammable or explosive materials.

•It is recommended that you consult your nearest JVC dealer for replacing the video light.

1 second later, the mode is activated.

Sepia

After 1 sec.

Viewfinder

Mark

PROGRAM AE select dial

FAR NEAR

–

RECORDING

Advanced Features

Program AE With Special Effects

All you have to do to access any of the variety of shooting effects is to turn the PROGRAM AE select dial.

SELECT MODE

Turn the PROGRAM AE select dial until the

symbol of the function you want is aligned with the mark.

•The selected mode’s name and its indication are displayed in the viewfinder for approx. 1 second. Then the name disappears, and only the indication remains. The mode is activated.

•When Auto Mode Lock or Auto Mode Release mode is selected, only the mode’s name is displayed. Then the name disappears and the mode is activated.

NOTES:

●

Only one effect can be engaged at a time.

●

The screen becomes slightly reddish when the Fade/Wipe (Z pg. 23) is used in the Sepia mode.

●

The screen becomes slightly dark in the High Speed Shutter mode. Use in well-lighted situations.

●

In the High Speed Shutter or Sports modes, picture color may be adversely affected if subject is lit by alternating discharge-type light sources such as flourescent or mercury-vapor lights.

DIAL VIEWFINDER

SYMBOL INDICATION

MODE

DIAL VIEWFINDER

SYMBOL INDICATION

MODE

LOCK

Auto Mode Lock

Locks the camcorder in Full Auto mode, preventing incorrect operation due to accidental button pressing during shooting.

•In this mode the following controls are disabled; Fade/Wipe, Wide, Title, Display, M.W.B. (Manual White Balance), Manual Focus, Focus Lock, Exposure Control and MENU

RELEASE

Auto Mode Release

Re-enables the controls that were disabled by Auto Mode Lock.

Electronic Fog Filter

Makes the picture look misty white, as when an external fog filter is attached to the lens. Softens the image and gives it a “fancy“ look.

ND Effect

A black mist darkens the picture, as when an ND filter is used. Helps to counter the effects of glare on the subject.

Auto Lock

Auto Release

FG : FogFG

Auto Mode Lock

Auto Mode Release

Electronic Fog Filter

ND EffectND : ND EffectND

Twilight

Dusk, twilight scenery, fireworks, etc., look more natural and dramatic. The following happens when Twilight mode is selected:

•Auto gain control is turned off.

•White Balance is set to “ ” (outdoor mode), but can also be manually changed to another mode (Z pg. 27).

•Auto Focus becomes available only in the range of 10 m to infinity. To focus when the subject-tocamera distance is less than 10 m, use manual focusing (Z pg. 21).

Sports

High shutter speed clearly captures fast-moving action.

1/1000

1/2000

High-Speed Shutter (1/1000s., 1/2000s.)

Captures faster action than Sports mode.

S 1/1000

S 1/2000

Twilight

Sports

1/1000 sec. High Speed Shutter

1/2000 sec. High Speed Shutter

Sepia

The scene being shot is recorded in sepia-tinted (reddish-brown) monochrome, giving the effect of an older movie. Use together with Wide (Z pg. 24) for the authentic look of a classic Hollywood movie.

Sepia

Focus detection zone

NEARFAR

PROGRAM AE select dial

RECORDING

Advanced Features (cont.)

Focusing

Auto Focus

The camcorder’s Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in brightness and darkness), such as a flat, one-color wall, or a clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical patterns that are regularly repeated.

•When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

* The low-contrast warning “

viewfinder.

Focus Lock

This feature locks the focus in place, which is especially helpful in the following situations:

•When things pass between your subject and the camcorder. Engage the focus lock function to lock your subject in before recording.

•When you want your subject to be focused, and to appear in a corner of the screen. First, center on the subject and focus using auto focus mode. Then engage the focus lock function and move the camcorder until the subject is where you want it.

” appears in the

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

LOCK FOCUS

Press FAR or NEAR. The focus lock indication “ ”

appears in the viewfinder.

RELEASE FOCUS LOCK

Press FAR and NEAR simultaneously. The focus lock

indication disappears.

NOTES:

●

If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens, zoom-out first (

pg. 15). If zoomed-in in the auto focus mode, the camcorder could automatically zoom out depending on the distance between the camcorder and the subject. *When Tele Macro ( the camcorder will not zoom out automatically.

pg. 29) is activated,

Power zoom lever

FAR

PROGRAM AE select dial

NEAR

Manual Focus

NOTE:

You should already have made the necessary viewfinder adjustments (Z pg. 10). If you haven’t, do so before continuing.

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

ADJUST FOCUS

To farther subject . . .

Press and hold FAR . The Manual Focus indications

“ ” appear and “ ” blinks. Go to step 3.

To nearer subject

Press and hold NEAR. The Manual Focus indications “ ” appear and “ ” blinks.

Go to step 3.

LOCK FOCUS

Release FAR or NEAR. The focus

indication is replaced by the focus lock indication “ ” and the adjusted focus is locked in.

RELEASE MANUAL FOCUS MODE

Press FAR and NEAR simultaneously. The Manual

Focus mode is immediately released and the focus lock indication disappears.

. . .

NOTES:

●

Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a certain subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.

●

When the focus level cannot be adjusted any farther or closer, “

” or “ ” will blink.

P. STABILIZER

RECORDING

Advanced Features (cont.)

Picture Stabilizer

This feature compensates for unstable images caused by camera-shake, particularly noticeable at high magnification.

ACTIVATE PICTURE STABILIZER

Press P.STABILIZER. “ ” appears in the viewfinder.

•To switch off the Picture Stabilizer, press

P.STABILIZER. The indicator disappears.

NOTES:

●

Accurate stabilization may not be possible if hand shake is excessive, or under the following conditions:

•

When shooting subjects with vertical or horizontal stripes

•

When shooting dark or dim subjects

•

When shooting subjects with excessive backlighting

•

When shooting scenes with movement in various directions

•

When shooting scenes with low-contrast backgrounds

●

Switch off Picture Stabilizer when recording with the camcorder on a tripod.

Exposure Control

This feature automatically adjusts the iris for the best available picture quality, but you can override and make the adjustment manually.

–

To brighten the image

–

Exposure Level Indicator

To darken the image

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

BRIGHTEN IMAGE

Press + (maximum +06). The Exposure level

indicator appears in the viewfinder.

OR . . .

DARKEN IMAGE

Press – (maximum –06). The Exposure level indicator appears in the viewfinder.

When you want to return to the factory setting . . .

RESTORE INITIAL SETTING

Press + and – simultaneously. The standard setting is

immediately restored and the Exposure level indicator disappears.

[Ex. : Black Fader]

FADE OUT

Function indication

Fade/Wipe Mosaic Fader

Off  (No indication)

SELECT button

OFF

FADE IN

After 2 sec.

Black Fader Mosaic Fader

Shutter Wipe Slide Wipe

Fade/Wipe

These effects let you make pro-style scene transitions. Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end or when you enter Record–Standby mode.

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

SELECT FUNCTION

Press SELECT repeatedly until “

appears.

ENGAGE FADE- OR WIPESTANDBY MODE

Press SET to cycle through the modes as shown at

left. Once the desired mode appears, it is selected and reserved.

•The selected mode’s name and its indication are displayed in the viewfinder for approx. 2 seconds. Then the name disappears, and only the indication remains.

START RECORDING

Press Recording Start/Stop to start recording and

activate fade- or wipe-in.

OR . . .

END RECORDING

Press Recording Start/Stop to end recording and engage fade- or wipe-out.

Fade/Wipe

”

PROGRAM AE select dial

SET button

NOTES:

●

Pressing and holding the Recording Start/ Stop button allows you to record a black blank screen, or a mosaic pattern if Mosaic Fader is selected.

●

The screen becomes slightly reddish when the Fade/Wipe is used with Sepia (Z pg. 19).

TO CANCEL FADE- OR WIPESTANDBY MODE

While “

Fade/Wipe

” is displayed, press SET twice.

•“OFF”

is displayed for approx. 2 seconds and the

reserved fade or wipe is cancelled.

Black Fader

Fades in/out to a black screen.

Mosaic Fader

Gradually turns/returns the picture into/from a mosaic pattern.

Shutter Wipe

A black screen moves in from the top and bottom, closing over the image like a shutter, or a new image pushes open the black screen vertically from the center.

Slide Wipe

A black screen moves in from the left to gradually cover the image, or a new image moves in from right to left.

Wide mode

RECORDING

Advanced Features (cont.)

Wide

This feature allows you to record black bars at the top and bottom of the screen to produce a cinema-like “wide-screen” effect.

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

SELECT FUNCTION

Press SELECT repeatedly until “

Wide

ENGAGE WIDE MODE

Press SET.

RESTORE NORMAL SCREEN

Press SET again while “

Wide

” appears.

Title

No indication

SELECT

PROGRAM AE select dial

SET

Title indication

Happy Birthday Our Vacation Merry Christmas A Special Day Happy Holidays Our New Baby Wedding Day Congratulations

The characters you  have set using  Character Generator

Instant Titles

The camcorder has eight preset titles in memory. You can superimpose one of them above a previously stored title as shown in the illustration to the left.

DISPLAY

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

SELECT FUNCTION

Press SELECT repeatedly until “

Title

” appears.

SELECT PRESET TITLE

Engage the Record–Standby mode, then press SET to

cycle through the preset titles until the desired title is displayed.

NOTES:

●

To delete the Instant Title during recording, press

SELECT repeatedly until “ SET.

●

To recall a title, press SET again.

” appears then press

Title

PROGRAM AE select dial

Gain Up S.LX Tele Macro OFF Interval Timer OFF Rec Time OFF JLIP ID NO. 07 Tally ON 

Set Character 

Date/Time  END :MENU KEY

Character Generator

You can enter an original title of up to 18 characters.

ACCESS MENU SCREEN

Turn the PROGRAM AE select dial to any position

except AUTO LOCK, then press MENU.

ACCESS CHARACTER SET MENU

Press + or – to move the highlight bar to “Set

Character”, then press NEAR. The Character Set menu appears.

INPUT CHARACTERS

Press +, –, FAR or NEAR to make the desired

character blink, then press MENU. The selected characters appear at the bottom of the screen. Repeat as many times as desired (max. 18).

•To select the location of the next character, press +, –, FAR or NEAR to make the row of squares blink at the bottom of the screen, then press FAR or NEAR to move the blinking cursor underneath the desired location. Press + when you’re done, and the blinking cursor returns to the character grid.

SET : MENU KEY

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Ä Ö Ü À È Ò Ì Ù Ñ Æ Ø Å & : . , ’ – / ! ? ¿ k 0 1 2 3 4 5 6 7 8 9

I L I End

SET : MENU KEY

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Ä Ö Ü À È Ò Ì Ù Ñ Æ Ø Å & : . , ’ – / ! ? ¿ k 0 1 2 3 4 5 6 7 8 9

I L I KE YOU End Clear

Clear

END CHARACTER SETTING

Press +, –, FAR or NEAR to make “End” blink, then

press MENU twice to return to the normal screen.

NOTES:

●

To erase a character you entered mistakenly, make “Clear” blink by pressing +, –, FAR or NEAR, then press MENU. All characters are deleted at once. Or, to erase selected characters only, first move the blinking cursor to the character at the bottom row which you want to replace, then press +, FAR or NEAR to highlight “ ” in the top left corner, and then press MENU.

●

To display the characters you have set — “Instant Title” (Z pg. 24) or “Date/Time/Character Insert” (Z pg. 26).

●

Characters may be set only in the Record-Standby mode.

SELECT

PROGRAM AE select dial

SET

Date display Time display Date-off mode 

(No indication)

The characters you have set using Character  Generator

Date display

Date/Time display Auto Date Record 

mode

Auto Date Record mode

Disp.

RECORDING

Advanced Features (cont.)

Date/Time Character Insert

This feature allows you to display date, time and characters in your viewfinder and on a connected color monitor, record them manually or automatically, and even make your own titles.

NOTE:

You should already have performed the Date/Time Setting procedure (Z pg. 11). If you haven’t, do so before continuing.

DISPLAY

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

SELECT DISPLAY

Press SELECT repeatedly until “

Disp.

” appears.

CHOOSE DISPLAY MODE

Press SET while in Record–Standby to cycle through

the modes as shown in the illustration at left.

NOTES:

●

The selected display can be recorded.

●

If you don’t want to record the display, select Date-off mode before shooting.

●

If you want to delete the display during shooting, engage the Recorde-Standby mode, press SELECT repeatedly until “ select the Date-off mode.

Disp.

” appears then press SET and

DEC 25.97

Time display

PM10:50:00

Date/Time display

DEC 25.97 PM10:50:00

Auto Date

Auto date record mode

DEC 25.97

Auto date record  executed

Characters

I LIKE YOU k

Example of stored  characters

AUTO DATE RECORD

Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations:

•After changing the date.

•After loading a cassette.

•After Auto Date Record mode is selected by pressing

SET.

In this mode, the date is replaced after 5 seconds with “Auto Date”.

NOTES:

●

Setting PROGRAM AE to LOCK always engages the Auto Date Record mode, and disables all other modes.

●

In the Auto Date Record mode, if the date changes while you’re shooting, the date indication is recorded for about 5 seconds from that point. It is not recorded during any other recordings made on that day.

No indication  (Auto)

SELECT

PROGRAM AE select dial

SET

White balance mode indicator

MWB

M.W.B.

MWB

Manual White Balance Adjustment (M.W.B.)

This camcorder’s Automatic Color Temperature system senses the color temperature of the ambient lighting for automatic white balance adjustment. However, precise color adjustment is not possible under the following conditions:

•When an object is in various shades of the same color.

•When a predominantly red or brown object is being shot outdoors.

In these cases, use the camcorder’s built-in preset filters for white balance adjustment.

SELECT MODE

Turn the PROGRAM AE select dial to any position except AUTO LOCK.

SELECT FUNCTION

Press SELECT reapeatedly until “

SELECT WHITE BALANCE

Press SET (Manual White Balance) until the required indication appears in the viewfinder.

“MWB” ..... With a memorized personal White Balance

“ “ “

MWB

MWB sets the color temperature for the subject’s light source so you can shoot with natural colors that are unaffected by surroundings, even when there are multiple subjects with different color temperatures.

setting (see below)

” ......... Outdoors on sunny day

”......... Outdoors on cloudy day

” .......... Light source is halogen or tungsten lamp

M.W.B.

” appears.

SELECT MODE

Turn the PROGRAM AE select dial to any position except AUTO LOCK.

ADJUST FOCUS

Point the camcorder at a white, flat object such as a sheet of white paper, and adjust focus manually

Z pg. 21).

(

ADJUST WHITE BALANCE

Press SET until “MWB” appears, then press and hold SET for more than 3 seconds.

•“MWB” blinks in the viewfinder during adjustment, then stops blinking but stays lit when adjustment is complete.

NOTES:

●

To switch to automatic white balance adjustment, press SET until the indication disappears, or turn the PROGRAM AE select dial to “AUTO LOCK”.

●

Re-adjust the White Balance when the lighting has changed, when the camcorder has been turned off and on again, or when the PROGRAM AE select dial’s position has been changed.

●

It is helpful to connect your camcorder to a color monitor when adjusting the white balance (“Basic Connections”

pg. 33).

●

When adjusted by putting colored paper in front of the subject in step 2 (“ADJUST FOCUS”), this unit makes its color temperature standard for automatic white balance. So you can enjoy shooting with different colors. For example, when adjusting with red, blue or yellow colors, the image becomes the color which aproximates to green, orange or purple respectively.

RECORDING

Advanced Features (cont.)

Using Menu For Detailed Adjustment

This camcorder is equipped with Program Manager, an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings.

SELECT MODE

Turn the PROGRAM AE select dial to any position

except AUTO LOCK.

ACCESS MENU SCREEN

Press MENU.

FAR

Gain Up S.LX

Tele Macro OFF Interval Timer OFF Rec Time OFF JLIP ID NO. 07 Tally ON Set Character  Date/Time 

END :MENU KEY

Gain Up NORM

Tele Macro ON

Interval Timer 1min Rec Time 1/2s JLIP ID NO. 07 Tally ON Set Character  Date/Time 

END :MENU KEY

NEAR

–

SELECT FUNCTION

Press + or – to place the highlight bar on the desired

function.

MAKE SETTING

The setting procedure depends on the function you

select.

If you select Gain Up, Tele Macro, Interval Timer,

Rec Time, JLIP ID NO or Tally. . . .

.... press FAR or NEAR to cycle through the choices

until the desired setting appears.

If you select Set Character or Date/Time, . . .

.... press NEAR to access the selection menu for

each function (Set Character – Z pg. 25; Date/ Time – Z pg. 11).

CLOSE MENU

Press MENU. The normal screen reappears.

NOTE:

The menu is available only in the Record-Standby mode.

PAUSE

If Gain Up or Tele Macro in the Menu has been changed from the factory settings, this mark appears in the viewfinder.

Gain Up S.LX To record a subject in a dark lit environment. When it is more

NORM To record a subject in a dimly lit environment. When it is

OFF Allows you to shoot dark scenes with no picture brightness

Tele Macro OFF Usually set to this position.

ON Usually the distance to a subject where the lens is in focus

Interval Timer This feature allows you to set the parameters for Self-Timer

Rec Time This feature allows you to set the parameters for Animation

JLIP ID NO. This number is necessary when connecting the camcorder to a device such

Tally ON The tally lamp comes on to signal the start of rcording.

Set Character Allows you to input characters. (Z pg. 25). Date/Time Allows you to set the current date and time (

OFF 15s 30s 1min 5min

OFF 1/4s 1/2s 1s 5s

as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07.

OFF The tally lamp remains off at all times.

convenient to shoot the subject with a brighter image even if the picture becomes slightly coarse. Automatically selected when the PROGRAM AE select dial is set to AUTO LOCK mode. (S.LX : Super LoLux)

more convenient to shoot with a less coarse picture although the subject becomes slightly dark. This setting is suitable for measuring sensitivity conforming to EIA-639 (EIA* Standard for Low Light Sensitivity Measurement) *EIA : Electronic Industries Association

adjustment.

depends on the zoom magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm.

•Depending on the zoom position, the lens may go out of focus.

(

Z pg. 30) and Time-Lapse recording (Z pg. 31).

and Time-Lapse recording (Z pg. 31).

Z pg. 11).

= Factory setting and when the PROGRAM AE Select Dial is set to AUTO LOCK

NOTE:

During shooting in low light, Auto Focus accuracy may decrease even when Gain Up is used. In this case, use Manual Focus (Z pg. 21).

Interval Timer Indicator

Rec Time Indicator

RECORDING

Advanced Features (cont.)

Self-Timer

You can set the delay between pressing RECORDING

1min 1/2s

START/STOP and the actual start of recording. If you secure the camcorder, you (or whomever is operating the camcorder) can enter the scene before recording starts.

NOTE:

Make sure the camcorder is in the Record-Standby mode before performing the following steps.

NEAR

–

FAR

Tally lamp

Gain Up S.LX Tele Macro OFF

Interval Timer OFF

Rec Time OFF JLIP ID NO. 07 Tally ON Set Character  Date/Time

END :MENU KEY

ACCESS MENU SCREEN

Turn the PROGRAM AE select dial to any position

except AUTO LOCK, then press MENU.

SET INTERVAL TIME

Press – or + to move the highlight bar down to

“Interval Timer”, then press FAR or NEAR to cycle through the choices. Stop when the desired time appears. Choose from “15s”, “30s”, “1min”, “5min”, or select to turn the function “OFF”.

CLOSE MENU

Press MENU.

START DELAYED RECORDING

Press RECORDING START/STOP. The tally lamp

begins blinking, and the blinking frequency increases about 5 seconds before recording is to start. Once recording begins, the lamp stops blinking but stays lit.

To Release Self-Timer . . .

..... while the tally lamp is blinking, press RECORDING

START/STOP to stop the blinking, then set “Interval Timer” to “OFF”.

1/2s1s5s

1min5min

1/4s

OFF

15s30s

OFF

Animation

Give stationary scenes or objects an illusion of movement. This function allows you to shoot a series of pictures, each slightly different, of the same object for a brief period of time.

NOTE:

Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps.

Time-Lapse

You can record sequentially at preset time spans. Leaving the camcorder aimed at a specific subject, you can record subtle changes over an extended period of time.

NOTE:

Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps.

ACCESS MENU SCREEN

Turn the PROGRAM AE select dial to any

position except AUTO LOCK, then press MENU.

SET RECORDING TIME

Press – or + to move the highlight bar down to

“Rec Time”, then press FAR or NEAR to cycle through the choices. Stop when the desired time appears. Choose from “1/4s”, “1/2s”, “1s”, “5s”, or select to turn the function “OFF”. Then press MENU to close Menu screen.

START RECORDING

Press the Recording Start/Stop button after

focusing on the subject. The recording stops automatically after the selected period of time.

ASSEMBLE SERIES OF PICTURES

Repeat step 3 for the desired number of

pictures.

RELEASE ANIMATION MODE

Set “Rec Time” in the Menu screen to “OFF”.

NOTES:

●

For best results, make sure the camcorder is secured when shooting in Animation or Time-Lapse mode.

●

Fade/Wipe-in/out cannot be performed during Animation or Time-Lapse shooting.

●

Before performing other operations following Animation or Time-Lapse recording, make sure the Animation or Time-Lapse mode is deactivated.

ACCESS MENU SCREEN

Turn the PROGRAM AE select dial to any

position except AUTO LOCK, then press MENU.

SET INTERVAL BETWEEN RECORDINGS

Press – or + to move the highlight bar down to

SET RECORDING TIME

Press – or + to move the highlight bar down to

START TIME-LAPSE RECORDING

Press the Recording Start/Stop button.

Recording and intervals alternate automatically.

RELEASE TIME-LAPSE MODE

To release when the tally lamp is not blinking,

set “Rec Time” and “Interval Timer” in the Menu screen to “OFF”. To release when the tally lamp is blinking, press the Recording Start/Stop button to stop the blinking, then set “Interval Timer” and “Rec Time” in the Menu screen to “OFF”.

Compact video cassette

Recording safety hole

VCR

Compartment door

Sliding latch

Reels

PLAYBACK

Using The Cassette Adapter

Cassette Adapter (VHS PlayPak)

Use this to play back a VHS-C video cassette recorded with this camcorder. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading.

INSERT BATTERY

Slide the battery cover up to remove it, and install

one “AA(R6)” size battery as shown in the illustration at left. Then reattach the cover.

INSERT CASSETTE IN ADAPTER

Slide the latch to open the adapter compartment

door, then insert the cassette and close the compartment door.

PLAY BACK ON CONNECTED VCR

Load the cassette adapter into the VCR and play the

tape back as you would any other.

REMOVE CASSETTE FROM ADAPTER

Slide the latch and the compartment door opens

automatically. Then insert your finger in the hole on the underside of the adapter as shown in the illustration at left, push up and remove the cassette.

NOTES:

●

During tape loading and unloading, do not touch the reels for safety and tape protection.

●

During special-effect playback (slow motion, still frame, etc.), the picture may vibrate or noise bars may appear on the screen.

●

To record on a VCR using a compact cassette and the adapter, cover the adapter’s recording safety hole with adhesive tape.

PLAYBACK

When connecting the cables, open the jack cover.

Basic Connections

To AUDIO and VIDEO connectors

Audio and Video cables (optional)

To AUDIO and VIDEO IN connectors

There are three basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.

Connection To A VCR [A] (Editing, Dubbing and Playback)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO VCR

As shown in the illustration at left, connect the

optional Audio and Video cables between the AUDIO and VIDEO connectors on the camcorder and those on the VCR.

SUPPLY POWER

Turn on the camcorder, the VCR and the TV.

VCR

Antenna

To AUDIO, VIDEO and RF DC OUT connectors

RF unit RF-V5U (optional)

NOTES:

●

It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack.

●

To monitor the picture and sound from the camcorder without inserting a tape, set the camcorder’s Power switch to “CAMERA”, then set your TV to the appropriate input mode.

●

If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

SELECT MODE

Set the VCR to its AUX input mode, and set the TV

to its VIDEO mode.

Connection To A TV With A/V Input Connectors [B] (Playback ONLY)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO TV

As shown in the illustration at left, connect the

optional Audio and Video cables between the AUDIO and VIDEO connectors on the camcorder and those on the TV.

SELECT MODE

Set the TV to its VIDEO or AV mode (as specified in

its instructions).

Connection To A TV With NO A/V Input Connectors (Playback ONLY)

NOTE:

Use the optional RF-V5U RF unit.

* Refer to the RF-V5U instruction manual for connection

procedure.

STOP

REW

POWER

PLAY/PAUSE

PLAYBACK

Basic Playback

NOTE:

Make sure you connect your camcorder as directed in “Basic Connections” (Z pg. 33).

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

SELECT MODE

Set the Power switch to “PLAY”. The Power On

indicator lights.

PLAYBACK

Press PLAY/PAUSE. The playback picture appears in

the viewfinder and the connected TV.

STOP PLAYBACK

Press STOP.

Rewind or Fast-forward the tape

Press REW to rewind, or FF to fast-forward the tape during Stop mode.

Recording mode indicator

M-1:23:45

Tape counter

Tape running indicator

: Playback

: Fast-Forward/

Forward Search

: Rewind/Reverse

6 : Still Playback

NOTE:

The camcorder shuts off automatically after about 5 minutes in Stop mode or Still Playback mode. To turn on again, set the Power switch to “POWER OFF”, then to “PLAY”.

PLAYBACK

–

COUNTER R/MFFPLAY/PAUSE

STOP

Features

REW

FEATURE: Manual Tracking PURPOSE: To eliminate noise bars that appear

OPERATION: 1) Press either +/– button as many

NOTES: ●

FEATURE: Still Playback PURPOSE: To pause during playback. OPERATION: 1) Press PLAY/PAUSE during

NOTE:

FEATURE: Shuttle Search PURPOSE: To allow high-speed search in either

OPERATION:

NOTE:

FEATURE: Counter Memory Function PURPOSE: To make it easier to locate a specific

OPERATION: 1) Press COUNTER R/M and hold for

NOTES: ●

on the screen during playback.

times as necessary for best picture.

To reset TRACKING to the original preset, press both + and – buttons simultaneously.

●

Manual Tracking may not work with tapes recorded on other VCRs or camcorders.

playback.

2) To resume normal playback, press PLAY/PAUSE again.

Noise bars appear and pictures may become monochrome during Still Playback. This is normal.

direction.

Forward Search

1) Press FF during playback.

Reverse Search

1) Press REW during playback.

Noise bars appear and pictures may become monochrome or darken in Shuttle Search. This is normal.

tape segment.

more than 2 seconds. The counter resets to “0:00:00”.

2) Press COUNTER R/M. “M” appears.

3) After recording or playback, press STOP, then REW. The tape

automatically stops at or close to 0:00:00.

4) Press PLAY/PAUSE to start playback.

The counter memory functions in the FF and REW modes.

●

To disable Counter Memory Function, press COUNTER R/M so the “M” disappears.

PLAY/PAUSE

Tape Dubbing

CONNECT EQUIPMENT

Following the illustration at left, connect the

camcorder and the VCR.

EDITING

When connecting the cables, open the jack cover.

Audio and Video cable (optional)

Power switch

To AUDIO and VIDEO OUT connectors

To AUDIO and VIDEO IN connectors

VCR (Recording deck)

PREPARE FOR DUBBING

Set the camcorder’s Power switch to “PLAY”, turn

on the VCR’s power, and insert the appropriate cassettes in the camcorder and the VCR.

SELECT VCR MODE

Engage the VCR’s AUX and Record-Pause modes.

FIND EDIT-IN POINT

Engage the camcorder’s Play mode to find a spot

just before the edit-in point. Once it’s reached, press PAUSE on the camcorder.

START EDITING

Press PLAY on the camcorder and engage the VCR’s

Record mode.

STOP EDITING TEMPORARILY

Engage the VCR’s Record-Pause mode and press

PAUSE on the camcorder.

EDIT MORE SEGMENTS

Repeat steps 4 through 6 for additional editing, then

stop the VCR and camcorder when finished.

Random Assemble Editing [R.A.Edit]

Create edited videos easily using your camcorder as the source player. You can select up to 8 “cuts” for automatic editing, in any order you like. R.A.Edit is more easily performed when the optional RM-V700U MBR (Multi-Brand Remote) is set to operate with your brand of VCR (see VCR CODE LIST), but can also be performed by operating the VCR manually.

2 3

5 6

VCR CODE LIST

VCR BRAND NAME

GE 1 1

HITACHI 6 6

JVC A B C

MAGNAVOX 9 5

MITSUBISHI 6 7

NEC 3 7

PHILIPS 1 9

BUTTONS (A) (B)

9 2 9 ` 9 4

6 3 9 1

9 6 9 3

1 1 7 1 7 6

6 8

3 8

9 5 1 1 9 4 9 1 9 6

MBR SET VCR CTL

RM-V700U (optional)

VCR BRAND NAME

PHILIPS 1 2

PANASONIC 1 3

RCA 9 2

SANYO 3 6

SHARP 1 5

SONY 6 5

TOSHIBA 6 9

ZENITH 1 6

BUTTONS (A) (B)

3 3

1 7 1 1 9 4 1 8 

9 4 6 6 6 3 9 `

3 5

1 `

6 ` 3 9 3 1 

6 1

SET REMOTE/VCR CODE

SET REMOTE TO OPERATE VCR

Turn off the power to the VCR and point the remote

toward the VCR’s infrared sensor. Then, referring to the VCR CODE LIST on the left, press and hold MBR SET, and press button (A) and then (B).

•The code is automatically set once you release the

MBR SET button, and the VCR’s power comes on.

OPERATE THE VCR

Make sure the VCR’s power is on. Then, while

holding VCR CTL, press the button on the remote for the desired function. The functions the remote can control are PLAY, STOP, PAUSE, FF, REW and VCR REC STBY (you don’t need to press VCR CTL for this one).

You’re now ready to try Random Assemble Editing.

IMPORTANT

Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions.

NOTES:

●

If the VCR’s power doesn’t come on in step 1, try another code from the VCR CODE LIST.

●

Some brands of VCR don’t come on automatically. In this case, turn the power on manually and try step 2.

●

If the RM-V700U is not able to control the VCR, use the controls on the VCR.

MAKE CONNECTIONS

CONNECT TO . . .

JVC VCR EQUIPPED WITH REMOTE

PAUSE TERMINAL

Connect the editing cable to the Remote PAUSE terminal.

JVC VCR NOT EQUIPPED WITH REMOTE PAUSE TERMINAL

Connect the editing cable to the R.A.EDIT connector.

NON-JVC VCR WITH NEITHER

Connect the editing cable to the RM-V700U’s Pause-In jack.

All other connections are as shown in the illustration on page 38.

CONTINUED ON NEXT PAGE

EDITING

(cont.)

REW/FF

STOP

To AUDIO and VIDEO out connectors

Audio and Video cable (optional)

To AUDIO and VIDEO IN connectors

CANCEL

IN/OUT R.A. EDIT PLAY/PAUSE

Open the cover

To J terminal (JLIP)

Editing cable (optional, 3.5ø mini-plug cable)

A B

To Remote PAUSE

To PauseIn

PREPARE CAMCORDER

Insert a recorded tape and set the Power switch to

“PLAY”.

PREPARE VCR

Turn the power on, insert a recordable tape and

engage the AUX mode (refer to VCR’s instructions).

SELECT SCENES

ACCESS R.A. EDIT COUNTER DISPLAY

Press PLAY/PAUSE, then press R.A. EDIT and the

counter display appears in the viewfinder and the screen of the connected TV.

Press REW or FF to locate the beginning of a scene

you want, then press IN/OUT to register that point. The data appears under IN on the display.

Press REW or FF to locate the end of the scene and

press IN/OUT to register it. The data appears under OUT on the display. The total time of the registered scene(s) is displayed at the bottom of the screen.

Repeat steps 2 and 3 for each additional scene

(as many as 8).

VCR (Recording deck)

IN OUT 

ç 1 0:00:25 - -:- -: -- 2 3 4 5 6 7 8 COUNTER 0:00:25  TOTAL 0:00:00

RM-V700U (optional)

IN/OUT

CANCEL

VCR REC STBY

IN OUT  ç 1 0:00:25 0:01:05 2 0:03:18 0:03:31 3 0:02:33 0:02:53 4 0:04:11 -- :-- :- - 5  6 7 8 COUNTER 0:04:11  TOTAL 0:01:13

ON/OFF

MAKE CORRECTIONS

Press CANCEL during steps 2 and 3 to erase the

most recently registered point.

NOTES:

●

The RM-V700U can be used to operate other camcorder functions as well. Point the RM-V700U at the camcorder’s remote sensor and press any of the following buttons (function appears in parentheses): — ON/OFF (camcorder R.A. EDIT) — IN/OUT (camcorder IN/OUT) — CANCEL (camcorder CANCEL)

●

There must be at least one second between an in-point and its corresponding out-point.

●

To ensure correct operation, leave at least 15 seconds open between scenes.

●

Blank portions of tape cannot be registered as in-points or out-points.

●

If it takes more than 5 minutes to search for an in-point, the VCR’s Record-Pause mode is cancelled and editing doesn’t take place.

●

Pressing R.A.EDIT clears all in- and out-points from memory.

●

Leave a small margin for error around each in-point to ensure the scene is recorded in its entirety.

ORIGINAL TAPE (camcorder)

1 3 2

IN OUT IN OUT IN OUT

AUTOMATIC EDITING TO VCR

ENGAGE VCR’S RECORD–PAUSE MODE

Point the remote control toward the VCR’s infrared

sensor and press VCR REC STBY, or manually engage the VCR’s Record-Pause mode.

EDITED TAPE (VCR)

STOP

EDIT

BEGIN AUTOMATIC EDITING

Press EDIT on the camcorder, and the previously

selected scenes are copied to the VCR in the specified order.

END AUTOMATIC EDITING

When all selected scenes have been copied, the

camcorder and VCR enter the still or pause mode. Press STOP on both units.

•When finished editing, be sure to disconnect the editing cable and the audio/video cable.

NOTES:

●

If you performed step 1C on page 37 (“MAKE CONNECTIONS”), keep the remote control pointed at the VCR during editing.

●

The on-screen display only appears while the camcorder searches for each scene.

●

There may be noise at in- or out-points on the edited tape with certain VCRs.

The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional recording functions possible.

USING REMOTE CONTROL UNIT

(RM-V700U optional)

Installing The Battery

Lock hole

Release tab

PULL OUT BATTERY HOLDER

TypeA: Pull out while sliding the lock hole.

TypeB: Pinch the release tab and pull out.

INSERT BATTERY

Making sure the plus (+) side is up, insert the lithium

battery (CR2025)* into the battery holder.

REPLACE BATTERY HOLDER

2 3 4

5 6 7 8

RM-V700U (optional)

BUTTONS

1 PAUSE IN Connector — Z pg. 38 2 MBR SET Button — Z pg. 37 3 INT. TIME Button Self-Timer/Time-Lapse (Z pg. 41) — 4 REC TIME Button Animation/Time-Lapse (Z pg. 41) — 5 FF Button Retake (forward) (Z pg. 15) FF/FF Shuttle Search (Z pg. 34)

6 REW Button Retake (rewind)/Quick Review (Z pg. 15) Rew/Rew Shuttle Search (Z pg. 34) 7 PAUSE Button — Pause (Z pg. 35) 8 PLAY Button — Playback start (Z pg. 34) 9 Infrared beam

transmitting window

0 START/STOP Button Functions same as the Recording Start/Stop button on the camcorder. ! VISS Button Index Code marking (Z pg. 41) — @ ZOOM (T/W) Buttons Zoom (invariable speed, Z pg. 15) — # VCR CTL Button — Z pg. 37 $ A.DUB Button — Audio dubbing (Z pg. 43) % STOP Button — Stop (Z pg. 34) ^ INSERT Button — Insert Editing (Z pg. 42) & R.A.EDIT Buttons — Z pg. 38

With the camcorder’s power switch set With the camcorder’s power switch set to “CAMERA”. to “PLAY”.

Transmits the beam signal.

0 !

# $ % ^

Insert the battery holder into the remote control unit,

and push the holder until it clicks into place. * Read the caution concerning lithium batteries

(

Z pg. 2).

FUNCTIONS

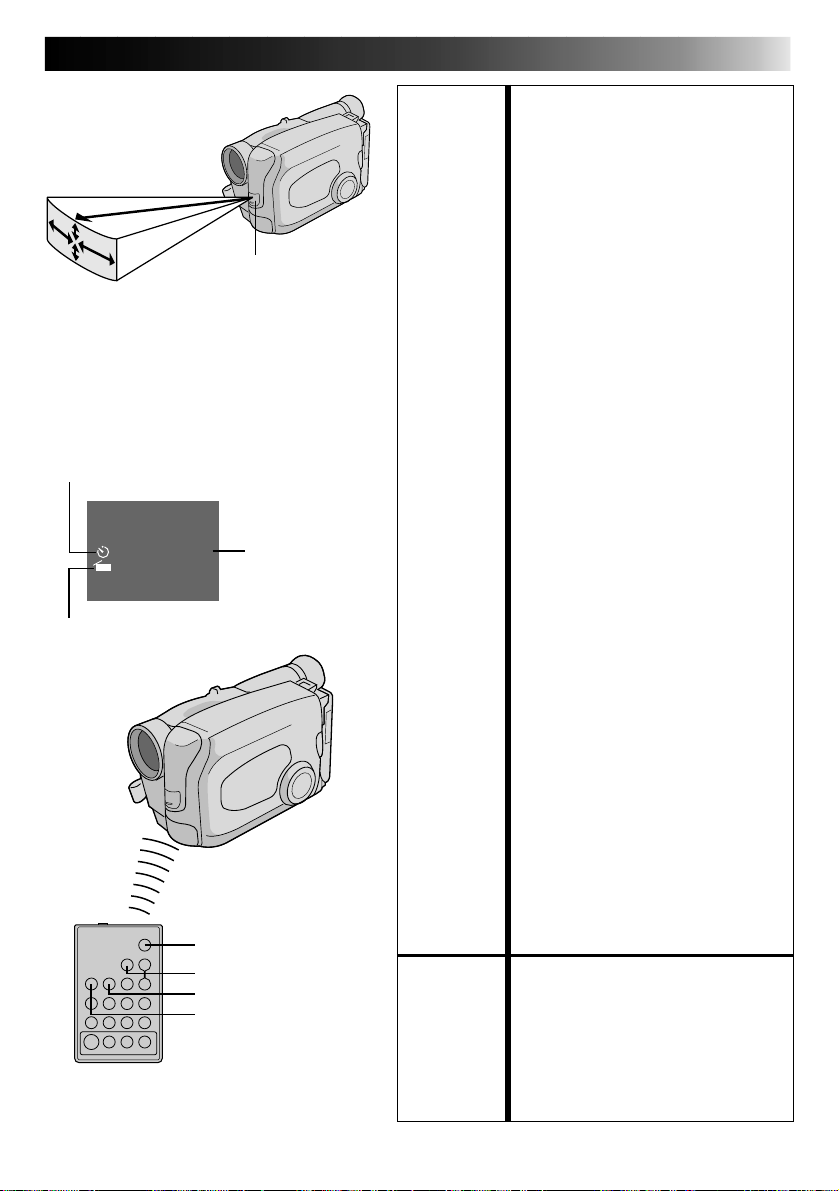

Transmitted beam effective area

15°

5m(16.4ft)

30°

15°

30°

Remote sensor

When using the remote control, be sure to point it at the remote sensor. The above illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.

Interval Timer Indicator

Viewfinder

1min 1/2s

INDEX

Index Code Marking

Rec Time Indicator

START/STOP VISS

INT. TIME REC TIME

RM-V700U (optional)

FEATURE: Self-Timer, Animation and Time-Lapse PURPOSE: The remote control lets you set/release

OPERATION:

NOTE:

FEATURE: Index Code Marking PURPOSE: To give you automatic access to any

OPERATION: 1) Press VISS once to place the index

NOTE:

Interval Timer and Rec Time functions as well as the Menu screen.

Self-Timer

1) Set Instead of performing steps 1 through 3 on pg. 30 (“Self-Timer”), press INT. TIME on the remote control. Each

time INT. TIME is pressed, the Interval Timer indicator appears, changing in the following order: 15s, 30s, 1min, 5min and No indication (off).

2) Release

Instead of setting “Interval Timer” to “OFF” in the Menu, press INT. TIME on the remote control until the Interval Timer indicator disappears.

Animation

1) Set

Instead of performing steps 1 and 2 on pg. 31 (“Animation”), press REC TIME on the remote control. Each time REC TIME is pressed, the Rec Time indicator appears, changing in the following order: 1/4s, 1/2s, 1s, 5s and No indication (off).

2) Release

Instead of using the Menu in step 5 on pg. 31, press REC TIME on the remote control until the Rec Time indicator disappears.

Time-Lapse

1) Set Instead of performing steps 1 through 3 on pg. 31 (“Time-Lapse”), press INT. TIME and REC TIME on the remote

control. Each time INT. TIME is pressed, the Interval Timer indicator appears, changing in the following order: 15s, 30s, 1min, 5min and No indication (off). Each time REC TIME is pressed, the Rec Time indicator appears, changing in the following order: 1/4s, 1/2s, 1s, 5s and No indication (off).

2) Release

Instead of using the Menu in step 5 on pg. 31, press INT. TIME and REC TIME on the remote control until the indicators disappear.

Also refer to pgs. 30 and 31.

selected point on a recording.

code. “INDEX” blinks in the viewfinder during marking.

If VISS is pressed during Record– Standby mode, the mark is placed where RECORDING START/STOP is pressed.

COUNTER R/M

USING REMOTE CONTROL UNIT RM-V700U (optional)

(cont.)

Insert Editing

You can record a new scene into a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in- and out-points. The original audio remains unchanged.

NOTE:

Use the RM-V700U remote control unit to perform this procedure.

SELECT MODE

Set the Power switch to “PLAY”.

FIND EDIT-OUT POINT

Play back the tape, locate the point and press

PAUSE on the camcorder or the remote control.

M-0:23:45

Viewfinder

RM-V700U (optional)

POWER

Tape Counter

Insert editing indicator

START/STOP REW

PAUSE INSERT

PLAY

RESET COUNTER

Press and hold COUNTER R/M for more than

2 seconds to reset the tape counter, then press for less than 1 second and make sure “M” appears in the viewfinder.

FIND EDIT-IN POINT

Press REW to go a little beyond the beginning of the

scene you want to replace, press PLAY to view the recorded tape, and press PAUSE at exactly at the point where the new scene should start.

ENGAGE INSERT EDITING MODE

Press and hold INSERT, and without releasing

INSERT, press and release PAUSE. The Insert

mode is engaged. When the scene the camcorder is aimed at appears on the screen, go to the next step.

BEGIN INSERT EDITING

Press RECORDING START/STOP. When the counter

reaches “0:00:00”, editing stops automatically and the camcorder enters the Insert-Pause mode.

END INSERT EDITING

Press STOP.

NOTES:

●

After step 5, Retake (Z pg. 15) can be performed.

●

The tape may stop slightly before or after the designated end point, and noise bars may appear. Neither indicates a defect in the unit.

●

Only video signal is recorded in the Insert Editing mode.

Audio dubbing indicator

Viewfinder

M-0:05:20

Audio Dubbing

You can record a new soundtrack on a prerecorded tape

(normal audio only). ** Perform steps 1, 2 and 3 of the Insert Editing procedure

(Z pg. 42) before continuing.

•The sound comes from the built-in mike (or an external mike if connected).

FIND EDIT-IN POINT

Press REW to go a little beyond the beginning of the

scene onto which you want to dub new audio, press PLAY to view the recorded tape, then press PAUSE at exactly the point where dubbing should start.

ENGAGE AUDIO DUB STANDBY MODE

Press and hold A. DUB, and without releasing

A. DUB, press and release PAUSE.

To MIC (capped)

REW

A. DUB PAUSE

PLAY

RM-V700U (optional)

Mike

BEGIN AUDIO DUBBING

Press PLAY. When the counter reaches “0:00:00”,

Audio Dubbing stops automatically and the camcorder enters the Audio Dub-Standby mode.

END AUDIO DUBBING

Press STOP.

NOTES:

●

Do not press FF or REW during Audio Dub-Standby, or the edit points will not be accurate.

●

If the mike is too close to the TV, or if the TV’s volume is too high, whistling or howling may occur.

NOTES (for Insert Editing and Audio Dubbing):

●

Insert Editing and audio Dubbing may not work correctly if the tape contains blank segments, or if the recording speed was changed during the original recording.

●

To edit/dub onto a tape with the recording safety tab removed, cover the hole with adhesive tape.

●

Do not press STOP during Insert Editing or Audio Dubbing, or the edit points will not be accurate.

●

During Insert Editing and Audio Dubbing, when Insert– Pause or Audio Dub–Standby is engaged, the counter may go slightly past “0:00:00”. Recording, however, stops at exactly 0:00:00.

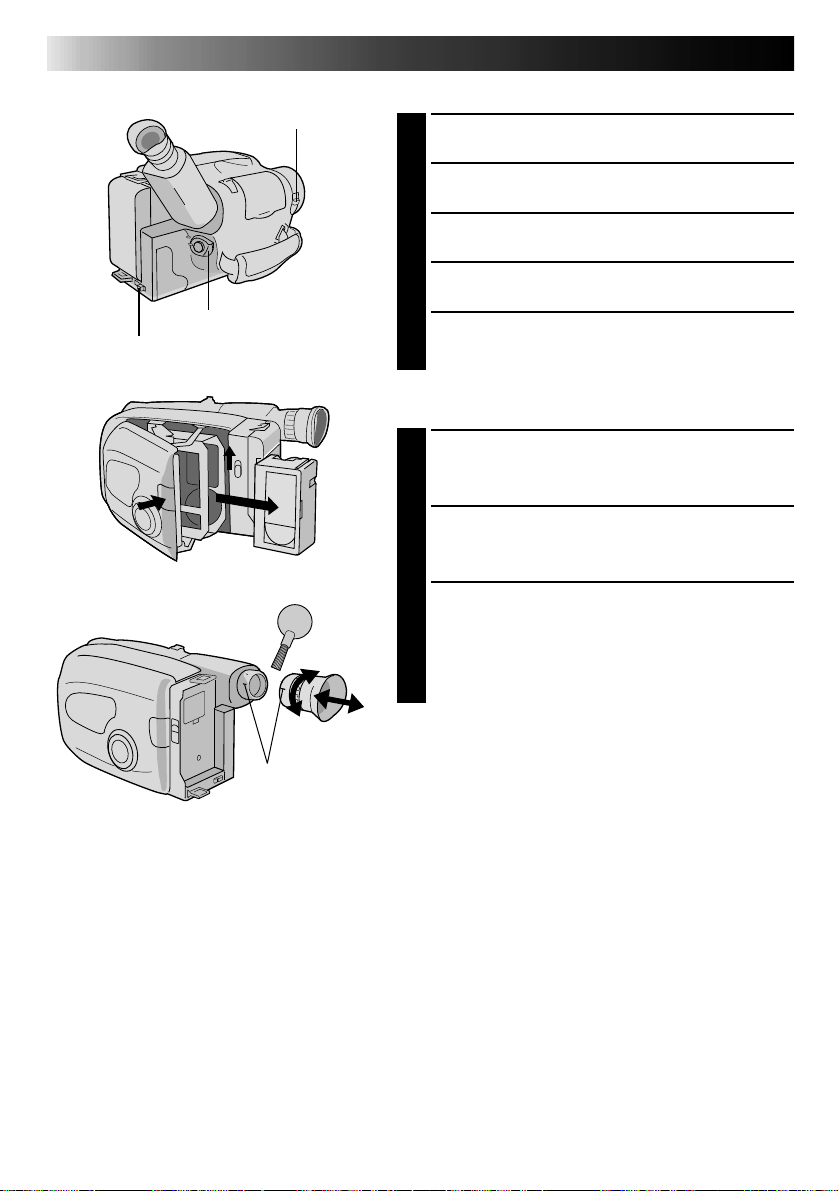

Set to “POWER OFF”

BATT. RELEASE

LENS COVER open/close switch

EJECT

USER MAINTENANCE

After Use

Set the Power switch to “POWER OFF” to turn off

the camcorder.

Slide EJECT to open the cassette holder, then remove

the cassette.

Close and lock the cassette holder by pressing

PUSH.

Press BATT. RELEASE to remove the battery pack.

Slide the LENS COVER open/close switch to close

the lens cover.

Cleaning The Camcorder

CLEAN EXTERIOR

Wipe gently with a soft cloth.

PUSH

Remove

Marks

CLEAN LENS

Blow it with a blower brush, then wipe gently with

lens cleaning paper.

CLEAN VIEWFINDER

1 Turn the eyepiece counterclockwise and pull it

out.

2 Remove dust using a blower brush. 3 Align the marks, re-attach the eyepiece and turn

it clockwise.

NOTES:

●

Avoid using strong cleaning agents such as benzine or alcohol.

●

Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.

●

Mold may form if the lens is left dirty.

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE(S)

POWER

No power is supplied.

The power suddenly goes off and doesn’t come back on by itself.

RECORDING

Recording cannot be performed.

Recording does not start.

PLAYBACK

The tape is running, but there’s no playback picture.

Noise bars appear in the playback picture.

Playback picture is blurred or interrupted.

The counter indication is blurred during Still playback.

● The battery pack has not been attached correctly (Z pg. 8).

● The battery pack is not charged (Z pg. 8).

● The power supply has not been correctly connected

(Z pg. 9).

● The battery pack has completely discharged.

● Remove the cassette and disconnect the power source,

then after a few minutes, try turning the power back on. If it still doesn’t come on, consult your nearest JVC dealer.

● The recording tape’s Erase Protection tab is missing. Cover the hole with adhesive tape. (Some tapes have sliding tabs. In this case, check the position of the tab.)

● The camcorder Power switch has not been set to “CAMERA” (Z pg. 14).

● The TV has not been set to its VIDEO mode or channel.

● If A/V connection is used, the TV’s VIDEO/TV switch has

not been set to VIDEO.

● The RF unit has not been set to the correct channel.

● Manual Tracking has not been performed (Z pg. 35).

● The video heads are dirty or worn out. Consult your

nearest JVC dealer for head cleaning or replacement.

● This is normal.

TAPE TRANSPORT

The tape stops during fast-forward or rewind.

Rewinding or fast-forwarding cannot be performed.

● The Counter Memory Function has been activated (Z pg. 35).

● The tape is already fully wound on one reel or the other.

SYMPTOM POSSIBLE CAUSE(S)

OTHER

The tape won’t eject. Some functions are not available. Vertical white lines appear when

shooting a very bright object.

Bright, crystal-shaped spots appear in the viewfinder.

The picture is blurred in the Quick Review or Retake mode.

An error number (i.e. E03) appears in the viewfinder.

The image is out of focus.

A character generator title and the date and time displays disappear from the viewfinder.

The wrong date and time are displayed/recorded.

Even though the Lens Cover is open, the Lens Cover Warning indicator blinks.

TROUBLESHOOTING

● The battery pack is running low.

● The PROGRAM AE select dial is set to “AUTO LOCK”.

● This sometimes occurs when the contrast between the

background and the object is great. It is not a defect of the camcorder.

● Sunlight is directly entering the lens.

● This is normal while recording in the EP mode. Some noise

may be present while recording in the SP mode (Z pg. 12).

● Turn the camcorder’s power off, then disconnect the power source. After a few minutes, try turning the power on again. If the error number still appears in the viewfinder, consult your nearest JVC dealer.

● The diopter needs to be adjusted (

● The scene being shot is adversely affecting the operation

of Auto Focus (Z pg. 20).

● If you remove the power source from the camcorder while the power is on, all settings and selections are erased. Make sure to turn the camcorder’s power off before disconnecting the power source.

● If you have not performed Date/Time Setting (Z pg. 11), the date and time are not displayed/recorded correctly. Be sure that Date/Time setting is carried out.

● The Lens Cover Warning indicator may blink when the camcorder is used in dark areas, regardless of the position of the Lens Cover.

Z pg. 10).

(cont.)

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.

INDEX

Viewfinder

2 5 6

120min

REC SP

Sepia

8 9 0

1min 1/2s

PAUSE

TAPE END

@ #

Merry Christmas

Viewfinder Indications

1 Cassette Warning/Remaining

Tape Time ........................................... Z pg. 14

When no cassette is inserted: the Cassette ( ) Warning blinks. When Erase Protection tab is not in the position that allows recording: the Cassette ( ) Warning lights. Otherwise, the Remaining Tape Time is displayed.

2 Recording Mode (SP/EP) Indicator ...... Z pg. 12

3, 8 PROGRAM AE Indicator................ Z pg. 18

Displayed at 3 for approx. 1 second when the PROGRAM AE select dial is switched from one position to another. Then only the indicator remains at 8.

3, 9 Fade/Wipe Standby Indicator ........ Z pg. 23

Displayed at 3 for approx. 2 seconds when the Fade/Wipe is switched from one function to another by pressing the SET button. Then only the indicator remains at 9.

Program Manager Function Indication Appears when the PROGRAM AE select dial is set to any position other than AUTO LOCK.

5 Tape Length Display ........................... Z pg. 12

6 Zoom Indicator bar ............................. Z pg. 15

7 Recording Indicator ............................ Z pg. 14

0 Picture Stabilizer Indicator.................. Z pg. 22

! Interval Time/Recording

Time Indicator.....................................Z pg. 30

@ •Record–Standby Mode Indicator ...... Z pg. 14

•Lens Cover Warning: LENS COVER ... Z pg. 14

# Instant Title Display ............................ Z pg. 24

$ Date/Time Character Display .............. Z pg. 26

... Z pg. 23

Disp.

T30

% ^

– 05

MWB

& *

(

INDEX

) q

AM 10 : 24 : 56DEC 25. 97

% Battery Pack Remaining Power Indicator ............

Changes as follows according to the battery pack’s remaining power level: “ ”. When the power is almost gone, the indicator blinks, then the unit shuts off. Replace the battery pack with a fully charged one. (Note: The symbol containing 3 darkened squares — — does not necessarily mean that the battery pack is fully charged.)

^ Focus Indicator ................................... Z pg. 20

& Exposure Level Indicator ..................... Z pg. 22

* White Balance Mode Indicator ........... Z pg. 27

( Menu Setting Change Indicator ........... Z pg. 28

) Index Code Marking ........................... Z pg. 41

q Clock Warning

Once the power is turned on and the indicator blinks for about 10 seconds, perform the date and time settings (Z pg. 11). After setting is complete, turn the power off and disconnect the power source. If you re-connect it and turn the power on and the indicator is blinking, that means that the clock (lithium) battery is either not installed or has discharged. Install, or replace the old battery with, a new one (Z pg. 10).

w • Tape End Display: TAPE END ........... Z pg. 14

Appears when the end of the tape is reached during playback, recording or fast-forward.

•Condensation Warning: When this indication appears, all functions are disabled. Turn the unit off (without removing the power source) for a few hours, and when you turn it on again the indicator should disappear.

564

INDEX

97!

Controls

1 Diopter Adjustment ............................ Z pg. 10

2 QUICK REC Button ............................ Z pg. 16

3 Power Zoom Lever ............................ Z pg. 15

4 BATT. [Battery] RELEASE Switch ......... Z pg. 8

5 Recording Start/Stop Button ................Z pg. 14

6 POWER Switch .................................. Z

7 STOP Button ...................................... Z pg. 34

8 Tape Length [T20•30•40]

Select Button...................................... Z pg. 12

COUNTER R [Reset]/M [Memory]

Button ................................................ Z pg. 35

9 EDIT Button ....................................... Z pg. 39

0 Recording Mode [SP/EP] Select

Button ................................................ Z pg. 12

R.A.EDIT CANCEL Button ...................Z pg. 38

! R.A.EDIT Button................................. Z pg. 38

@ R.A.EDIT IN/OUT Button....................Z pg. 38

pg.14,34

(*^ )qw&

# REW Button ....................................... Z pg. 34

RETAKE R [Quick Review] Button.......Z pg. 15

$ FF Button ........................................... Z pg. 34

RETAKE F Button................................ Z pg. 15

% PLAY/PAUSE Button........................... Z pg. 34

^ SELECT Button ................................... Z pg. 23

& SET Button ......................................... Z pg. 23

* PROGRAM AE Select Dial .................. Z pg. 18

( Multi-Function Control

•Exposure +/– ................................... Z pg. 22

•Focus FAR/NEAR ............................. Z pg. 20

•Menu Setting Change.......................Z pg. 28

•Tracking +/– .................................... Z pg. 35

) MENU Button .................................... Z pg. 28

q P. [Picture] STABILIZER Button............Z pg. 22

w PUSH Button ..................................... Z pg. 12

e EJECT Switch ...................................... Z pg. 12

UYIO

yuio

W E

r t

FADE/WIPE

WIDE TITLE

DISPLAY

M.W.B.

FULL  AUTO

Connectors

r J terminal (JLIP (Joint Level Interface Protocol)

Connector.) (Located beneath the jack cover)

•Connect the Editing Cable when performing Random Assemble Editing (Z pg. 37).

•It is used to connect the camcorder to a device such as a personal computer. For further detail consult your nearest JVC dealer. Information (in English) is also available at our home page: http://www.jvc-victor.co.jp/

t External MIC jack (capped) .................Z pg. 43

y DC IN Jack......................................... Z pg. 9

The jacks cover.

u VIDEO OUT Jack ............................... Z pg. 33

i RF DC OUT Jack................................ Z pg. 33

o AUDIO OUT Jack.............................. Z pg. 33

u to o are located beneath the jack

Indicators

p Tally Lamp ......................................... Z pg. 14

Q Power On Indicator ........................... Z pg. 14

Other Parts

W Video Light ........................................ Z pg. 17

E • Camera sensor

Be careful not to cover this area; built-in here is the sensor necessary for shooting.

•Remote sensor.................................

R Microphone ....................................... Z pg. 43

T LCD window

Program Manager Function Indicator.

Full Auto Indicator. Displayed when the Program AE Select Dial is set to Auto Lock.

Tape Loaded/Remaining Tape Indicators.

Remaining Battery Power Indicator.

Y Shoulder Strap Eyelets ........................ Z pg. 13

U Clock Battery Compartment ................Z pg. 10

I Battery Pack Mount ........................... Z pg. 8

O Electronic Viewfinder......................... Z pg. 10

P LENS COVER Switch ......................... Z pg. 14

a Grip Strap .......................................... Z pg. 13

s VIDEO LIGHT OFF/AUTO/ON Switch ....Z pg. 17

d Tripod Mounting Socket ......................Z pg. 13

Z pg. 41

AC Power Adapter .................................. pg. 8

Animation Recording .............................. pg. 31, 41

Audio Dubbing ....................................... pg. 43

Auto Date Record ................................... pg. 26

Auto Focus ............................................. pg. 20

Auto Mode Lock Mode ........................... pg. 19

Auto Mode Release Mode .......................pg. 19

Battery Pack ............................................ pg. 8, 51

Brighten the Image.................................. pg. 22

Car Battery .............................................. pg. 9

Cassette Adapter ..................................... pg. 32

Character Generator ............................... pg. 25

Charge Marker ........................................ pg. 8

Charging the Battery Pack ........................pg. 8

Clock (Lithium) Battery ........................... pg. 10, 40

Connection to a VCR/TV ........................ pg. 33

Contents ................................................. pg. 7

Counter Memory .................................... pg. 35

Darken the Image ................................... pg. 22

Date/Time/Character Insert ......................pg. 26

Date/Time Setting ................................... pg. 11

Discharge the Battery pack ......................pg. 8

Diopter Adjust ........................................ pg. 10

Electronic Fog Filter Mode .......................pg. 19

Erase Protection ...................................... pg. 12

Exposure Control .................................... pg. 22

Fade-in/out ............................................. pg. 23

Fast-Forward Tape................................... pg. 34

Focus Lock ............................................. pg. 20

Grip Adjustment ..................................... pg. 13

High Speed Shutter Mode ........................pg. 19

Index Code Marking ............................... pg. 41

Insert Cassette ......................................... pg. 12

Insert Editing ........................................... pg. 42

Instant Titles............................................ pg. 24

Manual Focus ......................................... pg. 21

MBR code Setting ................................... pg. 37

INDEX

Terms

ND Effect Mode ...................................... pg. 19

Picture Stabilizer..................................... pg. 22

Playback ................................................. pg. 34

Program AE with Special Effects...............pg. 18

Provided Accessories .............................. pg. 6

Quick-Rec .............................................. pg. 16

Quick Review ......................................... pg. 15

Random Assemble Editing ....................... pg. 37–39

Recording, Advanced Features ................ pg. 18–31

Recording ............................................... pg. 14

Recording, Start/Stop .............................. pg. 14

Recording Mode Setting ......................... pg. 12

Recording-Standby ................................. pg. 14

Remote Control Unit............................... pg. 40

Remove Cassette..................................... pg. 12

Retake..................................................... pg. 15

Rewind Tape ........................................... pg. 34

Self-Timer ............................................... pg. 30, 41

Sepia Mode ............................................ pg. 19

Shoulder Strap Attachment ...................... pg. 13

Shuttle Search ......................................... pg. 35

Specifications ......................................... pg. 53

Sports Mode ........................................... pg. 19

Still Playback .......................................... pg. 35

Tape Counter .......................................... pg. 34

Tape Dubbing ......................................... pg. 36

Tape Length Setting ................................. pg. 12

Time-Lapse Shooting............................... pg. 31, 41

Tracking .................................................. pg. 35

Tripod Mounting ..................................... pg. 13

Twilight Mode ......................................... pg. 19

Video Light ............................................. pg. 17

Viewfinder Adjustment ........................... pg. 10

Viewfinder, Indications ........................... pg. 47

White Balance Adjustment ...................... pg. 27

Wide Mode............................................. pg. 24

Wipe-in/out ............................................ pg. 23

Zooming ................................................. pg. 15

CAUTIONS

DANGER:

Video Light

• The video light becomes extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

• Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot.

• When operating, keep a distance of about 30 cm (1 ft.) between the video light and people or object.

• Do not use near flammable or explosive materials.

When using the AC Power Adapter/Charger in areas other than the USA

n The provided AC Power Adapter/Charger features

automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit’s power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer.

Plug adapter

INFORMATION

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Change or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

General Battery Precautions

•When the C-P6U or C-P7U (cassette adapter) are not functioning even when correctly operated, the batteries are exhausted. Replace them with fresh ones.

•Use only the following batteries:

C-P6U or C-P7U .................... AA (R6) size

Please make note of the following rules for battery use. When misused, batteries can leak or explode.

1. Refer to the C-P6U/C-P7U instructions when

replacing the battery.

2. Do not expose batteries to excessive heat as they

can leak or explode.

3. Do not dispose of batteries in a fire.

4. Remove the battery from the unit if it is to be

stored for an extended period to avoid battery leakage which can cause malfunctions.

Battery Packs

The supplied battery pack is a nickel-cadmium battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard . . .

.... do not burn.

.... do not short-circuit the terminals.

.... do not modify or disassemble.

.... use only specified chargers.

2. To prevent damage and prolong service

life . . .

.... do not subject to unnecessary shock.

.... avoid repeated charging without fully

discharging.

.... charge in an environment where

temperatures are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

.... store in a cool, dry place. Extended exposure

to high temperatures will increase natural

discharge and shorten service life.

.... avoid prolonged uncharged storage.

.... remove from charger or powered unit when

not in use, as some machines use current

even when switched off.

Terminals

3. To prevent damage to the camcorder . . .

.... replace the battery pack when it begins to

deliver less recording time per charge.

NOTE:

It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ................................... 10°C to 35°C

Operation ................................. 0°C to 40°C

Storage...................................... –10°C to 30°C

NOTES:

●

Recharging time is based on room temperature of 20°C.

●

The lower the temperature, the longer recharging takes.

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

.... make sure the cassette bears the VHS-C

mark.

.... be aware that recording onto prerecorded

tapes automatically erases the previously recorded video and audio signals.

.... make sure the cassette is positioned properly

when inserting.

.... do not load and unload the cassette

repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.

.... do not open the front tape cover. This

exposes the tape to fingerprints and dust.

2. Store cassettes . . .

.... away from heaters or other heat sources.

.... out of direct sunlight.

.... where they won’t be subject to unnecessary

shock or vibration.

.... where they won’t be exposed to strong

magnetic fields (such as those generated by motors, transformers or magnets).

.... vertically, in their original cases.

Main Unit

1. For safety, DO NOT . . .

.... open the camcorder’s chassis.

.... disassemble or modify the unit.

.... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

.... allow inflammables, water or metallic objects

to enter the unit.

.... remove the battery pack or disconnect the

power supply while the power is on.

.... leave the battery pack attached when the

camcorder is not in use.

CAUTIONS

(cont.)

2. Avoid using the unit . . .

.... in places subject to excessive humidity or

dust.

.... in places subject to soot or steam such as

near a cooking stove.

.... in places subject to excessive shock or

vibration.

.... near a television set.

.... near appliances generating strong magnetic

or electric fields (speakers, broadcasting

antennas, etc.).

.... in places subject to extremely high (over

40°C or 104°F) or extremely low (under 0°C

or 32°F) temperatures.

3. DO NOT leave the unit . . .

.... in places of over 50°C (122°F).

.... in places where humidity is extremely low

(below 35%) or extremely high (above 80%).

.... in direct sunlight.

.... in a closed car in summer.

.... near a heater.

4. To protect the unit, DO NOT . . .

.... allow it to become wet.

.... drop the unit or strike it against hard objects.

.... subject it to shock or excessive vibration

during transportation.

.... keep the lens directed at extremely bright

objects for long periods.

.... direct the eyepiece of the viewfinder at the

sun.

.... carry it by holding the viewfinder.

.... swing it excessively when using the shoulder

strap.

5. This camcorder features a built-in head cleaner which automatically cleans the heads and head drum when a cassette is loaded or unloaded. If, however, the heads become dirty and cause blurriness or interruption in the playback picture, consult your nearest JVC dealer.

About moisture condensation . . .

•You have observed that pouring a cold liquid into

a glass will cause drops of water to form on the glass‘ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

•Moisture on the head drum can cause severe

damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

SPECIFICATIONS

GENERAL

Format : VHS NTSC standard Power source : DC 6V Power consumption

Light on : 8.9 W

Light off : 5.9 W Signal system : NTSC-type Video recording system

Luminance : FM recording

Color : Converted sub-carrier

direct recording Conforms to VHS

standard Cassette : cassette Tape speed

SP : 33.35 mm/sec.

(1-5/16 ips)

EP : 11.12 mm/sec. (7/16 ips)

Recording time (max.)

SP : 40 minutes EP : 120 minutes

(with TC-40 cassette) Operating temperature : 0°C to +40°C

(32°F to 104°F) Operating humidity : 35% to 80% Storage temperature : –20°C to +50°C

(–4°F to 122°F) Weight : Approx. 815 g (1.8 lbs) Dimensions (Including viewfinder) : 112 (W) x 112 (H) x

211 (D) mm (4-7/16” x

4-7/16” x 8-5/16”)

CAMERA

Pick up : 1/4” format CCD Lens : F1.6, f = 3.8 to 68.4 mm,

18:1 power zoom lens

with auto iris and macro

control, filter diameter

46 mm Viewfinder : Electronic viewfinder

with 0.55” color LCD White balance

adjustment : Auto/Manual adjustment

VIDEO

Output : 1 Vp-p, 75 ohms,

unbalanced (via VIDEO

out connector)

AUDIO

Output : –8 dBs, 1 k-ohm

(via AUDIO out

connector) External

microphone input : –68 dBs, high

impedance, unbalanced

with ø3.5 mm (MONO)

AC POWER ADAPTER/BATTERY CHARGER (AA-V11U)

Power requirement

U.S.A. and Canada : AC 120 V`, 60 Hz Other countries : AC 110 V to 240 V`,

50/60 Hz Power consumption : 23 W Output

Charge : DC 8.5 V , 1.3 A VTR :DC 6.3 V , 1.8 A

Charging system : Constant current, peak

detection, timer

controlled Dimensions : 150 (W) x 42 (H) x

68 (D) mm (5-15/16” x

1-11/16” x 2-11/16”) Weight : Approx. 320 g (0.71 lbs)

CASSETTE ADAPTER (C-P7U)

Dimensions : 188 (W) x 25 (H) x

104 (D) mm (7-7/16” x 1”

x 4-1/8”) Weight : Approx. 240 g (0.53 lbs) Accessory : “AA (R6)”-size battery x 1

Provided Accessories ...................... Z pg. 6

Optional Accessories

•Battery Packs BN-V12U, BN-V22U, BN-V25U

•Car Battery Charger BH-V3U

•Battery Charger BH-VC10U

•Car Battery Cord AP-V7U

•RF Unit RF-V5U

•Compact VHS-C Cassettes TC-40/30/20

•Active Carrying Bag CB-V7U

•Wireless Remote Control Unit RM-V700U

Some acccessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability.

Specifications shown are for SP mode unless otherwise indicated. E. & O. E. Design and specifications subject to change without notice.

Indicador CHG. (carga)

Indicador POWER

Indicador END

** Indicador de carga

(Paquete de pilas opcional exclusivamente)

Se ha suministrado un indicador de carga sobre el paquete de pilas para ayudarle a recordar si ha sido cargado o no. Los dos colores suministrados (rojo y negro), le permiten seleccionar la carga y la descarga.

• La pila BN-V18U no tiene indicador de carga.

** REFRESCADO

El adaptador de CA se caracteriza por la función REFRESH que le permite descargar totalmente el paquete de pilas antes de recargarlo.

Para descargar las pilas

...... coloque el paquete de pilas en el adaptador

como se muestra en la ilustración de la izquierda. Luego presione REFRESH. El indicador REFRESH se enciende cuando se inicia la descarga y se apaga cuando la descarga ha terminado.

Marcas

Marcador de carga

. . .

ATENCION:

Antes de desmontar la fuente de alimentación, asegúrese que la alimentación de la cámara de video esté desconectada. El no hacerlo puede producir una falla de funcionamiento en la cámara de video.

Al tomacorriente de alterna

Indicador REFRESHInterruptor REFRESH

Enganche.

Empuje.

BATT. RELEASE

ESPAÑOL

Alimentación

Esta cámara de video posee un sistema de alimentación de 3 vías que le permite seleccionar la fuente de alimentación más apropiada.

NOTAS:

●

Sin alimentación no hay ninguna función disponible.

●

Utilice exclusivamente la alimentación indicada.

●

No utilice la unidades de alimentación suministradas con otro equipo.

CARGA DEL PAQUETE DE PILAS

ALIMENTACION

Conecte el cordón de alimentación de CA del

cargador a un tomacorriente. Se encenderá la luz delindicador de alimentación.

COLOCACION DEL PAQUETE DE PILAS

Alinee las marcas y deslice el paquete de pilas en la

dirección de la flecha hasta que quede bloqueado en su lugar. Se enciende la luz indicadora CHG.

EXTRACCION DEL PAQUETE DE PILAS

Cuando la carga está completa, se encenderá el

indicador END. Deslice el paquete de pilas en el sentido opuesto al de la flecha.

PAQUETE DE PILAS

BN-V12U aprox. 1 h 10 m aprox. 3 h 30 m BN-V18U aprox. 1 h 40 m aprox. 5 h 30 m BN-V22U aprox. 2 h 10 m. aprox. 7 h BN-V25U aprox. 2 h 40 m aprox. 10 h

USO DEL PAQUETE DE PILAS

COLOCACION DEL PAQUETE DE PILAS

Enganche la parte superior del mismo en la cámara

de video y empuje el paquete de pilas hasta que se bloquee en su lugar.

EXTRACCION DEL PAQUETE DE PILAS

Deslice BATT. RELEASE y extraiga el paquete de

pilas.

PAQUETE DE PILAS TIEMPO DE GRABACION APROXIMADO

BN-V12U 1 h (35 m) BN-V18U 1 h 40 m (1h) BN-V22U 2 h 10 m (1 h 20 m) BN-V25U 2 h 50 m (1 h 50 m)

( ): cuando la luz de video está encendida.

CARGA DESCARGA

GUIA PARA OPERACION RAPIDA

Si la unidad comienza a funcionar mal, deje de usarla inmediatamente y consulte a su concesionario local de JVC.

ALIMENTACION

Enganche.

Empuje.

BATT. RELEASE (extracción de la batería)

Utilización de la batería

Enganche el extremo superior de la batería en la cámara de video. (Procedimiento para carga: Z P. 8)

2 Empuje la batería hacia adentro hasta que

quede bloqueada en su lugar.

Para extraer la batería

Deslice BATT. RELEASE y extraiga la batería.

REPRODUCCION

STOP (parada)

REW (rebobinado)

PLAY/PAUSE

(reproducción/ pausa)

Colóquelo en “PLAY”.

1 Ajuste el interruptor de alimentación en

“PLAY”.

2 Presione REW.

— La cinta se detiene automáticamente al

comienzo de la misma.

3 Presione PLAY/PAUSE.

— Comienza la reproducción y la imagen

aparece en el visor.

•Presione STOP para detener la grabación.

(Por más detalles, Z P. 34.)

O simplemente reproduzca la cinta en un VCR de VHS utilizando el adaptador de cassette (VHS Playpak). Z P. 32.

INSERCION DEL CASSETTE DE VIDEO

EJECT (eyección)

PUSH (presione)

1 Deslice EJECT. 2 Inserte un cassette de video. 3 Presione PUSH.

(Por más detalles, Z P. 12.)

FILMACION

Inserte.

Perilla de abertura/cierre

Colóquelo en “CAMERA”.

LENS COVER

Botón para inicio/parada de grabación

1 Deslice la perilla de abertura/cierre LENS

COVER para abrir la tapa del objetivo.

2 Adjuste el interruptor de alimentación en

“CAMERA”. — El indicador de alimentación se

encenderá y aparecerá una imagen en el visor.

3 Presione el botón inicio/parada de

grabación. — Comenzará la grabación.

•Para detener temporariamente la grabación, presione nuevamente el botón de inicio/ parada de grabación. (Por más detalles, Z P. 14.)

FOR SERVICING

(Only in U.S.A.)

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1-800-252-5722

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United States, call 1-800252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.

— JVC

JVC SERVICE & ENGINEERING



107 Little Falls Road  1500 Lakes Parkway 705 Enterprise Street Fairfield, NJ 07004-2105 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8149 (201) 808-9279 (770) 339-2522 (630) 851-7855

5665 Corporate Avenue 10700 Hammerly, Suite 110 2969 Mapunapuna Place Cypress, CA 90630-0024 Houston, TX 77043-2310 Honolulu, HI 96819-2040 (714) 229-8011 (713) 935-9331 (808) 833-5828

230 Eliot Street 8190 West State Road 84 890 Dubuque Avenue Ashland, MA 01721-2377 Davie, FL 33324 South San Francisco, CA 94080-1804 (508) 881-5923 (954) 472-1960 (415) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.

COMPANY OF AMERICA

DIVISION OF US JVC CORP. 

FACTORY SERVICE CENTER LOCATIONS

 

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF US JVC CORP.

107 Little Falls Road

Fairfield, NJ 07004-2105

If you ship the product...

Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory Service Center as listed above.

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer.  Or from the 48 Continental United States call toll free:  1-800-882-2345.

Don't service it yourself.

CAUTION 

To prevent electrical shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARRANTY

(Only in U.S.A.)



JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

  THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1.Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse,   faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility   authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if   the model or serial number has been altered, tampered with, defaced or removed;

2.Initial installation and installation and removal for repair;

3.Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4.Damage that occurs in shipment, due to act of God, and cosmetic damage;

5.Signal reception problems and failures due to line power surge;

6.Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of   purchase;

7.Accessories;

8.Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);from the date   of purchase);

There are no other express warranties except as listed above. THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

 JVC COMPANY OF AMERICA 41 Slater Drive  DIVISION OF US JVC CORP. Elmwood Park, New Jersey 07407

PARTS

LIMITED WARRANTY



1 YR

LABOR



90 DAYS

CONSUMER VIDEO 1-90

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.: Serial No: Purchase date: Name of dealer:

MEMO

JVC COMPANY OF AMERICA

DIVISION OF US JVC CORP.

41 Slater Drive, Elmwood Park, N.J. 07407

JVC CANADA INC.

21 Finchdene Square, 

Scarborough Ontario M1X 1A7

GR-AX96



U/U(C

Printed in Japan

)

0297TOV*UN*YP

JVC GR-AX96 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
