Thank you for purchasing the JVC Compact VHS
camcorder. Before use, please read the safety
information and precautions contained in the following
pages to ensure safe use of your new camcorder.
Using This Instruction Manual
• All major sections and subsections are listed in the Table
Of Contents (
• Notes appear after most subsections. Be sure to read
these as well.
• Basic and advanced features/operation are separated for
easier reference.
It is recommended that you . . .
..... refer to the Index (
familiarize yourself with button locations, etc. before
use.
..... read thoroughly the Safety Precautions that follow and
cautions (
important information regarding the safe use of your
new camcorder.
Z cover page).
Z pgs. 47 – 50) and
Z pgs. 51, 52). They contain extremely
SAFETY
PRECAUTIONS
IMPORTANT
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved
extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted, and to replace the
fuse cover.
If nontheless the mains plug is cut off ensure to remove
the fuse and dispose of the plug immediately, to avoid
a possible shock hazard by inadvertent connection to
the mains supply.
If this product is not supplied fitted with a mains plug
then follow the instructions given below:
DO NOT make any connection to the Larger Terminal
coded E or Green.
The wires in the mains lead are coloured in accordance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured
black.
Brown wire to terminal coded L (Live) or coloured
Red.
If in doubt — consult a competent electrician.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
Warning on lithium battery
The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not recharge,
disassemble, heat above 100°C or incinerate.
Replace the battery with Panasonic (Matsushita
Electric), Sanyo or Maxell CR2025; use of another
battery may present a risk of fire or explosion.
n Dispose of used battery promptly.
n Keep away from children.
n Do not disassemble and do not dispose of in fire.
CAUTIONS:
n To prevent shock, do not open the cabinet. No user
serviceable parts inside. Refer servicing to qualified
personnel.
n When you are not using the AC Power Adapter/
Battery charger for a long period of time, it is
recommended that you disconnect the power cord
from AC outlet.
NOTES:
●
The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
●
The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.
This unit is produced to comply with Standard IEC
Publ. 65.
Crossed Out Dust Bin Mark
n The Crossed Out Dust Bin Mark on
the battery pack indicates that the
product complies with Directives
91/157/EEC and 93/86/EEC.
n Nickel-Cadmium (Ni-Cd) battery
pack must be recycled or disposed
of properly.
This camcorder is designed to be used with PAL-type
colour television signals. It cannot be used for
playback with a television of a different standard.
However, live recording and viewfinder playback are
possible anywhere. Use the BN-V12U/BN-V22U/BNV25U battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/Charger. (An
appropriate conversion adapter may be necessary to
accommodate different designs of AC outlets in
different countries.)
PAL
n This camcorder is designed exclusively for the VHS-C
video cassette. Only cassettes marked VHS-C can be
used with this unit.
n HQ VHS is compatible with existing VHS equipment.
3
SOME DO’S AND
DON’TS ON THE SAFE
USE OF EQUIPMENT
This equipment has been designed and manufactured to
meet international safety standards but, like any electrical
equipment, care must be taken if you are to obtain the
best results and safety is to be assured.
DO read the operating instructions before you attempt to
use the equipment.
DO ensure that all electrical connections (including the
mains plug, extension leads and interconnections
between pieces of equipment) are properly made and
in accordance with the manufacturer’s instructions.
Switch off and withdraw the mains plug when making
or changing connections.
DO consult your dealer if you are ever in doubt about the
installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in
any doubt about it working normally, or if it is
damanged in any way — switch off, withdraw the
mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose
dangerous voltages.
DON’T leave equipment switched on when it is unat-
tended unless it is specifically stated that it is
designed for unattended operation or has a standby
mode. Switch off using the switch on the
equipment and make sure that your family knows
how to do this. Special arrangements may need to
be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios
so that you are distracted from the requirements of
road safety. It is illegal to watch television whilst
driving.
DON’T listen to headphones at high volume, as such use
can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for
example with curtains or soft furnishings.
Overheating will cause damage and shorten the
life of the equipment.
DON’T use makeshift stands and NEVER fix legs with
wood screws — to ensure complete safety always
fit the manufacturer’s approved stand or legs with
the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or
moisture.
ABOVE ALL
— NEVER let anyone especially children push anything
into holes, slots or any other opening in the case
— this could result in a fatal electrical shock;
— NEVER guess or take chances with electrical equipment
of any kind — it is better to be safe than sorry!
4
MAJOR FEATURES
REMEMBER
The Logical Choice
The only compact video
cassettes that can be
used with your VHS VCR*
Programme AE with Special
Effects (
n Cinema n Sepia n Twilight n Sports
n High Speed (1/2000 sec.) Shutter
n Classic Film n Strobe n Slow Shutter
Digital Wipes and Fades
Z pg. 26)
(
● Black Fader● Blue Fader
● Mosaic Fader● Shutter Wipe
● Slide Wipe● Corner Wipe
● Dissolve● Auto Select
Z pg. 24)
Multi Function Control
Z pg. 20 – 33)
(
Digital Hyper Zoom (Z pg. 15)
Zoom-in
W
T
W
T
Zoom-out
W
T
W
Digital Image Stabilizer
Z pg. 20)
(
Random Assemble Editing
Z pg. 38 – 41)
(
882
554411663
7
T
Built-In Auto Light (Z pg.17)
PROVIDED ACCESSORIES
•AC Power Adapter/
Charger AA-V11EK
•Editing Cable
•Remote Control
•DC Cord
Unit RM-V706U
•Lithium Battery
CR2025
3
2
•Cassette Adapter
C-P7U
•Shoulder Strap•Cable adapter
7
•Battery Pack
BN-V12U
QUICK OPERATION GUIDE
5
SUPPLY POWER
Hook on.
1
Push in.
2
BATT. RELEASE
Using the battery pack
1
Hook-on the battery pack’s top end to the
camcorder. (Charging procedure, Z P. 6)
2 Push in the battery pack until it locks into
place.
To remove the battery pack
Slide BATT. RELEASE and pull out the battery
pack.
PLAYBACK
PLAY/PAUSE
3
REW
2
STOP
INSERTING A VIDEO
CASSETTE
EJECT
1
3
PUSH
1 Slide EJECT.
2 Insert a video cassette.
3 Press PUSH.
(For more details, Z P. 11)
SHOOTING
2
Insert.
LENS COVER
open/close knob
2
Set to “CAMERA”
Recording Start/Stop button
3
1
1
Set to “PLAY”
1 Set the power switch to “PLAY”.
2 Press REW.
— The tape will automatically stop at the
beginning of the tape.
3 Press PLAY/PAUSE.
— Playback starts and the playback picture
appears in the viewfinder.
•To stop playback, press STOP.
(For more details, Z P. 36.)
Or simply play back the tape on a VHS
n
VCR using the Cassette Adapter. Z P. 34
1 Slide the LENS COVER open/close knob to
open the lens cover.
2 Set the power switch to “CAMERA”.
— The power indicator will light and an
image will appear in the viewfinder.
3 Press RECORDING START/STOP.
— Recording starts.
•To stop recording temporarily, momentarily
press the Recording Start/Stop button once
again.
(For more details, Z P. 14)
6
END
indicator
CHG. (charge) indicator
Marks
POWER
indicator
REFRESH indicatorREFRESH switch
To AC outlet
GETTING STARTED
Power
This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.
NOTES:
●
No function is available without power supply.
●
Use only specified power supply.
●
Do not use provided power supply units with other equipment.
CHARGING THE BATTERY PACK
SUPPLY POWER
Connect the charger’s AC power cord to a wall
1
outlet. The power indicator lights.
ATTACH BATTERY PACK
Align the marks and slide the battery pack in the
2
direction of the arrow until it locks in place.
The CHG. indicator lights.
DETACH BATTERY PACK
When charging is completed, the END indicator
3
lights. Slide the battery pack opposite the direction
of the arrow.
BATT. PACKCHARGEDISCHARGE
BN-V12Uapprox. 1 hr. 10 min. approx. 3 hrs. 30 min.
BN-V22Uapprox. 2 hrs. 10 min. approx. 7 hrs.
BN-V25Uapprox. 2 hrs. 40 min. approx. 10 hrs.
Hook on.
Push in.
BATT. RELEASE
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
USING THE BATTERY PACK
ATTACH BATTERY PACK
Hook its top end to the camcorder and push the
1
battery pack in until it locks in place.
DETACH BATTERY PACK
Slide BATT. RELEASE and pull out the battery pack.
The AC power adapter features a REFRESH function that allows
you to fully discharge the battery pack before recharging.
To discharge the battery . . .
..... attach the battery pack to the adapter as shown in the
illustration to the left. Then push REFRESH. The REFRESH
indicator lights when discharging starts, and goes out when
discharging is complete.
**CHARGE MARKER
Charge marker
A charge marker is provided on the battery pack to
help you remember whether it has been charged or
not. Two colours are provided (red and black)—you
choose which one means charged and which
means discharged.
NOTES:
●
The recording time per charge is affected by such factors as the time spent in Record/Standby mode and
the frequency of zooming. It is safer to have spare battery packs.
●
Charging times noted on page 6 are for fully discharged battey pack, and discharging times are for fully
charged battery pack.
●
Charging and discharging times vary according to the ambient temperature and the status of the battery
pack.
●
Remember to set the charge marker after charging a battery pack or after detaching a discharged one from
your camcorder.
●
Perform the REFRESH function after no less than 5 chargings.
●
High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t
allow it to discharge in container, such as a bag.
●
If you stop recharging or discharging part way through, make sure to remove the battery pack before
unplugging the adapter’s AC cord.
●
Remove the battery pack from the adapter immediately after discharging.
●
To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
●
Make sure you unplug the DC cord before charging or discharging the battery pack.
●
A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to
continue.
●
The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored
for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.
indicator should light during recharging. If not, contact your nearest JVC dealer.
7
To
DC OUT
To
terminal
DC IN
Jack
DC cord
Car Battery Cord
AP-V7E (optional)
Car Battery Charger/Adapter
BH-V3E (optional)
To AC outlet
AC Power
Adapter/Charger
AA-V11EK (provided)
To car’s
cigarette
lighter
socket
USING A CAR BATTERY
Use the optional Car Battery Cord or Car Battery
Charger/Adapter (connect as shown in the
illustration to the left).
NOTES:
●
When using the car battery, leave the engine
idling.
●
The optional Car Battery Charger (BH-V3E) can
also be used to charge the battery pack.
●
When using the optional Car Battery Charger or
Car Battery Cord (AP-V7E), refer to the respective
instruction booklet.
USING AC POWER
Use the AC Power Adapter (connect as shown in
the illustration to the left).
NOTE:
The supplied AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
8
GETTING STARTED (cont.)
A
Clock Battery (Lithium) Insertion/Removal
This battery is necessary for clock operation and to
perform date/time settings.
SWITCH OFF POWER
Switch off the unit’s power and remove the power
1
supply unit.
OPEN COVER
Open the clock battery compartment cover while
2
pressing the release tab.
REMOVE BATTERY (when replacing)
Insert a pointed, non-metallic object between the
3
battery and the compartment (
battery out.
INSERT BATTERY
Ensuring the plus (+) side is up, insert the CR2025
4
lithium battery and push it in.
CLOSE COVER
Close the compartment cover until it clicks in place.
A
) and pull the
5
NOTE:
See “SAFETY PRECAUTIONS”(Z pg. 2) for information
on safe handling of lithium batteries.
3
1
Set POWER to “CAMERA”.
2
Viewfinder Adjustment
POSITION VIEWFINDER
Adjust the viewfinder manually for best viewability
1
(see illustration at left).
SELECT MODE
Set the power switch to CAMERA.
2
ADJUST DIOPTER
Turn the diopter adjustment control until the
3
indications in the viewfinder are clearly focused.
Shooting mode selector
FAR
+
MENU
NEAR
–
Date/Time Setting
SELECT MODE
Set the Power switch to “CAMERA”, and the
1
Shooting Mode selector to “PRESET”.
ACCESS MAIN MENU SCREEN
Press MENU.
2
SELECT FUNCTION
Press – to move the highlight bar down to “Date/
3
Time”, then press NEAR. The Set Date And Time
screen appears.
9
Main Menu
Screen
Set Time and
Date Screen
Set POWER to
“CAMERA”.
Shift ZoomOFF
Tele MacroOFF
Gain UpAGC
Color FilterNOR.
Tape LengthT30
Title
Date/Time
Sub Menu
1.1.00 10:45
Set
Cancel
SET DATE/TIME
Press FAR or NEAR until the item you want to set
4
begins blinking, then press + or – to until the correct
setting appears.
•If you decide you want to return the date and time
to the previous settings, press FAR or NEAR to
move the highlight bar to “Cancel”, then press
MENU.
•If you’re satisfied with the settings, go on to step 5.
START CLOCK OPERATION
Once you’ve set the day, month, year and time,
5
press FAR or NEAR until “Set” begins to blink, then
press MENU. The Main Menu screen reappears.
CLOSE MAIN MENU
Press MENU.
6
NOTES:
●
To display the date and time in the viewfinder and on a
connected TV, see “Date/Time Insert” (Z pg. 18).
●
If, in step 4, you input an invalid date (30. 2., 31. 6.,
etc.) and perform step 5, “Input Error” appears blinking
at the bottom of the screen. Press +, –, FAR or NEAR to
input the correct number.
Date
Day/Month/Year
Time
24-hour indication
10
Shooting mode selector
FAR
+
MENU
GETTING STARTED (cont.)
Tape Length Setting
SELECT MODE
Set the Power switch to “CAMERA”, and the
1
Shooting Mode selector to “PRESET”.
ACCESS MAIN MENU SCREEN
Press MENU.
2
Main Menu
Screen
NEAR
–
Shift ZoomOFF
Tele MacroOFF
Gain UpAGC
Color FilterNOR.
Tape LengthT45
Title
Date/Time
Sub Menu
T30
SELECT FUNCTION
Press + or – to move the highlight bar to “Tape
3
Length”.
SET TAPE LENGTH
Press FAR or NEAR to cycle through until the correct
4
setting appears (depending on the tape used). T30 =
30 minutes of recording time, T45 = 45 min. and
T60 = 60 min. (when recording in SP mode).
CLOSE MAIN MENU
Press MENU.
5
NOTES:
●
The tape remaining time (Z pg. 14) displayed in the
viewfinder is correct only if the correct tape length has
been selected.
●
When using a 60-minute tape, the tape ramaining time
displayed will not be accurate.
T60
T45
SP/LP
11
Recording Mode Setting
Pressing SP/LP alternates the setting between SP
1
(standard play-provides higher picture and sound
quality, better for dubbing) and LP (Long Play-more
economical, recording at 1/2 the speed of SP).
NOTE:
If the recording mode is switched during recording, the
playback picture will be blurred at the switching point.
Loading/Unloading A Cassette
OPEN CASSETTE HOLDER
Slide EJECT until the holder opens. Do not use force
1
to open.
INSERT/REMOVE CASSETTE
Make sure the label is facing outward.
2
SP
Erase Protection
LPSP
Turn to take up
slack.
Gear
CLOSE CASSETTE HOLDER
Press PUSH and make sure the holder is closed and
3
locked.
NOTES:
●
A cassette holder can’t be opened unless a power
supply is attached.
●
Make sure that the tape is not slack when loading the
cassette. If there is any slack, turn the gear on the
cassette in the direction of the arrow to take up the
slack.
●
Make sure the Erase Protection tab is present. If not,
cover the hole with adhesive tape. (Some cassettes
have sliding tabs – in this case, check the tab’s
position.)
12
3
Recording Start/Stop button
1
2
1
2
GETTING STARTED (cont.)
Grip Adjustment
EXPAND LOOP
Separate the Velcro strip.
1
INSERT HAND
Pass your right hand through the loop and grasp the
2
grip.
ADJUST STRAP LENGTH
Adjust so your thumb and fingers can easily operate
3
the Recording Start/Stop button and Power Zoom
lever. Refasten the Velcro strip.
Shoulder Strap Attachment
ATTACH STRAP
Following the illustration at left, thread the strap
1
through the top of the eyelet 1, then fold it back
and thread it through the keeper 2, and then
through the buckle 3. Repeat the procedure to
attach the other end of the strap to the other eyelet,
making sure the strap isn’t twisted.
ADJUST LENGTH
Adjust as shown in the illustration at left 1, then
2
slide both keepers snug against the eyelets to
prevent slipping 2.
Tripod Mounting
ALIGN AND TIGHTEN
Align the screw and camera direction stud on the
1
tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.
13
Using The RM-V706U Remote Control Unit
The RM-V706U full-function MBR (Multi-Brand Remote) can operate this camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit is useful when dubbing from the
camcorder to your VCR, and it makes additional recording functions possible.
Installing The Battery
Infrared beam
effective area
10°
5m
30°
30°
10°
The transmitted beam may not be effective or may
cause incorrect operation when the infrared beam
sensor window is directly exposed to sunlight or
powerful lighting.
1
3
4
5
6
7
8
9
BUTTONS
1 PAUSE IN Connector—(Z P. 40)
2 Infrared beam
transmitting window
3 MBR SET Button—(Z P. 39)
4 INT. TIME ButtonSelf-Timer/Time-Lapse (Z pg. 32, 33)—
5 REC TIME ButtonAnimation/Time-Lapse (Z pg. 33)—
6 FF ButtonRetake (forward) (Z pg. 16)FF/FF Shuttle Search (Z pg. 36)
7 REW ButtonRetake (rewind)/Quick Review (Z pg. 15)Rew/Rew Shuttle Search (Z pg. 36)
8 PAUSE Button—Pause/Play (Z pg. 36)
9 PLAY Button—Playback start (Z pg. 36)
0 SNAPSHOT Button
! START/STOP Button
@ VISS ButtonIndex Code marking (Z pg. 16)—
# ZOOM (T/W) ButtonsZoom in and out (Z pg. 15)
$ VCR CTL Button—(Z P. 39)
% A.DUB Button—Audio dubbing (Z pg. 43)
^ STOP Button—Stop (Z pg. 36)
& INSERT Button—Insert Editing (Z pg. 42)
* R.A.EDIT Buttons—(Z P. 40)
Infrared beam
sensor window
2
0
!
@
#
$
%
^
&
*
With the camcorder’s power switchWith the camcorder’s power switch set
set to “CAMERA”.to “PLAY”.
Transmits the beam signal.
Functions same as the SNAPSHOT
Button on the camcorder (Z pg. 19).
Functions same as the Recording Start/Stop
Button on the camcorder.
PULL OUT BATTERY HOLDER
Pull out while sliding the lock hole.
1
INSERT BATTERY
Making sure the plus (+) side is up, insert the lithium battery
(CR2025) into the battery holder.
2
REPLACE BATTERY HOLDER
Insert the battery holder into the remote control unit, and
push the holder until it clicks into place.
3
NOTE:
Read the caution concerning lithium batteries (Z pg. 2).
Lock hole
FUNCTIONS
—
—
14
Start/Stop
POWER
LENS COVER
SWITCH
RECORDING
Basic Recording
NOTE:
You should already have performed the procedures listed
below. If not, do so before continuing.
●
Power (Z pg. 6)
●
Tape Length (Z pg. 10)
●
Recording Mode Setting (Z pg. 11)
●
Grip Adjustment (Z pg. 12)
LOAD A CASSETTE
Slide EJECT to open the cassette holder, then insert
1
the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.
The power indicator
25min
Tally lamp
ENTER RECORD–STANDBY MODE
Slide the LENS COVER open/close switch to open
2
the lens cover, then set the power switch to
“CAMERA”.
•The power indicator lights and the camcorder
enters the Record–Standby Mode.
•The scene you’re aimed at appears on the
viewfinder screen, with the word “PAUSE”
superimposed upon it.
START SHOOTING
Press the RECORDING START/STOP button.
3
•The tally lamp lights while recording is in progress,
REC
and “
•If you want to turn the tally lamp off, see page 29.
Tape remaining time indicator
120min119min
1min (Blinking)
0min (Blinking)
* min.....(Now calculating)
2min (Blinking)
3min
STOP RECORDING
Press the RECORDING START/STOP button again to
4
stop recording.
•The camcorder re-enters the Record-Standby
mode.
NOTES:
●
A cassette holder can’t be opened unless a power supply is attached.
●
There may be a delay after you slide EJECT until the holder opens. Do not use force.
●
The tape’s remaining time is displayed in the viewfinder as shown.
●
The indicated remaining time is approximate.
●
The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary
according to the type of tape used.
●
The tape remaining time displayed in the viewfinder is correct only if the correct tape length has been
selected (Z pg. 10).
●
When using a 60-minute tape, the tape ramaining time displayed will not be accurate.
●
“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this
condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is
loaded.
●
If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations,
the camcorder’s power shuts off automatically. Set the Power switch to “POWER OFF”, and then back to
“CAMERA” to turn the camcorder on again.
●
If you’re recording on a cassette from the middle, use the RETAKE function (Z pg. 16) to find the end of
the last recording so you don’t erase any of it.
●
The LENS COVER warning blinks for about 8 seconds when the camcorder is turned on, when the cover is
closed.
” appears in the viewfinder.
RECORDING
Zoom-in
W
Shooting mode
selector
FAR
+
–
NEAR
Main Menu
screen
W
T
T
Zoom indicator bar
W
MENU
Power zoom lever
Shift Zoom l50x
Tele MacroOFF
Gain UpAGC
Color Filter NOR.
Tape Length T45
Title
Date/Time
Sub Menu
Basic Features
W
T
Zoom-out
Zoom level
indicator
T
15
FEATURE:Zooming
PURPOSE:To produce the zoom in/out effect, or
W
OPERATION:28X Hyper zoom
T
NOTES:
FEATURE:Quick Review
PURPOSE:To check the end of the last
OPERATION:1) Press “
NOTE:
an instantaneous change in image
magnification.
Digital circuitry doubles the
maximum 14x magnification offered
by optical zoom.
1) To zoom in, slide the Zoom Lever
toward “T”.
2) To zoom out, slide toward “W”.
Shift Zoom
By digitally processing and
magnifying images, zooming is
possible from 5 – 14 times the
optical zoom limit, to a maximum of
140x magnification.
1) Set the Shooting Mode Selector to
“PRESET” and press MENU to
access the Main Menu screen.
2) Press + or – to move the highlight
bar to “Shift Zoom.”
3) Press FAR or NEAR to set the
magnification. “50x” magnifies
wide-angle images to
approximately 3.6 times the
original size, and enables zooming
in the 18x – 50x range. “140x”
magnifies wide-angle images to
approximately 10 times the
original size, and allows zooming
from 50x to 140x. To disable Shift
Zoom, set it to “OFF”.
4) Press MENU to close the Main
Menu screen.
●
During Hyper Zoom, the speed
increases the further you slide the
Zoom Lever.
●
Focusing may be come unstable
during Hyper Zoom. In this case,
set the zoom while in Record –
Standby, set manual focus or Focus
Lock (Z pg. 22, 23), then zoom in
or out in Record mode.
●
The Zoom Level Indicator (5) only
moves during optical zoom. Once
the indicator reaches “T”, all
magnification from that point is
through digital processing.
●
During digital image processing,
the quality of the image may suffer.
recording.
” and release quickly
during the Record–Standby mode.
• Tape is rewound for about 2
seconds and played back automatically, then pauses in Record–
Standby mode for the next shot.
Distortion may occur at start of playback.
This is normal.
16
START/STOP
VISS
RM-V706U (provided)
RETAKE
Record-Standby
NormalUpside down
Record
AUTO PAUSE
Up
Record-Standby
RECORDING
FEATURE:Index Code Marking
PURPOSE:To give you automatic access to any
OPERATION:
NOTE:
FEATURE:Retake
PURPOSE:To re-record certain segments.
OPERATION:1) Make sure the camcorder is in the
NOTE:
FEATURE:Auto Pause System
PURPOSE:To automatically stop recording
OPERATION:1) Set AUTO PAUSE to “ON”. When
NOTES:●
Basic Features (cont.)
selected point on a recording. Auto
Marking and Manual Marking are
available.
Auto Marking
An index code is marked to start the
first recording after a cassette is
inserted, as long as the Power switch
is set to “CAMERA”.
Manual Marking
1) Press VISS once to place the index
code. INDEX blinks in the
viewfinder during marking.
If VISS is pressed during
Record–Standby mode, the mark is
placed where RECORDINGSTART/STOP is pressed.
Record–Standby mode.
2) Press either RETAKE button to
reach the start point for new
recording.
3) Press RECORDING START/STOP
to start recording.
Noise may appear during Retake.
This is normal.
when the camcorder is pointed
down, preventing accidental
recordings of the ground, your feet,
etc.
the camcorder is tilted down by a
large degree from its horizontal
position during recording, the
Record-Standby mode is
automatically engaged. “AUTO
PAUSE” appears in the viewfinder.
The Auto Pause System is also
effective when the camcorder is
pointed up, or is positioned upside
down.
●
Auto Pause also works when the
camcorder is twisted by a large
degree to the left or right.
●
When you want to shoot in any of
the aforementioned positions,
make sure you set AUTO PAUSE to
“OFF”.
Record-Standby
Down
LIGHT ON/AUTO/OFF
17
Video Light
When natural lighting is too dim, you can brighten the
scene by using the built-in video light.
SET VIDEO LIGHT
Set the LIGHT ON/AUTO/OFF as required.
1
ON: Always keeps the light on as long as the
camcorder is turned on.
AUTO : Automatically turns on the light when the
camcorder senses insufficient lighting on
the subject.
OFF: Turns off the light.
•The video light can be used with the camcorder’s
power on.
•It is recommended to set the white balance
(Z pg. 21) to indoor mode ( ) when you use the
video light.
•When not using the video light, turn it off to save
battery power.
NOTES:
●
Even if the battery indicator () does not blink in the
viewfinder, if the battery pack’s charge is low, the
camcorder may turn off automatically when you turn
on the video light, or when you start recording with the
video light turned on.
●
When the LIGHT ON/AUTO/OFF switch is set to
“AUTO”:
•
Depending on the lighting conditions, the video light
may keep turning on and off. In this case, manually
switch the light on or off using the LIGHT ON/AUTO/OFF switch.
•
While the Sports or High-Speed Shutter mode
(Z pg. 25) is engaged, the light is likely to stay on.
•
While the Twilight mode (Z pg. 25) is engaged, the
light will not activate.
DANGER
•The video light become extremely hot. Do not
touch it either while in operation or soon after
turning it off, otherwise serious injury may result.
•Do not place the camcorder into the carrying case
immediately after using the video light, since it
remains extremely hot.
•When operating, keep a distance of about 30 cm.
between the video light and people or objects.
•Do not use near flammable or explosive materials.
•It is recommended that you consult your nearest
JVC dealer for replacing the video light.
18
DISPLAY
Date display
Date/Time-off mode
Date display
25.12.96
15:28:43
Time display
Date/Time display
RECORDING
Advanced Features
Date/Time Insert
This feature allows you to display the date and time in your
viewfinder and on a connected TV.
NOTE:
You should already have performed the Date/Time
Setting procedure (Z pg. 9). If you haven’t, do so before
continuing.
DISPLAY
CHOOSE DISPLAY MODE
Press DISPLAY during Record–Standby to cycle
1
through the available modes as shown in the
illustration at left.
NOTES:
●
The selected display can be recorded.
●
If you don’t want to record the display, select Date-off
mode before shooting.
●
If you want to delete the display during shooting, press
DISPLAY.
●
If you want to call back a deleted display, engage the
Record-Standby mode and then press DISPLAY to
select the desired display mode.
25. 12. 96
Time display
15:28:43
Date/Time display
25. 12. 96
15:28:43
SNAP SHOT
SNAP SHOT MODE
Pin-upFrame
Full
Multi 9Multi 4
Multi4
Pin-Up
A still image on a blue
background. The image is
bordered in white and a
shadow effect is added to
give it a more dimensional
feel.
19
Snapshot
This interesting feature lets you record several types of
digital still images that look, and sound, like photographs. It’s a great way to spice up footage of events such
as parties, weddings and graduations.
SELECT SNAPSHOT MODE
Press SNAP SHOT MODE to cycle through the
1
modes as shown in the illustration at left. Once the
desired mode appears, it is selected and activated,
and its indicator appears, within 2 seconds.
PERFORM SNAPSHOT
RECORDING
Press SNAP SHOT.
2
If you press during recording . . .
.... a still image is displayed and recorded in the
selected mode, then the camcorder resumes
normal recording. In the Full and Frame modes,
the new image comes in gradually overall. In
the Pin-Up and Multi-Analyzer modes, the new
image comes in gradually from the centre.
If you press during RECORD–STANDBY . . .
.... a still image is displayed and recorded in the
selected mode, then the camcorder re-enters the
Record–Standby mode.
Frame
A still image with a white
border is recorded.
Full
A still image that occupies
the entire image field is
recorded.
Multi-Analyzer 4/Multi-Analyzer 9
AB
CD
Record multiple images in one scene
(4 or 9 at a time). The images appear and are
stored in this order: A, B, C, D (E, F, G, H, I for
Multi-Analyzer 9). In the Motor Drive mode,
after “I”, the next image recorded is “A”, and
the cycle is repeated.
AB
DE
GH
C
F
I
Motor Drive Function
SELECT SNAPSHOT MODE
Select as in step 1 above.
1
ACTIVATE MOTOR DRIVE
During Snapshot recording, press and hold down
2
SNAP SHOT. You can take rapid snapshots with an
interval of approximately 0.7 seconds between stills.
NOTES:
●
The Date/Time display will disappear during Snapshot
recording.
●
The Motor Drive function cannot be activated using the
SNAP SHOT button on the RM-V706U remote control
unit (provided).
●
When Multi-Analyzer is activated, the shutter sound
may not match the appearance of the images.
20
Shooting Mode Selector
+
D.I. STABILIZER
–
RECORDING
Advanced Features (cont.)
Digital Image Stabilizer
This feature compensates for unstable images caused by
camera-shake, particularly noticeable at high
magnification.
ACTIVATE D. I. STABILIZER
Press D.I.STABILIZER. “ ” appears in the viewfinder.
1
•To switch off the Digital Image Stabilizer, press
D.I.STABILIZER. The indicator disappears.
NOTES:
●
Accurate stabilization may not be possible if hand
shake is excessive, or under the following conditions:
•
When shooting subjects with vertical or horizontal
stripes
•
When shooting dark or dim subjects
•
When shooting subjects with excessive backlighting
•
When shooting scenes with movement in various
directions
•
When shooting scenes with low-contrast
backgrounds
●
When the Slow Shutter function is activated
(Z pg. 25), the Digital Image Stabilizer (DIS) cannot
be used. If you try to activate this function while DIS is
engaged, “” blinks, telling you that DIS has been
deactivated.
●
Switch off DIS when recording with the camcorder on
a tripod.
Viewfinder
D.I.S. Indicator
To brighten the image
–
06
+
02
Exposure Level Indicator
+
06
To darken the image
Exposure Control
This feature automatically adjusts the iris for the best
available picture quality, but you can override and make
the adjustment manually.
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
BRIGHTEN IMAGE
Press + (maximum +06). The Exposure level
2
indicator appears in the viewfinder.
OR . . .
DARKEN IMAGE
Press – (maximum –06). The Exposure level
indicator appears in the viewfinder.
When you want to return to the factory setting . . .
RESTORE INITIAL SETTING
Press + and – simultaneously. The standard setting is
3
immediately restored and the Exposure level
indicator disappears.
MWB
Shooting Mode Selector
No indication
(Auto)
MWB
MWB
21
White Balance Adjustment
This camcorder’s Automatic Colour Temperature system
senses the colour temperature of the ambient lighting for
automatic white balance adjustment. However, precise
colour adjustment is not possible under the following
conditions:
•When an object is in various shades of the same colour.
•When a predominantly red or brown object is being
shot outdoors.
In these cases, use the camcorder’s built-in preset filters
for white balance adjustment.
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
SELECT FUNCTION
Press MWB (Manual White Balance) until the
2
required indication appears in the viewfinder.
“MWB” .... With a memorized personal White
................Balance setting (see below)
“ ” ......... Outdoors on sunny day
“” ........ Outdoors on cloudy day
“ ”..........Light source is halogen or tungsten lamp
MWB sets the colour temperature for the subject’s light
source so you can shoot with natural colours that are
unaffected by surroundings, even when there are
multiple subjects with different colour temperatures.
SELECT SHOOTING MODE
White balance mode indicator
Set the Shooting Mode selector to ”PRESET”.
1
ADJUST FOCUS
Point the camcorder at a white, flat object such as a
2
sheet of white paper, and adjust focus manually
(Z pg. 23).
ADJUST WHITE BALANCE
Press MWB until “MWB” appears, then press and
3
hold MWB for more than 3 seconds.
•“MWB” blinks in the viewfinder during
adjustment, then stops blinking but stays lit when
adjustment is complete.
NOTES:
●
To switch to automatic white balance adjustment, press MWB until the indication disappears, or turn the
Shooting Mode selector to “FULL AUTO”.
●
Re-adjust the White Balance mode when the lighting has changed, when the camcorder has been turned on and
off again, or when the Shooting Mode selector’s position has been changed.
●
It is helpful to connect your camcorder to a colour monitor when adjusting the white balance
(“Basic Connections”
●
When adjusted by putting coloured paper in front of the subject in step 2 (“ADJUST FOCUS”), this unit makes its
colour temperature standard for automatic white balance. So you can enjoy shooting with different colours. For
example, when adjusting with red, blue or yellow colours, the image becomes the colour which aproximates to
green, orange or purple respectively.
Z
pg. 35).
22
Shooting Mode Selector
FAR
NEAR
Focus
detection zone
RECORDING
Advanced Features (cont.)
Focusing
Auto Focus
The camcorder’s Full Range AF system offers continuous
shooting ability from close-up to infinity. However,
correct focus may not be obtainable in the situations
listed below (in these cases use manual focusing):
•When two subjects overlap in the same scene.
•When illumination is low.*
•When the subject has no contrast (difference in
brightness and darkness), such as a flat, one-colour
wall, or a clear, blue sky.*
•When a dark object is barely visible in the viewfinder.*
•When the scene contains minute patterns or identical
patterns that are regularly repeated.
•When the scene is affected by sunbeams or light
reflecting off the surface of a body of water.
•When shooting a scene with a high-contrast
background.
* The low-contrast warning “
viewfinder.
Focus Lock
This feature locks the focus in place, which is especially
helpful in the following situations:
•When things pass between your subject and the
camcorder. Engage the focus lock function to lock your
subject in before recording.
•When you want your subject to be focused, and to
appear in a corner of the screen. First, centre on the
subject and focus using auto focus mode. Then engage
the focus lock function and move the camcorder until
the subject is where you want it.
” appears in the
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
LOCK FOCUS
Press FAR or NEAR. The focus lock indication “”
2
appears in the viewfinder.
RELEASE FOCUS LOCK
Press FAR and NEAR simultaneously. The
3
focus lock indication disappears.
NOTES:
●
If the lens is smeared or blurred, accurate focusing is
not possible. Keep the lens clean, wiping with a piece
of soft cloth if it gets dirty. When condensation occurs,
wipe with a soft cloth or wait for it to dry naturally.
●
When shooting a subject close to the lens, zoom-out
first (Z pg. 15). If zoomed-in in the auto focus mode,
the camcorder could automatically zoom out
depending on the distance between the camcorder and
the subject. *When Tele Macro is activated, the
camcorder will not zoom out automatically.
A
Shooting Mode Selector
NEAR
FAR
Power zoom lever
23

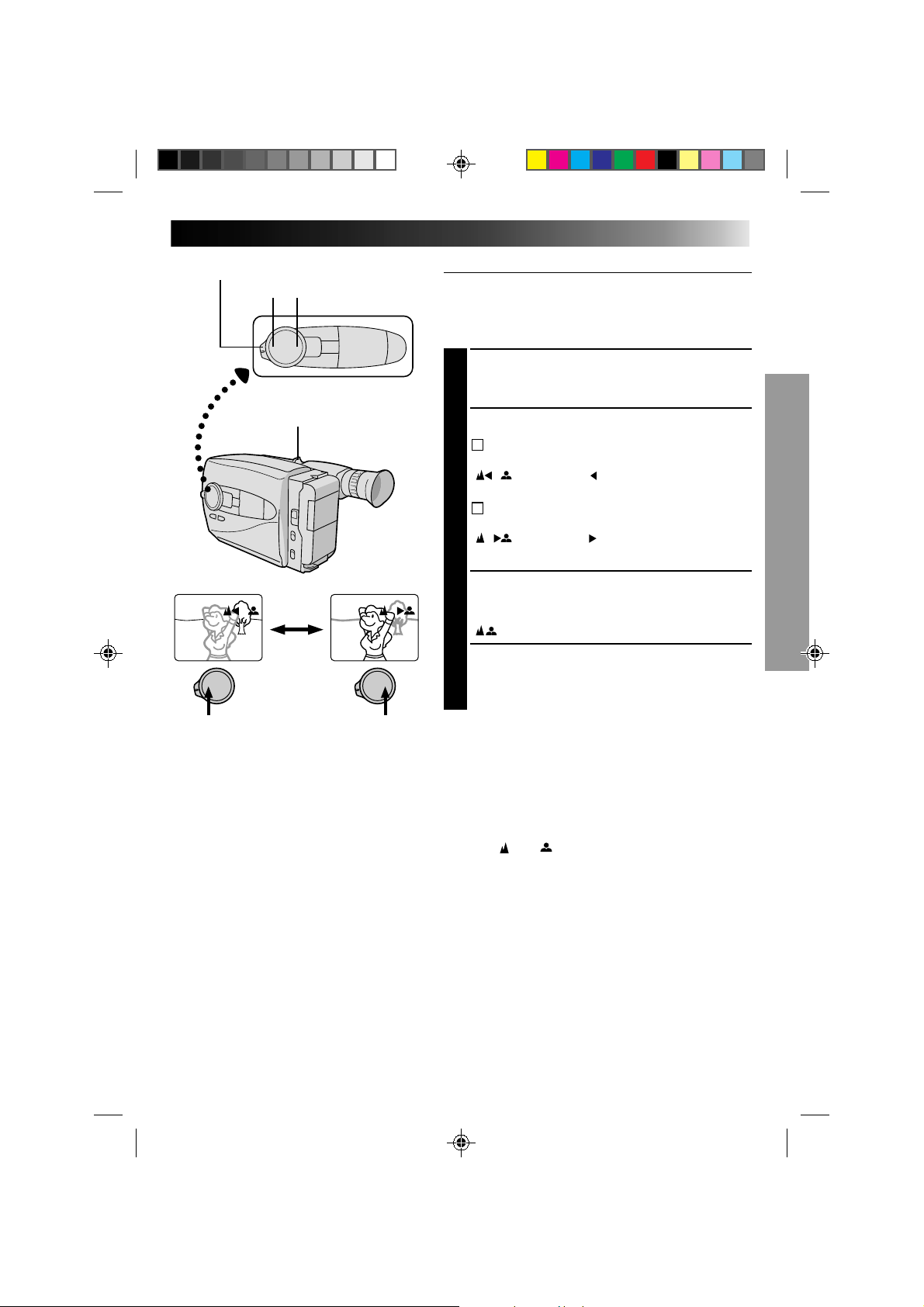

Manual Focus
NOTE:
You should already have made the necessary viewfinder
adjustments (Z pg. 8). If you haven’t, do so before
continuing.
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
ADJUST FOCUS
TO FARTHER SUBJECT
2
Press and hold FAR . The Manual Focus indications
2
“” appear and “ ” blinks.
Go to step 3.
B
TO NEARER SUBJECT
Press and hold NEAR. The Manual Focus indications
“” appear and “ ” blinks.
Go to step 3.
LOCK FOCUS
Release FAR or NEAR. The focus
3
indication is replaced by the focus lock indication
“” and the adjusted focus is locked in.
RELEASE MANUAL FOCUS MODE
Press FAR and NEAR simultaneously. The Manual
4
Focus mode is immediately released and the focus
lock indication disappears.
NOTES:
●
Be sure to focus the lens in the maximum telephoto
position when you use the Manual Focus mode. If you
focus in on a certain subject in the wide-angle position,
sharply focused images cannot be obtained when
zoomed up because the depth-of-field is reduced at
longer focal lengths.
●
When the focus level cannot be adjusted any farther or
closer, “ ” or “ ” will blink.
Useful in making the picture look creative and attractive.
Effects can be selected during recording, as well as in
Record–Standby.
SELECT SHOOTING MODE
Set the Shooting Mode selector to either “FULL
1
AUTO” or “PRESET”.
If you set to “FULL AUTO”, . . .
.... only the Cinema mode can be activated.
If you set to “PRESET”, . . .
.... you can choose any one of the 8 effects
available.
SELECT EFFECT
If you set to “FULL AUTO”, . . .
2
.... pressing EFFECT/PROG.AE turns the Cinema
mode on and off.
If you set to “PRESET”, . . .
.... pressing EFFECT/PROG.AE brings up the Effect
menu. Press again to move the highlight bar to
the desired effect. Once you decide on an
effect, it is selected and activated, and its
indicator appears, within 2 seconds.
•If you started this procedure in the Record–
Standby mode, press RECORDING START/STOP
to begin recording at this point.
DEACTIVATE EFFECT
When the Shooting Mode Selector is set to “FULL
3
AUTO”, . . .
.... press EFFECT/PROG.AE.
When set to “PRESET”, . . .
.... press EFFECT/PROG.AE to bring up the Effect
Menu, and press again to move the highlight bar
to “OFF”.
EFFECT/PROG. AE indicator
NOTE:
If “Shift Zoom” (Z pg. 15) is set to “50x” or “140x”,
Programme AE effects cannot be used.
INDICATIONMODEEFFECT
CINEMA
Adds black bars to the top and bottom of the screen to produce a
cinema-like “16:9 wide-screen” effect.
25
SEPIA
TWILIGHT
SPORTS
HI-SPEED
The picture becomes sepia-tinted (reddish brown) monochrome,
creating the look of an old photograph.
Makes dusk and twilight scenes, etc. look more natural and
dramatic. White balance is set to “ ”. Press MWB if you want to
change the setting.
Automatically adjusts to high shutter speed (1/250 to 1/500) to
clearly capture fast-moving action with less blur. Clarity is
especially noticeable during slow motion or still playback on a
VCR. Great for sports, races, etc.
Captures even faster action than Sports effect.
SHUTTER
(1/2000)
CLASSIC
FILM
STROBE
SLOW
SHUTTER
A strobe effect that gives the black and white picture a “flickery”
effect like an old movie, and adds black bars at the top and
bottom of the picture for a wide-screen look.
Freezes images in rapid succession.
Sets the shutter speed to 1/12.5 sec. and boosts the sensitivity so
that the camcorder can record subjects even in virtual darkness.
•Use it only in dark locations.
•The picture flickers like a quick strobe.
NOTES:
●
When the Sepia or Classic Film effects are activated, pressing MWB (manual white balance) has no effect.
●
When Slow Shutter is activated, Auto Focus may not work properly.
●
When Slow Shutter is activated, bright spots may appear on the screen. This is not a camcorder
malfunction.
●
Certain effects cannot be used together with other functions. When an effect not usable in the present
situation is selected, its indicator blinks.
These effects let you make pro-style scene
transitions.
SELECT SHOOTING MODE
Set the Shooting Mode selector to either “FULL
1
AUTO” or “PRESET”.
If you set to “FULL AUTO”, . . .
.... only the Black Fader mode is available.
If you set to “PRESET”, . . .
.... you can choose any one of the effects available.
RESERVE EFFECT
If you set to “FULL AUTO”, . . .
2
.... pressing FADE/WIPE turns the Black Fader
mode on and off.
If you set to “PRESET”, . . .
.... pressing FADE/WIPE brings up the Fade/Wipe
menu. Press again to move the highlight bar to
the desired effect. Once you decide on an
effect, it is selected and reserved, and its
indicator appears, within 2 seconds.
START RECORDING
Press RECORDING START/STOP to start recording
3
and activate a fade- or wipe-in.
OR . . .
END RECORDING
Press RECORDING START/STOP to stop recording
and engage a fade- or wipe-out.
DEACTIVATE EFFECT
When the Shooting Mode Selector is set to “FULL
4
AUTO”, . . .
.... press FADE/WIPE.
When set to “PRESET”, . . .
.... press FADE/WIPE to bring up the Fade/Wipe
menu, then press again to move the highlight
bar to “OFF”.
FADE/WIPE indication
NOTES:
●
If “Shift Zoom” (Z pg. 15) is set to “50x” or “140x”,
fades and wipes cannot be used.
●
When the Shooting Mode selector is set to “FULL
AUTO”, after a fade-in, Black Fader is no longer
reserved. To reserve it for a fade-out, press FADE/WIPE.
B
K
“
” appears in the viewfinder.
B
K
BLACK FADER
Fades in/out to a black screen.
C
BLUE FADER
Fades in/out to a blue screen.
27
— — AUTO SELECT
Press RECORDING START/STOP to begin or end
recording, and 6 wipe-ins are automatically
generated, in the order shown below:
SLIDE WIPE
MOSAIC FADER
Gradually turns/returns the picture into/from a
mosaic pattern.
SHUTTER WIPE
A black screen moves in from the top and bottom,
closing over the image like a shutter, or a new
image pushes open the black screen vertically from
the centre. *During Auto Select mode, the new
image wipes in over the old image, not a black
screen.
SLIDE WIPE
A black screen moves in from the left to gradually
cover the image, or a new image moves in from
right to left. *During Auto Select mode, the new
image wipes in over the old image, not a black
screen.
CORNER WIPE
A black screen starts in the lower left corner and
gradually fills the screen, or a new image starts in
the upper right corner and fills the black screen.
*During Auto Select mode, the new image wipes in
over the old image, not a black screen.
DISSOLVE
1 Press the RECORDING START/STOP button.
— Recording starts.
2 Press the RECORDING START/STOP button
again.
— Recording stops, and the Record–Standby
mode is engaged.
— Now the last scene is stored in memory.
Before the power turns off...
3 Press the RECORDING START/STOP button to
resume recording.
— The stored scene is gradually replaced by the
new scene being shot.
SCROLL WIPE
CORNER WIPE
WINDOW WIPE
DOOR WIPE
SHUTTER WIPE
1 Press the RECORDING START/STOP button.
— Recording starts.
2 Press the RECORDING START/STOP button
again.
— Recording stops and the Record-Standby
mode is engaged.
— Now the last scene is stored in memory.
Before the power turns off...
3 Press the RECORDING START/STOP button to
resume recording.
— The new scene gradually wipes in over the
stored scene.
— Repeat steps 2 and 3 as you like.
NOTES
(for Dissolve and Auto Select):
●
Turning off the camcorder will erase the scene
stored in memory. When a scene is erased from
memory, the symbol indication blinks.
●
The sound for the last recording’s scene is not
stored in memory.
●
This mode indicator blinks unless an image is
stored in memory. In this case, shoot a scene first.
SCROLL WIPE (AUTO SELECT only)
A new image scrolls up onto the screen.
WINDOW WIPE (AUTO SELECT only)
A new image enters from the centre and moves
towards all four corners of the screen.
DOOR WIPE (AUTO SELECT only)
A new image opens like a door onto the screen.
28
Main Menu screen
Shooting mode selector
FAR
MENU+
NEAR
–
Shift ZoomOFF
Tele MacroOFF
Gain UpAGC
Color FilterNOR.
Tape LengthT45
Title
Date/Time
Sub Menu
RECORDING
Advanced Features (cont.)
Using Menu For Detailed Adjustment
This camcorder is equipped with Multi-Function Control,
an easy-to-use, on-screen menu system that simplifies
many of the more detailed camcorder settings.
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
ACCESS MAIN MENU SCREEN
Press MENU.
2
SELECT FUNCTION
Press + or – to place the highlight bar on the desired
3
function.
MAKE SETTING
The setting procedure depends on the function you
4
select.
If you select Shift Zoom, Tele Macro, Gain Up,
Colour Filter or Tape Length, . . .
.... press FAR or NEAR to cycle through the choices
until the desired setting appears. Then go to step
8.
If you select Title or Date/Time, . . .
.... press NEAR to access the selection menu for
each function (Title – Z pg. 30; Date/Time –
Z pg. 9).
If you select “Sub Menu”, . . .
.... press NEAR to bring up the Sub Menu screen.
Go to step 5.
Tally/ELON
Interval Timer OFF
Rec TimeOFF
JLIP ID NO.07
Sub Menu screen
l
If any settings in the Main Menu have been
changed from the factory settings, this mark
appears in the viewfinder.
PAUSE
SELECT FUNCTION AT SUB MENU
Press + or – to place the highlight bar on the desired
5
option, then press NEAR. The selected item begins
blinking.
CHANGE SETTINGS
Press + or – to change the displayed setting of the
6
selected function, then press FAR to enter your
choice. The selected item stops blinking.
CLOSE SUB MENU
Press FAR , and setting is complete. The Sub menu
7
screen disappears and the Main Menu screen
reappears.
•To go directly past the Main Menu screen to the
normal screen, press MENU.
CLOSE MAIN MENU
Press MENU. The normal screen reappears.
8
MAIN MENU
OFFDisables the Shift Zoom function.
Shift Zoomoriginal size, and enables zooming in the 18x – 50x range.
Tele MacroOFFUsually set to this position.
Gain UPAGCAllows you to record a subject in a dark environment. It
Color FilterNORFor normal shooting with no colour adjustment.
Tape LengthAllows you to set the tape length depending on the tape used (Z pg. 10).
TitleAllows you to superimpose a preset title onto a scene (Z pg. 30).
Date/TimeAllows you to set the current date and time (
l50xMagnifies wide-angle images to approximately 3.6 times the
l140xMagnifies wide-angle images to approximately 10 times the
lONUsually the distance to a subject where the lens is in focus
l
A
lOFFAllows you to shoot dark scenes with no picture brightness
lREDGives recording a reddish tint.
lBLUEGives recording a bluish tint.
original size, and allows zooming from 50x to 140x.
depends on the zoom magnification. Unless there is a
distance more than 1m to the subject, the lens is out of focus
at the maximum telephoto setting. When set to “ON”, you
can shoot a subject as large as possible at a distance of
approx. 60 cm.
•Depending on the zoom position, the lens may go out of
focus.
delivers a brighter, if slightly coarse, picture.
(Auto Slow Shutter) Combines AGC with electronic shutter
speed (1/25 to 1/50) for shooting under much darker
conditions. When shooting in poorly lit areas, or when
shooting a dark subject in dim lighting, the unit will
automatically enter the Auto Slow Shutter mode, reducing
the shutter speed to 1/25 sec. Although the resulting picture
will be similar to that obtained when using Strobe (Z pg. 25),
the image will be clear with less noise.
adjustment.
Z pg. 9).
= Factory setting
29
SUB MENU
Tally/EL*ONThe tally lamp comes on to signal the start of recording, and
*EL=OFFThe tally lamp remains off at all times, as does the LCD
*Electronic Luminancewindow backlight.
Interval Timer andThese features allow you to set the parameters for Self-Timer (
Rec. TimeAnimation and Time-Lapse recording (Z pg. 33).
JLIP ID NO.This number will be necessary in the future when connecting the
camcorder to a device such as a computer using the JLIP terminal.
The numbers range from 01 to 99.
NOTES:
●
When the video light’s LIGHT ON/AUTO/OFF switch is set to “ON” or “AUTO”, Auto Slow Shutter is disabled.
●
When Auto Slow Shutter is activated, Auto Focus may not work properly.
the LCD window backlight comes on.
Z pg. 32),
30
Shooting mode selector
RECORDING
Advanced Features (cont.)
Instant Titles
MENU
+
You can superimpose one of 8 preset titles, or a title you
made yourself, onto a scene.
SELECT SHOOTING MODE
Set the Shooting Mode selector to “PRESET”.
1
–
FAR NEAR
Shift ZoomOFF
Tele MacroOFF
Gain UpAGC
Color FilterNOR.
Tape LengthT45
Title
Date/Time
Sub Menu
OFF
Happy Birthday
Happy Holidays
Our Family
Movie Star
Party Time
Merry Christmas
Wedding Day
Congratulations
(Set Character)
ACCESS MAIN MENU SCREEN
Press MENU.
2
ACCESS INSTANT TITLE MENU
SCREEN
Press + or – to move the highlight bar to “Title”, then
3
press NEAR. The Title menu appears.
SELECT PRESET TITLE
Press + or – to move the highlight bar to the desired
4
title. (To create an original title, refer to page 31.)
DISPLAY PRESET TITLE
Press MENU. The Title menu disappears, and the
5
selected title is displayed on the screen.
Congratulations
Shooting mode selector
+
MENU
–
FARNEAR
OFF
Happy Birthday
Happy Holidays
Our Family
Movie Star
Party Time
Merry Christmas
Wedding Day
Congratulations
(Set Character)
SET : MENU KEY
A B C D E F G H I
J K L M N O P Q R S
T U V W X Y Z Ä Ö Ü
À È Ì Ò Ù Ñ Æ Ø Å &
: . , ’ – / ! ? ¿ k
0 1 2 3 4 5 6 7 8 9
GR– AX
End
Clear
31
Character Generator
You can enter an original title of up to 18 characters.
Perform steps 1, 2 and 3 of the “Instant Title” procedure
(Z pg. 30) before continuing.
ACCESS CHARACTER SET MENU
Press + or – to move the highlight bar to “(Set
1
Character)”, then press NEAR. The Character Set
menu appears.
INPUT CHARACTERS
Press +, –, FAR or NEAR to move the blinking cursor
2
to the desired character, then press MENU. The
selected characters appear at the bottom of the
screen. Repeat as many times as desired (max. 18).
•To select the location of the next character, press
+, –, FAR or NEAR to move the blinking cursor to
the row of squares at the bottom of the screen,
then press FAR or NEAR to move the blinking
cursor underneath the desired location. Press +
when you’re done, and the blinking cursor returns
to the character grid.
END CHARACTER SETTING
Press +, –, FAR or NEAR to move the cursor to
3
“End”, then press MENU. The Character Set menu
disappears and the Preset Title menu reappears.
Press MENU to return to the normal screen.
NOTE:
To erase a character you entered mistakenly, place the
cursor by “Clear” by pressing +, –, FAR or NEAR, then
press MENU. All characters are deleted at once. Or, to
erase selected characters only, place the blinking cursor
at the character at the bottom you want to replace, then
press +/–. “ ” in the top left corner is highlighted.
SET : MENU KEY
A B C D E F G H I
J K L M N O P Q R S
T U V W X Y Z Ä Ö Ü
À È Ì Ò Ù Ñ Æ Ø Å &
: . , ’ – / ! ? ¿ k
0 1 2 3 4 5 6 7 8 9
GR– AX 8 6 0
EndClear
32
Recording
Time Indicator
Shooting
mode selector
FAR
+
–
NEAR
MENU
Interval Timer Indicator
1min
1s
RECORDING
Advanced Features (cont.)
Self-Timer
You can set the delay between pressing RECORDING
START/STOP and the actual start of recording. If you
secure the camcorder, you (or whomever is operating the
camcorder) can enter the scene before recording starts.
ENGAGE RECORD-STANDBY
MODE
Make sure the lens cover is open, then set the Power
1
switch to “CAMERA”.
SELECT MODE
Set the Shooting Mode selector to “PRESET”.
2
ACCESS MAIN MENU SCREEN
Press MENU.
3
ACCESS SUB MENU SCREEN
Press – to move the highlight bar down to “Sub
4
Menu”, then press NEAR. The Sub Menu screen
appears.
Shift ZoomOFF
Tele MacroOFF
Gain UpAGC
Color FilterNOR.
Tape LengthT45
Title
Date/Time
Sub Menu
Main Menu Screen
Tally/ELON
Interval Timer OFF
Rec TimeOFF
JLIP ID NO.07
Sub Menu Screen
Tally lamp
START/STOP
INT. TIME
REC TIME
RM-V706U (provided)
SET INTERVAL TIME
Press – to move the highlight bar down to “Interval
5
Timer”, press NEAR, then press + or – to cycle
through the choices. Stop when the desired time
appears. Choose from “15S”, “30S”, “1min”,
“5min”, or select to turn the function “OFF”. Then
press FAR twice to return to the Main Menu screen.
CLOSE MAIN MENU
Press MENU.
6
START DELAYED RECORDING
Press RECORDING START/STOP. If you set the tally
7
lamp to “ON” (Z pg. 29), it begins blinking, and
the blinking frequency increases about 5 seconds
before recording is to start. Once recording begins,
the lamp stops blinking but stays lit.
To Release Self-Timer . . .
.... while the tally lamp is blinking, press RECORDING
START/STOP to stop the blinking, then set “Interval
Timer” to “OFF” or press INT. TIME on the remote
control until “ ” disappears.
.... while the tally lamp is lit but not blinking, press set
“Interval Timer” to “OFF” or press INT. TIME on the
remote control until “ ” disappears.
NOTE:
I
nstead of performing steps 2 – 6, you can set the interval
time by pressing INT. TIME on the remote control.
Animation
Give stationary scenes or objects an illusion of
movement. This function allows you to shoot a
series of pictures, each slightly different, of the same
object for a brief period of time.
33
Time-Lapse
You can record sequentially at preset time spans.
Leaving the camcorder aimed at a specific subject,
you can record subtle changes over an extended
period of time.
ENGAGE RECORD–STANDBY
MODE
Make sure the lens cover is open, then set the
1
power switch to “CAMERA”.
SET RECORDING SPEED
Set SP/LP to SP (Z pg. 11).
2
SET RECORDING TIME
Press REC TIME on the remote control. Four
3
choices are available, and they appear in the
following order (each time REC TIME is
pressed): 1/4S (one-fourth of a second), 1/2S
(one-half of a second), 1S (one full second) and
5S (five seconds). Press again to release the
Animation mode.
•You can also set the recording time in the
Sub Menu screen (Z pg. 32). Press “–” to
move the highlight bar down to “Rec Time”,
press NEAR, and press + or – to cycle
through the choices. Then press MENU.
START RECORDING
Press RECORDING START/STOP after focusing
4
on the subject. The recording stops
automatically after the selected period of time.
ASSEMBLE SERIES OF
PICTURES
Repeat steps 3 and 4 for the desired number of
5
pictures.
CHECK YOUR WORK
Play back the series of pictures to see if the
6
results were satisfactory.
RELEASE ANIMATION MODE
Press REC TIME until “” disappears from the
7
viewfinder, or set “Rec Time” in the Sub Menu
screen to “OFF”.
NOTES:
●
For best results, make sure the camcorder is secured
when shooting in Animation or Time-Lapse mode.
●
Fade-in/out cannot be performed during
Animation or Time-Lapse shooting.
●
Before performing other operations following
Animation or Time-Lapse recording, make sure
the Animation or Time-Lapse mode is deactivated.
ENGAGE RECORD–STANDBY
MODE
Make sure the lens cover is open, then set the
power switch to “CAMERA”.
1
SET RECORDING SPEED
Set SP/LP to SP (Z pg. 11).
2
SET RECORDING TIME
Press REC TIME on the remote control. There
3
are four choices available, and they appear in
the following order (each time REC TIME is
pressed): 1/4S, 1/2S, 1S, and 5S. Press again to
reset.
•You can also set the recording time in the
Sub Menu screen. Press “–” to move the
highlight bar down to “Rec Time”, and press
NEAR, then press + or – to cycle through the
choices.
SET INTERVAL BETWEEN
RECORDINGS
Press INT. TIME on the remote control. There
4
are five choices available, and they appear in
the following order (each time INT. TIME is
pressed): OFF, 15S, 30S, 1 min, and 5 min.
Press again to reset.
•You can also set the interval time in the Sub
Menu screen. Press “–” to move the highlight
bar down to “Interval Time”, press NEAR,
and press + or – to cycle through the choices.
•Exposure control (Z pg. 20), manual
focusing (Z pg. 23) and D.I.S. settings
(Z pg. 20) should be performed at this point.
Once you perform step 5, these settings
cannot be changed.
START TIME-LAPSE
RECORDING
Press RECORDING START/STOP. Recording
and intervals alternate automatically.
5
RELEASE TIME-LAPSE MODE
To release when the tally lamp is not blinking,
press INT. TIME and REC TIME repeatedly
6
until “
when the tally lamp is blinking, press
RECORDING START/STOP to stop the
blinking, then press INT. TIME and REC TIME
repeatedly until “
set “Interval Timer” and “Rec Time” in the Sub
Menu screen to “OFF”.
” and “ ” disappear. To release
” and “ ” disappear, or
34
+
Compact video cassette
Recording safety hole
VCR
Compartment door
Sliding latch
Reels
PLAYBACK
Using The Cassette Adapter
Cassette Adapter
Use this to play back a VHS-C video cassette recorded
with this camcorder. It is fully compatible with any VHS
video cassette recorder. The C-P7U adapter is battery
powered and automatically performs tape loading and
unloading.
INSERT BATTERY
Slide the battery cover up to remove it, and install
1
one “R6(AA)” size battery as shown in the
illustration at left. Then reattach the cover.
INSERT CASSETTE IN ADAPTER
Slide the latch to open the adapter compartment
2
door, then insert the cassette and close the
compartment door.
PLAY BACK ON CONNECTED VCR
Load the cassette adapter into the VCR and play the
3
tape back as you would any other.
REMOVE CASSETTE FROM
ADAPTER
Slide the latch and the compartment door opens
4
automatically. Then insert your finger in the hole on
the underside of the adapter as shown in the
illustration at left, push up and remove the cassette.
NOTES:
●
During tape loading and unloading, do not touch the
reels for safety and tape protection.
●
During special-effect playback (slow motion, still
frame, etc.), the picture may vibrate or noise bars may
appear on the screen.
●
To record on a VCR using a compact cassette and the
adapter, cover the adapter’s recording safety hole with
adhesive tape.
PLAYBACK
Basic Connections
35
There are three basic types of connections. When making
the connections, refer also to your VCR and TV
instruction manuals.
Connection To A VCR [A]
(Editing, Dubbing and Playback)
NOTE:
Use the optional Audio and Video cables.
To AUDIO
and VIDEO
connectors
If your TV/VCR
has the SCART
connector, use
the provided
cable adapter.
VCR
Aerial
RF unit RF-V5E
(optional)
Audio and Video
cables (optional)
A
To AUDIO
and
VIDEO IN
connectors
To AUDIO, VIDEO and
DC OUT connectors
CONNECT CAMCORDER TO VCR
As shown in the illustration at left, connect the
1
optional Audio and Video cables between the
B
AUDIO and VIDEO connectors on the camcorder
and those on the VCR.
SUPPLY POWER
Turn on the camcorder, the VCR and the TV.
2
SELECT MODE
Set the VCR to its AUX input mode, and set the TV
3
to its VIDEO mode.
Connection To A TV With A/V Input
Connectors [B] (Playback ONLY)
NOTE:
Use the optional Audio and Video cables.
CONNECT CAMCORDER TO TV
As shown in the illustration at left, connect the
1
optional Audio and Video cables between the
AUDIO and VIDEO connectors on the camcorder
and those on the TV.
SELECT MODE
Set the TV to its VIDEO or AV mode (as specified in
2
its instructions).
NOTES:
●
It is recommended to use the AC Power
Adapter/Charger as the power supply instead
of the battery pack.
●
To monitor the picture and sound from the
camcorder without inserting a tape, set the
camcorder’s power switch to CAMERA, then
set your TV to the appropriate input mode.
●
If you have a TV or speakers that are not
specially shielded, do not place the speakers
adjacent to the TV as interference will occur
in the camcorder playback picture.
Connection To A TV With NO A/V Input
Connectors (Playback ONLY)
NOTE:
Use the optional RF-V5E RF unit.
* Refer to the RF-V5E instruction manual for connection
procedure.
36
FF
REW
POWER
M–1:23:45
PLAY/PAUSE
STOP
Tape counter
PLAYBACK
NOTE:
Make sure you connect your camcorder as directed in
“Basic Connections” (Z pg. 35).
Basic Playback
LOAD A CASSETTE
Slide EJECT to open the cassette holder, then insert
1
the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.
SELECT MODE
Set the Power switch to “PLAY”. The Power On
2
indicator lights.
PLAYBACK
Press PLAY/PAUSE. The playback picture appears in
3
the viewfinder and the connected TV.
STOP PLAYBACK
Press STOP.
4
Rewind or Fast-forward the tape
Press REW to rewind, or FF to fast-forward the tape
during Stop mode.
NOTE:
The camcorder shuts off automatically after about 5
minutes in STOP mode. To turn on again, set the Power
switch to “POWER OFF”, then to “PLAY”.
PLAYBACK
Features
37
COUNTER R/M
REW
RM-V706U (provided)
FF
REW
FF
PAUSE
PLAY
PLAY/PAUSETRACKING
STOP
FEATURE:Manual Tracking
PURPOSE:To eliminate noise bars that appear
OPERATION:1) Press either TRACKING button as
NOTES:●
FEATURE:Still Playback
PURPOSE:To pause during playback.
OPERATION:1) Press PLAY/PAUSE during
NOTE:
FEATURE:Shuttle Search
PURPOSE:To allow high-speed search in either
OPERATION:
NOTE:
FEATURE:Counter Memory Function
PURPOSE:To make it easier to locate a specific
OPERATION:1) Press COUNTER R/M and hold for
NOTES:●
on the screen.
many times as necessary for best
picture.
To reset TRACKING to the original
preset, press both TRACKING
buttons simultaneously.
●
Manual Tracking may not work
with tapes recorded on other VCRs
or camcorders.
playback.
2) To resume normal playback, press
PLAY/PAUSE again.
Noise bars appear and pictures may
become monochrome during Still
Playback. This is normal.
direction.
Forward Search
1) Press FF during playback. (Speed is
7 times normal.)
Reverse Search
1) Press REW during playback.
(Speed is as noted above.)
Noise bars appear and pictures may
become monochrome or darken in
Shuttle Search. This is normal.
tape segment.
more than 2 seconds. The counter
resets to “0:00:00”.
2) Press COUNTER R/M less than 1
second. “M” appears.
3) After recording or playback, press
STOP, then REW. The tape
automatically stops at or close to
0:00:00.
4) Press PLAY/PAUSE to start
playback.
The counter memory functions in
the FF and REW modes.
●
To disable Counter Memory
Function, press COUNTER R/M so
the “M” disappears.
38
EDIT
To AUDIO out
To VIDEO out
Audio and Video
cable (optional)
To AUDIO IN
To VIDEO IN
PLAY/PAUSE
Power switch
If your TV/VCR has
the SCART connector,
use the provided
cable adapter.
EDITING
Tape Dubbing
CONNECT EQUIPMENT
Following the illustration at left, connect the
1
camcorder and the VCR.
PREPARE FOR DUBBING
Set the camcorder’s power switch to PLAY, turn on
2
the VCR’s power, and insert the appropriate
cassettes in the camcorder and the VCR.
SELECT VCR MODE
Engage the VCR’s AUX and Record-Pause modes.
3
FIND EDIT-IN POINT
Engage the camcorder’s Play mode to find a spot
4
just before the edit-in point. Once it’s reached, press
PAUSE on the camcorder.
START EDITING
Press PLAY on the camcorder and engage the VCR’s
5
Record mode.
STOP EDITING TEMPORARILY
Engage the VCR’s Record-Pause mode and press
6
PAUSE on the camcorder.
EDIT MORE SEGMENTS
Repeat steps 4 through 6 for additional editing, then
7
stop the VCR and camcorder when finished.
VCR (Recording deck)
Random Assemble Editing [R.A.Edit]
Create edited videos easily using your camcorder as the
source player. You can select up to 8 “cuts” for automatic
editing, in any order you like. R.A.Edit is more easily
performed when the RM-V706U MBR (Multi-Brand
Remote) is set to operate with your brand of VCR (see
chart on the next page), but can also be performed by
operating the VCR manually.
CONTINUED ON NEXT PAGE
2 3
A
1
4
5 6
8
9
7
VCR CODE LIST
VCR BRAND
NAME
AKAI 6 2
BLAUPUNKT 1 3
FERGUSON 9 7
GRUNDIG 1 4
HITACHI 6 6
JVC A
B
C
MITSUBISHI
NEC
PANASONIC 1 3
BUTTONS
(A) (B)
6 4
7 7
9 8
3 2
3 4
6 3
9 1
9 6
9 3
6 7
6 8
3 7
3 8
1 7
1 1
9 4
1 8
MBR SET
VCR CTL
0
RM-V706U (provided)
VCR BRAND
NAME
PHILIPS 1 9
SANYO 3 6
SELECO, REX 9 1
SHARP
SONY
THOMSON,
TELEFUNKEN,
SABA,
NORDMENDE
TOSHIBA 6 9
BUTTONS
(A) (B)
9 5
1 1
9 4
9 1
9 6
1 2
3 3
3 5
9 6
1 5
1 `
6 5
6 `
3 9
3 1
9 1
9 6
9 7
3 2
6 1
39
SET REMOTE/VCR CODE
SET REMOTE TO OPERATE VCR
Turn off the power to the VCR and point the remote
1
toward the VCR’s infrared sensor. Then, referring to
the chart at left, press and hold MBR SET, and press
button (A) and then (B).
•The code is automatically set once you release the
MBR SET button, and the VCR’s power comes on.
OPERATE THE VCR
Make sure the VCR’s power is on. Then, while
2
holding VCR CTL, press the button on the remote for
the desired function. The functions the remote can
control are PLAY, STOP, PAUSE, FF, REW and VCR
REC STBY (you don’t need to press VCR CTL for this
one).
You’re now ready to try Random Assemble Editing.
IMPORTANT
Although the MBR is compatible with JVC VCRs and
those of many other makers, it may not work with yours
or may offer limited functions.
NOTES:
●
If the VCR’s power doesn’t come on in step 1, try
another code from the chart.
●
Some brands of VCR don’t come on automatically. In
this case, turn the power on manually and try step 2.
●
If the RM-V706U is not able to control the VCR, use
the controls on the VCR.
MAKE CONNECTIONS
CONNECT TO . . .
JVC VCR EQUIPPED WITH REMOTE
1
PAUSE TERMINAL
Connect the editing cable to the Remote PAUSE
terminal.
B
JVC VCR NOT EQUIPPED WITH REMOTE
2
PAUSE TERMINAL
Connect the editing cable to the R.A. EDIT connector.
C
NON-JVC VCR WITH NEITHER
2
Connect the editing cable to the RM-V706U’s
Pause-In jack.
All other connections are as shown in the illustration
on page 40.
CONTINUED ON NEXT PAGE
40
EDITING (cont.)
CANCELREW/FF
To JLIP
Editing cable
(provided)
C
To Remote
PAUSE
To Pause-In
PREPARE CAMCORDER
IN/OUT
R.A. EDIT
PLAY/PAUSE
STOP
Insert a recorded tape and set the Power switch to
2
“PLAY”.
PREPARE VCR
Turn the power on, insert a recordable tape and
3
engage the AUX mode (refer to VCR’s instructions).
SELECT SCENES
ACCESS R.A. EDIT COUNTER
DISPLAY
Press PLAY/PAUSE, then press R.A. EDIT and the
1
counter display appears in the viewfinder and the
screen of the connected TV.
To AUDIO and
VIDEO out
connectors
Audio and Video
cable (optional)
A
B
If your TV/VCR
has the SCART
connector, use
the provided
cable adapter.
REGISTER BEGINNING OF SCENE
Press REW or FF to locate the beginning of a scene
2
you want, then press IN/OUT to register that point.
The data appears under IN on the display.
REGISTER END OF SCENE
Press REW or FF to locate the end of the scene and
3
press IN/OUT to register it. The data appears under
OUT on the display. The total time of the registered
scene(s) is displayed at the bottom of the screen.
IN OUT
ç 1 0:00:25 0:01:05
2 0:03:18 0:03:31
3 0:02:33 0:02:53
4 0:04:11 --: -- :--
5
6
7
8
COUNTER 0:04:11
TOTAL 0:01:13
MAKE CORRECTIONS
Press CANCEL during steps 2 and 3 to erase the
5
most recently registered point.
NOTES:
●
The RM-V706U can be used to operate other camcorder
functions as well. Point the RM-V706U at the camcorder’s
remote sensor and press any of the following buttons
(function apears in parentheses):
— ON/OFF (camcorder R.A. EDIT)
— IN/OUT (camcorder IN/OUT)
— CANCEL (camcorder CANCEL)
●
There must be at least one second between an in-point and
its corresponding out-point.
●
To ensure correct operation, leave at least 15 seconds open
between scenes.
●
Blank portions of tape cannot be registered as in-points or
out-points.
●
If it takes more than 5 minutes to search for an in-point, the
VCR’s Record-Pause mode is cancelled and editing doesn’t
take place.
●
Pressing R.A.EDIT clears all in- and out-points from
memory.
●
Leave a small margin for error around each in-point to
ensure the scene is recorded in its entirety.
ORIGINAL TAPE (camcorder)
1 3 2
IN OUT IN OUT IN OUT
AUTOMATIC EDITING TO VCR
ENGAGE VCR’S RECORD–PAUSE
MODE
Point the remote control toward the VCR’s infrared
1
sensor and press VCR REC STBY, or manually
engage the VCR’s Record-Pause mode.
41
EDITED TAPE (VCR)
SUPPLEMENTAL INFORMATION ON THE REMOTE CONTROL
Player (JVC VCR)
To
R.A.EDIT
To
PAUSE IN
Editing cable
(3.5 ø -3.5 ø,
provided)
EDITSTOP
AV OUT
AV IN
Recording deck
RM-V706U
(provided)
BEGIN AUTOMATIC EDITING
Press EDIT on the camcorder, and the previously
2
selected scenes are copied to the VCR in the
specified order.
END AUTOMATIC EDITING
When all selected scenes have been copied, the
3
camcorder and VCR enter the still or pause mode.
Press STOP on both units.
•When finished editing, be sure to disconnect the
editing cable and the audio/video cable.
NOTES:
●
If you performed step 1C on page 39
(“MAKE CONNECTIONS”), keep the remote control
pointed at the VCR during editing.
●
The on-screen display only appears while the
camcorder searches for each scene.
●
There may be noise at in- or out-points on the edited
tape with certain VCRs.
Using the RM-V706U remote control, it is also possible to
perform deck-to-deck Random Assemble Editing. The
playback deck must be an R.A. Edit-capable JVC VCR. The
recording deck can be...
n a VCR other than JVC, or
n a JVC VCR which has neither a Remote PAUSE nor an R.A. EDIT
connector
How to use:
— Connect the playback deck and RM-V706U as shown on the
left.
— Set the RM-V706U to correspond to the brand of the recording
— For Random Assemble Editing procedure, please refer to the
Notes:
n RM-V706U cannot be used to control the playback deck.
n RM-V706U is capable of controling basic operations of the
n To put the recording deck in the Record-Pause mode, use the
Z P. 39)
deck. (
instruction manual of the JVC VCR you are using as the
playback deck.
recording deck. While pressing VCR CTL, press PLAY, STOP,
PAUSE, FF or REW for these functions. (Not possible with some
brands and models). Other buttons cannot be used.
controls on the recording deck itself.
42
POWER
COUNTER R/M
EDITING (cont.)
Insert Editing
You can record a new scene into a previously recorded
tape, replacing a section of the original recording with
minimal picture distortion at the in- and out-points. The
original audio remains unchanged.
NOTE:
Use the RM-V706U remote control unit to perform this
procedure.
SELECT MODE
Set the Power switch to “PLAY”.
1
FIND EDIT-OUT POINT
Locate the point and press PAUSE on the camcorder
2
or the remote control.
RESET COUNTER
Press and hold COUNTER R/M for more than
3
2 seconds to reset the tape counter, then press for
less than 1 second and make sure “M” appears in
the viewfinder.
w
M–0:12:34
Viewfinder
RM-V706U (provided)
REW
PLAY
INSERT
PAUSE
Insert editing
indicator
Tape Counter
FIND EDIT-IN POINT
Press REW to go a little beyond the beginning of the
4
scene you want to replace, press PLAY to view the
recorded tape, and press PAUSE at exactly at the
point where the new scene should start.
ENGAGE INSERT EDITING MODE
Press and hold INSERT, and without releasing
5
INSERT, press and release PAUSE. The Insert
mode is engaged, and the scene the camcorder is
aimed at appears on the screen.
BEGIN INSERT EDITING
Press RECORDING START/STOP. When the counter
6
reaches “0:00:00”, editing stops automatically and
the camcorder enters the Insert-Pause mode.
END INSERT EDITING
Press STOP.
7
•If a Fade/Wipe effect was in use during Insert
Editing, wait about 10 seconds after pressing STOP
before performing other operations.
NOTES:
●
After step 5, Retake (Z pg. 16) can be performed.
●
The tape may stop slightly before or after the
designated end point, and noise bars may appear.
Neither indicates a defect in the unit.
●
Only video signal is recorded in the Insert Editing
mode.
Audio dubbing indicator
Viewfinder
External Mike
Mike
REW
PLAY
A.DUB
PAUSE
RM-V706U (provided)
M-0:05:20
43
Audio Dubbing
You can record a new soundtrack on a prerecorded tape
e
(normal audio only).
** Perform steps 1, 2 and 3 of the Insert Editing procedure
(Z pg. 42) before continuing.
•The sound comes from the built-in mike (or an external
mike if connected).
FIND EDIT-IN POINT
Press REW to go a little beyond the beginning of the
1
scene onto which you want to dub new audio, press
PLAY to view the recorded tape, then press PAUSE
at exactly the point where dubbing should start.
ENGAGE AUDIO DUB STANDBY
MODE
Press and hold A. DUB, and without releasing
2
A. DUB, press and release PAUSE.
BEGIN AUDIO DUBBING
Press PLAY/PAUSE. When the counter reaches
3
“0:00:00”, Audio Dubbing stops automatically and
the camcorder enters the Audio Dub-Standby mode.
END AUDIO DUBBING
Press STOP.
4
NOTES:
●
Do not press FF or REW during Audio Dub-Standby, or
the edit points will not be accurate.
●
If the mike is too close to the TV, or if the TV’s volume
is too high, whistling or howling may occur.
●
If the camcorder is connected to the TV, noise may
appear on the screen and pictures may become
monochrome during Audio Dubbing procedure. This
phenomenon is not recorded on the tape.
NOTES (for Insert Editing and
Audio Dubbing):
●
Insert Editing and audio Dubbing may not work
correctly if the tape contains blank segments, or if the
recording speed was changed during the original
recording.
●
To edit/dub onto a tape with the recording safety tab
removed, cover the hole with adhesive tape.
●
Do not press STOP during Insert Editing or Audio
Dubbing, or the edit points will not be accurate.
●
During Insert Editing and Audio Dubbing, when Insert–
Pause or Audio Dub–Standby is engaged, the counter
may go slightly past “0:00:00”. Recording, however,
stops at exactly 0:00:00.
44
Set to “POWER OFF”
BATT. RELEASE
LENS COVER
open/close switch
EJECT
USER MAINTENANCE
After Use
Set the Power switch to “POWER OFF” to turn off
1
the camcorder.
Slide EJECT to open the cassette holder, then remove
2
the cassette.
Close and lock the cassette holder by pressing
3
PUSH.
Press BATT. RELEASE to remove the battery pack.
4
Slide the LENS COVER open/close switch to close
5
the lens cover.
Cleaning The Camcorder
CLEAN EXTERIOR
Wipe gently with a soft cloth.
1
CLEAN LENS
Blow it with a blower brush, then wipe gently with
2
lens cleaning paper.
PUSH
Remove
Marks
REMOVE EYEPIECE
Turn the eyepiece counterclockwise and pull it out.
3
CLEAN VIEWFINDER
Remove dust using a blower brush.
4
RE-ATTACH EYEPIECE
Align the marks, re-attach the eyepiece and turn it
5
clockwise.
NOTES:
●
Avoid using strong cleaning agents such as benzine or
alcohol.
●
Cleaning should be done only after the battery pack
has been removed or other power units have been
disconnected.
●
Mold may form if the lens is left dirty.
TROUBLESHOOTING
SYMPTOMPOSSIBLE CAUSE(S)
POWER
No power is supplied.
The power suddenly goes off and
doesn’t come back on by itself.
RECORDING
Recording cannot be performed.
Recording does not start.
PLAYBACK
The tape is running, but there’s no
playback picture.
Noise bars appear in the playback
picture.
Playback picture is blurred or
interrupted.
The counter indication is blurred
during Still playback.
45
● The battery pack has not been attached correctly
(Z pg. 6).
● The battery pack is not charged (Z pg. 6).
● The power supply has not been correctly connected
(Z pg. 7).
● The battery pack has completely discharged.
● Remove the cassette and disconnect the power source,
then after a few minutes, try turning the power back on. If
it still doesn’t come on, consult your nearest JVC dealer.
● The recording tape’s Erase Protection tab is missing.
Cover the hole with adhesive tape. (Some tapes have
sliding tabs. In this case, check the position of the tab.)
● The camcorder Power switch has not been set to
“CAMERA” (Z pg. 14).
● The TV has not been set to its VIDEO mode.
● If A/V connection is used, the TV’s VIDEO/TV switch has
not been set to VIDEO.
● The RF unit has not been set to the correct channel.
● Manual Tracking has not been performed (Z pg. 37).
● The video heads are dirty or worn out. Consult your
nearest JVC dealer for head cleaning or replacement.
● This is normal.
TAPE TRANSPORT
The tape stops during fast-forward or
rewind.
Rewinding or fast-forwarding cannot
be performed.
● The Counter Memory Function has been activated
(Z pg. 37).
● The tape is already fully wound on one reel or the other.
46
SYMPTOMPOSSIBLE CAUSE(S)
OTHER
The tape won’t eject.
Some functions are not available.
Vertical white lines appear when
shooting a very bright object.
Bright, crystal-shaped spots appear
in the viewfinder.
The picture is blurred in the Quick
Review or Retake mode.
An error number (E03) appears in
the viewfinder.
The image is out of focus.
A character generator title and the
date and time displays disappear
from the viewfinder.
Even though the Lens Cover is open,
the Lens Cover Warning indicator
blinks.
TROUBLESHOOTING (cont.)
● The battery pack is running low.
● The Shooting Mode selector is set to “FULL AUTO“.
● This sometimes occurs when the contrast between the
background and the object is great. It is not a defect of
the camcorder.
● Sunlight is directly entering the lens.
● This is normal while recording in the LP mode. Some noise
may be present while recording in the SP mode (Z pg. 11).
● Turn the camcorder’s power off, then disconnect the
power source. After a few minutes, try turning the power
on again. If the error number still appears in the
viewfinder, consult your nearest JVC dealer.
● The diopter needs to be adjusted (
● The scene being shot is adversely affecting the operation
of Auto Focus (Z pg. 22).
● Shift Zoom (Z pg. 15) is in use. Beyond the optical zoom
limit, magnification is achieved through digital
processing. This will cause the image to look as though
it’s out of focus.
● If you remove the power source from the camcorder while
the power is on, all settings and selections are erased.
Make sure to turn the camcorder’s power off before
disconnecting the power source.
● The Lens Cover Warning indicator may blink when the
camcorder is used in dark areas, regardless of the position
of the Lens Cover.
Z pg. 8).
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio,
etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit
(battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and
proceed as usual from the beginning.
INDEX Controls
47
#$
iou
%
^&*(
12
5
468 97
werty
3
0
!
@
)
q
Controls
1 Multi-Function Control
[FAR/NEAR/+/– Buttons] ........................ Z pg. 9
2 EFFECT/PROG.AE Button .................... Z pg. 24
6 Tape Length Display ............................ Z pg. 10
7 Battery Pack Remaining Power
Indicator ............................................... Z pg. 6
Changes as follows according to the battery
pack’s remaining power level:
“”. When the power is
almost gone, the indicator blinks, then the unit
shuts off. Replace the battery pack with a fully
charged one.
(Note: The symbol containing 3 darkened
squares — — does not necessarily mean
that the battery pack is fully charged.)
8 Cassette Indicator
Blinks when no cassette inserted;
remains steadily lit when cassette inserted.
0 Exposure Level Display ....................... Z pg. 20
! White Balance Mode Indicator ............Z pg. 21
@ Record–Standby Mode Indicator ......... Z pg. 14
# Index Code Marking ............................Z pg. 16
T45
+
MWB
02
W
9
0
!
t
@
INDEX
#
T
$
10:45:13
%^*&
$ Clock Warning
Once the power is turned on and the indicator
blinks for about 10 seconds, perform the date
and time settings (
complete, turn the power off and disconnect the
power source. If you re-connect it and turn the
power on and the indicator is blinking, that
means that the clock (lithium) battery is either
not installed or has discharged. Install, or replace
the old battery with, a new one (
% Time Display ....................................... Z pg. 18
^ Instant Title Display ............................. Z pg. 30
& Tape End Display ................................ Z pg. 14
Appears when the end of the tape is reached
during playback, recording or fast-forward.
* Date Display ....................................... Z pg. 18
( Condensation Warning
When this indication appears, all functions are
disabled. Turn the unit off (without removing the
power source) for a few hours, and when you
turn it on again the indicator should disappear.
) Main Menu Setting Change
Indicator ............................................. Z pg. 29
q FADE/WIPE indicator .......................... Z pg. 26
w D.I.S. (Digital Image Stabilizer)
Indicator ............................................. Z pg. 20
e EFFECT/PROG.AE indicator ................. Z pg. 24
r Recording Indicator .............................Z pg. 14
t Zoom Indicator Bar ............................. Z pg. 15
Z pg. 9). After setting is
Z pg. 8).
50
A
AC Power Adapter .................................. pg. 7
•The video light becomes extremely hot. Do not
touch it either while in operation or soon after
turning it off, otherwise serious injury may result.
•Do not place the camcorder into the carrying case
immediately after using the video light, since it
remains extremely hot.
•When operating, keep a distance of about 30 cm
between the video light and people or object.
•Do not us e near flammable or explosive
materials.
Serious malfunctioning
If malfunctioning occurs, stop using the unit
immediately and consult your local JVC
General Battery Precautions
•When the C-P6U or C-P7U (cassette adapter) is
not functioning even when correctly operated, the
batteries are exhausted. Replace them with fresh
ones.
•Use only the following battery:
C-P6U or C-P7U ....................... R6(AA) size
Please make note of the following rules for battery
use. When misused, batteries can leak or explode.
1. Refer to the C-P6U/C-P7U instructions when
replacing batteries.
2. Do not use old and new batteries together.
3. Do not use two different kinds of batteries.
Although sizes may be the same, voltages may
differ.
4. Do not expose batteries to excessive heat as they
can leak or explode.
5. Do not dispose of batteries in a fire.
6. Remove batteries from the unit if it is to be stored
for an extended period to avoid battery leakage
which can cause malfunctions.
Battery Packs
The supplied battery pack is a
nickel-cadmium battery. Before
using the supplied battery pack or
an optional battery pack, be sure to
read the following cautions:
1. To avoid hazard . . .
.... do not burn.
.... do not short-circuit the terminals.
.... do not modify or disassemble.
.... use only specified chargers.
Terminals
51
2. To prevent damage and prolong service
life . . .
.... do not subject to unnecessary shock.
.... avoid repeated charging without fully
discharging.
.... charge in an environment where
temperatures are within the tolerances shown
in the chart below. This is a chemical
reaction type battery—cooler temperatures
impede chemical reaction, while warmer
temperatures can prevent complete charging.
.... store in a cool, dry place. Extended exposure
to high temperatures will increase natural
discharge and shorten service life.
.... avoid prolonged uncharged storage.
.... remove from charger or powered unit when
not in use, as some machines use current
even when switched off.
3. To prevent damage to the camcorder . . .
.... replace the battery pack when it begins to
deliver less recording time per charge.
NOTE:
It is normal for the battery pack to be warm after
charging, or after use.
Temperature Ranges
Charging ................................... 10°C to 35°C
Operation ................................. 0°C to 40°C
Storage...................................... –10°C to 30°C
NOTES:
●
Recharging time is based on room temperature of 20°C.
●
The lower the temperature, the longer recharging takes.
Cassettes
To properly use and store your cassettes, be sure to
read the following cautions:
1. During use . . .
..... make sure the cassette bears the VHS-C mark.
..... be aware that recording onto prerecorded tapes
automatically erases the previously recorded
video and audio signals.
..... make sure the cassette is positioned properly
when inserting.
..... do not load and unload the cassette
repeatedly without allowing the tape to run at
all. This slackens the tape and can result in
damage.
..... do not open the front tape cover. This exposes
the tape to fingerprints and dust.
2. Store cassettes . . .
..... away from heaters or other heat sources.
..... out of direct sunlight.
..... where they won’t be subject to unnecessary
shock or vibration.
..... where they won’t be exposed to strong magnetic
fields (such as those generated by motors,
transformers or magnets).
..... vertically, in their original cases.
52
Main Unit
1. For safety, DO NOT . . .
..... open the camcorder’s chassis.
..... disassemble or modify the unit.
..... short-circuit the terminals of the battery pack.
Keep it away from metallic objects when not in
use.
..... allow inflammables, water or metallic objects to
enter the unit.
..... remove the battery pack or disconnect the
power supply while the power is on.
..... leave the battery pack attached when the
camcorder is not in use.
2. Avoid using the unit . . .
..... in places subject to excessive humidity or dust.
..... in places subject to soot or steam such as near a
cooking stove.
..... in places subject to excessive shock or vibration.
..... near a television set.
..... near appliances generating strong magnetic or
electric fields (speakers, broadcasting antennas,
etc.).
..... in places subject to extremely high (over 40°C)
or extremely low (under 0°C) temperatures.
3. DO NOT leave the unit . . .
..... in places of over 50°C.
..... in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
..... in direct sunlight.
..... in a closed car in summer.
..... near a heater.
4. To protect the unit, DO NOT . . .
..... allow it to become wet.
..... drop the unit or strike it against hard objects.
..... subject it to shock or excessive vibration during
transportation.
..... keep the lens directed at extremely bright
objects for long periods.
..... direct the eyepiece of the viewfinder at the sun.
..... carry it by holding the viewfinder.
..... swing it excessively when using the shoulder
strap.
5. This camcorder features a built-in head cleaner
which automatically cleans the heads and head
drum when a cassette is loaded or unloaded. If,
however, the heads become dirty and cause
blurriness or interruption in the playback
picture, consult your nearest JVC dealer.
About moisture condensation . . .
• You have observed that pouring a cold liquid into a
glass will cause drops of water to form on the glass‘
outer surface. This same phenomenon occurs on the
head drum of a camcorder when it is moved from a
cool place to a warm place, after heating a cold
room, under extremely humid conditions or in a
place directly subjected to the cool air from an air
conditioner.
• Moisture on the head drum can cause severe damage
to the video tape, and can lead to internal damage to
the camcorder itself.
CAUTIONS (cont.)
Serious malfunctioning
If malfunctioning occurs, stop using the unit
immediately and consult your local JVC dealer.
SPECIAL NOTES ON VIDEO HEADS
Dust and dirt on video heads
1. Always allow enough time for your camcorder to
acclimatize to its environment before using it.
2. Do not use the unit in areas of high humidity.
(Typical areas of high humidity are given below.)
•From being used or stored in a very cold outdoor
situation, then immediately being used in a warm
indoor situation.
•From being used or stored in a cool air-conditioned
situation, then being used in a high-humidity
outdoor situation.
•Other areas where rapid large temperature changes
can occur.
3. Taking care of your “C” format video cassette tapes..
•Store the video cassette tapes in a vertical position,
complete in their cassette cases.
•During transportation, always store cassettes in
their cassette cases.
4. Check recorded information at regular intervals. If
the camcorder is equipped with a quick review
facility, use this facility to check whether the picture
is clear or not.
If the quick review or playback picture is not clear,
then the video heads may be dirty.
Note:
As a maladjusted tracking control can give similar
symptoms to dirty video heads, please check that the
tracking control of the unit is in the centre position.
Cleaning the video heads
Accumulation of dirt and other particles on the video
heads may cause the playback picture to become
blurred or interrupted. Although this camcorder is
equipped with a built-in head cleaner which
automatically cleans the heads, reducing the likelihood
of dirty heads, if such troubles are encountered, we
recommend the use of the cleaning cassette specifically
designed for JVC camcorders, model number TCC-2U.
Please use the cleaning cassette as indicated below:
1 After inserting the cleaning cassette, activate the
Play mode for a maximum of 15 seconds (normally,
5 seconds is sufficient).
2 Remove the cleaning cassette and check the
playback picture with a previously good-recorded
tape.
3 If the picture is clear, then recording on a new tape
can begin when desired.
4 If the picture is not clear, repeat steps 1 to 3 up to
two more times.
5 If the picture is still unclear, consult your local JVC
dealer.
Important Note:
If heads have become dirty, the associated tape will
also be damaged, please do not use the tape again.
* A built-in head cleaner automatically cleans the
video heads and head drum whenever a cassette is
loaded and unloaded to reduce head clogging.
* Cleaning cassette TCC-2U is available from your JVC
local dealer.
SPECIFICATIONS
GENERAL
Format: VHS PAL standard
Power source: DC 6V
Power consumption
Light on: 8.7 W
Light off: 5.7 W
Signal system: PAL-type
Video recording system
Luminance: FM recording
Colour: Converted sub-carrier
direct recording
*Conforms to VHS
*standard
Cassette: VHS-C cassette
Tape speed
SP: 23.39 mm/sec
LP: 11.70 mm/sec
Recording time Max.
SP: 60 minutes
(with EC-60 cassette)
LP: 120 minutes
(with EC-60 cassette)
Operating temperature : 0°C to +40°C
Operating humidity: 35% to 80%
Storage temperature: –20°C to +50°C
Weight: Approx. 810 g
Dimensions
(Including viewfinder) : 109 (W) x 113 (H)
x 226 (D) mm
CAMERA
Pick up: 1/4” format CCD
Lens: F1.2, f = 4.1 to 57.4 mm,
14:1 power zoom lens
with auto iris and macro
control, filter diameter
46 mm
Viewfinder: Electronic viewfinder
with 0.5” black/white
CRT
White balance
adjustment: Auto/Manual adjustment
53
AC POWER ADAPTER/BATTERY CHARGER
(AA-V11EK) SPECIFICATIONS
Power requirement: AC 110 to 240 V`,
50/60 HZ
Power consumption: 23 W
Output
Charge: DC 8.5 V , 1.3 A
VTR: DC 6.3 V , 1.8 A
Charging system: Constant current, peak
detection, timer
controlled
Dimensions: 150 (W) x 42 (H)
x 68 (D) mm
Weight: Approx. 400 g
CASSETTE ADAPTER (C-P7U)
SPECIFICATIONS
Dimensions: 188 (W) x 25 (H)
x 104 (D) mm
Weight: Approx. 240 g
Accessory: “R6 (AA)”-size battery x 1
Provided Accessories ...................... Z pg. 4
Optional Accessories
•Battery Packs BN-V12U, BN-V22U, BN-V25U
•Car Battery Charger BH-V3E
•Car Battery Cord AP-V7E
•RF Unit RF-V5E
•Compact VHS-C Cassettes EC-60/45/30
•Active Carrying Bag CB-V7U
* Some acccessories are not available in some
areas. Please consult your nearest JVC dealer for
details on accessories and their availability.
Specifications shown are for SP mode unless
otherwise indicated. E. & O. E. Design and
specifications subject to change without notice.
