CD RECEIVER

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

KD-G401

• This unit is equipped with the display demonstration. To cancel it, see page 6.

• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf Seite 6 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référez-vous à la page 6.

• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 6 voor het annuleren van deze functie.

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

GET0195-001A

[E/EX]

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

ENGLISH

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to reset your unit

While holding SEL (select), press (standby/on attenuator) for more than 2 seconds. This will reset the built-in microcomputer.

(standby/on attenuator)

SEL (select)

Notes:

• Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• If a disc is in the unit, it will eject when you reset the unit. Be careful not to drop the disc.

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

BASIC OPERATIONS ....................... 5

Turning on the power ................................ 5

Canceling the display demonstration ........ 6

Setting the clock ........................................ 7

RADIO OPERATIONS ...................... 8

Listening to the radio ................................. 8

Storing stations in memory ....................... 10

Tuning in to a preset station ...................... 11

RDS OPERATIONS ......................... 12

What you can do with RDS ....................... 12

Other convenient RDS functions and

adjustments ............................................ 17

CD OPERATIONS ........................... 19

Playing a CD ............................................. 19

Locating a track or a particular portion

on a CD .................................................. 20

Selecting CD playback modes .................. 21

Playing a CD Text ...................................... 22

Prohibiting disc ejection ............................ 22

MP3 INTRODUCTION ...................... 23

What is MP3? ............................................ 23

How are MP3 files recorded and played

back? ...................................................... 23

MP3 OPERATIONS ......................... 24

Playing an MP3 disc ................................. 24

Locating a file or a particular portion

on a disc ................................................. 25

Selecting MP3 playback modes ................ 27

SOUND ADJUSTMENTS ................... 28

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 28

Adjusting the sound .................................. 29

OTHER MAIN FUNCTIONS ................ 30

Changing the general settings (PSM) ....... 30

Detaching the control panel ...................... 33

USING THE REMOTE CONTROLLER ..... 34

Location of the buttons .............................. 35

TROUBLESHOOTING ...................... 36

MAINTENANCE ............................. 38

Handling discs ........................................... 38

SPECIFICATIONS........................... 39

ENGLISH

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

KD-G401

1 (standby/on attenuator) button 2 SEL (select) button 3 FM/AM button 4 CD button 5 Loading slot 6 Display window 7 0 (eject) button 8 TP PTY (traffic programme/programme type)

button

9 Remote sensor

• You can control this unit with an optionally purchased remote controller.

p 5 (up) button

+10 button

q Control dial w Number buttons e EQ (equalizer) button r MO (monaural) button t SSM (Strong-station Sequential Memory)

button

y RPT (repeat) button u RND (random) button i MODE button o DISP (display) button ; 4/¢ buttons a (control panel release) button

s ∞ (down) button

–10 button

Display window

d Tuner reception indicators

MO (monaural), ST (stereo)

f RDS indicators

TP, PTY, AF, REG

g MP3 indicator h CD indicator j Playback mode/item indicators

RND (random), (disc), (folder), RPT (repeat)

k LOUD (loudness) indicator l EQ (equalizer) indicator / Sound mode (C-EQ: custom equalizer)

indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

z Disc information indicators

TAG (ID3 Tag), (folder), (track/file)

x Main display c Source display

Volume level indicator

v Tr (track) indicator

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 8 – 18.

To play a CD,

see pages 19 – 22.

To play an MP3 disc,

see pages 24 – 27.

Adjust the volume.

To increase the volume

To decrease the volume

Adjust the sound as you want. (See pages 28 and 29.)

To drop the volume in a moment

Press briefly while listening to any source. “AT T” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Volume level appears.

Volume level indicator

ENGLISH

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.)

Select “DEMO” if not shown on the display.

Select “DEMO OFF.”

DEMO OFF

Finish the setting.

To activate the display demonstration, repeat

the same procedure and select “DEMO ON” in step 3.

DEMO ON

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

• During AM and FM non-RDS station operation:

Frequency

• During FM RDS Station operation:

Station name

• During disc operation:

Elapsed

playing time

Track title

Notes:

• While playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• For indication change while playing a CD Text or an MP3 disc, see also pages 22 and 25.

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

Clock

Station frequency

Programme typeClock

Clock

Disc title / performer

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have

pressed for searching.

Searching for a station manually: Manual search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

When an FM stereo broadcast is hard to receive

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

“MODE” is still flashing on the display, so that “MONO” appears on the display. Each time you press the button, monaural mode turns on and off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

ENGLISH

Tune in to a station you want while “M” (manual) is still flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency

keeps changing (in 50 kHz intervals for FM and 9 kHz for AM—MW/LW) until you release the button.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

ENGLISH

station Sequential Memory)

• Manual preset of both FM and AM stations

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons—No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Press MODE to enter the functions mode.

Press and hold SSM for about 2 seconds.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 92.5 MHz).

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

“SSM” flashes, then disappears when automatic preset is over.

Press and hold the number button (in this example, 1) for more than 2 seconds.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 10 and 11.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

ENGLISH

Preset number flashes for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

FM1 FM2 FM3 AM

Select the number (1 – 6) for the preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 18.) Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF indicator

REG indicator

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.)

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF,” “AF REG,” or “OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station or CD).

ENGLISH

• TA Standby Reception will not work if you are listening to an AM station.

Press TP PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 17) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source

ENGLISH

(another FM station or CD).

Finish the setting.

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 31.)

Select “PTY STBY” (standby) if not shown on the display.

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display and is stored into memory.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search for your favorite programme type,

see page 16.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

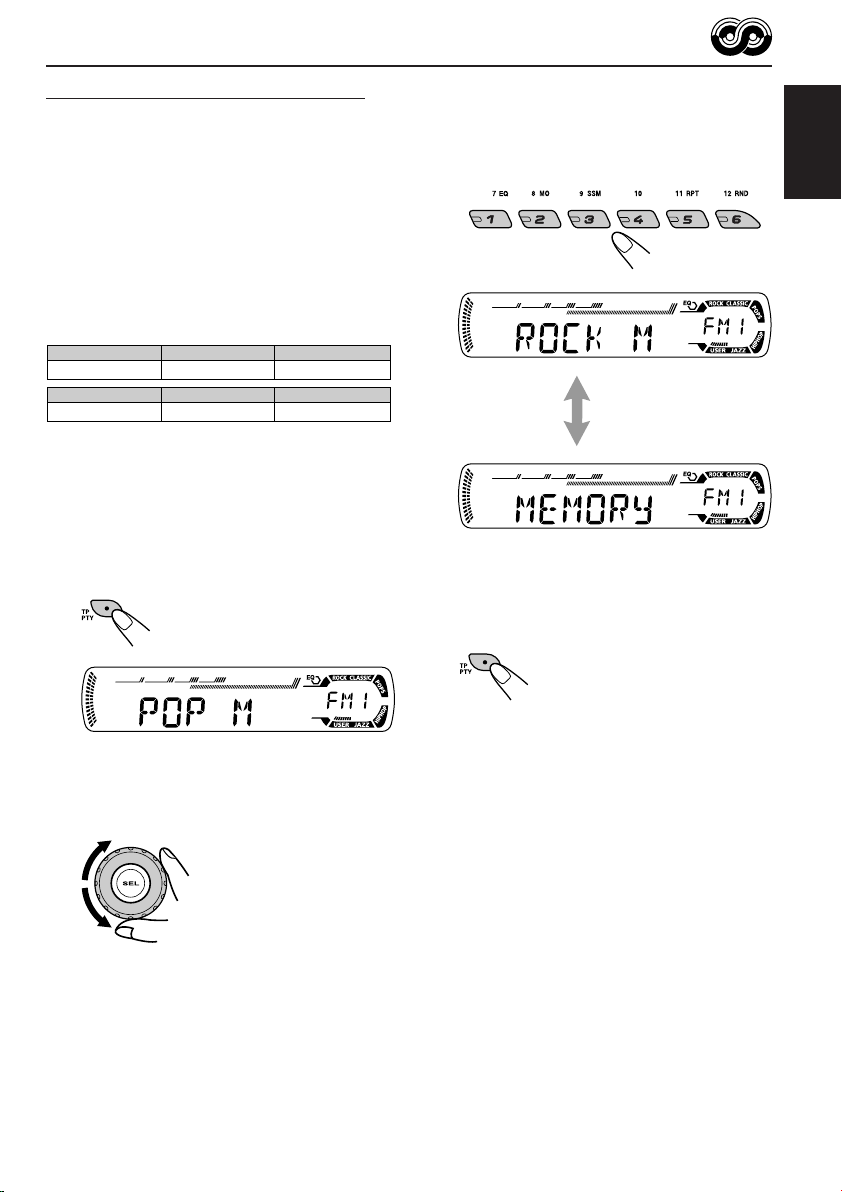

To store your favorite programme types

Press and hold TP PTY for more than 2 seconds while listening to an FM station.

VARIED

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Selected PTY code and “MEMORY” appear alternately for a while.

Press and hold TP PTY for more than 2 seconds to exit from this mode.

ENGLISH

The last selected PTY code appears.

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display.

To search for your favorite programme type

Press and hold TP PTY for more than 2 seconds while listening to an

ENGLISH

FM station.

Press ¢ or 4 to start PTY search for your favorite programme.

The last selected PTY code appears.

To select one of your favorite programme type

To select any one of the twenty-nine PTY codes.

Ex.: When “ROCK M” is selected

• If there is a station broadcasting a programme

of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 30.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 30.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA V O L”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 30” or “VOL 50” (depending on the amplifier gain control setting: see page 32).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 30.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJ” (adjustment).

3 Turn the control dial counterclockwise to select

“OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

ENGLISH

To reactivate clock adjustment, repeat the

same procedure and select “ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

CHILDREN: Entertainment programmes for

on current news or affairs

advice on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking, fishing,

etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in an

investigative style

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1

broadcasting on

frequency E

Programme 1 broadcasting on frequency D

CD OPERATIONS

ENGLISH

Refer “MP3 OPERATIONS” on pages 24 to 27 for operating MP3 discs.

Playing a CD

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

CD indicator

Current source indication

Total playing time of the inserted disc

Total track number of the inserted disc

Notes:

• When a CD is inserted upside down, “EJECT” appears on the display and the CD automatically ejects.

• If there is no CD in the loading slot, you cannot select CD as the source. “NO DISC” appears on the display.

• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

To stop play and eject the CD

Press 0. CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station).

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Elapsed playing time Current track

number

All tracks will be played repeatedly until you stop playback.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

ENGLISH

Press and hold ¢ , while playing a CD, to fast-forward the track.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

2 Press +10 or –10.

Press and hold 4, while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or –10 button, the

track skips to the nearest higher or lower track with a track number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and –10 buttons” below).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while

playing track number 6

(Three times) (Twice)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 :To select track number 8 while

playing track number 36

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

RND and (disc) indicators

When disc random play is turned on, the RND and indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while

“MODE” is still flashing on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

ENGLISH

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Clock and

Current track number

Notes:

• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 32. Some characters or symbols will not be shown (and be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• When track title is shown, the Tr indicator and current track number also appear on the right side of the display.

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD, press and hold 0 for more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD, press and hold 0 again for more than 2 seconds. “EJECT” appears on the display, and the disc ejects from the loading slot.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*).

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

• For details information about the MP3 discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page

25.)

• Some characters cannot be shown correctly.

• If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders” —in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• This unit cannot read or play an MP3 file without the extension code <.mp3>.

• This unit is not compatible with MP3 file encoded with Layer 1 and Layer 2 formats.

• This unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

ENGLISH

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

02 03

: Folder and their playback

order

: MP3 files and their playback

order

ENGLISH

MP3 OPERATIONS

Refer also to “CD OPERATIONS” on pages 19 to 22.

Playing an MP3 disc

Insert an MP3 disc into the loading slot.

Note on One-Touch operation:

When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

CD indicator

Current source indication

MP3 indicator

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 25.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the disc automatically ejects from the loading slot.

Total folder number

Ex.: When the disc contains 19 folders and

144 MP3 files

All files will be played repeatedly until you stop playback.

Total file number

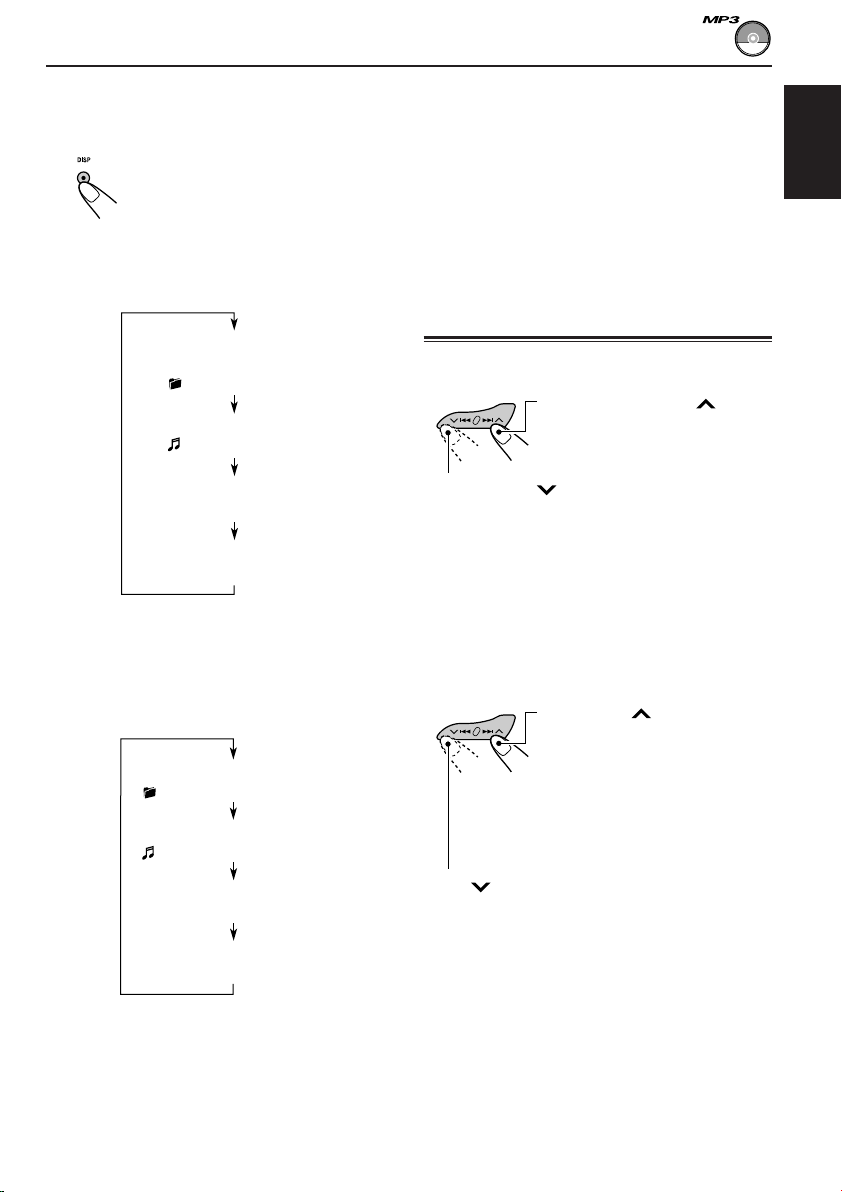

To change the display information

While playing back an MP3 file, you can change the disc information shown on the display.

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see page 32)

Album name / performer

(folder name*)

(TAG lights up on the display)

Track title (file name*)

(TAG lights up on the display)

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 32.

• When folder or file name is shown, current folder number or the Tr indicator and current file number also appear on the right side of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

Press and hold ¢ while playing a disc, to fast-forward the file.

ENGLISH

Elapsed playing time and

Current file number

Clock and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISP” is set to “TAG OFF”

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

Press and hold 4 while playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

CONTINUED ON THE NEXT PAGE

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a disc.

ENGLISH

2 Press +10 or –10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* First time you press +10 or –10 button, the

file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th,

20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and –10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 :To select file number 8 while playing file number 36

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3 files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

To skip to the next or previous folder

Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ∞ (down) while playing an MP3 disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3 files, it is skipped.

Mode

FLDR RND RND and All files of the

DISC RND RND and All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press MODE to enter the

functions mode while playing an MP3 disc.

ENGLISH

Selecting MP3 playback modes

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the MP3 disc at random.

1 Press MODE to enter the

functions mode while playing an MP3 disc.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

RND and (folder) indicators

Ex.: When you select “FLDR RND”

2 Press RPT (repeat), while

“MODE” is still flashing on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ:

ENGLISH

custom equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER

ROCK

CLASSIC

POPSHIP HOPJAZZ

CLASSICROCKUSER

Indication pattern changes for each sound mode except for “USER.”

Ex.: When you select “ROCK”

Indication For: Preset values

BAS TRE LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap +02 00 ON

music

JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 29.

JAZZ

HIP HOP

POPS

Adjusting the sound

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS*

TRE*

FAD *

BAL Adjust the left L06 (Left only)

LOUD*1Boost low and high

VOL*

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

frequencies to LOUD ON produce a well- | balanced sound LOUD OFF at low volume level.

Adjust the volume. 00 (min.)

TRE

(treble)

LOUD

(loudness)

FAD

(fader)

BAL

(balance)

| +06 (max.)

| 30 or 50 (max.)*

When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set the fader level to “00.”

Normally the control dial works as the volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control setting. (See page 32 for details.)

Adjust the setting.

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and

reassign the preset values listed in the table on page 28.

ENGLISH

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed in the table on

ENGLISH

page 31 by using the PSM (Preferred Setting Mode) control.

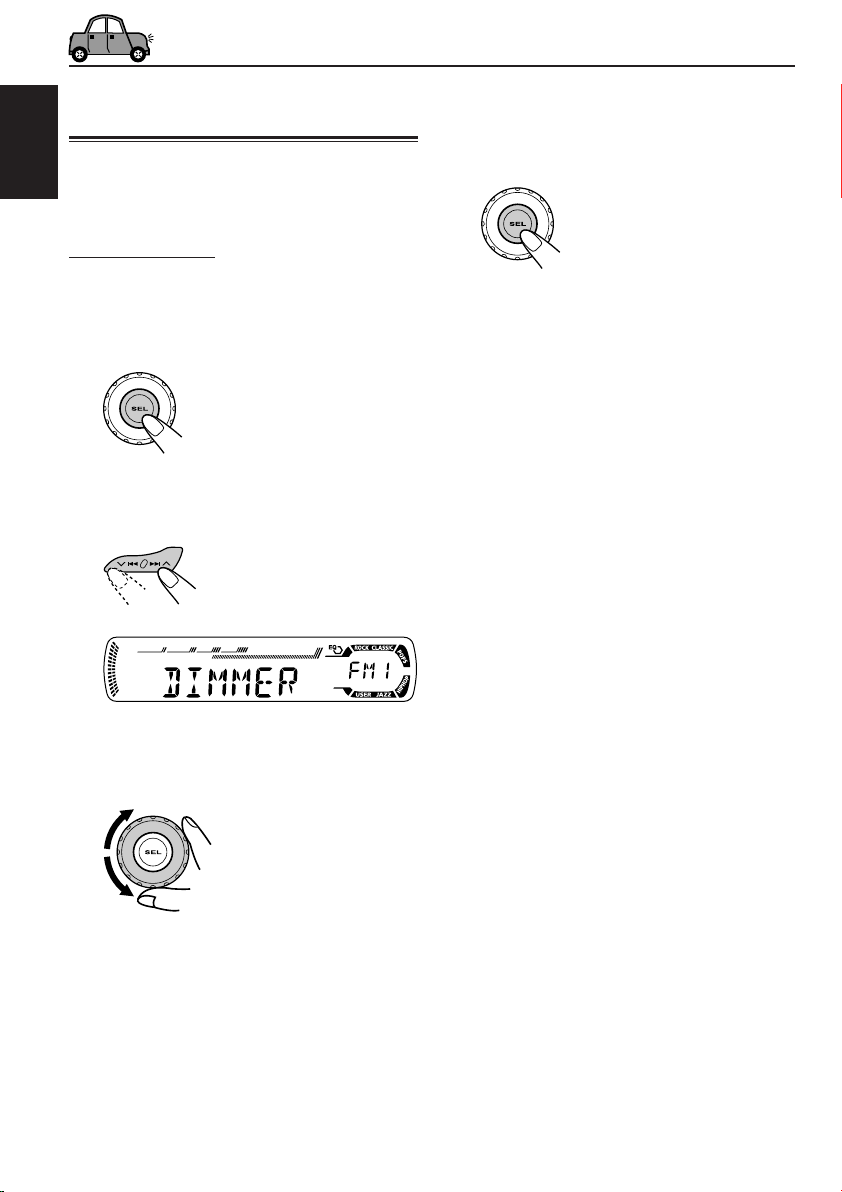

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 31.)

Select the PSM item you want to adjust.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

Ex.: When you select “DIMMER”

Adjust the PSM item selected.

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items

DEMO Display demonstration

CLOCK H Hour adjustment

CLOCK M Minute adjustment

24H/12H 24/12-hour time display

AUTO ADJ Automatic clock setting

AF-REG Alternative frequency/

Regionalization reception

PTY STBY PTY standby

TA VO L Traffic announcement

volume

P-SEARCH Programme search

DIMMER Dimmer mode

TEL Telephone muting

SCROLL Scroll mode

TAG DISP Tag display

Factory-preset See

settings page

DEMO ONDEMO OFF DEMO ON 6

0 — 23 (1 — 12)

00 — 59

12H 24H

OFF ON

AF AF REG

OFF

29 programme types

(see page 18)

VOL 00 — VOL 30 or 50* VOL 20

OFF ON OFF

OFF

ONCE AUTO

TAG OFF TAG ON TAG ON 32

MUTING 1

MUTING 2

OFF

0 (0:00)

00 (0:00)

24H

ON 17

OFF

OFFOFF ON 32

OFF

ONCE

ENGLISH

12, 13

AMP GAIN Amplifier gain control

LOW PWR HIGH PWR HIGH PWR 32

* Depending on the amplifier gain control setting. (See page 32 for details.)

To select the dimmer mode—DIMMER

You can dim the display at night (according to your preference). When shipped from the factory, dimmer is deactivated.

ENGLISH

• OFF: Cancels the dimmer.

• ON: Activates the dimmer.

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select if this setting can mute the

sounds while using the cellular

• MUTING 2: Select if this setting can mute the

• OFF: Cancels the telephone muting.

phone.

sounds while using the cellular phone.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown at once). When shipped from the factory, scroll mode is set to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (5-second

intervals in between).

• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “OFF,” you can scroll the display by pressing DISP (display) for more than one second.

To turn the tag display on or off —TAG DISP

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown. When shipped from the factory, “TAG ON” is selected.

• TAG ON: Turns on the ID3 tag display while playing MP3 files.

• If an MP3 file does not have ID3

tags, folder name and file name appear.

• TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.)

To select the amplifier gain control —AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select “LOW PWR” to prevent them from being damaged. When shipped from the factory, “HIGH PWR” is selected.

• LOW PWR: You can adjust the volume level from “VOL 00” to “VOL 30.”

Note:

If you change the setting from “HIGH PWR” to “LOW PWR” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

• HIGH PWR: You can adjust the volume level from “VOL 00” to “VOL 50.”

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Lift and pull the control panel out of the unit.

Attaching the control panel

Insert the left side of the control panel into the groove on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

ENGLISH

Put the detached control panel into the provided case.

Connectors

USING THE REMOTE CONTROLLER

This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 or RM-RK60 with your unit. (Ex.: When you are using RM-RK60)

ENGLISH

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball point pen or a similar tool.

2) Remove the battery holder.

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (product number: CR2025)

Location of the buttons

RM-RK60

3 • Selects the preset stations while listening to

the radio. Each time you press the button, the preset station number increases, and the selected station is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 disc. Each time you press the button, you can move to the previous folder and start playing the first file.

4 Selects the sound mode (C-EQ: custom

equalizer). Each time you press the button, the sound mode (C-EQ) changes.

5 • Selects the band while listening to the radio.

Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 disc. Each time you press the button, you can move to the next folder and start playing the first file.

ENGLISH

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Searches for stations while listening to the

radio.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

6 Selects the source.

Each time you press the button, the source changes.

7 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode adjustment.

KD-G401 is equipped with the steering wheel remote control function. If your car is equipped with the steering wheel remote controller, you can operate this unit using the controller.

• See the Installation/Connection Manual (separate volume) for connection to utilize this function.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

• This unit does not work

General

• SSM (Strong-station

FM/AM

• Static noise while

• CD automatically ejects.

• CD-R/CD-RW cannot be

• Tracks on the CD-R/CD-

• CD can be neither

Symptoms

from the speakers.

at all.

Sequential Memory) automatic preset does not work.

listening to the radio.

played back.

RW cannot be skipped.

played back nor ejected.

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak.

The aerial is not connected firmly.

CD is inserted upside down.

CD-R/CD-RW is not finalized.

CD is locked.

Remedies

Adjust it to the optimum level.

Check the cords and connections.

While holding SEL (select), press (standby/on attenuator) for more than 2 seconds to reset the unit. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Store stations manually.

Connect the aerial firmly.

Insert the CD correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the CD. (See page 22.)

CD Playback

• CD sound is sometimes interrupted.

•“NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

CD is scratched.

Connections are incorrect.

No CD in the loading slot.

CD is inserted incorrectly.

While holding

(standby/on attenuator), press 0 (eject) for more than 2 seconds. Be careful not to drop the CD when it is ejected.

Stop playback while driving on rough roads.

Change the CD.

Check the cords and connections.

Insert a CD into the loading slot.

Insert the CD correctly.

Symptoms

Causes

Remedies

• Disc cannot be played back.

• Noise is generated.

• A longer readout time is

required (“CHECK” keeps flashing on the display).

• Files cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

No MP3 files are recorded on the disc.

MP3 files do not have the extension code <.mp3> in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

The file played back is not an MP3 file (although it has the extension code <.mp3>).

Readout time varies due to the complexity of the folder/file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

Change the disc.

Add the extension code <.mp3> to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code <.mp3> to nonMP3 files.)

Do not use too many hierarchies and folders. Also, do not record any other types of audio tracks together with MP3 files.

ENGLISH

MP3 Playback

• indicator flashes on the display.

•“NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

The current folder does not contain any MP3 file.

The current disc does not contain any MP3 file.

This unit can only display alphabets (capital: A–Z), numbers, and a limited number of symbols.

Select another folder.

Insert a disc that contains MP3 files.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

ENGLISH

• This unit is also compatible with MP3 discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not be played

back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may be peeled off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 decoding format:

MPEG 1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

ENGLISH

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

1103KKSMDTJEIN

53 mm

184 mm

⁄

GET0195-005A

[E/EX]

KD-G401

Installation/Connection Manual Einbau/Anschlußanleitung Manuel d’installation/raccordement Handleiding voor installatie/aansluiting

1103KKSMDTJEIN EN, GE, FR, NL

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your

vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this unit. After checking them, please set them correctly.

A / B Hard case/Control panel

Etui/Schalttafel

Etui de transport/Panneau de commande

Behuizing/Bedieningspaneel

DEUTSCH

Dieses Gerät ist für einen Betrieb in

elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt Ihr

Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Nach ihrer Überprüfung, die Teile richtig einsetzen.

Sleeve

Halterung

Manchon

Huis

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de

NEGATIVE

d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

. Si votre véhicule n’offre pas ce type

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

12 V à masse

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

NEDERLANDS

Dit apparaat mag worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding. Als uw auto niet is uitgerust met een dergelijk systeem, is een spanningsomzetter vereist. Dit instrument kan worden aangeschaft bij JVC car audio dealers.

Lijst van onderdelen die u bij installatie en aansluiting nodig hebt

De volgende onderdelen worden bij het apparaat geleverd. Installeer ze op de juiste wijze, nadat u ze hebt gecontroleerd.

Power cord

Stromkable

Cordon d’alimentation

Stroomkabel

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

Bevestigingsbout (M5 x 20 mm)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Washer (ø5)

Unterlegscheibe (ø5)

Rondelle (ø5)

Sluitring (ø5)

Rubber cushion

Gummipuffer

Amortisseur en caoutchouc

Rubberdop

EINBAU (IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

•

Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Lock nut (M5)

Sicherungsmutter (M5)

Ecrou d’arrêt (M5)

Contra-moer (M5)

Handles

Griffe

Poignées

Hendels

INSTALLATIE (INBOUW IN HET DASHBOARD)

Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

• Als u niet zeker weet hoe u dit apparaat moet

installeren, kunt u dit beter door een daartoe gekwalificeerde technicus laten doen.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Réalisez les connexions électriques.

Breng de vereiste elektrische verbindingen tot stand.

When you stand the unit, be careful

not to damage the fuse on the rear.

*1Beim Aufstellen des Geräts darauf

achten, daß die Sicherung auf der Rückseite nicht beschädigt wird.

Lorsque vous mettez l’appareil à la

verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

*1Wanneer u het apparaat rechtop zet,

moet u erop letten dat u de zekering aan de achterkant niet beschadigt.

Bend the appropriate tabs to hold the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die Manschette sicher festzuhalten.

Tordez les languettes appropriées pour maintenir le manchon en place.

Buig de vereiste lipjes zodat de huls goed op zijn plaats wordt gehouden.

31 2

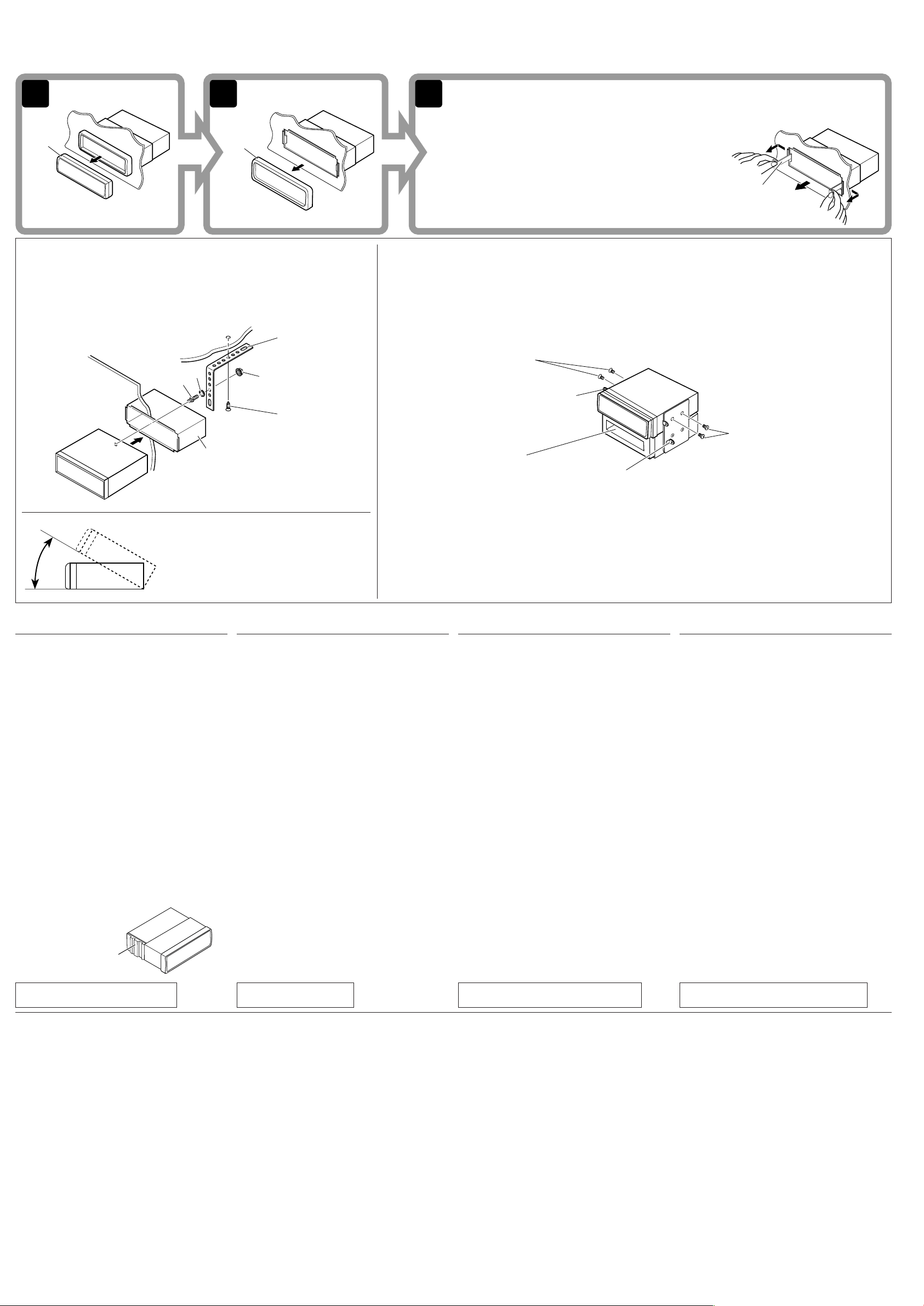

Removing the unit

Before removing the unit, release the rear section.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Retrait de l’appareil

Avant de retirer l’appareil, libérer la section arrière.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie in der Abbildung gezeigt, so daß das Gerät entfernt werden kann.

Verwijderen van het apparaat

Voordat u het apparaat verwijdert, moet u het achtergedeelte losmaken.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

Plaats de twee hendels en trek ze vervolgens zoals afgebeeld naar voren zodat het toestel kan worden verwijderd.

When using the optional stay / Beim Verwenden der Anker-Option / Lors de l’utilisation du hauban en option / Wanneer u de steun gebruikt (facultatief)

Fire wall

Feuerwand

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

Cloison

Brandscherm

Install the unit at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger als 30˚ auf.

Installez l’appareil avec un angle de moins de 30˚.

Installeer het toestel met een hoek kleiner dan 30˚.

Stay (option)

Anker (Option)

Hauban (en option)

Steun (facultatief)

Screw (option)

Schraube (Option)

Vis (en option)

Schroef (facultatief)

When installing the unit without using the sleeve / Beim Einbau des Geräts ohne Halterung / Lors de l’installation de l’appareil scans utiliser de manchon / Wanneer u het apparaat zonder huis installeert

In a Toyota for example, first remove the car radio and install the unit in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Voorbeeld: Bij een Toyota moet u eerst de autoradio verwijderen en daarna het apparaat installeren.

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

Platkopschroeven (M5 x 8 mm)*

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer

screws are used, they could damage the unit.

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet

werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Remarque :

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une

Pocket

Taschen

Poche

Zak

Bracket* Konsole*

Support

Console*

Bracket* Konsole*

Support

Console*

longueur de 8 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Opmerking :Wanneer u het apparaat aan de bevestigingsklem vastmaakt, moet u de 8 mm lange schroeven gebruiken. Als u

langere schroeven gebruikt, kan het apparaat worden beschadigd.

* Not included with this unit. * Nicht Teil dieses Geräts. *

Non fourni avec cet appareil.

* Niet meegeleverd.

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

Platkopschroeven (M5 x 8 mm)*

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s

chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 32 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Abstrahlblech

Dissipateur de chaleur

Warmte-opnemer

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Gerät nach dem Einbau a Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von mehr als 50 W anzuschließen (sowohl hinten als auch vorne, mit einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung weniger als 50 W beträgt, stellen Sie „AMP GAIN“ anders ein, um Schäden an den Lautsprechern zu vermeiden (siehe Seite 32 der BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis de la voiture après l’installation.

Remarques:

Remplacer le fusible par un de la valeur

•

précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Il est recommandé de connecter des enceintes avec une puissance de plus de 50 W (les enceintes arrière et les enceintes avant, avec une impédance comprise entre

4 Ω et 8 Ω

inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 32 du MANUEL D’INSTRUCTIONS).

•

Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

•

Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

). Si la puissance maximum est

ELEKTRISCHE VERBINDINGEN

Om kortsluiting te voorkomen adviseren wij u om de minpool van de accu los te maken en alle elektrische verbindingen tot stand te brengen voordat u het apparaat in de auto installeert.

• Aard dit toestel beslist weer op het chassis van de auto na het installeren.

Opmerkingen:

• Vervang de zekering door een exemplaar met het aangegeven vermogen. Als de zekering vaak doorslaat, moet u uw JVC car audio dealer raadplegen.

• Sluit bij voorkeur luidsprekers met een hoger maximaal vermogen dan 50 W (zowel achter als voor, met een impedantie van 4 Ω t/m 8 Ω) aan. Indien het maximale vermogen lager dan 50 W is, moet u “AMP GAIN” in de andere stand stellen zodat de luidsprekers niet kunnen worden beschadigd (zie bladzijde 32 van de GEBRUIKSAANWIJZING).

• Om kortsluiting te voorkomen, moet u de aansluitklemmen van ONGEBRUIKTE gekleurde draden met isolatieband bedekken.

• De warmte-opnemer kan na gebruik erg heet worden. Raak de warmte-opnemer niet aan wanneer u dit apparaat van zijn plaats haalt.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected

correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the

car’s chassis using shorter and thicker cords?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

FEHLERSUCHE

• Die Sicherung brennt durch. * Sind die roten und schwarzen Leitungen

richtig angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

Ist die Lautsprecherausgangsleitung

kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

• Störgeräusche im Klang.

* Ist die hintere Erdungsklemme mit kürzeren

und dickeren Kabeln an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

EN CAS DE DIFFICULTES

• Le fusible saute.

Les fils rouge et noir sont-ils racordés

correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons

La prise arrière de mise à la terre est-elle

connectée au châssis de la voiture avec un cordon court et épais?

• L’appareil devient chaud.

Le fil de sortie d’enceinte est-il à la masse?

* *

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

PROBLEMEN OPLOSSEN

• De zekering slaat door. * Zijn de rode en de zwarte draden op de juiste

manier aangesloten?

• De stroom kan niet worden ingeschakeld. * Is de gele draad aangesloten?

• Er komt geen geluid uit de speakers. * Is de uitgaande speakerdraad kortgesloten?

• Het geluid wordt vervormd. * Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de

rechterspeakers gemeenschappelijk geaard?

• Geluid wordt door ruis gestoord. * Is de aarde-aansluiting achter met gebruik van

kortere en dikkere snoeren met het chassis van de auto verbonden?

• Het apparaat raakt verhit. * Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de

rechterspeakers gemeenschappelijk geaard?

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

B5B6

B8 B7

B2 B1

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

DEUTSCHENGLISH

Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen

FRANÇAIS

NEDERLANDS

Before connecting: Check the wiring in the

vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord in the order specified in the illustration below.

Connect the aerial cord.

Finally connect the wiring harness to the unit. Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

Line out (see diagram )

Schutz kappen Signalausgang (siehe Schaltplan )

Sortie de ligne (voir le diagramme )

Uitgang (zie schema )

Rear ground terminal

Hintere Erdungscan– schlußklemme

Borne arrière de masse

Massaklem aan de achterkant

Aerial terminal

Antennenanschlußklemme

Borne de l’antenne

Aansluitpunt antenne

To steering wheel remote controller (see diagram )

An Lenkradfernbedienung (siehe Schaltplan )

Pour la télécommande de volant (voir le diagramme )

Naar stuurwiel-afstandsbediening (zie schema )

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

Die farbigen Adern des Stromkabels in der Reihenfolge anschließen, wie in der Abbildung unten gezeigt.

Das Antennenkabel anschließen.

Die Kabelbäume am Gerät anschließen. Hinweis: Verfügt Ihr Fahrzeug nicht über eine Zubehöranschlußklemme, die Sicherung von der 1. Sicherungsposition (Erstposition) in die 2. Sicherungsposition versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme anschließen.

• Die gelbe Leitung (A4) wird in diesem Fall

nicht verwendet.

15 A fuse

15 A Sicherung

Fusible 15 A

Zekering 15 A

Black

Schwarz

Noir

Zwart

Avant de commencer la connexion:

Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

Connectez le cordon d’antenne.

Finalement, connectez le faisceau de fils à l’appareil.

Remarque:

Si votre véhicule ne possède pas de borne accessoire, déplacez le fusible de la position de fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive (+) de la batterie.

•

Le fil jaune (A4) n’est pas utilisé dans ce cas.

Fuse position 2 / 2. Sicherungsposition /

Fuse position 1 / 1. Sicherungsposition /

*1Not included for this unit *1Wird nicht mit Gerät mitgeliefert

Non fourni avec cet appareil

*1Niet bij het apparaat inbegrepen

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

Vers corps métallique ou châssis de la voiture

Naar metalen ondergrond of chassis van de auto

Alvorens de verbindingen tot stand te brengen: Moet u de bedrading in de auto

zorgvuldig. Het apparaat kan door verkeerde verbindingen ernstige schade oplopen. De draden van het stroomsnoer verschillen mogelijk van kleur metde aansluitingen op het chassis van de auto.

Verbind de gekleurde draden van het stroomsnoer in de afbeelding hieronder aangegeven volgorde.

Sluit de antenne aan.

Verbind de draadbundel daarna met het apparaat.

Opmerking: Als uw voertuig niet beschikt over een aansluitklem, moet u de zekering verplaatsen van stand 1 (beginstand) naar stand 2 en moet u de rode draad (A7) met de pluspool (+) van de accu verbinden.

• In dit geval wordt de gele draad (A4) niet gebruikt.

Position de fusible 2

Position de fusible 1 /

/ Zekering, stand 2

Zekering, stand 1

Ignition switch

Zündschalter

Interrupteur d’allumage

Ontstekingsschakelaar

*2Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*2Vor der Überprüfung der Funktionsfähigkeit des Geräts

vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

Pour vérifier le fonctionnement de cet appareil avant installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

*2Voordat u controleert of het apparaat werkt (alvorens het te

installeren), moet deze draad aangesloten zijn. Als dit niet het geval is, kan de stroom niet worden ingeschakeld.

Yellow*

Gelb*

Jaune

Geel *

Red

Rot

Rouge

Rood

Blue with white stripe

Blau mit weißem Streifen

Bleu avec bande blanche

Blauw met witte streep

Brown

Braun

Marron

Bruin

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters) (konstant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

Naar een onder spanning staande aansluitklem in het zekeringblok die is aangesloten op de accu van de auto (u passeert de ontstekingsschakelaar) (constant 12 V)

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

Vers borne accessoire du porte-fusible

Naar een aansluitklem in het zekeringblok

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

(max. 200 mA)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

(200 mA max.)

Naar afstandsdraad van andere apparatuur of antenne met circuit indien aanwezig (200 mA max.)

To cellular phone system

Zur Mobiltelefon

À un système de téléphone cellulaire

Naar het mobiele-telefoonsysteem

Fuse block

Sicherungsblock

Porte-fusible

Zekeringblok

White with black stripe

Weiß mit schwarzem Streifen

Blanc avec bande noire

Wit met zwarte streep

White

Weiß

Blanc

Wit

Left speaker (front)

Linker Lautsprecher (vorne)

Enceinte gauche (avant)

Linkerspeaker (voorin)

Gray with black stripe

Grau mit schwarzem Streifen

Gris avec bande noire

Grijs met zwarte streep

Gray

Grau

Gris

Grijs

Right speaker (front)

Rechter Lautsprecher (vorne)

Enceinte droit (avant)

Rechterspeaker (voorin)

Green with black stripe

Grün mit schwarzem Streifen

Vert avec bande noire

Groen met zwarte streep

Green

Grün

Ver t

Groen

Left speaker (rear)

Linker Lautsprecher (hinten)

Enceinte gauche (arrière)

Linkerspeaker (achterin)

Purple with black stripe

Lila mit schwarzem Streifen

Violet avec bande noire

Paars met zwarte streep

Purple

Lila

Violet

Paars

Right speaker (rear)

Rechter Lautsprecher (hinten)

Enceinte droit (arrière)

Rechterspeaker (achterin)

LRL

INPUT

LINE

REAR

FRONT

OUT

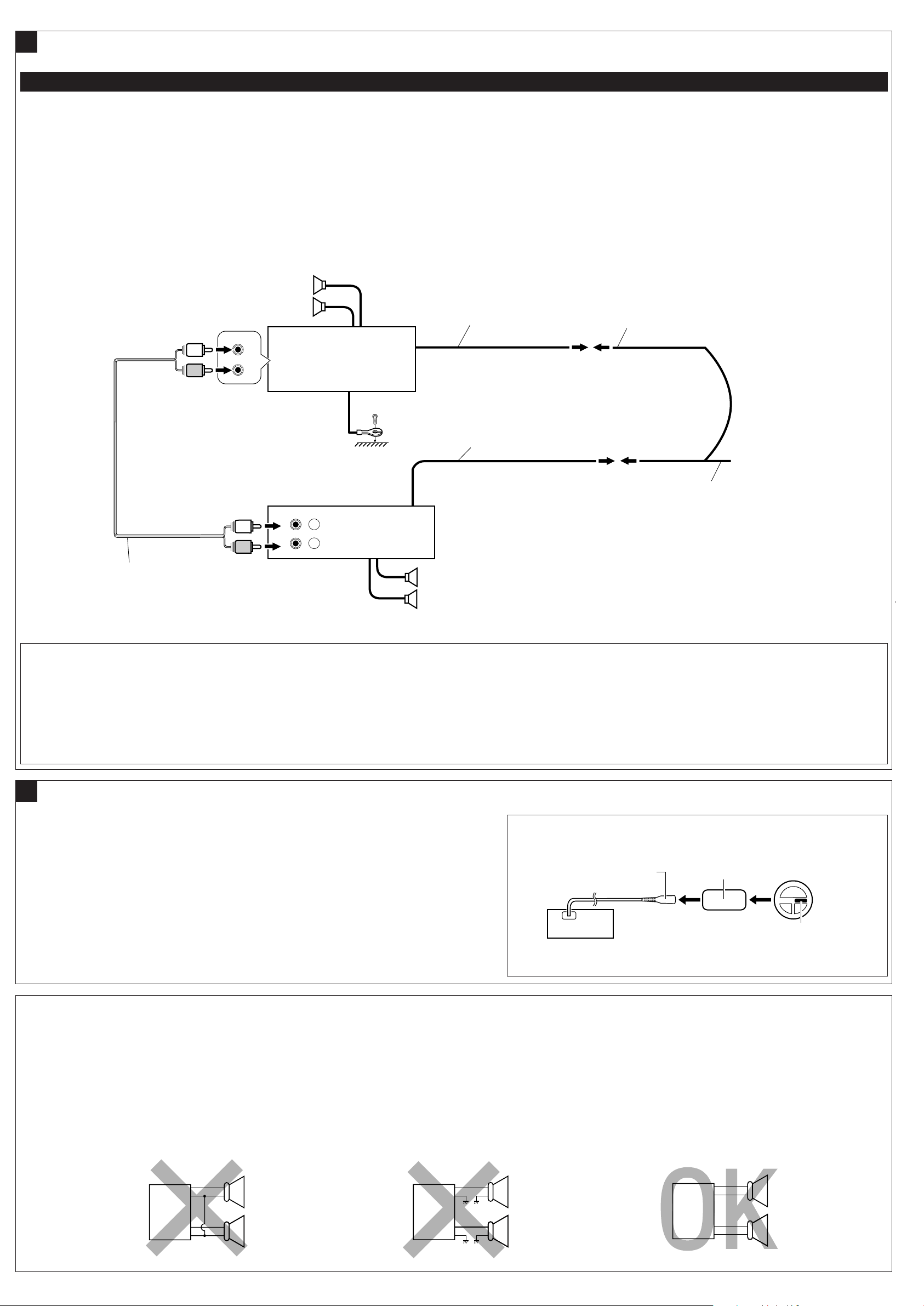

Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils /

Aansluitingen voor het toevoegen van andere apparatuur

Amplifier / Verstärker / Amplificateur / Versterker

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• For amplifier only:

Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.

Sie können einen Verstärker oder ein anderes Gerät anschließen, um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen) an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Nur für den Verstärker: Die Lautsprecher von diesem Gerät abtrennen und am Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen.

Rear speakers

Hintere Lautsprecher

Enceintes arrière

Achterspeakers

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

Vous pouvez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

•

Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Pour l’amplificateur seulement: Déconnectez les enceintes de cet appareil et connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

Remote lead

Fernbedienungsleitung

Fil d’alimentation à distance

Afstandbedieningsdraad

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Fil d’alimentation à distance (Bleu avec bande blanche)

Afstandbedieningsdraad (Blauw met witte streep)

Y-connector (not supplied with this unit)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Connecteur Y (non fourni avec cet appareil)

Y-connector (wordt niet bij dit apparaat geleverd)

Het is mogelijk om uw autostereosysteem uit te breiden met een versterker of andere apparatuur.

• Verbind de externe kabel (blauw met witte streep)

met de externe kabel van het andere apparatuur zodat deze op afstand vanaf deze apparaat kan worden bediend.

• Alleen voor een versterker: Koppel de speakers van dit apparaat los en verbind ze aan de versterker. Gebruik de speakerdraden van dit apparaat niet.

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Naar afstandsdraad van andere apparatuur of antenne met circuit indien aanwezig

*3Bevestig de aardedraad goed met een metalen

onderdeel of het chassis van de auto—bevestig op een niet-gelakt gedeelte (indien gelakt, schuur dan af alvorens de draad te bevestigen). Het toestel kan worden beschadigd indien de aardedraad niet goed is aangesloten.

Signal cord (not supplied with this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (wordt niet bij dit apparaat geleverd)

*3Firmly attach the ground wire to the

metallic body or to the chassis of the car— to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

KD-G401

Verbinden Sie den Erdungsleiter mit der

Karosserie oder dem Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht

Front speakers

Vordere Lautsprecher

Enceintes avant

Voorspeakers

Attachez solidement le fil de mise à la masse

au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

Connecting to the steering wheel remote controller / Anschluß an die Lenkradfernbedienung / Connexion de la télécommande de volant /

Verbinden met de stuurwiel-afstandsbediening

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Wenn Ihr Fahrzeug mit einer Lenkradferndienung ausgestattet ist, können Sie damit diesen Receiver steuern. Hierfür ist ein für Ihr Fahrzeug passender Radio-Lenkrad-Fernbedienungsadaption von JVC (nicht im Lieferumfang enthalten) erforderlich. Für weitere Einzelheiten wenden Sie sich an Ihren JVC Autoradiohändler.

Si votre voiture est munie d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant la télécommande. Pour le faire, un adaptateur pour télécommande au volant JVC (non fourni) correspondant à votre voiture est nécessaire. Consultez votre revendeur d’autoradio JVC pour les détails.

Indien uw auto een stuurwiel-afstandsbediening heeft, kunt u deze receiver met die afstandsbediening bedienen. Hiervoor heeft u echter een JVC adapter (niet bijgeleverd) nodig die geschikt is voor de stuurwiel-afstandsbediening van uw auto. Raadpleeg uw JVC car audio dealer voor details.

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

AVANT de connecter les fils d’enceintes du

•

cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

Steering wheel remote input

Eingang für Lenkradfernbedienung

Entrée de la télécommande de volant

Ingang stuurwiel-afstandsbediening

KD-G401

OE remote adapter (not supplied)

Radio-Lenkrad-Fernbedienungsadaption (nicht im Lieferumfang enthalten)

Adaptateur pour télécommande au volant (non fourni)

Adapter voor stuurwiel-afstandsbediening (niet bijgeleverd)

Steering wheel remote controller (equipped in the car)

Lenkradfernbedienung (im Fahrzeug installiert)

Télécommande de volant (installée dans la voiture)

Stuurwiel-afstandsbediening (in de auto)

VOORZORGSMAATREGELEN bij het verbinden van de stroomkabeldraad met de speakers:

• Verbind de speakerdraden van de stroomkabel NIET met de accu van de auto; als u dit wel doet, zal het apparaat ernstige schade oplopen.

• VOORDAT u de speakerdraden van de stroomkabel met de speakers verbindt, moet u de bedrading van de speakers in uw auto controleren.

JVC GET0195-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

CONTENTS

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

RDS OPERATIONS

CD OPERATIONS

MP3 INTRODUCTION

MP3 OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

USING THE REMOTE CONTROLLER

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

ELECTRICAL CONNECTIONS

TROUBLESHOOTING
