JVC GET0137-001A User Manual

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-S847

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

РУCCKИЙ

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0137-001A

[EE]

Position And Reproduction Of Labels

Bottom panel of the main unit

ENGLISH

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL: Usynlig laser stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

IMPORTANT FOR LASER PRODUCTS

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

While holding SEL (select), press (standby/on/attenuator) for more than 2 seconds. This will reset the built-in microcomputer.

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

(standby/on/attenuator)

SEL (select)

Notes:

• Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• If a disc is in the unit, it will eject when you reset the unit. Be careful not to drop the disc.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

operations.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the M (MODE) button ............. 3

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

BASIC OPERATIONS ....................... 5

Turning on the power ................................ 5

Setting the clock ........................................ 6

RADIO OPERATIONS ...................... 7

Listening to the radio ................................. 7

Storing stations in memory ....................... 8

Tuning in to a preset station ...................... 9

CD OPERATIONS ........................... 10

Playing a CD ............................................. 10

Locating a track or a particular portion

on a CD .................................................. 11

Selecting CD playback modes .................. 12

Playing a CD Text ...................................... 13

Prohibiting disc ejection ............................ 13

MP3 INTRODUCTION ...................... 14

What is MP3? ............................................ 14

How are MP3 files recorded and

played back? .......................................... 14

MP3 OPERATIONS ......................... 16

Playing an MP3 disc ................................. 16

Locating a file or a particular portion

on an MP3 disc ....................................... 18

Selecting MP3 playback modes ................ 20

SOUND ADJUSTMENTS ................... 21

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 21

Adjusting the sound .................................. 22

OTHER MAIN FUNCTIONS ................ 23

Changing the general settings (PSM) ....... 23

Detaching the control panel ...................... 25

TROUBLESHOOTING ...................... 26

MAINTENANCE ............................. 28

Handling discs ........................................... 28

SPECIFICATIONS........................... 29

ENGLISH

How to use the M (MODE) button

If you press M (MODE), the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing M (MODE), wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M (MODE) again also clears the functions mode.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

; da s f g

z x c v

j k l /

1 2 3 4 5 7

we tr

1 (standby/on/attenuator) button 2 SEL (select) button 3 Control dial 4 Display window 5 Loading slot 6 4 /¢ buttons 7 FM/AM button 8 5 (up) button

+10 button

9 0 (eject) button p ∞ (down) button

–10 button

q DISP (display) button

• Also functions as SSM buttons when pressed together with M (MODE) button.

w M (MODE) button

• Also functions as SSM buttons when pressed together with DISP (display) button.

e MO (monaural) button r RPT (repeat) button t RND (random) button y Number buttons

u E (EQ: equalizer) button i CD button o (control panel release) button

Display window

; LOUD (loudness) indicator a EQ (equalizer) indicator s CD–in indicator d CD indicator f FM band indicators (FM1, FM2, FM3) g AM band indicator h Tuner reception indicators

MO (monaural), ST (stereo)

j Volume (or audio) level indicator k (folder) indicator l MP3 indicator / (disc) indicator z Disc information indicators

TAG (ID3 tag), (folder), (track/file)

x Main display c RND (random) indicator v RPT (repeat) indicator

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 7 – 9.

To play a CD,

see pages 10 – 13.

To play an MP3 disc,

see pages 16 – 20.

Adjust the volume.

To increase the volume

To decrease the volume

Volume (or audio) level indicator

(see page 24)

Adjust the sound as you want. (See pages 21 and 22.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Volume level appears.

ENGLISH

Setting the clock

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Finish the setting.

To check the current clock time or change the display mode

• During tuner operation:

Frequency

• During disc operation:

Notes:

• While playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• For indication change while playing a CD Text or an MP3 disc, see pages 13 and 17.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Clock

Elapsed

playing time

Track title

Disc title / performer

Clock

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

RADIO OPERATIONS

ENGLISH

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Note:

This receiver has three FM bands (FM1, FM2, FM3).

• FM1/FM2: 87.5 MHz to 108.0 MHz

• FM3: 65.00 MHz to 74.00 MHz

To stop searching before a station is received, press the same button you have

pressed for searching.

Searching a station manually: Manual search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2

Note:

This receiver has three FM bands (FM1, FM2, FM3).

• FM1/FM2: 87.5 MHz to 108.0 MHz

• FM3: 65.00 MHz to 74.00 MHz

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

FM3 AM

Start searching a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

CONTINUED ON THE NEXT PAGE

Tune in to a station you want while “M” (manual) is flashing.

To tune in to stations of

ENGLISH

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing—in 50 kHz intervals (87.5 MHz – 108.0 MHz for FM 1 and FM 2), in 30 kHz intervals (65.00 MHz –

74.00 MHz for FM 3) and 9 kHz for AM —MW/LW until you release the button.

higher frequencies

To tune in to stations of lower frequencies

When an FM stereo broadcast is hard to receive:

1 Press M (MODE) to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

still in the functions mode, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Press and hold both buttons for more than 2 seconds.

“- -SSM- -” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons—No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 88.3 MHz).

To tune in to stations of higher frequencies

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 8 and 9.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

ENGLISH

To tune in to stations of lower frequencies

Press and hold the number button (in this example, 1) for more than 2 seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Select the number (1 – 6) for the preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

ENGLISH

CD OPERATIONS

Refer to “MP3 OPERATIONS” on pages 16 to 20 for operating MP3 discs.

Playing a CD

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

The CD–in indicator flashes.

The CD–in indicator lights up.

All tracks will be played repeatedly until you stop playback.

Note:

When a CD is inserted upside down, “EJECT” and the CD–in indicator flash on the display and the CD automatically ejects.

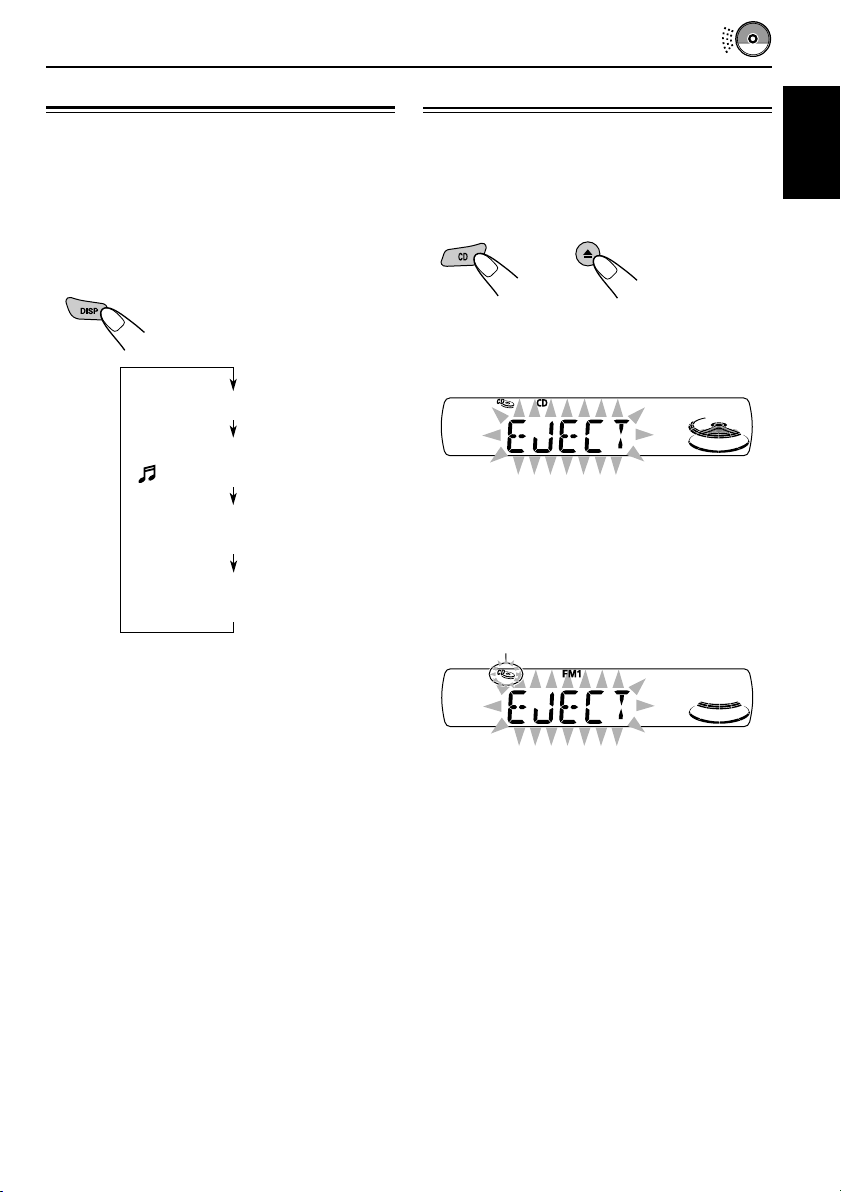

To stop play and eject the CD

Press 0. CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station.)

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

• If the disc is a CD Text, disc title/performer and then track title will automatically appear.

Total playing time of the inserted disc

Elapsed playing time Current track

Total track number of the inserted disc

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a CD, to fastforward the track.

To go to a track quickly (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing a CD.

ENGLISH

2 Press +10 or –10.

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and

–10 buttons” below).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

(Three times) (Twice)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

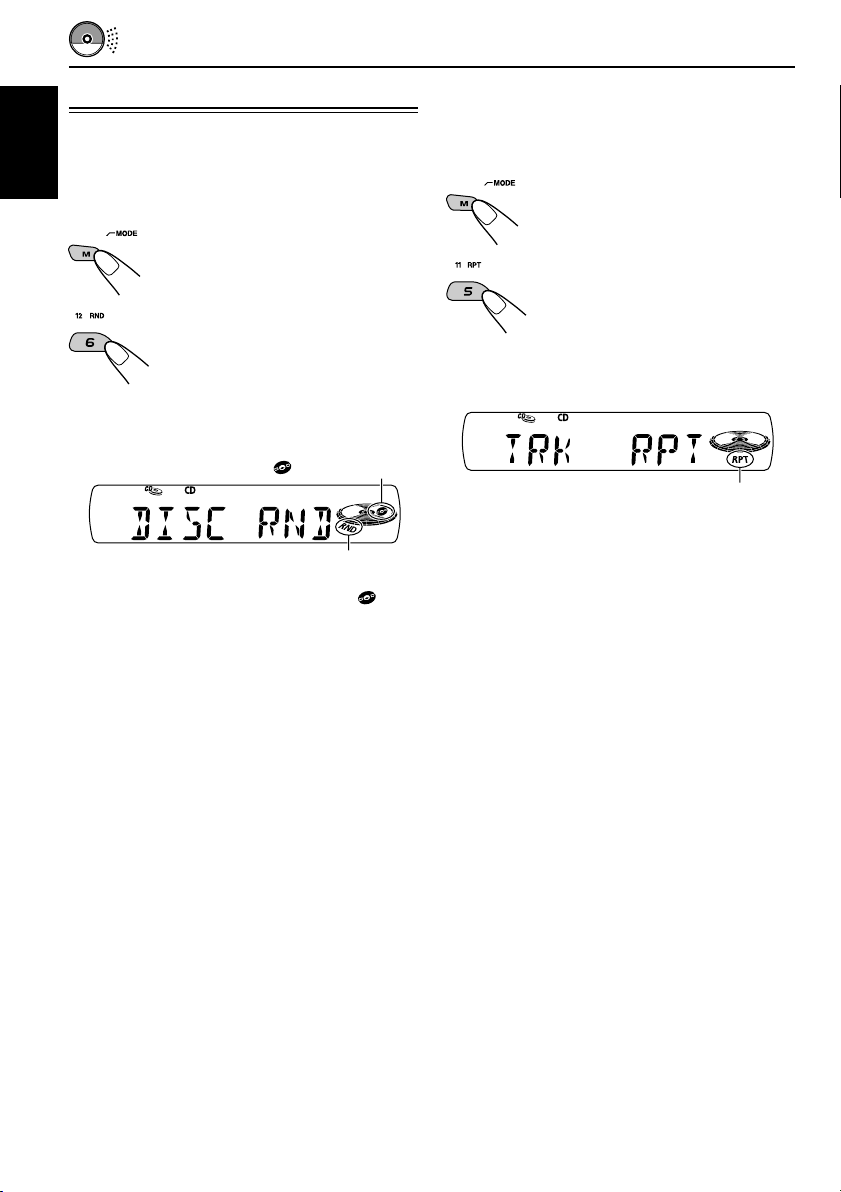

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

ENGLISH

You can play back all tracks on the CD at random.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RND (random), while

still in the functions mode, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) indicator

RND indicator

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while still

in the functions mode, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc Title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Clock and

Current track number

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 24. Some characters or symbols will not be shown (and be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

You can prohibit disc ejection and can lock a disc in the loading slot.

ENGLISH

While pressing CD, press and hold 0 for more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD, press and hold 0 again for more than 2 seconds. “EJECT” and the CD–in indicator flash on the display, and the disc ejects from the loading slot.

The CD–in indicator flashes.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10

ENGLISH

(128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1 (Version 1)

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 (Version 1) tags (album name, performer name, and song title) on the display. (See page 17.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2 (Version 2).

Other main features in this unit:

• Maximum number of folders/files:

289 (Total)

• Available characters for folder/file names:

A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name

(ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code —“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

(Joliet): 64 (inclusive of

• Maximum number of characters for folder

name: 64

separation mark—“.” and extension code —“mp3”)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2, or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders”— in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

Playback order, file search order, and folder search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the folders and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer 1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

MP3 folder/file configuration

Level 1

Level 2

Level 3

1 2

Hierarchy

Level 4

Level 5

Level 6

ROOT

3 4

: Root

: Folders

5 6

ROOT

ENGLISH

05 09

1110 2120

06 07

1312

15 1614

2322 24

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally this unit plays back MP3 files in the recorded order.

• The numbers inside the folders indicate the playback order and search order of the folders on an MP3 disc. Normally this unit plays back MP3 files in the folders in the recorded order.

ENGLISH

MP3 OPERATIONS

Refer also to “CD OPERATIONS” on pages 10 to 13.

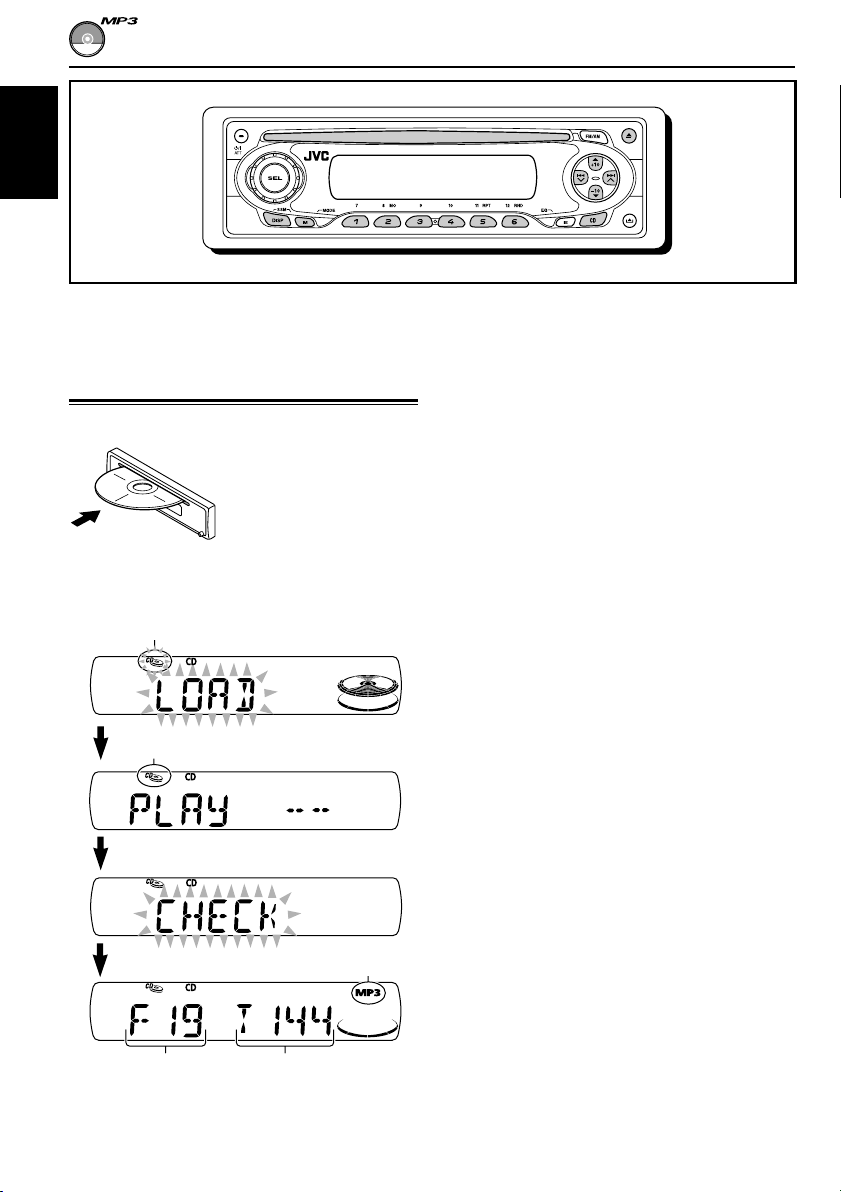

Playing an MP3 disc

Insert an MP3 disc into the loading slot.

The unit turns on, draws the MP3 disc and starts playback automatically.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

The CD–in indicator flashes.

The CD–in indicator lights up.

All files will be played repeatedly until you stop playback.

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 17.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc playback starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the disc automatically ejects from the loading slot.

MP3 indicator lights up.

Total file numberTotal folder number

Ex.: When the disc contains 19 folders and

144 MP3 files

To change the display information

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

While playing back an MP3 file, you can change the MP3 disc information shown on the display.

Each time you press DISP (display), the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see page 24)

Album name / performer

(folder name*)

(TAG lights up on the display)

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISP” is set to “TAG OFF”

ENGLISH

Note:

The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 24.

Locating a file or a particular portion on an MP3 disc

For “MP3 playback/search order” see page 15.

ENGLISH

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing an MP3 disc.

2 Press +10 or –10.

Press and hold 4 while playing an MP3 disc, to reverse the file.

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

To select a particular file in a folder, press ¢ or 4 after selecting the folder.

To skip to the next or previous folder

Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ∞ (down) while playing an MP3 disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3 files, it is skipped.

ENGLISH

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If “MP3” flashes on the display after you have selected a folder, it means that the folder does not contain any MP3 files.

• You cannot directly select a folder with a number greater than 12.

Selecting MP3 playback modes

To play back files at random (Folder Random/Disc Random Play)

ENGLISH

You can play back all files of the current folder or all files on the MP3 disc at random.

1 Press M (MODE) to enter the

functions mode while playing an MP3 disc.

2 Press RND (random), while

still in the functions mode, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

(folder) and RND indicators

Ex.: When you select “FLDR RND”

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press M (MODE) to enter the

functions mode while playing an MP3 disc.

2 Press RPT (repeat), while still

in the functions mode, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or specified light up. folder.

Plays repeatedly

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

Select the sound mode you want.

When you press the button once, the last selected sound mode is recalled and applied to the current source.

Ex.: If you have selected “USER” previously

Then, each time you press the button, the sound modes change as follows:

USER

The EQ indicator lights up when any sound mode other than “USER” is selected.

ROCK

CLASSIC

POPSHIP HOPJAZZ

Indication For: Preset values

BAS TRE LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap +02 00 ON

music

JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 22.

ENGLISH

Ex.: When you select “ROCK”

Adjusting the sound

Adjust the setting.

You can adjust the sound characteristics to your preference.

ENGLISH

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS*

TRE*

FAD*

BAL Adjust the left L06 (Left only)

LOUD*1Boost low and high

VOL*

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

frequencies to produce a wellbalanced sound at low volume level.

Adjust the volume. 00 (min.)

TRE

(treble)

LOUD

(loudness)

(balance)

| +06 (max.)

LOUD ON | LOUD OFF

| 50 (max.)

FAD

(fader)

BAL

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Equalization pattern changes as you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and

reassign the preset values listed in the table on page 21.

*1When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

*2If you are using a two-speaker system, set the fader

level to “00.”

*3Normally the control dial works as the volume

control. So you do not have to select “VOL” to adjust the volume level.

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed in the table below by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See the table below.)

Select the PSM item you want to adjust. (See the table below.)

Adjust the PSM item selected.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

ENGLISH

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items

CLOCK H Hour adjustment

CLOCK M Minute adjustment

LEVEL Level display

TEL Telephone muting

SCROLL Scroll mode

TAG DISP Tag display

AdvanceBack

Back Advance

AUDIO 1 AUDIO 2

OFF

MUTING 1 MUTING 2

OFF

ONCE AUTO

OFF

TAG ON TAG OFF

Factory-preset See

settings page

0:00 6

AUDIO 2 24

24OFF

ONCE

TAG ON

To select the level meter—LEVEL

You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected.

ENGLISH

• AUDIO 1: Shows the audio level indicator.

• AUDIO 2: Alternates “AUDIO 1” setting and

• OFF: Erases the audio level indicator.

illumination display.

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

To turn the tag display on or off—TAG DISP

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). This unit is compatible only with ID3v1. When shipped from the factory, “TAG ON” is selected.

• TAG ON: Turns on the ID3 tag display while playing MP3 files.

• If an MP3 file does not have

ID3 tags, folder name and file name appear.

• TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.)

• MUTING 1: Select this if this setting can mute

• MUTING 2: Select this if this setting can mute

• OFF: Cancels the telephone muting.

the sounds.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown all at once). When shipped from the factory, scroll mode is set to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (5-second

• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “OFF,” you can scroll the display by pressing DISP (display) for more than one second.

intervals in between).

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Lift and pull the control panel out of the unit.

Put the detached control panel into the provided case.

Attaching the control panel

Insert the left side of the control panel into the groove on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

ENGLISH

Connectors

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

• This unit does not work at

General

• SSM (Strong-station

FM/AM

• Static noise while listening

• Disc automatically ejects.

• CD-R/CD-RW cannot be

• Tracks on the CD-R/CD-RW

• Disc can be neither played

Symptoms

from the speakers.

all.

Sequential Memory) automatic preset does not work.

to the radio.

played back.

cannot be skipped.

back nor ejected.

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak.

The aerial is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

The CD player may function incorrectly.

Remedies

Adjust it to the optimum level.

Check the cords and connections.

While holding SEL (select), press (standby/on/ attenuator) for more than 2 seconds to reset the unit. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Store stations manually.

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 13.)

While holding

(standby/on/attenuator), press 0 (eject) for more than 2 seconds. Be careful not to drop the disc when it is ejected.

• Disc sound is sometimes

Disc Playback

interrupted.

•“NO DISC” appears on the display.

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

No disc in the loading slot.

Disc is inserted incorrectly.

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Insert a disc into the loading slot.

Insert the disc correctly.

Symptoms

Causes

Remedies

• Disc cannot be played back.

• Noise is generated.

• A longer readout time is

required (“CHECK” keeps flashing on the display).

• Files cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

•“MP3” flashes on the display.

No MP3 files are recorded on the disc.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, or Joliet.

The file played back is not an MP3 file (although it has the extension code—mp3).

Readout time varies due to the complexity of the folder/ file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

The current folder does not contain any MP3 file.

Change the disc.

Add the extension code —mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code—mp3 to nonMP3 files.)

Do not use too many hierarchies and folders. Also, do not record any other types of audio tracks together with MP3 files.

Select another folder.

ENGLISH

MP3 Playback

•“NO FILES” appears on the display, then the disc ejects from the loading slot.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3 file.

This unit can only display alphabets (capital: A–Z), numbers, and a limited number of symbols.

Insert a disc that contains MP3 files.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

ENGLISH

• This unit is also compatible with MP3 discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not play back on

this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may peel off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM1/FM2: 87.5 MHz to 108.0 MHz

FM3: 65.00 MHz to 74.00 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 decoding format:

MPEG1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

Mass (approx.):

1.3 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change without notice.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше

устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, RU 0203KKSMDTJEIN

JVC

KD-S847

Installation/Connection Manual

Руководство по установке/подключению

GET0137-002A

[EE]

ENGLISH

• This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems.

INSTALLATION (IN-DASH MOUNTING)

• The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

Before mounting: Press (control panel release button) to detach the control panel if already attached.

* When shipped from the factory, the control panel is packed in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks. 1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and the sleeve, as illustrated, to disengage the sleeve locks. 3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard. * After the sleeve is correctly installed into the dashboard, bend the appropriate tabs to hold the sleeve

firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve until it is locked.

Attach the trim plate.

Attach the control panel.

0203KKSMDTJEIN

JVC

EN, RU

РУССКИЙ

• Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе.

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

• На следующих иллюстрациях показана типовая установка. Тем не менее, Вы должны сделать поправки в соответствии с типом Вашего автомобиля. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру JVC IN-CAR ENTERTAINMENT или в компанию, поставляющую соответствующие принадлежности.

Перед установкой: Нажмите кнопку (кнопка освобождения панели управления) для отсоединения панели управления, если она уже прикреплена.

* При отправке с завода панель управления упакована в твердую коробку.

Удалите декоративную панель.

Удалите муфту после освобождения запоров муфты. 1 Установите устройство.

Примечание: Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

2 Вставьте два рычага между устройством и муфтой, как показано на рисунке, для

освобождения запоров муфты.

3 Удалите муфту.

Примечание: После установки устройства сохраните рычаги для использования в будущем.

Установите муфту в приборную панель.

* После установки муфты в приборную панель согните соответствующие зубцы для фиксации

муфты, как показано на рисунке.

Затяните Крепежный болт на задней части корпуса устройства и наденьте резиновый чехол на конец болта.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Задвиньте устройство в муфту до упора.

Установите декоративную панель.

Прикрепите панель управления.

Control panel

Панель управления

Trim plate

Декоративную панель

Dashboard

Приборная панель

Handle

Рычаг

Lock Plate

Фиксирующая панель

Sleeve

Муфта

Rubber cushion

Резиновый чехол

184 mm

53 mm

Slot

Отверстие

Mounting bolt

Крепежный болт

Fuse

Предохранитель

Sleeve

Муфта

Control panel

Панель управления

Trim plate

Декоративную панель

See “ELECTRICAL CONNECTIONS.”

Смотрите “ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ”.

• When using the optional stay

• При использовании дополнительной стойки

Washer

Шайба

Dashboard

Приборная панель

Sleeve

Муфта

Fire wall

Стена

Screw (option)

Винт (дополнительно)

Mounting bolt

Крепежный болт

Stay (option)

Стойка (дополнительно)

Lock nut

Фиксирующая гайка

• When installing the unit without using the sleeve

• При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the unit in its place.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на ее место это устройство.

Flat type screws (M5 x 6 mm)*

Крепежные винты (M5 x 6 мм)*

* Not included with this unit. * Не входят в комплект.

Bracket*

Кронштейн*

Pocket

Карман

Flat type screws (M5 x 6 mm)*

Bracket*

Кронштейн*

Крепежные винты (M5 x 6 мм)*

Less than 30˚

Менее 30°

Install the unit at an angle of less than 30˚.

Установите устройство под углом менее 30°.

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit. (Be sure to keep the handles after installing it.)

Control panel

Панель управления

Trim plate

Декоративную панель

Note : When installing the unit on the mounting bracket, make sure to use the 6 mm-long screws. If longer

Примечание : При установке устройства на крепежный кронштейн, используйте только винты длиной 6 мм.

screws are used, they could damage the unit.

При использовании более длинных винтов можно повредить устройство.

Удаление устройства

• Перед удалением устройства освободите заднюю часть.

Удалите панель управления.

Удалите декоративную панель.

Вставьте 2 рычаги в отверстия, как показано на иллюстрации. Затем, плавно раздвигая рычаги в стороны, выньте устройство. (После установки сохраните рычаги.)

321

Handle

Рычаг

Parts list for installation and connection

The following parts are provided with this unit. After checking them, please set them correctly.

Hard case/Control panel

Жесткий футляр/панель управления

Power cord

Кабель питания

Sleeve

Муфта

Handles

Рычаги

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. После проверки комплектации, пожалуйста, установите их правильно.

Trim plate

Декоративную панель

Washer (ø5)

Шайба (њ5)

Lock nut (M5)

Фиксирующая гайка (M5)

Mounting bolt (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

Rubber cushion

Резиновый чехол

ENGLISH РУССКИЙ

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Note:

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. However, with some vehicles, clicking or other unwanted noise may occur. If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire. If noise still persists, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Maximum input of the speakers should be more than 50 W at the rear and 50 W at the front, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Радиатор

If your car is equipped with the ISO connector

Если Ваш автомобиль оборудован разъемами ISO

• Connect the ISO connectors as illustrated.

• Подключите разъемы ISO, как показано на иллюстрации.

From the car body

На корпусе автомобиля

For some VW/Audi or Opel (Vauxhall) automobile

Для некоторых автомобилей VW/Audi или Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this unit.

Вам может потребоваться изменение соединений полученного в комплекте кабеля питания, как показано на иллюстрации.

• Перед установкой устройства обратитесь к Вашему официальному дилеру автомобиля.

Original wiring

Исходное соединение

ISO connector

Разъем ISO

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства. Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

Примечание:

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера JVC IN-CAR ENTERTAINMENT.

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру JVC IN-CAR ENTERTAINMENT.

• При появлении сильных помех... Это устройство оснащено фильтром помех в цепи питания. Однако в некоторых случаях возможно появление щелчков и других нежелательных помех. В этом случае подключите задний разъем заземления этого устройства (см. схему подключения ниже) к шасси автомобиля при помощи более коротких и толстых проводов. Если помехи не исчезают, обратитесь к дилеру JVC IN-CAR ENTERTAINMENT.

• Максимальная входная мощность громкоговорителей должна быть больше 50 Вт сзади и 50 Вт впереди при полном сопротивлении от 4 Ω до 8 Ω.

• Нe забудьте заземлить устройство на шасси автомобиля.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

Yellow/Желтый

Red/

Красный

Red/Красный

Yellow/Желтый

Red/Красный

Yellow/Желтый

Red/Красный

Yellow/Желтый

Red/Красный

View from the lead side

Вид со стороны контактов

ISO connector of the supplied power cord

Разъем ISO, полученный в комплекте кабеля питания

Modified wiring 1

Модифицированное соединение 1

Modified wiring 2

Модифицированное соединение 2

Connections without using the ISO connectors / Подключение без использования разъемов ISO

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Cut the ISO connector.

Connect the colored leads of the power cord to the car battery, speakers and power aerial (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to remote lead of other equipment or power aerial if any (200 mA max.) 5 Brown: to cellular phone system (For details, refer to the instructions of the cellular phone.) 6 Others: to speakers

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

Отрежьте разъем ISO.

Подключите цветные провода кабеля питания к аккумулятору, громкоговорителям и автономной антенне (если есть) в следующем порядке:

1 Черный: земля 2 Желтый: к аккумулятору (постоянный 12 В) 3 Красный: к вспомогательному разъему 4 Синий с белой полосой: к удаленному проводу другого оборудования или антенны (макс. 200 мА). 5 Коричневый: к системе сотового телефона (Детали смотрите в инструкции сотового телефона.) 6 Другие: к громкоговорителям

Подключите кабель антенны.

В последнюю очередь подключите электропроводку к устройству.

Red/Красный

Yellow/Желтый

Use modified wiring 2 if the unit does not turn on.

Если устройство не включается, модифи-цируйте кабель по схеме 2.Red/Красный

Yellow/Желтый

Red/Красный

Rear ground terminal

Задний разъем заземления

Line out (see diagram )

Линейный выход (см. схему )

Aerial terminal

Разъем антенны

To aerial

К антенне

*1 : Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*1 : Перед проверкой работы устройства подключите

этот провод, иначе питание не включится.

Cut the ISO connector

15 A fuse

Предохранитель 15A

Black

Черный

Yellow*

Желтый*

Red

Красный

Blue with white stripe

Синий с белой полосой

Brown

Коричневый

Not included with this unit.

Не входит в комплект.

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch)

К разъему фазы в блоке предохранителя (минуя блок зажигания)

To an accessory terminal in the fuse block К вспомогательному разъему в блоке предохранителя

To remote lead of other equipment or power aerial if any

К удаленному проводу другого оборудования или антенны

To cellular phone system

К системе сотового телефона

Отрежьте разъем ISO

Ignition switch

Переключатель зажигания

Fuse block

Блок предохранителя

White with black stripe

Белый с черной полосой

White

Белый

Left speaker (front)

Левый громкоговоритель (передний)

Gray with black stripe

Серый с черной полосой

D C

Gray

Серый

Right speaker (front)

Правый громкоговоритель (передний)

Green with black stripe

Зеленый с черной полосой

Green

Зеленый

Left speaker (rear)

Левый громкоговоритель (задний)

Purple with black stripe

Пурпурный с черной полосой

B A

Purple

Пурпурный

Right speaker (rear)

Правый громкоговоритель (задний)

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessory terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car. – If the speaker wiring in your car is as illustrated in Fig. 1 and Fig. 2 below, DO NOT connect the unit

using that original speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as illustrated in Fig. 3, you can connect the unit using the original

speaker wiring in your car.

– If you are not sure of the speaker wiring of your car, consult your car dealer.

Fig. 2 Fig. 3Fig. 1

Connecting the leads / Подключение контактов

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• Правильно подключите черный провод (земля), желтый провод (в аккумулятор, постоянный ток 12 В) и красный провод (в вспомогательный разъем).

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле. – Если проводка громкоговорителей в Вашем автомобиле такая, как показано на

приводимых ниже Fig. 1 и Fig. 2, НЕ подключайте устройство с помощью первоначальной проводки громкоговорителей. Если Вы это сделаете, устройство будет серьезно повреждено. Переделайте проводку громкоговорителей так, чтобы Вы могли подключить устройство к громкоговорителям, как это показано на рис. 3.

– Если проводка громкоговорителей в Вашем автомобиле такая, как показано на Fig. 3, Вы

можете подключить устройство с помощью первоначальной проводки громкоговорителей в Вашем автомобиле.

– Если Вы не знаете соединение громкоговорителей в Вашем автомобиле, обратитесь к Вашему

автомобильному дилеру.

Twist the core wires when connecting.

Закрутите концы проводов при соединении.

Solder the core wires to connect them securely.

Спаяйте провода для надежного соединения.

Connections Adding Other Equipment / Подключение других устройств

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• Connect this unit’s line-out terminals to the amplifier’s line-in terminals.

• Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of

this unit unused. (Cover the terminals of these unused leads with insulating tape, as illustrated above.)

Amplifier / Усилитель

Rear speakers

Задние громкоговорители

Remote lead

Провод внешнего устройства

CAUTION / ПРЕДОСТЕРЕЖЕНИЕ:

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы

изолирующей лентой.

Для обновления автомобильной стереосистемы Вы можете подключить усилитель.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Подключите выходные клеммы данного устройства к входным клеммам усилителя.

• Отсоедините громкоговорители от данного устройства, подключите их к усилителю.

Оставьте провода громкоговорителей данного устройства неиспользованными. (Замотайте клеммы этих неиспользованных проводов изоляционной лентой, как показано выше.)

Y-connector (not supplied with this unit)

Разъем Y (не входит в комплект)

INPUT

Signal cord (not supplied with this unit)

Кабель сигнала (не входит в комплект)

REAR

LINE

JVC Amplifier

JVC-усилитель

Blue with white stripe

Синий с белой полосой

To power aerial if any

К питанию антенны, если есть

OUT

FRONT

KD-S847

INPUT

JVC Amplifier

JVC-усилитель

Front speakers

Передние громкоговорители

You can connect another power amplifier for front speakers.

Вы можете подключить еще один усилитель мощности для передних динамиков.

* Cut the rear speaker leads of the

car’s ISO connector and connect them to the amplifier.

* Отрежьте провода задних

громкоговорителей разъема ISO и подсоедините их к усилителю.

*2 : Firmly attach the ground wire to the metallic body or to the

chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

*2 : Плотно прикрепите заземляющий провод к

Rear speakers

Задние громкоговорители

металлическому кузову или шасси автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к

Front speakers (see diagram )

повреждению данного устройства.

Передние громкоговорители (см. схему )

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Unit becomes hot.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Устройство нагревается.

JVC GET0137-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Position And Reproduction Of Labels

How to reset your unit

CONTENTS

How to use the M (MODE) button

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

CD OPERATIONS

MP3 INTRODUCTION

MP3 OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

Installation/Connection Manual

ELECTRICAL CONNECTIONS

TROUBLESHOOTING
