CD RECEIVER

РЕСИВЕР С ПРОИГРЫBATEЛEM KOMПAKT-ДИCКOB

KD-SX947R

SOUND

ATT

KD-SX947R

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

SOURCE

VOL

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

РУCCKИЙ

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0126-001A

[EE]

Position And Reproduction Of Labels

Bottom panel of the main unit

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE

ENGLISH

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

TO BEAM. (e)

ADVARSEL: Usynlig laser stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

How to use the MODE button

If you press MODE, the unit goes into functions mode (“MODE” flashes on the upper part of the display). While in functions mode, the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

MO (monaural) indicator lights up.

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared (“MODE” disappears from the display).

• Pressing MODE again also clears the functions mode.

Time countdown indicator

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Setting the clock ........................................ 8

RADIO OPERATIONS ...................... 9

Listening to the radio ................................. 9

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 12

RDS OPERATIONS ......................... 13

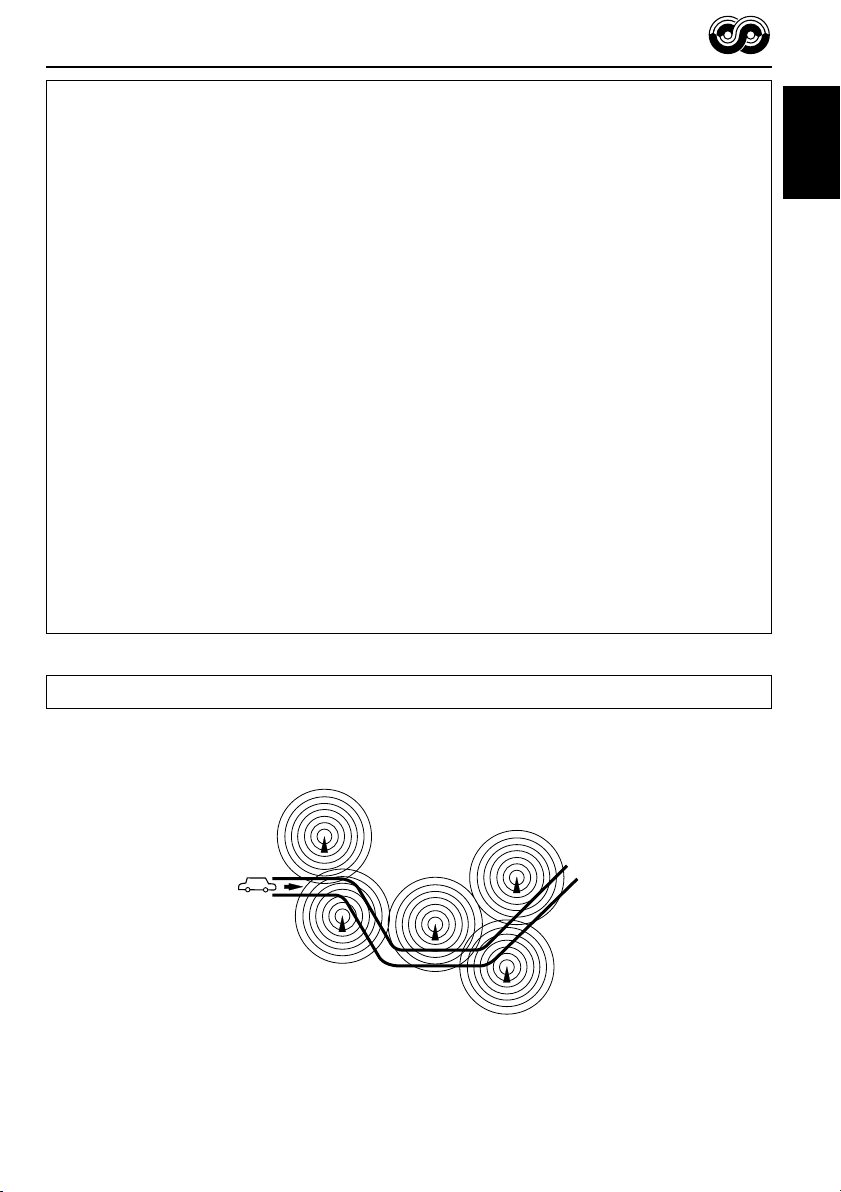

What you can do with RDS ....................... 13

Other convenient RDS functions and

adjustments ............................................ 17

CD OPERATIONS ........................... 20

Playing a CD ............................................. 20

Locating a track or a particular portion

on a CD .................................................. 21

Selecting CD playback modes .................. 22

Playing a CD Text ...................................... 23

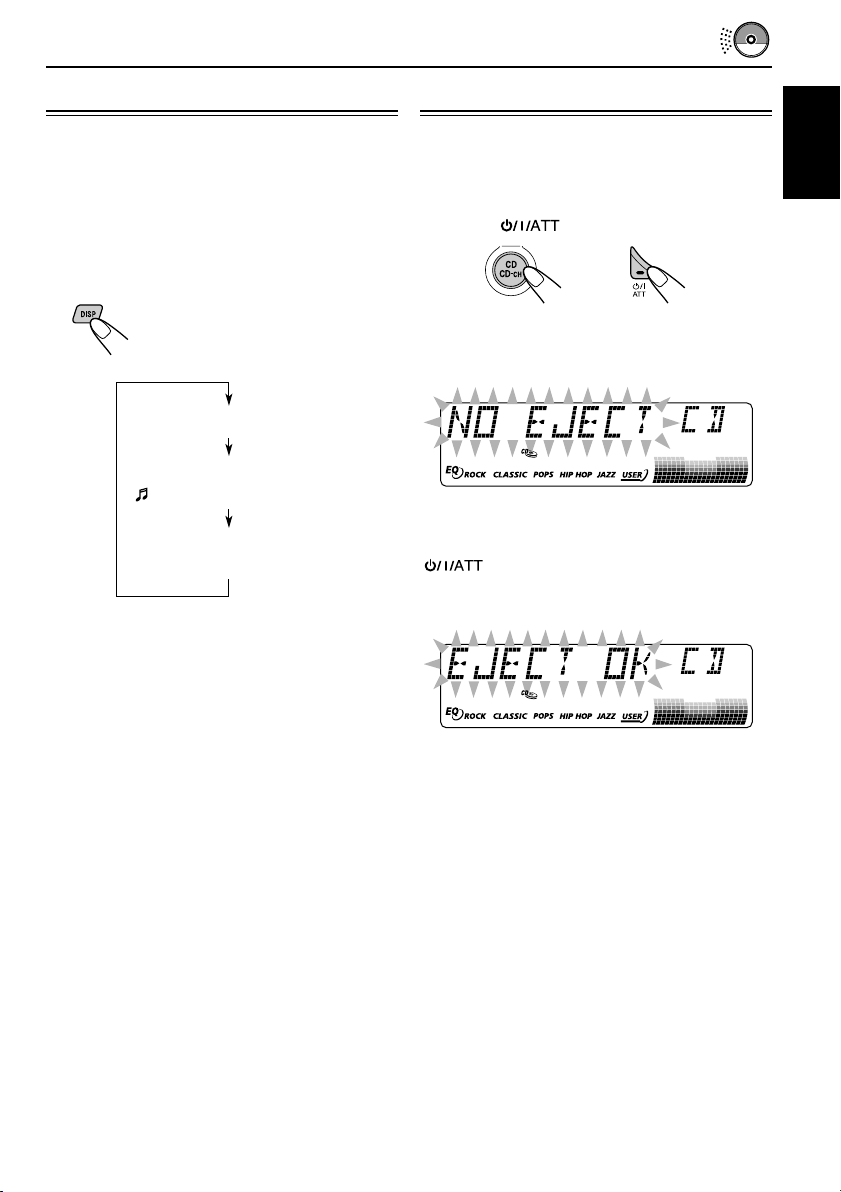

Prohibiting disc ejection ............................ 23

MP3 INTRODUCTION ...................... 24

What is MP3? ............................................ 24

How are MP3 files recorded and

played back? .......................................... 24

MP3 OPERATIONS ......................... 26

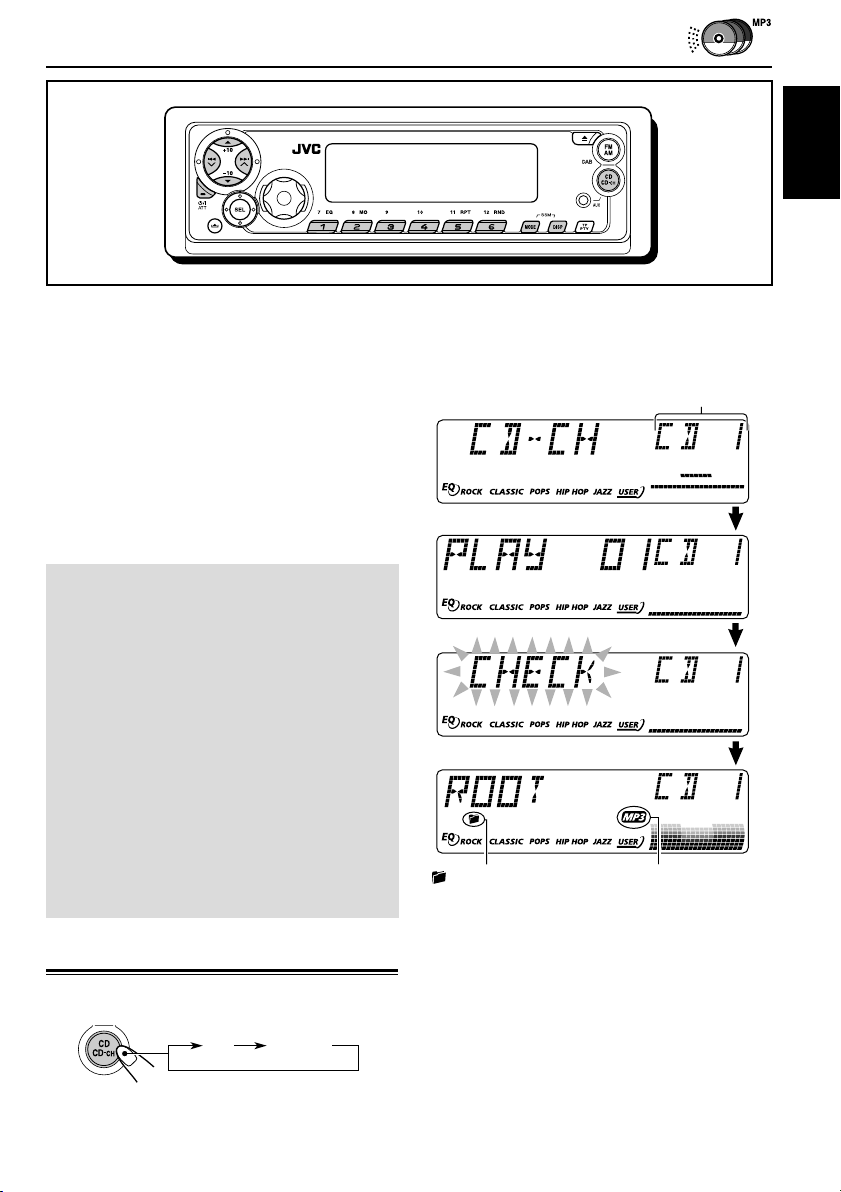

Playing an MP3 disc ................................. 26

Locating a file or a particular portion on

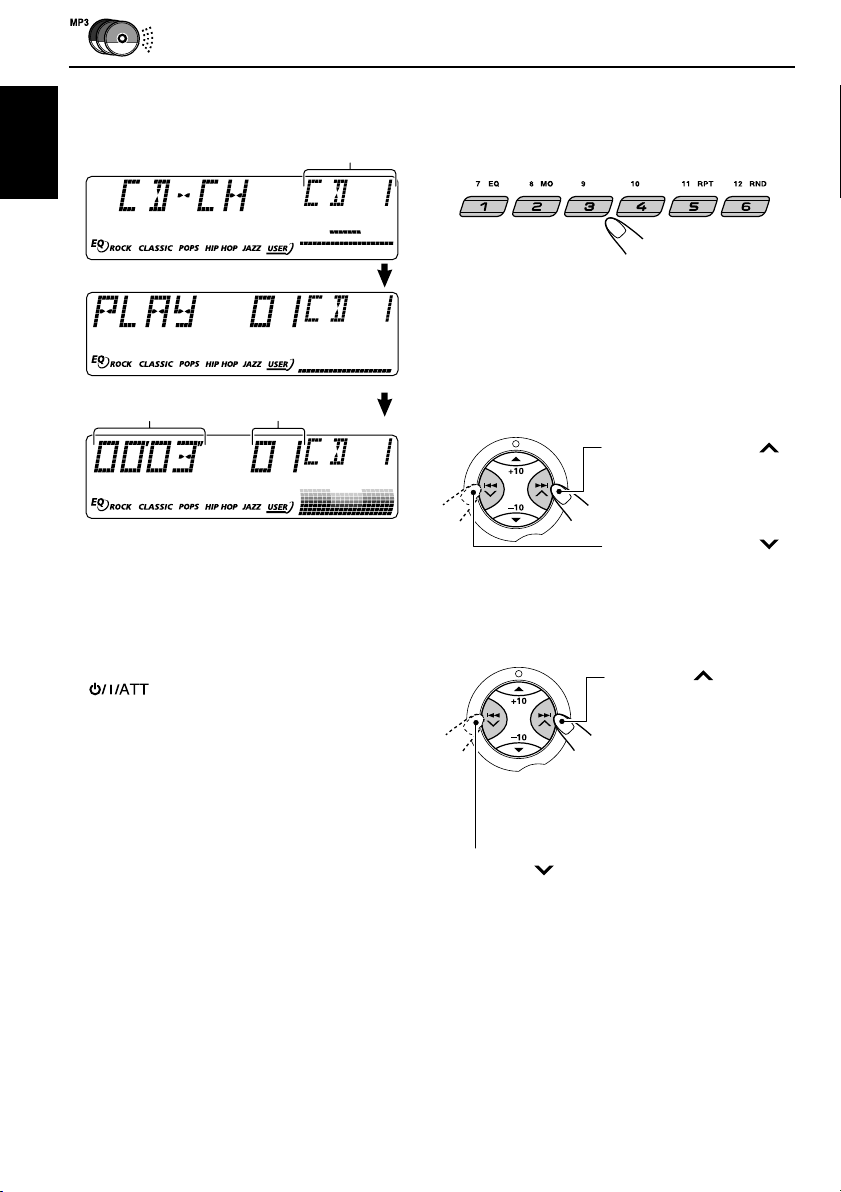

an MP3 disc ............................................ 27

Selecting MP3 playback modes ................ 29

SOUND ADJUSTMENTS ................... 30

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 30

Adjusting the sound .................................. 31

OTHER MAIN FUNCTIONS ................ 32

Changing the general settings (PSM) ....... 32

Assigning names to the sources ............... 35

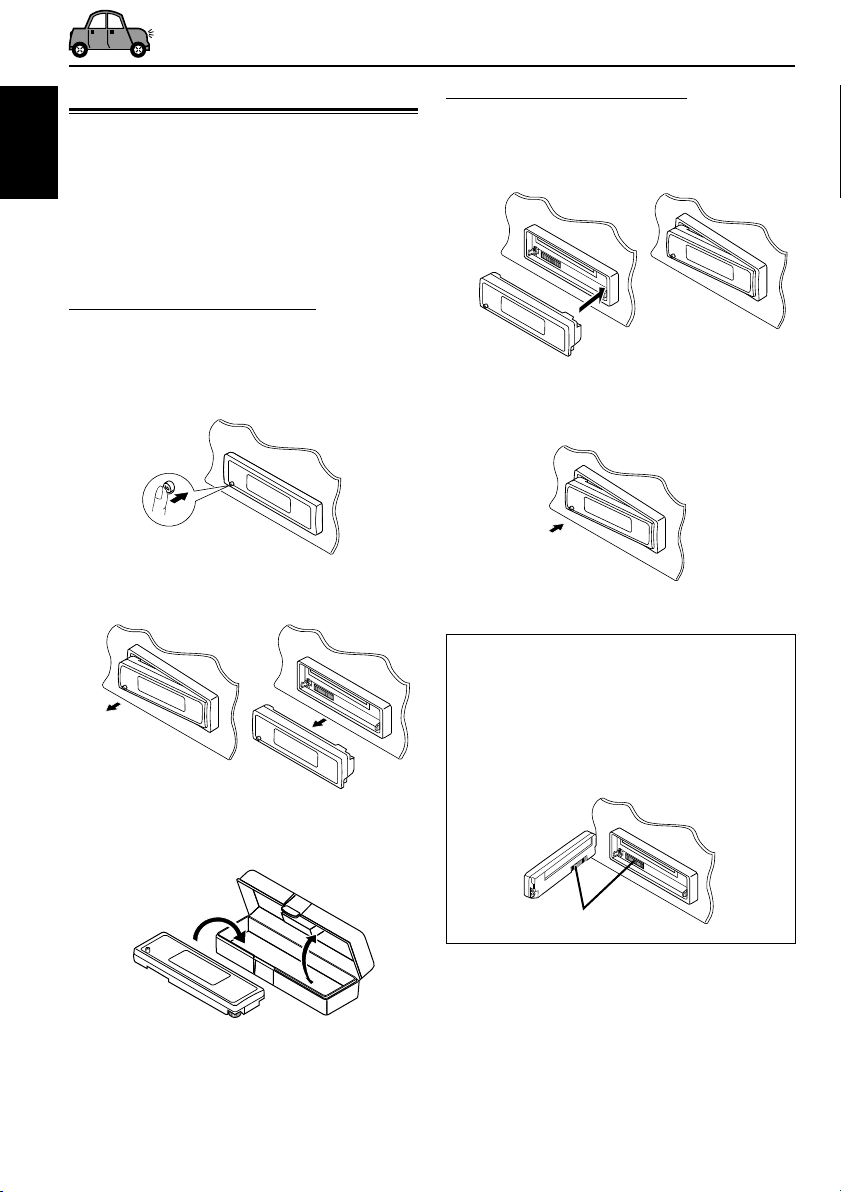

Detaching the control panel ...................... 36

CD CHANGER OPERATIONS .............. 37

Playing discs ............................................. 37

Selecting the playback modes .................. 40

EXTERNAL COMPONENT OPERATIONS

Playing an external component ................. 42

... 42

DAB TUNER OPERATIONS ................ 43

Tuning in to an ensemble and one of the

services .................................................. 43

Storing DAB services in memory .............. 44

Tuning in to a preset DAB service ............. 45

What you can do more with DAB .............. 46

TROUBLESHOOTING ...................... 47

MAINTENANCE ............................. 50

Handling discs ........................................... 50

SPECIFICATIONS........................... 51

ENGLISH

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

jk l x

1 (standby/on/attenuator) button 2 5 (up) button

+10 button

3 4 /¢ buttons 4 Remote sensor 5 Display window 6 0 (eject) button 7 FM/AM (DAB) button 8 CD CD-CH (CD changer) (AUX: auxiliary) button 9 (control panel release) button p ∞ (down) button

–10 button

q SEL (select) button w Control dial e EQ (equalizer) button r MO (monaural) button t Number buttons y RPT (repeat) button u RND (random) button i MODE button

• Also functions as SSM buttons when pressed together with DISP (display) button.

o DISP (display) button

• Also functions as SSM buttons when pressed together with MODE button.

2 3 67

9 p

w t u iq er o;

5 84

/ z

KD-SX947R

; TP/PTY (traffic programme/programme type)

button

a AUX (auxiliary) input jack

Display window

s Disc information indicators

TAG (ID3 Tag), (folder), (track/file)

d CD–in indicator f Main display g Playback item indicators

(disc), (folder)

h Source/clock display j EQ (equalizer) indicator k Sound mode (C-EQ: custom equalizer)

indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

l LOUD (loudness) indicator / Tuner reception indicators

MO (monaural), ST (stereo)

z RDS indicators

AF, REG, TP, PTY

x MP3 indicator c Volume (or audio) level indicator

Equalization pattern indicator

v Playback mode indicators

RND (random), RPT (repeat)

Remote controller

ATT

SOURCE

VOL

SOUND

VOL

3 • Selects the preset stations while listening to

the radio (or the DAB tuner). Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the previous disc if pressed briefly. – Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode adjustment.

ENGLISH

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if

pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

5 Selects the sound mode (C-EQ: custom

equalizer). Each time you press the button, the sound mode (C-EQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches for ensembles while listening to the DAB tuner if pressed for more than one second.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (product number: CR2025)

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 9 – 19.

To play a CD,

see pages 20 – 23.

To play an MP3 disc,

see pages 24 – 29.

To operate the CD changer,

see pages 37 – 41.

To operate the external component

(LINE IN or AUX IN), see page 42.

To operate the DAB tuner,

see pages 43 – 46.

Volume level appears.

Volume (or audio) level indicator

Adjust the sound as you want. (See

(see page 33)

pages 30 and 31.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Adjust the volume.

To increase the volume

To decrease the volume

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM item appears on the display. (PSM: see pages 32 and 33.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

Finish the setting.

Note:

To show the clock time on the display, see page 33.

To check other information during play, press DISP (display).

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Each time you press the button, the other information will be shown on the upper part of the display. (See page 33 for details.)

• Pressing DISP (display) with the unit turned off will show the clock time for about 5 seconds.

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

FM 2

(F2)

FM 3

(F3)

Selected band appears*.

A M

Start searching a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

ENGLISH

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Searching a station manually: Manual search

Select the band (FM1 – 3, AM).

ENGLISH

Each time you press the button, the band changes as follows:

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast. “MODE” flashes on the upper part of the display.

FM 1

(F1)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4

FM 2

(F2)

FM 3

(F3)

until “MANU” (manual) starts flashing on the display.

Tune in to a station you want while “MANU” (manual) is flashing.

To tune in to stations of higher frequencies

A M

2 Press MO (monaural), while

“MODE” is still flashing on the display, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing—in 50 kHz intervals (87.5 MHz — 108.0 MHz for FM 1 and FM

2), in 30 kHz intervals (65.00 MHz — 74.00 MHz for FM 3) and 9 kHz for AM—MW/LW until you release the button.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM 1

(F1)

Press and hold both buttons for more than 2 seconds.

FM 2

(F2)

FM 3

(F3)

A M

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Tune in to a station (in this example, of 88.3 MHz).

FM 2

(F2)

FM 3

(F3)

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

A M

ENGLISH

“- -SSM- -” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

CONTINUED ON THE NEXT PAGE

Press and hold the number button (in this example, 1) for more than 2 seconds.

ENGLISH

Selected band/preset number and “MEMO” (memory) appear alternately for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 and 12.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Select the number (1 – 6) for the preset station you want.

FM 2

(F2)

FM 3

(F3)

A M

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page

19.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly—PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

REG indicatorAF indicator

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception (“AF”) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 46.)

ENGLISH

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.)

ENGLISH

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF,” “AF REG,” or “OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 18) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components).

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.)

Select “PTY STBY” (standby) if not shown on the display.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

ENGLISH

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display and is stored into memory.

Finish the setting.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons.

ENGLISH

When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below. To search your favorite programme type, see page 17.

POP M

CLASSICS

To store your favorite programme types

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

ROCK M EASY M

AFFAIRS

VARIED

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Selected preset number and “MEMO” (memory) appear alternately.

Press and hold TP/PTY for more than 2 seconds to exit from this mode.

The last selected PTY code appears.

To search your favorite programme type

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

To select one of your favorite programme type

To select any one of the twenty-nine PTY-codes

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

ENGLISH

Preset number appears only if you select a PTY code using the number buttons.

Ex.: When “ROCK M” is selected

Press ¢ or 4 to start PTY search for your favorite programme.

To activate programme search, follow the

procedure below.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME) or station

ENGLISH

frequency (FREQ) while listening to an FM RDS station.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TU DISP”

(tuner display).

3 Turn the control dial to set to the desired

indication (“PS NAME” or “FREQ”).

4 Press SEL (select) to finish the setting.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA VO L”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

Note:

By pressing DISP (display), you can change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

Station name

(PS NAME)

Station frequency

(FREQ)

Programme type

(PTY)

• Then, the display goes back to the original indication in several seconds.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJ” (adjustment).

3 Turn the control dial counterclockwise to

select “OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same

procedure and select “ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

regional culture SCIENCE: Programmes on natural

science and technology VARIED: Other programmes like

comedies or ceremonies POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

the Stock Market, etc.

CHILDREN: Entertainment programmes for

children SOCIAL: Programmes on social activities RELIGION: Programmes dealing with any

aspect of belief or faith, or the

nature of existence or ethics PHONE IN: Programmes where people can

express their views either by

phone or in a public forum TRAVEL: Programmes about travel

destinations, package tours, and

travel ideas and opportunities LEISURE: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with factual

matters, presented in an

investigative style

ENGLISH

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

ENGLISH

CD OPERATIONS

Refer to “MP3 OPERATIONS” on pages 26 to 29 for operating MP3 discs.

Playing a CD

Open the control panel.

Notes:

• When an external component is connected to the AUX input jack on the control panel, be careful of handling a CD.

• When a CD is already in the loading slot, pressing CD CD-CH (AUX) turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Close the control panel by hand.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

Current source indication*CD–in indicator

Total playing time of the inserted disc

Elapsed playing time

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, “PLEASE” and “EJECT” appear alternately on the display.

• When you open the control panel by pressing 0, the CD automatically ejects.

• If there is no CD in the loading slot, you cannot select CD as the source. “NO DISC” appears on the display.

• If a disc is a CD Text, disc title/performer and then track title will automatically appear.

Total track number of the inserted disc

Current track

To stop play and eject the CD

Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source.

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a CD, to fast-forward the track.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

ENGLISH

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

“MODE” flashes on the upper part of the display.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple

ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and – 10 buttons” on page 22).

• After the last track, the first track will be

selected, and vice versa.

CONTINUED ON THE NEXT PAGE

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

ENGLISH

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD. “MODE” flashes on the upper part of the display.

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD. “MODE” flashes on the upper part of the display.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) and RND indicators

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 34. Some characters or symbols will not be shown (and will be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

You can prohibit disc ejection and can lock a disc in the loading slot.

ENGLISH

While pressing CD CD-CH (AUX), press and hold for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD CD-CH (AUX), press and hold

again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10

ENGLISH

(128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1 (Version 1)

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 (Version 1) tags (album name, performer name, and song title) on the display. (See page 27.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2 (Version 2).

Other main features in this unit:

• Maximum number of folders/files: 289 (Total)

• Available characters for folder/file names: A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name (ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code —“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

separation mark—“.” and extension code —“mp3”)

(Joliet): 64 (inclusive of

• Maximum number of characters for folder name: 64

separation mark —“.” and extension code —“mp3”)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2, or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders” —in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

Playback order, file search order, and folder search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the folders and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer 1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

MP3 folder/file configuration

Level 1

Level 2

Level 3

1 2

Hierarchy

Level 4

Level 5

Level 6

ROOT

3 4

: Root

: Folders

5 6

ROOT

ENGLISH

05 09

1110 2120

06 07

1312

15 1614

2322 24

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally, this unit plays back MP3 files in the recorded order.

• The numbers inside the folders indicate the playback order and search order of the folders on an MP3 disc. Normally, this unit plays back MP3 files in the folders in the recorded order.

ENGLISH

MP3 OPERATIONS

Refer also to “CD OPERATIONS” on pages 20 to

23.

Playing an MP3 disc

Open the control panel.

Notes:

• When an external component is connected to the AUX input jack on the control panel, be careful of handling a disc.

• When a CD is already in the loading slot, pressing CD CD-CH (AUX) turns on the unit and starts playback automatically.

Insert an MP3 disc into the loading slot.

The unit turns on, draws the disc and starts playback automatically.

The display changes to show the following:

Current source

CD–in indicator

Total folder number

Ex.: When the disc contains 19 folders

and 144 MP3 files

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Total file number

MP3 indicator

indication*

Close the control panel by hand.

All files will be played repeatedly until you stop playback.

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 27.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3 file, you can change the MP3 disc information shown on the display.

Each time you press DISP (display), the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see pages 34 and 35)

Album name / performer

(folder name*)

(TAG lights up on the display)

Locating a file or a particular portion on an MP3 disc

For “MP3 playback/search order” see page 25.

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

Press and hold 4 while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

ENGLISH

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISP” is set to “TAG OFF”

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Note:

The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 34.

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing an MP3 disc.

ENGLISH

2 Press +10 or –10.

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select file number 8 while playing

“MODE” flashes on the upper

part of the display.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

file number 6

(Three times)

file number 36

(Twice)

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If “MP3” flashes on the display after you have selected a folder, it means that the folder does not contain any MP3 files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

To skip to the next or previous folder

Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

ENGLISH

Press ∞ (down) while playing an MP3 disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3 files, it is skipped.

Selecting MP3 playback modes

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the MP3 disc at random.

1 Press MODE to enter the functions

mode while playing an MP3 disc. “MODE” flashes on the upper part of the display.

2 Press RND (random), while “MODE”

is still flashing on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press MODE to enter the functions

mode while playing an MP3 disc. “MODE” flashes on the upper part of the display.

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

(folder) and RND indicators

Ex.: When you select “FLDR RND”

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ:

ENGLISH

custom equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

“MODE” flashes on the upper part of the display.

Press EQ (equalizer) while “MODE” is still flashing on the display.

The last selected sound mode is recalled and applied to the current source.

Indication For: Preset values

BAS TRE LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap +02 00 ON

music

JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 31.

Sound mode indicator flashes.

Ex.: If you have selected “USER” previously

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER

Sound mode indicator flashes.

Ex.: When you select “ROCK”

ROCK

CLASSIC

POPSHIP HOPJAZZ

Adjusting the sound

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

*1When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

*2If you are using a two-speaker system, set the fader

level to “00.”

*3Normally the control dial works as the volume

control. So you do not have to select “VOL” to adjust the volume level.

Adjust the setting.

ENGLISH

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS*

TRE*

FAD*

BAL Adjust the left L06 (Left only)

LOUD*1Boost low and high

WOOFER Adjust the 0 (min.)

VOL*

TRE

(treble)

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

frequencies to LOUD ON produce a well- | balanced sound LOUD OFF at low volume level.

subwoofer output | level. 8 (max.)

Adjust the volume. 00 (min.)

FAD

(fader)

WOOFER

(subwoofer)

BAL

(balance)

LOUD

(loudness)

| +06 (max.)

| 50 (max.)

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Equalization pattern changes as you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and

reassign the preset values listed in the table on page 30.

OTHER MAIN FUNCTIONS

Changing the general settings

Adjust the PSM item selected.

(PSM)

You can change the items listed in the table

ENGLISH

below and on page 33 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

Select the PSM item you want to adjust. (See the table below.)

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

Indications Selectable values/items

CLOCK H Hour adjustment

CLOCK M Minute adjustment

24H/12H 24/12-hour time display

AUTO ADJ Automatic clock setting

CLOCK Clock display

TU DISP Tuner display

AF-REG Alternative frequency/

Regionalization reception

PTY STBY PTY standby

TA VO L Traffic announcement

volume

P-SEARCH Programme search

Displayed only when “DAB AF” is set to “AF OFF.”

Back Advance

12H 24H

OFF

FREQ

AF AF REG

OFF*

OFF

29 programme types

(see page 19)

VOL 00 — VOL 50 18VOL 20

OFF

PS NAME

Factory-preset See

settings page

0:00

24H

PS NAME

OFF

18OFF

13, 14AF

Indications Selectable values/items

DAB AF*2Alternative frequency

DAB VOL*2DAB volume adjustment

LEVEL Level display

DIMMER Dimmer mode

TEL Telephone muting

BEEP Key-touch tone

SCROLL Scroll mode

EXT IN*

AUX ADJ Auxiliary adjustment

TAG DISP Tag display

*2Displayed only when DAB tuner is connected. *3Displayed only when one of the following sources is selected—FM, AM, and CD.

External component

AUDIO 1 AUDIO 2

AUTO OFF

MUTING 1 MUTING 2

OFF ON

ONCE AUTO

CHANGER

TAG OFF TAG ON TAG ON

AF ON

OFF

LINE IN

Factory-preset See

settings page

AF ON

AUDIO 2

AUTO

OFF

ONCE

CHANGER

46AF OFF

46VOL–12 — VOL+12 VOL 00

34A.ADJ 00 — A.ADJ 05 A.ADJ 00

34, 35

ENGLISH

To set the clock display—CLOCK

You can set the clock to be shown on the display when the unit is turned on. When shipped from the factory, the clock is set to be shown on the display.

• ON: Clock display is turned on.

• OFF: Clock display is turned off. When “OFF” is selected, the other

information (see table below) appears instead of the clock display (except when “LINE IN” is selected as the source).

When CLOCK is set to OFF:

Source

Tuner Band

CD and “CD” or CD-CH disc number

Current

indication

Pressing DISP (display)

Clock appears for about 5 seconds.

When CLOCK is set to ON:

Source

Tuner Clock Band appears for about

CD and Clock “CD” or disc number and CD-CH track/file number

Current

indication

Pressing DISP (display)

5 seconds.

appear alternately each time you press the button.

To select the level meter—LEVEL

You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected.

• AUDIO 1: Shows the audio level indicator.

• AUDIO 2: Alternates “AUDIO 1” setting and

• OFF: Erases the audio level indicator.

illumination display.

To select the dimmer mode—DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

ENGLISH

• AUTO: Activates Auto Dimmer.

• OFF: Cancels Auto Dimmer.

• ON: Always dims the display.

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “ON” or “OFF.”

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2,” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute

• MUTING 2: Select this if this setting can mute

• OFF: Cancels the telephone muting.

the sounds.

To turn on/off the key-touch tone—BEEP

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• ON: Activates the key-touch tone.

• OFF: Deactivates the key-touch tone.

To select the external component to use —EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use. When shipped from the factory, CD changer is selected as the external component.

• CHANGER: To use the CD changer.

• LINE IN: To use the external component

other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

To adjust the auxiliary input level – AUX ADJ

Adjust the auxiliary input level properly when an external component is connected to the AUX input jack. When shipped from the factory, the AUX input level is set at level “00.” If the level of the connected component is not high enough, increase the input level properly. Without adjusting the line input level, you may be surprised at a loud sound when you change the source from an external component to another source.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown all at once). When shipped from the factory, scroll mode is set to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (5-second

intervals in between).

• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “OFF,” you can scroll the display by pressing DISP (display) for more than one second.

To turn the tag display on or off—TAG DISP

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). This unit is compatible only with ID3v1. When shipped from the factory, “TAG ON” is selected.

• TAG ON: Turns on the ID3 tag display while playing MP3 files.

• If an MP3 file does not have ID3

tags, folder name, and file name appear.

Note:

If you change the setting from “TAG OFF” to “TAG ON” while playing an MP3 file, the tag display will be activated when the next file starts playing.

• TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.)

Assigning names to the sources

You can assign names to CDs (both in this unit and in the CD changer). After assigning a name, it will appears on the display when you select the source.

Sources

CDs* Up to 32 characters (up to

* You cannot assign a name to CD Text or an MP3 disc.

Select a source you want to assign a name to.

Maximum number

of characters

40 CDs)

CD CD-CH

Select a character.

• See the table below for available characters.

Move the cursor to the next (or previous) character position.

Repeat steps 3 and 4 until you finish entering the name.

Finish the procedure while the last selected character is flashing.

To erase the entered characters

Insert spaces using the same procedure described above.

ENGLISH

When you select a source, the power automatically comes on.

While pressing DISP (display), press and hold SEL (select) for more than 2 seconds.

Ex.: When you select CD as the source

Available characters

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

4 5 6 7 8 9

space

Notes:

• When you try to assign a name to the 41st disc, “NAME FULL” appears on the display. (In this case, delete unwanted names before assignment.)

• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

0 1 2 3

–

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel,

ENGLISH

be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Put the detached control panel into the provided case.

Connectors

CD CHANGER OPERATIONS

ENGLISH

We recommend that you use the JVC MP3compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If no magazine is loaded in the CD changer, “NO MAG” appears on the display. If this

happens, insert the magazine in the CD changer.

• If “RESET 1” – “RESET 8” appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Playing discs

• When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

Selected disc number**

(folder) indicator

** When “CLOCK” is set to “ON” (see page 33), the

current indication will soon change to the clock time.

MP3 indicator

Select the CD changer (CD-CH).

CD CD-CH*

* If you have changed “EXT IN” setting to “LINE IN”

(see page 34), you cannot select the CD changer.

Note:

Folder name appears on the display instead of “ROOT,” if an MP3 disc contains a folder.

• When the current disc is a CD:

Playback starts from the first track of the current disc.

Selected disc number*

ENGLISH

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Elapsed playing time Current track

* When “CLOCK” is set to “ON” (see page 33),

the current indication will soon change to the clock time.

Notes:

• When you press CD CD-CH (AUX), the power automatically comes on. You do not have to press

to turn on the power.

• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.

• When you start playing back a CD Text or MP3 disc, disc information will automatically appear on the display. (See pages 23 and 27.)

To fast-forward or reverse the track/file

Press and hold ¢ , during play, to fastforward the track/file.

Press and hold 4 , during play, to reverse the track/file.

To go to the next or previous tracks/files

Press ¢ briefly during play, to skip ahead to the beginning of the next track/file. Each time you press the button consecutively, the beginning of the next tracks/files is located and played back.

Press 4 briefly during play, to skip back to the beginning of the current track/file. Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a disc.

“MODE” flashes on the upper part of the display.

2 Press +10 or –10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* The first time you press +10 or –10 button,

the track/file skips to the nearest higher or lower track/file with a track/file number of multiple ten (ex. 10th, 20th, 30th).

Then, each time you press the button, you can skip 10 tracks/files (see “How to use the +10 and –10 buttons” below).

• After the last track/file, the first track/file will be selected, and vice versa.

To skip to the next or previous folder (only for MP3 discs)

Press 5 (up) while playing an MP3 disc, to go to the next folder. Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ∞ (down) while playing an MP3 disc, to go to the previous folder. Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

To show the disc information for CD Text and MP3 discs

This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability.

Select text display mode while playing a CD Text or an MP3 disc.

ENGLISH

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and –10 buttons

• Ex. 1: To select track/file number 32 while playing track/file number 6

(Three times)

Track/file 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track/file number 8 while playing track/file number 36

(Three times) (Twice)

Track/file 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

• For details, see page 23 about CD Text disc information and page 27 about MP3 disc information.

Selecting the playback modes

To play back tracks/files at random (Folder Random/Disc Random/Magazine

ENGLISH

Random Play)

1 Press MODE to enter the functions

mode during play. “MODE” flashes on the upper part of the display.

2 Press RND (random), while

“MODE” is still flashing on the display. Each time you press the button, the random play mode changes as follows:

For MP3 discs:

DISC RNDFLDR RND

Mode

FLDR RND* and RND All files of the

DISC RND and RND All tracks/files of

MAG RND RND indicator All tracks/files of

* “FLDR RND” is only applicable for MP3 discs.

Active

indicator

indicators current folder, then light up. files of the next

indicators the current (or light up. specified) disc.

lights up. the inserted discs.

Plays at random

folder and so on.

Canceled

For CDs:

MAG RND

MAG RNDDISC RND

Canceled

RND indicator

Ex.: When you select “MAG RND”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play)

1 Press MODE to enter the functions

mode during play. “MODE” flashes on the upper part of the display.

2 Press RPT (repeat), while “MODE”

is still flashing on the display. Each time you press the button, the repeat play mode changes as follows:

For MP3 discs:

TRK RPT FLDR RPT

Mode

TRK RPT RPT indicator The current (or

FLDR RPT* and RPT All files of the

DISC RPT and RPT All tracks/files of

* “FLDR RPT” is only applicable for MP3 discs.

Active

indicator

lights up. specified) track/

indicators current (or light up. specified) folder of

indicators light the current (or up. specified) disc.

Plays repeatedly

file.

the current disc.

ENGLISH

Canceled

For CDs:

DISC RPT

DISC RPTTRK RPT

Canceled

(disc) and RPT indicators

Ex.: When you select “DISC RPT”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

EXTERNAL COMPONENT OPERATIONS

* Not compatible with

digital signals.

Portable MD player, etc.

ENGLISH

Playing an external component

You can connect two external components to this unit. Connect one to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied), and the other to the AUX input jack on the control panel.

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use—EXT IN” on page 34.)

• If the input level of the external component connected to the AUX input jack is not high enough, increase the input level properly. (See “To adjust the auxiliary input level—AUX ADJ” on page 34.)

Select the external component (LINE IN or AUX IN).

To select “LINE IN” (component connected to the CD changer jack on the rear), press CD CD-CH (AUX) repeatedly.

Auxiliary input*

• If “LINE IN”* does not appear on the display, see page 34 and select the external input (“LINE IN”).

* Displayed only when one of the following

sources is selected—FM, AM, and CD.

To select “AUX IN” (component connected to the AUX input jack on the control panel),

press and hold CD CD-CH (AUX).

Note on One-Touch Operation:

When you press CD CD-CH (AUX), the power automatically comes on. You do not have to press

Turn on the connected component

to turn on the power.

and start playing the source.

Adjust the volume.

CD LINE IN*

Adjust the sound characteristics you want. (See pages 30 and 31.)

DAB TUNER OPERATIONS

ENGLISH

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures, and data. In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”).

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit. To prevent this inconvenience, you can adjust the DAB input level. (See “To adjust the DAB volume level” on page 46.)

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press FM/AM (DAB) briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2, or DAB3).

Each time you press the button, the DAB band changes as follows:

DAB 1

(D1)

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any of them to tune in to an ensemble.

DAB 2

(D2)

DAB 3

(D3)

CONTINUED ON THE NEXT PAGE

FM/AMDAB

Start searching for an ensemble.

ENGLISH

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have

pressed for searching.

Select a service (either primary or secondary) you want to listen to.

Press ¢ to search for ensembles of higher frequency.

Press 4 to search for ensembles of lower frequency.

To tune in to a particular ensemble without searching

Before you start....

Press FM/AM (DAB) briefly if CD, CD changer, or external component is the current source.

1 Press and hold FM/AM (DAB) to select DAB

tuner as the source.

2 Press FM/AM (DAB) repeatedly to select the

DAB band (DAB1, DAB2, or DAB3).

3 Press and hold ¢ or 4 for more

than one second.

4 Press ¢ or 4 repeatedly until the

ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button.

5 Press 5 (up) or ∞ (down) to select a service

(either primary or secondary) you want to listen to.

Press 5 (up) to select the next service. (If a primary service has some secondary services, they are selected before the next primary service is selected.)

Press ∞ (down) to select the previous service (either primary or secondary).

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to check the ensemble name or its frequency, press DISP (display).

Each time you press the button, the following information appears for a while on the display.

Service name

Ensemble name

Channel number

Frequency

To restore the FM/AM tuner

Press and hold FM/AM (DAB) again.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2, and DAB3) manually.

Before you start....

Press FM/AM (DAB) briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB 1

(D1)

DAB 2

(D2)

DAB 3

(D3)

Tune in to an ensemble you want.

Tuning in to a preset DAB service

Select a service of the ensemble you want to listen to.

Press 5 (up) to select the next service.

Press ∞ (down) to select the previous service.

Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

Selected band/preset number and “MEMO” (memory) appear alternately for a while.

Repeat the above procedure to store other DAB services into other preset numbers.

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, “Storing DAB services in memory” on pages 44 and 45.

Before you start....

Press FM/AM (DAB) briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB 1

(D1)

Select the number (1 – 6) for the preset DAB service (primary) you want.

DAB 2

(D2)

DAB 3

(D3)

ENGLISH

Notes:

• You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

Note:

If the selected primary service has some secondary services, pressing the same number button repeatedly will tune in to the secondary services.

What you can do more with DAB

Tracing the same program automatically

ENGLISH

(Alternative Reception)

You can keep listening to the same program.

• While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station: When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB AF”

(alternative frequency).

3 Turn the control dial to select the desired

mode.

• AF ON: Traces the program among DAB

• AF OFF: Alternative Reception is

4 Press SEL (select) to finish the setting.

services and FM RDS stations —Alternative Reception. The AF indicator lights up on the display (see page 13).

deactivated.

To adjust the DAB volume level

You can adjust the volume level of DAB tuner and store it in memory. By adjusting the volume level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source. When shipped from the factory, DAB volume level is set at “00.”

• See also “Changing the general settings (PSM)” on page 32.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB VOL”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL–12” to “VOL+12.”

4 Press SEL (select) to finish the setting.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 13) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms

Causes

Remedies

• Sound cannot be heard from the speakers.

• This unit does not work

General

at all.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

FM/AM

• Static noise while listening to the radio.

• Disc cannot be played back.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CDRW cannot be skipped.

• Disc cannot be ejected.

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak.

The aerial is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

Adjust it to the optimum level.

Check the cords and connections.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Store stations manually.

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 23.)

ENGLISH

• Disc sound is sometimes interrupted.

Disc Playback

• “NO DISC” appears on the display.

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

No disc in the loading slot.

Disc is inserted incorrectly.

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Insert a disc into the loading slot.

Insert the disc correctly.

Symptoms

Causes

Remedies

• Disc cannot be played

ENGLISH

• Noise is generated.

• A longer readout time is

• Files cannot be played back

MP3 Playback

• Elapsed playing time is not

• “MP3” flashes on the

back.

required (“CHECK” keeps flashing on the display).

as you have intended them to play.

correct.

display.

No MP3 files are recorded on the disc.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, or Joliet.

The file played back is not an MP3 file (although it has the extension code—mp3).

Readout time varies due to the complexity of the folder/ file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

The current folder does not contain any MP3 file.

Change the disc.

Add the extension code —mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code—mp3 to nonMP3 files.)

Do not use too many hierarchies and folders. Also, do not record any other types of audio tracks together with MP3 files.

Select another folder.

• “NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3 file.

This unit can only display alphabets (capital: A–Z), numbers, and a limited number of symbols.

Insert a disc that contains MP3 files.

Symptoms

Causes

Remedies

• “NO DISC” appears on the display.

• “NO MAG” appears on the display.

• “RESET 8” appears on the display.

• “RESET 1” – “RESET 7” appears on the display.

• The CD changer does not work at all.

No disc is in the magazine.

Discs are inserted upside down.

No magazine is loaded in the CD changer.

This unit is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Insert discs into the magazine.

Insert discs correctly.

Insert the magazine.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

ENGLISH

CD Changer

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

ENGLISH

• This unit is also compatible with MP3 discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the disc player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the disc player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, and for the following reasons: – Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may peel off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Auxiliary Input Jack:

(3.5 mm dia. stereo mini jack) (analog) Line-Out Level/Impedance:

4.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Subwoofer-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Cutoff frequency: 120 Hz (fixed)

TUNER SECTION

Frequency Range

FM1/FM2: 87.5 MHz to 108.0 MHz FM3: 65.00 MHz to 74.00 MHz AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format:

MPEG1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

GENERAL

Power Requirement

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

ENGLISH

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше

устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, RU 0103KKSMDTJEIN

JVC

KD-SX947R

Installation/Connection Manual

Руководство по установке/подключению

GET0126-002A

[EE]

ENGLISH

• This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems.

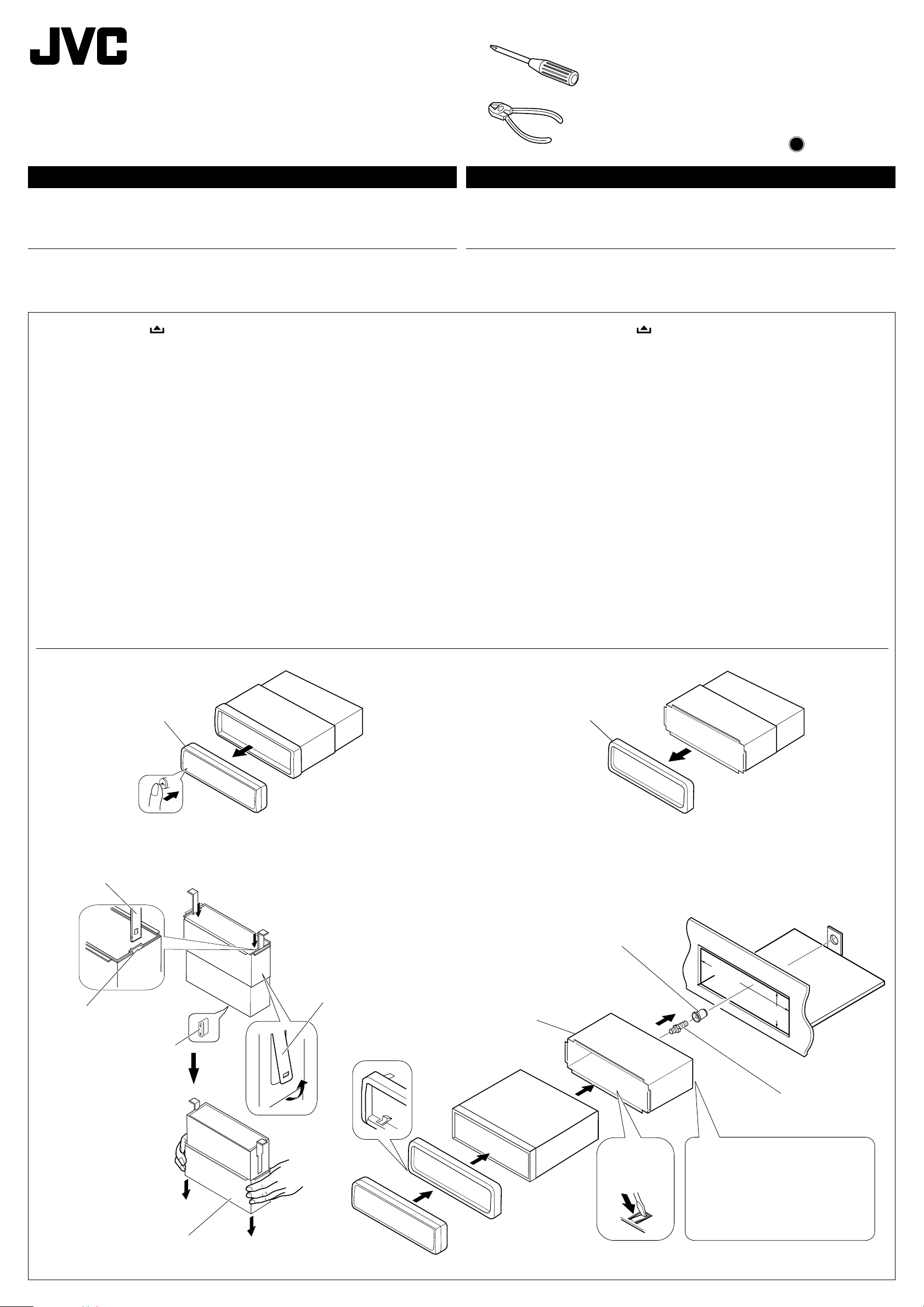

INSTALLATION (IN-DASH MOUNTING)

• The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

Before mounting: Press (control panel release button) to detach the control panel if already attached.

* When shipped from the factory, the control panel is packed in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks. 1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and the sleeve, as illustrated, to disengage the sleeve locks. 3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard. * After the sleeve is correctly installed into the dashboard, bend the appropriate tabs to hold the sleeve

firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve until it is locked.

Attach the trim plate. Note: Ensure the recessed part is at the bottom. If not, the control panel will not open completely.

Attach the control panel.

0103KKSMDTJEIN

JVC

EN, RU

РУССКИЙ

• Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе.

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

• На следующих иллюстрациях показана типовая установка. Тем не менее, Вы должны сделать поправки в соответствии с типом Вашего автомобиля. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру JVC IN-CAR ENTERTAINMENT или в компанию, поставляющую соответствующие принадлежности.

Перед установкой: Нажмите кнопку (кнопка освобождения панели управления) для отсоединения панели управления, если она уже прикреплена.

* При отправке с завода панель управления упакована в твердую коробку.

Удалите декоративную панель.

Удалите муфту после освобождения запоров муфты. 1 Установите устройство.

Примечание: Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

2 Вставьте два рычага между устройством и муфтой, как показано на рисунке, для

освобождения запоров муфты.

3 Удалите муфту.

Примечание: После установки устройства сохраните рычаги для использования в будущем.

Установите муфту в приборную панель.

* После установки муфты в приборную панель согните соответствующие зубцы для фиксации

муфты, как показано на рисунке.

Затяните Крепежный болт на задней части корпуса устройства и наденьте резиновый чехол на конец болта.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Задвиньте устройство в муфту до упора.

Установите декоративную панель. Примечание: Обеспечьте, чтобы часть с выемкой была внизу. Если это не так, то панель

управления полностью не откроется.

Прикрепите панель управления.

Slot

Отверстие

Control panel

Панель управления

Handle

Рычаг

Lock Plate

Фиксирующая панель

Trim plate

Декоративную панель

Rubber cushion

Резиновый чехол

Sleeve

Муфта

Dashboard

Приборная панель

184 mm

53 mm

Fuse

Предохранитель

Sleeve

Муфта

Control panel

Панель управления

Trim plate

Декоративную панель

Mounting bolt

Крепежный болт

See “ELECTRICAL CONNECTIONS.”

Смотрите “ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ”.

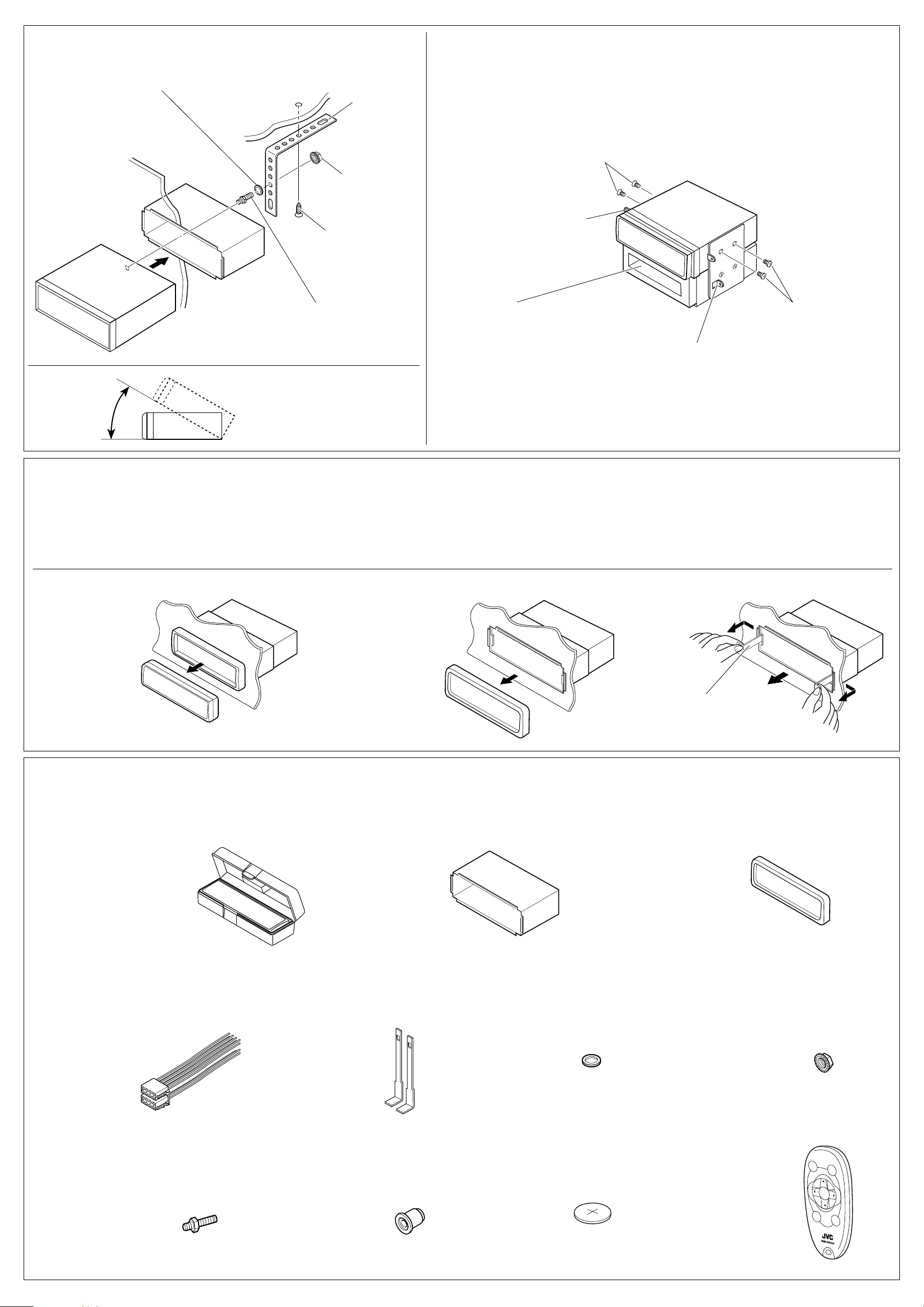

• When using the optional stay

• При использовании дополнительной стойки

Washer

Шайба

Fire wall

Стена

Stay (option)

Стойка (дополнительно)

• When installing the unit without using the sleeve

• При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the unit in its place.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на ее место это устройство.

Dashboard

Приборная панель

Less than 30˚

Менее 30°

Sleeve

Муфта

Lock nut

Фиксирующая гайка

Screw (option)

Винт (дополнительно)

Mounting bolt

Крепежный болт

Install the unit at an angle of less than 30˚.

Установите устройство под углом менее 30°.

Flat type screws (M5 x 6 mm)*

Крепежные винты (M5 x 6 мм)*

Bracket*

Кронштейн*

Pocket

Карман

Bracket*

Кронштейн*

Note : When installing the unit on the mounting bracket, make sure to use the 6 mm-long screws. If longer

screws are used, they could damage the unit.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты длиной 6 мм.

При использовании более длинных винтов можно повредить устройство.

* Not included with this unit.

* Не входят в комплект.

Flat type screws (M5 x 6 mm)*

Крепежные винты (M5 x 6 мм)*

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit. (Be sure to keep the handles after installing it.)

Control panel

Панель управления

Trim plate

Декоративную панель

Parts list for installation and connection

The following parts are provided with this unit. After checking them, please set them correctly.

Удаление устройства

• Перед удалением устройства освободите заднюю часть.

Удалите панель управления.

Удалите декоративную панель.

Вставьте 2 рычаги в отверстия, как показано на иллюстрации. Затем, плавно раздвигая рычаги в стороны, выньте устройство. (После установки сохраните рычаги.)

321

Handle

Рычаг

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. После проверки комплектации, пожалуйста, установите их правильно.

Hard case/Control panel

Жесткий футляр/панель управления

Power cord

Кабель питания

Handles

Рычаги

Sleeve

Муфта

Washer (ø5)

Шайба (њ5)

Trim plate

Декоративную панель

Lock nut (M5)

Фиксирующая гайка (M5)

Mounting bolt (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

Rubber cushion

Резиновый чехол

Remote controller

Battery

Батарейка

CR2025

Устройство дистанционного управления

ENGLISH РУССКИЙ

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Note:

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. However, with some vehicles, clicking or other unwanted noise may occur. If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire. If noise still persists, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Maximum input of the speakers should be more than 50 W at the rear and 50 W at the front, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Радиатор

Typical Connections /

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord to the car battery, speakers and power aerial (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to remote lead of other equipment or power aerial if any (200 mA max.) 5 Orange with white stripe: to car light control switch 6 Brown: to cellular phone system (For details, refer to the instructions of the cellular phone.) 7 Others: to speakers

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

Типичные подключения

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства. Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

Примечание:

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера JVC IN-CAR ENTERTAINMENT.

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру JVC IN-CAR ENTERTAINMENT.

• При появлении сильных помех... Это устройство оснащено фильтром помех в цепи питания. Однако в некоторых случаях возможно появление щелчков и других нежелательных помех. В этом случае подключите задний разъем заземления этого устройства (см. схему подключения ниже) к шасси автомобиля при помощи более коротких и толстых проводов. Если помехи не исчезают, обратитесь к дилеру JVC IN-CAR ENTERTAINMENT.

• Максимальная входная мощность громкоговорителей должна быть больше 50 Вт сзади и 50 Вт впереди при полном сопротивлении от 4 Ω до 8 Ω.

• Нe забудьте заземлить устройство на шасси автомобиля.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

Подключите цветные провода кабеля питания к аккумулятору, громкоговорителям и автономной антенне (если есть) в следующем порядке:

1 Черный: земля 2 Желтый: к аккумулятору (постоянный 12 В) 3 Красный: к вспомогательному разъему 4 Синий с белой полосой: к удаленному проводу другого оборудования или антенны

(макс. 200 мА).

5 Оранжевый с белой полосой: к управляющему переключателю фонаря автомобиля 6 Коричневый: к системе сотового телефона (Детали смотрите в инструкции сотового

телефона.)

7 Другие: к громкоговорителям

Подключите кабель антенны.

В последнюю очередь подключите электропроводку к устройству.

Примечание: Если в Вашем автомобиле никакого вспомогательного разъема не имеется, переставьте предохранитель из положения 1 предохранителя (первоначальное положение) в положение 2 предохранителя и подключите красный провод (А7) к положительному (+) полюсу аккумулятора.

• Желтый провод (А4) в этом случае не используется.

JVC CD changer / DAB-Tuner / External component jack

Гнездо проигрывателя-автомата компакт-дисков JVC / DAB-тюнера / внешнего компонента

SUBWOOFER (see diagram )

(см. схему )

Rear ground terminal

Задний разъем заземления

Aerial terminal

Разъем антенны

Line out (see diagram )

Линейный выход (см. схему )

To aerial

К антенне

We recommend you to connect the JVC MP3-compatible CD changer. You can also connect other CH-X series CD changers (except CD-X99 and CD-X100).

• You cannot use the KD-MK series CD changers with this unit. You can also use an external component such as a portable MD player by connecting the Line Input Adapter KS-U57 (not supplied). (See diagram

Рекомендуется подключать совместимое с MP3 устройство автоматической смены компакт-дисков компании JVC. Кроме того, можно подключать одно из устройств автоматической смены компакт-дисков серии CH-X (кроме CH-X99 и CH-X100).

• С данным устройством нельзя использовать устройства автоматической смены компакт-дисков серии KD-MK. Вы можете также использовать внешний компонент, такой как портативный проигрыватель минидисков, подсоединив адаптер входной линии KS-U57 (не поставляется). (Смотрите диаграмму .)

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

15 A fuse

Предохранитель 15A

Black

Черный

Yellow*

Желтый*

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch)

К разъему фазы в блоке предохранителя (минуя блок зажигания)

Fuse position 1 / Положение 1 предохранителя

Not included with this unit.

Не входит в комплект.

Fuse position 2 / Положение 2 предохранителя

Ignition switch

Переключатель зажигания

*1 : Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*1 : Перед проверкой работы устройства подключите

этот провод, иначе питание не включится.

B5B6

White with black stripe

Белый с черной полосой

White

Белый

Left speaker (front)

Левый громкоговоритель (передний)

Gray with black stripe

Серый с черной полосой

Red

Красный

Blue with white stripe

Синий с белой полосой

Orange with white stripe

Оранжевый с белой полосой

Brown / Коричневый

B3 B8 B7 B2 B1

Gray

Серый

Right speaker (front)

Правый громкоговоритель (передний)

Green with black stripe

Зеленый с черной полосой

To an accessory terminal in the fuse block

К вспомогательному разъему в блоке предохранителя

To remote lead of other equipment or power aerial if any

К удаленному проводу другого оборудования или

антенны

(ILLUMINATION)

Green

Зеленый

Left speaker (rear)

Левый громкоговоритель (задний)

To car light control switch

К управляющему переключателю фонаря автомобиля

Purple with black stripe

Пурпурный с черной полосой

Fuse block

Блок предохранителя

To cellular phone system

К системе сотового

телефона

Purple

Пурпурный

Right speaker (rear)

Правый громкоговоритель (задний)

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessory terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car. – If the speaker wiring in your car is as illustrated in Fig. 1 and Fig. 2 below, DO NOT connect the unit

using that original speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as illustrated in Fig. 3, you can connect the unit using the original

speaker wiring in your car.

– If you are not sure of the speaker wiring of your car, consult your car dealer.

Fig. 1

Fig. 2 Fig. 3

Connecting the leads / Подключение контактов

Twist the core wires when connecting.

Закрутите концы проводов при соединении.

Solder the core wires to connect them securely.

Спаяйте провода для надежного соединения.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• Правильно подключите черный провод (земля), желтый провод (в аккумулятор, постоянный ток 12 В) и красный провод (в вспомогательный разъем).

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле. – Если проводка громкоговорителей в Вашем автомобиле такая, как показано на

приводимых ниже Fig. 1 и Fig. 2, НЕ подключайте устройство с помощью первоначальной проводки громкоговорителей. Если Вы это сделаете, устройство будет серьезно повреждено. Переделайте проводку громкоговорителей так, чтобы Вы могли подключить устройство к громкоговорителям, как это показано на Fig. 3.

– Если проводка громкоговорителей в Вашем автомобиле такая, как показано на Fig. 3, Вы

можете подключить устройство с помощью первоначальной проводки громкоговорителей в Вашем автомобиле.

– Если Вы не знаете соединение громкоговорителей в Вашем автомобиле, обратитесь к Вашему

автомобильному дилеру.

CAUTION / ПРЕДОСТЕРЕЖЕНИЕ:

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы

изолирующей лентой.

Connections Adding Other Equipment / Подключение других устройств

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• For amplifier only: – Connect this unit’s line-out terminals to the amplifier’s line-in terminals. – Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of

this unit unused. (Cover the terminals of these unused leads with insulating tape, as illustrated above.)

– The line output level of this unit is kept high to maintain the hi-fi sounds reproduced from this unit.

When connecting an external amplifier to this unit, turn down the gain control on the external amplifier to obtain the best performance from this unit.

Amplifier / Усилитель

Задние громкоговорители

Rear speakers

INPUT

Signal cord (not supplied with this unit)

Кабель сигнала (не входит в комплект)

LRL

Front speakers

Передние громкоговорители

JVC Amplifier

JVC-усилитель

OUT

LINE

FRONT

REAR

KD-SX947R

Remote lead

Провод внешнего устройства

Blue with white stripe

Синий с белой полосой

INPUT

Для обновления автомобильной стереосистемы Вы можете подключить усилитель.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Только для усилителя: – Подключите выходные клеммы данного устройства к входным клеммам усилителя. – Отсоедините громкоговорители от данного устройства, подключите их к усилителю.

Оставьте провода громкоговорителей данного устройства неиспользованными. (Замотайте клеммы этих неиспользованных проводов изоляционной лентой, как показано выше.)

– Уровень выходного сигнала линии данного устройства поддерживается высоким, чтобы

обеспечить высококачественный звук, воспроизводимый данным устройством.

При подключении внешнего усилителя к данному устройству убавьте регулировку усиления на внешнем усилителе, чтобы обеспечить оптимальные характеристики работы данного устройства.

Y-connector (not supplied with this unit)

Разъем Y (не входит в комплект)

*2 : Firmly attach the ground wire to the

metallic body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

To power aerial if any

К питанию антенны, если есть

*2 : Плотно прикрепите заземляющий

провод к металлическому кузову или шасси автомобиля—в месте, не покрытом краской (если оно

JVC Amplifier

JVC-усилитель

Front speakers

Передние громкоговорители

покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

You can connect another power amplifier for front speakers.

Вы можете подключить еще один усилитель мощности для передних динамиков.

CD Changer and DAB Tuner / Проигрыватель-автомат компакт-дисков и тюнер DAB

You can connect a JVC CD changer and/or a JVC DAB (Digital Audio Broadcasting) tuner.

• For their connections, refer to the instructions supplied with them.

Connecting cord supplied with your CD changer

Connecting cord supplied with your DAB tuner

Соединительный шнур входит в комплект поставки приобретенного Вами тюнера DAB.

JVC DAB tuner

Тюнер DAB JVC

Соединительный кабель, поставляемый с Вашим проигрывателем-автоматом компактдисков

JVC CD changer

Проигрывателем-автоматом

компакт-дисков JVC

KD-SX947R

• You can connect both components in series as illustrated above.

• Вы можете подключить оба компонента параллельно, как проиллюстрировано выше.

Вы можете подключить проигрыватель-автомат компакт-дисков JVC и/или тюнер DAB (цифровое радиовещание) JVC.

• Порядок их подключения смотрите в прилагаемых к ним инструкциях.

Connecting cord supplied with your DAB tuner or CD changer

Соединительный кабель, поставляемый с Вашим тюнером DAB или проигрывателемавтоматом компакт-дисков

CAUTION / ПРЕДУПРЕЖДЕНИЕ:

• Before connecting the CD changer and/or the DAB tuner, make sure that the unit is turned off.

• Перед подключением проигрывателя-автомата компакт-дисков и/или тюнера DAB убедитесь, что данное устройство выключено.

External Component / Внешний компонент

Line Input Adapter KS-U57 (not supplied with this unit)

Адаптер входной линии KS-U57 (не входит в комплект)

External component

Внешний компонент

KD-SX947R

CD changer jack

Гнездо проигрывателяавтомата компакт-дисков

Signal cord (not supplied with this unit)

Кабель сигнала (не входит в комплект)

JVC DAB tuner

Тюнер DAB JVC

Проигрывателем-автоматом

или

компакт-дисков JVC

Subwoofer / Динамик низких частот

Signal cord (not supplied with this unit)

Кабель сигнала (не входит в комплект)

KD-SX947R

RLR

SUBWOOFER

JVC CD changer

Subwoofer

Динамик низких частот

JVC Amplifier

JVC-усилитель

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель. * Правильно ли подключены черный и красный провода?

• Питание не включается. * Подключен ли желтый провод?

• Звук не выводится через громкоговорители. * Нет ли короткого замыкания на кабеле выхода громкоговорителей?

• Звук искажен. * Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Устройство нагревается. * Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

JVC GET0126-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Position And Reproduction Of Labels

How to reset your unit

How to use the MODE button

CONTENTS

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

RDS OPERATIONS

CD OPERATIONS

MP3 INTRODUCTION

MP3 OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

CD CHANGER OPERATIONS

EXTERNAL COMPONENT OPERATIONS

DAB TUNER OPERATIONS

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

Installation/Connection Manual

ELECTRICAL CONNECTIONS

TROUBLESHOOTING
