CD RECEIVER KD-SX980
ENGLISH
RECEPTOR CON CD KD-SX980
RECEPTEUR CD KD-SX980
Detachable
SOUND
U
SOURCE
F
R
D
VOL
VOL
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
For customer Use:
Enter below the Model No. and
Serial No. which are located on
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
the top or bottom of the cabinet.
Retain this information for future
reference.
Model No.
ESPAÑOL
FRANÇAIS
Serial No.
GET0091-001A
[J]
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
ENGLISH
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT FOR LASER PRODUCTS
Precautions:
1. CLASS 1 LASER PRODUCT
2. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to beam.
3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all
servicing to qualified service personnel.
4. CAUTION: This CD player uses invisible laser radiation, however, is equipped with safety switches
to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.
5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
How to reset your unit
After detaching the control panel, press the reset button on the panel holder using a ball-point
pen or a similar tool.
This will reset the built-in microcomputer.
Note:
Your preset adjustments — such as preset channels or sound adjustments — will also be erased.
BEFORE USE
*
For safety....
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
*
Temperature inside the car....
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
2
Thank you for purchasing a JVC product. Please read all instructions carefully before operation,
to ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
How to reset your unit............................... 2
How to use the number buttons................ 3
LOCATION OF THE BUTTONS............ 4
Control panel ........................................... 4
Preparing the remote controller ................ 5
Remote controller .................................... 6
BASIC OPERATIONS ...................... 7
Turning on the power ................................ 7
RADIO BASIC OPERATIONS ............. 8
Listening to the radio ................................ 8
Storing stations in memory ....................... 9
Tuning in to a preset station ..................... 10
CD OPERATIONS .......................... 11
Playing a CD............................................ 11
Locating a track or particular portion
on a disc................................................ 12
Selecting CD playback modes.................. 12
Prohibiting CD ejection ............................. 13
Playing a CD Text .................................... 13
MP3 INTRODUCTION ..................... 14
What is MP3? .......................................... 14
How are MP3 files recorded and
played back? ......................................... 14
MP3 OPERATIONS ........................ 16
Playing an MP3 disc ................................. 16
Locating a file or particular portion
on an MP3 disc ..................................... 17
Selecting MP3 playback modes ............... 19
SOUND ADJUSTMENTS .................. 21
Adjusting the sound ................................. 21
Selecting preset sound modes
(C-EQ: custom equalizer) ...................... 22
Storing your own sound adjustments ....... 23
OTHER MAIN FUNCTIONS ............... 24
Setting the clock ...................................... 24
Changing the general settings (PSM) ...... 24
Assigning names to the sources .............. 27
Detaching the control panel...................... 29
CD CHANGER OPERATIONS ............. 30
Playing CDs ............................................. 30
Selecting CD playback modes.................. 32
EXTERNAL COMPONENT OPERATIONS.. 33
Playing an external component ................ 33
TROUBLESHOOTING...................... 34
MAINTENANCE ............................ 36
Handling discs ......................................... 36
SPECIFICATIONS .......................... 37
ENGLISH
How to use the number buttons:
If you press MODE, the unit goes into functions mode and the number buttons work as different
function buttons.
Time countdown indicator
«
Ex.: When you press button 5 to enter the RPT
function mode.
To use these b uttons as number buttons again after pressing MODE, wait for 5 seconds without
pressing any number button until the functions mode is cleared.
• Pressing MODE again also clears the functions mode.
CAUTION on Volume Setting
CDs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for
example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the
volume before playing a disc and adjust it as required during playback.
3
Control panel
Display window
ENGLISH
s
LOCATION OF THE BUTTONS
d
f
g
h
kl
j
1
24
9
p
1 4 /¢ buttons
2 5 (up) button
3 ∞ (down) button
4 Remote sensor
5 Display window
6 0 (eject) button
7 FM AM button
8 CD CD-CH/MP3 INPUT button
9 (standby/on/attenuator) button
p (control panel release) button
q SEL (select) button
w Control dial
e MO (monaural) button
r INT (intro scan) button
t RPT (repeat) button
y RND (random) button
u Number buttons
i MODE button
•
Also functions as SSM buttons when pressed
together with DISP (display) button.
o DISP (display) button
•
Also functions as SSM buttons when pressed
together with MODE button.
/
37
w
q
4
200W
i o ;
u
c
v
8
MP3
INPUT
a
x
z
56
t ye
r
; EQ (equalizer) button
a MP3 INPUT jack
Display window
s DISC indicator
d TRACK indicator
f MP3 indicators
DIRECTORY, FILE
g Main display
h Volume (or audio) level indicator
Equalization pattern indicator
j Tuner reception indicators
MO (monaural), ST (stereo)
k C-EQ (custom equalizer) indicator
l RND (random) indicator
/ RPT (repeat) indicator
z LOUD (loudness) indicator
x Sound mode indicators
ROCK, CLASSIC, POPS, HIP HOP, JAZZ,
USER.
c Source/clock display
v CD–in indicator
Preparing the remote controller
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the main unit. Make sure there is no
obstacle in between.
Remote sensor
• Do not expose the remote sensor to strong
light (direct sunlight or artificial lighting).
Installing the battery
When the controllable range or effectiveness of the
remote controller decreases, replace the battery.
2. Place the battery.
Slide the battery into the holder with the + side
facing upwards so that the battery is fixed in
the holder.
Lithium coin battery
(product number:
CR2025)
3. Return the battery holder.
Insert again the battery holder pushing it until
you hear a clicking sound.
(back side)
ENGLISH
1. Remove the battery holder.
1) Push out the battery holder in the direction
indicated by the arrow using a ball-point
pen or a similar tool.
2) Remove the battery holder.
(back side)
WARNING:
• Store the battery in a place where children cannot
reach.
If a child accidentally swallows the battery,
consult a doctor immediately.
• Do not recharge, short, disassemble or heat the
battery or dispose it in a fire.
Doing any of these things may cause the battery to
give off heat, crack or start a fire.
• Do not leave the battery with other metallic
materials.
Doing this may cause the battery to give off heat,
crack or start a fire.
• When throwing away or saving the battery, wrap it
in tape and insulate; otherwise, the battery may
start to give off heat, crack or start a fire.
• Do not poke the battery with tweezers or similar
tools.
Doing this may cause the battery to give off heat,
crack or start a fire.
CAUTION:
DO NOT leave the remote controller in a place (such
as dashboards) exposed to direct sunlight for a long
time. Otherwise, it may be damaged.
5
Remote controller
RM–RK50
ENGLISH
SOUND
ATT
1
2
3
R
U
SOURCE
D
F
4
VOL
1 • Turns on the unit if pressed when the unit is
turned off.
• T urns off the unit if pressed and held until “SEE
YOU” appears on the display.
• Drops the volume level in a moment if pressed
briefly.
Press again to resume the volume.
2 • Selects the band while listening to the radio.
Each time you press the button, the band
changes.
• Skips to the next disc while listening to the
CD changer.
Each time you press the button, the disc
number increases, and the selected disc
starts playing.
• Skips to the first file of the next directory
while listening to an MP3 disc. Each time
you press the button, you can move to the
next directory and start playing the first file.
VOL
5
6
7
3 • Selects the preset stations while listening to
the radio.
Each time you press the button, the preset
station number increases, and the selected
station is tuned into.
• Skips to the previous disc while listening to
the CD changer.
Each time you press the button, the disc
number decreases, and the selected disc
starts playing.
• Skips to the first file of the previous directory
while listening to an MP3 disc. Each time
you press the button, you can move to the
previous directory and start playing the first
file.
4 Functions the same as the control dial on the
main unit.
NOTE:
This button does not function for the
preferred setting mode adjustment.
5 Selects the sound mode (C-EQ).
Each time you press the button, the sound
mode (C-EQ) changes.
6 Selects the source.
Each time you press the button, the source
changes.
7 • Searches stations while listening to the radio.
• Fast-forwards or reverses the track/file if
pressed and held while listening to a disc.
• Skips to the beginning of the next track/file or
goes back to the beginning of the current (or
previous) tracks/files if pressed briefly while
listening to a disc.
6
BASIC OPERATIONS
200
ENGLISH
12
3
Turning on the power
1
Turn on the power.
Note on One-Touch Operation:
When you select a source in step 2 below, the
power automatically comes on. You do not have
to press this button to turn on the power.
2
Select the source.
To select the tuner, press FM AM
repeatedly.
FM1 FM2
AM
To select CD, CD changer (or “LINE IN”*),
press CD CD-CH repeatedly.
CD-CH
(or LINE IN)*
* If “LINE IN” does not appear on the display,
see page 27 and select the external input
(“LINE IN”).
To select “AUX IN” (component connected
to the MP3 INPUT jack on the control
panel), press and hold CD CD-CH.
FM3
CD
3
Adjust the volume.
To increase the volume.
To decrease the volume.
Volume or audio
level (see page 26)
Volume level appears.
4
Adjust the sound as you want.
(See pages 21 – 23.)
indicator
To drop the volume in a moment
Press briefly while listening to any
source. “ATT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the
button briefly again.
• If you turn the control dial clockwise, you can
also restore the sound.
To turn off the power
Press for more than one second.
“SEE YOU” appears, then the unit turns off.
Note:
When you use this unit for the first time, set the built-in
clock correctly, see page 24.
7
ENGLISH
RADIO BASIC OPERATIONS
200
Listening to the radio
You can use either automatic searching or manual
searching to tune in to a particular station.
Searching a station automatically:
Auto search
1
Select the band (FM1 – 3, AM).
FM1 FM2 FM3 AM
(F1) (F2) (F3) (AM)
Selected band appears.*
* When “CLOCK” is set to “ON” (see page 26),
the band indication will soon change to the
clock time.
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to an
FM broadcast.
While searching stations, “SEEK” appears
on the display.
When a station is received, searching stops.
To stop sear ching before a station is received,
press the same button you have pressed for
searching.
Searching a station manually:
Manual search
1
Select the band (FM1 – 3, AM.)
FM1 FM2 FM3 AM
(F1) (F2) (F3) (AM)
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to an
FM broadcast.
2
Press and hold ¢ or 4 until
“MANU (manual)” starts flashing on
the display.
2
Start searching a station.
8
Press ¢ to search
stations of higher
frequencies.
Press 4 to search
stations of lower
frequencies.
Selected band appears.
3
Tune in to a station you want while
“MANU” is flashing.
Press ¢ to tune
in to stations of higher
frequencies.
Press 4 to tune
in to stations of lower
frequencies.
• If you release your finger from the button,
the manual mode will automatically turn off
after 5 seconds.
• If you hold down the button, the frequency
keeps changing (in 200 kHz intervals for FM
and 10 kHz for AM) until you release the
button.
When an FM stereo broadcast is hard to
receive:
1 Press MODE to enter the functions
mode while listening to an FM
stereo broadcast.
“MODE” appears on the lower part
of the display, and the number
buttons work as different function
buttons.
2 Press MO (monaural), while
“MODE” is still on the display, so
that the MO indicator lights up on
the display.
Then, each time you press MO
(monaural), the MO indicator lights
up and goes off alternately.
Lights up when receiving an FM broadcast in stereo.
Storing stations in memory
You can use one of the following two methods to
store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
Y ou can preset 6 local FM stations in each FM band
(FM1, FM2 and FM3).
1
Select the FM band (FM1 – 3) you want
to store FM stations into.
Each time you press the
button, the band changes as
follows:
FM1 FM2 FM3 AM
(F1) (F2) (F3)
2
Press and hold both buttons for more
than 2 seconds.
“SSM” appears, then disappears when automatic
preset is over.
ENGLISH
When the MO indicator is lit on the display, the
sound you hear becomes monaural but the
reception will be improved (the ST indicator
goes off).
Local FM stations with the strongest signals are
searched and stored automatically in the band
number you have selected (FM1, FM2 or FM3).
These stations are preset in the number buttons —
No.1 (lowest frequency) to No .6 (highest frequency).
When automatic preset is over, the station stored
in number button 1 will be automatically tuned in.
9
Manual preset
Y ou can preset up to 6 stations in each band (FM1,
FM2, FM3 and AM) manually.
Ex.: Stor ing an FM station of 88.3 MHz into the
ENGLISH
preset number 1 of the FM1 band
1
Select the band (FM1 – 3, AM) you
want to store stations into (in this
example, FM1).
Each time you press the
button, the band changes
as follows:
FM1 FM2 FM3 AM
(F1)
2
Tune in to a station of 88.3 MHz.
Press ¢ to tune
in to stations of higher
frequencies.
Press 4 to tune
in to stations of lower
frequencies.
4
Repeat the above procedure to store
other stations into other preset
numbers.
Notes:
• A previously preset station is erased when a ne w station
is stored in the same preset number.
• Preset stations are erased when the power supply to
the memory circuit is interrupted (for example, during
battery replacement). If this occurs, pr eset the stations
again.
Tuning in to a preset station
You can easily tune in to a preset station.
Remember that you must store stations first. If y ou
have not stored them yet, see “Storing stations in
memory” on pages 9 and 10.
1
Select the band (FM1 – 3, AM).
FM1 FM2 FM3 AM
(F1) (F2) (F3) (AM)
10
3
Press and hold the number button (in
this example, 1) for more than 2
seconds.
Selected band/preset number and
“MEMO” (memory) appear
alternately for a while.
2
Select the number (1 – 6) for the preset
station you want.
Note:
You can also use the 5 (up) or ∞ (down) buttons on
the unit to select the next or previous preset stations.
Each time you press the 5 (up) or ∞ (down) buttons,
the next or previous preset station is tuned in.
CD OPERATIONS
200
ENGLISH
Playing a CD
1
Open the control panel.
Note:
When an external component is connected to the MP3
INPUT jack on the control panel, be careful of
handling a CD.
2
Insert a disc into the loading slot.
3
Close the control panel by hand.
The unit turns on,
draws the disc and
starts playback
automatically.
The CD–in indicator lights up.
Total playing time of
the inserted disc
Elapsed playing time
Notes:
• When a disc is in the loading slot, selecting “CD”
as the source starts CD play.
• When a disc is inserted upside down, the disc
automatically ejects (if the control panel is open).
If the control panel is closed, “PLEASE” and
“EJECT” appear alternately.
• When you open the control panel by pressing 0, the
CD automatically ejects.
Total track number
of the inserted disc
Current track
Changes to the clock time
when “CLOCK” is set to
“ON” (see page 26).
To stop play and eject the disc
Press 0.
CD play stops, the control panel opens, then the
CD automatically ejects from the loading slot.
If you change the source, the CD play also stops
(without ejecting the CD this time).
Notes:
• If the ejected disc is not removed within 15 seconds,
the disc is automatically inserted again into the
loading slot to protect it from dust. (CD play will
not start this time.)
• You can eject the CD even when the unit is turned off.
11
Locating a track or particular
portion on a disc
To fast-forward or reverse the track
ENGLISH
To go to the next track or the previous tracks
To go to a particular track directly
Press the number button corresponding to the track
number to start its playback.
• To select a track number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a track number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than 1
second.
Press and hold ¢
while playing a disc, to
fast-forward the track.
Press and hold 4
while playing a disc, to
reverse the track.
Press ¢ briefly while
playing a disc, to go ahead
to the beginning of the next
track. Each time you press
the button consecutively,
the beginning of the next
tracks is located and
played back.
Press 4 briefly while
playing a disc, to go back
to the beginning of the
current track. Each time
you press the button
consecutively, the
beginning of the previous
tracks is located and
played back.
Selecting CD playback modes
To play back tracks at random (Random Play)
Y ou can pla y back all tracks on the disc at r andom.
1 Press MODE to enter the functions
mode while playing a disc.
“MODE” appears on the lower part of
the display, and the number buttons
work as different function buttons.
2 Press RND (random), while
“MODE” is still on the display, so
that the RND indicator lights up on
the display.
Then, each time you press RND
(random), the random play mode
turns on and off alternately.
RND indicator
When the random mode is turned on, the RND
indicator lights up on the display and a track
randomly selected starts playing.
To play back tracks repeatedly (Repeat Play)
You can play back the current track repeatedly.
1 Press MODE to enter the functions
mode while playing a disc.
“MODE” appears on the lower part of
the display, and the number buttons
work as different function buttons.
2 Press RPT (repeat), while “MODE”
is still on the display, so that the
RPT indicator lights up on the
display.
Then, each time you press RPT
(repeat), the repeat play mode
turns on and off alternately.
Track number of the
currently playing track
12
RPT indicator
When the repeat mode is turned on, the RPT
indicator lights up on the display.
To play back only intros (Intro Scan)
You can play back the first 15 seconds of each
track sequentially.
To cancel the prohibition and unlock the disc,
press again for more than 2 seconds,
while pressing CD CD-CH.
1 Press MODE to enter the functions
mode while playing a disc.
“MODE” appears on the lower part of
the display, and the number buttons
work as different function buttons.
2 Press INT (intro), while “MODE” is
still on the display.
Each time you press INT (intro)
while playing a disc, the intro scan
mode turns on and off alternately.
Track number of the
currently playing track
When the intro scan mode is turned on, “INT”
appears on the display for 5 seconds and the
track number flashes.
Prohibiting CD ejection
You can prohibit CD ejection and can lock a disc
in the loading slot.
“EJECT OK” flashes on the display for about 5
seconds, and the disc is unlocked.
Playing a CD Text
In a CD Text, some information about the disc (its
disc title, performer and track title) is recorded.
You can show these disc information on the
display.
Select text display mode while playing a
CD Text.
Each time you press the button,
the display changes as follows:
Disc Title / Performer
Current track no.
and Elapsed playing time
Track Title
ENGLISH
While pressing CD CD-CH, press and
hold
“NO EJECT” flashes on the display for about 5
seconds, and the disc is locked and cannot be
ejected.
for more than 2 seconds.
Notes:
• When the disc title/performer is shown, the DISC
indicator lights up.
When the track title is shown, the TRACK indicator
lights up.
• The display shows up to 8 characters at one time
and scrolls if there are more than 8 characters.
Some characters or symbols will not be shown (and
be blanked) on the display.
(Ex. “ABCå!d#” ]“ABCA D ”)
• When you press DISP (display) while playing a
conventional CD, “NO NAME” appears for the disc
title/performer and the track title.
13
MP3 INTRODUCTION
What is MP3?
MP3 is an abbreviation of Motion Picture Experts
Group (or MPEG) Audio Layer 3. MP3 is simply a
ENGLISH
file format with a data compression ratio of 1:10
(128 Kbps*). That means, by using MP3 format,
one CD-R or CD-RW can contain 10 times as
much data volume as a regular CD can.
*Bit rate is the average number of bits that one second of
audio data will consume. The unit used is Kbps (1000 bits/
second). To get a better audio quality, choose a higher bit
rate. The most popular bit rate for encoding is 128 Kbps.
This unit is incorporated with an MP3 decoder.
You can play back MP3 files (tracks) recorded on
CD-Rs, CD-RWs, and CD-ROMs.
Compatible with ID3v1
Extra information data such as album title, performer
name, song title, recording year , music genre and a
brief comment can be stored within an MP3 file.
This unit can show ID3v1 tags (album name,
performer name and song title) on the display.
(See page 27.)
• Some characters cannot be shown correctly.
• This unit is not compatible with ID3v2.
Other Main Features in this unit:
• Maximum number of directories/files: 289
• Available characters for directory/file names:
A–Z, 0–9, _ (underscore)
• Maximum number of characters for file name
(ISO 9660 Level 1): 12 (inclusive of
separation mark—“.” and
extension code—“mp3”)
(ISO 9660 Level 2): 31 (inclusive of
separation mark—“.” and
extension code—“mp3”)
(Joliet): 64 (inclusive of
separation mark—“.” and
extension code—“mp3”)
• Maximum number of characters for directory
name: 31
(Total)
Precautions when recording MP3 files
on a CD-R or CD-RW
This unit can only read MP3 files that are recorded
in the format that is compliant with ISO 9660
Level 1, Level 2 or Joliet.
How are MP3 files recorded
and played back?
MP3 “files (tracks)” can be recorded in
“directories (folders)”—in PC terminology.
During recording, the files and directories can be
arranged in a way similar to arranging files and
directories/folders of computer data.
“Root” is similar to the root of a tree. Every file
and directory can be linked to and be accessed
from the root.
Playback order, file search order, and directory
search order of the MP3 files recorded on a disc
are determined by the writing (or encoding)
application; therefore, playback order may be
different from the one you have intended while
recording the directories and the files.
The illustration on the next page shows an
example of how MP3 files are recorded on a
CD-R or CD-RW, how they are played back, and
how they are searched on this unit.
Notes:
• The unit can read a CD-ROM containing MP3
files. However, if non-MP3 files are recorded
together with MP3 files, this unit will take a longer
time to scan the disc. It may also cause the unit to
malfunction.
• The unit cannot read or play an MP3 file without
the extension code—mp3.
• The unit is not compatible with Playlist**.
**A playlist is a simple text file, used on a PC , which enables
users to make their own playback order without ph ysically
rearranging the files.
14
MP3 directory/file configuration
Level 1
Level 2
Level 3
1 2
Hierarchy
Level 4
Level 5
Level 6
ROOT
3 4
: Root
5 6
02
ROOT
ENGLISH
01
03
04
05 09
1110 2120
08
06 07
8
7
9
1312
15 1614
17
18
19
2322 24
01
Note:
There is no limit to the number of hierarchy levels (nested directories). However, up to 8 hierarchy levels
is recommended for stable operations.
: Directories
: MP3 files
MP3 playback/search order (page 17)
• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the
MP3 files. Normally this unit plays back MP3 files in the recorded order.
• The numbers inside the directories indicate the playback order and search order of the directories
on an MP3 disc. Normally this unit plays back MP3 files in the directories in the recorded order.
15
ENGLISH
MP3 OPERATIONS
200
Refer also to “CD OPERATIONS” on pages 11 to
13.
Playing an MP3 disc
1
Open the control panel.
2
Insert an MP3 disc into the loading slot.
The unit draws the
disc.
Playback starts
automatically from the
first file of the first
directory once disc
check is completed.
3
Close the panel by hand.
The display changes to show the following:
CD–in indicator lights up
Ex.: When the disc contains 19 directories and 38
MP3 files.
Notes:
• All the files on the disc will be played repeatedly
until you stop playback—All File Repeat Play.
• MP3 discs require a longer readout time.
(It differs due to the complexity of the directory/file
configuration.)
• If you change the source or turn the power off,
MP3 playback stops (without ejecting the disc).
Next time you select disc play as the source or turn
the power on, MP3 playback starts from where
playback has been stopped previously.
16
To change the display information
While playing back an MP3 file, you
can change the file information
shown on the display.
Each time you press DISP (display),
the display changes to show the
following:
To stop play and eject the disc
Press 0.
CD play stops, the control panel opens, then the
CD automatically ejects from the loading slot.
If you change the source, the CD play also stops
(without ejecting the disc this time).
ENGLISH
• When “TAG DISP” is set to “TAG ON”
(initial setting: see page 27)
Album name/performer (directory name*)
Track title (file name*)
Elapsed playing time (with track No.)
* If an MP3 file does not have ID3 tags,
directory name and file name appear.
• When “TAG DISP” is set to “TAG OFF”
Directory name
File name
Elapsed playing time
(with track No.)
Note:
The display shows up to 8 characters at one time and
scrolls if there are more than 8 characters.
See also “To select the scroll mode – SCROLL” on
page 26.
Locating a file or particular
portion on an MP3 disc
To fast-forward or reverse the file
Press and hold ¢
while playing an MP3 disc,
to fast-forward the file.
Press and hold 4
while playing an MP3 disc,
to reverse the file.
Note:
During this operation, you can only hear intermittent
sounds. (The elapsed playing time also changes
intermittently on the display.)
To skip to the next or previous files
Press ¢ briefly while
playing, to skip ahead to the
beginning of the next file.
Each time you press the
button consecutively, the
beginning of the next file is
located and played back.
(See “MP3 playback/search
order” on page 15.)
Press 4 briefly, while
playing, to skip back to the
beginning of the current file.
Each time you press the
button consecutively, the
beginning of the previous
files is located and played
back. (See “MP3 playback/
search order” on page 15.)
17
To go to a particular directory directly
IMPORTANT:
To directly select the directories using the
number button(s), it is required that directories
ENGLISH
are assigned 2 digit numbers at the beginning of
their directory names. (This can only be done
during the recording of CD-Rs or CD-RWs.)
Ex.: If directory name is “01 ABC”
= press 1 to go to Directory 01 ABC.
If directory name is “1 ABC,”
pressing 1 does not work.
If directory name is “12 ABC”
= press and hold 6 (12) to go to
Directory 12 ABC.
Press the number button corresponding to the
directory number to start playing the first file in
the selected directory.
To skip to the next directory
Press 5 (up) briefly while playing an MP3 disc.
Each time you press the button consecutively, the
next directory is located (and the first file in the
directory starts playing, if recorded).
Ex.1: While playing an MP3 file in Directory 01
(see the illustration on page 15)
01 02 03 04
Ex.2: While playing an MP3 file in Directory 04
(see the illustration on page 15)
• To select a directory number from 01 – 06:
Press 1 (7) – 6 (12) briefly.
• To select a directory number from 07 – 12:
Press and hold 1 (7) – 6 (12) for more than 1
second.
Notes:
• If “MP3” flashes on the display after you have
selected a directory, it means that the directory does
not contain any MP3 files.
• You cannot directly select a directory with a number
greater than 12.
To select a particular file in a directory, press
¢ or 4 after selecting the directory.
04 05 06 07
Note:
If the directory does not contain any MP3 files, it is
skipped.
18
To skip to the previous directory
Press ∞ (down) briefly while playing an MP3 disc.
Each time you press the button consecutively, the
previous directory is located (and the first file in
the directory starts playing, if recorded).
Selecting MP3 playback modes
To play back files at random (Random Play)
You can play back all files on the MP3 disc at
random.
1 Press MODE to enter the functions
mode while playing an MP3 disc.
“MODE” flashes on the lower part
of the display, and the number
buttons work as different function
buttons.
ENGLISH
Ex.1: While playing an MP3 file in Directory 03
(see the illustration on page 15)
03 02 01
Ex.2: While playing an MP3 file in Directory 05
(see the illustration on page 15)
05 04 03 02
• If you reach the root, playback will not begin.
ROOT
Note:
If the directory does not contain any MP3 files, it is
skipped.
2 Press RND (random), while
“MODE” flashes on the display, so
that “RND1” or “RND2” appears
on the display.
Each time you press RND (random),
the random play mode changes as
follows
:
RND1
RND2
Canceled
Mode
RND1 Lights All files of the current
RND2 Flashes All files on the disc.
RND
Indicator
RND indicator
Ex.: When “RND1” is selected.
Plays at random
directory.
19

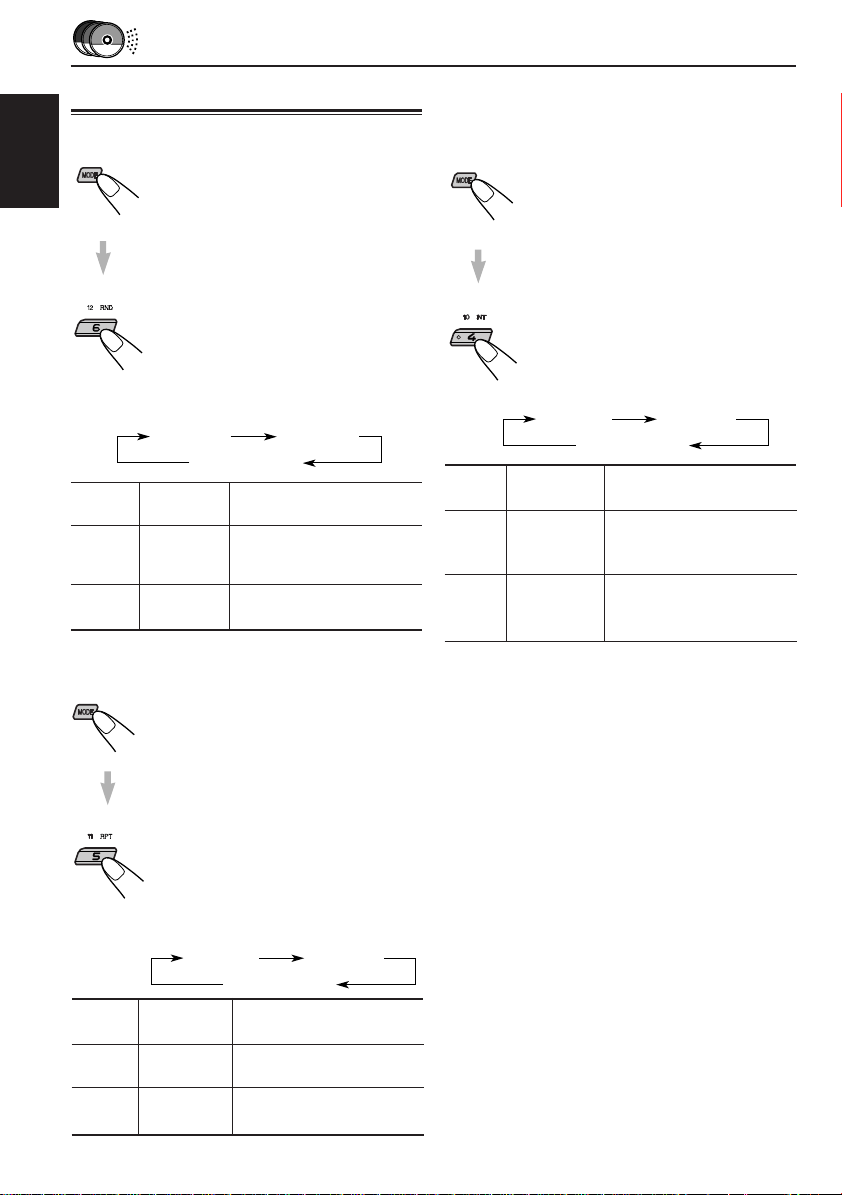

To play back files repeatedly (Repeat Play)
You can play back the current file or all the files in
the current directory repeatedly.
To play back only intros (Intro scan)
You can play back the first 15 seconds of each file
sequentially.
ENGLISH
1 Press MODE to enter the functions
mode while playing an MP3 disc.
“MODE” flashes on the lower part
of the display, and the number
buttons work as different function
buttons.
2 Press RPT (repeat) while “MODE”
flashes on the display, so that
“RPT1” or “RPT2” appears on the
display.
Each time you press RPT (repeat),
the repeat play mode changes as
follows:
RPT1 RPT2
Canceled
Mode
RPT1 Lights The current file (or
RPT2 Flashes All files of the current
RPT
Indicator
Plays repeatedly
specified file).
directory (or specified
directory).
Track number of the
currently playing track
1 Press MODE to enter the functions
mode while playing an MP3 disc.
“MODE” flashes on the lower part
of the display, and the number
buttons work as different function
buttons.
2 Press INT (intro scan) while “MODE”
flashes on the display , so that “INT1”
or “INT2” appears on the display.
Each time you press INT (intro),
the intro scan play mode changes
as follows:
INT1 INT2
Canceled
Mode
INT1 The FILE Of all files on the
INT2 The Of the first file of all
Indicator
indicator disc.
flashes.
DIRECTORY directories.
indicator
flashes.
Plays the beginnings
(15 seconds)
Track number of the
currently playing track
20
RPT indicator
Ex.: When “RPT1” is selected.
Ex.: When “INT1” is selected.
SOUND ADJUSTMENTS
Adjusting the sound
You can adjust the sound characteristics to your
preference.
1
Select the item you want to adjust.
Each time you press the
button, the adjustable items
change as follows:
BAS
(bass)
VOL
(volume)
Indication To do: Range
BAS Adjust the bass. –06 (min.)
TRE Adjust the treble. –06 (min.)
FAD* Adjust the front R06 (Rear only)
and rear speaker |
balance. F06 (Front only)
BAL Adjust the left L06 (Left only)
and right speaker |
balance. R06 (Right only)
LOUD Boost low and high
VOL Adjust the volume. 00 (min.)
frequencies to
produce a wellbalanced sound
at low volume
level.
TRE
(treble)
LOUD
(loudness)
FAD
(fader)
BAL
(balance)
|
+06 (max.)
|
+06 (max.)
LOUD ON
|
LOUD OFF
|
50 (max.)
2
Adjust the level.
To increase the level.
To decrease the level.
Equalization pattern changes as
you adjust the bass or treble.
Ex.: When you adjust “TRE”
Note:
Normally the control dial works for volume
adjustment. So you do not have to select “VOL” to
adjust the volume level.
ENGLISH
* If you are using a two-speaker system, set the
fader level to “00.”
21
Selecting preset sound modes
(C-EQ: custom equalizer)
You can select a preset sound mode (C-EQ:
ENGLISH
Custom Equalizer) suitable to the music genre.
1
Press EQ.
The last selected sound mode is
recalled and applied to the
current sound.
Sound mode indicator flashes
Ex.: If you have selected “USER” previously
Indication For: Preset values
BAS TRE LOUD
USER (Flat sound) 00 00 OFF
ROCK Rock or +03 +01 ON
disco music
CLASSIC Classical +01 –02 OFF
music
POPS Light music +04 +01 OFF
HIP HOP Funk or Rap +02 00 ON
music
JAZZ Jazz music +02 +03 OFF
Note:
You can adjust each sound mode to your preference,
and store it in memory.
If you want to adjust and store your original sound
mode, see “Storing your own sound adjustments” on
page 23.
2
Select the sound mode you want.
Each time you press the button,
the sound modes change as
follows:
USER ROCK CLASSIC
JAZZ POPS
Sound mode indicator flashes.
Ex.: When you have selected “ROCK”
HIP HOP
To store a sound mode separately for
each playback source (C-EQ Link)
You can select a sound mode and store it in
memory. It will be recalled every time you select
the same source and will be shown on the display .
A sound mode can be stored for each of the
following sources — FM1, FM2, FM3, AM, CD and
external components.
1 Press and hold SEL (select) for more than 2
seconds so that one of the PSM items
appears on the display.
2 Press ¢ or 4 to select “CEQ LINK
(custom equalizer link).”
3 Turn the control dial clockwise to select “LINK
ON.”
4 Press SEL (select) to finish the setting.
To cancel C-EQ Link, repeat the same
procedure and select “LINK OFF” in step 3.
Note:
When you change the “CEQ LINK” setting, sound
mode (C-EQ) is automatically reset to USER.
22
• When “CEQ LINK” is set to “LINK ON,”
The selected sound mode can be stored in
memory for the current source.
Each time you change to the same source, the
same sound mode is also recalled and shown
on the display. The C-EQ indicator also flashes.
• When “CEQ LINK” is set to “LINK OFF”
The selected sound mode effect applies to any
source.

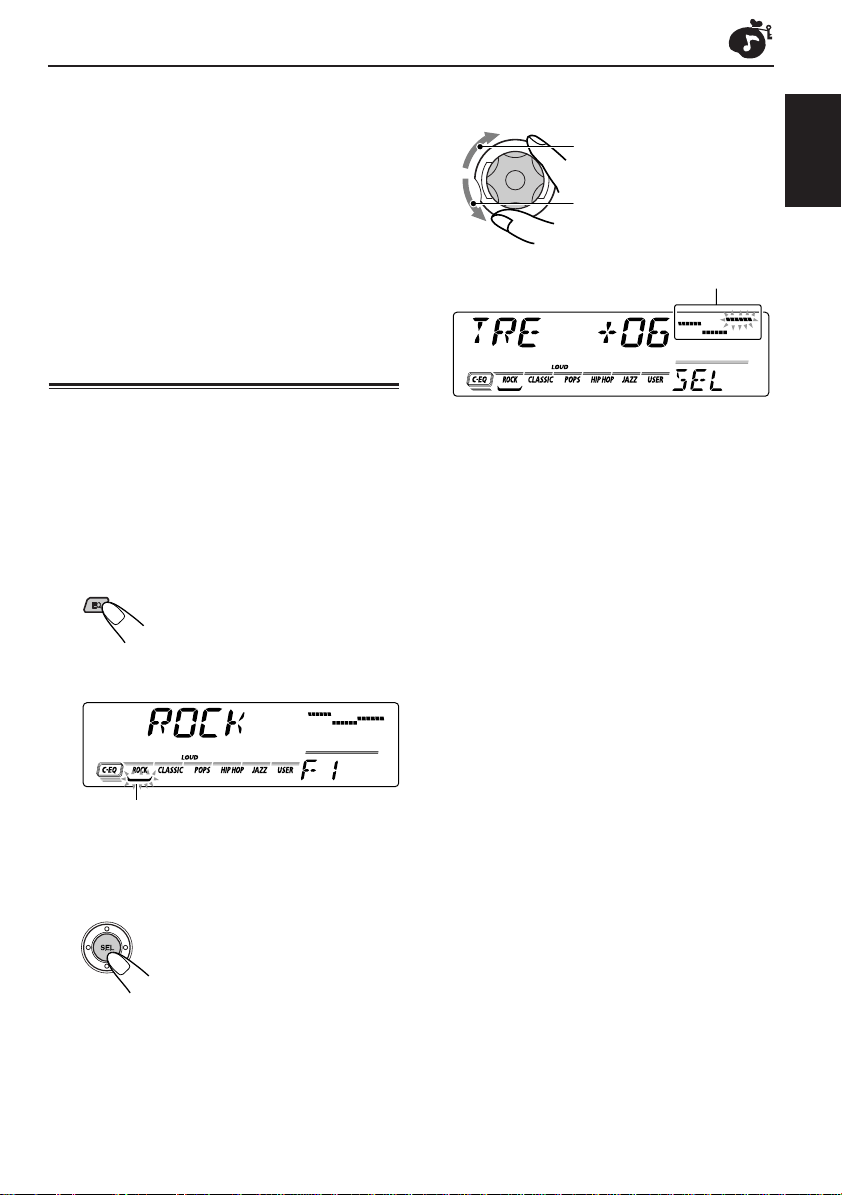

Storing your own sound
adjustments
3
Adjust the level.
To increase the level.
To decrease the level.
Equalization pattern changes as
you adjust the bass or treble.
ENGLISH
Y ou can adjust the sound modes to y our preference
and store your own adjustments in memory.
• There is a time limit in doing the following
procedure. If the setting is canceled before you
finish, start from step 1 again.
1
Call up the sound mode you want to
adjust.
The last selected sound mode is
recalled and applied to the
current sound.
Sound mode indicator flashes
Ex.: If you have selected “ROCK” previously
2
Select the item you want to adjust.
• See page 21 for details.
Ex.: When you adjust “TRE”
4
Repeat steps 2 and 3 to adjust the
other items.
5
Repeat the same procedure to store
other sound modes.
To reset to the factory settings, repeat the
same procedure and reassign the preset values
listed in the table on page 22.
23
OTHER MAIN FUNCTIONS
Setting the clock
1
Press and hold SEL (select) for more
than 2 seconds so that one of the PSM
ENGLISH
items appears on the display.
(See page 25.)
2
Set the hour.
1 Select “CLOCK H (hour)” if not shown on
the display.
2 Adjust the hour.
1
3
Set the minute.
1 Select “CLOCK M (minute).”
2 Adjust the minute.
To check the current clock time while the unit
is turned off, press DISP (display).
The power turns on, the clock time is shown for 5
seconds, then the power turns off.
To check other information during play, press
DISP (display).
Each time you press the button, the other
information (either the clock or the source name)
will be shown on the lower part of the display for
a while.
Changing the general settings
(PSM)
2
You can change the items listed on the next page
by using the PSM (Preferred Setting Mode) control.
Basic Procedure
1
Press and hold SEL (select) for more
than 2 seconds so that one of the PSM
items appears on the display.
(See page 25.)
24
1
4
Finish the setting.
2
2
Select the PSM item you want to
adjust. (See page 25.)
3
Adjust the PSM item selected.
4
Repeat steps 2 and 3 to adjust the
other PSM items if necessary.
5
Finish the setting.
Preferred Setting Mode (PSM) items
ENGLISH
1
CLOCK H Hour adjustment
CLOCK M Minute adjustment
CEQ LINK Custom equalizer
CLOCK Clock display
LEVEL Level display
DIMMER Dimmer mode
BEEP Key-touch tone
SCROLL Scroll mode
EXT IN* External component
AUX ADJ Auxiliary input level
TAG DISP Tag display
• Press SEL (select) to finish the setting.
2
Select.Hold.
memory linkage
3
Set.
Counterclockwise
Back Advance
LINK OFF
OFF
AUDIO 1
AUTO
ONCE
A.ADJ 00 – A.ADJ 05
OFF
ON
OFF
Factory-preset
settings
Clockwise
AdvanceBack
LINK ON 22, 26LINK OFF
ON 26ON
AUDIO 2
OFF
ONOFF ON 26
AUTO
1:00 24
AUDIO 2
AUTO
ONCE
A.ADJ 00
See
page
26
26
26
26CHANGERLINE INCHANGER
27
27TAG ONTAG ONTAG OFF
* Displayed only when one of the following sources is selected – FM, AM and CD.
25
To set Custom Equalizer Link – CEQ LINK
A different sound mode (C-EQ) can be stored in
memory for each source so that you can change
the sound modes simply by changing the sources.
When shipped from the factory, this mode is
ENGLISH
deactivated.
• LINK ON: Different sound modes for different
• LINK OFF: One sound mode for all sources.
sources.
To set the clock display – CLOCK
You can set the clock to be shown on the display
when the unit is turned on.
When shipped from the factory, the clock is set to
be shown on the display.
• ON: Clock display is turned on.
• OFF: Clock display is turned off. When
“OFF” is selected, the current source
name or station band appears
instead of the clock
when
“LINE IN” is selected as the
source)
.
display (except
To select the level meter – LEVEL
You can select the level display according to your
preference.
When shipped from the factory, “AUDIO 2” is
selected.
Note:
Auto Dimmer equipped with this unit may not work
correctly on some vehicles, particularly on those
having a control dial for dimming.
In this case, set the dimmer mode to “ON” or “OFF.”
To turn on/off the key-touch tone – BEEP
Y ou can deactiv ate the key-touch tone if y ou do not
want it to beep each time you press a button.
When shipped from the factory , the ke y-touch tone
is activated.
• ON: Activates the key-touch tone.
• OFF: Deactivates the key-touch tone.
To select the scroll mode – SCROLL
You can select the scroll mode for the disc
information (when the entire text cannot be
shown all at once).
When shipped from the factory, Auto Scroll mode
is set to “ONCE.”
• ONCE: Scrolls only once.
• AUTO: Repeats the scroll (5-second
intervals in between).
• OFF: Cancels Auto Scroll.
Note:
Even if the scroll mode is set to “OFF,” you can scroll
the display by pressing DISP (display) for more than 1
second.
• AUDIO 1: Lev el meter illuminates from bottom
to top.
• AUDIO 2: Alternates level meter (moves from
bottom to top) and illumination
display.
• OFF: Erases the audio level indicator.
To select the dimmer mode – DIMMER
When you turn on the car head lights, the display
automatically dims (Auto Dimmer).
When shipped from the factory, Auto Dimmer
mode is activated.
• AUTO: Activates Auto Dimmer.
• OFF: Cancels Auto Dimmer.
• ON: Always dims the display.
26
To select the external component to use
– EXT IN
You can connect the external component to the CD
changer jack on the rear using the Line Input Adaptor
KS-U57 (not supplied).
To use the external component as the playback
source through this unit, you need to select which
component – CD changer or external component
– to use.
When shipped from the factory, CD changer is
selected as the external component.
• LINE IN: T o use the external component other
than CD changer.
• CHANGER: To use the CD changer.
Note:
For connecting the Line Input Adaptor KS-U57 and the
external component, refer to the Installation/Connection
Manual (separate volume).
To adjust the auxiliary input level – AUX ADJ
Adjust the auxiliary input level properly when an
external component is connected to the MP3 INPUT
jack.
When shipped from the factory, the auxiliary input
level is set at level “00.”
If the input level of the connected component is not
high enough, increase the input level properly.
Without adjusting the line input level, you may be
surprised at a loud sound when you change the
source from the external component to another
source.
Assigning names to the sources
You can assign names to station frequencies and
discs (both in this unit and in the CD changer).
After assigning a name, it will appear on the display
when you select the source.
Sources Maximum number of
characters
Station frequencies up to 8 characters (up to
30 station frequencies
including both FM and AM)
CDs* up to 32 characters
(up to 40 discs)
* You cannot assign a name to a CD Text or an MP3
disc.
ENGLISH
To turn the tag display on or off – TAG DISP
An MP3 file can contain file information called
“ID3 Tag” where its album name, performer, track
title, etc. are recorded.
There are two versions–ID3v1 (ID3 Tag version 1)
and ID3v2 (ID3 Tag version 2). This unit is
compatible only with ID3v1.
When shipped from the factory, “TAG ON” is
selected.
• TAG ON: Turns on the ID3 tag display while
playing MP3 files.
• If an MP3 file does not have ID3
tags, directory name and file
name appear.
Note:
If you change the setting from “TAG
OFF” to “TAG ON” while playing an
MP3 file, the tag display will be
activated when the next file starts
playing.
• TAG OFF: Turns off the ID3 tag display while
playing MP3 files. (Only the
directory name and file name can
be shown.)
1
Select a source you want to assign a
name to.
When you select a source,
the power automatically
comes on.
2
Press and hold SEL (select) for more
than 2 seconds while pressing DISP
(display).
Ex.: When you select CD as the source
CONTINUED ON THE NEXT PAGE
27
3
Select a character.
• See next column for
available characters.
ENGLISH
4
Move the cursor to the next
(or previous) character position.
5
Repeat steps 3 and 4 until you finish
inputting the name.
6
Finish the procedure while the last
selected character is flashing.
Available characters
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z
4 5 6 7 8 9
space
Notes:
• When you try to assign a name to the 41st disc,
“NAME FULL” appears on the display. (In this
case, delete unwanted names before assignment.)
• When the CD changer is connected, you can assign
names to CDs in the CD changer. These names can
also be shown on the display if you insert the CDs
in this unit.
0 1 2 3
–
<
/
>
To erase the input characters
Insert spaces using the same procedure
described above.
28
Detaching the control panel
You can detach the control panel when leaving
the car.
When detaching or attaching the control panel,
be careful not to damage the connectors on the
back of the control panel and on the panel holder.
Detaching the control panel
Before detaching the control panel, be sure to turn
off the power.
1
Unlock the control panel.
2
Pull the control panel out of the unit.
Attaching the control panel
1
Insert the right side of the control panel
into the groove on the panel holder.
2
Press the left side of the control panel
to fix it to the panel holder.
Note on cleaning the connectors:
If you frequently detach the control panel, the
connectors will deteriorate.
T o minimize this possibility , periodically wipe the
connectors with a cotton swab or cloth moistened
with alcohol, being careful not to damage the
connectors.
ENGLISH
3
Put the detached control panel into the
provided case.
Connectors
29
ENGLISH

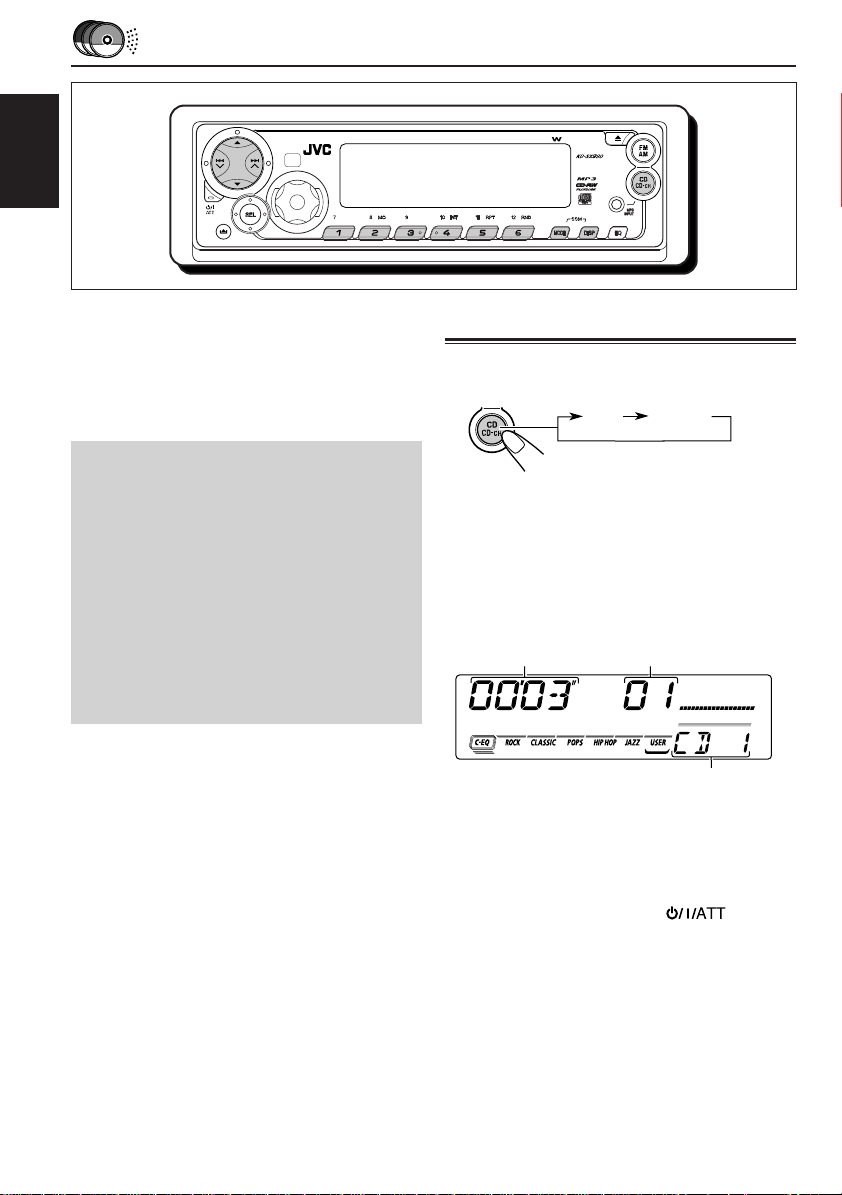

CD CHANGER OPERATIONS
200
We recommend that you use one of the CH-X series
with your unit.
If you have another CD automatic changer , consult
your JVC car audio dealer for connections.
• For example, if your CD automatic changer is one of
the KD-MK series, you need a cord (KS-U15K) for
connecting it to this unit.
Before operating your CD automatic changer:
• Refer also to the Instructions supplied with your
CD changer.
• If no discs are in the magazine of the CD
changer or the discs are inserted upside down,
“NO DISC” will appear on the display. If this
happens, remove the magazine and set the
discs correctly.
• If “RESET 1” – “RESET 8” appears on the
display, something is wrong with the
connection between this unit and the CD
changer. If this happens, check the connection
and make sure the cords are connected firmly .
Then, press the reset button of the CD
changer.
Playing CDs
Select the CD automatic changer (CD-CH).
*
CD
* If you have changed “EXT IN” setting to “LINE
IN” (see page 26), you cannot select the CD
changer.
Playback starts from the first track of the first
disc.
All tracks of all discs are played back.
Elapsed playing time
* When “CLOCK” is set to “ON” (see page 26),
disc number will soon change to clock time.
Note on One-Touch Operation:
When you press CD CD-CH, the power automatically
turns on. You do not have to press to turn on
the power.
CD-CH
Track number
Disc number*
30
To fast-forward or reverse the track
Press and hold ¢ ,
while playing a CD ,
to fast-forward the track.
Press and hold 4 ,
while playing a CD,
to reverse the track.
To go to the next track or the previous tracks
Press ¢ briefly,
while playing a CD, to go
ahead to the beginning of
the next track. Each time
you press the button
consecutively, the
beginning of the next
tracks is located and
played back.
Press 4 briefly,
while playing a CD, to go
back to the beginning of
the current track. Each
time you press the button
consecutively, the
beginning of the previous
tracks is located and
played back.
To go to the next discs or the previous discs
Press 5, while playing a
disc, to go to the next disc.
Each time you press the
button consecutively, the
first track of the next disc is
located and played back.
Press ∞, while playing a
disc, to go to the previous
disc. Each time you press
the button consecutively,
the first track of the
previous disc is located and
played back.
To go to a particular disc directly
Press the number button corresponding to the disc
number to start its playback (while the CD changer
is playing).
• To select a disc number from 1 – 6:
Press 1 (7) – 6 (12) briefly.
• To select a disc number from 7 – 12:
Press and hold 1 (7) – 6 (12) for more than 1
second.
Elapsed playing time
* When “CLOCK” is set to “ON” (see page 26),
disc number will soon change to clock time.
Track number
Disc number*
To show the CD Text information
This is possible only when connecting a JVC CD
automatic changer equipped with CD Text reading
capability.
Select text display mode while playing a
CD Text.
Each time you press the button,
the display changes as follows:
Disc Title / Performer
Current track no.
and Elapsed playing time
Notes:
• The display shows up to 8 characters at one time
and scrolls if there are more than 8 characters.
• If a CD Text includes too much text information,
some may not appear on the display.
• When you press DISP (display) while playing a
conventional CD, “NO NAME” appears for the disc
title/performer and the track title.
Track Title
ENGLISH
31
Selecting CD playback modes
To play back tracks at random (Random Play)
1 Press MODE to enter the functions
ENGLISH
Mode
RND1 Lights All tracks of the current
(random1) disc, then the tracks of
RND2 Flashes All tracks of all discs
(random2) inserted in the magazine.
To play back tracks repeatedly (Repeat Play)
mode while playing a disc.
“MODE” appears on the lower part of
the display, and the number buttons
work as different function buttons.
2 Press RND (random), while “MODE”
is still on the display, so that the
RND indicator lights up on the
display.
Then, each time you press RND
(random), the random play mode
changes as follows:
RND1
RND2
Canceled
RND
Indicator
Plays at random
the next disc and so on.
1 Press MODE to enter the functions
mode while playing a disc.
“MODE” appears on the lower part
of the display, and the number
buttons work as different function
buttons.
To play back only intros (Intro Scan)
You can play back the first 15 seconds of each
track sequentially.
1 Press MODE to enter the functions
mode while playing a disc.
“MODE” appears on the lower part
of the display, and the number
buttons work as different function
buttons.
2 Press INT (intro), while “MODE” is
still on the display.
Then, each time you press INT
(intro) while playing a disc, the intro
scan mode changes as follows:
INT1 INT2
Canceled
Mode
INT1 Track Of all tracks on
INT2 Disc Of the first track
Indication
number all inserted discs.
flashes
number on each inserted
flashes disc.
Plays the first 15
seconds
2 Press RPT (repeat), while “MODE” is
still on the display, so that the RPT
indicator lights up on the display.
Then, each time you press RPT
(repeat), the repeat play mode
changes as follows:
RPT1 RPT2
Canceled
Mode
RPT1 Lights The current track
RPT2 Flashes All tracks of the current
(repeat2) disc (or specified disc).
RPT
Indicator
Plays repeatedly
(or specified track).
32
EXTERNAL COMPONENT OPERATIONS
Portable MP3 player, etc.
200
MP3 INPUT*
* Not compatible with digital signals.
ENGLISH
Playing an external component
You can connect two external components to this
unit.
Connect one to the CD changer jack on the rear
using the Line Input Adaptor KS-U57 (not supplied),
and the other to the MP3 INPUT jack on the control
panel.
Preparations:
• For connecting the Line Input Adaptor KS-U57 and
the external component, refer to the Installation/
Connection Manual (separate volume).
• Before operating the external component using the
following procedure, select the external input
correctly. (See “To select the external component to
use – EXT IN” on page 26.)
1
Select the external component
(LINE IN or AUX IN).
To select “LINE IN” (component
connected to the CD changer jack on the
rear), press CD CD-CH repeatedly.
CD
LINE IN
To select “AUX IN” (component connected
to the MP3 INPUT jack on the control
panel), press and hold CD CD-CH.
2
Turn on the connected component
and start playing the source.
3
Adjust the volume.
4
Adjust the sound characteristics
you want. (See pages 21 – 23.)
• If “LINE IN” does not appear on the display, see
page 26 and select the external input (“LINE IN”).
• Displayed only when one of the following
sources is selected – FM, AM and CD.
Note on One-Touch Operation:
When you press CD CD-CH, the power automatically
comes on. You do not have to press to turn
on the power.
33
TROUBLESHOOTING
What appears to be trouble is not always serious. Check the following points before calling a service
center.
ENGLISH
• CD cannot be played back.
• Sound is sometimes
• CD-R/CD-RW cannot be
• Tracks on the CD-R/CD-
• Sound cannot be heard
General Playback
• “NO DISC” appears on the
• Disc cannot be ejected.
• This unit does not work at
Symptoms
interrupted.
played back.
RW cannot be skipped.
from the speakers.
display .
all.
Causes
Disc is inserted upside down.
You are driving on rough
roads.
Disc is scratched.
Connections are incorrect.
CD-R/CD-RW is not finalized.
The volume level is set to the
minimum level.
Connections are incorrect.
No disc in the loading slot.
Disc is inserted incorrectly.
Disc is locked.
The built-in microcomputer
may function incorrectly due
to noise, etc.
Remedies
Insert the disc correctly.
Stop playback while driving on
rough roads.
Change the disc.
Check the cords and
connections.
• Insert a finalized
CD-R/CD-RW.
• Finalize the CD-R/CD-RW
with the component which
you used for recording.
Adjust it to the optimum level.
Check the cords and
connections.
Insert a disc into the loading slot.
Insert the disc correctly.
Unlock the disc (See page 13.)
Press the reset button on the
panel holder using a ball-point
pen after detaching the control
panel. (The clock setting and
preset stations stored in memory
are erased.) (See page 2.)
34
• SSM (Strong-station
Sequential Memory)
automatic preset does not
work.
FM/AM
• Static noise while listening
to the radio.
Signals are too weak.
The antenna is not connected
firmly.
Store stations manually.
Connect the antenna firmly.
Symptoms
Causes
Remedies
• “NO DISC” appears on the
display .
• “RESET 8” appears on the
display .
• “RESET 1” – “RESET 7”
appears on the display.
• Disc cannot be played back.
• Noise is generated.
• A longer readout time is
required (“MP3 SCAN”
keeps flashing on the
display).
• Files cannot be played back
as you have intended them
to play.
No disc in the magazine.
This unit is not connected to
a CD changer correctly.
No MP3 files are recorded on
the disc.
MP3 files do not have the
extension code—mp3 in their
file names.
MP3 files are not recorded in
the format compliant with ISO
9660 Level 1 or 2.
The file played back is not an
MP3 file (although it has the
extension code—mp3).
Readout time varies due to
the complexity of the
directory/file configuration.
Playback order is determined
when the files are recorded.
Insert a disc.
Connect this unit and the CD
changer correctly and press the
reset button of the CD changer.
Press the reset button of the CD
changer.
Change the disc.
Add the extension code—mp3
to their file names.
Change the disc.
(Record MP3 files using a
compliant application.)
Skip to another file or change
the disc.
(Do not add the extension
code—mp3 to non-MP3 files.)
Do not use too many
hierarchies and directories.
Also, do not record any other
types of audio tracks together
with MP3 files.
ENGLISH
CD Changer
MP3 Playback
• Elapsed playing time is not
correct.
• “MP3” flashes on the
display.
• “NO FILES” appears on the
display for a while, then
“PLEASE” and “EJECT”
appear alternately.
• Correct characters are not
displayed. (e.g. album
name)
This sometimes occurs
during play. This is caused by
how the files are recorded on
the disc.
There are no MP3 files in the
current directory.
There are no MP3 files in this
disc.
This unit can only display
alphabets (capital: A–Z,
small: a–z), numbers, and a
limited number of symbols.
Select another directory.
Insert a disc that contains MP3
files.
35
MAINTENANCE
Handling discs
This unit has been designed to reproduce CDs
and CD-Rs.
• You can also play back CD Text.
ENGLISH
• You can also play back your original CD-Rs
(Recordable) and CD-RWs (Rewritable) either
in audio CD format or in MP3 format.
How to handle discs
When removing a disc
from its case, press
down the center holder of
the case and lift the disc
out, holding it by the
edges.
• Always hold the disc by
the edges. Do not touch
its recording surface.
When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).
• Make sure to store discs into the cases after
use.
To keep discs clean
A dirty disc may not play
correctly. If a disc does become
dirty, wipe it with a soft cloth in
a straight line from center to
edge.
Center holder
Moisture condensation
Moisture may condense on the lens inside the
unit in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur, the unit may malfunction. In
this case, eject the disc and leave the unit
turned on for a few hours until the moisture
evaporates.
When playing a CD-R or CD-RW
You can play back your original CD-Rs or CD-RWs
recorded in audio CD format or in MP3 format.
(Howev er , the y ma y not be pla y ed back depending
on their characteristics or recording conditions.)
• User-edited CD-Rs (Recordable) and CD-RWs
(Rewritable), where audio CD tracks are
recorded, can be played back only if they are
already “finalized. ”
• Before playing back CD-Rs or CD-RWs, read
their instructions or cautions carefully.
• Some CD-Rs or CD-RWs may not be played
back on this unit because of their disc
characteristics, damage or stain on them, or if
the player’s lens is dirty.
• CD-Rs or CD-RWs are susceptible to high
temperatures or high humidity; so do not leave
them inside your car.
• CD-RWs may require a longer readout time.
(This is caused by the fact that the reflectance
of CD-RWs is lower than f or regular CDs.)
To play new discs
New discs may have some
rough spots around the inner
and outer edges. If such a disc
is used, this unit may reject the
disc.
To remove these rough spots, rub the edges with
a pencil or ball-point pen, etc.
About mistracking:
Mistracking may result from driving on
extremely rough roads. This does not damage
the unit and the disc, but will be annoying.
We recommend that you stop disc playback
while driving on such rough roads.
36
CAUTIONS:
• Do not insert 8 cm (3 3/16") discs (single CDs)
into the loading slot. (Such discs cannot be
ejected.)
• Do not insert any disc of unusual shape — like a
heart or flower; otherwise, it will cause a
malfunction.
• Do not expose discs to direct sunlight or any heat
source or place them in a place subject to high
temperature and humidity. Do not leave them in a
car.
• Do not use any solvent (for example , conventional
record cleaner, spray, thinner, benzine, etc.) to
clean discs.
SPECIFICATIONS
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front: 50 W per channel
Rear: 50 W per channel
Continuous Power Output (RMS):
Front: 19 W per channel into 4 Ω, 40 Hz to
20 000 Hz at no more than
0.8 % total harmonic distortion.
Rear: 19 W per channel into 4 Ω, 40 Hz to
20 000 Hz at no more than
0.8 % total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-In Level/Impedance:
LINE IN: 1.5 V/20 kΩ load
MP3 INPUT: 3.5 mm dia. stereo mini jack
(analog)
Line-Out Level/Impedance:
2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
TUNER SECTION
Frequency Range:
FM: 87.5 MHz to 107.9 MHz
AM: 530 kHz to 1 710 kHz
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity:
16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz):
65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 35 dB
Capture Ratio: 1.5 dB
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical
pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
MP3 decoding format: MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 Kbps
GENERAL
Pow er Requirement:
Operating Voltage: DC 14.4 V
(11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C (32°F to 104°F)
Dimensions (W x H x D):
Installation Size:
182 mm x 52 mm x 150 mm
(7-3/16" x 2-1/16" x 5-15/16")
Panel Size:
188 mm x 58 mm x 14 mm
(7-7/16" x 2-5/16" x 5/8")
Mass: 1.4 kg (3.1 lbs) (excluding accessories)
Design and specifications are subject to chang e without
notice.
If a kit is necessary for your car, consult your
telephone directory for the nearest car audio
speciality shop.
ENGLISH
[AM Tuner]
Sensitivity: 20 µV
Selectivity: 35 dB
37
http://www.jvcmobile.c
Visit us on-line for
Technical Support & Customer Satisfaction Survey .
US RESIDENTS ONLY
om
Having TROUBLE with operation?
Please reset your unit
Refer to page of How to Reset
Still having trouble??
USA ONLY
Call 1-800-252-5722
http://www.jvc.com
W e can help y ou!
EN, SP, FR
VICTOR COMPANY OF JAPAN, LIMITED
0102KKSMDTJEIN
JVC
Loading...
