Position And Reproduction Of Labels

Bottom panel of the main unit

CAUTION: Invisible laser radiation when open and

ENGLISH

interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e )

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funkti on. Undgåudsættelse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren urkopplad. Betrakta strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet

är

alttiina näkymättömälle

lasersäteilylle. Älä katso säteeseen. (f)

Name/Rating plate

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to

Caution:

This product contains a laser component of higher laser class than Class 1.

qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or similar tool. This will reset the built-in microcomputer.

Note:

• Your preset adjustments – such as preset channels or sound adjustments – will also be erased.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit............................... 2

How to use the MODE (M) button ............ 3

LOCATION OF THE BUTTONS............ 4

Control panel ........................................... 4

Preparing the remote controller ................. 5

Remote controller .................................... 6

BASIC OPERATIONS ...................... 7

Turning on the power ................................ 7

RADIO OPERATIONS...................... 8

Listening to the radio ................................ 8

Storing stations in memory ....................... 10

Tuning in to a preset station ..................... 11

RDS OPERATIONS ........................ 12

What you can do with RDS....................... 12

Other convenient RDS functions and

adjustments........................................... 16

CD OPERATIONS .......................... 19

Playing a CD............................................ 19

Locating a track or a particular portion

on a CD ................................................. 20

Selecting CD playback modes.................. 21

Prohibiting CD ejection ............................. 22

Playing a CD Text ..................................... 22

MP3 INTRODUCTION ..................... 23

(ONLY FOR KD-LH7R)

What is MP3? .......................................... 23

How are MP3 files recorded and

played back? ......................................... 23

MP3 OPERATIONS ........................ 25

(ONLY FOR KD-LH7R)

Playing an MP3 disc ................................. 25

Locating a file or particular portion

on an MP3 disc ..................................... 26

Selecting MP3 playback modes ............... 28

SOUND ADJUSTMENTS .................. 29

Adjusting the sound ................................. 29

Selecting preset sound modes

(C-EQ: custom equalizer) ...................... 30

Storing your own sound adjustments ....... 31

OTHER MAIN FUNCTIONS ............... 32

Setting the clock ...................................... 32

Changing the general settings (PSM) ...... 32

Assigning names to the sources

(only for KD-LH7R) ................................. 36

Detaching the control panel...................... 37

CD CHANGER OPERATIONS ............. 38

Playing CDs ............................................. 38

Selecting CD playback modes.................. 40

EXTERNAL COMPONENT OPERATIONS ... 41

Playing an external component ................ 41

DAB TUNER OPERATIONS ............... 42

Tuning in to an ensemble and

one of the services................................. 42

Storing DAB services in memory ............. 44

Tuning in to a preset DAB service ............ 44

What you can do more with DAB.............. 45

TROUBLESHOOTING...................... 46

MAINTENANCE ............................ 48

Handling CDs .......................................... 48

SPECIFICATIONS .......................... 49

ENGLISH

How to use the MODE (M) button:

If you press MODE (M), the unit goes into functions mode and the number buttons work as diff erent function buttons.

To use these buttons as number buttons again after pressing MODE (M), wait for 5 seconds without pressing any number button until the functions mode is cleared.

• Pressing MODE (M) again also clears the functions mode.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

p q

1 (standby/on/attenuator) button 2 Control dial 3 SEL (select) button 4 Display window 5 4 /¢ buttons 6 5 (up) button 7 0 (eject) button 8 ∞ (down) button 9 (control panel release) button p TP/PTY (T) (traffic programme/programme

type) button

q DISP (D) (display) button

• Also functions as SSM buttons when pressed together with MODE (M) button.

w MODE (M) button

• Also functions as SSM buttons when pressed together with DISP (D) (display) button.

e FM/AM DAB button r CD/CD-CH button t EQ (equalizer) button y MO (monaural) button u RPT (repeat) button i RND (random) button

w e

o Number buttons ; Remote sensor

Display window

a DISC indicator s TRACK indicator d MP3 indicators (only for KD-LH7R)

DIRECTORY, FILE

f Main display g Source/clock display h Tuner reception indicators

MO (monaural), ST (stereo)

j C-EQ (custom equalizer) indicator k RND (random) indicator l RPT (repeat) indicator / LOUD (loudness) indicator z Sound mode indicators

ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER.

x Volume (or audio) level indicator

Equalization pattern indicator

c CD–in indicator v RDS indicators

AF, REG, TP, PTY

;

Preparing the remote controller

This section is only for KD-LH7R.

KD-LH5R can also be remotely controlled with an optionally purchased remote controller. We recommend that you use remote controller RM-RK50 with your unit.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

3.Return the battery holder.

Insert again the battery holder pushing it until you hear a clicking sound.

(back side)

ENGLISH

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose it in a fire. Doing any of these things may cause the battery to give off heat, crack or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Remote controller

RM–RK50

ENGLISH

SOUND

ATT

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the next disc while listening to the CD changer. Each time you press the button, the disc number increases, and the selected disc starts playing.

• Skips to the first file of the next directory while listening to an MP3 disc. Each time you press the button, you can move to the next directory and start playing the first file—not available for KD-LH5R.

VOL

SOURCE

VOL

3 • Selects the preset stations while listening to

the radio (or the DAB tuner). Each time you press the button, the preset station number increases, and the selected station (or service) is tuned in.

• Skips to the previous disc while listening to the CD changer. Each time you press the button, the disc number decreases, and the selected disc starts playing.

• Skips to the first file of the previous directory while listening to an MP3 disc. Each time you press the button, you can move to the previous directory and start playing the first file—not available for KD-LH5R.

4 Functions the same as the control dial on the

main unit.

NOTE:

This button does not function for the preferred setting mode adjustment.

5 Selects the sound (C-EQ) mode.

Each time you press the button, the sound (C-EQ) mode changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches ensembles while listening to the DAB tuner if pressed for more than 1 second.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

BASIC OPERATIONS

ENGLISH

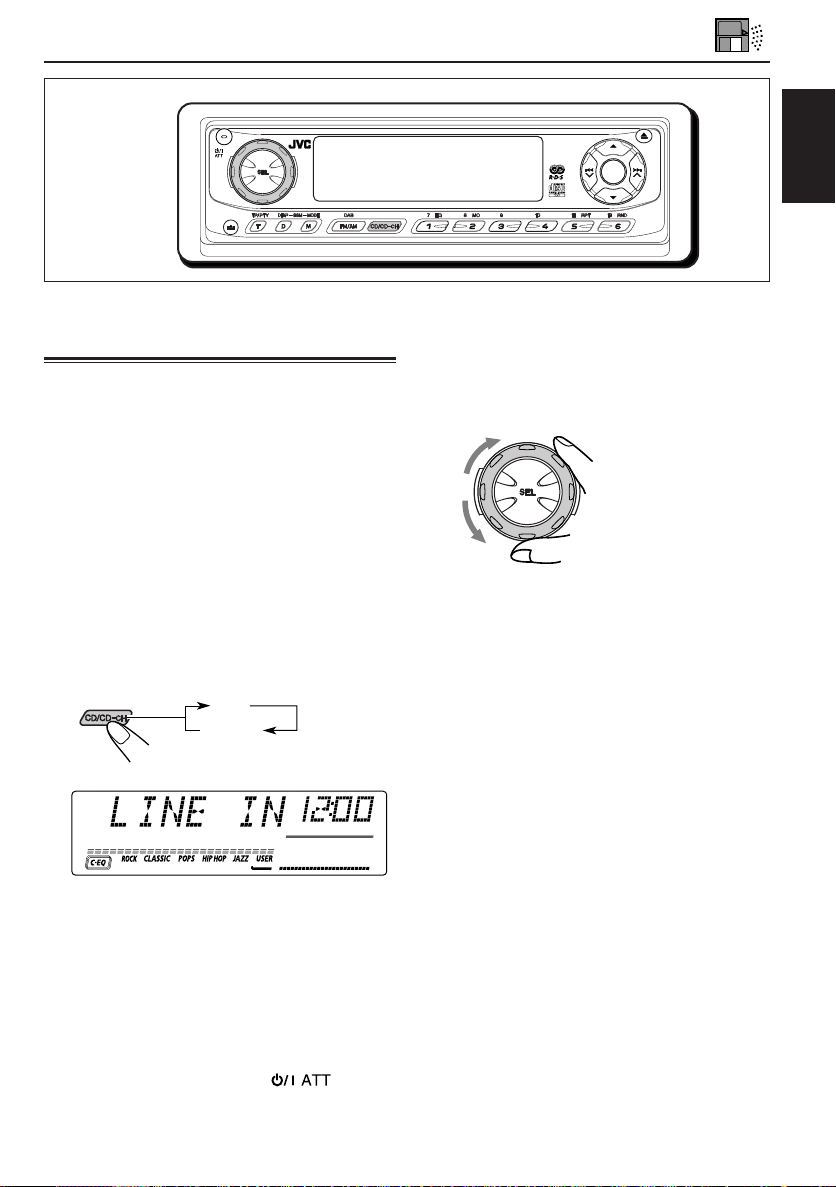

Turning on the power

Turn on the power.

“HELLO” appears on the display.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 8 – 18.

To play a CD,

see pages 19 – 22.

To play an MP3 disc,

see pages 23 – 28.

To operate the CD changer,

see pages 38 – 40.

To operate the external component

(LINE IN), see page 41.

To operate the DAB tuner,

see pages 42 – 45.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Adjust the volume.

To increase the volume.

To decrease the volume.

Volume level appears

Volume or audio level indicator (see page 34)

Adjust the sound as you want. (See pages 29 – 31.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press for more than one second. “SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a disc, CD play will start from where playback has been stopped previously, next time you turn on the power.

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 32.

RADIO OPERATIONS

ENGLISH

Listening to the radio

Start searching a station.

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM1 – 3, AM).

F1 F2 F3 AM

(FM 1) (FM 2) (FM 3)

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press ¢ to search stations of higher frequencies.

Press 4 to search stations of lower frequencies.

When a station is received, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

Searching a station manually: Manual search

Select the band (FM1 – 3, AM).

• If you release your finger from the button, the manual mode will automatically turn off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM – MW/LW) until you release the button.

ENGLISH

F1 F2 F3 AM

(FM 1) (FM 2) (FM 3)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “MANU” (manual) starts flashing on the display.

Tune in to a station you want while “MANU” is flashing.

Press ¢ to tune in to stations of higher frequencies.

Press 4 to tune in to stations of lower frequencies.

When an FM stereo broadcast is hard to receive:

1 Press MODE (M) to enter the

functions mode while listening to an FM stereo broadcast. “MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press MO (monaural), while

“MODE” is still on the display, so that the MO indicator lights up on the display. Then, each time you press MO (monaural), the MO indicator lights up and goes off alternately.

Lights up when receiving an FM broadcast in stereo.

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved (the ST indicator goes off).

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

ENGLISH

station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

Y ou can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

F1 F2 F3 AM

(FM 1) (FM 2) (FM 3)

Press and hold both buttons for more than 2 seconds.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

Ex.: Storing an FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

F1 F2 F3 AM

(FM 1)

Tune in to a station (in this example, of 88.3 MHz).

(FM 2) (FM 3)

Press ¢ to tune in to stations of higher frequencies.

Press 4 to tune in to stations of lower frequencies.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No.1 (lowest frequency) to No .6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Press and hold the number button (in this example, 1) for more than 2 seconds.

Selected band/preset number and “MEMO” (memory) appear alternately for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, pr eset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If y ou have not stored them yet, see “Stor ing stations in memory” on pages 10 and 11.

Select the band (FM1 – 3, AM).

F1 F2 F3 AM

(FM 1) (FM 2) (FM 3)

Select the number (1 – 6) for the preset station you want.

ENGLISH

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favourite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favourite prog ramme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.) Two types of the RDS data are used to make Network-Tracking Reception work correctly — PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

REG indicator

AF indicator

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated (“AF”) automatically. On the other hand, Networking-Trac king Reception cannot be deactivated without deactivating Alternative Reception. (See page 45.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 33.)

Select “AF-REG (alternative frequency/regionalization reception)” if not shown on the display.

Select the desired mode – “AF,” “AF REG” or “OFF.”

Finish the setting.

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency E

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station or CD and other connected components).

• TA Standby Reception will not work if you are listening

to an AM station.

Press TP/PTY (T) to activate TA Standby Reception. 7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standb y

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 17) and the traffic announcement can be heard.

• If the TP indicator flashes, T A Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press TP/PTY (T) again.

ENGLISH

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency D

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favourite programme (PTY: Programme Type) from the current source (another FM station, CD or other connected components).

ENGLISH

• PTY Standby Reception will not work if you are

listening to an AM station.

Finish the setting.

You can select your favourite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display . (PSM: see page 33.)

Select “PTY STBY (standby)” if not shown on the display.

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display and is stored into memory.

• To cancel the PTY Standby Reception, select “OFF.”

7 When the current source is FM, the

PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than

FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favourite programme

You can search any one of the PTY codes. In addition, you can store your 6 favourite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favourite programme types, see below. To search your favourite programme type, see page 16.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

To store your favourite programme types

Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

VARIED

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

“MEMO” and the selected code name will flash alternately. Then, only the selected code name will continue flashing on the display.

Press and hold TP/PTY (T) for more than 2 seconds.

ENGLISH

The last selected PTY code appears.

To search your favourite programme type

Station name

(PS NAME)

Station frequency

(FREQ)

Programme type

(PTY)

Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

ENGLISH

The last selected PTY code appears.

Select one of the PTY codes.

Other convenient RDS functions and adjustments

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME) or station frequency (FREQ) while listening to an FM RDS station.

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TU DISP

(tuner display).”

3 T urn the control dial to set to the desired indication

(“PS NAME” or “FREQ”).

4 Press SEL (select) to finish the setting.

Note:

By pressing DISP (D), you can change the display while listening to an FM RDS station. Each time you press the button, the following information appears on the display:

Ex.: When “ROCK M” is selected

Press ¢ or 4 to start PTY search for your favourite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

• Then, the display goes back to the original indication

in several seconds.

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However , when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using Programme search.

T o activate programme search, f ollow the procedure below.

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the

same procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO ADJ.” 3 Turn the control dial counterclockwise to select

“OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same

procedure and select “ON” in step 3 by turning the control dial clockwise.

Note:

Y ou must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

ENGLISH

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA VOL.” 3 Turn the control dial to set to the desired volume.

You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart advice

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

CHILDREN: Entertainment programmes for

on current news or affairs

on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social activities RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with factual

matters, presented in an

investigative style

Playing a CD

Open the control panel.

CD OPERATIONS

ENGLISH

The CD–in indicator lights up.

Insert a disc into the loading slot.

The unit turns on, draws a disc and starts playback automatically.

Close the control panel by hand.

Total playing time of the inserted disc

Elapsed playing time

Notes:

• When a disc is already in the loading slot, selecting “CD” as the source starts CD play.

• When a disc is inserted upside down, the disc automatically ejects (if the control panel is open). If the control panel is closed, “PLEASE” and “EJECT” appear alternately.

• If you change the source, CD play also stops (without ejecting the disc). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Total track number of the inserted disc

Current track

Source indication will change to the clock time if “CLOCK” is set to “ON.” (See page 34)

To stop play and eject the disc

Press 0. CD play stops, the control panel opens, then the disc automatically ejects from the loading slot. If you change the source, the CD play also stops

ENGLISH

(without ejecting the disc this time).

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a disc, to fast-forward the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

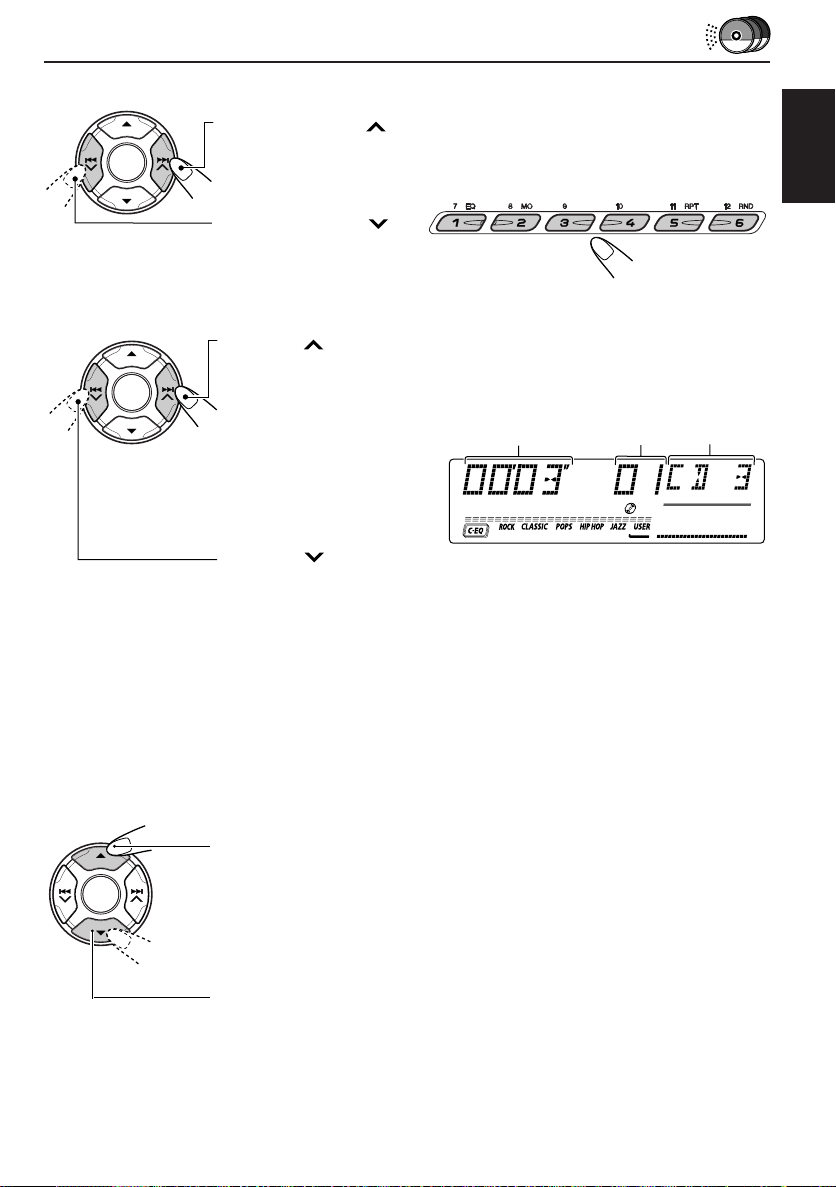

To go to a particular track directly

Press and hold 4 , while playing a disc, to reverse the track.

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Selecting CD playback modes

To play back tracks at random (Random Play)

Y ou can pla y back all trac ks on the disc at random.

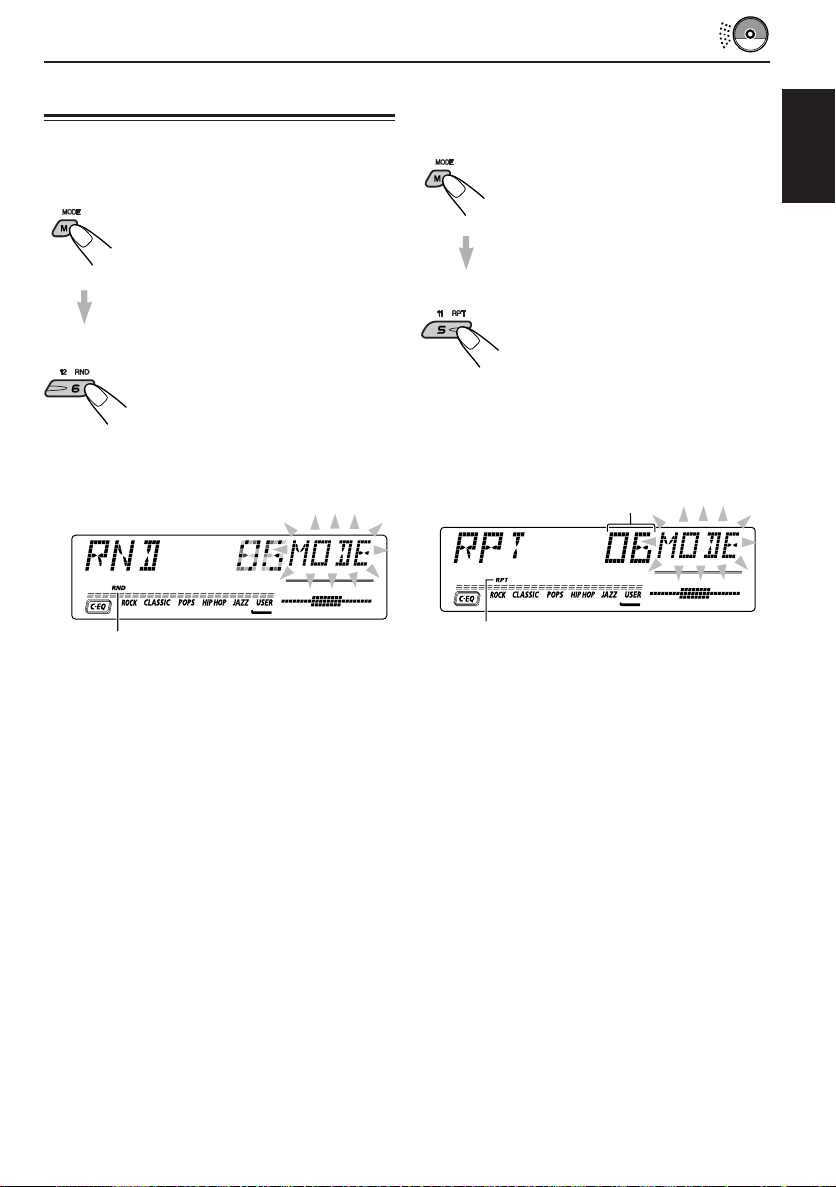

1 Press MODE (M) to enter the

functions mode while playing a disc. “MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RND (random), while

“MODE” is still on the display, so that the RND indicator lights up on the display. Then, each time you press RND (random), the random play mode turns on and off alternately.

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

1 Press MODE (M) to enter the

functions mode while playing a disc. “MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RPT (repeat), while

“MODE” is still on the display, so that the RPT indicator lights up on the display. Then, each time you press RPT (repeat), the repeat play mode turns on and off alternately.

Track number of the currently playing track

ENGLISH

RND indicator

When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

RPT indicator

When the repeat mode is turned on, the RPT indicator lights up on the display.

Prohibiting CD ejection

Playing a CD Text

You can prohibit CD ejection and can lock a disc in the loading slot.

ENGLISH

While pressing CD/CD-CH, press and hold

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc,

press again for more than 2 seconds, while pressing CD/CD-CH.

“EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

for more than 2 seconds.

In a CD Text, some information about the disc (its disc title, performer and track title) is recorded. You can show these disc information on the display.

Select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc Title / Performer

Current track no.

and Elapsed playing time

Notes:

• When the disc title/performer is shown, the DISC indicator lights up. When the track title is shown, the TRACK indicator lights up.

• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters.

Some characters or symbols will not be shown (and

be blanked) on the display.

(Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (D) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

Track Title

MP3 INTRODUCTION

This chapter is only for KD-LH7R.

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3*. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps**). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* This player is not compatible with the data encoded

with Layer 1 and 2 formats.

** Bit rate is the average number of bits that one second

of audio data will consume. The unit used is Kbps (1000 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs .

Compatible with ID3v1

Extra information data such as album title, performer name, song title, recording year , music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 tags (album name, performer name and song title) on the display. (See page 36.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2.

Other Main Features in this unit:

• Maximum number of directories/files: 289

• Available characters for directory/file names: A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name

(ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code—“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

separation mark—“.” and extension code—“mp3”)

(Joliet): 64 (inclusive of

separation mark—“.” and extension code—“mp3”)

• Maximum number of characters for directory

name: 64

(Total)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2 or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “directories (folders)”—in PC terminology. During recording, the files and directories can be arranged in a way similar to arranging files and directories/folders of computer data. “Root” is similar to the root of a tree. Every file and directory can be linked to and be accessed from the root.

Playback order, file search order, and directory search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the directories and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• The unit is not compatible with Playlist*.

* A playlist is a simple text file , used on a PC, which enables

users to make their own playback order without ph ysically rearranging the files.

ENGLISH

MP3 directory/file configuration

ENGLISH

Hierarchy

Level 1

Level 2

Level 3

1 2

Level 4

Level 5

Level 6

ROOT

3 4

: Root

5 6

ROOT

05 09

1110 2120

06 07

1312

15 1614

2322 24

Note:

There is no limit to the number of hierarchy levels (nested directories). However, up to 8 hierarchy levels is recommended for stable operations.

: Directories

: MP3 files

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally this unit plays back MP3 files in the recorded order.

• The numbers inside the directories indicate the playback order and search order of the directories on an MP3 disc. Normally this unit plays back MP3 files in the directories in the recorded order.

This chapter is only for KD-LH7R.

Refer also to “CD OPERATIONS” on pages 19 to

22.

MP3 OPERATIONS

ENGLISH

Playing an MP3 disc

Open the control panel.

Insert an MP3 disc into the loading slot.

The unit draws the disc. Playback starts automatically from the first file of the first directory once disc scan is complete.

Close the control panel by hand.

The display changes to show the following:

CD-in indicator lights up.

Ex.: When the disc contains 13 directories and 125

MP3 files.

Notes:

• All the files on the disc will be played repeatedly until you stop playback—All File Repeat Play.

• MP3 discs require a longer readout time. (It differs due to the complexity of the directory/file configuration.)

• If you change the source or turn the power off, MP3 playback stops (without ejecting the disc). Next time you select disc play as the source or turn the power on, MP3 playback starts from where playback has been stopped previously.

CD-in indicator lights up.

To change the display information

While playing back an MP3 file, you can change the file information shown on the display.

ENGLISH

• When “TAG DISP” is set to “TAG ON”

Each time you press DISP (D), the display changes to show the following:

(initial setting: see page 36)

Album name/performer (directory name*)

Track title (file name*)

Locating a file or particular portion on an MP3 disc

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

Press and hold 4 while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

Elapsed playing time (with track No.)

* If an MP3 file does not have ID3 tags,

directory name and file name appear.

• When “TAG DISP” is set to “TAG OFF”

Directory name

File name

Elapsed playing time

(with track No.)

Note:

The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. See also “To select the scroll mode – SCROLL” on page 35.

To stop play and eject the disc

Press 0. Playback stops, the control panel moves down, and the disc automatically ejects from the loading slot.

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively , the beginning of the next files is located and played back. (See “MP3 playback/ search order” on page 24.)

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back. (See “MP3 playback/search order” on page 24.)

To go to a particular directory directly

IMPORTANT:

To directly select the directories using the number button(s), it is required that directories are assigned 2 digit numbers at the beginning of their directory names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If directory name is “01 ABC”

= press 1 to go to Directory 01 ABC.

If directory name is “1 ABC,” pressing 1 does not work.

If directory name is “12 ABC”

= press and hold 6 (12) to go to

Directory 12 ABC.

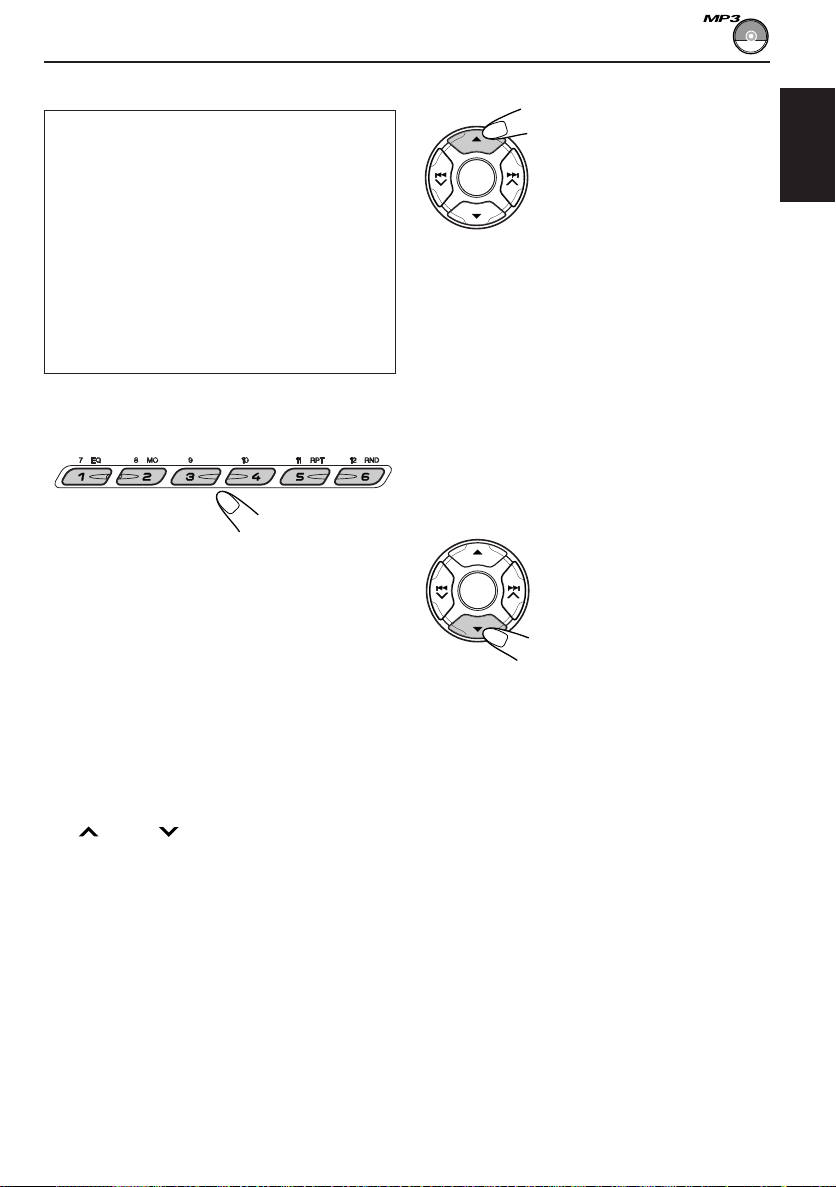

Press the number button corresponding to the directory number to start playing the first file in the selected directory.

• To select a directory number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a directory number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

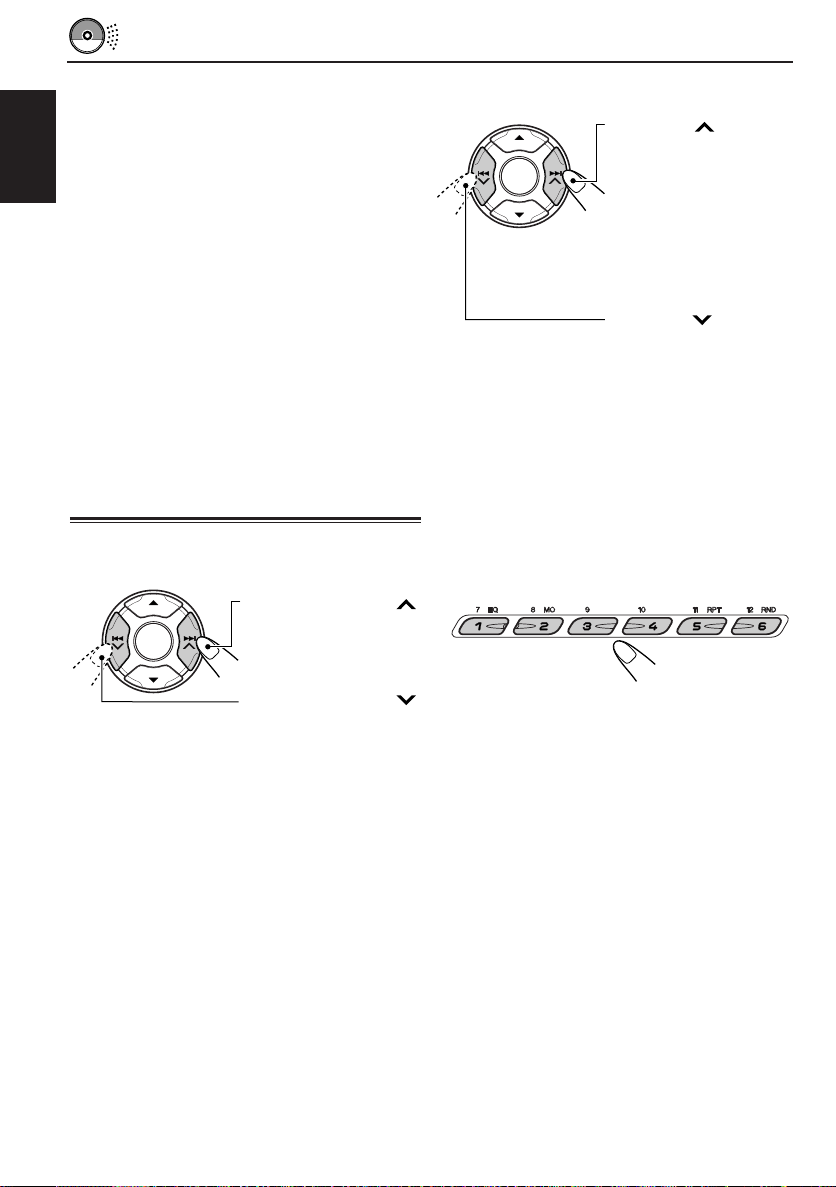

To skip to the next directory

ENGLISH

Press 5 (up) briefly while playing an MP3 disc. Each time you press the button consecutively, the next directory is located (and the first file in the directory starts playing, if recorded).

Note:

If the directory does not contain any MP3 files, it is skipped.

To skip to the previous directory

Notes:

• If “MP3” flashes on the display after you have selected a directory, it means that the directory does not contain any MP3 files.

• You cannot directly select a directory with a number greater than 12.

To select a particular file in a directory, press

¢ or 4 after selecting the directory.

Press ∞ (down) briefly while playing an MP3 disc. Each time you press the button consecutively, the previous directory is located (and the first file in the directory starts playing, if recorded).

Note:

If the directory does not contain any MP3 files, it is skipped.

Selecting MP3 playback modes

To play back files at random (Random Play)

You can play back all files on the MP3 disc at

ENGLISH

random.

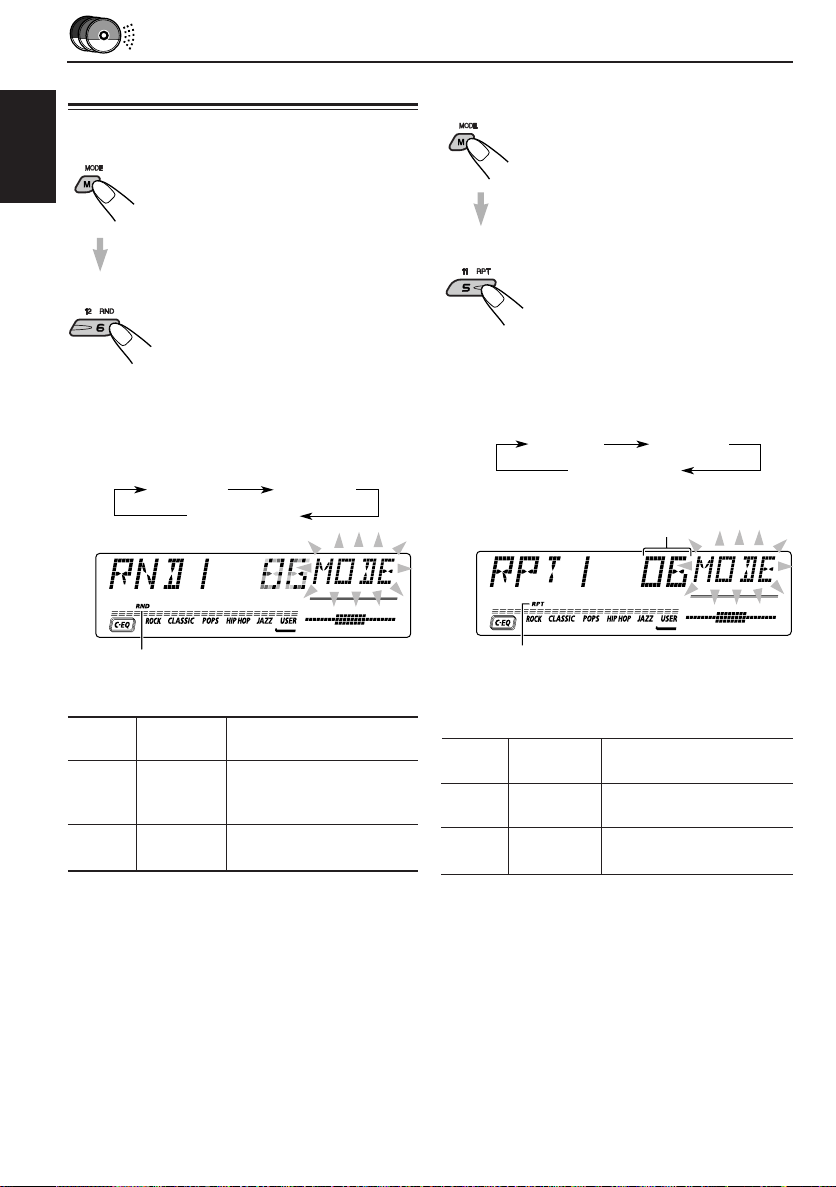

1 Press MODE (M) while

playing an MP3 disc. The unit enters the functions mode.

2 Press RND (random), while

“MODE” is still on the display, so that the RND indicator lights up on the display. Then, each time you press RND (random), the random play mode changes as follows:

RND1

Canceled

RND2

To play back files repeatedly (Repeat Play)

You can play back the current file or all the files in the current directory repeatedly.

1 Press MODE (M) while

playing an MP3 disc. The unit enters the functions mode.

2 Press RPT (repeat), while

“MODE” is still on the display, so that the RPT indicator lights up on the display. Then, each time you press RPT (repeat), the repeat play mode changes as follows:

RPT1

RPT2

Canceled

Track number of the currently playing track

RPT indicator

RND indicator

Mode

RND1 Lights All files of the current

RND2 Flashes All files on the disc.

RND Indicator

Plays at random

directory.

Mode

RPT1 Lights The current file (or

RPT2 Flashes All files of the current

RPT Indicator

Plays repeatedly

specified file).

directory (or specified directory).

Adjusting the sound

SOUND ADJUSTMENTS

Adjust the level.

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS Adjust the bass. –06 (min.)

TRE Adjust the treble. –06 (min.)

FAD* Adjust the front R06 (Rear only)

BAL Adjust the left L06 (Left only)

LOUD Boost low and

VOL Adjust the volume. 00 (min.)

and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

high frequencies to produce a well-balanced sound at low volume level.

TRE

(treble)

LOUD

(loudness)

FAD

(fader)

BAL

(balance)

| +06 (max.)

LOUD ON |

LOUD OFF

| 50 (max.)

To increase the level.

ENGLISH

To decrease the level.

Equalization pattern changes as you adjust the bass or treble.

Note:

Normally, the control dial works as the volume control. So you do not have to select “VOL” to adjust the volume level.

* If you are using a two-speaker system, set the fader

level to “00.”

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode

ENGLISH

(C-EQ: custom equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE (M).

“MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

Press EQ (equalizer) while “MODE” is still on the display.

The last selected sound mode is recalled and applied to the current source.

Sound mode indicator flashes.

Ex.: If you have selected “USER” previously

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER ROCK CLASSIC

Indication For: Preset values

BAS TRE LOUD USER (Flat sound) 00 00 OFF ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music POPS Light music +04 +01 OFF HIP HOP Funk or Rap +02 00 ON

music JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 31.

To store a sound mode separately for each playback source (C-EQ Link)

You can select a sound mode and store it in memory. It will be recalled every time you select the same source and will be shown on the display . A sound mode can be stored for each of the following sources — FM1, FM2, FM3, AM, CD and external components.

• See also “Changing the general settings (PSM)”

on page 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “CEQ LINK

(custom equalizer link).”

3 Turn the control dial clockwise to select “LINK

ON.”

4 Press SEL (select) to finish the setting.

JAZZ POPS

Sound mode indicator flashes.

Ex.: When you select “ROCK”

HIP HOP

To cancel C-EQ Link, repeat the same procedure and select “LINK OFF” in step 3.

Note:

When the “CEQ LINK” setting is changed, sound mode (C-EQ) is automatically reset to “USER.”

• When “CEQ LINK” is set to “LINK ON”

The selected sound mode can be stored in memory for the current source. Each time you change to the same source, the same sound mode is also recalled and shown on the display. The C-EQ indicator also flashes.

• When “CEQ LINK” is set to “LINK OFF”

The selected sound mode effect applies to any source.

Storing your own sound adjustments

Y ou can adjust the sound modes to y our preference and store your own adjustments in memory.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE (M).

“MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

Select the sound mode you want to adjust.

Select the item you want to adjust.

• See page 29 for details.

Adjust the level.

To increase the level.

To decrease the level.

ENGLISH

Press EQ (equalizer) while “MODE” still on the display.

The last selected sound mode is recalled and applied to the current source.

Sound mode indicator flashes.

Ex.: If you have selected “ROCK” previously

Equalization pattern changes as you adjust the bass or treble.

Ex.: When you adjust “TRE”

Repeat steps 4 and 5 to adjust the other items.

Repeat the same procedure to store other sound modes.

To reset to the factory settings, repeat the

same procedure and reassign the preset values listed in the table on page 30.

OTHER MAIN FUNCTIONS

Setting the clock

Press and hold SEL (select) for more than 2 seconds so that one of the PSM

ENGLISH

items appears on the display. (See page 33.)

Set the hour.

1 Select “CLOCK H (hour)” if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M (minute).” 2 Adjust the minute.

To check other information during play, press DISP (D). Each time you press the button, the other information (either the clock or the source name) will be shown on the upper part of the display for a while.

• Pressing DISP (D) with the unit turned off will show the clock time for about 5 seconds.

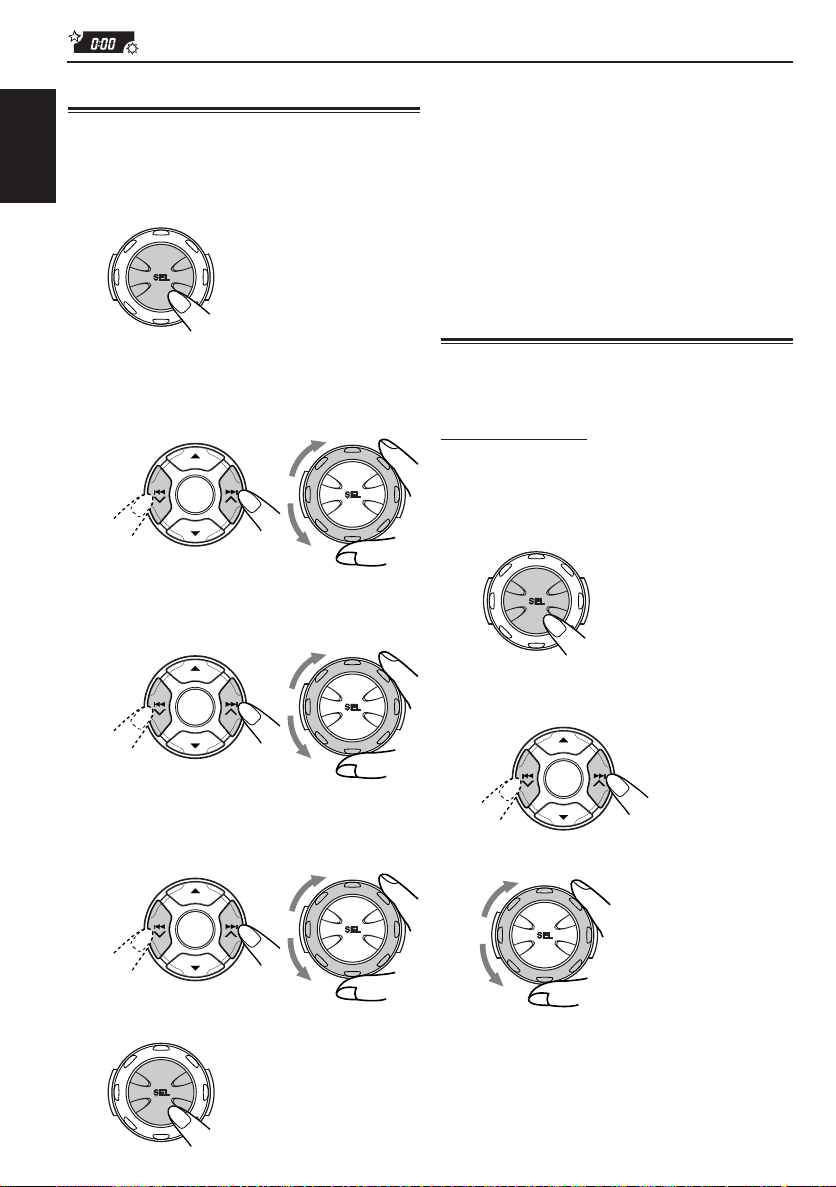

Changing the general settings (PSM)

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 33.)

Select the PSM item you want to adjust. (See page 33.)

Set the clock system.

1 Select “24H/12H. ” 2 Select “24H” or “12H. ”

Finish the setting.

Adjust the PSM item selected.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

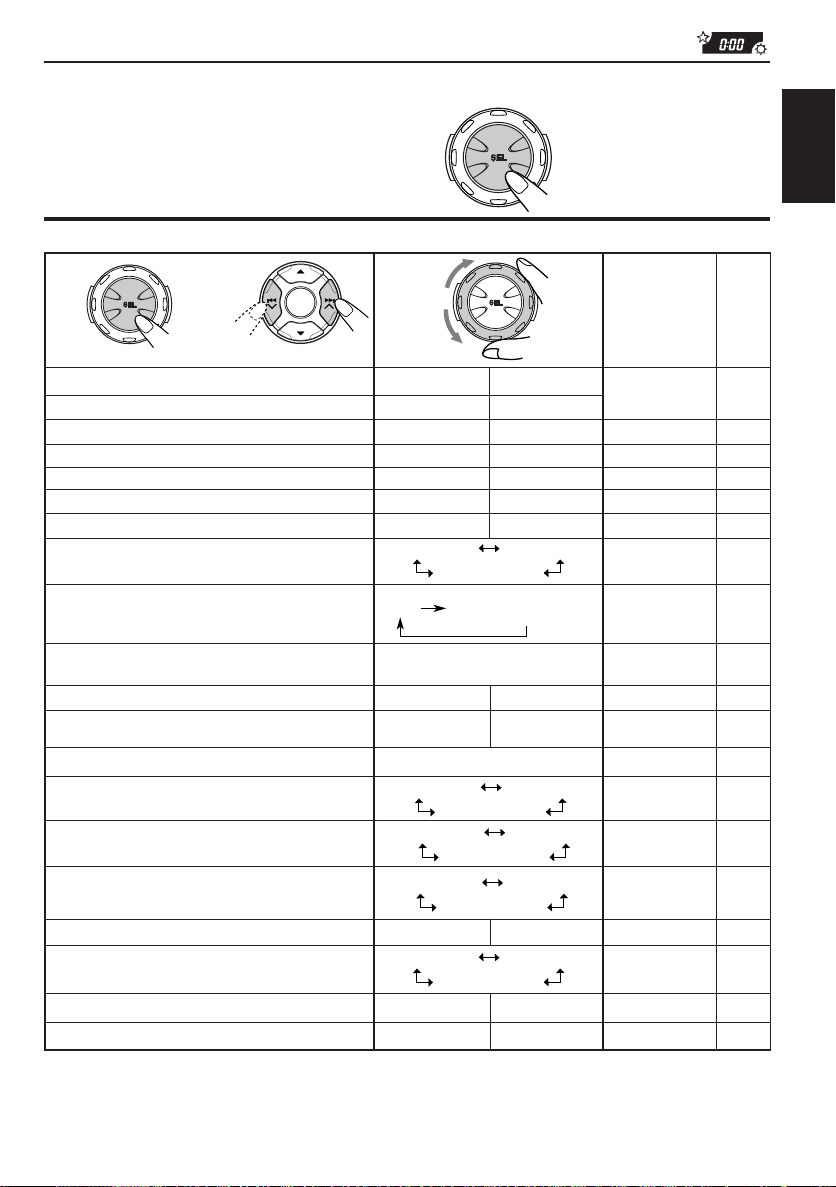

Preferred Setting Mode (PSM) items

Finish the setting.

ENGLISH

Hold.

CLOCK H Hour adjustment CLOCK M Minute adjustment CEQ LINK Custom equalizer link 24H/12H 24/12-hour time display AUTO ADJ Automatic clock setting

CLOCK Clock display TU DISP Tuner display AF-REG Alternate frequency/

PTY STBY PTY standby

TA VOL Traffic announcement

P-SEARCH Programme search DAB AF** Alternate frequency

DAB VOL** DAB volume adjustment LEVEL Level indicator

DIMMER*** Dimmer mode

TEL Telephone muting

BEEP Key-touch tone SCROLL Scroll mode EXT IN**** External component

TAG DISP*** Tag display

• Press SEL (select) to finish the setting. * Displayed only when “DAB AF” is set to “AF OFF”.

** Displayed only when the DAB tuner is connected. *** Only for KD-LH7R. **** Displayed only when one of the following sources is selected – FM, AM and CD.

Select.

Regionalization reception

volume

Set.

Counterclockwise

Back Advance Back Advance

LINK OFF LINK OFF 30, 34LINK ON

12H 24H 24H 32 OFF ON ON 17 OFF ON ON 34

FREQ PS NAME PS NAME 16

AF AF REG

OFF

DAB VOL –12 to DAB VOL 12 DAB VOL 00 45

29 programme types

VOL 00 — VOL 50 VOL 20 17

OFF ON OFF 17

AF OFF AF ON AF ON 45

OFF

AUDIO 2

AUTO

OFF

MUTING 2

OFF ON ON 35

ONCE AUTO

Clockwise

OFF*

(see page 18)

AUDIO 1

OFF

MUTING 1

OFF

Factory-preset

settings

0:00 32

AF 12

OFF 14

AUDIO 2 34

AUTO 34

OFF 34

CHANGER 35CHANGER LINE IN

TAG ON 35TAG OFF TAG ON

See

page

35ONCE

To set Custom Equalizer Link – CEQ LINK

A different sound mode (C-EQ) can be stored in memory for each source so that you can change the sound modes simply by changing the sources. When shipped from the factory, this mode is

ENGLISH

deactivated.

To select the dimmer mode – DIMMER

(only for KD-LH7R)

When you turn on the car head lights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• LINK ON: Different sound modes for different

• LINK OFF: One sound mode for all sources.

sources.

To set the clock display – CLOCK

You can set the clock to be shown on the display when the unit is turned on. When shipped from the factory, the clock is set to be shown on the display.

• ON: Clock display is turned on.

• OFF: Clock display is turned off. When “OFF” is selected, the current source name or station band appears instead of the clock when

“LINE IN” is selected as the

source)

display (except

To select the level meter – LEVEL

You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected.

• AUDIO 1: Level meter illuminates from bottom

• AUDIO 2: Alternates level meter (moves from

• OFF: Erases the audio level indicator.

to top.

bottom to top) and illumination display.

• AUTO: Activates Auto Dimmer.

• OFF: Cancels Auto Dimmer.

• ON: Always dims the display.

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “ON” or “OFF.”

To select the telephone muting – TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2, ” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute the sounds.

• MUTING 2: Select this if this setting can mute the sounds.

• OFF: Cancels the telephone muting.

To turn on/off the key-touch tone – BEEP

Y ou can deactiv ate the key-touch tone if y ou do not want it to beep each time you press a button. When shipped from the factory , the ke y-touch tone is activated.

• ON: Activates the key-touch tone.

• OFF: Deactivates the key-touch tone.

To turn the tag display on or off – TAG DISP

(only for KD-LH7R)

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). This unit is compatible only with ID3v1. When shipped from the factory, “TAG ON” is selected.

ENGLISH

To select the scroll mode – SCROLL

You can select the scroll mode for the disc information if it consists of more than 8 characters. When shipped from the factory, Auto Scroll mode is set to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (in 5-second intervals).

• OFF: Cancels Auto Scroll.

To select the external component to use – EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component – CD changer or external component – to use. When shipped from the factory, CD changer is selected as the external component.

• LINE IN: To use the external component other than CD changer.

• CHANGER: To use the CD changer.

• TAG ON: Turns on the ID3 tag display while playing MP3 files. * If an MP3 file does not have

ID3 tags, directory name and file name appear.

Note:

If you change the setting from “TAG OFF” to “TAG ON” while playing an MP3 file, the tag display will be activated when the next file starts playing.

• TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the directory name and file name can be shown.)

Note:

For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

Assigning names to the sources

This section is only for KD-LH7R.

You can assign names to discs (both in this unit

ENGLISH

and in the CD changer). After assigning a name, it will appear on the display when you select the source.

Move the cursor to the next (or previous) character position.

Sources Maximum number of

characters

CDs* up to 32 characters

(up to 40 discs)

* You cannot assign a name to a CD Text or an MP3

disc.

Select a source you want to assign a name to.

When you select a source, the power automatically comes on.

Press and hold SEL (select) for more than 2 seconds while pressing DISP (D).

Repeat steps 3 and 4 until you finish inputting the name.

Finish the procedure while the last selected character is flashing.

To erase the input characters

Insert spaces using the same procedure described above.

Available characters

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 4 5 6 7 8 9

space

0 1 2 3 –

Ex.: When you select CD as the source

Select a character.

• See next column for available characters.

Notes:

• When you try to assign a name to the 41st disc,

“NAME FULL” appears on the display. (In this case, delete unwanted names before assignment.)

• When the CD changer is connected, you can assign

names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

• These characters are also used while showing ID3

tags of the MP3 disc. Some characters or symbols will not be shown (and be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. T o minimize this possibility , periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

ENGLISH

Put the detached control panel into the provided case.

Connectors

ENGLISH

CD CHANGER OPERATIONS

We recommend that you use one of the CH-X series with your unit. If you have another CD automatic changer , consult your JVC car audio dealer for connections.

• For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

Before operating your CD automatic changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If “RESET 1” – “RESET 8” appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly . Then, press the reset button of the CD changer.

Playing CDs

Select the CD automatic changer (CD-CH).

CD-CH*

* If you have changed the “EXT IN” setting to

“LINE IN” ( see page 35), you cannot select the CD changer.

Playback starts from the first track of the first disc. All tracks of all discs are played back.

Elapsed playing time Track number Disc number**

** When “CLOCK” is set to “ON” (see page 34),

disc number will soon change to clock time.

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically turns on. You do not have to press to turn on the power.

To fast-forward or reverse the track

Press and hold ¢ , while playing a disc, to fast-forward the track.

Press and hold 4 , while playing a disc, to reverse the track.

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

ENGLISH

To go to the next track or the previous tracks

Press ¢ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to the next discs or the previous discs

Press 5, while playing a disc, to go to the next disc. Each time y ou press the button consecutively, the first track of the next disc is located and played back.

Press ∞, while playing a disc, to go to the previous disc. Each time y ou press the button consecutively, the first track of the previous disc is located and played bac k.

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Elapsed playing time

* When “CLOCK” is set to “ON” (see page 34),

disc number will soon change to clock time.

Track number

Disc number*

To show the CD Text information

This is possible only when connecting a JVC CD automatic changer equipped with CD Text reading capability. See “Playing a CD Text” on page 22.

Selecting CD playback modes

To play back tracks at random (Random Play)

1 Press MODE (M) to enter the

ENGLISH

functions mode while playing a disc. “MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RND (random), while

“MODE” is still on the display, so that the RND indicator lights up on the display. Then, each time you press RND (random), the random play mode changes as follows:

RND1

RND2

Canceled

To play back tracks repeatedly (Repeat Play)

1 Press MODE (M) to enter the

functions mode while playing a disc. “MODE” appears on the upper part of the display, and the number buttons work as different function buttons.

2 Press RPT (repeat), while

“MODE” is still on the display, so that the RPT indicator lights up on the display. Then, each time you press RPT (repeat), the repeat play mode changes as follows:

RPT1 RPT2

Canceled

Track number of the currently playing track

RND indicator lights up.

Ex.: When you select “RND1.”

Mode

RND1 Lights All tracks of the current

(random1) disc, then the tracks of

RND2 Flashes All tracks of all discs

(random2) inserted in the magazine.

RND Indicator

Plays at random

the next disc and so on.

RPT indicator lights up.

Ex.: When you select “RPT1.”

Mode

RPT1 Lights The current tr ack

RPT2 Flashes All tracks of the current

(repeat2) disc (or specified disc).

RPT Indicator

Plays repeatedly

(or specified track).

EXTERNAL COMPONENT OPERATIONS

Aux input

ENGLISH

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use – EXT IN” on page 35.)

Select the external component (LINE IN).

LINE IN

• If “LINE IN” does not appear on the display, see page 35 and select the external input (“LINE IN”).

• Displayed only when one of the following sources is selected – FM, AM and CD.

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound characteristics you want. (See pages 29 – 31.)

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically comes on. You do not have to press to turn on the power.

ENGLISH

FM/AMDAB

DAB TUNER OPERATIONS

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carr y text, pictures and data. In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.” With the DAB tuner connected with this unit, you can enjoy these DAB services.

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press DAB (FM/AM) briefly if CD, CD changer or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Select the DAB band (DAB1, DAB2 or DAB3).

Each time you press the button, the DAB band changes as follows:

D1 D2 D3

(DAB 1) (DAB 2) (DAB 3)

Note:

This receiver has three D AB bands (D AB1, DAB2, DAB3). You can use any one of them to tune in to an ensemble.

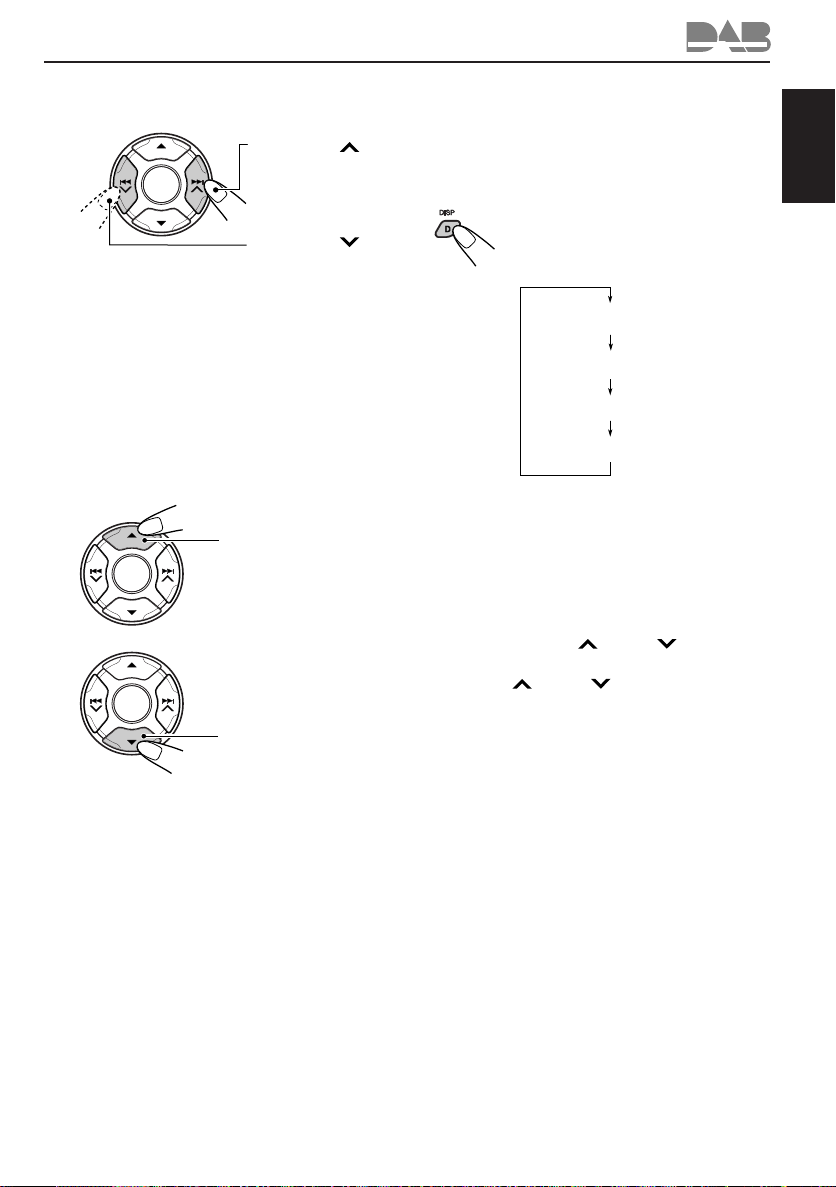

Start searching an ensemble.

Press ¢ to search ensembles of higher frequencies.

Press 4 to search ensembles of lower frequencies.

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have

pressed for searching.

Select a service you want to listen to.

Press 5 (up) to select the next service.

Press ∞ (down) to select the previous service.

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to change the display inf ormation, press DISP (D).

Each time you press the button, the following information appears on the display for a while.

Service name

Ensemble name

Channel number

Frequency

To tune in to a particular ensemble without searching:

1 Press and hold DAB (FM/AM) to select DAB

tuner as the source.

2 Press DAB (FM/AM) repeatedly to select the

DAB band (DAB1, DAB2 or DAB3).

3 Press and hold ¢ or 4 for more

than 1 second.

4 Press ¢ or 4 repeatedly until the

ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button.

To restore the FM/AM tuner

Press and hold DAB (FM/AM) again.

ENGLISH

Storing DAB services in

FM/AMDAB

memory

You can preset up to 6 DAB services in each DAB

ENGLISH

band (DAB1, DAB2 and DAB3) manually.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

D1 D2 D3

(DAB 1) (DAB 2) (DAB 3)

Tune in to an ensemble you want.

Select a service of the ensemble you want.

Press 5 (up) to select the next service.

Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

Selected band/preset number and “MEMO” (memory) appear alternately for a while.

Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• A previously preset DAB service is erased when a new DAB service is stor ed in the same preset number.

• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occur s, preset the DAB services again.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see the column on the left.

Select the DAB tuner.

Each time you press and

Press ∞ (down) to select the previous service.

hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

D1 D2 D3

(DAB 1) (DAB 2) (DAB 3)

Select the number (1 – 6) for the preset DAB service you want.

To adjust the DAB volume level

You can adjust the input level of DAB tuner and store it in memory. By adjusting the input level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source. When shipped from the factory, DAB volume level is set at “00.”

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB VOL

(volume)”.

3 Turn the control dial to set to the desired

volume. You can set it from “–12” to “12.”

4 Press SEL (select) to finish the setting.

ENGLISH

What you can do more with DAB

Tracing the same program automatically (Alternative Reception)

You can keep listening to the same program.

• While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit. To prevent this inconvenience, you can adjust the DAB volume level (see next column).

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

• See also “Changing the general settings (PSM)” on pages 32 and 33.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB AF”

(alternative frequency).

3 Turn the control dial to select the desired

mode.

• AF ON: Traces the program among DAB

services and FM RDS stations — Alternative Reception. The AF indicator lights up on the display (see page 12).

• AF OFF: Deactivates Alternative Reception.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 12) is also activated automatically. On the other hand, NetworkTracking Reception cannot be deactivated without deactivating Alternative Reception.

4 Press SEL (select) to finish the setting.

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound is sometimes

• Sound cannot be heard

• CD cannot be played back.

• CD-R/CD-RW cannot be

• Tracks on the CD-R/CD-RW

General Playback

• “NO DISC” appears on the

• Disc cannot be ejected.

• This unit does not work at

Symptoms

interrupted.

from the speakers.

played back. cannot be skipped.

display .

all.

Causes

You are driving on rough roads.

Disc is scratched. Connections are incorrect.

The volume level is set to the minimum level.

Connections are incorrect.

Disc is inserted upside down. CD-R/CD-RW is not finalized.

No disc in the loading slot. Disc is inserted incorrectly. Disc is locked. The built-in microcomputer

may function incorrectly due to noise, etc.

Remedies

Stop playback while driving on rough roads.

Change the disc. Check the cords and

connections. Adjust it to the optimum level.

Check the cords and connections.

Insert the disc correctly.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Insert a disc into the loading slot. Insert the disc correctly. Unlock the disc (See page 22.) Press the reset button on the

panel holder using a ball-point pen after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

• SSM (Strong-station Sequential Memory) automatic preset does not work.

FM/AM

• Static noise while listening to the radio.

Signals are too weak.

The antenna is not connected firmly.

Store stations manually.

Connect the antenna firmly.

Symptoms

Causes

Remedies

• “NO DISC” appears on the display .

• “RESET 8” appears on the display .

• “RESET 1” – “RESET 7” appears on the display.

• Disc cannot be played back.

• Files skip, or 00’00” appears and playback stops.

• Noise is generated.

• A longer readout time is required (“CHECK” keeps flashing on the display).

No disc in the magazine.

This unit is not connected to a CD changer correctly.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, or Joliet.

Files are encoded in Layer 1 or Layer 2 format.

The file played back is not an MP3 file (although it has the extension code—mp3).

Readout time varies due to the complexity of the directory/file configuration.

Insert a disc.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Add the extension code—mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Insert a disc that contains files encoded in Layer 3 format.

Skip to another file or change the disc. (Do not add the extension code—mp3 to non-MP3 files.)

Do not use too many hierarchies and directories. Also, do not record any other types of audio tracks together with MP3 files.

ENGLISH

CD Changer

• Files cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

• “MP3” flashes on the display.

• “NO FILES” appears on the display for a while, then “PLEASE” and “EJECT” appear alternately.

• Correct characters are not displayed. (e.g. album name)

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

There are no MP3 files in the current directory.

There are no MP3 files in this disc.

This unit can only display alphabets (capital: A–Z, small: a–z), numbers, and a limited number of symbols.

MP3 Playback (Only for KD-LH7R)

Select another directory.

Insert a disc that contains MP3 files.

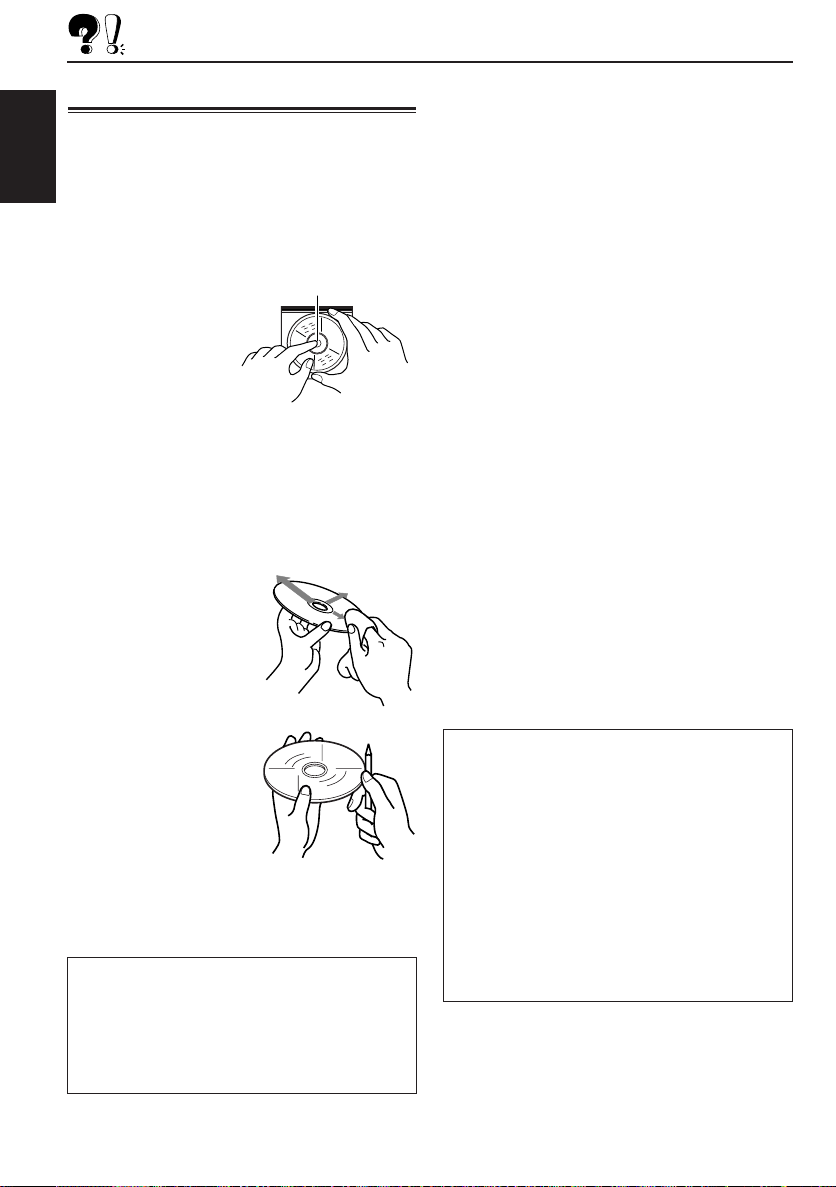

MAINTENANCE

Handling CDs

This unit has been designed to reproduce CDs, CD-Rs, CD-RWs and CD Text.

ENGLISH

Only for KD-LH7R:

• You can also play back MP3 discs.

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc playback while driving on such rough roads.

Center holder

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

You can play back your original CD-Rs or CD-RWs recorded in audio CD format (or in MP3 format: only for KD-LH7R.) Howe ver, the y may not be play ed back depending on their characteristics or recording conditions.

• User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already “finalized. ”

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity; so do not leave them inside your car.

• CD-RWs may require a longer readout time. (This is caused by the fact that the reflectance of CD-RWs is lower than for regular CDs.)

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance: 2.0 V/20 kΩ load Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

[For KD-LH7R only:]

MP3 recording format: MPEG 1/2 Audio Layer 3 Max. Bit rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D):

Installation Size: 182 mm × 52 mm × 150 mm Panel Size: 188 mm × 58 mm × 14 mm Mass: 1.4 kg (excluding accessories)

Design and specifications subject to change without notice.

ENGLISH

[AM Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

VICTOR COMPANY OF JAPAN, LIMITED

JVC

0102KKSMDTJEIN

KD-LH7R/KD-LH5R

Installation/Connection Manual Einbau/Anschlußanleitung Manuel d’installation/raccordement Handleiding voor installatie/aansluiting

GET0075-003A

[E/EX]

0102KKSMDTJEIN

JVC

EN, GE, FR, NL

ENGLISH

• This unit is designed to operate on 12 V DC,

NEGATIVE ground electrical systems.

INSTALLATION (IN-DASH MOUNTING)

• The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car . If you have an y questions or require information regarding installation kits, consult your JVC INCAR ENTERTAINMENT dealer or a company supplying kits.

Before mounting: Press (Control Panel Release button) to detach the control panel if already attached.

* When shipped from the factory, the control

panel is packed in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks.

1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and

the sleeve, as illustrated, to disengage the sleeve locks.

3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard. * After the sleeve is correctly installed into

the dashboard, bend the appropriate tabs to hold the sleeve firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve until it is loc ked.

Attach the trim plate.

Attach the control panel.

DEUTSCH

• Dieses Gerät ist für einen Betrieb in elektrischen

Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt.

EINBAU (IM ARMATURENBRETT)

• Die folgende Abbildung zeigt einen typischen

Einbau. Dennoch müssen Sie entsprechend Ihrem jeweiligen Auto Anpassungen vornehmen. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

V or dem Einbau: Drücken Sie (Freigabe der Schalttafel), um die Arretierung der Schalttafel zu lösen, sofern diese bereits angebracht ist.

* Bei der Auslieferung ab Werk ist die

Schalttafel im Etui verpackt.

Den Frontrahmen herausnehmen.

Die Halterung nach dem Entriegeln der Halterungensperren abnehmen.

1 Das Gerät aufstellen.

Hinweis: Beim Aufstellen des Geräts darauf achten, daß die Sicherung auf der Rückseite nicht beschädigt wird.

2 Die 2 Griffe zwischen dem Gerät und der

Halterung wie abgebildet einstecken und die Halterungensperren entriegeln.

3 Die Halterung entfernen.

Hinweis: Sicherstellen, daß die Griffe für künftigen Gebrauch nach dem Einbau des Geräts aufbewahrt werden.

Die Halterung im Armaturenbrett einbauen. * Nach dem korrekten Einbau der Halterung

im Armaturenbrett, die entsprechenden Riegel umknicken, um die Halterung an ihrem Platz zu sichern, siehe Abbildung.

Die Befestigungsschraube an der Rückseite des Gerätekörpers befestigen und das Ende der Schraube mit einem Gummipuffer abdecken.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Das Gerät in die Halterung schieben, bis es einrastet.

Die Frontrahmen anbringen.

Die Schalttafel anbringen.

FRANÇAIS

•

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

•

L’illustration suivante est un exemple d’installation typique. Cependant, vous devez faire les ajustements correspondant à votre voiture particulière. Si vous a vez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

Avant le montage:

(déblocage du panneau de commande) pour éventeullement détacher le panneau de commande.

* Lorsque ce panneau de commande sort

d’usine, il est rangé dans un étui de tr ansport.

Retirer la plaque d’assemblage.

Libérer les verrous du manchon et retirer le manchon.

Poser l’appareil à la verticale.

Remarque:

à la verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

Insérer les 2 poignées entre l’appareil et le manchon comme indiqué pour désengagé les verrous de manchon.

Retirer le manchon.

Remarque:

poignées pour une utilisation ultérieur, après l’installation de l’appareil.

Installer le manchon dans le tableau de bord. * Après installation correcte du manchon dans

le tableau de bord, plier les bonnes pattes pour maintenir fermement le manchon en place, comme montré.

Monter le boulon de montage sur l’arrière du corps de l’appareil puis passer l’amortisseur en caoutchouc sur l’extrémité du boulon.

Réalisez les connexions électriques.

Faire glisser l’appareil dans le manchon jusqu’à ce qu’il soit verrouillé.

Remonter la plaque d’assemblage.

Remonter le panneau de commande.

Lorsque vous mettez l’appareil

S’assurer de garder les

Appuyer sur

NEDERLANDS

• Dit apparaat ma g worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding.

INSTALLATIE (INBOUW IN HET DASHBOARD)

• Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. U moet echter bij de installatie rekening houden met de bijzonderheden van uw eigen auto. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

Voordat u aan de montage van het apparaat begint: Druk op

vrijgeven) als u het bedieningspaneel wilt loskoppelen indien dit aan de eenheid is vastgekoppeld.

* Standaard wordt het bedieningspaneel bij het

verlaten van de fabriek los verpakt mee geleverd.

Verwijder de sierplaat.

Verwijder het huis nadat u de klemmen hebt losgemaakt.

1 Zet het apparaat rechtop.

Opmerking: W anneer u het apparaat rechtop zet, moet u erop letten dat u de zekering aan de achterkant niet beschadigt.

2 Plaats de 2 hendels, zoals afgebeeld, tussen het

apparaat en het huis, om de klemmen los te maken.

3 Verwijder het huis.

Opmerking: Bewaar de hendels nadat u het apparaat hebt geïnstalleerd, zodat u ze ook in de toekomst kunt gebruiken.

Installeer het huis in het dashboard. * Nadat het huis op de juiste wijze in het dashboard

is geplaatst, moet u de palletjes, zoals afgebeeld, stevig op hun plaats duwen.

Maak de bevestigingsbout aan de achterkant van het apparaat vast en plaats de rubberdop over het uiteinde van de bout.

Breng de vereiste elektrische verbindingen tot stand.

Schuif het apparaat in het huis totdat het vergrendeld is.

Bevestig de sierplaat.

Bevestig het bedieningspaneel.

(het bedieningspaneel

Handle

Griff

Poignée

Hendel

Slot

Schlitz

Fente

Sleuf

Fuse

Sicherung

Fusible

Zekering

Sleeve

Halterung

Manchon

Huis

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Lock Plate

Arretierplättchen

Plaque de verrouillage

V ergrendelingsplaat

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Sleeve

Halterung

Manchon

Huis

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Rubber cushion

Gummipuffer

Amortisseur en caoutchouc

Rubberdop

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

184 mm

53 mm

Mounting bolt

Befestigungsschraube

Boulon de montage

Bevestigingsbout

See “ELECTRICAL CONNECTIONS. ”

Siehe „ELEKTRISCHE ANSCHLÜSSE“.

Référez-vous “RACCORDEMENTS ELECTRIQUES” .

Zie “ELEKTRISCHE VERBINDINGEN”.

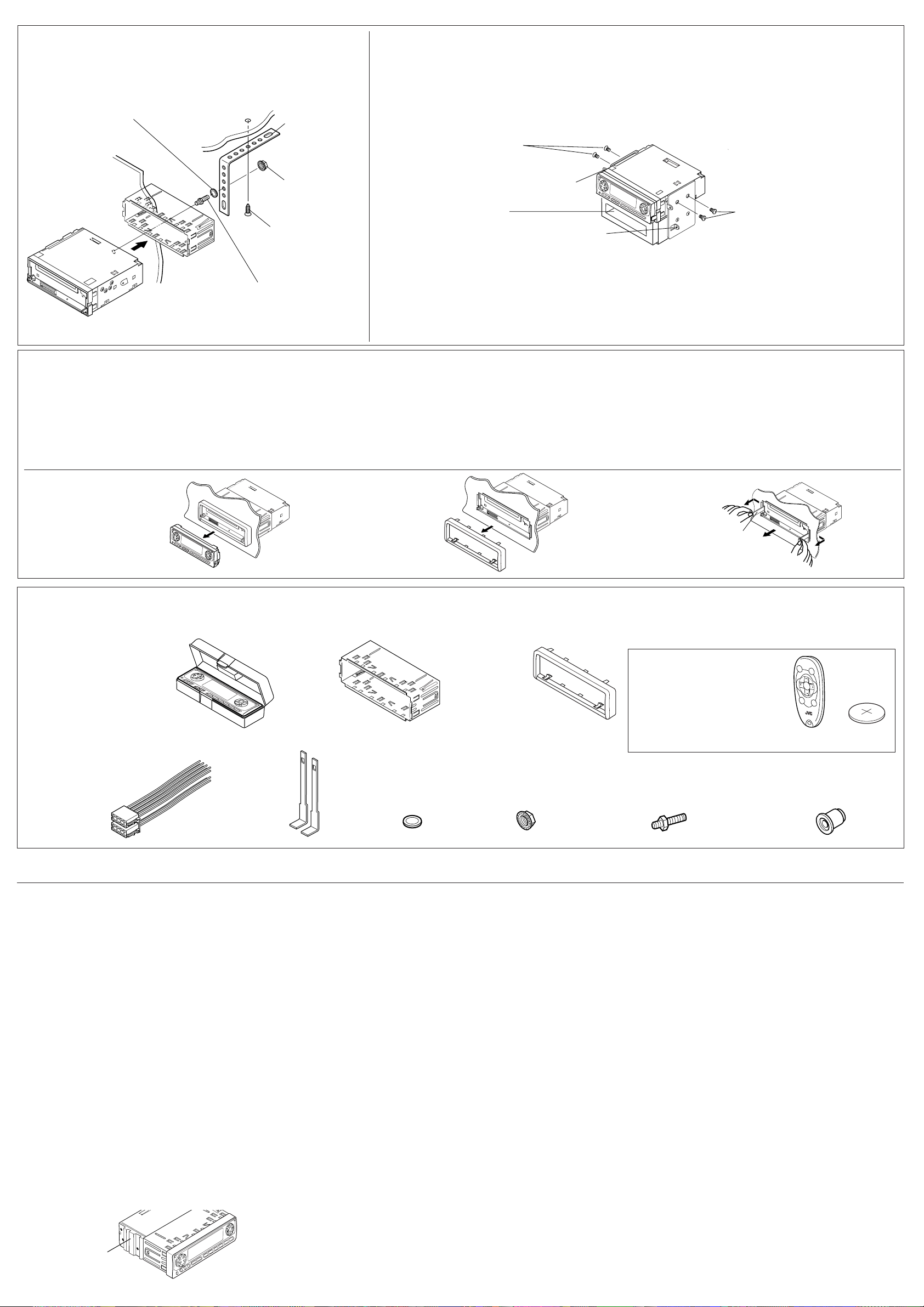

• When using the optional stay

• Beim Verwenden der Anker-Option

• Lors de l’utilisation du hauban en option

• Wanneer u de steun gebruikt (facultatief)

Washer

Unterlegscheibe

Rondelle

Sluitring

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

Fire wall

Feuerwand

Cloison

Brandscherm

Sleeve

Halterung

Manchon

Huis

Mounting bolt

Befestigungsschraube

Boulon de montage

Bevestigingsbout

Stay (option)

Anker (Option)

Hauban (en option)

Steun (facultatief)

Lock nut

Sicherungsmutter

Ecrou d’arrêt

Contra-moer

Screw (option)

Schraube (Option)

Vis (en option)

Schroef (facultatief)

• When installing the unit without using the sleeve

• Beim Einbau des Geräts ohne Halterung

• Lors de l’installation de l’appareil scans utiliser de manchon

• Wanneer u het apparaat zonder huis installeert

In a Toyota for example, first remove the car radio and install the unit in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Voorbeeld: Bij een Toyota moet u eerst de autoradio verwijderen en daarna het apparaat installeren.

Flat type screws (M5 x 6 mm)*

Senkkopfschrauben (M5 x 6 mm)*

Vis à tête plate (M5 x 6 mm)*

Platkopschroeven (M5 x 6 mm)*

Pocket

Taschen

Poche

Zak

Bracket*

Konsole*

Support*

Console*

Bracket*

Konsole*

Support*

Console*

Note: When installing the unit on the mounting bracket, make sure to use the 6 mm-long screws. If longer screws are used, they could damage the unit.

Hinweis: Beim Anbringen des Gerät an der Konsole sicherstellen, daß 6 mm lange Schrauben verwendet werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Remarque:

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de

6 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Opmerking: Wanneer u het apparaat aan de bevestigingsklem vastmaakt, moet u de 6 mm lange schroeven g ebruiken. Als u langere schroeven gebruikt, kan het apparaat worden beschadigd.

* Not included with this unit.

* Nicht Teil dieses Geräts.

Non fourni avec cet appareil.

* Niet meegeleverd.

Flat type screws (M5 x 6 mm)*

Senkkopfschrauben (M5 x 6 mm)*

Vis à tête plate (M5 x 6 mm)*

Platkopschroeven (M5 x 6 mm)*

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit. (Be sure

to keep the handles after installing it.)

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Parts list for installation and connection

The following parts are provided with this unit. After checking them, please set them correctly.

Hard case/Control panel Etui/Schalttafel

Etui de transport/Panneau de commande

Behuizing/Bedieningspaneel

Ausbau des Geräts

• Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Die Schalttafel abnehmen.

Den Frontrahmen herausnehmen.

Die 2 Griffe in die Schlitze wie gezeigt stecken. Dann die Griffe behutsam auseinander ziehen und das Gerät herausziehen. (Die Griffe nach

dem Einbau auf jeden Fall aufbewahren.)

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Nach ihrer Überprüfung, die Teile richtig einsetzen.

Sleeve

Halterung

Manchon

Huis

Retrait de l’appareil

•

Avant de retirer l’appareil, libérer la section arrière.

Retirer le panneau de commande.

Retirer la plaque d’assemblage.

Introduire les deux poignées dans les fentes, comme montré. Puis , tout en tirant doucement les poignées écartées, faire glisser l’appareil pour le sortir.

(S’assurer de conserver les

poignées après l’installation de l’appareil.)

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies av ec cet appareil. Après vérification, veuillez les placer correctement.

ONLY FOR KD-LH7R

NUR FÜR KD-LH7R

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

SEULEMENT POUR LE KD-LH7R

ALLEEN VOOR KD-LH7R

Verwijderen van het apparaat

• Voordat u het apparaat verwijdert, moet u het

achtergedeelte losmaken.

Verwijder het bedieningspaneel.

Verwijder de sierplaat.

Plaats de 2 hendels, zoals afgebeeld, in de sleuven. Daarna duwt u de hendels zachtjes uit elkaar en kunt u het apparaat naar buiten schuiven. (Bewaar de hendels nadat u

het apparaat hebt geïnstalleerd!)

Handle

Griff

Poignée

Hendel

Lijst van onderdelen die u bij installatie en aansluiting nodig hebt

De volgende onderdelen worden bij het apparaat geleverd. Installeer ze op de juiste wijze, nadat u ze hebt gecontroleerd.

Battery

Batterie

Pile

Batterij

Remote controller

Fernbedienung

Télécommande

Afstandsbediening

CR2025

Power cord

Stromkable

Cordon d’alimentation

Stroomkabel

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly , ha ve it installed by a qualified technician.

Note: This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your

vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently , consult y our JVC IN-CAR ENTERTAINMENT dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. Ho wever , with some vehicles, clic king or other unwanted noise may occur . If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire . If noise still persists, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Maximum input of the speakers should be no more than 50 W at the rear and 50 W at the front, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Abstrahlblech

Dissipateur de chaleur

Warmte-opnemer

Handles

Griffe

Poignées

Hendels

Washer (ø5)

Unterlegscheibe(ø5)

Rondelle (ø5)

Sluitring (ø5)

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird. Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

Hinweis: Dieses Gerät ist für einen Betrieb in elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung

ausgelegt. Verfügt Ihr Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Sind Störgeräusche ein Problem... Dieses Gerät enthält ein Störfilter im Stromkreis. Bei manchen Fahrzeugen kann jedoch ein Klicken oder andere unerwünschte Störgeräusche auftreten. Sollte das der Fall sein, die hintere Erdungscanschlußklemme (siehe Schaltplan) des Geräts am Fahrwerk des Fahrzeugs anschließen, dabei kürzere und dickere Kabel wie beispielsweise Kupfergeflechtdraht oder Stahldraht verwenden. Bleibt Störgeräusch bestehen, wenden Sie sich an Ihren JVC Autoradiohändler.

• Maximale Eingangsleistung der Lautsprecher nicht sein sollte mehr als 50 W hinten und 50 W vorne sein, mit einer Impedanz von 4 Ω bis 8 Ω.

• Sicherstellen, daß das Gerät am Fahrwerk

geerdet wird.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

Lock nut (M5)

Sicherungsmutter (M5)

Ecrou d’arrêt (M5)

Contra-moer (M5)

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

Bevestigingsbout (M5 x 20 mm)

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil. Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Remarque:

Cet appareil est conçu pour fonctionner sur des sources de courant continu de

NEGATIVE

d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un rev endeur d’autoradios JVC.

•

Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Si le bruit est un problème... Cet appareil incorpore un filtre de bruit dans le circuit d’alimentation. Cependant, avec cer tains véhicules, quelques claquements ou autres bruits non désirés risquent de se produire. Si cela arriv e, raccorder la au châssis de la voiture (voir le diagramme de raccordement) en utiliscant des cordons les plus gros et les plus courts possibles telle qu’une barre de cuivre ou une tresse. Si le bruit persiste, consulter votre revendeur d’autoradios JVC.

•

La puisscance admissible des enceites devrait n’être pas plus qu’ c 50 W à l’arrière et à 50 W l’avant, avec une impédance de

• S’assurer de raccorder la mise à la masse de cet appareil au châssis de la voiture.

•

Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

. Si votre véhicule n’offre pas ce type

borne arrière de masse

12 V à masse

de l’appareil

4 Ω à 8 Ω

Rubber cushion

Gummipuffer

Amortisseur en caoutchouc

Rubberdop

ELEKTRISCHE VERBINDINGEN

Om kortsluiting te voorkomen adviseren wij u om de minpool van de accu los te maken en alle elektrische verbindingen tot stand te brengen voordat u het apparaat in de auto installeert. Als u niet zeker weet hoe u dit apparaat moet installeren, kunt u dit beter door een daartoe gekwalificeerde technicus laten doen.

Opmerking:

Dit apparaat mag worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding. Als uw auto niet is uitgerust met een dergelijk systeem, is een spanningsomzetter vereist. Dit instrument kan worden aangeschaft bij JVC car audio dealers.

• Vervang de zekering door een exemplaar met het aangegeven vermogen. Als de zekering vaak doorslaat, moet u uw JVC car audio dealer raadplegen.

• Als u geluidsproblemen hebt… De krachtschakeling van dit apparaat heeft een ingebouwd geluidsfilter. In sommige voertuigen zijn tikgeluiden of andere ongewenste geluiden te horen. Als dit gebeurt, moet u de massaklem aan de achterkant (zie aansluitingsschema) aan het chassis van de auto vastmaken met behulp van een kortere en dikkere kabel, zoals kopermanteldraad of tellerkabel. Als het geluid niet verdwijnt, moet u contact opnemen met uw JVC car audio dealer.

• Het maximum ingangsvermogen van de speakers moet achterin niet meer dan 50 W zijn en voorin 50 W, met een impedantie van 4 Ω tot 8 Ω.

• Zorg ervoor dat dit apparaat door middel van

een aardkabel is verbonden met het chassis van de auto.

• De warmte-opnemer kan na gebruik erg heet worden. Raak de warmte-opnemer niet aan wanneer u dit apparaat van zijn plaats haalt.

ENGLISH

DEUTSCH

FRANÇAIS

A Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in colour.

Connect the colored leads of the power cord to the car battery, speak ers and power aerial (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to external component 5 Orange with white stripe: to car light control switch

(only for KD-LH7R)

6 Brown: to cellular phone system (For details,

refer to the instructions of the cellular phone.)

7 Others: to speakers

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

Fuse position 2

2. Sicherungsposition

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4 A6 A8

Rear ground terminal

Hintere Erdungscanschlußklemme

Position de fusible 2

Zekering, stand 2

Fuse position 1

1. Sicherungsposition

Position de fusible 1

Zekering, stand 1

CD changer or another external component

CD-Wechsler oder eine andere externe Komponente

Changeur CD JVC ou autre appareil extérieur

CD-wisselaar of een ander extern apparaat

Borne arrière de masse

Massaklem aan de achterkant

Line out (see diagram B )

Schutz kappen Signalausgang (siehe Schaltplan B )

Sortie de ligne (voir le diagramme B )

Uitgang (zie schema B )

To aerial

Zur Antenne

A l’antenne

Naar de antenne

*1: Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*1: Vor der Überprüfung der Funktionsfähigkeit des Geräts

vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

Aerial terminal

Antennenanschlußklemme

Borne de l’antenne

Aansluitpunt antenne

*1:Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

*1: Voordat u controleert of het apparaat werkt (alvorens het te

installeren), moet deze draad aangesloten zijn. Als dit niet het geval is, kan de stroom niet worden ingeschakeld.

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

Die farbigen Leitungen des Spannunsgversorgungskabels an der Autobatterie, den Lautsprechern und dem Motorantenne (sofern vorhanden) in folgender Reihenfolge anschließen.

1 Schwarz: Erdung 2 Gelb: an Autobatterie (konstant 12 V) 3 Rot: an Zubehöranschlußklemme 4 Blau mit weißem Streifen: an Externe

Komponente

Orange mit weißem Streifen: zum Autolichtschalter (

6 Braun: an Mobiltelefon (Weitere informationen

entnehmen Sie bitte der Bedienungscanleitung des Mobiltelefons.)

7 Andere: an Lautsprecher

Das Antennenkabel anschließen.

Die Kabelbäume am Gerät anschließen.

Hinweis: Verfügt Ihr Fahrzeug nicht über eine Zubehöranschlußklemme, die Sicherung von der 1. Sicherungsposition (Erstposition) in die 2. Sicherungsposition versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme anschließen.

• Die gelbe Leitung (A4) wird in diesem Fall nicht verwendet.

nur für KD-LH7R

When connecting a CD changer, we recommend to use one of the CH-X series CD changers.

• If your CD changer is one of the KD-MK series, you need an optional cord (KS-U15K). You can also use an external component such as a portable MD player by connecting the Line Input Adaptor KS-U57 (not supplied). (See diagram B .)

Wenn Sie einen CD-Wechsler anschließen möchten, empfiehlt es sich, einen CD-Wechsler der Modellreihe CH-X zu verwenden.

• Wenn Ihr CD-Wechsler zur Modellreihe KD-MK gehören, benötigen Sie ein anderes Kabel (KS-U15K). Sie können auch eine externe Komponente, z.B. einen tragbaren MD-Spieler, verwenden, wenn Sie den (nicht zum Lieferumfang gehörenden) Line-Eingangsadapter KS-U57 anschließen (siehe Schaltplan B ).

)

Lors de la connexion d’un changeur CD, nous vous recommandons d’utiliser un des changeurs CD de la série CH-X.

• Si votre changeur appartient à la série KD-MK, vous avez besoin d’un cordon optionnel (KS-U15K). Vous pouvez aussi utiliser un appareil extérieur tel qu’un lecteur de MD en connectant l’adaptateur d’entrée de ligne KS-U57 (non fourni). (Voir le diagramme B ).

Voor het aansluiten van een CD-wisselaar raden we een wisselaar uit de CH-X-serie aan.

• Als de CD-wisselaar die u wilt aansluiten uit de KD-MK-serie komt, hebt u een extra kabel nodig (KS-U15K). Het is ook mogelijk een extern apparaat zoals een draagbare MD-speler aan te sluiten met behulp van de Line Input Adapter KS-U57 (niet mee gelev erd).

B115B3 B5 B7 B2 B4 B6 B8

A5 A7

A2 A4 A8

Black

Schwarz

Noir

Zwart

Yellow*

Gelb*

Jaune*

Geel *

(Zie schema B .)

15 A fuse

15 A Sicherung

Fusible 15 A

Zekering 15 A

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

Vers corps métallique ou châssis de la voiture

Naar metalen ondergrond of chassis van de auto

Red

Rot

Rouge

Rood

Blue with white stripe

Blau mit weißem Streifen

Bleu avec bande blanche

Blauw met witte streep

Orange with white stripe

Orange

mit weißem Streifen

Orange

avec bande blanche

Oranje

met witte streep

Brown / Braun /

Marron /

Bruin

Avant de commencer la connexion:

attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur .

Connectez les fils de couleur du cordon d’alimentation à la batterie de la voiture, aux enceintes et à l’antenne automatique (s’il y en a une) dans l’ordre suivant.

Noir: à la masse

Jaune: à la batterie de la voiture (12 V constant)

Rouge: à la prise accessoire

Bleu avec bande blanche: à l’appareil extérieur

Orange avec bande blanche: à l’interrupteur d’éclairage de la voiture (seulement pour le KD-LH7R)

Marron: à un système de téléphone cellulaire (Pour les détails, se référer aux instructions du téléphone cellulaire.)

Autres: aux enceintes

Connectez le cordon d’antenne.

Finalement, connectez le faisceau de fils à l’appareil.

Remarque:

Si votre véhicule ne possède pas de borne accessoire, déplacez le fusible de la position de fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive (+) de la batterie.

• Le fil jaune (A4) n’est pas utilisé dans ce cas.

Not included with this unit.

Wird nicht mit Gerät mitgeliefert.

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition swich)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters)

Non fourni avec cet appareil.

Niet bij het apparaat inbegrepen.

A une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage)

Naar een onder spanning staande aansluitklem in het zekeringblok die is aangesloten op de accu van de auto (u passeert de ontstekingsschakelaar)

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

Vers borne accessoire du porte-fusible

Naar een aansluitklem in het zekeringblok

To external component (see diagram B )

Zur Externe Komponente (siehe Schaltplan B )

A l’appareil e xtérieur

Naar de extern aparaat (zie schema B )

(voir le diagramme B )

(ILLUMINATION)

vérifiez

NEDERLANDS

Alvorens de verbindingen tot stand te brengen:

moet u de bedrading in de auto zorgvuldig. Het apparaat kan door verkeerde verbindingen ernstige schade oplopen. De draden van het stroomsnoer verschillen mogelijk van

kleur metde aansluitingen op het chassis van de auto.

Sluit de gekleurde snoerdraden van de stroomkable in de hierna genoemde volgorde aan op de accu van de auto, de luidsprekers en de antenne (indien aanwezig).

1 Zwart: aarde 2 Geel: naar de accu van de auto (constant 12 V) 3 Rood: naar de aansluitklem van de accessoire 4 Blauw met witte streep: naar de extern aparaat 5 Oranje met witte streep: naar de schakelaar voor

de autoverlichting (alleen voor KD-LH7R)

6 Bruin: naar het mobiele-telefoonsysteem (Lees

voor meer informatie de instructies die bij de mobiele telefoon worden geleverd.)

7 Andere: naar de speakers

Sluit de antenne aan.

Verbind de draadbundel daarna met het apparaat.

Opmerking: Als uw voertuig niet beschikt over een aansluitklem, moet u de zekering verplaatsen van stand 1 (beginstand) naar stand 2 en moet u de rode draad (A7) met de pluspool (+) van de accu verbinden.

• In dit geval wordt de gele draad (A4) niet gebruikt.

Ignition switch

Zündschalter

Interrupteur d’allumage

Contactschakelaar

Fuse block

Sicherungsblock

Porte-fusible

Zekeringblok

To car light control switch (only for KD-LH7R)

Zum Autolichtschalter

(nur für KD-LH7R)

A l’interrupteur d’éclairage de la voiture (seulement pour le KD-LH7R)

Naar de schakelaar voor de autoverlichting (alleen voor KD-LH7R)

To cellular phone system

Zur Moblitelephon

A un système de téléphone cellulaire

Naar het mobiele-telefoonsysteem

B6 B5 B4 B3 B8 B7 B2 B1

White with black stripe

Weiß mit schwarzem Streifen

Blanc avec bande noire

Wit met zwarte streep

White

Weiß

Blanc

Wit

Left speaker (front)

Linker Lautsprecher (vorne)

Gray with black stripe

Grau mit schwarzem Streifen

Gris avec bande noire

Grijs met zwarte streep

Enceinte gauche (avant)

Linkerspeaker (voorin)

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power

cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessor y terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in y our car. – If the speaker wiring in your car is as illustrated

in Fig. 1 and Fig. 2 below, DO NO T connect the unit using that original speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as illustrated

in Fig. 3, you can connect the unit using the original speaker wiring in your car.

– If you are not sure of the speaker wiring of your car,

consult your JVC IN-CAR ENTERTAINMENT.

Fig. 1 Fig. 2 Fig. 3

Gray

Grau

Gris

Grijs

Right speaker (front)

Rechter Lautsprecher (vorne)

Enceinte droit (avant)

Rechterspeaker (voorin)

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung

und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• Die schwarze Leitung (Erdung), die gelbe Leitung (zur Autobatterie, konstant 12 V) und die rote Leitung (zur Zubehöranschlußklemme) richtig anschließen.

• VOR dem Anschließen der Lautsprecherleitungen des Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen. – Ist die Lautsprecherverdrahtung wie unten in

„Fig. 1“ und „Fig. 2“ abgebildet, das Gerät

NICHT mit der Originalverdrahtung der Lautsprecher anschließen, da sonst das Gerät schwer beschädigt wird. Die Lautsprecherverdrahtung erneuern, so daß Sie

das Gerät an den Lautsprechern wie in „Fig. 3“ abgebildet anschließen können.

– Ist die Lautsprecherverdrahtung in Ihrem Auto

wie in „Fig. 3“ abgebildet, können Sie das Gerät mit der Originalverdrahtung der Lautsprecher in Ihrem Auto anschließen.

– Sind Sie sich über die Lautsprecherverdrahtung in

Ihrem Auto nicht sicher, wenden Sie sich an Ihren

JVC Autoradiohändler.

Green with black stripe

Grün mit schwarzem Streifen

V ert avec bande noire

Groen met zwarte streep

Green

Grün

Vert

Groen

Left speaker (rear)

Linker Lautsprecher (hinten)

Purple with black stripe

Lila mit schwarzem Streifen

Violet avec bande noire

Paars met zwarte streep

Enceinte gauche (arrière)

Linkerspeaker (achterin)

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du

cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

•

Connectez correctement le fil noir (a la masse), le fil jaune (a la batterie de la voiture,12 V constant) et le fil rouge (à la prise accessoire).

•

AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture. –

Si le câblage des enceintes de votre voiture est comme montré sur la Fig. 1 ou Fig. 2 ci-dessous,

NE CONNECTEZ PAS l’appareil en utiliscant ce câblage original des enceintes. Si vous le faites, l’appareil sera sérieusement endommagé. Recommencez le câblage des enceintes de façon que vous puissiez connecter l’appareil aux enceintes comme montré sur la Fig. 3.

–

Si le câblage des enceintes de votre voiture est comme montré sur la Fig. 3,

connecter l’appareil en utiliscant ce câblage original d’enceintes pour votre voiture.

– Si vous n’êtes pas sûrs du câblage d’enceintes de

votre voiture,

d’autoradios JVC

consulter votre revendeur

vous pouvez

Purple

Lila

Violet

Paars

Right speaker (rear)

Rechter Lautsprecher (hinten)

Enceinte droit (arrière)

Rechterspeaker (achterin)

VOORZORGSMAATREGELEN bij het verbinden van de stroomkabeldraad met de speakers:

• Verbind de speakerdraden van de stroomkabel

NIET met de accu van de auto; als u dit wel doet, zal het apparaat ernstige schade oplopen.

• Sluit de zwarte draad (aarde), de gele draad (naar de accu

van de auto, constant 12 V) en de rode draad (naar de

aansluitklem van de accessoire

• VOORDAT u de speakerdraden van de stroomkabel met de speakers verbindt, moet u de bedrading van de speakers in uw auto controleren. – Als de bedrading van de speakers eruitziet zoals

hieronder staat afgebeeld in Fig. 1 en Fig. 2, mag het apparaat NIET worden aangesloten met behulp van deze oorspronkelijke speakerbedrading. Als u dat wel doet, zal het apparaat ernstige schade oplopen. Pas de bedrading van de speakers aan, zodat u het apparaat met de speakers kunt verbinden, zoals staat afgebeeld in Fig. 3.

– Als de bedrading van de speakers eruitziet zoals

staat afgebeeld in Fig. 3, kunt u het apparaat aansluiten met behulp van de oorspronkelijke speakerbedrading in uw auto.

– Als u twijfels hebt over de speakerbedrading in uw auto,

moet u contact opnemen met uw JVC car audio dealer

raadplegen

) op de juiste wijze aan.

Connecting the leads / Anschließen der Leitungen / Raccordement des fils / Aansluiting van de gekleurde draden

Twist the core wires when connecting.

Die Kerndrähte beim Anschließen verdrehen.

Torsader les âmes des fils en les raccordant.

Draai de kerndraden om elkaar heen wanneer u ze wilt aansluiten.

Solder the core wires to connect them securely.

Die Kerndrähte anlöten, um sie fest anzuschließen.

Souder les âmes des fils pour les raccorder entre eux de façon sûre.

Soldeer de kerndraden zodat ze stevig vast zitten.

B Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils /

Aansluitingen voor het toevoegen van andere apparatuur

Amplifier / Verstärker / Amplificateur / Versterker

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• For amplifier only: – Connect this unit’s line-out terminals to the

amplifier’s line-in terminals.

– Disconnect the speakers from this unit,

connect them to the amplifier. Leave the speaker leads of this unit unused. (Cover the terminals of these unused leads with insulating tape, as illustrated above.)

Rear speakers

Hintere Lautsprecher

Enceintes arrière

Achterspeakers

INPUT

L R

Signal cord (not supplied with this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (niet meegeleverd)

Vordere Lautsprecher

L R

Front speakers

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC V ersterker

LINE OUT

FRONT

REAR

Enceintes avant

V oor speakers

Sie können einen Verstärker oder ein anderes Gerät anschließen, um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit

weißem Streifen) an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Nur für den Verstärker:

– Die Anschlußklemmen am Ausgang dieses Gerät

an den Anschlußklemmen des Eingangs des Verstärkers anschließen.

– Die Lautsprecher von diesem Gerät abtrennen

und am Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen. (Die Anschlußklemmen dieser nicht verwendeten Leitungen mit Isolierklebeband umwickeln, siehe Abbidung oben.)

KD-LH7R KD-LH5R

Remote lead

Fernbedienungsleitung

Fil d’alimentation à distance

Antennedraad

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Fil d’alimentation à distance (Bleu avec bande blanche)

Antennedraad (Blauw met witte streep)

L R

You can connect another power amplifier for front speakers.

Y-connector (not supplied with this unit)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Connecteur Y (non fourni avec cet appareil)

Y-connector (niet meegeleverd)

INPUT

CAUTION / VORSICHT / PRECAUTION / LET OP!:

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS utilisés avec de la bande isolante.

• Om kortsluiting te voorkomen, moet u de aansluitklemmen van ONGEBRUIKTE gekleurde draden met isolatieband bedekken.

Vous pouv ez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

•

Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

•

Pour l’amplificateur seulement: – Raccorder les bornes de sortie ligne de cet appareil

aux bornes d’entrée ligne de l’amplificateur.

– Déconnectez les enceintes de cet appareil et

connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés. (Recouvrir les extrémités de ces fils inutilisés avec de la bande isolante comme montré ci-dessus.)

To power aerial if any

Zur Motorantenne, sofern vorhanden

Het is mogelijk om uw autostereosysteem uit te breiden met een versterker of andere apparatuur.

• V erbind de externe kabel (b lauw met witte streep) met de externe kabel van het andere apparatuur zodat deze op afstand vanaf deze apparaat kan worden bediend.

• Alleen voor een versterker: – Verbind de uitgang van het apparaat met de ingang van

de versterker.

– Koppel de speakers van dit apparaat los en

verbind ze aan de versterker. Gebruik de speakerdraden van dit apparaat niet. (Plak de aansluitklemmen van deze speakerdraden met isolatieband af zoals hierboven is afgebeeld.)

Vers l’antenne automatique, s’il y en a une

Naar de antenne (indien aanwezig)

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC V ersterker

Sie können einen anderen Leistungsverstärker für die vorderen Lautsprecher anschließen.

Front speakers

Vordere Lautsprecher

Enceintes avant

V oor speakers

Vous pouvez connecter un autre amplificateur de puissance pour les enceintes avant.

U kunt nog een eindversterker voor de voorspeakers aansluiten.

*2 Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may

cause damage to this unit.

*2 Verbinden Sie den Erdungsleiter mit der Karosserie oder dem Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der

Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

*2 Attachez solidement le fil de mise à la masse au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant

d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

*2 Bevestig de aardedraad goed met een metalen onderdeel of het chassis van de auto—bevestig op een niet-gelakt gedeelte (indien gelakt, schuur dan af alvorens de draad te bevestigen). Het toestel

kan worden beschadigd indien de aardedraad niet goed is aangesloten.

CD changer and DAB tuner / CD-Wechsler und DAB-Tuner / Changeur CD et tuner DAB / CD-wisselaar en DAB-tuner

Y ou can connect a JVC CD changer and/or a JVC D AB (Digital Audio Broadcasting) tuner.

• For their connections, refer to the instr uctions supplied with them.

Connecting cord supplied with your DAB tuner

Verbindungskabel, das zum Lieferumfang des DABTuners gehört

Cordon de connexion fourni avec votre tuner DAB

V erbindingskabel die met de D AB-tuner wordt meegelev erd

DAB-Tuner von JVC

KD-LH7R

Sie können einen CD-Wechsler und/oder einen DABTuner (Tuner für digitalen Rundfunk) von JVC anschließen.

• Weitere Informationen über den Anschluß können Sie

der Bedienungscanleitung entnehmen, die dem jeweiligen Gerät beiliegt.

Connecting cord supplied with your CD changer

Verbindungskabel, das zum Lieferumfang des CDWechsler gehört

Cordon de connexion fourni avec votre changeur CD

V erbindingskabel die met de CD-wisselaar wordt meeg eleverd

JVC DAB tuner

Tuner DAB JVC

JVC DAB-tuner

JVC CD changer

CD-Wechsler von JVC

Changeur CD JVC

JVC CD-wisselaar

KD-LH5R

• You can connect both components in series as illustrated above.

• Es ist möglich, beide Komponenten in einer Serienschaltung entsprechend der obigen Darstellung

anzuschließen.

•

Vous pouvez connecter les deux appareils en série comme montré ci-dessus.

• Beide apparaten zijn volgens bovenstaande illustratie in serie aan te sluiten.

Vous pouvez connecter un changeur CD JVC et/ou un tuner DAB (Digital Audio Broadcast) JVC.

•

Pour leurs connexions, référez-vous aux modes d’emploi qui les accompagnent.

Connecting cord supplied with your DAB tuner or CD changer

Verbindungskabel, das zum Lieferumfang des DAB-Tuners oder CD-Wechslers gehört

Cordon de connexion fourni avec votre tuner DAB ou changeur CD

Verbindingskabel die met de DAB-tuner of CD-wisselaar wordt meegeleverd

JVC DAB tuner

DAB-Tuner von JVC

Tuner DAB JVC

KD-LH7R

JVC DAB-tuner

KD-LH5R

CAUTION / VORSICHT / PRECAUTION / LET OP!:

• Before connecting the CD changer and/or the DAB tuner, make sure that the unit is turned off.

• Bevor Sie den CD-Wechsler und/oder den DAB-Tuner anschließen, vergewissern Sie sich, daß das Gerät ausgeschaltet ist.

• Avant de connecter le changeur CD et/ou le tuner DAB, s’assurer que l’unité est éteinte.

• Zorg ervoor dat de apparat is uitgeschakeld alvorens u de en/of DAB-tuner CD-wisselaar aansluit.

Het is mogelijk een JVC CD-wisselaar en/of JVC DAB-tuner (Digital Audio Broadcasting) aan te sluiten.

• Zie de instructies van deze apparaten voor meer informatie over het tot stand brengen van deze aansluiting.

oder

JVC CD changer

CD-Wechsler von JVC

Changeur CD JVC

JVC CD-wisselaar

External Component / Externe Komponente /

LINE OUT

REAR

FRONT

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded

in common?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded

in common?

KD-LH7R KD-LH5R

Line Input Adaptor KS-U57 (not supplied with this unit)

Line-Eingangsadapter KS-U57 (nicht mit diesem Gerät mitgeliefert)

Adaptateur d’entrée de ligne KS-U57 (non fourni avec cet appareil)

Line Input Adapter KS-U57 (niet meegeleverd)

FEHLERSUCHE

• Die Sicherung brennt durch.

* Sind die roten und schwarzen Leitungen richtig

angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

* Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und rechten

Lautsprecher zusammen geerdet?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und rechten

Lautsprecher zusammen geerdet?

Appareil extérieur

/ Extern apparaat

EN CAS DE DIFFICULTES

• Le fusible saute.

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sontelles mises ensemble à la masse?

• L’appareil devient chaud.

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sontelles mises ensemble à la masse?

Signal cord (not supplied with this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (niet meegeleverd)

PROBLEMEN OPLOSSEN

• De zekering slaat door.

* Zijn de rode en de zwarte draden op de juiste manier

aangesloten?

• De stroom kan niet worden ingeschakeld.

* Is de gele draad aangesloten?

• Er komt geen geluid uit de speakers.

* Is de uitgaande speakerdraad kortgesloten?

• Het geluid wordt vervormd.

* Is de uitgaande speakerdraad geaard? * Zijn de minpolen van de linker- en de rechterspeakers

gemeenschappelijk geaard?

• Het apparaat raakt verhit.

* Is de uitgaande speakerdraad geaard? * Zijn de minpolen van de linker- en de rechterspeakers

gemeenschappelijk geaard?

External component

Externe Komponente

Appareil extérieur

Extern Aparaat

L R

JVC GET0075-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

KD-LH7R

CONTENTS

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

RDS OPERATIONS

CD OPERATIONS

MP3 INTRODUCTION

MP3 OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

CD CHANGER OPERATIONS

EXTERNAL COMPONENT OPERATIONS

DAB TUNER OPERATIONS

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS
