JVC GET0054-001A User Manual
CASSETTE RECEIVER
CASSETTEN-RECEIVER
RADIOCASSETTE
RADIO/CASSETTESPELER
KS-FX473R/KS-FX470R KS-F363R/KS-F360R
ENGLISH
DEUTSCH
FRANÇAIS
KS-FX473R
KS-FX473R
KS-F363R
KS-F363R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l’installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetref fende
handleiding.
KS-FX470R
KS-FX470R
KS-F360R
KS-F360R
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
GEBRUIKSAANWIJZING
NEDERLANDS
GET0054-001A
[E/EX]
Thank you for purchasing a JVC product. Please read all instructions carefully bef ore oper ation,
to ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
LOCATION OF THE BUTTONS............ 3
Control panel —
KS-FX473R/KS-FX470R ....................... 3
ENGLISH
Control panel —
KS-F363R/KS-F360R............................ 4
BASIC OPERATIONS ...................... 5
Turning on the power ................................ 5
RADIO BASIC OPERATIONS ............. 6
Listening to the radio ................................ 6
Storing stations in memory ....................... 7
Tuning into a preset station ...................... 8
RDS OPERATIONS ........................ 9
What you can do with RDS....................... 9
Other convenient RDS functions and
adjustments........................................... 13
TAPE OPERATIONS ....................... 15
Listening to a cassette.............................. 15

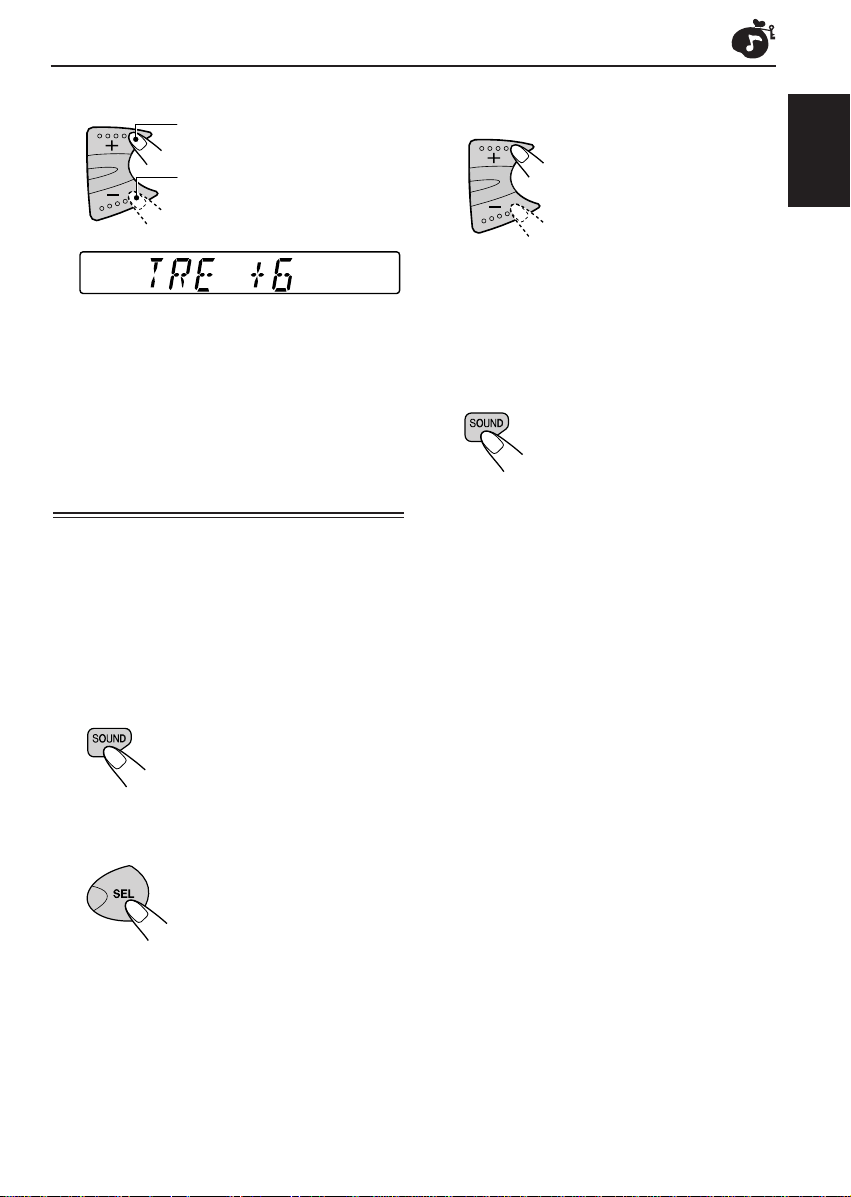

SOUND ADJUSTMENTS .................. 16
Selecting preset sound modes ................. 16
Adjusting the sound ................................. 16
Storing your own sound adjustments ....... 17
OTHER MAIN FUNCTIONS ............... 18
Setting the clock ...................................... 18
Changing the general settings (PSM) ...... 19

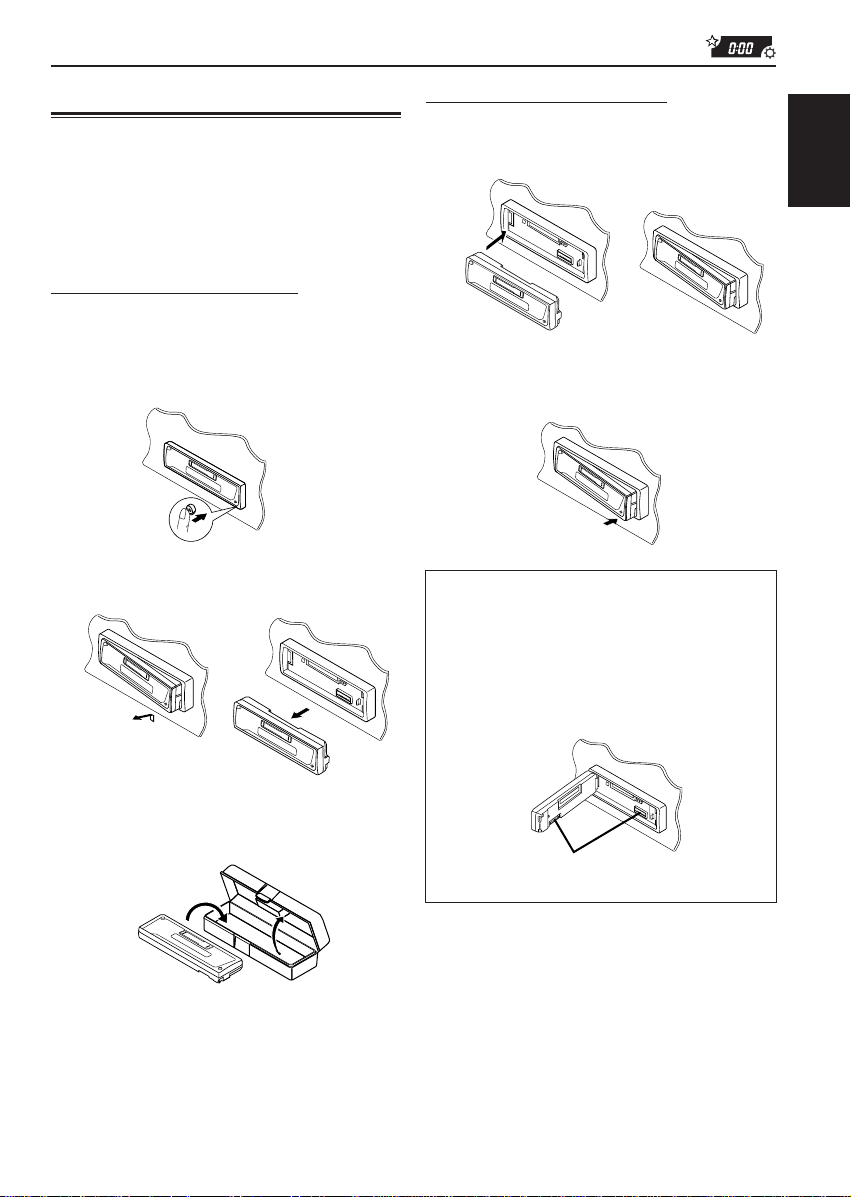

Detaching the control panel...................... 21
CD CHANGER OPERATIONS
(only for KS-FX473R/KS-FX470R) ...... 22
Playing CDs ............................................. 22
Playing at random (Random Play)............ 23
MAINTENANCE ............................ 24
TROUBLESHOOTING...................... 25
SPECIFICATIONS .......................... 27
Note:
For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on
the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.
BEFORE USE
*
For safety....
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
*
Temperature inside the car....
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
2
LOCATION OF THE BUTTONS
Control panel — KS-FX473R/KS-FX470R
Display window
i
d
f
1
1 (standby/on/attenuator) button
2 +/– buttons
3 DISP (display) button
4 0 (eject) button
5 MO/RND (monaural/random) button
6 Cassette compartment
7 1/¡ (PROG:program) buttons
8 FM button
9 AM button
p CD-CH (CD changer) button
q SEL (select) button
w 4 / ¢ buttons
• Also function as SSM buttons when pressed
together.
e Number buttons
r TP (traffic programme) button
RDS (radio data system) button
t PTY (programme type) button
y SOUND button
u (control panel release) button
2
3
4
5
o
6 7
eqw
Display window
i RND (random) indicator
o Main display
; FM band number indicators
FM1, FM2, FM3
a AM indicator
s CD-CH (CD changer) indicator
d MO (monaural) indicator
ST (stereo) indicator
f RDS indicators
AF, EON, REG, PTY, TP
g Sound mode indicators
BEAT, POP, SOFT
h LOUD indicator
;
a s
hg
89p
tyru
ENGLISH
3
LOCATION OF THE BUTTONS
Control panel — KS-F363R/KS-F360R
ENGLISH
Display window
i
s
1
1 (standby/on/attenuator) button
2 +/– buttons
3 DISP (display) button
4 0 (eject) button
5 MO (monaural) button
6 Cassette compartment
7 1/¡ (PROG:program) buttons
8 FM button
9 AM button
p TP (traffic programme) button
q SEL (select) button
w / buttons
• Also function as SSM buttons when pressed
together.
e Number buttons
r RDS (radio data system) button
t PTY (programme type) button
y SOUND button
u (control panel release) button
2
3
4
5
o
6 7
eqw
Display window
i MO (monaural) indicator
ST (stereo) indicator
o Main Display
; FM band number indicators
FM1, FM2, FM3
a AM indicator
s RDS indicators
AF, EON, REG, PTY, TP
d Sound mode indicators
BEAT, POP, SOFT
f LOUD indicator
;
a
fd
89p
tyru
4
BASIC OPERATIONS
KS-FX473R/KS-FX470R
3 2
Turning on the power
1
Turn on the power.
Notes on One-Touch Operation:
• When you select a source in step 2 below, the power
automatically comes on. You do not have to press
this button to turn on the power.
• If the cassette is already in the cassette
compartment, tape play starts automatically.
However, it is not recommended to leave the
cassette in the compartment when turning off the
power or ignition key. It may damage the tape head
and the cassette.
1
3
4
2
Adjust the volume.
Adjust the sound as you want.
(See pages 16 – 17.)
KS-F363R/KS-F360R
To increase the volume.
To decrease the volume.
Volume level appears.
ENGLISH
2
Select the source.
KS-FX473R
KS-FX470R
To operate the tuner (FM or AM),
see pages 6 – 14.
To operate the tape,
see page 15.
To operate the CD changer
(Only for KS-FX473R/KS-FX470R),
see pages 22 – 23.
KS-F363R
KS-F360R
To drop the volume in a moment
Press briefly while listening to any
source. “ATT” starts flashing on the display, and
the volume level will drop in a moment.
To resume the previous volume level, press the
button briefly again.
To turn off the power
Press and hold until “SEE YOU”
appears on the display.
Note:
When you use this unit for the first time, set the built-in
clock correctly, see page 18.
5
FM1 FM2
FM3
RADIO BASIC OPERATIONS
ENGLISH
Listening to the radio
You can use either automatic searching or
manual searching to tune into a particular station.
Note:
When a cassette is in the cassette compartment, you
cannot select the tuner. Be sure to eject the cassette
from the cassette compartment to listen to the radio.
Searching a station automatically:
Auto search
1
Select the band (FM1 – 3, AM).
FM1 FM2
FM3
AM
Selected band appears.
Only for KS-F363R/
KS-F360R
2
Start searching a station.
To search stations of lower frequencies.
KS-FX473R
KS-FX470R
To search stations of higher frequencies.
When a station is received, searching stops.
To stop searching before a station is received,
press the same button you have pressed for
searching.
KS-F363R
KS-F360R
Searching a station manually:
Manual search
1
Select the band (FM1 – 3, AM).
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to
an FM broadcast.
6
AM
Note:
This receiver has three FM bands (FM1, FM2,
FM3). You can use any one of them to listen to an
FM broadcast.
2
FM1 FM2
FM3
Press and hold 4 / ¢ (for
KS-FX473R/KS-FX470R) or
(for KS-F363R/KS-F360R) until “M
(manual)” starts flashing on the
display.
When the MO indicator is lit on the display, the
/
sound you hear becomes monaural but the
reception will be improved (the ST indicator goes
off).
To restore the stereo effect, press the same
button again.
ENGLISH
KS-FX473R
KS-FX470R
3
Tune into a station you want while “M”
KS-F363R
KS-F360R
is flashing.
To tune into stations of lower frequencies.
KS-FX473R
KS-FX470R
To tune into stations of higher frequencies.
• If you hold down the button, the frequency
keeps changing (in 50 kHz intervals for FM
and 9 kHz intervals for AM – MW/LW) until
you release the button.
KS-F363R
KS-F360R
When an FM stereo broadcast is hard to
receive:
Press MO/RND (for KS-FX473R/KS-FX470R) or
MO (for KS-F363R/KS-F360R) while listening to
an FM stereo broadcast.
• Each time you press the button, the MO
indicator lights up and goes off alternately.
Storing stations in memory
You can use one of the following two methods to
store broadcasting stations in memory.
• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM
band (FM1, FM2, and FM3).
1
Select the FM band (FM1 – 3) you want
to store FM stations into.
2
Press and hold both buttons for more
than 2 seconds.
KS-FX473R
KS-FX470R
“SSM” appears, then disappears when automatic
preset is over.
KS-F363R
KS-F360R
KS-FX473R
KS-FX470R
Lights up when receiving an FM broadcast in stereo.
KS-F363R
KS-F360R
Local FM stations with the strongest signals are
searched and stored automatically in the band
number you have selected (FM1, FM2 or FM3).
These stations are preset in the number buttons —
No.1 (lowest frequency) to No .6 (highest frequency).
When automatic preset is over, the station stored
in number button 1 will be automatically tuned into.
7
Manual preset
FM1 FM2
FM3
You can preset up to 6 stations in each band (FM1,
FM2, FM3 and AM) manually.
Ex.: Storing an FM station of 88.3 MHz into the
ENGLISH
preset number 1 of the FM1 band
1
Select the band (FM1 – 3, AM) you
want to store stations into (in this
example, FM1).
FM1 FM2
FM3
2
Tune into a station (in this example,
of 88.3 MHz).
To tune into stations of lower frequencies.
Notes:
• A previously preset station is erased when a new
station is stored in the same preset number.
• Preset stations are erased when the power supply to
the memory circuit is interrupted (for example,
during battery replacement). If this occurs, preset the
stations again.
Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If
you have not stored them yet, see “Storing
stations in memory” on page 7.
1
Select the band (FM1 – 3, AM).
AM
To tune into stations of higher frequencies.
3
Press and hold the number button
(in this example, 1) for more than 2
seconds.
4
Repeat the above procedure to store
other stations into other preset
numbers.
8
KS-FX473R
KS-FX470R
KS-F363R
KS-F360R
“P1” flashes for a few seconds.
2
Select the number (1 – 6) for the
preset station you want.
RDS OPERATIONS
What you can do with RDS
RDS (Radio Data System) allows FM stations to
send an additional signal along with their regular
programme signals. For example , the stations send
their station names, as well as information about
what type of programme they broadcast, such as
sports or music, etc.
Another advantage of RDS function is called
“Enhanced Other Networks.” The EON indicator
lights up while receiving an FM station with the
Enhanced Other Networks data. By using these
data sent from a station, you can tune into a different
station of a different network broadcasting your
favorite programme or traffic announcement while
listening to another programme or to another source
such as tape.
By receiving the RDS data, this unit can do the
following:
• Tracing the same programme automatically
(Network-Tracking Reception)
• Standby Reception of TA (Traffic
Announcement) or your favorite programme
• PTY (Programme Type) search
• And some other functions
Tracing the same programme
automatically (Network-Tracking
Reception)
When driving in an area where FM reception is not
good, the tuner built in this unit automatically tunes
into another RDS station, broadcasting the same
programme with stronger signals. So, you can
continue to listen to the same programme in its
finest reception, no matter where you drive. (See
the illustration on the next page.)
Two types of the RDS data are used to make
Network-Tracking Reception work correctly — PI
(Programme Identification) and AF (Alternative
Frequency).
Without receiving these data correctly from the RDS
station you are listening to, Network-Tracking
Reception will not operate.
Using Network-Tracking Reception
For KS-FX473R/KS-FX470R:
Press and hold TP RDS (Traffic Programme/
Radio Data System) for more than 1 second.
Each time you press and hold the button,
Network-Tracking Reception modes change as
follows:
Mode 1
For KS-F363R/KS-F360R:
Press RDS (Radio Data System).
Each time you press the button, NetworkTracking Reception change as follows:
Mode 1
AF indicator
REG indicator
Mode 1
The AF indicator lights up but the REG indicator
does not.
Network-Tracking Reception is activated with
Regionalization set to “off.”
Switches to another station within the same
network when the receiving signals from the
current station become weak.
• In this mode, the programme may differ from the one
currently received.
Mode 2
Both the AF indicator and the REG indicator light
up.
Network-Tracking Reception is activated with
Regionalization set to “on.”
Switches to another station, within the same
network, broadcasting the same programme
when the receiving signals from the current
station become weak.
Mode 2 Mode 3
Mode 2 Mode 3
ENGLISH
Mode 3
Neither the AF indicator nor the REG indicator
lights up.
Network-Tracking Reception is deactivated.
9
Loading...
