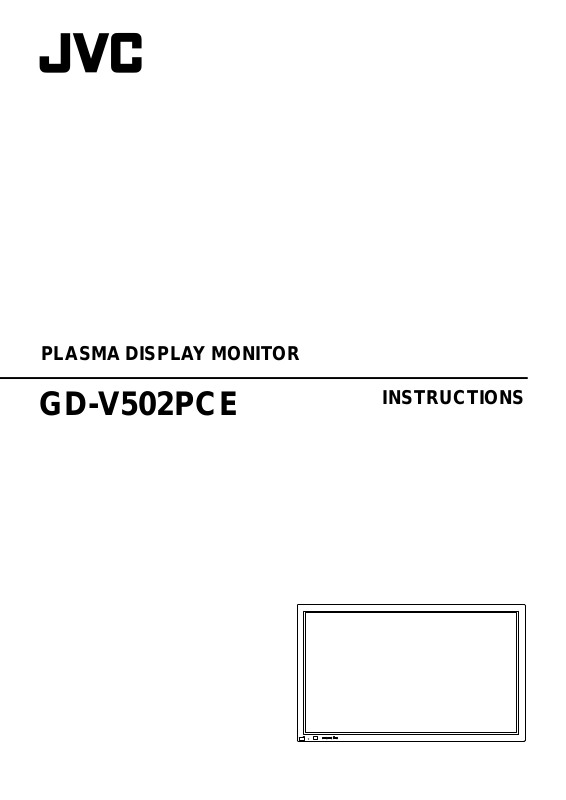

PLASMA DISPLAY MONITOR

GD-V502PCE

INSTRUCTIONS

Dear JVC Customer

Welcome to the JVC family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Trademark Credits

VGA is a trademark of International Business Machines Corporation.

•

Macintosh is a registered trademark of Apple Computer, USA.

•

S-VGA is a registered trademark of the video Electronics Standard Association.

•

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Important Safety Notice............................................. 3

Safety Precautions..................................................... 4

Accessories ................................................................ 6

Accessories Supply...................................................6

Remote Control Batteries..........................................6

Connections ............................................................... 7

PC Input Terminals connection ................................. 8

SERIAL Terminals connection................................... 9

Basic Controls.......................................................... 10

MULTI PIP............................................................... 10

Power On/Off and input signal selection ............... 12

AC cord connection.................................................12

Power On/Off .......................................................... 12

Select the input signal............................................. 13

Selecting the On-Screen Menu Language.............. 13

On-Screen Menu Displays....................................... 14

ASPECT Controls..................................................... 16

Adjusting Picture Pos./Size.....................................17

Picture Adjustments ................................................ 18

Advanced settings...................................................19

Sound Adjustment ................................................... 20

Mute ........................................................................20

Digital Zoom ............................................................. 21

PRESENT TIME Setup / Set up TIMER ...................22

PRESENT TIME Setup ........................................... 22

Set up TIMER..........................................................23

Screensaver (For preventing after-images)........... 24

Setup of Screensaver Time.....................................25

Reduces screen after-image................................... 25

Side Panel Adjustment............................................ 26

Reduces power consumption ................................. 27

Customizing the Input labels................................... 27

Setup for MULTI DISPLAY .......................................28

How to Setup MULTI DISPLAY...............................28

How to set the display location number

for each Plasma Display ............ 29

Setup for Input Signals............................................ 30

Component/RGB-in Select...................................... 30

3D Y/C Filter – For NTSC AV images............................. 30

Colour system / Aspect Auto ...................................31

Cinema reality .........................................................31

Sync ........................................................................32

H-Freq. (kHz)/V-Freq. (Hz)......................................32

Troubleshooting....................................................... 33

Input signal can be displayed ................................. 34

Specifications........................................................... 35

Important Safety Notice

WARNING:

1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

4) This is a class A product. In a domestic environment this product may cause radio interference in which case you may be required to take adequate measures.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fields. Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.

To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

FOR UK ONLY

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse

is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local JVC Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth Blue: Neutral Brown: Live

ASA

or the BSI mark

on the body of the fuse.

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or coloured GREEN or GREEN-AND-YELLOW.

Safety Precautions

WARNING

Setup

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by JVC)

Speakers

•

Stand Unit

•

Video Input Card

•

Wall Mounting Unit

•

Wall Mounting Unit (angled)

•

Ceiling Suspension Unit

•

Always be sure to ask a qualified technician to carry out set-up.

Do not place the Plasma Display on sloped or unstable surfaces.

The Plasma Display may fall off or tip over.

•

Do not place any objects on top of the Plasma Display.

If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result

•

in fire or electric shock. If any foreign objects get inside the Plasma Display , please consult your local JVC dealer.

...................................................

.................................................

.......................................

....................................

......................

............................

TS-C5001SPG TS-C50P5G IF-C50P2G TS-C50P6G TS-C50P2G TS-C50P3G

If using the pedestal (optional accessory), leave a space of at least 10 cm at the top, left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method, leave a space of at least 10 cm at the top, bottom, left and right, and at least 1.9 cm at the rear.

Avoid installing this product near electronic equipment that is easy to receive electromagnetic waves.

It may cause interference in image, sound, etc. In particular, keep video equipment away from this product.

•

When using the Plasma Display

The Plasma Display is designed to operate on 220 - 240 V AC, 50Hz/60Hz. Do not cover the ventilation holes.

Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

•

Do not stick any foreign objects into the Plasma Display.

Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as

•

doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,

•

adjustment and repair work, please contact your local JVC dealer.

Securely insert the power cord plug as far as it will go.

If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall

•

socket plate is loose, they shall not be used.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

•

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any

•

hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local JVC dealer.

If the Plasma Display is not going to be used for any prolonged length of time, unplug the power cord plug from the wall outlet.

Safety Precautions

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the Plasma Display, immediately unplug the power cord plug from the wall outlet.

If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that the

•

smoke has stopped, contact your local JVC dealer so that the necessary repairs can be made. Repairing the Plasma Display yourself is extremely dangerous, and shall never be done.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damages, disconnect the power cord plug immediately.

A short circuit may occur, which could cause fire. Contact your local JVC dealer for any repairs that need to be

•

made.

CAUTION

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display .

Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands

•

or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the Plasma Display.

If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,

•

and fire or electric shock could result.

Disconnect the power cord plug from the wall socket as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it becoming dusty.

If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.

•

Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to

•

which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry. Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may

•

become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been

•

added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth. Do not allow any detergent to come into direct contact with the surface of the Plasma Display.

•

If water droplets get inside the unit, operating problems may result. Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the

•

cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instruction book

Remote Control Transmitter EUR646532

INPUT

SURROUND

VOL


SET UP

PICTURE POS. /SIZE

MULTI

PIP

SOUND

SWAP SELECT MOVE

PLASMA DISPLAY

ZOOM

ASPECT

OFF TIMER

GD-V502PCE

AC cord

AC cord (For UK only)

Remote Control Batteries

Batteries for the Remote Control Transmitter (2 × R6 Size)

Ferrite core (small size) × 1

Fixing bands

Ferrite core (large size) × 2

Requires two R6 batteries.

1. Turn the transmitter face down. Press and slide off the battery cover.

2. Install the batteries as shown in the battery compartment. (Polarity + or – must match the

3. Replace the cover and slide in reverse until the lock snaps.

markings in the compartment.)

Two “R6” size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display.

Connections

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

SPEAKERS Terminals (R)

AC cord connection (see page 12)

– AC cord fixing

1. Open the clamper.

Clamper

SPEAKERS Terminals (L)

Note: Connect the power cord before combining with

accessories such as the pedestal. When combining with accessories such as the pedestal, be very careful not to pinch the power cord.

2. Insert the AC cord and close the clamper securely.

AC cord

Note: The power plug in the illustration may not be the type fitted to your set.

3. Slide up the clamper and fix

the AC cord plug securely.

When loosen the clamper:

– Cable fixing bands Secure any excess cables with bands as required.

Pass the attached cable fixing band through the clip as shown in the figure.

Optional Terminal Board insert Slots (covered)

SLOT1 SLOT2

Note:

Insert the optional terminal boards before combining the Plasma Display with the pedestal.

To secure cables connected to T erminals, wrap the cable fixing band around them then pass the pointed end through the locking block, as shown in the figure.

While ensuring there is sufficient slack in cables to minimize stress (especially in the power cord), firmly bind all cables with the supplied fixing band.

To tighten: To loosen:

Pull

SLOT3

From EXTERNAL monitor terminal on Computer (see page 8)

Push the catch

Pull

AUDIO

SERIALPC IN

From SERIAL terminal on Computer

Connections

67839

1514131211

PC Input Terminals connection

COMPUTER

R - STANDBY G POWER ON

Conversion adapter (if necessary)

Connect a cable which matches the audio output terminal on the computer.

Less than

3" (10 cm)

Ferrite core (small size)

Audio

(supplied)

VOL

INPUTMENU ENTER

Ferrite core (large size) (supplied)

RGB

PC cable

Less than

3" (10 cm)

mini D-sub 15p

Stereo plug

AUDIO

PC IN

Installing the ferrite core (Small size)

Pull back the tabs (in two places)

Installing the ferrite core (Large size)

Pull back the tabs (in two places)

Open

Press the cable through and close

Open

Press the cable through and close

Notes:

(1)

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical

scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

(2) The display resolution is a maximum of 1,024 × 768 dots when the aspect mode is set to “4:3”, and 1,366 × 768

dots when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

(3) The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible,

you will need to make setting changes to the computer at the time of connection. (4) Some PC models cannot be connected to the set. (5) There is no need to use an adapter for computers with DOS/V compatible mini D-sub 15P terminal. (6) The computer shown in the illustration is for example purposes only. (7) Additional equipment and cables shown are not supplied with this set. (8) Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified

frequency range. (9) Component Input is possible with the pin 1, 2, 3 of the mini D-sub 15P Connector.

Signal Names for mini D-sub 15P Connector

Pin Layout for PC Input Terminal

Pin No.

1 2 3 4 5

Signal Name

R (PR/CR)

G (Y)

B (PB/CB) GND (Ground) GND (Ground)

Pin No.

6 7 8 9

Signal Name GND (Ground) GND (Ground) GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

11 12 13 14 15

Signal Name

GND (Ground)

SDA

HD/SYNC

SCL

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

Connections

COMPUTER

9876

53214

Ferrite core

RS-232C Straight cable

(large size) (supplied)

SERIAL

Pin layout for RS-232C

Installing the ferrite core

(Large size)

D-sub 9p

Less than

/16

Open

(10 cm)

Notes:

(1) Use the RS-232C cable to connect the computer to the Plasma Display. (2) The computer shown is for example purposes only. (3) Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

Flow control

RS-232C compliant

Asynchronous

9600 bps

None 8 bits

1 bit

RS-232C Conversion cable

D-sub 9-pin female

2 3 5

•

Details

R X D T X D

GND

Non use

Shorted

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX

Start (02h)

Colon Parameter(s)

3-character command (3 bytes)

(1 - 5 bytes)

ETX:C2C1 C3 P2P1 P3 P4 P5

End (03h)

Notes:

(1) If multiple commands are transmitted, be sure to

wait for the response for the first command to come from this unit before sending the next command.

(2) If an incorrect command is sent by mistake, this

unit will send an “ER401” command back to the computer.

Command

Command PON POF AVL

AMT IMS

DAM

Parameter None None

0 1 None SL1 SL2 SL3 PC1 None NORM ZOOM FULL JUST SELF

Power ON Power OFF Volume 00 - 63 Audio mute OFF Audio mute ON Input select (toggle) Slot1 input Slot2 input Slot3 input PC input Screen mode select (toggle) 4 : 3 Zoom 16 : 9 Just Auto

Control details

With the power off, this display responds to PON command only.

Basic Controls

INPUT MENU ENTER

Main Power

R - STANDBY G POWER ON

On/Off Switch

Remote control

Power Indicator

sensor

The Power Indicator will light.

Power-OFF .. Indicator not illuminated (The unit

•

will still consume some power as long as the

MENU Screen ON/OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 14)

power cord is still inserted into the wall outlet.)

Stand-by ......Red

•

Power-ON ........Green

•

DPMS ..............Orange (With PC input signal and

•

during operation of PC’s screensaver.)

INPUT button (INPUT1, INPUT2, INPUT3 and PC IN Selection)

(see page 13)

C.A.T.S sensor Plasma C.A.T.S (Contrast Automatic Tracking System)

Plasma C.A.T.S automatically senses the ambient light conditions and adjusts the brightness and gradation accordingly, to optimise contrast. (Effective when Picture mode is set to Auto.)

Status button

Press the “Status” button to display the current system status.

4:3

Input label

Aspect mode (see page 16)

Off timer

The off timer indicator is displayed only when the

Off timer 90

off timer has been set.

MULTI PIP

MULTI

Each time pressing this button main picture and sub picture will be displayed as

PIP

follows bellow.

Normal

Viewing

[Picture and Picture] [Picture in Picture]

Main picture Sub picture

MULTI

PIP

[Picture out Picture]

Main picture Sub picture Main picture Sub picture

MULTI

PIP

VOL

Enter/Aspect button

(see page 14, 16)

Normal Viewing Picture Set up

Sound Picture Pos./ Size

V olume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed.

“+”: press to move the cursor up “–”: press to move the cursor down

(see page 17-20)

PICTURE button

(see page 18)

MULTI

PIP

N button

SWAP SWAP SWAP

SWAP

Press to swap main picture and sub picture.

SELECT

ZOOM MOVE

Notes: (1) Sound output is from the main picture.

Press the SELECT button. Under main Picture and sub picture display, select the picture which you would like to change input modes.

INPUT

SURROUND

VOL

INPUT

Press to change input signal.

Press the MOVE button. Each time the location of the sub picture will be moved.

Notes: (1) This button is effective only in the picture in picture.

(2)

The sub picture may be hidden by the on screen display, depending on its position.

(2) Using this function to display picture in picture for the purpose of public display

or commercial gain may infringe on copyright laws.

[Example]

Main picture label is bright Sub picture label is bright

PC1

VIDEO1

Input modes switching is possible

Main picture label is changed Sub picture label is changed

VIDEO2 VIDEO1

Picture is changed

SELECT

PC1

VIDEO1

PC1

VIDEO3

Basic Controls

Stand-by (ON/OFF) button

The Plasma Display must first be plugged into the wall outlet and turned on at the power switch (see page 12). Press this button to turn the Plasma Display On, from Stanby mode. Press it again to turn the Plasma Display Off to Stanby mode.

SURROUND button

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

The surround setting switches on and off each time the SURROUND button is pressed.

INPUT button (

INPUT1, INPUT2, INPUT3 and PC IN

Press to select INPUT1, INPUT2, INPUT3 and PC IN input SLOTS sequentially. (see page 13)

INPUT

SURROUND

Sound mute On/Off (see page 20)

V olume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

VOL

R button (see page 14-15)

Press the R button to return to previous menu screen.

On Off

Surround

Note:

The surround settings are memorized separately for each Sound mode (Normal, Auto).

Selection)


MULTI

PICTURE POS. /SIZE

SWAP SELECT MOVE

PIP

PLASMA DISPLAY

SOUND

SET UP

ZOOM

ASPECT

OFF TIMER

ACTION button

Press to make selections.

POSITION buttons SOUND button (see page 20)

Press to adjust the SOUND.

Digital Zoom (see page 21)

ZOOM MOVE

Press to access Digital Zoom.

SET UP button

(see page 14-15)

This displays an enlargement of the designated part of the displayed image.

PICTURE POS./SIZE button

(see page 17)

ASPECT button

Press to adjust the aspect. (see page 16)

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fixed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 60

PC button

Press the “PC” input mode selection button to select the PC input mode.

When three minutes remain, “Off timer 3” will flash. The off timer is cancelled if a power interruption occurs.

This button is used to switch directly to PC input mode.

Note:

In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

+ 25 hidden pages

JVC GD-V502PCE User Manual

GD-V502PCE

Dear JVC Customer

Table of Contents

Important Safety Notice

Safety Precautions

Accessories

Accessories Supply

Remote Control Batteries

Connections

PC Input Terminals connection

SERIAL Terminals connection

Basic Controls
