JVC FS-Y1B, FS-Y1E, FS-Y1EE, FS-Y1EN, FS-Y1EV Instructions Manual

COMPACT COMPONENT SYSTEM

FS-Y1

Consists of CA-FSY1 and SP-FSY1

INSTRUCTIONS

GVT0142-005A

[A]

Warnings, Cautions and Others

CAUTION—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights in red.

• When the unit is turned on, the STANDBY/ON lamp lights in green.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture

.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on a level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view

15 cm

1 cm 1 cm

CA-FSY1 CA-FSY1

10 cm

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2.

CAUTION

inside the unit; leave all servicing to qualified service personnel.

CAUTION

3. failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE UNIT.

: Do not open the top cover. There are no user serviceable parts

: Visible and invisible laser radiation when open and interlock

Side view

15 cm

G-1

Table of contents

Introduction

About discs......................................................3

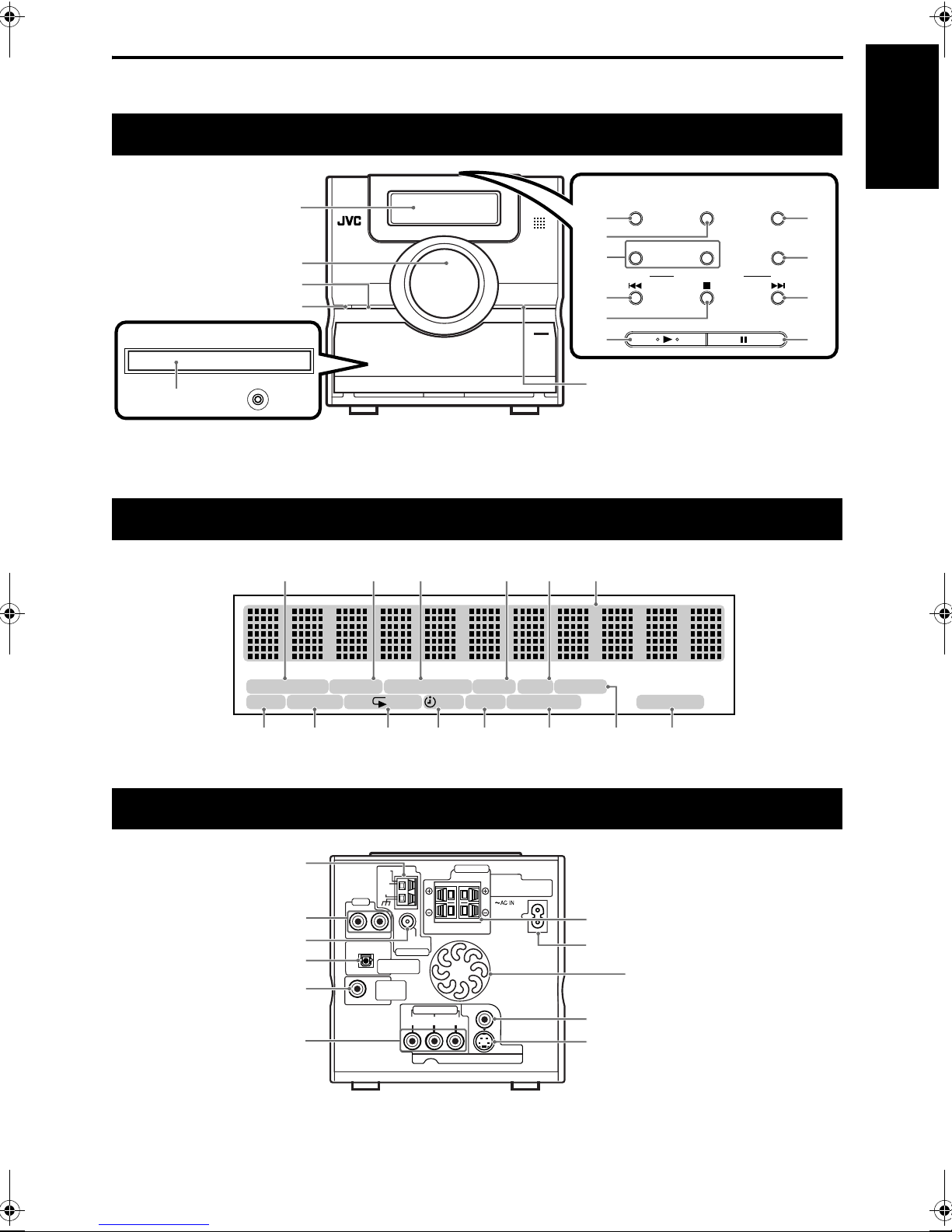

Description of parts .........................................5

Getting Started

Using the remote control .................................6

Putting the batteries in the remote control .......... 6

Operating the TV using the remote control......... 7

Connecting up .................................................8

Selecting an AM interval spacing...................... 11

Changing the color system ............................... 11

Basic operations

Playing discs .................................................12

Playback ........................................................... 12

To switch the display ........................................ 13

Select what you want to play by using

the number buttons.................................... 14

To stop playback............................................... 14

To pause playback............................................ 14

To advance picture frame-by-frame.................. 14

Fast reverse/Fast forward search ..................... 14

Playing back from a position 10 seconds

before (One Touch Replay) ....................... 15

Slow Motion Playback....................................... 15

Skip to the beginning of the selection ............... 15

To change the brightness of

the display window (DIMMER) .................. 16

Adjusting the volume ........................................ 16

Adjusting sound quality..................................... 16

Turning off the sound temporarily (MUTING) ... 16

Functions specific to DVD AUDIO.................27

Playing the Bonus Group...................................27

Browsable Still Pictures (B.S.P.) .......................27

Using the menu bar .......................................28

Preferences................................................... 29

Country/Area codes.......................................31

Listening to radio

Listening to a radio broadcast .......................32

Tuning in to a preset station .......................... 33

Convenient functions

Listening to the sound of other audio device

Setting the Various Timer..............................34

Setting the built-in clock.....................................34

Setting the daily timer ........................................34

Auto Standby .....................................................35

Sleep Timer .......................................................36

Tray Lock.......................................................36

....34

Reference

Troubleshooting.............................................37

Language codes............................................38

Specifications ................................................39

Advanced operations

Playing audio/video files................................16

Resume Playback .........................................18

Select the scene to be played .......................19

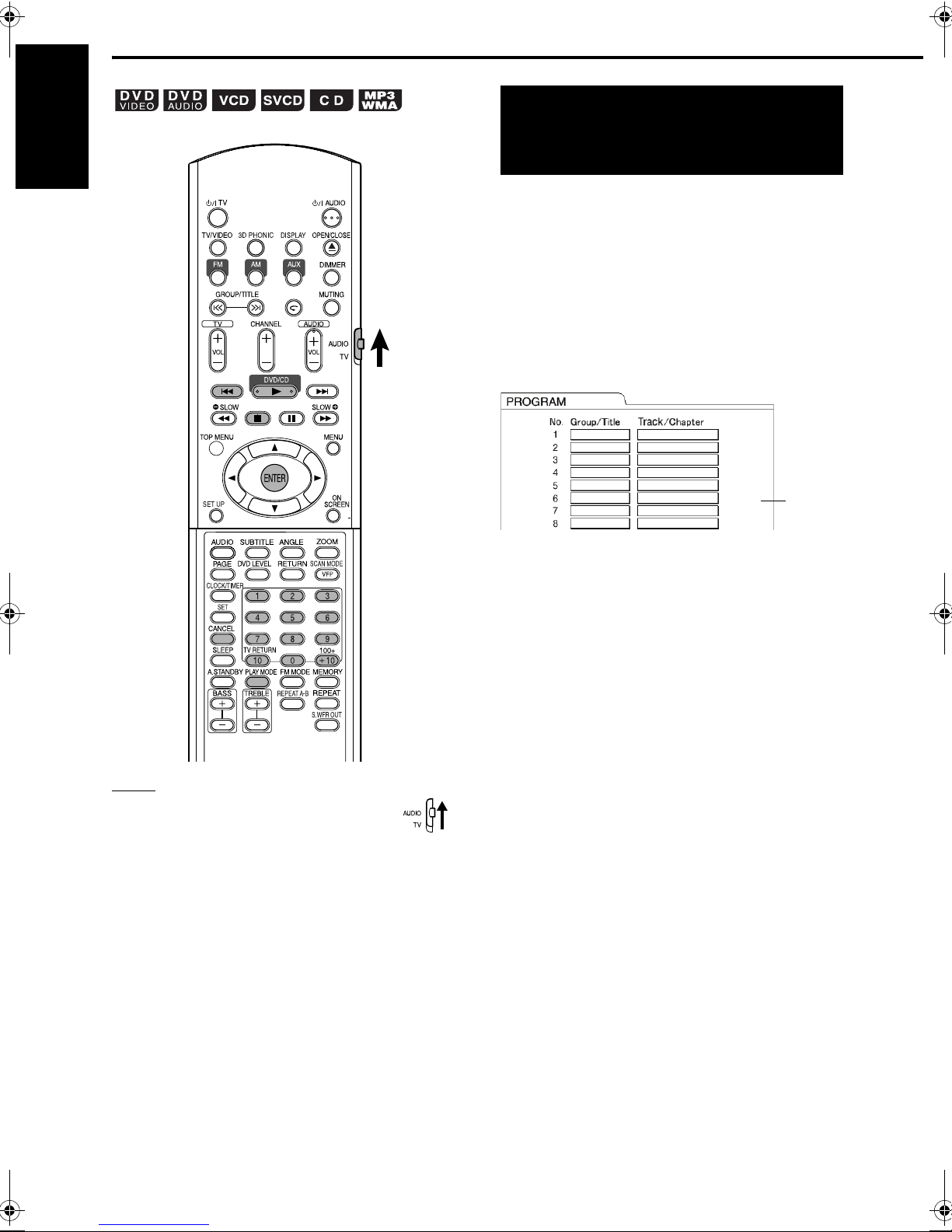

Program Playback/Random Playback...........20

Repeat Playback ...........................................22

Other convenient functions............................24

Selecting the subtitles....................................... 24

Selecting the audio language ........................... 24

Selecting a view angle...................................... 24

Enlarging the picture (ZOOM)........................... 25

Adjusting the picture quality (VFP) ................... 25

Creating realistic sound (3D PHONIC)............. 26

Adjusting playback level (DVD LEVEL) ............ 26

Enjoying better pictures (SCAN MODE) ........... 26

How to read this manual

• Operations are described by mainly using the remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.

• The following marks tell you for which type of the discs the operation can be made.

• The illustrations and TV screens may be different between the actual case and the description.

• “VCD” is an abbreviation of “Video CD”.

• “SVCD” is an abbreviation of “Super Video CD”.

1

Special cautions

Notes on handling

7 Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands.

• A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Label sticker

Sticker

Paste

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

7 When condensation or water drops adhere to the

lens

In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:

• Immediately after starting to heat the room

• When the system is installed in a steamy or damp space

• When the system is suddenly moved from a cold place to a warm space

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Supplied accessories

Check to be sure you have all of the supplied accessories.

The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

• Remote control (1)

• Batteries (2)

Note about copyright laws

Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs. Recording of copyrighted material may infringe copyright laws.

Note about copy guard system

DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• Composite video cord (1)

• Speaker cords (2)

7 Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are registered trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

2

About discs

Playable disc types

This system has been designed to play back the following discs:

DVD V IDEO, DVD AUDIO, VC D, SVCD, C D This system can also play back the following discs:

• Finalized DVD-R/-RW discs recorded in the DVD VIDEO format.

• CD-R/RW discs recorded in the following formats

• Music CDs (finalized discs)

• VCDs

• SVCDs

• MP3/WMA/JPEG discs recorded in ISO 9660 (for

details, refer to “Notes on CD-R and CD-RW ”)

However, some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them. Only sounds can be played back from the following discs:

MIX-MODE CD CD-G CD-EXTRA CD TEXT

Discs you can play:

Disc

Type

Mark (Logo)

DVD

VIDEO

DVD

AUDIO

VCD

SVCD

CD —

CD-R —

CD-RW —

Video

Format

PA L/

NTSC

—

PA L/

NTSC

PA L/

NTSC

Introduction

* Note on Region Code

DVD players and DVD VIDEOs have their own Region Code numbers. This system can only play back a DVD VIDEO recorded with the Region Code number and video format mentioned below. For your available Region Code, check the rear panel of your main unit. This System can play back only DVD VIDEOs whose Region Code numbers include “4”.

Examples:

If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.

• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Notes on DVD-R and DVD-RW

• This system can also play finalized DVD-Rs or DVDRWs recorded in DVD-Video format.

Notes on CD-R and CD-RW

• This system can also play CD-Rs or CD-RWs if MP3, WMA, and JPEG files are recorded on them with ISO 9660 format.

• This system supports “multi-session” discs (up to 20 sessions).

• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Discs that cannot be played back

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD-R/-RW (recorded in VR

format), CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc.

Playing back these discs will generate noise and damage the speakers.

Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back.

Caution for DualDisc playback

The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

is a trademark of DVD Format/Logo

licensing Corporation.

3

About discs (continued)

Notes on all files

• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;

• MP3: “.MP3”, “.mp3”

• WMA: “.WMA” , “.wma”

• JPEG: “.JPG”, “.JPEG”, “.jpg”, “.jpeg”

• If a character other than single byte English characters is used in the file name of an MP3/WMA/JPEG file, the track/file name will not be displayed correctly.

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 1 000.

• Some files may not be played back normally because of their disc characteristics or recording conditions.

For MP3/WMA files

• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.

• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.

• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.

• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.

• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)

For JPEG files

• We recommend to record a file at 640 x 480 resolution.

• This system can play a baseline JPEG file, excluding monochromatic JPEG files.

• This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).

• If data has been processed, edited and restored with PC image editing software, the data may not be displayed.

• This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.

• An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.

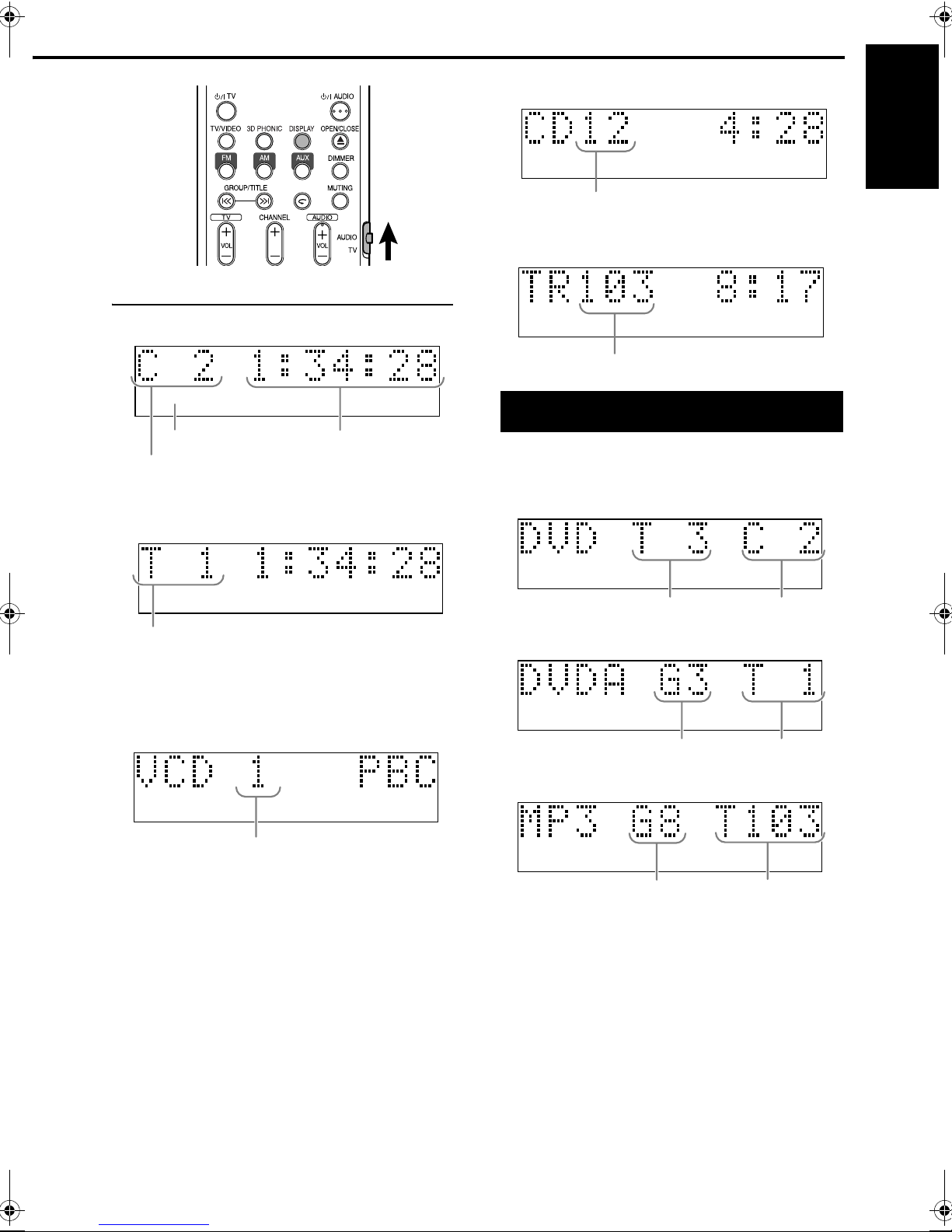

Disc structure

DVD VIDEO

A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

DVD AUDIO

A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. Some discs include a “bonus group” that requires a password for playing (page 27).

Group 1 Group 2

Track 1 Track 2 Track 3 Track 1 Track 2

VCD/SVCD/CD

VCD, SVCD and CD consist of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)

Track 1 Track 2 Track 3 Track 4 Track 5

MP3/WMA [JPEG] discs

On an MP3/WMA [JPEG] disc, each still picture (material) is recorded as a track [file]. Tracks [Files] are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.

This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.

Group 1 Group 2

4

Track 1

[File 1]

Track 2

[File 2]

Group 3 Group 4 Group 5

This product can recognize up to 1 000 tracks [files] in a disc. Also, the product can recognize up to 150 tracks [files] per group and up to 99 groups in a disc. Since the unit ignores the tracks [files] whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.

• If there is any type of files other than MP3/WMA [JPEG] files in a folder, those files are also counted in the total file number.

Description of parts

The numbers represent the page numbers.

Front panel

Introduction

See “Display window” below.

Top of the unit

DIMMER 3D PHONICBASS/TREBLE

16

In the door

PHONES

16 12

11

16 32

15 14

12

PLAY

A M A UXF M

MULTI CONTROL UPDOWN

PAUSE

12

* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the

speakers and subwoofer will not produce any sound.

Display window

13

18 26 27 27 13

26

34

15

14

PRGM. ALL SLEEP 3D PHONICA. STANDBYA-B 12 31RANDOM

Rear panel

20

RESUME

BONUS B.S.P.ST AU TOPROGRESSIVESVCDVD-A

21 17, 22 35 36 35 32 26

8

10

8

10

11

AUX

R

AM EXT AM LOOP

L

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

SUB-

WOOFER

OUT

ANTENNA

RL

FM75

Ω

COAXIAL

COMPONENT

YPBP

SPEAKERS

VIDEO

R

VIDEO OUT

CAUTION:

SPEAKER IMPEDANCE

4Ω-16Ω

S-VIDEO

9

11

11 11

These holes discharge heat generated inside the unit.

Do not cover up these holes.

5

Using the remote control

The numbers represent the page numbers.

26

7

13, 16 12

Putting the batteries in the remote control

32

15, 17

15, 32

14

19

19, 28

29 24

24 27 34

34, 35

35 36 35

16

20 16

7

12

34

16

15

16 7, 13,

7

14, 16 16

15, 32

12, 17

14

Batteries

19

28 24

25

11, 25,

13

26 26

7, 15

33 22 10 32

23

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.

6

CAUTION

•Do

not use a used battery and a new battery

together.

• Do not use different types of batteries at the same time.

• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.

Remote control operation

When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.

If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.

Introduction

Getting started

This page is for when operating your TV using the remote control of this product.

Operating the TV using the remote control

4 Press number buttons (1-9, 0).

Ex.:

For a Hitachi TV: Press 1, then 0. For a Toshiba TV: Press 0, then 8.

If there are more than one manufacturer’s codes, try them in turn and select the one that causes the product to work properly.

Manufacturer Code Manufacturer Code

JVC 01 Samsung 12

Hitachi 10 Sanyo 13

Magnavox 02 Sharp 06

Mitsubishi 03 Sony 07

Panasonic 04, 11 Toshiba 08

RCA 05 Zenith 09

NOTE

Manufacturer’s codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.

Setting the manufacturer's code

1 Slide the remote control mode

selector to the TV side.

2 Keep pressing down TV.

NOTE

Keep pressing down TV until Step 4 is complete.

5 Release TV.

For TV operation

Operate the remote control by pointing it towards the TV.

Turn ON/OFF the power.

Change channels.

Adjust volume.

9

100+

Alternates between the previously selected channel and the current channel.

Switch TV and video input.

Select channels.

*1

3 Press ENTER.

*1 Make sure to slide the remote control mode

selector to the TV side in advance.

NOTE

When the batteries are replaced, perform the manufacturer's code setting again.

7

C

)

Connecting up

–

Do not turn on the power until the connection is complete

Connecting antennas

–

Connection

onnecting AM loop antenna (supplied

1 Set up the AM loop antenna.

Connecting FM antenna (supplied)

Main unit

(rear panel)

FM antenna

FM75Ω

COAXIAL

Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.

2 Connect antenna cords.

Main unit

(rear panel)

AM EXT AM LOOP

How to insert antenna cords

Connect two antenna cords as described above.

If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.

7 When good radio reception cannot be

obtained with the supplied antenna or when using a communal antenna

3 Turn the AM loop antenna to the direction of the

best radio reception. Locate the AM loop antenna as far away from the main unit as possible.

• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.

7 When good radio reception cannot be

obtained with the supplied AM loop antenna

Electric wire: 3 - 5 m (commercially available)

Electric wire

Twist

AM loop antenna

AM EXT AM LOOP

Main unit

(rear panel)

Put up an electric wire extending horizontally, preferably at a high place such as above a window or outdoors.

Connect the AM loop antenna cords together.

Communal antenna terminal

Outdoor FM antenna (commercially available)

Coaxial cable (commercially available)

Main unit

(rear panel)

FM75Ω

COAXIAL

Antenna cord (not supplied)

or

Converter (sold separately: compatible with 300 Ω/ 75 Ω)

Depending on the radio reception conditions, an FM feeder antenna (sold separately: compatible with 300 Ω) can be used. In the case, a converter (not supplied) is required.

For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.

When positioning the antenna, listen to an actual radio program (refer to “Listening to a radio broadcast” on page 32).

8

Connecting up Connection

Getting started

Connecting speakers

There is no difference between the left and right speakers.

Speaker terminal

Speaker cord

Without

black line

With black

line

Right speaker

(rear panel)

(supplied)

SPEAKERS

RL

Main unit

(rear panel)

Speaker cord (supplied)

Without black line

Left speaker

(rear panel)

CAUTION

• DO NOT connect more than one speaker to one speaker terminal.

• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.

1. Turn off the main power of your TV before

installing the speakers. Wait for about 30 minutes before turning on the TV again.

2. If color irregularity occurs in pictures, keep a

distance of more than 10 cm between the TV and the speakers.

With black line

Speaker grille can be detached.

Speaker grille

NOTE

• Impedance of speaker that can be connected to the main unit is within a range of 4 Ω to 16 Ω.

• In order to have a sufficient cooling effect, leave a space of more than 1 cm between the main unit and the speakers or other objects.

9

Connecting up Connection

(continued) – Do not turn on the power until the connection is complete –

Connecting other devices

This page is for when connecting the main unit with other devices.

Connecting subwoofer

With an amplifier-built in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.

Amplifier-built-in subwoofer (not supplied)

Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.)

Main unit

SUB-

WOOFER

OUT

When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display “SUBWOOFER” on the display window on the main unit. Each time you press the button, the display toggles between “SUBWOOFER” and “OFF”.

Connecting with other audio device

Output

WhiteRed

Other audio device

Audio cord (not supplied)

NOTE

When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.

Connecting with a digital device

Input

Output

Main unit

Digital device (MD recorder etc.)

To digital input terminal

Optical digital cord (not supplied)

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

Input

AUX

L

Main unit

R

10

CAUTION

• For details of signals to be output, refer to page

30.

• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in “D. RANGE COMPRESSION” of “AUDIO” (page 30) will be invalid regarding sound from the digital audio output of the main unit.

Connecting up Connection

Getting started

Connecting with TV

TV (or monitor)

TV

Supplied composite video cord

Main unit

COMPONENT

YPB PR

VIDEO

VIDEO OUT

S-VIDEO

CAUTION

Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing.

Main unit

Connecting directly

Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.

You can enjoy pictures of better quality using the following cord instead of the supplied video cord.

Connecting by using the component video cord

You can enjoy better quality pictures than when using the S-Video cord.

Component video cord

Red

(not supplied)

NOTE

• In order to enjoy pictures with Progressive mode (page 26), the TV is required to have Progressive video input.

• If the component video input jacks of your TV are BNC type, use a plug adapter (not supplied) to convert the plugs.

Connecting the power cord

AC outlet

Supplied power cord

Main unit

• Connect the power cord after all other connections are complete.

• The standby lamp (on the front panel) will be lit.

Selecting an AM interval spacing

You can change the AM interval spacing.

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing.

• Before doing the following procedure, select AM as source, then turn off the unit.

• Use the buttons on the main unit.

To set the AM tuner to the 10 kHz spacing:

Blue

Green

Connecting by using the S-Video cord

Main unit

COMPONENT

YPB PR

VIDEO

VIDEO OUT

CAUTION

Use one of either the S-Video cord or the component video cord. If both cords are used, pictures may not be played properly.

S-Video cord (not supplied)

S-VIDEO

COMPONENT

YPB PR

VIDEO OUT

Main unit

VIDEO

TV

S-VIDEO

While holding ¢, press STANDBY/ON .

To set the AM tuner to the 9 kHz spacing:

While holding 4, press STANDBY/ON .

Changing the color system

You can select the video output to match it to the color system of your TV (PAL or NTSC).

1 Press and hold VFP for 4 seconds while the

system is turned off (on standby).

2 Press cursor 2/3 to select the video output. 3 Press ENTER to set the video output.

11

Playing discs

Playback

(Refer to page 17 for playing MP3/WMA and JPEG.)

page 5

Press AUDIO.

1

• The power will be turned on and the standby lamp will go off.

• Press AUDIO again to turn off the power.

Place a disc with the label side facing up.

• Place an 8 cm disc in to the

hollow part in the cen

ter.

Press 0OPEN/CLOSE to open the disc

2

tray to load a disc.

Press DVD/CD 3.

3

The disc tray will close and playback will start.

• The power will be turned on when any of PLAY

3, FM, AM, AUX, or 0 on the main unit and DVD/CD

on the remote control is pressed while the power is off. If any button other than 0 or 0OPEN/CLOSE is pressed, the source will also be changed (if there is a disc loaded, playback will start).

3, FM, AM, AUX, or 0OPEN/CLOSE

Screens displayed on the TV when the power is turned ON.

The following messages appear depending on the status of the system. (When FM, AM or AUX is selected as a source, the messages do not appear.)

NOTE

• A menu screen may be displayed on the TV after starting playback of a DVD/VCD/SVCD. In this case, select a desired item to playback by using the following buttons on the remote control.

• Select a desired item using cursor

and press

• Select a desired item using the number buttons.

• Depending on the disc, actual operation may be different from the description.

ENTER.

5/ ∞/ 2/ 3

NOW READING

REGION CODE ERROR!

NO DISC

OPEN

CLOSE

CANNOT PLAY THIS DISC

Appears when the system is reading the disc information. Wait for a while.

Appears when the Region Code of the DVD VIDEO does not match the code the system supports. (page 3)

Appears when no disc is loaded.

Appears when opening the disc tray.

Appears when closing the disc tray.

Appears when trying to play back an unplayable disc.

12

Display window during disc playback

Basic operations

Ex.: When a CD is played

SVCDVD-A

Track number

Ex.: When an MP3/WMA file is played

Ex.:

When a DVD VIDEO is played

SVCDVD-A

Disc type

Chapter number

Ex.:

When a DVD AUDIO is played

SVCDVD-A

Track number

Elapsed playing time

If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27.

Ex.:

When an SVCD or VCD is played

S VCDVD-A

SVCDVD-A

Track number

To switch the display

Press DISPLAY. Each time you press the button, the display

indication changes temporarily as follows:

• For DVD VIDEO

SVCDVD-A

Title number

• For DVD AUDIO

SVCDVD-A

Group number

• For MP3/WMA

Chapter number

Track number

• When playing an SVCD, the SVCD indicator lights instead of the VCD indicator.

• PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. It is possible to enjoy interactive software or software with a search function using a menu screen recorded in a PBC compatible VCD. To play a disc with the PBC function OFF, carry out the following operations.

• Designate the track number using the number

buttons while the disc is stopped.

• Designate the track number using ¢ while

the disc is stopped, and then press DVD/CD

• Press RETURN to go back to the upper layer during the PBC playback of a VCD or SVCD.

3

SVCDVD-A

Group number

Track number

• For SVCD/VCD/CD The clock time indication appears on the display window.

• Before setting the clock (page 34), “0:00”

appears.

• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.

.

13

Playing discs (continued)

Designate the chapter number or track number to play during playback.

• Refer to “How to use the number buttons” on page 15.

To stop playback

Press 7 during playback.

To pause playback

Press 8 during playback.

To start normal playback again, press DVD/CD 3.

• For JPEG slide-show, pressing DVD/CD 3 starts playback from the next file.

Select what you want to play by using the number buttons

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function.

• For a DVD AUDIO, CD, MP3/WMA or JPEG, this operation can also be carried out when the disc is stopped.

• This operation may not be carried out for some discs.

To advance picture frame-by-frame

Press 8 during pause.

• Each time you press the button, picture will be advanced frame-by-frame.

Fast reverse/Fast forward search

Press 1 or ¡ during playback.

• Each time you press the button, the speed increases ( the normal speed, press DVD/CD 3.

NOTE

• Fast reverse/Fast forward search cannot be carried out for MP3, WMA, and JPEG.

• For a DVD VIDEO, VCD or SVCD, no sound comes out during Fast reverse/Fast forward search.

• For a CD or DVD AUDIO, sound is intermittent during Fast reverse/Fast forward search.

×2, ×5, ×10, ×20, ×60). To restore

14

Basic operations

Playing back from a position 10 seconds before (One Touch Replay)

Press during playback.

NOTE

• This operation may not be carried out for some discs.

• It is not possible to go back to the previous title.

Slow Motion Playback

Press SLOW or SLOW during pause.

• Each time you press the button, the playback

×

speed increases (

×

1/2).

•Press

NOTE

• No sound will be produced.

• The picture motion in the reverse direction may not

• For a VCD or SVCD, Slow Motion Playback can be

DVD/CD

be smooth.

carried out in the forward direction only.

1/32, ×1/16, ×1/8, ×1/4,

3 to start normal playback again.

Skip to the beginning of the selection

Press 4 or ¢ during playback*.

• Press ¢ to skip the next chapter or track.

• Press 4 once to skip back to the beginning of

the chapter or track currently being played (except for JPEG).

•Press GROUP/TITLE or group.

• During playback of a JPEG disc, press ¢ or cursor ∞ to play the next file, or press 4 or cursor 5 to play the previous file.

NOTE

* For a VCD or SVCD, this operation can be carried

out during playback without the PBC function.

• Except for a DVD VIDEO, this operation can also be carried out while the disc is stopped.

• This operation may not be carried out for some discs.

or to select the title

How to use the number buttons

Ex.:

5: 20:

15: 25:

Guide icons displayed on the TV screen (On-screen guide)

: Play

: Pause

: Fast reverse/Fast forward search

: Slow Motion Playback (reverse/

forward directions)

: Containing multi-angle views (page 24)

: Containing multi-audio languages (page 24)

: Containing multi-subtitle languages (page 24)

: The disc cannot accept the operation you

have attempted.

15

Playing discs (continued)

To change the brightness of the display window (DIMMER)

Press DIMMER repeatedly.

• Each time you press the button, the dimmer mode changes as follows:

Playing audio/video files

AUTO DIMMER

DIMMER ON

DISPLAY OFF

DISPLAY ON

• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.

The items above can be carried out for all sources.

: During the video source playback, the display window dims and the illumination automatically turns off.

: The display window and the

illumination dim.

: The display window and the

illumination turn off.

: Cancels the dimmer function.

Adjusting the volume

Press AUDIO VOL +/–.

NOTE

The volume can be also adjusted by turning the VOLUME control on the main unit.

Adjusting sound quality

Bass: Press BASS +/–. Treble: Press TREBLE +/–.

• Adjustable range: –5 to +5

Turning off the sound temporarily (MUTING)

Press MUTING.

• No sound will come out from the speakers, headphones and the subwoofer.

• Press MUTING again to restore the sound. When the power is turned off once and turned on again, the sound will be restored.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

16

Playback

Display of an MP3/WMA disc is described here as an example. For a JPEG disc, read “track” as “file”.

NOTE

When playing a disc containing both MP3/WMA and JPEG files, set one of them to be played, then turn on the system again (page 29).

Advanced operations

5 Press DVD/CD 3 or ENTER.

NOTE

• GROUP/TITLE can also be used in Step 2.

• The number buttons can also be used in Step this case, Step number buttons, refer to page 15).

• 4 or

¢ can also be used in Step 4. In this case,

5 is not needed.

Step

5 is not needed. (For how to use the

Repeat playback

4. In

1 Load a disc.

Current group /total group number

Tag information (for MP3/WMA)

Current group

Current track (file) / total track (file) number on current group

Playback mode (PROGRAM, RANDOM, REPEAT)

Elapsed playing time of current track (for MP3/ WMA)

Current track

(file)

Total track (file) number on disc

Playback status

2 Press cursor 5/∞ to select a

group.

1 Press REPEAT.

• Each time you press the button, the Repeat mode and its indication change as follows:

Repeat items On the TV On the display

Current track (MP3/WMA only)

Current group REPEAT

Entire disc REPEAT

Cancel No indication

Current track during Program/ Random play (MP3/WMA only)

All tracks during Program/Random play (MP3/WMA only)

REPEAT TRACK

GROUP

ALL

REPEAT STEP

REPEAT ALL

window

2 Press DVD/CD 3.

NOTE

• The Repeat types can be changed during playback.

• The Repeat mode will be automatically canceled if there is a file that cannot be played (page 3).

3 Press cursor 3 to move to the

track list.

• Press cursor 2 to go back to the group list.

4 Press cursor 5/∞ to select a

track.

Slide-Show Playback

• In Step 5, for a JPEG disc, when DVD/CD 3 is pressed, files will be continuously played from the

selected file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.

• Display time for a file in Slide-Show Playback is about 3 seconds.

• When all files are played through, the playback will be automatically stopped.

17

Resume Playback

This system can store the stop point, and when you start playback again by pressing DVD/CD (even while on standby), it starts from the position where you have stopped—Resume Play. The RESUME indicator lights on the display window when you stop playback.

3

How to suspend playback

Perform any of the following operations during playback.

Press 7 once.*

Press AUDIO to turn off the power.

Change the source to FM, AM or AUX.*

* Even if the power is turned off by pressing

AUDIO after this, the position where playback has been stopped will be stored.

NOTE

Set the remote control mode selector to

AUDIO before using the number buttons.

To start playback from the stored position

Press DVD/CD 3.

NOTE

• This function does not work in Program Playback or Random Playback.

• The position where playback starts again may be a little different from the stopped position.

• When a disc menu is displayed, the Resume function may not work.

• The audio language, the subtitle language and the angle at that time are stored as well as the stopped position.

• The stored position will be cleared if the disc tray is opened. Further, if 7 is pressed during playback, “RESUME” will be displayed. If 7 is pressed again, the stored information will be cleared.

• At the time of purchase, Resume is set to ON. Resume can be set to OFF (page 30).

18

Select the scene to be played

Advanced operations

NOTE

*1For a VCD and SVCD, this operation can be carried

out only when the PBC function is off.

• This operation cannot be carried out for a disc without a menu screen.

• Playback may start for some discs without pressing ENTER.

Designate the time (Time search)

1 Press ON SCREEN twice during

*2

playback

The menu bar will be displayed (page 28).

.

2 Press cursor 2 /3 to select

.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Select the scene from the menu

1 Press MENU or TOP MENU

while the disc is stopped or during playback*1.

• The disc menu screen will be displayed.

•Only TOP MENU can be used for DVD AUDIOs.

2 Press cursor 5/∞/2/3 (only

for a DVD VIDEO or DVD AUDIO) or the number buttons to select the scene to be played.

• Refer to “How to use the number buttons” (page 15).

• When the menu screen has a couple of pages, press page (only for a VCD and SVCD).

4 or ¢ to change the

3 Press ENTER. 4 Input the time

number buttons (1-9, 0).

Ex.: When you want to play a DVD VIDEO

from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the order:

• If you input wrong numbers, press cursor to delete the numbers and re-input.

*3

using the

2

3

4

5

2

5 Press ENTER.

To delete the menu bar, press ON SCREEN.

NOTE

• This function does not work for a DVD VIDEO with no time information recorded.

• This function does not work during Program or Random Playback.

2

For a VCD and an SVCD, the operation can be

*

carried out when the disc is stopped or during playback without the PBC function.

3

Time search for a DVD VIDEO is from the beginning

*

of the title, for a DVD AUDIO from the beginning of the track being played. Time search for a VCD, an SVCD and a CD is as follows:

• When the disc is stopped, time search is from the

beginning of the disc.

• When the disc is being played, time search is

within the track currently being played.

3 Press ENTER.

19

Program Playback/Random Playback

Play the disc in the desired order (Program Playback)

It is possible to program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.

1 While the disc is stopped, press

PLAY MODE repeatedly to display “PROGRAM” on the display window on the main unit.

TV screen

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Program screen

2 Create a program following the

description on the TV screen.

Refer to “How to use the number buttons” (page 15).

• The input content varies depending on the disc type.

• DVD VIDEO: Titles and chapters

• VCD, SVCD, CD: Tracks

• DVD AUDIO, MP3/WMA:

Groups and tracks

• To select a DVD AUDIO bonus group, carry out the operations of “Playing the Bonus Group” on page 27 in advance to erase the display “BONUS”.

• If the input number of chapters or tracks is greater than 99, “MEM FULL” will be displayed.

• In the case of a VCD, SVCD or CD, when the total playback time reaches 9 hours 59 minutes 59 seconds, “--:--” will be displayed on the display window (it is possible to continue programming).

20

To program on the display window on the main unit, operate as follows:

(1) Select a title/group using the number

buttons.

(2) Designate a chapter/track number using the

number buttons.

• Refer to “How to use the number buttons” (page 15).

• The program number will be displayed on the lower display window (Ex.: “P2”).

(3) Repeat the above operations (1) and (2) to

complete the program. Then, advance to

3.

Step

Advanced operations

Playing the disc in a random order (Random Playback)

1 Press PLAY MODE repeatedly

to display “RANDOM” on the display window on the main unit while the disc is stopped.

• “RANDOM” will also be displayed on the TV screen.

NOTE

• The group/title number flashes on the display window after making each program step.

• Only for a DVD VIDEO, DVD AUDIO, VCD, or an MP3/WMA: If you press ENTER instead of designating a track/chapter number, displayed and all of the tracks/chapters in the selected group/title are programmed.

“ALL” is

3 Press DVD/CD 3.

• To resume normal playback, press PLAY MODE repeatedly to show the playback

indication on the display window on the main unit while the disc is stopped. The program content will not be erased.

• The following operations erase the program content:

• Press CANCEL repeatedly (Programs

will be erased one by one)

• Press

• Open the disc tray

• Turn off the power

7 while the disc is stopped

2 Press DVD/CD 3.

• The same chapter or track will not be played twice.

• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped.

• Random Playback will also be canceled by carrying out the following operations:

• Open the disc tray

• Turn off the power

• The previous track will not be returned to even if Random Playback (the beginning of the current chapter or track will be returned to).

4 is pressed repeatedly during

21

Repeat Playback

Refer to page 17 for Repeat Playback of MP3 and JPEG files.

Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT)

For DVD AUDIO

Repeat items On the TV On the display

Current track

Current group

Cancel

TRACK

GROUP

OFF

window

For CD/VCD/SVCD

Repeat items On the TV On the display

Current track

All tracks

Cancel

TRACK

ALL

OFF

window

NOTE

• For a VCD and SVCD, the operation can be carried out only when the disc is stopped or during playback without the PBC function.

• It is possible to set Repeat mode on the menu bar. For how to operate, refer to “Playing the designated part repeatedly (A-B Repeat Playback)”(page 23).

• For a DVD VIDEO and DVD AUDIO, if the source is switched to FM, AM or AUX, the Repeat mode will be canceled.

Press REPEAT during playback.

• Each time you press the button, the Repeat mode and its indication change as follows:

For DVD VIDEO

Repeat items On the TV On the display

Current chapter

Current title

Cancel

CHAP

TITLE

OFF

window

Repeat Playback during Program or Random Playback

Repeat items On the TV On the display

Current chapter/ track

All tracks during Program/Random play

Cancel

STEP

or REPEAT STEP

ALL

or REPEAT ALL

OFF

or no indication

window

22

Playing the designated part repeatedly (A-B Repeat Playback)

1 Press ON SCREEN twice during

playback.

The menu bar (page 28) will be displayed.

2 Press cursor2/3 to select

OFF

.

3 Press ENTER. 4 Press cursor5/∞ to display

OFF

A B

Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”

.

(page 22).

Advanced operations

5 Press ENTER at the start point

of the part to be repeated (designating A point).

• The icon on the menu bar will be .

A-

6 Press ENTER at the end point of

the part to be repeated (designating B point).

• The icon on the menu bar will be and the part between A and B points will be played repeatedly.

• A-B Repeat Playback will be canceled by carrying out the following operations:

• Press

• Select and press ENTER twice.

NOTE

• A-B Repeat Playback is possible only within the same title or track. A-B Repeat Playback cannot be carried out during PBC playback, Program Playback, Random Playback and Repeat Playback.

• You can do the A-B Repeat Playback using the REPEAT A-B button on the remote control.

7.

A-B

23

Other convenient functions

Selecting the audio language

1 Press AUDIO during playback of

a disc containing several audio languages.

Selecting the subtitles

(only for moving image)

1 Press SUBTITLE during

playback of a disc containing subtitles in several languages.

Ex.:

• Each time you press the button, the subtitle will be alternated between ON and OFF.

TV screen

2 Press cursor 5/∞ to select a

subtitle language.

• For a language code such as “AA”, refer to “Language codes” (page 38).

• The manner of displaying subtitle languages may be different depending on the disc.

3 Wait for a few seconds or press

ENTER to go off the window.

Ex.:

• Each time you press the button, the audio language will be alternated. Also, the audio language can be changed by pressing

5/∞.

cursor

• For a language code such as “AA”, refer to “Language codes” (page 38).

• “ST”, “L” and “R” displayed when playing a VCD or SVCD respectively represent “Stereo”, “Left sound” and “Right sound”.

TV screen

2 Wait for a few seconds or press

ENTER to go off the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Selecting a view angle

(only for moving image)

1 Press ANGLE during playback

of a scene containing multi-view angles.

Ex.:

TV screen

NOTE

• It is also possible to operate by using the menu bar (page 28).

• For an SVCD, each time you press SUBTITLE in Step 1, the subtitle type and OFF will be alternated.

24

• Each time you press the button, the angle will be alternated. Also, the angle can be changed by pressing cursor

5/∞.

2 Wait for a few seconds or press

ENTER to go off the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Enlarging the picture (ZOOM)

(only for moving image)

1 Press ZOOM during playback or

while paused.

• Each time you press the button, the picture magnification will be changed.

• (For a JPEG) You cannot change the picture magnification during slide-show playback.

2 Select the portion you want to

see by using cursor 5/∞/2/3.

• To resume normal playback, select “ZOOM OFF” in Step

1.

Advanced operations

2 Press cursor 2/3 to select VFP

mode.

• It is recommended to select “NORMAL” usually, or “CINEMA” in a dark room. When either “NORMAL” or “CINEMA” is selected, go to Step

• When either “USER 1” or “USER 2” is selected, the adjustment can be carried out in detail in the operations after Step

7.

3.

3 Press cursor 5/∞ to select an

item to be adjusted.

4 Press ENTER.

Ex.:

GAMMA

TV screen

5 Press cursor 5/∞ to change the

value.

Adjusting the picture quality (VFP)

1 Press VFP during playback or

while paused.

The current setting will be displayed on the TV screen.

• GAMMA: Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained.

• BRIGHTNESS: Adjust this if the picture is bright or dark on the whole.

• CONTRAST: Adjust this if the far and near position is unnatural.

• SATURATION: Adjust this if the picture is whitish or blackish.

• TINT: Adjust this if the appearance of flesh tone is unnatural.

• SHARPNESS: Adjust this if the picture is indistinct.

6 Press ENTER.

To adjust other items, go back to Step 3.

7 Press VFP to go off the window.

NOTE

• If no operation is made for several seconds during the procedure, the settings made so far will be automatically stored.

• “VFP” is an abbreviation of “Video Fine Processor”.

25

Other convenient functions (continued)

Creating realistic sound (3D PHONIC)

Adjusting playback level (DVD LEVEL)

The audio of a DVD VIDEO may be recorded at a lower level (volume) than for other types of disc. If the difference is not to your liking, adjust the DVD Level.

1 Press DVD LEVEL during

playback.

• Each time you press the button, the level will be alternated among “NORMAL”, “MIDDLE” and “HIGH”.

• Select the level while listening to the sound played.

NOTE

• DVD Level is effective only for playback of a DVD VIDEO.

• Even if the DVD Level is changed, the output level from the digital audio output terminal will not be changed.

The two speakers produce an effect resembling surround-sound.

1 Press 3D PHONIC during

playback.

Ex.:

3D PHONIC

• Each time you press the button, the 3D PHONIC will be alternated as follows:

ACTION : Suitable for action movies,

DRAMA : You can relax with a natural

THEATER : You can enjoy the sound effect

OFF : Cancels 3D PHONIC (initial

• While 3D PHONIC is activated, “3D PHONIC indicator lights on the display window.

NOTE

• 3D PHONIC is effective for the speakers and headphones.

• When noise is produced or sound is distorted, set 3D PHONIC to “OFF”.

• You cannot operate some DVD AUDIO discs.

”

sport programs or other lively programs.

atmosphere.

as if you were watching the movie in a theater.

setting).

appears and the 3D PHONIC

TV screen

Enjoying better pictures (SCAN MODE)

In the Progressive mode, better pictures can be enjoyed.

CAUTION

• In order to enjoy pictures in the Progressive mode, the following requirements should be met:

• There must be a component video input terminal

on the TV set connected to the main unit.

• The main unit and the TV set must be

connected using a component video cord

(page 11). When the above requirements are not satisfied, leave the main unit in the Interlace mode. If the Progressive mode is set, pictures may be distorted.

Press and hold SCAN MODE for 4 seconds when there is no disc loaded or while the disc is stopped.

• Each time you press and hold the button, the scan mode alternates between the “PROGRESSIVE” mode and the “INTERLACE” mode.

NOTE

Progressive mode:

All scanned lines will be displayed at once. Pictures of higher resolution than those in the Interlace mode can be realized.

Interlace mode:

This is a conventional image method. Half of the scanned lines displayed in the Progressive mode will appear, alternating with the other half.

26

Functions specific to DVD AUDIO

There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded.

NOTE

This operation can be carried out when “BONUS” is lit on the display window on the main unit.

1 Press GROUP/TITLE

2 Press the number buttons to

Advanced operations

Playing the Bonus Group

repeatedly during playback to select a bonus group.

“KEY_ _ _ _” appears on the TV screen, and on the display window on the main unit.

• The bonus group is usually recorded as the last group.

enter a pin code (4 digits).

The method of getting a pin code may be different depending on the disc.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

3 Press ENTER.

• When a correct pin code is entered, “BONUS” disappears and the playback of the bonus group starts.

• If an incorrect pin code is entered, try entering a correct pin code again.

Browsable Still Pictures (B.S.P.)

There are some DVD AUDIO discs with still pictures recorded. Among the still pictures, there are pictures called B.S.P. (Browsable Still Pictures). With these pictures, it is possible to switch a picture as if turning over pages.

NOTE

This operation can be carried out when “B.S.P.” is lit on the display window on the main unit.

1 Press PAGE during playback.

Each time you press the button, the still picture will be switched over. It is also possible to

5/∞

switch the picture using cursor

Ex.:

.

TV screen

2 Wait for a few seconds or press

ENTER to go off the window.

27

Using the menu bar

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped.

1 Press ON SCREEN twice.

The status bar and the menu bar will appear on the TV screen.

Status bar

Menu bar

The above is an example for a DVD VIDEO.

2 Press cursor 2/3 to select an

item to be operated.

TIME

Time display selection

Repeat mode

Time search

CHAP

.

/

TRACK

Chapter search (DVD VIDEO)/Track search (DVD AUDIO)

Audio language/ Audio (DVD VIDEO/ DVD AUDIO/VCD/ SVCD)

Subtitle language (DVD VIDEO/SVCD)

View angle (DVD VIDEO/DVD AUDIO)

PAGE

Page switch (DVD AUDIO)

Select this to change time information displayed on the display window on the main unit and the status bar. Each time ENTER is pressed, the display will be alternated.

DVD VIDEO/DVD AUDIO (operating during playback)

TOTAL : Elapsed playing time of current title/

T.REM : Remaining time of current title/group. TIME : Elapsed playing time of current

REM : Remaining time of current chapter/track.

CD (operating during playback)/VCD/ SVCD

TIME : Elapsed playing time of current

REM : Remaining time of current track. TOTAL: Elapsed playing time of disc. T.REM : Remaining time of disc.

See page 22.

See page 19.

Select a chapter/track. Press the number buttons to input the chapter/ track number and press ENTER.

Ex.:

See page 24.

Switch the still pictures (B.S.P.) recorded on a DVD AUDIO disc (page 27).

5:

group.

chapter/track.

track.

5

24:

2

4

3 Press ENTER.

• The selected function can be set. For the setting content, refer to the following “Functions list”.

• The currently active function shows.

• To delete the menu bar, press ON SCREEN.

Functions list

For the functions with no special description for the operations, press cursor ENTER to determine.

5/∞ to select, and press

28

Information displayed on the status bar

DVD VIDEO/DVD AUDIO (the example below is for a DVD VIDEO)

Transfer rate (only for DVD VIDEO)

DVD VIDEO: Current title number DVD AUDIO: Current group number

DVD VIDEO: Current chapter number DVD AUDIO: Current track number

VCD/SVCD/CD (the example below is for a CD)

Playback mode

Current track number

Time Playback status

Preferences

Advanced operations

NOTE

The playback status mark has the same meaning of the mark on the On-screen guide (page 15).

The initial settings of the system can be changed according to the environment the system is used in.

Items Contents

MENU LANGUAGE

AUDI O LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Select the language for the DVD VIDEO menu.

Select the audio language for the DVD VIDEO.

Select the subtitle language for the DVD VIDEO.

Select the language displayed on the preference screens.


Items Contents ( : initial setting)

MONITOR TYPE

Select a display method suitable for your TV. 16 : 9/16 : 9 MULTI: Select this when the aspect ratio of your wide TV is fixed to 16:9 (when playing a DVD VIDEO recorded at 4:3, the system automatically adjusts the screen width of the output signal).

4 : 3 LB/ 4 : 3 MULTI LB (Letter Box)

Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the black bars appear on the top and bottom of the screen.

:

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• The top and bottom of the preference screen may not be displayed on a wide TV. Adjust the picture size on the TV.

Basic operations

Press SET UP while the disc is stopped or no disc is loaded (“NO DISC” is displayed).

• The following screen will be displayed on the TV.

ENGLISH

• Proceed with operations by following the description on the TV screen.

LANGUAGE

NOTE

• If the selected language is not recorded on the disc, the optimum language set for the disc will be displayed.

• For a language code such as “AA”, refer to the “Language codes ” (page 38).

4 : 3 PS/ 4 : 3 MULTI PS (Pan Scan):

Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the left and right edges of the picture will not be shown on the screen. (If the disc is not compatible with Pan Scan, the picture will be displayed at the Letter Box ratio.)

• By selecting “MULTI” mode, the color system of the System changes automatically to match that of the loaded disc.

PICTURE SOURCE

SCREEN SAVER

FILE TYPE If there are both MP3/WMA and JPEG files on

Select an item suitable to the video source.

:

AUTO

The video source type (a video or film) is automatically selected.

FILM:

Select this item when you want to view a film or video recorded with the progressive scan method.

VIDEO:

Select this item when you want to view a normal video.

Select the Screen Saver mode between / OFF (Screen Saver activates when there is no operation made for about 5 minutes since a still picture was last displayed).

a disc, you can select which files to play.

:

AUDIO

Select this item when you want to play back MP3/WMA files.

STILL PICTURE:

Select this item when you want to play back JPEG files.

ON

29

Preferences (continued)

AUDIO

Items Contents ( : initial setting)

DIGITAL AUDIO OUTPUT

DOWN MIX

Select an output signal type from the following in accordance with the device connected to the digital audio output terminal (AV amplifier, etc.). (See the list below for the preference items and output signal.)

PCM ONLY:

Device corresponding only to linear PCM.

DOLBY DIGITAL/PCM:

Dolby digital decoder or a device having the same function.

STREAM/PCM

DTS/Dolby digital decoder or a device having the same function.

Switch signal from the digital output terminal of the DVD VIDEO according to the connected device. Select this when DIGITAL AUDIO OUTPUT is set to “PCM ONLY”.

DOLBY SURROUND:

A Dolby Pro Logic decoder-built-in device.

STEREO

An ordinary device.

• When 3D PHONIC is activated, Down Mix does not work.

:

OTHERS

Items Contents ( : initial setting)

RESUME Select /OFF. (page 18)

ON SCREEN GUIDE

PARENTAL LOCK

ON

Select /OFF. (page 15)

ON

Set the Parental Lock function to cut off violent scenes or replace the scenes with others. (This is effective only for discs equipped with the Parental Lock function.)

COUNTRY CODE (page 31):

Select your country.

SET LEVEL:

The restriction is stricter as the number becomes smaller. “NONE” is no restriction.

PASSWORD (essential):

Enter four-digit number as your password using the number buttons (1-9, 0) every time. (Enter “8888” if you forget your password.) The password is required at the time of playback.

• If you enter a wrong password three times, “EXIT” will be automatically selected.

D (Dynamic). RANGE COMPRESSION

To make adjustments for the difference between a high volume and a low volume when playing back with low volume (only for a DVD recorded with Dolby digital).

AUTO

:

D. Range Compression automatically works.

ON:

D. Range Compression always works.

List of relationships of DIGITAL AUDIO OUTPUT preference items and output signal

Playback disc

48 kHz, 16/20/24 bits Linear PCM DVD VIDEO 96 kHz linear PCM DVD VIDEO

48/96/192 kHz, 16/20/24 bits linear PCM DVD AUDIO

44.1/88.2/176.4 kHz, 16/20/24 bits linear PCM DVD AUDIO

DTS DVD VIDEO

DOLBY DIGITAL DVD VIDEO/ DVD AUDIO

CD/VCD/SVCD

DTS CD

MP3/WMA disc

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DTS bit stream 48 kHz, 16 bits stereo linear PCM

DOLBY DIGITAL bit stream

44.1 kHz, 16 bits stereo linear PCM/48kHz, 16 bits linear PCM

DTS bit stream 44.1 kHz, 16 bits linear PCM

32/44.1/48 kHz, 16 bits stereo linear PCM

DIGITAL AUDIO OUTPUT

48 kHz, 16 bits stereo linear PCM

44.1 kHz, 16 bits stereo linear PCM

48 kHz, 16 bits stereo

linear PCM

NOTE

• For a DVD VIDEO: There is a 20 bit or 24 bit output for DVD VIDEO without content protection set.

• For a DVD AUDIO: There is no output for DVD AUDIO with content protection set.

30

Country/Area codes

Advanced operations

AD Andorra AE United Arab Emirates AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles AO Angola AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia AW Aruba

AZ Azerbaijan

BA Bosnia and

Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil BS Bahamas BT Bhutan BV Bouvet Island

BW Botswana

BY Belarus BZ Belize CA Canada

CC Cocos (Keeling)

Islands CF Central African

Republic

CG Congo CH Switzerland

CI Côte d’Ivoire CK Cook Islands CL Chile

CM Cameroon CN China CO Colombia

CR Costa Rica

CU Cuba

CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark

DM Dominica DO Dominican Republic

DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara ER Eritrea

ES Spain ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

(Malvinas)

FM Micronesia

(Federated States of) FO Faroe Islands FR France FX France, Metropolitan GA Gabon GB United Kingdom

GD Grenada

GE Georgia GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia GN Guinea

GP Guadeloupe

GQ Equatorial Guinea

GR Greece GS South Georgia and

the South Sandwich

Islands GT Guatemala

GU Guam GW Guinea-Bissau

GY Guyana HK Hong Kong

HM Heard Island and

McDonald Islands HN Honduras HR Croatia HT Haiti HU Hungary

ID Indonesia IE Ireland

IL Israel IN India IO British Indian Ocean

Territory IQ Iraq IR

Iran (Islamic Republic of) IS Iceland

IT Italy JM Jamaica JO Jordan J P Japan KE Kenya KG Kyrgyzstan KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis KP Korea, Democratic

People’s Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands KZ Kazakhstan LA Lao People’s

Democratic Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho

LT Lithuania LU Luxembourg

LV Latvia LY Libyan Arab

Jamahiriya

MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands

ML Mali MM Myanmar MN Mongolia MO Macau

MP Northern Mariana

Islands

MQ Martinique

MR Mauritania

MS Montserrat

MT Malta MU Mauritius

MV Maldives MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand

OM Oman

PA Panama

PE Peru

PF French Polynesia PG Papua New Guinea PH Philippines

PK Pakistan

PL Poland PM Saint Pierre and

Miquelon

PN Pitcairn

PR Puerto Rico

PT Portugal PW Palau

PY Paraguay QA Qatar

RE Réunion RO Romania RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands SC Seychelles

SD Sudan

SE Sweden SG Singapore SH Saint Helena

SI Slovenia

SJ Svalbard and Jan

Mayen

SK Slovakia

SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname

ST Sao Tome and Principe

SV El Salvador

SY Syrian Arab Republic

SZ Swaziland TC Turks and Caicos

Islands

TD Chad

TF French Southern

Territories TG Togo TH Thailand

TJ Tajikistan

TK Tokelau TM Turkmenistan TN Tunisia TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu TW Taiwan

TZ Tanzania, United

Republic of

UA Ukraine

UG Uganda UM United States Minor

Outlying Islands US United States UY Uruguay UZ Uzbekistan

VA Vatican City State

(Holy See) VC Saint Vincent and the

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.) VN Viet Nam VU Vanuatu WF Wallis and Futuna

Islands

WS Samoa

YE Yemen

YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire

ZW Zimbabwe

31

Listening to a radio broadcast

Selecting a station

1 Press FM or AM. 2 Press 4/¢ to select the

station (frequency).

Automatic tuning:

Hold down 4/¢ until the system starts searching, and then release the button. (The AUTO indicator lights while searching.) When a station of sufficient signal strength is tuned in to, the system stops searching automatically. To stop searching manually, press 4/¢.

Manual tuning:

Each time you press changes.

• When an FM stereo program is received, the ST (Stereo) indicator lights.

4/¢

, the frequency

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

NOTE

If the stereo FM program currently tuned in to is noisy, you can improve the reception by pressing FM MODE to switch to the monaural mode. If you press FM MODE again, or tune in to another station, the receiving mode returns automatically to the stereo mode.

32

Tuning in to a preset station

Listening to radio

3 Select the number you want to

store by pressing number buttons while “MEMORY” is flashing.

• You can also select the number by using the number buttons.

• Refer to “How to use the number buttons” (page 15).

4 Press MEMORY while the

selected number is flashing.

“STORED” appears on the display window and the selected station is stored.

NOTE

• Storing a new station to a used number erases the previously stored station.

• After storing new stations, do not unplug the AC power cord to turn off the system. If you do so, the new preset stations will be cleared.

Presetting stations in the system allows you to easily tune in to a station.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Presetting stations

The system stores up to 30 FM stations and up to 15 AM stations.

1 Select a station you want to

store (page 32 for how to select).

2 Press MEMORY.

“MEMORY” is flashing on the display window for a while.

Tuning in to a preset station

1 Press FM or AM to select either

FM or AM.

2 Press the number buttons to

select the memory number of a station you want to tune in to.

Refer to “How to use the number buttons” (page 15). You can also select by pressing

1/¡.

33

Listening to the sound of other audio device

Connect the other audio device to this system in advance (page 10).

1 Press AUX.

The source changes to AUX.

Setting the Various Timer

Setting the built-in clock

2 Play the other audio device.

For details, refer to the manual of the device connected.

3 Adjust the volume and the

sound quality of the system (page 16).

Without setting the built-in clock, you cannot use any timers.

• To exit from the clock setting, press CLOCK/ TIMER as required.

• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

1 Press CLOCK/TIMER.

SVCDVD-A

• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

2 Press cursor 2/3 to adjust the

hour, then press SET.

3 Press cursor 2/3 to adjust the

minute, then press SET.

Now the built-in clock starts to work.

34

Setting the daily timer

Using the daily timer, you can wake up with your favorite song.

• You can store the three daily timer settings; however, you can activate only one of the daily timer.

• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

Convenient functions

How the daily timer works:

Once the daily timer has been set, the timer indicator and timer number indicator (1/2/3) are lit on the display window. Daily timer turns on the system at the same time everyday until the timer setting is canceled manually or another daily timer is activated.

When the on-time comes:

The system turns on, tunes in to the specified station or start playback the loaded disc with the volume level set to the preset level.

• The timer setting remains in memory until you can change it.

• Without canceling the daily timer, you can change the source or adjust the volume after the daily timer starts playback.

1 Press CLOCK/TIMER repeatedly

to show “DAILY 1.”

• Each time you press the button, the clock setting changes as follows:

Source indication

Clock adjust

ON 18:00

DAILY 3

DAILY 1

ON 6:00

DAILY 2

ON 12:00

2 Press cursor 2/3 to adjust the

hour of the timer-on time, then press SET.

3 Press cursor 2/3 to adjust the

minute of the timer-on time, then press SET.

6 Press cursor 2/3 to adjust the

volume level, then SET.

7 Turn off the system.

To turn off the timer setting

1 Press CLOCK/TIMER repeatedly

to select the timer setting.

2 Press CANCEL to turn off the

selected setting.

• Pressing SET activates the timer setting again.

Auto Standby

If there is no operation for 3 minutes while the disc is stopped, the power will be automatically turned off.

Press A.STANDBY during playback or while the disc is stopped, or no disc is loaded (“NO DISC” appears).

The A.STANDBY indicator lights on the display window on the main unit.

When a stopped state is entered (after playback is finished, for example), the A.STANDBY indicator starts blinking. This means that the power will be turned off automatically if there is no operation for 3 minutes. And 10 seconds before the power is turned off,

A.STANDBY

“

” starts flashing.

4 Repeat Step 2 and 3 to set the

timer-off time.

5 Press cursor 2/3 to select the

playback source, then SET.

• Each time you press the button, the clock setting changes as follows:

AUX

DISC

• When selecting the tuner, press cursor 2/3 to select a preset channel.

• When selecting “DISC”, you can specify the group and track. For the discs other than MP3/WMA, the group selection does not take effect.

TUNER FM

TUNER AM

Releasing Auto Standby

Press A.STANDBY. “A.STANDBY” will be turned off on the display

window on the main unit.

NOTE

When the source is FM, AM or AUX, Auto Standby does not work.

35

Setting the Various Timer (continued) Tray Lock

You can lock the disc tray to prevent the disc from

Sleep Timer

being ejected.

When the time you specify elapses, the system will be turned off by itself.

Press SLEEP.

Each time you press the button, the time indicated on the display window on the main unit changes (in minutes).

Changing the time

Reselect the time by pressing SLEEP repeatedly.

Confirming the time

Press SLEEP once while Sleep Timer is set.

Releasing

Press SLEEP repeatedly until “SLEEP OFF” appears.

NOTE

Sleep Timer will also be released when the power is turned off.

Setting

While the system is turned off, press 0 (open/close)

7

(stop) on the main unit held.

with “LOCKED” appears on the display window on the

main unit.

Releasing

Carry out the same operations as those for setting. “UNLOCKED” appears on the display window on

the main unit.

36

Troubleshooting

Reference

When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center.

Power source

7 Power does not come on.

• The power cord is not connected to the main unit or an AC outlet.

→ Connect the power cord correctly

(page 11).

Operation

7 You cannot operate any button.

• Some specific operations may be inhibited for some discs.

7 The remote control does not work.

• The dry-cell batteries have run out.

→ Replace the batteries (page 6).

7 A disc cannot be played back.

• In the case of DVD VIDEO discs

→ Check the Region Code number of the

discs (page 3).

• “NO PLAY” is displayed on the display window. It is not a disc that can be played on this system.

→ Check the disc type (page 3).

• Parental Lock is set (page 30).

About images

7 No picture appears.

• The video cord is not connected correctly.

→ Page 11

7 The TV screen darkens.

• “SCREEN SAVER” is set.

→ If set, press any button (page 29).

7 The screen cannot be switched.

• The Progressive mode is applied only to component video output.

About sound

7 There is no sound.

• Speakers are not connected correctly.

→ Page 9

• The sound is muted.

→ Page 16

• “NO AUDIO” is displayed on the display window. The disc may have been produced through illegal copying.

→ Confirm at the store where you bought the

disc.

7 The sound is weak compared with TV or Video.

• “DVD LEVEL” is set to “NORMAL”.

→ Set to other than “NORMAL” (page 26).

7 The sound is distorted.

• The volume is turned up too high.

→ Turn down the volume (page 16).

7 No sound comes out of the subwoofer.

• “SUBWOOFER” is turned off.

→ Press S.WFR OUT to turn on (page 10).

About radio

7 The sound is noisy while receiving/Receiving

is disabled.

• The antenna is not connected correctly.

→ Connect the antenna correctly (page 8).

• Both of the component video jack and Svideo jack are connected.

→ Connect either (page 11).

7 The picture is distorted.

• A VCR is connected between the main unit and the TV set.

→ Connect the main unit directly to the TV set

(page 11).

• Although this system is connected to a nonProgressive TV set, DVD’s scan mode is set to “PROGRESSIVE”.

→ Set the scan mode to “INTERLACE”

(page 26).

7 The screen size is abnormal.

• The screen size is set improperly.

→ Set “MONITOR TYPE” according to the TV

set you are using (page 29).

37

Troubleshooting (continued)

Language codes

Reference

Others

7 It is not possible to switch audio or subtitles

between languages.

• The disc does not contain 2 or more languages.

→ If only a single language is recorded on the

disc, switching to another language is impossible (page 24).

7 No subtitle is displayed.

• The disc does not contain any subtitles.

→ A DVD VIDEO without subtitles cannot

display any subtitles.

• The subtitle language is set to “OFF”.

→ Specify a language (page 29).

• Before or after A point or B point in A-B Repeat Playback, no subtitle may be displayed.

7 The disc cannot be ejected.

• Tray Lock is set.

→ page 36

7 “LR ONLY” is displayed on the display window

(for a DVD AUDIO).

• Because, for the track being played back, down mix is inhibited for multi-channel sound, the sound of L and R is output directly (a normal action).

If the system does not work properly despite correction measures above

Many functions of this system are implemented by microcomputers. If pressing any button does not result in the normal action, disconnect the power plug from the outlet, wait for a while, and reconnect the system.

Code

Language

AA Afar MK Macedonian AB Abkhazian ML Malayalam AF Afrikaans MN Mongolian AM Ameharic MO Moldavian AR Arabic MR Marathi AS Assamese MS Malay (MAY) AY Aymara MT Maltese AZ Azerbaijani MY Burmese BA Bashkir NA Nauru BE Byelorussian NE Nepali BG Bulgarian NL Dutch BH Bihari NO Norwegian BI Bislama OC Occitan BN Bengali, Bangla OM (Afan) Oromo BO Tibetan OR Oriya BR Breton PA Panjabi CA Catalan PL Polish CO Corsican PS Pashto, Pushto CS Czech PT Portuguese CY Welsh QU Quechua DA Danish RM Rhaeto-Romance DZ Bhutani RN Kirundi EL Greek RO Rumanian EO Esperanto RU Russian ET Estonian RW Kinyarwanda EU Basque SA Sanskrit FA Persian SD Sindhi FI Finnish SG Sangho FJ Fiji SH Serbo-Croatian FO Faroese SI Singhalese FY Frisian SK Slovak GA Irish SL Slovenian GD Scots Gaelic SM Samoan GL Galician SN Shona GN Guarani SO Somali GU Gujarati SQ Albanian HA Hausa SR Serbian HI Hindi SS Siswati HR Croatian ST Sesotho HU Hungarian SU Sundanese HY Armenian SV Swedish IA Interlingua SW Swahili IE Interlingue TA Tamil IK Inupiak TE Telugu IN Indonesian TG Tajik IS Icelandic TH Thai IW Hebrew TI Tigrinya JI Yiddish TK Turkmen JW Javanese TL Tagalog KA Georgian TN Setswana KK Kazakh TO Tonga KL Greenlandic TR Turkish KM Cambodian TS Tsonga KN Kannada TT Tatar KO Korean (KOR) TW Twi KS Kashmiri UK Ukrainian KU Kurdish UR Urdu KY Kirghiz UZ Uzbek LA Latin VI Vietnamese LN Lingala VO Volapuk LO Laothian WO Wolof LT Lithuanian XH Xhosa LV Latvian, Lettish YO Yoruba MG Malagasy ZU Zulu MI Maori

Code

Language

38

Specifications

Reference

General

Power source: AC 110-240 V , 50/60 Hz Power consumption: 25 W (in operation)

1.3 W (on standby) Weight: 2.7 kg External dimensions (W x H x D): 150 mm x 152 mm x 246 mm

DVD player

Playable discs: DVD VIDEO, DVD AUDIO, VCD,

SVCD, CD, CD-R/RW (CD, VCD, MP3, WMA, JPEG format), DVD-R/RW (video format)

Video output

Color system: PAL/NTSC Horizontal resolution: 500 lines Composite x1: 1.0 V (p-p)/75

synchronization negative

S-video x1: Y output: 1.0 V (p-p)/75

synchronization negative C output: For PAL 0.3 V (p-p)/75 Ω For NTSC 0.286 V (p-p)/75 Ω

Component x1: Y output: 1.0 V (p-p)/75 Ω

PB/PR output: 0.7 V (p-p)/75 Ω

Ω,

Audio output

Analog sound output:

Speakers x2

Output power: 18 W per channel, min.

RMS, at 4 Ω at 1 kHz with no more than 10% total harmonic distortion

Fitting impedance: 4

Headphones x1: 11 mW/32 Ω

Fitting impedance: 16 Ω to 1 kΩ

Subwoofer x1: 500 mVrms/10 kΩ

Digital sound output:

Optical x1: –21 dBm to –15 dBm

Ω to 16 Ω

Audio input

Sound input: AUX x1

400 mV/50 k

Ω

Tuner

FM tuner:

Receiving frequency: 87.5 MHz to 108.0 MHz Antenna: 75

AM tuner:

Receiving frequency: 530 kHz to 1 710 kHz

Antenna: External antenna jack (loop

Ω- Unbalanced type

(at 10 kHz interval spacing) 531 kHz to 1 710 kHz (at 9 kHz interval spacing)

antenna)

Speaker

Type: Full range

1-way bass-reflex type

Magnetically shielded type Speaker: 8 cm cone Frequency response: 60 to 20 000 Hz Power handling capacity: 20 W Impedance: 4 Sound pressure level: 81 dB/W m Dimension (WxHxD): 120 mmx150 mmx188 mm Weight (1 unit): 1.5 kg

Ω

x

1

•

Designs and Specifications are subject to change without notice.

39

FS-Y1 COMPACTT COMPONENT SYSTEM

EN

c

2005 Victor Company of Japan, Limited

0405AIMMDWJEM

COMPACT COMPONENT SYSTEM

FS-Y1

Consists of CA-FSY1 and SP-FSY1

CA-FSY1 SP-FSY1

English

INSTRUCTIONS

GVT0142-003A

[US, UB]

Warnings, cautions and others

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION — STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). The STANDBY/ON not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp lights green.

The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

button in any position does

G-1

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

G-2

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front:No obstructions and open spacing.

2. Sides/Top/Back:No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom:Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view Side view

Wall or obstructions Wall or obstructions

1 cm

15 cm 15 cm

1 cm

CA-FSY1 CA-FSY1

10 cm

15 cm

G-3

Table of contents

Introduction

About discs......................................................3

Description of parts .........................................5

Getting started

Using the remote control .................................6

Putting the batteries in the remote control .......... 6

Operating the TV using the remote control......... 7

Connecting up .................................................8

Selecting an AM interval spacing...................... 11

Changing the color system ............................... 11

Basic operations

Playing discs .................................................12

Playback ........................................................... 12

To switch the display ........................................ 13

Select what you want to play by using

the number buttons.................................... 14

To stop playback............................................... 14

To pause playback............................................ 14

To advance picture frame-by-frame.................. 14

Fast reverse/Fast forward search ..................... 14

Playing back from a position 10 seconds

before (One Touch Replay) ....................... 15

Slow Motion Playback....................................... 15

Skip to the beginning of the selection ............... 15

To change the brightness of

the display window (DIMMER) .................. 16

Adjusting the volume ........................................ 16

Adjusting sound quality..................................... 16

Turning off the sound temporarily (MUTING) ... 16

Functions specific to DVD AUDIO.................27

Playing the Bonus Group...................................27

Browsable Still Pictures (B.S.P.) .......................27

Using the menu bar .......................................28

Preferences................................................... 29

Country/Area codes.......................................31

Listening to radio

Listening to a radio broadcast .......................32

Tuning in to a preset station .......................... 33

Convenient functions

Listening to the sound of other audio device

Setting the Various Timer..............................34

Setting the built-in clock.....................................34

Setting the daily timer ........................................34

Auto Standby .....................................................35

Sleep Timer .......................................................36

Tray Lock.......................................................36

....34

Reference

Troubleshooting.............................................37

Language codes............................................38

Specifications ................................................39

English

Advanced operations

Playing audio/video files................................16

Resume Playback .........................................18

Select the scene to be played .......................19

Program Playback/Random Playback...........20

Repeat Playback ...........................................22

Other convenient functions............................24

Selecting the subtitles....................................... 24

Selecting the audio language ........................... 24

Selecting a view angle...................................... 24

Enlarging the picture (ZOOM)........................... 25

Adjusting the picture quality (VFP) ................... 25

Creating realistic sound (3D PHONIC)............. 26

Adjusting playback level (DVD LEVEL) ............ 26

Enjoying better pictures (SCAN MODE) ........... 26

How to read this manual

• Operations are described by mainly using the remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.

• The following marks tell you for which type of the discs the operation can be made.

• The illustrations and TV screens may be different between the actual case and the description.

• “VCD” is an abbreviation of “Video CD”.

• “SVCD” is an abbreviation of “Super Video CD”.

1

Special cautions

Notes on handling

English

7 Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands.

• A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Label sticker

Sticker

Paste

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

7 When condensation or water drops adhere to the

lens

In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:

• Immediately after starting to heat the room

• When the system is installed in a steamy or damp space

• When the system is suddenly moved from a cold place to a warm space

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Supplied accessories

Check to be sure you have all of the supplied accessories.

The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

• Remote control (1)

• Batteries (2)

Note about copyright laws

Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs. Recording of copyrighted material may infringe copyright laws.

Note about copy guard system

DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• AC plug Adaptor (1) (except for Hong Kong)

• Composite video cord (1)

• Speaker cords (2)

7 Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are registered trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

2

About discs

Playable disc types

This system has been designed to play back the following discs:

DVD V IDEO, DVD AUDIO, VC D, SVCD, C D This system can also play back the following discs:

• Finalized DVD-R/-RW discs recorded in the DVD VIDEO format.

• CD-R/RW discs recorded in the following formats

• Music CDs (finalized discs)

• VCDs

• SVCDs

• MP3/WMA/JPEG discs recorded in ISO 9660 (for

details, refer to “Notes on CD-R and CD-RW ”)

However, some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them. Only sounds can be played back from the following discs:

MIX-MODE CD CD-G CD-EXTRA CD TEXT

Discs you can play:

Disc

Type

Mark (Logo)

DVD

VIDEO

DVD

AUDIO

VCD

SVCD

CD —

CD-R —

CD-RW —

Video

Format

PA L/

NTSC

—

PA L/

NTSC

PA L/

NTSC

Introduction

* Note on Region Code

DVD players and DVD VIDEOs have their own Region Code numbers. This system can only play back a DVD VIDEO recorded with the Region Code number and video format mentioned below. For your available Region Code, check the rear panel of your main unit. This System can play back only DVD VIDEOs whose Region Code numbers include “3”.

Examples:

If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.

• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Notes on DVD-R, DVD-RW

• This system can also play finalized DVD-Rs or DVDRWs recorded in DVD-Video format.

Notes on CD-R and CD-RW

• This system can also play CD-Rs or CD-RWs if MP3, WMA, and JPEG files are recorded on them with ISO 9660 format.

• This system supports “multi-session” discs (up to 20 sessions).

• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Discs that cannot be played back

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD-R/-RW (recorded in VR

format), CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc.

Playing back these discs will generate noise and damage the speakers.

Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back.

Caution for DualDisc playback

The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

English

is a trademark of DVD Format/Logo

licensing Corporation.

3

About discs (continued)

Notes on all files

• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;

English

• MP3: “.MP3”, “.mp3”

• WMA: “.WMA” , “.wma”

• JPEG: “.JPG”, “.JPEG”, “.jpg”, “.jpeg”

• If a character other than single byte English characters is used in the file name of an MP3/WMA/JPEG file, the track/file name will not be displayed correctly.

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 1 000.

• Some files may not be played back normally because of their disc characteristics or recording conditions.

For MP3/WMA files

• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.

• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.

• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.

• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.

• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)

For JPEG files

• We recommend to record a file at 640 x 480 resolution.

• This system can play a baseline JPEG file, excluding monochromatic JPEG files.

• This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).

• If data has been processed, edited and restored with PC image editing software, the data may not be displayed.

• This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.

• An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.

Disc structure

DVD VIDEO

A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

DVD AUDIO

A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. Some discs include a “bonus group” that requires a password for playing (page 27).

Group 1 Group 2

Track 1 Track 2 Track 3 Track 1 Track 2

VCD/SVCD/CD

VCD, SVCD and CD consist of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)

Track 1 Track 2 Track 3 Track 4 Track 5

MP3/WMA [JPEG] discs

On an MP3/WMA [JPEG] disc, each still picture (material) is recorded as a track [file]. Tracks [Files] are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.

This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.

Group 1 Group 2

4

Track 1

[File 1]

Track 2

[File 2]

Group 3 Group 4 Group 5

This product can recognize up to 1 000 tracks [files] in a disc. Also, the product can recognize up to 150 tracks [files] per group and up to 99 groups in a disc. Since the unit ignores the tracks [files] whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.

• If there is any type of files other than MP3/WMA [JPEG] files in a folder, those files are also counted in the total file number.

Description of parts

The numbers represent the page numbers.

Introduction

Front panel

See “Display window” below.

16 16

16

32

12 11

In the door

PHONES

15 14

12

* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the

speakers and subwoofer will not produce any sound.

Top of the unit

DIMMER 3D PHONICBASS/TREBLE

A M A UXF M

MULTI CONTROL UPDOWN

PLAY

PAUSE

Display window

13

18 26 27 27 13

English

26

34

15

14

PRGM. ALL SLEEP 3D PHONICA. STANDBYA-B 12 31RANDOM

Rear panel

20

RESUME

BONUS B.S.P.ST AU TOPROGRESSIVESVCDVD-A

21 17, 22 35 36 35 32 26

8

10

8

10

11

AUX

R

AM EXT AM LOOP

L

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

SUB-

WOOFER

OUT

ANTENNA

RL

FM75

Ω

COAXIAL

COMPONENT

YPBP

SPEAKERS

VIDEO

R

VIDEO OUT

CAUTION:

SPEAKER IMPEDANCE

4Ω-16Ω

S-VIDEO

9

11

11 11

These holes discharge heat generated inside the unit.

Do not cover up these holes.

5

Using the remote control

The numbers represent the page numbers.

English

26

7

13, 16 12

Putting the batteries in the remote control

32

15, 17

15, 32

14

19

19, 28

29 24

24 27 34

34, 35

35 36 35

16

20 16

7

12

34

16

15

16 7, 13,

7

14, 16 16

15, 32

12, 17

14

Batteries

19

28 24

25

11, 25, 26

13

26

7, 15

33 22 10 32

23

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.

6

CAUTION

•Do

not use a used battery and a new battery

together.

• Do not use different types of batteries at the same time.

• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.

Remote control operation

When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.

If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.

Introduction

Getting started

This page is for when operating your TV using the remote control of this product.

Operating the TV using the remote control

4 Press number buttons (1-9, 0).

Ex.:

For a Hitachi TV: Press 1, then 0. For a Toshiba TV: Press 0, then 8.

If there are more than one manufacturer’s codes, try them in turn and select the one that causes the product to work properly.

Manufacturer Code Manufacturer Code

JVC 01 Samsung 12

Hitachi 10 Sanyo 13

Magnavox 02 Sharp 06

Mitsubishi 03 Sony 07

Panasonic 04, 11 Toshiba 08

RCA 05 Zenith 09

NOTE

Manufacturer’s codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.

English

Setting the manufacturer's code

1 Slide the remote control mode

selector to the TV side.

2 Keep pressing down TV.

NOTE

Keep pressing down TV until Step 4 is complete.

5 Release TV.

For TV operation

Operate the remote control by pointing it towards the TV.

Turn ON/OFF the power.

Change channels.

Adjust volume.

9

100+

Alternates between the previously selected channel and the current channel.

Switch TV and video input.

Select channels.

*1

3 Press ENTER.

*1 Make sure to slide the remote control mode

selector to the TV side in advance.

NOTE

When the batteries are replaced, perform the manufacturer's code setting again.

7

C

)

Connecting up

–

Do not turn on the power until the connection is complete

Connecting antennas

English

onnecting AM loop antenna (supplied

–

Connection

Connecting FM antenna (supplied)

1 Set up the AM loop antenna.

Main unit

(rear panel)

FM antenna

FM75Ω

COAXIAL

Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.

2 Connect antenna cords.

Main unit

(rear panel)

AM EXT AM LOOP

How to insert antenna cords

Connect two antenna cords as described above.

If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.

7 When good radio reception cannot be

obtained with the supplied antenna or when using a communal antenna

3 Turn the AM loop antenna to the direction of the

best radio reception. Locate the AM loop antenna as far away from the main unit as possible.

• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.

7 When good radio reception cannot be

obtained with the supplied AM loop antenna

Electric wire: 3 - 5 m (commercially available)

Electric wire

Twist

AM loop antenna

AM EXT AM LOOP

Main unit

(rear panel)

Put up an electric wire extending horizontally, preferably at a high place such as above a window or outdoors.

Connect the AM loop antenna cords together.

Communal antenna terminal

Outdoor FM antenna (commercially available)

Coaxial cable (commercially available)

Main unit

(rear panel)

FM75Ω

COAXIAL

Antenna cord (not supplied)

or

Converter (sold separately: compatible with 300 Ω/ 75 Ω)

Depending on the radio reception conditions, an FM feeder antenna (sold separately: compatible with 300 Ω) can be used. In the case, a converter (not supplied) is required.

For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.

When positioning the antenna, listen to an actual radio program (refer to “Listening to a radio broadcast” on page 32).

8

Connecting up Connection

Getting started

Connecting speakers

There is no difference between the left and right speakers.

Speaker terminal

Speaker cord

Without

black line

With black

line

Right speaker

(rear panel)

(supplied)

SPEAKERS

RL

Main unit

(rear panel)

Speaker cord (supplied)

Left speaker

(rear panel)

English

Without black line

With black line

CAUTION

• DO NOT connect more than one speaker to one speaker terminal.

• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.

1. Turn off the main power of your TV before

installing the speakers. Wait for about 30 minutes before turning on the TV again.

2. If color irregularity occurs in pictures, keep a

distance of more than 10 cm between the TV and the speakers.

Speaker grille can be detached.

Speaker grille

NOTE

• Impedance of speaker that can be connected to the main unit is within a range of 4 Ω to 16 Ω.

• In order to have a sufficient cooling effect, leave a space of more than 1 cm between the main unit and the speakers or other objects.

9

Connecting up Connection

(continued) – Do not turn on the power until the connection is complete –

Connecting other devices

English

This page is for when connecting the main unit with other devices.

Connecting subwoofer

With an amplifier-built in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.

Amplifier-built-in subwoofer (not supplied)

Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.)

Main unit

SUB-

WOOFER

OUT

When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display “SUBWOOFER” on the display window on the main unit. Each time you press the button, the display toggles between “SUBWOOFER” and “OFF”.

Connecting with other audio device

Output

WhiteRed

Other audio device

Audio cord (not supplied)

NOTE

When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.

Connecting with a digital device

Input

Output

Main unit

Digital device (MD recorder etc.)

To digital input terminal

Optical digital cord (not supplied)

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

Input

AUX

L

Main unit

R

10

CAUTION

• For details of signals to be output, refer to page

30.

• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in “D. RANGE COMPRESSION” of “AUDIO” (page 30) will be invalid regarding sound from the digital audio output of the main unit.

Connecting up Connection

Getting started

Connecting with TV

TV (or monitor)

TV

Supplied composite video cord

Main unit

COMPONENT

YPB PR

VIDEO

VIDEO OUT

S-VIDEO

CAUTION

Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing.

Main unit

Connecting directly

Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.

You can enjoy pictures of better quality using the following cord instead of the supplied video cord.

Connecting by using the component video cord

You can enjoy better quality pictures than when using the S-Video cord.

Component video cord

Red

(not supplied)

NOTE

• In order to enjoy pictures with Progressive mode (page 26), the TV is required to have Progressive video input.

• If the component video input jacks of your TV are BNC type, use a plug adapter (not supplied) to convert the plugs.

Connecting the power cord

AC outlet

Supplied power cord

Main unit

• Connect the power cord after all other connections are complete.

• The standby lamp (on the front panel) will be lit.

Selecting an AM interval spacing

You can change the AM interval spacing.

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing.

• Before doing the following procedure, select AM as source, then turn off the unit.

• Use the buttons on the main unit.

To set the AM tuner to the 10 kHz spacing:

English

Blue

Green

COMPONENT

YPB PR

VIDEO OUT

Main unit

VIDEO

Connecting by using the S-Video cord

Main unit

COMPONENT

YPB PR

VIDEO

VIDEO OUT

CAUTION

Use one of either the S-Video cord or the component video cord. If both cords are used, pictures may not be played properly.

S-Video cord (not supplied)

S-VIDEO

TV

While holding ¢, press STANDBY/ON .

To set the AM tuner to the 9 kHz spacing:

While holding 4, press STANDBY/ON .

S-VIDEO

Changing the color system

You can select the video output to match it to the color system of your TV (PAL or NTSC).

1 Press and hold VFP for 4 seconds while the

system is turned off (on standby).

2 Press cursor 2/3 to select the video output. 3 Press ENTER to set the video output.

11

Playing discs

Playback

English

(Refer to page 17 for playing MP3/WMA and JPEG.)

page 5

Press AUDIO.

1

• The power will be turned on and the STANDBY lamp will go off.

• Press AUDIO again to turn off the power.

Press 0OPEN/CLOSE to open the disc

2

Place a disc with the label side facing up.

• Place an 8 cm disc in to the

hollow part in the cen

tray to load a disc.

ter.

Press DVD/CD 3.

3

The disc tray will close and playback will start.

• The power will be turned on when any of PLAY

3, FM, AM, AUX, or 0 on the main unit and DVD/CD

on the remote control is pressed while the power is off. If any button other than 0 or 0OPEN/CLOSE is pressed, the source will also be changed (if there is a disc loaded, playback will start).

3, FM, AM, AUX, or 0OPEN/CLOSE

Screens displayed on the TV when the power is turned ON.

The following messages appear depending on the status of the system. (When FM, AM or AUX is selected as a source, the messages do not appear.)

NOW READING

REGION CODE ERROR!

NO DISC

OPEN

CLOSE

CANNOT PLAY THIS DISC

Appears when the system is reading the disc information. Wait for a while.

Appears when the Region Code of the DVD VIDEO does not match the code the system supports. (page 3)

Appears when no disc is loaded.

Appears when opening the disc tray.

Appears when closing the disc tray.

Appears when trying to play back an unplayable disc.

NOTE

• A menu screen may be displayed on the TV after starting playback of a DVD/VCD/SVCD. In this case, select a desired item to playback by using the following buttons on the remote control.

• Select a desired item using cursor

and press

• Select a desired item using the number buttons.

• Depending on the disc, actual operation may be different from the description.

ENTER.

5/ 3/ ∞/ 2

12

Ex.: When a CD is played

Basic operations

Display window during disc playback

Ex.:

When a DVD VIDEO is played

SVCDVD-A

Disc type

Chapter number

Ex.:

When a DVD AUDIO is played

SVCDVD-A

Elapsed playing time

SVCDVD-A

Track number

Ex.: When an MP3/WMA file is played

SVCDVD-A

Track number

To switch the display

Press DISPLAY. Each time you press the button, the display

indication changes temporarily as follows:

• For DVD VIDEO

SVCDVD-A

Title number

Chapter number

English

Track number

If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27.

Ex.:

When an SVCD or VCD is played

S VCDVD-A

Track number

• When playing an SVCD, the SVCD indicator lights instead of the VCD indicator.

• PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. It is possible to enjoy interactive software or software with a search function using a menu screen recorded in a PBC compatible VCD. To play a disc with the PBC function OFF, carry out the following operations.

• Designate the track number using the number

buttons while the disc is stopped.

• Designate the track number using ¢ while

the disc is stopped, and then press DVD/CD

3

• Press RETURN to go back to the upper layer during the PBC playback of a VCD or SVCD.

• For DVD AUDIO

SVCDVD-A

Group number

Track number

• For MP3/WMA

SVCDVD-A

Group number

Track number

• For SVCD/VCD/CD The clock time indication appears on the display window.

• Before setting the clock (page 34), “0:00”

appears.

• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.

.

13

Playing discs (continued)

English

Designate the chapter number or track number to play during playback.

• Refer to “How to use the number buttons” on page 15.

To stop playback

Press 7 during playback.

To pause playback

Press 8 during playback.

To start normal playback again, press DVD/CD 3.

• For JPEG slide-show, pressing DVD/CD 3 starts playback from the next file.

Select what you want to play by using the number buttons

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function.

• For a DVD AUDIO, CD, MP3/WMA or JPEG, this operation can also be carried out when the disc is stopped.

• This operation may not be carried out for some discs.

To advance picture frame-by-frame

Press 8 during pause.

• Each time you press the button, picture will be advanced frame-by-frame.

Fast reverse/Fast forward search

Press 1 or ¡ during playback.

• Each time you press the button, the speed increases ( the normal speed, press DVD/CD 3.

NOTE

• Fast reverse/Fast forward search cannot be carried out for MP3, WMA, and JPEG.

• For a DVD VIDEO, VCD or SVCD, no sound comes out during Fast reverse/Fast forward search.

• For a CD or DVD AUDIO, sound is intermittent during Fast reverse/Fast forward search.

×2, ×5, ×10, ×20, ×60). To restore

14

Basic operations

Playing back from a position 10 seconds before (One Touch Replay)

Press during playback.

NOTE

• This operation may not be carried out for some discs.

• It is not possible to go back to the previous title.

Slow Motion Playback

Press SLOW or SLOW during pause.

• Each time you press the button, the playback

×

speed increases (

×

1/2).

•Press

NOTE

• No sound will be produced.

• The picture motion in the reverse direction may not

• For a VCD or SVCD, Slow Motion Playback can be

DVD/CD

be smooth.

carried out in the forward direction only.

1/32, ×1/16, ×1/8, ×1/4,

3 to start normal playback again.

Skip to the beginning of the selection

English

Press 4 or ¢ during playback*.

• Press ¢ to skip the next chapter or track.

• Press 4 once to skip back to the beginning of

the chapter or track currently being played (except for JPEG).

•Press GROUP/TITLE or to select the title or group.

• During playback of a JPEG disc, press ¢ or cursor ∞ to play the next file, or press 4 or cursor 5 to play the previous file.

NOTE

* For a VCD or SVCD, this operation can be carried

out during playback without the PBC function.

• Except for a DVD VIDEO, this operation can also be carried out while the disc is stopped.

• This operation may not be carried out for some discs.

How to use the number buttons

Ex.:

5: 20:

15: 25:

Guide icons displayed on the TV screen (On-screen guide)

: Play

: Pause

: Fast reverse/Fast forward search

: Slow Motion Playback (reverse/

forward directions)

: Containing multi-angle views (page 24)

: Containing multi-audio languages (page 24)

: Containing multi-subtitle languages (page 24)

: The disc cannot accept the operation you

have attempted.

15

Playing discs (continued)

To change the brightness of the display

English

window (DIMMER)

Press DIMMER repeatedly.

• Each time you press the button, the dimmer mode changes as follows:

Playing audio/video files

AUTO DIMMER

DIMMER ON

DISPLAY OFF

DISPLAY ON

• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.

The items above can be carried out for all sources.

: During the video source playback, the display window dims and the illumination automatically turns off.

: The display window and the

illumination dim.

: The display window and the

illumination turn off.

: Cancels the dimmer function.

Adjusting the volume

Press AUDIO VOL +/–.

NOTE

The volume can be also adjusted by turning the VOLUME control on the main unit.

Adjusting sound quality

Bass: Press BASS +/–. Treble: Press TREBLE +/–.

• Adjustable range: –5 to +5

Turning off the sound temporarily (MUTING)

Press MUTING.

• No sound will come out from the speakers, headphones and the subwoofer.

• Press MUTING again to restore the sound. When the power is turned off once and turned on again, the sound will be restored.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

16

Playback

Display of an MP3/WMA disc is described here as an example. For a JPEG disc, read “track” as “file”.

NOTE

When playing a disc containing both MP3/WMA and JPEG files, set one of them to be played, then turn on the system again (page 29).

1 Load a disc.

Current group /total group number

Tag information (for MP3/WMA)

Playback mode (PROGRAM, RANDOM, REPEAT)

Elapsed playing time of current track (for MP3/ WMA)

Advanced operations

5 Press DVD/CD 3 or ENTER.

NOTE

• GROUP/TITLE can also be used in Step 2.

• The number buttons can also be used in Step this case, Step number buttons, refer to page 15).

• 4 or

¢ can also be used in Step 4. In this case,

5 is not needed.

Step

5 is not needed. (For how to use the

4. In

Repeat playback

1 Press REPEAT.

• Each time you press the button, the Repeat mode and its indication change as follows:

Repeat items On the TV On the display

Current track (MP3/WMA only)

REPEAT TRACK

window

English

Current group

Current track (file) / total track (file) number on current group

Current track

(file)

Total track (file) number on disc

Playback status

2 Press cursor 5/∞ to select a

group.

3 Press cursor 3 to move to the

track list.

• Press cursor 2 to go back to the group list.

Current group REPEAT

Entire disc REPEAT

Cancel No indication

Current track during Program/ Random play (MP3/WMA only)

All tracks during Program/Random play (MP3/WMA only)

GROUP

ALL

REPEAT STEP

REPEAT ALL

2 Press DVD/CD 3.

NOTE

• The Repeat types can be changed during playback.

• The Repeat mode will be automatically canceled if there is a file that cannot be played (page 3).

4 Press cursor 5/∞ to select a

track.

Slide-Show Playback

• In Step 5, for a JPEG disc, when DVD/CD 3 is pressed, files will be continuously played from the

selected file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.

• Display time for a file in Slide-Show Playback is about 3 seconds.

• When all files are played through, the playback will be automatically stopped.

17

Resume Playback

English

This system can store the stop point, and when you start playback again by pressing DVD/CD (even while on standby), it starts from the position where you have stopped—Resume Play. The RESUME indicator lights on the display window when you stop playback.

3

How to suspend playback

Perform any of the following operations during playback.

Press 7 once.*

Press AUDIO to turn off the power.

Change the source to FM, AM or AUX.*

* Even if the power is turned off by pressing

AUDIO after this, the position where playback has been stopped will be stored.

NOTE

Set the remote control mode selector to

AUDIO before using the number buttons.

To start playback from the stored position

Press DVD/CD 3.

NOTE

• This function does not work in Program Playback or Random Playback.

• The position where playback starts again may be a little different from the stopped position.

• When a disc menu is displayed, the Resume function may not work.

• The audio language, the subtitle language and the angle at that time are stored as well as the stopped position.

• The stored position will be cleared if the disc tray is opened. Further, if 7 is pressed during playback, “RESUME” will be displayed. If 7 is pressed again, the stored information will be cleared.

• At the time of purchase, Resume is set to ON. Resume can be set to OFF (page 30).

18

Select the scene to be played

Advanced operations

NOTE

*1For a VCD and SVCD, this operation can be carried

out only when the PBC function is off.

• This operation cannot be carried out for a disc without a menu screen.

• Playback may start for some discs without pressing ENTER.

Designate the time (Time search)

1 Press ON SCREEN twice during

*2

playback

The menu bar will be displayed (page 28).

.

2 Press cursor 2 /3 to select

.

English

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Select the scene from the menu

1 Press MENU or TOP MENU

while the disc is stopped or during playback*1.

• The disc menu screen will be displayed.

•Only TOP MENU can be used for DVD AUDIOs.

2 Press cursor 5/3/∞/2 (only

for a DVD VIDEO or DVD AUDIO) or the number buttons to select the scene to be played.

• Refer to “How to use the number buttons” (page 15).

• When the menu screen has a couple of pages, press page (only for a VCD and SVCD).

4 or ¢ to change the

3 Press ENTER. 4 Input the time

number buttons (1-9, 0).

Ex.: When you want to play a DVD VIDEO

from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the order:

• If you input wrong numbers, press cursor to delete the numbers and re-input.

*3

using the

2

3

4

5

2

5 Press ENTER.

To delete the menu bar, press ON SCREEN.

NOTE

• This function does not work for a DVD VIDEO with no time information recorded.

• This function does not work during Program or Random Playback.

2

For a VCD and an SVCD, the operation can be

*

carried out when the disc is stopped or during playback without the PBC function.

3

Time search for a DVD VIDEO is from the beginning

*

of the title, for a DVD AUDIO from the beginning of the track being played. Time search for a VCD, an SVCD and a CD is as follows:

• When the disc is stopped, time search is from the

beginning of the disc.

• When the disc is being played, time search is

within the track currently being played.

3 Press ENTER.

19

Program Playback/Random Playback

English

Play the disc in the desired order (Program Playback)

It is possible to program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.

1 While the disc is stopped, press

PLAY MODE repeatedly to display “PROGRAM” on the display window on the main unit.

TV screen

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Program screen

2 Create a program following the

description on the TV screen.

Refer to “How to use the number buttons” (page 15).

• The input content varies depending on the disc type.

• DVD VIDEO: Titles and chapters

• VCD, SVCD, CD: Tracks

• DVD AUDIO, MP3/WMA:

Groups and tracks

• To select a DVD AUDIO bonus group, carry out the operations of “Playing the Bonus Group” on page 27 in advance to erase the display “BONUS”.

• If the input number of chapters or tracks is greater than 99, “MEM FULL” will be displayed.

• In the case of a VCD, SVCD or CD, when the total playback time reaches 9 hours 59 minutes 59 seconds, “--:--” will be displayed on the display window (it is possible to continue programming).

20

To program on the display window on the main unit, operate as follows:

(1) Select a title/group using the number

buttons.

(2) Designate a chapter/track number using the

number buttons.

• Refer to “How to use the number buttons” (page 15).

• The program number will be displayed on the lower display window (Ex.: “P2”).

(3) Repeat the above operations (1) and (2) to

complete the program. Then, advance to

3.

Step

Advanced operations

Playing the disc in a random order (Random Playback)

1 Press PLAY MODE repeatedly

to display “RANDOM” on the display window on the main unit while the disc is stopped.

• “RANDOM” will also be displayed on the TV screen.

English

NOTE

• The group/title number flashes on the display window after making each program step.

• Only for a DVD VIDEO, DVD AUDIO, VCD, or an MP3/WMA: If you press ENTER instead of designating a track/chapter number, displayed and all of the tracks/chapters in the selected group/title are programmed.

“ALL” is

3 Press DVD/CD 3.

• To resume normal playback, press PLAY MODE repeatedly to show the playback

indication on the display window on the main unit while the disc is stopped. The program content will not be erased.

• The following operations erase the program content:

• Press CANCEL repeatedly (Programs

will be erased one by one)

• Press

• Open the disc tray

• Turn off the power

7 while the disc is stopped

2 Press DVD/CD 3.

• The same chapter or track will not be played twice.

• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped.

• Random Playback will also be canceled by carrying out the following operations:

• Open the disc tray

• Turn off the power

• The previous track will not be returned to even if Random Playback (the beginning of the current chapter or track will be returned to).

4 is pressed repeatedly during

21

Repeat Playback

Refer to page 17 for Repeat Playback of MP3 and JPEG files.

English

Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT)

For DVD AUDIO

Repeat items On the TV On the display

Current track

Current group

Cancel

TRACK

GROUP

OFF

window

For CD/VCD/SVCD

Repeat items On the TV On the display

Current track

All tracks

Cancel

TRACK

ALL

OFF

window

NOTE

• For a VCD and SVCD, the operation can be carried out only when the disc is stopped or during playback without the PBC function.

• It is possible to set Repeat mode on the menu bar. For how to operate, refer to “Playing the designated part repeatedly (A-B Repeat Playback)”(page 23).

• For a DVD VIDEO and DVD AUDIO, if the source is switched to FM, AM or AUX, the Repeat mode will be canceled.

Press REPEAT during playback.

• Each time you press the button, the Repeat mode and its indication change as follows:

For DVD VIDEO

Repeat items On the TV On the display

Current chapter

Current title

Cancel

CHAP

TITLE

OFF

window

Repeat Playback during Program or Random Playback

Repeat items On the TV On the display

Current chapter/ track

All tracks during Program/Random play

Cancel

STEP

or REPEAT STEP

ALL

or REPEAT ALL

OFF

or no indication

window

22

Playing the designated part repeatedly (A-B Repeat Playback)

1 Press ON SCREEN twice during

playback.

The menu bar (page 28) will be displayed.

2 Press cursor2/3 to select

OFF

.

3 Press ENTER. 4 Press cursor5/∞ to display

OFF

A B

Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”

.

(page 22).

Advanced operations

English

5 Press ENTER at the start point

of the part to be repeated (designating A point).

• The icon on the menu bar will be .

A-

6 Press ENTER at the end point of

the part to be repeated (designating B point).

• The icon on the menu bar will be and the part between A and B points will be played repeatedly.

• A-B Repeat Playback will be canceled by carrying out the following operations:

• Press

• Select and press ENTER twice.

NOTE

• A-B Repeat Playback is possible only within the same title or track. A-B Repeat Playback cannot be carried out during PBC playback, Program Playback, Random Playback and Repeat Playback.

• You can do the A-B Repeat Playback using the REPEAT A-B button on the remote control.

7.

A-B

23

Other convenient functions

English

Selecting the audio language

1 Press AUDIO during playback of

a disc containing several audio languages.

Selecting the subtitles

(only for moving image)

1 Press SUBTITLE during

playback of a disc containing subtitles in several languages.

Ex.:

• Each time you press the button, the subtitle will be alternated between ON and OFF.

TV screen

2 Press cursor 5/∞ to select a

subtitle language.

• For a language code such as “AA”, refer to “Language codes” (page 38).

• The manner of displaying subtitle languages may be different depending on the disc.

3 Wait for a few seconds or press

ENTER to go off the window.

Ex.:

• Each time you press the button, the audio language will be alternated. Also, the audio language can be changed by pressing

5/∞.

cursor

• For a language code such as “AA”, refer to “Language codes” (page 38).

• “ST”, “L” and “R” displayed when playing a VCD or SVCD respectively represent “Stereo”, “Left sound” and “Right sound”.

TV screen

2 Wait for a few seconds or press

ENTER to go off the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Selecting a view angle

(only for moving image)

1 Press ANGLE during playback

of a scene containing multi-view angles.

Ex.:

TV screen

NOTE

• It is also possible to operate by using the menu bar (page 28).

• For an SVCD, each time you press SUBTITLE in Step 1, the subtitle type and OFF will be alternated.

24

• Each time you press the button, the angle will be alternated. Also, the angle can be changed by pressing cursor

5/∞.

2 Wait for a few seconds or press

ENTER to go off the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Enlarging the picture (ZOOM)

(only for moving image)

1 Press ZOOM during playback or

while paused.

• Each time you press the button, the picture magnification will be changed.

• (For a JPEG) You cannot change the picture magnification during slide-show playback.

2 Select the portion you want to

see by using cursor 3/5/2/∞.

• To resume normal playback, select “ZOOM OFF” in Step

1.

Advanced operations

2 Press cursor 2/3 to select VFP

mode.

• It is recommended to select “NORMAL” usually, or “CINEMA” in a dark room. When either “NORMAL” or “CINEMA” is selected, go to Step

• When either “USER 1” or “USER 2” is selected, the adjustment can be carried out in detail in the operations after Step

7.

3.

3 Press cursor 5/∞ to select an

item to be adjusted.

4 Press ENTER.

Ex.:

GAMMA

TV screen

5 Press cursor 5/∞ to change the

value.

English

Adjusting the picture quality (VFP)

1 Press VFP during playback or

while paused.

The current setting will be displayed on the TV screen.

• GAMMA: Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained.

• BRIGHTNESS: Adjust this if the picture is bright or dark on the whole.

• CONTRAST: Adjust this if the far and near position is unnatural.

• SATURATION: Adjust this if the picture is whitish or blackish.

• TINT: Adjust this if the appearance of flesh tone is unnatural.

• SHARPNESS: Adjust this if the picture is indistinct.

6 Press ENTER.

To adjust other items, go back to Step 3.

7 Press VFP to go off the window.

NOTE

• If no operation is made for several seconds during the procedure, the settings made so far will be automatically stored.

• “VFP” is an abbreviation of “Video Fine Processor”.

25

Other convenient functions (continued)

English

Creating realistic sound (3D PHONIC)

Adjusting playback level (DVD LEVEL)

The audio of a DVD VIDEO may be recorded at a lower level (volume) than for other types of disc. If the difference is not to your liking, adjust the DVD Level.

1 Press DVD LEVEL during

playback.

• Each time you press the button, the level will be alternated among “NORMAL”, “MIDDLE” and “HIGH”.

• Select the level while listening to the sound played.

NOTE

• DVD Level is effective only for playback of a DVD VIDEO.

• Even if the DVD Level is changed, the output level from the digital audio output terminal will not be changed.

The two speakers produce an effect resembling surround-sound.

1 Press 3D PHONIC during

playback.

Ex.:

3D PHONIC

• Each time you press the button, the 3D PHONIC will be alternated as follows:

ACTION : Suitable for action movies,

DRAMA : You can relax with a natural

THEATER : You can enjoy the sound effect

OFF : Cancels 3D PHONIC (initial

• While 3D PHONIC is activated, “3D PHONIC indicator lights on the display window.

NOTE

• 3D PHONIC is effective for the speakers and headphones.

• When noise is produced or sound is distorted, set 3D PHONIC to “OFF”.

• You cannot operate some DVD AUDIO discs.

”

sport programs or other lively programs.

atmosphere.

as if you were watching the movie in a theater.

setting).

appears and the 3D PHONIC

TV screen

Enjoying better pictures (SCAN MODE)

In the Progressive mode, better pictures can be enjoyed.

CAUTION

• In order to enjoy pictures in the Progressive mode, the following requirements should be met:

• There must be a component video input terminal

on the TV set connected to the main unit.

• The main unit and the TV set must be

connected using a component video cord

(page 11). When the above requirements are not satisfied, leave the main unit in the Interlace mode. If the Progressive mode is set, pictures may be distorted.

Press and hold SCAN MODE for 4 seconds when there is no disc loaded or while the disc is stopped.

• Each time you press and hold the button, the scan mode alternates between the “PROGRESSIVE” mode and the “INTERLACE” mode.

NOTE

Progressive mode:

All scanned lines will be displayed at once. Pictures of higher resolution than those in the Interlace mode can be realized.

Interlace mode:

This is a conventional image method. Half of the scanned lines displayed in the Progressive mode will appear, alternating with the other half.

26

Functions specific to DVD AUDIO

Advanced operations

Playing the Bonus Group

There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded.

NOTE

This operation can be carried out when “BONUS” is lit on the display window on the main unit.

1 Press GROUP/TITLE

repeatedly during playback to select a bonus group.

“KEY_ _ _ _” appears on the TV screen, and on the display window on the main unit.

• The bonus group is usually recorded as the last group.

2 Press the number buttons to

enter a pin code (4 digits).

The method of getting a pin code may be different depending on the disc.

3 Press ENTER.

• When a correct pin code is entered, “BONUS” disappears and the playback of the bonus group starts.

• If an incorrect pin code is entered, try entering a correct pin code again.

English

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Browsable Still Pictures (B.S.P.)

There are some DVD AUDIO discs with still pictures recorded. Among the still pictures, there are pictures called B.S.P. (Browsable Still Pictures). With these pictures, it is possible to switch a picture as if turning over pages.

NOTE

This operation can be carried out when “B.S.P.” is lit on the display window on the main unit.

1 Press PAGE during playback.

Each time you press the button, the still picture will be switched over. It is also possible to

5/∞

switch the picture using cursor

Ex.:

.

TV screen

2 Wait for a few seconds or press

ENTER to go off the window.

27

Using the menu bar

English

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped.

1 Press ON SCREEN twice.

The status bar and the menu bar will appear on the TV screen.

Status bar

Menu bar

The above is an example for a DVD VIDEO.

2 Press cursor 2/3 to select an

item to be operated.

TIME

Time display selection

Repeat mode

Time search

CHAP

.

/

TRACK

Chapter search (DVD VIDEO)/Track search (DVD AUDIO)

Audio language/ Audio (DVD VIDEO/ DVD AUDIO/VCD/ SVCD)

Subtitle language (DVD VIDEO/SVCD)

View angle (DVD VIDEO/DVD AUDIO)

PAGE

Page switch (DVD AUDIO)

Select this to change time information displayed on the display window on the main unit and the status bar. Each time ENTER is pressed, the display will be alternated.

DVD VIDEO/DVD AUDIO (operating during playback)

TOTAL : Elapsed playing time of current title/

T.REM : Remaining time of current title/group. TIME : Elapsed playing time of current

REM : Remaining time of current chapter/track.

CD (operating during playback)/VCD/ SVCD

TIME : Elapsed playing time of current

REM : Remaining time of current track. TOTAL: Elapsed playing time of disc. T.REM : Remaining time of disc.

See page 22.

See page 19.

Select a chapter/track. Press the number buttons to input the chapter/ track number and press ENTER.

Ex.:

See page 24.

Switch the still pictures (B.S.P.) recorded on a DVD AUDIO disc (page 27).

5:

group.

chapter/track.

track.

5

24:

2

4

3 Press ENTER.

• The selected function can be set. For the setting content, refer to the following “Functions list”.

• The currently active function shows.

• To delete the menu bar, press ON SCREEN.

Functions list

For the functions with no special description for the operations, press cursor ENTER to determine.

5/∞ to select, and press

28

Information displayed on the status bar

DVD VIDEO/DVD AUDIO (the example below is for a DVD VIDEO)

Transfer rate (only for DVD VIDEO)

DVD VIDEO: Current title number DVD AUDIO: Current group number

DVD VIDEO: Current chapter number DVD AUDIO: Current track number

VCD/SVCD/CD (the example below is for a CD)

Playback mode

Current track number

Time Playback status

Preferences

Advanced operations

NOTE

The playback status mark has the same meaning of the mark on the On-screen guide (page 15).

The initial settings of the system can be changed according to the environment the system is used in.

Items Contents

MENU LANGUAGE

AUDI O LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Select the language for the DVD VIDEO menu.

Select the audio language for the DVD VIDEO.

Select the subtitle language for the DVD VIDEO.

Select the language displayed on the preference screens.


Items Contents ( : initial setting)

MONITOR TYPE

Select a display method suitable for your TV. 16 : 9/16 : 9 MULTI: Select this when the aspect ratio of your wide TV is fixed to 16:9 (when playing a DVD VIDEO recorded at 4:3, the system automatically adjusts the screen width of the output signal).

4 : 3 LB/ 4 : 3 MULTI LB (Letter Box)

Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the black bars appear on the top and bottom of the screen.

English

:

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.

• The top and bottom of the preference screen may not be displayed on a wide TV. Adjust the picture size on the TV.

Basic operations

Press SET UP while the disc is stopped or no disc is loaded (“NO DISC” is displayed).

• The following screen will be displayed on the TV.

ENGLISH

• Proceed with operations by following the description on the TV screen.

LANGUAGE

NOTE

• If the selected language is not recorded on the disc, the optimum language set for the disc will be displayed.

• For a language code such as “AA”, refer to the “Language codes ” (page 38).

4 : 3 PS/ 4 : 3 MULTI PS (Pan Scan):

Select this when the aspect ratio of your TV is conventional 4:3. While viewing a wide screen picture, the left and right edges of the picture will not be shown on the screen. (If the disc is not compatible with Pan Scan, the picture will be displayed at the Letter Box ratio.)

• By selecting “MULTI” mode, the color system of the System changes automatically to match that of the loaded disc.

PICTURE SOURCE

SCREEN SAVER

FILE TYPE If there are both MP3/WMA and JPEG files on

Select an item suitable to the video source.

AUTO :

The video source type (a video or film) is automatically selected.

FILM:

Select this item when you want to view a film or video recorded with the progressive scan method.

VIDEO:

Select this item when you want to view a normal video.

Select the Screen Saver mode between / OFF (Screen Saver activates when there is no operation made for about 5 minutes since a still picture was last displayed).

a disc, you can select which files to play.

AUDIO

Select this item when you want to play back MP3/WMA files.

STILL PICTURE:

Select this item when you want to play back JPEG files.

ON

29

Preferences (continued)

AUDIO

English

Items Contents ( : initial setting)

DIGITAL AUDIO OUTPUT

DOWN MIX Switch signal from the digital output

Select an output signal type from the following in accordance with the device connected to the digital audio output terminal (AV amplifier, etc.). (See the list below for the preference items and output signal.)

PCM ONLY:

Device corresponding only to linear PCM.

DOLBY DIGITAL/PCM:

Dolby digital decoder or a device having the same function.

STREAM/PCM

DTS/Dolby digital decoder or a device having the same function.

terminal of the DVD VIDEO according to the connected device. Select this when Digital Audio Output is set to “PCM ONLY”.

DOLBY SURROUND:

A Dolby Pro Logic decoder-built-in device.

STEREO

An ordinary device.

• When 3D PHONIC is activated, Down Mix does not work.

:

OTHERS

Items Contents ( : initial setting)

RESUME Select /OFF. (page 18)

ON SCREEN GUIDE

PARENTAL LOCK

ON

Select /OFF. (page 15)

ON

Set the Parental Lock function to cut off violent scenes or replace the scenes with others. (This is effective only for discs equipped with the Parental Lock function.)

COUNTRY CODE (page 31):

Select your country.

SET LEVEL:

The restriction is stricter as the number becomes smaller. “NONE” is no restriction.

PASSWORD (essential):

Enter four-digit number as your password using the number buttons (1-9, 0) every time. (Enter “8888” if you forget your password.) The password is required at the time of playback.

• If you enter a wrong password three times, “EXIT” will be automatically selected.

D (Dynamic). RANGE COMPRESSION

To make adjustments for the difference between a high volume and a low volume when playing back with low volume (only for a DVD recorded with Dolby digital).

AUTO

:

D. Range Compression automatically works.

ON:

D. Range Compression always works.

List of relationships of DIGITAL AUDIO OUTPUT preference items and output signal

Playback disc

48 kHz, 16/20/24 bits Linear PCM DVD VIDEO 96 kHz linear PCM DVD VIDEO

48/96/192 kHz, 16/20/24 bits linear PCM DVD AUDIO

44.1/88.2/176.4 kHz, 16/20/24 bits linear PCM DVD AUDIO

DTS DVD VIDEO

DOLBY DIGITAL DVD VIDEO/ DVD AUDIO

CD/VCD/SVCD

DTS CD

MP3/WMA disc

STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY

DTS bit stream 48 kHz, 16 bits stereo linear PCM

DOLBY DIGITAL bit stream

44.1 kHz, 16 bits stereo linear PCM/48kHz, 16 bits linear PCM

DTS bit stream 44.1 kHz, 16 bits linear PCM

32/44.1/48 kHz, 16 bits stereo linear PCM

DIGITAL AUDIO OUTPUT

48 kHz, 16 bits stereo linear PCM

44.1 kHz, 16 bits stereo linear PCM

48 kHz, 16 bits stereo

linear PCM

NOTE

• For a DVD VIDEO: There is a 20 bit or 24 bit output for DVD VIDEO without content protection set.

• For a DVD AUDIO: There is no output for DVD AUDIO with content protection set.

30

Country/Area codes

Advanced operations

AD Andorra AE United Arab Emirates AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles AO Angola AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia AW Aruba

AZ Azerbaijan

BA Bosnia and

Herzegovina BB Barbados BD Bangladesh BE Belgium BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil BS Bahamas BT Bhutan BV Bouvet Island

BW Botswana

BY Belarus BZ Belize CA Canada

CC Cocos (Keeling)

Islands CF Central African

Republic

CG Congo CH Switzerland

CI Côte d’Ivoire CK Cook Islands CL Chile

CM Cameroon CN China CO Colombia

CR Costa Rica

CU Cuba

CV Cape Verde CX Christmas Island CY Cyprus CZ Czech Republic DE Germany DJ Djibouti DK Denmark

DM Dominica DO Dominican Republic

DZ Algeria EC Ecuador EE Estonia EG Egypt EH Western Sahara ER Eritrea

ES Spain ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

(Malvinas)

FM Micronesia

(Federated States of) FO Faroe Islands FR France FX France, Metropolitan GA Gabon GB United Kingdom

GD Grenada

GE Georgia GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia GN Guinea

GP Guadeloupe

GQ Equatorial Guinea

GR Greece GS South Georgia and

the South Sandwich

Islands GT Guatemala

GU Guam GW Guinea-Bissau

GY Guyana HK Hong Kong

HM Heard Island and

McDonald Islands HN Honduras HR Croatia HT Haiti HU Hungary

ID Indonesia IE Ireland

IL Israel IN India IO British Indian Ocean

Territory IQ Iraq IR

Iran (Islamic Republic of) IS Iceland

IT Italy JM Jamaica JO Jordan J P Japan KE Kenya KG Kyrgyzstan KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis KP Korea, Democratic

People’s Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands KZ Kazakhstan LA Lao People’s

Democratic Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein LK Sri Lanka LR Liberia LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia LY Libyan Arab

Jamahiriya

MA Morocco MC Monaco MD Moldova, Republic of MG Madagascar MH Marshall Islands

ML Mali MM Myanmar MN Mongolia MO Macau

MP Northern Mariana

Islands

MQ Martinique

MR Mauritania

MS Montserrat

MT Malta MU Mauritius

MV Maldives MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands NO Norway NP Nepal NR Nauru NU Niue NZ New Zealand

OM Oman

PA Panama

PE Peru

PF French Polynesia PG Papua New Guinea PH Philippines

PK Pakistan

PL Poland PM Saint Pierre and

Miquelon

PN Pitcairn

PR Puerto Rico

PT Portugal PW Palau

PY Paraguay QA Qatar

RE Réunion RO Romania RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands SC Seychelles

SD Sudan

SE Sweden SG Singapore SH Saint Helena

SI Slovenia

SJ Svalbard and Jan

Mayen

SK Slovakia

SL Sierra Leone SM San Marino SN Senegal SO Somalia SR Suriname

ST Sao Tome and Principe

SV El Salvador

SY Syrian Arab Republic

SZ Swaziland TC Turks and Caicos

Islands

TD Chad

TF French Southern

Territories TG Togo TH Thailand

TJ Tajikistan

TK Tokelau TM Turkmenistan TN Tunisia TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu TW Taiwan

TZ Tanzania, United

Republic of

UA Ukraine

UG Uganda UM United States Minor

Outlying Islands US United States UY Uruguay UZ Uzbekistan

VA Vatican City State

(Holy See) VC Saint Vincent and the

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.) VN Viet Nam VU Vanuatu WF Wallis and Futuna

Islands

WS Samoa

YE Yemen

YT Mayotte YU Yugoslavia ZA South Africa ZM Zambia ZR Zaire

ZW Zimbabwe

English

31

Listening to a radio broadcast

Selecting a station

English

1 Press FM or AM. 2 Press ¢/4 to select the

station (frequency).

Automatic tuning:

Hold down ¢/4 until the system starts searching, and then release the button. (The AUTO indicator lights while searching.) When a station of sufficient signal strength is tuned in to, the system stops searching automatically. To stop searching manually, press ¢/4.

Manual tuning:

Each time you press changes.

• When an FM stereo program is received, the ST (Stereo) indicator lights.

NOTE

If the stereo FM program currently tuned in to is noisy, you can improve the reception by pressing FM MODE to switch to the monaural mode. If you press FM MODE again, or tune in to another station, the receiving mode returns automatically to the stereo mode.

¢/4

, the frequency

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

32

Tuning in to a preset station

Listening to radio

3 Select the number you want to

store by pressing number buttons while “MEMORY” is flashing.

• You can also select the number by using the number buttons.

• Refer to “How to use the number buttons” (page 15).

4 Press MEMORY while the

selected number is flashing.

“STORED” appears on the display window and the selected station is stored.

NOTE

• Storing a new station to a used number erases the previously stored station.

• After storing new stations, do not unplug the AC power cord to turn off the system. If you do so, the new preset stations will be cleared.

English

Presetting stations in the system allows you to easily tune in to a station.

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Presetting stations

The system stores up to 30 FM stations and up to 15 AM stations.

1 Select a station you want to

store (page 32 for how to select).

2 Press MEMORY.

“MEMORY” is flashing on the display window for a while.

Tuning in to a preset station

1 Press FM or AM to select either

FM or AM.

2 Press the number buttons to

select the memory number of a station you want to tune in to.

Refer to “How to use the number buttons” (page 15). You can also select by pressing

¡/1.

33

Listening to the sound of other audio device

English

Connect the other audio device to this system in advance (page 10).

1 Press AUX.

The source changes to AUX.

Setting the Various Timer

Setting the built-in clock

2 Play the other audio device.

For details, refer to the manual of the device connected.

3 Adjust the volume and the

sound quality of the system (page 10).

Without setting the built-in clock, you cannot use any timers.

• To exit from the clock setting, press CLOCK/ TIMER as required.

• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

1 Press CLOCK/TIMER.

SVCDVD-A

• If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

2 Press cursor 3/2 to adjust the

hour, then press SET.

3 Press cursor 3/2 to adjust the

minute, then press SET.

Now the built-in clock starts to work.

34

Setting the daily timer

Using the daily timer, you can wake up with your favorite song.

• You can store the three daily timer settings; however, you can activate only one of the daily timer.

• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

Setting the Various Timer (continued)

Convenient functions

How the daily timer works:

Once the daily timer has been set, the timer indicator and timer number indicator (1/2/3) are lit on the display window. Daily timer turns on the system at the same time everyday until the timer setting is canceled manually or another daily timer is activated.

When the on-time comes:

The system turns on, tunes in to the specified station or start playback the loaded disc with the volume level set to the preset level.

• The timer setting remains in memory until you can change it.

• Without canceling the daily timer, you can change the source or adjust the volume after the daily timer starts playback.

1 Press CLOCK/TIMER repeatedly

to show “DAILY 1.”

• Each time you press the button, the clock setting changes as follows:

Source indication

Clock adjust

ON 18:00

DAILY 3

DAILY 1

ON 6:00

DAILY 2

ON 12:00

2 Press cursor 3/2 to adjust the

hour of the timer-on time, then press SET.

3 Press cursor 3/2 to adjust the

minute of the timer-on time, then press SET.

6 Press cursor 3/2 to adjust the

volume level, then SET.

7 Turn off the system.

To turn off the timer setting

1 Press CLOCK/TIMER repeatedly

to select the timer setting.

2 Press CANCEL to turn off the

selected setting.

• Pressing SET activates the timer setting again.

Auto Standby

If there is no operation for 3 minutes while the disc is stopped, the power will be automatically turned off.

Press A.STANDBY during playback or while the disc is stopped, or no disc is loaded (“NO DISC” appears).

The A.STANDBY indicator lights on the display window on the main unit.

When a stopped state is entered (after playback is finished, for example), the A.STANDBY indicator starts blinking. This means that the power will be turned off automatically if there is no operation for 3 minutes. And 10 seconds before the power is turned off,

A.STANDBY

“

” starts flashing.

English

4 Repeat Step 2 and 3 to set the

timer-off time.

5 Press cursor 3/2 to select the

playback source, then SET.

• Each time you press the button, the clock setting changes as follows:

AUX

DISC

• When selecting the tuner, press cursor 3/2 to select a preset channel.

• When selecting “DISC”, you can specify the group and track. For the discs other than MP3/WMA, the group selection does not take effect.

TUNER FM

TUNER AM

Releasing Auto Standby

Press A.STANDBY. “A.STANDBY” will be turned off on the display

window on the main unit.

NOTE

When the source is FM, AM or AUX, Auto Standby does not work.

35

Setting the Various Timer (continued) Tray Lock

You can lock the disc tray to prevent the disc from

Sleep Timer

When the time you specify elapses, the system will

English

be turned off by itself.

Press SLEEP.

Each time you press the button, the time indicated on the display window on the main unit changes (in minutes).

being ejected.

Setting

While the system is turned off, press 0 (open/close)

7

with “LOCKED” appears on the display window on the

main unit.

(Stop) on the main unit held.

Changing the time

Reselect the time by pressing SLEEP repeatedly.

Confirming the time

Press SLEEP once while Sleep Timer is set.

Releasing

Press SLEEP repeatedly until “SLEEP OFF” appears.

NOTE

Sleep Timer will also be released when the power is turned off.

Releasing

Carry out the same operations as those for setting. “UNLOCKED” appears on the display window on

the main unit.

36

Troubleshooting

Reference

When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center.

Power source

7 Power does not come on.

• The power cord is not connected to the main unit or an AC outlet.

→ Connect the power cord correctly

(page 11).

Operation

7 You cannot operate any button.

• Some specific operations may be inhibited for some discs.

7 The remote control does not work.

• The dry-cell batteries have run out.

→ Replace the batteries (page 6).

7 A disc cannot be played back.

• In the case of DVD VIDEO discs

→ Check the Region Code number of the

discs (page 3).

• “NO PLAY” is displayed on the display window. It is not a disc that can be played on this system.

→ Check the disc type (page 3).

• Parental Lock is set (page 30).

About images

7 No picture appears.

• The video cord is not connected correctly.

→ Page 11

7 The TV screen darkens.

• “SCREEN SAVER” is set.

→ If set, press any button (page 29).

7 The screen cannot be switched.

• The Progressive mode is applied only to component video output.

About sound

7 There is no sound.

• Speakers are not connected correctly.

→ Page 9

• The sound is muted.

→ Page 16

• “NO AUDIO” is displayed on the display window. The disc may have been produced through illegal copying.

→ Confirm at the store where you bought the

disc.

7 The sound is weak compared with TV or Video.

• “DVD LEVEL” is set to “NORMAL”.

→ Set to other than “NORMAL” (page 26).

7 The sound is distorted.

• The volume is turned up too high.

→ Turn down the volume (page 16).

7 No sound comes out of the subwoofer.

• “SUBWOOFER” is turned off.

→ Press S.WFR OUT to turn on (page 10).

About radio

7 The sound is noisy while receiving/Receiving

is disabled.

• The antenna is not connected correctly.

→ Connect the antenna correctly (page 8).

English

• Both of the component video jack and Svideo jack are connected.

→ Connect either (page 11).

7 The picture is distorted.

• A VCR is connected between the main unit and the TV set.

→ Connect the main unit directly to the TV set

(page 11).

• Although this system is connected to a nonProgressive TV set, DVD’s scan mode is set to “PROGRESSIVE”.

→ Set the scan mode to “INTERLACE”

(page 26).

7 The screen size is abnormal.

• The screen size is set improperly.

→ Set “MONITOR TYPE” according to the TV

set you are using (page 29).

37

Troubleshooting (continued)

Language codes

Reference

Others

7 It is not possible to switch audio or subtitles

English

between languages.

• The disc does not contain 2 or more languages.

→ If only a single language is recorded on the

disc, switching to another language is impossible (page 24).

7 No subtitle is displayed.

• The disc does not contain any subtitles.

→ A DVD VIDEO without subtitles cannot

display any subtitles.

• The subtitle language is set to “OFF”.

→ Specify a language (page 29).

• Before or after A point or B point in A-B Repeat Playback, no subtitle may be displayed.

7 The disc cannot be ejected.

• Tray Lock is set.

→ page 36

7 “LR ONLY” is displayed on the display window

(for a DVD AUDIO).

• Because, for the track being played back, down mix is inhibited for multi-channel sound, the sound of L and R is output directly (a normal action).

If the system does not work properly despite correction measures above

Many functions of this system are implemented by microcomputers. If pressing any button does not result in the normal action, disconnect the power plug from the outlet, wait for a while, and reconnect the system.

Code

Language

AA Afar MK Macedonian AB Abkhazian ML Malayalam AF Afrikaans MN Mongolian AM Ameharic MO Moldavian AR Arabic MR Marathi AS Assamese MS Malay (MAY) AY Aymara MT Maltese AZ Azerbaijani MY Burmese BA Bashkir NA Nauru BE Byelorussian NE Nepali BG Bulgarian NL Dutch BH Bihari NO Norwegian BI Bislama OC Occitan BN Bengali, Bangla OM (Afan) Oromo BO Tibetan OR Oriya BR Breton PA Panjabi CA Catalan PL Polish CO Corsican PS Pashto, Pushto CS Czech PT Portuguese CY Welsh QU Quechua DA Danish RM Rhaeto-Romance DZ Bhutani RN Kirundi EL Greek RO Rumanian EO Esperanto RU Russian ET Estonian RW Kinyarwanda EU Basque SA Sanskrit FA Persian SD Sindhi FI Finnish SG Sangho FJ Fiji SH Serbo-Croatian FO Faroese SI Singhalese FY Frisian SK Slovak GA Irish SL Slovenian GD Scots Gaelic SM Samoan GL Galician SN Shona GN Guarani SO Somali GU Gujarati SQ Albanian HA Hausa SR Serbian HI Hindi SS Siswati HR Croatian ST Sesotho HU Hungarian SU Sundanese HY Armenian SV Swedish IA Interlingua SW Swahili IE Interlingue TA Tamil IK Inupiak TE Telugu IN Indonesian TG Tajik IS Icelandic TH Thai IW Hebrew TI Tigrinya JI Yiddish TK Turkmen JW Javanese TL Tagalog KA Georgian TN Setswana KK Kazakh TO Tonga KL Greenlandic TR Turkish KM Cambodian TS Tsonga KN Kannada TT Tatar KO Korean (KOR) TW Twi KS Kashmiri UK Ukrainian KU Kurdish UR Urdu KY Kirghiz UZ Uzbek LA Latin VI Vietnamese LN Lingala VO Volapuk LO Laothian WO Wolof LT Lithuanian XH Xhosa LV Latvian, Lettish YO Yoruba MG Malagasy ZU Zulu MI Maori

Code

Language

38

Specifications

Reference

General

Power source: AC 110-240 V , 50/60 Hz

For Hong Kong only:

AC 220 V , 50 Hz

Power consumption: 25 W (in operation)

1.3 W (on standby) Weight: 2.7 kg External dimensions (W x H x D): 150 mm x 152 mm x 246 mm

DVD player

Playable discs: DVD VIDEO, DVD AUDIO, VCD,

SVCD, CD, CD-R/RW (CD, VCD, MP3, WMA, JPEG format), DVD-R/RW (video format)

Video output

Color system: PAL/NTSC Horizontal resolution: 500 lines Composite x1: 1.0 V (p-p)/75

synchronization negative

S-video x1: Y output: 1.0 V (p-p)/75

synchronization negative C output: For PAL 0.3 V (p-p)/75 Ω For NTSC 0.286 V (p-p)/75 Ω

Component x1: Y output: 1.0 V (p-p)/75 Ω

PB/PR output: 0.7 V (p-p)/75 Ω

Ω,

Audio input

Sound input: AUX x1

400 mV/50 k

Ω

Tuner

FM tuner:

Receiving frequency: 87.5 MHz to 108.0 MHz Antenna: 75

AM tuner:

Receiving frequency: 530 kHz to 1 710 kHz

Antenna: External antenna jack (loop

Ω- Unbalanced type

(at 10 kHz interval spacing) 531 kHz to 1 710 kHz (at 9 kHz interval spacing)

antenna)

Speaker

Type: Full range

1-way bass-reflex type

Magnetically shielded type Speaker: 8 cm cone Frequency response: 60 to 20 000 Hz Power handling capacity: 20 W Impedance: 4 Sound pressure level: 81 dB/W m Dimension (WxHxD): 120 mmx150 mmx188 mm Weight (1 unit): 1.5 kg

Ω

x

1

•

English

Audio output

Analog sound output:

Speakers x2

Output power: 18 W per channel, min.

RMS, at 4 Ω at 1 kHz with no more than 10% total harmonic distortion

Fitting impedance: 4

Headphones x1: 11 mW/32 Ω

Fitting impedance: 16 Ω to 1 kΩ

Subwoofer x1: 500 mVrms/10 kΩ

Digital sound output:

Optical x1: –21 dBm to –15 dBm

Ω to 16 Ω

Designs and Specifications are subject to change without notice.

39

FS-Y1 COMPACTT COMPONENT SYSTEM

EN, CS

c

2005 Victor Company of Japan, Limited

0305AIMMDWJEM

COMPACT COMPONENT SYSTEM SISTEMAS DE COMPONENTES COMPACTOS SISTEMA DE COMPONENTE COMPACTO

FS-Y1

Consists of CA-FSY1 and SP-FSY1 Consta de CA-FSY1 y SP-FSY1 Consiste em CA-FSY1 e SP-FSY1

English

Español

Português

Antes de operar su equipo, lea cuidadosamente este instructivo.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUÇÕES

¡ATENCION!

GVT0142-013A

[UW]

Warnings, Cautions and Others

Avisos, precauciones y otras notas

Advertências, precauções e outras notas

CAUTION—STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights in red.

• When the unit is turned on, the STANDBY/ON lamp lights in green.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

PRECAUCIÓN––Botón STANDBY/ON !

Desconecte el enchufe tomacorriente para desconectar la alimentación completamente (se apagan todas las lámparas e indicaciones). Ninguna posición del botón STANDBY/ON

conseguirá desconectar la red de alimentación eléctrica.

• Cuando la unidad está en espera, la lámpara STANDBY/ON se enciende en rojo.

• Cuando la unidad está encendida, la lámpara STANDBY/ON se apaga.

CUIDADO—botão STANDBY/ON

Desligue a ficha da tomada da parede para desligar completamente a alimentação (todas asluzes e indicadores apagam-se). O botão STANDBY/ON , quer esteja premido ou solto, não desliga a alimentacao principal.

• Quando a unidade estiver em standby, a luz STANDBY/ON fica vermelha.

• Quando a unidade estiver ligada, a luz STANDBY/ON fica verde.

O aparelho pode ser ligado através da unidade de controlo remoto.

PRECAUÇÃO

Para reduzir riscos de choques elétricos, incêndio, etc.:

1. Não remova parafusos e tampas ou desmonte a caixa.

2. Não exponha este aparelho à chuva nem à umidade.

PRECAUÇÃO

• Não obstrua as aberturas e orifícios de ventilação. (Se os orifícios ou aberturas de ventilação estiverem obstruídos por qualquer papel ou tecido, não haverá circulação do ar quente.)

• Não coloque nenhum objeto com chamas, como velas acesas, sobre o aparelho.

• Ao descartar as baterias, leve em consideração os problemas que possam ser causados ao meio ambiente e os regulamentos e leis locais e governamentais sobre recolhimento dessas baterias devem ser rigorosamente seguidos.

• Não exponha este aparelho à chuva, umidade, pingos ou esguichos de água, nem coloque em cima do mesmo qualquer tipo de recipiente que contenha líquidos, como por exemplo vasos.

!

La alimentación puede controlarse mediante control remoto.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

PRECAUCIÓN

• No obstruya las rendijas o los orificios de ventilación. (Si las rendijas o los orificios de ventilación quedan tapados con un periódico, un trozo de tela, etc., no se podrá disipar el calor).

• No ponga sobre el aparato ninguna llama al descubierto, como velas encendidas.

• Cuando tenga que descartar las pilas, tenga en cuenta los problemas ambientales y observe estrictamente los reglamentos o las leyes locales sobre disposición de las pilas.

• No exponga este aparato a la lluvia, humedad, goteos o salpicaduras. Tampoco ponga recipientes conteniendo líquidos, como floreros, encima del aparato.

G-1

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on a level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

PrecauciÓn: Ventilación correcta

Para evitar el riesgo de descargas eléctricas e incendio y prevenir posibles daños, instale el equipo en un lugar que cumpla los siguientes requisitos:

1. Parte frontal: Sin obstrucciones, espacio abierto.

2. Lados/parte superior/parte posterior: No debe haber ninguna obstrucción en las áreas mostradas por las dimensiones de la siguiente figura.

3. Parte inferior: Sitúe el equipo sobre una superficie nivelada. Mantenga un espacio adecuado para permitir el paso del aire y una correcta ventilación, situando el equipo sobre un soporte de 10 o más cm de allura.

PRECAUÇÃO: Ventilação adequada

Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue:

1. Parte frontal: Sem obstruções e espaços abertos.

2. Partes laterais/ Tampa/ Posterior: Nenhuma obstrução deverá ser colocada entre as áreas cujas dimensões são indicadas abaixo.

3. Parte inferior: Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação se este for instalado numa posição que tenha uma altura de 10 cm ou mais.

Front view Vista frontal Vista fronta

Wall or obstructions Pared u obstrucciones Parede ou obstácuko

Side view Vista lateral Vista lateral

Wall or obstructions Pared u obstrucciones

15 cm

1 cm 1 cm

CA-EXD1 CA-EXD1

Parede ou obstácuko

15 cm

10 cm

15 cm

G-2

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2.

CAUTION

inside the unit; leave all servicing to qualified service personnel.

3.

CAUTION

failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE UNIT.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2.

PRECAUCIÓN:

piezas que pueda reparar el usuario; encargue el servicio a personal técnico cualificado.

PRECAUCIÓN:

3. interbloqueo averiado o defectuoso. Evite la exposición directa a los haces.

4. REPRODUCCIÓLN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL INTERIOR DE LA UNIDAD.

PARA PRODUTOS LASER, IMPORTANTE

1. PRODUTO LASER DE CLASSE 1

2.

PRECAUÇÃO:

existem partes cuja manutenção tenha de ser feita pelo usuário; deixe qualquer manutenção a cargo do pessoal de serviço qualificado.

3.

PRECAUCAO:

conexão interna em falha ou frustrada. Evite a exposição direta ao raio.

4. REPRODUÇÃO DE ETIQUETA: ETIQUETA DE AVISO SITUADA NO INTERIOR DA UNIDADE.

: Do not open the top cover. There are no user serviceable parts

: Visible and invisible laser radiation when open and interlock

No abra la tapa superior. En el interior de la unidad no hay

Radiación láser visible e invisible en caso de apertura o con

não abrir a cobertura superior. Dentro da unidade não

radiação laser visível e invisível quando se abre e com a

G-3

Table of contents

Introduction

About discs......................................................3

Description of parts .........................................5

Getting started

Using the remote control .................................6

Putting the batteries in the remote control .......... 6

Operating the TV using the remote control......... 7

Connecting up .................................................8

Selecting an AM interval spacing...................... 11

Changing the color system ............................... 11

Basic operations

Playing discs .................................................12

Playback ........................................................... 12

To switch the display ........................................ 13

Select what you want to play by using

the number buttons.................................... 14

To stop playback............................................... 14

To pause playback............................................ 14

To advance picture frame-by-frame.................. 14

Fast reverse/Fast forward search ..................... 14

Playing back from a position 10 seconds

before (One Touch Replay) ....................... 15

Slow Motion Playback....................................... 15

Skip to the beginning of the selection ............... 15

To change the brightness of

the display window (DIMMER) .................. 16

Adjusting the volume ........................................ 16

Adjusting sound quality..................................... 16

Turning off the sound temporarily (MUTING) ... 16

Functions specific to DVD AUDIO.................27

Playing the Bonus Group...................................27

Browsable Still Pictures (B.S.P.) .......................27

Using the menu bar .......................................28

Preferences................................................... 29

Country/Area codes.......................................31

Listening to radio

Listening to a radio broadcast .......................32

Tuning in to a preset station .......................... 33

Convenient functions

Listening to the sound of other audio device

Setting the Various Timer..............................34

Setting the built-in clock.....................................34

Setting the daily timer ........................................34

Auto Standby .....................................................35

Sleep Timer .......................................................36

Tray Lock.......................................................36

....34

Reference

Troubleshooting.............................................37

Language codes............................................38

Specifications ................................................39

English

Advanced operations

Playing audio/video files................................16

Resume Playback .........................................18

Select the scene to be played .......................19

Program Playback/Random Playback...........20

Repeat Playback ...........................................22

Other convenient functions............................24

Selecting the subtitles....................................... 24

Selecting the audio language ........................... 24

Selecting a view angle...................................... 24

Enlarging the picture (ZOOM)........................... 25

Adjusting the picture quality (VFP) ................... 25

Creating realistic sound (3D PHONIC)............. 26

Adjusting playback level (DVD LEVEL) ............ 26

Enjoying better pictures (SCAN MODE) ........... 26

How to read this manual

• Operations are described by mainly using the remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.

• The following marks tell you for which type of the discs the operation can be made.

• The illustrations and TV screens may be different between the actual case and the description.

• “VCD” is an abbreviation of “Video CD”.

• “SVCD” is an abbreviation of “Super Video CD”.

1

Special cautions

Notes on handling

English

7 Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands.

• A small amount of power is always consumed while the power cord is connected to the wall outlet.

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Label sticker

Sticker

Paste

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

7 When condensation or water drops adhere to the

lens

In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:

• Immediately after starting to heat the room

• When the system is installed in a steamy or damp space

• When the system is suddenly moved from a cold place to a warm space

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Supplied accessories

Check to be sure you have all of the supplied accessories.

The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

• Remote control (1)

• Batteries (2)

Note about copyright laws

Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs. Recording of copyrighted material may infringe copyright laws.

Note about copy guard system

DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• AC plug Adaptor (1)

• Composite video cord (1)

• Speaker cords (2)

7 Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+DIGITAL OUT” are registered trademarks of Digital Theater Systems, Inc.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

2

About discs

Playable disc types

This system has been designed to play back the following discs:

DVD V IDEO, DVD AUDIO, VC D, SVCD, C D This system can also play back the following discs:

• Finalized DVD-R/-RW discs recorded in the DVD VIDEO format.

• CD-R/RW discs recorded in the following formats

• Music CDs (finalized discs)

• VCDs

• SVCDs

• MP3/WMA/JPEG discs recorded in ISO 9660 (for

details, refer to “Notes on CD-R and CD-RW ”)

However, some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them. Only sounds can be played back from the following discs:

MIX-MODE CD CD-G CD-EXTRA CD TEXT

Discs you can play:

Disc

Type

Mark (Logo)

DVD

VIDEO

DVD

AUDIO

VCD

SVCD

CD —

CD-R —

CD-RW —

Video

Format

PA L/

NTSC

—

PA L/

NTSC

PA L/

NTSC

Introduction

* Note on Region Code

DVD players and DVD VIDEOs have their own Region Code numbers. This system can only play back a DVD VIDEO recorded with the Region Code number and video format mentioned below. For your available Region Code, check the rear panel of your main unit. This System can play back only DVD VIDEOs whose Region Code numbers include “4”.

Examples:

If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.

• On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Notes on DVD-R and DVD-RW

• This system can also play finalized DVD-Rs or DVDRWs recorded in DVD-Video format.

Notes on CD-R and CD-RW

• This system can also play CD-Rs or CD-RWs if MP3, WMA, and JPEG files are recorded on them with ISO 9660 format.

• This system supports “multi-session” discs (up to 20 sessions).

• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Discs that cannot be played back

• The following discs cannot be played back: DVD-ROM, DVD-RAM, DVD-R/-RW (recorded in VR

format), CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc.

Playing back these discs will generate noise and damage the speakers.

Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back.

Caution for DualDisc playback

The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

English

is a trademark of DVD Format/Logo

licensing Corporation.

3

About discs (continued)

Notes on all files

• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;

English

• MP3: “.MP3”, “.mp3”

• WMA: “.WMA” , “.wma”

• JPEG: “.JPG”, “.JPEG”, “.jpg”, “.jpeg”

• If a character other than single byte English characters is used in the file name of an MP3/WMA/JPEG file, the track/file name will not be displayed correctly.

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 1 000.

• Some files may not be played back normally because of their disc characteristics or recording conditions.

For MP3/WMA files

• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.

• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.

• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.

• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.

• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)

For JPEG files

• We recommend to record a file at 640 x 480 resolution.

• This system can play a baseline JPEG file, excluding monochromatic JPEG files.

• This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).

• If data has been processed, edited and restored with PC image editing software, the data may not be displayed.

• This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.

• An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.

Disc structure

DVD VIDEO

A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

DVD AUDIO

A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. Some discs include a “bonus group” that requires a password for playing (page 27).

Group 1 Group 2

Track 1 Track 2 Track 3 Track 1 Track 2

VCD/SVCD/CD

VCD, SVCD and CD consist of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)

Track 1 Track 2 Track 3 Track 4 Track 5

MP3/WMA [JPEG] discs

On an MP3/WMA [JPEG] disc, each still picture (material) is recorded as a track [file]. Tracks [Files] are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.

This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.

Group 1 Group 2

4

Track 1

[File 1]

Track 2

[File 2]

Group 3 Group 4 Group 5

This product can recognize up to 1 000 tracks [files] in a disc. Also, the product can recognize up to 150 tracks [files] per group and up to 99 groups in a disc. Since the unit ignores the tracks [files] whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.

• If there is any type of files other than MP3/WMA [JPEG] files in a folder, those files are also counted in the total file number.

Description of parts

The numbers represent the page numbers.

Introduction

Front panel

See “Display window” below.

16 16

16

32

12 11

In the door

PHONES

15 14

12

* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the

speakers and subwoofer will not produce any sound.

Top of the unit

DIMMER 3D PHONICBASS/TREBLE

A M A UXF M

MULTI CONTROL UPDOWN

PLAY

PAUSE

Display window

13

18 26 27 27 13

English

26

34

15

14

PRGM. ALL SLEEP 3D PHONICA. STANDBYA-B 12 31RANDOM

Rear panel

20

RESUME

BONUS B.S.P.ST AU TOPROGRESSIVESVCDVD-A

21 17, 22 35 36 35 32 26

8

10

8

10

11

AUX

R

AM EXT AM LOOP

L

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

SUB-

WOOFER

OUT

ANTENNA

RL

FM75

Ω

COAXIAL

COMPONENT

YPBP

SPEAKERS

VIDEO

R

VIDEO OUT

CAUTION:

SPEAKER IMPEDANCE

4Ω-16Ω

S-VIDEO

9

11

11 11

These holes discharge heat generated inside the unit.

Do not cover up these holes.

5

Using the remote control

The numbers represent the page numbers.

English

26

7

13, 16 12

Putting the batteries in the remote control

32

15, 17

15, 32

14

19

19, 28

29 24

24 27 34

34, 35

35 36 35

16

20 16

7

12

34

16

15

16 7, 13,

7

14, 16 16

15, 32

12, 17

14

Batteries

19

28 24

25

11, 25,

13

26 26

7, 15

33 22 10 32

23

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.

6

CAUTION

•Do

not use a used battery and a new battery

together.

• Do not use different types of batteries at the same time.

• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.

Remote control operation

When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.

If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.

Introduction

Getting started

This page is for when operating your TV using the remote control of this product.

Operating the TV using the remote control

4 Press number buttons (1-9, 0).

Ex.:

For a Hitachi TV: Press 1, then 0. For a Toshiba TV: Press 0, then 8.

If there are more than one manufacturer’s codes, try them in turn and select the one that causes the product to work properly.

Manufacturer Code Manufacturer Code

JVC 01 Samsung 12

Hitachi 10 Sanyo 13

Magnavox 02 Sharp 06

Mitsubishi 03 Sony 07

Panasonic 04, 11 Toshiba 08

RCA 05 Zenith 09

NOTE

Manufacturer’s codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.

English

Setting the manufacturer's code

1 Slide the remote control mode

selector to the TV side.

2 Keep pressing down TV.

NOTE

Keep pressing down TV until Step 4 is complete.

5 Release TV.

For TV operation

Operate the remote control by pointing it towards the TV.

Turn ON/OFF the power.

Change channels.

Adjust volume.

9

100+

Alternates between the previously selected channel and the current channel.

Switch TV and video input.

Select channels.

*1

3 Press ENTER.

*1 Make sure to slide the remote control mode

selector to the TV side in advance.

NOTE

When the batteries are replaced, perform the manufacturer's code setting again.

7

C

)

Connecting up

–

Do not turn on the power until the connection is complete

Connecting antennas

English

onnecting AM loop antenna (supplied

–

Connection

Connecting FM antenna (supplied)

1 Set up the AM loop antenna.

Main unit

(rear panel)

FM antenna

FM75Ω

COAXIAL

Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.

2 Connect antenna cords.

Main unit

(rear panel)

AM EXT AM LOOP

How to insert antenna cords

Connect two antenna cords as described above.

If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.

7 When good radio reception cannot be

obtained with the supplied antenna or when using a communal antenna

3 Turn the AM loop antenna to the direction of the

best radio reception. Locate the AM loop antenna as far away from the main unit as possible.

• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.

7 When good radio reception cannot be

obtained with the supplied AM loop antenna

Electric wire: 3 - 5 m (commercially available)

Electric wire

Twist

AM loop antenna

AM EXT AM LOOP

Main unit

(rear panel)

Put up an electric wire extending horizontally, preferably at a high place such as above a window or outdoors.

Connect the AM loop antenna cords together.

Communal antenna terminal

Outdoor FM antenna (commercially available)

Coaxial cable (commercially available)

Main unit

(rear panel)

FM75Ω

COAXIAL

Antenna cord (not supplied)

or

Converter (sold separately: compatible with 300 Ω/ 75 Ω)

Depending on the radio reception conditions, an FM feeder antenna (sold separately: compatible with 300 Ω) can be used. In the case, a converter (not supplied) is required.

For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.

When positioning the antenna, listen to an actual radio program (refer to “Listening to a radio broadcast” on page 32).

8

Connecting up Connection

Getting started

Connecting speakers

There is no difference between the left and right speakers.

Speaker terminal

Speaker cord

Without

black line

With black

line

Right speaker

(rear panel)

(supplied)

SPEAKERS

RL

Main unit

(rear panel)

Speaker cord (supplied)

Left speaker

(rear panel)

English

Without black line

With black line

CAUTION

• DO NOT connect more than one speaker to one speaker terminal.

• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.

1. Turn off the main power of your TV before

installing the speakers. Wait for about 30 minutes before turning on the TV again.

2. If color irregularity occurs in pictures, keep a

distance of more than 10 cm between the TV and the speakers.

Speaker grille can be detached.

Speaker grille

NOTE

• Impedance of speaker that can be connected to the main unit is within a range of 4 Ω to 16 Ω.

• In order to have a sufficient cooling effect, leave a space of more than 1 cm between the main unit and the speakers or other objects.

9

Connecting up Connection

(continued) – Do not turn on the power until the connection is complete –

Connecting other devices

English

This page is for when connecting the main unit with other devices.

Connecting subwoofer

With an amplifier-built in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.

Amplifier-built-in subwoofer (not supplied)

Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.)

Main unit

SUB-

WOOFER

OUT

When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display “SUBWOOFER” on the display window on the main unit. Each time you press the button, the display toggles between “SUBWOOFER” and “OFF”.

Connecting with other audio device

Output

WhiteRed

Other audio device

Audio cord (not supplied)

NOTE

When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.

Connecting with a digital device

Input

Output

Main unit

Digital device (MD recorder etc.)

To digital input terminal

Optical digital cord (not supplied)

PCM/ STREAM

DVD OPTICAL

DIGITAL OUT

Input

AUX

L

Main unit

R

10

CAUTION

• For details of signals to be output, refer to page

30.

• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in “D. RANGE COMPRESSION” of “AUDIO” (page 30) will be invalid regarding sound from the digital audio output of the main unit.

JVC FS-Y1B, FS-Y1E, FS-Y1EE, FS-Y1EN, FS-Y1EV Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
