JVC DT-V24G1Z User manual

DT-V24G1Z

CAUTION:

To reduce the risk of electric shock. Do
not remove cover (or back). No user
serviceable parts inside. Refer servicing
to qualified service personnel.

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

CAUTION

DT-V20L3GZ

MULTI FORMAT LCD MONITOR

In the case that you use the monitor for many hours, we recommend that you set “NO
SYNC ACTION” in “SYNC FUNCTION” to “P.SAVE” in MAIN MENU. This will reduce power
consumption and relieve strain on the monitor.

The illustration of the monitor is of DT-V24G1Z.

INSTRUCTIONS

Table of Contents

Safety Precautions .............................................. 2

IMPORTANT SAFEGUARDS ........................... 2

Installation ............................................................ 4

Daily Operations / Connections ......................... 6

Front panel ....................................................... 6

Rear panel ........................................................ 8

Available signals ............................................. 10

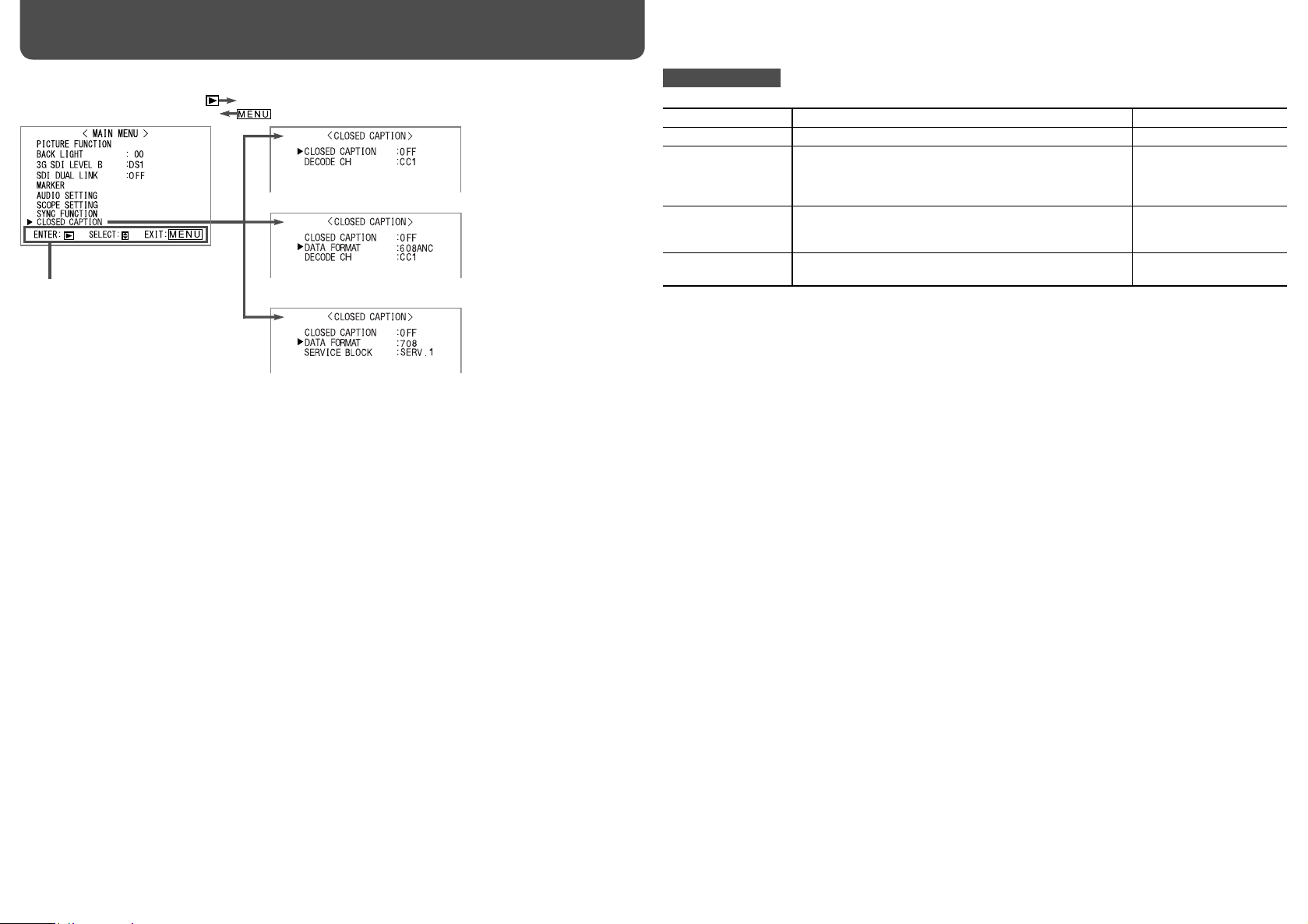

Menu Configuration—MAIN MENU .................. 12

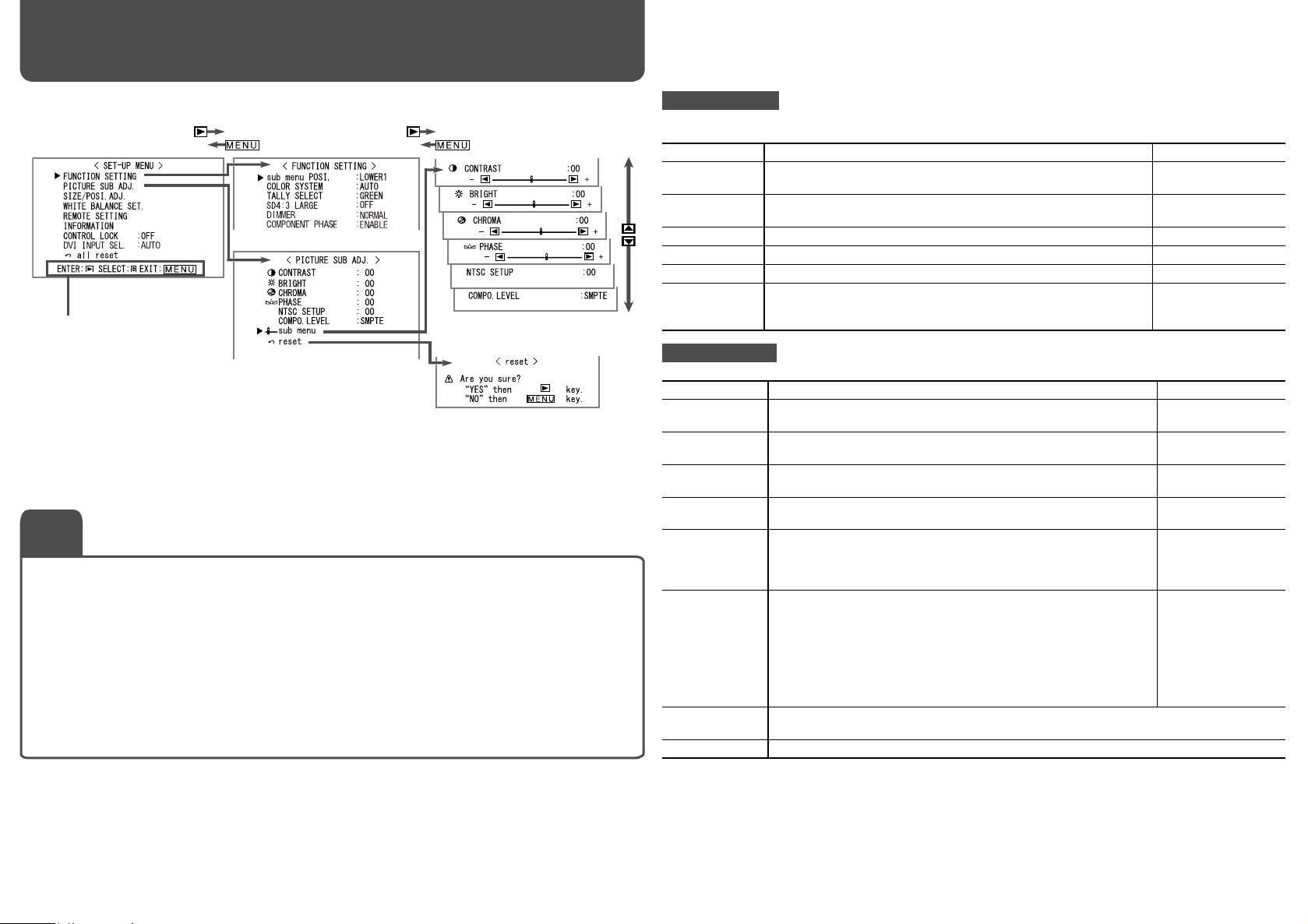

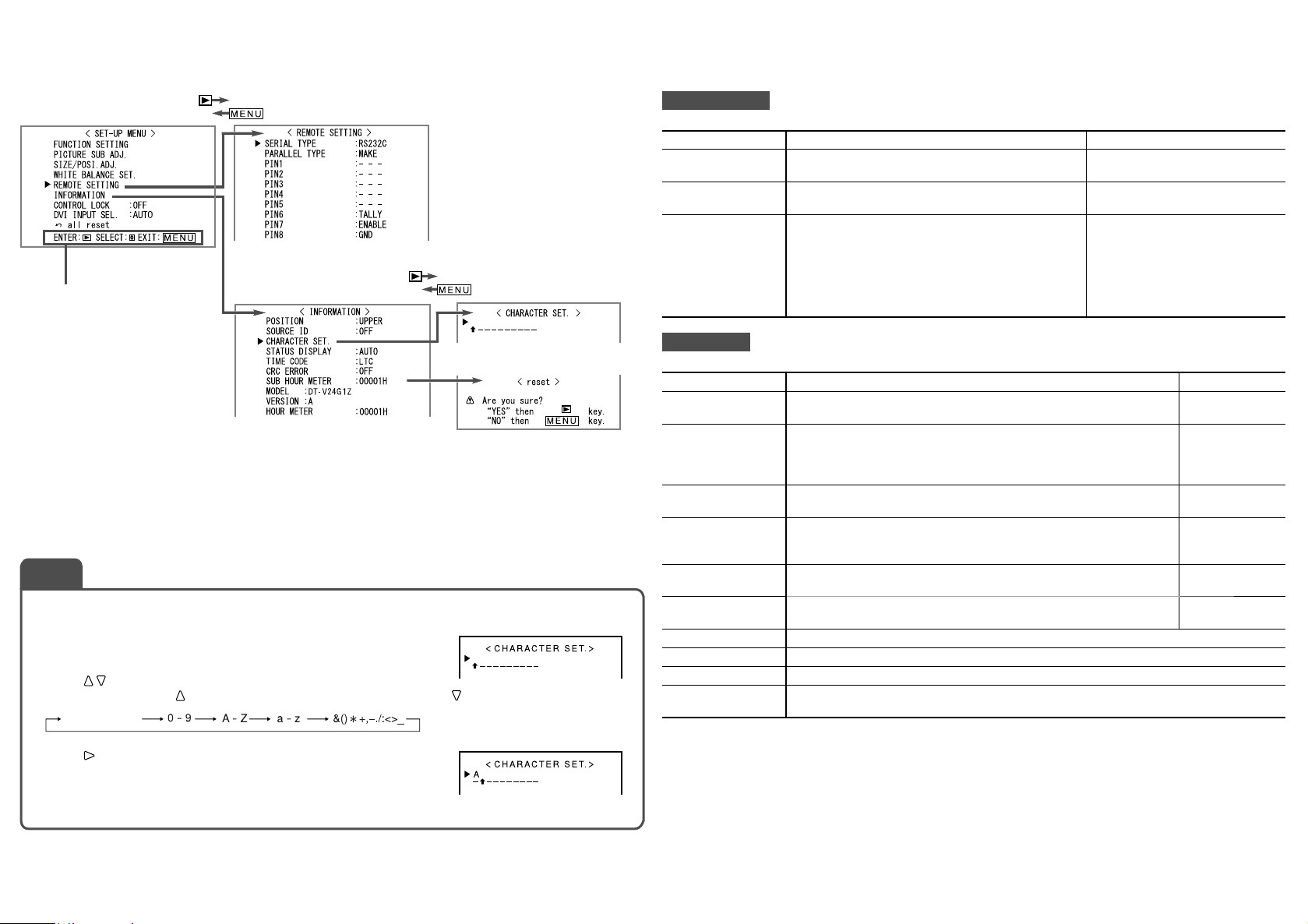

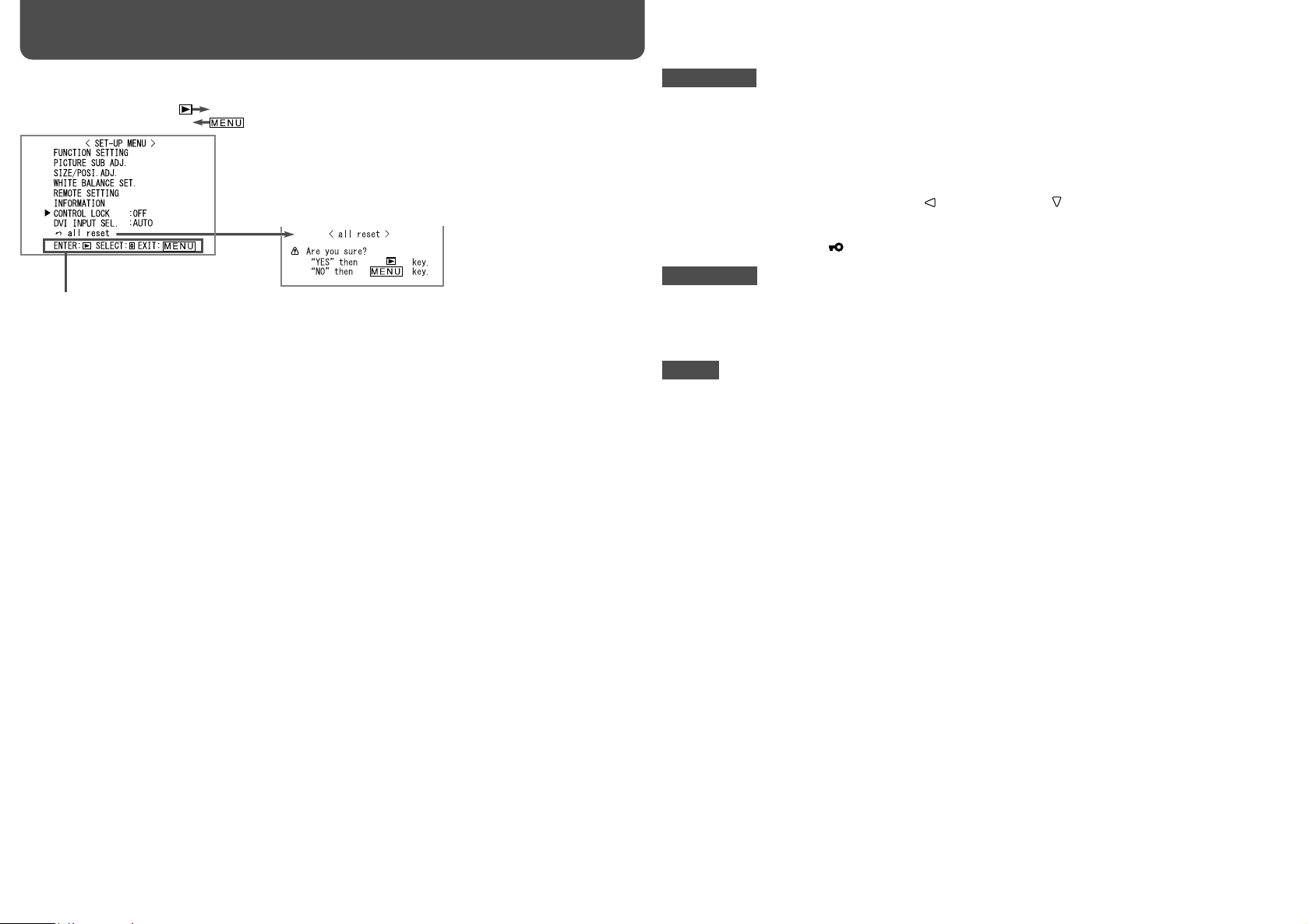

Menu Configuration—SET-UP MENU ............... 17

External Control ................................................. 21

About the external control .............................. 21

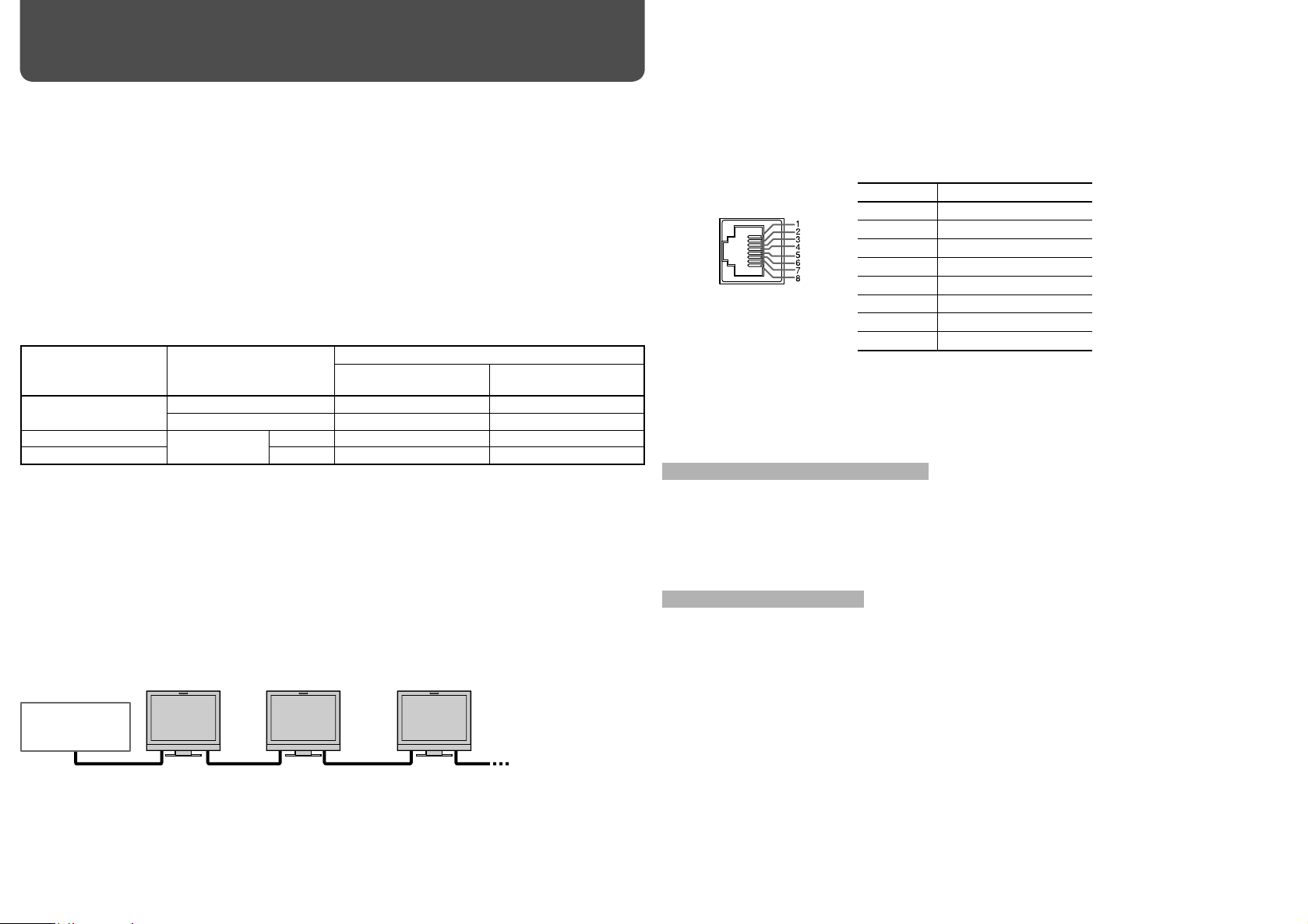

Using the MAKE/TRIGGER system ............... 21

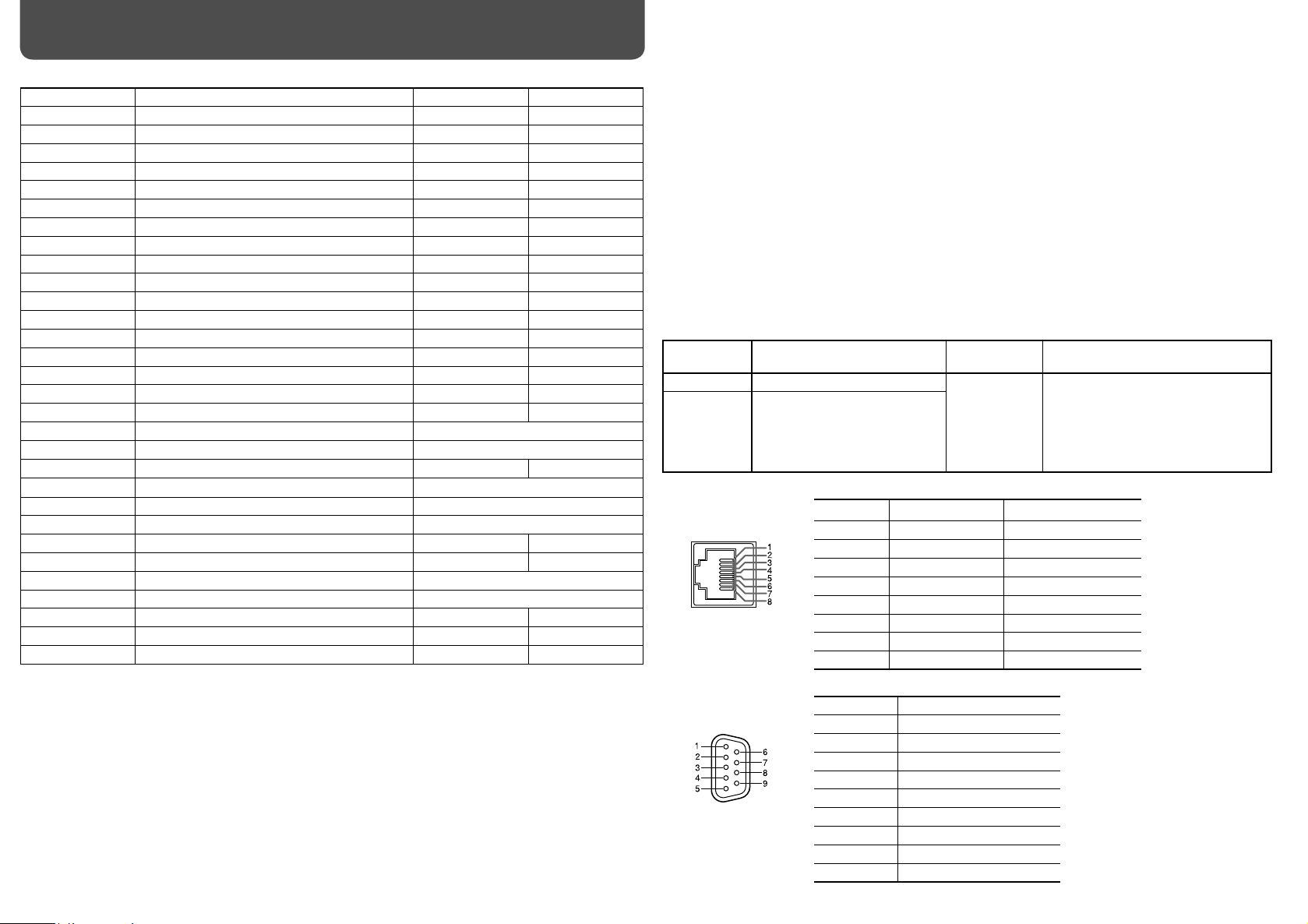

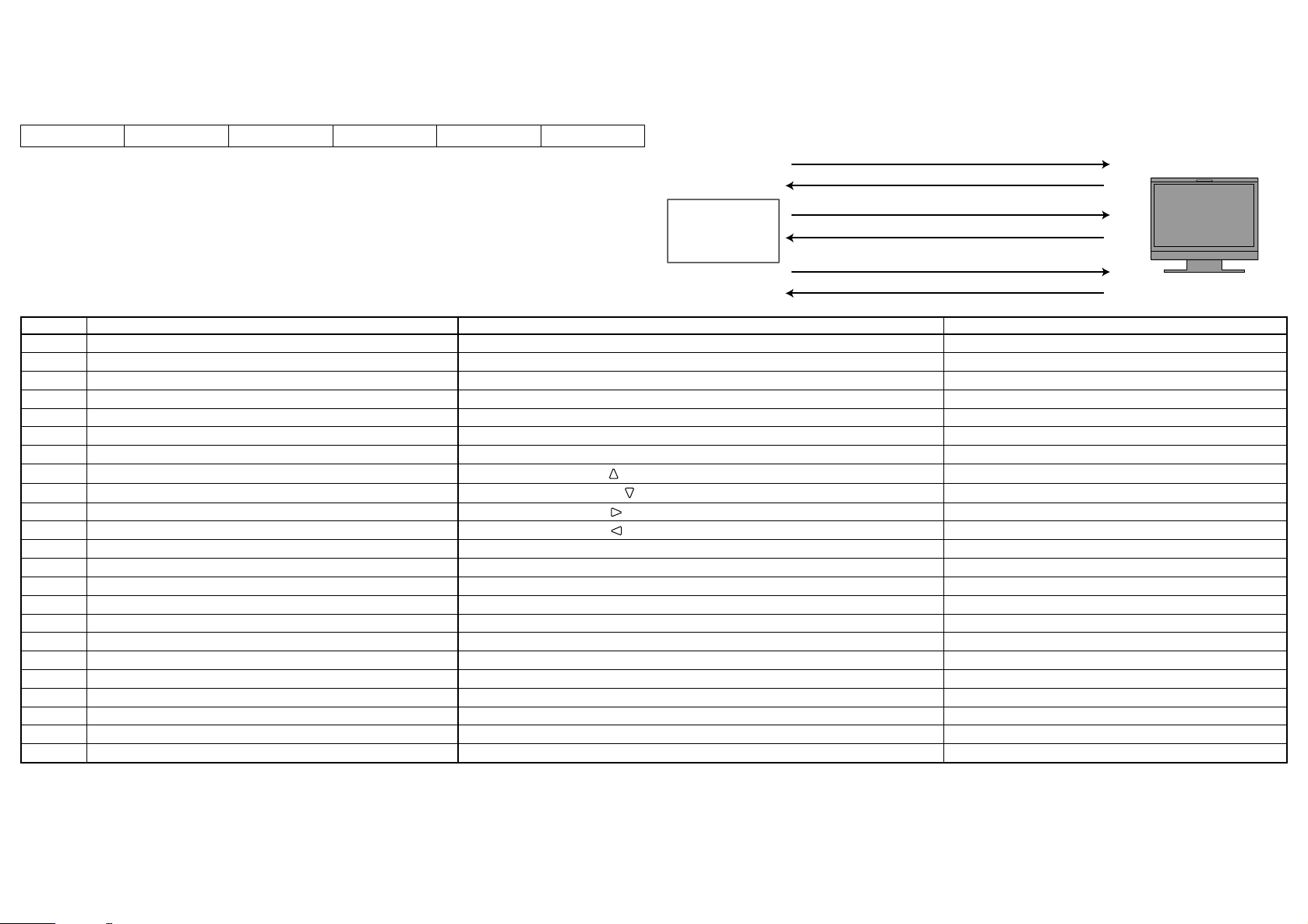

Using the serial communication ..................... 22

Troubleshooting ................................................. 24

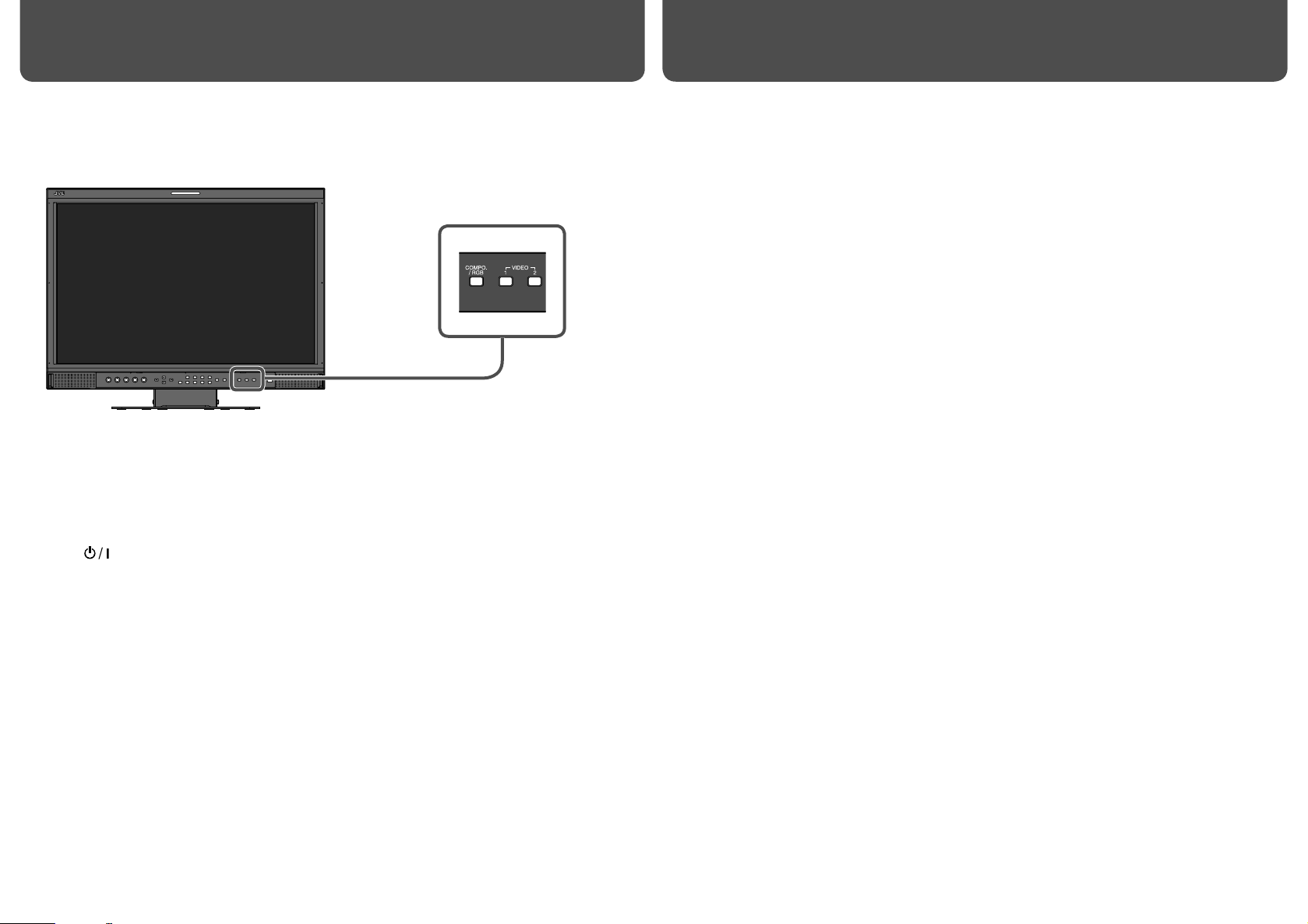

Self-check program ........................................ 25

Maintenance ....................................................... 25

Specifications .................................................... 26

General ........................................................... 26

LCD panel ...................................................... 26

Input/output terminals ..................................... 26

Dimensions ..................................................... 27

LCT2588-001A-H

Safety Precautions

2

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE. NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE
PLACED ON THE APPARATUS.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure
your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRIC SHOCK OR FIRE. In order
not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation,
use, and service. Please read these “IMPORTANT SAFEGUARDS” carefully before use.

• All the safety and operating instructions should be read before the product is operated.

• The safety and operating instructions should be retained for future reference.

• All warnings on the product and in the operating instructions should be adhered to.

• All operating instructions should be followed.

POWER CONNECTION

The power supply voltage rating of this product is AC 120 V.
The power cord attached conforms to the following power supply voltage and countries. Use only the power
cord designated to ensure safety and EMC regulations of each country.

For U.S.A. and Canada:
AC 120 V

This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact
your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

• This product should be operated only with the type of power source indicated on the label. If you are not
sure of the type of power supply of your home, consult your product dealer or local electric power company.

Warning: This is a class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

• Before connecting other products such as VCR’s and personal computers, you should turn off the power of
this product for protection against electric shock.

• Do not use attachments not recommended by the manufacturer as they may be hazardous.

• When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or equivalents. Unauthorized substitutions may result in fire, electric shock, or
other hazards.

• Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.

Under the following conditions,

1. Turn off the power.

2. Unplug this product from the wall outlet.

3. Refer service to qualified service personnel.

a) When the product emits smoke or unusual

smell.

b) When the product exhibits a distinct change in

performance —for example, no picture or no
sound.

c) If liquid has been spilled, or objects have fallen

on the product.
d) If the product has been exposed to rain or water.
e) If the product has been dropped or damaged in

any way.
f) When the power supply cord or plug is

damaged.

• Do not install this product in the following places:
– in a damp or dusty room
– where the product is exposed to soot or

steam, such as near the cooking counter or a

humidifier
– near heat sources
– where condensation easily occurs, such as

near the window

• Do not place this product on an unstable cart,
stand, or table. The product may fall, causing
serious injury to a child or adult, and serious
damage to the product.

The product should be mounted according to the

manufacturer’s instructions, and should use a
mount recommended by the manufacturer.

• Do not use this product near water.

• Be sure to install the product in the place where
proper temperature and humidity are kept (☞
“Operating conditions” on page 26).

This product becomes hot during its use. Take

enough care when handling the product.

• The AC power supply is controlled by turning on/
off the POWER switch on the rear panel. If the
product is installed in a place where you cannot
easily turn on/off the POWER switch, control the
AC power supply by plugging/unplugging the
power cord into/from the AC outlet. In this case,
install the product as close to the AC outlet as
possible, and leave enough space for plugging/
unplugging the power cord. If the product is
installed in a place where you cannot easily
plug/unplug the power cord, equip an easily
accessible device to the wiring of the building for
turning on/off the power.

• When the product is left unattended and unused
for a long period of time, unplug it from the wall
outlet and disconnect the cable system.

• Do not overload wall outlets, extension cords, or
convenience receptacles on other equipment as
this can result in a risk of fire or electric shock.

• Use only the accessory cord designed for this
product to prevent shock.

• Slots and openings in the cabinet are provided
for ventilation. These ensure reliable operation
of the product and protect it from overheating.
These openings must not be blocked or covered.

• Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-circuit the parts, which
could result in a fire or electric shock.

• Never spill liquid of any kind on the product.

• Never place anything on the product. (Placing
liquids, naked flames, cloths, paper, etc. on the
product may cause a fire.)

• Do not apply any strong shock to the LCD panel.
(Do not hit any object against it or push it with a
sharp-pointed tool.)

• Do not put heavy objects on the product.

• Do not step on or hang on the product.

Do not attempt to service this product yourself, as
opening or removing covers may expose you to
dangerous voltages and other hazards. Refer all
service to qualified service personnel.

Do not use the product for a long time if the sound
is distorted.

Use only the power source specified on the unit.

• AC power: 120 V, 50 Hz/60 Hz

Caution for use of the product in the high
temperature

Do not use the product in places of high
temperature; otherwise, parts of this product or
the LCD panel may be damaged. This product
is equipped with a temperature sensor to give
warning if the temperature becomes too high. If
the temperature exceeds the range of normal use,
“TEMP. OVER” is displayed, and the power is turned
off automatically if the temperature becomes any
higher. In this case, move the product to a place of
low temperature to let it cool down.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

WARNING: THIS APPARATUS MUST BE CONNECTED TO A MAINS SOCKET OUTLET

WITH A PROTECTIVE EARTHING CONNECTION.

CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

FCC NOTICE
CAUTION: Changes or modifications not approved by JVC could void the user’s authority to operate the

equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.

IMPORTANT RECYCLING INFORMATION

This product has a fluorescent lamp that contains mercury. Disposal of these materials
may be regulated in your community due to environmental considerations. For disposal
or recycling information, please contact your local authorities or for USA, the Electronic
Industries Alliance: http://www.eiae.org

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of
time.

14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.

16) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

17) When discarding batteries, environmental problems must be considered and the local rules or laws governing
the disposal of these batteries must be followed strictly.

3

Installation

4

CAUTION

• Do not rest your arm on the monitor or lean against the monitor.

• Do not touch the LCD panel when installing the monitor.

• Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the
monitor or injury.

You can place the monitor in the following two ways when using it on the supplied stand.

You can tilt the monitor as follows.

When the stand plate is attached to the higher
position of the stand body (☞ “To adjust the stand
height” on page 5), you can place the monitor as
illustrated below.

1 Remove the screws on the right side of the stand

(see the illustration below), then lift the stand up
by about 148°.

Monitor

About 6°

0°

About 6°

• When the monitor is not tilted (0°), the
guidelines align as illustrated below.

Stand

Guidelines

Screw
(silver)

2 Attach the removed screws and place the monitor

as illustrated below.

About 148°

To detach the stand

CAUTION

Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged.

Attachment screws

Screw holes for stand attachment

Monitor

The illustration of the monitor is of DT-V24G1Z.

To install the stand

When attaching the stand to the monitor, insert the guides of the stand into the guide holes on the monitor to
place the stand in the correct position. Then fix the stand firmly with the attachment screws.

Stand body

The illustration of the monitor is of DT-V24G1Z.

• You can select the stand height—higher position
or lower position (☞ “To adjust the stand height” on
page 5).

CAUTION

• Be careful not to pinch your fingers in the gap
between the monitor and the stand.

• When the stand plate is attached to the lower
position of the stand body, you cannot tilt the
monitor downward.

The illustration of the monitor is of DT-V24G1Z.

• To place the monitor as illustrated on the left again,
remove the screws on the right side of the stand,
return the monitor angle to 0°, then reattach the
removed screws.

CAUTION

• When lifting up the stand...
– lay the monitor on a cloth with the LCD panel

facing down to prevent the LCD panel from being
damaged.

– be careful not to pinch your fingers in the moving

parts.

• Make sure of lifting the stand up until it stops
(about 148°); otherwise the monitor may fall over.

• Place the monitor on a mat to avoid scratching the
table surface.

• Do not lift up the stand when the stand plate is
attached to the lower position of the stand body.

Guides

Stand body

Screw holes
for stand
attachment

Stand plate

Guide holes

Monitor

The illustration of the monitor is of DT-V24G1Z.

To adjust the stand height

To change the stand height, detach the stand from the monitor (☞ “To detach the stand” on page 4). Then,
change the position of the stand plate according to the stand height you want by choosing the screw holes to use.

<Higher position> <Lower position>

Screw holes for higher position Screw holes for lower position

To prevent an accidental fall

Fix the monitor to a wall by using strings.

Fixing the monitor

Attach the hook (not provided) to the VESA mounting holes on the rear panel (use the two holes on the upper
side) using M4 x 10 mm screws (not provided). Bind the hooks on the rear panel of the monitor to a wall or a pillar
using durable string.

Stand plate

Stand plate

VESA mounting holes

Hook and screw (M4 x 10 mm)

(not provided)

Hook (not provided)

The illustration of the monitor is of DT-V24G1Z.

5

Daily Operations / Connections

6

7 Front panel

Tally lamp

This lamp is controlled by the tally function of the
MAKE/TRIGGER terminal.

• You can select the color of the tally lamp from

GREEN” or “RED” (☞ “TALLY SELECT” in

“
“FUNCTION SETTING” on page 17 and “External
Control” on page 21).

The illustration of the monitor is of DT-V24G1Z.

1 Speakers (stereo)

The speakers emit the same audio signal emitted
from the AUDIO ASSIGN (MONITOR OUT)
terminals (☞ “ 8 AUDIO ASSIGN (MONITOR OUT)
terminals” on page 9).

2 VOLUME adjustment knob

Adjusts the volume.

3 Picture adjustment knob

PHASE: Adjusts the picture hue.
CHROMA: Adjusts the picture color density.
BRIGHT: Adjusts the picture brightness.
CONTRAST: Adjusts the picture contrast.

• PHASE and CHROMA cannot be adjusted for
certain signal formats.

• When “COMPONENT PHASE” is set to
“DISABLE” and an NTSC signal is input, PHASE
can be adjusted (☞ page 17).

4 MUTING button

Turns off the sound when no menu screen is
displayed.

• To cancel the function, press the button again or
turn the VOLUME adjustment knob.

• Muting function is also canceled when
“BALANCE” of “AUDIO SETTING” in the MAIN
MENU is changed (☞ page 14).

• “NO EFFECT” is displayed when you press a button which is not available for the current input or signal format (the lamp lights even when the function does not
actually work).

• The items controlled by the MAKE system cannot be controlled by the buttons on the front panel (“REMOTE ON” is displayed and the lamps do not light).

5 / / / buttons

When a menu screen is displayed

Selects or adjusts menu items (☞ “Menu
Operations” on page 7).

When no menu screen is displayed

Selects the audio channels of EMBEDDED AUDIO
signals (☞ “Audio Channel Selection” on page 7).

• Pressing button while holding button displays
the SET-UP MENU (☞ “Menu Operations” on
page 7).

6 MENU button

Activates/deactivates the display of the MAIN MENU.
(☞ “Menu Operations” on page 7)

7 COLOR OFF button/lamp

Displays only the luminance signal.

• This function does not work for RGB input signals.

8 1:1 button/lamp

Displays the picture in the original resolution of the
input signal.

• The aspect ratio of the picture may change
depending on the input signal.

9 AREA MARKER button/lamp

Displays/hides the area marker.

• Select the style of the area marker in “MARKER”
of the MAIN MENU (☞ page 13).

• This function works only when displaying the
picture in 16:9 aspect ratio.

• This function does not work when “AREA
MARKER” or “R-AREA MARKER” is set to “OFF”
in “MARKER.”

p SAFETY MARKER button/lamp

Displays/hides the safety marker.

• Adjust the area of the safety marker in “MARKER”
of MAIN MENU (☞ page 13).

• This function does not work when displaying the
picture in the 1:1 mode.

• This function does not work when “SAFETY
MARKER” or “R-SAFETY MARKER” is set to
“OFF” in “MARKER.”

q SCREENS CHECK button/lamp

Displays only the selected element (R, G, or B) of
the video signal.

• Each time you press this button, the picture
changes in the following order.

RGB (Normal screen) Red screen

Green screenBlue screen

w ASPECT button/lamp

Changes the aspect ratio of the picture from 4:3
to 16:9 when the picture of 16:9 aspect ratio is
squeezed into 4:3 format signal.

• To return to 4:3, press the button again.

• This function does not work when displaying the
picture in the 1:1 mode.

e SCOPE button/lamp

Displays/hides the indication of the wave form
monitor and vector scope (☞ “SCOPE SETTING
on page 15).

• Each time you press this button, the window
changes in the following order.

No display Wave form monitor

Vector scope

r T.C. (time code) button/lamp

Activates/deactivates the display of the time data
(time code) contained in the SDI signal (☞
Information Display

• Select the time code type in “INFORMATION” of
SET-UP MENU (☞ page 19).

” on page 7).

“On the

t INPUT SELECT buttons/lamps

Selects an input.

SDI 1: E. AUDIO HD/SD SDI (IN 1) terminal
SDI 2: E. AUDIO HD/SD SDI (IN 2) terminal
DUAL LINK SDI:

E.AUDIO HD SDI (IN 1, IN 2) terminal

DVI: DVI-D (HDCP) terminal
COMPO./RGB: COMPO./RGB terminal
VIDEO 1: VIDEO (INPUT 1) terminal
VIDEO 2: VIDEO (INPUT 2) terminal

• The lamp for the selected input lights.

• When “SDI DUAL LINK” is set to “ON” in MAIN
MENU, press SDI 1 or SDI 2 to select DUAL LINK
(☞ page 12).

y Power lamp

Unlit: The monitor is completely off (the power

switch on the rear panel is turned off).

Lights in Green:

The monitor is on.

Lights in orange:

The monitor is off (on standby).

Flashes in orange:

The monitor is in the P. SAVE (power
save) mode (☞ “NO SYNC ACTION” in
“SYNC FUNCTION” on page 15).

u button

”

Turns on and off (on standby) the monitor.

• The power switch is equipped on the rear panel of
the monitor (☞ 1 on page 8).

On the Status DisplayAudio Channel SelectionMenu Operations On the Information Display

1 Display the menu.

To display the MAIN MENU

\ Press MENU button.

To display the SET-UP MENU

\ Press

Operation guide

Operation guide

button while holding button.

MAIN MENU

Selected item

SET-UP MENU

Selected item

2 Press buttons to select an item,

then press button.

• For some items, adjustments will be made by
pressing .

Ex.: When “MARKER” in the
MAIN MENU is selected

3 Press buttons to select an item,

then press buttons to make
adjustments.

4 Press MENU button to finish the

menu operation.

• Pressing MENU button repeatedly
deactivates the display of the menu.

Select audio channels emitted from the speakers
(L/R) and the AUDIO ASSIGN (MONITOR OUT)
(OUT1(L)/OUT2(R)) terminals, when EMBEDDED
AUDIO signals come in to the E. AUDIO HD/SD
SDI terminal (IN1 or IN2) and SDI input (1 or 2) is
selected.

• You have to choose a group of selectable audio
channels before the channel selection (☞
“E.AUDIO GROUP” in “AUDIO SETTING” on
page 14).

• When a DUAL LINK SDI signal is input, it is
assigned to SDI 1.

• The setting is memorized for each input (SDI 1
and SDI 2).

1 Press or button when a menu

is not displayed.

The screen for audio channel selection is
displayed.

• The screen for audio channel selection
automatically disappears in about 30
seconds after the previous operation.

Audio channel selection screen

Selected item

2 Press buttons to select the left

(L ch) or right (R ch).

3 Press buttons to select an

audio channel.

• Each time you press the button, the audio
channel changes according to the settings of
“E.AUDIO GROUP” (☞ “NOTE” on page 14).

4 Press MENU button.

The screen for audio channel selection
disappears.

Using the audio level meter

You can check the conditions of the current
EMBEDDED AUDIO signals in the audio level meter
(☞ “On the Information Display” on the right,“LEVEL
METER SETTING” in “AUDIO SETTING” on page 14).

The monitor displays the information below.

• Make the setting to display/hide each information

using the MENU with the exception of 5,
controlled with T.C. button (☞ r on page 6).

• Select the position of the information display
(☞ “POSITION” in “INFORMATION” on page 19).

1 Audio level meter

• Not displayed when “LEVEL METER ch” is set
to “OFF” (☞ “AUDIO SETTING” on page 14).

2 Signal format

• Displayed when “STATUS DISPLAY” is set to
“ON” (☞ “INFORMATION” on page 19).

• For the contents displayed, see “Available
signals” and “On the signal format” on page

10.

3 Source name assigned in “CHARACTER

SET.”

• Displayed when “SOURCE ID” is set to “ON”
or “AUTO.”

• Displayed in large letters when “STATUS
DISPLAY” is set to “OFF” or “AUTO.”

☞ “INFORMATION” on page 19

4 CRC error indication

• Displayed when “CRC ERROR” is set to “ON”
(☞ “INFORMATION” on page 19).

• A red square is displayed when an error
occurs.

5 Time code

• When the input signal includes no time code,
“TC – –:– –:– –:– –” is displayed (☞ r on
page 6).

6 Data format

• Displayed when “STATUS DISPLAY” (☞
“INFORMATION” on page 19) is set to “ON”
and SDI signal is input (not all SDI signals) (☞
“CLOSED CAPTION” on page 16).

• When any information of 1, 2, 3, 4, or 6

above is displayed while signals come in from
equipment other than a computer, the picture is
displayed without overlapping the information
display area.

However, the information display will overlap with

the picture when...
– displaying the picture with higher resolution

than the resolution of the panel in 1:1 mode.

– “SD4:3 LARGE” setting is “ON” (☞ “FUNCTION

SETTING” on page 17).

If you press the INPUT SELECT button (☞ t on
page 6) currently lit, the status of the input signal
and setting of MUTING are displayed for about 3
seconds.

• Make the setting to display/hide the status in
“STATUS DISPLAY” of the “INFORMATION” (☞
page 19).

• When “STATUS DISPLAY” is set to “AUTO” or
“ON,” the status below is also displayed in the
following cases:
– When you change the input
– When the signal condition of the current input

changes

– When you turn on the monitor

• When “STATUS DISPLAY” is set to “ON,” the
signal format will remain displayed 3 seconds
after the status is displayed.

1 Signal format

• For the contents displayed, see “Available
signals” and “On the signal format” on page

10.

2 Signal format of DVI input or setting of

“COMPO./RGB SEL.”

☞ “COMPO./RGB SEL.” on page 12, “DVI

INPUT SEL.” on page 20

Status indication of DUAL LINK/3G SDI

signal information

☞ “NOTE” on page 11

3 Displayed when “SYNC INPUT SEL.” is set

to “EXT.” (external synchronization)

☞ “ SYNC FUNCTION” on page 15

Detailed information of 3G SDI signal input

• Displays the sampling structure/pixel
resolution of the signal format.

• Displayed when the 3G SDI signal is input.

4 Setting of “MUTING”

• Displayed only when muting is activated (☞
4 on page 6).

7

Daily Operations / Connections (cont.)

7 Rear panel

Attach a security wire to this slot.

The illustration of the monitor is of DT-V24G1Z.

21

Security slot

1 POWER switch

Turns AC power on or off.

• You need to press

2 AC IN terminal

AC power input connector.
Connect the provided AC power cord to an AC outlet.

• Attach the provided power cord holder to prevent accidental disconnection of the AC power cord (☞
“Attaching the power cord holder” on page 9).

CAUTION

Do not connect the power cord until all other connections are completed.

3 REMOTE terminal

Terminal for controlling the monitor by an external control (☞ “External Control” on page 21).

4 VIDEO (INPUT 1/INPUT 2) terminals (BNC)

Input (IN) and output (OUT) terminals for the composite signals.

5 COMPO./RGB (G/Y, B/PB/B-Y, R/PR/R-Y) terminals (BNC)

Input (IN) and output (OUT) terminals for the analog component (color difference) or analog RGB signals.

• Select the signal type in “COMPO./RGB SEL.” corresponding to the type of the input signal (☞ page 12).

6 EXT.SYNC (CS) terminals (BNC)

Input (IN) and output (OUT) terminals for the external composite sync (Cs) signals.

• To use these terminals, set “SYNC INPUT SEL.” to “EXT.” (☞ “SYNC FUNCTION” on page 15).

• The terminals are for all VIDEO (INPUT 1, INPUT 2) and COMPO./RGB.

• When an external sync signal is input, external synchronization has priority over all VIDEO 1, VIDEO 2 and
COMPO./RGB input.

7 AUDIO ASSIGN (IN 1/IN 2) terminals (pin jack)

Input terminals for the analog audio signals.

• Use this terminal for the analog audio connection of the SDI. When a superimposed signal (EMBEDDED
AUDIO signal on an SDI signal) is input, analog audio signals cannot be input.

• Select the video input to assign the audio signal in “AUDIO1 ASSIGN.” or “AUDIO2 ASSIGN.” (☞ “AUDIO
SETTING” on page 14).

button (☞ u on page 6) to use the monitor after turning on the POWER switch.

8

8

8 AUDIO ASSIGN (MONITOR OUT) terminals (pin jack)

Output terminals for the analog audio signal.

• The terminals output the audio signal through AUDIO ASSIGN (IN 1 or IN 2) terminals when you select the
video input you have selected for “AUDIO1 ASSIGN.” or “AUDIO2 ASSIGN.” in “AUDIO SETTING” (☞ page

14).

• The signal is output from this terminal only when the monitor is on or in “P.SAVE” (power save) mode (☞
“NO SYNC ACTION” on page 15).

• The EMBEDDED AUDIO signal...

– is decoded into an analog signal, then emitted.
– is emitted only when “SDI 1” or “SDI 2” is selected, and when EMBEDDED AUDIO signals come in to the

E. AUDIO HD/SD SDI (IN 1 or IN 2) terminal.

– has priority over the audio signal input to AUDIO ASSIGN (IN 1 or IN 2) terminals when “SDI-1” or “SDI-2”

is selected for “AUDIO1 ASSIGN.” or “AUDIO2 ASSIGN.” and the EMBEDDED AUDIO signal is input to
E.AUDIO HD/SD SDI (IN 1 or IN 2) terminal.

9 E. AUDIO HD/SD SDI (IN 1, IN 2) terminals (BNC)

Input terminals for the HD/SD SDI signals.

• The terminals accept also EMBEDDED AUDIO signals including up to 12 audio channels with a sampling
frequency of 48 kHz.

• Use both terminals when selecting DUAL LINK SDI for the input.

p E. AUDIO HD/SD SDI (SWITCHED OUT) terminal (BNC)

Output terminal for the HD/SD SDI signals.

• The SDI signals of the current input (SDI 1 or SDI 2) are re-clocked, then emitted.

• When an input other than SDI 1 and SDI 2 is selected, the SDI signal of the input selected last time is
emitted from this terminal.

• The signals are emitted from this terminal only when the monitor is on or in “P.SAVE” (power save) mode.

• No signals are emitted when DUAL LINK SDI is selected for the input.

q DVI-D (HDCP) terminal

Input terminal for the DVI-D signal compatible with HDCP.

• When the picture is not displayed correctly, change the setting of “DVI INPUT SEL.” (☞ page 20).

Attaching the power cord holder

The provided power cord holder prevents accidental disconnection of the AC power cord from the AC IN
terminal.

• The power cord holder consists of two parts, a case and a cover.

231

AC IN

Case

CAUTION

• Use only the provided screws.

• Make sure the plug will not be pulled out after the cover is attached to the case.

terminal

Cover

To detach the cover

Note for connections

• Before making any connections, turn off all the equipment.

• Use a cord whose plugs correctly match the terminals on this monitor and the equipment.

• Plugs should be firmly inserted; poor connections could cause noise.

• When unplugging a cord, be sure to grasp its plug and pull it out.

• DO NOT connect the power cord until all connections are complete.

• Refer also to the user manual of each piece of equipment.

9

Daily Operations / Connections (cont.)

10

7 Available signals

Video signals

No. Signal name

1 NTSC NTSC

2 PAL PAL

3 B/W50 B/W50

4 B/W60 B/W60

5 480/60i 480/60i —

6

480/59.94i 480/59.94i —

7 576/50i 576/50i —

8 480/60p 480/60p —

9

480/59.94p 480/59.94p —

10 576/50p 576/50p —
11 640*480/60p 640*480/60p — — — — —

12

640*480/59.94p 640*480/59.94p — — — — —

13 720/60p 720/60p —

14

720/59.94p 720/59.94p —

15 720/50p 720/50p —

16 720/30p 720/30p —

17

720/29.97p 720/29.97p —

18 720/25p 720/25p —

19 720/24p 720/24p —

20

720/23.98p 720/23.98p —

21 1080/60i 1080/60i —

22

1080/59.94i 1080/59.94i —

23 1035/60i 1035/60i — √*

24

1035/59.94i 1035/59.94i — √*

25 1080/50i 1080/50i —

26 1080/60p 1080/60p — — —

27

1080/59.94p 1080/59.94p — — —

28 1080/50p 1080/50p — — —

29 1080/30p 1080/30p —

30

1080/29.97p 1080/29.97p —

31 1080/25p 1080/25p —

32 1080/24p 1080/24p —

33

1080/23.98p 1080/23.98p —

34 1080/30psF 1080/30psf — √*

35

1080/29.97psF 1080/29.97psf — √*

36 1080/24psF 1080/24psf —

37

1080/23.98psF 1080/23.98psf —

38

1080/25psF 1080/25psf — — —

The following signals are available for this monitor.

Signal format shown in the

status display (☞ page 7)

VIDEO

(INPUT1, INPUT2)

√
√
√
√

COMPO./RGB(Analog

component/Analog. RGB)*

———— —

———— —

———— —

———— —

√√
√√
√√
√
√
√

√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√√ √
√√√√ √

3

4

√√√√ √

√√√√ √
√√√√ √
√√√√ √
√√√√ √
√√√√ √

3

4

√√√√
√√√√

Input terminal

1

SD/HD (1.5G) 3G SDI DUAL LINK

E. AUDIO SDI (IN 1, IN 2)*

——

——

——

—— —

—— —

—— —

√
√

3

√*

4

√*

—— √*
—— √*

√√ √
√√ √
√√ √

√√
√√

√√

2

(Digital component/Digital RGB)

—

—

—

——

——

——

——

——

DVI-D (HDCP)

√
√
√
√
√
√
√
√
√
√
√

3

4

—

—

—

—

—

√: Acceptable
—: Not acceptable

*

*2 Compatible with EMBEDDED

*3 The signal is recognized as

*4 The signal is recognized as

1

Analog component/analog RGB

signals are compatible with G on
sync signal, Y on sync signals, and
composite sync signals (CS). The
separate sync signal (HS/VS) is
not compatible.

AUDIO signals.

1080/60i, and the status is
displayed as “1080/60i.”

1080/59.94i, and the status is
displayed as “1080/59.94i.”

On the signal format

The following messages appear
depending on the type of input
signals and their conditions.

When a DVI-D signal protected
with HDCP is input

\

“*” (at the end of the indication)

When no video signal comes in

\ “NO SYNC”

When a noncompliant video
signal comes in

\ “Out of range”

When “COLOR SYSTEM” (☞
“FUNCTION SETTING” on
page 17) is set to “AUTO” and
the noncompliant composite
video signals come in

\ “OTHERS”

Computer signals (preset)

DVI-D (HDCP) terminals

Resolution Frequency

No. Signal name

1 VGA60 640 480 31.5 59.9 Non-interlace

2 WVGA60 852 480 31.5 59.9 Non-interlace

3 SVGA60 800 600 37.9 60.3 Non-interlace

4 XGA60 1024 768 48.4 60.0 Non-interlace

5 WXGA (1280) 1280 768 47.8 60.0 Non-interlace

6 WXGA+60

7 SXGA60 1280 1024 64.0 60.0 Non-interlace

8 WSXGA+60 1680 1050 65.2 60.0 Non-interlace

9 UXGA60*

10 WUXGA60*

11 720/60p 1280 720 45.0 60.0 Non-interlace

12 1080/60p*

13 720/50p 1280 720 37.5 50.0 Non-interlace

14 1080/50p*

5

*

For DT-V20L3GZ: When No. 9, 10, 12 or 14 signals come in, thin lines will become obscured because their

signal resolution is higher than the screen resolution.

• Non-preset signals may not be displayed normally even if their frequency is within the acceptable range (☞
“Horizontal/vertical frequency (computer signal)” on page 26).

• When a preset signal comes in, the signal format is shown on the status display. For other signals, the
resolution is shown.

5

5

5

Horizontal Vertical

1440 900 55.9

5

1600 1200 75.0 60.0 Non-interlace

1920 1200 74.0 60.0 Non-interlace

1920 1080 67.5 60.0 Non-interlace

1920 1080 56.25 50.0 Non-interlace

Horizontal

(kHz)

Vertical (Hz)

60.0 Non-interlace

Scan system

Specification of the DVI-D (HDCP) terminal

Connect it to the DVI-D output terminal on a personal computer.

Pin

No.

1

2

3

4

5

6

7

8

Input signal

T.M.D.S Data 2–

T.M.D.S Data 2+

T.M.D.S Data 2 shield

NC

NC

DDC Clock

DDC Data

NC

Pin
No.

9

10

11

12

13

14

15

16

Input signal

T.M.D.S Data 1–

T.M.D.S Data 1+

T.M.D.S Data 1 shield

NC

NC

+5 V Power

GND

Hot Plug Detect

Pin
No.

17

18

19

20

21

22

23

24

Input signal

T.M.D.S Data 0–

T.M.D.S Data 0+

T.M.D.S Data 0 shield

NC

NC

T.M.D.S Clock shield

T.M.D.S Clock+

T.M.D.S Clock–

NOTE

Status indication of DUAL LINK/3G SDI signal information

When DUAL LINK and 3G SDI signals come in, the status of DUAL LINK is displayed. When “SDI DUAL
LINK” (☞ page 12) in MAIN MENU is set to “OFF” and a 3G SDI signal comes in, the 3G SDI signal
information is displayed.

Status indication of DUAL LINK

When “SDI DUAL LINK” (☞ page 12) in MAIN MENU is set to “ON” and an SDI signal is selected, “DUAL
LINK” is displayed.

Status indication of 3G SDI signal information

Following signal information can be displayed when a 3G SDI signal comes in.

3G A-1: Level A mapping structure 1
3G A-2: Level A mapping structure 2
3G A-3: Level A mapping structure 3
3G A-4: Level A mapping structure 4
3G B-DS1: Level B data stream 1
3G B-DS2: Level B data stream 2
3G B-DUAL: Level B DUAL LINK

11

Menu Configuration—MAIN MENU

12

For the operation procedure, see page 7.

Operation guide

Shows the buttons for each operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

PICTURE FUNCTION

Setting for the picture quality

Item To do Setting value

APERTURE FREQ.*

APERTURE

1

LEVEL*

CTI

LTI

I/P MODE

sub menu

reset

1

*

Memorized for each input.

BACK LIGHT

Adjusts the brightness of the display.

3G SDI LEVEL B

Selects the data stream from two HD SDI signals multiplexed when a 3G SDI level B signal comes in.

1

Select the frequency of the luminance signal compensated in
“APERTURE LEVEL.”

Compensate the frequency response of the luminance signal of
the video signal.

Adjust the clearness of the outlines of the chrominance signal. OFF, NORMAL,

Adjust the clearness of the outlines of the luminance signal. OFF, NORMAL,

Selects a proper mode corresponding to the input picture. NORMAL, CINEMA,

Display the sub menu which enables you to adjust the items of “PICTURE FUNCTION”
while viewing the actual picture.

Restore the default settings for all the items in “PICTURE FUNCTION.”

Setting value: –20 – +20

Setting value: DS1, DS2

OFF, LOW, HIGH

01 – 10

HARD

HARD

FIELD

SDI DUAL LINK

Activates/deactivates the DUAL LINK function of SDI signals.

• “DUAL LINK” is displayed when the setting is set to “ON.” No other status indications of SDI signals are
displayed.

• Set this setting to “OFF” when an SDI signal other than DUAL LINK SDI is input.

COMPO./RGB SEL.

Selects the signal type you want to use for COMPO./RGB terminals.

Setting value: OFF, ON

Setting value: COMPO. (COMPONENT), RGB

Operation guide

Shows the buttons for each operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

NOTE

Setting of “AREA MARKER”, “SAFETY MARKER”, “R-AREA MARKER”,
“R-SAFETY MARKER”

The setting values and features are as follows.

OFF: Deactivate the marker.
LINE: Displays the area with an outline.
HALF: The area outside the specified aspect ratio of the screen is displayed at 50% transparency.
HALF+L: The area of the specified aspect ratio of the screen is indicated by an outline, and the area

outside of that is displayed at 50% transparency.

BLK.: The area outside the specified aspect ratio of the screen is black. Only the portion of the

picture within the designated area is displayed.

BLK. +L: The area of the specified aspect ratio of the screen is indicated by an outline, and the area

outside of that becomes black so that only the area inside the line is displayed.

MARKER*1*

Settings for marker functions

1/2

Item To do Setting value

AREA MARKER*

MARKER ASPECT*

SAFETY MARKER

SAFETY AREA

FRAME

CENTER MARKER

LINE BRIGHTNESS

2/2

Item To do Setting value

R-AREA MARKER*

R-MARKER ASPECT*

R-SAFETY MARKER

R-SAFETY AREA

• The area marker or the safety marker is displayed by using AREA MARKER or SAFETY MARKER button, or
external control.

• Select either non-“R-” items or “R-” items to activate by using external control (☞

• When a picture is displayed in 4:3 aspect ratio, the safety marker for the 4:3 area is displayed.

• To display the safety marker for the area of a picture displayed in 16:9 aspect ratio, hide the area marker

(☞ “NOTE”).

*1 Memorized for each input.
*2 Not displayed when picture is displayed in the 1:1 mode.
*3 Displayed only when picture is displayed in 16:9 aspect ratio.

2

3

3

Activate/deactivate the area marker and select the
style of it.

3

Select the aspect ratio of the area marker. 4:3, 14:9, 13:9, 2.35:1, 1.85:1,

Activate/deactivate the safety marker and select
the style of it.

Adjust the area of the safety marker. 80% – 100%

Displays/hides the frame indicating the area of
specified aspect ratio.

Displays/hides the marker indicating the center
position of the picture.

Adjust the brightness of the marker. HIGH, LOW

Activate/deactivate the area marker and select the
style of it.

3

Select the aspect ratio of the area marker. 4:3, 14:9, 13:9, 2.35:1, 1.85:1,

Activate/deactivate the safety marker and select
the style of it.

Adjust the area of the safety marker. 80% – 100%

☞ “NOTE”

1.66:1

☞ “NOTE”

the

OFF, ON

OFF, ON

☞ “NOTE”

1.66:1

☞ “NOTE”

“External Control”

on page 21).

13

Menu Configuration—MAIN MENU

(cont.)

14

For the operation procedure, see page 7.

Adjustment bar

Operation guide

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

Displayed when selecting
“BALANCE.”

NOTE

Settings of “E.AUDIO GROUP”

The setting values and selectable audio channels of EMBEDDED AUDIO signals are as follows.

(G means GROUP)

1G: channel(s) 1/2/3/4/1+2/3+4/1 – 4 (1G)
2G: channel(s) 5/6/7/8/5+6/7+8/5 – 8 (2G)
1-2G: channel(s) 1/2/3/4/5/6/7/8/1+2/3+4/5+6/7+8/1 – 4 (1G)/5 – 8 (2G)/1 – 8 (1G+2G)
3G: channel(s) 9/10/11/12/9+10/11+12/9 – 12 (3G)
1-3G: channel(s) 1/2/3/4/5/6/7/8/9/10/11/12/1+2/3+4/5+6/7+8/9+10/11+12/1 – 4 (1G)/5 – 8 (2G)/

9 – 12 (3G)/1 – 8 (1G+2G)/1 – 12 (1-3G)

AUDIO SETTING

Settings for the audio output balance, EMBEDDED AUDIO signals and level meter

Item To do Setting value

BALANCE

AUDIO1 ASSIGN.

AUDIO2 ASSIGN.

E.AUDIO GROUP*1Select the audio channel group of the EMBEDDED AUDIO

LEVEL METER
SETTING*

LEVEL METER ch

BAR TYPE

REFERENCE
LEVEL

OVER LEVEL

BAR
BRIGHTNESS

PEAK HOLD

*1 Memorized for each input.

1

Adjust the balance between the right and left speakers. L5 – L1, 0, R1 – R5

Select the video input which the audio signal through
AUDIO ASSIGN (IN 1) terminal is assigned to.

Select the video input which the audio signal through
AUDIO ASSIGN (IN 2) terminal is assigned to.

signals.

Adjust the level meter display for the EMBEDDED AUDIO
signals.

Select how the audio channels are displayed on the level
meter.

Select the color of the level meter display. 3COLORS (3 colors to

Select the standard input level indicated on the level meter. –20dB, –18dB

Select the input level’s lower limit indicated in red for the
“3COLORS” display.

Select the brightness of the level meter. LOW, HIGH

Activates/deactivates the peak hold function of the level
meter.

SDI-1, SDI-2, DVI, COMP/
RGB, VIDEO-1, VIDEO-2

☞ “NOTE”

☞ “NOTE”

OFF, LINE (Displays
the channels 1 – 6 at
the left of the screen
and 7 – 12 at the right.),
DIVIDE (Displays the odd
channels at the left of
the screen and the even
channels at the right.)

indicate variations in input
levels), W.100 (white)

–10dB, –8dB, –6dB,
–4dB, –2dB

OFF, ON

Example of the level meter display —Level meter position and audio channels

Ex.: When “LEVEL METER ch” is set to “LINE” and “BAR TYPE” is set to “3COLORS”

OVER LEVEL REFERENCE LEVEL

Red

Yellow

Green

• The level meter with no audio signal input is displayed in white for “3COLORS”, and in gray for “W.100.”

• You can select the position of the level meter display—top or bottom of the screen (☞ “POSITION” in
“INFORMATION” on page 19).

• When “PEAK HOLD” is set to “ON,” the maximum level meter value will remain displayed for a set period of
time. (At the time the signal input level reaches the highest value.)

Operation guide

Y

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

NOTE

Example of the vector scope

Ex.: When the color bar is displayed

Example of the wave form monitor

Ex.: When the luminance signal is Y, “MARKING” is set to “ON”

and “LEVEL” is set to “080”

Red White

Video signal

• The wave which goes over the value set on “LEVEL” is
indicated in red.

• The display differs depending on the input signal or the
setting of “WAVE DISPLAY.”

SCOPE SETTING*

Settings for the wave form monitor and vector scope

Item To do Setting value

GAIN

2

SIZE*

POSITION*

TRANSPARENT

AUTO OFF

WAVE DISPLAY

WAVE FILTER

WAVE OVER
LEVEL

MARKING

LEVEL

*1 Wave form monitor does not work for DVI signals (PC input). Vector scope does not work for RGB signals.
*2 When you set “SIZE” to “LARGE,” the window is displayed in the center of the screen regardress of the “POSITION”

setting.

1

Adjust the gain level for the incoming wave form data. –10 – +10

Select the size of the wave form monitor and vector scope window. NORMAL, LARGE

2

Select the position of the wave form monitor and vector scope
window.

Activates/deactivates the function to make the window translucent.

Activates/deactivates the function to make the wave form monitor and
vector scope window go off automatically 15 minutes after displaying it.

Select the wave form for the wave form monitor. Y/Pb/Pr (HD signals)

Activates/deactivates the low-pass filter for the incoming wave form
data.

Adjust the over level for the incoming luminance (Y) and RGB
signals.

Activates/deactivates the function to change the color of a wave form
when the signal exceeds the limit specified on “LEVEL” (☞ below).

Adjust the lower limit for the over level. 070 – 109

1 (lower right), 2
(lower left), 3 (upper
left), 4 (upper right)

ON (translucent),
OFF (normal)

ON, OFF

Y/Cb/Cr (SD signals)
R/G/B (RGB signals)

FLAT (no filter),
LOWPASS

☞ “NOTE”

OFF, ON

SYNC FUNCTION

Settings for the synchronization with signals

Item To do Setting value

NO SYNC ACTION

DELAY TIME

SYNC INPUT

3

SEL.*

LOW LATENCY

EndStart

• When setting “NO SYNC ACTION” to “GRAY B.,” the screen color changes to gray and the power consumption
of the back light is saved by half. Selecting “P.SAVE” (power save mode) saves more power consumption by
turning off the back light.

3

*

Memorized for each input.

Select the screen status when no signal is coming in. OFF, P.SAVE (power save

Select the period until the screen status changes as selected
in “NO SYNC ACTION” after signals stop coming in.

Select the sync signal for the VIDEO1, VIDEO2 and
COMPO./RGB input.

Activates/deactivates the function to shorten the time
taken to display the picture (low latency function).

• If the picture is not displayed steadily while “ON” is
selected, select “OFF.”

• While “ON” is selected, the displayed picture may
become unstable when an operation using buttons on
the front panel or the menu is performed, or when the
signal format changes.

mode), GRAY B. (gray screen)

30sec., 5min., 15min.

INT. (Internal sync),
EXT. (External sync)

ON, OFF

15

Menu Configuration—MAIN MENU

(cont.)

16

For the operation procedure, see page 7.

Video input (NTSC, B/W60)

SDI input (DATA FORMAT: 608)

Operation guide

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

SDI input (DATA FORMAT: 708)

CLOSED CAPTION*

Settings for CLOSED CAPTION functions

Item To do Setting value

CLOSED CAPTION

DATA FORMAT

DECODE CH

SERVICE BLOCK

• CLOSED CAPTION does not work for the video input formats PAL and B/W50.

• CLOSED CAPTION does not work for the COMPO./RGB/DVI input.

• CLOSED CAPTION does not work for the SDI input formats 1035/60i, 1035/59.94i, 1080/60p, 1080/59.94p,
1080/50p and 3G SDI Level A.

• Depending on signal format, there maybe a case that the closed captions are not displayed properly.

• When using the 1:1 mode, closed captions may not be displayed properly.

1

Memorized for each input.

*
*2 Displayed only when SD SDI signal is input.

1

Activate/deactivate the closed caption. OFF, ON

Select the data format of closed caption. 708,

Selects the type of closed caption. CC1, CC2, CC3, CC4,

Selects the type of service block. SERV.1, SERV.2, SERV.3,

608ANC,
608(708),

2

608VBI*

TEXT1, TEXT2, TEXT3,
TEXT4

SERV.4, SERV.5, SERV.6

Menu Configuration—SET-UP MENU

For the operation procedure, see page 7.

Operation guide

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

NOTE

Settings of “sub menu POSI.”

The setting values and features are as follows.

LOWER1: Displays the current setting and adjustment bar at the lower part of the screen.
UPPER1: Displays the current setting and adjustment bar at the upper part of the screen.
LOWER2: Displays the current setting at the lower part of the screen.
UPPER2: Displays the current setting at the upper part of the screen.

• The adjustment bar is not displayed for some items.

Settings of “SD4:3 LARGE”

The setting values and features are as follows.

OFF: Fit the vertical picture size into the pixel numbers of the monitor display.
ON: Fit the vertical picture size into that of the monitor display.

FUNCTION SETTING

Settings for the sub menu display, color system, color of the tally lamp, picture size, intensity of the button lamps
and the PHASE adjustment.

Item To do Setting value

sub menu
POSI.

COLOR
SYSTEM

TALLY SELECT

SD4:3 LARGE

DIMMER

COMPONENT
PHASE

Select the contents and displaying position of “sub menu.”

Select the color system.

• If the picture is unstable with “AUTO,” select “NTSC” or “PAL.”

Select the color of the tally lamp. GREEN, RED

Change the picture size of 4:3 format signal.

Select the intensity of the button lamps. NORMAL, DARK

Deactivates the function of PHASE adjustment (Picture adjustment knob
and “PICTURE SUB ADJ.” in SET-UP MENU) except when an NTSC
signal comes in (

☞ 3 on page 6).

☞ “NOTE”

AUTO, NTSC, PAL

☞ “NOTE”

ENABLE, DISABLE

PICTURE SUB ADJ.

Adjusts the standard level for the picture adjustment and selects the set-up level for the input video signal.

Item To do Setting value

CONTRAST*

BRIGHT*

CHROMA*

PHASE*

NTSC SETUP

COMPO. LEVEL

sub menu

reset

1

Memorized for each input.

*
*2 When “COMPONENT PHASE” is set to “DISABLE” and an NTSC signal is input, PHASE can be adjusted.

1, *2

1

Adjust the standard level for the contrast adjusted with the

1

CONTRAST knob on the front panel.

Adjust the standard level for the brightness adjusted with the
BRIGHT knob on the front panel.

1

Adjust the standard level for the chroma adjusted with the CHROMA
knob on the front panel.

Adjust the standard level for the phase adjusted with the PHASE
knob on the front panel.

Select the set-up level of the input NTSC signal. 00 (compliant with

Select the level of the analog component signal (480i and 576i only). B75 (compliant

Display the sub menu which enables you to adjust the items in “PICTURE SUB ADJ.” while
viewing the actual picture.

Restore the default settings for all the items in “PICTURE SUB ADJ.”

–20 – +20

–20 – +20

–20 – +20

–20 – +20

0% set-up signal),

7.5 (compliant with

7.5% set-up signal)

with BetacamVTR

7.5% set-up signal),
B00 (compliant
with BetacamVTR
0% set-up signal),
SMPTE (compliant
with M2VTR signals)

17

Menu Configuration—SET-UP MENU

(cont.)

18

For the operation procedure, see page 7.

Operation guide

Shows the buttons for each
operation.

SIZE/POSI. ADJ.

Adjusts the size and position of the picture.

Item To do Setting value

1

H SIZE*

H POSITION*

1

V SIZE*

V POSITION*

sub menu

reset

1

*

Memorized for each signal format.

Adjust the horizontal picture size. Setting value varies depending on the signals.

1

Adjust the horizontal picture position.

Adjust the vertical picture size.

1

Adjust the vertical picture position.

Display the sub menu which enables you to adjust the items of “SIZE/POSI. ADJ.” while
viewing the actual picture.

Restore the default settings for all the items in “SIZE/POSI. ADJ.”

WHITE BALANCE SET.

Selects the GAMMA correction value, color temperature and adjusts the drive level and cutoff point of each color
(R/G/B).

Item To do Setting value

GAMMA

COLOR TEMP.

R DRIVE
G DRIVE
B DRIVE*

R CUT OFF
G CUT OFF
B CUT OFF*

sub menu

reset

2

*

Memorized for each color temperature.

Select the GAMMA correction value. 2.2 (equivalent to Υ 2.2)

2.35 (equivalent to Υ 2.35)

2.45 (equivalent to Υ 2.45)

2.6 (equivalent to Υ 2.6)

Select the color temperature. 9300K, 6500K, USER

Adjust the drive level of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)

2

Adjust the cutoff point of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)

2

Display the sub menu which enables you to adjust the items in “WHITE BALANCE SET.” while
viewing the actual picture.

Restore the default settings for the drive levels and cutoff points of the selected color
temperature.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

Operation guide

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

NOTE

Setting of “CHARACTER SET.”

Assign a name for each video source.

1 Change the input to one that you want to assign a video source name for.
2 Select “CHARACTER SET.”
3 Press buttons to select the first character.

• Each time you press button, the character changes as follows. Press button to reverse the order.

Space

4 Press button to move the arrow to the next space.

• The characters entered before moving the arrow are memorized.

5 Repeat steps 3 and 4 (10 characters at maximum).
6 Press MENU button to store the name.

REMOTE SETTING

Settings for the external control

Item To do Setting value

SERIAL TYPE

PARALLEL TYPE

PIN1
PIN2
PIN3
PIN4
PIN5

(☞ “External Control” on pages 21 to 23)

Select the input terminal used for external control by
serial communication.

Select the external control method for the MAKE/
TRIGGER terminal.

Assign the control functions to the pins of the MAKE/
TRIGGER terminal.

• Assign a function to each pin terminal by selecting
“SET” in “PARALLEL TYPE” mentioned above.
(The functions are assigned for “PIN6” – “PIN8”
and you cannot change the assignment of these
functions.)

RS232C, RS485

MAKE, TRIGGER, SET

☞ “Functions controlled by the
MAKE/TRIGGER system” on
page 22

INFORMATION

Settings for the information display of the monitor

Item To do Setting value

POSITION

SOURCE ID

CHARACTER

1

SET.*

STATUS DISPLAY

TIME CODE

CRC ERROR

SUB HOUR METER

MODEL

VERSION

HOUR METER

1

Memorized for each input.

*
*2 Ancillary time code

Select the position to show the information display (☞ “On the
Information Display” on page 7).

Select whether the name assigned in “CHARACTER SET.” is
displayed on the screen (☞ “On the Information Display” on page 7).

• When “AUTO” is selected, the display color synchronizes with the
color of the tally lamp while the tally lamp is lit.

Assign a name to each video source as you like (10 characters at
maximum). You can also enter a name using the RS-232C system.

Select whether the status of the current input and the setting of
MUTING are displayed on the screen (☞ “On the Status Display” on
page 7).

Select the type of the TIME CODE display.

Select whether the CRC error indication for the input HD SDI signal is
displayed on the screen

Display the hours of use (unit: hour). You can reset this item.

Display the model name of the monitor.

Display the version of the monitor.

Display the total hours of use (unit: hour). This item is used for maintenance of the
monitor. You cannot reset this item.

(☞ “On the Information Display” on page 7).

UPPER, LOWER

OFF, ON, AUTO

☞ “NOTE”

AUTO, OFF, ON

VITC

*2, LTC

D-VITC

ON, OFF

*2,

19

Menu Configuration—SET-UP MENU

(cont.)

20

For the operation procedure, see page 7.

Operation guide

Shows the buttons for each
operation.

• The menu automatically disappears in about 30 seconds after the previous operation.

• Some items may not appear on the menu depending on the input or the input signal.

• The items controlled by the MAKE system do not appear on the menu.

CONTROL LOCK

Settings for disabling the buttons on the front panel.

• The following operations are not available when “VOL.LOCK” is selected.
– VOLUME adjustment knob
– Picture adjustment knob

• The “ALL LOCK” function disables to control the buttons on the front panel. But following operations are
available.
– Turning on/off (on standby) the monitor
– Displaying the SET-UP MENU (by pressing

to “OFF”

– Operating the monitor by an external control

If you try other operations, “ Control lock on!” appears on the screen.

DVI INPUT SEL.

When “AUTO” is selected, the format of signals come in to the DVI-D (HDCP) terminal is automatically
recognized. (Normally, select “AUTO.”)

• Select “COMPO.,” “RGB” or “PC” when the picture is not displayed correctly with “AUTO.”

• DVI-D input of the monitor is compatible with HDCP.

all reset

Restores all the settings and adjustments of the monitor to the default.

• “HOUR METER” and the settings done by using the adjustment knobs on the front panel will not be reset.

• After performing “all reset,” the monitor is turned off then turned on automatically.

Setting value: OFF, VOL.LOCK, ALL LOCK

button while holding button) and turning “CONTROL LOCK”

Setting value: AUTO, COMPO., RGB, PC

External Control

7 About the external control

This monitor has three external control terminals.

• MAKE/TRIGGER terminal (RJ-45): The following external control systems are available.
(1) MAKE (make contact) system: Controls the monitor by short-circuiting the corresponding pin terminal to

the GND pin terminal, or disconnecting (opening) it.

(2) TRIGGER (trigger) system: Controls the monitor by sending the pulse signal instantaneously to the

corresponding pin terminal.

☞ “Using the MAKE/TRIGGER system” on the right

• RS-485 terminals (RJ-45): Controls the monitor with the RS-485 system (☞ “Using the serial communication”
on page 22).

• RS-232C terminal (D-sub 9-pin): Controls the monitor with the RS-232C system (☞ “Using the serial
communication” on page 22).

Set the following items of “REMOTE SETTING” in SET-UP MENU according to the external control terminal and
control system (☞ “SERIAL TYPE,” “PARALLEL TYPE” on page 19).

The settings of this unit

Control terminal Control system

MAKE/TRIGGER
terminal

RS-485 terminal Serial
RS-232C terminal RS-232C

1

For a monitor connected to a personal computer etc, select the terminal the equipment is actually connected to.

*

For other monitors, select “RS485.”

Control priority is as follows.

MAKE > TRIGGER = serial communication = buttons and menu on the monitor

• You can use external control even when “CONTROL LOCK” is set to “VOL.LOCK” or “ALL LOCK” (☞ page 20).

• When the monitor is off (on standby), external control is not available. But certain external controls (
terminating communication, turning on the monitor

<MAKE/TRIGGER system>

You can control the monitor by a personal computer or dedicated controller*2.

• “Using the MAKE/TRIGGER system” on the right.

*2 The controller is not commercially available. Consult your dealer if you need it.

<Serial communication>

PC, etc.

RS-485 IN

RS-232C

MAKE
TRIGGER

communication

or

RS-485

OUT

RS-485

RS-485

IN

“SERIAL TYPE” setting

— MAKE
— TRIGGER

1

RS485*

RS232C*

) are available through the serial communication (☞ page 23).

RS-485

OUT

RS-485

IN

1

RS-485

OUT

“PARALLEL TYPE”

setting

—
—

starting/

7 Using the MAKE/TRIGGER system

The MAKE/TRIGGER terminal is configured as follows. You can assign a function to each pin terminal in
“REMOTE SETTING” (☞ “PIN1, PIN2, PIN3, PIN4, PIN5” in “PARALLEL TYPE” on page 19).

• You cannot change the functions assigned to the pin terminals from 6th to 8th.

Pin No. Pin name

1

2

3

4

This is a female terminal.

1

*

The 6th pin terminal controls turning on or off the tally lamp (available to control even when the 7th pin terminal

is invalid).

*2 The 7th pin terminal makes the external control valid/invalid. Make sure to control the terminal by the MAKE

system.

To assign the functions to the pin terminals

For the operation procedure, see page 7.

5

6

7

8

1 Select “REMOTE SETTING” on the SET-UP MENU.
2 Set “PARALLEL TYPE” to “SET.”
3 Select a pin name (“PIN1” – “PIN5”) for which you want to assign a function, then select the function you want

to assign.

• For the selectable functions, see the table on page 22.

Operation of the external control

1 Set “PARALLEL TYPE” of “REMOTE SETTING” to “MAKE” or “TRIGGER” in the SET-UP MENU.
2 Short-circuit the 7th pin terminal (ENABLE) to the 8th pin terminal (GND) so that the monitor can be controlled

by the external control.

3 When the “MAKE” system is selected: Operate each function by short-circuiting the corresponding pin terminal

to the 8th pin terminal (GND) or opening it.
When the “TRIGGER” system is selected: Operate each function by pulse control, that is short-circuiting the
corresponding pin terminal to the 8th pin terminal (GND) for about 1 second and opening it.

• When changing the input with MAKE system, only one pin terminal must be short-circuited. (Other pin terminals
must be opened.)

• When selecting the “TRIGGER” system, you can operate only one function at a time. Operate the functions one
by one.

PIN1

PIN2

PIN3

PIN4

PIN5

1

TALLY*

ENABLE*

GND

2

• For the details, see page 22.

21

External Control (cont.)

22

<Functions controlled by the MAKE/TRIGGER system>

Display Functions to be controlled Opening Short-circuiting

TALLY SEL Selects the color of the tally lamp. Green Red

SDI 1 Changes the input to “SDI 1.” Invalid Valid

SDI 2 Changes the input to “SDI 2.” Invalid Valid

DVI Changes the input to “DVI.” Invalid Valid

COMP./RGB Changes the input to “COMPO./RGB” Invalid Valid

VIDEO 1 Changes the input to “VIDEO 1.” Invalid Valid

VIDEO 2 Changes the input to “VIDEO 2.” Invalid Valid

EXT.SYNC Changes the sync signal. Internal sync External sync

3G-B.DS Selects the “3G SDI LEVEL B” data stream. DS 1 DS 2

DUAL LINK Turns on or off “SDI DUAL LINK.” Off On

A.MARKER The area marker indication Off On

S.MARKER The safety marker indication Off On

FRAME Indication of the area of

C.MARKER The center marker indication Off On

MARK.SEL Selects the items of “MARKER”*

ASPECT Changes the aspect ratio. 4:3 16:9

1:1 Displays in 1:1 mode. Off On

STATUS Status display*

L.METER Audio level meter display *

TIME CODE Time code display Off On

SOURCE ID

WAVE FORM Wave form monitor display *

VECTOR

C.C

COLOR OFF Color off Color Monochrome

SCR CHECK Screens check *

I/P MODE Change a mode according to a input picture. *

MUTING Muting on/off Off On

DIMMER Change the intensity of the button lamps. NORMAL DARK

– – – No function — —

1

*

Selects which functions in “MARKER” are activated, non-“R-” items or “R-” items (☞ “MARKER” on page 13).

*2 Displays the information shown when INPUT SELECT button of the current input is pressed (☞ “On the Status

Display” on page 7). While controlling with the MAKE system, the information is displayed only at the moment of
short-circuiting.

*3 While controlling with the MAKE system, the level meter is switched between displayed (short-circuiting) and

hidden (opening). When “LEVEL METER ch” is set to “OFF,” the level meter is not displayed (“NO EFFECT”

appears).
While controlling with the TRIGGER system, the pattern of the audio channel display is switched.
*4 While controlling with the MAKE system, the available set-up options will be the setting value currently selected

in “SOURCE ID” (“ON” or “AUTO” [short-circuiting]) and “OFF” (opening). While controlling with the TRIGGER

system, uses the same set-up option as those in the SET-UP MENU (☞ “SOURCE ID” in “INFORMATION” on

page 19).

☞ “SOURCE ID” in “INFORMATION” on page 19

Vector scope display *

Closed caption display Off On

2

the specified aspect ratio

1

Off On

Non-“R-” items “R-” items

☞ “On the Status Display” on page 7

3

4

*

5

5

6

7

*5 While controlling with the MAKE system, the wave form monitor and vector scope is switched between

displayed (short-circuting) and hidden (opening) regardless of the “AUTO OFF” setting in the MAIN MANU.
While controlling with the TRIGGER system, the screen is switched in the same way as when pressing the
SCOPE button (☞ e on page 6). If the wave form monitor and vector scope are input at the same time, the
wave form monitor is displayed.

*6 While controlling with the MAKE system, the screen is switched between normal screen (opening) and blue

screen (short-circuiting). While controlling with the TRIGGER system, the screen changes in the same way as
when pressing SCREENS CHECK button (☞ q on page 6).

7

*

Must be controlled with the TRIGGER system. The mode changes in the order of “NORMAL” \ “CINEMA” \

“FIELD.” (This function cannot be controlled with the MAKE system.)

• You cannot assign the same function to different pin terminals.

• The TRIGGER system switches each function by short-circuiting the pin terminal for about 1 second and
opening it.

7 Using the serial communication

You can control the monitor from a personal computer etc. via the RS-485 or RS-232C terminal.

• Consult your dealer for the details of the external control specification.

<Communication specifications>

Input

terminal

RS-485 A straight LAN cable

RS-232C A straight cable with a D-sub

9-pin connector (male for the
monitor, female for the personal
computer etc.)

<Specifications of the RS-485 terminal>

This is a female terminal.

<Specifications of the RS-232C terminal>

This is a female terminal.

Cable

Pin No. IN terminal signal OUT terminal signal

1

TXD + TXD +

2

TXD – TXD –

3

RXD + RXD +

4

NC NC

5

NC NC

6

RXD – RXD –

7

NC NC

8

GND GND

Pin No. Signal

1

2

3

4

5

6

7

8

9

NC

RXD

TXD

NC

GND

NC

RTS

CTS

NC

Terminal

specification

☞ See below

Communication specifications

Baud Rate: 4800 bps
Data Bits: 8 bits
Parity: No parity
Stop Bits: 1 bit
Flow Control: No control
Communication Code: ASCII Code

• The 7th terminal and the 8th
terminal are connected.

<Command outline>

All commands consist of the following segments.

Header Monitor ID Command ID Function Data Cr (0Dh)

On Header

“!”: Operation commands from the personal computer, etc. For details, see <Basic command list> below.
“?”: Reference commands from the personal computer, etc.
“@”: Status returns from the monitor

To start communication, send the connection command from the personal computer etc.
To terminate the communication, send the termination command from the personal computer etc.

Example of communication procedures

1Starting the communication:
connection command (!00BCN1Cr)

2Monitor’s status (@00BOKCr)

3Selecting “SDI 1” input (!00BINACr)

PC, etc.

4Monitor’s status (@00BOKCr)

5Terminating the communication:

termination command (!00BCN0Cr)

6Monitor’s status (@00BOKCr)

<Basic command list>

No. Commands Functions Data

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

*

!

B C N 1 Cr Star ts communication (connection) No data

**

1

**

B C N 0 Cr Terminates communication (termination) No data

1

BIDSETxx*2Cr Assigns the control ID 01 – 99

**

1

**

B I D R E T Cr Initializes the control ID No data

1

**

BIDDSPxx*2Cr Displays/hides the ID 00: Hide, 01: Display

1

**

BIDCHKxx*2Cr Flashes/hides the selected ID No. of the monitor 00: Hide, 01: Display

1

**

B M E N U Cr Displays the MAIN MENU/Quits the menu operation No data

**1BUPCr

1

**

BDOWNCr

1

B A D J R Cr Makes setting/adjustment ( ) No data

**

1

**

B A D J L Cr Makes setting/adjustment ( ) No data

1

**

B S E T U P Cr Displays the SET-UP MENU No data

1

B P W 1 Cr Turns on the monitor No data

**

1

**

B P W 0 Cr Turns off the monitor (on standby) No data

1

**

B I N A Cr Selects “SDI 1” input No data

1

**

B I N B Cr Selects “SDI 2” input No data

1

**

B I N C Cr Selects “DVI” input No data

1

**

B I N D Cr Selects “COMPO./RGB” input No data

1

**

B I N E Cr Selects “VIDEO 1” input No data

1

**

B I N F Cr Selects “VIDEO 2” input No data

1

**

B D I S P Cr Displays the status*

1

**

BAMUTE xx*2Cr Turns muting on/off 00: Off, 01: On

1

BASPxx*2Cr Changes the aspect ratio 00: 4:3, 01: 16:9

**

Moves the cursor upward ( )

Moves the cursor downward ( )

3

No data

No data

No data

• “Cr” is 0Dh.

• The commands for starting communication (connection) (No. 1), terminating communication (termination) (No. 2), and turning on the monitor (No. 13) can be used while the monitor is off (on standby).

1

*

Enter the monitor’s ID for “ **.” The initial setting of the monitor’s ID is “00.” When connecting several monitors, “00” is a command for controlling all monitors at once.
*2 Enter the appropriate data to “xx.”
*3 Displays the information shown when the INPUT SELECT button currently lit is pressed (☞ “On the Status Display” on page 7).

Monitor

23

Troubleshooting

Solutions to common problems related to the monitor are described here. If none of the solutions presented here
solve the problem, unplug the monitor and consult an authorized dealer or service center.

24

Symptom Probable cause and corrective action Page

No power supply

No picture with the
power on

No sound

“OTHERS” or “Out of
range” appears.

“NO SYNC” appears.

Wrong color, no color

• Press the

• Firmly insert the AC power plug.

• Turn on the POWER switch on the rear panel.

• Select the correct input using the INPUT SELECT buttons.

• Connect the signal cable firmly.

• Turn on the power of the connected component and set the output
correctly.

• Check whether the input signal format is acceptable on the monitor.

• Adjust the volume level.

• Deactivate the muting function.

• Connect the signal cable firmly.

• Turn on the power of the connected component and set the output
correctly.

• Check whether the input signal format is acceptable on the monitor. 10, 11

• Select the correct input using the INPUT SELECT buttons.

• Connect the signal cable firmly.

• Turn on the power of the connected component and output video
signals. Or, check whether the video output of the component (video
output setting of the VCR or graphic board of the computer) is set
correctly.

• Adjust each picture adjustment knob on the front panel or adjust the
items of “PICTURE SUB ADJ.” in the SET-UP MENU. Or, perform
“reset” in “PICTURE SUB ADJ.”

• Check whether the setting of COLOR OFF or SCREENS CHECK
buttons are appropriate.

• Select the proper color system (“COLOR SYSTEM”) in “FUNCTION
SETTING” of the SET-UP MENU.

• Adjust the items of “WHITE BALANCE SET.” in the SET-UP MENU.
Or, perform “reset” in “WHITE BALANCE SET.”

button.

6
8
8

6
8

—

10, 11

6
6
8

—

6
8

—

6, 17

6

17

18

Symptom Probable cause and corrective action Page

The picture becomes
blurred.

Wrong picture position,
wrong picture size.

Some items do not
appear on the menu.

Buttons on the monitor
do not work.

• Adjust the picture contrast or brightness by using the adjustment
knobs on the front panel. Or, adjust “CONTRAST” or “BRIGHT” of
“PICTURE SUB ADJ.” in the SET-UP MENU.

• Check whether the setting of 1:1 or ASPECT buttons is appropriate.

• Check whether the input signal format is acceptable on the monitor.

• Adjust the picture size (H SIZE/V SIZE) or position (H POSITION/V
POSITION) of “SIZE/POSI. ADJ.” in the SET-UP MENU.

• For some signals, the picture cannot be displayed fully in the effective
screen area. There is no sure method to solve this problem.

• The items which are not available for the current input or the current
input signal are not displayed on the menu. Change the input or the
input signal.

• The items controlled by the MAKE system do not appear on the
menu.

• Set “CONTROL LOCK” in the SET-UP MENU to “OFF.”

• You cannot use the buttons for the items controlled by the MAKE
system. Disable the external control.

6, 17

6

10, 11

18

—

—

21

20

21, 22

The following are not malfunctions.

• When a still image is displayed for a long time, it may remain indistinctly on the screen after the picture has
changed. Though the remaining picture will disappear after a while, there may be a case that it remains
for a long period depending on the length of time the still image was displayed for. This is due to the
characteristics of the LCD display and is not a malfunction.

• Red spots, blue spots and green spots on the panel surface are a normal characteristic of LCD displays,
and not a problem. The LCD display is built with very high precision technology; however, be aware that a
few pixels may be missing or constantly lit.

• The following symptoms are problems only when pictures or sounds are not played back normally.
– A slight electric shock occurs when you touch the monitor.
– The top and/or rear panel of the monitor becomes hot.
– The monitor emits a cracking noise.
– The monitor emits a mechanical noise.

Troubleshooting (cont.)

Maintenance

7 Self-check program

This monitor has a self-check function, which allows it to detect malfunctions and alert you. This makes
troubleshooting easier. Whenever a problem occurs, one or some of the INPUT SELECT lamps will flash. If this
happens, follow the steps below and contact your dealer to resolve the problem.

The illustration of the monitor is of DT-V24G1Z.

When the screen goes blank, and one or some of the INPUT SELECT lamps (COMPO./RGB, VIDEO1,

VIDEO2) on the front control panel start flashing...

1 Check which lamps are flashing.
2 Press button to turn off (on standby) the monitor.

Unplug this product from the wall outlet before cleaning.

Screen

To avoid irreparable change in appearance of the screen such as uneven color, discoloration, scratches, be
careful about the following:

• Do not paste or stick anything using any glues or adhesive tapes.

• Do not write anything on the screen.

• Do not strike the screen with a hard object.

• Avoid condensation on the screen.

• Do not wipe the screen with solvent such as alcohol, thinner, or benzine.

• Do not wipe the screen forcefully.

Wipe stains off the screen with a soft cloth. If the screen gets heavily stained, wipe it with a soft cloth soaked in
water-diluted neutral detergent and wrung well, then wipe with a soft dry cloth.

Cabinet

To avoid the deterioration or damages of the cabinet such as its paint’s peeling away, be careful about the
following:

• Do not wipe the cabinet using solvent such as alcohol, thinner, or benzine.

• Do not expose the cabinet to any volatile substance such as insecticides.

• Do not allow any rubber or plastic in contact for a long time.

• Do not wipe the cabinet forcefully.

Wipe stains off the cabinet with a soft cloth. If the cabinet gets heavily stained, wipe it with a soft cloth soaked in
water-diluted neutral detergent and wrung well, then wipe with a soft dry cloth.

Ventilation openings

Use a vacuum cleaner to get rid of the dust around the intakes (all the openings). If a vacuum cleaner is not
available, use a cloth and wipe it off. Leaving the dust around the intakes may prevent proper temperature control
and cause damage to the product.

3 Turn off the power switch on the rear panel.
4 Disconnect the AC power cord from the AC outlet.
5 Contact your dealer with the information about which lamps were flashing.

• If you turn on the monitor soon after turning it off (or after a short-term power failure), the INPUT SELECT
lamps may flash and no image may be displayed.

When this happens, turn off power and wait at least 10 seconds before turning on the monitor again.
If the INPUT SELECT lamps do not flash, you can use the monitor as normal.

25

Specifications

26

7 General

Model name DT-V24G1Z DT-V20L3GZ

Type Multi format LCD monitor

Screen size Type 24 wide format Type 20 wide format

Aspect ratio 16:10

Horizontal/vertical frequency
(computer signal)

Compliant video signal format

Format 3G SDI: SMPTE424M/SMPTE425M

Audio output Internal speaker: 1.0 W + 1.0 W

Operating conditions Operating temperature: 5°C – 35°C (41°F – 95°F)

Power requirements AC 120 V, 50 Hz/60 Hz

Rated current 1.15 A 1.00 A

External dimensions
(excluding protruding parts)

Weight 11.6 kg (25.5 lbs) (with the stand)

Accessories AC power cord, Power cord holder x 1, Screw x 2 (for power cord holder)

Notice on transportation

This monitor is precision equipment and needs dedicated packing material for transportation.
Never use any packing material supplied from sources other than JVC or JVC-authorized dealers.

• For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed,
and may be slightly different from actual products.

• Design and specifications are subject to change without notice.

• All company names and product names mentioned herein are used for identification purposes only, and
may be the trademarks or registered trademarks of their respective companies.

H: 31.469 kHz – 75.000 kHz
V: 48 Hz – 65 Hz

* Some signals within this frequency range may not be displayed (“Out of

range” is displayed).

☞ “Available signals” on page 10

DUAL LINK HD SDI:
SMPTE372M
HD SDI: BTA S-004C, SMPTE292M
SD SDI: ITU-R BT.656: 525/625
SMPTE259M: 525
EMBEDDED AUDIO:
SMPTE299M, SMPTE272M
CLOSED CAPTION:
EIA/CEA-608, EIA/CEA-708

Operating humidity: 20% – 80% (non-condensing)
(Slightly variable depending on ambient conditions for installation.)

Width:
564 mm (22 1/4˝) 564 mm (22 1/4˝)
Height:

448.6 mm (17 3/4˝) 408 mm (16 1/8˝)
Depth:
243 mm (9 5/8˝) 99 mm (4˝)

(with the stand) (without the stand)

8.7 kg (19.1 lbs) (without the stand)

Width:
477 mm (18 7/8˝) 477 mm (18 7/8˝)
Height:

394.6 mm (15 5/8˝) 354 mm (14˝)
Depth:
243 mm (9 5/8˝) 99 mm (4˝)

(with the stand) (without the stand)

10.6 kg (23.3 lbs) (with the stand)

7.7 kg (16.9 lbs) (without the stand)

7 LCD panel

Model name DT-V24G1Z DT-V20L3GZ

Type 24˝ wide, active matrix TFT 20˝ wide, active matrix TFT

Effective screen size Width: 518.4 mm (20 1/2˝)

Number of pixels displayed 1 920 x 1 200 1 680 x 1 050

Number of colors displayed 16.77 million

Viewing angle (TYP.) 178° (Horizontally), 178° (Vertically) 178° (Horizontally), 178° (Vertically)

Brightness (TYP.) 400 cd/m

Contrast ratio (TYP.) 1000:1 700:1

Height: 324 mm (12 7/8˝)

2

Width: 433.4 mm (17 1/8˝)
Height: 270.9 mm (10 3/4˝)

470 cd/m

2

7 Input/output terminals

Model name DT-V24G1Z DT-V20L3GZ

VIDEO (INPUT 1) Input/output of composite signal:

VIDEO (INPUT 2) * The input (IN) and output (OUT) terminals are bridge-

DVI-D (HDCP) DVI-D signal input (compatible with HDCP):

COMPO./RGB (G/Y, B/PB/B-Y,
R/PR/R-Y)

Video

EXT.SYNC (CS) Input/output of composite sync signal:

E. AUDIO HD/SD SDI (IN 1)

E. AUDIO HD/SD SDI (IN 2)

E. AUDIO HD/SD SDI
(SWITCHED OUT)

AUDIO ASSIGN (IN 1)

AUDIO ASSIGN (IN 2)

AUDIO ASSIGN

Audio

(MONITOR OUT)

REMOTE (MAKE/TRIGGER)

REMOTE (RS-485)

control

External

REMOTE (RS-232C)

2 line, BNC connector x 4,
1 V(p-p), 75 Ω

connected (auto termination).

DVI-D connector x 1 (compatible with DDC2B)

Input/output of analog component signal/analog RGB signal:
1 line, BNC connector x 6
G/Y: 1 V(p-p), 75 Ω (including sync signal)
B/PB/B-Y, R/PR/R-Y: 0.7 V(p-p), 75 Ω

* The input (IN) and output (OUT) terminals are bridge-

connected (auto termination).

1 line, BNC connector x 2,

0.3 V(p-p) – 4 V(p-p),
75 Ω (tri-level sync, negative polarity sync (bi-level), and BB)

(including no video signal)
* The input (IN) and output (OUT) terminals are bridge-

connected (auto termination).

Digital signal input (compatible with EMBEDDED AUDIO/DUAL LINK signals):
auto detection, 2 line, BNC connector x 2

Digital signal output (compatible with EMBEDDED AUDIO signals):
1 line switched out, BNC connector x 1

Analog audio signal input: 2 line, RCA connector x 4,
500 mV (rms), high impedance

Analog audio signal output: 1 line, RCA connector x 2,
500 mV (rms)

☞ “Using the MAKE/TRIGGER system” on page 21

☞ “Using the serial communication” on page 22

Specifications (cont.)

7 Dimensions

Unit: mm (inch)

DT-V24G1Z

<Front view> <Side view> <Rear view>

564 (22 1/4)

408 (16 1/8)

448.6 (17 3/4)*/413.6 (16 3/8)**

300 (11 7/8)

99 (4)

51.9 (2 1/8)

1.3 (1/16)

51 (2 1/8)

243 (9 5/8)

DT-V20L3GZ

<Front view> <Side view> <Rear view>

99 (4)

52.7 (2 1/8)

477 (18 7/8)

1.3 (1/16)

100

100

VESA mounting holes
(Size: 4-M4, depth: 10 mm)

100117 (4 5/8)

VESA mounting holes
(Size: 4-M4, depth: 10 mm)

354 (14)

394.6 (15 5/8)*/359.6 (14 1/4)**

* at the higher position
** at the lower position

300 (11 7/8)

100

117 (4 5/8)

51 (2 1/8)

243 (9 5/8)

27

DT-V24G1Z/DT-V20L3GZ MULTI FORMAT LCD MONITOR

© 2010 Victor Company of Japan, Limited 0110SKH-MW-MT
