DT-R24L41D
CAUTION:
To reduce the risk of electric shock. Do
not remove cover (or back). No user
serviceable parts inside. Refer servicing
to qualified service personnel.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
DT-R17L4D
MULTI FORMAT LCD MONITOR INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is
located on the rear of the cabinet. Retain
this information for future reference.
Model No.
Serial No.
: DT-R24L41D / DT-R17L4D
:
The illustration of the monitor is of DT-R24L41D.
LCT2646-002A-H
Table of Contents
Safety Precautions 3
IMPORTANT SAFEGUARDS ............................................................................... 3
Operating Precautions 5
Caution for use of the product for many hours...................................................... 5
Caution for use of the product in the high temperature ........................................ 5
Maintenance ......................................................................................................... 5
Installation 6
Connections 8
Rear panel ............................................................................................................ 8
Daily Operations 10
Front panel .......................................................................................................... 10
Menu Configuration 12
The operation procedure..................................................................................... 12
Menu Transition Diagram.................................................................................... 12
MAIN MENU ....................................................................................................... 13
SET-UP MENU ................................................................................................... 15
External Control 18
About the external control ................................................................................... 18
Using the MAKE/TRIGGER system .................................................................... 18
Using the serial communication .......................................................................... 20
Troubleshooting 22
Self-check program ............................................................................................. 23
Specifications 24
General ............................................................................................................... 24
LCD panel ........................................................................................................... 24
Input/output terminals ......................................................................................... 24

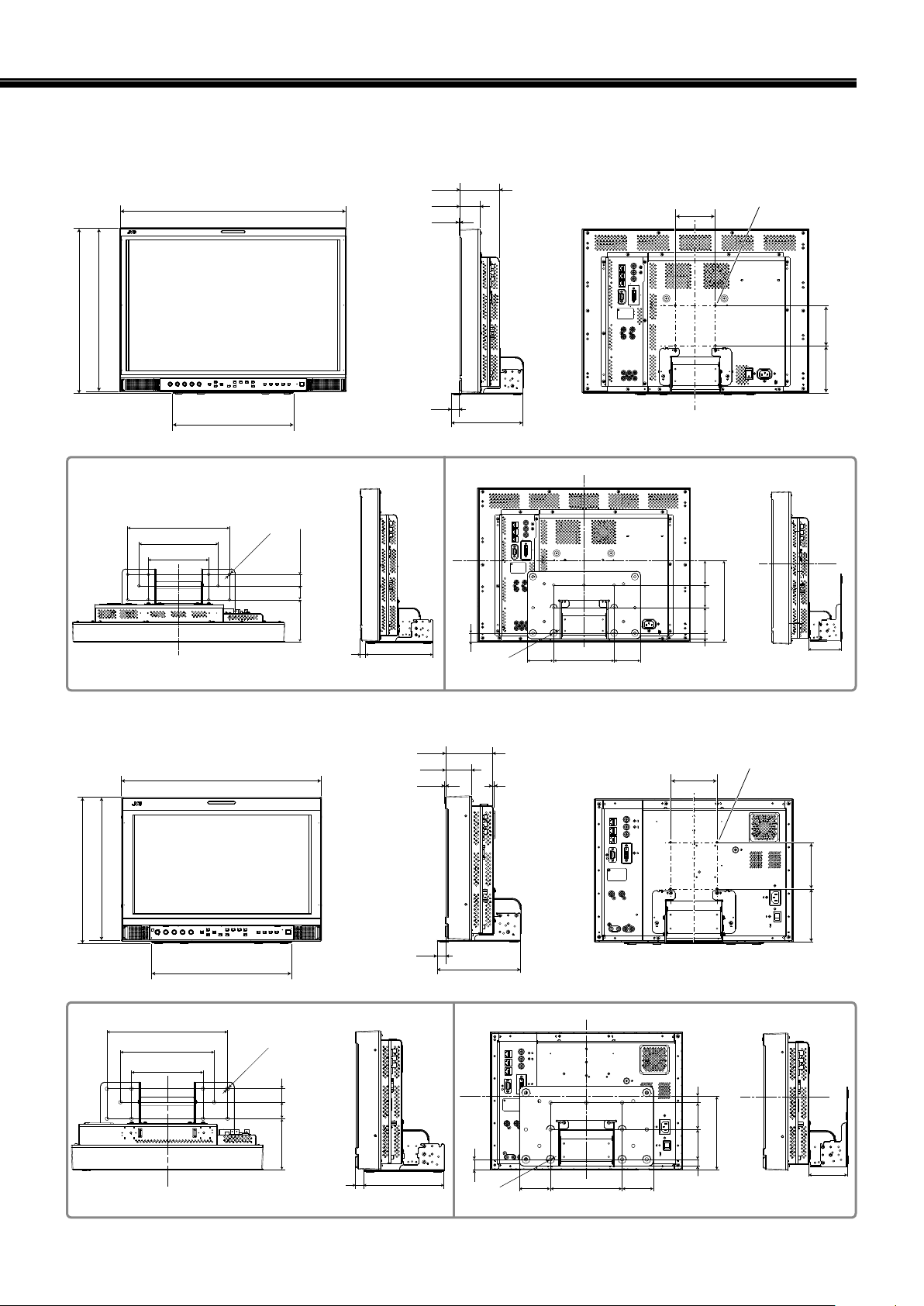

Dimensions ......................................................................................................... 25
Available signals ................................................................................................. 26
2
Safety Precautions
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.
IMPORTANT SAFEGUARDS
Electrical energy can perform many useful functions. This unit has
been engineered and manufactured to assure your personal safety.
But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRIC
SHOCK OR FIRE. In order not to defeat the safeguards incorporated
into this product, observe the following basic rules for its installation,
use, and service. Please read these “IMPORTANT SAFEGUARDS”
carefully before use.
All the safety and operating instructions should be read before the
•
product is operated.
The safety and operating instructions should be retained for future
•
reference.
All warnings on the product and in the operating instructions should
•
be adhered to.
All operating instructions should be followed.
•
POWER CONNECTION
The power supply voltage rating of this product is AC 120 V
The power cord attached conforms to the following power supply
voltage and countries. Use only the power cord designated to
ensure safety and EMC regulations of each country.
•
Not all types of power cords are supplied to this product.
For U.S.A. and Canada:
AC 120 V
This plug will fi t only into a grounded power outlet. If you are
unable to insert the plug into the outlet, contact your electrician to
install the proper outlet. Do not defeat the safety purpose of the
grounded plug.
This product should be operated only with the type of power
•
source indicated on the label. If you are not sure of the type of
power supply of your home, consult your product dealer or local
electric power company.
Under the following conditions,
1. Turn off the power.
2. Unplug this product from the wall outlet.
3. Refer service to qualifi ed service personnel.
a) When the product emits smoke or unusual smell.
b) When the product exhibits a distinct change in performance
—for example, no picture or no sound.
c) If liquid has been spilled, or objects have fallen on the product.
d) If the product has been exposed to rain or water.
e) If the product has been dropped or damaged in any way.
f) When the power supply cord or plug is damaged.
Do not install this product in the following places:
•
in a damp or dusty room
–
where the product is exposed to soot or steam, such as
–
near the cooking counter or a humidifi er
near heat sources
–
where condensation easily occurs, such as near the window
–
in a location exposed to direct sunlight or strong light
–
Do not place this product on an unstable cart, stand, or table.
•
The product may fall, causing serious injury to a child or adult,
and serious damage to the product.
The product should be mounted according to the
manufacturer’s instructions, and should use a mount
recommended by the manufacturer.
•
Do not use this product near water.
•
Be sure to install the product in the place where proper
temperature and humidity are kept (☞ “Operating conditions”
on page 24).
This product becomes hot during its use. Take enough care
when handling the product.
Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltages and
other hazards. Refer all service to qualifi ed service personnel.
Warning: This is a class A product. In a domestic environment this
•
•
•
•
product may cause radio interference in which case the
user may be required to take adequate measures.
Before connecting other products such as VCR’s and personal
computers, you should turn off the power of this product for
protection against electric shock.
Do not use attachments not recommended by the
manufacturer as they may be hazardous.
When replacement parts are required, be sure the service
technician has used replacement parts specifi ed by the
manufacturer or equivalents. Unauthorized substitutions may
result in fi re, electric shock, or other hazards.
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
Do not use the product for a long time if the sound is distorted.
Use only the power source specifi ed on the unit.
AC power: 120 V, 50 Hz/60 Hz•
The AC power supply is controlled by turning on/off the
•
POWER switch on the rear panel. If the product is installed in a
place where you cannot easily turn on/off the POWER switch,
control the AC power supply by plugging/unplugging the power
cord into/from the AC outlet. In this case, install the product as
close to the AC outlet as possible, and leave enough space for
plugging/unplugging the power cord. If the product is installed
in a place where you cannot easily plug/unplug the power cord,
equip an easily accessible device to the wiring of the building
for turning on/off the power.
When the product is left unattended and unused for a long
•
period of time, unplug it from the wall outlet and disconnect the
cable system.
Do not overload wall outlets, extension cords, or convenience
•
receptacles on other equipment as this can result in a risk of
fi re or electric shock.
Use only the accessory cord designed for this product to
•
prevent shock.
3
Safety Precautions (cont.)
Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from
•
overheating. These openings must not be blocked or covered.
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-circuit the parts,
•
which could result in a fi re or electric shock.
Never spill liquid of any kind on the product.
•
Never place anything on the product. (Placing liquids, naked fl ames, cloths, paper, etc. on the product may cause a fi re.)
•
Do not apply any strong shock to the LCD panel. (Do not hit any object against it or push it with a sharp-pointed tool.)
•
Do not put heavy objects on the product.
•
Do not step on or hang on the product.
•
To prevent an accidental fall
Fix the monitor to a wall by using strings.
Fixing the monitor
Attach the hook (not provided) to the VESA mounting holes on the
rear panel (use the two holes on the upper side) using M4 x 10
mm screws (not provided). Bind the hooks on the rear panel of the
monitor to a wall or a pillar using durable string.
FCC NOTICE
CAUTION: Changes or modifi cations not approved by JVC could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
VESA mounting holes
Hook and screw (M4 x 10 mm)
(not provided)
The illustration of the monitor is of DT-R24L41D.
Hook (not provided)
IMPORTANT RECYCLING INFORMATION
This product has a fl uorescent lamp that contains mercury. Disposal of these materials may be regulated in your
community due to environmental considerations. For disposal or recycling information, please contact your local
authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
WARNING: THIS APPARATUS MUST BE CONNECTED TO A MAINS SOCKET OUTLET WITH A PROTECTIVE
EARTHING CONNECTION.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
16) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
17) When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries
must be followed strictly.
4
Operating Precautions
The LCD panel and backlight have life expectancy. Due to the basic characteristics of the LCD panel, an afterimage or uneven display
may occur. It is recommended that you change images occasionally, activate the power saving function, or often turn off the power to
reduce the load on the LCD panel. Charges will apply for repairs resulting from deterioration due to the passage of time.
Caution for use of the product for many hours
In the case that you use the monitor for many hours, we recommend that you set “NO SYNC ACTION” in “SYNC FUNCTION” to “P.SAVE”
in MAIN MENU. This will reduce power consumption and relieve strain on the monitor.
Caution for use of the product in the high temperature
Do not use the product in places of high temperature; otherwise, parts of this product or the LCD panel may be damaged. This product is
equipped with a temperature sensor to give warning if the temperature becomes too high. If the temperature exceeds the range of normal
use, “TEMP. OVER” is displayed, and the power is turned off automatically if the temperature becomes any higher. In this case, move the
product to a place of low temperature to let it cool down.
Maintenance
Unplug this product from the wall outlet before cleaning.
Screen
To avoid irreparable change in appearance of the screen such
as uneven color, discoloration, scratches, be careful about the
following:
Do not paste or stick anything using any glues or adhesive tapes.
•
Do not write anything on the screen.
•
Do not strike the screen with a hard object.
•
Avoid condensation on the screen.
•
Do not wipe the screen with solvent such as alcohol, thinner, or
•
benzine.
Do not wipe the screen forcefully.
•
Wipe stains off the screen with a soft cloth. If the screen gets
heavily stained, wipe it with a soft cloth soaked in water-diluted
neutral detergent and wrung well, then wipe with a soft dry cloth.
Cabinet
To avoid the deterioration or damages of the cabinet such as its
paint’s peeling away, be careful about the following:
Do not wipe the cabinet using solvent such as alcohol, thinner,
•
or benzine.
Do not expose the cabinet to any volatile substance such as
•
insecticides.
Do not allow any rubber or plastic in contact for a long time.
•
Do not wipe the cabinet forcefully.
•
Wipe stains off the cabinet with a soft cloth. If the cabinet gets
heavily stained, wipe it with a soft cloth soaked in water-diluted
neutral detergent and wrung well, then wipe with a soft dry cloth.
Ventilation openings
Use a vacuum cleaner to get rid of the dust around the intakes (all
the openings). If a vacuum cleaner is not available, use a cloth and
wipe it off. Leaving the dust around the intakes may prevent proper
temperature control and cause damage to the product.
5
Installation
CAUTION
Do not rest your arm on the monitor or lean against the monitor.
•
Do not touch the LCD panel when installing the monitor.
•
Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury.
•
4
To install the monitor on a shelf or any other
suitable surface using screws
You can install the monitor without protruding the stand bottom plate
by moving the stand bottom plate to the rear position.
CAUTION
•
Lay the monitor on a cloth with the LCD panel facing down to
prevent the LCD panel from being damaged.
•
After moving the stand bottom plate to the rear position, be sure to
attach the stand with commercially available screws.
1
Loosen the stand screws on the stand support and remove the
bottom plate.
Bottom plate
Stand support
2
Temporarily set the stand screws to screw holes “3” on the right
and left sides of the stand support.
•
Tighten the temporarily set stand screws so that they protrude
from the screw holes by about 4 mm.
Adjust the position so that the screw holes on the stand support
align with right and left screw holes “C” and “E” on the bottom
plate, tighten the two stand screws on one side (four screws on
both sides), and fi nally retighten the temporarily set screws to lock
the stand support and the bottom plate.
Screw hole “C” and “E”
5
Use no less than two commercially available screws (no less than
four screws on both sides) for the screw holes (10 – φ8) on the
stand bottom plate, to anchor the monitor. (Use screws having
enough holding strength and resistance against external force of
expected vibrations.)
Screw holes “3”
3
Hook right and left recesses “A” onto the temporarily set screws in
the stand support.
Recesses “A”
To detach the stand
CAUTION
Lay the monitor on a cloth with the LCD panel facing down to
prevent the LCD panel from being damaged.
Attachment screws
Screw holes for stand
attachment
Stand body
10 – φ8
CAUTION
It is very dangerous not to anchor the stand with screws as
this may cause not only breakage due to the monitor falling or
dropping, but also injury or electrical shock.
To install the stand
When attaching the stand to the monitor, insert the guides of the
stand into the guide holes on the monitor to place the stand in the
correct position. Then fi x the stand fi rmly with the attachment screws.
Guide holes
6
Monitor
The illustration of the monitor is of DT-R24L41D.
Guides
Stand body
The illustration of the monitor is of DT-R24L41D.
Monitor
Screw holes for
stand attachment
Stand support
To install the monitor on a wall
You can install the monitor on a wall by changing how the stand
bottom plate is attached.
Installation Only for Authorized Service Personnel
Consult authorized service personnel for the installation of
this unit. Installation instructions must be followed precisely in
order to prevent accidents. We are selling this product with the
understanding that it will be assembled and installed by properly
trained and qualifi ed service personnel.
We are not liable for any damage caused by faulty assembly,
faulty wall mounting, insecure wall mounting, misuse,
alterations, or natural disasters.
Please be aware that screw holes and anchor bolts will remain
•
in the wall surface if the monitor is removed after having been
mounted to the wall.
Long-term use of the LCD display monitor may result in discoloration
of the wall surface due to heat/air emitted by the display.
Danger
•
Consult authorized service personnel for the installation and
attachment of this unit to the wall. Do not attempt to mount the unit
by yourself.
This unit weighs 12 kg at maximum (26.5 lbs. at maximum),
including LCD display monitor. Improper assembly or installation
may cause the unit to fall when it is mounted, which may result in
fatal accidents. To prevent this happening, check the strength of
the materials in the mounting surface. Check the material strength
again after mounting as well.
1
Lay the monitor on a cloth with the LCD panel facing down to
prevent the LCD panel from being damaged. Loosen the stand
screws on the stand support and remove the bottom plate.
Bottom plate
Stand support
2
Temporarily set the stand screws in screw holes “2” and “4” on the
right and left sides of the stand support.
Tighten the temporarily set stand screws so that they protrude
•
from the screw holes by about 4 mm.
Stand screws “2” and “4”
3
Tighten commercially available screws in the 6 holes shown in the
fi gure below to install the monitor on the wall.
Warning
•
Using a monitor other than this product may result in damage or
bodily injury due to the LCD display monitor toppling over.
•
Assemble all screws securely. Failure to do so may result in the
LCD monitor and stand falling down, potentially causing damage or
bodily injury.
•
This unit does not come with anchor bolts for securing it to walls,
etc. Be sure you have materials on hand as appropriate for the
mounting location.
•
The monitor should be mounted to a wall that can adequately hold
the total weight of the monitor and stand over a long period of time
and which can adequately withstand earthquakes, conceivable
vibrations, and other external forces.
•
Mounting On Wooden Walls
The weight of the unit should be borne by the wall posts or studs,
and these should be reinforced if insuffi ciently strong. Do not
install the Wall Mounting Unit on walls made of plasterboard or thin
plywood. Use the commercially sold screws best suited for the wall
structure and material.
•
Mounting On Concrete Walls
Use commercially sold wall anchors capable of supporting the
weight of the LCD monitor.
•
Do not install the Wall Mounting Unit near the blower or air inlet of
an air conditioner.
•
Do not install the Wall Mounting Unit in a location subject to
frequent vibration, impact or other external forces.
•
Do not install the unit in a location where people may hang on it or
lean against it.
•
Do not block the ventilation holes.
•
Do not install the monitor on a non-vertical wall.
4
Hook the temporarily set screws on the stand support in right and
left recesses “A” and “B” on the bottom plate, tighten the two stand
screws in right and left screw holes “D” and fi nally retighten the
temporarily set screws to lock the stand support and bottom plate.
Recesses “A” and “B”
Screw holes “D”
Caution
Consult authorized service personnel for electrical work. Using
•
power cords damaged during installation (i.e., exposed or severed
wiring) may result in fi re or electric shock.
Conduct the work with adequate working space. Damage or bodily
•
injury may result from working under unsuitable conditions.
Avoid mounting this unit in areas where there is electrical wiring or
•
water pipes, as fi re or electric shock may result.
7
Connections
Rear panel
DT-R24L41D
The illustration of the monitor
is of DT-R24L41D.
DT-R17L4DDT-R24L41D
1 POWER switch
Turns AC power on or off.
•
You need to press button (☞ t on page 10) to use the monitor after turning on the POWER switch.
2 AC IN terminal
AC power input connector.
Connect the provided AC power cord to an AC outlet.
•
Attach the provided power cord holder to prevent accidental disconnection of the AC power cord (☞ “Attaching the power cord holder” on
page 9).
CAUTION
Do not connect the power cord until all other connections are completed.
3 REMOTE terminal
Terminal for controlling the monitor by an external control (☞ “External Control” on page 18).
4 For DT-R24L41D: VIDEO (INPUT 1/INPUT 2) terminals (BNC) / For DT-R17L4D: VIDEO terminals (BNC)
Input (IN) and output (OUT) terminals for the composite signals.
5 For DT-R24L41D: AUDIO ASSIGN (IN 1/IN 2) terminals (pin jack) / For DT-R17L4D: AUDIO (IN) terminals (pin jack)
Input terminals for the analog audio signals.
Use this terminal for the analog audio connection of the SDI. When a superimposed signal (EMBEDDED AUDIO signal on an SDI signal) is
•
input, analog audio signals cannot be input.
For DT-R24L41D: Select the video input to assign the audio signal in “AUDIO1 ASSIGN.” or “AUDIO2 ASSIGN.” (☞ “AUDIO SETTING” on
•
page 14).
DT-R17L4D
Security slot
Attach a security wire to this slot.
8
6
For DT-R24L41D: AUDIO ASSIGN (MONITOR OUT) terminals (pin jack) / For DT-R17L4D: AUDIO (MONITOR OUT) terminals (pin jack)
Output terminals for the analog audio signal.
For DT-R24L41D: The terminals output the audio signal through AUDIO ASSIGN (IN 1 or IN 2) terminals when you select the video input
•
you have selected for “AUDIO1 ASSIGN.” or “AUDIO2 ASSIGN.” in “AUDIO SETTING” (☞ page 14).
For DT-R17L4D: The terminals emit the audio signals through the AUDIO (IN) terminal or EMBEDDED AUDIO signals through the E.
•
AUDIO HD/SD SDI (IN 1 or IN 2) input terminal.
The signal is output from this terminal only when the monitor is on or in “P.SAVE” (power save) mode (☞ “NO SYNC ACTION” on page 15).
•
The EMBEDDED AUDIO signal...
•
is decoded into an analog signal, then emitted.
–
is emitted only when “SDI 1” or “SDI 2” is selected, and when EMBEDDED AUDIO signals come in to the E. AUDIO HD/SD SDI (IN 1 or
–
IN 2) terminal.
has priority over the audio signal input to AUDIO ASSIGN (IN 1 or IN 2) terminals when “SDI-1” or “SDI-2” is selected for “AUDIO1
–
ASSIGN.” or “AUDIO2 ASSIGN.” and the EMBEDDED AUDIO signal is input to E.AUDIO HD/SD SDI (IN 1 or IN 2) terminal (DT-R24L41D
only).
7 E. AUDIO HD/SD SDI (IN 1, IN 2) terminals (BNC)
Input terminals for the HD/SD SDI signals.
The terminals accept also EMBEDDED AUDIO signals including up to 12 audio channels with a sampling frequency of 48 kHz.
•
8 E. AUDIO HD/SD SDI (SWITCHED OUT) terminal (BNC)
Output terminal for the HD/SD SDI signals.
•
The SDI signals of the current input (SDI 1 or SDI 2) are re-clocked, then emitted.
•
When an input other than SDI 1 and SDI 2 is selected, the SDI signal of the input selected last time is emitted from this terminal.
•
The signals are emitted from this terminal only when the monitor is on or in “P.SAVE” (power save) mode.
9 DVI-D (HDCP) terminal
Input terminal for the DVI-D signal compatible with HDCP.
•
When the picture is not displayed correctly, change the setting of “DVI INPUT SEL.” (☞ page 17).
Note for connections
•
Before making any connections, turn off all the equipment.
•
Use a cord whose plugs correctly match the terminals on this monitor and the equipment.
•
Plugs should be fi rmly inserted; poor connections could cause noise.
•
When unplugging a cord, be sure to grasp its plug and pull it out.
•
DO NOT connect the power cord until all connections are complete.
•
Refer also to the user manual of each piece of equipment.
Attaching the power cord holder
The provided power cord holder prevents accidental disconnection of the AC power cord from the AC IN terminal.
The power cord holder consists of two parts, a case and a cover.•
1
AC IN
Case
CAUTION
Use only the provided screws.
•
Make sure the plug will not be pulled out after the cover is attached to the case.
•
The illustration above is of DT-R24L41D. When using DT-R17L4D, pay attention to the direction in which the power cord holder is
•
attached.
terminal
2
3
Cover
To detach the cover
9
Daily Operations
Front panel
The illustration of the
monitor is of DT-R24L41D.
Tally lamp
This lamp is controlled by the tally function of the MAKE/TRIGGER
terminal.
You can select the color of the tally lamp from “GREEN” or “RED.”
•
(☞ “TALLY SELECT” in “FUNCTION SETTING” on page 15 and
“External Control” on page 18)
“NO EFFECT” is displayed when you press a button which is
•
not available for the current input or signal format (the lamp
lights even when the function does not actually work).
The items controlled by the MAKE system cannot be controlled
•
by the buttons on the front panel (“REMOTE ON” is displayed
and the lamps do not light).
DT-R17L4D
1 Speakers (stereo)
The speakers emit the same audio
signal emitted from the AUDIO ASSIGN
(DT-R24L41D) / AUDIO (DT-R17L4D)
(MONITOR OUT) terminals. (☞ “ 6
AUDIO ASSIGN (DT-R24L41D) / AUDIO
(DT-R17L4D) (MONITOR OUT) terminals”
on page 9)
2 VOLUME adjustment knob
Adjusts the volume.
3 Picture adjustment knob
PHASE: Adjusts the picture hue.
CHROMA: Adjusts the picture color density.
BRIGHT: Adjusts the picture brightness.
CONTRAST: Adjusts the picture contrast.
PHASE and CHROMA cannot be
•
adjusted for certain signal formats.
When “COMPONENT PHASE” is set to
•
“DISABLE” and an NTSC signal is input,
PHASE can be adjusted (☞ page 15).
4 MUTING button
Turns off the sound when no menu screen
is displayed.
To cancel the function, press the button
•
again or turn the VOLUME adjustment knob.
Muting function is also canceled when
•
“BALANCE” of “AUDIO SETTING” in the
MAIN MENU is changed (☞ page 14).
5
/ / / buttons
When a menu screen is displayed
Selects or adjusts menu items. (☞ “The
operation procedure” on page 12)
When no menu screen is displayed
Selects the audio channels of
EMBEDDED AUDIO signals. (☞ “Audio
Channel Selection” on page 11)
Pressing button while holding button
•
displays the SET-UP MENU. (☞ “The
operation procedure” on page 12)
6 MENU button
Activates/deactivates the display of
the MAIN MENU. (☞ “The operation
procedure” on page 12)
7 COLOR OFF button/lamp
Displays only the luminance signal.
This function does not work for RGB
•
input signals.
8 1:1 button/lamp
Displays the picture in the original
resolution of the input signal.
The aspect ratio of the picture may
•
change depending on the input signal.
9 AREA MARKER button/lamp
Displays/hides the area marker.
Select the style of the area marker
•
in “MARKER” of the MAIN MENU
(☞ page 13).
This function works only when displaying
•
the picture in 16:9 aspect ratio.
This function does not work when
•
“AREA MARKER” or “R-AREA
MARKER” is set to “OFF” in “MARKER.”
p SAFETY MARKER button/lamp
Displays/hides the safety marker.
Adjust the area of the safety marker in
•
“MARKER” of MAIN MENU (☞ page 13).
This function does not work when
•
displaying the picture in the 1:1 mode.
This function does not work when
•
“SAFETY MARKER” or “R-SAFETY
MARKER” is set to “OFF” in “MARKER.”
q SCREENS CHECK button/lamp
Displays only the selected element (R, G,
or B) of the video signal.
Each time you press this button, the
•
picture changes in the following order.
RGB (Normal screen) Red screen
Blue screen Green screen
DT-R24L41D
w T.C. (time code) button/lamp
e INPUT SELECT buttons/lamps
r Power lamp
t button
Activates/deactivates the display of the time
data (time code) contained in the SDI signal.
(☞ “On the Information Display” on page 11)
Select the time code type in
•
“INFORMATION” of SET-UP MENU (☞
page 17).
Selects an input.
SDI 1: E. AUDIO HD/SD SDI (IN 1)
SDI 2: E. AUDIO HD/SD SDI (IN 2)
DVI: DVI-D (HDCP) terminal
DT-R24L41D
DT-R17L4D
Unlit: The monitor is completely off
Lights in Green:
The monitor is on.
Lights in orange:
The monitor is off (on standby).
Flashes in orange:
The monitor is in the P. SAVE
Turns on and off (on standby) the monitor.
•
terminal
terminal
VIDEO 1: VIDEO (INPUT 1) terminal
VIDEO 2: VIDEO (INPUT 2) terminal
VIDEO: VIDEO terminal
The lamp for the selected input lights.
•
(the power switch on the rear
panel is turned off).
(power save) mode. (☞ “NO
SYNC ACTION” in “SYNC
FUNCTION” on page 15)
The power switch is equipped on the rear
panel of the monitor (☞ 1 on page 8).
10

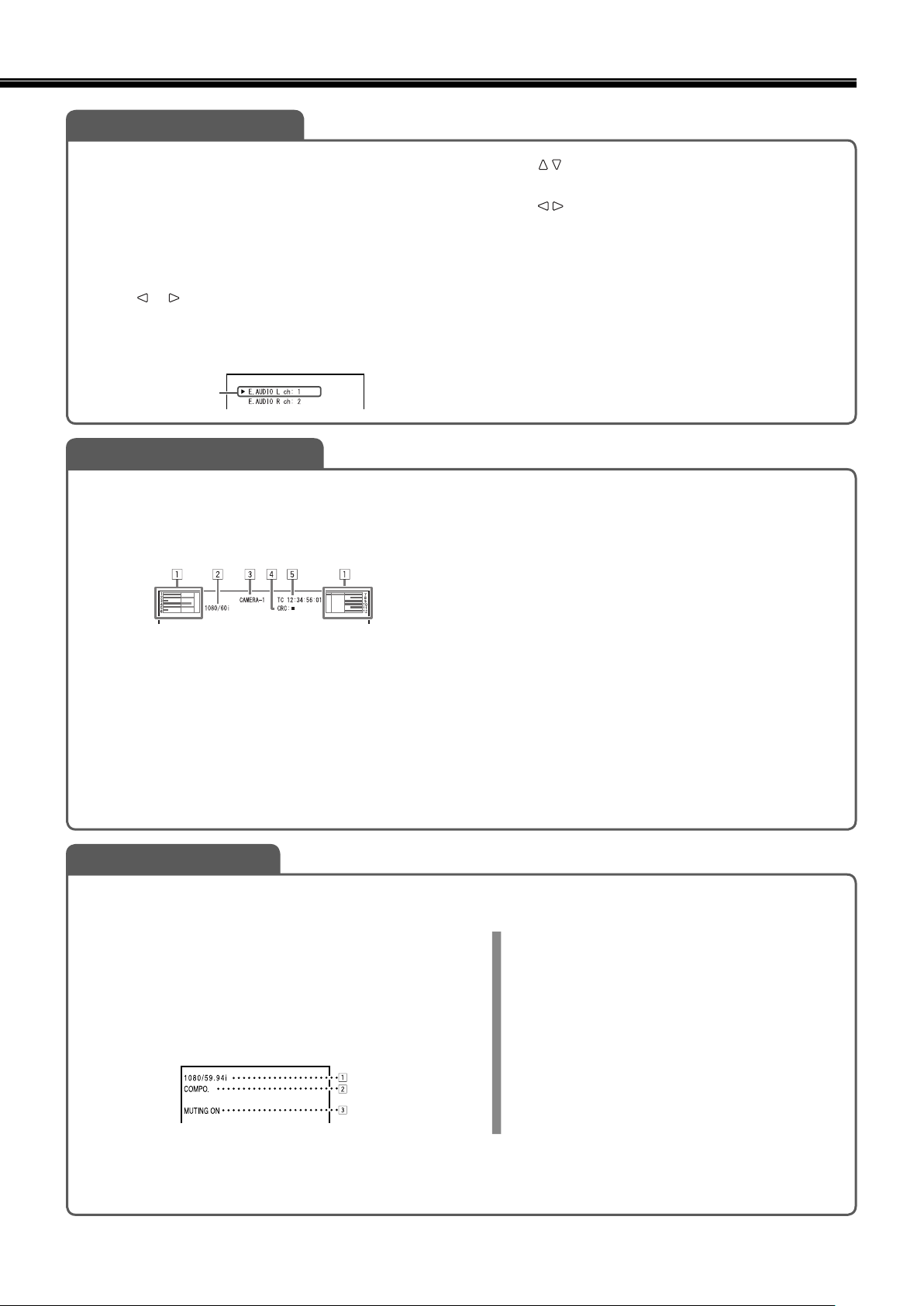

Audio Channel Selection
Select audio channels emitted from the speakers (L/R) and the
AUDIO ASSIGN (DT-R24L41D) / AUDIO (DT-R17L4D) (MONITOR
OUT) (OUT1(L)/OUT2(R)) terminals, when EMBEDDED AUDIO
signals come in to the E. AUDIO HD/SD SDI terminal (IN1 or IN2)
and SDI input (1 or 2) is selected.
You have to choose a group of selectable audio channels
•
before the channel selection. (☞ “E.AUDIO GROUP” in “AUDIO
SETTING” on page 14)
The setting is memorized for each input (SDI 1 and SDI 2).
•
Press or button when a menu is not displayed.
1
The screen for audio channel selection is displayed.
The screen for audio channel selection automatically
•
disappears in about 30 seconds after the previous operation.
Audio channel selection screen
Selected item
On the Information Display
The monitor displays the information below.
Make the setting to display/hide each information using the
•
MENU with the exception of 5, controlled with T.C. button (☞ w
on page 10).
Select the position of the information display.
•
(☞ “POSITION” in “INFORMATION” on page 17)
1 Audio level meter
•
You can check the conditions of the EMBEDDED AUDIO
signals when “LEVEL METER ch” is set to “LINE” or “DIVIDE.”
Not displayed when “LEVEL METER ch” is set to “OFF.”
•
☞ “AUDIO SETTING” on page 14
2 Signal format
Displayed when “STATUS DISPLAY” is set to “ON.”
•
(☞ “INFORMATION” on page 17)
For the contents displayed, see “Available signals” on
•
page 26 and “On the signal format” below.
Press buttons to select the left (L ch) or
2
right (R ch).
Press buttons to select an audio channel.
3
Each time you press the button, the audio channel changes
•
according to the settings of “E.AUDIO GROUP.” (☞ page 14)
Press MENU button.
4
The screen for audio channel selection disappears.

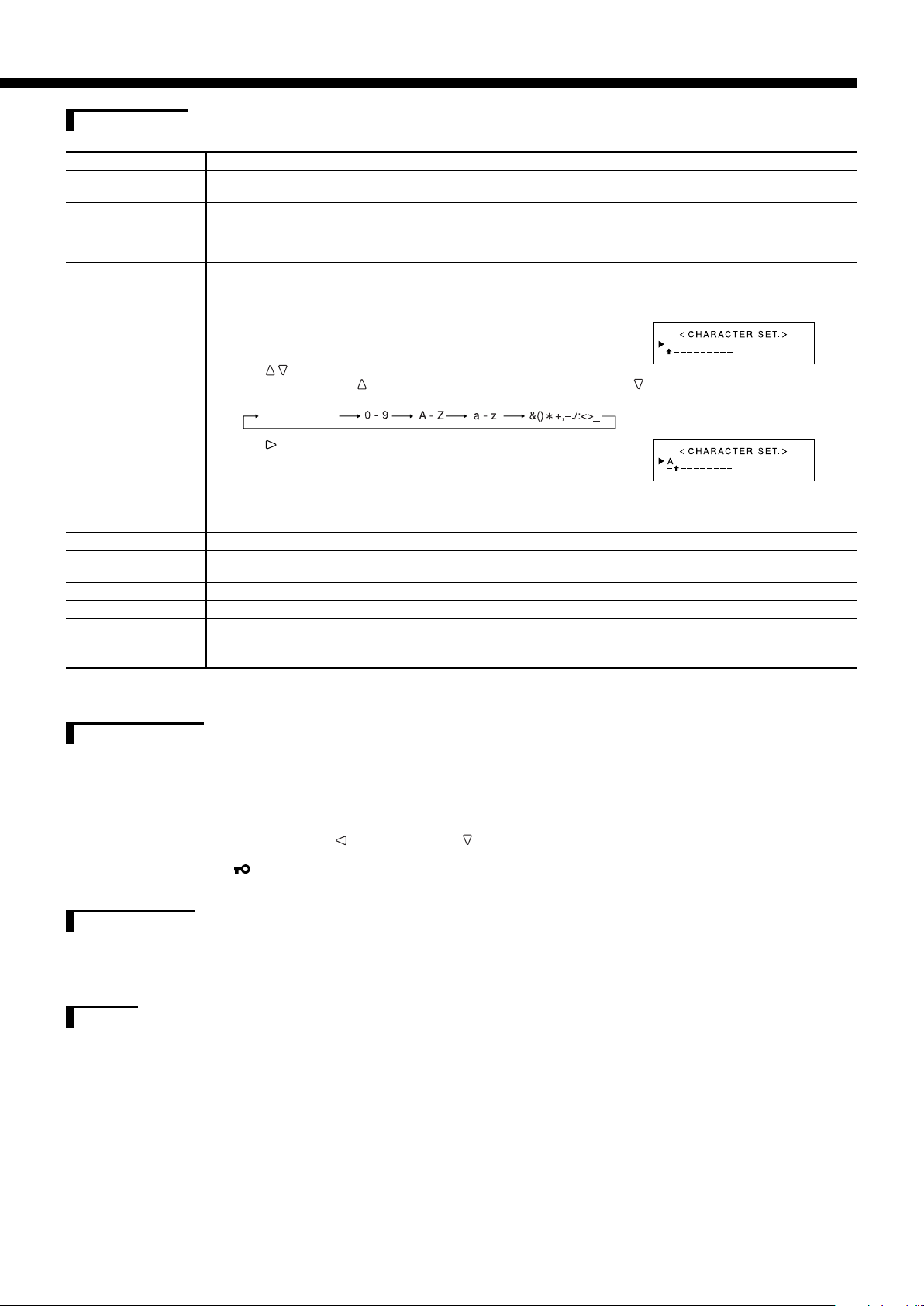

3 Source name assigned in “CHARACTER SET.”
•
Displayed when “SOURCE ID” is set to “ON” or “AUTO.”
•
Displayed in large letters when “STATUS DISPLAY” is set to
“OFF” or “AUTO.”
☞ “INFORMATION” on page 17
4 CRC error indication
•
Displayed when “CRC ERROR” is set to “ON.”
(☞ “INFORMATION” on page 17)
•
A red square is displayed when an error occurs.
5 Time code
•
When the input signal includes no time code, “TC – –:– –:– –
:– –” is displayed (☞ w on page 10).
•
When any information of 1, 2, 3, or 4 above is displayed
while signals come in from equipment other than a computer, the
picture is displayed without overlapping the information display
area.
However, the information display will overlap with the picture
when...
–
displaying the picture with higher resolution than the
resolution of the panel in 1:1 mode.
–
“SD4:3 SIZE” setting in MAIN MENU is “H FULL” and “V
FULL”: (DT-R24L41D)
“SD4:3 SIZE” setting in MAIN MENU is “H FULL”: (DT-R17L4D)
–
On the Status Display
If you press the INPUT SELECT button (☞ e on page 10)
currently lit, the status of the input signal and setting of MUTING
are displayed for about 3 seconds.
Make the setting to display/hide the status in “STATUS
•
DISPLAY” of the “INFORMATION” (☞ page 17).
When “STATUS DISPLAY” is set to “AUTO” or “ON,” the status
•
below is also displayed in the following cases:
When you change the input
–
When the signal condition of the current input changes
–
When you turn on the monitor
–
When “STATUS DISPLAY” is set to “ON,” the signal format will
•
remain displayed 3 seconds after the status is displayed.
1 Signal format
For the contents displayed, see “Available signals” on page 26
•
and “On the signal format” below.
On the signal format
The following messages appear depending on the type of
input signals and their conditions.
When a DVI-D signal protected with HDCP is input
“*” (at the end of the indication)
¨
When no video signal comes in
“NO SYNC”
¨
When a noncompliant video signal comes in
“Out of range”
¨
When “COLOR SYSTEM” (☞ “FUNCTION SETTING”
on page 15) is set to “AUTO” and the noncompliant
composite video signals come in
“OTHERS”
¨
2 Signal format of DVI input
☞ “DVI INPUT SEL.” on page 17
3 Setting of “MUTING”
Displayed only when muting is activated (☞ 4 on page 10).
•
11
MAIN MENU
PICTURE FUNCTION
APERTURE AREA MARKER
APERTURE LEVEL MARKER ASPECT
BACK LIGHT
CTI SAFETY MARKER
LTI SAFETY AREA
I/P MODE FRAME
sub menu CENTER MARKER
reset LINE BRIGHTNESS
R-AREA MARKER
R-MARKER ASPECT
R-SAFETY MARKER
BALANCE
R-SAFETY AREA
NO SYNC ACTION
DELAY TIME
LOW LATENCY
AUDIO1 ASSIGN.
*1
LEVEL METER SETTING LEVEL METER CH
BAR TYPE
REFERENCE LEVEL
OVER LEVEL
BAR BRIGHTNESS
PEAK HOLD
E.AUDIO GROUP
AUDIO2 ASSIGN.
*1
MARKER
AUDIO SETTING
SYNC FUNCTION
ASPECT
SD4:3 SIZE
Menu Confi guration
The operation procedure
Display the menu.
1
To display the MAIN MENU
Press MENU button.
¨
To display the SET-UP MENU
Press button while holding button.
¨
Press buttons to select an item, then press button.
2
For some items, adjustments will be made by pressing .
•
Press buttons to select an item, then press buttons to make adjustments.
3
Press MENU button to fi nish the menu operation.
4
Pressing MENU button repeatedly deactivates the display of the menu.•
Menu Transition Diagram
MAIN MENU SET-UP MENU
Ex.: When “MARKER” in the MAIN
MENU is selected
Selected
item
Operation
guide
SET-UP MENU
*1
DT-R24L41D only
The menu automatically disappears in about 30 seconds after the previous operation.
•
Some items may not appear on the menu depending on the input or the input signal.
•
The items controlled by the MAKE system do not appear on the menu.
•
12
FUNCTION SETTING
PICTURE SUB ADJ.
SIZE/POSI. ADJ.
WHITE BALANCE SET.
REMOTE SETTING
INFORMATION
CONTROL LOCK
DVI INPUT SEL.
all reset
sub menu POSI.
CONTRAST TALLY SELECT
H SIZE CHROMA COMPONENT PHASE
H POSITION PHASE
V SIZE NTSC SETUP
V POSITION sub menu
sub menu reset
reset
POSITION PARALLEL TYPE G DRIVE
SOURCE ID PIN1 B DRIVE
CHARACTER SET. PIN2 R CUT OFF
STATUS DISPLAY PIN3 G CUT OFF
TIME CODE PIN4 B CUT OFF
CRC ERROR PIN5 sub menu
SUB HOUR METER PIN6 reset
MODEL PIN7
VERSION PIN8
HOUR METER
BRIGHT DIMMER
SERIAL TYPE R DRIVE
COLOR SYSTEM
COLOR TEMP.
MAIN MENU
PICTURE FUNCTION
Setting for the picture quality
Item To do Setting value
APERTURE
APERTURE LEVEL
CTI Adjust the clearness of the outlines of the chrominance signal. OFF, NORMAL, HARD
LTI Adjust the clearness of the outlines of the luminance signal. OFF, NORMAL, HARD
I/P MODE Selects a proper mode corresponding to the input picture. NORMAL, CINEMA, FIELD
sub menu
reset Restore the default settings for all the items in “PICTURE FUNCTION.”
*1
Memorized for each input.
*1
Activates/deactivates the function at the level set in “APERTURE LEVEL.” OFF, ON
*1
Compensate the frequency response of the luminance signal of the video signal.
Display the sub menu which enables you to adjust the items of “PICTURE FUNCTION” while viewing the actual picture.
01 – 10
BACK LIGHT
Adjusts the brightness of the display.
Adjust according to the ambient light conditions.
•
ASPECT
Sets the aspect ratio (horizontal to vertical ratio of the screen) of the SD signal.
•
Not activate when picture is displayed in the 1:1 mode.
SD4:3 SIZE
Selects the picture size when the input signal format is 4:3.
NORMAL: Matches the vertical picture size to the number of pixels.
H FULL: Matches the horizontal picture size to the horizontal size of the screen. At this time, the top and bottom of the picture are overscanned.
V FULL: Matches the vertical picture size to the vertical size of the screen.
Not activate when picture is displayed in the 1:1 mode.
•
*1
DT-R24L41D only
MARKER
Settings for marker functions
1/2
Item To do Setting value
AREA MARKER
MARKER ASPECT
SAFETY MARKER Activate/deactivate the safety marker and select the style of it.
SAFETY AREA Adjust the area of the safety marker. 80% – 100%
FRAME Displays/hides the frame indicating the area of
CENTER MARKER Displays/hides the marker indicating the center position of the picture. OFF, ON
LINE BRIGHTNESS Adjust the brightness of the marker. HIGH, LOW
The area marker or the safety marker is displayed by using AREA MARKER or SAFETY MARKER button, or external control.
•
Select either non-“R-” items or “R-” items to activate by using external control. (☞
•
When a picture is displayed in 4:3 aspect ratio, the safety marker for the 4:3 area is displayed.
•
To display the safety marker for the area of a picture displayed in 16:9 aspect ratio, hide the area marker.
•
*1
Memorized for each input.
*2
Not displayed when the picture is displayed in the 1:1 mode and when “SD4:3 SIZE” setting in MAIN MENU is “H FULL” and the input signal
format is 4:3.
*3
Displayed only when picture is displayed in 16:9 aspect ratio.
*4
The setting values are the same as that of “AREA MARKER”.
Setting value: –20 – +20
Setting value: 4:3, 16:9
Setting value: NORMAL, H FULL, V FULL
*1*2
*3
Activate/deactivate the area marker and select the style of it.
The setting values and features are as follows.
OFF: Deactivate the marker.
LINE: Displays the area with an outline.
HALF: The area outside the specifi ed aspect ratio of the screen is
HALF+L: The area of the specifi ed aspect ratio of the screen is indicated
BLK.:
BLK. +L: The area of the specifi ed aspect ratio of the screen is indicated by
*3
Select the aspect ratio of the area marker.
displayed at 50% transparency.
by an outline, and the area outside of that is displayed at 50%
transparency.
The area outside the specifi ed aspect ratio of the screen is black.
Only the portion of the picture within the designated area is displayed.
an outline, and the area outside of that becomes black so that only
the area inside the line is displayed.
*1
OFF, LINE, HALF, HALF+L, BLK. ,
BLK.+L
*4
the specifi ed aspect ratio.
“External Control”
4:3, 14:9, 13:9, 2.35:1, 1.85:1, 1.66:1
OFF, LINE, HALF, HALF+L, BLK. ,
BLK.+L
OFF, ON
on page 18)
13
Menu Confi guration (cont.)
MARKER
*1*2
Settings for marker functions
2/2
Item To do Setting value
R-AREA MARKER
*3
Activate/deactivate the area marker and select the style of it.
*4
OFF, LINE, HALF, HALF+L, BLK. ,
BLK.+L
R-MARKER ASPECT*3Select the aspect ratio of the area marker. 4:3, 14:9, 13:9, 2.35:1, 1.85:1,
1.66:1
R-SAFETY MARKER Activate/deactivate the safety marker and select the style of it.
*4
OFF, LINE, HALF, HALF+L, BLK. ,
BLK.+L
R-SAFETY AREA Adjust the area of the safety marker. 80% – 100%
The area marker or the safety marker is displayed by using AREA MARKER or SAFETY MARKER button, or external control.
•
Select either non-“R-” items or “R-” items to activate by using external control. (☞
•
When a picture is displayed in 4:3 aspect ratio, the safety marker for the 4:3 area is displayed.
•
To display the safety marker for the area of a picture displayed in 16:9 aspect ratio, hide the area marker.
•
*1
Memorized for each input.
*2
Not displayed when the picture is displayed in the 1:1 mode and when “SD4:3 SIZE” setting in MAIN MENU is “H FULL” and the input signal
“External Control”
on page 18)
format is 4:3.
*3
Displayed only when picture is displayed in 16:9 aspect ratio.
*4
The setting values are the same as that of “AREA MARKER”. (☞ page 13).
AUDIO SETTING
Settings for the audio output balance, EMBEDDED AUDIO signals and level meter
Item To do Setting value
BALANCE Adjust the balance between the right and left speakers. L5 – L1, 0, R1 – R5
AUDIO1 ASSIGN.
AUDIO2 ASSIGN.
E.AUDIO GROUP
LEVEL METER
SETTING
*2
*1
Select the video input which the audio signal through AUDIO ASSIGN (IN 1)
terminal is assigned to.
*1
Select the video input which the audio signal through AUDIO ASSIGN (IN 2)
SDI-1, SDI-2, DVI, VIDEO-1,
VIDEO-2
terminal is assigned to.
*2
Select the audio channel group of the EMBEDDED AUDIO signals.
1G, 2G, 1-2G, 3G, 1-3G
The setting values and selectable audio channels of EMBEDDED AUDIO
signals are as follows.
(G means GROUP)
1G: channel(s) 1/2/3/4/1+2/3+4/1 – 4 (1G)
2G: channel(s) 5/6/7/8/5+6/7+8/5 – 8 (2G)
1-2G: channel(s) 1/2/3/4/5/6/7/8/1+2/3+4/5+6/7+8/1 – 4 (1G)/5 – 8 (2G)/
1 – 8 (1G+2G)
3G: channel(s) 9/10/11/12/9+10/11+12/9 – 12 (3G)
1-3G:
channel(s) 1/2/3/4/5/6/7/8/9/10/11/12/1+2/3+4/5+6/7+8/9+10/
11+12/1 – 4 (1G)/5 – 8 (2G)/9 – 12 (3G)/1 – 8 (1G+2G)/1 – 12 (1-3G)
Adjust the level meter display for the EMBEDDED AUDIO signals.
Example of the level meter display —Level meter position and audio channels
Ex.: When “LEVEL METER ch” is set to “LINE” and “BAR TYPE” is set to “3COLORS”
OVER LEVEL REFERENCE LEVEL
Red
Yellow
Green
The level meter with no audio signal input is displayed in white for “3COLORS”, and in gray for “W.100.”
•
You can select the position of the level meter display—top or bottom of the screen.
•
(☞ “POSITION” in “INFORMATION” on page 17)
When “PEAK HOLD” is set to “ON,” the maximum level meter value will remain displayed for a set period of time.
•
(At the time the signal input level reaches the highest value.)
– LEVEL METER ch Select how the audio channels are displayed on the level meter.
OFF, LINE, DIVIDE
LINE: Displays the channels 1 – 6 at the left of the screen and 7 – 12 at
the right.
DIVIDE: Displays the odd channels at the left of the screen and the even
channels at the right.
– BAR TYPE Select the color of the level meter display.
3COLORS, W.100
3COLORS: 3 colors to indicate variations in input levels.
W.100 : White
REFERENCE LEVEL
–
Select the standard input level indicated on the level meter. –20dB, –18dB
– OVER LEVEL Select the input level’s lower limit indicated in red for the “3COLORS” display. –10dB, –8dB, –6dB, –4dB, –2dB
– BAR BRIGHTNESS Select the brightness of the level meter. LOW, HIGH
– PEAK HOLD Activates/deactivates the peak hold function of the level meter. OFF, ON
*1
DT-R24L41D only
*2
Memorized for each input.
14
SYNC FUNCTION
Settings for the synchronization with signals
Item To do Setting value
NO SYNC ACTION Select the screen status when no signal is coming in.
DELAY TIME Select the period until the screen status changes as selected in “NO SYNC
LOW LATENCY Activates/deactivates the function to shorten the time taken to display the
When setting “NO SYNC ACTION” to “GRAY B.,” the screen color changes to gray and the power consumption of the back light is saved by
•
half. Selecting “P.SAVE” (power save mode) saves more power consumption by turning off the back light.
In the initial setting, “NO SYNC ACTION” is set to “P.SAVE”, and “DELAY TIME” set to “15min.” Change the settings if necessary.
•
SET-UP MENU
P.SAVE: power save mode
GRAY B.: gray screen
ACTION” after signals stop coming in.
picture (low latency function).
If the picture is not displayed steadily while “ON” is selected, select “OFF.”
•
While “ON” is selected, the displayed picture may become unstable when
•
an operation using buttons on the front panel or the menu is performed, or
when the signal format changes.
OFF, P.SAVE, GRAY B.
30sec., 5min., 15min.
ON, OFF
FUNCTION SETTING
Settings for the sub menu display, color system, color of the tally lamp, picture size, intensity of the button lamps and the PHASE adjustment.
Item To do Setting value
sub menu POSI. Select the contents and displaying position of “sub menu.”
The setting values and features are as follows.
LOWER1: Displays the current setting and adjustment bar at the lower part
of the screen.
UPPER1: Displays the current setting and adjustment bar at the upper
part of the screen.
LOWER2: Displays the current setting at the lower part of the screen.
UPPER2: Displays the current setting at the upper part of the screen.
The adjustment bar is not displayed for some items.•
COLOR SYSTEM Select the color system.
If the picture is unstable with “AUTO,” select “NTSC” or “PAL.”•
TALLY SELECT Select the color of the tally lamp. GREEN, RED
DIMMER Select the intensity of the button lamps. NORMAL, DARK
COMPONENT PHASE Deactivates the function of PHASE adjustment (Picture adjustment knob
and “PICTURE SUB ADJ.” in SET-UP MENU) except when an NTSC signal
comes in (☞ 3 on page 10).
LOWER1, UPPER1, LOWER2,
UPPER2
AUTO, NTSC, PAL
ENABLE, DISABLE
PICTURE SUB ADJ.
Adjusts the standard level for the picture adjustment and selects the set-up level for the input video signal.
Item To do Setting value
CONTRAST
BRIGHT
CHROMA
PHASE
NTSC SETUP Select the set-up level of the input NTSC signal.
sub menu Display the sub menu which enables you to adjust the items in “PICTURE SUB ADJ.” while viewing the actual
reset Restore the default settings for all the items in “PICTURE SUB ADJ.”
*1
Memorized for each input.
*2
When “COMPONENT PHASE” is set to “DISABLE” and an NTSC signal is input, PHASE can be adjusted.
*1
*1, *2
*1
*1
Adjust the standard level for the contrast adjusted with the CONTRAST knob
on the front panel.
Adjust the standard level for the brightness adjusted with the BRIGHT knob on
the front panel.
Adjust the standard level for the chroma adjusted with the CHROMA knob on
the front panel.
Adjust the standard level for the phase adjusted with the PHASE knob on the
front panel.
00: compliant with 0% set-up signal
7.5: compliant with 7.5% set-up signal
picture.
–20 – +20
–20 – +20
–20 – +20
–20 – +20
00,
7.5
15
Menu Confi guration (cont.)
SIZE/POSI. ADJ.
Adjusts the size and position of the picture.
Item To do Setting value
*1
H SIZE
H POSITION
V SIZE
V POSITION
sub menu Display the sub menu which enables you to adjust the items of “SIZE/POSI. ADJ.” while viewing the actual picture.
reset Restore the default settings for all the items in “SIZE/POSI. ADJ.”
*1
Memorized for each signal format.
*1
*1
*1
WHITE BALANCE SET.
Selects the color temperature and adjusts the drive level and cutoff point of each color (R/G/B).
Item To do Setting value
COLOR TEMP. Select the color temperature. 9300K, 6500K, USER
R DRIVE
G DRIVE
B DRIVE
R CUT OFF
G CUT OFF
B CUT OFF
sub menu Display the sub menu which enables you to adjust the items in “WHITE BALANCE SET.” while viewing the actual
reset Restore the default settings for the drive levels and cutoff points of the selected color temperature.
*2
*2
*2
Memorized for each color temperature.
Adjust the horizontal picture size. Setting value varies depending on
Adjust the horizontal picture position.
Adjust the vertical picture size.
Adjust the vertical picture position.
Adjust the drive level of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
Adjust the cutoff point of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
picture.
the signals.
REMOTE SETTING
Settings for the external control
Item To do Setting value
SERIAL TYPE Select the input terminal used for external control by serial communication. RS232C, RS485
PARALLEL TYPE Select the external control method for the MAKE/TRIGGER terminal. MAKE, TRIGGER, SET
PIN1
PIN2
PIN3
PIN4
PIN5
PIN6
PIN7
PIN8
(☞ “External Control” on pages 18 to 21)
Assign the control functions to the pins of the MAKE/TRIGGER terminal.
Assign a function to each pin terminal by selecting “SET” in “PARALLEL
•
TYPE” mentioned above.
The functions are assigned for “PIN6” – “PIN8” and you cannot change the
assignment of these functions.
☞ “Functions controlled by the
MAKE/TRIGGER system” on page
19
☞ “Using the MAKE/TRIGGER
system” on page 18
16
INFORMATION
Settings for the information display of the monitor
Item To do Setting value
POSITION
SOURCE ID Select whether the name assigned in “CHARACTER SET.” is displayed on the
CHARACTER SET.
Select the position to show the information display (☞ “On the Information
Display” on page 11).
screen (☞ “On the Information Display” on page 11).
When “AUTO” is selected, the display color synchronizes with the color of
•
the tally lamp while the tally lamp is lit.
*1
Assign a name to each video source as you like (10 characters at maximum).
You can also enter a name using the RS-232C system.
UPPER, LOWER
OFF, ON, AUTO
Setting of “CHARACTER SET.”
1
Change the input to one that you want to assign a video source name for.
2
Select “CHARACTER SET.”
3
Press buttons to select the fi rst character.
•
Each time you press
button to reverse the order.
Space
4
Press button to move the arrow to the next space.
•
The characters entered before moving the arrow are memorized.
5
Repeat steps 3 and 4 (10 characters at maximum).
6
Press MENU button to store the name.
STATUS DISPLAY Select whether the status of the current input and the setting of MUTING are
TIME CODE Select the type of the TIME CODE display. VITC*
CRC ERROR Select whether the CRC error indication for the input HD SDI signal is
SUB HOUR METER Display the hours of use (unit: hour). You can reset this item.
MODEL Display the model name of the monitor.
VERSION Display the version of the monitor.
HOUR METER Display the total hours of use (unit: hour). This item is used for maintenance of the monitor. You cannot reset this
*1
Memorized for each input.
*2
Ancillary time code
displayed on the screen (☞ “On the Status Display” on page 11).
displayed on the screen (☞ “On the Information Display” on page 11).
item.
button, the character changes as follows. Press
AUTO, OFF, ON
2
, LTC*2, D-VITC
OFF, ON
CONTROL LOCK
Settings for disabling the buttons on the front panel.
The following operations are not available when “VOL.LOCK” is selected.
•
VOLUME adjustment knob
–
Picture adjustment knob
–
The “ALL LOCK” function disables to control the buttons on the front panel. But following operations are available.
•
Turning on/off (on standby) the monitor
–
Displaying the SET-UP MENU (by pressing
–
Operating the monitor by an external control
–
If you try other operations, “ Control lock on!” appears on the screen.
DVI INPUT SEL.
When “AUTO” is selected, the format of signals come in to the DVI-D (HDCP) terminal is automatically recognized. (Normally, select “AUTO.”)
Select “COMPO.,” “RGB” or “PC” when the picture is not displayed correctly with “AUTO.”
•
DVI-D input of the monitor is compatible with HDCP.
•
Setting value: OFF, VOL.LOCK, ALL LOCK
button while holding button) and turning “CONTROL LOCK” to “OFF”
Setting value: AUTO, COMPO., RGB, PC
all reset
Restores all the settings and adjustments of the monitor to the default.
“HOUR METER” and the settings done by using the adjustment knobs on the front panel will not be reset.
•
After performing “all reset,” the monitor is turned off then turned on automatically.
•
17
External Control
About the external control
This monitor has three external control terminals.
MAKE/TRIGGER terminal (RJ-45): The following external control
•
systems are available.
(1) MAKE (make contact) system: Controls the monitor by
short-circuiting the corresponding pin terminal to the GND pin
terminal, or disconnecting (opening) it.
(2) TRIGGER (trigger) system: Controls the monitor by sending
the pulse signal instantaneously to the corresponding pin
terminal.
☞ “Using the MAKE/TRIGGER system” on the right
RS-485 terminals (RJ-45): Controls the monitor with the RS-485
•
system (☞ “Using the serial communication” on page 20).
RS-232C terminal (D-sub 9-pin): Controls the monitor with the RS-
•
232C system (☞ “Using the serial communication” on page 20).
Set the following items of “REMOTE SETTING” in SET-UP MENU
according to the external control terminal and control system
(☞ “SERIAL TYPE,” “PARALLEL TYPE” on page 16).
The settings of this unit
Control
terminal
MAKE/
TRIGGER
terminal
RS-485
terminal
RS-232C
terminal
*1
For a monitor connected to a personal computer etc, select
the terminal the equipment is actually connected to. For other
monitors, select “RS485.”
Control priority is as follows.
MAKE > TRIGGER = serial communication = buttons and menu
on the monitor
•
You can use external control even when “CONTROL LOCK” is set
to “VOL.LOCK” or “ALL LOCK” (☞ page 17).
•
When the monitor is off (on standby), external control is not
available. But certain external controls (starting/terminating
communication, turning on the monitor) are available through the
serial communication (☞ page 21).
<MAKE/TRIGGER system>
You can control the monitor by a personal computer or dedicated
controller*
•
*2
<Serial communication>
2
“Using the MAKE/TRIGGER system” on the right.
The controller is not commercially available. Consult your dealer if
you need it.
Control system
MAKE — MAKE
TRIGGER — TRIGGER
Serial
communication
.
RS-485
RS-232C
“SERIAL
TYPE”
setting
RS485*
RS232C*
“PARALLEL
1
1
TYPE”
setting
—
—
Using the MAKE/TRIGGER system
The MAKE/TRIGGER terminal is confi gured as follows. You can assign
a function to each pin terminal in “REMOTE SETTING” (☞ “PIN1, PIN2,
PIN3, PIN4, PIN5” in “PARALLEL TYPE” on page 16).
You cannot change the functions assigned to the pin terminals from
•
6th to 8th.
Pin No. Pin name
1 PIN1
2 PIN2
3 PIN3
4 PIN4
5 PIN5
This is a female terminal. 6 TALLY*
7 ENABLE*
8 GND
*1
The 6th pin terminal controls turning on or off the tally lamp
(available to control even when the 7th pin terminal is invalid).
*2
The 7th pin terminal makes the external control valid/invalid. Make
sure to control the terminal by the MAKE system.
To assign the functions to the pin terminals
For the operation procedure, see page 12.
1
Select “REMOTE SETTING” on the SET-UP MENU.
2
Set “PARALLEL TYPE” to “SET.”
3
Select a pin name (“PIN1” – “PIN5”) for which you want to assign
a function, then select the function you want to assign.
For the selectable functions, see the table on page 19.
Operation of the external control
1
Set “PARALLEL TYPE” of “REMOTE SETTING” to “MAKE” or
“TRIGGER” in the SET-UP MENU.
2
Short-circuit the 7th pin terminal (ENABLE) to the 8th pin terminal
(GND) so that the monitor can be controlled by the external
control.
3
When the “MAKE” system is selected: Operate each function
by short-circuiting the corresponding pin terminal to the 8th pin
terminal (GND) or opening it.
When the “TRIGGER” system is selected: Operate each function
by pulse control, that is short-circuiting the corresponding pin
terminal to the 8th pin terminal (GND) for about 1 second and
opening it.
When changing the input with MAKE system, only one pin terminal
•
must be short-circuited. (Other pin terminals must be opened.)
When selecting the “TRIGGER” system, you can operate only one
•
function at a time. Operate the functions one by one.
1
2
PC, etc.
RS-485 IN
or
RS-232C
•
For the details, see page 20.
RS-485
OUT
18
RS-485
IN
RS-485
OUT
RS-485
IN
RS-485
OUT
<Functions controlled by the MAKE/TRIGGER system>
Display Functions to be controlled Opening Short-circuiting
TALLY SEL Selects the color of the tally lamp. Green Red
SDI 1 Changes the input to “SDI 1.” Invalid Valid
SDI 2 Changes the input to “SDI 2.” Invalid Valid
DVI Changes the input to “DVI.” Invalid Valid
DT-R24L41D
VIDEO 1 Changes the input to “VIDEO 1.” Invalid Valid
VIDEO 2 Changes the input to “VIDEO 2.” Invalid Valid
DT-R17L4D VIDEO Changes the input to “VIDEO.” Invalid Valid
A.MARKER The area marker indication Off On
S.MARKER The safety marker indication Off On
FRAME Indication of the area of the specifi ed aspect ratio Off On
C.MARKER The center marker indication Off On
MARK.SEL Selects the items of “MARKER”*
3
Non-“R-” items “R-” items
ASPECT Changes the aspect ratio. 4:3 16:9
1:1 Displays in 1:1 mode. Off On
STATUS Status display*
L.METER Audio level meter display *
4
☞ “On the Status Display” on page 11
5
TIME CODE Time code display Off On
SOURCE ID
☞ “SOURCE ID” in “INFORMATION” on page 17
6
*
COLOR OFF Color off Color Monochrome
SCR CHECK Screens check *
I/P MODE Change a mode according to a input picture. *
7
8
MUTING Muting on/off Off On
DIMMER Change the intensity of the button lamps. NORMAL DARK
– – – No function — —
*3
Selects which functions in “MARKER” are activated, non-“R-” items or “R-” items (☞ “MARKER” on page 13 to 14).
*4
Displays the information shown when INPUT SELECT button of the current input is pressed (☞ “On the Status Display” on page 11). While
controlling with the MAKE system, the information is displayed only at the moment of short-circuiting.
*5
While controlling with the MAKE system, the level meter is switched between displayed (short-circuiting) and hidden (opening). When “LEVEL
METER ch” is set to “OFF,” the level meter is not displayed (“NO EFFECT” appears).
While controlling with the TRIGGER system, the pattern of the audio channel display is switched.
*6
While controlling with the MAKE system, the available set-up options will be the setting value currently selected in “SOURCE ID” (“ON” or
“AUTO” [short-circuiting]) and “OFF” (opening). While controlling with the TRIGGER system, uses the same set-up option as those in the
SET-UP MENU (☞ “SOURCE ID” in “INFORMATION” on page 17).
*7
While controlling with the MAKE system, the screen is switched between normal screen (opening) and blue screen (short-circuiting). While
controlling with the TRIGGER system, the screen changes in the same way as when pressing SCREENS CHECK button (☞ q on page 10).
*8
Must be controlled with the TRIGGER system. The mode changes in the order of “NORMAL” ¨ “CINEMA” ¨ “FIELD.” (This function cannot
be controlled with the MAKE system.)
You cannot assign the same function to different pin terminals.
•
The TRIGGER system switches each function by short-circuiting the pin terminal for about 1 second and opening it.
•
19
External Control (cont.)
Using the serial communication
You can control the monitor from a personal computer etc. via the RS-485 or RS-232C terminal.
Consult your dealer for the details of the external control specifi cation.
•
<Communication specifi cations>
Input terminal Cable
RS-485 A straight LAN cable
RS-232C A straight cable with a D-sub 9-pin connector (male
for the monitor, female for the personal computer etc.)
<Specifi cations of the RS-485 terminal>
Pin No. IN terminal signal OUT terminal signal
1 TXD + TXD +
2 TXD – TXD –
3 RXD + RXD +
4 NC NC
5 NC NC
This is a female terminal. 6 RXD – RXD –
7 NC NC
8 GND GND
Terminal
specifi cation
☞ See below
Communication specifi cations
Baud Rate: 4800 bps
Data Bits: 8 bits
Parity: No parity
Stop Bits: 1 bit
Flow Control: No control
Communication Code: ASCII Code
<Specifi cations of the RS-232C terminal>
Pin No. Signal
1 NC
2 RXD
3 TXD
4 NC
5 GND
This is a female terminal. 6 NC
7 RTS
8 CTS
9 NC
•
The 7th terminal and the 8th terminal are connected.
<Command outline>
All commands consist of the following segments.
Header Monitor ID Command ID Function Data Cr (0Dh)
On Header
“!”: Operation commands from the personal computer, etc. (☞ <Basic command list> on page 21).
“?”: Reference commands from the personal computer, etc.
“@”: Status returns from the monitor
To start communication, send the connection command from the personal computer etc.
To terminate the communication, send the termination command from the personal computer etc.
Example of communication procedures
1Starting the communication:
connection command (!00BCN1Cr)
2Monitor’s status (@00BOKCr)
Monitor
20
PC, etc.
3Selecting “SDI 1” input (!00BINACr)
4Monitor’s status (@00BOKCr)
5Terminating the communication:
termination command (!00BCN0Cr)
6Monitor’s status (@00BOKCr)
<Basic command list>
No. Commands Functions Data
1 !
2 !
3 !
4 !
5 !
6 !
7 !
8 !
9 !
10 !
11 !
12 !
13 !
14 !
15 !
16 !
17 !
18 !
19 !
20 !
21 !
22 !
•
“Cr” is 0Dh.
•
The commands for starting communication (connection) (No. 1), terminating communication (termination) (No. 2), and turning on the monitor
(No. 13) can be used while the monitor is off (on standby).
*1B C N 1 Cr Starts communication (connection) No data
*1B C N 0 Cr Terminates communication (termination) No data
*1BIDSETxx*2Cr Assigns the control ID 01 – 99
*1B I D R E T Cr Initializes the control ID No data
*1BIDDSPxx*2Cr Displays/hides the ID 00: Hide, 01: Display
*1B I DCHK xx*2Cr Flashes/hides the selected ID No. of the monitor 00: Hide, 01: Display
*1B M E N U Cr Displays the MAIN MENU/Quits the menu operation No data
*1BUPCr
*1BDOWNCr
*1BADJRCr
*1BADJ LCr
*1B S E T U P Cr Displays the SET-UP MENU No data
*1B P W 1 Cr Turns on the monitor No data
*1B P W 0 Cr Turns off the monitor (on standby) No data
*1B I N A Cr Selects “SDI 1” input No data
*1B I N B Cr Selects “SDI 2” input No data
*1B I N C Cr Selects “DVI” input No data
*1BINECr
*1B I N F Cr Selects “VIDEO 2” input*
*1B D I S P Cr Displays the status*
*1BAMUTExx*2Cr Turns muting on/off 00: Off, 01: On
*1BASPxx*2Cr Changes the aspect ratio 00: 4:3, 01: 16:9
Moves the cursor upward ( )
Moves the cursor downward ( )
Makes setting/adjustment ( )
Makes setting/adjustment ( )
Selects “VIDEO 1”(DT-R24L41D)/
“VIDEO”(DT-R17L4D) input
3
4
No data
No data
No data
No data
No data
No data
No data
*1
Enter the monitor’s ID for “ **.” The initial setting of the monitor’s ID is “00.” When connecting several monitors, “00” is a command for
controlling all monitors at once.
*2
Enter the appropriate data to “xx.”
*3
DT-R24L41D only
*4
Displays the information shown when the INPUT SELECT button currently lit is pressed (☞ “On the Status Display” on page 11).
21
Troubleshooting
Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the
monitor and consult an authorized dealer or service center.
Symptom Probable cause and corrective action Page
•
Press the
Firmly insert the AC power plug.
No power supply
No picture with the power on
No sound
“OTHERS” or “Out of range” appears. Check whether the input signal format is acceptable on the monitor.• 11, 26, 27
“NO SYNC” appears.
Wrong color, no color
The picture becomes blurred.
Wrong picture position, wrong picture
size.
Some items do not appear on the
menu.
Buttons on the monitor do not work.
•
Turn on the POWER switch on the rear panel.
•
Select the correct input using the INPUT SELECT buttons.
•
Connect the signal cable fi rmly.
•
Turn on the power of the connected component and set the output correctly.
•
Check whether the input signal format is acceptable on the monitor.
•
Adjust the volume level.
•
Deactivate the muting function.
•
Connect the signal cable fi rmly.
•
Turn on the power of the connected component and set the output correctly.
•
Select the correct input using the INPUT SELECT buttons.
•
Connect the signal cable fi rmly.
•
Turn on the power of the connected component and output video signals. Or, check
•
whether the video output of the component (video output setting of the VCR or
graphic board of the computer) is set correctly.
Adjust each picture adjustment knob on the front panel or adjust the items of
•
“PICTURE SUB ADJ.” in the SET-UP MENU. Or, perform “reset” in “PICTURE SUB
ADJ.”
Check whether the setting of COLOR OFF or SCREENS CHECK buttons are
•
appropriate.
Select the proper color system (“COLOR SYSTEM”) in “FUNCTION SETTING” of
•
the SET-UP MENU.
Adjust the items of “WHITE BALANCE SET.” in the SET-UP MENU. Or, perform
•
“reset” in “WHITE BALANCE SET.”
Adjust the picture contrast or brightness by using the adjustment knobs on the front
• 10, 15
panel. Or, adjust “CONTRAST” or “BRIGHT” of “PICTURE SUB ADJ.” in the SETUP MENU.
Check whether the setting of 1:1 is appropriate.
•
Check “ASPECT” and “SD4:3 SIZE” settings in MAIN MENU.
•
Check whether the input signal format is acceptable on the monitor.
•
Adjust the picture size (H SIZE/V SIZE) or position (H POSITION/V POSITION) of
•
“SIZE/POSI. ADJ.” in the SET-UP MENU.
For some signals, the picture cannot be displayed fully in the effective screen area.
•
There is no sure method to solve this problem.
The items which are not available for the current input or the current input signal are
•
not displayed on the menu. Change the input or the input signal.
The items controlled by the MAKE system do not appear on the menu.
•
Set “CONTROL LOCK” in the SET-UP MENU to “OFF.”
•
You cannot use the buttons for the items controlled by the MAKE system. Disable
•
the external control.
button.
10
8
8
10
8
—
26, 27
10
10
8
—
10
8
—
10, 15
10
15
16
10
13
26, 27
16
—
—
18
17
18, 19
The following are not malfunctions.
When a still image is displayed for a long time, it may remain indistinctly on the screen after the picture has changed. Though the
•
remaining picture will disappear after a while, there may be a case that it remains for a long period depending on the length of time the
still image was displayed for. This is due to the characteristics of the LCD display and is not a malfunction.
Red spots, blue spots and green spots on the panel surface are a normal characteristic of LCD displays, and not a problem. The LCD
•
display is built with very high precision technology; however, be aware that a few pixels may be missing or constantly lit.
The following symptoms are problems only when pictures or sounds are not played back normally.
•
A slight electric shock occurs when you touch the monitor.
–
The top and/or rear panel of the monitor becomes hot.
–
The monitor emits a cracking noise.
–
The monitor emits a mechanical noise.
–
22
Self-check program
This monitor has a self-check function, which allows it to detect malfunctions and alert you. This makes troubleshooting easier. Whenever a
problem occurs, one or some of the INPUT SELECT lamps will fl ash. If this happens, follow the steps below and contact your dealer to resolve
the problem.
The illustration of the monitor is of DT-R24L41D.
When the screen goes blank, and one or some of the INPUT SELECT lamps (For DT-R24L41D: DVI, VIDEO1, VIDEO2 / For DT-R17L4D:
SDI 2, DVI, VIDEO) on the front control panel start fl ashing...
Check which lamps are fl ashing.
1
Press button to turn off (on standby) the monitor.
2
Turn off the power switch on the rear panel.
3
Disconnect the AC power cord from the AC outlet.
4
Contact your dealer with the information about which lamps were fl ashing.
5
If you turn on the monitor soon after turning it off (or after a short-term power failure), the INPUT SELECT lamps may fl ash and no image may
•
be displayed.
When this happens, turn off power and wait at least 10 seconds before turning on the monitor again.
If the INPUT SELECT lamps do not fl ash, you can use the monitor as normal.
23
Specifi cations
General
Model name DT-R24L41D DT-R17L4D
Type Multi format LCD monitor
Screen size Type 24 wide format Type 17 wide format
Aspect ratio 16:10 16:9
Horizontal/vertical frequency
(computer signal)
Compliant video signal format
Format HD SDI: BTA S-004C, SMPTE292M
Audio output Internal speaker: 1.0 W + 1.0 W
Operating conditions Operating temperature: 5°C – 35°C (41°F – 95°F)
Power requirements AC 120 V, 50 Hz/60 Hz
Rated current 1.15 A 1.2 A
External dimensions
(excluding protruding parts)
Weight 10.0 kg (22 lbs) (with the stand)
Accessories AC power cord, Power cord holder x 1, Screw x 2 (for power cord holder)
H: 31.469 kHz – 75.000 kHz
V: 48 Hz – 65 Hz
* Some signals within this frequency range may not be displayed (“Out of range” is displayed).
☞ “Available signals” on page 26
SD SDI: ITU-R BT.656: 525/625
SMPTE259M: 525
EMBEDDED AUDIO:
SMPTE299M, SMPTE272M
Operating humidity: 20% – 80% (non-condensing)
(Slightly variable depending on ambient conditions for installation.)
Width:
564 mm (22 1/4˝) 564 mm (22 1/4˝)
Height:
413.1 mm (16 3/8˝) 408 mm (16 1/8˝)
Depth:
181 mm (7 1/4˝) 99 mm (4˝)
(with the stand) (without the stand)
8.5 kg (18.7 lbs) (without the stand)
Width:
430 mm (17˝) 430 mm (17˝)
Height:
314.1 mm (12 3/8˝) 309 mm (12 1/4˝)
Depth:
181 mm (7 1/4˝) 102 mm (4 1/8˝)
(with the stand) (without the stand)
8.0 kg (17.6 lbs) (with the stand)
6.5 kg (14.3 lbs) (without the stand)
LCD panel
Model name DT-R24L41D DT-R17L4D
Type 24˝ wide, active matrix TFT 17˝ wide, active matrix TFT
Effective screen size Width: 518.4 mm (20 1/2˝)
Number of pixels displayed 1 920 x 1 200 1 366 x 768
Number of colors displayed 16.77 million
Viewing angle (TYP.) 178° (Horizontally), 178° (Vertically) 178° (Horizontally), 178° (Vertically)
Brightness (TYP.) 400 cd/m
Contrast ratio (TYP.) 1000:1 900:1
Input/output terminals
Model name DT-R24L41D DT-R17L4D
VIDEO (INPUT 1)
VIDEO (INPUT 2)
DVI-D (HDCP)
Video
E. AUDIO HD/SD SDI (IN 1)
E. AUDIO HD/SD SDI (IN 2)
E. AUDIO HD/SD SDI
(SWITCHED OUT)
AUDIO ASSIGN (IN 1)
AUDIO ASSIGN (IN 2)
Audio
AUDIO ASSIGN
(MONITOR OUT)
REMOTE (MAKE/TRIGGER)
REMOTE (RS-485)
control
External
REMOTE (RS-232C)
Height: 324 mm (12 7/8˝)
2
350 cd/m2
Input/output of composite signal:
2 line, BNC connector x 4,
1 V(p-p), 75 Ω
* The input (IN) and output (OUT)
terminals are bridge-connected (auto
termination).
DVI-D signal input (compatible with HDCP):
DVI-D connector x 1 (compatible with DDC2B)
Digital signal input (compatible with EMBEDDED AUDIO signals):
auto detection, 2 line, BNC connector x 2
Digital signal output (compatible with EMBEDDED AUDIO signals):
1 line switched out, BNC connector x 1
Analog audio signal input:
2 line, RCA connector x 4,
500 mV (rms), high impedance
Analog audio signal output:
1 line, RCA connector x 2,
500 mV (rms)
☞ “Using the MAKE/TRIGGER system” on page 18
☞ “Using the serial communication” on page 20
VIDEO
AUDIO (IN)
AUDIO
(MONITOR OUT)
Width: 372.9 mm (14 3/4˝)
Height: 209.7 mm (8 3/8˝)
Input/output of composite signal:
1 line, BNC connector x 2,
1 V(p-p), 75 Ω
* The input (IN) and output (OUT)
terminals are bridge-connected (auto
termination).
Analog audio signal input:
1 line, RCA connector x 2,
500 mV (rms), high impedance
Analog audio signal output:
1 line, RCA connector x 2,
500 mV (rms)
24
Dimensions
Unit: mm (inch)
DT-R24L41D
<Front view> <Side view> <Rear view>
99 (4)
564 (22 1/4)
51.9 (2 1/8)
1.5 (1/8)
VESA mounting holes
(Size: M4, depth: 10 mm)
100
408 (16 1/8)
413.1 (16 3/8)
300 (11 7/8)
To install the monitor on a shelf To install the monitor on a wall
<Top view> <Side view> <Rear view> <Side view>
270 (10 3/4)
210 (8 3/8)
160 (6 3/8)
10-φ8
36.7 (1 1/2)
30.3
(1 1/4)
111.3
(4 1/2)
14.3
(5/8)
21 (7/8)
179 (7 1/8)
181(7 1/4)
6-φ8
23.5 (1)
70
(2 7/8)
160 (6 3/8)
70
(2 7/8)
64.5
60
67
15
(2 5/8)
(2 3/8)
(2 3/4)
(5/8)
215 (8 1/2)
DT-R17L4D
<Front view> <Side view> <Rear view>
430 (17)
102 (4 1/8)
56 (2 1/4)
1.3 (1/16)
3 (1/8)
VESA mounting holes
(Size: M4, depth: 10 mm)
100
100117
(4 5/8)
88.2
(3 1/2)
309 (12 1/4)
314.1 (12 3/8)
18 (3/4)
300 (11 7/8)
To install the monitor on a shelf To install the monitor on a wall
<Top view> <Side view> <Rear view> <Side view>
270 (10 3/4)
210 (8 3/8)
160 (6 3/8)
10-φ8
36.7 (1 1/2)
30.3 (1 1/4)
114.3
(4 5/8)
17.3
(5/8)
179 (7 1/8)
181 (7 1/4)
6-φ8
23.5 (1)
70
(2 7/8)
160 (6 3/8)
70
(2 7/8)
14.5
60
67
15
(5/8)
(2 3/8)
(2 3/4)
(5/8)
165 (6 1/2)
100115
(4 5/8)
88.2
(3 1/2)
25
Specifi cations (cont.)
Available signals
The following signals are available for this monitor.
Video signals
No. Signal name
1 NTSC NTSC
2 PAL PAL
3 B/W50 B/W50
4 B/W60 B/W60
5 480/60i 480/60i — — —
6 480/59.94i 480/59.94i —
7 576/50i 576/50i —
8 480/60p 480/60p — —
9 480/59.94p 480/59.94p — —
10 576/50p 576/50p — —
11
640*480/60p 640*480/60p
12
640*480/59.94p 640*480/59.94p
13 720/60p 720/60p —
14 720/59.94p 720/59.94p —
15 720/50p 720/50p —
16 720/30p 720/30p —
17 720/29.97p 720/29.97p —
18 720/25p 720/25p —
19 720/24p 720/24p —
20 720/23.98p 720/23.98p —
21 1080/60i 1080/60i —
22 1080/59.94i 1080/59.94i —
23 1035/60i 1035/60i —
24 1035/59.94i 1035/59.94i —
25 1080/50i 1080/50i —
26 1080/60p 1080/60p — —
27 1080/59.94p 1080/59.94p — —
28 1080/50p 1080/50p — —
29 1080/30p 1080/30p —
30 1080/29.97p 1080/29.97p —
31 1080/25p 1080/25p —
32 1080/24p 1080/24p —
33 1080/23.98p 1080/23.98p —
34 1080/30psF 1080/30psf —
35 1080/29.97psF 1080/29.97psf —
36 1080/24psF 1080/24psf —
37 1080/23.98psF 1080/23.98psf —
Signal format shown in
the status display
(☞ page 11)
VIDEO
(INPUT1, INPUT2)
√
√
√
√
——
——
Input terminal
E. AUDIO HD/SD SDI
(IN 1, IN 2)*
1
——
——
——
——
√
√
√√
√√
√√
√
√
√
√
√
√√
√√
√√*
√√*
√√
√√
√√
√√
√√
√√
2
√*
3
√*
√
√
(Digital component
DVI-D (HDCP)
/Digital RGB)
—
—
√
√
√
√
√
—
—
—
—
—
2
3
√
√
√
—
—
—
—
√: Acceptable
—: Not acceptable
1
*
Compatible with EMBEDDED AUDIO signals.
2
*
The signal is recognized as 1080/60i, and the status is displayed as “1080/60i.”
3
*
The signal is recognized as 1080/59.94i, and the status is displayed as “1080/59.94i.”
26

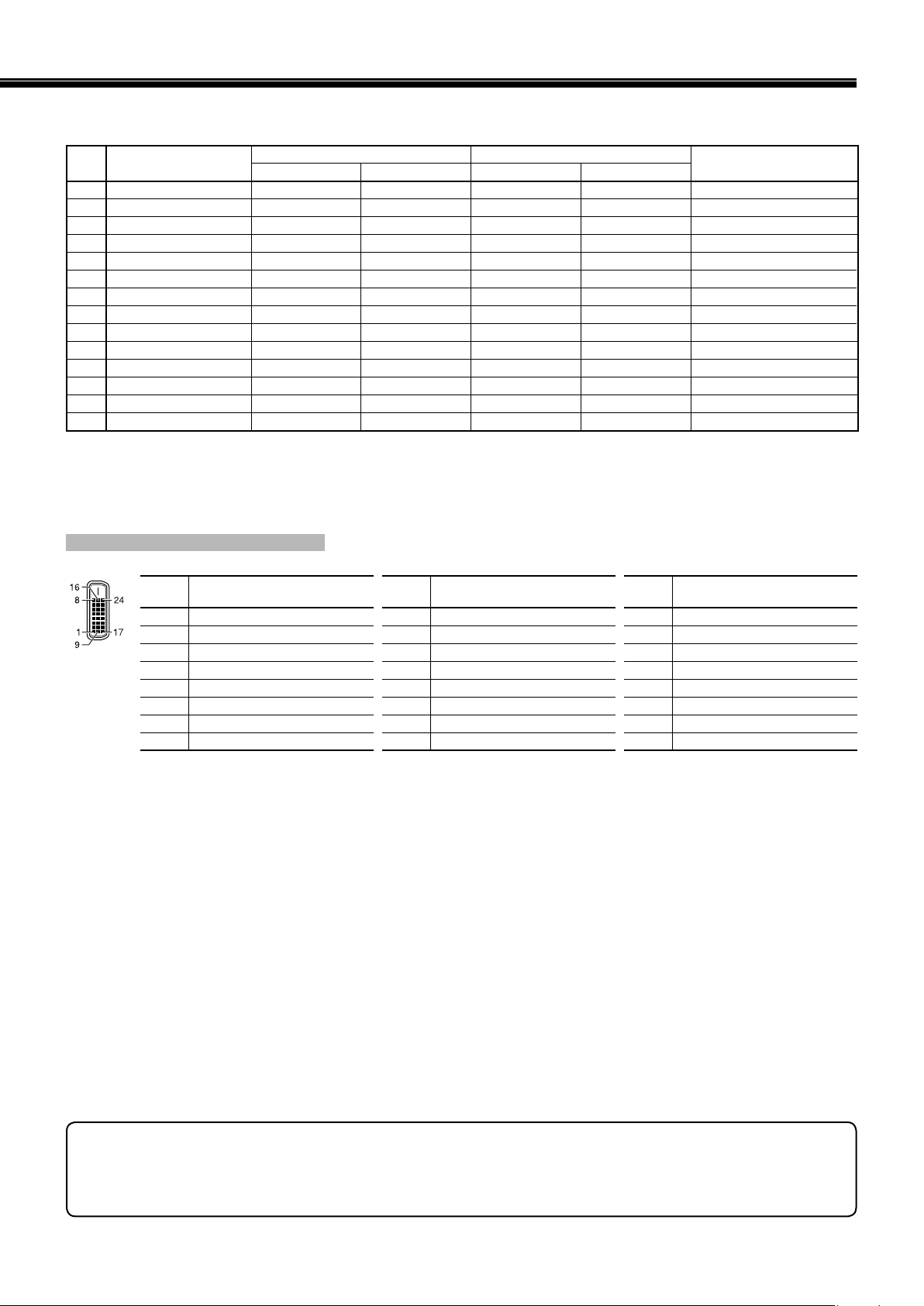

Computer signals (preset)
DVI-D (HDCP) terminals
No. Signal name
Horizontal Vertical Horizontal (kHz) Vertical (Hz)
Resolution Frequency
Scan system
1 VGA60 640 480 31.5 59.9 Non-interlace
2 WVGA60 852 480 31.5 59.9 Non-interlace
3 SVGA60 800 600 37.9 60.3 Non-interlace
4 XGA60 1024 768 48.4 60.0 Non-interlace
5 WXGA (1280) 1280 768 47.8 60.0 Non-interlace
6 WXGA+60*
7 SXGA60*
8 WSXGA+60*
9 UXGA60*
10 WUXGA60*
4
4
4
4
4
1440 900 55.9 60.0 Non-interlace
1280 1024 64.0 60.0 Non-interlace
1680 1050 65.2 60.0 Non-interlace
1600 1200 75.0 60.0 Non-interlace
1920 1200 74.0 60.0 Non-interlace
11 720/60p 1280 720 45.0 60.0 Non-interlace
12 1080/60p*
4
1920 1080 67.5 60.0 Non-interlace
13 720/50p 1280 720 37.5 50.0 Non-interlace
14 1080/50p*
*4
For DT-R17L4D: When No. 6-10, 12 or 14 signals come in, thin lines will become obscured because their signal resolution is higher than the
4
1920 1080 56.25 50.0 Non-interlace
screen resolution.
•
Non-preset signals may not be displayed normally even if their frequency is within the acceptable range (☞ “Horizontal/vertical frequency
(computer signal)” on page 24).
•
When a preset signal comes in, the signal format is shown on the status display. For other signals, the resolution is shown.
Specification of the DVI-D (HDCP) terminal
Connect it to the DVI-D output terminal on a personal computer.
Pin
No.
Input signal
Pin
No.
Input signal
Pin
No.
Input signal
1 T.M.D.S Data 2– 9 T.M.D.S Data 1– 17 T.M.D.S Data 0–
2 T.M.D.S Data 2+ 10 T.M.D.S Data 1+ 18 T.M.D.S Data 0+
3 T.M.D.S Data 2 shield 11 T.M.D.S Data 1 shield 19 T.M.D.S Data 0 shield
4 NC 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC Clock 14 +5 V Power 22 T.M.D.S Clock shield
7 DDC Data 15 GND 23 T.M.D.S Clock+
8 NC 16 Hot Plug Detect 24 T.M.D.S Clock–
Notice on transportation
This monitor is precision equipment and needs dedicated packing material for transportation.
Never use any packing material supplied from sources other than JVC or JVC-authorized dealers.
For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be slightly different
•
from actual products.
Design and specifi cations are subject to change without notice.
•
All company names and product names mentioned herein are used for identifi cation purposes only, and may be the trademarks or
•
registered trademarks of their respective companies.
27
MULTI FORMAT LCD MONITOR DT-R24L41D/DT-R17L4D
© 2011 Victor Company of Japan, Limited 0111TMH-MW-MT
