Compatible device : Mass storage class device
Compatible file system : FAT16, FAT32
Bus power supply : Max. 500 mA
GeneralPower source : AC 230 V , 50 Hz
Power consumption (in operation) : 25 W
Power consumption (on standby) : 0.5 W
Dimensions (W × H × D) : 445 mm × 55 mm × 286.4 mm (including projecting parts)
Weight : 3.5 kg (CA-DD8), 3.0 kg (CA-DD3)
Subwoofer for DD-8 (SP-PWDD8)
TypeBass reflex type, Magnetically shielded type
AmplifierSubwoofer : 120 W at 4 Ω (110 Hz, THD 10%)
Left/right speaker : 25 W × 2 at 3 Ω (1 kHz, THD 10%)
Center surround speaker : 25 W × 2 at 3 Ω (1 kHz, THD 10%)
Speaker16 cm cone
Power handling capacity : 120 W
Impedance : 4 Ω
Frequency range : 30 Hz - 230 Hz
Sound pressure level : 72 dB/W·m
GeneralPower source : AC 230 V , 50 Hz
Power consumption : 120 W
Dimensions (W × H × D) : 242 mm × 364 mm × 363 mm
Weight : 12.6 kg
1-2 (No.MB563)
Subwoofer for DD-3 (SP-PWDD3)
TypeBass reflex type
AmplifierSubwoofer : 120 W at 4 Ω (110 Hz, THD 10%)
Left/right speaker : 25 W × 2 at 3 Ω (1 kHz, THD 10%)
Center surround speaker : 25 W × 2 at 3 Ω (1 kHz, THD 10%)
Speaker16 cm cone
Power handling capacity : 120 W
Impedance : 4 Ω
Frequency range : 30 Hz - 230 Hz
Sound pressure level : 72 dB/W·m
GeneralPower source : AC 230 V , 50 Hz
Power consumption : 120 W
Dimensions (W × H × D) : 242 mm × 364 mm × 363 mm
Weight : 12.3 kg
Left and right speakers forDD-8 (SP-DD8F)
Type2-way 3-speaker bass reflex type, Magnetically shielded type
Speaker8 cm cone × 2 + 2 cm dome
Power handling capacity30 W
Impedance3 Ω
Frequency range60 Hz - 40 kHz
Sound pressure level81 dB/W·m
Dimensions (W × H × D)289 mm × 1 101 mm × 289 mm
Weight (1 unit)10.0 kg
Left and right speakers forDD-3 (SP-DD3F)
Type2-way acoustic suspension type, Magnetically shielded type
Speaker9.5 cm × 1 cm direct drive + 2 cm dome
Power handling capacity30 W
Impedance3 Ω
Frequency range100 Hz - 40 kHz
Sound pressure level78 dB/W·m
Dimensions (W × H × D)165 mm × 376 mm × 165 mm (including stand)
Weight (1 unit)1.0 kg (including stand)
Center surround speaker for DD-8/DD-3 (SP-DD8S)
Type1-way acoustic suspension type, Magnetically shielded type
Speaker9.5 cm × 1 cm direct-drive
Power handling capacity30 W
Impedance3 Ω
Frequency range120 Hz - 40 kHz
Sound pressure level79 dB/W·m
Dimensions (W × H × D)344 mm × 61 mm × 76 mm (including stand)
Weight0.95 kg (including stand)
Designs and specifications are subject to change without notice.
(No.MB563)1-3
SECTION 1
PRECAUTION
1.1Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
1-4 (No.MB563)
1.5 Safety Precautions (U.K only)
(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For con-
tinued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
(2) Any unauthorised design alterations or additions will void the manufacturer's guarantee; furthermore the manufacturer cannot
accept responsibility for personal injury or property damage resulting therefrom.
(3) Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never
be replaced by parts other than those listed in the manual. Please note however that many electrical and mechanical parts in
the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts
other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts
shown in the Parts List of the Service Manual and may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts,
high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is
required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to
normal, after re-assembling.
1.5.1 Warning
(1) Service should be performed by qualified personnel only.
(2) This equipment has been designed and manufactured to meet international safety standards.
(3) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(4) Repairs must be made in accordance with the relevant safety standards.
(5) It is essential that safety critical components are replaced by approved parts.
(6) If mains voltage selector is provided, check setting for local voltage.
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
(No.MB563)1-5
1.6Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.6.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.7Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.8Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connecto on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
Solder short land section
1-6 (No.MB563)
1.9Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
(No.MB563)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
1-8 (No.MB563)
SECTION 3
DISASSEMBLY
3.1Main body section
3.1.1 Removing the side panel L, R
(See Fig.1)
(1) From the bottom sides of the main body, remove the four
screws A attaching the side panel L and side panel R.
(2) Remove the side panel L and side panel R.
A
A
Side panel RSide panel L
Fig.1
(No.MB563)1-9
3.1.2 Removing the top cover
(See Figs. 2 to 9)
• Remove the side panel L and side panel R.
(1) From the left and right side of the main body, remove the
two screws B and two screws B' (See Figs.2 and 3)
Reference:
When attaching the screws B', attach the earth wires
with them. (See Figs. 2 and 3)
(2) From the back side of the main body, remove the two
screws C attaching the rear panel. (See Fig.4)
(3) Insert the minus driver a space a of the door arm to the
front base. (See Fig.5)
(4) Moving the minus driver in the direction of the arrow. (See
Fig.5)
(5) Take out the door from the front base in the direction of the
arrow. (See Fig.6)
(6) Remove the two screws D attaching the top cover. (See
Fig.7)
(7) From the top side of the main body, open the top panel in
the direction of the arrow. (See Fig.8)
(8) From front side of the main body, disconnect the card wire
from the connector CN451
(9) Remove the top cover.
on the main board. (See Fig.9)
Top cover
Top cover
B'B
Fig.2
B'
Fig.3
C
Top cover
B
Rear panel
Fig.4
Front baseDoor arm
Fig.5
a
1-10 (No.MB563)
Front base
Door
Top cover
Top cover
Front base
Fig.6
Fig.7
Top cover
D
Main board
CN451
Fig.9
Fig.8
(No.MB563)1-11
3.1.3 Removing the front base
(See Fig.10)
• Remove the side panel L, side panel R and top cover.
(1) From the bottom side of the main body, remove the four
screws E attaching the front base.
(2) Release the joint b of the front base and then remove in the
direction of the arrow.
E
Front base
b
Fig.10
E
1-12 (No.MB563)
3.1.4 Removing the audio board
(See Figs.11 and 12)
• Remove the side panel L, side panel R, top cover and front
base.
(1) From the back side of the main body, remove the screw F
and three screws G attaching the audio board to the rear
panel. (See Fig.11)
(2) From top side of the main body, remove the two screws H
attaching the holder. (See Fig.12)
(3) Take out the holder from the main body in the direction of
the arrow. (See Fig.12)
(4) Disconnect the connector CN202
the main board. (See Fig.12)
(5) Disconnect the wire from the connector CN204
dio board. (See Fig.12)
(6) Disconnect the card wire from the connector CN201
audio board. (See Fig.12)
(7) Remove the audio board and then disconnect the wire from
the connector CN421
(8) Take out the audio board from the main body.
on the main board. (See Fig.12)
on the audio board from
on the au-
on the
F
G
Main board
Holder
Rear panel
Fig.11
CN202CN204
H
CN421
H
CN201
Audio board
Fig.12
(No.MB563)1-13
3.1.5 Removing the tuner
r
(See Figs.13 and 14)
• Remove the side panel L, side panel R, top cover, front base
and audio board.
(1) From the top side of the main body, disconnect the card
wire from the connector CN441
Fig.13)
(2) From the back side of the main body, remove the two
screws J attaching the tuner to the rear panel and then take
out the tuner. (See Fig.14)
on the main board. (See
CN441Main board
Tune
Rear panel
Fig.13
J
Fig.14
1-14 (No.MB563)
3.1.6 Removing the rear panel
(See Fig.15)
• Remove the side panel L, side panel R, top cover, front base,
audio board and tuner.
(1) From the back side of the main body, remove the eight
screws K, screw M and N attaching the rear panel.
(2) Release the two joints c of the rear panel.
(3) Take out the rear panel from the main body.
3.1.7 Removing the LAN board assembly
(See Figs.16 and 17)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner and rear panel.
(1) From the top side of the main body, remove the two screws
P attaching the LAN board assembly. (See Fig.16)
(2) Disconnect the wire from the connector on the LAN board
assembly. (See Fig.16)
(3) Lift up the LAN board assembly and then disconnect the
card wire from the connector CN351
(See Fig.17)
(4) Take out the LAN board assembly from the main body.
CAUTION:
The connector CN351
of connector.
is easy to broken when release the lock
on the DVD board.
Rear panel
MN
cc
K
Fig.15
Connecter
P
DVD assembry
LAN board assembly
Fig.16
Q
Fig.17
(No.MB563)1-15
3.1.8 Removing the DVD assembly
(See Figs.18 and 19)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner, rear panel and LAN board assembly.
(1) From the right side of the main body, remove the two
screws Q attaching the DVD assembly. (See Fig.18)
(2) From the top side of the main body, remove the screw R
and screw S attaching the DVD assembly. (See Fig.19)
Reference:
When removing the screw R, use a screwdriver shown
as follows.
TORX Driver: size T10
Parts number: DR-L70
(3) Disconnect the card wires from connectors (CN471
CN472, CN473) on the main board. (See Fig.19)
(4) Disconnect the wire from connector CN704
sembly. (See Fig.19)
(5) Take out the DVD assembly from the main body.
on the DVD as-
LAN board assembly
,
DVD board
Main board
CN473
CN472
CN704
CN471
R
CN351
Fig.18
DVD assembly
S
1-16 (No.MB563)
Fig.19
3.1.9 Removing the DVD board
(See Fig.20)
• Remove the DVD assembly.
(1) From the bottom side of the DVD assembly, disconnect the
card wires from the connectors (CN101
DVD board.
(2) Remove the screw T attaching the DVD board to the DVD
assembly. (See Fig.20)
(3) Take out the DVD board.
, CN1201) on the
DVD assembly
T
CN101CN201DVD board
Fig.20
(No.MB563)1-17
3.1.10 Removing the jack board
(See Fig.21)
• Remove the side panel L, side panel R, top cover, front base,
audio board and LAN board assembly.
(1) From the top side of the main body, remove the screw U at-
taching the jack board.
(2) Disconnect the wire from the connector CN704
board.
(3) Take out the jack board from the main body.
3.1.11 Removing the main board
(See Fig.21)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner, rear panel, LAN board assembly and jack
board.
(1) From the top side of the main body, remove the screw V
and screw V' attaching the main board.
Reference:
When attaching the screw V', attach the earth wire with
it. (See Fig. 21)
(2) Disconnect the card wires from the connectors (CN461
CN463, CN471, CN472, CN473) on the main board.
(3) Disconnect the wire from the connector CN901
board.
(4) Take out the main board from the main body.
on the DVD
on the main
U
Main board
,
Jack board
CN471
CN473
CN472
V'
CN901
V
CN461
CN463
Fig.21
CN704
DVD board
1-18 (No.MB563)
3.1.12 Removing the power supply board
(See Fig.22)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner and rear panel.
(1) From the top side of the main body, disconnect the wire
from the connector CN901
(2) Disconnect the power code from the connector CN991
the power supply board.
(3) Remove the three screws W and screw W' attaching the
power supply board.
Reference:
When attaching the screw W', attach the barrier with it.
(4) Remove the screw X attaching the earth wire to the main
body.
Reference:
When attaching the screw X, attach the earth wire with it.
(5) Take out the power supply board from the main body.
3.1.13 Removing the video board
(See Fig.22)
• Remove the side panel L, side panel R, top cover, front base,
audio board, tuner and rear panel.
(1) From the top side of the main body, disconnect the card
wires from the connectors (CN601
board.
(2) Take out the video board from the main body in the direc-
tion of the arrow.
on the main board.
on
, CN603) on the video
CN991
W
W
Power supply board
X
W'
Video board
Fig.22
CN601CN901
CN603
(No.MB563)1-19
3.1.14 Removing the FL board
(See Fig.23)
• Remove the side panel L, side panel R and top cover.
(1) From the bottom side of the top cover, remove the two
screws Y attaching the top cover.
(2) Disconnect the wire from the connector CN562
board.
(3) Take out the FL board from the top cover.
on the FL
Y
3.1.15 Removing the key board
(See Fig.24)
• Remove the side panel L, side panel R, top cover and FL
board.
(1) From the bottom side of the top cover, release the two
joints d attaching the key board.
(2) Remove the three screws Z and then take out the key
board from the top cover.
d
FL boardCN562
Fig.23
Key board
Fig.24
Top cover
Z
1-20 (No.MB563)
3.2Powered subwoofer section
3.2.1 Removing the Power amplifier unit
(See Fig.1 to 3)
(1) Remove the six screws A attaching the Power amplifier
unit. (See Fig.1)
(2) Remove the three screws B attaching the Power amplifier
unit. (See Fig.2)
(3) The Power amplifier unit is drawn out on the way, discon-
nect the connector wire from speaker unit connected to
connector CN301
take out the Power amplifier unit. (See Fig.3)
of the AMP board assembly and then
AA
Fig.1
B
Fig.2
CN301
Fig.3
(No.MB563)1-21
3.2.2 Removing the Rear panel with Fan
(See Fig.4, 5)
(1) Remove the one screw C and six screws D attaching the
Rear panel with Fan. (See Fig.4)
(2) Disconnect the connector wire from Fan connected to con-
nector CN303
of the AMP board. (See Fig.5)
D
D
DDDD
Fig.4
CN303
Fig.5
C
1-22 (No.MB563)
3.2.3 Removing the Heat sink
(See Fig.6, 7)
(1) Remove the two screws E and four screws F attaching the
Power amplifier ICs. (See Fig.6)
(2) Remove the one screw G attaching the thermistor. (See
Fig.6)
(3) Remove the three screws H attaching the Heat sink. (See
Fig.6)
(4) Remove the three screws J attaching the Heat sink. (See
Fig.7)
H
E
FG
Fig.6
J
Fig.7
(No.MB563)1-23
3.2.4 Removing the Power transformer
(See Fig.8, 9)
(1) Disconnect the connector wires from Power transformer
connected to connector CN102 of the Control board assembly and CN302 of the AMP board assembly. (See
Fig.8)
(2) Remove the four screws K attaching the Power transform-
er. (See Fig.9)
Control board
asembly
K
CN302CN102
AMP board assembly
Fig.8
1-24 (No.MB563)
Fig.9
3.2.5 Removing the Control board assembly
(See Fig.10 to 12)
(1) Remove the two screws L attaching the Control board as-
sembly. (See Fig.10)
(2) Remove the one screw M attaching the Control board as-
sembly. (See Fig.11)
(3) Disconnect the board to board connector connected con-
nector CN105
to AMP board assembly. (See Fig.12)
LL
Fig.10
M
Fig.11
Control board assembly
CN105
Fig.12
AMP board
assembly
(No.MB563)1-25
3.2.6 Removing the AMP board assembly
(See Fig.13)
(1) Remove the one screw N and five screws P attaching the
AMP board assembly.
P
PNP
Fig.13
1-26 (No.MB563)
3.3DVD mechanism assembly
3.3.1 Removing the DVD module board assembly
(See Fig.1 to 3)
(1) Remove the two screws A attaching the clamper base.
(See Fig.1)
(2) Solder the solder part of DVD pickup. (See Fig.2)
(3) Disconnect the card wire from DVD mechanism assembly
connected to connector CN101
module board assembly. (See Fig.3)
(4) Remove the one screw B attaching the DVD module board
assembly. (See Fig.3)
Caution:
• Solder the short land section on the DVD pickup before dis-
connecting the card wire from the connector on the DVD
pickup. If the card wire is disconnected without attaching solders, the pickup may be destroyed by static electricity.
• When attaching the DVD pickup, be sure to remove solders
from the short land section after connecting the card wire to
the connector on the DVD pickup.
and CN201 of the DVD
A
B
CN201
DVD module board
CN101
A
Traverse mechanism assembly
DVD mechanism assembly
Fig.3
Fig.1
Solder short land section
Fig.2
(No.MB563)1-27
3.3.2 Removing the Traverse mechanism assembly
(See Fig.4)
(1) Remove the four screws C attaching the Traverse mecha-
nism assembly.
C
C
CC
Fig.4
1-28 (No.MB563)
3.3.3 Removing the pickup assembly
(See Fig.5 to 9)
(1) Remove the two rod springs pressing the guide shaft. (See
Fig.5)
(2) Remove the screw D and E attaching the spring holder.
(See Fig.6)
(3) Remove the read screw from traverse mechanism assem-
bly. (See Fig.7)
Caution:
When remove the lead screw, do not loss the middle
gear. (See Fig.8 and 9)
(4) Remove the bar spring pressing the shaft. (See Fig.8)
(5) Take out the pickup assembly from traverse mechanism
chassis by order. (See Fig.9)
(Shaft)
(T.Table)
Hook
(Bar spring)
Fig.8
Rod springRod spring
Fig.5
Spring holder
Fig.6
order 2
order 3
order 1
Fig.9
DE
Middle gear
Lead screw
Fig.7
(No.MB563)1-29
3.3.4 Removing the Feed motor assembly
(See Fig.10)
(1) Remove the one screw F attaching the feed motor assem-
bly.
(2) Remove the feed motor wires from solder part of spindle
motor bard.
Splder part
3.3.5 Removing the Spindle motor assembly
(See Fig.11)
(1) Remove the two screws G attaching the spindle motor from
spindle motor board.
Middle gear
Lead screw
H
Spindle motor
Fig.10
G
F
1-30 (No.MB563)
Spindle motor
Fig.11
3.3.6 Removing the Tray assembly
(See Fig.12, 13)
(1) Remove the one screw H attaching the shaft guide from
bottom side. (See Fig.12)
(2) Remove the two screws J attaching the shaft guide from
top side. (See Fig.13)
H
[bottom side]
Fig.12
J
Fig.13
(No.MB563)1-31
SECTION 4
ADJUSTMENT
4.1ATTENTION IN SERVICE OF DVD SECTION
(1) When pickup, Flash ROM ,DVD module board were changed, initialize EEPROM by all means.
(2) When full initialization was executed, execute learning with a DVD test disc by all means.
Test disc : VT-501, VT-502
Learning method : It is adjusted automatically by normal playback of a DVD disc.
4.2TEST MODE
4.2.1 TEST MODE setting
Name of KeyFunction
Press STOP + PLAY key and
connect to AC
The DVD EJECT key is pushed
while pushing the STOP key
at the time of the P.OFF.
At P.ON, long press
STOP+POWER key 5sec.
4.2.2 REMOTE CONTROLLER TEST MODE setting
Name of KeyRemocon codeContent
STOP + 0 + POWERB330Follow the SYSTEM_TEST MODE spec
It enters DVD TEST MODE.
The ON/OFF change of the TRAY LOCK mode is done.
It is made to advance in the clock at the --> 1 second of one minute.
FL and LED are lit. all COLD SET is done.
The mode clears long again for five seconds of STOP+POWER when done O.
(COLD SET is released. )
STOP + 1 + POWERB331Follow the SYSTEM TEST MODE spec
STOP + 2 + POWERB332Follow the SYSTEM TEST MODE spec
STOP + 3 + POWERB333ERROR HISTORY indication
STOP +10 + POWERFollow the SYSTEM TEST MODE spec
STOP +>=10 + POWERB33FFollow the SYSTEM TEST MODE spec
4.2.3 DVD communication
TEXT indication
MP3 FileName
indication
TEST mode
TEST mode
>>| Key is pushed
Initialization
>>| Key is pushes
long (2seconds)
FULL initialization
|<< Key is pushed
Press MENU Key
Press MENU Key
Press MENU Key
C
S
C
C
C
S
S
C
S
S
C
S
S
C
C
C
S
C
C
S
C
B33E
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
9A 00 00
AE 00 00
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
94 00 02
9C 1F
97 05
A6 05
AA 09
9C 06
AA 01
AA 09
9C 06 01
AA 01
AA 09
9C 1F 06
9C 1F
97 06
A6 06
9C 1F 02
97 04
A6 04
9C 1F 03
00
** **
** **
00
** **
** **
01
** **
** **
**
Remarks
Request from File name, 0th character
Display information
Remarks
TEST MODE specification by INITIAL command
Mode state report (DELIVER INFO)
Destination, Region number demand
Destination, Region number information obtaining
Study state initialization information display to FL
EEPROM Initialization
Initialization end
Study state initialization information display to FL
EEPROM Initialization (FULL)
Initialization end
Study state initialization information display to FL
Mode state report (DEVICE KEY WRITE)
14.Refer to the device key writing specification
Mode state report (DEVICE KEY INFO)
DEVICE KEY CHECKSUM REQ
CHECKSUM is displayed in FL
Mode state report (VERSION INFO)
Micom Version number demand
FL all on mode
1-32 (No.MB563)
TEXT indication
r
Press MENU key
Press 10key [1]
Press 10key [2]
Press 10key [3]
Press 10key [4]
Press 10key [5]
Press 10key [6]
Press 10key [7]
Press 10key [8]
Press 10key [9]
Press 10key [10]
Press 10key [0]
Press 10key [+10]
Press STOP key
Press PLAY key
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
C
9C 1F 04
C
9C 11
C
9C 12
S
AA
9C 13
AA
9C 14
AA
9C 15
AA
9C 16
AA
9C 19
AA
9C 18
AA
9C 1B
AA
9C 1C
AA
9C 1D
AA
9C 1A
AA
9C 03
9C 1E
AA
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
** ** ** **
C
S
C
S
C
S
C
S
C
S
C
S
C
S
C
S
C
S
C
S
C
C
S
Remarks
Inform the MODE condition
Disc startup and through playback
(Playback starts from start position)
EEPROM use 256byte, when an abnormal state is generated, the factor is written in EEPROM.
Worth of a history is left for each item 16 times.
It displays by the TEST code of remote control, and each address according to the key of the display of ERROR HISTORY.
4.3.2 ERROR writing
(1) ERROR information
No. ItemCount
SAFETYNumber
1
AD value
2 P.OFF timeout factor
Value of writingWriting condition
16SAFETY abnormal No.
16AD value at time
16Factor of failure
3 DVD16Factor of failure
416
P.OFF factorFactor of power off
Others
5
When detectiong of SAFETY
error, writing SAFETY number
and AD value
Time out of power OFF processMechanical and module failure.
Error with DVDModule failer
When starting power off processUser operation
Guessed factor
Power circuit failure.
Damege of card wire.
Missing key operation.
Damege of card wire.
(2) EEPROM writing timing
When abnormality occurs respectively, the value of the generated item is rewritten.
The writing starting address is assumed to be the latest one, and even the 16th byte writes the history in new the orde
at the following.
The writing method does the batch writing 16 bytes with PAGE WRITE.
(3) EEPROM clear condition
When COLD SET is fixed by remote control code [ 0 ]+[ ]+[POWER] receive, the ERROR HISTORY part is
cleared (ALL0x00).
(EEPROM clear not done by COLD START process)
Receive
[ 0 ] + [ ] + [POWER]
EEPROM
E.HISTORY clear
COLD
process
(No.MB563)1-33
4.3.3 Reading the ERROR HISTORY
The reading method is done by the following ways.
No. OperationIndicationSystem micon processing
Receive the remocon code.
1
[STOP]+[ 3 ]+[POWER]
Address change to 1 by <<, >> key
2
of the remote controller.
Address change to 0x10 by |<<, >>|
key of the remote controller.
Indication is start address to 00 then
indicate step by 1 byte.
operation exp.) address 00 indicating
ERIOFNR
0001:
addressdata
Read out the ERROR HISTORY
information from EEPROM.
Read out the ERROR HISTORY
information from EEPROM.
Block diagrams
Standard schematic diagrams
Printed circuit boards
CA-DD8
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
SP-PWDD8
(Only for DD-8 and DD-3)
SP-DD8S
CA-DD3SP-DD3FSP-DD3F SP-PWDD3
2-1
2-2
2-14 to 18
COPYRIGHT 2006 Victor Company of Japan, Limited.
No.MB563SCH
2006/11
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
2-1
Block diagram
<Main body section>
<Speaker AMP section>
IC201
DRVER
IC301
Phoenix
IC401
SYSTEM
MICON
IC801
HDMI TX
IC802,Q801 to Q803
LEVEL CONVERTER
CN101
A, B, C, D, E, F, RF+, CDPD, DVDPD
F+/T+/-
FM+/WOUT
VOUT
UOUT
COM
LD(CD)
LD(DVD)
DVDPWR
AINL/R
FAOUTL/R, RAOUTL/R
CAOUT, SWAOUT
OUTL/R
LINE_OLO/R
P5_2
HA0 to 2, HD0 to 15
HCS1, HCS3, HRD, HWR
HIRQ, HIORDY
HRST, CPURST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Speaker assembly and parts list (Subwoofer) (Block No.M2)
(DD-8B,DD-8E,DD-8EN,DD-8EV,DD-8EE,
DD-3B,DD-3E,DD-3EN,DD-3EV,DD-3EE)
DVD mechanism assembly and parts list (Block No.MJ)
DVD loading base assembly and parts list (Block No.MN)
Electrical parts list (Block No.01~05)
Packing materials and accessories parts list (Block No.M3)
(DD-8B,DD-8E,DD-8EN,DD-8EV,DD-8EE)
Packing materials and accessories parts list (Block No.M3)
(DD-3B,DD-3E,DD-3EN,DD-3EV,DD-3EE)
MB563
3- 2
3- 6
3- 8
3-10
3-12
3-26
3-30
3-1

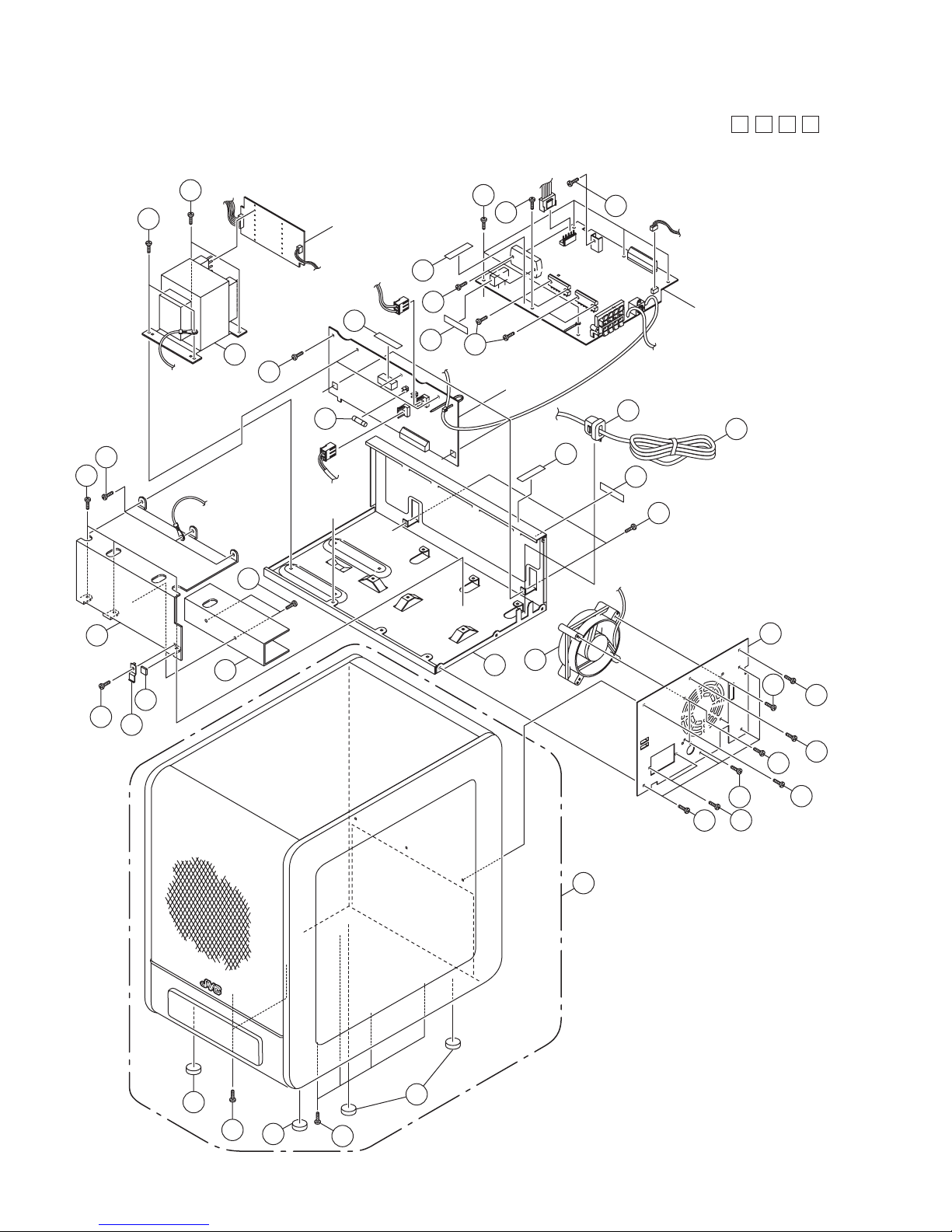

Exploded view of general assembly and parts list
n
0
2
D
80
79
92
58
79
only DD8
20
21
6
24
only DD8
92
18
79
B
80
22
only DD8
79
92
only DD8
61
A
21
80
Block No.
G
103
115
60
only DD8
102
78
M
M
1
M
only D
68
59
48
74
7
La
63
m
74
62
6
H
a
97
C
65
92
only DD8
7
Key board
98
94
Jack board
6
12
13
14
D
k
87
n
16
5
3
113
d
15
8
n
15
k
FL board
17
86
106
19
4
2
101
10
9
11
11
3-2
68
only DD8
70
93
91
69
26
112
84
85
76
p
Audio board
41
p
e
DVD board
77
f
108
42
c
j
62
Lan board
m
74
E
111
73
75
m
110
g
q
40
h
64
H
a
65
65
109
b
31
82
98
Jack board
26
45
r
81
G
r
D
30
e
50
q
83
a
b
f
g
48
26
Main board
27
H
E
26
95
2
28
43
107
d
40
s
36
104
72
67
46
c
35
j
49
89
56
90
116
57
96
47
53
B
54
88
55
49
96
52
51
71
105
114
44
35
s
Power supply board
49
37
34
h
38
Video board
39
C
101
23
1
23
3
101
101
32
33
29
A
100
95
F
29
25
101
95
F
94
The parts without symbol number are not service.
99
3-3
General Assembly
Block No. [M][1][M][M]
Symbol No.Part No.Part NameDescriptionLocal
1LV11276-001AFRONT BASE
2GV30349-025ASPACER(x2)
3LV44775-001AFOOT(x2)
4LV36923-001ADOOR
5LV11274-001AUPPER CASEDD8B,DD8E,DD8EN,DD8EV,DD8EE
5LV11274-004AUPPER CASEDD3B,DD3E,DD3EN,DD3EV,DD3EE
6LV30227-076ASPACER(x2)
7LV22332-001APANEL LENS
8LV36921-001ACONTROL BUTTON
9QYSDSF2608ZATAP SCREWM2.6 x 8mm(x3)
10LV36928-001APWB HOLDER
11QYSDSF2608ZATAP SCREWM2.6 x 8mm(x2)
12LV36922-001ALIGHT LENS
13LV36924-003ALENS HOLDER
14LV44397-003ASTANDBY LENS
15LV44249-001ALED HOLDER(x2)
16LV37466-001AIR HOLDER
17GV30349-025ASPACER
18LV22389-001AMETAL COVER(B)DD8B,DD8E,DD8EN,DD8EV,DD8EE
18LV22334-001AMETAL COVERDD3B,DD3E,DD3EN,DD3EV,DD3EE
19LV30227-079ASPACER
20LV44774-001ACOPPER SHEET
21GV30349-025ASPACER(x4)DD8B,DD8E,DD8EN,DD8EV,DD8EE
22LV11272-007ATOP COVER(AL)DD8B,DD8E,DD8EN,DD8EV,DD8EE
22LV11273-009ATOP PANEL(MOLD)DD3B,DD3E,DD3EN,DD3EV,DD3EE
23QYSDSF2608ZATAP SCREWM2.6 x 8mm(x2)
24GV30349-025ASPACERDD8B,DD8E,DD8EN,DD8EV,DD8EE
25LV11275-001ACHASSIS BASE
26GV30349-025ASPACER(x4)
27LV44810-001ASPACER
28LV30227-070ASPACER
29LV44775-001AFOOT(x2)
30LV37120-001AHOLDER
31QYSDSG3006EATAP SCREWM3 x 6mm
32LV41548-201AC.B BKT
33QYSDSG3006EATAP SCREWM3 x 6mm
34QZW0036-003PC SUPPORT
35QYSDSG3006EATAP SCREWM3 x 6mm(x4)
36LV44781-001ABARRIER
37QMPN150-200-JCPOWER CORD(EU)2m BLACKDD8B,DD3B
37QMPK200-200-JDPOWER CORD(EU)2m BLACK
38LV30225-0C8ASPACER
39QZW0033-001STRAIN RELIEF
40QYSDSG3006EATAP SCREWM3 x 6mm(x2)
41LV44339-001ASPECIAL SCREW
42GV30349-025ASPACER
43LV22333-028AREAR PANELDD8B,DD8E,DD8EN,DD8EV
43LV22333-029AREAR PANELDD8EE
43LV22333-026AREAR PANELDD3B,DD3E,DD3EN,DD3EV
43LV22333-027AREAR PANELDD3EE
44LV30227-064ASPACER(x2)
45GV30349-025ASPACER
46QAU0473-001TUNER
47QYSBSGY3008EATAP SCREWM3 x 8mm(x2)
48QYSDSG3008ZATAP SCREWM3 x 8mm(x2)
49QYSBSGY3008EATAP SCREWM3 x 8mm(x4)
50QYSDSG3006EATAP SCREWM3 x 6mm(x2)
51QYSBSGY3008EATAP SCREWM3 x 8mm(x2)
52QYSBST3006EATAP SCREWM3 x 6mm
53QYSBSGY3008EATAP SCREWM3 x 8mm(x2)
54QYSBSGY3008EATAP SCREWM3 x 8mm
55QYSBSGY3008EATAP SCREWM3 x 8mm(x2)
56QYSBST3006EATAP SCREWM3 x 6mm
57QYSBSGY3008EATAP SCREWM3 x 8mm
58LV44783-001AALMINIUM SHEETDD8B,DD8E,DD8EN,DD8EV,DD8EE
59LV30227-082ASPACERDD8B,DD8E,DD8EN,DD8EV,DD8EE
60VYSH101-009SPACERDD8B,DD8E,DD8EN,DD8EV,DD8EE
61LV37444-001ASHIELDDD8B,DD8E,DD8EN,DD8EV,DD8EE
62LV30226-039ASPACER
63QYSBSG3014ZATAP SCREWM3 x 14mm
64LV30227-069ASPACER
65LV30227-071ASPACER(x2)
67LV30227-080ASPACER
DD8E,DD8EN,DD8EV,DD8EE,DD3E,DD3E
N,DD3EV,DD3EE
3-4
Symbol No.Part No.Part NameDescriptionLocal
68QYSDSG3008ZATAP SCREWM3 x 8mm(x2)
69LV37149-001ALAN CASE
70GV30349-025ASPACER
71GV30349-025ASPACER
72VYSH101-009SPACER
73LV30225-0J1ASPACER
74LV30227-068ASPACER(x2)
75LV30227-067ASPACER
76LV30227-048ASPACER
77LV30227-048ASPACER
78VYSH101-009SPACER
79LV44783-001AALMINIUM SHEET(x3)
80LV30227-071ASPACER(x3)
81QQR0594-001NOISE FILTER
82QQR0917-001CORE FILTER
83QQR0490-001NOISE FILTER
84QQR0717-019FR CORE
85GV30349-025ASPACER
86QQR0717-019FR CORE
87LV30227-048ASPACER
88QZW0314-006GASKET
89QZW0314-007GASKET
90QZW0314-008GASKET
91QZW0314-009GASKET
92QZW0314-005GASKET(x4)DD8B,DD8E,DD8EN,DD8EV,DD8EE
92QZW0314-005GASKET(x3)DD3B,DD3E,DD3EN,DD3EV,DD3EE
93QZW0314-004GASKETDD8B,DD8E,DD8EN,DD8EV,DD8EE
94QYSSST3008ZATAP SCREWM3 x 8mm(x4)
95QYSBSG3010EATAP SCREWM3 x 10mm(x4)
96QYSBSGY3020EATAP SCREWM3 x 20mm(x2)
97LV22335-001ASIDE PANEL(L)
98LV30227-066ASPACER(x2)
99LV22336-001ASIDE PANEL(R)
100LV30227-066ASPACER(x3)
101QYSSST3008ZATAP SCREWM3 x 8mm(x4)
102LV36925-001AFITTING BASE
103LV36926-004AFITTING LENSDD8B,DD8E,DD8EN,DD8EV,DD8EE
103LV36926-005AFITTING LENSDD3B,DD3E,DD3EN,DD3EV,DD3EE
1LV11163-001ACHASSIS BASE
2QYSBSG3010EATAP SCREWM3 x 10mm(x5)
3QYSBSG3010EATAP SCREWM3 x 10mm
4GV30349-025ASPACER
5QQT0525-002POWER TRANSF
6QYSDST4008EATAP SCREWM4 x 8mm(x4)
7LV22148-002AHEAT SINK
8LV36953-001AHEAT SINK(A)
9QYSBSG3010EATAP SCREWM3 x 10mm(x3)
10QYSBSG3010EATAP SCREWM3 x 10mm(x4)
11GV30349-025ASPACER
12QYSBSG3016EATAP SCREWM3 x 16mm(x2)
13QYSBSG3010EATAP SCREWM3 x 10mm(x4)
14QYSBSG3010EATAP SCREWM3 x 10mm(x2)
15LV43691-001AHOLD SPRING
16LV43203-001ASPACER
17QYSBSG3006ZATAP SCREWM3 x 6mm
18QYSBSG3008ZATAP SCREWM3 x 8mm(x2)
19LV22147-012AREAR PANELDD8B,DD8E,DD8EN,DD8EV,DD8EE
19LV22147-010AREAR PANELDD3B,DD3E,DD3EN,DD3EV,DD3EE
20QAR0379-001FAN MOTOR12V DC
21QYSBSGY3008EATAP SCREWM3 x 8mm(x4)
22QYSBSGY3008EATAP SCREWM3 x 8mm(x2)
23QYSBSGY3008EATAP SCREWM3 x 8mm(x4)
24QYSBST3006EATAP SCREWM3 x 6mm
25QZW0033-001STRAIN RELIEF
26QMPN150-200-JCPOWER CORD(EU)2m BLACKDD8B,DD3B
26QMPK200-200-JDPOWER CORD(EU)2m BLACK
27QMF51W2-2R0-J8FUSE2A AC250V
28LV43583-001ALABEL
299000007961FOOT(x4)
307001542005SCREW(x3)
317014341401SCREW(x6)
32QAS0459-003SPK WITH BOX-WODD8B,DD8E,DD8EN,DD8EV,DD8EE
32QAS0459-001SPK WITH BOX-WODD3B,DD3E,DD3EN,DD3EV,DD3EE
33QYSBSG3008ZATAP SCREWM3 x 8mm
34LV30227-081ASPACER(x2)
DD8E,DD8EN,DD8EV,DD8EE,DD3E,DD3E
N,DD3EV,DD3EE
3-7
DVD mechanism assembly and parts list
Block No.
M
J
M
M
Grease
=JVG-31N
=JVS-1003
=1401C
< Back side >
29
28
25
31
24
FXL-D10-11M
31
30
26
27
10
31
20
23
30
31
22
18
15
21
16
17
14
7.0mm
+
0.2mm
-
7
6
13
3
9
3
2
1
11
12
8
5
4
The parts without symbol number are not service.
3-8
DVD mechanism
Symbol No.Part No.Part NameDescriptionLocal
1LV22234-001ATM.CHASSIS
2LV22235-001ASPINDLE BASE
3QYSDST2005ZATAP SCREWM2 x 5mm(x2)
4LV36555-001AG.S.HOLDER
5QYSDST2005ZATAP SCREWM2 x 5mm
6LV44041-002AGUIDE SHAFT
7LV44479-001ABAR SPRING
8LV22236-001AFEED HOLDER
9QAR0165-001FEED MOTOR5.0V DC
10LV30225-0X5ASPACER(x2)
11LV36557-001AF.M.GEAR
12QYSPSPT2030MASCREWM2 x 3mm
13QYSDST2005ZATAP SCREWM2 x 5mm
14QAL0786-004P.UP
15LV22237-001ARACK ARM
16LV36560-001ARACK ARM SPRING
17QYSPSFU1740ZATAP SCREWM1.7 x 4mm(x2)
18QUQK05-2420AC-EFFC WIRE24pin 20cm
20LV44041-002AGUIDE SHAFT
21LV36559-001AL.S.GEAR
22LV41517-003ALEAD SCREW
23LV36558-001AMIDDLE GEAR
24LV36556-001ASPRING HOLDER
25LV44623-001ACOMP.SPRING
26QYSDST2005ZATAP SCREWM2 x 5mm
27QYSDST2616MATAP SCREWM2.6 x 16mm
28QAR0387-001S.MOTOR
29QYSPSPU1775ZASCREWM1.7 x 7.5mm(x3)
30LV44042-001AROD SPRING(x2)
31LV44046-001AADJUST SCREW(x4)
Block No. [M][J][M][M]
3-9
DVD loading base assembly and parts list
Grease
JVS-1003
JVG-450
20
19
18
16
h
FMU-MB3-1M
35
14
M
N
M
Block No.
M
2
3
13
15
h
< Back side >
12
f
DVD loading switch board
d
h
e
16
17
j
1
10
11
9
0.10mm
4
7
8
6
34
7.75mm
Backside
5
27
j
c
g
26
31
h
A
29
27
B
29
29
25
21
25
25
f
22
e
3-10
23
28
A
22
24
25
B
22
33
30
33
c
32
33
d
g
The parts without symbol number are not service.
DVD loading base
Symbol No.Part No.Part NameDescriptionLocal
1LV11065-004ALOADER SUB ASSY
2E407140-001SSC.D ROLLER
3E407149-001SSRUBBER TUBE
4LV10979-002ATRAY
5LV35499-001ASHAFT GUIDE
6LV44022-001ASHAFT
7QYSSSF2008ZATAP SCREWM2 x 8mm
8QYSDSF2008ZATAP SCREWM2 x 8mm(x2)
9QAR0197-001MOTOR
9orQAR0280-001LOADING MOTOR
10LV43844-002AMOTOR PULLEY
11QYSPSPU1730ZASCREWM1.7 x 3mm(x2)
12QYSDSF2008ZATAP SCREWM2 x 8mm
13LV43974-001ABELT
14LV21852-003ACLAMPER BASE
15QYSDSF2008ZATAP SCREWM2 x 8mm(x2)
16LV41741-004ASPECIAL SCREW
17LV35056-002ADVD CLAMPER
18LV42930-003AP.C.MAGNET
18orLV41118-003AP.C.MAGNET
19LV43848-001AYOKE
20LE40906-002ASPECIAL SCREW
21------------SINGLE DVD TRAM
22LV44043-001AINSULATOR(x4)
23QQR0717-007FERRITE CORE
24QQR0717-012FERRITE CORE
25LV44044-001ASPECIAL SCREW(x4)
26LV30227-073ASPACER
27GV30349-025ASPACER(x2)
28LV37355-001AHEAT SINK
29LE40906-002ASPECIAL SCREW(x6)
30LV36927-003AHDMI CASE
31LV44699-001ACOOLING RUBBER
32LV11277-003ACB HOLDER DD
33QYSBSF2608ZATAP SCREWM2.6 x 8mm(x4)
34QYSBSFG2606ZATAP SCREWM2.6 x 6mm
35LV44603-003ALASER CAUTION
C4001NCB31CK-104XC CAPACITOR0.1uF 16V K
C4002NCB31CK-104XC CAPACITOR0.1uF 16V K
C4003NCB31CK-104XC CAPACITOR0.1uF 16V K
C4004NCB31CK-104XC CAPACITOR0.1uF 16V K
C4006NCB31HK-103XC CAPACITOR0.01uF 50V K
C4007QETN1CM-107ZE CAPACITOR100uF 16V M
C4008NCB31HK-103XC CAPACITOR0.01uF 50V K
C4009NCB31HK-103XC CAPACITOR0.01uF 50V K
C4010NCB31HK-103XC CAPACITOR0.01uF 50V K
C4011NCB31HK-103XC CAPACITOR0.01uF 50V K
C4156NCB31HK-103XC CAPACITOR0.01uF 50V K
C4221NCB31CK-104XC CAPACITOR0.1uF 16V K
C4222NCB31CK-104XC CAPACITOR0.1uF 16V K
C4251NCB31CK-104XC CAPACITOR0.1uF 16V K
C4301NCB31HK-103XC CAPACITOR0.01uF 50V K
C4302QETN1HM-106ZE CAPACITOR10uF 50V M
C4321QETN1HM-225ZE CAPACITOR2.2uF 50V M
C4322QETN1HM-225ZE CAPACITOR2.2uF 50V M
C4323NCB31HK-103XC CAPACITOR0.01uF 50V K
C4324NCB31HK-103XC CAPACITOR0.01uF 50V K
C4401NCB31HK-103XC CAPACITOR0.01uF 50V K
C4402QETN1EM-107ZE CAPACITOR100uF 25V M
C4403QETN1HM-475ZE CAPACITOR4.7uF 50V M
C4404NCB31HK-103XC CAPACITOR0.01uF 50V K
C4503QETN1CM-227ZE CAPACITOR220uF 16V M
C4701QETN1CM-107ZE CAPACITOR100uF 16V M
C4702NCB31CK-104XC CAPACITOR0.1uF 16V K
C4703NCB31CK-104XC CAPACITOR0.1uF 16V K
C4721QDGB1HK-102YC CAPACITOR1000pF 50V K
C4722QDGB1HK-102YC CAPACITOR1000pF 50V K
C4723QDGB1HK-102YC CAPACITOR1000pF 50V K
C4725NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C4851QETN1CM-107ZE CAPACITOR100uF 16V M
C4852QETN1CM-107ZE CAPACITOR100uF 16V M
C4921QCZ0202-155ZC CAPACITOR1.5uF 25V Z
C4922QETN1CM-107ZE CAPACITOR100uF 16V M
C4925QTE1C60-107ZE CAPACITOR100uF 16V
C4941NCB31CK-104XC CAPACITOR0.1uF 16V K
C4951NCB31CK-104XC CAPACITOR0.1uF 16V K
C4952NCB31CK-104XC CAPACITOR0.1uF 16V K
C4964NCB31HK-104XC CAPACITOR0.1uF 50V K
C4972QETN1HM-475ZE CAPACITOR4.7uF 50V M
C4973NCB31CK-333XC CAPACITOR0.033uF 16V K
C4974QETN1CM-107ZE CAPACITOR100uF 16V M
C4975QETN1HM-226ZE CAPACITOR22uF 50V M
C5102NDC31HJ-101XC CAPACITOR100pF 50V J
C5105NCB31HK-331XC CAPACITOR330pF 50V K
C5106QEKC1HM-225ZE CAPACITOR2.2uF 50V M
C5202NDC31HJ-101XC CAPACITOR100pF 50V J
C5205NCB31HK-331XC CAPACITOR330pF 50V K
C5206QEKC1HM-225ZE CAPACITOR2.2uF 50V M
C5305QEKC1HM-475ZE CAPACITOR4.7uF 50V M
C5307NCB31CK-104XC CAPACITOR0.1uF 16V K
C5308NCB31HK-331XC CAPACITOR330pF 50V K
C5309NCB31HK-331XC CAPACITOR330pF 50V K
C5310NCB31CK-104XC CAPACITOR0.1uF 16V K
C5311NCB31HK-331XC CAPACITOR330pF 50V K
C5313NCB31HK-331XC CAPACITOR330pF 50V K
C5314QEKC1HM-226ZE CAPACITOR22uF 50V M
C5401NCB31CK-104XC CAPACITOR0.1uF 16V K
Part No.Part NameDescriptionLocal
DD8B,
DD8E,
DD8E
N,DD
8EV,D
D8EE
DD8B,
DD8E,
DD8E
N,DD
8EV,D
D8EE
DD8B,
DD8E,
DD8E
N,DD
8EV,D
D8EE
3-12
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C5402NCB31CK-223XC CAPACITOR0.022uF 16V K
C5403NCB31CK-223XC CAPACITOR0.022uF 16V K
C5404NCB31HK-103XC CAPACITOR0.01uF 50V K
C5405NDC31HJ-150XC CAPACITOR15pF 50V J
C5406NDC31HJ-150XC CAPACITOR15pF 50V J
C5407NCB31HK-182XC CAPACITOR1800pF 50V K
C5408NCB31HK-182XC CAPACITOR1800pF 50V K
C9201NDC31HJ-221XC CAPACITOR220pF 50V J
C9202QEZ0655-227ZE CAPACITOR220uF 16V M
C9203QEZ0656-567ZE CAPACITOR560uF
C9204NDC31HJ-221XC CAPACITOR220pF 50V J
C9301NDC31HJ-221XC CAPACITOR220pF 50V J
C9302QCZ0202-155ZC CAPACITOR1.5uF 25V Z
C9303QEZ0655-227ZE CAPACITOR220uF 16V M
C9304QEZ0655-827ZE CAPACITOR820uF
C9401NDC31HJ-221XC CAPACITOR220pF 50V J
C9402QCZ0202-155ZC CAPACITOR1.5uF 25V Z
C9403QEZ0655-227ZE CAPACITOR220uF 16V M
C9404QEZ0655-827ZE CAPACITOR820uF
C9501NDC31HJ-101XC CAPACITOR100pF 50V J
C9502QEZ0654-108ZE CAPACITOR1000uF 10V M
C9503QEZ0654-477ZE CAPACITOR470uF 10V M
C9504NCB31CK-104XC CAPACITOR0.1uF 16V K
C9601QCZ0136-101ZC CAPACITOR100pF 1kV K
C9602QEZ0658-396ZE CAPACITOR39uF 50V M
C9603QEZ0658-226ZE CAPACITOR22uF 50V M
C9703QCZ9079-102C CAPACITOR1000pF AC250V M
C9801QCZ0403-221C CAPACITOR220pF 2kV K
C9802NCB31HK-104XC CAPACITOR0.1uF 50V K
C9803NCB31HK-104XC CAPACITOR0.1uF 50V K
C9804NDC31HJ-150XC CAPACITOR15pF 50V J
C9805NDC31HJ-331XC CAPACITOR330pF 50V J
C9806NCB31HK-104XC CAPACITOR0.1uF 50V K
C9807QETN1HM-226ZE CAPACITOR22uF 50V M
C9808QEZ0658-476ZE CAPACITOR47uF 50V M
C9901QFZ9073-683MM CAPACITOR0.068uF AC250V M
C9906QCZ0401-222C CAPACITOR2200pF 2kV K
C9907QCZ9079-102C CAPACITOR1000pF AC250V M
C9908QFZ9073-683MM CAPACITOR0.068uF AC250V M
C9909QCZ9079-102C CAPACITOR1000pF AC250V M
C9911QEZ0665-476E CAPACITOR47uF 400V M
C9930NCB31HK-104XC CAPACITOR0.1uF 50V K
L4961QQL244K-100ZCOIL10uH K
L9201QQL26AK-100ZCOIL10uH K
L9301QQL31AK-220ZCOIL22uH K
L9401QQL31AK-220ZCOIL22uH K
L9501QQL31AK-220ZCOIL22uH K
L9601QQL244K-R22ZCOIL0.22uH K
C2021QETN1HM-104ZE CAPACITOR0.1uF 50V M
C2022NDC31HJ-470XC CAPACITOR47pF 50V J
C2023QETN1HM-225ZE CAPACITOR2.2uF 50V M
C2024QETN1HM-107ZE CAPACITOR100uF 50V M
C2025NDC31HJ-100XC CAPACITOR10pF 50V J
C2026NCB31HK-471XC CAPACITOR470pF 50V K
C2027NCB31HK-221XC CAPACITOR220pF 50V K
C2028QETN1HM-106ZE CAPACITOR10uF 50V M
C2029NCB31HK-333XC CAPACITOR0.033uF 50V K
C2030NCB31HK-473XC CAPACITOR0.047uF 50V K
C2033NDC31HJ-100XC CAPACITOR10pF 50V J
C2051NCB31HK-102XC CAPACITOR1000pF 50V K
C2052NCB31HK-221XC CAPACITOR220pF 50V K
C2053NCB31HK-221XC CAPACITOR220pF 50V K
C2061NCB31CK-104XC CAPACITOR0.1uF 16V K
C2063QETN1EM-476ZE CAPACITOR47uF 25V M
C2071NCB31CK-104XC CAPACITOR0.1uF 16V K
C2073QETN1EM-476ZE CAPACITOR47uF 25V M
C2101QETN1HM-475ZE CAPACITOR4.7uF 50V M
C2102QETN1HM-105ZE CAPACITOR1uF 50V M
C2103QTE1J60-106ZE CAPACITOR10uF 63V
C2104QETN1HM-475ZE CAPACITOR4.7uF 50V M
C2105QETN1HM-225ZE CAPACITOR2.2uF 50V M
C8001NCB31HK-104XC CAPACITOR0.1uF 50V K
C8002NCB31HK-104XC CAPACITOR0.1uF 50V K
C8010NCB31HK-104XC CAPACITOR0.1uF 50V K
C8011NCB31HK-104XC CAPACITOR0.1uF 50V K
C8012NCB31HK-104XC CAPACITOR0.1uF 50V K
C8014NCB31HK-104XC CAPACITOR0.1uF 50V K
C8015NCB31HK-104XC CAPACITOR0.1uF 50V K
C8016NCB31HK-104XC CAPACITOR0.1uF 50V K
C8017NCB31HK-104XC CAPACITOR0.1uF 50V K
C8018NCB31HK-104XC CAPACITOR0.1uF 50V K
C8019NCB31HK-104XC CAPACITOR0.1uF 50V K
C8020NCB31HK-104XC CAPACITOR0.1uF 50V K
C8021NCB31HK-104XC CAPACITOR0.1uF 50V K
C8022NCB31HK-104XC CAPACITOR0.1uF 50V K
C8023NCB31HK-104XC CAPACITOR0.1uF 50V K
C8024NCB31HK-104XC CAPACITOR0.1uF 50V K
C8025NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8026NCB31HK-104XC CAPACITOR0.1uF 50V K
C8027NCB31HK-104XC CAPACITOR0.1uF 50V K
C8028NCB31HK-104XC CAPACITOR0.1uF 50V K
C8029NCB31HK-104XC CAPACITOR0.1uF 50V K
C8030NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8031NCB31HK-104XC CAPACITOR0.1uF 50V K
C8032NCB31HK-104XC CAPACITOR0.1uF 50V K
C8033NCB31HK-104XC CAPACITOR0.1uF 50V K
C8034NCB31HK-104XC CAPACITOR0.1uF 50V K
C8035NDC31HJ-100XC CAPACITOR10pF 50V J
C8036NDC31HJ-100XC CAPACITOR10pF 50V J
C8037NCB31HK-104XC CAPACITOR0.1uF 50V K
C8039NCB31HK-104XC CAPACITOR0.1uF 50V K
C8040NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8041NCB31HK-104XC CAPACITOR0.1uF 50V K
C8042NEAF0JM-107XE CAPACITOR100uF 6.3V M
Part No.Part NameDescriptionLocal
C8043NCF31AZ-105XC CAPACITOR1uF 10V Z
C8044NCB31HK-102XC CAPACITOR1000pF 50V K
C8045NCB31HK-102XC CAPACITOR1000pF 50V K
C8046NCB31HK-102XC CAPACITOR1000pF 50V K
C8047NCB31HK-104XC CAPACITOR0.1uF 50V K
C8048NCB31HK-104XC CAPACITOR0.1uF 50V K
C8049NCB31HK-104XC CAPACITOR0.1uF 50V K
C8052NCB31HK-104XC CAPACITOR0.1uF 50V K
C8053NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8055NDC31HJ-330XC CAPACITOR33pF 50V J
C8101NCB30JK-105XC CAPACITOR1uF 6.3V K
C8102NCB31HK-104XC CAPACITOR0.1uF 50V K
C8103NCB30JK-105XC CAPACITOR1uF 6.3V K
C8104NCB30JK-105XC CAPACITOR1uF 6.3V K
C8105NCB31HK-104XC CAPACITOR0.1uF 50V K
C8106NCB31HK-104XC CAPACITOR0.1uF 50V K
C8107NCB31HK-104XC CAPACITOR0.1uF 50V K
C8108NDC31HJ-220XC CAPACITOR22pF 50V J
C8109NDC31HJ-220XC CAPACITOR22pF 50V J
C8110NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8111NCB31HK-104XC CAPACITOR0.1uF 50V K
C8112NCB31CK-105XC CAPACITOR1uF 16V K
C8113NCB31HK-104XC CAPACITOR0.1uF 50V K
C8114NCB31CK-105XC CAPACITOR1uF 16V K
C8115NCZ1030-102XC CAPACITOR1000pF
C8116NCB31HK-104XC CAPACITOR0.1uF 50V K
C8117NCB31HK-104XC CAPACITOR0.1uF 50V K
C8201NCB31HK-104XC CAPACITOR0.1uF 50V K
C8202NCB31HK-104XC CAPACITOR0.1uF 50V K
C8203NCB31HK-104XC CAPACITOR0.1uF 50V K
C8204NCB31HK-104XC CAPACITOR0.1uF 50V K
C8205NCB31HK-104XC CAPACITOR0.1uF 50V K
C8206NCB31HK-104XC CAPACITOR0.1uF 50V K
C8207NCB31HK-104XC CAPACITOR0.1uF 50V K
C8208NCB31HK-104XC CAPACITOR0.1uF 50V K
C8209NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8301NCB31HK-104XC CAPACITOR0.1uF 50V K
C8302NCB31HK-104XC CAPACITOR0.1uF 50V K
C8303NEAF0JM-107XE CAPACITOR100uF 6.3V M
C8401NCB31HK-333XC CAPACITOR0.033uF 50V K
C8402NEAF0JM-226XE CAPACITOR22uF 6.3V M
C8403NCB31HK-103XC CAPACITOR0.01uF 50V K
C8405NCF31AZ-105XC CAPACITOR1uF 10V Z
C8501NCF31AZ-105XC CAPACITOR1uF 10V Z
C8503NCB31HK-103XC CAPACITOR0.01uF 50V K
C8505NCF31AZ-105XC CAPACITOR1uF 10V Z
C1001QCZ9105-472C CAPACITOR4700pF 250V M
C1011NCB31HK-103XC CAPACITOR0.01uF 50V K
C1012NCB31HK-103XC CAPACITOR0.01uF 50V K
C1101QETN1HM-475ZE CAPACITOR4.7uF 50V M
C1102NCB31HK-103XC CAPACITOR0.01uF 50V K
C1103QETN1HM-475ZE CAPACITOR4.7uF 50V M
C1301QETN1HM-226ZE CAPACITOR22uF 50V M
C1302QETN1HM-106ZE CAPACITOR10uF 50V M
C1303QETN1EM-476ZE CAPACITOR47uF 25V M
C1401QETN1CM-227ZE CAPACITOR220uF 16V M
C1402QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3001QETN1HM-106ZE CAPACITOR10uF 50V M
C3002QETN1HM-106ZE CAPACITOR10uF 50V M
C3011QTE1H60-226ZE CAPACITOR22uF 50V
C3012QTE1H60-226ZE CAPACITOR22uF 50V
C3013QETN1EM-107ZE CAPACITOR100uF 25V M
C3014NCB31HK-103XC CAPACITOR0.01uF 50V K
C3015NCB31HK-103XC CAPACITOR0.01uF 50V K
C3016QETN1HM-226ZE CAPACITOR22uF 50V M
C3021QTE1H60-226ZE CAPACITOR22uF 50V
C3022QTE1H60-226ZE CAPACITOR22uF 50V
C3023QETN1EM-107ZE CAPACITOR100uF 25V M
C3024NCB31HK-103XC CAPACITOR0.01uF 50V K
3-19
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C3025NCB31HK-103XC CAPACITOR0.01uF 50V K
C3026QETN1HM-226ZE CAPACITOR22uF 50V M
C3031QTE1H60-226ZE CAPACITOR22uF 50V
C3032QTE1H60-226ZE CAPACITOR22uF 50V
C3033QETN1EM-107ZE CAPACITOR100uF 25V M
C3034QETN1HM-107ZE CAPACITOR100uF 50V M
C3035QETN1HM-476ZE CAPACITOR47uF 50V M
C3036NCB31HK-103XC CAPACITOR0.01uF 50V K
C3037NCB31HK-103XC CAPACITOR0.01uF 50V K
C3038NCB31HK-103XC CAPACITOR0.01uF 50V K
C3039QETN1HM-106ZE CAPACITOR10uF 50V M
C3041QETN1EM-476ZE CAPACITOR47uF 25V M
C3042NCB31HK-103XC CAPACITOR0.01uF 50V K
C3043NCB31HK-103XC CAPACITOR0.01uF 50V K
C3101NCB31HK-221XC CAPACITOR220pF 50V K
C3102NFV41HJ-471XMPPS CAPACITOR470pF 50V J
C3103QTE1J60-106ZE CAPACITOR10uF 63V
C3104QTE1J60-106ZE CAPACITOR10uF 63V
C3105NDC31HJ-8R0XC CAPACITOR8pF 50V J
C3106NCB31HK-222XC CAPACITOR2200pF 50V K
C3121QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3131NCB31HK-104XC CAPACITOR0.1uF 50V K
C3132NCB31HK-103XC CAPACITOR0.01uF 50V K
C3201NCB31HK-221XC CAPACITOR220pF 50V K
C3202NFV41HJ-471XMPPS CAPACITOR470pF 50V J
C3203QTE1J60-106ZE CAPACITOR10uF 63V
C3204QTE1J60-106ZE CAPACITOR10uF 63V
C3205NDC31HJ-8R0XC CAPACITOR8pF 50V J
C3206NCB31HK-222XC CAPACITOR2200pF 50V K
C3221QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3231NCB31HK-104XC CAPACITOR0.1uF 50V K
C3232NCB31HK-103XC CAPACITOR0.01uF 50V K
C3301NCB31HK-221XC CAPACITOR220pF 50V K
C3302NFV41HJ-471XMPPS CAPACITOR470pF 50V J
C3303QTE1J60-106ZE CAPACITOR10uF 63V
C3304QTE1J60-106ZE CAPACITOR10uF 63V
C3305NDC31HJ-8R0XC CAPACITOR8pF 50V J
C3306NCB31HK-222XC CAPACITOR2200pF 50V K
C3321QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3331NCB31HK-104XC CAPACITOR0.1uF 50V K
C3332NCB31HK-103XC CAPACITOR0.01uF 50V K
C3401NCB31HK-221XC CAPACITOR220pF 50V K
C3402NFV41HJ-471XMPPS CAPACITOR470pF 50V J
C3403QTE1J60-106ZE CAPACITOR10uF 63V
C3404QTE1J60-106ZE CAPACITOR10uF 63V
C3405NDC31HJ-8R0XC CAPACITOR8pF 50V J
C3406NCB31HK-222XC CAPACITOR2200pF 50V K
C3421QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3431NCB31HK-104XC CAPACITOR0.1uF 50V K
C3432NCB31HK-103XC CAPACITOR0.01uF 50V K
C3601NCB31HK-221XC CAPACITOR220pF 50V K
C3602QFG32AJ-223ZPP CAPACITOR0.022uF 100V J
C3602QFVF1HJ-223ZMF CAPACITOR0.022uF 50V J
C3603QTE1J60-106ZE CAPACITOR10uF 63V
C3604QTE1V60-336ZE CAPACITOR33uF 35V
C3605NDC31HJ-3R0XC CAPACITOR3pF 50V J
C3606NDC31HJ-3R0XC CAPACITOR3pF 50V J
C3621QETN1HM-475ZE CAPACITOR4.7uF 50V M
C3631NCB31HK-104XC CAPACITOR0.1uF 50V K
C3632NCB31HK-104XC CAPACITOR0.1uF 50V K
C3652QFVF1HJ-473ZMF CAPACITOR0.047uF 50V J
C3653QFVF1HJ-473ZMF CAPACITOR0.047uF 50V J
C3654QTE1J60-106ZE CAPACITOR10uF 63V
C3661QETN1HM-105ZE CAPACITOR1uF 50V M
C3662QETN1HM-105ZE CAPACITOR1uF 50V M
C3671QFVF1HJ-104ZMF CAPACITOR0.1uF 50V J
C3672QFVF1HJ-123ZMF CAPACITOR0.012uF 50V J
C3801QETN1HM-106ZE CAPACITOR10uF 50V M
C3802NCB31HK-103XC CAPACITOR0.01uF 50V K
DD8B,
DD8E,
DD8E
N,DD
8EV,D
D8EE
DD3B,
DD3E,
DD3E
N,DD
3EV,D
D3EE
C3803NCB31HK-103XC CAPACITOR0.01uF 50V K
C3821NCB31HK-102XC CAPACITOR1000pF 50V K
C3822NCB31HK-103XC CAPACITOR0.01uF 50V K
C3901QEZ0578-828E CAPACITOR8200uF 250V M
C3902QEZ0578-828E CAPACITOR8200uF 250V M
C3903NCB31HK-223XC CAPACITOR0.022uF 50V K
C3904NCB31HK-223XC CAPACITOR0.022uF 50V K
C3905NCB31HK-223XC CAPACITOR0.022uF 50V K
C3911QETM1HM-338E CAPACITOR3300uF 50V M
C3912QETM1HM-338E CAPACITOR3300uF 50V M
C3913NCB31HK-473XC CAPACITOR0.047uF 50V K
C3914NCB31HK-473XC CAPACITOR0.047uF 50V K
C3915NCB31HK-473XC CAPACITOR0.047uF 50V K
C3916NCB31HK-473XC CAPACITOR0.047uF 50V K
C3917NCB31HK-473XC CAPACITOR0.047uF 50V K
C3918NCB31HK-473XC CAPACITOR0.047uF 50V K
C3921QETN1EM-476ZE CAPACITOR47uF 25V M
C3922QETN1EM-476ZE CAPACITOR47uF 25V M
C3931QETN1EM-476ZE CAPACITOR47uF 25V M
C3932QETN1EM-476ZE CAPACITOR47uF 25V M
C3941QETN1EM-476ZE CAPACITOR47uF 25V M
C3942QETN1EM-476ZE CAPACITOR47uF 25V M
D301UDZW5.6B-XZ DIODE
D302UDZW5.6B-XZ DIODE
D305RB521S-30-XSB DIODE
D801NAF0013-001XESD SUPPRESSOR V
D802NAF0013-001XESD SUPPRESSOR V
D803BAV99L-XSI DIODE
C101NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C102NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C103NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C104NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C105NEAF0JM-476XE CAPACITOR47uF 6.3V M
C106NBE20JM-226XTA E CAPACITOR22uF 6.3V M
C107NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C108NBE20JM-226XTA E CAPACITOR22uF 6.3V M
C109NCB31HK-102XC CAPACITOR1000pF 50V K
C110NCB31HK-102XC CAPACITOR1000pF 50V K
C111NEAF0JM-476XE CAPACITOR47uF 6.3V M
C201NDC31HJ-221XC CAPACITOR220pF 50V J
C202NDC31HJ-221XC CAPACITOR220pF 50V J
C203NCB31HK-103XC CAPACITOR0.01uF 50V K
C204NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C205NDC31HJ-121XC CAPACITOR120pF 50V J
C208NCB31HK-561XC CAPACITOR560pF 50V K
C210NCF31AZ-105XC CAPACITOR1uF 10V Z
C211NCB31EK-223XC CAPACITOR0.022uF 25V K
C217NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C251NCB31AK-474XC CAPACITOR0.47uF 10V K
C253NCB31HK-561XC CAPACITOR560pF 50V K
C255NCB31CK-153XC CAPACITOR0.015uF 16V K
C256NCB31CK-104XC CAPACITOR0.1uF 16V K
Part No.Part NameDescriptionLocal
C257NCB31HK-822XC CAPACITOR8200pF 50V K
C258NCB31CK-153XC CAPACITOR0.015uF 16V K
C259NCB31CK-153XC CAPACITOR0.015uF 16V K
C260NCB31HK-223XC CAPACITOR0.022uF 50V K
C261NCB31HK-223XC CAPACITOR0.022uF 50V K
C262NCB31HK-223XC CAPACITOR0.022uF 50V K
C263NEAF1CM-107XE CAPACITOR100uF 16V M
C271NCB31HK-561XC CAPACITOR560pF 50V K
C274NCB31HK-561XC CAPACITOR560pF 50V K
C301NDC31HJ-6R0XC CAPACITOR6pF 50V J
C302NDC31HJ-6R0XC CAPACITOR6pF 50V J
C303NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C304NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C305NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C306NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C307NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C308NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C309NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C310NCB31CK-104XC CAPACITOR0.1uF 16V K
C311NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C312NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C313NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C314NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C315NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C316NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C317NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C318NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C319NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C320NCB31CK-104XC CAPACITOR0.1uF 16V K
C321NCB31CK-104XC CAPACITOR0.1uF 16V K
C322NCB31CK-104XC CAPACITOR0.1uF 16V K
C323NCB31CK-104XC CAPACITOR0.1uF 16V K
C324NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C325NCB31HK-681XC CAPACITOR680pF 50V K
C326NCB31HK-681XC CAPACITOR680pF 50V K
C327NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C328NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C329NEAF0GM-476XE CAPACITOR47uF 4V M
C330NCB31HK-102XC CAPACITOR1000pF 50V K
C331NDC31HJ-101XC CAPACITOR100pF 50V J
C332NCB31EK-223XC CAPACITOR0.022uF 25V K
C333NDC31HJ-101XC CAPACITOR100pF 50V J
C334NDC31HJ-101XC CAPACITOR100pF 50V J
C335NCB31HK-472XC CAPACITOR4700pF 50V K
C336NCB31HK-102XC CAPACITOR1000pF 50V K
C337NCB31AK-154XC CAPACITOR0.15uF 10V K
C338NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C339NEAF0GM-476XE CAPACITOR47uF 4V M
C340NCB30JK-105XC CAPACITOR1uF 6.3V K
C341NEAF0GM-476XE CAPACITOR47uF 4V M
C342NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C344NEAF0GM-476XE CAPACITOR47uF 4V M
C345NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C347NEAF0GM-476XE CAPACITOR47uF 4V M
C348NEAF0GM-476XE CAPACITOR47uF 4V M
C349NCB31HK-271XC CAPACITOR270pF 50V K
C350NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C351NCB31HK-103XC CAPACITOR0.01uF 50V K
C353NDC31HJ-101XC CAPACITOR100pF 50V J
C354NCF31CZ-474XC CAPACITOR0.47uF 16V Z
C355NCF31CZ-474XC CAPACITOR0.47uF 16V Z
C356NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C358NCB30JK-105XC CAPACITOR1uF 6.3V K
C359NCB31HK-103XC CAPACITOR0.01uF 50V K
C360NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C361NEAF1CM-106XE CAPACITOR10uF 16V M
C362NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C363NDC31HJ-390XC CAPACITOR39pF 50V J
C364NDC31HJ-390XC CAPACITOR39pF 50V J
C371NCF31AZ-105XC CAPACITOR1uF 10V Z
C372NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C380NCB21CK-105XC CAPACITOR1uF 16V K
C381NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C382NCB31HK-471XC CAPACITOR470pF 50V K
C383NCB30JK-105XC CAPACITOR1uF 6.3V K
C390NCB30JK-105XC CAPACITOR1uF 6.3V K
C391NCB21AK-225XC CAPACITOR2.2uF 10V K
C392NCB31HK-471XC CAPACITOR470pF 50V K
3-22
Symbol No.
Part No.Part NameDescriptionLocal
Symbol No.
Part No.Part NameDescriptionLocal
C393NEAF0JM-227XE CAPACITOR220uF 6.3V M
C401NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C455NCB31HK-103XC CAPACITOR0.01uF 50V K
C551NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C554NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C555NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C557NCB31HK-102XC CAPACITOR1000pF 50V K
C558NEAF0GM-476XE CAPACITOR47uF 4V M
C559NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C560NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C562NCB30JK-105XC CAPACITOR1uF 6.3V K
C563NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C564NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C701NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C702NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C703NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C704NEAF0JM-476XE CAPACITOR47uF 6.3V M
C706NEAF1CM-106XE CAPACITOR10uF 16V M
C707NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C708NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C709NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C711NCB31AK-105XC CAPACITOR1uF 10V K
C712NCB31HK-103XC CAPACITOR0.01uF 50V K
C713NCB31AK-105XC CAPACITOR1uF 10V K
C741NCB30JK-105XC CAPACITOR1uF 6.3V K
C742NCB31HK-472XC CAPACITOR4700pF 50V K
C743NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C745NEAF1CM-106XE CAPACITOR10uF 16V M
C756NEAF0JM-226XE CAPACITOR22uF 6.3V M
C757NEAF0JM-226XE CAPACITOR22uF 6.3V M
C758NEAF0JM-226XE CAPACITOR22uF 6.3V M
C760NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C761NCB31HK-471XC CAPACITOR470pF 50V K
C762NCB31HK-471XC CAPACITOR470pF 50V K
C764NCB31HK-472XC CAPACITOR4700pF 50V K
C765NCB31HK-272XC CAPACITOR2700pF 50V K
C766NEAF1CM-106XE CAPACITOR10uF 16V M
C767NCB31HK-272XC CAPACITOR2700pF 50V K
C768NEAF1CM-106XE CAPACITOR10uF 16V M
C801NEAF0JM-476XE CAPACITOR47uF 6.3V M
C802NCB30JK-105XC CAPACITOR1uF 6.3V K
C803NEAF0GM-476XE CAPACITOR47uF 4V M
C804NCB30JK-105XC CAPACITOR1uF 6.3V K
C805NCB30JK-105XC CAPACITOR1uF 6.3V K
C806NEAF0GM-476XE CAPACITOR47uF 4V M
C807NCB30JK-105XC CAPACITOR1uF 6.3V K
C809NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C810NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C811NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C812NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C813NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C814NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C815NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C816NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C817NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C818NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C819NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C820NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C821NCF21CZ-225XC CAPACITOR2.2uF 16V Z
C822NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C823NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C824NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C825NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C826NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C827NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C829NCF31EZ-104XC CAPACITOR0.1uF 25V Z
C830NCB30JK-105XC CAPACITOR1uF 6.3V K
C831NEAF0JM-476XE CAPACITOR47uF 6.3V M
C832NCB30JK-105XC CAPACITOR1uF 6.3V K
C833NCB30JK-105XC CAPACITOR1uF 6.3V K
No additional / supplemental order of WARRANTY CARDs are available.
P21
Block No.
M
3
M
M
P17
P27
P26
A20
A22
A23
P24
A31
P33
P31
A21
P30
P32
A18
A11
P23
P7
A12
P4
P6
P19
A19
A18
P31
P33
P30
P20
P23
A24
A1,A2, A3, A4,
A5,A6, A7, A8,
A9,A10, A17,
P25
P29
A29
A30
A24
A25
P14
P17
A28
A26
P28
P16
A27
P13
P11
P12
P3
P9
A16
P13
P5
1/2
only B ver.
P3
2/2
P15
P2
1/2
P18
A14
P8
A15
P1
2/2
P2
The parts without symbol number are not service.
P10
A13
3-26
Packing and Accessories (DD-8B,DD-8E,DD-8EN,DD-8EV,DD-8EE)
Block No. [M][3][M][M]
Symbol No.Part No.Part NameDescriptionLocal
A 1LVT1546-002AINST BOOKENGDD8B
A 1LVT1546-003AINST BOOKGER FREDD8E
A 1LVT1546-005AINST BOOKSPA PORDD8EN
A 1LVT1546-007AINST BOOKHUN CZE POLDD8EV
A 1LVT1546-008AINST BOOKRUSDD8EE
A 2LVT1547-002AINST BOOKENGDD8B
A 2LVT1547-003AINST BOOKGER FREDD8E
A 2LVT1547-005AINST BOOKSPA PORDD8EN
A 2LVT1547-007AINST BOOKHUN CZE POLDD8EV
A 2LVT1547-008AINST BOOKRUSDD8EE
A 3LVT1546-004AINST BOOKITA DUTDD8E
A 3LVT1546-006AINST BOOKDAN FIN SWEDD8EN
A 4LVT1547-004AINST BOOKITA DUTDD8E
A 4LVT1547-006AINST BOOKDAN FIN SWEDD8EN
A 5LVT1649-001ANOTICE SHEET
A 6LVT1650-001BNOTICE SHEET
A 7LVT1674-001ACAUTION SHEETDD8B,DD8E
A 7LVT1674-002ACAUTION SHEETDD8EN
A 7LVT1674-003ACAUTION SHEETDD8EV,DD8EE
A 8LVT1680-001ACAUTION SHEETDD8B,DD8E
A 8LVT1680-002ACAUTION SHEETDD8EN
A 8LVT1380-003ACAUTION SHEETDD8EV,DD8EE
A 9------------WARRANTY CARDBT-54030-1
A 10QAM0954-001CD ROM
A 11QAL0457-001ANT.WIRE
A 12QAL0014-003AM LOOP ANT
A 13RM-SDD8RREMOTE CONTROL UNIT
A 14------------BATTERY1.5V(x2)
A 15QQR1607-001FERRITE CLAMP(x2)
A 16QQR1607-001FERRITE CLAMP
A 17VNA3000-204REGIST CARDDD8B
A 18AB080081-01BSPEAKER BOXSPK WITH BOX-F(x2)
A 19AB080081-01SBBASE ASSY(x2)
A 20AB133026-01SPEAKER BOXSPK WITH BOX-C
A 21LV22347-001ASTAND
A 229000007941FOOT(x2)
A 239000005371FOOT(x2)
A 249000005371FOOT(x6)
A 256200048311SPK CORD-FR
A 266200048301SPK CORD-FL
A 27QAM0890-001SPK CORD-C
A 286200044901DIN CABLE
A 297000751407SCREW(x2)
A 307009342503SCREW(x6)
A 31LV44777-001ACAUTION SHEET
P 1LV36954-010ACARTON BOXDD8B,DD8E,DD8EN,DD8EV
P 1LV36954-011ACARTON BOXDD8EE
P 2LV22337-001ACUSHION(F)
P 3LV22338-001ACUSHION(R)
P 4LV37374-001ACARTON SHEET
P 5QPC06006015PBPOLY BAG60cm x 60cm
P 6QPA02503505PBPOLY BAG25cm x 35cm
P 7QPC01702515PBPOLY BAG17cm x 25cm
P 8QPA00801505POLY BAG8cm x 15cm
P 9QPA00500805POLY BAG5cm x 8cm
P 10QPA01503503POLY BAG15cm x 35cmDD8B
P 118500063721MIRROR MAT SHEET
P 128500062781POLY BAG
P 13LV11326-001ASIDE CUSHION(x2)
P 14LV35834-008AACCESSORY BOX
P 15LV36825-004AACCESSORY BOX
P 16LV35831-0B5APACKING CASE
P 17LV37292-001APARTITION(x2)
P 18LV37293-001APARTITION(x2)
P 19LV11315-001ACUSHION A
P 20LV11315-002ACUSHION B
P 21LV11315-003ACUSHION C
P 238500063141MIRROR MAT BAG(x2)
P 248500062751POLY BAG
P 258500062761POLY BAG
P 268500063131MIRROR MAT BAG
P 278500065061NYLON SHEET(x2)
P 288500062101POLY BAG
P 298500047151POLY BAG
3-27
Symbol No.Part No.Part NameDescriptionLocal
P 308500065321POLY BAG(x2)
P 318500065021NYLON SHEET(x2)
P 32LV37294-001AMIRROR MAT SHEET(x2)
P 33LV44702-001APARTITION(x2)
3-28
<MEMO>
3-29
Packing materials and accessories parts list
< DD-3B,DD-3E,DD-3EN,DD-3EV,DD-3EE >
No additional / supplemental order of WARRANTY CARDs are available.
Block No.
M
4
M
M
P14
A24
A24
A18
P19
P23
A19
P13
P18
P24
P22
A11
P8
A12
A21
P4
A19
P25
P19
P24
P7
A27
P23
P17
A20
P20
P16
A25
A31
A30
A26
A22
A23
A1,A2, A3, A4,
A5,A6, A7, A8,
A9,A10, A17,
A29
P26
P21
A28
P12
P15
P14
P3
A15
A14
A16
P2
1/2
P10
P5
P9
P6
P1
1/2
2/2
only B ver.
P3
2/2
P2
The parts without symbol number are not service.
P11
A13
3-30
Packing and Accessories (DD-3B,DD-3E,DD-3EN,DD-3EV,DD-3EE)
Block No. [M][4][M][M]
Symbol No.Part No.Part NameDescriptionLocal
A 1LVT1546-002AINST BOOKENGDD3B
A 1LVT1546-003AINST BOOKGER FREDD3E
A 1LVT1546-005AINST BOOKSPA PORDD3EN
A 1LVT1546-007AINST BOOKHUN CZE POLDD3EV
A 1LVT1546-008AINST BOOKRUSDD3EE
A 2LVT1547-002AINST BOOKENGDD3B
A 2LVT1547-003AINST BOOKGER FREDD3E
A 2LVT1547-005AINST BOOKSPA PORDD3EN
A 2LVT1547-007AINST BOOKHUN CZE POLDD3EV
A 2LVT1547-008AINST BOOKRUSDD3EE
A 3LVT1546-004AINST BOOKITA DUTDD3E
A 3LVT1546-006AINST BOOKDAN FIN SWEDD3EN
A 4LVT1547-004AINST BOOKITA DUTDD3E
A 4LVT1547-006AINST BOOKDAN FIN SWEDD3EN
A 5LVT1649-001ANOTICE SHEET
A 6LVT1650-001BNOTICE SHEET
A 7LVT1674-001ACAUTION SHEETDD3B,DD3E
A 7LVT1674-002ACAUTION SHEETDD3EN
A 7LVT1674-003ACAUTION SHEETDD3EV,DD3EE
A 8LVT1680-001ACAUTION SHEETDD3B,DD3E
A 8LVT1680-002ACAUTION SHEETDD3EN
A 8LVT1380-003ACAUTION SHEETDD3EV,DD3EE
A 9------------WARRANTY CARDBT-54030-1
A 10QAM0954-001CD ROM
A 11QAL0457-001ANT.WIRE
A 12QAL0014-003AM LOOP ANT
A 13RM-SDD8RREMOTE CONTROL UNIT
A 14------------BATTERY1.5V(x2)
A 15QQR1607-001FERRITE CLAMP(x2)
A 16QQR1607-001FERRITE CLAMP
A 17VNA3000-204REGIST CARDDD3B
A 18AB133025-01BSPEAKER BOXSPK WITH BOX-F(x2)
A 19AB133025-01SBBASE ASSY(x2)
A 20AB133026-01SPEAKER BOXSPK WITH BOX-C
A 21LV22347-001ASTAND
A 229000007941FOOT(x2)
A 239000005371FOOT(x2)
A 249000007981RUBBER FOOT(x4)
A 256200048611SPK CORD-FR
A 266200048601SPK CORD-FL
A 27QAM0890-001SPK CORD-C
A 286200044901DIN CABLE
A 297000751407SCREW(x2)
A 307009341606SCREW(x6)
A 319000013401SHEET(x2)
P 1LV36955-010ACARTON BOXDD3B,DD3E,DD3EN,DD3EV
P 1LV36955-011ACARTON BOXDD3EE
P 2LV22337-001ACUSHION(F)
P 3LV22338-001ACUSHION(R)
P 4LV37374-001ACARTON SHEET
P 5QPC06006015PBPOLY BAG60cm x 60cm
P 6LV42796-006ASHEET
P 7QPA02503505PBPOLY BAG25cm x 35cm
P 8QPC01702515PBPOLY BAG17cm x 25cm
P 9QPA00801505POLY BAG8cm x 15cm
P 10QPA00500805POLY BAG5cm x 8cm
P 11QPA01503503POLY BAG15cm x 35cmDD3B
P 128500063721MIRROR MAT SHEET
P 138500062781POLY BAG
P 14LV11326-001ASIDE CUSHION(x2)
P 15LV35231-048APACKING CASE
P 16LV22368-001ACUSHION A
P 17LV22368-002ACUSHION B
P 18LV22368-003ACUSHION C
P 198500063131MIRROR MAT BAG(x3)
P 208500062101POLY BAG
P 218500062761POLY BAG
P 22LV44639-001APARTITION
P 238500065061NYLON SHEET(x6)
P 248500063121MIRROR MAT BAG(x2)
P 258500062751POLY BAG
P 268500062761POLY BAG
3-31
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
