INSTRUCTIONS

HDR REAR PROJECTION SYSTEM

LY-HDR36

DLA-HDR36 (D-ILA PROJECTOR) DB-HDR36 (CABINET BOX)

Getting Started Set up Operate Adjust/Set Maintenance Troubleshooting Others

B5A-1147-11

Safety Precautions

IMPORTANT INFORMATION

This product has a High Intensity Dis-charge (HID) lamp that contains mercury. Manage in accord with disposal laws. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org. or call 1-800-252-5722(For USA) or 1-800-964-2650(For Canada).

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FCC INFORMATION (U.S.A. only) CAUTION:

Changes or modification not approved by JVC could void the user’s authority to operate the equipment.

About the installation place

Do not install the projector in a place that cannot support its weight securely. If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

Reorient or relocate the receiving antenna. Increase the separation between the equipment

and receiver.

Consult the dealer or an experienced radio/TV technician for help.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

NOTE:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:

WARNING:

THIS APPARATUS MUST BE EARTHED.

CAUTION:

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

⹣晼㯡婌♟㒷

For the customers in Taiwan only

NOISE EMISSION DECLARATION

The sound pressure level at the operator position is equal or less than 30dB(A) according to ISO7779.

Model Number: DLA-HDR36 Trade Name: JVC Responsible party: JVCKENWOOD USA Corporation

Address: 1700 Valley Road Wayne, N. J. 07470 Telephone Number: 973-317-5000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

Getting Started

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

All the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. All warnings on the product and in the operating instructions should be adhered to. All operating instructions should be followed. Place the projector near a wall outlet where the plug can be easily unplugged. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Do not use attachments not recommended by the product manufacturer as they may be hazardous. Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer’s instructions, and should use a mount recommended by the manufacturer. When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator. Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.) To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.

a) b)

c) d)

When the power supply cord or plug is damaged. If liquid has been spilled, or objects have fallen on the product. If the product has been exposed to rain or water. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. If the product has been dropped or damaged in any way. When the product exhibits a distinct change in performance, this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat. When connecting other products such as VCR’s, and DVD players, you should turn off the power of this product for protection against electric shock.

Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product. For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges. Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel. Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

Getting Started

Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated. Do not look into the projection lens while the illumination lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight. Do not look into the inside of this unit through vents (ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired. Do not drop, hit, or damage the light-source lamp (lamp unit) in any way. It may cause the light-source lamp to break and lead to injuries. Do not use a damaged light source lamp. If the light-source lamp is broken, ask your dealer to repair it. Fragments from a broken light-source lamp may cause injuries. The light-source lamp used in this projector is a high pressure mercury lamp. Be careful when disposing of the light-source lamp. If anything is unclear, please consult your dealer. Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury. Use only the accessory cord designed for this product to prevent shock. For health reasons, please take a break of about 5-15 minutes every 30-60 minutes and let your eyes rest. Please refrain from watching any 3D-images when you feel tired, unwell or if you feel any other discomfort. Moreover, in case you see a double image, please adjust the equipment and software for proper display. Please stop using the unit if the double image is still visible after adjustment. Once every three years, please perform an internal test. This unit is provided with replacement parts needed to maintain its function (such as cooling fans). Estimated replacement time of parts can vary greatly depending on frequency of use and the respective environment. For replacement, please consult your dealer, or the nearest authorized JVC service center. When fixing the unit to the ceiling, Please note that we do not take any responsibility, even during the warranty period, if the product is damaged due to use of metal fixtures used for fixation to the ceiling other than our own or if the installation environment of said metal fixtures is not appropriate. If the unit is suspended from the ceiling during use, please be careful in regard to the ambient temperature of the unit. If you use a central heating, the temperature close to the ceiling will be higher than normally expected. Video images can burn into the electronic com ponent parts. Please do not display screens with still images of high brightness or high contrast, such as found in video games and computer programs. Over a long period of time it might stick to the picture element. There is no problem with the playback of moving images, e.g. normal video footage.

Video images can burn into the electronic com ponent parts. Please do not display screens with still images of high brightness or high contrast, such as found in video games and computer programs. Over a long period of time it might stick to the picture element. There is no problem with the playback of moving images, e.g. normal video footage. Not using the unit for a long time can lead to malfunction. Please power it on and let it run occasionally. Please avoid using the unit in a room where cigarettes are smoked. It is impos sible to clean optical component parts if they are contaminated by nicotine or tar. This might lead to performance degradation. Please watch from a distance three times the height of the projected image size. Persons with photosensitivity, any kind of heart disease, or weak health should not use 3D glasses. Watching 3D-images might be cause of illness. If you feel any change in your physical condition, please stop watching immediately and consult a physician if necessary. When watching 3D images, it is recommended to take regular breaks. As the length and frequency of the required breaks differ for every person, please judge according to your own condition. If your child watches while wearing 3D glasses, it should be accompanied by its parents or an adult guardian. The adult guardian should be careful to avoid situations where the child’s eyes might become tired, as responses to tiredness and discomfort, etc., are hard to detect, and it is possible for the physical condition to deteriorate very quickly. As the visual sense is not yet fully developed in children under the age of 6, please consult a physician in regard to any problem concerning 3D-images if necessary. Note that when using the 3D feature, the video output may appear different from the original video image due to image conversion on the device.

* DO NOT allow any unqualified person to install the unit.

Be sure to ask your dealer to install the unit (e.g.attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

Getting Started

Power cord

For European continent countries

Green-and-yellow Blue Brown

: Earth : Neutral : Live

POWER CONNECTION

WARNING:

Do not cut off the main plug from this equipment.

The power supply voltage rating of this product is AC100V – AC240V. Use only the power cord designated by our dealer to ensure Safety and EMC. Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply. If a new main plug has to be fitted, then follow the instruction given below.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVCKENWOOD Deutschland GmbH Konrad-Adenauer-Allee 1-11 61118 Bad Vilbel GERMANY

INFORMATION Manufacturer:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN

Importer (EU only):

JVC KENWOOD U.K. Limited 12 Priestley Way, London, NW2 7BA UNITED KINGDOM

For more details, please refer to our website. http://www.jvc.net/

THIS APPARATUS MUST BE EARTHED.

IMPORTANT (Europe only):

The wires in the mains lead on this product are colored Vert et jaune in accordance with the following cord:

As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows: The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black. The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

For USA and Canada only Use only the following power cord.

Getting Started

ENGLISH

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice:

The sign Pb below the symbol for batteries indicates that this battery contains lead.

Benutzerinformationen zur Entsorgung alter Geräte und Batterien

[Nur Europäische Union]

Diese Symbole zeigen an, dass derartig gekennzeichnete Geräte nicht als normaler Haushaltsabfall entsorgt werden dürfen. Wenden Sie sich zur Entsorgung des Produkts oder der Batterie an die hierfür vorgesehenen Sammelstellen oder Einrichtungen, damit eine fachgerechte Wiederverwertung möglich ist.

Hinweis:

Notification:

Das Zeichen Pb unterhalb des Batteriesymbols gibt an, dass diese Batterie Blei enthält.

Informations relatives à l’élimination des appareils et des piles usagés, à l’intention des utilisateurs

[Union européenne seulement]

Si ces symboles figurent sur les produits, cela signifie qu’ils ne doivent pas être jetés comme déchets ménagers. Si vous voulez jeter ce produit ou cette pile, veuillez considérer le système de collecte des déchets ou les centres de recyclage appropriés.

La symbole Pb en dessous du symbole des piles indique que cette pile contient du plomb.

Informatie voor gebruikers over het verwijderen van oude apparatuur en batterijen

[Alleen Europese Unie]

Deze symbolen geven aan dat appara tuur met dit symbool niet mag worden weggegooid als algemeen huishoudelijk afval. Als u het product of de batterij wilt weggooien, kun t u inzamelsystemen of faciliteiten voor een geschikte recycling gebruiken.

Opmerking:

Het teken Pb onder het batterijsymboo l geeft aan dat deze batterij lood bevat.

Battery

Products

Batterie

Produkte

Pile

Produits

Batterij

Producten

DEUTSCH

FRANÇAIS

NEDERLANDS

Información para los usuarios sobre la eliminación de baterías/pilas usadas

[Sólo Unión Europea]

Estos símbolos indican que el equipo con estos símbolos no debe desecharse con la basura doméstica. Si desea desechar el producto o batería/pila, acuda a los sistemas o centros de recogida para que los reciclen debidamente.

Atención: La indicación Pb debajo del símbolo de batería/pila indica que ésta

contiene plomo.

Baterías/pilas

Productos

ESPAÑOL / CASTELLANO

ITALIANO

Informazioni per gli utenti sullo smaltimento delle apparecchiature e batterie obsolete

[Solo per l’Unione Europea]

Questi simboli indicano che le apparecchiature a cui sono relativi non devono essere smaltite tra i rifiuti domestici generici. Se si desidera smaltire questo prodotto o questa batteria, prendere in considerazione i sistem i o le strutture di raccolta appropriati per il riciclaggio corretto.

Nota:

Il simbolo Pb sotto il simbolo delle batter ie indica che questa batteria contiene piombo.

Batteria

Prodotti

Getting Started

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

Location information of the labels

Getting Started

* The warning label shown in the above diagram is sticked on the bottom of the projector inside this unit.

Contents

Getting Started

Safety Precautions ..................................................

Accessories/Optional Accessories .......................... 9

Accessories ......................................................... 9

Optional Accessories ........................................... 9

Names and Functions of Parts .............................. 10

Main Unit - Front ................................................ 10

Main Unit - Side ................................................. 10

Main Unit - Rear ................................................. 11

Remote Control ................................................. 12

Loading Batteries into the Remote Control ........ 13

Effective Range of Remote Control Unit ............ 13

Set up

Installing the Projector ........................................... 14

Precautions during Installation ........................... 14

Connecting the Projector ....................................... 15

Connecting to the HDMI Input Terminal (Digital

Input) ................................................................. 15

Connecting to the LAN Terminal ........................ 16

Connecting to the RS-232C Terminal ................ 17

Connecting the Power Cord

.................................... 17

Operate

Viewing Videos ...................................................... 18

Adjusting the Projection Screen ............................ 19

Adjusting the Lens According to the Projection

Position .............................................................. 19

Saving and Retrieving Adjustment Data ............ 20

Adjusting the Screen Size (Aspect) ................... 22

Adjust/Set

Adjusting the Image Quality ................................... 23

Setting the Picture Mode ................................... 23

Adjusting to the Preferred Color (Color

Management) .................................................... 24

Adjustments and Settings in the Menu .................. 30

Other Adjustments and Settings ............................ 44

Maintenance

Mounting/Dismounting the Screen ........................ 45

Cleaning the Screen .............................................. 46

Troubleshooting

Troubleshooting .................................................... 47

When the Following Messages Appear... .............. 50

Checking the Power and Startup Status ................ 50

Others

External Control .................................................... 51

Specifications ........................................................ 55

Index ..................................................................... 58

Adjusting the Output Value of the Projected Image (Gamma)

Fine-tuning to the Preferred Gamma Setting ..... 25

Reducing the After-image of Fast-moving Images

(Blur Reduction) ................................................. 27

Adjusting the Contrast (Lens Aperture) .............. 28

Correcting Uneven Illumination (Uniformity

Correction) ......................................................... 29

List of Menu Items ............................................. 30

Picture Adjust .................................................... 32

Input Signal ........................................................ 34

Installation ......................................................... 36

Display Setup .................................................... 41

Function ............................................................. 42

Information ......................................................... 43

RS-232C Specifications ..................................... 51

TCP/IP Connection ............................................ 51

Command Format .............................................. 52

Remote Control Code ........................................ 53

Communications Example ................................. 54

........................................................... 25

Accessories/Optional Accessories

Accessories

Remote control ....................................................................... 1 piece

Getting Started

AAA-size batteries (for operational check) ............................ 2 pieces

Quick User Guide, safety precautions, warranty card, and other printed material are also included.

Be sure to read the “Safety Precautions” before using this projector.

The

contents

in the “Safety Precautions” are for image display equipment in general; items not applicable to this unit

are also included.

Optional Accessories

Replacement lamp: Product no. PK-L2615U

HDR rear projection screen: Product no.: SF-HDR36G2, SF-HDR36N2, SF-HDR36G4, SF-HDR36N4, SF-HDR36G10

Screen Gain

2.4 SF-HDR36G2 SF-HDR36N2

4.8 SF-HDR36G4 SF-HDR36N4

10 SF-HDR36G10 -

HDR rear projection stand: Product no. EF-ST36

Calibration software: Product no. PK-CS1501

Please check with your authorized dealer for details.

Glossy Matte

Screen Type

Names and Functions of Parts

Getting Started

Main Unit - Front

Screen

Air Inlets

The inlets take in air to cool down the internal temperature. Do not

block or prevent the outflow of hot air. Doing so

may cause the unit to malfunction.

Main Unit - Side

Feet

Front Panel

Handles

There are two handles on each side. Be sure to carry this unit using the handles when moving the unit.

Main Unit - Rear

F G

Getting Started

Exhaust vent

Warm air is discharged to cool down the internal temperature. Do not block the vents.

Cable Through-holes

Cables that are connected to the projector inside this

run through the holes to the outside of the unit.

are

unit (Up to five cables including the power cord, HDMI cable (x2), LAN cable and RS-232C cable)

Through-holes for Fall Prevention Wire (at the bottom side)

You are recommended to attach a commercially available fall prevention wire to the unit to prevent it from falling in the event of an earthquake etc. Use these holes to attach the wire.

Remote Control

INPUT

PICTURE MODE

INFO. HIDE

DYN AMIC

SRGB DCI

USER1 USER2 USER3

USER5 USER6

LENS

CONTROL

LENS

MEMORY

RGB

SOLO

RGB

PAR AD E

COLOR

TEMP.

GAMMA

C.GAMU T

DIM.

USER4

BRIGHTNESS

CONTRAST

COLOR

T U V

G H

N O P

Getting Started

C [ON]

Turns on the power. (P.

[STAND BY]

Turns off the power. (P. 18)

[HIDE]

Hides the image temporarily. (P. 18)

[INFO.]

Displays the information menu. (P. 43)

[INPUT]

For selecting an input from [HDMI 1] and [HDMI 2]. (P. 18)

[LENS CONTROL]

For adjusting focus, zoom, and shift. (P. 19)

[LENS MEMORY]

Switches between saving, retrieving, and editing of the lens memory. (P. 20)

[RGB SOLO]

Switches the color component to be projected to “All Colors (Full Colors)”, “Red Component only”, “Green Component only” or “Blue Component only”. (P. 44)

[CONTRAST]

For adjusting the contrast. (P. 33)

[BRIGHTNESS]

For adjusting the brightness. (P. 33)

[COLOR]

For adjusting the color. (P. 34)

[DIM.]

Pressing the button adjusts the brightness to approximately 20 % (depending on the gamma setting). Pressing the button again restores the original brightness. (P. 44)

[LIGHT]

Illuminates the buttons on the remote control.

18)

[JKH I] keys

For selecting an item.

[OK]

Confirms a selected item.

[MENU]

Displays the menu, or hides the menu if it is displayed.

[BACK]

Returns to the previous menu.

[PICTURE MODE]

Switches the Picture mode to [DYNAMIC], [SRGB], [DCI], or [USER1] to [USER6]. (

[GAMMA]

For setting the gamma level. (P. 25)

[COLOR TEMP.]

For setting the color temperature. (P. 33)

[RGB PARADE]

Displays the waveform monitor for red, green, blue and all colors at the bottom of the screen. (P. 44)

[C.GAMUT]

Displays the colors that are not correctly displayed by the projector with the current Picture mode in colors. Colors that are correctly displayed appear in monochrome. (P. 44)

P. 23)

Loading Batteries into the Remote Control

30°

20°

Remote Control

This unit

Remote Sensor (Internal)

Loading the batteries

If the remote control has to be brought closer to the

unit out. Replace the batteries with new ones (AAA).

Insert the batteries according to the t s marks. Be sure to insert the s end first. When removing the battery, do so from the t end.

If an error occurs while using the remote control, remove the batteries and wait for five minutes. Load the batteries again and operate the remote control.

Getting Started

operate, it means that the batteries are wearing

Removing the batteries

CAUTION

Do not put the remote control in a place with an exposure to direct sun light or high temperature. It may deformed due to heat, or the internal components may be adversely affected resulting in fire hazard.

Remove the batteries from the remote control when storing the remote control. Storing the remote control for a prolonged period without removing the batteries can cause battery leakage.

Effective Range of Remote Control Unit

When aiming the remote control toward the front panel of this unit, ensure that the distance to the front panel is within 7 m. If the remote control fails to operate properly, move it closer to the remote sensor.

Installing the Projector

200 mm and above

100 mm and above

It is not necessary to

keep clearance at the

sides.

Exhaust Vent

Air Inlets

Precautions during Installation

Please read the following carefully before installing this unit.

Do not install at the following

This unit is a precision device. Please refrain from installing or

Set up

it may cause fire or malfunction.

Dusty, wet and humid places

Places subject to oily smoke or cigarette smoke (Even a small amount of smoke or oiliness can have a long-term impact on this unit.)

On top of a carpet or bedding, or other soft surfaces

Places exposed to direct sunlight

Places with a high or low temperature

* This unit produces a great amount of heat, and is

designed to take in cool air to cool its optical components. Using the unit at the above locations may cause dirt to attach to the light path, thereby resulting in dark images or dull colors.

Dirt that sticks to the optical components cannot be

removed.

using it at the following locations. Otherwise,

Maintain clearance from the wall, etc.

As the unit discharges a large amount of heat, install it with adequate below.

clearance from the surroundings as shown

Using the projector

You are recommended to attach a commercially available fall falling in the event of an earthquake etc.

(“Main Unit - Rear”P. 11)

prevention wire to the unit to prevent it from

Moving/transporting the unit

Take care not to drop the product when moving and transporting the product. In addition, do not hold the screen as it can come off. Do not lift up the product with the handles if they are defective. To transport this unit, consult your authorized dealer.

Using the projector at a high altitude

When using this unit at a location that is higher than 900 m above sea level (low air pressure), set the “High Altitude Mode” to “On”. (P. 41)

Connecting the Projector

HDMI Output Terminal

Laptop, etc.

HDMI Cable (Sold Separately)

Rear Panel of Main Unit



Desktop PC, etc.

DVI Output Terminal

HDMI-DVI

Adapter

(Sold Separately)

HDMI Cable (Sold Separately)

Rear Panel of Main Unit

Do not turn on the power until connection is complete.

The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected.

unit is used for projecting images. To output the audio of connected devices, please connect a separate audio

This output device, such as an amplifier or speaker.

* The actual cable connection may differ from the cable connection illustrated in the diagram depending on the

condition of the default setting.

Connecting to the HDMI Input Terminal (Digital Input)

Connecting via HDMI cable

If noise occurs, move the laptop away from this unit.

Connecting via an HDMI adapter

Connecting to a DVI output terminal

Set up

Connecting to a DisplayPort terminal



Desktop PC, etc.

DisplayPort Terminal

HDMI - DisplayPort Adapter (Sold Separately)

HDMI Cable (Sold Separately)

Rear Panel of Main Unit

Desktop PC, etc.

Server

Hub

Network

LAN Cable (Sold Separately)

Rear Panel of Main Unit

Set up

If noise occurs, move the desktop PC away from this unit.

If the video is not displayed, try to reduce the length of the cable or lower the resolution of the video transmitting equipment.

Connecting to the LAN Terminal

The network is used to control this unit. It is not used for sending or receiving video signals.

Please contact your network administrator for information concerning the network connection.

For more information on control, please refer to “External Control”P.

51.

Connecting to the RS-232C Terminal

RS-232C Terminal

Laptop, etc.

RS-232C Cable

(Sold Separately)

Rear Panel of Main Unit

Power Cord

Rear Panel of Main Unit

For more information on control, please refer to “External Control”P. 51.

Connecting the Power Cord

Insert the power plug into the wall outlet.

* When the

internal LED which is visible from the air inlets on the front panel of the main unit lights up in orange.

power cord is connected and power is supplied, the

Set up

Precautions to prevent fire and electric shock

The power consumption of this unit is large. Please connect it directly to the wall outlet.

When you are not using the projector, please unplug the power cord from the outlet.

If the use of an extension cord is necessary, use a cord with a current rating higher than that of the power cord of this unit. The current rating of the power cord of this unit is 10 A.

The power supply voltage is AC 100 V to 240 V, 50 Hz/60 Hz. Do not use other voltage.

Do not damage, break or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it. Doing so may damage the power cord.

Do not unplug the power cord with wet hands.

Viewing Videos

INPUT INFO. HIDE

LENS

CONTROL

LENS

MEMORY

RGB

SOLO

DIM.

BRIGHTNESS

CONTRAST

COLOR

Operate

Turn on the power

Press the C [ON] button

Select the image to project

Press the [INPUT] button

Play back the selected device to project the image.

To hide the image temporarily

Press the [HIDE] button

Press the [HIDE] button again to resume display of the image.

The power cannot be turned off when the image is temporarily hidden.

Turn off the power

Press the B [STAND BY] button

While the

“Are you sure you want to turn off?” message is displayed,

press the B [STAND BY] button again.

CAUTION

The power cannot be turned off within approximately 60 seconds after it has been turned on.

After the the lamp (Cool-down mode). Do not disconnect the power cable while cooling is in progress.

The power cannot be turned on again while cooling is in progress (100 seconds).

Pull out the power plug when the unit is not to be used for a prolonged period of time.

light goes off, the fan will run for about 100 seconds to cool down

Adjusting the Projection Screen

Focus

ABCD

Shift (Screen Position)

Adjustment

Zoom (Screen Size)

Adjustment

Focus Adjustment

INPUT

PICTURE MODE

INFO. HIDE

DYNA MIC

SRGB DCI

USER1 USER2 USER3

USER5 USER6

LENS

CONTROL

LENS

MEMORY

RGB

SOLO

RGB

PARA D E

COLOR

TEMP.

GAMMA

C.GAMUT

DIM.

USER4

BRIGHTNESS

CONTRAST

COLOR

Adjusting the Lens According to the Projection Position

Press the [LENS CONTROL] button to select the item to be

adjusted

Pressing the in the following sequence: “Focus” " “Zoom” " “Shift” " “Focus”...

Operation of the lens control feature is disabled when the lens lock is set to “On”. (P.

[LENS CONTROL] or [OK] button each time switches the mode

36)

Operate

keys

Use the [JKH I]

to adjust Focus, Zoom (screen size),

and Shift (screen position)

Use the [JK] keys to adjust Focus and Zoom (screen size), and the [JKH I] keys to adjust Shift (screen position).

Press the [MENU] button once or the [BACK] button four

times to end adjustment

Saving and Retrieving Adjustment Data

BACK

-----

Back

Operate

Select

Exit

Lens Memory Save

Installation

INPUT

PICTURE MODE

INFO. HIDE

DYNA MIC

SRGB DCI

USER1 USER2 USER3

USER5 USER6

LENS

CONTROL

LENS

MEMORY

RGB

SOLO

RGB

PARA D E

COLOR

TEMP.

GAMMA

C.GAMUT

DIM.

USER4

BRIGHTNESS

CONTRAST

COLOR

The Focus, Zoom, and Shift adjustment data can be saved or retrieved, allowing you to easily switch and project images with different aspect ratio (screen size).

Operate

Only default).

Operation of (P. 36)

Saving Adjustment Data

Adjust focus, zoom, or shift (P. 19)

Press the [LENS MEMORY] button twice to display “Lens

Memory Save”

Memory Save” is displayed when no adjustment data is saved (factory

“Lens

the lens control feature is disabled when the lens lock is set to “On”.

You can also press the [MENU] button to display the menu followed by selecting “Installation”"“Lens Control”"“Lens Memory Save”.

Select the item to save, and press the [OK] button

A message prompting you to confirm the saving of the adjustment data appears. Selecting “Yes” saves the adjustment data.

saving the adjustment data, a message prompting you to rename the

Prior adjustment data to be saved appears. Selecting “Yes” allows you to rename the data. (P. 21)

Items with no adjustment data saved are displayed as [----].

you

have selected an item for which the adjustment data has already been

If saved, the old data will be overwritten.

Up to 10 items can be saved.

Press the [MENU] button to exit

Retrieving an adjustment data

BACK

-----

MEMORY2

-----

MEMORY1

Back

Operate

Select

Exit

Lens Memory Select

Installation

BACK

-----

MEMORY2

-----

MEMORY1

Lens Memory Name Edit

Back

Operate

Select

Exit

Installation

MEMORY1

}

{

]

[

)

(

;

SPACE

OKAll ClearClear

Name

Character List

Selection Cursor

Input Cursor

BACK

Back

Operate

Select

Exit

Lens Memory Name Edit

Installation

Press the [LENS MEMORY] button to display “Lens Memory Select”

You can also press the [MENU] button to display the menu followed by selecting “Installation”"“Lens Control”"“Lens Memory Select”.

Select the adjustment data to retrieve, and press the [OK] button

The retrieved data is adjusted automatically.

If no adjustment data has been saved, the item will be grayed out and cannot be selected.

Renaming an adjustment data

Press the [LENS MEMORY] button three times to display “Lens Memory Name Edit”

You can also press the [MENU] button to display the menu followed by selecting “Installation”"“Lens Control”"“Lens Memory Name Edit”.

Select the adjustment data to edit, and press the [OK] button

An edit screen appears.

You can input up to 10 characters.

Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.

Pressing the [Back] button cancels the content that is currently being edited, and exits the edit mode.

Operate

After renaming, select “OK” and press the [OK] button

A message prompting you to confirm the change appears. Selecting “Yes” changes the data name.

Press the [MENU] button to exit

Adjusting the Screen Size (Aspect)

BACK

16:9

Auto

Progressive

Mask

Aspect

Color Space

Input Level

Input Signal

YCbCr (4:4:4)

0-255 (PC)

Back

Operate

Select

Exit

Zoom

16:9

4:3

2.35:1

(Cinema

Scope)

Setting

Input Image

Output Image

1280×1024

Full

Just

Auto

Setting

Output Image

Input Image

The screen size of the projected image can be adjusted optimally according to the original screen size (aspect) that has been input.

Press the [MENU] button to display

the menu

Select “Input Signal” " “Aspect” in

menu, then select the setting and press [OK]

Operate

Setting Description

4:3 Sets the screen size to 4:3. For

HD signals, the two sides are reduced.

16:9 Sets the screen size to 16:9.

For SD signals, the two sides are expanded.

Zoom Enlarges the entire image.

* Not selectable

in the case of

HD signals.

Auto Positions the image at the

center with the entire image enlarged.

Just Displays the input image in the

actual size.

Full Fills the entire screen with the

image with

the size (aspect) of

the input image ignored.

This item is grayed out and cannot be adjusted when there is no signal, signal is out of range, or when detecting the input.

Displayed only during video signal input.

Displayed only during PC signal input.

Example of input image and screen size

HDMI Signal Input

the

PC Signal Input

Press the [MENU] button to exit

Adjusting the Image Quality

INPUT

PICTURE MODE

INFO. HIDE

DYNA MIC

SRGB DCI

USER1 USER2 USER3

USER5 USER6

LENS

CONTROL

LENS

MEMORY

RGB

SOLO

RGB

PARA D E

COLOR

TEMP.

GAMMA

C.GAMUT

DIM.

USER4

BRIGHTNESS

CONTRAST

COLOR

Setting the Picture Mode

You can set the image quality according to the type of video image to be projected.

Press the button corresponding to the “Picture Mode” of the

[PICTURE MODE] you want to set, and set the “Picture Mode”

You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting “Picture Adjust”"“Picture Mode”.

Button Setting Description

[DYNAMIC] Dynamic Disables color space adjustment.

[SRGB] sRGB / REC709 Picture mode that has been set to sRGB /

[DCI] DCI*1 Picture mode with the color space set to

[USER1] to [USER6]

*1 DCI is the abbreviation for Digital Cinema Initiatives.

*2 The color gamut, gamma and color temperature can be configured using a

calibration software (optional accessory). Please check with your authorized dealer for details.

User 1 to User 6 *2 Enables user-defined image quality data

REC709 standard.

“DCI P3” and the gamma set to “2.2”.

to be saved and retrieved.

Adjust/Set

Adjusting to the Preferred Color (Color Management)

BACK

HIDE

Back

Operate

Select

Exit

Red

Before

Brightness

Saturation

Hue

Axis Position

Color Selection

Color Management

Picture Adjust

Reset

Off

BACK

HIDE

MagentaBlue

Cyan

Green Yellow

Red

Clockwise rotation: -

Counterclockwise rotation: +

Axis Position (Image)

Adjustable range when Red is selected: ± 30° with Red as the center

Back

Operate

Select

Exit

Red

Before

Reset

Brightness

Saturation

Hue

Axis Position

Color Selection

Color Management

Picture Adjust

You can adjust each of the following colors according to your preference: Red, Yellow, Green, Cyan, Blue, and Magenta.

Press the [MENU] button to display the menu, select “Picture Adjust”"“Color

Management” and set “Color Management” to “On”

Adjust to the preferred color

Select “Color Selection”, and press the H I select the color to adjust

For color adjustment, select the color from the following: “Magenta”.

Adjust the selected color

Adjust/Set

Item

Axis Position -30 to 30 Fine-tune the position

Hue -30 to 30 Adjusts the hue (color

Saturation -30 to 30 Adjusts the color

Brightness -30 to 30 Adjusts the

Selecting “Reset” resets all the adjustment data.

Pressing enables you to check the image before adjustment. Press the [HIDE] button again to return to the adjustment screen.

“Yellow”, “Green”, “Cyan”, “Blue”,

“Red”,

Setting Range

Description

of the central axis of the selected color.

tone).

saturation (vividness).

-30 (dull) to +30 (vivid)

the

[HIDE] button on the remote control

brightness.

-30 (dark) to +30 (bright)

keys to

Press the [MENU] button to exit

Adjusting the Output Value of the Projected Image (Gamma)

PICTURE MODE

DYNAMI C

SRGB DCI

USER1 USER2 USER3

USER5 USER6

RGB

PARA DE

COLOR

TEMP.

GAMMA

C.GAMUT

USER4

GAMMA

BACK

Back

Operate

Select

Exit

White

2.2

Custom 1

Reset

Bright Level

Dark Level

Picture Tone

Color Selection

Correction Value

Gamma

Picture Adjust

Gamma

You can adjust the output value of the projected image with respect to the video signal input.

Press the [GAMMA] button

Pressing the [GAMMA] button each time switches the setting in sequence.

You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting “Picture Adjust”"“Gamma”.

Setting Description

Normal Gamma value of “2.2”.

Custom 1 to Custom 3 Enables fine adjustment of gamma according to preference.

Fine-tuning to the Preferred Gamma Setting

You can perform fine adjustments based on the selected gamma adjustment setting.

Press the [MENU] button to display the menu, select “Picture Adjust”"“Gamma”

and

set “Gamma” to one of the “Custom 1” to “Custom 3” setting

Adjust to the preferred setting

Item Description Setting

Correction Value For selecting a gamma setting as the adjustment origin. 1.0 / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 / 3.0 / Import

Color Selection For selecting the color for adjusting “Picture Tone”, “Dark

Level” and “Bright Level”.

Picture Tone Adjusts the overall brightness automatically for a well-

balanced result without compromising the gradation of the image.

Dark Level Adjusts the dark areas of the input image. (White / Red /

Green / Blue can be adjusted individually.)

To do so, use the H I keys to move the cursor.

Bright Level Adjusts the bright areas of the input image. (White / Red /

Green / Blue can be adjusted individually.)

To do so, use the H I keys to move the cursor.

* Adjustment cannot be made when the input signal is set to “3840x1080 60/59.94”.

1 / Import 2 / Import 3

White / Red / Green / Blue

-16 (darkens image for an underexposed effect)

to +16 (brightens

image for an overexposed effect)

-7 (darkens the shadows) to +7 (brightens the shadows)

-7 (darkens the highlights) to +7 (brightens the highlights)

Adjust/Set

Selecting the Default Value for Making Adjustments

0 255

255

D”

Gamma Curve

Input Value

Output Value

Dark

Bright

When one of “Custom 1” to “Custom 3” is selected in “Gamma”, you can select a “Correction Value”.

Select “Correction Value”, and press the H I keys to select a correction value (setting value) as a base value for adjustment.

Setting

1.0, 1.8, 2.0, 2.2, 2.4, 2.6, 3.0, Import 1, Import 2, Import 3,

The smaller the value, the brighter the dark areas of the image will become. At the same time, the bright areas will appear blown out.

Selecting “Import 1”, “Import 2” or “Import 3” enables you to select the gamma data created externally. The factory setting for “Import” is the same as the “Normal” setting.

You can use the calibration software (sold separately) to customize the gamma data adjustment, and import the created gamma data.

Please check with your authorized dealer for details.

Gamma Adjustment

When the gamma curve is a straight line: The brightness and contrast of the video input will be the same as that of the video output.

Area for which the gamma curve is above the straight line (A): Video output appears brighter than the input.

Area for which the gamma curve is below the straight line (B): Video output appears darker than the input.

Adjust/Set

Area for which the slope of the gamma curve is steep (midtone) (C): The grayscale range of the video output becomes wider, and the contrast increases (D"D’).

Reducing the After-image of Fast-moving Images (Blur Reduction)

Intermediate Frame GenerationIntermediate Frame Generation

Interpolation Enabled

Original Image

Clear Motion Drive (C.M.D.)

Optimal interpolation according to the content is made possible with the new high-definition image interpolation technique. For some scenes, interpolation may cause distortion in the image. In this case, set to “Off”.

Press the [MENU] button to display the menu and select “Picture Adjust”"“Blur

Reduction”"“Clear Motion Drive”

Setting Description

Off Interpolation is not performed.

On Softens the image quality.

Adjust/Set

Press the [MENU] button to exit

Motion Enhance

Optimal image quality with reduced image blurring is made possible by enhancing the responsiveness of the liquid crystal device. If the image outline is unnatural, set this item to “Off”.

Press the [MENU] button to display the menu and select “Picture Adjust”"“Blur

Reduction”"“Motion Enhance”

Setting Description

Off Does not perform correction.

Low Reduces image blurring.

High Further reduces image blurring than “Low”.

Press the [MENU] button to exit

Adjusting the Contrast (Lens Aperture)

You can adjust the contrast according to your preference.

Press the [MENU] button to display the menu, select “Picture Adjust”"“Picture Mode”

to select the picture mode to be adjusted

Select “Lens Aperture” and use the [H I] keys to move the slider to adjust the lens

aperture

Press the [MENU] button to exit

Adjust/Set

Correcting Uneven Illumination (Uniformity Correction)

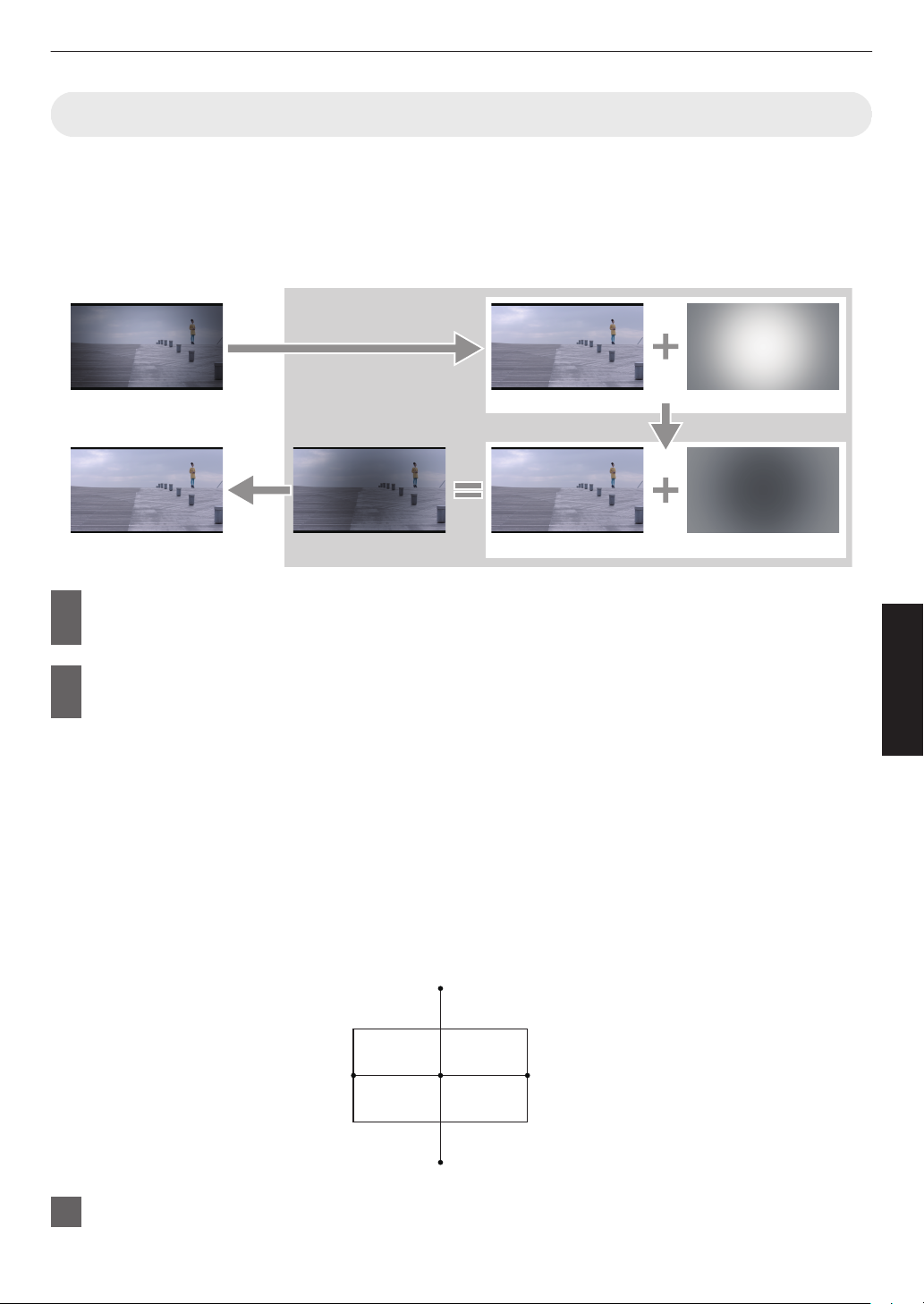

Correction Data for Uneven Illumination

Uneven Illumination

Original Data

Corrected DataAfter Correction

Before Correction

(0, 0) (0, 8)(0, -8)

(8, 0)

(-8, 0)

Screen

You can correct the brightness degradation at the periphery of the screen due to the effect of the screen and viewing distance.

Depending on the video input, the periphery of the image may appear slightly blurred due to digital processing.

This feature is disabled when “Picture Mode” is set to “Dynamic”.

Image of Correction

Press the [MENU] button to display the menu, select “Installation”"“Uniformity

Correction” and set to “On”

Adjust/Set

Select “Gain Adjustment” and “Viewing Position” to adjust the extent of uniformity

correction and the viewing position respectively

Gain Adjustment

For setting the extent of uniformity correction. Increasing the correction value further corrects the brightness degradation at the periphery.

The correction value varies depending on the screen type and viewing distance. Set to an appropriate configuration while looking at the actual screen.

Setting range: 0 to 15

Viewing Position

For setting the viewing position for uniformity correction. The configuration (0, 0) indicates that the viewing position is at the center of the screen.

Setting Value: -8 to 8 (vertical), -8 to 8 (horizontal)

Press the [MENU] button to exit

Adjustments and Settings in the Menu

Pressing the [MENU] button displays the menu. Press the [JKH I] keys to select an item, followed by pressing the [OK] button to confirm the selection.

List of Menu Items

Picture Adjust

I Picture Mode ................................................................................................................................................... P.

9 Sharpness .................................................................................................................................................. P. 32

9 Lamp Power ............................................................................................................................................... P. 32

9 Lens Aperture ............................................................................................................................................. P. 32

9 User Name Edit .......................................................................................................................................... P. 32

I Color Management .......................................................................................................................................... P. 32

I Color Temp. ..................................................................................................................................................... P. 33

9 Correction Value ......................................................................................................................................... P. 33

9 Gain Red / Gain Green / Gain Blue .............................................................................................................. P. 33

9 Offset Red / Offset Green / Offset Blue ....................................................................................................... P. 33

I Gamma ............................................................................................................................................................ P. 33

9 Picture Tone ............................................................................................................................................... P. 33

9 Dark Level / Bright Level ............................................................................................................................. P. 33

I Blur Reduction ................................................................................................................................................. P. 33

I Contrast ........................................................................................................................................................... P. 33

I Brightness ....................................................................................................................................................... P. 33

Adjust/Set

I Color ................................................................................................................................................................ P. 34

I Tint .................................................................................................................................................................. P. 34

Input Signal

I Input Level .......................................................................................................................................................

I Color Space ..................................................................................................................................................... P. 34

I Aspect ............................................................................................................................................................. P. 35

I Progressive ...................................................................................................................................................... P. 35

I Mask ................................................................................................................................................................ P. 35

Installation

I Lens Control .................................................................................................................................................... P.

9 Focus / Zoom / Shift .................................................................................................................................... P. 36

9 Image Pattern ............................................................................................................................................. P. 36

9 Lock ........................................................................................................................................................... P. 36

9 Lens Memory Select / Lens Memory Save / Lens Memory Name Edit ........................................................ P. 36

I Pixel Adjust ...................................................................................................................................................... P. 37

9 Adjust ......................................................................................................................................................... P. 37

9 Adjust Area ................................................................................................................................................. P. 37

9 Adjust Color ................................................................................................................................................ P. 37

9 Adjust Pattern Color ................................................................................................................................... P. 37

9 Adjust (Pixel) .............................................................................................................................................. P. 37

9 Adjust (Fine) ............................................................................................................................................... P. 37

9 Reset .......................................................................................................................................................... P. 37

I High Altitude Mode .......................................................................................................................................... P. 41

I Uniformity Correction ....................................................................................................................................... P. 41

9 Gain Adjustment ......................................................................................................................................... P. 41

9 Viewing Position ......................................................................................................................................... P. 41

Display Setup

I Back Color ....................................................................................................................................................... P.

I Menu Position .................................................................................................................................................. P. 41

I Signal Display .................................................................................................................................................. P. 41

I Logo ................................................................................................................................................................ P. 41

I Language ........................................................................................................................................................ P. 41

Function

I Network ........................................................................................................................................................... P.

I Remote Code .................................................................................................................................................. P. 42

I Lamp Reset ..................................................................................................................................................... P. 42

Adjust/Set

Information

I Information ....................................................................................................................................................... P.

Picture Adjust

BACK

User 1

}

{

]

[

)

(

;

SPACE

Name

After entry is complete, select “OK” and press the [OK] button

Selection Cursor

Input Cursor

Back

Operate

Select

Exit

OKAll ClearClear

User Name Edit

Picture Adjust

Picture Mode

You can adjust the image quality according to the type of video image you are viewing.

Æ “Setting the Picture Mode” (P. 23

Sharpness

The sharpness of the image can be adjusted.

Setting: 0 (low sharpness) to 50 (high sharpness)

Lamp Power

The brightness of the lamp can be set to “Low” or “High”.

Using this unit with the brightness set to “Low” prolongs the lamp life.

Lens Aperture

You can adjust the contrast according to your preference.

Æ “Adjusting the Contrast (Lens Aperture)” (P. 28)

Stopping down the aperture reduces the brightness and increases the contrast.

Setting range: -15 (stops down) to 0 (opens up)

User Name Edit

You can edit the “User 1” to “User 6” names in the Picture mode.

Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.

Adjust/Set

Enter not more than 10 characters.

)

Color Management

Each of the colors is adjustable according to the user’s preference.

Æ “Adjusting to the Preferred Color (Color Management)” (P. 24)

Color Temp.

For setting the color temperature of the video image.

Setting Description

5500K, 6500K, 7500K, 9300K Increasing the value enhances the blue tone of the video image, while

decreasing the value enhances the red tone.

Custom 1 to Custom 3 The color temperature of video images can be adjusted manually and

saved as one of the three customized settings.

High Bright Color temperature that gives priority to brightness.

When “Picture Mode” is set to “Dynamic”, the setting is fixed at “High Bright”.

Correction Value

For setting the base color temperature for the adjustment of “Gain Red” / “Gain Green” / “Gain Blue” / “Offset Red” / “Offset Green” / “Offset Blue” when one of the “Custom 1” to “Custom 3” setting is selected in “Color Temp.”.

Gain Red / Gain Green / Gain Blue

Adjusts each color in the bright parts of the video image.

Setting range: -255 (reduces the red/green/blue tone) to 0 (no adjustment)

Offset Red / Offset Green / Offset Blue

Adjusts each color in the dark areas of the video image.

Setting

-50 (reduces the red/green/blue tone) to 0 (no adjustment) to +50 (enhances the red/green/blue tone)

range:

Gamma

You can adjust the output value of the projected image with respect to the video signal input.

Æ “Adjusting the Output Value of the Projected Image (Gamma)” (P. 25

)

Adjust/Set

Picture Tone

Adjusts the overall brightness automatically for a well-balanced result without compromising the gradation of the image.

Æ “Fine-tuning to the Preferred Gamma Setting” (P. 25)

Dark Level / Bright Level

You can adjust the image quality to produce a sharp contrast in the brightness.

Æ “Fine-tuning to the Preferred Gamma Setting” (P. 25)

Blur Reduction

For reducing the after-image, which occurs in a fast-moving scene.

Æ “Reducing the After-image of Fast-moving Images (Blur Reduction)” (P. 27

)

Contrast

For adjusting the difference in brightness to produce an image with contrast.

Setting range: -50 (little difference in brightness) to +50 (large difference in brightness)

Brightness

For adjusting the brightness of the video image.

Setting range: -50 (darker) to +50 (brighter)

Color

For adjusting the color density of the video image.

Setting range: -50 (lighter) to +50 (deeper)

Tint

For adjusting the hue of the video image.

Setting range: -50 (reddish) to +50 (greenish)

Input Signal

Input Level

For setting the dynamic range (gradation) of the video input.

If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed.

Setting Description

0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255).

16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235).

Color Space

Adjust/Set

For setting the color space of the input signal.

Setting Description

YCbCr (4:4:4) Select this setting when inputting YCbCr (4:4:4) video signals.

YCbCr (4:2:2) Select this setting when inputting YCbCr (4:2:2) video signals.

RGB Select this setting when inputting RGB video signals.

Aspect

Mask: black strip around the periphery

Off

On (Custom 1 to Custom 3)

The screen size of the projected image can be adjusted optimally according to the original screen size (aspect) that has been input.

Æ “Adjusting the Screen Size (Aspect)” (P. 22

)

Progressive

For setting the interpolation method for the interlaced signals. If the image outline is unnatural, set this item to “Off”.

Setting Description

Auto Performs interpolation by automatically detecting whether the interlaced signals

are converted from 24p video images or interlaced signals of video materials.

Off Interpolates video images as interlaced signals of video materials, etc.

Mask

For hiding the peripheral area of the image with a mask (black strip).

Setting Description

Off Not masked.

Custom 1 to Custom 3 Masks about 0 to 220 pixels of the four sides of the

image.

* The pixel count is 1920 pixels in the horizontal

direction and 1080 pixels in the vertical direction.

Adjust/Set

Installation

Lens Control

Focus / Zoom / Shift

For adjusting the lens according to the projection position.

Æ “Adjusting the Lens According to the Projection Position” (P. 19)

Image Pattern

For setting whether to display the lens adjustment pattern.

Setting Description

On Displays the lens adjustment pattern.

Off Displays external signals, and does not display the lens adjustment pattern.

Lock

For setting whether to lock or unlock the lens. Setting to “On” to lock the lens allows you to preserve the adjustment status of the lens.

Setting Description

On Locks the lens to prevent any erroneous operation on the adjustments.

Off Does not lock the lens.

Adjust/Set

When “On” is selected, all lens control functions other than “Lens Memory Select” cannot be operated.

Lens Memory Select / Lens Memory Save / Lens Memory Name Edit

The Focus, Zoom, and Shift adjustment data can be saved or retrieved, allowing you to easily switch and project images with different aspect ratio (screen size).

Æ “Saving and Retrieving Adjustment Data” (P. 20)

Pixel Adjust

For correcting the phase shifting between each RGB color by adjusting the pixel.

Adjust

For setting the adjustment feature to On or Off.

Adjust Area

Setting Description

Whole Adjusts the entire image.

Zone Enables fine adjustment of each area by dividing the screen evenly into 10 vertical

and horizontal zones.

Adjust Color

For selecting the color to adjust (“Red” or “Blue”).

Adjust Pattern Color

For setting the color of the adjustment pattern displayed during adjustment to “White” or “Yellow / Cyan”.

Adjust (Pixel)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of one pixel on the screen of the color selected in “Adjust Color”.

Æ “Whole Adjust (Pixel) Operation Procedure” (P.

Adjustment cannot be made when “Adjust Area” is set to “Zone”.

38)

Setting Description

H (Horizontal) Setting range: -2 (moves red/blue to the left) to +2 (moves red/blue to the right)

V (Vertical) Setting range: -2 (moves red/blue downward) to +2 (moves red/blue upward)

Adjust (Fine)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of 1/16 pixel on the screen of the color selected in “Adjust Color”.

Æ “Whole Adjust (Fine) Operation Procedure” (P. 39

When “Adjust Area” is set to “Zone”, the screen is divided evenly into 10 vertical and horizontal zones, and fine adjustment of each area is possible.

Æ “Zone Adjust Operation Procedure” (P. 40)

Setting Description

H (Horizontal) Setting range: -31 (moves red/blue to the left) to +31 (moves red/blue to the right)

V (Vertical) Setting range: -31 (moves red/blue downward) to +31 (moves red/blue upward)

)

Reset

Restores all pixel adjustment data to the factory default.

Adjust/Set

Whole Adjust (Pixel) Operation Procedure

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P.

RGB

A. Area

C.GAMUT

TEMP PARADE

H 0 V 0

Red

Pixel Adjust

Back

Operate

Select

Whole Adjust (Pixel)

V (Vertical)

H (Horizontal)

Adjustment (Pixel) Window

Adjustment Pattern

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P.

RGB

A. Area

C.GAMUT

TEMP PARADE

H 0

V 0

Red

Pixel Adjust

Back

Operate

Select

Whole Adjust (Pixel)

Remote Control Operation Guide

Color for Adjustment

Pixel Adjustment Setting

For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.

Set “Adjust Area” to “Whole”

Select “Adjust Color” and “Adjust Pattern Color”

Select “Adjust (Pixel)”, and press the [OK] button

The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are displayed.

Use the [JKH I] keys to move and adjust the vertical and horizontal pixels of the entire zone

The adjustment setting appears at the center of the Adjustment (Pixel) window.

Adjust/Set

After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

Remote Control Operation Guide

Button Name Function Description of Operation

[GAMMA] Color A. Changes “Adjust Color”.

[COLOR TEMP.] Adjust Switches between “Adjust (Pixel)” and “Adjust (Fine)”.

Switches to “Adjust (Pixel)” when “Adjust Area” is set to “Zone”.

[RGB PARADE] Color P. Changes “Adjust Pattern Color”.

[C.GAMUT] A. Area Switches “Adjust Area”.

A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.

Whole Adjust (Fine) Operation Procedure

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P. A. Area

TEMP

0 ( 0 / 0 ) 0 ( 0 / 0 )

Red

Whole Adjust (Fine)

Pixel Adjust

Back

Operate

Select

V (Vertical)

H (Horizontal)

Fine Window

Adjustment Pattern

RGB

C.GAMUT

PARADE

H −20 （−20 / −20） V 5 （ 5 / 5）

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P. A. Area

TEMP

0 ( 0 / 0 ) 0 ( 0 / 0 )

Red

Whole Adjust (Fine)

Pixel Adjust

Indicates the maximum and minimum misalignment value of the entire screen.(Max. / Min.)

Adjustment Setting

Remote Control Operation Guide

Color for Adjustment

Pixel Adjustment Setting

Back

Operate

Select

RGB

C.GAMUT

PAR A DE

For making general adjustments on the misalignment of the entire screen using “Adjust (Pixel)”, followed by making fine adjustments.

Set “Adjust Area” to “Whole”

Select “Adjust Color” and “Adjust Pattern Color”

Select Adjust (Fine), and press the [OK] button

The Adjustment mode is activated, and the selected adjustment pattern and Fine window are displayed.

The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

Use the [JKH I] keys to move and adjust the vertical and horizontal pixels of the entire zone

The adjustment setting appears at the center of the Fine window.

Adjust/Set

After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

MEMO

If both the maximum overall screen misalignment of H (horizontal direction) and V (vertical direction) are “31”, you cannot select a value that is larger than the displayed setting even when the adjustment setting is lower than the maximum value.

If the minimum overall screen misalignment is “-31”, you cannot select a value that is smaller than the displayed setting even when the adjustment setting is higher than the minimum value.

Zone Adjust Operation Procedure

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P. A. Area

TEMP

0 / 0

Position

Red

Zone Adjust

Pixel Adjust

V (Vertical)

H (Horizontal)

Zone Adjustment Window

Zone Cursor

Adjustment Pattern

Back

Operate

Select

RGB

C.GAMUT

PARAD E

H −31 V 7

Color A.

GAMMA

BACK

Adjust.

COLOR

Color P. A. Area

TEMP

0 / 0

8 / 5

Position

Red

Zone Adjust

Pixel Adjust

Position

Adjustment Setting

Cursor Position

Remote Control Operation Guide

Color for Adjustment

Pixel Adjustment Setting

Back

Operate

Select

RGB

C.GAMUT

PAR A DE

For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust (Pixel)” and “Adjust (Fine)”.

The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.

Set “Adjust Area” to “Zone”

Select “Adjust Color” and “Adjust Pattern Color”

Select Adjust (Fine), and press the [OK] button

Adjustment

The

The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

Adjust/Set

Press the [JKH I] keys to move the cursor to the point to be adjusted

Press the [OK] button to enter the Adjustment mode

Use the [JKH I] keys to move and adjust the vertical and horizontal pixels of the entire zone

The adjustment setting appears at the center of the Zone Adjustment window.

mode is activated, and the selected adjustment pattern and Zone Adjustment window are displayed.

After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

High Altitude Mode

For setting the high altitude mode to “On” or “Off”.

Set to “On” when using the projector at a location of low atmospheric pressure (higher than 900 m above sea level).

Uniformity Correction

For correcting the brightness degradation at the periphery of the screen due to the effect of the screen and viewing distance.

Æ “Correcting Uneven Illumination (Uniformity Correction)” (P. 29)

Gain Adjustment

For setting the extent of uniformity correction.

Viewing Position

For setting the viewing position for uniformity correction.

Display Setup

Back Color

For setting the color of the background to “Blue” or “Black” when there is no signal input.

It is recommended to set to “Blue” when there is no signal input as it can be difficult to confirm the on/off status of the power.

Menu Position

For setting the display position of the menu to the “top left” or “top right” position.

Signal Display

For setting the display of the input information to “On” or “Off”.

Setting Description

On Shows the input terminal for 5 seconds when input is switched.

Off Not displayed.

Logo

For setting the display of logo during startup to “On” or “Off”.

Setting Description

On Displays the “D-ILA” logo for 5 seconds during startup.

Off Not displayed.

Language

For setting the display language to “日本語”, “English”, “Deutsch”, “Español”, “Italiano”, or “Français”.

Adjust/Set

Function

Network

For specifying the settings for external control from a PC or smartphone.

Setting Description

DHCP Client On Obtains the IP address automatically from the DHCP server inside the connected

network.

Off For configuring the network settings manually.

IP Address For configuring the IP address.

Subnet Mask For configuring the subnet mask.

Default Gateway For configuring the default gateway.

MAC Address Displays the MAC address of the unit.

Set Applies the network settings.

Glossary of Network Terminology

DHCP :

IP Address : Numeric characters for identifying the device that is connected to the network. Subnet Mask : Numeric characters that define the bit count used for the network address that is a

Adjust/Set

Default Gateway : Server for communicating beyond the network that is divided by the subnet mask. MAC Address : Abbreviation for Media Access Control address. This is a number that is unique to each

Abbreviation for Dynamic Host Configuration Protocol. This is a protocol for the network to assign an IP address automatically to the connected device.

segment of the IP address.

network adapter. Each of the network adapters is assigned with a unique MAC address.

Remote Code

For changing the remote control code.

Setting Description

A Change the remote control code from “B” to “A”.

B Change the remote control code from “A” to “B”.

You need to configure the remote control according to the settings of this unit. On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to switch the code.

The backlight of the remote control blinks 3 times: change the remote control code to “A”

The backlight of the remote control blinks 2 times: change the remote control code to “B”

Lamp Reset

For resetting the lamp time to “0”.

Reset the lamp time only when you have replaced the lamp. Request your authorized dealer to help with the lamp replacement.

Information

Setting Description

Input Displays video input terminal.

Source (Displayed only during video signal input)

Resolution (Displayed only during PC signal input)

H Frequency (Displayed only during PC signal input)

V Frequency (Displayed only during PC signal input)

Deep Color Displays the color bit depth of the input video signal.

Color Space Displays the color space of the input signal.

Lamp Time Displays the lamp time.

Soft Ver. Displays the firmware version.

PS Ver. Displays the version of image quality data.

Displays the input source.

Displays the image resolution.

Displays the horizontal frequency.

Displays the vertical frequency.

Not displayed when YCbCr (4:2:2) is input.

Displayed when Deep Color information is received from the source device.

Adjust/Set

Other Adjustments and Settings

100%

75%

50%

25%

Bottom Dashed Line: 16 (8 bit)

Top Dashed Line: 235 (8 bit)

For checking the input level.

Waveform Monitor

RGB Solo

For displaying the RGB component individually. Pressing the [RGB SOLO] button on the remote control switches the color component as follows. “All Color” " “Red Component only” " “Green Component only” " “Blue Component only” " “All Color”...

RGB Parade

Pressing the [RGB PARADE] button on the remote control displays the waveform monitor for red, green, blue and all colors at the bottom of the screen. Pressing the button again restores the original display.

Adjust/Set

Color Gamut Assist

Pressing the [C.GAMUT] button on the remote control displays the colors that are not correctly displayed by the projector with the current Picture mode in colors. Colors that are correctly displayed appear in monochrome. Pressing the button again restores the original display.

* This feature is disabled when “Picture Mode” is set to “Dynamic”.

Dim

Pressing the [DIM.] button on the remote control adjusts the brightness to approximately 20 % (depending on the gamma setting). Pressing the button again restores the original brightness.

Mounting/Dismounting the Screen

Bending Area

Main Unit - Top Surface of Frame

Screen Frame

(Same for both sides)

Light Shielding Sponge

Main Unit Lower Frame Plate

Screen Frame

(Same for both sides)

The screen that comes with the main unit can be replaced with an optional screen. Refer to the catalog for the types of optional screens available.

CAUTION

Before replacing the screen, be sure to turn off the power or press the [HIDE] button on the remote control to hide the image.

When dismounting the screen, take care not to touch the parts inside the main unit such as the mirror. This could cause significant deterioration in the performance of the equipment.

Hold at the frame when carrying the screen. Avoid touching the screen surface. Failure to do so may cause the screen to become dirty.

Avoid applying pressure to the screen. Failure to do so may result in deformation and damage.

Mounting the Screen

Insert the two pins inside the top surface of the screen frame into the holes on the top

surface of the frame of the main unit

Place the top edge of the screen frame on the top of the main unit.

Bring the bending area inside the screen frame to the front side of the frame of the main unit.

Do not place on top of the main unit.

Insert the pin of the screen frame into the hole on the top surface of the frame of the main unit. (Both sides)

Insert the two pins on the inner side of the bottom of the screen frame into the holes on

the lower frame plate of the main unit

Insert the pins by pushing the lower side of the screen frame.

Mount in such a way that the light shielding sponges affixed on the side panels of the main unit are on the inside of the screen frame.

Make sure the screen frame is fully inserted and fitted. (Both sides)

Maintenance

Dismounting the Screen

CAB

Magnetic Catch

Hole

Square Hole

Screen Frame

Center of Rotation

Light Shielding Sponge

The top of the screen frame is secured by inserting the two pins inside its top surface into the two square holes on top of the main unit.

The bottom of the screen frame is held by the magnetic force of the three magnetic catches attached inside the main unit. And there are light shielding sponges between the inside of the sides of the screen frame and the outside of the sides of the main unit which will create some resistance when pulling out the bottom of the screen frame.

It is not necessary to remove the screws on the top, bottom and sides of the screen frame.

Pull the bottom of the screen frame out to disengage from the magnets

Slide the screen frame upward until the two pins inside its top surface are pulled out of the square holes on top of the main unit

Remove the screen towards yourself

Cleaning the Screen

Maintenance

When the screen is dirty, wipe gently with a soft cloth (flannel cloth recommended).

If the screen is very dirty, wipe with a soft cloth dampened with isopropyl alcohol.

Take note that rubbing the screen too hard can cause scratches.

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points. The following symptoms are not malfunctions.

You do not need to worry about the following symptoms if there is no abnormality on the screen.

The side and rear surface of the main unit is partially hot.

A creaking sound is heard from the unit.

An operating sound is heard from the inside of the unit.

Color smear occurs on some screens.

This unit is a digital device. This unit may become unable to operate normally due to external static or noise. Perform the following operations when such malfunctions occur.

During Standby mode (the power plug is inserted into the outlet, but the power is not turned on), pull out the power plug and then insert it again

Press the C [ON] button on the remote control to turn on the power again

Power is not supplied

Check Action Refer to

Is the power cord disconnected? Insert the power cord (plug) firmly. P. 17

Is the lamp in the Cool-down mode? After exiting the Cool-down mode, turn on the power again. P. 18

Power shuts down automatically

Check Action Refer to

Are the air inlets and exhaust vent blocked?

Leave proper clearance when installing the unit. P. 10, 11

P. 14

Video image does not appear

Check Action Refer to

Is the power turned on? Check that the power is turned on. P. 18

Is the correct external input selected? Select the correct external input terminal. P. 18

Is the power of the AV device or PC turned on?

Is the AV device or PC properly connected?

Are the correct signals being output from the AV device or PC?

Is the cable in use an HDMI-certified cable?

Is an intermediate device (AV amplifier, divider, etc.) in use?

Is an old source device in use? Change the resolution setting of the source device. For

Is the video image temporarily hidden? Press the [HIDE] button P. 18

Is the image adjusted to the bottom position using the lens shift function?

Turn on the power of the AV device or PC and play the video.

Connect the AV device or PC properly. P. 15

Set the AV device or PC properly. P. 15

Use an HDMI-certified high-speed cable. Also, use as short a cable as possible.

Change the sequence of turning on the source device, intermediate device, ensure that the signal output is stable before turning on the next device.

details on how to change the setting, please refer to the instruction manual of the source device.

Return the lens shift to an appropriate position. P. 19

device

and this unit. And after turning on each

P. 15

Troubleshooting

—

Video image looks unnatural

Colors are unnatural

Check Action Refer to

Is the color space of the input signal correctly set?

Is the image correctly adjusted? Adjust “Color” and “Tint” accordingly. P. 34

Is the AV device or PC properly connected?

* The video image may appear slightly reddish immediately after starting up. This is not a malfunction.

The color may turn out unnatural when the input signal is different from the setting of this unit. Set the “Color Space” for “Input Signal” correctly.

Connect the AV device or PC properly. P. 15

P. 34

Video image is fuzzy

Check Action Refer to

Is the focus correctly adjusted? Adjust the focus. P. 19

Projected image is dark

Check Action Refer to

Is the lamp near exhaustion? Check the lamp time in the “Information” menu. Replace

Is the lens aperture closed? Adjust the “Lens Aperture”. P. 28

Is “Lamp Power” set to “Low”? Set “Lamp Power” to “High” P. 32

with

new lamp unit as soon as possible when the lamp is

a near exhaustion. To replace the lamp, consult your authorized dealer.

P. 43

Video images are missing

Check Action Refer to

Has screen mask been configured? Set “Mask” to “Off”. P. 35

Troubleshooting

Remote control does not work

Check Action Refer to

Are the batteries correctly loaded? Match the polarities (t s) correctly when loading the

batteries.

Are the batteries exhausted? Replace with new batteries. P. 13

Is there an obstructing object between the remote control and remote sensor?

Is the remote control held too far away from the unit?

Remove any obstructing object. P. 13

Hold the remote control closer to the sensor during use. P. 13

P. 13

Noise is heard

Check Action Refer to

Is the exhaust vent blocked? Is the unit used near a heater or airconditioner?

Is “High Altitude Mode” set to “On”? Check the “High Altitude Mode” setting.

Check the installation condition of the unit. When the surrounding temperature of this unit is high, the fan revolution hence a louder operating sound.

If “High Altitude Mode” is set to “On”, the fan spins at a higher speed and produces a sound louder than usual.

speed increases to protect the projector unit,

P. 14

P. 41

There are small black or colored dots on the screen

The D-ILA device is manufactured using high-precision technologies, but there may be some (less than 0.01%) missing pixels or pixels that remain permanently lit. This is not a malfunction.

Troubleshooting

When the Following Messages Appear...

No Input

HDMI-1

BACK

Back

Lamp replacement

Message Description Action

No device is connected to the input

terminal.

The input terminal is connected but

Input the video signals.

there is no signal.

A video signal that cannot be used with

this unit has been input (The names of

Input video signals that can be used.

56)

(P. input terminals such as “HDMI-1” and “HDMI-2” will be displayed in yellow).

Indicates that the lamp needs to be replaced soon.

clear

To button on the remote control.

the message, press the [BACK]

Replace with a new lamp unit as soon as

possible. To replace the lamp, consult

your authorized dealer.

Checking the Power and Startup Status

Checking the Power Status

You can check the power status of this unit using the following method.

Check if the internal LED is lit from the air inlets

When the

power cord is connected and power is supplied, the internal LED which is visible from the air inlets lights

up in orange.

Checking the Startup Status

If there is no display on the screen when this unit is in use, you can check whether the unit has been started up using the following method.

Press the [INFO.] button on the remote control

If the lamp of this unit is lit, pressing the [INFO.] button on the remote control displays the information menu.

the

information menu is not displayed even after pressing the [INFO.] button on the remote control, the image may

If have disappear temporarily. Press the [HIDE] button on the remote control once, then press the [INFO.] button again.

Troubleshooting

External Control

This Unit

D6 D7D4 D5D2 D3D0 D1

Stop bitStart bit

Projector Control

Connection Authentication Procedure

PJA CK

PJ RE Q

PJ _O K

Within 5 Seconds

Controlling PC

3-way Handshake

TCP Port No. 20554

Establishment of TCP Connection

Projector

It is possible to control this unit by connecting it to a PC using an RS-232C cross cable (D-sub 9-pin). The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector. Æ “ Network ” (P. 42)

Please use it after you have gained proper understanding from professional books or consulting the system administrator.

RS-232C Specifications

Pin No. Signal Function Signal Direction

2 RxD Receive data PC " This unit

3 TxD Transmission data

5 GND Signal ground

1, 4, 6 - 9 N/C

PC refers to the controller, such as a personal computer.

— —

Mode Non-synchronous

Character length 8 bit

Parity None

Start bit 1

Stop bit 1

Data rate 19200 bps

Data format Binary

This unit " PC

—

TCP/IP Connection

Before controlling via LAN, it is necessary to establish connection of the TCP layer by a “3-way handshake”, followed by sending out “PJREQ” and receiving “PJACK” within 5 seconds after this unit sends out “PJ_OK” for connection authentication. If you are unable to complete the sending within 5 seconds, or when “PJ_NG” or “PJNAK” is received, check the operating status of this unit, followed by performing the steps again starting from establishment of a TCP connection.

Others

Command Format

The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”.

Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

Header

This binary code indicates the start of communication.

Binary Code Type Description

21 Operating command PC " This unit

3F Reference command

40 Response command

06 ACK This unit " PC (returns to PC after the command is accepted without

Unit ID

This is a code that specifies the unit. The binary code is fixed at “8901”.

Command and data

PC " This unit

This unit " PC

error)

Operating command and data (binary code)

Command

0000

5057 Power

4950 Input When power is on

5243 Remote

Type Description

Connection check

supply

control

Check whether communication is enabled between this unit and the PC during standby.

During standby 31: Turns on the power When power is on 30: Turns off the power (Standby mode)

36: HDMI 1 37: HDMI 2

Sends the same code as the supplied remote control.

“Remote Control Code”P. 53

Reference command and data (binary code)

Command

5057 Power

4950 Input When power is on

Type Description

supply

End

This code indicates the end of communication. The binary code is fixed at “0A”.

During standby or when power is on 30: Standby mode 31: When power is on 32: In the Cool-down mode 34: When

36: HDMI 1 37: HDMI 2

error occurs on this unit

Others

Remote Control Code

Binary code is sent during communication.

following

The of the code.

applies to the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning

Remote Control Button Name Binary Code

STAND BY 37 33 30 36

ON 37 33 30 35

INFO. 37 33 37 34

INPUT 37 33 30 38

HIDE 37 33 31 44

LENS CONTROL 37 33 33 30

LENS MEMORY 37 33 44 34

RGB SOLO 37 33 46 31

CONTRAST 37 33 30 41

BRIGHTNESS 37 33 30 39

COLOR 37 33 31 35

DIM. 37 33 45 45

OK 37 33 32 46

37 33 30 31

37 33 30 32

37 33 33 34

37 33 33 36

Remote Control Button Name Binary Code

MENU 37 33 32 45

BACK 37 33 30 33

DYNAMIC 37 33 36 42

SRGB 37 33 36 41

DCI 37 33 36 39

USER1 37 33 36 43

USER2 37 33 36 44

USER3 37 33 36 45

USER4 37 33 43 41

USER5 37 33 43 42

USER6 37 33 43 43

GAMMA 37 33 37 35

COLOR TEMP. 37 33 37 36

RGB PARADE 37 33 46 32

C.GAMUT 37 33 46 33

Others

Communications Example

This section shows the communication examples of RS-232C.

Operating command

Type Command Description

Connection check PC " This unit: 21 89 01 00 00 0A

This unit "

Power (On) PC " This unit: 21 89 01 50 57 31 0A

This unit "

Power (Off) PC " This unit: 21 89 01 50 57 30 0A

This unit "

Remote control (MENU)

PC " This unit: 21 89 01 52 43 37 33 32 45 0A This unit

Reference command

Type Command Description

Power (On) PC " This unit: 3F 89 01 50 57 0A

This unit " This unit " PC: 40 89 01 50 57 31 0A

Input (HDMI 1) PC " This unit: 3F 89 01 49 50 0A

This unit " PC: 06 89 01 49 50 0A This unit " PC: 40 89 01 49 50 36 0A

PC: 06 89 01 00 00 0A

PC: 06 89 01 50 57 0A

" PC: 06 89 01 52 43 0A

PC: 06 89 01 50 57 0A

Connection check

When power is turned on from the Standby mode

When power is turned off (Standby mode) from power-on mode

When the same operation as pressing the [MENU] button on the remote control is performed

When information on the power-on state is acquired

When information on HDMI 1 input is acquired

Others

Specifications

Product Name HDR REAR PROJECTION SYSTEM

Model Name LY-HDR36-2 LY-HDR36-4

Display Panel/Size D-ILA device *1, 2

Projection Lens 2.0 x power zoom lens (1.4:1 to 2.8:1), motorized zoom and focus

Light-source Lamp 265 W ultra-high pressure mercury lamp [product no.: PK-L2615U]

Screen Size (Inch) 36-inch

Display Area (Width x Height) 796 × 452 mm

Input Compatibility Signal Refer to P. 56.

Display Resolution 1920×1080

Screen Gain/Screen Type 2.4 (Glossy) 4.8 (Glossy)

Brightness 2800 cd/m2 4500 cd/m2

Contrast 40000:1

Color Gamut DCI P3 (Color Ratio of 98%)

Input Terminal HDMI Input Dual, HDMI 19-pin x 2 (HDCP 1.4-compatible) *3

Control Terminal RS-232C Terminal 1 system, D-sub 9-pin (male) (external control)

LAN Terminal 1 system, RJ-45 plug

Power Requirements AC 100 V to 240 V, 50 Hz/60 Hz

Power Consumption 380 W (during standby mode: 1.5 W)

Operation Environment Temperature: 5°C to 35°C; humidity: 20% to 80%; storage

Installation Height Below 5,000 ft (1524 m)

Dimensions (Width x Height x Depth)

Mass 67.8 kg

Accessories Refer to P. 9.

*1 D-ILA is the abbreviation for Direct drive Image Light Amplifier. *2 D-ILA

*3 HDCP is the abbreviation for High-bandwidth Digital Content Protection system. The image of the HDMI input

Design and specifications are subject to change without prior notice.

This voltage. This projector is designed for use in Japan only and can not be used in any other country.

Please note to aid comprehension. Images may differ from the actual product.

This unit is a “JIS C61000-3-2-compliant device”.

devices

Only 0.01% or less of the pixels are either missing or would remain permanently lit.

terminal may not be displayed in some cases due to changes in the HDCP specifications.

projector

are manufactured using extremely high-precision technology with a pixel effectiveness of 99.99%.

is designed for use in Japan only, and cannot be used in any other country due to the different power

that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order

0.7" (1920 x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million)

Average lifespan: 3500 hours (in “High” mode)

temperature: -10°C to 60°C

Approx. 803 mm × 906 mm × 730 mm

About Trademarks and Copyrights

HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC.

Others

Types of Possible Input Signals

3840

1920 1920

8bit 8bit

1080

16bit

8bit 8bit

MSB LSB

Video

Digital Video Signal 480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz,

1080p/24 Hz, 1080p/25 Hz, 1080p/30 Hz, 1080p/50 Hz, 1080p/60 Hz

PC signal (HDMI)

No. Designation Resolution fh [kHz] fv [Hz]

1 VGA 60 640×480 31.500 60.000 25.200 800 525 640 480

2 VGA 59.94 640×480 31.469 59.940 25.175 800 525 640 480

3 SVGA 60 800×600 37.879 60.317 40.000 1,056 628 800 600

4 XGA 60 1024×768 48.363 60.004 65.000 1,344 806 1,024 768

5 SXGA 60 1280×1024 63.981 60.020 108.000 1.688 1,066 1,280 1,024

6 3840×1080

60 *1, 2

7 3840×1080

59.94 *1, 2

*1 Supports only 8 bit RGB.

*2 Supports 16 bit by means of JVC’s unique signal formatting.

Even when signals can be input, video images may not be projected properly depending on the PC or cable in use. When this occurs, switching to another compatible resolution or changing the cable may help to resolve the problem in some cases.

3840×1080 67.500 60.000 297.000 4400 1125 3840 1080

3840×1080 67.433 59.940 296.703 4400 1125 3840 1080

dot CLK

[MHz]

Total No.

of Dots

[dot]

Total No.

of Lines

[line]

No. of

Effective

Dots [dot]

No. of

Effective

Lines

[line]

3840 × 1080 60/59.94 Format

The 3840×1080 pixels (8 bit RGB) input data is a 16 bit input data with the left portion (1920×1080 pixels) as the highorder 8 bits and the right portion (1920×1080 pixels) as the low-order 8 bits.

Others

Dimensions

680

793

803

15 452

654

906

730

443

273

340 183206

504354

226 226

6464

325

342

(Unit: mm)

Top Surface

Front

Side

Rear Surface

Others

Index

Others

Accessories ........................................................... 9

Projection Screen Adjustment ............................. 19

Adjustment and Setting by the Menu

Adjustment of the Image Quality .......................... 32

Aspect ................................................................. 22

Back Color ........................................................... 41

Brightness ............................................................ 33

Checking the Power Status .................................. 50

Checking the Startup Status ................................

Cleaning the Screen

Clear Motion Drive ............................................... 27

Color Density ....................................................... 34

Color Gamut Assist .............................................. 44

Color Management .............................................. 24

Color Shade ......................................................... 34

Color Space ......................................................... 34

Color Temperature ............................................... 33

Connection .......................................................... 15

Contrast ............................................................... 33

Names and Functions of Parts ............................. 10

Custom Gamma ................................................... 25

Dim ...................................................................... 44

Dimensions ..........................................................

External Control ................................................... 51

Focus ................................................................... 20

Frame Interpolation ..............................................

Gain Adjustment

GAMMA ............................................................... 25

Gamma Adjustment

HDMI Color Space ............................................... 34

HDMI Input Level .................................................

HDMI Input Terminal ............................................ 15

HIDE .................................................................... 18

High Altitude Mode .............................................. 41

INFO. ................................................................... 12

Input Resolution ............................................. 43, 56

Input Signal

Installation Method .............................................. 14

Lamp ..................................................................... 9

Lamp Power .........................................................

.................................................... 43, 56

............................................ 46

.................................................. 41

............................................. 25

................... 30

Lamp Time ........................................................... 43

Language Selection .............................................

Lens Aperture ................................................ 28, 32

Lens Control ........................................................ 19

Lens Memory ....................................................... 19

Lens Shift ............................................................. 19

Line Display ......................................................... 41

Logo Display ........................................................ 41

Menu Items .......................................................... 30

Menu Position ......................................................

Mounting/Dismounting the Screen ....................... 45

Network ............................................................... 42

Optional Accessories ............................................. 9

PIC. ADJ. ............................................................. 33

Picture Mode

Picture Tone ........................................................ 33

Pixel Adjustment .................................................. 37

Precautions during Installation ............................. 14

Progressive .......................................................... 35

Remote Control ................................................... 12

Resetting the Lamp ..............................................

RGB ..................................................................... 34

RGB Parade ........................................................ 44

RGB Solo ............................................................. 44

RS-232C .............................................................. 17

Screen ............................................................. 9, 45

Screen Mask ........................................................

Shadow/Highlight Correction ............................... 25

Shift ..................................................................... 20

Signal Display ...................................................... 43

Software Ver. ....................................................... 43

Specifications ...................................................... 55

Troubleshooting ................................................... 47

Uniformity Correction ........................................... 41

User Name Edit

Viewing Position .................................................. 41

Viewing Videos ....................................................

When the following messages appear... .............. 50

Zoom ................................................................... 20

.......................................................

...................................................

Others

LY-HDR36

HDR REAR PROJECTION SYSTEM

JVC LY-HDR36, DLA-HDR36, DB-HDR36 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

Getting Started

Accessories/Optional Accessories

Accessories

Optional Accessories

Names and Functions of Parts

Main Unit - Front

Main Unit - Side

Main Unit - Rear

Remote Control

Loading Batteries into the Remote Control

Effective Range of Remote Control Unit

Installing the Projector

Precautions during Installation

Set up

Connecting the Projector

Connecting to the HDMI Input Terminal (Digital Input)

Connecting to the LAN Terminal

Connecting to the RS-232C Terminal

Connecting the Power Cord

Viewing Videos

Operate

Adjusting the Projection Screen

Adjusting the Lens According to the Projection Position

Saving and Retrieving Adjustment Data

Adjusting the Screen Size (Aspect)

Adjusting the Image Quality

Setting the Picture Mode

Adjust/Set

Adjusting to the Preferred Color (Color Management)

Adjusting the Output Value of the Projected Image (Gamma)

Fine-tuning to the Preferred Gamma Setting

Reducing the After-image of Fast-moving Images (Blur Reduction)

Adjusting the Contrast (Lens Aperture)

Correcting Uneven Illumination (Uniformity Correction)

Adjustments and Settings in the Menu

List of Menu Items

Picture Adjust

Input Signal

Installation

Display Setup

Function

Information

Other Adjustments and Settings

Mounting/Dismounting the Screen

Maintenance

Cleaning the Screen

Troubleshooting

Troubleshooting

When the Following Messages Appear...

Checking the Power and Startup Status

External Control

RS-232C Specifications

TCP/IP Connection

Others

Command Format

Remote Control Code

Communications Example

Specifications
