COLORTELEVISION
USER'SGUIDE
Formodels:
C-13110
C-13111
C-20110
AV-20120
AV-20121
AV-27115
AV-27120
Illustration of AV-27120 and RM-C381
IMPORTANT NOTE TOTHE CUSTOMER
In the spaces below, enter the model and serial number
for your televisiOn (located at the rear of the television cabinet).
Staple your sales receipt or invoice to the inside cover of this guide.
Keep this user's guide in a convenient place for future reference.
Keep the carton and original packaging for future use.
Serial Number Model Number
IMPORTANT SAFETY PRECAUTIONS
IMPORTANT SAFEGUARDS
CAUTION:
CAUTION:Toreduce_heriskof elecfficshock.
Referservlolngtoqualifiedsen/Icepersonnel.
WARNING:
CAUTION:
Donotremovecover(orback).
The lightning flash witharrowheadsymbol,
withinan equilateral triangleis intendedto alert
the user to the presence of uninsulated "dan-
gerous voltage" within the product's enclosure
that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
The exclamation point within an equilateral tri-
angle is intended to alert the user to the pres-
ence of important operating and maintenance
(servicing) instructions in the literature accom-
panying the appliance.
TO PREVENT FIRE OR SHOCK
HAZARDS, DO NOT EXPOSE THIS
TV SET TO RAIN OR MOISTURE.
TO INSURE PERSONAL SAFETY,
OBSERVE THE FOLLOWING
RULES REGARDING THE USE OF
THIS UNIT.
1. Operate only from the power source speci-
fied on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid Improper installation and never posi- 3
tion the unit where good ventilation is unat-
tainable.
4. Do not allow objects or liquid into the cabi-
net openings.
5. In the event of trouble, unplug the unit and
call a service technician. Do not attempt to 4
repair it yourself or remove the rear cover.
Changes or modifications not approved by JVC
could void the warranty.
* When you don't use this TV set for a long
period of time, be sure to disconnect both the
power plug from the AC outlet and antenna for
your safety.
* To prevent electric shock do not use this
polarized plug with an extension cord, recepta-
cle or other outlet unless the blades can be
fully inserted to prevent blade exposure.
Please read and retain for your safety.
Electrical energy can perform many useful functions. This TV
set has been engineered and manufactured to assure your
personal safety. But improper use can result in potential electri-
cal shock or fire hazards. In order not to defeat the safeguards
incorporated in this TV set, observe the following basic rules
for its installation, use and servicing,
And also follow all warnings and instructions marked on your
TV set.
INSTALLATION
1 Your TV set is equipped with a polarized AC line plug (one
blade of the plug is wider than the other).
(POLARIZED-TYPE)
This safety feature allows the plug to fit into the power outlet
only one way, Should you be unable to insert the plug fully
into the outlet, try reversing the plug.
Should it still fail to fit, contact your electrician.
2
Operate the TV set only from a power source as indicated
on the TV set or refer to the operating instructions for this
information. If you are not sure of the type of power supply
to your home, consult your TV set dealer or local power
company. For battery operation, refer to the operating
instructions.
Overloaded AC outlets and extension cords are dangerous,
and so are frayed power cords and broken plugs. They may
result in a shock or fire hazard. Call your service technician
for replacement.
Do not allow anything to rest on or roll over the power cord,
and do not place the TV set where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
5
Do not use this TV set near water -- for example, near a
bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near swimming pool, etc.
6
Ifan outside antenna is connected to the TV sot, be sure the
antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810
of the National Electrical Code provides information with respect
to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna discharge unit,
connection requirements for the grounding electrode.
7
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits, When installing an outside antenna system, extreme
care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
8 TV sets are provided with ventilation openings in the cabinet
to allow heat generated during operation to be released.
Therefore:
-- Never block the bottom ventilation slots of a portable TV
set by placing it on a bed, sofa, rug, etc.
-- Never place a TV set in a "built-in" enclosure unless
proper ventilation is provided.
-- Never cover the openings with a cloth or other material.
-- Neverplace the TVset rear or over a radiator or heat registe_
9 To avoid personal injury:
-- Do not place a TV seton a sloping shelf unless properly secured.
-- Use only a cart or stand recommended by the TV set
manufacturer.
-- Do not try to roll a cart with small casters across thresh-
olds or deep pile carpets.
-- Wall or shelf mounting should follow the manufacturer's
instructions, and should use a mounting kit approved by
the manufacturer.
USE
10 Caution children about dropping or pushing objects intothe %/set
through cabinet openings. Some internal parts carry hazardous
voltages and contact can result in a fireor electTica]shock.
11 Unplug the TV set from the wall outlet before cleaning. Do
not use liquid or an aerosol cleaner.
12 Never add accessories to a TVsot that has not been designed for
this purpose. Such additions may resultin a hazard.
13
Foradded protectionoftheTV sotduringalightningstormor
whenthe TVsotisto be left unattendedfor an extendedperi-
od oftime,unplug it fromthewall outlet and disconnectthe
antenna.Thiswillpreventdamage to productdue tolightning
storms or powerlinesurges.
14
A TV set and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the TV set and cart combination to overturn.
SERVICE
15 Unplug this TV set from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the TV set.
C. If the TV set has been exposed to rain or water.
D. If the TV set does not operate normally by following the
operating instructions. Adjust only those controls that are
covered in the operating instructions as improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the TV set to normal operation.
E. If the TV set has been dropped or damaged in any way
E When the TV set exhibits a distinct change in perform-
ance -- this indicates a need for service.
16
Do not attempt to service this TV set yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service person-
nel.
17
When replacement parts are required, have the service tech-
nician verify in writing that the replacement parts he uses
have the same safety characteristics as the original parts,
Use of manufacturer's specified replacement parts can pre-
vent fire, shock, or other hazards.
18 Upon completion of any service or repairs to this TV set,
please ask the service technician to perform the safety check
described in the manufacturer's service literature.
19 When a TV set reaches the end of its useful life, improper dis-
posal could result in a picture tube implosion. Ask a qualified
service technician to dispose of the TV set.
2O
Note to CATV system installer.
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that pro-
vides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
Congratulations on your new television purchase! We thank you for choosing JVC.
We know you are anxious to start watching your new te ev sion, but before you operate it, please
read this guide and then keep it handy for future reference. After all you just bought a great TV with a lot
of terrific features, you should know what each feature is and how to use it properly!
Please note, as you read though this guide there are illustrations of select models for your
reference. There are several models covered in this guide and therefore each illustration may not be of
the specific model you own. Be sure to look for the similar feature on your IV.
Again, congratulations and thank you for choosing JVC! Enjoy!
TABLE OF CONTENTS
CONNECTIONS
Connections Checklist ............. 5
Front Panel Diagrams .............. 5
Rear Panel Diagrams .............. 5
Cable Connections ............... 6
Audio/Video Connections - Stereo ....... 7
Connecting to External Amplifier ....... 7
Connecting to a Camcorder .......... 7
GETTING STARTED
Remote Controls ................ 8
Power ...................... 9
Adjusting Volume ................ 9
Changing Channels .............. 9
Remote Programming ............ 10
CATV & Satellite Codes ............ 10
VCR Codes .................. 11
MENU FUNCTIONS
Using the Menu ................ 12
Initial Setup
Auto Tuner Setup ............ 13
Channel Summary. .......... 13
Set Lock Code ............. 14

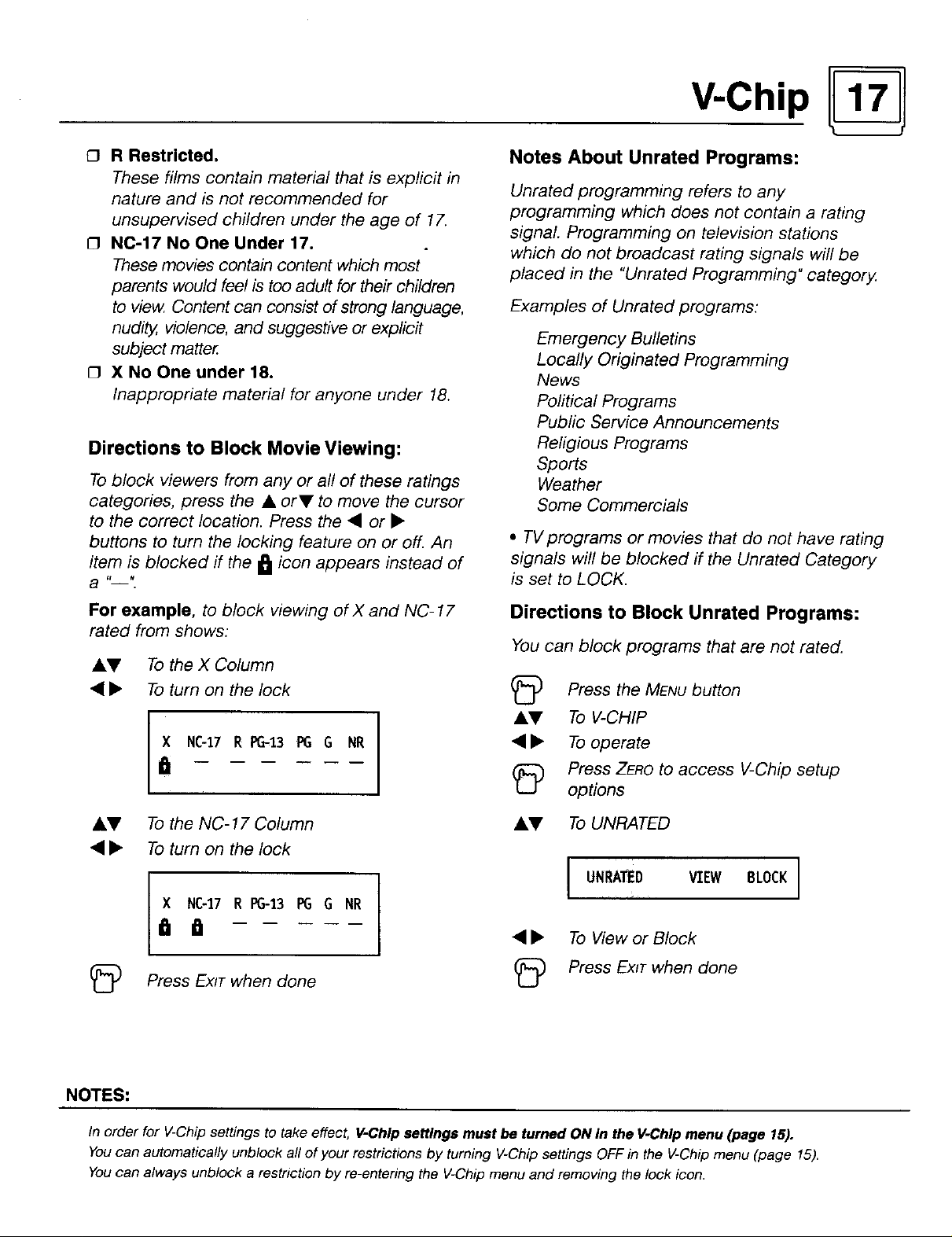

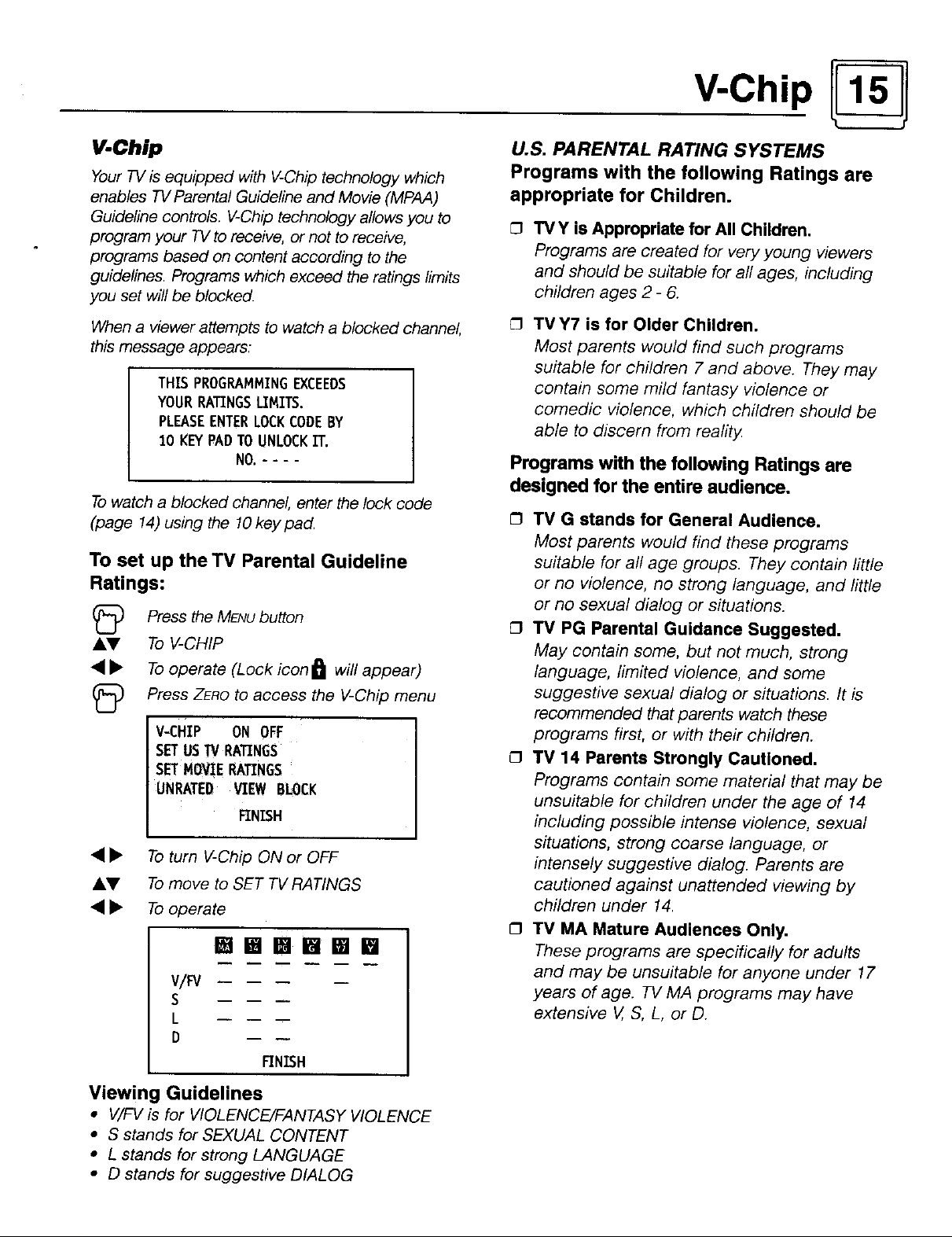

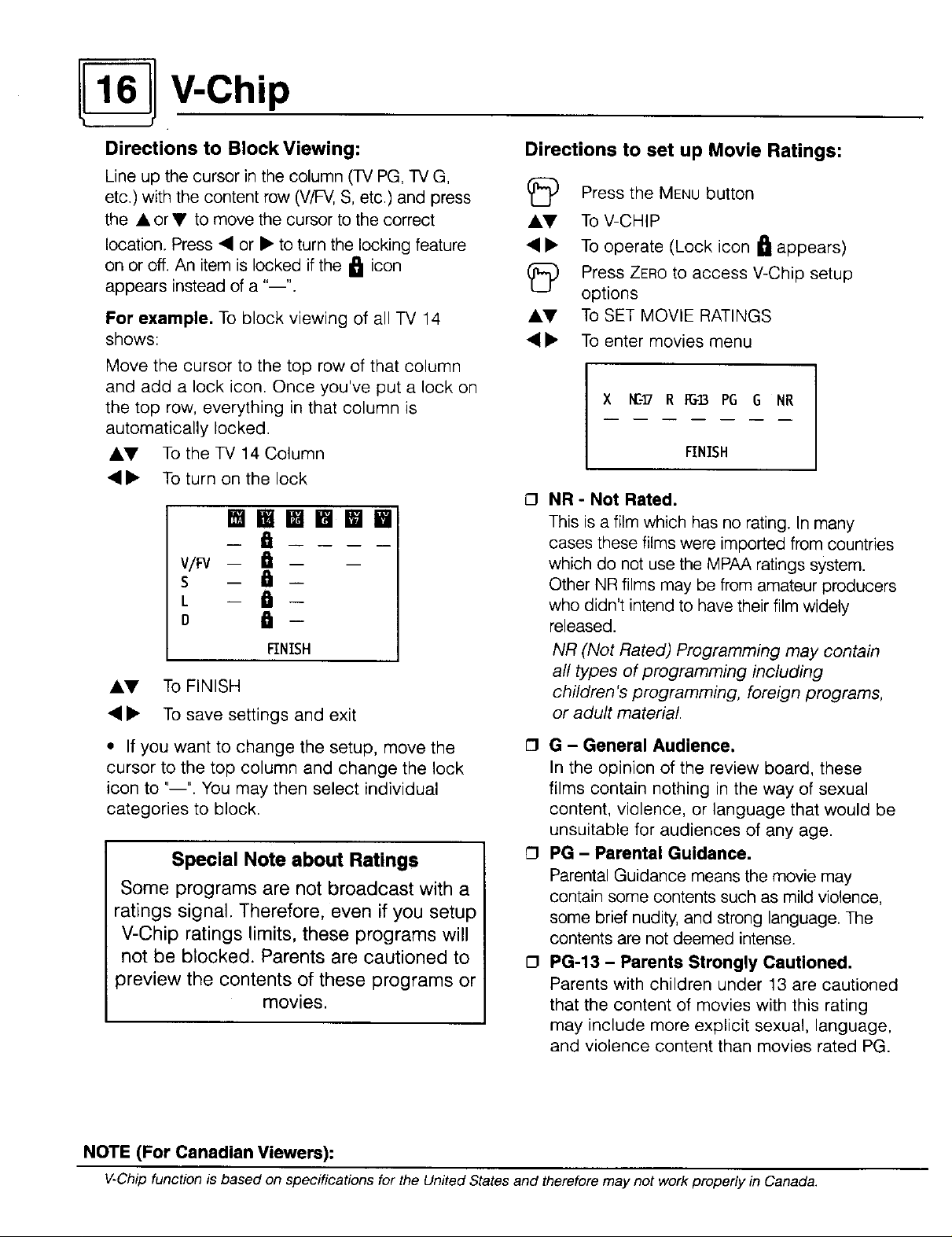

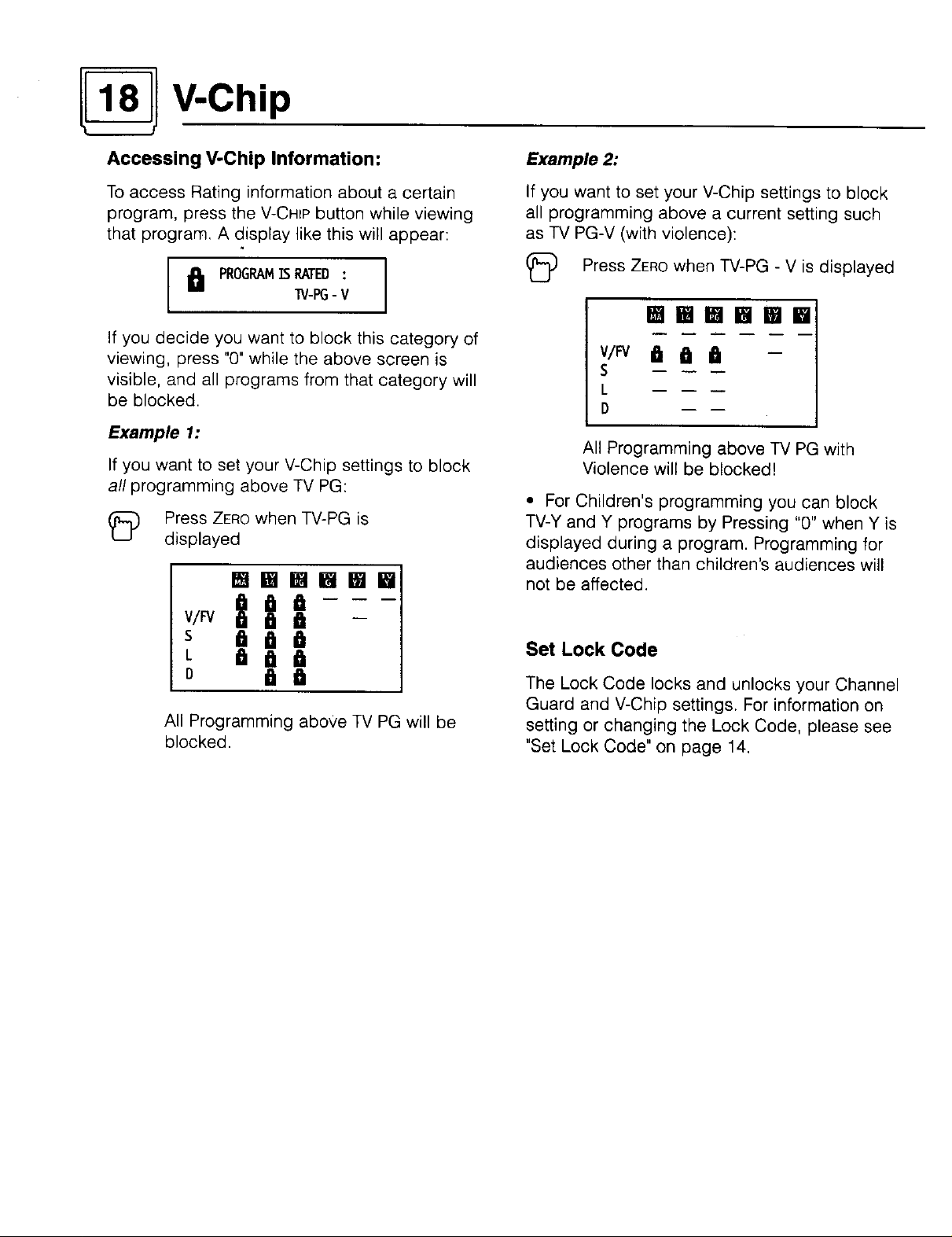

V-Chip ..................... 15

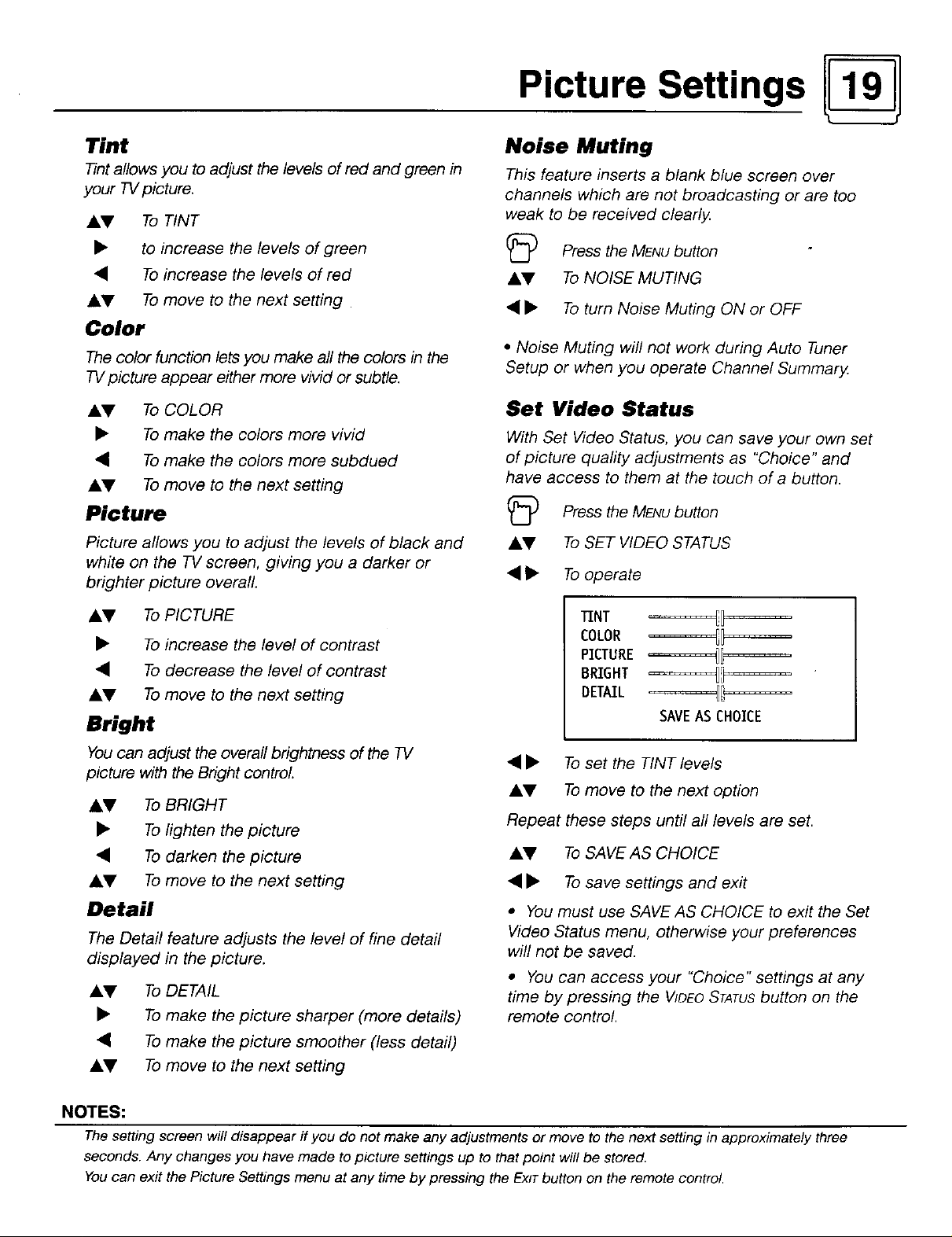

Picture Settings
Tint .................. 19
Color .................. 19
Picture ................. 19
Bright ................. 19
Detail ................. 19
Noise Muting ............. 19
Set Video Status ............ 19
Menu Functions (Continued)

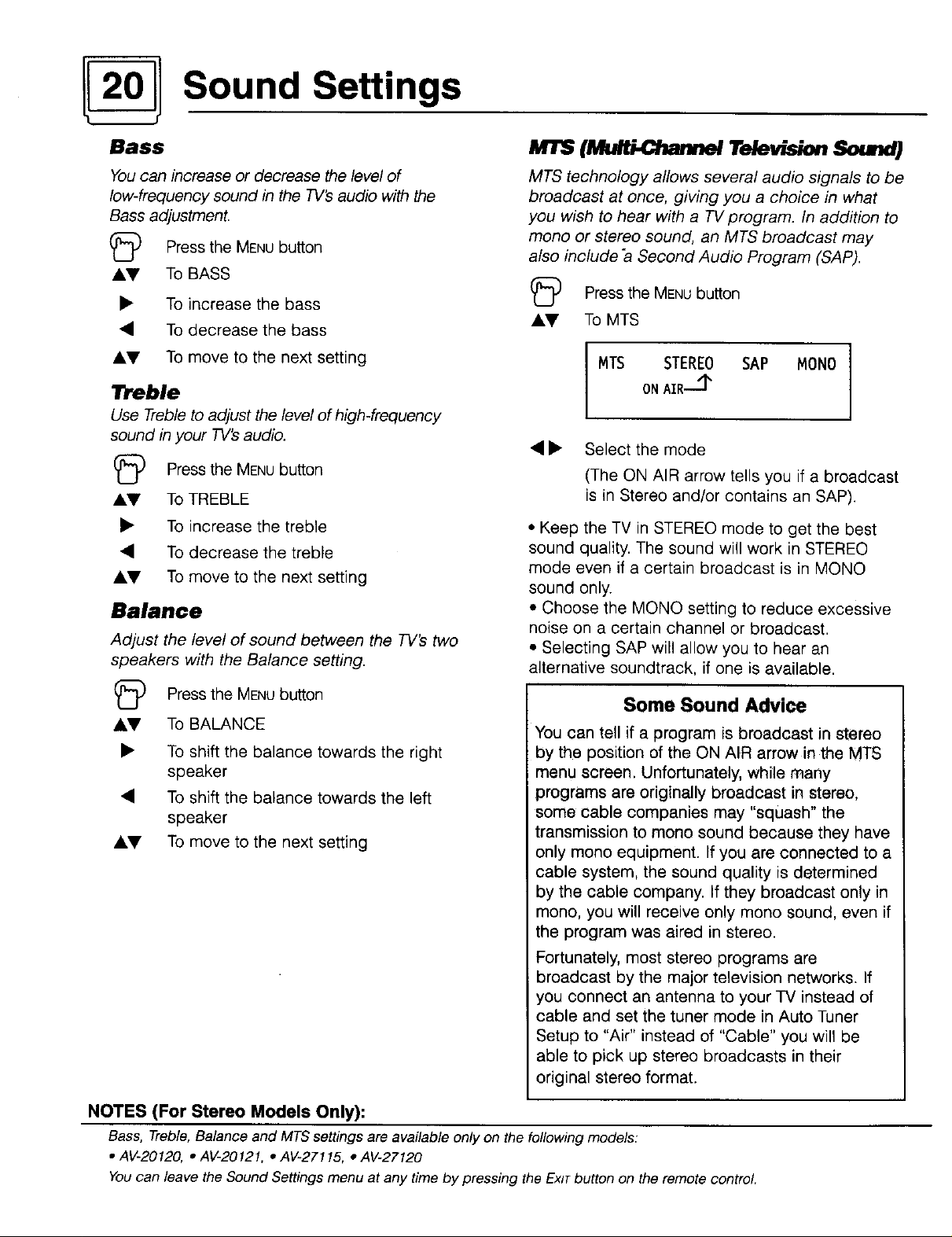

Sound Settings
Bass .................. 20
Treble ................. 20
Balance ................ 20
MTS (Multi-channel TV Sound) .... 20
Some Sound Advice .......... 20
General Items

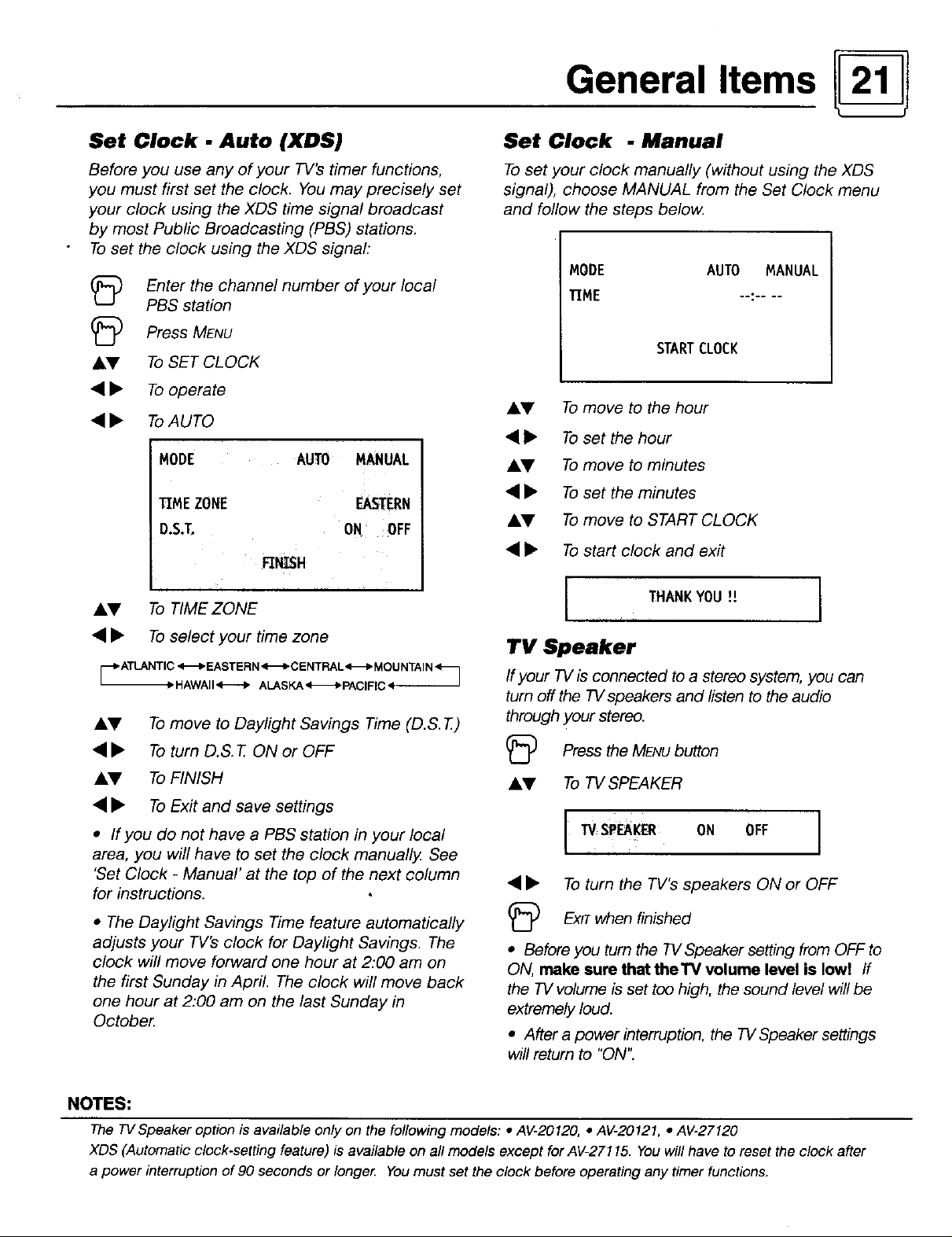

Set Clock
Auto (XDS) ........... 21
Manual ............. 21
TVSpeaker .............. 21

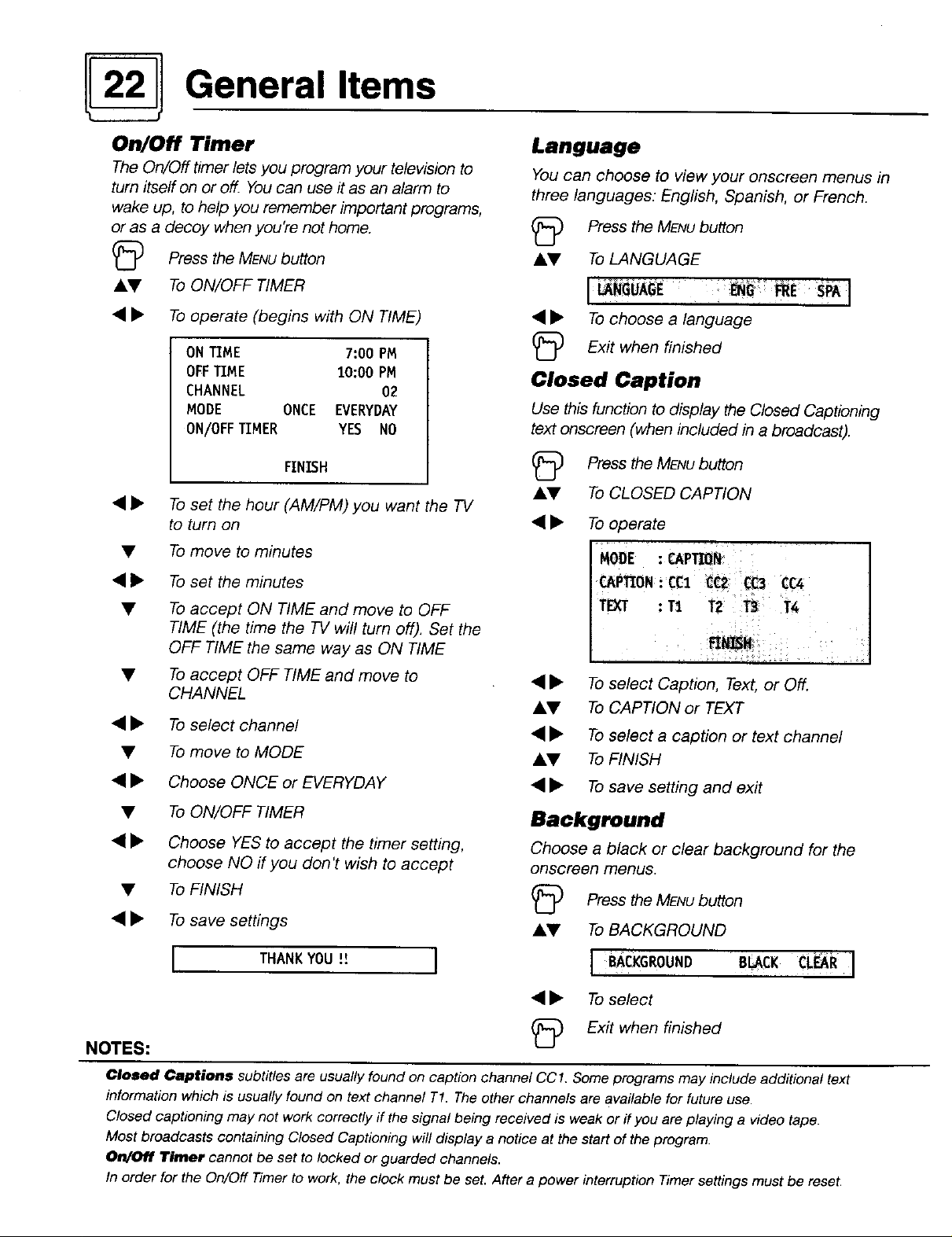

On/Off Timer .............. 22
Language ............... 22
Closed Caption ............ 22
Background .............. 22
BUTTON FUNCTIONS

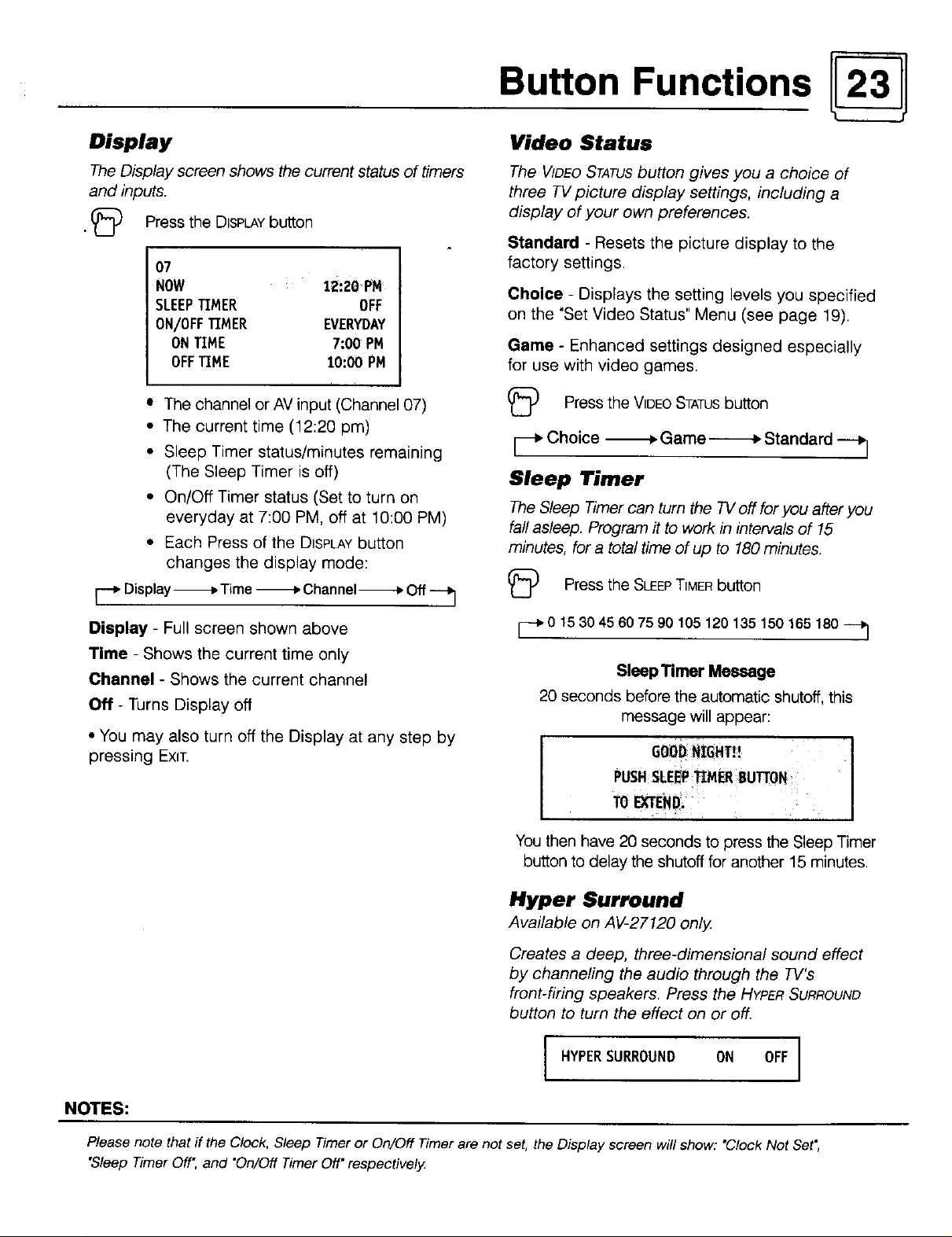

Display .................... 23
Video Status .................. 23
Sleep Timer .................. 23
Hyper Surround ................ 23

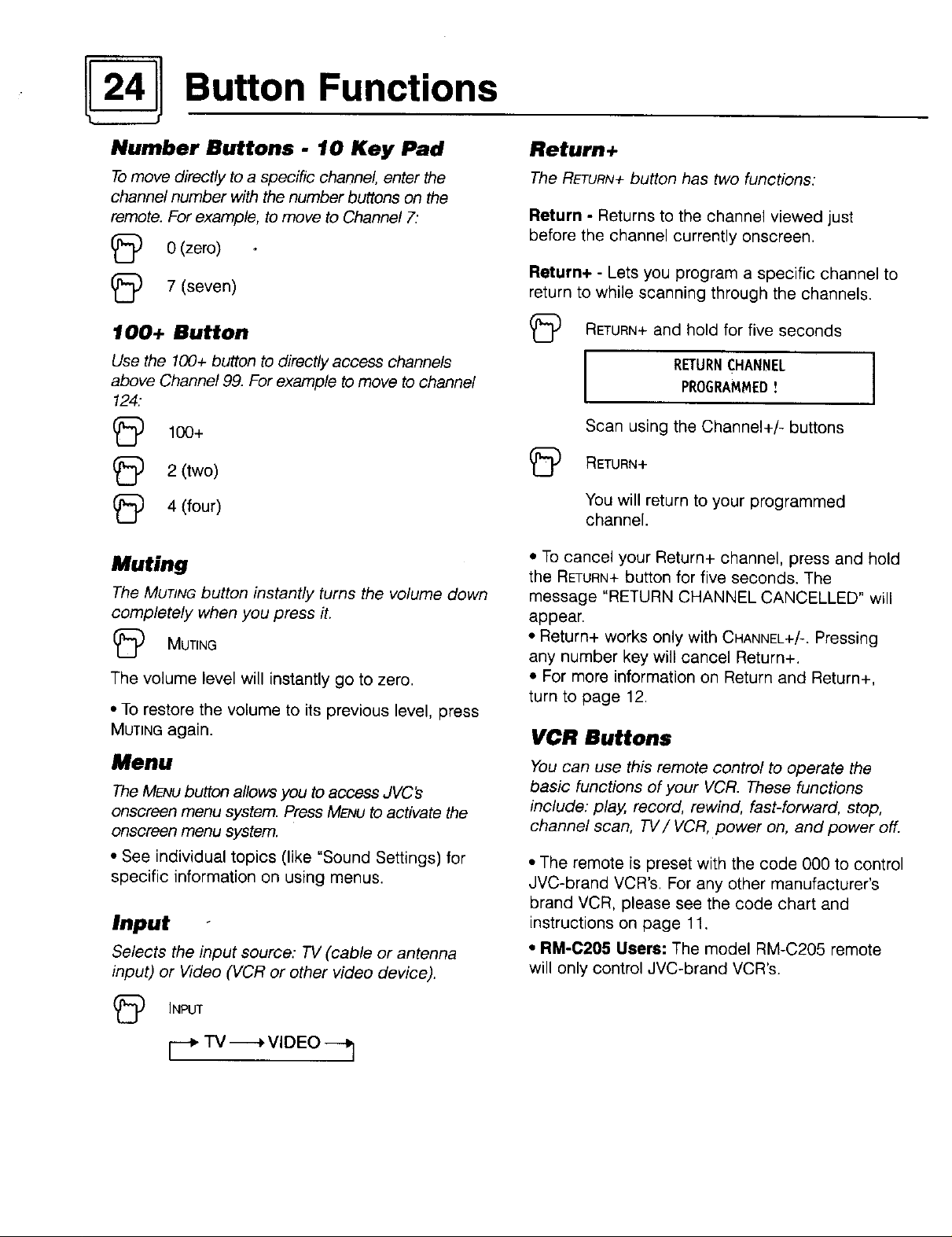

Number Buttons (10 Key Pad) ........ 24
100+ ...................... 24
Muting ..................... 24
Menu ...................... 24
Input ...................... 24
Return+ .................... 24
VCR Buttons .................. 24
APPENDICES

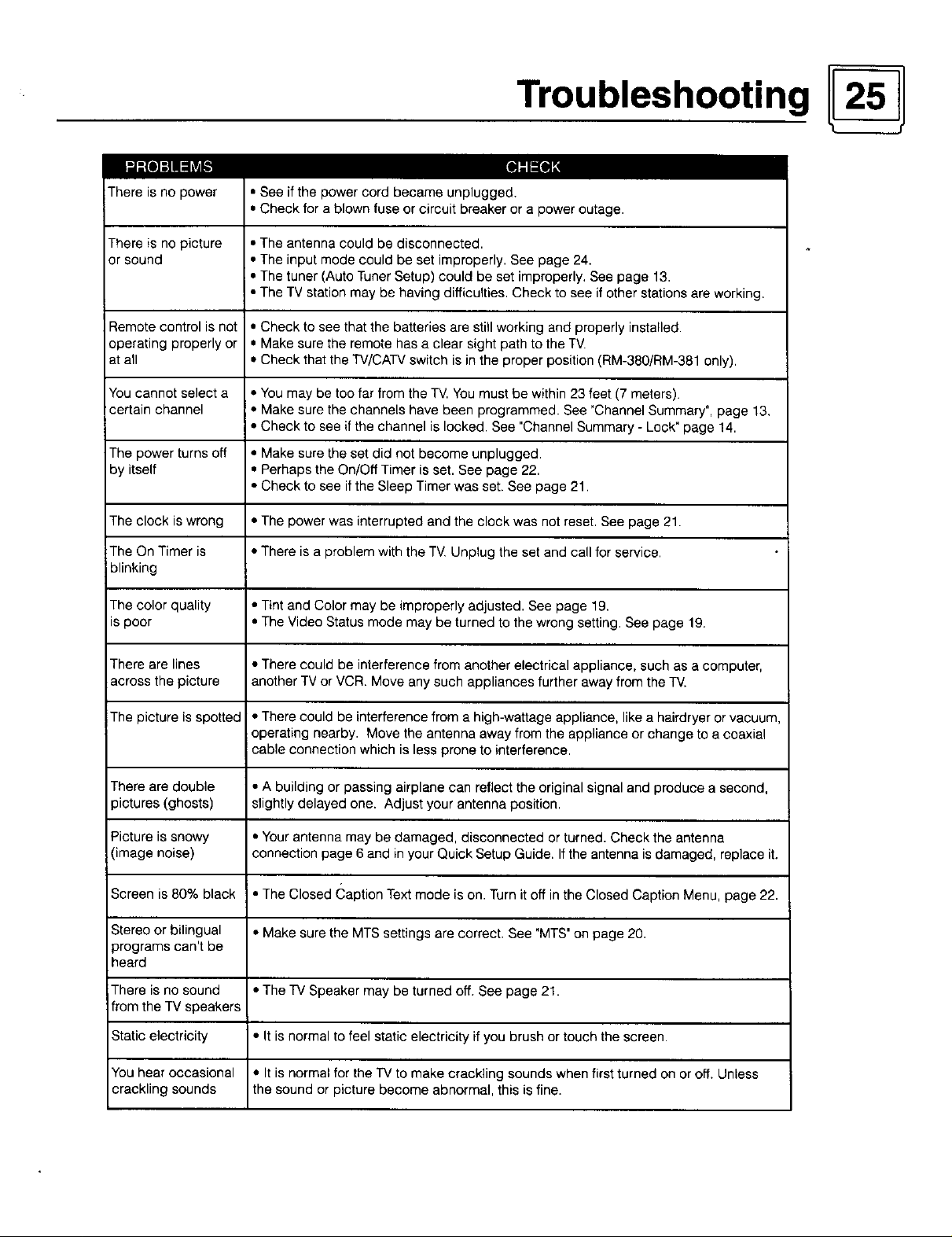

Troubleshooting ................ 25
Limited Warranty ............... 26
Authorized Service Centers .......... 27
Specifications ............ Back Cover
Connections
CONNECTIONS CHECKLIST . READ ME FIRST
The Connections Checklist section of this guide is a list of ideas to keep in mind while you
setup your new TV. It is designed to help us not-so-technically-minded individuals make our
connections properly. If you read this section and still can't identify the plugs, connectors and
components you have, please ask someone for help in making your connections.
1) Always refer to the connection Instructions in the
user's guide for your components first. The
manufacturer will provide the most detailed
information about their products.
2) Know your jacks and plugs - most are color coded:
• Yellow plugs are Video connections
• Red plugs are Right Audio connections
• White (or black) plugs are Left Audio (or Mono)
connections, if your VCR is mono-sound, it will have
only a white or black plug, no second red plug).
3) Perform one connection at a time. If you have
several accessories to connect, make sure each
connection is correct by checking to see that it works
properly before trying the next connection.
4) Unplug the power cord during each connection.
5) Follow the In and Out Concept. Remember in and
Out - the Output jack from one device will go to the
Input jack of the other. Read the jack panels, they are
all labeled.
O
AN Input Plug
RF Connectors
S-Video Plug
Front and Rear Panel Diagrams
AV-27120 • AV-27115 Front Panel
L 4cee_lp
AV-20120 • AV-20121 • C-20110 Front Panel
©o • o o
C-13111 • C-13110 Front Panel
40"eP_T_i,
fl®
AV-27120 Rear Panel
C-13111 • C-13110 • C-20110 Rear Panel
Ic® ®
tNpjr WF_HF ]
1.®.®
AV-20120 • AV-20121 Rear Panel
'®" r--
AV-27115 Rear Panel
Connections
Cable Connections
There are two basic types of antenna Or cab e Connections:
• If you have an antenna or have a C_ble System that does not require you use a cable box to
select channels, please refer to Diagram #1,
• If you use a cable box to access any or all the channels, please refer to Diagram #2.
1) Connect the antenna or cable
TV wire from the wall outlet, in
to the RF Input on your VCR.
2) Connect an RF cable from the
VCR Output, in to the RF input
on the back of the TV.
• If you want to use the VCR as a
separate tuner (not be required to
have the VCR set to channel 3 or
VCR
Illustration of AV-27120
4 to watch the TV), you can
connect a two-way splitter in
between the Cable and VCR
connections.
Cable
Box 2)
VCR
e Illustration of AV-27120
Notes
• Refer to the Cable Box or VCR's instructions for more information on its operation.
Connect the antenna or cable
1)
TV wire from the wall outlet, in
to the RF Input on your Cable
Box.
Connect an RF cable from
the Cable Box Output, in to
the VCR's RF input.
Connect an RF cable out from
3)
the VCR's output in to RF input
at the back of the rk,_
Connections
Audio/Video Connections. Stereo
For models AV-27120, AV-20120 and AV-20121 only. Use the connection diagram below to get stereo I
sound from a stereo VCR. I
1) Connect the yellow video cable
from the VCR's Video Output
jack to the TV's Video Input
jack.
2) Connect the white (or black)
audio cable from the VCR's
Left Audio Output jack to the
TV's Left Audio Input jack.
3) Connect the red audio cable
from the VCR's Right Audio
Output jack to the TV's Right
Audio Input jack.
For Stereo Models (AV-27120,
AV-20120, AV-20121) Only.
1) Connect the white audio cable
from the TV's Left Audio
Output jack to the Amplifier's
Left Audio Input jack.
2) Connect the red audio cable
from the TV's Right Audio
Output jack to the Amplifier's
Right Audio Input jack.
Illustration of AV-27120
Notes
• If your VCR is mono it will have only one Audio Out jack.
• Refer to the VCR's instructions for more information on its operation.
Connecting to an External Amplifier
LEFT FRONT
SFr_AI_R
AMPLIFIER
VCR
RIGHT FRONT
SPEAKER
Illustrationof AV-27120
Notes
• Refer to the Amplifier's instructions for more information on its operation.
Connecting to a Camcorder
CAMCORDER
Illustration of AV-27120
Notes
• Refer to the Camcorder's instructions for more information on its operation.
1) Connect the white audio cable
from the Camcerder's Left
Audio Output jack to the TV's
Left Audio Input jack.
2) If you have both a stereo
Camcorder and TV, connect
the red audio cable from the
Camcorder's Right Audio
Output jack to the TV's Right
Audio Input jack.
3) Connect a yellow video cable
from the Camcorder's Video
Output to the TV's Video Input
jack.
Getting Started
Remote Controls
RM-C381
AV-27120
AV-20120 • AV-20121
Changing the Batteries
Be sure to use only size AA batteries.
A Raise the latch on the remote's back cover
or push down on the back cover and slide
towards the bottom to remove it.
Insert two AA batteries (supplied), carefully
noting the "+" and "-" markings on the
batteries and on the remote control. To avoid
a potential short circuit, insert the "-" end first.
_) When batteries are installed, snap the back
cover into place.
• If the remote control acts erratically, replace the
batteries. Typical battery life is six months to one
year.
• We recommend using alkaline batteries for
longer battery life.
RM-C380
RM-C205
C-13110 • C-13111
C-20110 ° AV-27115
RM-C381
RM-C380
When you change the batteries, try to complete the
task within three minutes. Ifyou take longer than three
minutes, the remote control codes for your VCR
and/or Cable Box may have to be reset (page 10-11).
RM-C205
Getting Started
Power
• Press the POWERbutton on the remote control or the front panel of the rM The On Timer lamp will glow red.
• Make sure the TV/CATV switch on the remote is set to TV (RM-C380 and RM-C381 only). Move the switch to
CATV only if you plan to operate a cable box. On the CATV setting the remote will only operate the cable box
functions.
• To turn the power off, press the Power button again. The On Timer lamp will go out.
• The On Timer lamp will glow red when the On/Off Timer is set (page 22), even when the TV power is off.
Adjusting Volume
To control the volume level, use the VOLUME+/-buttons on the remote control or on the TV's front panel.
Use the VOLUME- button to lower the volume. Press the VOLUME+button to raise the volume.
I VOLUME 13
Press the MUTINGbutton to instantly turn the volume to zero. Press MUTINGagain to return to the previous
volume level.
BBI BIL..................
Changing Channels
_) 10 key direct access
To move directly to a specific channel, press that channel's numbers on the remote's 10 key pad. For single-digit
channel numbers, press "0" then the channel number. For channels above 100, press the 100+ button, then the
remaining two digits on the 10 key pad.
O CHANNEL-/+bu_on
To scan through the channels, press either the CHANNEL+ or CHANNEL- button. You will move through the
channels in numerical order.
• After you operate the Auto Tuner Setup (page 13), all of the empty channels will be removed from scanning.
When you scan you will only receive clear, active channels.
Hypemcan (Available on models AV-20120, AV-20121, and AV-27120 only.)
With JVC's Hyperscan feature you can zip through the channels at a rate of five per second. To use Hyperscan,
press and hold either the CHANNEL+or CHANNEL-buttons. After the first few channels scan at normal speed, the
rest will move by at five per second. To scan at normal speed, press and release the CHANNEL+/-button.
_) Regular Return
Press and release the RETURN+button tO return to the previous channel viewed. For example select a channel.
Then select another channel using the 10 key pad buttons. You can now flip back and forth between these two
channels by pressing RETURN+.
_]) RETURN+
With RETURN+YOUcan program your TV to always return to a specific channel. Press and hold down the RETURN+
button for three seconds. The message, "RETURN CHANNEL PROGRAMMED!" will appear onscreen. Now when
you scan through the channels, pressing RETURN+will bring you back to your programmed channel.
To cancel the RETURN+channel, press and hold the RETURN+button for three seconds. The message "RETURN
CHANNEL CANCELLED!" will appear onscreen.
• Pressing any number key or turning off the TV will also cancel the RETURN+channel.
Remote Programming
Setting the CATV & VCR Codes
You can program your remote to operate your cable box or satellite receiver by using the instructions
and codes listed below, If the equipment does not respond to any of the codes listed below or to the
I search code function, use the remote control supplied by the manufacturer.
Cable Box or Satellite setup (TV models AV-20120, AV-20121, and AV-27120 only)
The remote control is programmed with CATV and/or Satellite codes for power on, power off, channel up,
channel down, and 10 key operation.
1) Find the CATV/Satellite brand from the list of codes shown below.
2) Slide the 2-way selector switch to "CATV".
3) Press and hold down the DISPLAYbutton.
4) With the DISPLAYbutton held down, enter the first code number listed using the 10 key pad.
5) Release the DISPLAYbutton.
6) Confirm the operation of the Cable Box/Satellite receiver.
• If your CATV or Satellite box does not respond to the first code, try the others listed. If it does not
respond to any code, try the Search Codes Function at the bottom of the page.
CABLEBOXES CODES
_BC 024
_,rcher 032,025
3ableview 051,032
.3itizen 022,051
_urtis 058p059
_iamond 024,032, 025
029
--astern 034
3C Brand 032, 051
3emini 022, 043
3eneralIn_urt'e_ 065, 024, 025, 026, 027, 020,
021,022, 057, 023
4amlin 040, 041,042, 045
4itaehi 049, 024
Jerrold 065, 024, 025, 026, 027, 020,
021p022, 057, 023
_acom 049, 050, 051,054
_agnavox 033
_emorex 030
Vlovietime 032, 051
3ak 039_037, 048
=anasonic 055, 056, 060
=aragon 063
_hilips 028, 029, 030,052, 053,031,
069
;Pioneer 047, 062
_P_sar 051,032
CABLEBOXES CODES
Puser 032
RCA 061,070
Realistic 032
Regal 058,064,040,041,042,045,
068
Regency 034
Rembrandt 037,032,051,038
Samsung 051
ScientificAtlanta 057,058,059
SLMark 051,047
Sprucer 051,056
Stargate 032,051
Telecaption 067
Teteview 047,051
Texscan 044
Tocom 035, 036,066
Toshiba 050
Unika 032, 025
Universal 022, 032
Videoway 052
Viewstar 029, 030
Zenith 063, 046
Zenith/Drake 046
Satellite
DIGITAL CODES
SATELLITE
SYSTEMS
Echostar t00
GE. 106
_Gradiente 112
Hitachi 104,111
HNS (Hughes) 104
Panasonic 105
102,103
Primestar 108
RCA 106,109,110
lO7
Toshiba 101
Uniden 102,103
Search Codes Function:
1) Slide the 2-Way Mode Selector switch to CATV.
2) Press the TV POWERand RETURN+buttons. Hold for at least three seconds and release.
3) Press TV POWER, see if the CATV or Satellite box responds.
4) If there was a response, press RETURN+.The operating codes are now set. If there was no response,
repeat Step 3. If you repeat Step 3 more than 70 times without a response, use the remote control which
came with the equipment.
Remote Programming
VCR setup
The remote control is programmed with VCR codes for power on, power off, play, stop, fast-forward,
rewind, channel up, and channel down operation.
1) Find the VCR brand from the list of codes shown below.
2) Slide the 2-way selector switch to "GATV".
3) Press and hold down the DISPLAYbutton.
4) With the DISPLAYbutton held down, enter the first code number listed with the 10 key pad.
5) Release the DISPLAYbutton.
6) Confirm the operation of the VCR.
• If your VCR does not respond to the first code, try the others listed. If it does not respond to any code,
try the Search Codes Function at the bottom of the page.
• Some manufacturer's VCR's may not respond to the TV/VCR button, even if other buttons work properly.
• To record, hold down the REC button on the remote and press PLAY.
• RM-C205 Users: The model RM-C205 remote control can only be used with JVC-brand VCR's.
VCRs CODES
Admiral 035
Aiwa 027, 032
Akai 029, 072, 073, 074
Audio Dynamic 003, 005
Bell & Howell 063, 071
Broksonic 020, 026
Canon 023, 025
CCE 043
Citizen 064
Craig 063, 029, 064
Curtis Mathes 045, 024, 027, 093
Daewoo 043, 059, 024, 092
DBX 003, 004, 005
Dimensia 045
Emerson 043, 026,077, 061,025, 042,
020, 076
Fisher 063,066, 067, 065, 071
-unai 027, 026,020,000
3E 033, 045,024,093
3o Video 037, 051,049,050, 089
3oldstar 064
3radiente 083, 084, 081, 0OO,001
4itachi 023, 045, 058, 027,081,093
nstant Replay 024, 023
Jensen 003
JVC 000, 001,002, 003, 004,005
<enwood 003, 004, 064, 005
D(I 027, 064, 058, 065, 066, 063,
067
VCRs CODES
Magnavox 031,023, 024, 086
Marantz 003, 004, 005
Marta 064
Memorex 024, 067
MGA 038, 040, 047, 048, 041,042
Minolta 058, 045
Mitsubishi 038, 040, 047, 048, 041,042,
078, 090
Multitech 047, 027, 062
NEC 003, 004, 005, 000
Olympic 024, 023
Optimus 028, 021,035_ 064
Orion 026, 020
Panasonic 023, 024, 021,022
Penney 024, 058, 045, 063, 003, 004,
005, 093
Pentax 068, 005, 045, 093
Philoo 031,024, 027, 023, 026, 020,
043
Philips 031,023, 024,086
Pioneer 023
Proscan 045,058,023,024,031,046,
059, 060,033, 087, 093
Quasar 021,022, 023, 024
Radio Shack 033, 024, 063, 036, 067, 040,
027
RCA 033, 045, 058, 023, 024, 031,
046, 059, 060, 083, 085, 087,
093
Realistic 024, 063, 036, 067, 040, 027
VCRs CODES
3amsung 037,060,062, 033, 089
3ansui 003, 026,020, 052
_anyo 063, 067, 09% 071
3cott 059, 060,062, 067, 038,040,
047, 048,026,020
_ears 063, 064, 065, 066, 058, 000,
001
3hintom 075
Sharp 035, 036, 080,088
Signature 2000 027, 035
Singer 075
Sony 028, 029, 030,053, 054, 055
SV2000 027
_ylvania 031,023, 024, 027
Symphonic 027, 081
rashiro 064
ratung 003, 004, 005
reac 003, 004, 027, 005
rechnics 021,022, 023, 024
reknika 024, 027, 070
toshiba 059, 046, 079
CectorResearch 005
/Cards 035,036,067, 044, 064
famaha 063,003,004, 005
_Tenith 044, 082,064
Search Codes Function:
1) Slide the 2-Way Mode Selector switch to CATV.
2) Press the VCR POWERand RETURN+buttons. Hold for at least three seconds and release.
3) Press VCR POWER,see if the VCR responds.
4) If there was a response, press RETURN+.The operating codes are now set. If there was no response,
repeat Step 3. If you repeat Step 3 more than 80 times without a response, use the remote control which
came with the VCR.
Using the Menu
Using this Guide
Certain symbols are used throughout this guide to
help you learn about the features of your new
television. The ones you will see most frequently are.
AV
Up 8.nd Down arrows mean press the
CHANNEL UP or CHANNEL DOWN buttons.
Pressing the UP or DOWNbuttons let you:
• Move vertically in a main menu screen
• Move through a submenu screen
• Move to the next letter, number, or other
choice in a submenu
• Back up to correct an error
• Scan through TV channels (when not in
a menu )
Left and right arrows mean press the VOLUME
LEFTor VOLUMERIGHTbuttons to:
• Select a highlighted menu item
• Select an item in a submenu
• Select numbers in certain menu options
• Turn the volume up or down (when not in
a menu screen)
O Picture Settings
TINT
COLOR
BRIGHT
DETAIL
SELECT BY P'_[]
OPERATE BY ['I[]
_) Picture Settings Screen 2
NOISEMUTING ON OFF
SETVIDEOSTATUS
SELECT BY P'_[] EXITBY
OPERATE BY rlr_
EXITBY
5P
The Onscreen Menus:
To bring up the onscreen menu, press the MENU
button on the remote control. The item that appears
in yellow is the one currently selected.
When you first operate the TV the "Picture Settings"
menu will appear. However, we begin here with
"Initial Setup" to help you get your TV ready to view.
The "Press Button" icon means you should
press the button named on your remote
control. Remote control buttons may have the
same name as some menu functions so
button names appear in this book in SMALL
CAPITALLETTERS,
0 Initial Setup Items 0 General Items
AUTO TUNER SETUP
CHANNEL SUMMARY
V-CHIP
SET LOCKCODE
SELECT BY [] []
OPERATE BY [] []
EXITBY
_) Sound Settings (Stereo models only)
BASS
TREBLE
BALANCE
MTS
TVSPEAKER
SELECT
OPERATE
SETCLOCK
ON/OFFTIMER
LANGUAGE ENG FRE SPA
CLOSEDCAPTION
BACKGROUND BLACK CLEAR
SELECT BY [][] EXITBY
OPERATE BY [][]
STEREO SAP MONO
ON AIR_
BY IMI|
BY
ON OFF
EXITBY
NOTESi
If you use the Menu button on the TV's front panel, an additional menu indicating the current channel and TV/Video status
will appear between the last Initial Setup menu and the Picture Settings menu.
• TVSpeakeravailable onlyon stereo models (AV-27120, AV-20120, andAV-20121).
Initial Setup 13
Auto Tuner Setup
In Auto Tuner Setup, the TV automatically scans
through all available channels, memorizing the active
ones and skipping over blank ones or channels with
weak signals. This means when you scan (using the
CHANNEL 4-/- buttons) you will receive only clear,
active channels.
Press the MENUbutton
AV TOAUTO TUNER SETUP
• • To operate
I
START I
To choose CABLE or AIR
&V
To move to START
Tostart Auto Tuner Setup
NOW PROGRAMNIN6 !
I,I,I,_I,H,
L
48
Channel Summary
Channel Summary allows you to customize the
line-up of channels received by your T_ You can
add or delete channels from the line-up or
prevent any unauthorized viewers from watching
any or all 181 channels.
Press the MENUbutton
&V To CHANNEL SUMMARY
• • To operate
The Channel Summary screen (below) will now be
displayed with the channels set to scan marked
with an "X". You can delete channels from the
scan by removing the "X". If any channels were
missed during Auto Tuner Setup and you wish to
add them, you may by placing an "X°next to the
channel number
i: It
Programming will take approximately 1 to 2
minutes.
I
• Noise Muting will not work during Auto Tuner
Setup.
NOTES:
....
&V To the ADD column
• • Toinclude or delete from scan
Exit when finished
Some cable systems experienceinterference from radiofrequencieson cable Channel 95. Youmay delete thischannelfrom
yourscan by removing the "X"next to it on the Channel Summaryscreen.
Initial Setup
Channel Summary. Lock
&V to CHANNEL SUMMARY
• • To operate
_i,V To the Lock Column
(_) Zero to lock or unlock that channel
=o It
01 X -
02 X -
03 X -
04 X -
05 X -
(_ Exit when finished
Channel Guard Message
When a viewer attempts to watch a guarded channel,
the following message appears:
THISCHANN ,ocK OBY
CHAN_L GUARO_
ENIFRU CR
lo PAn,TO
O6 X
07 - :
: 08 -
: og x
: lO x
Set Lock Code
(V-Chip, which appears before Set Lock Code in
the onscreen menu system, is discussed in the
four-page section beginning on page 15).
Channel-Guard and V-Chip settings are protected
by a four-digit Lock Code. Your TV comes pre-set
with a Lock Code of "0000". You may change the
code to any four-digit number you wish. To
change the Lock Code, follow the steps below.
t_ Press the MENUbutton
&V To SET LOCK CODE
• • To operate
It
The padlock icon appears
_) Press ZEROto access the Lock Code
I LOCKCODE FINISH 0000 I
The first digit will be highlighted
• • To select the number
NO. - . . .
To watch a channel that you have locked, enter the
Lock Code using the 10 key pad (see "Set Lock
Code" - at the top of the next column).
If the wrong code is entered, this message will flash
on the screen:
I INVALID LOCKCODE! I
The channel cannot be accessed until the correct
code is entered.
• Once a channel has been unlocked, it will
remain unlocked until the television is turned off.
NOTES:
After a power interruption you must reset the Lock Code.
Writeyour Lock Code number down and keep it hidden from potential viewers.
If you forget the Lock Code, a new code may be set using the steps listed above.
&V To move to the next digit
Continue to follow these directions for all four
&V To FINISH
• • To save your settings and exit
numbers
THANKYOUI!
V.Chip
Your TV is equipped with V-Chip technology which
enables TV Parental Guideline and Movie (MPAA)
Guideline controls. V-Chip technology allows you to
program your IV to receive, or not to receive,
programs based on content according to the
guidelines. Programs which exceed the ratings limits
you set will be blocked.
When a viewer attempts to watch a blocked channel
this message appears:
THIS PROGRAMMINGEXCEEDS
YOURRATINGSLIMITS.
PLEASEENTERLOCKCODEBY
3.0KEYPADTOUNLOCKIT.
NO.----
To watch a blocked channel, enter the lock code
(page 14)using the 10 keypad.
To set up theTV Parental Guideline
Ratings:
5P
AV To V-CHIP
• • To operate (Lock icon _ will appear)
• • To turn V-Chip ON or OFF
&V To move to SET TV RATINGS
• • To operate
Press the MENUbutton
Press ZERO to access the V-Chip menu
v-cHzP ON OFF
SETUSTVRATINGS
SETMOVIERATZNGS
UNRATED VIEW B_CK
_N_H
I
I
I
I
BmWBmm
V/FV
s
L
D
FINCH
U.S. PARENTAL RATING SYSTEMS
Programs with the following Ratings are
appropriate for Children.
_3
IVY is Appropriate for All Children.
Programs are created for very young viewers
and should be suitable for all ages, including
children ages 2 - 6.
TVY7 is for Older Children.
£3
Most parents would find such programs
suitable for children 7 and above. They may
contain some mild fantasy violence or
comedic violence, which children should be
able to discern from reality
Programs with the following Ratings are
designed for the entire audience.
17 TV G stands for General Audience.
Most parents would find these programs
suitable for all age groups. They contain little
or no violence, no strong language, and little
or no sexual dialog or situations.
IV PG Parental Guidance Suggested.
May contain some, but not much, strong
language, limited violence, and some
suggestive sexual dialog or situations. It is
recommended that parents watch these
programs first, or with their children.
(3 TV 14 Parents Strongly Cautioned.
Programs contain some material that may be
unsuitable for children under the age of 14
including possible intense violence, sexual
situations, strong coarse language, or
intensely suggestive dialog. Parents are
cautioned against unattended viewing by
children under 14.
0 TV MA Mature Audiences Only.
These programs are specifically for adults
and may be unsuitable for anyone under 17
years of age. TV MA programs may have
extensive V, S, L, or D.
Viewing Guidelines
• V/FV is for VIOLENCE/FANTASY VIOLENCE
• S stands for SEXUAL CONTENT
• L stands for strong LANGUAGE
• D stands for suggestive DIALOG
Directions to Block Viewing:
Line up the cursor in the column (TV PG, TV G,
etc.) with the content row (V/I_, S, etc.) and press
the • or • to move the cursor to the correct
location. Press • or • to turn the locking feature
on or off. An item is locked if the I_1 icon
appears instead of a "--".
For example. To block viewing of all TV 14
shows:
Move the cursor to the top row of that column
and add a lock icon. Once you've put a lock on
the top row, everything in that column is
automatically locked.
• • To the TV 14 Column
• • To turn on the lock
BmmBmm
v/Fv- - -
S I I_1 --
L -- a --
O a --
FINISH
• • To FINISH
• • To save settings and exit
Directions to set up Movie Ratings:
Press the MENU button
&• To V-CHIP
• • To operate (Lock icon I_1appears)
(_) Press ZERO to access V-Chip setup
options
• • To SET MOVIE RATINGS
• • To enter movies menu
X NZ47 R FG-_ PG G NR
FINISH
0 NR - Not Rated.
This is a film which has no rating. In many
cases these films were imported from countries
which do not use the MPAA ratings system.
Other NR films may be from amateur producers
who didn't intend to have their film widely
released.
NR (Not Rated) Programming may contain
all types of programming including
children's programming, foreign programs,
or adult material.
• If you want to change the setup, move the
cursor to the top column and change the lock
icon to "--". You may then select individual
categories to block.
Special Note about Ratings
Some programs are not broadcast with a
ratings signal. Therefore, even if you setup
V-Chip ratings limits, these programs will
not be blocked. Parents are cautioned to
preview the contents of these programs or
movies.
NOTE (For Canadian Viewers):
V-Chip function is based on specifications for the United States and therefore may not work properly in Canada.
O G - General Audience.
In the opinion of the review board, these
films contain nothing in the way of sexual
content, violence, or language that would be
unsuitable for audiences of any age.
C] PG - Parental Guidance.
Parental Guidance means the movie may
contain some contents such as mild violence,
some brief nudity, and strong language. The
contents are not deemed intense.
[3 PG-13 - Parents Strongly Cautioned.
Parents with children under 13 are cautioned
that the content of movies with this rating
may include more explicit sexual, language,
and violence content than movies rated PG.
V-Chip
R Restricted.
These films contain material that is explicit in
nature and is not recommended for
unsupervised children under the age of 17.
£3 N0-17 No One Under 17.
These movies contain content which most
parents would feel is too adult for their children
to view Content can consist of strong language,
nudi_ violence, and suggestive or explicit
subject matter.
[] X No One under 18.
Inappropriate material for anyone under 18.
Directions to Block Movie Viewing:
To block viewers from any or all of these ratings
categories, press the • err to move the cursor
to the correct location. Press the • or •
buttons to turn the locking feature on or off. An
item is blocked if the _ icon appears instead of
a" ".
Notes About Unrated Programs:
Unrated programming refers to any
programming which does not contain a rating
signal. Programming on television stations
which do not broadcast rating signals will be
placed in the "Unrated Programming" category.
Examples of Unrated programs:
Emergency Bulletins
Locally Originated Programming
News
Pofitical Programs
Public Service Announcements
Religious Programs
Sports
Weather
Some Commercials
• TVprograms or movies that do not have rating
signals will be blocked if the Unrated Category
is set to LOCK.
For example, to block viewing of X and NC- 17
rated from shows:
•v
• Y To the NC- 17 Column
• • To turn on the lock
To the X Column
To turn on the lock
I X NC-17 R PG-13 R; G NR
X NC-17 R PG-13 PG G NR
Press EXIT when done _._
Directions to Block Unrated Programs:
You can block programs that are not rated.
Press the MENU button
• V To V-CHIP
• • To operate
Press ZERO to access V-Chip setup
options
• V To UNRATED
UNRATED VIEW BLOCK
I
• • To View or Block
Press EXIT when done
NOTES:
In order for V-Chip settings to take effect, V-Chip settings must be turned ON In the V-Chip menu (page 15).
You can automatically unblock all of your restrictions by turning V-Chip settings OFF in the V-Chip menu (page 15).
You can always unblock a restriction by re-entering the V-Chip menu and removing the lock icon.
] V-Chip
Accessing V-Chip Information:
To access Rating information about a certain
program, press the V-CHIP button while viewing
that program. A display like this will appear:
I I_I PROGRAMISRATED :
If you decide you want to block this category of
viewing, press "0" while the above screen is
visible, and all programs from that category will
be blocked.
Example 1:
If you want to set your V-Chip settings to block
all programming above TV PC:
(_ Press ZERO when TV-PG is
displayed
W-PC-V
v/w i -
s
Example 2:
If you want to set your V-Chip settings to block
all programming above a current setting such
as TV PG-V (with violence):
(_) Press ZERO when TV-PG - V is displayed
BWWBBWI
V/FV _ a a --
S
L
D
All Programming above TV PG with
Violence will be blocked!
• For Children's programming you can block
TV-Y and Y programs by Pressing "0" when Y is
displayed during a program. Programming for
audiences other than children's audiences will
not be affected.
Set Lock Code
All Programming above TV PG will be
blocked.
The Lock Code locks and unlocks your Channel
Guard and V-Chip settings. For information on
setting or changing the Lock Code, please see
"Set Lock Code" on page 14,
Picture Settings
Tint
Tint allows you to adjust the levels of red and green in
your TV picture.
_I,V To TINT
• to increase the levels of green
• To increase the levels of red
Ay To move to the next setting
Color
The color function lets you make all the colors in the
TVpicture appear either more vivid or subtle.
AV To COLOR
• To make the colors more vivid
• To make the colors more subdued
Ay To move to the next setting
Picture allows you to adjust the levels of black and
white on the TV screen, giving you a darker or
brighter picture overall.
Noise Muting
This feature inserts a blank blue screen over
channels which are not broadcasting or are too
weak to be received clearly
Press the MENUbutton
&V To NOISE MUTING
• • To turn Noise Muting ON or OFF
• Noise Muting will not work during Auto Tuner
Setup or when you operate Channel Summary
Set Video Status
With Set Video Status, you can save your own set
of picture quality adjustments as "Choice" and
have access to them at the touch of a button.
Press the MENUbutton
AV To SET VIDEO STATUS
• • To operate
AV To PICTURE
• To increase the level of contrast
• To decrease the level of contrast
AV To move to the next setting
Bright
You can adjust the overall brightness of the TV
picture with the Bright control.
AV To BRIGHT
• To lighten the picture
• To darken the picture
&Y To move to the next setting
Detail
The Detail feature adjusts the level of fine detail
displayed in the picture.
_,V To DETAIL
• To make the picture sharper (more details)
• To make the picture smoother (less detail)
Ay To move to the next setting
TINT
COLOR
BRIGHT
DETAIL
SAVEAS CHOICE
• • To set the TINT levels
&Y To move to the next option
Repeat these steps until all levels are set.
AV To SAVE AS CHOICE
• • To save settings and exit
• You must use SAVEAS CHOICE to exit the Set
Video Status menu, otherwise your preferences
will not be saved.
• You can access your "Choice" settings at any
time by pressing the VIDEOSTATUSbutton on the
remote control.
NOTES:
Thesetting screen will disappear if you do not makeany adjustments or move to the next setting in approximately three
seconds. Any changes you have made to picture settings up to that point will be stored.
Youcan exit the Picture Settings menu at any time by pressing the EXITbutton on the remote control.
20 Sound Settings
._J
Bass
You can increase or decrease the level of
low-frequency sound in the TV's audio with the
Bass adjustment.
I_ Press the MENU
AI,V To BASS
• To increase the bass
• To decrease the bass
kV To move to the next setting
button
ltlmb
Use Treble to adjust the level of high-frequency
sound in your TV'saudio.
I_ Press the MENUbutton
J,V To TREBLE
• To increase the treble
• To decrease the treble
,AV To move to the next setting
Balance
Adjust the level of sound between the TV's two
speakers with the Balance setting.
Mrs vL on So mal
MTS technology allows several audio signals to be
broadcast at once, giving you a choice in what
you wish to hear with a TV program. In addition to
meno or stereo sound, an MTS broadcast may
also include'a Second Audio Program (SAP).
(_ Press the MENUbutton
Ai,V To MTS
MTS STEREO SAP MONO
ON AIR--_
• • Select the mode
(The ON AIR arrow tells you if a broadcast
is in Stereo and/or contains an SAP).
• Keep the TV in STEREO mode to get the best
sound quality. The sound will work in STEREO
mode even if a certain broadcast is in MONO
sound only.
• Choose the MONO setting to reduce excessive
noise on a certain channel or broadcast.
• Selecting SAP will allow you to hear an
alternative soundtrack, if one is available.
5) Press the MENUbutton
AV To BALANCE
• To shift the balance towards the right
speaker
• To shift the balance towards the left
speaker
AY To move to the next setting
NOTES (For Stereo Models Only):
Bass, Treble,Balance and MTS settings are available only on the following models:
• AV-20120, • AV-20121,• AV-27115, • AV-27120
Youcan leave the Sound Settings menu at any time by pressing the EXITbutton on the remote control.
You can tell if a program is broadcast in stereo
by the position of the ON AIR arrow in the MTS
menu screen. Unfortunately, while many
programs are originally broadcast in stereo,
some cable companies may "squash" the
transmission to mono sound because they have
only mono equipment. If you are connected to a
cable system, the sound quality is determined
by the cable company. If they broadcast only in
mono, you will receive only mono sound, even if
the program was aired in stereo.
Fortunately, most stereo programs are
broadcast by the major television networks. If
you connect an antenna to your TV instead of
cable and set the tuner mode in Auto Tuner
Setup to "Air" instead of "Cable" you will be
able to pick up stereo broadcasts in their
original stereo format.
Some Sound Advice
General Items
Set Clock. Auto (XDS)
Before you use any of your TV's timer functions,
you must first set the clock. You may precisely set
your clock using the XDS time signal broadcast
by most Public Broadcasting (PBS) stations.
To set the clock using the XDS signal:
Enter the channel number of your local
PBS station
Press MENU
A_' TOSET CLOCK
• • To operate
• • ToAUTO
MODE AUTO MANUAL
TIMEZONE EASTERN
D.S.T. ON :OFF
FINISH
Set Clock . Manual
To set your clock manually (without using the XDS
signal), choose MANUAL from the Set Clock menu
and follow the steps below
MODE AUTO MANUAL
_ME --:....
STARTCLOCK
AV To move to the hour
• • To set the hour
&V To move to minutes
• • To set the minutes
Ay To move to START CLOCK
• • Tostart clock and exit
&V To TIME ZONE
• • To select your time zone
_ ATLANTIC _1_ EASTERN <_'_ CENT RAL 4_1_" Mog NTAI N _1_
&V To move to Daylight Savings Time (D.S.T.)
• • To turn D.S.T. ON or OFF
_I,Y To FINISH
• • To Exit and save settings
• If you do not have a PBS station in your local
area, you will have to set the clock manually See
'Set Clock - Manual' at the top of the next column
for instructions.
• The Daylight Savings Time feature automatically
adjusts your TV's clock for Daylight Savings. The
clock will move forward one hour at 2:00 am on
the first Sunday in April. The clock will move back
one hour at 2:00 am on the last Sunday in
Octobe_
-_ HAWAII4---_. ALASKA_'_PACIFIC <
I THANKYOUH I
TV Speaker
If your TV is connected to a stereo system, you can
turn off the TVspeakers and listen to the audio
through your stereo.
Press the MENUbutton
&y To TV SPEAKER
TV_EAk_ ON OFF
i
• • To turn the TV's speakers ON or OFF
EXITwhen finished
• Before you turn the TV Speaker setting from OFF to
ON, make sure that theTV volume level is low! If
the TV volume is set too high, the sound level will be
extremely loud.
• After a power interruption, the TVSpeaker settings
will return to "ON".
NOTES:
The TV Speaker option is available only on the following models: •AV-20120, • AV-20121, • AV-27120
XDS (Automatic clock-setting feature) is available on all models except for AV-27115. You will have to reset the clock after
a power interruption of 90 seconds or Ionge_ You must set the clock before operating any timer functions.
%
General Items
On/Off Timer
The On/Off timer lets you program your television to
turn itself on or off You can use it as an alarm to
wake up, to help you remember important programs,
or as a decoy when you're not home.
52 Press the MENUbutton
&V To ON/OFF TIMER
• • To operate (begins with ON TIME)
ONTIME 7:00 PM
OFFTIME 10:00 PM
CHANNEL 02
MODE ONCE EVERYDAY
ON/OFFTIMER YES NO
FINISH
• • Toset the hour (AM/PM) you want the TV
to turn on
• Tomove to minutes
• • Toset the minutes
• Toaccept ON TIME and move to OFF
TIME (the time the TV will turn off). Set the
OFF TIME the same way as ON TIME
• Toaccept OFF TIME and move to
CHANNEL
• • To select channel
• To move to MODE
• • Choose ONCE or EVERYDAY
• To ON/OFF TIMER
• • Choose YES to accept the timer setting,
choose NO if you don't wish to accept
• To FINISH
• • To save settings
Language
You can choose to view your onscreen menus in
three languages: Engfish, Spanish, or French.
52
&• To LANGUAGE
Press the MENUbutton
I NGUA E I
• • To choose a language
2 Exit when finished
Closed Caption
Use this function to display the Closed Captioning
text onscreen (when included in a broadcast).
2 Press the MENUbutton
A• To CLOSED CAPTION
• • To operate
MODE : CAPI'[OI_
CAPTION: CCl CCE CC_ CC4
TEXT : T1 TE T3 T4
FI_B
• • To select Caption, Text, or Off.
&• To CAPTION or TEXT
• • To select a caption or text channel
&• To FINISH
• • To save setting and exit
Background
Choose a black or clear background for the
onscreen menus.
2 Press the MENUbutton
A• To BACKGROUND
I THANK YOU !! I
• • To select
NOTES:
Closed Captions subtitles are usually found on caption channel CC1. Some programs may include additional text
information which is usually found on text channel TI. The other channels are available for future use.
Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape.
Most broadcasts containing Closed Captioning will display a notice at the start of the program.
On/Off Timer cannot be set to locked or guarded channels.
In order for the On/Off Timer to work, the clock must be set. After a power interruption Timer settings must be reset.
2 Exit when finished
] BACKGROUND B_CK CL_R I
Button Functions
Display
The Display screen shows the current status of timers
and inputs.
D
Press the DISPLAYbutton
07
NOW 12:20"PM
SLEEPTIMER OFF
ON/OFFTIMER EVERYDAY
ON TIME 7:00PM
OFF T!ME 10:00PM
• The channel or AV input (Channel 07)
• The current time (12:20 pm)
• Sleep Timer status/minutes remaining
(The Sleep Timer is off)
• On/Off Timer status (Set to turn on
everyday at 7:00 PM, off at 10:00 PM)
• Each Press of the DISPLAYbutton
changes the display mode:
_-_ Display _ Time-_ Channel _ Off
Video Status
The VIDEOSTATUSbutton gives you a choice of
three TV picture display settings, including a
display of your own preferences.
Standard - Resets the picture display to the
factory settings.
Choice - Displays the setting levels you specified
on the "Set Video Status" Menu (see page 19).
Game - Enhanced settings designed especially
for use with video games.
_) Press the V_OEOSTATUSbutton
[_ Choice _ Game _ Standard -_
Sleep Timer
The Sleep Timer can turn the TVoff for you after you
fall asleep. Program it to work in intervals of 15
minutes, for a total time of up to 180 minutes.
(_ the SLEEPTIMERbutton
Press
Display - Full screen shown above
Time - Shows the current time only
Channel - Shows the current channel
Off - Turns Display off
• You may also turn off the Display at any step by
pressing EXIT.
0 15 30 45 60 75 90 105 120 135 150 165 180 -_j
Sleep Timer Message
20 seconds before the automatic shutoff, this
message will appear:
PUSH:SLE BUTTON
Tom'E.D.
You then have 20 seconds to press the Sleep Timer
button to delay the shutoff for another 15 minutes.
Hyper Surround
Available on AV-27120 only.
Creates a deep, three-dimensional sound effect
by channeling the audio through the TV's
front-firing speakers. Press the HyP_R SURF_OUND
button to turn the effect on or off.
HYPERSURROUND ON OFF
NOTES:
Please note that if the Clock, Sleep Timer or On/Off Timer are not set, the Display screen will show: "Clock Not Set;
"Sleep Timer Off', and "On/Off Timer Off" respectively
Button Functions
Number Buttons. 10 Key Pad
Tomove directly to a specific channel, enter the
channel number with the number buttons on the
remote. For example, to move to Channel 7.
(_ 0 (zero)
(_) 7 (seven)
100+ Button
Use the 100+ button to directly access channels
above Channel 99. For example to move to channel
124:
100+
_) 2 (two)
1_ 4 (four)
Muting
The MUTINGbutton instantly turns the volume down
completely when you press it.
_ MUTING
The volume level will instantly go to zero.
• To restore the volume to its previous level, press
MUTING again.
Menu
The MENUbutton allows you to access JVC's
onscreen menu system. Press MENUto activate the
onscreen menu system.
• See individual topics (like "Sound Settings) for
specific information on using menus.
Input
Selects the input source. TV (cable or antenna
input) or Video (VCR or other video device).
Return+
The RETURN+button has two functions:
Return - Returns to the channel viewed just
before the channel currently onscreen.
Return+ - Lets you program a specific channel to
return to while scanning through the channels.
(_ RETURN+and hold for five seconds
I RETURNCHANNELPROGRAHMED!
Scan using the Channel+/- buttons
_) RETURN+
You will return to your programmed
channel.
• To cancel your Return+ channel, press and hold
the RETURN+button for five seconds. The
message "RETURN CHANNEL CANCELLED" will
appear.
• Return+ works only with CHANNEL+/-. Pressing
any number key will cancel Return+.
• For more information on Return and Return+,
turn to page 12.
VCR Buttons
You can use this remote control to operate the
basic functions of your VCR. These functions
include: play, record, rewind, fast-forward, stop,
channel scan, TV/ VCR, power on, and power off.
• The remote is preset with the code OOOto control
JVC-brand VCR's. For any other manufacturer's
brand VCR, please see the code chart and
instructions on page 11.
• RM-C205 Users: The model RM-C205 remote
will only control JVC-brand VCR's.
(_ INPUT
r--. TV _ VIDEO ---_
Troubleshooting
There is no power • See if the power cord became unplugged.
• Check for a blown fuse or circuit breaker or a power outage.
There is no picture • The antenna could be disconnected.
or sound • The input mode could be set improperly. See page 24.
, • The tuner (Auto Tuner Setup) could be set improperly, See page 13.
• The TV station may be having difficulties. Check to see if other stations are working.
Remote control is not • Check to see that the batteries are still working and properly installed.
operating properly or • Make sure the remote has a clear sight path to the TV.
at all • Check that the TV/CATV switch is in the proper position (RM-38O/RM-381 only).
You cannot select a • You may be too far from the TV. You must be within 23 feet (7 meters).
certain channel • Make sure the channels have been programmed. See "Channel Summary", page 13,
• Check to see if the channel is locked. See "Channel Summary - Lock" page 14.
The power turns off • Make sure the set did not become unplugged.
by itself ,, Perhaps the On/Off Timer is set. See page 22.
• Check to see if the Sleep Timer was set. See page 21.
The clock is wrong • The power was interrupted end the clock was not reset. See page 21.
The On Timer is • There is a problem with the T_ZUnplug the set and call for service,
blinking
The color quality • Tint and Color may be improperly adjusted. See page 19.
ispoor • The Video Status mode may be turned to the wrong setting. See page 19.
There are lines • There could be interference from another electrical appliance, such as a computer,
across the picture another TVor VCR. Move any such appliances further away from the TV.
The picture is spotted • There could be interference from a high-wattage appliance, like a hairdryer or vacuum,
operating nearby. Move the antenna away from the appliance or change to a coaxial
cable connection which is less prone to interference.
There are double • A building or passing airplane can reflect the original signal and produce a second,
pictures (ghosts) slightly delayed one. Adjust your antenna position.
Picture is snowy • Your antenna may be damaged, disconnected or turned. Check the antenna
(image noise) connection page 6 and in your Quick Setup Guide. If the antenna is damaged, replace it.
Screen is 80% black • The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 22.
Stereo or bLlingual • Make sure the MTS settings are correct. See "MTS' on page 20.
programs can't be
heard
There is no sound • The TV Speaker may be turned off. See page 21.
from the TV speakers
Static electricity • It is normal to feel static electricity if you brush or touch the screen.
You hear occasional • It is normal for the TV to make crackling sounds when first turned on or off. Unless
crackling sounds the sound or picture become abnormal, this is fine.
26 Limited Warranty JVC
For Canad an rtt0_e!televisions, see separate sheets for Warranty/Garantle and
JVC Authorized Service Centers in Canada.
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL
to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period shown below (the "Warranty
Period") (PICTURE TUBE is covered for Two (2) years.)
I Parts Labor
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND COMMONWEALTH OF
PUERTO RICO.
WHAT WE WILL DO:
If thls product Is found to be defective within the warranty perlod, JVC will repair or replace defectlve parts at no charge to the
original owner. Such repair end replacement services shall be rendered by JVC during regular business hours at JVC authorized
service centers. Parts used for replacement are warranted ()nly for the remainder of this Warranty Period. All products and parts
thereof may be brought to a JVC authorized service center on a carry-in basis. Televisions with a screen size of 25 inches and larger may be
covered on an in-home basis where such service is available.
1YEAR 1YEAR
WHATYOU MUST DO FOR WARRANTY SERVICE:
To determineif in-homeserviceis availablein your area, eithercontactthe sellingdealer (retailer) or call 1-800-537-5722 to locatethe nearestJVC
authorizedservicecanter.Service locationscan alsobe obtainedfrom ourwebsite _ ' . In-home service,if available,willrequire
clearaccessto theTelevisionby the servicerepresentatives.If in-homeserviceis notavailable,carryin servicewillbe provided.
If service Is not locally available, box the product carefully, preferably In Its original carton, and ship, insured, with a copy of your bill of sale
plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location which will be given to you by
the toll free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1)Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty
Installation, lack of reasonable care, or If repaired or serviced by anyone other than a service facility authorized by JVC to
render such service, or If affixed to any attachment not provided with the products, or if the model or serial number has been altered
tampered with, defaced or removed;
2) Initial Installation, Installation and removal from "built-in" entertainment centers and other mounting systems;
3) Operational adjustments covered In the Owner's Manual, normal malntenanca, video and audio head cleaning;
4) Damage that occurs In shipment, due to an act of God, and cosmetic damage;
5) Signal reception problems and failures due to line power surge;
6) Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7) Accessories;
8) Batteries (except that Rechargseble Batteries are covered for 90 days from date of purchase.)
There are no express warranties except as listed above.
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILTY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OFTHE PRODUCT, INCONVENIENCE, OR ANY OTHER DAMAGES, WHETHER DIRECT,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET
FORTH ABOVE.
Some states do not allow the exclusion of Incidental or consequential damages or limitations on how long the warranty lasts, so these
exclusions or Umltetlons may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vat
state to state.
JVC COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
httD://WWW.ivcservica.COm
1700 Valley Road
Wayne, New Jersey 07470
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY. THIS WARRANTY DOES NOT APPLY FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY. PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. and Serial No. which Is located either on the rear, bottom or side of the cabinet.
Retain this Information for future reference.
Model No.: Serial No.:
Purchase Date: Name Of Deeler:
rr-----m
Authorized Service Centers 11271
ooA.. JVC SE.V,OE
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1 (800) 537-5722
Dear Customer;
In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the
event that repair is necessa_ or for the address nearest your location, please refer to the factory service center list below
or within the Continental United States, call 1-800-537-5722 for your authorized servicer. Remember to retain your Bill of
Sale for Warranty Service.
DIVISION OF JVC AMERICAS CORE
FACTORY SERVICE CENTER LOCATIONS
Dear customer;
In order to receive the most satisfaction from your purchase, read this guide before operating the unit, and before calling for
service make sure you check the Troubleshooting pages at the end of this book. In the event that repair is necessary, or for
the address nearest you, please refer to the factory service center list below, or within the continental United States, call the
toll free number above for an authorized service center. Remember to retain your bill of sale for warranty service.
http://www.jvcservlce.eom
-- JVC
JVC SERVICE & ENGINEERING
COMPANY OF AMERICA
10 New Maple Avenue
Pine Brook, NJ 07058-9641
(973) 396-1000
5665 Corporate Avenue
Cypress, CA 90630-0024
(714) 229-8011
13 Cummings Park
Woburn, MA 01801
(781 ) 376-9100
Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and
3roduction of the wide array of JVC products, service is key to maintaining the high level of performance for which JVC
is world famous. The JVC service and engineering organization stands behind our products.
JVC SERVICE & ENGINEERING COMPANY OF AMERICA
IF YOU SHIP THE PRODUCT
Pack your JVC unit in the original carton or one of equivalent
size and strength. Enclose, with the unit, a letter stating the
problem or symptom that exists and also a COpy of the receipt or
bill of sale you received when you purchased your JVC unit. Print
your home return address on the outside and inside of the
carton, Send to the appropriate JVC Factory Service Center as
listed above.
1500 Lakes Parkway
Lawrenceville, GA 30243-5857
(770) 339-2582
2969 Mapunapuna Place
Honolulu, HI 96819-2040
(808) 833-5828
8192 State Road 84
Davie, FL33324
(954) 472-1960
NATIONAL HEADQUARTERS
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road
Wayne, New Jersey 07470
705 Enterprise Street
Aurora, IL 60504-8149
(630) 851-7855
10700 Hammerly Suite 110
Houston, TX 77043
(713) 935-9331
890 Dubuque Avenue
South San Francisco, CA 9408_1804
(650) 871-2666
Don't service it yourself
Toprevent electrical shock, do not open the
cabinet. No user serviceable parts inside.
CAUTION I
Refer to qualified service personnel.
ACCESSORIES
Topurchase accessories for your JVC product, you may contact your local JVC Deale_ Or from the
48 Continental United States call toll free : 1(800) 882-2345
/
Specifications
MODEL
ReceptionFormat
ReceptionRange
i PowerSource
Power
Consump_on
ScreenSize
AudioOutput
Speakers
C-'13110 C-20110
C-13111
NTSCSystem
60W/1.1A
13inch/ 34cm
measureddiagonally
full square
lW
3 1/16/8 cm
roundx 1
2x3 1/2/5x9 cm
AV-20120
AV-20121
NTSC,BTSCSystem_Multi-ChannelSound)
VHF2 to13, UHF14to 69
SubMid,Mid,Super,HyperandUltrahands
(181channelfrequencysynthesizersystem)
AC120_60Hz
67W/ 1.4A
20 inch/ 51 cm
measureddiagonally
full square
lWx2
2 x3 1/2/5x9 cm
ovalx 1
AV-27115
AV-27120
113W/1.8A
27inch/ 68cm
measureddiagonally
full square
1.2Wx 2
ovalx2
AntennaTerminal
Externallnput
Jacks
VariableAudio
Output
HeadphoneJack
Dimensions(In)
WxHxD(cm)
Weight(Ibs/ kg)
Accessories
Specifications subject to change without notice.
143/8x 13 1/8x 143/4
36.4x33.4 x37.4
19.8/9.0
JVC COMPANY OF AMERICA
Division of JVC Americas Corp.
1700 Valley Road
Wayne, New Jersey, 07470
75 ohms(VHF/UHF)(F-typeconnector)
Video:1Vp-p,75 ohms
Audio:5O0mVrms(-4dBs)highimpsdiance
MorethanOto1550mVrms(+6dBs)
Lowimpedance(400Hzwhenmodulated100%)
(_7mmxl
197/8x 177/8x 19 1/2
50.3x 45.2x49.3
43.2/ 19.6 43.8/ 19.9
Remotecontrolunitx 1/ AAbatteriesx 2
JVC"
m
253/4x 233/8x 191/2
65.4x 59.3x 49.4
68.5/ 31.1
JVC CANADA, INC.
21 Finchdene Square
Scarborough, Ontario
Canada, M1X 1A7
O CT0604-001A-A
t299-TN-JII-JIM
Loading...
