JVC AX-V5BK User Manual

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

AV INTEGRATED AMPLIFIER

AV-INTEGRIERTER VERSTÄRKER AMPLIFICATEUR INTEGRE AV GEINTEGREERDE A/V- VERSTERKER AMPLIFICADOR INTEGRADO DE AV AMPLIFICATORE INTEGRATO A/V

AX-V5BK

TV

TV VCR AUDIO

/VIDEO

PRESET

SEA MODE

123

SURR MODE

TEST DELAY

CH–456

REAR

–+

CD 7/P 8 9

CENTER

–+

10 +10

CD-DISC

TAPE

SEA

SURROUND

AUDIO

CONTROL

TUNER

ON/OFF

TV CONTROL

VCR TV

VOLUME

–+

ONE TOUCH

VIDEO

OPERATION

PTY SEARCH

DISPLAY

PTY SELECT

–+

PHONO

VOLUME

MUTE

–+

RM-SAV5RU REMOTE CONTROL

AX-V5 AV INTEGRATED AMPLIFIER

STANDBY

POWER

PHONES SPEAKERS

_ON —OFF

STANDBY/ON

_ON —OFF

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

MASTER VOLUME

–+

PRESET SEA SOURCE SURROUND ADJUST

ENHANCED COMPULINK CONTROL SYSTEM

SETTING

ONE TOUCH OPERATION

LET0023-001A

[EF, G]

Warnings, Cautions and Others/Warnung, Achtung und sonstige Hinweise/ Mises en garde, précautions et indications diverses/Waarschuwingen, voorzorgen en andere mededelingen/Avisos, precauciones y otras notas/ Avvertenze e precauzioni da osservare

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the terminal which is marked with

the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

G-1

English

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ACHTUNG

Zur Verhinderung von elektrischen Schlägen, Brandgefahr, usw:

1. Keine Schrauben lösen oder Abdeckungen enternen und nicht das Gehäuse öffnen.

2. Dieses Gerät weder Regen noch Feuchtigkeit aussetzen.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

VOORZICHTIG

Ter vermindering van gevaar voor brand, elektrische schokken, enz.:

1. Verwijder geen schroeven, panelen of de behuizing.

2. Stel dit toestel niet bloot aan regen of vocht.

DeutschFrançais

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

ATTENZIONE

Per ridurre il rischio di scosse elettriche, incendi, ecc...

1. Non togliere viti, coperchi o la scatola.

2. Non esporre l’apparecchio alla piogggia e all’umidità.

NederlandsItaliano

Español

G-2

Caution –– POWER switch and STANDBY/ON button!

This apparatus is provided with a POWER switch to be able to minimize power consumption for safe use. Therefore,

1. When doing initial setting, complete all the connections required, connect the mains plug into the wall outlet, and set the switch to ON. After these, it will be available to operate STANDBY/ ON

2. When not in use, set the POWER switch to OFF.

3. Disconnect the mains plug to shut the power off completely. The

4. The power can be remote controlled.

Achtung –– POWER-Schalter und STANDBY/ON -Taste!

Dieses Gerät hat einen Netzschalter ( Stromverbrauch für sichere Verwendung auf ein Minimum bringen zu können. Verfahren Sie deshalb wie folgt:

1. Beim ursprünglichen Aufbau alle erforderlichen Anschlüsse

2. Wenn das Gerät nicht verwendet wird, den

3. Den Netzstecker aus der Steckdose ziehen, um die

4. Die Stromversorgung kann mit der Fernbedienung ein- und

Attention — Commutateur POWER et d’une touche STANDBY/

Cet appareil est équipé d’un commutateur réduire sa consommation d’électricité pour une utilisation plus sûre. Par conséquent,

1. En procédant au réglage initial, compléter toutes les connexions

2. Mettre le commutateur

3. Déconnecter la fiche secteur pour couper complètement le courant.

4. L’alimentation peut être télécommandée.

button and so on.

POWER switch and STANDBY/ON button in any position

do not disconnect the mains line.

POWER), um den

herstellen, den Netzstecker in eine Wandsteckdose stecken, und den

POWER-Schalter einschalten. Anschließend ist Betrieb

der STANDBY/ON ausschalten. Stromversorgung vollkommen zu unterbrechen. Der

Schalter und die STANDBY/ON Stellung die Stromversorgung vollkommen.

ausgeschaltet werden.

ON !

nécessaires, connecter la fiche secteur dans la prise murale et mettre le commutateur sera possible de contrôler la touche STANDBY/ON

l’appareil n’est pas utilisé. Le commutateur POWER et la touche STANDBY/ON ne

coupent jamais complètement l’alimentation, quelle que soit leurs positions.

-Taste usw. möglich. POWER-Schalter

-Taste unterbrechen in keiner

POWER qui lui permet de

POWER sur la position ON. Ensuite, il

POWER sur la position OFF lorsque

POWER

POWER-

, etc.

Voorzichtig ––

Dit apparaat is voorzien van een POWER hoofdschakelaar om het apparaat gebruiksklaar te zetten, maar te zorgen dat het stroomverbruik minimaal blijft. Neem in verband hiermee het volgende in acht:

1. Bij de eerste ingebruikneming zorgt u eerst dat alle aansluitingen in orde zijn, dan steekt u de stekker in het stopkontakt en dan zet u de POWER schakelaar in de “ON” stand. Daarna kunt u het apparaat aan- en uitschakelen met de STANDBY/ON schakelaar.

2. Wanneer u het apparaat geruime tijd niet gebruikt, kunt u beter de

POWER schakelaar in de “OFF” stand zetten.

3. Om de stroomtoevoer geheel uit te schakelen, trekt u de stekker uit het stopkontakt. Anders zal er altijd een geringe hoeveelheid stroom naar het apparaat lopen, ongeacht de stand van de STANDBY/ON en de POWER.

4. U kunt het apparaat ook met de afstandsbediening aan- en uitschakelen.

Precaución –– Interruptor POWER y botón STANDBY/ON !

Esta unidad dispone de un interruptor POWER que sirve para reducir al mínimo el consumo de alimentación para proporcionar mayor seguridad operacional. Por lo tanto,

1. Al ejecutar el ajuste inicial, después de completar todas las conexiones requeridas, conectar el cable de alimentación a una toma de pared, y activar el interruptor POWER. Entonces, será posible ejecutar operaciones tales como la conmutación del estado de alimentación.

2. Desactivar el interruptor POWER al dejar la unidad fuera de uso.

3. Desconectar el cable de alimentación para desactivar la alimentación totalmente. Cualquier que sea la posición de ajustes del interruptor POWER y el botón STANDBY/ON , la alimentación no es cortada completamente.

4. La alimentación puede ser controlada remotamente.

Attenzione –– Interruttore POWER e tasto STANDBY/ON !

Per ridurre al minimo l’assorbimento di corrente ai fini della sicurezza, questo apparecchio è stato dodato di un interruttore POWER. Di conseguenza,

1. Al momento dell’impostazione iniziale, completare tutti i collegamenti richiesti, inserire la spina del cavo di alimentazione nella presa a muro della rete elettrica e impostare l’interruttore

POWER in posizione ON. Fatto ciò, sarà pronto all’uso

STANDBY/ON .

2. Quando non in uso, impostare l’interruttore POWER in posizione OFF.

3. Disinserire la spina del cavo di alimentazione dalla presa della rete elettrica per staccare completamente l’alimentazione. L’ interruttore

POWER e il tasto STANDBY/ON in nessuna posizione

staccano la linea di alimentazione elettrica principale.

4. È possibile il controllo remoto dell’alimentazione.

POWER en STANDBY/ON schakelaars!

G-3

Caution: Proper Ventilation

To avoide risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Achtung: Angemessene Ventilation

Stellen Sie das Gerät zur Verhütung von elektrischem Schlag und Feuer und zum Schutz gegen Beschädigung wie folgt auf: Vorderseite: Offener Platz ohne Hindernisse. Seiten: Keine Hindernisse innerhalb 10 cm von den Seiten. Oberseite: Keine Hindernisse innerhalb 10 cm von der Oberseite. Rückseite: Keine Hindernisse innerhalb 15 cm von der Rückseite. Unterseite: Keine Hindernisse. Auf eine ebene Oberfläche stellen. Zusätzlich die bestmögliche Luftzirkulation wie gezeigt erhalten.

Attention: V entilation Correcte

Pour éviter les chocs électriques, l’incendie et tout autre dégât. Disposer l’appareil en tenant compte des impératifs suivants Avant: Rien ne doit gêner le dégagement Flancs: Laisser 10 cm de dégagement latéral Dessus: Laisser 10 cm de dégagement supérieur Arrière: Laisser 15 cm de dégagement arrière Dessous: Rien ne doit obstruer par dessous; poser l’appareil sur

une surface plate. Veiller également à ce que l’air circule le mieux possible comme illustré.

Voorzichtig: Zorg Voor Goede Ventilatie

Om gevaar voor brand of een elektrische schok te voorkomen, dient u bij opstelling van het apparaat op de volgende punten te letten: Voorkant: Voldoende ruimte vrij houden. Zijkanten: Minstens 10 cm aan weerszijden vrij houden. Bovenkant: Niets bovenop plaatsen; 10 cm speling geven. Achterkant: Minstens 15 cm ruimte achteraan vrij houden. Onderkant: Opstellen op een egaal horizontaal oppervlak. Bovendien moet er rondom voldoende luchtdoorstroming zijn, zoals in de afbeelding aangegeven.

Precaución: Ventilación Adecuada

Para evitar el riesgo de choque eléctrico e incendio y para proteger el aparato contra daños. Ubique el aparato de la siguiente manera: Frente: Espacio abierto sin obstrucciones Lados: 10 cm sin obstrucciones a los lados Parte superior: 10 cm sin obstrucciones en la parte superior Parte trasera: 15 cm sin obstrucciones en la parte trasera Fondo: Sin obstrucciones, colóquelo sobre una superficie

nivelada Además, mantenga la mejor circulación de aire posible como se ilustra.

Attenzione: Problemi di Ventilazione

Per evitare il rischio di folgorazioni ed incendi e proteggere l’unità da danni, installarla nel modo seguente. Davanti: Nessun ostacolo, spazio libero Lati: Nessun ostacolo per almeno 10 cm Sopra: Nessun ostacolo per almeno 10 cm Retro: Nessun ostacolo per almeno 15 cm Fondo: Libero ed in piano Inoltre, mantenere il più possibile la circolazione dell’aria.

Wall or obstructions Wand oder Hindernisse Mur, ou obstruction Wand of meubilair Pared u obstrucciones Parete o ostacol

Spacing 15 cm or more Abstand von 15 cm oder mehr Dégagement de 15 cm ou plus Minstens 15 cm tussenruimte Espacio de 15 cm o más 15 cm di distanza o più

AX-V5BK

Floor Boden Plancher Vloer Piso Pavimento

Front Vorderseite Avant Voorkant Frente Davanti

Stand height 15 cm or more Standhöhe 15 cm oder mehr Hauteur du socle: 15 cm ou plus Standard op minstens 15 cm van de vloer Allura del soporte 15 cm o más Altezza del tavolino 15 cm p plù

G-4

Table of Contents

English

Switches, Buttons and Controls................................................................................................ 2

Getting Started........................................................................................................................... 3

Before Installation.................................................................................................................... 3

Checking the Supplied Accessories ......................................................................................... 3

Connecting the Speakers .......................................................................................................... 4

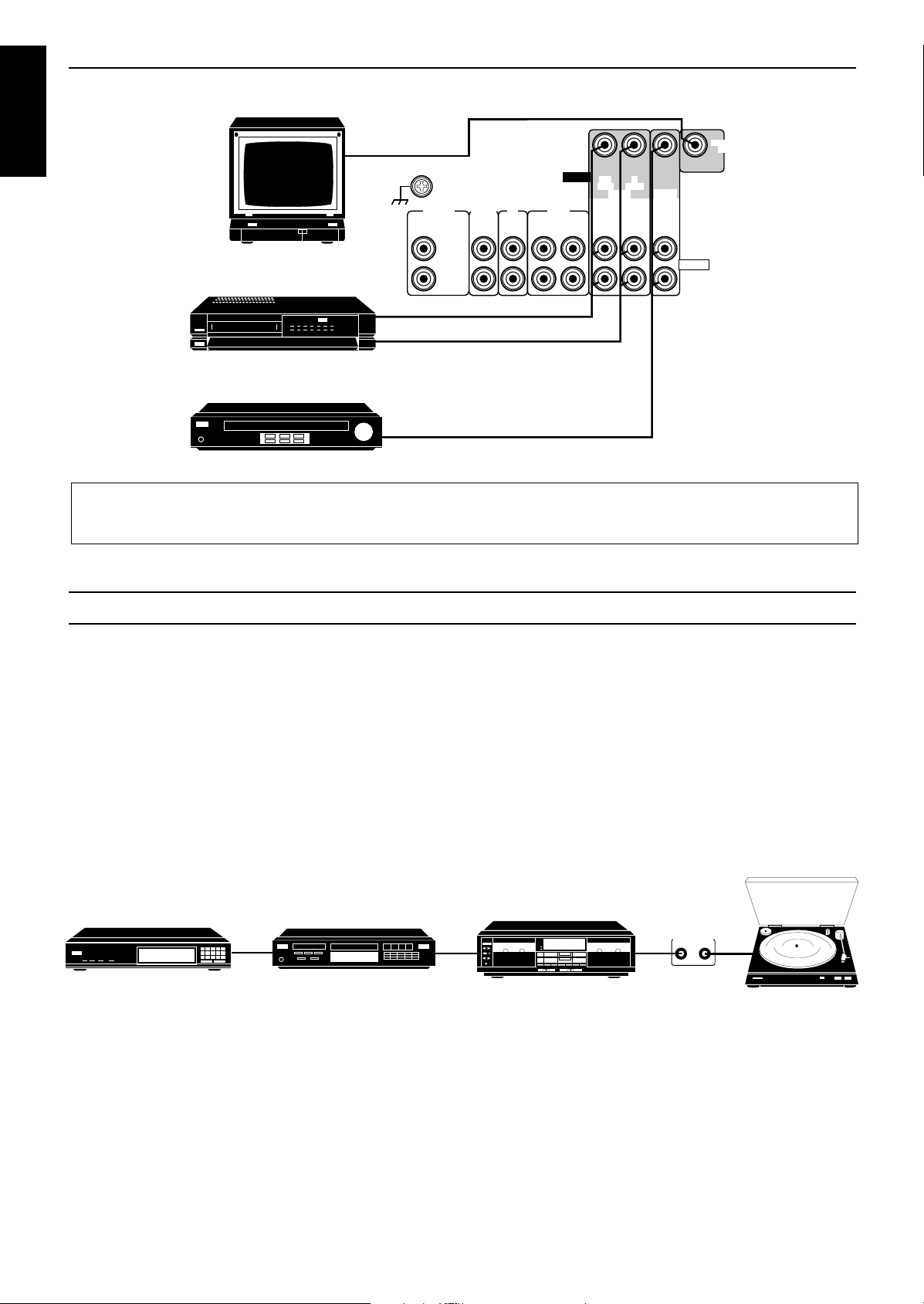

Connecting Audio/Video Components .................................................................................... 6

Connecting Audio Components for the COMPU LINK-3 Remote Control System ............... 7

Connecting the Power Cord ..................................................................................................... 8

Putting Batteries in the Remote Control .................................................................................. 8

Basic Operations ........................................................................................................................ 9

Turning the Power On and Off (Standby)................................................................................ 9

Selecting the Source to Play..................................................................................................... 9

Selecting the Front Speakers.................................................................................................. 10

Adjusting the Volume ............................................................................................................ 10

Muting the Sound................................................................................................................... 10

Recording a Source ................................................................................................................ 11

Listening with Headphones.................................................................................................... 11

Basic Settings ........................................................................................................................... 12

Adjusting the Front Speaker Output Balance ........................................................................ 12

Listening at Low Volume (Loudness) ................................................................................... 12

Using the Sleep Timer............................................................................................................ 12

Selecting the Center Speaker Size ......................................................................................... 13

One Touch Operation.............................................................................................................. 14

About the One Touch Operation ............................................................................................ 14

Using the One Touch Operation ............................................................................................ 14

Using the Preset SEA Modes .................................................................................................. 15

Selecting Your Favorite SEA Mode ...................................................................................... 15

Using the Surround Processor................................................................................................ 17

Using JVC’s Hall Surround ................................................................................................... 17

Speaker Arrangements for Dolby Surround........................................................................... 19

Preparing for Dolby Surround................................................................................................ 20

Using Dolby Surround ........................................................................................................... 23

COMPU LINK Remote Control System ............................................................................... 24

Using the Remote Control....................................................................................................... 25

Troubleshooting ....................................................................................................................... 27

Specifications............................................................................................................................ 28

Page 1

Switches, Buttons and Controls

Become familiar with the buttons and controls on the amplifier before use.

English

AX-V5 AV INTEGRATED AMPLIFIER

STANDBY

STANDBY/ON

POWER

_ON —OFF

9p e r

PHONES SPEAKERS

_ON —OFF

MASTER VOLUME

–+

PRESET SEA SOURCE SURROUND ADJUST

ENHANCED COMPULINK CONTROL SYSTEM

ONE TOUCH OPERATION

SETTING

Refer to the pages in parentheses for details.

u i

;

TV

/VIDEO

CH–456

CD 7/P 8 9

TAPE

TUNER

VCR TV

VIDEO

PHONO

TV VCR AUDIO

PRESET

SEA MODE

123

TEST DELAY

CD-DISC

CONTROL

PTY SEARCH

–+

SURR MODE

REAR

–+

CENTER

–+

10 +10

SEA

SURROUND

AUDIO

ON/OFF

TV CONTROL

VOLUME

–+

ONE TOUCH OPERATION

DISPLAY

PTY SELECT

–+

VOLUME

MUTE

RM-SAV5RU REMOTE CONTROL

d f

j k

Front Panel

1 Remote sensor 2 Display (9) 3 MASTER VOLUME control (10) 4 PRESET SEA button and lamp (15) 5 SOURCE button and lamp (9) 6 SURROUND button and lamp

(17, 20, 23)

7 ADJUST button and lamp (18, 20) 8 SETTING button and lamp (12) 9 STANDBY/ON button and

STANDBY lamp (9)

p POWER switch (8) q PHONES jack (11) w SPEAKERS 1/2 buttons (10) e Control % / ﬁ / @ / # buttons r ONE TOUCH OPERATION button

and lamp (14)

Remote Control

t TV/VIDEO button (26) y CH (+/–) buttons (26) u CD-DISC button (25) i AUDIO CONTROL button

(16, 18, 22, 23)

o Source buttons (CD, TAPE,

TUNER, VCR, VIDEO, PHONO) (9, 25, 26)

; VOLUME (+/–) buttons (10) a (Standby/On) buttons (TV,

VCR, AUDIO) (9, 26)

s 10 keys/Audio control buttons

(16, 18, 22, 23, 25)

d SEA ON/OFF button (16) f SURROUND ON/OFF button

(18, 22, 23)

g TV CONTROL buttons (TV,

VOLUME (+/–)) (26)

h ONE TOUCH OPERATION

button (14)

j Operating buttons for JVC audio/

video components (25, 26)

k MUTE button (10)

Page 2

Getting Started

English

Before Installation

Checking the Supplied Accessories

This section explains how to connect stereo components and speakers to the amplifier, and how to connect the power supply.

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the amplifier in a location that is level and protected from moisture.

• The temperature around the amplifier must be between –5˚ and 35˚ C (23˚ and 95˚ F).

• Make sure there is good ventilation around the amplifier. Poor ventilation could cause overheating and damage the amplifier.

Handling the amplifier

• Do not insert any metal object into the amplifier.

• Do not disassemble the amplifier or remove screws, covers, or cabinet.

• Do not expose the amplifier to rain or moisture.

Check to be sure you have all of the following items, which are supplied with the amplifier. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

If anything is missing, contact your dealer immediately.

Page 3

Connecting the Speakers

FRONT SPEAKERS

RIGHT LEFT

Connecting the front speakers

You can connect the following speakers:

• Two sets of front speakers to produce normal stereo sound

• One set of rear speakers to enjoy the surround effect

• One center speaker to produce more effective surround effect (to make human voices outstanding)

• One subwoofer to enhance the bass

For each speaker (except for subwoofer), connect one end of the speaker signal cable (not supplied) to the speaker terminal on the rear panel and the other end to the speaker. (For connecting a subwoofer, see page 6).

1. Open each terminal.

2. Insert the end of the speaker signal cable as shown (be sure to remove the insulation at the end of each wire first).

3. Close the terminals to clamp the speaker signal cables firmly in place.

4. Connect the black (–) and red (+) terminals on the rear panel to the black (–) and red (+) terminals marked on the speakers.

CAUTION:

When connecting speakers, use speakers with the same SPEAKER IMPEDANCE indicated by the speaker terminals.

Connect the front speakers to the FRONT SPEAKERS terminals.

English

Left Speaker

Connecting the rear and center speakers

Connect rear speakers to the REAR SPEAKERS terminals and a center speaker to the CENTER SPEAKER terminals.

Center Speaker

SPEAKERS 1

SPEAKERS 2

Right Speaker

CENTER

SPEAKER

RIGHT LEFT

REAR

SPEAKERS

Left Rear Speaker

Right Rear Speaker

Note:

When you connect rear speakers, make sure that both left and right speakers are connected; otherwise, no sound will come out of the rear speakers.

Page 4

About the speaker impedance of the speakers

English

Notes:

• The required speaker impedance of the front speakers does not differ depending on whether both the

• The required speaker impedance of the front speakers differs depending on whether or not a center and/

CAUTION:

When connecting speakers, use speakers with the same SPEAKER IMPEDANCE indicated by the speaker terminals.

FRONT SPEAKERS 1 and FRONT SPEAKERS 2 terminals are used or only one of them is used.

or rear speakers are connected at the same time. Since there are four possible speaker connections with the amplifier, check which one fits your case and use the speaker with the impedance described below.

CASE 1 When you connect only front speakers

Front Speaker

Use front speakers with 4 — 16 ohm impedance.

CASE 3 When you connect front and rear speakers

CASE 2 When you connect front speakers and a center

speaker

Front Speaker

Center Speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Center speaker: 8 — 16 ohm impedance

CASE 4 When you connect front and rear speakers as

well as a center speaker

Front Speaker

Rear Speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Rear speakers: 8 — 16 ohm impedance

Page 5

Front Speaker

Rear Speaker

Front Speaker

Center Speaker

Rear Speaker

Use the following speakers;

• Front speakers: 8 — 16 ohm impedance

• Rear speakers: 8 — 16 ohm impedance

• Center speaker: 8 — 16 ohm impedance

Front Speaker

Rear Speaker

Connecting the subwoofer speaker

Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs.

Powered subwoofer

Connecting Audio/Video Components

You can connect the following components to the amplifier using cables with RCA pin plugs.

Audio Components Video Components

• Turntable • VCR

• CD player • Video disc player

• Cassette deck • TV

• Tuner

SUBWOOFER

OUT

English

Audio component connections

If a ground cable is provided for your turntable, connect the cable to the screw marked GND on the rear panel.

Turntable

To audio output

Note:

Any turntables incorporating a small-output cartridge such as an MC (moving-coil type) must be connected to the amplifier through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.

To audio output

GND

PHONO



TUNER

MONITOR

OUT

VIDEO

TAPE

OUT

IN

(REC)

(PLAY)

OUT

(REC)

OUT

(REC)

VCR

(PLAY)

IN

VIDEO

To audio input

IN

To audio

LEFT

output

AUDIO

RIGHT

CD player

Cassette deck

To audio output

Tuner

Page 6

+ 23 hidden pages
