JVC AV-48WP55/H, AV-56WP55/H, AV-65WP55/H Parts List

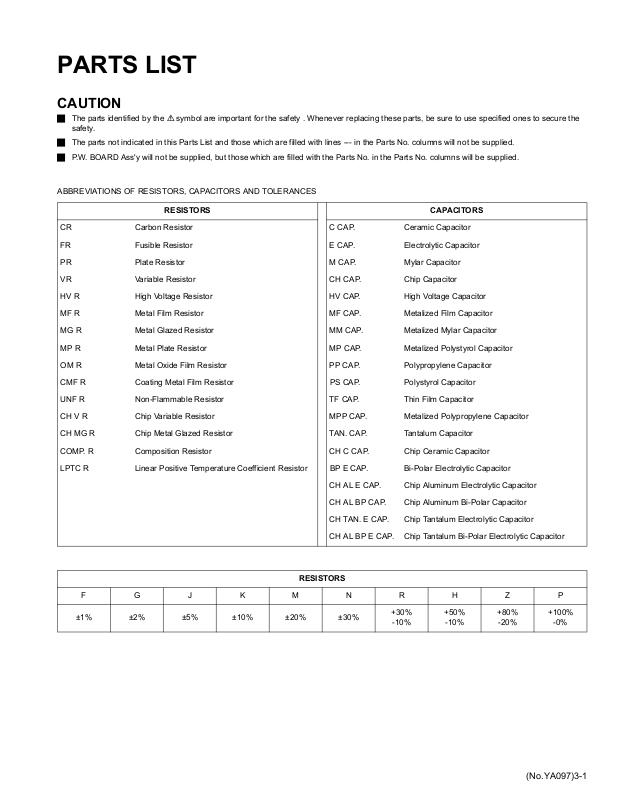

PARTS LIST

CAUTION

J The parts identified by the  symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the

safety.

J The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.

J P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.

ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

CR Carbon Resistor C CAP. Ceramic Capacitor

FR Fusible Resistor E CAP. Electrolytic Capacitor

PR Plate Resistor M CAP. Mylar Capacitor

VR Variable Resistor CH CAP. Chip Capacitor

HV R High Voltage Resistor HV CAP. High Voltage Capacitor

MF R Metal Film Resistor MF CAP. Metalized Film Capacitor

MG R Metal Glazed Resistor MM CAP. Metalized Mylar Capacitor

MP R Metal Plate Resistor MP CAP. Metalized Polystyrol Capacitor

OM R Metal Oxide Film Resistor PP CAP. Polypropylene Capacitor

CMF R Coating Metal Film Resistor PS CAP. Polystyrol Capacitor

UNF R Non-Flammable Resistor TF CAP. Thin Film Capacitor

CH V R Chip Variable Resistor MPP CAP. Metalized Polypropylene Capacitor

CH MG R Chip Metal Glazed Resistor TAN. CAP. Tantalum Capacitor

COMP. R Composition Resistor CH C CAP. Chip Ceramic Capacitor

LPTC R Linear Positive Temperature Coefficient Resistor BP E CAP. Bi-Polar Electrolytic Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor

CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor

CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor

RESISTORS

FGJKMNRHZP

±1% ±2% ±5% ±10% ±20% ±30%

+30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

(No.YA097)3-1

CONTENTS

PRINTED WIRING BOARD PARTS LIST [AV-48WP55/H] ........................................................................................ 3-9

MAIN P.W. BOARD ASS'Y (SRP-1012A-M2) .................................................................................................... 3-9

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2) ............................................................ 3-13

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2) ................................................................................ 3-15

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2) ................................................................................ 3-15

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2) ................................................................................ 3-16

VM P.W. BOARD ASS'Y (SRP-7201A-M2) ..................................................................................................... 3-16

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2) ........................................................................ 3-16

POWER P.W. BOARD ASS'Y (SRP-9001A-M2) ............................................................................................. 3-16

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2) ........................................................................... 3-17

MI-COM & DIST MODULE P.W. BOARD ASS'Y (SRP0D001A-M2) ............................................................... 3-18

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K012A-M2) .............................................. 3-18

PRINTED WIRING BOARD PARTS LIST [AV-56WP55/H] ...................................................................................... 3-19

MAIN P.W. BOARD ASS'Y (SRP-1013A-M2) .................................................................................................. 3-19

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2) ............................................................ 3-23

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2) ................................................................................ 3-23

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2) ................................................................................ 3-23

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2) ................................................................................ 3-23

VM P.W. BOARD ASS'Y (SRP-7201A-M2) ..................................................................................................... 3-23

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2) ........................................................................ 3-23

POWER P.W. BOARD ASS'Y (SRP-9001A-M2) ............................................................................................. 3-23

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2) ........................................................................... 3-23

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2) ............................................................................... 3-23

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K013A-M2) .............................................. 3-23

PRINTED WIRING BOARD PARTS LIST [AV-65WP55/H] ...................................................................................... 3-24

MAIN P.W. BOARD ASS'Y (SRP-1014A-M2) .................................................................................................. 3-24

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2013A-M2) ........................................................... 3-28

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2) ................................................................................ 3-31

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2) ................................................................................ 3-31

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2) ................................................................................ 3-31

VM P.W. BOARD ASS'Y (SRP-7201A-M2) ..................................................................................................... 3-31

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2) ........................................................................ 3-31

POWER P.W. BOARD ASS'Y (SRP-9010A-M2) ............................................................................................. 3-31

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2) ........................................................................... 3-31

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2) ............................................................................... 3-31

DIGITAL CONVERGENCE P.W. BOARD ASS'Y (SRP0K014A-M2) .............................................................. 3-31

DIGITAL INPUT MODULE MODULE P.W. BOARD ASS'Y (SRP-7812A-M2) ................................................ 3-31

REMOTE CONTROL UNIT PARTS LIST (RM-C1257G-1H) .................................................................................... 3-31

PACKING [AV-48WP55/H, AV-56WP55/H] .............................................................................................................. 3-32

PACKING PARTS LIST [AV-48WP55/H, AV-56WP55/H] ........................................................................................ 3-32

PACKING [AV-65WP55/H] ........................................................................................................................................ 3-33

PACKING PARTS LIST [AV-65WP55/H] .................................................................................................................. 3-33

3-2(No.YA097)

USING P.W. BOARD & REMOTE CONTROL UNIT

P.W.B ASS'Y AV-48WP55/H AV-5 6WP5 5/H AV-65WP55/H

MAIN P.W.B SRP-1012A-M2 SRP-1013A-M2 SRP-1014A-M2 DEF / CONVERGENCE OUT P.W.B SRP-2012A-M2 ← SRP-2013A-M2 R CRT SOCKET P.W.B SRP-3101A-M2 ←← G CRT SOCKET P.W.B SRP-3201A-M2 ←← B CRT SOCKET P.W.B SRP-3301A-M2 ←← VM P.W.B SRP-7201A-M2 ←← REMOCON SENSOR P.W.B SRP-8001A-M2 ←← POWER P.W.B SRP-9001A-M2 ←← MI-COM & DIST MODULE P.W.B SRP0D001A-M2 ←← FRONT CONTROL P.W.B SRP0L012A-M2 ←← DIGITAL CONVERGENCE MODULE P.W.B SRP0K012A-M2 SRP0K013A-M2 SRP0K014A-M2 DIGITAL INPUT MODULE P.W.B --- --- SRP-7812A-M2 REMOTE CONTROL UNIT RM-C1257G-1H ←←

(No.YA097)3-3

EXPLODED VIEW PARTS LIST

 Ref.No. Part No. Part Name Description Local

 DY01 QQD0107-001 DEF YOKE (x3)  T502 QQH0179-001 FB TRANSF

1 LC32441-003A-A 48V GLASS MIRROR 48WP55/H 1 LC32173-002A-A 56V GLASS MIRROR 56WP55/H 1 LC32173-001A-A 65V GLASS MIRROR 65WP55/H

 2 LC11247-001D-A BACK COVER 48WP55/H  2 LC11407-001D-A BACK COVER 56WP55/H  2 LC11508-001D-A BACK COVER 65WP55/H  3 LC21219-002A-A BACK BOARD UP 65WP55/H

4 QYSBSAG4018M TAP SCREW M4 x 18mm(x2) 48WP55/H,56WP55/H 4 QYSBSAG4018M TAP SCREW M4 x 18mm(x4) 65WP55/H 5 QYSBSF4012Z TAP SCREW 4mm x 12mm(x13) 6 LC21316-001A-A MIRROR HOLDER TOP 48WP55/H,56WP55/H 6 LC21217-001A-A MIRROR HOLDER TOP 65WP55/H 7 LC21311-001B-A MIRROR HOLDER LEFT 48WP55/H,56WP55/H 7 LC21218-001B-A MIRROR HOLDER LEFT 65WP55/H 8 LC21311-002B-A MIRROR HOLDER RIGHT 48WP55/H,56WP55/H 8 LC21218-002B-A MIRROR HOLDER RIGHT 65WP55/H 9 LC21317-001B-A MIRROR HOLDER BOTTOM 48WP55/H,56WP55/H 9 LC21217-002A-A MIRROR HOLDER BOTTOM 65WP55/H 10 QYSBSFG4016M TAP SCREW 4.0mm x 16mm(x10) 11 QYSBSAG4018M TAP SCREW M4 x 18mm(x2) 12 QYSBSF3012M TAP SCREW 3.0mm x 12mm(x3) 13 QYSBSF3012M TAP SCREW 3.0mm x 12mm(x2)

 14 LC31749-001A-A LED LENS  15 LC31751-001B-A KNOB  16 QQR0491-001 FERRITE CORE GRAY

17 CM35757-055-A STICK SHEET (x2) 65WP55/H 18 QYSBSFG4016M TAP SCREW 4.0mm x 16mm(x3) 48WP55/H,56WP55/H 18 QYSBSFG4016M TAP SCREW 4.0mm x 16mm(x4) 65WP55/H 19 QYSBSF4012Z TAP SCREW 4mm x 12mm(x2) 56WP55/H 19 QYSBSG4012Z TAP SCREW M4 x 12mm(x2) 48WP55/H,65WP55/H 20 QYSBSAG4018M TAP SCREW M4 x 18mm(x2) 65WP55/H

 21 LC32192-001A-A CONNECTOR COVER 65WP55/H  22 LC20981-003A-A SHADING BOARD 56WP55/H  22 LC21490-001A-A SHADING BOARD 48WP55/H,65WP55/H  23 QAS0248-001 SPEAKER SP01/SP02(x2)

24 QYSBSA4012M TAP SCREW M4 x 12mm(x8)

 25 LC11251-001D-A SPEAKER GRILL 48WP55/H  25 LC11406-002A-A SPEAKER GRILL 56WP55/H  25 LC32231-001E-A SPEAKER GRILL 65WP55/H

26 LC31756-001A-A BC FITTING (x2) 48WP55/H,56WP55/H 26 LC32193-001A-A BC FITTING (x2) 65WP55/H 27 QYSBSA4012M TAP SCREW M4 x 12mm(x2) 48WP55/H,56WP55/H 28 QYSPSPD4020Z SCREW M4 x 20mm(x2) 48WP55/H,56WP55/H 28 QYSPSPD4020Z SCREW M4 x 20mm(x8) 65WP55/H

 29 GQ20011-001A-A FRONT BOARD 48WP55/H  29 GQ20011-004A-A FRONT BOARD 56WP55/H,65WP55/H  30 LC21491-001A-A BACK BOARD 48WP55/H  30 LC21276-002A-A BACK BOARD 56WP55/H  30 LC21491-007A-A BACK BOARD 65WP55/H  31 LC31139-001A-A RATING LABEL

32 QYSDSA4015Z TAP SCREW M4 x 15mm(x4) 48WP55/H,56WP55/H 32 QYSDSA4015Z TAP SCREW M4 x 15mm(x2) 65WP55/H 33 QYSBSF4012Z TAP SCREW 4mm x 12mm(x2) 65WP55/H 34 QYSBSAG4018M TAP SCREW M4 x 18mm(x4) 35 QYSBSFG4020M TAP SCREW M4 x 20mm(x4) 36 QYSBSAG4018M TAP SCREW M4 x 18mm(x4) 37 QYSBSFG4016M TAP SCREW 4.0mm x 16mm(x4) 48WP55/H 37 QYSBSFG4016M TAP SCREW 4.0mm x 16mm(x3) 56WP55/H,65WP55/H 38 CM47752-A07-C BRAND MARK 39 QYNSS3000P PUSH NUT M3 40 LC41574-001A LABEL (x2) 65WP55/H

 41 48SC-001A-M2 SCREEN ASSY  41 56WP55SCSAM2 SCREEN ASSY  41 65WP55SCSAM2 SCREEN ASSY  42 LC11245-001F-A FRONT PANEL 48WP55/H  42 LC11405-003B-A FRONT PANEL 56WP55/H  42 LC11507-001D-A FRONT PANEL 65WP55/H

43 LC31735-001A-A LENZ D250 (x3) 48WP55/H 43 LC31736-001A-A LENS D260 (x3) 56WP55/H,65WP55/H

 44 R-CRT575SAM2 R CRT 575SA  45 G-CRT575SAM2 G CRT 575SA  46 B-CRT575SAM2 B CRT 575SA

47 QAL0477-001 PC MAGNET (x3)

 48 LC21488-002A-A UNIT BKT RIGHT  49 LC21488-001A-A UNIT BKT LEFT  50 QAE0007-001 DIVIDER  51 QAE0008-001 FOCUS PACK

52 QYSBSGG3008Z TAP SCREW 3mm x 8mm 53 CM22765-001-A COOLANT PAN 54 QYSBSG4012Z TAP SCREW M4 x 12mm(x2) 48WP55/H,56WP55/H 54 QYSBSF4012Z TAP SCREW 4mm x 12mm(x2) 65WP55/H

 55 LC11789-001B-A CHASSIS BASE  56 LC11791-003A-A AV BOARD 48WP55/H  56 LC11791-001A-A AV BOARD 56WP55/H,65WP55/H

57 QYSBSF3012M TAP SCREW 3.0mm x 12mm(x4) 56WP55/H

PROTECTOR / FRESNEL LENS / LENTICULAR LENS PROTECTOR / FRESNEL LENS / LENTICULAR LENS PROTECTOR / FRESNEL LENS / LENTICULAR LENS

48WP55/H 56WP55/H 65WP55/H

3-4(No.YA097)

 Ref.No. Part No. Part Name Description Local

57 QYSBSF3012Z TAP SCREW 3.0mm x 12mm(x4) 48WP55/H,65WP55/H 58 CM32201-00A-H ASSY SCREW 65WP55/H

 59 QMPD200-200-JC POWER CORD(US/CA) 2m BLACK  60 LC20106-001D-A POWER CORD CLAMP  61 GQ30034-001B-A WARNING LABEL

 100 LC31883-008A-A CONTROL ASSY Inc.No.101-103  101 LC11246-008A-A CONTROL BASE  102 PU60109 CATCHER  103 LC31829-003A-A DOOR 48WP55/H,56WP55/H

 200 GQ10079-001A-A BODY Inc.No.201 48WP55/H  200 GQ10080-001A-A BODY 56WP55/H  200 GQ10081-001A-A BODY Inc.No.201 65WP55/H

201 CM36396-00B-A CASTER (x4)

 300 SRP0L012A-M2 FRONT CONTROL PWB  301 SRP-1012A-M2 MAIN PWB 48WP55/H  301 SRP-1013A-M2 MAIN PWB 56WP55/H  301 SRP-1014A-M2 MAIN PWB 65WP55/H  302 SRP-9001A-M2 POWER PWB  303 SRP-2012A-M2 DEF / CONVERGENCE OUT PWB 48WP55/H,56WP55/H  303 SRP-2013A-M2 DEF / CONVERGENCE OUT PWB 65WP55/H  304 SRP0K012A-M2 DIGITAL CONVERGENCE MODULE PWB 48WP55/H  304 SRP0K013A-M2 DIGITAL CONVERGENCE MODULE PWB 56WP55/H  304 SRP0K014A-M2 DIGITAL CONVERGENCE MODULE PWB 65WP55/H  305 SRP0D001A-M2 MI-COM & DIST MODULE PWB  306 SRP-8001A-M2 REMOCON SENSOR PWB  307 SRP-7812A-M2 DIGITAL INPUT MODULE PWB 65WP55/H  308 SRP-3101A-M2 R CRT SOCKET PWB  309 SRP-3201A-M2 G CRT SOCKET PWB  310 SRP-3301A-M2 B CRT SOCKET PWB  311 SRP-7201A-M2 VM PWB

EXPLODED VIEW

FRONT

13

103

12

15

14

300

101

102

100

(No.YA097)3-5

[AV-48WP55/H, AV-56WP55/H]

22

10

11

18

36

30

31

2

41

42

1

6

7

8

5

4

26

19

27

9

28

35

28

24

38

23

39

32

100

25

34

27

29

19

37

26

36

35

200

201

23

24

3-6(No.YA097)

[AV-65WP55/H]

42

41

2

19

20

21

6

7

1

8

9

5

28

10

3

22

18

11

19

24

23

39

32

33

26

35

28

17

4

40

100

26

17

201

30

35

200

36

31

37

36

38

25

34

29

23

24

(No.YA097)3-7

FRONT

43

444845 46

51

52

61

53

54

302

306

303

50

49

47

304

T502

308

DY01

311

16

309 310

301

305

55

56

307

60

59

58

57

3-8(No.YA097)

PRINTED WIRING BOARD PARTS LIST [AV-48WP55/H]



MAIN P.W. BOARD ASS'Y (SRP-1012A-M2)



Ref No. Part No. Part Name Description Local

IC1101 L7805CP IC IC1140 CXA2205Q-X IC IC1211 TA1318N IC IC1212 SN74AHC2G08T-X IC IC1301 AN15852A IC IC1501 CXA2069Q IC IC1502 M62320FP-X IC IC1511 PQ033RD01SZ IC IC1661 AN5277 IC IC1703 AT24C128-48WP55 IC (SERVICE) IC1802 BA033T IC IC1941 PQ1CG21H2FZ IC IC1942 SI-8050JD-W IC IC1943 PQ1CY1032Z-W IC IC1981 PQ070XZ01Z-X IC IC1991 PQ12RD11 IC IC1993 MM1565AF-X IC IC3001 MN82832 IC IC3002 R1170H331B-X IC

Q0701 2SK2090-X MOS FET Q0702 2SK2090-X MOS FET Q1101 2SA1530A/QR/-X TRANSISTOR Q1102 2SC3928A/QR/-X TRANSISTOR Q1232 2SA1530A/QR/-X TRANSISTOR Q1252 2SA1530A/QR/-X TRANSISTOR Q1253 2SC3928A/QR/-X TRANSISTOR Q1254 2SA1530A/QR/-X TRANSISTOR Q1255 2SC3928A/QR/-X TRANSISTOR Q1301 2SC3837K/NP/-X TRANSISTOR Q1302 2SC3837K/NP/-X TRANSISTOR Q1303 2SC3837K/NP/-X TRANSISTOR Q1401 2SC3928A/QR/-X TRANSISTOR Q1511 2SC3928A/QR/-X TRANSISTOR Q1531 2SC3928A/QR/-X TRANSISTOR Q1668 UN2213-X DIGI TRANSISTOR Q1669 2SC3928A/QR/-X TRANSISTOR Q1671 UN2213-X DIGI TRANSISTOR Q1672 2SC3928A/QR/-X TRANSISTOR Q1673 2SA1530A/QR/-X TRANSISTOR Q1674 2SC3928A/QR/-X TRANSISTOR Q1712 2SA1530A/QR/-X TRANSISTOR Q1713 2SC2785/JH/-T SI TRANSISTOR Q1714 2SA1530A/QR/-X TRANSISTOR Q1961 2SC3928A/QR/-X TRANSISTOR Q1962 2SC3928A/QR/-X TRANSISTOR Q1964 2SC3928A/QR/-X TRANSISTOR Q1965 UN2213-X DIGI TRANSISTOR Q1966 UN2213-X DIGI TRANSISTOR Q1967 UN2213-X DIGI TRANSISTOR Q1981 2SC4682-T TRANSISTOR Q1984 2SC4682-T TRANSISTOR Q3001 2SC3928A/QR/-X TRANSISTOR Q3002 2SC3928A/QR/-X TRANSISTOR Q3003 2SA1530A/QR/-X TRANSISTOR Q3004 2SC3928A/QR/-X TRANSISTOR Q3005 2SC3928A/QR/-X TRANSISTOR Q3006 2SA1530A/QR/-X TRANSISTOR Q3007 2SA1530A/QR/-X TRANSISTOR Q3501 2SA1530A/QR/-X TRANSISTOR Q3502 2SC3928A/QR/-X TRANSISTOR Q3505 2SA1530A/QR/-X TRANSISTOR Q3506 2SC3928A/QR/-X TRANSISTOR Q3509 2SA1530A/QR/-X TRANSISTOR Q3510 2SC3928A/QR/-X TRANSISTOR

D1093 MA8082/M/-X Z DIODE D1140 MA8100/M/-X Z DIODE D1141 MA8100/M/-X Z DIODE D1145 MA8082/M/-X Z DIODE D1146 MA8082/M/-X Z DIODE D1251 MA8100/M/-X Z DIODE D1252 MA8100/M/-X Z DIODE D1253 MA111-X SI DIODE D1301 MA8100/M/-X Z DIODE D1302 MA8100/M/-X Z DIODE D1305 MA8100/M/-X Z DIODE D1306 MA8100/M/-X Z DIODE D1401 MA111-X SI DIODE D1402 UDZS5.1B-X Z DIODE D1403 MA111-X SI DIODE D1513 MA111-X SI DIODE

Ref No. Part No. Part Name Description Local

D1596 MA8100/M/-X Z DIODE D1667 MA111-X SI DIODE D1668 MA111-X SI DIODE D1669 MA111-X SI DIODE D1702 MA111-X SI DIODE D1703 MA111-X SI DIODE D1704 MA8100/M/-X Z DIODE D1705 MA8100/M/-X Z DIODE D1712 MA111-X SI DIODE D1802 MA111-X SI DIODE D1895 MA8082/M/-X Z DIODE D1896 MA8082/M/-X Z DIODE D1897 MA8051/M/-X Z DIODE D1898 MA8051/M/-X Z DIODE D1947 EC31QS04-X SB DIODE D1948 EC31QS04-X SB DIODE D1949 EC31QS04-X SB DIODE D1962 MA3030/H/-X Z DIODE D1964 MA111-X SI DIODE D1965 MA111-X SI DIODE D1967 PTZ6.8B-X Z DIODE D1968 PTZ3.9B-X Z DIODE D1969 PTZ11B-X Z DIODE D1981 MA111-X SI DIODE D1991 MA111-X SI DIODE D1993 MA111-X SI DIODE D2101 MA8100/M/-X Z DIODE D2121 MA8100/M/-X Z DIODE D2201 MA8100/M/-X Z DIODE D2204 MA8100/M/-X Z DIODE D2205 MA8100/M/-X Z DIODE D2206 MA8100/M/-X Z DIODE D2209 MA8100/M/-X Z DIODE D2210 MA8100/M/-X Z DIODE D2212 MA8100/M/-X Z DIODE D2213 MA8100/M/-X Z DIODE D2215 MA8100/M/-X Z DIODE D2216 MA8100/M/-X Z DIODE D2217 MA8100/M/-X Z DIODE D2218 MA8100/M/-X Z DIODE D2219 MA8100/M/-X Z DIODE D2402 MA8100/M/-X Z DIODE D2404 MA8100/M/-X Z DIODE D2421 MA8100/M/-X Z DIODE D2422 MA8100/M/-X Z DIODE

C1101 QETN1CM-477Z E CAPACITOR 470uF 16V M C1102 QETN1CM-107Z E CAPACITOR 100uF 16V M C1103 QETN1HM-106Z E CAPACITOR 10uF 50V M C1111 N CF3 1CZ -104X C CAPACITOR 0.1uF 16V Z C1140 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1141 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1144 QETN1HM-106Z E CAPACITOR 10uF 50V M C1145 NCB31HK-223X C CAPACITOR 0.022uF 50V K C1146 NCB31HK-472X C CAPACITOR 4700pF 50V K C1147 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1148 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1149 NCB31HK-472X C CAPACITOR 4700pF 50V K C1150 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1151 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1152 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1153 NCB31HK-562X C CAPACITOR 5600pF 50V K C1154 NCB31HK-123X C CAPACITOR 0.012uF 50V K C1155 QETN1HM-105Z E CAPACITOR 1uF 50V M C1156 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1157 QETN1HM-106Z E CAPACITOR 10uF 50V M C1158 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1159 QETN1CM-107Z E CAPACITOR 100uF 16V M C1160 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1161 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1162 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1163 NCB31HK-272X C CAPACITOR 2700pF 50V K C1164 NCB31HK-473X C CAPACITOR 0.047uF 50V K C1165 QETN1HM-335Z E CAPACITOR 3.3uF 50V M C1166 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1167 QETN1HM-106Z E CAPACITOR 10uF 50V M C1168 QETN1HM-105Z E CAPACITOR 1uF 50V M C1169 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1170 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1171 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1172 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1213 QETN1CM-107Z E CAPACITOR 100uF 16V M C1214 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C1215 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J

(No.YA097)3-9



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C1216 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1218 NCB21CK-105X C CAPACITOR 1uF 16V K C1219 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1233 NDC31HJ-180X C CAPACITOR 18pF 50V J C1257 QETN1HM-105Z E CAPACITOR 1uF 50V M C1258 QETN1HM-105Z E CAPACITOR 1uF 50V M C1301 QETN1CM-107Z E CAPACITOR 100uF 16V M C1302 QETN1CM-107Z E CAPACITOR 100uF 16V M C1303 QETN1CM-107Z E CAPACITOR 100uF 16V M C1304 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1305 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1306 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1307 QETN1CM-106Z E CAPACITOR 10uF 16V M C1308 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1309 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1311 NCB21CK-105X C CAPACITOR 1uF 16V K C1312 NCB21CK-105X C CAPACITOR 1uF 16V K C1313 NCB21CK-105X C CAPACITOR 1uF 16V K C1322 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1323 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1324 NCB21CK-105X C CAPACITOR 1uF 16V K C1325 NCB21CK-105X C CAPACITOR 1uF 16V K C1326 NDC31HJ-101X C CAPACITOR 100pF 50V J C1327 NDC31HJ-101X C CAPACITOR 100pF 50V J C1328 NDC31HJ-101X C CAPACITOR 100pF 50V J C1329 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1331 NCB21CK-105X C CAPACITOR 1uF 16V K C1332 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1333 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1341 NCB21CK-105X C CAPACITOR 1uF 16V K C1342 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1343 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1351 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1352 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1353 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1354 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1355 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1361 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1362 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1363 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1364 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1365 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1371 QETN1CM-336Z E CAPACITOR 33uF 16V M C1372 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1381 QETN1CM-336Z E CAPACITOR 33uF 16V M C1382 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1391 QETN1CM-336Z E CAPACITOR 33uF 16V M C1392 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1403 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1404 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1405 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1406 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1409 QETN1HM-106Z E CAPACITOR 10uF 50V M C1410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1411 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1412 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1415 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1416 QETN1EM-476Z E CAPACITOR 47uF 25V M C1417 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1418 QETN1EM-476Z E CAPACITOR 47uF 25V M C1421 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1423 QETN1HM-476Z E CAPACITOR 47uF 50V M C1442 QETN1EM-476Z E CAPACITOR 47uF 25V M C1501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1502 QETN1EM-476Z E CAPACITOR 47uF 25V M C1510 QENC1CM-106Z BP E CAPACITOR 10uF 16V M C1519 QETN1EM-476Z E CAPACITOR 47uF 25V M C1531 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1532 QETN1HM-226Z E CAPACITOR 22uF 50V M C1539 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1540 QETN1AM-107Z E CAPACITOR 100uF 10V M C1553 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1554 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1555 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1556 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1557 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1579 QETN1EM-476Z E CAPACITOR 47uF 25V M C1667 QETN1HM-106Z E CAPACITOR 10uF 50V M C1668 NDC31HJ-101X C CAPACITOR 100pF 50V J C1669 NCB21CK-105X C CAPACITOR 1uF 16V K C1670 QETN1HM-106Z E CAPACITOR 10uF 50V M C1671 NDC31HJ-101X C CAPACITOR 100pF 50V J C1672 NCB21CK-105X C CAPACITOR 1uF 16V K C1673 QETN1HM-477Z E CAPACITOR 470uF 50V M C1674 QETM1HM-108 E CAPACITOR 1000uF 50V M C1675 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J C1676 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J

C1677 QETN1EM-108Z E CAPACITOR 1000uF 25V M C1678 QETN1EM-108Z E CAPACITOR 1000uF 25V M C1679 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1680 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1696 QETN1HM-106Z E CAPACITOR 10uF 50V M C1697 QETN1EM-476Z E CAPACITOR 47uF 25V M C1702 NCB21CK-105X C CAPACITOR 1uF 16V K C1712 QETN1AM-227Z E CAPACITOR 220uF 10V M C1806 QETN1VM-476Z E CAPACITOR 47uF 35V M C1807 QETN1EM-476Z E CAPACITOR 47uF 25V M C1941 QETN1VM-477Z E CAPACITOR 470uF 35V M C1942 QETN1CM-108Z E CAPACITOR 1000uF 16V M C1943 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1944 QETN1VM-477Z E CAPACITOR 470uF 35V M C1945 QEZ0256-128 E CAPACITOR 1200uF 10V M C1946 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1947 QETN1CM-477Z E CAPACITOR 470uF 16V M C1948 QETN1CM-477Z E CAPACITOR 470uF 16V M C1949 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1950 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1951 QETN1VM-477Z E CAPACITOR 470uF 35V M C1952 QEZ0256-128 E CAPACITOR 1200uF 10V M C1953 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1955 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1961 QETN1HM-105Z E CAPACITOR 1uF 50V M C1981 QETN1CM-107Z E CAPACITOR 100uF 16V M C1984 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1985 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C1991 QETN1EM-107Z E CAPACITOR 100uF 25V M C1992 QETN1CM-477Z E CAPACITOR 470uF 16V M C1994 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1995 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1996 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2103 QETN1HM-106Z E CAPACITOR 10uF 50V M C2104 QETN1HM-106Z E CAPACITOR 10uF 50V M C2105 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2106 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2123 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2124 QETN1HM-106Z E CAPACITOR 10uF 50V M C2126 QETN1HM-106Z E CAPACITOR 10uF 50V M C2127 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2128 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2144 QETN1HM-106Z E CAPACITOR 10uF 50V M C2145 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2146 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2302 NCB21CK-105X C CAPACITOR 1uF 16V K C2303 NCB21CK-105X C CAPACITOR 1uF 16V K C2322 NCB21CK-105X C CAPACITOR 1uF 16V K C2323 NCB21CK-105X C CAPACITOR 1uF 16V K C3001 QENC1AM-336Z BP E CAPACITOR 33uF 10V M C3002 NDC31HJ-151X C CAPACITOR 150pF 50V J C3003 NDC31HJ-121X C CAPACITOR 120pF 50V J C3004 NDC31HJ-150X C CAPACITOR 15pF 50V J C3005 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3006 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3007 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3008 NDC31HJ-151X C CAPACITOR 150pF 50V J C3009 NDC31HJ-121X C CAPACITOR 120pF 50V J C3010 NDC31HJ-150X C CAPACITOR 15pF 50V J C3011 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3012 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3013 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3014 QETN1CM-107Z E CAPACITOR 100uF 16V M C3015 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3016 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3017 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C3018 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3019 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3020 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3021 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3022 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3023 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3024 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3025 QETN1CM-106Z E CAPACITOR 10uF 16V M C3026 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3027 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3028 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3029 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3030 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3031 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3032 NDC31HJ-560X C CAPACITOR 56pF 50V J C3033 NDC31HJ-330X C CAPACITOR 33pF 50V J C3034 NDC31HJ-560X C CAPACITOR 56pF 50V J C3035 NDC31HJ-330X C CAPACITOR 33pF 50V J C3036 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3037 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

3-10(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C3038 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3039 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3041 QETN1CM-106Z E CAPACITOR 10uF 16V M C3042 NCB31HK-472X C CAPACITOR 4700pF 50V K C3044 NCB31HK-472X C CAPACITOR 4700pF 50V K C3045 NCB31HK-472X C CAPACITOR 4700pF 50V K C3046 NCB31HK-472X C CAPACITOR 4700pF 50V K C3047 QETN1CM-106Z E CAPACITOR 10uF 16V M C3048 NCB31HK-472X C CAPACITOR 4700pF 50V K C3049 NCB31HK-472X C CAPACITOR 4700pF 50V K C3050 NCB31HK-472X C CAPACITOR 4700pF 50V K C3051 NCB31HK-472X C CAPACITOR 4700pF 50V K C3052 NCB31HK-472X C CAPACITOR 4700pF 50V K C3053 NCB31HK-472X C CAPACITOR 4700pF 50V K C3054 NCB31HK-472X C CAPACITOR 4700pF 50V K C3055 NCB31HK-472X C CAPACITOR 4700pF 50V K C3056 NCB31HK-472X C CAPACITOR 4700pF 50V K C3057 QETN1CM-106Z E CAPACITOR 10uF 16V M C3058 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3059 QETN1HM-105Z E CAPACITOR 1uF 50V M C3060 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3061 QETN1HM-105Z E CAPACITOR 1uF 50V M C3062 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3063 QETN1HM-105Z E CAPACITOR 1uF 50V M C3064 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3065 QETN1CM-106Z E CAPACITOR 10uF 16V M C3066 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3067 QETN1CM-476Z E CAPACITOR 47uF 16V M C3068 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3069 QETN1CM-476Z E CAPACITOR 47uF 16V M C3070 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3071 QETN1CM-476Z E CAPACITOR 47uF 16V M C3072 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3077 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3078 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3079 NDC31HJ-470X C CAPACITOR 47pF 50V J C3080 QBTC1CK-106Z TA E CAPACITOR 10uF 16V K C3082 NDC31HJ-151X C CAPACITOR 150pF 50V J C3086 NCB31HK-152X C CAPACITOR 1500pF 50V K C3088 NDC31HJ-100X C CAPACITOR 10pF 50V J C3089 NDC31HJ-100X C CAPACITOR 10pF 50V J C3090 NDC31HJ-100X C CAPACITOR 10pF 50V J C3099 NCB31HK-472X C CAPACITOR 4700pF 50V K C3100 NCB31HK-472X C CAPACITOR 4700pF 50V K C3501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3502 NDC31HJ-101X C CAPACITOR 100pF 50V J C3503 NDC31HJ-121X C CAPACITOR 120pF 50V J C3504 NDC31HJ-150X C CAPACITOR 15pF 50V J C3506 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3507 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3508 NDC31HJ-101X C CAPACITOR 100pF 50V J C3509 NDC31HJ-121X C CAPACITOR 120pF 50V J C3510 NDC31HJ-150X C CAPACITOR 15pF 50V J C3512 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3513 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3514 NDC31HJ-101X C CAPACITOR 100pF 50V J C3515 NDC31HJ-121X C CAPACITOR 120pF 50V J C3516 NDC31HJ-150X C CAPACITOR 15pF 50V J C3518 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3519 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3520 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3521 QENC1CM-336Z BP E CAPACITOR 33uF 16V M

R0705 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R0706 NRSA63J-103X MG RESISTOR 10k R1097 NRSA63J-102X MG RESISTOR 1k R1104 NRSA63J-221X MG RESISTOR 220 R1105 NRSA63J-221X MG RESISTOR 220 R1107 NRSA63J-473X MG RESISTOR 47k R1110 NRSA63J-103X MG RESISTOR 10k R1111 N RSA 63J -273X MG RESISTOR 27k R1112 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1140 NRSA63J-225X MG RESISTOR 2.2M R1141 NRSA63J-221X MG RESISTOR 220 R1142 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1143 NRSA63J-105X MG RESISTOR 1M R1144 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1145 NRSA63J-123X MG RESISTOR 12k R1146 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1147 NRSA63J-683X MG RESISTOR 68k R1149 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1151 NRSA63J-302X MG RESISTOR 3k R1152 NRSA63J-392X MG RESISTOR 3.9k R1157 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1158 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1202 NRSA63J-101X MG RESISTOR 100 R1203 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R1218 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1219 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1220 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1221 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1226 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1228 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1230 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1231 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1232 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1234 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1236 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1240 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1261 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1262 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1265 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1266 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1267 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1268 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1269 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1272 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1282 QRE141J-221Y C RESISTOR 220Ω 1/4W J R1283 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1284 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1285 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1286 NRSA63J-221X MG RESISTOR 220 R1287 NRSA63J-823X MG RESISTOR 82k R1301 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1302 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1337 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1347 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1372 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1374 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1375 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1382 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1384 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1385 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1392 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1394 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1395 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1401 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1402 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1421 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R1422 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1423 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1501 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1502 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1505 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1511 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1514 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1515 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1516 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1517 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1518 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1519 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1520 NRSA63J-221X MG RESISTOR 220 R1521 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1522 NRSA63J-221X MG RESISTOR 220 R1523 NRSA63J-682X MG RESISTOR 6.8k R1524 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1525 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1526 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1527 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1528 NRSA63J-682X MG RESISTOR 6.8k R1529 NRSA63J-221X MG RESISTOR 220 R1530 NRSA63J-102X MG RESISTOR 1k R1533 NRSA63J-221X MG RESISTOR 220 R1534 NRSA63J-682X MG RESISTOR 6.8k R1535 NRSA63J-221X MG RESISTOR 220 R1536 NRSA63J-682X MG RESISTOR 6.8k R1537 NRSA63J-221X MG RESISTOR 220 R1538 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1539 NRSA63J-682X MG RESISTOR 6.8k R1560 NRSA63J-101X MG RESISTOR 100 R1562 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1571 NRSA63J-0R0X MG RESISTOR 0 R1577 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1578 NRSA63J-682X MG RESISTOR 6.8k R1579 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1611 NRSA63J-563X MG RESISTOR 56k R1612 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1613 NRSA63J-102X MG RESISTOR 1k R1614 NRSA63J-104X MG RESISTOR 100k R1615 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1616 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1658 NRSA63J-103X MG RESISTOR 10k R1659 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA097)3-11



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R1665 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1666 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1667 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1668 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1669 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1670 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1671 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1672 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1673 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1674 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1680 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R1681 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1689 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1690 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1691 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1694 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1695 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1696 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1697 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1701 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1702 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1712 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R1713 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1714 NRSA63J-123X MG RESISTOR 12k R1715 NRSA63J-472X MG RESISTOR 4.7k R1716 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1718 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1895 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1896 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1897 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1898 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1899 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1900 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1942 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1943 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D



R1944 QRK126J-220X UNF C RESISTOR 22Ω 1/2W J R1945 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1946 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1949 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1950 NRSA63D-822X MG RESISTOR 8.2kΩ 1/16W D R1952 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1953 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R1957 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D R1959 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R1961 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1962 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1963 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R1964 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R1965 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1966 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1967 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R1968 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1969 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1971 QRT039J-R68 MF RESISTOR 0.68 R1975 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1978 NRSA63J-102X MG RESISTOR 1k



R1981 QRK126J-181X UNF C RESISTOR 180Ω 1/2W J R1982 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D R1983 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D R1984 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R1985 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J



R1986 QRK126J-331X UNF C RESISTOR 330Ω 1/2W J R1991 NRSA63J-471X MG RESISTOR 470 R1992 NRSA63J-182X MG RESISTOR 1.8k R2102 NRSA63J-750X MG RESISTOR 75 R2103 NRSA63J-750X MG RESISTOR 75 R2104 NRSA63J-750X MG RESISTOR 75 R2105 NRSA63J-224X MG RESISTOR 220k R2106 NRSA63J-224X MG RESISTOR 220k R2122 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2123 NRSA63J-750X MG RESISTOR 75 R2125 NRSA63J-750X MG RESISTOR 75 R2126 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2127 NRSA63J-224X MG RESISTOR 220k R2144 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2145 NRSA63J-224X MG RESISTOR 220k R2146 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2305 NRSA63J-750X MG RESISTOR 75 R2308 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2325 NRSA63J-750X MG RESISTOR 75 R2328 NRSA63J-750X MG RESISTOR 75 R3001 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3002 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3003 NRSA63J-101X MG RESISTOR 100 R3004 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3W J

R3005 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3006 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3007 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3009 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3010 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3012 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3013 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3014 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3015 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R3016 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3017 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3018 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3020 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3021 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3023 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R3024 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3025 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3026 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3027 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3028 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3029 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3030 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3039 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3040 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3042 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3045 NRSA63J-101X MG RESISTOR 100 R3047 NRSA63J-221X MG RESISTOR 220 R3048 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3049 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R3050 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R3051 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3052 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3053 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3054 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3055 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R3058 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3059 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3060 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3065 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3066 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3502 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3503 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3504 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3505 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3507 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3508 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3509 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3511 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3516 NRSA63J-680X MG RESISTOR 68Ω 1/16W J R3518 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3519 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3520 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3521 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3523 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3525 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3532 NRSA63J-680X MG RESISTOR 68 R3534 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3535 NRSA63J-182X MG RESISTOR 1.8k R3536 NRSA63J-181X MG RESISTOR 180 R3537 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3539 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3541 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3548 NRSA63J-680X MG RESISTOR 68Ω 1/16W J R3549 NRSA63J-223X MG RESISTOR 22k R3550 NRSA63J-223X MG RESISTOR 22k R3551 NRSA63J-0R0X MG RESISTOR 0 R3552 NRSA63J-223X MG RESISTOR 22k R3553 NRSA63J-223X MG RESISTOR 22k R3554 NRSA63J-223X MG RESISTOR 22k R3555 NRSA63J-223X MG RESISTOR 22k RA3001 NRZ0040-103X NET RESISTOR 10k RA3002 NRZ0040-103X NET RESISTOR 10kΩ 1/16W J RA3003 NRZ0040-103X NET RESISTOR 10k RA3004 NRZ0040-103X NET RESISTOR 10k

L1211 QQL244K-100Z PEAKING COIL 10uH K L1401 QQL244K-100Z PEAKING COIL 10uH K L1402 QQL26AK-100Z CHOKE COIL 10uH K L1941 QQR1401-001 CHOKE COIL L1942 QQR1401-001 CHOKE COIL L1943 QQL26AK-330Z CHOKE COIL 33uH K L1944 QQL26AK-330Z CHOKE COIL 33uH K L1945 QQL26AK-220Z CHOKE COIL 22uH K L1946 QQL26AK-220Z CHOKE COIL 22uH K L1947 QQR1401-001 CHOKE COIL L1948 QQL26AK-100Z CHOKE COIL 10uH K L1950 QQL26AK-470Z CHOKE COIL 47uH K

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-12(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

L1951 QQL26AK-470Z CHOKE COIL 47uH K L1952 QQL26AK-470Z CHOKE COIL 47uH K L1983 QRN143J-0R0X C RESISTOR 0Ω 1/4W J L3001 NQL092K-6R8X COIL 6.8uH K L3002 NQL092K-6R8X COIL 6.8uH K L3003 NQR0413-003X FERRITE BEADS L3004 NQR0413-003X FERRITE BEADS L3007 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J L3501 NQL092K-6R8X COIL 6.8uH K L3502 NQL092K-6R8X COIL 6.8uH K L3503 NQL092K-6R8X COIL 6.8uH K

CN1001 QGB1506L1-16 CONNECTOR B-B (1-16) CN1002 QGB1506L1-16 CONNECTOR B-B (1-16) CN1003 QGB1506L1-16 CONNECTOR B-B (1-16) CN1004 QGC2508C1-C0 CONNECTOR (1-120) H1661 LC30145-003A HEAT SINK/AL-F/ H1802 CM42862-A0A HEAT SINK ASSY J1091 QNS0242-001 3.5 JACK AV COMPULINK J2101 QNN0628-001 PIN JACK V/L IN J2102 QNN0629-001 PIN JACK J2111 QND0121-001 S JACK S IN J2121 QNN0638-001 PIN JACK COMP-1/2 IN K1943 QRN143J-0R0X C RESISTOR 0Ω 1/4W J K1944 QRN143J-0R0X C RESISTOR 0Ω 1/4W J LC1301 QQR1199-001 EMI FILTER LC1302 QQR1199-001 EMI FILTER LC1303 QQR1199-001 EMI FILTER LC2301 QQR1199-001 EMI FILTER LC2302 QQR1199-001 EMI FILTER LC2303 QQR1199-001 EMI FILTER LC2321 QQR1199-001 EMI FILTER LC2322 QQR1199-001 EMI FILTER LC2323 QQR1199-001 EMI FILTER LC3001 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3002 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3003 NQR0483-005X EMI FILTER 100uF 25V Z LC3004 NQR0470-003X EMI FILTER LC3005 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3006 NQR0470-003X EMI FILTER LC3007 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3008 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3501 NQR0470-003X EMI FILTER LC3502 NQR0470-003X EMI FILTER LC3503 NQR0470-003X EMI FILTER SL1211 CSB503F30-T2 C RESONATOR



TU1101 QAU0352-001 TUNER X3001 NAX0570-001X CRYSTAL 27.000MHz

R IN/L/R OUT/CENTER CH IN

100pF 50V +50%-20%

100pF 50V +50%-20% 100pF 50V +50%-20% 100pF 50V +50%-20%

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2)



Ref No. Part No. Part Name Description Local

IC101 LA7860M-X IC IC161 AN5441SA-W IC IC162 BA10393F-XE IC IC163 AN7805F IC IC212 CXA1875AM-X IC IC401 AN15525A IC IC801 L7805CP IC IC804 STK394-250 IC IC805 STK394-210 IC IC807 SN74LVC1G126V-X IC

Q101 2SD601A/QR/-X TRANSISTOR Q102 2SD601A/QR/-X TRANSISTOR Q131 2SD601A/QR/-X TRANSISTOR Q132 2SD601A/QR/-X TRANSISTOR Q162 2SD601A/QR/-X TRANSISTOR Q168 2SD601A/QR/-X TRANSISTOR Q171 2SB709A/QR/-X TRANSISTOR Q172 2SB709A/QR/-X TRANSISTOR Q401 2SC3311A/QR/-T TRANSISTOR Q402 2SC3311A/QR/-T TRANSISTOR Q501 BSN304-T MOS FET



Q503 2SC5931-RL POW TRANSISTOR Q521 2SC3311A/QR/-T TRANSISTOR Q531 IRFI620G POWER MOS FET Q532 2SC1959/Y/-T TRANSISTOR Q533 2SA562TM/Y/-T TRANSISTOR Q806 2SD601A/QR/-X TRANSISTOR Q807 2SD601A/QR/-X TRANSISTOR

Q808 2SD601A/QR/-X TRANSISTOR Q809 2SD601A/QR/-X TRANSISTOR Q810 2SD601A/QR/-X TRANSISTOR Q971 2SA1208/ST/Z1-T TRANSISTOR

D164 1SS355-X SI DIODE D165 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J D170 1SS355-X SI DIODE D171 1SS355-X SI DIODE D173 1SS355-X SI DIODE D174 1SS355-X SI DIODE D201 1SR35-400A-T2 SI DIODE D221 1SS355-X SI DIODE D301 EU2-T3 SI DIODE D302 EU2-T3 SI DIODE D303 RU30A-F1 SI DIODE D311 1SR124-400A-T2 SI DIODE D401 MTZJ75-T2 Z DIODE D402 1SR35-400A-T2 SI DIODE D403 MA111-X SI DIODE D404 MA8068/M/-X CHIP ZENER DIODE D405 MA111-X SI DIODE D406 MA8068/M/-X CHIP ZENER DIODE D501 1SS81-T2 SI DIODE D504 RG2A-LFC4 SI DIODE D506 FMV-3FU-F1 SI DIODE D507 V11CA-C1 SI DIODE D521 MA8120-X CHIP ZENER DIODE D522 MA111-X SI DIODE D531 RGP10J-5025-T3 SI DIODE D561 MA4068N/Z1/-T2 Z DIODE D562 MA4068N/Z1/-T2 Z DIODE D583 MA111-X SI DIODE D804 1SR153-400-T2 FR DIODE D805 1SR153-400-T2 FR DIODE D811 RD5.6E/B2/-T2 Z DIODE D812 RD5.6E/B2/-T2 Z DIODE D841 PTZ6.8B-X Z DIODE D842 PTZ5.1B-X Z DIODE D850 RD5.6E/B2/-T2 Z DIODE D972 MA8150/M/-X Z DIODE D973 MA111-X SI DIODE

C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C103 NCB31HK-103X C CAPACITOR 0.01uF 50V K C104 NDC31HJ-561X C CAPACITOR 560pF 50V J C106 NDC31HJ-102X C CAPACITOR 1000pF 50V J C107 NDC21HJ-122X C CAPACITOR 1200pF 50V J C108 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C109 NCB31HK-103X C CAPACITOR 0.01uF 50V K C110 NCB31HK-102X C CAPACITOR 1000pF 50V K C111 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C112 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C113 NDC21HJ-122X C CAPACITOR 1200pF 50V J C114 NDC31HJ-102X C CAPACITOR 1000pF 50V J C115 NDC31HJ-102X C CAPACITOR 1000pF 50V J C116 NCB31HK-103X C CAPACITOR 0.01uF 50V K C117 QTMN1CM-477Z E CAPACITOR 470uF 16V M C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K C120 QETN1EM-476Z E CAPACITOR 47uF 25V M C121 QETN1CM-107Z E CAPACITOR 100uF 16V M C122 NCB31HK-103X C CAPACITOR 0.01uF 50V K C123 NCB31HK-103X C CAPACITOR 0.01uF 50V K C124 NCB31HK-103X C CAPACITOR 0.01uF 50V K C131 NDC31HJ-101X C CAPACITOR 100pF 50V J C132 QETN1HM-105Z E CAPACITOR 1uF 50V M C133 NCB21EK-124X C CAPACITOR 0.12uF 25V K C134 NCB31HK-153X C CAPACITOR 0.015uF 50V K C135 NDC31HJ-102X C CAPACITOR 1000pF 50V J C136 NDC31HJ-102X C CAPACITOR 1000pF 50V J C137 NDC31HJ-102X C CAPACITOR 1000pF 50V J C138 NDC31HJ-181X C CAPACITOR 180pF 50V J C161 QETN1CM-108Z E CAPACITOR 1000uF 16V M C162 NCB31HK-103X C CAPACITOR 0.01uF 50V K C163 QETN1AM-477Z E CAPACITOR 470uF 10V M C164 NCB31HK-103X C CAPACITOR 0.01uF 50V K C165 NCB31CK-104X C CAPACITOR 0.1uF 16V K C167 QFLM1HJ-332Z M CAPACITOR 3300pF 50V J C168 NCB31HK-103X C CAPACITOR 0.01uF 50V K C170 NCB31HK-103X C CAPACITOR 0.01uF 50V K C171 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J C172 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C173 NCB31HK-153X C CAPACITOR 0.015uF 50V K C175 NCB31HK-152X C CAPACITOR 1500pF 50V K C178 NCB31CK-104X C CAPACITOR 0.1uF 16V K C179 NCB31CK-104X C CAPACITOR 0.1uF 16V K C180 NCB31CK-104X C CAPACITOR 0.1uF 16V K

(No.YA097)3-13



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C181 NCB31CK-104X C CAPACITOR 0.1uF 16V K C182 NCB31CK-104X C CAPACITOR 0.1uF 16V K C185 NCB21HK-563X C CAPACITOR 0.056uF 50V K C187 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C201 QFV21HJ-334Z MF CAPACITOR 0.33uF 50V J C212 QETN1HM-106Z E CAPACITOR 10uF 50V M C221 QETN1HM-105Z E CAPACITOR 1uF 50V M C301 QETN1EM-108Z E CAPACITOR 1000uF 25V M C302 QETN1EM-108Z E CAPACITOR 1000uF 25V M C303 QETM2EM-336 E CAPACITOR 33uF 250V M C311 QETN1VM-107Z E CAPACITOR 100uF 35V M C312 QCB32HK-821Z C CAPACITOR 820pF 500V K C401 QETN1VM-108Z E CAPACITOR 1000uF 35V M C402 QFN31HJ-152Z M CAPACITOR 1500pF 50V J C403 QCS32HJ-180Z C CAPACITOR 18pF 500V J C404 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J C405 QFV21HJ-104Z MF CAPACITOR 0.1uF 50V J C406 QETN1VM-107Z E CAPACITOR 100uF 35V M C407 QETN1HM-105Z E CAPACITOR 1uF 50V M C408 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J C409 QETN1HM-106Z E CAPACITOR 10uF 50V M C411 QCB31HK-222Z C CAPACITOR 2200pF 50V K C412 QENC1CM-226Z BP E CAPACITOR 22uF 16V M C413 QENC1CM-226Z BP E CAPACITOR 22uF 16V M C415 QFLC2AJ-823Z M CAPACITOR 0.082uF 100V J C416 QCB31HK-682Z C CAPACITOR 6800pF 50V K C501 QCB32HK-331Z C CAPACITOR 330pF 500V K C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K C503 QFV21HJ-224Z MF CAPACITOR 0.22uF 50V J C506 QFZ0122-452 MPP CAPACITOR 4500pF 1.8kV H C507 QFZ0122-452 MPP CAPACITOR 4500pF 1.8kV H C508 QFP32JJ-103 PP CAPACITOR 0.01uF 630V J C511 QFZ0128-404 MPP CAPACITOR 0.4uF DC400V H C513 QFZ0197-335 MPP CAPACITOR 3.3uF 250V J C514 QCS32HJ-561 C CAPACITOR 560pF 500V J C521 QCZ0122-681 C CAPACITOR 680pF 2kV K C522 QCZ0122-681 C CAPACITOR 680pF 2kV K C523 QFN32AJ-682Z M CAPACITOR 6800pF 100V J C524 QCS31HJ-470Z C CAPACITOR 47pF 50V J C525 QCB31HK-682Z C CAPACITOR 6800pF 50V K C527 QETN1EM-476Z E CAPACITOR 47uF 25V M C533 QCS32HJ-561 C CAPACITOR 560pF 500V J C534 QFN32DK-222Z M CAPACITOR 2200pF 200V K C536 QFN32DJ-152Z M CAPACITOR 1500pF 200V J C591 QEZ0203-107 E CAPACITOR 100uF 160V M C701 QFLC2AJ-223Z M CAPACITOR 0.022uF 100V J C803 QETN1CM-107Z E CAPACITOR 100uF 16V M C804 NCB31EK-104X C CAPACITOR 0.1uF 25V K C807 QETN1CM-107Z E CAPACITOR 100uF 16V M C808 NCB31EK-104X C CAPACITOR 0.1uF 25V K C809 NCB31EK-104X C CAPACITOR 0.1uF 25V K C810 QETN1EM-107Z E CAPACITOR 100uF 25V M C812 NDC31HJ-181X C CAPACITOR 180pF 50V J C818 NCB31HK-103X C CAPACITOR 0.01uF 50V K C819 NCB31HK-103X C CAPACITOR 0.01uF 50V K C820 NDC31HJ-151X C CAPACITOR 150pF 50V J C821 NDC31HJ-151X C CAPACITOR 150pF 50V J C822 NDC31HJ-151X C CAPACITOR 150pF 50V J C823 NDC31HJ-151X C CAPACITOR 150pF 50V J C824 NDC31HJ-151X C CAPACITOR 150pF 50V J C825 NDC31HJ-151X C CAPACITOR 150pF 50V J C827 QETN1HM-477Z E CAPACITOR 470uF 50V M C828 QETN1HM-477Z E CAPACITOR 470uF 50V M C829 NDC31HJ-151X C CAPACITOR 150pF 50V J C830 NDC31HJ-151X C CAPACITOR 150pF 50V J C831 NDC31HJ-151X C CAPACITOR 150pF 50V J C832 NDC31HJ-151X C CAPACITOR 150pF 50V J C833 NDC31HJ-151X C CAPACITOR 150pF 50V J C834 NDC31HJ-151X C CAPACITOR 150pF 50V J C838 NCB31HK-104X C CAPACITOR 0.1uF 50V K C844 QETN1CM-107Z E CAPACITOR 100uF 16V M C851 NDC31HJ-100X C CAPACITOR 10pF 50V J C852 NDC31HJ-100X C CAPACITOR 10pF 50V J C853 NDC31HJ-100X C CAPACITOR 10pF 50V J C971 QETN1CM-107Z E CAPACITOR 100uF 16V M C972 QETN1EM-476Z E CAPACITOR 47uF 25V M C973 QETN1HM-106Z E CAPACITOR 10uF 50V M

Ω

R101 NRSA63J-102X MG RESISTOR 1k R103 NRSA63J-681X MG RESISTOR 680 R104 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R105 NRSA63J-473X MG RESISTOR 47k R106 NRSA63J-123X MG RESISTOR 12k R107 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R109 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R110 NRSA63J-223X MG RESISTOR 22k R111 NRSA63D-153X MG RESISTOR 15k

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

R112 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R113 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D R114 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R116 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R117 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R120 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R121 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R122 QRG01GJ-470 OMF RESISTOR 47Ω 1W J R123 QRK126J-101X UNF C RESISTOR 100Ω 1/2W J R126 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R127 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R129 NRSA63D-183X MG RESISTOR 18kΩ 1/16W D R131 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R133 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R134 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J R137 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R139 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R140 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R141 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R142 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R143 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R161 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R162 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R163 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R164 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R168 NRSA63J-0R0X MG RESISTOR 0 R169 NRSA63J-332X MG RESISTOR 3.3k R172 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R174 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R175 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R176 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R177 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R178 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R179 NRVA63D-562X CMF RESISTOR 5.6kΩ 1/16W D R180 NRSA63D-152X MG RESISTOR 1.5kΩ 1/16W D R182 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R183 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R184 NRSA63D-473X MG RESISTOR 47kΩ 1/16W D R185 NRSA63D-183X MG RESISTOR 18kΩ 1/16W D R186 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R187 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R188 NRSA63D-101X MG RESISTOR 100Ω 1/16W D R189 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R190 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R193 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R195 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R196 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R197 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R198 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R207 NRS144F-274X MG RESISTOR 270kΩ 1/4W F R208 NRS144F-274X MG RESISTOR 270kΩ 1/4W F R209 NRS144F-184X MG RESISTOR 180kΩ 1/4W F R216 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R217 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R223 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R224 NRSA63J-101X MG RESISTOR 100 R226 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R227 NRSA63J-102X MG RESISTOR 1k R230 NRSA63J-223X MG RESISTOR 22k R401 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R402 NRVA63D-103X CMF RESISTOR 10kΩ 1/16W D R403 QRE121J-180Y C RESISTOR 18Ω 1/2W J R404 NRVA63D-682X CMF RESISTOR 6.8kΩ 1/16W D R405 NRVA63D-682X CMF RESISTOR 6.8k R406 NRVA63D-472X CMF RESISTOR 4.7k R407 NRVA63D-821X CMF RESISTOR 820 R408 NRVA63D-821X CMF RESISTOR 820 R409 QRL029J-221 OMF RESISTOR 220 R410 QRT029J-2R2 MF RESISTOR 2.2 R412 NRSA63J-472X MG RESISTOR 4.7k R413 NRSA63J-104X MG RESISTOR 100k R416 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R418 NRSA63J-222X MG RESISTOR 2.2k R420 NRSA63J-101X MG RESISTOR 100 R421 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R422 NRSA63J-0R0X MG RESISTOR 0 R426 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R427 NRSA63J-0R0X MG RESISTOR 0 R430 QRE121J-101Y C RESISTOR 100Ω 1/2W J R431 QRE121J-101Y C RESISTOR 100 R432 QRE121J-101Y C RESISTOR 100Ω 1/2W J R501 NRSA63J-471X MG RESISTOR 470 R502 QRE121J-123Y C RESISTOR 12k R503 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J R504 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J R505 QRL039J-222 OMF RESISTOR 2.2k R506 QRE121J-5R6Y C RESISTOR 5.6

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/16W D

Ω

1/16W D

Ω Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

2W J 2W J

3W J

3-14(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R512 QRL029J-331 OMF RESISTOR 330Ω 2W J R521 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R522 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R523 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R524 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R525 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R526 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R531 QRL029J-102 OMF RESISTOR 1kΩ 2W J R532 QRL029J-820 OMF RESISTOR 82Ω 2W J R533 QRL029J-820 OMF RESISTOR 82Ω 2W J R534 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R535 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R536 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R561 NRVA63D-472X CMF RESISTOR 4.7kΩ 1/16W D R562 NRVA63D-472X CMF RESISTOR 4.7kΩ 1/16W D R563 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R565 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R591 QRF154K-3R3 UNF WW RESISTOR 3.3Ω 15W K R701 QRG01GJ-390 OMF RESISTOR 39Ω 1W J R702 QRE121J-123Y C RESISTOR 12kΩ 1/2W J R703 QRZ0056-103Z COMP RESISTOR 10kΩ 1/2W K R801 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R802 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R803 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R804 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R805 NRSA63J-272X MG RESISTOR 2.7k R806 NRSA63J-272X MG RESISTOR 2.7k R811 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R814 QRL029J-151 OMF RESISTOR 150Ω 2W J R818 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R828 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R829 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R830 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R831 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R832 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R833 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R834 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R835 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R836 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R837 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R838 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R839 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R840 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R842 QRX01GJ-2R2 MF RESISTOR 2.2Ω 1W J R843 QRL029J-221 OMF RESISTOR 220Ω 2W J R844 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R846 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J R847 QRL029J-151 OMF RESISTOR 150Ω 2W J R848 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R850 QRX01GJ-2R2 MF RESISTOR 2.2Ω 1W J R851 QRL029J-221 OMF RESISTOR 220Ω 2W J R852 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R854 QRX01GJ-1R5 MF RESISTOR 1.5Ω 1W J R855 QRL029J-151 OMF RESISTOR 150Ω 2W J R856 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R858 QRX01GJ-3R3 MF RESISTOR 3.3 R859 QRL029J-221 OMF RESISTOR 220Ω 2W J R860 NRSA63J-332X MG RESISTOR 3.3k R862 QRX01GJ-1R8 MF RESISTOR 1.8 R863 QRL029J-151 OMF RESISTOR 150Ω 2W J R864 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R866 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R867 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R873 NRSA63J-0R0X MG RESISTOR 0 R874 NRSA63J-0R0X MG RESISTOR 0 R972 NRSA63D-112X MG RESISTOR 1.1k R973 QRA14CF-7501Y CMF RESISTOR 7.5k R975 QRE121J-223Y C RESISTOR 22k R977 NRSA63J-473X MG RESISTOR 47k R978 NRSA63J-333X MG RESISTOR 33k

L101 QQL01BK-470Z PEAKING COIL 47uH K L103 NQL092K-100X COIL 10uH K L104 NQL092K-100X COIL 10uH K L105 QQL01BK-101Z PEAKING COIL 100uH K L301 QQLZ026-140 COIL 14uH Å}7% L502 QQR1408-001 CHOKE COIL L505 QQR1149-004 LINEARITY COIL L531 QQR1422-005 CHOKE COIL L701 QQR1422-005 CHOKE COIL L802 QQL521J-470 COIL 47uH J T5 01 Q QR1111 -001 DRIVE TRANS F T701 QQR1458-001 DAF TRANS

CN007 QGB1506M1-16 CONNECTOR B-B (1-16) CN008 QGB1506M1-16 CONNECTOR B-B (1-16) CN00N QJB003-101010 SIN ID C-C WIRE

Ω

1/16W J

Ω

1/16W J

Ω

1W J

Ω

1/16W J

Ω

1W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/4W F

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

CN00Y WJK0170-001A E-SI C WIRE C-B CN011 QGB2501J1-15 CONNECTOR B-B (1-15) CN012 QGB2501J1-15 CONNECTOR B-B (1-15) CN0AA WJP0037-001A W TO B CONNE CN0AB QGZ8001C1-03 CONNECTOR (1-3)



FR301 QRZ9011-1R0 FUSI RESISTOR 1Ω 1/2W J



FR302 QRZ9011-1R0 FUSI RESISTOR 1Ω 1/2W J



FR311 QRZ9011-4R7 FUSI RESISTOR 4.7Ω 1/2W J H401 LC30416-001A HEAT SINK/AL-F/ H503 LC31212-001B HEAT SINK/AL-F/ H506 LC30521-001A HEAT SINK/AL-F/ H531 CEHT11B-005QS HEAT SINK H801 CEHT11B-002QS HEAT SINK H804 LC31881-001A HEAT SINK H805 LC31881-001A HEAT SINK K401 QQR0621-002Z FERRITE BEADS K501 QQR1139-001 FERRITE BEADS K504 QQR1139-001 FERRITE BEADS K801 QQR0621-002Z FERRITE BEADS K802 QQR0621-002Z FERRITE BEADS K803 QQR0621-002Z FERRITE BEADS K804 QQR0621-002Z FERRITE BEADS K805 QQR0621-002Z FERRITE BEADS K806 QQR0621-002Z FERRITE BEADS K807 QQR0621-002Z FERRITE BEADS K808 QQR0621-002Z FERRITE BEADS K809 QQR0621-002Z FERRITE BEADS K810 QQR0621-002Z FERRITE BEADS K811 QQR0621-002Z FERRITE BEADS

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)



Ref No. Part No. Part Name Description Local

IC1001 TDA6111Q IC

D1006 RM2C-LFA1 SI DIODE D1101 EU01N-T2 SI DIODE D1102 MA8150/M/-X Z DIODE

C1002 QETN2EM-106Z E CAPACITOR 10uF 250V M C1004 QETN2EM-106Z E CAPACITOR 10uF 250V M C1005 QFZ9027-472 MM CAPACITOR 4700pF 1000V K C1101 NDC31HJ-6R0X C CAPACITOR 6pF 50V J C1102 QETN1HM-106Z E CAPACITOR 10uF 50V M C1103 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1104 QETN1EM-476Z E CAPACITOR 47uF 25V M C1107 QFK62EK-104Z MM CAPACITOR 0.1uF 250V K C1108 NDC31HJ-561X C CAPACITOR 560pF 50V J

Ω

R1001 QRE121J-105Y C RESISTOR 1M R1002 QRC121K-102Z COMP RESISTOR 1kΩ 1/2W K R1003 QRZ0107-152Z C RESISTOR 1.5k R1101 NRSA63J-681X MG RESISTOR 680 R1102 NRSA63J-222X MG RESISTOR 2.2k R1103 NRSA63J-821X MG RESISTOR 820Ω 1/16W J R1104 QRL039J-473 OMF RESISTOR 47kΩ 3W J R1106 NRSA63J-103X MG RESISTOR 10k R1107 QRC121K-561Z COMP RESISTOR 560Ω 1/2W K

L1101 QQL26AJ-102Z PEAKING COIL 1mH J L1102 QQL244K-5R6Z PEAKING COIL 5.6uH K

CN10RE QGZ5004C1-02 CONNECTOR (1-2) H1001 LC31150-002A HEAT SINK/AL-F1 SG1001 QAF0056-501Z SURGE ABSORBER 500V M



SK1001 QNZ0536-001 CRT SOCKET

1/2W J

Ω

1/2W K

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)



Ref No. Part No. Part Name Description Local

IC2001 TDA6111Q IC

D2006 RM2C-LFA1 SI DIODE D2101 EU01N-T2 SI DIODE D2102 MA8150/M/-X Z DIODE

C2001 QETN2EM-106Z E CAPACITOR 10uF 250V M C2002 QETN2EM-106Z E CAPACITOR 10uF 250V M

(No.YA097)3-15



Ref No. Part No. Part Name Description Local

C2004 QETN2EM-106Z E CAPACITOR 10uF 250V M C2005 QFZ9027-472 MM CAPACITOR 4700pF 1000V K C2010 QETN1CM-107Z E CAPACITOR 100uF 16V M C2101 NDC31HJ-6R0X C CAPACITOR 6pF 50V J C2102 QETN1HM-106Z E CAPACITOR 10uF 50V M C2103 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2104 QETN1EM-476Z E CAPACITOR 47uF 25V M C2107 QFK62EK-104Z MM CAPACITOR 0.1uF 250V K C2108 NDC31HJ-561X C CAPACITOR 560pF 50V J

R2001 QRE121J-105Y C RESISTOR 1MΩ 1/2W J R2002 QRC121K-102Z COMP RESISTOR 1kΩ 1/2W K R2003 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K R2010 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D R2011 NRSA63D-223X MG RESISTOR 22kΩ 1/16W D R2012 NRSA63D-472X MG RESISTOR 4.7kΩ 1/16W D R2101 NRSA63J-681X MG RESISTOR 680Ω 1/16W J R2102 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R2103 NRSA63J-821X MG RESISTOR 820Ω 1/16W J R2104 QRL039J-473 OMF RESISTOR 47kΩ 3W J R2106 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R2107 QRC121K-561Z COMP RESISTOR 560Ω 1/2W K

L2001 QQL26AJ-102Z PEAKING COIL 1mH J L2101 QQL26AJ-102Z PEAKING COIL 1mH J L2102 QQL244K-5R6Z PEAKING COIL 5.6uH K

CN200E WJP0058-001A E-SI C WIRE C-B CN200V QJB003-051810 SIN ID C-C WIRE CN20GE QGZ5004C1-02 CONNECTOR (1-2) CN2GBN QJB003-042424 SIN ID C-B WIRE CN2RGK QJB003-062211 SIN ID C-B WIRE CN2RGN H2001 LC31150-002A HEAT SINK/AL-F1 SG2001 QAF0056-501Z SURGE ABSORBER 500V M



SK2001 QNZ0536-001 CRT SOCKET

QJB003-042424 SIN ID C-B WIRE

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)



Ref No. Part No. Part Name Description Local

IC3001 TDA6111Q IC

Q3031 2SA1037AK/QR/-X TRANSISTOR

D3006 RM2C-LFA1 SI DIODE D3101 EU01N-T2 SI DIODE D3102 MA8150/M/-X Z DIODE D3201 MA111-X SI DIODE

C3002 QETN2EM-106Z E CAPACITOR 10uF 250V M C3004 QETN2EM-106Z E CAPACITOR 10uF 250V M C3005 QFZ9027-472 MM CAPACITOR 4700pF 1000V K C3101 NDC31HJ-100X C CAPACITOR 10pF 50V J C3102 QETN1HM-106Z E CAPACITOR 10uF 50V M C3103 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3104 QETN1EM-476Z E CAPACITOR 47uF 25V M C3107 QFK62EK-104Z MM CAPACITOR 0.1uF 250V K C3108 NDC31HJ-561X C CAPACITOR 560pF 50V J C3201 NDC31HJ-330X C CAPACITOR 33pF 50V J

R3001 QRE121J-105Y C RESISTOR 1MΩ 1/2W J R3002 QRC121K-102Z COMP RESISTOR 1k R3003 QRZ0107-152Z C RESISTOR 1.5k R3031 NRSA63D-123X MG RESISTOR 12k R3032 NRSA63D-562X MG RESISTOR 5.6k R3033 NRSA63J-104X MG RESISTOR 100k R3101 NRSA63J-681X MG RESISTOR 680 R3102 NRSA63J-182X MG RESISTOR 1.8k R3103 NRSA63J-821X MG RESISTOR 820 R3104 QRL039J-473 OMF RESISTOR 47kΩ 3W J R3106 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3107 QRC121K-561Z COMP RESISTOR 560 R3201 NRSA63J-681X MG RESISTOR 680

L3101 QQL26AJ-102Z PEAKING COIL 1mH J L3102 QQL244K-5R6Z PEAKING COIL 5.6uH K

CN30BE QGZ5004C1-02 CONNECTOR (1-2) CN3GBK QJB003-062211 SIN ID C-B WIRE H3001 LC31150-002A HEAT SINK/AL-F1 SG3001 QAF0056-501Z SURGE ABSORBER 500V M



SK3001 QNZ0536-001 CRT SOCKET

Ω

1/2W K

Ω

1/2W K

Ω

1/16W D

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W K

Ω

1/16W J

VM P.W. BOARD ASS'Y (SRP-7201A-M2)



Ref No. Part No. Part Name Description Local

Q7101 2SC1906-T TRANSISTOR Q7102 2SA1005/MLK/-T TRANSISTOR Q7103 2SC1959/Y/-T TRANSISTOR Q7104 2SA562TM/Y/-T TRANSISTOR Q7105 2SJ407 POWER MOS FET Q7106 2SK2381 POWER MOS FET

D7101 1SS355-X SI DIODE D7102 RGP10J-04TS-T3 SI DIODE D7103 RGP10J-04TS-T3 SI DIODE

C7101 NCB31HK-102X C CAPACITOR 1000pF 50V K C7102 QETN1HM-106Z E CAPACITOR 10uF 50V M C7103 NCB31HK-473X C CAPACITOR 0.047uF 50V K C7104 NCB31HK-473X C CAPACITOR 0.047uF 50V K C7107 QFN32DK-103 M CAPACITOR 0.01uF 200V K C7108 QFN32DK-103 M CAPACITOR 0.01uF 200V K C7109 QETN2CM-475Z E CAPACITOR 4.7uF 160V M C7110 QETN2AM-226Z E CAPACITOR 22uF 100V M C7111 QETN2AM-226Z E CAPACITOR 22uF 100V M C7112 QFN31HJ-222Z M CAPACITOR 2200pF 50V J C7113 QFN31HJ-222Z M CAPACITOR 2200pF 50V J C7116 QCS32HJ-330Z C CAPACITOR 33pF 500V J C7117 QFN32DK-103 M CAPACITOR 0.01uF 200V K C7118 QFN32DK-103 M CAPACITOR 0.01uF 200V K C7119 QFK62EK-104Z MM CAPACITOR 0.1uF 250V K C7120 QCB32HK-152Z C CAPACITOR 1500pF 500V K

R7101 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R7102 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R7103 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R7104 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R7105 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R7106 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R7107 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R7110 QRJ146J-681X UNF C RESISTOR 680Ω 1/4W J R7111 QRE121J-473Y C RESISTOR 47kΩ 1/2W J R7112 QRE121J-473Y C RESISTOR 47kΩ 1/2W J R7113 QRJ146J-681X UNF C RESISTOR 680Ω 1/4W J R7114 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J R7115 QRJ146J-470X UNF C RESISTOR 47Ω 1/4W J R7116 QRG01GJ-150 OMF RESISTOR 15Ω 1W J R7119 QRG01GJ-220 OMF RESISTOR 22Ω 1W J R7120 QRL039J-150 OMF RESISTOR 15Ω 3W J R7121 QRL039J-150 OMF RESISTOR 15Ω 3W J R7122 QRL039J-150 OMF RESISTOR 15Ω 3W J R7123 QRL039J-150 OMF RESISTOR 15Ω 3W J R7124 NRSA63J-101X MG RESISTOR 100Ω 1/16W J

CN700J QJB003-052610 SIN ID C-B WIRE H7105 CEHS12B-002Q HEAT SINK H7106 CEHS12B-002Q HEAT SINK K7101 QQR1114-001Z FERRITE BEADS

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)



Ref No. Part No. Part Name Description Local

IC8001 GP1UM281QK IR DETECT UNIT 38kHz

D8001 MA8068-X Z DIODE

C8001 NCB31CK-104X C CAPACITOR 0.1uF 16V K C8002 QETN1EM-476Z E CAPACITOR 47uF 25V M

Ω

R8001 NRSA63J-102X MG RESISTOR 1k R8003 NRSA63J-101X MG RESISTOR 100 R8004 NRSA63J-101X MG RESISTOR 100Ω 1/16W J

1/16W J

Ω

1/16W J

POWER P.W. BOARD ASS'Y (SRP-9001A-M2)



Ref No. Part No. Part Name Description Local

IC911 STR-X6737M-F2 IC IC921 SE140N IC

Q811 UN221C-X DIGI TRANSISTOR

3-16(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

Q950 UN221C-X DIGI TRANSISTOR Q952 UN221C-X DIGI TRANSISTOR Q953 2SC3928A/QR/-X TRANSISTOR Q954 UN221C-X DIGI TRANSISTOR Q955 UN2211-X TRANSISTOR Q956 2SC3928A/QR/-X TRANSISTOR Q961 UN221C-X DIGI TRANSISTOR Q962 2SC4682-T TRANSISTOR Q970 2SC3928A/QR/-X TRANSISTOR

D815 MA8150/M/-X Z DIODE D816 MA8068/M/-X CHIP ZENER DIODE



D901 RBV-606 BRIDGE DIODE



D911 RGP10J-5025-T3 SI DIODE D912 RGP10J-5025-T3 SI DIODE D913 MA111-X SI DIODE D914 MA111-X SI DIODE D915 SARS01-T2 SI DIODE D920 MA111-X SI DIODE D921 MA8056/M/-X Z DIODE D931 RU4AM-F1 SI DIODE D932 31DF6N-FC5 FR DIODE D935 RU3YX-LFC4 SI DIODE D936 FMX-G12S SI DIODE D937 RGP10J-5025-T3 SI DIODE D938 FMX-G12S SI DIODE D939 RD12E/B1/-T2 Z DIODE D941 MA8300/H/-X Z DIODE D943 RD12E/B1/-T2 Z DIODE D956 MA111-X SI DIODE D957 MA111-X SI DIODE D958 MA8068/M/-X CHIP ZENER DIODE D959 MA111-X SI DIODE D961 MTZJ22B-T2 Z DIODE D970 MA8030/H/-X Z DIODE D980 1SR35-400A-T2 SI DIODE D981 MA111-X SI DIODE D983 1SR35-400A-T2 SI DIODE



C801 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C802 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K



C803 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K C903 NCB31HK-221X C CAPACITOR 220pF 50V K



C904 QCZ9054-102 C CAPACITOR 1000pF AC250V Z



C905 QCZ9054-102 C CAPACITOR 1000pF AC250V Z



C906 QCZ9054-102 C CAPACITOR 1000pF AC250V Z C907 QEZ0572-128 E CAPACITOR 1200uF 200V M



C908 QCZ9054-102 C CAPACITOR 1000pF AC250V Z C912 QCZ0340-332 C CAPACITOR 3300pF 2kV K C913 QETN1HM-105Z E CAPACITOR 1uF 50V M C914 QETN1HM-226Z E CAPACITOR 22uF 50V M C916 QCS31HJ-331Z C CAPACITOR 330pF 50V J C917 QFN31HJ-332Z M CAPACITOR 3300pF 50V J C918 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C919 QFP32GJ-103 PP CAPACITOR 0.01uF 400V J C920 NCB31HK-104X C CAPACITOR 0.1uF 50V K C930 QCS31HJ-181Z C CAPACITOR 180pF 50V J C931 QEZ0203-227 E CAPACITOR 220uF 160V M C932 QETM1EM-228 E CAPACITOR 2200uF 25V M C934 QETM1VM-228 E CAPACITOR 2200uF 35V M C935 QETN1VM-108Z E CAPACITOR 1000uF 35V M C937 QCZ0340-152 C CAPACITOR 1500pF 2kV K C943 QETN1EM-227Z E CAPACITOR 220uF 25V M C945 QETM1HM-108 E CAPACITOR 1000uF 50V M C954 QETN1HM-226Z E CAPACITOR 22uF 50V M C955 NCB21AK-105X C CAPACITOR 1uF 10V K C962 QETN1VM-477Z E CAPACITOR 470uF 35V M



C993 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C994 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C995 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C997 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C998 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C999 QCZ9078-222 C CAPACITOR 2200pF AC250V M



R801 QRZ9041-275 C RESISTOR 2.7MΩ 1/2W K R812 QRE121J-104Y C RESISTOR 100k R813 QRE121J-104Y C RESISTOR 100kΩ 1/2W J R814 NRSA63J-223X MG RESISTOR 22k R815 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R816 NRSA63J-0R0X MG RESISTOR 0 R818 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R901 QRF154K-R51 UNF WW RESISTOR 0.51 R910 QRE121J-152Y C RESISTOR 1.5k R911 QRL029J-393 OMF RESISTOR 39kΩ 2W J R912 QRT029J-R15 MF RESISTOR 0.15Ω 2W J R913 QRT029J-R18 MF RESISTOR 0.18 R917 QRK126J-102X UNF C RESISTOR 1k

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

15W K

Ω

1/2W J

Ω

2W J

Ω

1/2W J

R918 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R920 QRE121J-684Y C RESISTOR 680kΩ 1/2W J R922 QRE121J-101Y C RESISTOR 100Ω 1/2W J R923 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R925 QRG01GJ-470 OMF RESISTOR 47Ω 1W J R932 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R941 QRL039J-333 OMF RESISTOR 33kΩ 3W J R944 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R948 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R957 QRL029J-102 OMF RESISTOR 1kΩ 2W J R959 QRE121J-121Y C RESISTOR 120Ω 1/2W J R961 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R962 QRE121J-153Y C RESISTOR 15kΩ 1/2W J R963 QRE121J-153Y C RESISTOR 15kΩ 1/2W J R964 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D R965 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R967 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R968 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R969 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R971 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R973 QRE121J-103Y C RESISTOR 10kΩ 1/2W J R974 QRE121J-153Y C RESISTOR 15kΩ 1/2W J R975 NRSA63D-153X MG RESISTOR 15kΩ 1/16W D R976 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J R986 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R988 QRE121J-222Y C RESISTOR 2.2k R989 QRG01GJ-152 OMF RESISTOR 1.5k



R999 QRZ0111-685 C RESISTOR 6.8MΩ 1/2W K

L931 QQL26AK-470Z CHOKE COIL 47uH K



T921 QQS0264-001 SW TRANSF

CN001 QGB1506M1-16 CONNECTOR B-B (1-16) CN002 QGB1506M1-16 CONNECTOR B-B (1-16) CN003 QGB1506M1-16 CONNECTOR B-B (1-16) CN007 QGB1506L1-16 CONNECTOR B-B (1-16) CN008 QGB1506L1-16 CONNECTOR B-B (1-16)



CP934 ICP-N70-T IC PROTECTOR 2.5A



CP936 ICP-N70-T IC PROTECTOR 2.5A



CP941 ICP-N70-T IC PROTECTOR 2.5A



CP942 ICP-N70-T IC PROTECTOR 2.5A



CP943 ICP-N20-Y IC PROTECTOR 800mA



F801 QMF61U1-7R0-S FUSE 7A AC125V



F905 QMFZ049-5R0Z-E FUSE 5A 125V



FR915 QRZ9017-470 FUSI RESISTOR 47Ω 1/4W J H901 LC30171-001A HEAT SINK/FE-P/ H911 LC31211-001A HEAT SINK/AL-F/ H936 CM42862-00J-H HEAT SINK ASSY H940 CEHT11B-002QS HEAT SINK K914 QQR0582-001Z FERRITE BEADS K930 QQR0621-002Z FERRITE BEADS K931 QQR0621-002Z FERRITE BEADS K932 QQR0582-001Z FERRITE BEADS K935 QQR0621-002Z FERRITE BEADS K937 QQR0621-002Z FERRITE BEADS K938 QQR0621-002Z FERRITE BEADS



LF801 QQR1407-001 LINE FILTER



LF802 QQR1407-001 LINE FILTER



PC811 PS2581AL1/QW/ PHOTO COUPLER



PC921 PS2581AL1/QW/ PHOTO COUPLER



RY952 QSK0083-001 RELAY



VA801 QAF0060-621 VARISTOR 620V

Ω

1/2W J

Ω

1W J

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)



Ref No. Part No. Part Name Description Local

IC0703 BA05FP-X IC

Q0701 2SC3928A/QR/-X TRANSISTOR Q0702 2SC3928A/QR/-X TRANSISTOR

D0402 MA8100/M/-X Z DIODE D0403 MA8100/M/-X Z DIODE D0404 MA8100/M/-X Z DIODE D0405 MA8100/M/-X Z DIODE D0406 MA8100/M/-X Z DIODE D0701 SELU5D20C-S LED POWER D0703 MA8068-X Z DIODE D0704 MA8068-X Z DIODE D0735 MA8100/M/-X Z DIODE

C0442 QETN1HM-105Z E CAPACITOR 1uF 50V M C0443 QETN1HM-105Z E CAPACITOR 1uF 50V M

(No.YA097)3-17



Ref No. Part No. Part Name Description Local

C0444 QETN1HM-106Z E CAPACITOR 10uF 50V M C0445 QETN1HM-106Z E CAPACITOR 10uF 50V M C0446 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C0710 QETN1VM-476Z E CAPACITOR 47uF 35V M C0711 QETN1CM-336Z E CAPACITOR 33uF 16V M C0712 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R0401 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R0402 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R0403 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R0404 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R0405 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R0413 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R0414 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R0415 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R0416 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R0706 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R0707 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R0708 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R0711 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R0712 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R0732 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R0748 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R0749 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R0750 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R0751 NRSA63J-153X MG RESISTOR 15k

J0401 QNZ0438-001 AV JACK S/V/L/R IN S0701 QSW0619-003Z TACT SWITCH POWER S0702 QSW0619-003Z TACT SWITCH MENU S0703 QSW0619-003Z TACT SWITCH CHS0704 QSW0619-003Z TACT SWITCH CH+ S0705 QSW0619-003Z TACT SWITCH VOLS0706 QSW0619-003Z TACT SWITCH VOL+ S0707 QSW0619-003Z TACT SWITCH SUPER FOCUS

Ω

1/16W J

MI-COM & DIST MODULE P.W. BOARD ASS'Y (SRP0D001A-M2)



Ref No. Part No. Part Name Description Local

MD001 SRP0D001A-M2 MI-COM & DIST MODULE PWB

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K012A-M2)



Ref No. Part No. Part Name Description Local

MD001 SRP0K012A-M2 DIGITAL CONVERGENCE MODULE PWB

3-18(No.YA097)

PRINTED WIRING BOARD PARTS LIST [AV-56WP55/H]



MAIN P.W. BOARD ASS'Y (SRP-1013A-M2)



Ref No. Part No. Part Name Description Local

IC1101 L7805CP IC IC1140 CXA2205Q-X IC IC1211 TA1318N IC IC1212 SN74AHC2G08T-X IC IC1301 AN15852A IC IC1501 CXA2069Q IC IC1502 M62320FP-X IC IC1511 PQ033RD01SZ IC IC1661 AN5277 IC IC1703 AT24C128-48WP55 IC (SERVICE) IC1802 BA033T IC IC1941 PQ1CG21H2FZ IC IC1942 SI-8050JD-W IC IC1943 PQ1CY1032Z-W IC IC1981 PQ070XZ01Z-X IC IC1991 PQ12RD11 IC IC1993 MM1565AF-X IC IC3001 MN82832 IC IC3002 R1170H331B-X IC

Q0701 2SK2090-X MOS FET Q0702 2SK2090-X MOS FET Q1101 2SA1530A/QR/-X TRANSISTOR Q1102 2SC3928A/QR/-X TRANSISTOR Q1232 2SA1530A/QR/-X TRANSISTOR Q1252 2SA1530A/QR/-X TRANSISTOR Q1253 2SC3928A/QR/-X TRANSISTOR Q1254 2SA1530A/QR/-X TRANSISTOR Q1255 2SC3928A/QR/-X TRANSISTOR Q1301 2SC3837K/NP/-X TRANSISTOR Q1302 2SC3837K/NP/-X TRANSISTOR Q1303 2SC3837K/NP/-X TRANSISTOR Q1401 2SC3928A/QR/-X TRANSISTOR Q1511 2SC3928A/QR/-X TRANSISTOR Q1531 2SC3928A/QR/-X TRANSISTOR Q1668 UN2213-X DIGI TRANSISTOR Q1669 2SC3928A/QR/-X TRANSISTOR Q1671 UN2213-X DIGI TRANSISTOR Q1672 2SC3928A/QR/-X TRANSISTOR Q1673 2SA1530A/QR/-X TRANSISTOR Q1674 2SC3928A/QR/-X TRANSISTOR Q1712 2SA1530A/QR/-X TRANSISTOR Q1713 2SC2785/JH/-T SI TRANSISTOR Q1714 2SA1530A/QR/-X TRANSISTOR Q1961 2SC3928A/QR/-X TRANSISTOR Q1962 2SC3928A/QR/-X TRANSISTOR Q1964 2SC3928A/QR/-X TRANSISTOR Q1965 UN2213-X DIGI TRANSISTOR Q1966 UN2213-X DIGI TRANSISTOR Q1967 UN2213-X DIGI TRANSISTOR Q1981 2SC4682-T TRANSISTOR Q1984 2SC4682-T TRANSISTOR Q3001 2SC3928A/QR/-X TRANSISTOR Q3002 2SC3928A/QR/-X TRANSISTOR Q3003 2SA1530A/QR/-X TRANSISTOR Q3004 2SC3928A/QR/-X TRANSISTOR Q3005 2SC3928A/QR/-X TRANSISTOR Q3006 2SA1530A/QR/-X TRANSISTOR Q3007 2SA1530A/QR/-X TRANSISTOR Q3501 2SA1530A/QR/-X TRANSISTOR Q3502 2SC3928A/QR/-X TRANSISTOR Q3505 2SA1530A/QR/-X TRANSISTOR Q3506 2SC3928A/QR/-X TRANSISTOR Q3509 2SA1530A/QR/-X TRANSISTOR Q3510 2SC3928A/QR/-X TRANSISTOR

D1093 MA8082/M/-X Z DIODE D1140 MA8100/M/-X Z DIODE D1141 MA8100/M/-X Z DIODE D1145 MA8082/M/-X Z DIODE D1146 MA8082/M/-X Z DIODE D1251 MA8100/M/-X Z DIODE D1252 MA8100/M/-X Z DIODE D1253 MA111-X SI DIODE D1301 MA8100/M/-X Z DIODE D1302 MA8100/M/-X Z DIODE D1305 MA8100/M/-X Z DIODE D1306 MA8100/M/-X Z DIODE D1401 MA111-X SI DIODE D1402 UDZS5.1B-X Z DIODE D1403 MA111-X SI DIODE D1513 MA111-X SI DIODE

Ref No. Part No. Part Name Description Local

D1596 MA8100/M/-X Z DIODE D1667 MA111-X SI DIODE D1668 MA111-X SI DIODE D1669 MA111-X SI DIODE D1702 MA111-X SI DIODE D1703 MA111-X SI DIODE D1704 MA8100/M/-X Z DIODE D1705 MA8100/M/-X Z DIODE D1712 MA111-X SI DIODE D1802 MA111-X SI DIODE D1895 MA8082/M/-X Z DIODE D1896 MA8082/M/-X Z DIODE D1897 MA8051/M/-X Z DIODE D1898 MA8051/M/-X Z DIODE D1947 EC31QS04-X SB DIODE D1948 EC31QS04-X SB DIODE D1949 EC31QS04-X SB DIODE D1962 MA3030/H/-X Z DIODE D1964 MA111-X SI DIODE D1965 MA111-X SI DIODE D1967 PTZ6.8B-X Z DIODE D1968 PTZ3.9B-X Z DIODE D1969 PTZ11B-X Z DIODE D1981 MA111-X SI DIODE D1991 MA111-X SI DIODE D1993 MA111-X SI DIODE D2101 MA8100/M/-X Z DIODE D2121 MA8100/M/-X Z DIODE D2201 MA8100/M/-X Z DIODE D2204 MA8100/M/-X Z DIODE D2205 MA8100/M/-X Z DIODE D2206 MA8100/M/-X Z DIODE D2209 MA8100/M/-X Z DIODE D2210 MA8100/M/-X Z DIODE D2212 MA8100/M/-X Z DIODE D2213 MA8100/M/-X Z DIODE D2215 MA8100/M/-X Z DIODE D2216 MA8100/M/-X Z DIODE D2217 MA8100/M/-X Z DIODE D2218 MA8100/M/-X Z DIODE D2219 MA8100/M/-X Z DIODE D2402 MA8100/M/-X Z DIODE D2404 MA8100/M/-X Z DIODE D2421 MA8100/M/-X Z DIODE D2422 MA8100/M/-X Z DIODE

C1101 QETN1CM-477Z E CAPACITOR 470uF 16V M C1102 QETN1CM-107Z E CAPACITOR 100uF 16V M C1103 QETN1HM-106Z E CAPACITOR 10uF 50V M C1111 N CF3 1CZ -104X C CAPACITOR 0.1uF 16V Z C1140 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1141 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1144 QETN1HM-106Z E CAPACITOR 10uF 50V M C1145 NCB31HK-223X C CAPACITOR 0.022uF 50V K C1146 NCB31HK-472X C CAPACITOR 4700pF 50V K C1147 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1148 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1149 NCB31HK-472X C CAPACITOR 4700pF 50V K C1150 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1151 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1152 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1153 NCB31HK-562X C CAPACITOR 5600pF 50V K C1154 NCB31HK-123X C CAPACITOR 0.012uF 50V K C1155 QETN1HM-105Z E CAPACITOR 1uF 50V M C1156 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1157 QETN1HM-106Z E CAPACITOR 10uF 50V M C1158 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1159 QETN1CM-107Z E CAPACITOR 100uF 16V M C1160 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1161 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1162 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1163 NCB31HK-272X C CAPACITOR 2700pF 50V K C1164 NCB31HK-473X C CAPACITOR 0.047uF 50V K C1165 QETN1HM-335Z E CAPACITOR 3.3uF 50V M C1166 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1167 QETN1HM-106Z E CAPACITOR 10uF 50V M C1168 QETN1HM-105Z E CAPACITOR 1uF 50V M C1169 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1170 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1171 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1172 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1213 QETN1CM-107Z E CAPACITOR 100uF 16V M C1214 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C1215 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J

(No.YA097)3-19



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C1216 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1218 NCB21CK-105X C CAPACITOR 1uF 16V K C1219 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1233 NDC31HJ-180X C CAPACITOR 18pF 50V J C1257 QETN1HM-105Z E CAPACITOR 1uF 50V M C1258 QETN1HM-105Z E CAPACITOR 1uF 50V M C1301 QETN1CM-107Z E CAPACITOR 100uF 16V M C1302 QETN1CM-107Z E CAPACITOR 100uF 16V M C1303 QETN1CM-107Z E CAPACITOR 100uF 16V M C1304 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1305 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1306 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1307 QETN1CM-106Z E CAPACITOR 10uF 16V M C1308 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1309 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1311 NCB21CK-105X C CAPACITOR 1uF 16V K C1312 NCB21CK-105X C CAPACITOR 1uF 16V K C1313 NCB21CK-105X C CAPACITOR 1uF 16V K C1322 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1323 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1324 NCB21CK-105X C CAPACITOR 1uF 16V K C1325 NCB21CK-105X C CAPACITOR 1uF 16V K C1326 NDC31HJ-101X C CAPACITOR 100pF 50V J C1327 NDC31HJ-101X C CAPACITOR 100pF 50V J C1328 NDC31HJ-101X C CAPACITOR 100pF 50V J C1329 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1331 NCB21CK-105X C CAPACITOR 1uF 16V K C1332 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1333 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1341 NCB21CK-105X C CAPACITOR 1uF 16V K C1342 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1343 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1351 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1352 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1353 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1354 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1355 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1361 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1362 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1363 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1364 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1365 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1371 QETN1CM-336Z E CAPACITOR 33uF 16V M C1372 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1381 QETN1CM-336Z E CAPACITOR 33uF 16V M C1382 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1391 QETN1CM-336Z E CAPACITOR 33uF 16V M C1392 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1403 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1404 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1405 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1406 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1409 QETN1HM-106Z E CAPACITOR 10uF 50V M C1410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1411 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1412 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1415 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1416 QETN1EM-476Z E CAPACITOR 47uF 25V M C1417 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1418 QETN1EM-476Z E CAPACITOR 47uF 25V M C1421 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1423 QETN1HM-476Z E CAPACITOR 47uF 50V M C1442 QETN1EM-476Z E CAPACITOR 47uF 25V M C1501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1502 QETN1EM-476Z E CAPACITOR 47uF 25V M C1510 QENC1CM-106Z BP E CAPACITOR 10uF 16V M C1519 QETN1EM-476Z E CAPACITOR 47uF 25V M C1531 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1532 QETN1HM-226Z E CAPACITOR 22uF 50V M C1539 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1540 QETN1AM-107Z E CAPACITOR 100uF 10V M C1553 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1554 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1555 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1556 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1557 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1579 QETN1EM-476Z E CAPACITOR 47uF 25V M C1667 QETN1HM-106Z E CAPACITOR 10uF 50V M C1668 NDC31HJ-101X C CAPACITOR 100pF 50V J C1669 NCB21CK-105X C CAPACITOR 1uF 16V K C1670 QETN1HM-106Z E CAPACITOR 10uF 50V M C1671 NDC31HJ-101X C CAPACITOR 100pF 50V J C1672 NCB21CK-105X C CAPACITOR 1uF 16V K C1673 QETN1HM-477Z E CAPACITOR 470uF 50V M C1674 QETM1HM-108 E CAPACITOR 1000uF 50V M C1675 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J C1676 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J

C1677 QETN1EM-108Z E CAPACITOR 1000uF 25V M C1678 QETN1EM-108Z E CAPACITOR 1000uF 25V M C1679 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1680 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1696 QETN1HM-106Z E CAPACITOR 10uF 50V M C1697 QETN1EM-476Z E CAPACITOR 47uF 25V M C1702 NCB21CK-105X C CAPACITOR 1uF 16V K C1712 QETN1AM-227Z E CAPACITOR 220uF 10V M C1806 QETN1VM-476Z E CAPACITOR 47uF 35V M C1807 QETN1EM-476Z E CAPACITOR 47uF 25V M C1941 QETN1VM-477Z E CAPACITOR 470uF 35V M C1942 QETN1CM-108Z E CAPACITOR 1000uF 16V M C1943 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1944 QETN1VM-477Z E CAPACITOR 470uF 35V M C1945 QEZ0256-128 E CAPACITOR 1200uF 10V M C1946 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1947 QETN1CM-477Z E CAPACITOR 470uF 16V M C1948 QETN1CM-477Z E CAPACITOR 470uF 16V M C1949 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1950 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1951 QETN1VM-477Z E CAPACITOR 470uF 35V M C1952 QEZ0256-128 E CAPACITOR 1200uF 10V M C1953 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1955 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1961 QETN1HM-105Z E CAPACITOR 1uF 50V M C1981 QETN1CM-107Z E CAPACITOR 100uF 16V M C1984 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1985 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C1991 QETN1EM-107Z E CAPACITOR 100uF 25V M C1992 QETN1CM-477Z E CAPACITOR 470uF 16V M C1994 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1995 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1996 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2103 QETN1HM-106Z E CAPACITOR 10uF 50V M C2104 QETN1HM-106Z E CAPACITOR 10uF 50V M C2105 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2106 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2123 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2124 QETN1HM-106Z E CAPACITOR 10uF 50V M C2126 QETN1HM-106Z E CAPACITOR 10uF 50V M C2127 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2128 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2144 QETN1HM-106Z E CAPACITOR 10uF 50V M C2145 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2146 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2302 NCB21CK-105X C CAPACITOR 1uF 16V K C2303 NCB21CK-105X C CAPACITOR 1uF 16V K C2322 NCB21CK-105X C CAPACITOR 1uF 16V K C2323 NCB21CK-105X C CAPACITOR 1uF 16V K C3001 QENC1AM-336Z BP E CAPACITOR 33uF 10V M C3002 NDC31HJ-151X C CAPACITOR 150pF 50V J C3003 NDC31HJ-121X C CAPACITOR 120pF 50V J C3004 NDC31HJ-150X C CAPACITOR 15pF 50V J C3005 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3006 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3007 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3008 NDC31HJ-151X C CAPACITOR 150pF 50V J C3009 NDC31HJ-121X C CAPACITOR 120pF 50V J C3010 NDC31HJ-150X C CAPACITOR 15pF 50V J C3011 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3012 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3013 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3014 QETN1CM-107Z E CAPACITOR 100uF 16V M C3015 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3016 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3017 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C3018 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3019 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3020 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3021 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3022 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3023 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3024 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3025 QETN1CM-106Z E CAPACITOR 10uF 16V M C3026 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3027 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3028 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3029 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3030 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3031 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3032 NDC31HJ-560X C CAPACITOR 56pF 50V J C3033 NDC31HJ-330X C CAPACITOR 33pF 50V J C3034 NDC31HJ-560X C CAPACITOR 56pF 50V J C3035 NDC31HJ-330X C CAPACITOR 33pF 50V J C3036 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3037 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

3-20(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C3038 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3039 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3041 QETN1CM-106Z E CAPACITOR 10uF 16V M C3042 NCB31HK-472X C CAPACITOR 4700pF 50V K C3044 NCB31HK-472X C CAPACITOR 4700pF 50V K C3045 NCB31HK-472X C CAPACITOR 4700pF 50V K C3046 NCB31HK-472X C CAPACITOR 4700pF 50V K C3047 QETN1CM-106Z E CAPACITOR 10uF 16V M C3048 NCB31HK-472X C CAPACITOR 4700pF 50V K C3049 NCB31HK-472X C CAPACITOR 4700pF 50V K C3050 NCB31HK-472X C CAPACITOR 4700pF 50V K C3051 NCB31HK-472X C CAPACITOR 4700pF 50V K C3052 NCB31HK-472X C CAPACITOR 4700pF 50V K C3053 NCB31HK-472X C CAPACITOR 4700pF 50V K C3054 NCB31HK-472X C CAPACITOR 4700pF 50V K C3055 NCB31HK-472X C CAPACITOR 4700pF 50V K C3056 NCB31HK-472X C CAPACITOR 4700pF 50V K C3057 QETN1CM-106Z E CAPACITOR 10uF 16V M C3058 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3059 QETN1HM-105Z E CAPACITOR 1uF 50V M C3060 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3061 QETN1HM-105Z E CAPACITOR 1uF 50V M C3062 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3063 QETN1HM-105Z E CAPACITOR 1uF 50V M C3064 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3065 QETN1CM-106Z E CAPACITOR 10uF 16V M C3066 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3067 QETN1CM-476Z E CAPACITOR 47uF 16V M C3068 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3069 QETN1CM-476Z E CAPACITOR 47uF 16V M C3070 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3071 QETN1CM-476Z E CAPACITOR 47uF 16V M C3072 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3077 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3078 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3079 NDC31HJ-470X C CAPACITOR 47pF 50V J C3080 QBTC1CK-106Z TA E CAPACITOR 10uF 16V K C3082 NDC31HJ-151X C CAPACITOR 150pF 50V J C3086 NCB31HK-152X C CAPACITOR 1500pF 50V K C3088 NDC31HJ-100X C CAPACITOR 10pF 50V J C3089 NDC31HJ-100X C CAPACITOR 10pF 50V J C3090 NDC31HJ-100X C CAPACITOR 10pF 50V J C3099 NCB31HK-472X C CAPACITOR 4700pF 50V K C3100 NCB31HK-472X C CAPACITOR 4700pF 50V K C3501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3502 NDC31HJ-101X C CAPACITOR 100pF 50V J C3503 NDC31HJ-121X C CAPACITOR 120pF 50V J C3504 NDC31HJ-150X C CAPACITOR 15pF 50V J C3506 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3507 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3508 NDC31HJ-101X C CAPACITOR 100pF 50V J C3509 NDC31HJ-121X C CAPACITOR 120pF 50V J C3510 NDC31HJ-150X C CAPACITOR 15pF 50V J C3512 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3513 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3514 NDC31HJ-101X C CAPACITOR 100pF 50V J C3515 NDC31HJ-121X C CAPACITOR 120pF 50V J C3516 NDC31HJ-150X C CAPACITOR 15pF 50V J C3518 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3519 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3520 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3521 QENC1CM-336Z BP E CAPACITOR 33uF 16V M

R0705 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R0706 NRSA63J-103X MG RESISTOR 10k R1097 NRSA63J-102X MG RESISTOR 1k R1104 NRSA63J-221X MG RESISTOR 220 R1105 NRSA63J-221X MG RESISTOR 220 R1107 NRSA63J-473X MG RESISTOR 47k R1110 NRSA63J-103X MG RESISTOR 10k R1111 N RSA 63J -273X MG RESISTOR 27k R1112 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1140 NRSA63J-225X MG RESISTOR 2.2M R1141 NRSA63J-221X MG RESISTOR 220 R1142 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1143 NRSA63J-105X MG RESISTOR 1M R1144 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1145 NRSA63J-123X MG RESISTOR 12k R1146 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1147 NRSA63J-683X MG RESISTOR 68k R1149 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1151 NRSA63J-302X MG RESISTOR 3k R1152 NRSA63J-392X MG RESISTOR 3.9k R1157 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1158 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1202 NRSA63J-101X MG RESISTOR 100 R1203 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R1218 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1219 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1220 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1221 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1226 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1228 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1230 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1231 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1232 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1234 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1236 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1240 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1261 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1262 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1265 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1266 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1267 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1268 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1269 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1272 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1282 QRE141J-221Y C RESISTOR 220Ω 1/4W J R1283 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1284 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1285 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1286 NRSA63J-221X MG RESISTOR 220 R1287 NRSA63J-823X MG RESISTOR 82k R1301 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1302 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1337 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1347 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1372 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1374 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1375 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1382 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1384 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1385 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1392 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1394 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1395 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1401 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1402 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1421 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R1422 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1423 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1501 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1502 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1505 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1511 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1514 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1515 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1516 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1517 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1518 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1519 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1520 NRSA63J-221X MG RESISTOR 220 R1521 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1522 NRSA63J-221X MG RESISTOR 220 R1523 NRSA63J-682X MG RESISTOR 6.8k R1524 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1525 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1526 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1527 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1528 NRSA63J-682X MG RESISTOR 6.8k R1529 NRSA63J-221X MG RESISTOR 220 R1530 NRSA63J-102X MG RESISTOR 1k R1533 NRSA63J-221X MG RESISTOR 220 R1534 NRSA63J-682X MG RESISTOR 6.8k R1535 NRSA63J-221X MG RESISTOR 220 R1536 NRSA63J-682X MG RESISTOR 6.8k R1537 NRSA63J-221X MG RESISTOR 220 R1538 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1539 NRSA63J-682X MG RESISTOR 6.8k R1560 NRSA63J-101X MG RESISTOR 100 R1562 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1571 NRSA63J-0R0X MG RESISTOR 0 R1577 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1578 NRSA63J-682X MG RESISTOR 6.8k R1579 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1611 NRSA63J-563X MG RESISTOR 56k R1612 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1613 NRSA63J-102X MG RESISTOR 1k R1614 NRSA63J-104X MG RESISTOR 100k R1615 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1616 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1658 NRSA63J-103X MG RESISTOR 10k R1659 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA097)3-21



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R1665 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1666 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1667 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1668 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1669 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1670 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1671 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1672 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1673 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1674 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1680 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R1681 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1689 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1690 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1691 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1694 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1695 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1696 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1697 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1701 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1702 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1712 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R1713 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1714 NRSA63J-123X MG RESISTOR 12k R1715 NRSA63J-472X MG RESISTOR 4.7k R1716 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1718 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1895 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1896 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1897 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1898 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1899 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1900 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1942 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1943 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D



R1944 QRK126J-220X UNF C RESISTOR 22Ω 1/2W J R1945 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1946 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1949 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1950 NRSA63D-822X MG RESISTOR 8.2kΩ 1/16W D R1952 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1953 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R1957 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D R1959 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R1961 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1962 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1963 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R1964 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R1965 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1966 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1967 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R1968 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1969 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1971 QRT039J-R68 MF RESISTOR 0.68 R1975 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1978 NRSA63J-102X MG RESISTOR 1k



R1981 QRK126J-181X UNF C RESISTOR 180Ω 1/2W J R1982 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D R1983 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D R1984 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R1985 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J



R1986 QRK126J-331X UNF C RESISTOR 330Ω 1/2W J R1991 NRSA63J-471X MG RESISTOR 470 R1992 NRSA63J-182X MG RESISTOR 1.8k R2102 NRSA63J-750X MG RESISTOR 75 R2103 NRSA63J-750X MG RESISTOR 75 R2104 NRSA63J-750X MG RESISTOR 75 R2105 NRSA63J-224X MG RESISTOR 220k R2106 NRSA63J-224X MG RESISTOR 220k R2122 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2123 NRSA63J-750X MG RESISTOR 75 R2125 NRSA63J-750X MG RESISTOR 75 R2126 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2127 NRSA63J-224X MG RESISTOR 220k R2144 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2145 NRSA63J-224X MG RESISTOR 220k R2146 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2305 NRSA63J-750X MG RESISTOR 75 R2308 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2325 NRSA63J-750X MG RESISTOR 75 R2328 NRSA63J-750X MG RESISTOR 75 R3001 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3002 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3003 NRSA63J-101X MG RESISTOR 100 R3004 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3W J

R3005 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3006 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3007 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3009 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3010 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3012 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3013 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3014 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3015 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R3016 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3017 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3018 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3020 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3021 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3023 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R3024 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3025 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3026 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3027 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3028 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3029 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3030 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3039 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3040 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3042 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3045 NRSA63J-101X MG RESISTOR 100 R3047 NRSA63J-221X MG RESISTOR 220 R3048 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3049 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R3050 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R3051 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3052 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3053 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3054 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3055 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R3058 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3059 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3060 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3065 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3066 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3502 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3503 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3504 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3505 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3507 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3508 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3509 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3511 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3516 NRSA63J-680X MG RESISTOR 68Ω 1/16W J R3518 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3519 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3520 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3521 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3523 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3525 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3532 NRSA63J-680X MG RESISTOR 68 R3534 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3535 NRSA63J-182X MG RESISTOR 1.8k R3536 NRSA63J-181X MG RESISTOR 180 R3537 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3539 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3541 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3548 NRSA63J-680X MG RESISTOR 68Ω 1/16W J R3549 NRSA63J-223X MG RESISTOR 22k R3550 NRSA63J-223X MG RESISTOR 22k R3551 NRSA63J-0R0X MG RESISTOR 0 R3552 NRSA63J-223X MG RESISTOR 22k R3553 NRSA63J-223X MG RESISTOR 22k R3554 NRSA63J-223X MG RESISTOR 22k R3555 NRSA63J-223X MG RESISTOR 22k RA3001 NRZ0040-103X NET RESISTOR 10k RA3002 NRZ0040-103X NET RESISTOR 10kΩ 1/16W J RA3003 NRZ0040-103X NET RESISTOR 10k RA3004 NRZ0040-103X NET RESISTOR 10k

L1211 QQL244K-100Z PEAKING COIL 10uH K L1401 QQL244K-100Z PEAKING COIL 10uH K L1402 QQL26AK-100Z CHOKE COIL 10uH K L1941 QQR1401-001 CHOKE COIL L1942 QQR1401-001 CHOKE COIL L1943 QQL26AK-330Z CHOKE COIL 33uH K L1944 QQL26AK-330Z CHOKE COIL 33uH K L1945 QQL26AK-220Z CHOKE COIL 22uH K L1946 QQL26AK-220Z CHOKE COIL 22uH K L1947 QQR1401-001 CHOKE COIL L1948 QQL26AK-100Z CHOKE COIL 10uH K L1950 QQL26AK-470Z CHOKE COIL 47uH K

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-22(No.YA097)



Ref No. Part No. Part Name Description Local

L1951 QQL26AK-470Z CHOKE COIL 47uH K L1952 QQL26AK-470Z CHOKE COIL 47uH K L1983 QRN143J-0R0X C RESISTOR 0Ω 1/4W J L3001 NQL092K-6R8X COIL 6.8uH K L3002 NQL092K-6R8X COIL 6.8uH K L3003 NQR0413-003X FERRITE BEADS L3004 NQR0413-003X FERRITE BEADS L3007 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J L3501 NQL092K-6R8X COIL 6.8uH K L3502 NQL092K-6R8X COIL 6.8uH K L3503 NQL092K-6R8X COIL 6.8uH K

CN1001 QGB1506L1-16 CONNECTOR B-B (1-16) CN1002 QGB1506L1-16 CONNECTOR B-B (1-16) CN1003 QGB1506L1-16 CONNECTOR B-B (1-16) CN1004 QGC2508C1-C0 CONNECTOR (1-120) H1661 LC30145-003A HEAT SINK/AL-F/ H1802 CM42862-A0A HEAT SINK ASSY J1091 QNS0242-001 3.5 JACK AV COMPULINK J2101 QNN0628-001 PIN JACK V/L IN J2102 QNN0629-001 PIN JACK J2111 QND0121-001 S JACK S IN J2121 QNN0638-001 PIN JACK COMP-1/2 IN K1943 QRN143J-0R0X C RESISTOR 0Ω 1/4W J K1944 QRN143J-0R0X C RESISTOR 0Ω 1/4W J LC1301 QQR1199-001 EMI FILTER LC1302 QQR1199-001 EMI FILTER LC1303 QQR1199-001 EMI FILTER LC2301 QQR1199-001 EMI FILTER LC2302 QQR1199-001 EMI FILTER LC2303 QQR1199-001 EMI FILTER LC2321 QQR1199-001 EMI FILTER LC2322 QQR1199-001 EMI FILTER LC2323 QQR1199-001 EMI FILTER LC3001 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3002 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3003 NQR0483-005X EMI FILTER 100uF 25V Z LC3004 NQR0470-003X EMI FILTER LC3005 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3006 NQR0470-003X EMI FILTER LC3007 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3008 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3501 NQR0470-003X EMI FILTER LC3502 NQR0470-003X EMI FILTER LC3503 NQR0470-003X EMI FILTER SL1211 CSB503F30-T2 C RESONATOR



TU1101 QAU0352-001 TUNER X3001 NAX0570-001X CRYSTAL 27.000MHz

R IN/L/R OUT/CENTER CH IN

100pF 50V +50%-20%

100pF 50V +50%-20% 100pF 50V +50%-20% 100pF 50V +50%-20%

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

POWER P.W. BOARD ASS'Y (SRP-9001A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)

REFER TO PARTS LIST IN PAGE 3-17 FOR THIS P.W. BOARD.

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K013A-M2)



Ref No. Part No. Part Name Description Local

MD001 SRP0K013A-M2 DIGITAL CONVERGENCE MODULE PWB

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2)

REFER TO PARTS LIST IN PAGE 3-13 FOR THIS P.W. BOARD.

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

VM P.W. BOARD ASS'Y (SRP-7201A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

(No.YA097)3-23

PRINTED WIRING BOARD PARTS LIST [AV-65WP55/H]



MAIN P.W. BOARD ASS'Y (SRP-1014A-M2)



Ref No. Part No. Part Name Description Local

IC1101 L7805CP IC IC1140 CXA2205Q-X IC IC1211 TA1318N IC IC1212 SN74AHC2G08T-X IC IC1301 AN15852A IC IC1501 CXA2069Q IC IC1502 M62320FP-X IC IC1511 PQ033RD01SZ IC IC1661 AN5277 IC IC1703 AT24C128-65WP55 IC (SERVICE) IC1802 BA033T IC IC1941 PQ1CG21H2FZ IC IC1942 SI-8050JD-W IC IC1943 PQ1CY1032Z-W IC IC1981 PQ070XZ01Z-X IC IC1991 PQ12RD11 IC IC1993 MM1565AF-X IC IC3001 MN82832 IC IC3002 R1170H331B-X IC

Q0701 2SK2090-X MOS FET Q0702 2SK2090-X MOS FET Q1101 2SA1530A/QR/-X TRANSISTOR Q1102 2SC3928A/QR/-X TRANSISTOR Q1232 2SA1530A/QR/-X TRANSISTOR Q1252 2SA1530A/QR/-X TRANSISTOR Q1253 2SC3928A/QR/-X TRANSISTOR Q1254 2SA1530A/QR/-X TRANSISTOR Q1255 2SC3928A/QR/-X TRANSISTOR Q1301 2SC3837K/NP/-X TRANSISTOR Q1302 2SC3837K/NP/-X TRANSISTOR Q1303 2SC3837K/NP/-X TRANSISTOR Q1401 2SC3928A/QR/-X TRANSISTOR Q1511 2SC3928A/QR/-X TRANSISTOR Q1531 2SC3928A/QR/-X TRANSISTOR Q1668 UN2213-X DIGI TRANSISTOR Q1669 2SC3928A/QR/-X TRANSISTOR Q1671 UN2213-X DIGI TRANSISTOR Q1672 2SC3928A/QR/-X TRANSISTOR Q1673 2SA1530A/QR/-X TRANSISTOR Q1674 2SC3928A/QR/-X TRANSISTOR Q1712 2SA1530A/QR/-X TRANSISTOR Q1713 2SC2785/JH/-T SI TRANSISTOR Q1714 2SA1530A/QR/-X TRANSISTOR Q1961 2SC3928A/QR/-X TRANSISTOR Q1962 2SC3928A/QR/-X TRANSISTOR Q1964 2SC3928A/QR/-X TRANSISTOR Q1965 UN2213-X DIGI TRANSISTOR Q1966 UN2213-X DIGI TRANSISTOR Q1967 UN2213-X DIGI TRANSISTOR Q1981 2SC4682-T TRANSISTOR Q1984 2SC4682-T TRANSISTOR Q3001 2SC3928A/QR/-X TRANSISTOR Q3002 2SC3928A/QR/-X TRANSISTOR Q3003 2SA1530A/QR/-X TRANSISTOR Q3004 2SC3928A/QR/-X TRANSISTOR Q3005 2SC3928A/QR/-X TRANSISTOR Q3006 2SA1530A/QR/-X TRANSISTOR Q3007 2SA1530A/QR/-X TRANSISTOR Q3501 2SA1530A/QR/-X TRANSISTOR Q3502 2SC3928A/QR/-X TRANSISTOR Q3505 2SA1530A/QR/-X TRANSISTOR Q3506 2SC3928A/QR/-X TRANSISTOR Q3509 2SA1530A/QR/-X TRANSISTOR Q3510 2SC3928A/QR/-X TRANSISTOR

D1093 MA8082/M/-X Z DIODE D1140 MA8100/M/-X Z DIODE D1141 MA8100/M/-X Z DIODE D1145 MA8082/M/-X Z DIODE D1146 MA8082/M/-X Z DIODE D1251 MA8100/M/-X Z DIODE D1252 MA8100/M/-X Z DIODE D1253 MA111-X SI DIODE D1301 MA8100/M/-X Z DIODE D1302 MA8100/M/-X Z DIODE D1305 MA8100/M/-X Z DIODE D1306 MA8100/M/-X Z DIODE D1401 MA111-X SI DIODE D1402 UDZS5.1B-X Z DIODE D1403 MA111-X SI DIODE D1513 MA111-X SI DIODE

Ref No. Part No. Part Name Description Local

D1596 MA8100/M/-X Z DIODE D1667 MA111-X SI DIODE D1668 MA111-X SI DIODE D1669 MA111-X SI DIODE D1702 MA111-X SI DIODE D1703 MA111-X SI DIODE D1704 MA8100/M/-X Z DIODE D1705 MA8100/M/-X Z DIODE D1712 MA111-X SI DIODE D1802 MA111-X SI DIODE D1895 MA8082/M/-X Z DIODE D1896 MA8082/M/-X Z DIODE D1897 MA8051/M/-X Z DIODE D1898 MA8051/M/-X Z DIODE D1947 EC31QS04-X SB DIODE D1948 EC31QS04-X SB DIODE D1949 EC31QS04-X SB DIODE D1962 MA3030/H/-X Z DIODE D1964 MA111-X SI DIODE D1965 MA111-X SI DIODE D1967 PTZ6.8B-X Z DIODE D1968 PTZ3.9B-X Z DIODE D1969 PTZ11B-X Z DIODE D1981 MA111-X SI DIODE D1991 MA111-X SI DIODE D1993 MA111-X SI DIODE D2101 MA8100/M/-X Z DIODE D2121 MA8100/M/-X Z DIODE D2201 MA8100/M/-X Z DIODE D2204 MA8100/M/-X Z DIODE D2205 MA8100/M/-X Z DIODE D2206 MA8100/M/-X Z DIODE D2209 MA8100/M/-X Z DIODE D2210 MA8100/M/-X Z DIODE D2212 MA8100/M/-X Z DIODE D2213 MA8100/M/-X Z DIODE D2215 MA8100/M/-X Z DIODE D2216 MA8100/M/-X Z DIODE D2217 MA8100/M/-X Z DIODE D2218 MA8100/M/-X Z DIODE D2219 MA8100/M/-X Z DIODE D2401 MA8100/M/-X Z DIODE D2402 MA8100/M/-X Z DIODE D2403 MA8100/M/-X Z DIODE D2404 MA8100/M/-X Z DIODE D2406 MA8100/M/-X Z DIODE D2421 MA8100/M/-X Z DIODE D2422 MA8100/M/-X Z DIODE

C1101 QETN1CM-477Z E CAPACITOR 470uF 16V M C1102 QETN1CM-107Z E CAPACITOR 100uF 16V M C1103 QETN1HM-106Z E CAPACITOR 10uF 50V M C1111 NCF 31C Z-104X C CAPACITOR 0.1uF 16V Z C1140 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1141 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1144 QETN1HM-106Z E CAPACITOR 10uF 50V M C1145 NCB31HK-223X C CAPACITOR 0.022uF 50V K C1146 NCB31HK-472X C CAPACITOR 4700pF 50V K C1147 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1148 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1149 NCB31HK-472X C CAPACITOR 4700pF 50V K C1150 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1151 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1152 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1153 NCB31HK-562X C CAPACITOR 5600pF 50V K C1154 NCB31HK-123X C CAPACITOR 0.012uF 50V K C1155 QETN1HM-105Z E CAPACITOR 1uF 50V M C1156 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1157 QETN1HM-106Z E CAPACITOR 10uF 50V M C1158 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1159 QETN1CM-107Z E CAPACITOR 100uF 16V M C1160 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1161 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1162 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1163 NCB31HK-272X C CAPACITOR 2700pF 50V K C1164 NCB31HK-473X C CAPACITOR 0.047uF 50V K C1165 QETN1HM-335Z E CAPACITOR 3.3uF 50V M C1166 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1167 QETN1HM-106Z E CAPACITOR 10uF 50V M C1168 QETN1HM-105Z E CAPACITOR 1uF 50V M C1169 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1170 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1171 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1172 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

3-24(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C1213 QETN1CM-107Z E CAPACITOR 100uF 16V M C1214 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C1215 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C1216 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1218 NCB21CK-105X C CAPACITOR 1uF 16V K C1219 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C1233 NDC31HJ-180X C CAPACITOR 18pF 50V J C1257 QETN1HM-105Z E CAPACITOR 1uF 50V M C1258 QETN1HM-105Z E CAPACITOR 1uF 50V M C1301 QETN1CM-107Z E CAPACITOR 100uF 16V M C1302 QETN1CM-107Z E CAPACITOR 100uF 16V M C1303 QETN1CM-107Z E CAPACITOR 100uF 16V M C1304 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1305 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1306 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1307 QETN1CM-106Z E CAPACITOR 10uF 16V M C1308 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1309 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1311 NCB21CK-105X C CAPACITOR 1uF 16V K C1312 NCB21CK-105X C CAPACITOR 1uF 16V K C1313 NCB21CK-105X C CAPACITOR 1uF 16V K C1322 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1323 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1324 NCB21CK-105X C CAPACITOR 1uF 16V K C1325 NCB21CK-105X C CAPACITOR 1uF 16V K C1326 NDC31HJ-101X C CAPACITOR 100pF 50V J C1327 NDC31HJ-101X C CAPACITOR 100pF 50V J C1328 NDC31HJ-101X C CAPACITOR 100pF 50V J C1329 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1331 NCB21CK-105X C CAPACITOR 1uF 16V K C1332 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1333 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1341 NCB21CK-105X C CAPACITOR 1uF 16V K C1342 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1343 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1351 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1352 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1353 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1354 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1355 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1371 QETN1CM-336Z E CAPACITOR 33uF 16V M C1372 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1381 QETN1CM-336Z E CAPACITOR 33uF 16V M C1382 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1391 QETN1CM-336Z E CAPACITOR 33uF 16V M C1392 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1403 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1404 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1405 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1406 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1409 QETN1HM-106Z E CAPACITOR 10uF 50V M C1410 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1411 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1412 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1415 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1416 QETN1EM-476Z E CAPACITOR 47uF 25V M C1417 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1418 QETN1EM-476Z E CAPACITOR 47uF 25V M C1421 QETN1AM-108Z E CAPACITOR 1000uF 10V M C1423 QETN1HM-476Z E CAPACITOR 47uF 50V M C1442 QETN1EM-476Z E CAPACITOR 47uF 25V M C1501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C1502 QETN1EM-476Z E CAPACITOR 47uF 25V M C1510 QENC1CM-106Z BP E CAPACITOR 10uF 16V M C1519 QETN1EM-476Z E CAPACITOR 47uF 25V M C1531 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1532 QETN1HM-226Z E CAPACITOR 22uF 50V M C1539 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C1540 QETN1AM-107Z E CAPACITOR 100uF 10V M C1553 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1554 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1555 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1556 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1557 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1579 QETN1EM-476Z E CAPACITOR 47uF 25V M C1667 QETN1HM-106Z E CAPACITOR 10uF 50V M C1668 NDC31HJ-101X C CAPACITOR 100pF 50V J C1669 NCB21CK-105X C CAPACITOR 1uF 16V K C1670 QETN1HM-106Z E CAPACITOR 10uF 50V M C1671 NDC31HJ-101X C CAPACITOR 100pF 50V J C1672 NCB21CK-105X C CAPACITOR 1uF 16V K C1673 QETN1HM-477Z E CAPACITOR 470uF 50V M C1674 QETM1HM-108 E CAPACITOR 1000uF 50V M C1675 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J C1676 QFV21HJ-124Z MF CAPACITOR 0.12uF 50V J C1677 QETN1EM-108Z E CAPACITOR 1000uF 25V M C1678 QETN1EM-108Z E CAPACITOR 1000uF 25V M

C1679 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1680 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C1696 QETN1HM-106Z E CAPACITOR 10uF 50V M C1697 QETN1EM-476Z E CAPACITOR 47uF 25V M C1702 NCB21CK-105X C CAPACITOR 1uF 16V K C1712 QETN1AM-227Z E CAPACITOR 220uF 10V M C1806 QETN1VM-476Z E CAPACITOR 47uF 35V M C1807 QETN1EM-476Z E CAPACITOR 47uF 25V M C1941 QETN1VM-477Z E CAPACITOR 470uF 35V M C1942 QETN1CM-108Z E CAPACITOR 1000uF 16V M C1943 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1944 QETN1VM-477Z E CAPACITOR 470uF 35V M C1945 QEZ0256-128 E CAPACITOR 1200uF 10V M C1946 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1947 QETN1CM-477Z E CAPACITOR 470uF 16V M C1948 QETN1CM-477Z E CAPACITOR 470uF 16V M C1949 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1950 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1951 QETN1VM-477Z E CAPACITOR 470uF 35V M C1952 QEZ0256-128 E CAPACITOR 1200uF 10V M C1953 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M C1955 NCB31EK-104X C CAPACITOR 0.1uF 25V K C1961 QETN1HM-105Z E CAPACITOR 1uF 50V M C1981 QETN1CM-107Z E CAPACITOR 100uF 16V M C1984 QETN0JM-108Z E CAPACITOR 1000uF 6.3V M C1985 QETN0JM-477Z E CAPACITOR 470uF 6.3V M C1991 QETN1EM-107Z E CAPACITOR 100uF 25V M C1992 QETN1CM-477Z E CAPACITOR 470uF 16V M C1994 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1995 NCB11CK-225X C CAPACITOR 2.2uF 16V K C1996 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2103 QETN1HM-106Z E CAPACITOR 10uF 50V M C2104 QETN1HM-106Z E CAPACITOR 10uF 50V M C2105 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2106 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2123 NCB31HK-103X C CAPACITOR 0.01uF 50V K C2124 QETN1HM-106Z E CAPACITOR 10uF 50V M C2126 QETN1HM-106Z E CAPACITOR 10uF 50V M C2127 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2128 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2144 QETN1HM-106Z E CAPACITOR 10uF 50V M C2145 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2146 NCB11CK-225X C CAPACITOR 2.2uF 16V K C2302 NCB21CK-105X C CAPACITOR 1uF 16V K C2303 NCB21CK-105X C CAPACITOR 1uF 16V K C2322 NCB21CK-105X C CAPACITOR 1uF 16V K C2323 NCB21CK-105X C CAPACITOR 1uF 16V K C2341 NCB21CK-105X C CAPACITOR 1uF 16V K C2342 NCB21CK-105X C CAPACITOR 1uF 16V K C2343 NCB21CK-105X C CAPACITOR 1uF 16V K C3001 QENC1AM-336Z BP E CAPACITOR 33uF 10V M C3002 NDC31HJ-151X C CAPACITOR 150pF 50V J C3003 NDC31HJ-121X C CAPACITOR 120pF 50V J C3004 NDC31HJ-150X C CAPACITOR 15pF 50V J C3005 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3006 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3007 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3008 NDC31HJ-151X C CAPACITOR 150pF 50V J C3009 NDC31HJ-121X C CAPACITOR 120pF 50V J C3010 NDC31HJ-150X C CAPACITOR 15pF 50V J C3011 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3012 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3013 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3014 QETN1CM-107Z E CAPACITOR 100uF 16V M C3015 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3016 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3017 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M C3018 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3019 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3020 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3021 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3022 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3023 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3024 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3025 QETN1CM-106Z E CAPACITOR 10uF 16V M C3026 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3027 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3028 NDC31HJ-7R0X C CAPACITOR 7pF 50V J C3029 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3030 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3031 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3032 NDC31HJ-560X C CAPACITOR 56pF 50V J C3033 NDC31HJ-330X C CAPACITOR 33pF 50V J C3034 NDC31HJ-560X C CAPACITOR 56pF 50V J C3035 NDC31HJ-330X C CAPACITOR 33pF 50V J C3036 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

(No.YA097)3-25



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C3037 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3038 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3039 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3041 QETN1CM-106Z E CAPACITOR 10uF 16V M C3042 NCB31HK-472X C CAPACITOR 4700pF 50V K C3044 NCB31HK-472X C CAPACITOR 4700pF 50V K C3045 NCB31HK-472X C CAPACITOR 4700pF 50V K C3046 NCB31HK-472X C CAPACITOR 4700pF 50V K C3047 QETN1CM-106Z E CAPACITOR 10uF 16V M C3048 NCB31HK-472X C CAPACITOR 4700pF 50V K C3049 NCB31HK-472X C CAPACITOR 4700pF 50V K C3050 NCB31HK-472X C CAPACITOR 4700pF 50V K C3051 NCB31HK-472X C CAPACITOR 4700pF 50V K C3052 NCB31HK-472X C CAPACITOR 4700pF 50V K C3053 NCB31HK-472X C CAPACITOR 4700pF 50V K C3054 NCB31HK-472X C CAPACITOR 4700pF 50V K C3055 NCB31HK-472X C CAPACITOR 4700pF 50V K C3056 NCB31HK-472X C CAPACITOR 4700pF 50V K C3057 QETN1CM-106Z E CAPACITOR 10uF 16V M C3058 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3059 QETN1HM-105Z E CAPACITOR 1uF 50V M C3060 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3061 QETN1HM-105Z E CAPACITOR 1uF 50V M C3062 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3063 QETN1HM-105Z E CAPACITOR 1uF 50V M C3064 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3065 QETN1CM-106Z E CAPACITOR 10uF 16V M C3066 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3067 QETN1CM-476Z E CAPACITOR 47uF 16V M C3068 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3069 QETN1CM-476Z E CAPACITOR 47uF 16V M C3070 NCB31HK-103X C CAPACITOR 0.01uF 50V K C3071 QETN1CM-476Z E CAPACITOR 47uF 16V M C3072 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3077 NCB31AK-334X C CAPACITOR 0.33uF 10V K C3078 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3079 NDC31HJ-470X C CAPACITOR 47pF 50V J C3080 QBTC1CK-106Z TA E CAPACITOR 10uF 16V K C3082 NDC31HJ-151X C CAPACITOR 150pF 50V J C3086 NCB31HK-152X C CAPACITOR 1500pF 50V K C3088 NDC31HJ-100X C CAPACITOR 10pF 50V J C3089 NDC31HJ-100X C CAPACITOR 10pF 50V J C3090 NDC31HJ-100X C CAPACITOR 10pF 50V J C3099 NCB31HK-472X C CAPACITOR 4700pF 50V K C3100 NCB31HK-472X C CAPACITOR 4700pF 50V K C3501 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3502 NDC31HJ-101X C CAPACITOR 100pF 50V J C3503 NDC31HJ-121X C CAPACITOR 120pF 50V J C3504 NDC31HJ-150X C CAPACITOR 15pF 50V J C3506 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3507 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3508 NDC31HJ-101X C CAPACITOR 100pF 50V J C3509 NDC31HJ-121X C CAPACITOR 120pF 50V J C3510 NDC31HJ-150X C CAPACITOR 15pF 50V J C3512 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3513 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C3514 NDC31HJ-101X C CAPACITOR 100pF 50V J C3515 NDC31HJ-121X C CAPACITOR 120pF 50V J C3516 NDC31HJ-150X C CAPACITOR 15pF 50V J C3518 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z C3519 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3520 QENC1CM-336Z BP E CAPACITOR 33uF 16V M C3521 QENC1CM-336Z BP E CAPACITOR 33uF 16V M

Ω

R0705 NRSA63J-103X MG RESISTOR 10k R0706 NRSA63J-103X MG RESISTOR 10k R1097 NRSA63J-102X MG RESISTOR 1k R1104 NRSA63J-221X MG RESISTOR 220 R1105 NRSA63J-221X MG RESISTOR 220 R1107 NRSA63J-473X MG RESISTOR 47k R1110 NRSA63J-103X MG RESISTOR 10k R1111 N RSA 63J -273X MG RESISTOR 27kΩ 1/16W J R1112 NRSA63J-103X MG RESISTOR 10k R1140 NRSA63J-225X MG RESISTOR 2.2M R1141 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1142 NRSA63J-221X MG RESISTOR 220 R1143 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R1144 NRSA63J-104X MG RESISTOR 100k R1145 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1146 NRSA63J-682X MG RESISTOR 6.8k R1147 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R1149 NRSA63J-332X MG RESISTOR 3.3k R1151 NRSA63J-302X MG RESISTOR 3k R1152 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R1157 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1158 NRSA63J-221X MG RESISTOR 220 R1202 NRSA63J-101X MG RESISTOR 100

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R1203 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1218 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1219 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1220 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1221 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1226 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1228 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1229 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1230 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1231 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1232 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1234 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1236 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1240 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1261 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1262 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R1265 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1266 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1267 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1268 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1269 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1272 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1282 QRE141J-221Y C RESISTOR 220Ω 1/4W J R1283 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1284 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1285 NRSA63J-823X MG RESISTOR 82k R1286 NRSA63J-221X MG RESISTOR 220 R1287 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1301 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1302 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1337 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1347 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R1372 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1374 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1375 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1378 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1382 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1384 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1385 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1392 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1394 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1395 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R1401 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1402 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1421 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R1422 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1423 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1501 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1502 NRSA63J-100X MG RESISTOR 10Ω 1/16W J R1505 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1511 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1513 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1514 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1515 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1516 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1517 NRSA63J-0R0X MG RESISTOR 0 R1518 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1519 NRSA63J-0R0X MG RESISTOR 0 R1520 NRSA63J-221X MG RESISTOR 220 R1521 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1522 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1523 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1524 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1525 NRSA63J-682X MG RESISTOR 6.8k R1526 NRSA63J-682X MG RESISTOR 6.8k R1527 NRSA63J-221X MG RESISTOR 220 R1528 NRSA63J-682X MG RESISTOR 6.8k R1529 NRSA63J-221X MG RESISTOR 220 R1530 NRSA63J-102X MG RESISTOR 1k R1533 NRSA63J-221X MG RESISTOR 220 R1534 NRSA63J-682X MG RESISTOR 6.8k R1535 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1536 NRSA63J-682X MG RESISTOR 6.8k R1537 NRSA63J-221X MG RESISTOR 220 R1538 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1539 NRSA63J-682X MG RESISTOR 6.8k R1560 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1562 NRSA63J-102X MG RESISTOR 1k R1571 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1577 NRSA63J-221X MG RESISTOR 220 R1578 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1579 NRSA63J-221X MG RESISTOR 220 R1611 NRSA63J-563X MG RESISTOR 56k R1612 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1613 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1614 NRSA63J-104X MG RESISTOR 100k R1615 NRSA63J-563X MG RESISTOR 56k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-26(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R1616 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1658 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1659 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1665 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1666 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1667 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1668 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1669 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1670 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1671 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1672 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J R1673 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1674 QRK126J-102X UNF C RESISTOR 1kΩ 1/2W J R1680 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R1681 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1682 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1689 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1690 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1691 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1694 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R1695 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R1696 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R1697 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1701 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1702 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R1703 NRSA63J-101X MG RESISTOR 100 R1712 NRSA63J-273X MG RESISTOR 27k R1713 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1714 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1715 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1716 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1718 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1895 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1896 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1897 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1898 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R1899 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1900 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R1942 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1943 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D



R1944 QRK126J-220X UNF C RESISTOR 22Ω 1/2W J R1945 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1946 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1949 NRSA63D-122X MG RESISTOR 1.2kΩ 1/16W D R1950 NRSA63D-822X MG RESISTOR 8.2kΩ 1/16W D R1952 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R1953 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R1957 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D R1959 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R1961 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1962 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R1963 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R1964 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R1965 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1966 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R1967 NRSA63J-122X MG RESISTOR 1.2k R1968 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1969 NRSA63J-102X MG RESISTOR 1k R1971 QRT039J-R68 MF RESISTOR 0.68 R1975 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1978 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J



R1981 QRK126J-181X UNF C RESISTOR 180Ω 1/2W J R1982 NRSA63D-222X MG RESISTOR 2.2kΩ 1/16W D R1983 NRSA63D-222X MG RESISTOR 2.2k R1984 NRSA63J-183X MG RESISTOR 18k R1985 NRSA63J-0R0X MG RESISTOR 0



R1986 QRK126J-331X UNF C RESISTOR 330Ω 1/2W J R1991 NRSA63J-471X MG RESISTOR 470 R1992 NRSA63J-182X MG RESISTOR 1.8k R2102 NRSA63J-750X MG RESISTOR 75 R2103 NRSA63J-750X MG RESISTOR 75 R2104 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2105 NRSA63J-224X MG RESISTOR 220k R2106 NRSA63J-224X MG RESISTOR 220k R2122 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2123 NRSA63J-750X MG RESISTOR 75 R2125 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2126 NRSA63J-224X MG RESISTOR 220k R2127 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2144 NRSA63J-750X MG RESISTOR 75 R2145 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R2146 NRSA63J-224X MG RESISTOR 220k R2305 NRSA63J-750X MG RESISTOR 75 R2308 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2325 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R2328 NRSA63J-750X MG RESISTOR 75 R3001 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3W J

R3002 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3003 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3004 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R3005 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3006 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3007 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3009 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3010 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3012 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3013 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R3014 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3015 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R3016 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3017 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3018 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3020 NRSA63D-102X MG RESISTOR 1kΩ 1/16W D R3021 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R3023 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R3024 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3025 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3026 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3027 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3028 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3029 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3030 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3039 NRSA63J-101X MG RESISTOR 100 R3040 NRSA63J-101X MG RESISTOR 100 R3042 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3045 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3047 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R3048 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3049 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R3050 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R3051 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3052 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R3053 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R3054 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3055 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R3058 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3059 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3060 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3065 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3066 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3502 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3503 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3504 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3505 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3507 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3508 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3509 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R3511 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R3516 NRSA63J-680X MG RESISTOR 68Ω 1/16W J R3518 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3519 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3520 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3521 NRSA63J-103X MG RESISTOR 10k R3523 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3525 NRSA63J-222X MG RESISTOR 2.2k R3532 NRSA63J-680X MG RESISTOR 68 R3534 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R3535 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R3536 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R3537 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R3539 NRSA63J-101X MG RESISTOR 100 R3541 NRSA63J-222X MG RESISTOR 2.2k R3548 NRSA63J-680X MG RESISTOR 68 R3549 NRSA63J-223X MG RESISTOR 22k R3550 NRSA63J-223X MG RESISTOR 22k R3551 NRSA63J-0R0X MG RESISTOR 0 R3552 NRSA63J-223X MG RESISTOR 22k R3553 NRSA63J-223X MG RESISTOR 22k R3554 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3555 NRSA63J-223X MG RESISTOR 22k RA3001 NRZ0040-103X NET RESISTOR 10k RA3002 NRZ0040-103X NET RESISTOR 10kΩ 1/16W J RA3003 NRZ0040-103X NET RESISTOR 10k RA3004 NRZ0040-103X NET RESISTOR 10kΩ 1/16W J

L1211 QQL244K-100Z PEAKING COIL 10uH K L1401 QQL244K-100Z PEAKING COIL 10uH K L1402 QQL26AK-100Z CHOKE COIL 10uH K L1941 QQR1401-001 CHOKE COIL L1942 QQR1401-001 CHOKE COIL L1943 QQL26AK-330Z CHOKE COIL 33uH K L1944 QQL26AK-330Z CHOKE COIL 33uH K L1945 QQL26AK-220Z CHOKE COIL 22uH K L1946 QQL26AK-220Z CHOKE COIL 22uH K

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA097)3-27



Ref No. Part No. Part Name Description Local

L1947 QQR1401-001 CHOKE COIL L1948 QQL26AK-100Z CHOKE COIL 10uH K L1950 QQL26AK-470Z CHOKE COIL 47uH K L1951 QQL26AK-470Z CHOKE COIL 47uH K L1952 QQL26AK-470Z CHOKE COIL 47uH K L1983 QRN143J-0R0X C RESISTOR 0Ω 1/4W J L3001 NQL092K-6R8X COIL 6.8uH K L3002 NQL092K-6R8X COIL 6.8uH K L3003 NQR0413-003X FERRITE BEADS L3004 NQR0413-003X FERRITE BEADS L3007 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J L3501 NQL092K-6R8X COIL 6.8uH K L3502 NQL092K-6R8X COIL 6.8uH K L3503 NQL092K-6R8X COIL 6.8uH K

CN1001 QGB1506L1-16 CONNECTOR B-B (1-16) CN1002 QGB1506L1-16 CONNECTOR B-B (1-16) CN1003 QGB1506L1-16 CONNECTOR B-B (1-16) CN1004 QGC2508C1-C0 CONNECTOR (1-120) CN100Q WJP0053-004A E-SH C WIRE C-B CN10AU WJP0052-002A E-SH C WIRE C-B CN10DC QJB003-043014 SIN ID C-B WIRE CN10SR QJB003-052610 SIN ID C-B WIRE H1661 LC30145-003A HEAT SINK/AL-F/ H1802 CM42862-A0A HEAT SINK ASSY J1091 QNS0242-001 3.5 JACK AV COMPULINK J2101 QNN0628-001 PIN JACK V/L IN J2102 QNN0629-001 PIN JACK J2111 QND0121-001 S JACK S IN J2121 QNN0638-001 PIN JACK COMP-1/2 IN K1943 QRN143J-0R0X C RESISTOR 0Ω 1/4W J K1944 QRN143J-0R0X C RESISTOR 0Ω 1/4W J LC1301 QQR1199-001 EMI FILTER LC1302 QQR1199-001 EMI FILTER LC1303 QQR1199-001 EMI FILTER LC2301 QQR1199-001 EMI FILTER LC2302 QQR1199-001 EMI FILTER LC2303 QQR1199-001 EMI FILTER LC2321 QQR1199-001 EMI FILTER LC2322 QQR1199-001 EMI FILTER LC2323 QQR1199-001 EMI FILTER LC2341 QQR1199-001 EMI FILTER LC2342 QQR1199-001 EMI FILTER LC2343 QQR1199-001 EMI FILTER LC3001 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3002 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3003 NQR0483-005X EMI FILTER 100uF 25V Z LC3004 NQR0470-003X EMI FILTER LC3005 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3006 NQR0470-003X EMI FILTER LC3007 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3008 NQR0470-001X EMI FILTER 22pF 50V +50%-20% LC3501 NQR0470-003X EMI FILTER LC3502 NQR0470-003X EMI FILTER LC3503 NQR0470-003X EMI FILTER SL1211 CSB503F30-T2 C RESONATOR



TU1101 QAU0352-001 TUNER X3001 NAX0570-001X CRYSTAL 27.000MHz

R IN/L/R OUT/CENTER CH IN

100pF 50V +50%-20%

100pF 50V +50%-20% 100pF 50V +50%-20% 100pF 50V +50%-20%

DEF / CONVERGENCE OUT P.W. BOARD

ASS'Y (SRP-2013A-M2)



Ref No. Part No. Part Name Description Local

IC101 LA7860M-X IC IC161 AN5441SA-W IC IC162 BA10393F-XE IC IC163 AN7805F IC IC212 CXA1875AM-X IC IC401 AN15525A IC IC801 L7805CP IC IC804 STK394-250 IC IC805 STK394-210 IC IC807 SN74LVC1G126V-X IC

Q101 2SD601A/QR/-X TRANSISTOR Q102 2SD601A/QR/-X TRANSISTOR Q131 2SD601A/QR/-X TRANSISTOR Q132 2SD601A/QR/-X TRANSISTOR Q162 2SD601A/QR/-X TRANSISTOR Q168 2SD601A/QR/-X TRANSISTOR Q171 2SB709A/QR/-X TRANSISTOR Q172 2SB709A/QR/-X TRANSISTOR Q401 2SC3311A/QR/-T TRANSISTOR Q402 2SC3311A/QR/-T TRANSISTOR Q501 BSN304-T MOS FET



Q503 2SC5931-RL POW TRANSISTOR Q521 2SC3311A/QR/-T TRANSISTOR Q531 IRFI620G POWER MOS FET Q532 2SC1959/Y/-T TRANSISTOR Q533 2SA562TM/Y/-T TRANSISTOR Q806 2SD601A/QR/-X TRANSISTOR Q807 2SD601A/QR/-X TRANSISTOR Q808 2SD601A/QR/-X TRANSISTOR Q809 2SD601A/QR/-X TRANSISTOR Q810 2SD601A/QR/-X TRANSISTOR Q971 2SA1208/ST/Z1-T TRANSISTOR

D164 1SS355-X SI DIODE D165 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J D170 1SS355-X SI DIODE D171 1SS355-X SI DIODE D173 1SS355-X SI DIODE D174 1SS355-X SI DIODE D201 1SR35-400A-T2 SI DIODE D221 1SS355-X SI DIODE D301 EU2-T3 SI DIODE D302 EU2-T3 SI DIODE D303 RU30A-F1 SI DIODE D311 1SR124-400A-T2 SI DIODE D401 MTZJ75-T2 Z DIODE D402 1SR35-400A-T2 SI DIODE D403 MA111-X SI DIODE D404 MA8068/M/-X CHIP ZENER DIODE D405 MA111-X SI DIODE D406 MA8068/M/-X CHIP ZENER DIODE D501 1SS81-T2 SI DIODE D504 RG2A-LFC4 SI DIODE D506 FMV-3FU-F1 SI DIODE D507 V11CA-C1 SI DIODE D521 MA8120-X CHIP ZENER DIODE D522 MA111-X SI DIODE D531 RGP10J-5025-T3 SI DIODE D561 MA4068N/Z1/-T2 Z DIODE D562 MA4068N/Z1/-T2 Z DIODE D583 MA111-X SI DIODE D804 1SR153-400-T2 FR DIODE D805 1SR153-400-T2 FR DIODE D811 RD5.6E/B2/-T2 Z DIODE D812 RD5.6E/B2/-T2 Z DIODE D841 PTZ6.8B-X Z DIODE D842 PTZ5.1B-X Z DIODE D850 RD5.6E/B2/-T2 Z DIODE D972 MA8150/M/-X Z DIODE D973 MA111-X SI DIODE

C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K C103 NCB31HK-103X C CAPACITOR 0.01uF 50V K C104 NDC31HJ-561X C CAPACITOR 560pF 50V J C106 NDC31HJ-102X C CAPACITOR 1000pF 50V J C107 NDC21HJ-122X C CAPACITOR 1200pF 50V J C108 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C109 NCB31HK-103X C CAPACITOR 0.01uF 50V K C110 NCB31HK-102X C CAPACITOR 1000pF 50V K C111 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C112 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C113 NDC21HJ-122X C CAPACITOR 1200pF 50V J

3-28(No.YA097)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C114 NDC31HJ-102X C CAPACITOR 1000pF 50V J C115 NDC31HJ-102X C CAPACITOR 1000pF 50V J C116 NCB31HK-103X C CAPACITOR 0.01uF 50V K C117 QTMN1CM-477Z E CAPACITOR 470uF 16V M C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K C120 QETN1EM-476Z E CAPACITOR 47uF 25V M C121 QETN1CM-107Z E CAPACITOR 100uF 16V M C122 NCB31HK-103X C CAPACITOR 0.01uF 50V K C123 NCB31HK-103X C CAPACITOR 0.01uF 50V K C124 NCB31HK-103X C CAPACITOR 0.01uF 50V K C131 NDC31HJ-101X C CAPACITOR 100pF 50V J C132 QETN1HM-105Z E CAPACITOR 1uF 50V M C133 NCB21EK-124X C CAPACITOR 0.12uF 25V K C134 NCB31HK-153X C CAPACITOR 0.015uF 50V K C135 NDC31HJ-102X C CAPACITOR 1000pF 50V J C136 NDC31HJ-102X C CAPACITOR 1000pF 50V J C137 NDC31HJ-102X C CAPACITOR 1000pF 50V J C138 NDC31HJ-181X C CAPACITOR 180pF 50V J C161 QETN1CM-108Z E CAPACITOR 1000uF 16V M C162 NCB31HK-103X C CAPACITOR 0.01uF 50V K C163 QETN1AM-477Z E CAPACITOR 470uF 10V M C164 NCB31HK-103X C CAPACITOR 0.01uF 50V K C165 NCB31CK-104X C CAPACITOR 0.1uF 16V K C167 QFLM1HJ-332Z M CAPACITOR 3300pF 50V J C168 NCB31HK-103X C CAPACITOR 0.01uF 50V K C170 NCB31HK-103X C CAPACITOR 0.01uF 50V K C171 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J C172 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C173 NCB31HK-153X C CAPACITOR 0.015uF 50V K C175 NCB31HK-152X C CAPACITOR 1500pF 50V K C178 NCB31CK-104X C CAPACITOR 0.1uF 16V K C179 NCB31CK-104X C CAPACITOR 0.1uF 16V K C180 NCB31CK-104X C CAPACITOR 0.1uF 16V K C181 NCB31CK-104X C CAPACITOR 0.1uF 16V K C182 NCB31CK-104X C CAPACITOR 0.1uF 16V K C185 NCB21HK-563X C CAPACITOR 0.056uF 50V K C187 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C201 QFV21HJ-334Z MF CAPACITOR 0.33uF 50V J C212 QETN1HM-106Z E CAPACITOR 10uF 50V M C221 QETN1HM-105Z E CAPACITOR 1uF 50V M C301 QETN1EM-108Z E CAPACITOR 1000uF 25V M C302 QETN1EM-108Z E CAPACITOR 1000uF 25V M C303 QETM2EM-336 E CAPACITOR 33uF 250V M C311 QETN1VM-107Z E CAPACITOR 100uF 35V M C312 QCB32HK-821Z C CAPACITOR 820pF 500V K C401 QETN1VM-108Z E CAPACITOR 1000uF 35V M C402 QFN31HJ-152Z M CAPACITOR 1500pF 50V J C403 QCS32HJ-180Z C CAPACITOR 18pF 500V J C404 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J C405 QFV21HJ-104Z MF CAPACITOR 0.1uF 50V J C406 QETN1VM-107Z E CAPACITOR 100uF 35V M C407 QETN1HM-105Z E CAPACITOR 1uF 50V M C408 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J C409 QETN1HM-106Z E CAPACITOR 10uF 50V M C411 QCB31HK-222Z C CAPACITOR 2200pF 50V K C412 QENC1CM-226Z BP E CAPACITOR 22uF 16V M C413 QENC1CM-226Z BP E CAPACITOR 22uF 16V M C415 QFLC2AJ-823Z M CAPACITOR 0.082uF 100V J C416 QCB31HK-682Z C CAPACITOR 6800pF 50V K C501 QCB32HK-331Z C CAPACITOR 330pF 500V K C502 QFN32DK-103 M CAPACITOR 0.01uF 200V K C503 QFV21HJ-224Z MF CAPACITOR 0.22uF 50V J C506 QFZ0122-452 MPP CAPACITOR 4500pF 1.8kV H C507 QFZ0122-452 MPP CAPACITOR 4500pF 1.8kV H C508 QFP32JJ-103 PP CAPACITOR 0.01uF 630V J C511 QFZ0128-404 MPP CAPACITOR 0.4uF DC400V H C513 QFZ0197-335 MPP CAPACITOR 3.3uF 250V J C514 QCS32HJ-561 C CAPACITOR 560pF 500V J C521 QCZ0122-681 C CAPACITOR 680pF 2kV K C522 QCZ0122-681 C CAPACITOR 680pF 2kV K C523 QFN32AJ-682Z M CAPACITOR 6800pF 100V J C524 QCS31HJ-470Z C CAPACITOR 47pF 50V J C525 QCB31HK-682Z C CAPACITOR 6800pF 50V K C527 QETN1EM-476Z E CAPACITOR 47uF 25V M C533 QCS32HJ-561 C CAPACITOR 560pF 500V J C534 QFN32DK-222Z M CAPACITOR 2200pF 200V K C536 QFN32DJ-152Z M CAPACITOR 1500pF 200V J C591 QEZ0203-107 E CAPACITOR 100uF 160V M C701 QFLC2AJ-223Z M CAPACITOR 0.022uF 100V J C803 QETN1CM-107Z E CAPACITOR 100uF 16V M C804 NCB31EK-104X C CAPACITOR 0.1uF 25V K C807 QETN1CM-107Z E CAPACITOR 100uF 16V M C808 NCB31EK-104X C CAPACITOR 0.1uF 25V K C809 NCB31EK-104X C CAPACITOR 0.1uF 25V K C810 QETN1EM-107Z E CAPACITOR 100uF 25V M C812 NDC31HJ-181X C CAPACITOR 180pF 50V J C818 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C819 NCB31HK-103X C CAPACITOR 0.01uF 50V K C820 NDC31HJ-151X C CAPACITOR 150pF 50V J C821 NDC31HJ-151X C CAPACITOR 150pF 50V J C822 NDC31HJ-151X C CAPACITOR 150pF 50V J C823 NDC31HJ-151X C CAPACITOR 150pF 50V J C824 NDC31HJ-151X C CAPACITOR 150pF 50V J C825 NDC31HJ-151X C CAPACITOR 150pF 50V J C827 QETN1HM-477Z E CAPACITOR 470uF 50V M C828 QETN1HM-477Z E CAPACITOR 470uF 50V M C829 NDC31HJ-151X C CAPACITOR 150pF 50V J C830 NDC31HJ-151X C CAPACITOR 150pF 50V J C831 NDC31HJ-151X C CAPACITOR 150pF 50V J C832 NDC31HJ-151X C CAPACITOR 150pF 50V J C833 NDC31HJ-151X C CAPACITOR 150pF 50V J C834 NDC31HJ-151X C CAPACITOR 150pF 50V J C838 NCB31HK-104X C CAPACITOR 0.1uF 50V K C844 QETN1CM-107Z E CAPACITOR 100uF 16V M C851 NDC31HJ-100X C CAPACITOR 10pF 50V J C852 NDC31HJ-100X C CAPACITOR 10pF 50V J C853 NDC31HJ-100X C CAPACITOR 10pF 50V J C971 QETN1CM-107Z E CAPACITOR 100uF 16V M C972 QETN1EM-476Z E CAPACITOR 47uF 25V M C973 QETN1HM-106Z E CAPACITOR 10uF 50V M

R101 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R103 NRSA63J-681X MG RESISTOR 680 R104 NRSA63J-103X MG RESISTOR 10k R105 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R106 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R107 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R109 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R110 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R111 NRSA63D-153X MG RESISTOR 15kΩ 1/16W D R112 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R113 NRSA63D-123X MG RESISTOR 12kΩ 1/16W D R114 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R116 NRSA63D-182X MG RESISTOR 1.8kΩ 1/16W D R117 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R120 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R121 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R122 QRG01GJ-470 OMF RESISTOR 47Ω 1W J R123 QRK126J-101X UNF C RESISTOR 100Ω 1/2W J R126 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R127 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R129 NRSA63D-183X MG RESISTOR 18kΩ 1/16W D R131 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R133 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R134 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J R137 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R139 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R140 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R141 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R142 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R143 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R161 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R162 NRSA63J-221X MG RESISTOR 220 R163 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R164 NRSA63J-101X MG RESISTOR 100 R168 NRSA63J-0R0X MG RESISTOR 0 R169 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R172 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R174 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R175 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R176 NRSA63J-272X MG RESISTOR 2.7k R177 NRSA63J-123X MG RESISTOR 12k R178 NRSA63J-471X MG RESISTOR 470 R179 NRVA63D-562X CMF RESISTOR 5.6k R180 NRSA63D-152X MG RESISTOR 1.5k R182 NRSA63J-102X MG RESISTOR 1k R183 NRSA63J-102X MG RESISTOR 1k R184 NRSA63D-473X MG RESISTOR 47k R185 NRSA63D-183X MG RESISTOR 18kΩ 1/16W D R186 NRSA63J-562X MG RESISTOR 5.6k R187 NRSA63J-472X MG RESISTOR 4.7k R188 NRSA63D-101X MG RESISTOR 100Ω 1/16W D R189 NRSA63J-0R0X MG RESISTOR 0 R190 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R193 NRSA63J-101X MG RESISTOR 100 R195 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R196 NRSA63J-103X MG RESISTOR 10k R197 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R198 NRSA63J-103X MG RESISTOR 10k R207 NRS144F-274X MG RESISTOR 270k R208 NRS144F-274X MG RESISTOR 270kΩ 1/4W F R209 NRS144F-184X MG RESISTOR 180kΩ 1/4W F R216 NRSA63J-221X MG RESISTOR 220 R217 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W D

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W F

Ω

1/16W J

Ω

1/16W J

(No.YA097)3-29



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R223 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R224 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R226 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R227 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R230 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R401 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R402 NRVA63D-103X CMF RESISTOR 10kΩ 1/16W D R403 QRE121J-180Y C RESISTOR 18Ω 1/2W J R404 NRVA63D-682X CMF RESISTOR 6.8kΩ 1/16W D R405 NRVA63D-682X CMF RESISTOR 6.8kΩ 1/16W D R406 NRVA63D-472X CMF RESISTOR 4.7kΩ 1/16W D R407 NRVA63D-821X CMF RESISTOR 820Ω 1/16W D R408 NRVA63D-821X CMF RESISTOR 820Ω 1/16W D R409 QRL029J-221 OMF RESISTOR 220Ω 2W J R410 QRT029J-2R2 MF RESISTOR 2.2Ω 2W J R412 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R413 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R416 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R418 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R420 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R421 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R422 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R426 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R427 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R430 QRE121J-101Y C RESISTOR 100Ω 1/2W J R431 QRE121J-101Y C RESISTOR 100 R432 QRE121J-101Y C RESISTOR 100 R501 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R502 QRE121J-123Y C RESISTOR 12kΩ 1/2W J R503 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J R504 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J R505 QRL039J-222 OMF RESISTOR 2.2kΩ 3W J R506 QRE121J-5R6Y C RESISTOR 5.6Ω 1/2W J R512 QRL029J-331 OMF RESISTOR 330Ω 2W J R521 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R522 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R523 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R524 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R525 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R526 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R531 QRL029J-102 OMF RESISTOR 1kΩ 2W J R532 QRL029J-820 OMF RESISTOR 82Ω 2W J R533 QRL029J-820 OMF RESISTOR 82Ω 2W J R534 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R535 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R536 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R561 NRVA63D-472X CMF RESISTOR 4.7kΩ 1/16W D R562 NRVA63D-472X CMF RESISTOR 4.7kΩ 1/16W D R563 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R565 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R591 QRF154K-3R3 UNF WW RESISTOR 3.3Ω 15W K R701 QRG01GJ-390 OMF RESISTOR 39Ω 1W J R702 QRE121J-123Y C RESISTOR 12kΩ 1/2W J R703 QRZ0056-103Z COMP RESISTOR 10kΩ 1/2W K R801 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R802 NRSA63J-272X MG RESISTOR 2.7k R803 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R804 NRSA63J-272X MG RESISTOR 2.7k R805 NRSA63J-272X MG RESISTOR 2.7k R806 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R811 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R814 QRL029J-151 OMF RESISTOR 150Ω 2W J R818 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R828 NRSA63J-101X MG RESISTOR 100 R829 NRSA63J-101X MG RESISTOR 100 R830 NRSA63J-101X MG RESISTOR 100 R831 NRSA63J-102X MG RESISTOR 1k R832 NRSA63J-102X MG RESISTOR 1k R833 NRSA63J-102X MG RESISTOR 1k R834 NRSA63J-473X MG RESISTOR 47k R835 NRSA63J-473X MG RESISTOR 47k R836 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R837 NRSA63J-473X MG RESISTOR 47k R838 NRSA63J-473X MG RESISTOR 47k R839 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R840 NRSA63J-332X MG RESISTOR 3.3k R842 QRX01GJ-2R2 MF RESISTOR 2.2Ω 1W J R843 QRL029J-221 OMF RESISTOR 220 R844 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R846 QRX01GJ-1R5 MF RESISTOR 1.5 R847 QRL029J-151 OMF RESISTOR 150Ω 2W J R848 NRSA63J-332X MG RESISTOR 3.3k R850 QRX01GJ-2R2 MF RESISTOR 2.2 R851 QRL029J-221 OMF RESISTOR 220Ω 2W J R852 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R854 QRX01GJ-1R5 MF RESISTOR 1.5 R855 QRL029J-151 OMF RESISTOR 150

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

2W J

Ω

1W J

Ω

1/16W J

Ω

1W J

Ω

1W J

Ω

2W J

R856 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R858 QRX01GJ-3R3 MF RESISTOR 3.3Ω 1W J R859 QRL029J-221 OMF RESISTOR 220Ω 2W J R860 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R862 QRX01GJ-1R8 MF RESISTOR 1.8Ω 1W J R863 QRL029J-151 OMF RESISTOR 150Ω 2W J R864 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R866 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R867 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R873 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R874 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R972 NRSA63D-112X MG RESISTOR 1.1kΩ 1/16W D R973 QRA14CF-7501Y CMF RESISTOR 7.5kΩ 1/4W F R975 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R977 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J R978 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J

L101 QQL01BK-470Z PEAKING COIL 47uH K L103 NQL092K-100X COIL 10uH K L104 NQL092K-100X COIL 10uH K L105 QQL01BK-101Z PEAKING COIL 100uH K L301 QQLZ026-140 COIL 14uH Å}7% L502 QQR1408-001 CHOKE COIL L505 QQR1149-004 LINEARITY COIL L531 QQR1422-005 CHOKE COIL L701 QQR1422-005 CHOKE COIL L802 QQL521J-470 COIL 47uH J T5 01 Q QR1111 -001 DRIVE TRANS F T701 QQR1458-001 DEF TRANS

CN007 QGB1506M1-16 CONNECTOR B-B (1-16) CN008 QGB1506M1-16 CONNECTOR B-B (1-16) CN00N QJB003-101010 SIN ID C-C WIRE CN00Y WJK0170-001A E-SI C WIRE C-B CN011 QGB2501J1-15 CONNECTOR B-B (1-15) CN012 QGB2501J1-15 CONNECTOR B-B (1-15) CN0AA WJP0037-001A W TO B CONNE CN0AB QGZ8001C1-03 CONNECTOR (1-3)



FR301 QRZ9011-1R0 FUSI RESISTOR 1Ω 1/2W J



FR302 QRZ9011-1R0 FUSI RESISTOR 1Ω 1/2W J



FR311 QRZ9011-4R7 FUSI RESISTOR 4.7Ω 1/2W J H401 LC30416-001A HEAT SINK/AL-F/ H503 LC31212-001B HEAT SINK/AL-F/ H506 LC30521-001A HEAT SINK/AL-F/ H531 CEHT11B-005QS HEAT SINK H801 CEHT11B-002QS HEAT SINK H804 LC31881-001A HEAT SINK H805 LC31881-001A HEAT SINK K401 QQR0621-002Z FERRITE BEADS K501 QQR1139-001 FERRITE BEADS K504 QQR1139-001 FERRITE BEADS K801 QQR0621-002Z FERRITE BEADS K802 QQR0621-002Z FERRITE BEADS K803 QQR0621-002Z FERRITE BEADS K804 QQR0621-002Z FERRITE BEADS K805 QQR0621-002Z FERRITE BEADS K806 QQR0621-002Z FERRITE BEADS K807 QQR0621-002Z FERRITE BEADS K808 QQR0621-002Z FERRITE BEADS K809 QQR0621-002Z FERRITE BEADS K810 QQR0621-002Z FERRITE BEADS K811 QQR0621-002Z FERRITE BEADS

3-30(No.YA097)

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

POWER P.W. BOARD ASS'Y (SRP-9010A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W.BOARD.

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)

REFER TO PARTS LIST IN PAGE 3-15 FOR THIS P.W. BOARD.

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

VM P.W. BOARD ASS'Y (SRP-7201A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)

REFER TO PARTS LIST IN PAGE 3-16 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)

REFER TO PARTS LIST IN PAGE 3-17 FOR THIS P.W. BOARD.

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2)

REFER TO PARTS LIST IN PAGE 3-18 FOR THIS P.W. BOARD.

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K014A-M2)



Ref No. Part No. Part Name Description Local

MD001 SRP0K014A-M2 DIGITAL CONVERGENCE MODULE PWB

DIGITAL INPUT MODULE P.W. BOARD ASS'Y (SRP-7812A-M2)



Ref No. Part No. Part Name Description Local

MD001 SRP-7812A-M2 DIGITAL INPUT MODULE PWB

REMOTE CONTROL UNIT PARTS LIST (RM-C1257G-1H)



Ref No. Part No. Part Name Description Local

UR77EC0603 BATTERY COVER]

(No.YA097)3-31

PACKING [AV-48WP55/H, AV-56WP55/H]

6

3

5

4

1

7

8 9 10

11 12 13 14

15

3

2

PACKING PARTS LIST [AV-48WP55

 Ref.No. Part No. Part Name Description Local

1 GQ10091-001A-A PACKING CASE (TOP) 48WP55/H 1 LC11253-002C-A PACKING CASE (TOP) 56WP55/H 2 LC31759-001C-A PACKING CASE (BOTTOM) 48WP55/H 2 LC31759-002B-A PACKING CASE (BOTTOM) 56WP55/H 3 LC11254-002C-A CUSHION ASSY 4pcs in 1set 48WP55/H 3 LC11410-002B-A CUSHION ASSY 4pcs in 1set 56WP55/H 4 CP30056-011-A POLY BAG 48WP55/H,56WP55/H 5 CP30055-007-A TOP COVER 48WP55/H,56WP55/H 6 GQ30053-001A-A TOP SHEET 48WP55/H 6 GQ30053-002A-A TOP SHEET 56WP55/H 7 QPA02503505 POLY BAG 25cm x 35cm 48WP55/H,56WP55/H

 8 LCT1606-001A-A INST BOOK English 48WP55/H,56WP55/H  9 LCT1607-001A-A INST BOOK French 48WP55/H,56WP55/H

10 GQ40028-001A-A INSERT SHEET 48WP55/H,56WP55/H 11 BT-51034-2Q REGIST. CARD 48WP55/H 11 BT-51034-1Q REGIST. CARD 56WP55/H 12 BT-52006-2Q WARRANTY CARD 48WP55/H,56WP55/H 13 RM-C1257G-1H REMOCON 48WP55/H,56WP55/H 14 ------------ BATTERY R6P/AA(x2) 48WP55/H,56WP55/H 15 GQ30037-001A-A CORNER LABEL 2pcs in 1set 48WP55/H,56WP55/H

/H, AV-56WP55/H]

15

3-32(No.YA097)

PACKING [AV-65WP55/H]

1

4

3

8

7

6

3

9

10 11 12

13 14 15 17

3

6

5

16

5

2

PACKING PARTS LIST [AV-65WP55

 Ref.No. Part No. Part Name Description Local

1 GQ10091-003A-A PACKING CASE (TOP) 2 LC32325-001A-A PACKING CASE (BOTTOM) 3 LC11512-002C-A CUSHION ASSY 4pcs 1set 4 LC32287-001A-A PROTECT PAD (TOP) 5 LC32288-001A-A PROTECT PAD (FRONT) (x2) 6 LC32286-001A-A PROTECT PAD (SIDE) (x4) 7 CP30056-012-A POLY BAG 8 CP30055-008-A TOP COVER 9 QPA02503505 POLY BAG 25cm x 35cm 10 GQ40028-001A-A INSERT SHEET 11 ------------ BATTERY R6P/AA(x2) 12 RM-C1257G-1H REMOCON

 13 LCT1606-001A-A INST BOOK English  14 LCT1607-001A-A INST BOOK French

15 BT-51034-1Q REGIST. CARD 16 CM36616-001-A CORNER LABEL 2pcs in 1set 17 BT-52006-2Q WARRANTY CARD

/H]

16

(No.YA097)3-33

JVC AV-48WP55/H, AV-56WP55/H, AV-65WP55/H Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

USING P.W. BOARD & REMOTE CONTROL UNIT

EXPLODED VIEW PARTS LIST

EXPLODED VIEW

PRINTED WIRING BOARD PARTS LIST [AV-48WP55/H]

MAIN P.W. BOARD ASS'Y (SRP-1012A-M2)

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2)

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)

VM P.W. BOARD ASS'Y (SRP-7201A-M2)

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)

POWER P.W. BOARD ASS'Y (SRP-9001A-M2)

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)

MI-COM & DIST MODULE P.W. BOARD ASS'Y (SRP0D001A-M2)

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K012A-M2)

PRINTED WIRING BOARD PARTS LIST [AV-56WP55/H]

MAIN P.W. BOARD ASS'Y (SRP-1013A-M2)

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)

POWER P.W. BOARD ASS'Y (SRP-9001A-M2)

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2)

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K013A-M2)

DEF / CONVERGENCE OUT P.W. BOARD ASS'Y (SRP-2012A-M2)

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)

VM P.W. BOARD ASS'Y (SRP-7201A-M2)

PRINTED WIRING BOARD PARTS LIST [AV-65WP55/H]

MAIN P.W. BOARD ASS'Y (SRP-1014A-M2)

R CRT SOCKET P.W. BOARD ASS'Y (SRP-3101A-M2)

POWER P.W. BOARD ASS'Y (SRP-9010A-M2)

G CRT SOCKET P.W. BOARD ASS'Y (SRP-3201A-M2)

B CRT SOCKET P.W. BOARD ASS'Y (SRP-3301A-M2)

VM P.W. BOARD ASS'Y (SRP-7201A-M2)

REMOCON SENSOR P.W. BOARD ASS'Y (SRP-8001A-M2)

FRONT CONTROL P.W. BOARD ASS'Y (SRP0L012A-M2)

MI-CON & DIST P.W. BOARD ASS'Y (SRP0D001A-M2)

DIGITAL CONVERGENCE MODULE P.W. BOARD ASS'Y (SRP0K014A-M2)

DIGITAL INPUT MODULE P.W. BOARD ASS'Y (SRP-7812A-M2)

REMOTE CONTROL UNIT PARTS LIST (RM-C1257G-1H)

PACKING [AV-48WP55/H, AV-56WP55/H]

PACKING [AV-65WP55/H]
