JVC AV-48WP30, AV-56WP30 User Manual

PROJECTION TELEVISION USER'S GUIDE

For models:

AV-56WP30 AV-48WP30

IMPORTANT NOTE TO THE CUSTOMER

In the spaces below, enter the model and serial number of your television

(located at the rear of the television cabinet). Staple your sales receipt or invoice

to the inside cover of this guide. Keep this user's guide in a convenient place for

future reference. Keep the carton and original packaging for future use.

Serial Number

Model Number

LCT1237-001B-A

0502-TN-FAA-JIM

IMPORTANT SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS TV SET TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS UNIT

1) Operate only from the power source specified on the unit.

2) Avoid damaging the AC plug and power cord.

3) Avoid Improper installation and never position the unit where good ventilation is unattainable.

4) Do not allow objects or liquid into the cabinet openings.

5) In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to

disconnect both the power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an

extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

CAUTION:To reduce the risk of electric shock.

Do not remove cover (or back).

No user serviceable parts inside.

Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

IMPORTANT SAFEGUARDS

CAUTION:

Please read and retain for your safety.

Electrical energy can perform many useful functions. This TV set has been engineered and manufactured to assure your personal safety. But improper use can result in potential electrical shock or fire hazards! In order not to defeat the safeguards incorporated in this TV set, observe the following basic rules for its installation, use and servicing. And also follow all warnings and instructions marked on your TV set.

INSTALLATION

1) Your TV set is equipped with a polarized AC line plug (one blade of the plug is wider than

the other).

This safety feature allows the plug to fit into the power outlet only one way. Should you be unable to insert the plug fully into the outlet, try reversing the plug. Should it still fail to fit, contact your electrician.

2) Operate the TV set only from a power source as indicated on the TV set or refer to the

operating instructions for this information. If you are not sure of the type of power supply to your home, consult your TV set dealer or local power company. For battery operation, refer to the operating instructions.

3) Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords

and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

4) Do not allow anything to rest on or roll over the power cord, and do not place the TV set

where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

5) Do not use this TV set near water — for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near swimming pool, etc.

6) If an outside antenna is connected to the TV set, be sure the antenna system is grounded

so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection requirements for the grounding electrode.

(POLARIZED-TYPE)

IMPORTANT RECYCLING INFORMATION

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

7) An outside antenna system should not be located in the vicinity of overhead power lines or

other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

8) TV sets are provided with ventilation openings in the cabinet to allow heat generated during

operation to be released. Therefore: — Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,

rug, etc. — Never place a TV set in a “built-in” enclosure unless proper ventilation is provided. — Never cover the openings with a cloth or other material. — Never place the TV set near or over a radiator or heat register.

9) To avoid personal injury:

— Do not place a TV set on a sloping shelf unless properly secured. — Use only a cart or stand recommended by the TV set manufacturer. — Do not try to roll a cart with small casters across thresholds or deep pile carpets. — Wall or shelf mounting should follow the manufacturer’s instructions, and should use a

mounting kit approved by the manufacturer.

USE

10) Caution children about dropping or pushing objects into the TV set through cabinet

openings. Some internal parts carry hazardous voltages and contact can result in a fire or electrical shock.

11) Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol

cleaner.

12) Never add accessories to a TV set that has not been designed for this purpose. Such

additions may result in a hazard.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

13) For added protection of the TV set during a lightning storm or when the TV set is to be left

unattended for an extended period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to product due to lightning storms or power line surges.

14) A TV set and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the TV set and cart combination to overturn.

SERVICE

15) Unplug this TV set from the wall outlet and refer servicing to qualified service personnel

under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the TV set. C. If the TV set has been exposed to rain or water. D. If the TV set does not operate normally by following the operating instructions. Adjust

only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work

by a qualified technician to restore the TV set to normal operation. E. If the TV set has been dropped or damaged in any way. F. When the TV set exhibits a distinct change in performance — this indicates a need for

service.

16) Do not attempt to service this TV set yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17) When replacement parts are required, have the service technician verify in writing that the

replacement parts he uses have the same safety characteristics as the original parts. Use of manufacturer’s specified replacement parts can prevent fire, shock, or other hazards.

18) Upon completion of any service or repairs to this TV set, please ask the service technician

to perform the safety check described in the manufacturer’s service literature.

19) When a TV set reaches the end of it’s useful life, improper disposal could result in a

picture tube implosion. Ask a qualified service technician to dispose the TV set.

20) Note to CATV system installer.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Table of Contents

Unpacking Your Television ...8

Quick Setup . . . . . . . . . . . . . . . 9

CONNECTIONS .........12

Front Panel Diagram . . . . . . . . . . . 12

Rear Panel Diagram . . . . . . . . . . . 12

Connecting to Cable or an Antenna . . . . 13

Cable and VCR Connections . . . . . . 14

Connecting to a DVD Player,

DTV Decoder and D-VHS . . . . . . . . .15

Connecting to a Digital

TV Receiver w/HDCP . . . . . . . . . . .16

Connecting to a DVD Player . . . . . . . .17

Connecting to JVC AV Compu Link III . . .18 Connecting Devices to the Front Panel . . 19 Connecting to an External Amplifier . . . 20 Connecting to the Surround Amplifier . . . 20

Remote Control .........21

Installing the batteries . . . . . . . . . . 21

Remote Control Basics . . . . . . . . . . 21

Remote Programming .....22

Setting CATV, VCR, and DVD Codes . . . 22

Cable Box or Satellite Setup . . . . . . . 22

VCR Setup . . . . . . . . . . . . . . . . 23

DVD Setup . . . . . . . . . . . . . . . . 24

Search Codes . . . . . . . . . . . . . . 25

Onscreen Menus ........26

Onscreen Menu System . . . . . . . . . 26

Using the Onscreen Menus . . . . . . . . 27

Plug In Menu . . . . . . . . . . . . . . . 28

Language...........28

Auto Tuner Setup .......29

Set Clock . . . . . . . . . . . 30

Auto . . . . . . . . . 30

Manual . . . . . . . 30

Finish..............30

Initial Setup . . . . . . . . . . . . . . . 31

Auto Tuner Setup . . . . . . . 31

Auto Demo . . . . . . . . . . 31

Channel Summary . . . . . . . 32

Channel Summary – Lock . . . 32

Channel Guard Message . . . . 32

Onscreen Menus (Continued)

V-Chip . . . . . . . . . . . . . . . . . . 33

US Rating System . . . . . . . 33

Viewing Guidelines . . . . . . 33

MPAA Ratings . . . . . . . . . 34

Set Ratings Guidelines . . . . . 35

To Set TV Ratings Levels . . . 35 To Set Movie Ratings Levels . 36

Unrated Programs . . . . . . . 36

Warning Message . . . . . . . 36

Canadian V–Chip Ratings . . 37

Set Lock Code . . . . . . . . . 38

Initial Setup 2 . . . . . . . . . . . . . . 39

Language . . . . . . . . . . . 39

Closed Caption . . . . . . . . 39

Front Panel Lock . . . . . . . 40

Auto Shut Off . . . . . . . . . . 41

Digital–In . . . . . . . . . . . 41

Picture Adjust . . . . . . . . . . . . . . 42

Tint . . . . . . . . . . . . . . 42

Color . . . . . . . . . . . . . 42

Picture . . . . . . . . . . . . . 43

Bright . . . . . . . . . . . . . 43

Detail . . . . . . . . . . . . . 43

Picture Adjust 2 . . . . . . . . . . . . . 44

Color Temperature . . . . . . . 44

Dig. Noise Clear . . . . . . . . 44

Noise Muting . . . . . . . . . 44

Sound Adjust . . . . . . . . . . . . . . 45

Bass . . . . . . . . . . . . . 45

Treble . . . . . . . . . . . . . 45

Balance . . . . . . . . . . . . 45

MTS . . . . . . . . . . . . . . 46

Sound Advice . . . . . . . . . 46

Clock /Timers . . . . . . . . . . . . . . 47

Clock Timers . . . . . . . . . 47

Set Clock . . . . . . . . . . . 47

On/Off Timer . . . . . . . . . 47

Setting the On/Off Timer . . . 48

Initial Setup 3 . . . . . . . . . . . . . . 49

Vertical Position . . . . . . . . 49

Center Ch Input . . . . . . . . 50

XDS ID . . . . . . . . . . . . 50

Power Indicator . . . . . . . . 50

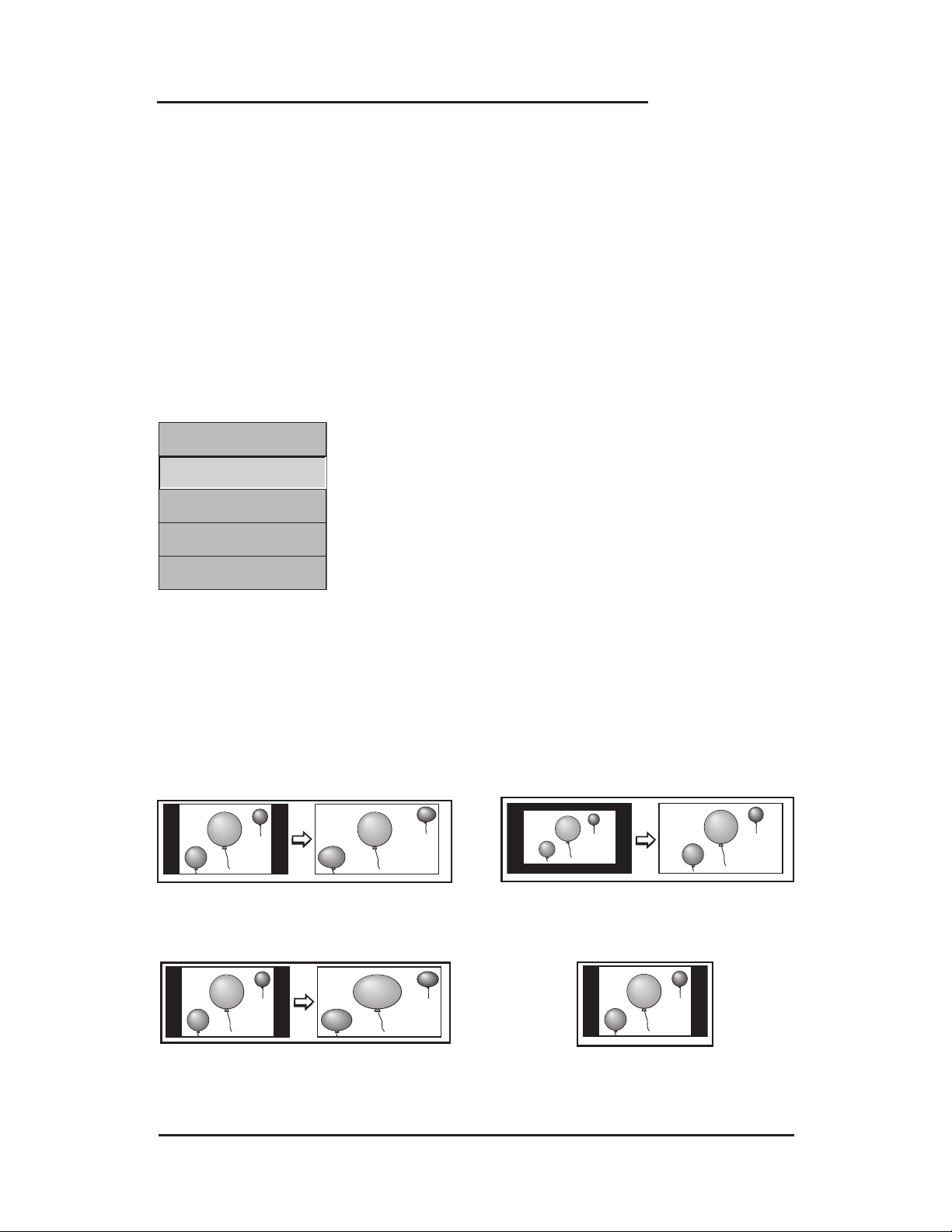

Aspect . . . . . . . . . . . . . . . . . . 51

Aspect . . . . . . . . . . . . . 51

Aspect Ratios . . . . . . . . . 51

Adjusting CRT Color Convergence . . . . 52

Table of Contents

Button Functions ........53

SPLIT . . . . . . . . . . . . . . . . . . 53

SWAP . . . . . . . . . . . . . . . . . . 53

FREEZE . . . . . . . . . . . . . . . . . 53

SELECT . . . . . . . . . . . . . . . . . 53

ENTER . . . . . . . . . . . . . . . . . 53

INDEX . . . . . . . . . . . . . . . . . . 54

POP . . . . . . . . . . . . . . . . . . 54

MENU . . . . . . . . . . . . . . . . . . 55

EXIT . . . . . . . . . . . . . . . . . . . 55

DISPLAY . . . . . . . . . . . . . . . . . 55

SLEEP TIMER . . . . . . . . . . . . . . 55

BBE . . . . . . . . . . . . . . . . . . . 56

HYPER SURROUND . . . . . . . . . . 56

MUTING . . . . . . . . . . . . . . . . . 56

VIDEO STATUS . . . . . . . . . . . . . 56

NATURAL CINEMA . . . . . . . . . . . 56

ASPECT . . . . . . . . . . . . . . . . . 56

NUMBER BUTTONS – 10 KEY PAD . . . 57

100+ BUTTON . . . . . . . . . . . . . . 57

RETURN+ . . . . . . . . . . . . . . . . 57

V-CHIP . . . . . . . . . . . . . . . . . 57

INPUT . . . . . . . . . . . . . . . . . . 58

MENU (On TV’s Front Panel) . . . . . . 58

LIGHT . . . . . . . . . . . . . . . . . . 58

VCR BUTTONS . . . . . . . . . . . . . 59

DVD BUTTONS . . . . . . . . . . . . . 59

TV/CATV SWITCH . . . . . . . . . . . . 59

VCR/DVD SWITCH . . . . . . . . . . . 59

Appendices . ..........60

Troubleshooting . . . . . . . . . . . . . 60

Appendix A . . . . . . . . . . . . . . . 62

Limited Warranty . . . . . . . . . . . . . 63

Authorized Service Centers . . . . . . . 65

Specifications . . . . . . . . . . . . . . 66

2 AA Batteries

1 Television

1 Remote Control

Thank you for your purchase of JVC’s model AV-56WP30 or AV-48WP30 Color Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:

Once you have unpacked your television, the next step is to connect it to your antenna/cable or satellite system and to connect the audio/video devices you want to use with your television. To make these connections you will use plugs like the ones illustrated below.

A/V Input Plug

RF Connectors

Used to connect a coaxial cable from an external antenna or Cable TV system.

Used to make video connections with VCRs, DVDs, Camcorders, etc (optional).

Used to connect JVC AV Compu Link capable components for an automated home theater.

Used to connect audio/video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc.

S-Video Plug

AV Compu Link Cable

We recommend that before you start using your new television, you read your entire User’s Guide so you can learn about your new television’s many great features. But if you’re anxious to start using your television right away, a quick setup guide follows on the next three pages.

Unpacking Your Television

RM-C322G

POWER

DISPLAY

SLEEP TIMER

LIGHT

INPUT

SPLIT POP

NATURAL CINEMA

FREEZE

SWAP

MULTI SCREEN

SELECT

INDEX

ASPECT

ENTER

100+

RETURN+

MUTING

V CHIP

EXIT

VOL

REC

OPEN/CLOSE

STILL/PAUSE

STOP

PAUSE

PLAY FF

REW

CATV

VCR

DVD

VCR CHANNEL

PREV NEXT

TV/VCR

VCR/DVD

POWER

BBE

V. STATUS

HYPER SUR.

JVC

AA Alkaline

Slide the cover on the back of the remote down towards the bottom of the remote control. Insert two batteries (included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first. Slide the cover back into place.

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. This information includes basic instructions on operating your remote control, making a simple cable/antenna and optional VCR connection and, finally, information on programming your television's Auto Tuner.

If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual.

Step One - The Remote Control

The remote control is the key to operating your television's many great features. Before you can operate your remote control, you first need to install the batteries (included).

Basic Operation

Turn the television on and off by pressing the P

OWER

button at the top right corner of the

remote.

The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are also used with JVC's onscreen menu system. You will need to use these buttons later in the Quick Setup.

The next step is to connect your television to an antenna or cable.

Power Button

Key Feature Buttons

Proceed to Step Two

Quick Setup 1

POWER

MUTING V-CHIP

VOL VOL

—

+—

EXIT

Cable/RF connector

Step Two - Making Basic Connections

Next you will need to connect your television to an antenna, VCR or cable system. The most basic VCR and antenna/cable connection is shown below. For more detailed connections, such as ones where a cable box is required, or connecting with a combination of a cable box and VCR, home stereo system, etc., see pages 12 to 20.

1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.

Quick Setup 2

1) Connect the Red Cable from VCR Audio Output into the Red TV Audio In.

2) Connect the White Cable from VCR Audio Output into the White TV Audio In.

3) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an

RF Cable from VCR RF Cable Out into the RF Cable In on the back of the TV.

NOTE:

• White, Yellow and Red are the most common colors for VCR Cables. Some models may vary in color. Please consult the user’s manual for your VCR Player for more information.

• See page 23 for instructions on programming your remote control to operate the basic functions of your VCR Player.

Connecting to a VCR

Proceed to Step Three

OVER

WHITE

OUT

TV Rear Panel

(RF Input)

75Ω

(VHF / UHF)

Cable or Antenna

Output

CABLE or ANTENNA OU

AUDIO

BACK of TV

VIDEO

YELLOW

S-VIDEO

Press the



buttons to move to AUTO TUNER SETUP

Press the

¥

buttons to begin AUTO TUNER SETUP

¥

To choose CABLE (if you are connected to a cable system) or AIR (if you use an antenna)



To move to START

¥

To start Auto Tuner Setup

The Auto Tuner will now memorize all of the clear, active channels your television can receive. This will take roughly one or two minutes.

NOW

PROGRAMMING!

Step Three - The Plug In Menu

When you turn your television on for the first time, the Plug In Menu will appear. This menu sets some of the basic settings for your television. A complete description of the Plug In Menu can be found starting on page 28. We recommend you complete the Plug In Menu items before you start using your television. To begin watching your television right away you only need to run the Auto Tuner Setup. This lets your television learn the channels it is able to receive clearly. To run the Auto Tuner Setup, follow the steps below.

The Auto Tuner is finished when the message PROGRAMMING OVER! appears on screen.

Your Quick Setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on connecting audio/video devices, programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience.

The Quick Setup is complete

Quick Setup 3

PLUG IN MENU

LANGUAGE

AUTO TUNER SETUP

SET CLOCK

FINISH

ENG FRE

SPA

SELECT BY OPERATE BY

AUTO TUNER SETUP

TUNER MODE :

SELECT BY OPERATE BY

EXIT BY

START

EXIT BY

EXIT

CABLE

EXIT

STOP

Connections

Front Panel Diagram

Rear Panel Diagram

JVC

SPEAKER INPUT 16Ω 45W MAX

S-VIDEO

VIDEO L / MONO

OVER

INPUT4

AUDIO

123

75 Ω

(VHF / UHF)

AUDIO

OUT

AUDIO

COMPULINK III

DIGITAL IN

INPUT 3

INPUT 2

INPUT 1

AUDIO VIDEO S-VIDEO

OVER

INPUT–2 INPUT–3

COMPONENT VIDEO

1) Connect an RF Cable from the wall outlet into the RF Cable In on the Cable Box.

2) Connect an RF cable from the Cable Out on the cable box into the RF Cable In on the back of the TV.

NOTE:

• Please see page 54 for more information on using the POP feature with a cable box.

Connecting to a Cable Box

Diagram #2

Connections

There are three basic types of antenna or cable connections:

• If you have an antenna or have a cable system that does not require you use a cable

box to select channels, please refer to Diagram #1.

• If you have a cable system that requires the use of a cable box to access all the

channels, please refer to Diagram #2.

• If you have a cable system that requires the use of a cable box to access certain

premium channels, but not “basic” cable channels, please refer to Diagram #3.

• For your convenience, connection to a VCR is also shown in the following diagrams. A

VCR is not necessary for operation of the television or Picture OUT or Picture POP function. You may omit the VCR from your connections if you wish.

• For instructions on connecting a VCR only, please see the Quick Setup on page 10.

• For information on using POP, please see page 54.

Connecting to Cable or an Antenna

Diagram #1

Cable/RF connector

1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.

Cable or Antenna

Output

TV Rear Panel

(RF Input)

75Ω

(VHF / UHF)

Cable or Antenna

Output

TV Rear Panel

(RF Input)

75Ω

(VHF / UHF)

Cable Box

OUT IN

Connections

Connecting to a Cable Box and VCR

Diagram #3

1) Connect an RF Cable from the wall outlet into the RF Cable Box In.

2) Connect an RF Cable from the Cable Box Out into the VCR In.

3) Connect an RF Cable from the VCR Out into the RF In on the back of the TV.

4) Connect the Red Cable from VCR Right Audio Output into the Red TV Audio In.

5) Connect the White Cable from VCR Left Audio Output into the White TV Audio In.

6) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an S-Video Cable from VCR S-Video Out into the S-Video In on the back of the TV.

NOTE:

• White, Yellow and Red are the most common colors for VCR Cables. Some models may

vary in color. Please consult the user’s manual for your VCR Player for more information.

• See page 23 for instructions on programming your remote control to operate the basic

functions of your VCR Player.

The connection diagrams are intended to show some basic general connections. Some cable companies may require special connections to properly use your television or 2-tuner MULTI SCREEN function. If you follow these diagrams and either the television or PIP does not work properly, contact your local cable operator for more connection information. Please see page 54 for more information on the POP feature.

TV Rear Pan

able or Antenn

Outpu

able Bo

UT I

INPUT-

OUT

Your AV-56WP30 or AV-48WP30 television is HDTV and SDTV-Ready. This means it can display High Definition television images when connected to a digital television receiver*. DTV Decoders are available separately. For best image quality, we recommend using a DTV Decoder which uses Component Video (Y, PB, PR) Output to connect to the television. The diagram below shows how to connect a DTV Decoder with using the television’s Component Video-in jacks.

1) Connect Green cable out from the DTV Decoder “Y” Video Output, in to TV “Y” Component Input.

2) Connect Blue cable out from the DTV Decoder “PB” Video Output, in to TV “PB” Component Input.

3) Connect Red cable out from the DTV Decoder “PR” Video Output, in to TV PR” Component Input.

4) Connect White Audio cable out the DTV Decoder Left Audio Output, in to TV Left Audio Input.

5) Connect Red Audio cable out the DTV Decoder Right Audio Output, in to TV Right Audio Input.

Make sure you use the same numbered input for both the Component Input and Audio Input. For instance, if you use Component Input 2, also use Audio Input 2.

• Green, blue and red are the most common colors for Component Video cables. Some

models may vary colors, please consult the user’s manual for your DTV Decoder for more information.

• Be careful not to confuse the red Component Video cable with the red audio cable. It is best

to complete one set of connections (Audio or Video) before starting the other to avoid accidentally switching the cables.

* Notes About HDTV Operation

The AV-56WP30 or AV-48WP30 can display 480p, 480i, 1080i and 720p signal formats using the Component Video Inputs. It cannot display 1080p signal. For High Definition (HDTV) picture display a DTV decoder must be connected to the TV.

Connections

Connecting a DVD Player, DTV Decoder, and D-VHS

Green Blue Red

DTV Decoder

Component Connection

S–Video Connection

AUDIO OU

INPUT-

COMPONENT VIDE

R L

AUDIO

VIDEO

OVER

S-VIDEO

BACK of TV

Connections

Connecting to a Digital TV Receiver w/HDCP

By inputting a high bandwidth Digital Content Protection High Definition picture source to the Digital-In terminal of this television, high-definition pictures can be displayed on the screen in their digital form. (This terminal is for use in the future when high bandwidth Digital Content Protection DTV decoders and DVD players and D-VHS are put on the market.)

1) Connect the DTV digital RGB output terminal to the digital input terminal of the television, and then tighten the 2 screws.

2) Connect the DTV decoder left audio output to the DIGITAL-IN left audio input.

3) Connect the DTV decoder right audio output to the DIGITAL-IN right audio input.

• The Digital-In terminal can only be used with 1080i, 720p and 480p picture signals. Set the

DTV decode Digital-Out terminal output setting to 1080i, 720p or 480p. For detailed information, refer to the DTV decoder instruction manual. If you can not display the picture because your DTV decoder does not have a Digital-Out terminal output setting, use the component Video Input (or the S-Video Input or Video Input). (Refer to page 15) In this case the picture will be displayed as an analog signal.

• The Digital-In terminal is not compatible with the picture signal of a personal computer.

• Use a DVI-D Single Link 19-pin cable (commercially available) in order to digitally connect

the television with a DTV decoder.

If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may be slightly shifted. In cases such as this, the horizontal balance can be adjusted by accessing “DIGITAL-IN” in the INITIAL SETUP Menu. (Refer to page 41.)

After the connections have been made, tighten the screw to secure the cables.

DTV decoder

DIGITAL I

AUDI

AUDIO OU

DIGITAL OU

Connections

Connecting a DVD Player

You can use the Component Video input jacks to connect a DVD player to your television. To connect a DVD player, please follow the steps listed below.

1) Connect Green cable out from the DVD Player “Y” Video Output, in to TV “Y” Component Input.

2) Connect Blue cable out from the DVD Player “PB” Video Output, in to TV “PB” Component Input.

3) Connect Red cable out from the DVD Player “PR” Video Output, in to TV PR” Component Input.

4) Connect White Audio cable out the DVD Player Left Audio Output, in to TV Left Audio Input.

5) Connect Red Audio cable out the DVD Player Right Audio Output, in to TV Right Audio Input.

Make sure you use the same numbered input for both the Component Input and Audio Input. For instance, if you use Component Input 3, also use Audio Input 3.

• Green, blue and red are the most common colors for Component Video cables. Some

models may vary colors, please consult the user’s manual for your DVD Player for more information.

• Be careful not to confuse the red Component Video cable with the red audio cable. It is best

to complete one set of connections (Audio or Video) before starting the other to avoid accidentally switching the cables.

• If your DVD player does not have a Component Video output, you may connect it using an

S-Video cable. See your DVD player’s owners manual for more information on making an S-Video connection.

Note:

If you want to display the picture from the DVD player when using split screens, also connect the S-Video cable.

Component Connection

S–Video Connection

Green

Blue

Red

AUDIO OU

INPUT-

COMPONENT VIDE

R L

AUDIO

VIDEO

OVER

S-VIDEO

BACK of TV

Connections

Connecting to AV Compu-Link III

JVC’s AV Compu Link III feature makes playing video tapes totally automatic. Simply insert a pre-recorded tape* into your JVC-brand VCR and the VCR will automatically turn on and begin playback. At the same time, using the AV Compu Link, the VCR sends a signal to the television telling it to turn on and switch to the proper video input to watch a video tape.

• The AV Compu Link cable may be included with the JVC AV Compu Link accessory you wish

to connect. If it is not, contact an authorized JVC Service Center for part # EWP 805-012.

• AV Compu Link III can only be used with JVC-brand products.

To Connect: Plug one end of the AV Compu Link cable into the AV Compu Link input on your VCR or other Compu Link device. Plug the other end of the AV Compu Link cable into the AV Compu Link input at the rear of the television.

Notes:

* In order for the VCR playback to begin automatically, the recording tabs must be removed

from the VHS tape. If the tab is in place, automatic switching will occur when you push the VCR’s P

LAY button.

• The AV Compu Link cable has a male 3.5 mm (mono) plug on each end.

• If your JVC-brand VCR has “A Code/B Code Remote Control Switching” (see your VCR’s instruction book), using VCR A Code will switch the TV to input 1. If you use Input 1 for video input from your cable box, use VCR B Code to select the TV Video Input 2.

• To connect a JVC HiFi receiver or amplifier for a completely automated home theater, see the HiFi’s connection instructions for detailed connection information.

• AV COMPU LINK III is compatible with all JVC AV COMPU LINK III devices

• The AV-56WP30 or AV-48WP30 can also receive Compu-Link signals from a DVD player. For details on operating a DVD player with AV Compu Link, please see your DVD player’s owners manual.

VCR

COMPULINK III

OUT

Compu

Link

Swap

Connections

A set of inputs (Input-4) are provided for your convenience on the front panel of the AV-56WP30 or AV-48WP30. The inputs are located behind the door at the center of the front panel below the indicator lights. These inputs are designed for the easy connection of devices like camcorders or game consoles which are not permanent parts of your home entertainment center.

Connecting Devices to the Front Panel Inputs

To access the front panel jacks, gently pull the tab on the door torwards you to open it.

To connect a device like a camcorder:

1) Connect the yellow video cable from the device’s Video Output jack to the TV’s Video Input jack, or connect an S-Video cable from the camcorder’s S-Video Output to the TV’s S-Video Input.

2) Connect the white (or black) audio cable from the device’s Left Audio Output jack to the TV’s Left Audio Input jack.

3) Connect the red audio cable from the device’s Right Audio Output jack to the TV’s Right Audio Input jack.

• If you are connecting a mono sound device it will have only one audio out jack. Connect it to

the TV’s left audio input jack.

• The device will be available on Input 4 on the Input Menu (see page 58) if the connection shown

above is used.

• Please consult your camcorder or other device’s owners manual for more information on its

operation.

Connections

NPUT 3

NPUT 2

INPUT 1

Fro

Connecting to an External Amplifier

1) Connect the White Audio Cable from the TV’s Left Audio Output Jack to the Amplifier’s Left Audio Input Jack.

2) Connect the Red Audio Cable from the TV’s Right Audio Output Jack to the Amplifier’s Right Audio Input Jack.

FRO

1) Connect the BLACK speaker cable from the TV’s SPEAKER INPUT terminal to the surround amplifier’s center speaker output terminal.

2) Connect the RED speaker cable from the TV’s SPEAKER INPUT terminal to the surround amplifier’s center speaker output terminal.

Connecting to the Surround Amplifier

Left

TV Rear Pan

OVER

AUDIO VIDEO S-VIDEO

eaker

Amplifier

Right

eaker

SPEAKER INPUT

16Ω 45W MAX

BLACK

RED

NT FRONT SURROUND

Center Speaker Out

Remote Control

Install the Batteries

• Before you can operate the remote control, you must first install the batteries (included).

• Push down on the remote’s back cover and slide towards the bottom to remove it.

• Insert two AA batteries (supplied), carefully noting the “+” and “–” markings on the batteries

and on the remote control. To avoid a potential short circuit, insert the “–” end first. Be sure to use only size AA batteries.

• When batteries are installed, slide the cover back into place (until it clicks into position).

• If the remote control acts erratically, replace the batteries. Typical battery life is six months to

one year. We recommend using alkaline batteries for longer battery life.

• When you change the batteries, try to complete the task within three minutes. If you take

longer than three minutes, the remote control codes for your VCR, DVD, and/or Cable Box may have to be reset (pages 22-24).

Remote Control Basics

• Press the POWER button to turn the television on or off.

• Make sure the TV/CATV switch is set to TV. Move the switch to

CATV only if you need to operate a cable box.

• Slide the VCR/DVD selector switch to VCR to control a VCR, slide

to DVD to control a DVD player. Please see pages 22 to 24 for instructions on programming your remote control to operate a Cable box, VCR or DVD player.

• Press the C

+ and CH– buttons to scan through the channels. Tap the CH+ or CH- button to move through the channels one channel at a time.

• To move rapidly through the channels using JVC’s Hyper Scan

feature, press and hold C

H+ or C

H–. The channels will zip by at a

rate of five channels per second.

• Press VOL+ or VOL - to raise or lower the volume. An indicator bar will appear onscreen to show you the television volume level.

• The CH+/– and VOL+/– buttons are also used to navigate JVC’s onscreen menu system.

• You can directly access specific channels using the 10-key pad.

• For more information on remote control button features, see pages 53 to 59. For information on using the onscreen menus, see page

26.

VCR

CATV

DVD

POWER

ASPECT

MULTI SCREEN

SPLIT POP

INDEX

FREEZE

SWAP

SELECT

ENTER

NATURAL CINEMA

INPUT

DISPLAY

SLEEP TIMER

BBE

RM-C322G

MUTING

VCR CHANNEL

PREV NEXT

REW

OPEN/CLOSE

100+

RETURN+

V. STATUS

VOL

REC

LIGHT

HYPER SUR.

V CHIP

VOL

EXIT

VCR/DVD

POWER

TV/VCR

PLAY FF

PAUSE

STOP

STILL/PAUSE
