AV-32T5SK AV-32T5BK AV-28T5SK AV-28T5BK AV-32T5SR AV-32T5BR AV-28T5SR AV-28T5BR

COLOUR TELEVISION

INSTRUCTIONS



Warning

DO NOT cut off the mains plug from this equipment.

for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If a new mains plug has to be fitted, then follow the instruction given below:

Important

Do not make any connection to the larger terminal which is marked with the letter E or

by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live



Guidelines for safe operation

This equipment has been designed and manufactured to comply with international safety standards. However, as with any electrical appliance, care must be taken to ensure optimal results and operational safety.

• Before attempting to use this equipment, read the operating instructions thoroughly.

• Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made in accordance with the manufacturer’s instructions.

• If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.

• Handle all glass panels or covers with care.

• Never operate this equipment if it appears damaged or operates abnormally. Turn the power off, disconnect the main power plug and consult your dealer.

• Never remove any affixed panels or covers. Doing so may result in electrical shock.

• Never leave this equipment operating unattended unless otherwise specifically stated that it is designed to do so or in standby mode. Only use the designated power switch to turn off the power and ensure that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped persons.

• Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.

• Never listen to headphones at high volume. Doing so may damage your hearing.

• Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a malfunction or damage.

• Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s approved stand or legs, use only the fixtures provided and follow the installation instructions.

• Never allow this equipment to be exposed to rain or moisture.

• Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may result in a fatal electrical shock.

• Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.

If the plug fitted is not suitable

As these colours may not correspond with the coloured marking identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

When replacing the fuse, use only a correctly rated approved type and always re-fit the fuse cover.

 If in doubt — consult a competent

electrician.

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse.

Fuse

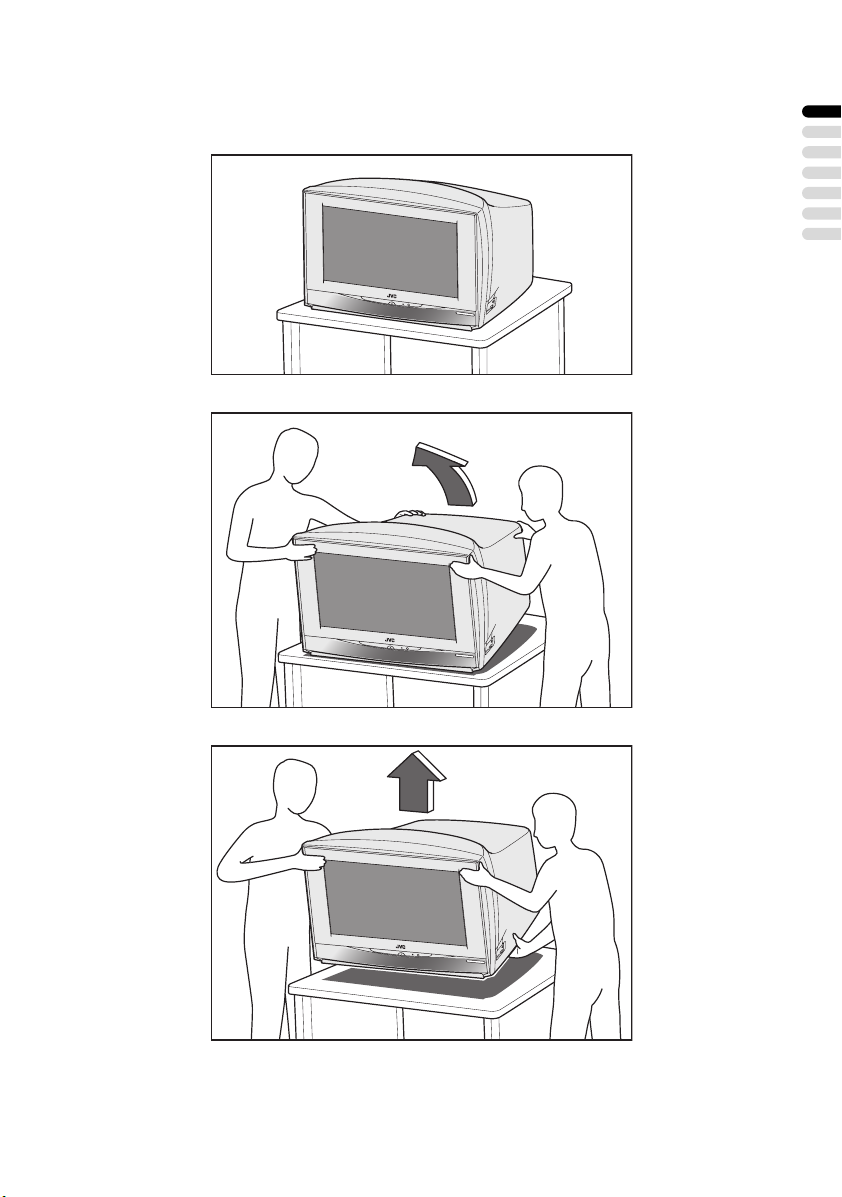

How to move the TV

When moving the TV, make sure that it is held by two people as shown in the illustration. Be careful not to trap your hands when putting the TV down.

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

Avoid improper installation and never put the unit where good ventilation is not possible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for safe operation.

• The main power button on the TV does not fully isolate the TV from the mains supply. If you are not going to use this TV for a long period of time, be sure to disconnect the mains plug from the mains outlet.

Failure to heed the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

CONTENTS

Setting up your TV ...................................6

Connecting the aerial and video cassette

recorder (VCR) ....................................... 6

Connecting the power cord to the AC

outlet....................................................... 7

Putting the batteries into the remote

control..................................................... 7

Initial settings ............................................. 7

T-V LINK functions..................................... 9

TV buttons and functions......................11

Turn the main power on ........................... 11

Turn the TV on from standby mode ......... 11

Choose a TV channel .............................. 11

Adjust the volume .................................... 11

Remote control buttons and

functions..............................................12

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 13

Adjust the volume .................................... 13

Information function ................................. 14

ZOOM function......................................... 14

HYPER SOUND function ......................... 15

Return to TV channel instantly................. 16

Operating a JVC brand VCR or DVD

player.................................................... 16

... 12

Teletext function ....................................17

Basic operation ........................................ 17

Using the List Mode ................................. 17

Hold.......................................................... 18

Sub-page ................................................. 18

Reveal...................................................... 18

Size .......................................................... 18

Index ........................................................ 18

Cancel...................................................... 19

Using the TV’s menu..............................20

Basic operation ........................................ 20

PICTURE menu.......................................21

PICTURE MODE ..................................... 21

CONTRAST ............................................. 21

BRIGHT ................................................... 21

SHARP..................................................... 21

COLOUR.................................................. 21

HUE ......................................................... 21

COLOUR TEMP....................................... 21

FEATURES.............................................. 22

SOUND menu ......................................... 24

STEREO / I • II ......................................... 24

BASS........................................................ 24

TREBLE ................................................... 24

BALANCE ................................................ 24

HYPER SOUND....................................... 24

FEATURES menu................................... 25

SLEEP TIMER ......................................... 25

BLUE BACK ............................................. 25

CHILD LOCK............................................ 25

SET UP menu ......................................... 27

AUTO PROGRAM.................................... 27

EDIT/MANUAL ......................................... 27

LANGUAGE ............................................. 32

DECODER (EXT-2).................................. 32

EXT SETTING.......................................... 33

PICTURE TILT (Only for AV-32T5SK/

AV-32T5SR/AV-32T5BR) ..................... 35

Additional preparation ..........................36

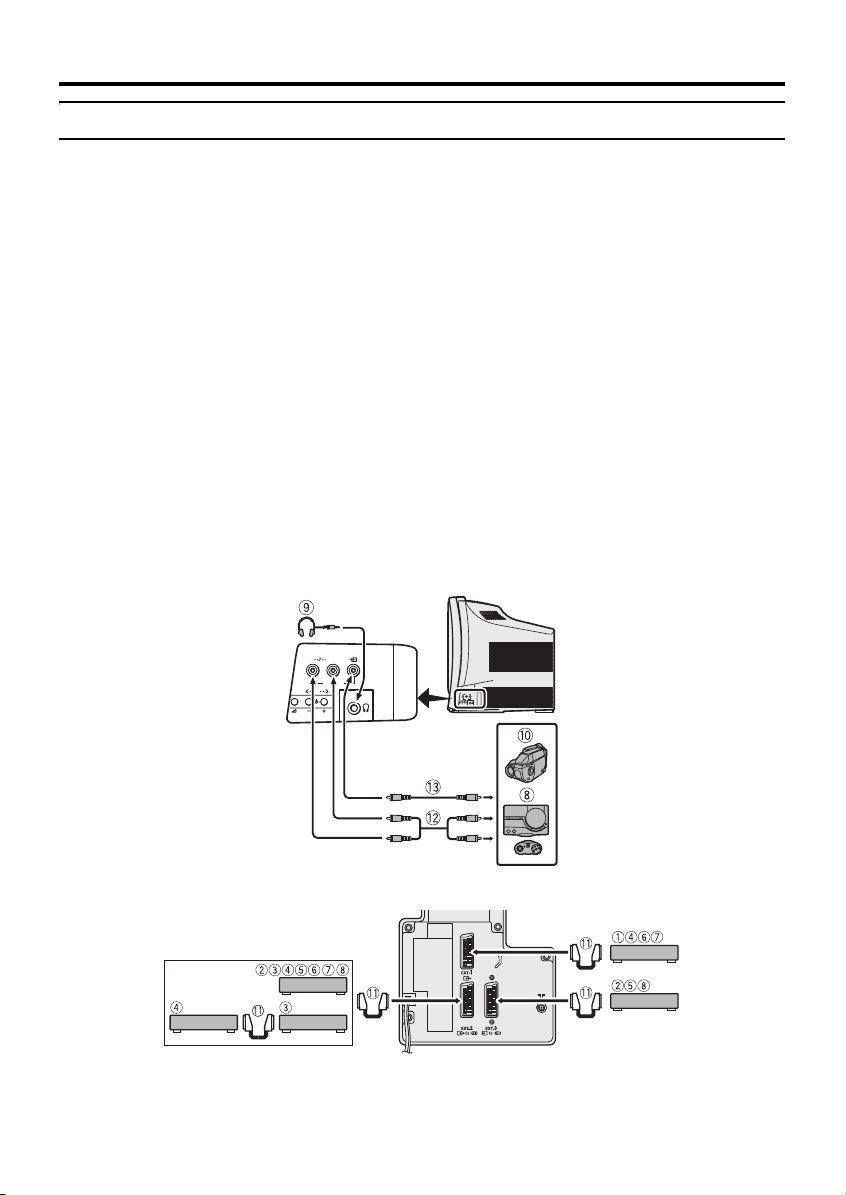

Connecting external equipment ...............36

Troubleshooting ....................................38

Specifications ........................................40

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

 If you are connecting a VCR,

follow A → B → C in the diagram opposite.

 If you are not connecting a VCR,

follow 1.

To use the T-V LINK functions, you must have a T-V LINK compatible VCR connected by a SCART cable C to the EXT2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 9.

• You can watch a video using the VCR

without doing C. For details, see your VCR instruction manual.

• To connect more equipment, please see “Connecting external equipment” on page 36.

• If you connect a decoder to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 32. Otherwise, you will not be able to watch scrambled channels.

Back of the TV

21-pin

SCART Cable

VCR

AV IN/OUT

Terminal

75-ohm

Coaxial Cable

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

Aerial

 Rear Panel

1 EXT-1 terminal (pages 6, 33, 36) 2 EXT-2 terminal (pages 6, 9, 33, 36) 3 EXT-3 terminal (pages 33, 36) 4 Aerial socket (page 6)

Setting up your TV

Connecting the power cord to the AC outlet

Caution

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

Putting the batteries into the remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on how much you use the remote control.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as you need to.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it goes into the initial settings mode, and you will see the JVC logo. Follow the instructions on the screen display to make the initial settings.

1 Press the main power button on the

The power lamp lights red and the JVC logo appears.

Main power

button

• If the JVC logo does not appear this is because your TV has already been turned on for the first time: use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 27.

2 Press the a button

The LANGUAGE menu appears.

LANGUAGE

TV OK

Blue button

Power lamp

TV OK

D0002-EK

• To receive satellite broadcast you need a satellite tuner.

Setting up your TV

3 Press the a button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme numbers (PR).

AUTO PROGRAM

10%

TV OK

D0004-EN

CH 24

• To cancel the AUTO PROGRAM function: Press the b button.

After the TV channels have been registered in the programme numbers (PR), the EDIT menu appears

EDIT

TV OK

D0038-EK

PR ID AV

1 2 3 4 5 6

BBC1 BBC2 ITV CH4 CH5

MOVE

CH/CC CH

INSERT DELETE

MANUAL

• If you want to, you can now edit the programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 27.

• If you do not want to edit programme numbers (PR), go to the next step.

4 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

EXIT

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow “Downloading the data to VCR” on page 9 to transmit the Programme number (PR) data.

Now, the initial settings are complete, and you can watch the TV

• For UK model

(AV-32T5SK/AV-32T5BK/AV-28T5SK/ AV-28T5BK):

BBC1, BBC2, ITV, Channel 4 and Channel 5 are automatically set to the programme numbers PR1 to PR5. If the TV doesn't receive one of these TV channels, that programme number (PR) will not be set. Programme number PR6 is not normally set.

• For Ireland model

(AV-32T5SR/AV-32T5BR/AV-28T5SR/ AV-28T5BR):

If your TV can detect the TV channel name from the TV channel broadcast signal, the TV channel name is assigned to the programme number (PR) to which the TV channel has been set. However, which TV channels are set to which programme numbers (PR) will depend on the area in which you live.

• If a TV channel you want to view is not set to a programme number (PR), you can set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 27.

• The AUTO PROGRAM function does not set the programme number PR 0 (AV) for your video cassette recorder. You will need to set this using the MANUAL function.

Setting up your TV

• In some areas you may get TV reception from more than one transmitter, for example different ITV regions. In this case each TV channel could be set twice. If this happens, the first set of channels will have the stronger signal. If you want to delete the second set of channels, you will have to do it manually (see page 27).

For users in the UK:

If you have any problems setting up your new TV, please call the Helpline on 0870 330 5000.

For users in the Republic of Ireland:

If you have any problems setting up your new TV, please call the Helpline on 1890-582500.

 Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to a VCR with the T-V LINK function.

Caution

• This only works when a T-V LINK compatible VCR is connected to the EXT-2 terminal.

• This only works when the T-V LINK menu is being displayed.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

1 Turn on the VCR

2 Press the a button

The data transmission begins.

TRANSFER. . . . .

D0037-EN

The T-V LINK menu disappears once the data transmission ends.

EXIT

RECORDING DEVICE

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has a T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all its proper connections?

T-V LINK functions

When you have a T-V LINK compatible VCR connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of the following logos. However, these VCRs may support some or all of the features described earlier. For details, see your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic Corporation) “Data Logic” (a trademark of Metz Corporation) “Easy Link” (a trademark of Phillips Corporation) “Megalogic” (a trademark of Grundig Corporation) “SMARTLINK” (a trademark of Sony Corporation).

Setting up your TV

 Pre-set download

The VCR will automatically download the registered data on the TV channels from the TV. This means you do not need to set up the program channels on your VCR manually. The preset download function automatically begins when the initial setting is complete or whenever you carry out the AUTO PROGRAM or EDIT/MANUAL functions.

You can also carry out this function using your VCR controls.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, check that:

• the VCR power is turned on

• the VCR is T-V LINK compatible

• the VCR is connected to the EXT-2 terminal

• the SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record”

You can easily record to VCR the images that you are watching on the TV.

For details, read the manual for your VCR. Use your VCR controls. “VCR IS RECORDING” is displayed.

In the following situations, the VCR will stop recording if the TV is turned off, if the TV channel or input is changed, or if the menu is displayed on the TV:

• when recording images from an external device connected to the TV (for example a camcorder)

• when recording a TV channel after it has been unscrambled on a decoder

• when recording a TV channel by using the TV’s output because the VCR’s own tuner cannot properly receive that channel.

When the VCR is not ready (for example when there is no tape inserted), “NO RECORDING” is displayed. You cannot carry out Direct Rec using your TV’s control. Generally, the VCR cannot record a TV channel that it cannot receive properly on its own tuner, even if you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV. For details, see your VCR instruction manual.

TV buttons and functions

Turn the main power on

Press the main power button on the TV.

The power lamp lights red and your TV is in standby mode.

To turn the main power off:

Press the main power button again. The power lamp goes off.

Caution

• The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use the TV for a long period, be sure to disconnect the AC plug from the AC socket.

Turn the TV on from standby mode

Press the P p buttons to turn the TV on from standby mode

When the TV is turned on, the power lamp dims slightly.

MONO

EXT-4

Choose a TV channel

MONO

EXT-4

See the pages in brackets for details.

1 Main power button (pages 7, 11) 2 Power lamp (pages 7, 11) 3 Remote control sensor 4 r (Volume) button (page 11) 5 P p buttons/ q buttons (page 11) 6 Headphone jack (mini jack) (page 36) 7 EXT-4 terminal (pages 33, 36)

Press the P p buttons to choose a programme number (PR) or an EXT terminal

Adjust the volume

1 Press the r (Volume) button

The volume level indicator appears.

2 Press the q buttons while the

volume level indicator is displayed

Remote control buttons and functions

1 Muting button 2 Number buttons 3 c button 4 i (hyper sound) button 5 Information button

TV OK

.T/L

6 b button 7 5 buttons 8 # (standby) button 9 Colour buttons 0 a button

- 6 buttons

= VCR/DVD/Teletext control button ~ VCR P DVD switch g (text) button

Turn the TV on or off from standby mode

Press the # (standby) button to turn the TV on or off.

When the TV is turned on, the power lamp dims slightly.

• The power can be turned on by pressing

the b button, 6 buttons or number buttons.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

• If the picture is tilted, correct it. See “PICTURE TILT (Only for AV-32T5SK/ AV-32T5BK/AV-32T5SR/AV-32T5BR)” on page 35.

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

 Use the 6 buttons:

Press the the programme number (PR) you want or an EXT terminal.

 Use the o button:

Press the o button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

6 buttons to choose

EXT-1

EXT-2

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 terminal does not support this function.)

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the programme number PR 0 (AV):

When the TV and VCR are connected only by the aerial cable, choosing the programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 27. Pressing the o button changes the choice as follows:

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

PR 0

EXT-1

EXT-2

EXT-3

EXT-4

EXT-3

EXT-4

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “y (SVIDEO input)” on page 33.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 22.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• The VCR sends its playback image along the aerial cable as an RF (radio frequency) signal.

• Also see your VCR instruction manual.

Adjust the volume

Press the 5 buttons to adjust the volume.

The volume indicator appears and the volume changes as you press the 5 buttons.

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Remote control buttons and functions

Information function

You can see the current time or the PR LIST. From the PR LIST, you can choose a channel or EXT terminal.

Press the h (Information) button to display the information you want to

see.

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID AV

BBC1

1 2 3 4 5 6

TV OK

+7-7

D0011-EN

Time display:

The current time of the teletext data is displayed. If the TV has not received a TV channel that has teletext programmes since it was turned on, the time display is blank. To view the current time, choose a TV channel that has teletext programmes.

• An incorrect current time is sometimes displayed when watching videos.

PR LIST:

The programme number (PR) and EXT terminal list is displayed. Pressing the a button after choosing the programme number (PR) or EXT terminal with the 7 buttons will display the chosen programme or EXT terminal.

• For programme numbers (PR) for which the CHILD LOCK function is set, the n (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 25.

12 : 00

No indication

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed according to the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 23.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

PANORAMIC:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Remote control buttons and functions

16:9 ZOOM:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

FULL:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the FULL mode to restore the picture to its original shape.

 Choose the ZOOM mode

1 Press the c button to display

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

TV OK

D0009-EN

2 Press the 6 buttons to choose a

ZOOM mode. Then press the a button

The picture expands and the chosen ZOOM mode is displayed in about 3 seconds.

• The ZOOM mode may be automatically changed by the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, you can adjust the visible area of the picture manually.

1 Press the c button

The ZOOM menu appears.

2 Press the a button to display the

ZOOM mode indicator

The indicator appears.

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6

buttons to change the position of the picture

• You cannot adjust the visible area in REGULAR or FULL mode.

The visible area adjustment is saved even after the TV channel is changed. However, it is cancelled if you do any of the following:

• turn the power off/on

• change the ZOOM mode

•press the g (Text) button

• switch the TV between TV mode and EXT mode.

HYPER SOUND function

You can enjoy sounds with a wider ambience.

Press the / (hyper sound) button to turn the HYPER SOUND function on or off

• The HYPER SOUND function does not work properly with mono sound.

• The HYPER SOUND function can also be turned on or off by using the SOUND menu. For details, see “HYPER SOUND” on page 24.

Remote control buttons and functions

• Notes for Ireland model (AV-32T5SR/AV-32T5BR/AV-28T5SR/ AV-28T5BR)

- The HYPER SOUND function works

only for the audio signal output from TV channels. It cannot work for the audio signal input from EXT sources.

- The HYPER SOUND function affects

the audio signal output from the EXT-1 and EXT-2 terminals. If you want to output the normal audio signal from the EXT terminals, turn the HYPER SOUND function off.

Return to TV channel instantly

You can return to a TV channel instantly.

Press the b button

The TV returns to the TV mode and a TV channel appears.

Operating a JVC brand VCR or DVD player

These buttons will operate a JVC brand VCR or DVD player. Pressing a button that looks the same as the device’s original remote control button has the same effect as the original remote control.

1 Set the VCR P DVD switch to the

VCR or DVD position.

VCR:

When you are using a VCR, set the switch to the VCR position.

DVD:

When you are using a DVD player, set the switch to the DVD position.

P (text):

When you are viewing teletext programmes, set the switch to the P (text) position.

2 Press the VCR/DVD Control Button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons will not work.

• Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

• You can use the p buttons to choose a TV channel the VCR will receive, or choose the chapter the DVD player plays back.

• Some models of DVD player use the p buttons for both operating the fast forward/backward functions and for choosing the chapter. In this case, the 253 buttons do not work.

Teletext function

TV OK

.T/L

Basic operation

1 Choose a TV channel with a teletext

broadcast

2 Set the VCR P DVD switch to the

g (Text) position

3 Press g (Text) button to display

the teletext

Pressing g (Text) button changes the mode as follows:

TEXT

---

TEXT

---

4 Choose a teletext page by pressing

the p p buttons, number buttons or colour buttons

To return to the TV mode:

Press the b button or g (Text) button.

• If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

• The ZOOM function will not work in Text mode.

• You cannot operate menus when viewing a teletext programme.

The last teletext page displayed is memorised. The last teletext page is cleared if you do any of the following:

• Turn the power off

• Change the channel

• Switch the TV input

• Press the b button.

Using the List Mode

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

 To store the page numbers:

1 Press B button to go into the

List mode

The page numbers you have stored are displayed at the bottom of the screen.

TV mode Text mode

2 Press a colour button to choose a

position. Then press the number buttons to enter the page number

 !

" # $

% & '



3 Press and hold down the A (Store)

button

The four page numbers blink white to show that they are stored in memory.

Teletext function

 To call up a stored page:

1 Press the B button to enter the

List mode

2 Press a colour button having a

stored page

To exit the List mode:

Press the B button again.

Hold

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Press the C (Hold) button

Hold indication

D0040

To cancel the Hold function:

Press C (Hold) button again.

Sub-page

Some teletext pages include sub-pages that are automatically displayed. You can hold any sub-page, or view it at any time.

1 Press the D (Sub-page) button to

operate the sub-page function

Reveal

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the E (Reveal) button, text is hidden or revealed

D0041

Size

You can double the height of the teletext display.

Press the F (Size) button

D0042

Index

You can return to the index page instantly.

Press the G (Index) button

Returns to page 100 or a previously specified page.

2 Press the number buttons to enter

a sub-page number

Example:

• 3rd sub-page → press o, o, o and 3.

To cancel the sub-page function:

Press the D (Sub-page) button again.

Cancel

You can search for a teletext page while watching TV.

1 Press the number button to enter a

page number, or press a colour button

The TV searches for a teletext page.

2 Press H (Cancel) button

The TV programme appears.

3 Press H (Cancel) button to return

to a teletext page when the page number is on the screen

• The TV mode cannot be resumed by pressing the H (Cancel) button. To return to the TV mode press b.

Teletext function

Using the TV’s menu

This TV has a number of functions you can operate using menus. To fully utilize all your TV’s functions, you need to understand the basic menu operating techniques fully.

TV OK

Blue button

Basic operation

1 Press the a button to display the

MENU (main menu)

PICTURE SOUND FEATURES SET UP

TV OK

D0060-EN

2 Press the 6 buttons to choose a

menu title, and press the a button

The menu appears.

To return to the previous menu:

Press the h (information) button.

To exit a menu instantly:

Press the b button.

4 Press the 5 buttons to choose

the setting of that function

• If you want to operate a function which appears only with its name, follow the descriptions of that function on the following pages.

• The display appearing at the bottom of a menu shows you a button on the remote control that you can use when you operate a chosen function.

TV OK

b button

D0053

a button

5 Press the a button to complete

the setting

The menu disappears.

• When watching the television with the NTSC system, the menus are displayed at about half their normal vertical size.

3 Press the 6 buttons to choose a

function

• For details of the functions in the menus, see the following pages.

PICTURE menu


PICTURE MODE CONTRAST BRIGHT SHARP COLOUR HUE COLOUR TEMP. FEATURES

TV OK

D0014-EN

SOFT

NORMAL

RESET

• While the PICTURE menu is displayed, pressing the blue button will set the CONTRAST, BRIGHT, SHARP, COLOUR, HUE settings to their default settings.

PICTURE MODE

You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

CONTRAST

You can adjust the picture contrast.

2 :lower 3 : higher

BRIGHT

You can adjust the picture brightness.

2 : darker 3 : brighter

COLOUR

You can adjust the picture colour.

2 : lighter 3 :deeper

HUE

You can adjust the picture tint.

2 : reddish 3 :greenish

• You can change the HUE setting (picture hue) when the colour system is NTSC

3.58, or NTSC 4.43.

COLOUR TEMP.

You can select one of three COLOUR TEMP. modes (three tones of white) to adjust the white balance of the picture. Since white is the colour which is used as a reference for all the other colours, changing the COLOUR TEMP. mode affects the appearance of all the other colours on the screen.

COOL:

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL:

The normal white colour.

WARM:

A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

SHARP

You can adjust the picture sharpness.

2 : softer 3 :sharper

PICTURE menu

FEATURES

Choose FEATURES and press the a or 3 button to display the sub-menu.

FEATURES

AUTO VNR COLOUR SYSTEM 4:3 AUTO ASPECT

TV OK

D1015-EN

 AUTO VNR

VNR Stands for “video noise reduction”.

AUTO:

This mode reduces any “noise” (interference or snowing) in the current picture. The function also adjusts the optimum sharpness of the picture (SHARP).

OFF:

The AUTO VNR function is cancelled. If you set the mode to AUTO but feel that the sharpness of the original picture has not been reproduced fully, change the mode to OFF. However, any noise remaining in the original picture may be emphasized.

MIN:

This mode reduces any noise irrespective of the state of the picture. If you set the mode to AUTO but feel that the sharpness of the original picture has not been reproduced, change the mode MIN. However, any noise remaining in the original picture may be emphasized a little. And this may reduce the sharpness of the picture a little.

MAX:

This mode always reduces any noise as much as possible, irrespective of the state of the picture. When you set the mode to AUTO but still notice some noise, change the mode to MAX. However, this may reduce the sharpness of the picture.

MIN

 COLOUR SYSTEM

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM function appears.

COLOUR SYSTEM

PAL

TV OK

D0016-EN

2 Press the 5 buttons to choose

the appropriate colour system. Then press the a button

PAL:

PAL system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal.

• The AUTO function may not work properly if you have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC

3.58 or NTSC 4.43.

 4:3 AUTO ASPECT

You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (4:3 aspect ratio).

1 Choose 4:3 AUTO ASPECT then

press the a button

4:3 AUTO ASPECT

PANORAMIC REGULAR 14:9 ZOOM

TV OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode

PICTURE menu

SOUND menu

SOUND

STEREO/ BASS TREBLE BALANCE HYPER SOUND

TV OK

D0019-EN

OFF

STEREO / I • II

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). If you have poor reception on a stereo broadcast, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

s: Stereo sound

v : mono sound

t : Bilingual I (sub I)

u : Bilingual II (sub II)

• The sound mode you can choose differs depending on the TV programme.

• This function does not work in the EXT modes.

BASS

You can adjust the low tone of the sound.

2 : weaker 3 :strong

HYPER SOUND

You can enjoy sounds with a wider ambience.

ON:

This function is turned on.

OFF:

This function is turned off. The menu disappears.

• The HYPER SOUND function does not work properly with mono sound.

• You can turn the HYPER SOUND function on or off with a single press. For details, see “HYPER SOUND function” on page 15.

• Notes for Ireland model (AV-32T5SR/AV-32T5BR/AV-28T5SR/ AV-28T5BR)

- The HYPER SOUND function works

only for the audio signal output from TV channels. It cannot work for the audio signal input from EXT sources.

- The HYPER SOUND function affects

the audio signal output from the EXT-1 and EXT-2 terminals. If you want to output the normal audio signal from the EXT terminals, turn the HYPER SOUND function off.

TREBLE

You can adjust the high tone of the sound.

2 : weaker 3 :strong

BALANCE

You can adjust the volume balance between the left and right speaker.

2 : turn the left speaker’s volume level up. 3 : turn the right speaker’s volume level up.

FEATURES menu

FEATURES

SLEEP TIMER

TV OK

D0023-EN

BLUE BACK CHILD LOCK

SLEEP TIMER

You can set the TV to automatically turn off after a set period of time.

1 Choose SLEEP TIMER. Then press

the a or 3 button

A Sub-menu of the SLEEP TIMER function appears.

SLEEP TIMER

0120

OFF

TV OK

D0024-EN

2 Press the 5 buttons to set the

period of time. Then press the a button

You can set the period of time for up to 120 minutes (2 hours) in 10 minute steps.

• One minute before the SLEEP TIMER function turns off the TV, “GOODNIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn off the TV’s main power.

• When the SLEEP TIMER function is on, you can display the sub-menu of the SLEEP TIMER function again to confirm or change the remaining period of time of the SLEEP TIMER function. Press the a button to leave the menu after confirming or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 2 button to set the period of time to “OFF”.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

CHILD LOCK

When there is a TV channel you do not want your children to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a programme number (PR) for a locked TV channel the screen will change to blue and display n (CHILD LOCK) so the TV channel cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel.

 To set the CHILD LOCK function

1 Choose CHILD LOCK, then press

the 0 button

“SET ID NO.” (ID number setting screen) appears.

SET ID NO.

0000

TV OK

D0025-EN

2 Set the ID number to your liking

1 Press the 6 buttons to choose

a number.

2 Press the 5 buttons to move

the cursor.

FEATURES menu

3 Press the a button

The Sub-menu of CHILD LOCK appears.

CHILD LOCK

TV OK

D0026-EN

PR ID AV

1 2 3 4 5 6

BBC1

CH/CC

CH CH CH CH CH CH

21 22 23 24 25 26

LOCK

4 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the a button

n (CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again. n (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears if you choose the CHILD LOCK function and press the a button.

 To view a locked TV channel

1 Choose a programme number (PR)

of a locked TV channel with the number buttons or PR LIST

The screen changes to blue and the n (CHILD LOCK) appears. You cannot view the TV channel.

D0027-EN

2 Press the h (Information) button

while the n (CHILD LOCK) is displayed

The “ID NO.” (ID NO. input screen) appears.

ID NO. :

D0028-EN

3 Press the number buttons to enter

the ID number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.

• Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone tries to view the TV channel, it will be locked again.

• When you want to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

• To stop it being easy to choose the programme number (PR) of a locked TV channel, the programme number (PR) has been set so that it cannot be chosen with the 6 buttons or the buttons of the TV.

• To stop it being easy to reset the lock, “ID NO.” (ID No. input screen) is set so that it cannot appear unless you press the h (Information) button.

SET UP menu

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING PICTURE TILT

TV OK

D0029-EN

OFF

AUTO PROGRAM

You can again perform the AUTO PROGRAM function TV channel automatic registration which was performed in the “Initial settings” (page 7). To receive satellite broadcasts you need a satellite tuner.

1 Choose AUTO PROGRAM

2 Press the a or 3 buttons to start

the AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically stored in the programme number (PR).

3 Perform step 4 of the “Initial

settings” (page 8)

EDIT/MANUAL

The EDIT/MANUAL functions are divided into two types:

• editing the current programme numbers (PR) (EDIT functions); and

• manually storing a TV channel you want to view on a particular programme number (PR) (MANUAL function).

Here are the details about these functions:

MOVE:

This function changes the programme number (PR) of a TV channel.

ID:

This function registers a channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current programme numbers (PR) list by using the CH number.

• You cannot use the INSERT function if you do not know the channel number of a TV channel. Use the MANUAL function to register a TV channel in the programme number (PR).

DELETE:

This function deletes a TV channel you do not want to list.

MANUAL:

This function manually stores a new TV channel in a programme number (PR).

Caution

• Using the MOVE, DELETE or INSERT functions rewrites the current programme numbers (PR) list. Therefore, the programme numbers (PR) of some of the TV channels will change.

• Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for that channel.

• Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for that channel to OFF.

• When a TV channel has already been registered in PR 99, using the INSERT function deletes that TV channel.

SET UP menu

 Basic operation

1 Choose EDIT/MANUAL, then press

the a or 3 button

The EDIT menu appears.

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0038-EK

2 Follow the description for the

function you want to use

3 Press the a button to complete

the settings

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow “Downloading the data to VCR” on page 9 to transmit the programme number (PR) data.

• For programme number PR 0, “AV” appears in the programme numbers (PR) list.

• An EXT terminal number does not appear in the programme numbers (PR) list.

• The CH/CC number is a number unique to the TV and corresponds to the channel number of a TV channel. For the relationship between a channel number and a CH/CC number, see “CH/CC NUMBER” on page 31.

BBC1 BBC2 ITV CH4 CH5

MOVE

EXIT

CH/CC CH

INSERT DELETE

MANUAL

 MOVE

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the programme number (PR) changes and the picture of the TV channel stored in the programme number (PR) appears on the screen.

2 Press the 3 button to start the

MOVE function

EDIT

TV OK

D0030-EK

PR ID AV

1 2 3 4 5 6

BBC1 BBC2 ITV CH4 CH5

STORE

CH/CC CH

CH CH CH CH CH

CH 22 23 24 25 26

3 Press the 6 buttons to choose a

new programme number (PR)

To cancel the MOVE function:

Press the h (Information) button.

4 Press the 2 button to change the

programme number (PR) of a TV channel to a new programme number (PR)

 DELETE

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the programme number (PR) changes and the picture of the TV channel stored in the programme number (PR) appears on the screen.

2 Press the yellow button to delete

the TV channel

The TV channel is deleted from the programme numbers (PR) list.

SET UP menu

 ID

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the programme number (PR) changes and the picture of the TV channel stored in the programme number (PR) appears on the screen.

2 Press the red button to start the ID

function

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0031-EK

3 Press the 6 buttons to choose

the first character of a channel name (ID) you want to give the TV channel

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0032-EK

4 Press the blue button to display the

ID LIST (channel name list)

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0033-EK

BBC1 BBC2 ITV CH4 CH5

MOVE

BBC1 BBC2 ITV CH4 CH5

CH/CC CH

INSERT DELETE

CH/CC CH

MANUAL

ID LIST

M6 MCM MDR MTV MTV1 MTV2 MTV3

5 Press the 6 buttons to choose

the channel name (ID)

To cancel the ID function:

Press the h (Information) button.

6 Press the a button to give a

channel name (ID) to a TV channel

• You can give your own unique channel name (ID) to the TV channel. When you have finished step 3, do not go to step 4. Press the 5 buttons to move the cursor, and press the 6 buttons to choose each character of the channel name (ID). Then press the a button to register the channel name (ID) to the TV channel.

Before performing INSERT or MANUAL operation

• A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from the table “CH/CC NUMBER” on page 31 based on the Channel number of the TV channel.

 INSERT

1 Press the 6 buttons to choose a

programme number (PR) for which you will register a new TV channel

2 Press the green button and start

the INSERT function

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0034-EK

To cancel the INSERT function:

Press the h (Information) button.

BBC1 BBC2 ITV CH4 CH5

CH/CC CH CH CH CH CH CH CH

36 21 22 23 24 25

SET UP menu

3 For UK model

(AV-32T5SK/AV-32T5BK/AV-28T5SK/ AV-28T5BK): Press the number buttons to enter the remaining CH number

• You cannot enter CC numbers.

For Ireland model (AV-32T5SR/AV-32T5BR/AV-28T5SR/ AV-28T5BR): Press the

buttons to choose “CH” or “CC”, then enter the remaining CH or CC number

The TV shifts to registration mode. When the registration is completed, the picture of the TV channel appears on the screen.

• The CH/CC number is a number given to each broadcast frequency that carries a TV channel. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a “no-signal” picture appears.

 MANUAL

1 Press the 6 buttons to choose a

programme number (PR) for a new TV channel

4 Press the green or red button

repeatedly until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to finetune the TV channel.

5 Press the a button and register

the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

2 Press the blue button to activate

the MANUAL function

MANUAL

TV OK

D0035-EK

PR ID AV

1 2 3 4 5 6

BBC1 BBC2 ITV CH4 CH5

SYSTEM

SEARCH+

CH/CC CH CH CH CH CH CH CH

SEARCH-

36 21 22 23 24 25 26

To cancel the MANUAL function:

Press the h (Information) button.

3 Press the green or red button to

search for a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

FINE-

FINE+

SET UP menu

 CH/CC NUMBER

• When you want to use the INSERT function on page 29, find the CH/CC number corresponding to the channel number of the TV channel from this table. If you want to know a particular TV channel’s channel menu, look in TV listings magazines or contact the broadcaster.

• The UK models (AV-32T5SK/AV32T5BK/AV-28T5SK/AV-28T5BK) cannot receive the CC number channels or the channels from CH 02 to CH 12.

CH Channel

CH 02 E2, IR A

CH 03 E3, IR B

CH 04 E4, IR C

CH 05 E5, IR D

CH 06 E6, IR E

CH 07 E7, IR F

CH 08 E8, IR G

CH 09 E9

CH 10 E10, IR H

CH 11 E11, IR J

CH 12 E12

CH 21 E21

CH 22 E22

CH 23 E23

CH 24 E24

CH 25 E25

CH 26 E26

CH 27 E27

CH 28 E28

CH 29 E29

CH 30 E30

CH 31 E31

CH 32 E32

CH 33 E33

CH 34 E34

CH 35 E35

CH 36 E36

CH 37 E37

CH 38 E38

CH 39 E39

CC Channel

CC 01 S1

CC 02 S2

CC 03 S3

CC 04 S4

CC 05 S5

CC 06 S6

CC 07 S7

CC 08 S8

CC 09 S9

CC 10 S10

CC 11 S11

CC 12 S12

CC 13 S13

CC 14 S14

CC 15 S15

CC 16 S16

CC 17 S17

CC 18 S18

CC 19 S19

CC 20 S20

CC 21 S21

CC 22 S22

CC 23 S23

CC 24 S24

CC 25 S25

CC 26 S26

CC 27 S27

CC 28 S28

CC 29 S29

CC 30 S30

CH Channel

CH 40 E40

CH 41 E41

CH 42 E42

CH 43 E43

CH 44 E44

CH 45 E45

CH 46 E46

CH 47 E47

CH 48 E48

CH 49 E49

CH 50 E50

CH 51 E51

CH 52 E52

CH 53 E53

CH 54 E54

CH 55 E55

CH 56 E56

CH 57 E57

CH 58 E58

CH 59 E59

CH 60 E60

CH 61 E61

CH 62 E62

CH 63 E63

CH 64 E64

CH 65 E65

CH 66 E66

CH 67 E67

CH 68 E68

CH 69 E69

CC Channel

CC 31 S31

CC 32 S32

CC 33 S33

CC 34 S34

CC 35 S35

CC 36 S36

CC 37 S37

CC 38 S38

CC 39 S39

CC 40 S40

CC 41 S41

CC 75 X

CC 76 Y

CC 77 Z

CC 78 Z+1

CC 79 Z+2

SET UP menu

LANGUAGE

1 Choose LANGUAGE, then press

the a or 3 button

A sub-menu of the LANGUAGE function appears.

LANGUAGE

TV OK

D0002-EK

2 Press the a button

DECODER (EXT-2)

If you have a decoder connected to a T-V LINK compatible VCR, which in turn is connected to the EXT-2 terminal, use the DECODER (EXT-2) function to unscramble the scrambled TV channels.

1 Turn on the decoder power

2 Display the scrambled TV channel

on the TV

Even if the decoder is working, a scrambled picture appears.

3 Display the SET UP menu and

choose DECODER (EXT-2)

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING PICTURE TILT

TV OK

D0029-EN

OFF

4 Press the 5 buttons to choose

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the 5 buttons to choose OFF.

5 Press the a button to complete

the setting

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

EXIT

You can send the programme numbers data to a VCR with the T-V LINK function.

6 Turn on the VCR, and then press

the a button to transmit the data to VCR

The T-V LINK menu disappears once the data transmission ends.

7 If you have another TV channel

capable of being unscrambled with a Decoder, repeat steps 2 to 6

If the DECODER (EXT-2) function has been set to “ON” but the TV channel cannot be unscrambled, check the following:

• Has the decoder been connected to the VCR properly according to the VCR and decoder instruction manuals?

• Has the decoder power been turned on?

• Can the TV channel be unscrambled with a decoder?

• Do you need to change the VCR settings in order to connect the decoder? Confirm that the VCR is set properly by rechecking the VCR instruction manual.

SET UP menu

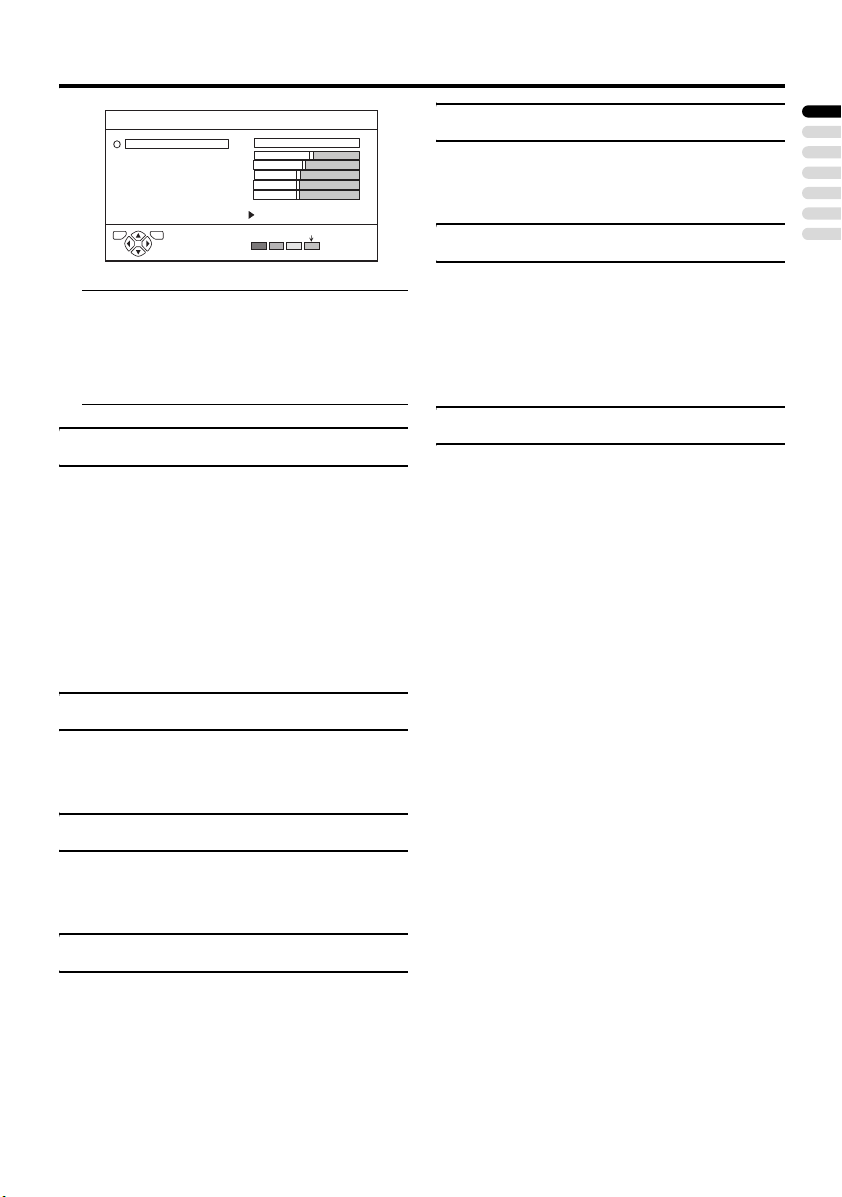

EXT SETTING

1 Choose EXT SETTING, then press

the a or 3 button

The EXT SETTING menu appears.

EXT SETTING

EXT-1

EXT-3

EXT-4

D0020-EN

2 Follow the instructions for the

function you want to use and operate the function

You can enjoy the high-quality picture of the 2 S-VIDEO signal (Y/C signal).

ID LIST:

You can have a name for each of the devices connected for each EXT terminal.

DUBBING:

You can choose a signal source to be output from an EXT-2 terminal.

 y (S-VIDEO input)

You can connect a device (such as an S-VHS VCR) to enjoy the high-quality picture of the S-VIDEO signal (Y/C signal).

Preparation:

• First read the device’s instruction manual and “Additional preparation” on page 36 to connect the device to the TV properly. Second, follow the device’s instruction manual to set the device so that it sends an S-VIDEO signal (Y/C signal) to the TV.

• Do not set y (S-VIDEO input) to an EXT terminal connected to a device which cannot output an S-VIDEO (Y/C signal). If it is set wrongly, a picture cannot appear.

DUBBING

EXT-2

TV OK

ID LIST

S-IN

1 Press the 5 or 6 buttons to

choose an EXT terminal

EXT SETTING

EXT-1

EXT-3

EXT-4

D0020-EN

DUBBING

EXT-2

TV OK

ID LIST

S-IN

2 Press the yellow button and set the

y (S-VIDEO input). Then press the a button

An y (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the y (S-VIDEO input) setting:

Press the yellow button and turn off y (SVIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

• The EXT-1 terminal does not support SVIDEO signal (Y/C signal) and you cannot set y (S-VIDEO input) in the EXT-1 terminal.

• Setting y (S-VIDEO input) changes the head character from “E” to “S”. When an EXT terminal receives a normal video signal, “E1”, “E2”, “E3” or “E4” appears on the display. This changes to “S2” or “S3” when it receives an S-VIDEO signal.

• Even a device which can output an S-VIDEO signal (Y/C signal) may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because the y (S-VIDEO input) setting has been made, read the device instruction manual carefully again to check for the device settings.

SET UP menu

 ID LIST

You can store a name for each of the devices connected to each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with its name.

1 Press the 5 or 6 buttons to

choose an EXT terminal

2 Press the blue button to display the

name list (ID LIST)

EXT SETTING

D0021-EN

EXT-1

EXT-3

EXT-4

DUBBING

EXT-2

TV OK

ID LIST

VHS S-VHS DVC CAM SAT

3 Press the 6 buttons to choose a

name. Then press the a button

The ID LIST disappears and the name is assigned to the EXT terminal.

• You cannot assign an EXT terminal name not found in the name list (ID LIST).

To erase a name assigned to the EXT terminal:

Choose a blank space.

4 Press the a button to complete

the setting

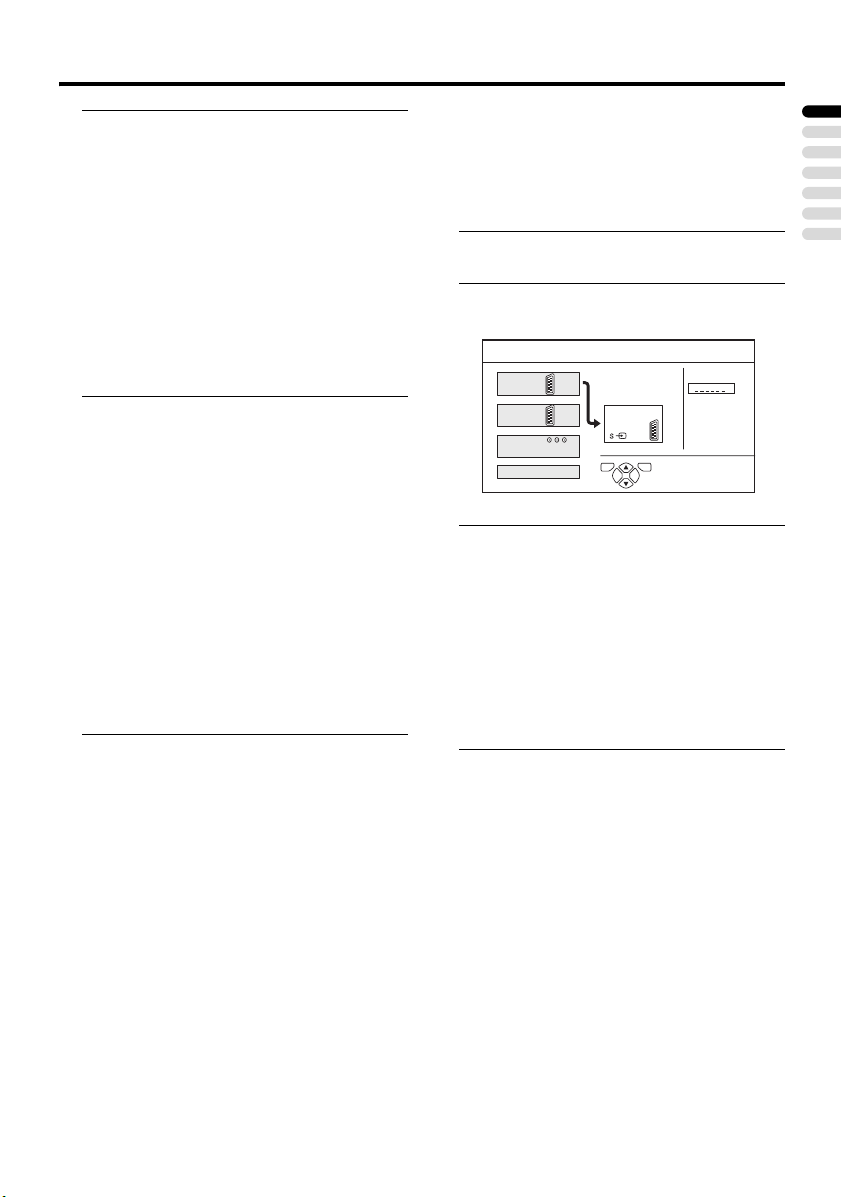

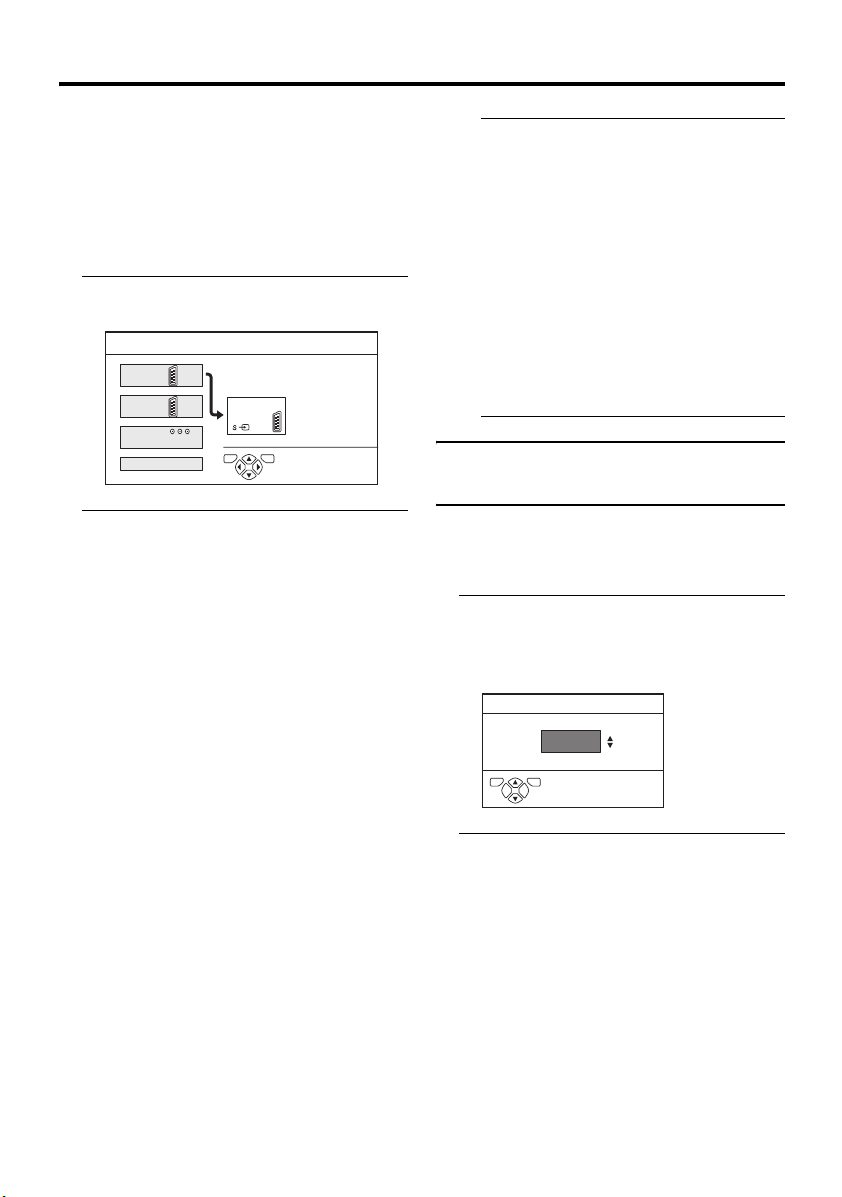

 DUBBING

You can choose a signal source to be output from the EXT-2 terminal.

You can do this with the output signals of the devices connected to other EXT terminals, or with the picture and sound from a TV channel you are currently viewing.

1 Press the 5 buttons to choose

the arrow from the menu

EXT SETTING

EXT-1

EXT-3

EXT-4

D0022-EN

DUBBING

EXT-2

TV OK

2 Press the 6 buttons to choose an

EXT terminal or TV. Then press the a button

The arrow in the menu represents a signal flow. The left side of the arrow shows a signal source output from the EXT-2 terminal.

EXT-1/EXT-3/EXT-4:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

• During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

• When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

• The RGB signals from TV games cannot be output. Teletext programmes cannot be output.

PICTURE TILT (Only for AV32T5SK/AV-32T5BK/AV32T5SR/AV-32T5BR)

There are cases where the Earth’s magnetic field may make the picture tilt or make unnatural colours appear in the corner of the screen. If this happens, you can correct it.

1 Choose PICTURE TILT, then press

the a or 3 button

The sub-menu of the PICTURE TILT function appears.

PICTURE TILT

TV OK

D0018-EN

2 Press the 6 buttons until the

picture becomes level. Then press the a button

SET UP menu

Additional preparation

Connecting external equipment

Connect the equipment to the TV, making the correct rear panel and front panel connections.

Before connecting anything:

• Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method.

• Turn off all the equipment including the TV.

• The “Specifications” on the back cover give the details of the EXT terminals. If you are connecting equipment not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Connecting cables are not supplied.

Side of the TV

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite

signal/S-VIDEO signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO

signal)

6 DVD player (composite signal/RGB

signal)

7 TV game (composite signal/RGB signal) 8 TV game (composite signal) 9 Headphones 0 Camcorder (composite signal/S-VIDEO

signal)

- SCART cable = Audio cable ~ Video cable

MONO

EXT-4

MONO

EXT-4

Back of the TV

Additional preparation

 Equipment which can output the

S-VIDEO signal (Y/C signal) such as an S-VHS VCR

Connect the equipment to an EXT terminal (but not the EXT-1 terminal).

You can choose between an S-VIDEO signal (Y/C signal) and a regular video signal (composite signal). For details of how to operate the equipment, see “y (S-VIDEO input)” on page 33.

 T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the decoder to the VCR. If not, the T-V LINK function may not work properly. After you have stored TV channels in the programme numbers (PR) list, set the DECODER (EXT-2) function for the programme number (PR) to ON to unscramble a scrambled TV channel. For details, see “EXT SETTING” on page 33.

 Connecting headphones

Connect the headphones with a stereo minijack (3.5 mm diameter) to the headphone socket at the TV rear panel.

• No sound comes from the TV speakers when the headphones are connected.

 Video or sound signal output from

the EXT-2 terminal

You can change over the output of the video/ sound signal from the EXT-2 terminal. This is useful when you want to dub the video/ sound from another device onto the VCR connected to the EXT-2 terminal. For details on how to do this, see “DUBBING” on page 34.

 TV output from the EXT-1 terminal

The video/sound signal of a TV channel you are viewing is always output from the EXT-1 terminal.

• Changing over a programme number (PR) also changes over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be output.

• Teletext programmes cannot be output.

Troubleshooting

If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

• This troubleshooting guide only covers problems whose causes are not easy to decide. If you have a question when you are operating a function, read the page(s) for that function carefully, not this troubleshooting guide.

• If you follow the advice in this troubleshooting guide without any success, unplug the mains plug and ask for your TV to be repaired. Do not attempt to repair the TV by yourself or to remove the rear cover of the TV.

• If the power lamp flashes, there is a problem with the TV. Unplug the mains plug and ask for your TV to be repaired.

 If you cannot turn on the TV

• Is the mains plug connected to the mains outlet?

 No picture or no sound

• Have you chosen a TV channel with very poor reception? If so, the BLUE BACK function will be activated: the entire screen becomes blue, and the sound is muted. If you still want to view the TV channel, follow the description “BLUE BACK” on page 25 to change the BLUE BACK function setting to OFF.

• If the SYSTEM setting for a TV channel is incorrect, it may prevent the sound from being issued. Follow the description “EDIT/MANUAL” on page 27 to use the MANUAL function to try to change the SYSTEM setting.

 Poor picture

• If noise (snow) totally blocks out the picture, there may be a problem with the aerial or aerial cable. Check the following to try to solve the problem:

–Have the TV and aerial been connected

properly? –Has the aerial cable been damaged? –Is the aerial pointing in the right

direction? –Is the aerial itself faulty?

• If the TV or aerial suffers interference from other equipment, stripes or noise may appear in the picture. Move any equipment such as an amplifier, personal computer, or a hair drier, that can cause interference away from your TV. Or try moving the TV. If the aerial suffers interference from a radio tower or highvoltage wire, please contact your local dealer.

• If the TV suffers interference from signals reflecting from mountains or buildings, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace it with one with better directionality.

• Are your COLOUR SYSTEM settings correct? Follow the description “COLOUR SYSTEM” on page 22 to try to solve the trouble.

• Have the COLOUR and BRIGHT settings been adjusted properly? Follow the description “BRIGHT” and “COLOUR” on page 21 to try to adjust them properly.

• Videotaping teletext is not recommended because it may not record correctly.

• When a white and bright still image (such as a white dress) is displayed on the screen, the white part may look as if it is coloured. This is unavoidable due to the nature of the picture tube itself, and not due to a TV failure. When the picture disappears from the screen, the unnatural colours will also disappear.

Troubleshooting

• When viewing images from commercially available video software products, or videos from videotapes which have been recorded improperly, the top of the image may be distorted. This is due to the condition of the video signal. There is nothing wrong with the TV.

 Poor sound

• Have you adjusted BASS or TREBLE properly? If not, follow the description “BASS” or “TREBLE” on page 24.

• When TV channel reception is poor, it can be hard to hear stereo or bilingual sound. In this case, follow the description “STEREO / I • II” on page 24 to hear the sound more easily by changing it to a mono sound.

 If the TV does not respond to the

remote control

• Have the batteries of the remote control worn out? Follow the description “Putting the batteries into the remote control” on page 7 and replace them with new batteries.

• Have you attempted to use the remote control from the sides or rear of the TV or from more than seven metres away from the TV? Use the remote control in front of your TV or from less than seven metres away.

• When you are viewing a teletext programme, you cannot operate the menus. Press the b button to return to the ordinary TV programme, and then try operating the menus.

• If the TV suddenly stops responding, press the main power button on the TV and turn off the main power. Press the main power button again to turn on the TV. If the TV returns to a normal state, it is not a failure.

 Other issues

• When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV suddenly turns off, try to press the # (standby) button to turn on the TV once again. If the TV goes back to normal, there is no problem.

• When the TV is receiving a wide-screen signal (WSS) or a signal from an external device affecting the screen size, the ZOOM mode automatically changes. When you want to resume the previous ZOOM mode, press the c button again.

• If you bring magnetised equipment such as a speaker near to your TV, the picture may be warped or unnatural colours may appear at the corners of the screen. In this case, keep the equipment away from your TV. If speakers cause this to happen, use magnetically-shielded speakers instead.

• A picture may be tilted due to the earth’s magnetic field. If so, use the “PICTURE TILT (Only for AV-32T5SK/AV32T5BK/AV-32T5SR/AV-32T5BR)” on page 35 to correct the tilt.

• It takes a short period of time from the time an operation such as changing channels is performed until an image is displayed. This is not a fault. This is the time needed for the image to stabilize before it can be displayed.

• The TV may make a crackling sound due to a sudden change in temperature. The picture or sound may be normal. If you hear crackling sounds frequently while you are viewing the TV, there may be other causes. As a precaution, ask your service technician to inspect it.

• Touching the screen may cause you to feel a slight electric shock due to its static electricity. This is unavoidable due to the construction of the picture tube. It is not a problem with the TV. You can rest assured that this static discharge is not harmful.

Specifications

Model

Item

Broadcasting systems CCIR I Colour systems PAL

Channels and frequencies E21-E69 Sound-multiplex systems NICAM (I) system Teletext systems FLOF (Fastext),

Power requirements 220 - 240 V AC, 50 Hz Power consumption 110 W (Standby: 2.7 W) 110 W (Standby: 2.7 W) Picture tube size Viewable area 76 cm (measured

Audio output Rated Power output: 10 W + 10 W Speakers (13 cm × 6.5 cm) oval × 2 EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal Euroconnector (21-pin, SCART)

EXT-4 terminal RCA connectors × 3

Headphone jack Stereo mini-jack (3.5 mm in diameter) Dimensions (W × H × D) 864 mm × 587 mm × 550 mm 762 mm × 528 mm × 492 mm Weight 52.0 kg 38.0 kg Accessories Remote control unit × 1 (RM-C1502 (Gray or Black))

AV-32T5SK/AV-32T5BK

(UK model)

• The EXT terminals also support the NTSC 3.58/4.43 MHz system.

WST (World Standard System)

diagonally)

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

• Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available.

• Video and Audio L/R outputs are available.

• T-V LINK functions are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video input and Audio L/R inputs are available.

AA/R6 dry cell battery × 2

AV-28T5SK/AV-28T5BK

(UK model)

Viewable area 66 cm (measured diagonally)

We may change the design and specifications without notice.

Pictures displayed on the screen using this TV’s ZOOM functions should not be shown for any commercial or demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this would be an infringement of copyright.

Specifications

Model

Item

Broadcasting systems CCIR I Colour systems PAL

Channels and frequencies IR A-J, E21-E69 Sound-multiplex systems NICAM (I) system Teletext systems FLOF (Fastext),

Power requirements 220 - 240 V AC, 50 Hz Power consumption 110 W (Standby: 2.7 W) 110 W (Standby: 2.7 W) Picture tube size Viewable area 76 cm (measured

Audio output Rated Power output: 10 W + 10 W Speakers (13 cm × 6.5 cm) oval × 2 EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal Euroconnector (21-pin, SCART)

EXT-4 terminal RCA connectors × 3

AV-32T5SR/AV-32T5BR

(Ireland model)

• The EXT terminals also support the NTSC 3.58/4.43 MHz system.

WST (World Standard System)

diagonally)

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

• Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available.

• Video and Audio L/R outputs are available.

• T-V LINK functions are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video input and Audio L/R inputs are available.

AA/R6 dry cell battery × 2

AV-28T5SR/AV-28T5BR

(Ireland model)

Viewable area 66 cm (measured diagonally)

We may change the design and specifications without notice.

LCT1794-001A-U 0205MKH-CR-MU

AV-32T5SP AV-28T5SP

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

COLOUR TELEVISION

FARBFERNSEHGERÄT TELEVISEUR COULEUR KLEURENTELEVISIE TELEVISOR A COLOR TELEVISORE A COLORI TELEVISOR A CORES

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

INSTRUÇÕES

How to move the TV

When moving the TV, make sure that it is held by two people as shown in the illustration. Be careful not to trap your hands when putting the TV down.

ENGLISH

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long period of time, it is recommended that you disconnect the power cord from the main outlet.

Avoid improper installation and never position the unit where good ventilation is unattainable. When installing this television, distance recommendations must be maintained between the floor and wall, as well as installation in a tightly enclosed area or piece of furniture. Adhere to the minimum distance guidelines shown for safe operation.

• The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use this TV for a long period of time, be sure to disconnect the AC plug from the AC socket.

Failure to heed the following precautions may result in damage to the TV or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

CONTENTS

Setting up your TV ...................................4

Connecting the aerial and VCR ................. 4

Connecting the power cord to the AC

outlet....................................................... 5

Putting the batteries into the Remote

control..................................................... 5

Initial settings ............................................. 5

T-V LINK functions..................................... 8

TV buttons and functions........................9

Turn the Main power on ............................. 9

Turn the TV on from standby mode ........... 9

Choose a TV channel ................................ 9

Adjust the volume ...................................... 9

Remote control buttons and

functions..............................................10

Turn the TV on or off from standby mode Choose a TV channel and watch images

from external devices ........................... 11

Adjust the volume .................................... 12

Information function ................................. 12

ZOOM function......................................... 12

HYPER SOUND function ......................... 14

Return to TV channel instantly................. 14

Operating a JVC brand VCR or DVD

player.................................................... 14

... 10

Teletext function ....................................15

Basic operation ........................................ 15

Using the List Mode ................................. 15

Hold.......................................................... 16

Sub-page ................................................. 16

Reveal...................................................... 16

Size .......................................................... 16

Index ........................................................ 17

Cancel...................................................... 17

Using the TV’s menu..............................18

Basic operation ........................................ 18

PICTURE menu.......................................19

PICTURE MODE ..................................... 19

CONTRAST ............................................. 19

BRIGHT ................................................... 19

SHARP..................................................... 19

COLOUR.................................................. 19

HUE ......................................................... 19

COLOUR TEMP....................................... 19

FEATURES.............................................. 20

SOUND menu ......................................... 22

STEREO / I • II ......................................... 22

BASS........................................................ 22

TREBLE ................................................... 22

BALANCE ................................................ 22

HYPER SOUND....................................... 22

FEATURES menu................................... 23

SLEEP TIMER ......................................... 23

BLUE BACK ............................................. 23

CHILD LOCK............................................ 23

SET UP menu ......................................... 25

AUTO PROGRAM.................................... 25

EDIT/MANUAL ......................................... 25

LANGUAGE ............................................. 29

DECODER (EXT-2).................................. 29

EXT SETTING.......................................... 30

PICTURE TILT (Only for AV-32T5SP) ..... 32

Additional preparation ..........................33

Connecting the external devices .............. 33

CH/CC numbers ..................................... 35

Troubleshooting ....................................37

Specifications ........................................40

ENGLISH

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and VCR

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

 If connecting a VCR, follow A →

B → C.

 If not connecting a VCR, follow 1.

To operate T-V LINK functions, a T-V LINK compatible VCR must be connected to the EXT-2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 8.

• A video can be viewed from the VCR

without performing C. For details, refer to your VCR instruction manual.

• To connect additional external devices, please see “Connecting the external devices” on page 33.

• When a decoder is connected to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 29. Otherwise, you will not be able to view scrambled channels.

 Rear Panel

Aerial

75-ohm

Coaxial Cable

Back of the TV

21-pin

SCART Cable

VCR

AV IN/OUT

Terminal

75-ohm Coaxial

Cable

To Aerial

Input

To Aerial

Output

1 EXT-1 terminal (pages 4, 30, 33) 2 EXT-2 terminal (pages 4, 8, 30, 33) 3 EXT-3 terminal (pages 30, 33) 4 Aerial socket (page 4)

Setting up your TV

Connecting the power cord to the AC outlet

Caution

• Operate only from the power source specified (AC 220 – 240 V, 50 Hz) on the unit.

Putting the batteries into the Remote control

Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct.

• Follow the warnings printed on the batteries.

• Battery life is about six months to one year, depending on your frequency of use.

• The batteries we supply are only for setting up and testing your TV, please replace them as soon as necessary.

• If the remote control does not work properly, replace the batteries.

Initial settings

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is displayed. Follow the instructions on the onscreen display to make the initial settings.

TV OK

1 Press the Main power button on the

The Power lamp lights red and the JVC logo is displayed.

Main power

button

• The JVC logo appeares only once when your TV has been turned on. In this case, use the “LANGUAGE” and “AUTO PROGRAM” functions to make the initial settings. For details, see “SET UP menu” on page 25.

2 Press the a button

The LANGUAGE menu appears.

LANGUAGE

Blue button

Power lamp

ENGLISH

TV OK

D0002(E)-EN

Setting up your TV

3 Press the 5 and 6 buttons to

choose ENGLISH. Then press the a button

English is set for the on-screen display description. The COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function.

COUNTRY

TV OK

D0003-EN

START

4 Press the 5 and 6 buttons to

choose the country where you are now located

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears and received TV channels are automatically registered in the Programme numbers (PR).

AUTO PROGRAM

10%

TV OK

D0004-EN

CH 24

• To cancel the AUTO PROGRAM function: Press the b button.

After the TV channels have been registered in the Programme numbers (PR), the EDIT menu appears

EDIT

TV OK

D0038-EN

PR ID AV

1 2 3 4 5 6

BBC1

MOVE

CH/CC CH

INSERT DELETE

MANUAL

• You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 25.

• If you do not need to use the EDIT/ MANUAL function, go to the next step.

6 Press the a button to display the

T-V LINK menu

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

EXIT

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 7 to transmit the Programme number (PR) data.

Setting up your TV

Now, the initial settings are complete, and you can watch the TV

• When your TV can detect the TV channel name from the TV channel broadcast signal, it automatically registers the TV channel name (ID) to the Programme number (PR) in which the TV channel has been registered.

• If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/ MANUAL” on page 25.

• The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 25.

 Downloading the data to VCR

You can transmit to the latest Programme numbers (PR) data to the VCR with the T-V LINK function.

Caution

• Only when the T-V LINK compatible VCR is connected to the EXT-2 terminal, this operation is enabled.

• Only when the T-V LINK menu is being displayed, this operation is enabled.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

When the T-V LINK menu is changed over to another menu:

The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu:

Check the following three items. Then press the 2 button to retry data transmission.

• Has the T-V LINK compatible VCR been connected to the EXT-2 terminal?

• Has the VCR power been turned on?

• Does the SCART cable that is connected to the EXT-2 terminal to TV LINK compatible VCR have all proper connections?

ENGLISH

TV OK

D0005-EN

EXIT

1 Turn on the VCR

2 Press the a button

The data transmission begins.

RECORDING DEVICE

TRANSFER. . . . .

D0037-EN

The T-V LINK menu disappears once the data transmission ends.

Setting up your TV

T-V LINK functions

When a T-V LINK compatible VCR is connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary. The VCR must be connected to the EXT-2 terminal on the TV by a fully wired SCART cable.

A “T-V LINK compatible VCR” means a JVC VCR with the T-V LINK logo or a VCR with one of the following logos. However, these VCRs may support some or all of the features described below. For details, refer to your VCR instruction manual.

 Pre-set Download

Download the registered data on the TV channels from the TV to the VCR. The Preset Download function automatically begins when the initial setting is complete or whenever the AUTO PROGRAM or EDIT/ MANUAL operations are performed.

• This function can be operated via VCR operation.

When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed, the download was not performed correctly. Before trying to download again, ensure the following:

• The VCR power is turned on.

• The VCR is T-V LINK compatible.

• The VCR is connected to the EXT-2 terminal.

• The SCART cable is fully wired.

 Direct Rec

“What You See Is What You Record” You can record to VCR the images that you are currently viewing on TV by a simple operation. For details, read the manual for your VCR. Operate via the VCR. “VCR IS RECORDING” is displayed.

In the following conditions, the VCR will stop recording if the TV is turned off, if the TV channel or input is switched, or if the menu is displayed on the TV:

• When recording images from an external device connected to the TV.

• When recording a TV channel after it has been unscrambled on a decoder.

• When recording a TV channel by using the TV’s output because that TV channel cannot be properly received on the VCR’s tuner.

• When the VCR is not ready (for example, when there is no tape inserted), “NO RECORDING” is displayed.

• Operation via the TV is not possible.

• Generally, the VCR cannot record a TV channel that cannot be received properly by the VCR’s tuner, even though you can view that TV channel on the TV. However, some VCRs can record a TV channel by using the TV’s output if that channel can be viewed on the TV, even though the TV channel cannot be received properly by the VCR’s tuner. For details, refer to your VCR instruction manual.

TV buttons and functions

Turn the Main power on

Press the Main power button on the TV.

The Power lamp lights red and your TV is in the standby mode.

To turn the Main power off:

Press the Main power button again. The Power lamp goes off.

Caution

Turn the TV on from standby mode

Press the P p buttons to turn the TV on from standby mode

When the TV is turned on, the power lamp

MONO

EXT-4

dims slightly.

Choose a TV channel

ENGLISH

MONO

EXT-4

Refer to the pages in parentheses for details.

1 Main power button (pages 5, 9) 2 Power lamp (pages 5, 9) 3 Remote control sensor 4 r (Volume) button (page 9) 5 P p buttons/ q buttons (page 9) 6 Headphone jack (mini jack) (page 33) 7 EXT-4 terminal (pages 30, 33)

Press the P p buttons to choose a programme number (PR) or an EXT terminal

Adjust the volume

1 Press the r (Volume) button

The volume level indicator appears.

2 Press the q buttons while the

volume level indicator is displayed

Remote control buttons and functions

1 Muting button 2 Number buttons 3 c button 4 i (hyper sound) button 5 Information button

TV OK

.T/L

6 b button 7 5 buttons 8 # (standby) button 9 Colour buttons 0 a button

- 6 buttons

= VCR/DVD/Teletext control button ~ VCR P DVD switch g (text) button

Turn the TV on or off from standby mode

Press the # (standby) button to turn the TV on or off.

When the TV is turned on, the power lamp dims slightly.

• The power can be turned on by pressing

the b button, 6 buttons or number buttons.

Remote control buttons and functions

Choose a TV channel and watch images from external devices

• If the picture is tilted, correct it. See “PICTURE TILT (Only for AV32T5SP)” on page 32.

 Use the number buttons:

Enter the programme number (PR) of the channel using the number buttons.

Example:

•PR 6 → press 6

• PR 12 → press 1 and 2

 Use the 6 buttons:

Press the the programme number (PR) you want or an EXT terminal.

 Use the o button:

Press the o button to choose an EXT terminal.

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

6 buttons to choose

EXT-1

EXT-2

EXT-3

• This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 terminal does not support this function.)

To return to a TV channel:

Press the b button, the 6 buttons or the number buttons.

To use the Programme number PR 0 (AV):

When the TV and VCR are connected only by the Aerial cable, choosing the Programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the Programme number PR 0 (AV) manually. For details, see “EDIT/ MANUAL” on page 25. Pressing the o button changes the choice as follows:

TV mode EXT modes

Programme

numbers

PR 1 – PR 99

PR 0

EXT-1

EXT-2

EXT-3

EXT-4

ENGLISH

EXT-4

• You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “y (SVIDEO input)” on page 30.

• If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 20.

• If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

• The VCR RF channel is sent as the RF signal from the VCR.

• Also refer to your VCR instruction manual.

Remote control buttons and functions

Adjust the volume

Press the 5 buttons to adjust the volume.

The Volume indicator appears and the volume changes as you press the 5 buttons.

 Muting the sound

Press the l (muting) button to turn off the sound.

Pressing the l (muting) button again restores the previous volume level.

Information function

You can see the current time or the PR LIST. From the PR LIST, you can choose a channel or EXT terminal.

Press the h (Information) button to display the information you want to

see.

Pressing the h (Information) button changes the display as follows:

PR LIST

PR ID AV

BBC1

1 2 3 4 5 6

TV OK

+7-7

D0011-EN

Time display:

• An incorrect current time is sometimes displayed when watching videos.

12 : 00

No indication

PR LIST:

• For programme numbers (PR) for which

the CHILD LOCK function is set, the n (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 23.

ZOOM function

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

AUTO:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to 16:9 ZOOM mode or FULL mode according to the WSS signal. If a WSS signal is not included, the picture is displayed in accordance with the ZOOM mode set with the 4:3 AUTO ASPECT function.

• For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 21.

• When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the c button and change to another ZOOM mode.

REGULAR:

Use to view a normal picture (4:3 aspect ratio) as its original size is.

Remote control buttons and functions

PANORAMIC:

This mode stretches the left and right sides of a normal picture (4:3 Aspect Ratio) to fill the screen, without making the picture appear unnatural.

• The top and bottom of the picture are slightly cut off.

14:9 ZOOM:

This mode zooms up the Wide Picture (14:9 Aspect Ratio) to the upper and lower limits of the screen.

16:9 ZOOM:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) to the full screen.

16:9 ZOOM SUBTITLE:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) with subtitles to the full screen.

FULL:

This mode uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

 Choose the ZOOM mode

1 Press the c button to display

the ZOOM menu

ZOOM

AUTO REGULAR PANORAMIC 14:9 ZOOM 16:9 ZOOM 16:9 ZOOM SUBTITLE FULL

TV OK

D0009-EN

•The c button does not work in

the twin pictures mode.

2 Press the 6 buttons to choose a

ZOOM mode. Then press the a button

The picture expands and the chosen ZOOM mode is displayed in about 3 seconds.

• The ZOOM mode may be automatically changed due to the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

 Adjusting the visible area of the


If subtitles or the top (or bottom) of the picture are cut off, adjust the visible area of the picture manually.

1 Press the c button

The ZOOM menu appears.

ENGLISH

Use for pictures with a 16:9 aspect ratio that have been squeezed into a normal picture (4:3 aspect ratio), you can restore their original dimensions.

2 Press the a button to display the

ZOOM mode indication

Indicator is displayed.

16 : 9 ZOOM

D0010-EN

3 While it is displayed, press the 6

buttons to adjust the visible area vertically

• You cannot adjust the visible area in REGULAR or FULL mode.

Remote control buttons and functions

The visible area adjustment is saved even after the TV channel is changed. However, it is cancelled if the following operations are performed.

• The power is turned off/on

• The ZOOM mode is changed

• The g (Text) button is pressed

• The TV is switched between TV mode and EXT mode

HYPER SOUND function

You can enjoy sounds with a wider ambience.

Press the / (hyper sound) button to turn the HYPER SOUND function on or off

• The HYPER SOUND function does not work properly with mono sound.

• The HYPER SOUND function can be also turned on or off by using the SOUND menu. For details, see “HYPER SOUND” on page 22.

• The HYPER SOUND function works only for the audio signal output from TV channels. It cannot work for the audio signal input from EXT sources.

• The HYPER SOUND function affects the audio signal output from the EXT-1 and EXT-2 terminals. If you want to output the normal audio signal from the EXT terminals, turn the HYPER SOUND function off.

Return to TV channel instantly

You can return to a TV channel instantly.

Operating a JVC brand VCR or DVD player

You can operate a JVC brand VCR or DVD player. Pressing the button having the same appearance as the original remote control button of a device makes the function work in the same way as the original remote control.

1 Set the VCR P DVD switch to the

VCR or DVD position VCR:

When you are operating the VCR, set the switch to the VCR position.

DVD:

When you are operating the DVD player, set the switch to the DVD position.

2 Press the VCR/DVD Control Button

to control your VCR or DVD player

• If your device is not made by JVC, these buttons cannot be used.

• Even if your device is made by JVC, some of these buttons or any one of the buttons may not work, depending on the device.

• You can use the p buttons to choose a TV channel. The VCR will receive or choose the chapter the DVD player plays back.

• Some DVD player models use the p buttons for both operating of Fast forward/backward functions and choosing the chapter. In this case, the 253 buttons do not work.

Press the b button

The TV returns to the TV mode and a TV channel appears.

Teletext function

TV OK

.T/L

Basic operation

1 Choose a TV channel with a teletext

broadcast

2 Set the VCR P DVD switch to the

g (Text) position

3 Press g (Text) button to display

the teletext

Pressing g (Text) button changes the mode as follows:

4 Choose a teletext page by pressing

the 6 buttons, number buttons or colour buttons

To return to the TV mode:

Press the b button or g (Text) button.

• If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

• The ZOOM function will not work in the TV and text mode or Text mode.

• No menu operations are possible when viewing a teletext programme.

• Language display depends on the country which was set on the COUNTRY menu. If characters on a Teletext programme do not appear properly, change the COUNTRY setting to other country’s. To change the COUNTRY setting, perform steps 1 and 2 of the “AUTO PROGRAM” procedure on page 25 and then press the a button.

The last teletext page displayed is memorised. The last teletext page is cleared under following conditions.

• Turning the power off

• Changing the channel

• Switching the TV input

• Pressing the b button

ENGLISH

D1043

TV mode

TEXT TEXT

---

Text mode

TEXT

---

TEXT

---

TV and text mode

Using the List Mode

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

 To store the page numbers:

1 Press B button to go into the

List mode

The page numbers you have stored are displayed at the bottom of the screen.

Teletext function

2 Press a colour button to choose a

position. Then press the number buttons to enter the page number

 !

" # $

% & '



3 Press and hold down the A (Store)

button

The four page numbers blink white to show that they are stored in memory.

 To call up a stored page:

1 Press the B button to enter the

List mode

2 Press a colour button having a

stored page

To exit the List mode:

Press the B button again.

Hold

You can hold a teletext page on the screen for as long as you want, even while several other teletext pages are being received.

Press the C (Hold) button

Hold indication

Sub-page

Some teletext pages include sub-pages that are automatically displayed. You can hold any sub-page, or view it at any time.

1 Press the D (Sub-page) button to

operate the Sub-page function

2 Press the Number buttons to enter

a sub-page number

Example:

• 3rd sub-page → press 0, 0, 0 and 3.

To cancel the Sub-page function:

Press the D (Sub-page) button again.

Reveal

Some teletext pages include hidden text (such as answers to a quiz). You can display the hidden text.

Each time you press the E (Reveal) button, text is hidden or revealed

D0041

Size

You can double the height of the teletext display.

To cancel the Hold function:

Press C (Hold) button again.

D0040

Press the F (Size) button

D0042

Index

You can return to the index page instantly.

Press the G (Index) button

Returns to page 100 or a previously specified page.

Cancel

You can search for a teletext page while watching TV.

1 Press the number button to enter a

page number, or press a colour button

The TV searches for a teletext page.

2 Press H (Cancel) button

The TV programme appears.

3 Press H (Cancel) button to return

to a teletext page when the page number is on the screen

• The TV mode cannot be resumed even

by pressing the H (Cancel) button. A TV programme is temporarily displayed instead of the teletext programme.

Teletext function

ENGLISH

Using the TV’s menu

This TV has a number of functions you can operate using menus. To fully utilize all your TV’s functions, you need to understand the basic menu operating techniques fully.

TV OK

Blue button

Basic operation

1 Press the a button to display the

MENU (main menu)

PICTURE SOUND FEATURES SET UP

TV OK

D0060-EN

2 Press the 6 buttons to choose a

menu title, and press the a button

The menu appears.

To return to the previous menu:

Press the h (information) button.

To exit a menu instantly:

Press the b button.

4 Press the 5 buttons to choose

the setting of that function

• If you want to operate a function which appears only with its name, follow the descriptions of that function on the following pages.

• The display appearing at the bottom of a menu shows you a button on the remote control that you can use when you operate a chosen function.

TV OK

b button

D0053

a button

5 Press the a button to complete

the setting

The menu disappears.

• When watching the television with the NTSC system, the menus are displayed at about half of their normal vertical size.

3 Press the 6 buttons to choose a

function

• For details of the functions in the menus, see the following pages.

PICTURE menu


PICTURE MODE CONTRAST BRIGHT SHARP COLOUR HUE COLOUR TEMP. FEATURES

TV OK

D0014-EN

SOFT

NORMAL

RESET

• While the PICTURE menu is displayed, pressing the blue button will set the CONTRAST, BRIGHT, SHARP, COLOUR, HUE settings to their default settings.

PICTURE MODE

You can choose one of three PICTURE MODEs to adjust the picture settings automatically.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

CONTRAST

You can adjust the picture contrast.

2 :lower 3 : higher

BRIGHT

You can adjust the picture brightness.

2 : darker 3 : brighter

COLOUR

You can adjust the picture colour.

2 : lighter 3 :deeper

HUE

You can adjust the picture tint.

2 : reddish 3 :greenish

• You can change the HUE setting (picture hue) when the colour system is NTSC

3.58, or NTSC 4.43.

COLOUR TEMP.

COOL:

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL:

The normal white colour.

WARM:

A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

ENGLISH

SHARP

You can adjust the picture sharpness.

2 : softer 3 :sharper

PICTURE menu

FEATURES

Choose FEATURES and press the a or 3 button to display the sub-menu.

FEATURES

AUTO VNR COLOUR SYSTEM 4:3 AUTO ASPECT

TV OK

D1015-EN

 AUTO VNR

VNR stands for “video noise reduction”.

AUTO:

This mode reduces any “noise” (interference or snowing) in the current picture. The function also adjusts the optimum sharpness of the picture (SHARP).

OFF:

MIN:

This mode reduces any noise irrespective of state of the picture. If you set the mode to AUTO but feel that the sharpness of the original picture has not been reproduced, change the mode MIN. However, any noise remaining in the original picture may be emphasized a little. And this may reduce the sharpness of the picture a little.

MAX:

This mode always reduces any noise as much as possible, irrespective of state of the picture. When you set the mode to AUTO but still notice some noise, change the mode to MAX. However, this may reduce the sharpness of the picture.

MIN

 COLOUR SYSTEM

The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

1 Choose COLOUR SYSTEM. Then

press the a or 3 button

The sub-menu of the COLOUR SYSTEM function appears.

COLOUR SYSTEM

PAL

TV OK

D0016-EN

2 Press the 5 buttons to choose

the appropriate colour system. Then press the a button

PAL:

PAL system

SECAM:

SECAM system

NTSC 3.58:

NTSC 3.58 MHz system

NTSC 4.43:

NTSC 4.43 MHz system

AUTO:

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal.

• The AUTO function may not function properly if you have poor signal quality. If the picture is abnormal in the AUTO function, choose another colour system manually.

• When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC

3.58 or NTSC 4.43.

 4:3 AUTO ASPECT

You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (4:3 aspect ratio).

1 Choose 4:3 AUTO ASPECT then

press the a button

4:3 AUTO ASPECT

PANORAMIC REGULAR 14:9 ZOOM

TV OK

D0017-EN

2 Press the 6 buttons to choose a

ZOOM mode

PICTURE menu

ENGLISH

SOUND menu

SOUND

STEREO/ BASS TREBLE BALANCE HYPER SOUND

TV OK

D0019-EN

OFF

STEREO / I • II

When you are viewing a bilingual broadcast programme, you can choose the sound from Bilingual I (Sub I) or Bilingual II (Sub II). When the stereo broadcasting is received poorly, you can change from stereo to mono sound so that you can hear the broadcast more clearly and easily.

s: Stereo sound

v : mono sound

t : Bilingual I (sub I)

u : Bilingual II (sub II)

• The sound mode you can choose differs depending on the TV programme.

• This function does not work in the EXT modes.

HYPER SOUND

You can enjoy sounds with a wider ambience.

ON:

This function is turned on.

OFF:

This function is turned off. The menu disappears.

• The HYPER SOUND function does not work properly with mono sound.

• You can turn on or off the HYPER SOUND function with a single press. For details, see “HYPER SOUND function” on page 14.

• The HYPER SOUND function works only for the audio signal output from TV channels. It cannot work for the audio signal input from EXT sources.

BASS

You can adjust the low tone of the sound.

2 : weaker 3 :strong

TREBLE

You can adjust the high tone of the sound.

2 : weaker 3 :strong

BALANCE

You can adjust the volume balance between the left and right speaker.

2 : turn the left speaker’s volume level up. 3 : turn the right speaker’s volume level up.

FEATURES menu

FEATURES

SLEEP TIMER

TV OK

D0023-EN

BLUE BACK CHILD LOCK

SLEEP TIMER

You can set the TV to automatically turn off after a specified period of time.

1 Choose SLEEP TIMER. Then press

the a or 3 button

A Sub-menu of the SLEEP TIMER function appears.

SLEEP TIMER

0120

OFF

TV OK

D0024-EN

2 Press the 5 buttons to set the

period of time. Then press the a button

You can set the period of time a maximum of 120 minutes (2 hours) in 10 minute increments.

• One minute before the SLEEP TIMER function turns off the TV, “GOODNIGHT!” appears.

• The SLEEP TIMER function cannot be used to turn off the TV’s main power.

• When the SLEEP TIMER function is on, you can display the Sub-menu of the SLEEP TIMER function again to confirm and/or change the remaining period of time of the SLEEP TIMER function. Press the a button to exit the menu after confirming and / or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 2 button to set a period of time to “OFF”.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON:

This function is turned on.

OFF:

This function is turned off.

CHILD LOCK

When there is a TV channel you wish your children not to watch, you can use the CHILD LOCK function to lock out the TV channel. Even when a child chooses a Programme number (PR) in which a locked TV channel has been registered, the screen will change to blue and displays n (CHILD LOCK) so the TV channel cannot be viewed. Unless you enter a pre-set ID number by a special operation, the lock cannot be released and the child cannot view the TV channel programmes.

 To set the CHILD LOCK function

1 Choose CHILD LOCK, then press

the 0 button

“SET ID NO.” (ID number setting screen) appears.

SET ID NO.

0000

TV OK

D0025-EN

2 Set the ID number to your liking

1 Press the 6 buttons to choose

a number.

2 Press the 5 buttons to move

the cursor.

ENGLISH

FEATURES menu

3 Press the a button

The Sub-menu of CHILD LOCK appears.

CHILD LOCK

TV OK

D0026-EN

PR ID AV

1 2 3 4 5 6

BBC1

CH/CC

CH CH CH CH CH CH

21 22 23 24 25 26

LOCK

4 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the a button

n (CHILD LOCK) appears and the TV channel is locked.

To reset the CHILD LOCK function:

Press the blue button again. n (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears by choosing the CHILD LOCK function and pressing the a button as in the ordinary menu operation.

 To view a locked TV channel

1 Choose a Programme number (PR)

in which a TV channel locked with the Number buttons or PR LIST

The screen changes to blue and the n (CHILD LOCK) appears. You cannot view the TV channel.

D0027-EN

2 Press the h (Information) button

while the n (CHILD LOCK) is displayed

The “ID NO.” (ID NO. input screen) appears.

ID NO. :

D0028-EN

3 Press the Number buttons to enter

the ID number

The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.

• Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled. The next time anyone attempts to view the TV channel, it will be locked again.

• When you would like to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

• To disable easy choosing of a Programme number (PR) in which a locked TV channel has been registered, the Programme number (PR) has been set that it cannot be chosen by the 6 buttons or the operation buttons at the TV.

• To disable easy resetting of the lock, “ID NO.” (ID NO. input screen) is set so that it cannot appear unless you press the h (Information) button.

SET UP menu

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING PICTURE TILT

TV OK

D0029-EN

OFF

AUTO PROGRAM

The AUTO PROGRAM function TV channel automatic registration which was performed in the “Initial settings” (page 5) can be preformed again.

1 Choose AUTO PROGRAM, then

press the a or 3 button

The COUNTRY menu appears as a submenu of the AUTO PROGRAM function. There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

COUNTRY

TV OK

D0003-EN

2 Press the 5 and 6 buttons to

choose the country where you are now located

3 Perform steps 5 and 6 of the “Initial

settings” (page 6)

START

EDIT/MANUAL

The EDIT/MANUAL functions are divided into two types: editing of the current Programme numbers (PR) (EDIT functions) and manual registration of a TV channel you want to view to the Programme number (PR) (MANUAL function). The details about these functions are as follows:

MOVE:

This function changes a Programme number (PR) of a TV channel.

ID:

This function registers a Channel name (ID) to a TV channel.

INSERT:

This function adds a new TV channel in the current Programme numbers (PR) list by using the CH/CC number.

• You cannot use the INSERT function if you do not know a Channel number of a TV channel. Use the MANUAL function to register a TV channel in the Programme number (PR).

DELETE:

This function deletes an unnecessary TV channel.

MANUAL:

This function manually registers a new TV channel in a Programme number (PR).

Caution

• Using the MOVE, DELETE or INSERT function rewrites the current Programme numbers (PR) list. Resultingly, the Programme number (PR) of some of the TV channels will change.

• Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for the TV channel.

• Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for the TV channel to OFF.

• When a TV channel has already been registered in PR 99, using the INSERT function deletes the TV channel.

ENGLISH

SET UP menu

 Basic operation

1 Choose EDIT/MANUAL, then press

the a or 3 button

The EDIT menu appears.

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0038-EN

2 Follow the operation description of

a function you want to use and operate the function

3 Press the a button to complete

the settings

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

If you do not have a T-V LINK compatible VCR connected:

Press the b button to exit the T-V LINK menu. The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on page 7 to transmit the Programme number (PR) data.

• For Programme number PR 0, “AV” appears in the Programme numbers (PR) list.

• An EXT terminal number does not appear in the Programme numbers (PR) list.

• The CH/CC number is a number unique to the TV and corresponding to the Channel number of a TV channel. For the relationship of a Channel number and a CH/CC number, see “CH/CC numbers” on page 35.

BBC1

MOVE

EXIT

CH/CC CH

INSERT DELETE

MANUAL

 MOVE

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the 3 button to start the

MOVE function

EDIT

TV OK

D0030-EN

PR ID AV

1 2 3 4 5 6

BBC1

STORE

CH/CC CH

CH CH CH CH CH

CH 22 23 24 25 26

3 Press the 6 buttons to choose a

new Programme number (PR)

To cancel the MOVE function:

Press the h (Information) button.

4 Press the 2 button to change the

Programme number (PR) of a TV channel to a new Programme number (PR)

 DELETE

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the yellow button to delete

the TV channel

The TV channel is deleted from the Programme numbers (PR) list.

SET UP menu

 ID

1 Press the 6 buttons to choose a

TV channel

Every time you press the 6 buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the red button to start the ID

function

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0031-EN

3 Press the 6 buttons to choose

the first character of a Channel name (ID) you want to attach to the TV channel

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0032-EN

4 Press the blue button to display the

ID LIST (channel name list)

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0033-EN

BBC1

MOVE

BBC1

CH/CC CH

INSERT DELETE

CH/CC CH

MANUAL

ID LIST

M6 MCM MDR MTV MTV1 MTV2 MTV3

5 Press the 6 buttons to choose

the Channel name (ID)

To cancel the ID function:

Press the h (Information) button.

6 Press the a button to register a

Channel name (ID) to a TV channel

• You can register your unique Channel name (ID) to the TV channel. When step 3 is completed, do not go to step 4, but press the 5 buttons to move the cursor and the 6 buttons to choose a character for completing the Channel name (ID). Then press the a button to register the Channel name (ID) to the TV channel.

Before performing INSERT or MANUAL operation

• If you register the TV channel (SECAML system) from a French station, be sure to set the COUNTRY setting to FRANCE. If the COUNTRY setting is not set to FRANCE, perform steps 1 and 2 of the “AUTO PROGRAM” (page 25) procedure and set the COUNTRY setting to FRANCE before pressing the a button.

• A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC numbers” on page 35 based on the Channel number of the TV channel.

• When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

ENGLISH

SET UP menu

 INSERT

1 Press the 6 buttons to choose a

Programme number (PR) for which you will register a new TV channel

2 Press the green button and start

the INSERT function

EDIT

PR ID AV

1 2 3 4 5 6

TV OK

D0034-EN

3 Press the 6 buttons to choose

“CC” or “CH” according to the CH/ CC number of the TV channel

When the COUNTRY setting is FRANCE:

Choose “CH1”, “CH2”, “CC1” or “CC2”.

To cancel the INSERT function:

Press the h (Information) button.

4 Press the Number buttons to enter

the remaining CH/CC number

The TV shifts to registration mode. When the registration is completed, the picture of the TV channel appears on the screen.

• The CH/CC number is a number indicating the broadcast frequency to the TV. If the TV cannot detect the TV channel corresponding to the broadcast frequency indicated by the CH/CC number, a picture in the no-signal state appears.

BBC1

CH/CC

CH/CC CH CH CH CH CH CH CH

36 21 22 23 24 25

0-9

 MANUAL

1 Press the 6 buttons to choose a

Programme number (PR) to which you want to register a new TV channel

2 Press the blue button to activate

the MANUAL function

At the right side following the CH/CC number, the SYSTEM (broadcasting system) of the TV channel appears.

MANUAL

PR ID AV

1 2 3 4 5 6

TV OK

D0035-EN

To cancel the MANUAL function:

Press the h (Information) button.

3 Press the 3 button to choose the

SYSTEM (broadcasting system) for a TV channel you want to register

TV channel (SECAM-L system) from a French station:

Set the SYSTEM to “L”. If it is set to one other than “L”, you cannot receive the TV channel of the SECAM-L system.

Other TV channels:

If you do not know the correct broadcasting system, set the SYSTEM to “B/G”. If “B/G” is not correct, it results in the fact that you will not hear the sound normally when the TV detects a TV channel. In this case, retry to set the SYSTEM again correctly so that no problem arises.

BBC1

SYSTEM

SEARCH+

CH/CC CH CH CH CH CH CH CH

SEARCH-

36 21 22 23 24

(

)

B / G

FINE-

FINE+

4 Press the green or red button to

search for a TV channel

Scanning stops when the TV finds a TV channel. Then the TV channel is displayed.

SET UP menu

5 Press the green or red button

repeatedly until the TV channel you want appears

If the TV channel reception is poor:

Press the blue or yellow button to finetune the TV channel.

If you cannot hear the normal sound even when the picture of the TV channel appears normally:

The SYSTEM setting is wrong. Press the 3 button and choose a SYSTEM that has normal sound.

6 Press the a button and register

the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

LANGUAGE

The LANGUAGE setting which was performed in the “Initial settings” (page 5) can be changed.

1 Choose LANGUAGE, then press

the a or 3 button

A sub-menu of the LANGUAGE function appears.

LANGUAGE

TV OK

D1002(E)-EN

2 Press the 5 and 6 buttons to

choose a language. Then press the a button

DECODER (EXT-2)

When connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, use the DECODER (EXT-

2) function to unscramble the scrambled TV channels.

1 Turn on the Decoder power

2 Display the TV channel capable of

being unscrambled with the Decoder on the TV

Even if the Decoder is functioning, a scrambled picture appears at this time.

3 Display the SET UP menu and

choose DECODER (EXT-2)

SET UP

AUTO PROGRAM EDIT/MANUAL LANGUAGE DECODER(EXT-2) EXT SETTING PICTURE TILT

TV OK

D0029-EN

4 Press the 5 buttons to choose

An unscrambled picture appears.

To cancel the DECODER (EXT-2) function:

Press the 5 buttons to choose OFF.

5 Press the a button to complete

the setting

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV RECORDING DEVICE

TV OK

D0005-EN

EXIT

You can send the programme numbers data to a VCR with the T-V LINK function.

OFF

ENGLISH

SET UP menu

6 Turn on the VCR, and then press

the a button to transmit the data to VCR

The T-V LINKmenu disappears once the data transmission ends.

7 If you have another TV channel

capable of being unscrambled with a Decoder, repeat steps 2 through 6

If for some reason the DECODER (EXT-

2) function has been set to “ON” but the TV channel cannot be unscrambled, check the following:

• Has the Decoder been connected to the VCR properly according to the VCR and Decoder Instruction Manuals?

• Has the Decoder power been turned on?

• Can the TV channel be unscrambled with a Decoder?

• Is it necessary to change the VCR settings in order to connect the Decoder? Confirm that the VCR is set properly by rechecking the VCR Instruction Manual.

EXT SETTING

1 Choose EXT SETTING, then press

the a or 3 button

The EXT SETTING menu appears.

EXT SETTING

EXT-1

EXT-3

EXT-4

D0020-EN

DUBBING

EXT-2

TV OK

ID LIST

S-IN

2 Follow the operation description of

a function you want to use and operate the function

You can enjoy high-quality picture of the 2 S-VIDEO signal (Y/C signal).

ID LIST:

You can have a name corresponding to the devices connected for each EXT terminal.

DUBBING:

You can choose a signal source to be output from an EXT-2 terminal.

 y (S-VIDEO input)

When connecting a device (such as S-VHS VCR) which enables an S-VIDEO signal (Y/ C signal) to be output, you can enjoy highquality picture of the S-VIDEO signal (Y/C signal).

Preparation:

• At first, read the Device Instruction Manual and “Additional preparation” on page 33 to connect the device to the TV properly. Second, follow the Device Instruction Manual to set the device so that an S-VIDEO signal (Y/C signal) can be output to the TV.

• Do not set y (S-VIDEO input) to the EXT terminal connected to a device which cannot output an S-VIDEO (Y/C signal). If it is set wrongly, a picture cannot appear.

1 Press the 5 or 6 buttons to

choose an EXT terminal

EXT SETTING

EXT-1

EXT-3

EXT-4

D0020-EN

DUBBING

EXT-2

TV OK

ID LIST

S-IN

SET UP menu

2 Press the yellow button and set the

y (S-VIDEO input). Then press the a button

An y (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the y (S-VIDEO input) setting:

Press the yellow button and turn off y (SVIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

• The EXT-1 terminal does not support SVIDEO signal (Y/C signal) and you cannot set y (S-VIDEO input) in the EXT-1 terminal.

• Setting y (S-VIDEO input) changes the head character from “E” to “S”. For example, “E2” is changed to “S2”.

• Even a device which enables the SVIDEO signal (Y/C signal) to be output may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because y (S-VIDEO input) setting has been made, read the device Instruction Manual carefully again to check for the device settings.

 ID LIST

You can have a name corresponding to the devices connected for each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with the name.

1 Press the 5 or 6 buttons to

choose an EXT terminal

2 Press the blue button to display the

name list (ID LIST)

EXT SETTING

EXT-1

EXT-3

EXT-4

D0021-EN

DUBBING

EXT-2

TV OK

3 Press the 6 buttons to choose a

name. Then press the a button

The ID LIST disappears and the name is assigned to the EXT terminal.

• You cannot assign an EXT terminal name not found in the name list (ID LIST).

To erase a name assigned to the EXT terminal:

Choose a blank space.

4 Press the a button to complete

the setting

ID LIST

VHS S-VHS DVC CAM SAT

ENGLISH

SET UP menu

 DUBBING

You can choose a signal source to be output from an EXT-2 terminal. You can choose any one of the output signal of the device connected to the EXT terminal and the picture and sound from a TV channel you are currently viewing to output it to the EXT-2 terminal.

1 Press the 5 buttons to choose

the arrow from the menu

EXT SETTING

EXT-1

EXT-3

EXT-4

D0022-EN

2 Press the 6 buttons to choose an

EXT terminal or TV. Then press the a button

The arrow in the menu represents a signal flow. The left side of the arrow denotes a signal source output from the EXT-2 terminal.

EXT-1/EXT-3/EXT-4:

The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

TV:

The picture and sound of the TV channel you are currently viewing are output from the EXT-2 terminal.

DUBBING

EXT-2

TV OK

• During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

• The RGB signals from the TV games cannot be output. Teletext programmes cannot be output.

PICTURE TILT (Only for AV32T5SP)

There are cases where the Earth’s magnetic force may make the picture tilt or make unnatural colours appear in the corner of the screen. If this happens, you can correct it.

1 Choose PICTURE TILT, then press

the a or 3 button

The sub-menu of the PICTURE TILT function appears.

PICTURE TILT

TV OK

D0018-EN

2 Press the 6 buttons until the

picture becomes level. Then press the a button

Additional preparation

Connecting the external devices

Connect the devices to the TV, paying attention to the following connection diagram.

Before connecting anything:

• Read the manuals provided with the devices. Depending on the devices, the connection method may differ from the figure. In addition, the device settings may be changed depending on the connection method to secure proper operation.

• Turn off all the devices including the TV.

• The “Specifications” on page 40 contains the details of the EXT terminals. If you are connecting a device not listed in the following connection diagram, see the table to choose the best EXT terminal.

• Note that connecting cables are not supplied.

Side of the TV

1 VCR (composite signal) 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite

signal/S-VIDEO signal)

4 Decoder 5 DVD player (composite signal/S-VIDEO

signal)

6 DVD player (composite signal/RGB

signal)

7 TV game (composite signal/RGB signal) 8 TV game (composite signal) 9 Headphones 0 Camcorder (composite signal/S-VIDEO

signal)

- SCART cable = Audio cable ~ Video cable

ENGLISH

MONO

EXT-4

MONO

EXT-4

Back of the TV

Additional preparation

 Devices which can output the S-

VIDEO signal (Y/C signal) such as an S-VHS VCR

Connect the device to an EXT terminal other than the EXT-1 terminal. You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details of how to operate the device, see “y (SVIDEO input)” on page 30.

 T-V LINK compatible VCR

Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

• When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the Decoder to the VCR. If not, the T-V LINK function may not work properly. After you have registered TV channels to the Programme numbers (PR), set the DECODER (EXT-2) function for the Programme number (PR) to ON in order to unscramble a scrambled TV channel. For details of operation, see “DECODER (EXT-2)” on page 29.

 Connecting headphones

Connect the headphones with a stereo minijack (of 3.5 mm in diameter) to the headphone jack at the TV rear panel.

• No sound comes out from the TV speakers when the headphones are connected.

 Video/sound signal output from

the EXT-2 terminal

You can arbitrarily change over the output of the video/sound signal from the EXT-2 terminal. It is useful when you want to dub the video/sound from another device on the VCR connected to the EXT-2 terminal. For details on how to do this operation, see “DUBBING” on page 32.

 TV output from the EXT-1 terminal

The output of video/sound signal of a TV channel you are currently viewing is always output from the EXT-1 terminal.

• Changing over a Programme number (PR) also changes over the TV output from the EXT-1 terminal.

• The video/sound signal from an EXT terminal cannot be output.

• Teletext programmes cannot be output.

CH/CC numbers

When you want to use the INSERT function on page 28, find the CH/CC number corresponding to the Channel number of the TV channel from this table.

CH Channel

CH 02 / CH 202 E2

CH 03 / CH 203 E3, ITALY A

CH 04 / CH 204 E4, ITALY B

CH 05 / CH 205 E5, ITALY D

CH 06 / CH 206 E6, ITALY E

CH 07 / CH 207 E7, ITALY F

CH 08 / CH 208 E8

CH 09 / CH 209 E9, ITALY G

CH 10 / CH 210 E10, ITALY H

CH 11 / CH 211

CH 12 / CH 212

CH 21 / CH 221 E21

CH 22 / CH 222 E22

CH 23 / CH 223 E23

CH 24 / CH 224 E24

CH 25 / CH 225 E25

CH 26 / CH 226 E26

CH 27 / CH 227 E27

CH 28 / CH 228 E28

CH 29 / CH 229 E29

CH 30 / CH 230 E30

CH 31 / CH 231 E31

CH 32 / CH 232 E32

CH 33 / CH 233 E33

CH 34 / CH 234 E34

CH 35 / CH 235 E35

CH 36 / CH 236 E36

CH 37 / CH 237 E37

CH 38 / CH 238 E38

CH 39 / CH 239 E39

E11, ITALY H+1

E12, ITALY H+2

CH Channel

CH 40 / CH 240 E40

CH 41 / CH 241 E41

CH 42 / CH 242 E42

CH 43 / CH 243 E43

CH 44 / CH 244 E44

CH 45 / CH 245 E45

CH 46 / CH 246 E46

CH 47 / CH 247 E47

CH 48 / CH 248 E48

CH 49 / CH 249 E49

CH 50 / CH 250 E50

CH 51 / CH 251 E51

CH 52 / CH 252 E52

CH 53 / CH 253 E53

CH 54 / CH 254 E54

CH 55 / CH 255 E55

CH 56 / CH 256 E56

CH 57 / CH 257 E57

CH 58 / CH 258 E58

CH 59 / CH 259 E59

CH 60 / CH 260 E60

CH 61 / CH 261 E61

CH 62 / CH 262 E62

CH 63 / CH 263 E63

CH 64 / CH 264 E64

CH 65 / CH 265 E65

CH 66 / CH 266 E66

CH 67 / CH 267 E67

CH 68 / CH 268 E68

CH 69 / CH 269 E69

CC Channel

CC 01 / CC 201 S1

CC 02 / CC 202 S2

CC 03 / CC 203 S3

CC 04 / CC 204 S4

CC 05 / CC 205 S5

CC 06 / CC 206 S6

CC 07 / CC 207 S7

CC 08 / CC 208 S8

CC 09 / CC 209 S9

CC 10 / CC 210 S10

CC 11 / CC 211 S11

CC 12 / CC 212 S12

CC 13 / CC 213 S13

CC 14 / CC 214 S14

CC 15 / CC 215 S15

CC 16 / CC 216 S16

CC 17 / CC 217 S17

CC 18 / CC 218 S18

CC 19 / CC 219 S19

CC 20 / CC 220 S20

CC 21 / CC 221 S21

CC 22 / CC 222 S22

CC 23 / CC 223 S23

CC 24 / CC 224 S24

CC 25 / CC 225 S25

CC 26 / CC 226 S26

CC 27 / CC 227 S27

CC 28 / CC 228 S28

CC 29 / CC 229 S29

CC 30 / CC 230 S30

CC Channel

CC 31 / CC 231 S31

CC 32 / CC 232 S32

CC 33 / CC 233 S33

CC 34 / CC 234 S34

CC 35 / CC 235 S35

CC 36 / CC 236 S36

CC 37 / CC 237 S37

CC 38 / CC 238 S38

CC 39 / CC 239 S39

CC 40 / CC 240 S40

CC 41 / CC 241 S41

CC 75 / CC 275 X

CC 76 / CC 276 Y

CC 77 / CC 277 Z, ITALY C

CC 78 / CC 278 Z+1

CC 79 / CC 279 Z+2

ENGLISH

CH Channel

CH 102 F2

CH 103 F3

CH 104 F4

CH 105 F5

CH 106 F6

CH 107 F7

CH 108 F8

CH 109 F9

CH 110 F10

CH 121 F21

CH 122 F22

CH 123 F23

CH 124 F24

CH 125 F25

CH 126 F26

CH 127 F27

CH 128 F28

CH 129 F29

CH 130 F30

CH 131 F31

CH 132 F32

CH 133 F33

CH 134 F34

CH 135 F35

CH 136 F36

CH 137 F37

CH 138 F38

CH 139 F39

CH 140 F40

CH Channel

CH 141 F41

CH 142 F42

CH 143 F43

CH 144 F44

CH 145 F45

CH 146 F46

CH 147 F47

CH 148 F48

CH 149 F49

CH 150 F50

CH 151 F51

CH 152 F52

CH 153 F53

CH 154 F54

CH 155 F55

CH 156 F56

CH 157 F57

CH 158 F58

CH 159 F59

CH 160 F60

CH 161 F61

CH 162 F62

CH 163 F63

CH 164 F64

CH 165 F65

CH 166 F66

CH 167 F67

CH 168 F68

CH 169 F69

CC Frequency (MHz)

CC 110 116 - 124

CC 111 124 - 132

CC 112 132 - 140

CC 113 140 - 148

CC 114 148 - 156

CC 115 156 - 164

CC 116 164 - 172

CC 123 220 - 228

CC 124 228 - 236

CC 125 236 - 244

CC 126 244 - 252

CC 127 252 - 260

CC 128 260 - 268

CC 129 268 - 276

CC 130 276 - 284

CC 131 284 - 292

CC 132 292 - 300

CC 133 300 - 306

CC 141 306 - 311

CC 142 311 - 319

CC 143 319 - 327

CC 144 327 - 335

CC 145 335 - 343

CC 146 343 - 351

CC 147 351 - 359

CC 148 359 - 367

CC 149 367 - 375

CC 150 375 - 383

CC 151 383 - 391

CC Frequency (MHz)

CC 152 391 - 399

CC 153 399 - 407

CC 154 407 - 415

CC 155 415 - 423

CC 156 423 - 431

CC 157 431 - 439

CC 158 439 - 447

CC 159 447 - 455

CC 160 455 - 463

CC 161 463 - 469

CH/CC numbers

• When two CH/CC numbers correspond to one Channel number, choose either one according to the current COUNTRY setting. When the COUNTRY setting is other than FRANCE, choose a two-digit CH/CC number. When the COUNTRY setting is FRANCE, choose a three-digit CH/ CC number.

• Find the CH/CC number (CC110 to CC161) corresponding to the TV channel (SECAM-L system) from a French cable TV station, based on the broadcast frequency of the TV channel. When you do not know the broadcast frequency, please contact the cable TV station.

• The CH/CC numbers of CH102-CH169 and CC110-CC161 correspond to the TV channels being broadcast by a SECAM-L system. The other CH/CC numbers correspond to the TV channels being broadcast by a method other than a SECAM-L system.

Troubleshooting

If a problem arises while you are using the TV, please read this “Troubleshooting” well before you request having the TV repaired. You may be able to fix it easily by yourself. For example, if the AC plug is disconnected from the AC outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

Important:

• This Troubleshooting guide only covers problems whose cause are not easy to determine. If a question arise when you are operating a function, read the page(s) corresponding to the operation of the function well, not this Troubleshooting guide.

• After you have followed the Troubleshooting description or the operating description of the functions concerned without any success, remove the AC plug from the AC outlet and request a repair of your TV. Do not attempt to repair the TV by yourself or remove the rear cover of the TV.

• Flashing of the power lamp indicates a malfunction. Unplug the mains plug and ask for your TV to be repaired.

ENGLISH

 If you cannot turn on the TV

• Is the AC plug connected to the AC outlet?

 No picture/No sound

• Have you chosen a TV channel whose reception is extremely bad? In this case, the BLUE BACK function will be activated, the entire screen becomes blue, and the sound is muted. In spite of this, if you want to view the TV channel, follow the description “BLUE BACK” on page 23 to try to change the BLUE BACK function setting to OFF.

• If the SYSTEM setting for a TV channel is incorrect, it may prevent the sound from being issued. Follow the description “EDIT/MANUAL” on page 25 to use the MANUAL function to try to change the SYSTEM setting.

 Poor picture

• If noise totally obscures the picture (snow), the aerial or aerial cable may have trouble. Check the following to try to solve the trouble:

Has the TV and aerial been connected properly? Has the aerial cable been damaged? Is the aerial pointed to the right direction? Is the aerial itself faulty?

• If the TV or aerial receives interference from the other devices, stripes or noise may appear in the picture. Move such devices as an amplifier, personal computer, or a hair drier that can cause interference away from your TV, or try changing its location. If the aerial suffers interference from a radio tower or highvoltage wire, please contact your local dealer.

• If the TV receives interference from signal reflecting from mountains or building, double-pictures (ghosting) will occur. Try to change the aerial’s direction or replace the antenna with the one with better directionality.

• Are your COLOUR SYSTEM settings for the TV channels correct? Follow the description “COLOUR SYSTEM” on page 20 to try to solve the trouble.

• Has COLOUR or BRIGHT been controlled properly? Follow the description “BRIGHT” or “COLOUR” on page 19 to try to adjust them properly.

• Videotaping teletext is not recommended because it may not record correctly.

• When a white and bright still image (such as a white dress) is displayed on the screen, the white part may look as if it were coloured. It is a phenomenon unavoidable due to the nature of the picture tube itself, and not due to a TV failure. When the picture disappears from the screen, the unnatural colours will also disappear.

Troubleshooting

 Poor sound

• Have you adjusted BASS or TREBLE properly? If not, follow the description “BASS” or “TREBLE” on page 22 to try to adjust them properly.

• When the TV channel reception is poor, it can be hard to hear the stereo or bilingual sound. In this case, follow the description “STEREO / I • II” on page 22 to hear the sound more easily by changing it to a mono sound.

 Operation disabled

• Have the batteries of the remote control become exhausted? Follow the description “Putting the batteries into the Remote control” on page 5 and replace them with new batteries to try to solve the problem.

• Have you attempted to use the remote control at the sides or rear of the TV or at a location more than seven meters apart from the TV location? Operate the remote control in the front of your TV or a location less than seven meters from your TV to try to solve the problem.

• When you are viewing a teletext programme, you cannot operate the menus. Press the b button to return the teletext programme to the ordinary TV programme to try operating the menus.

• If the TV operation becomes disabled suddenly, press the Main power button on the TV and turn off the main power. Try to press the Main power button again to turn on the main power. If the TV returns to a normal state, it is not a failure.

 Other concerns

• When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV is turned off suddenly, try to press the # (Standby) button to turn on the TV once again. At this time, if the TV resumes a normal state, there is no problem.

• When a WSS signal is included in the broadcast signal or the signal from an external device, or when the TV is receiving a control signal from an external device, the ZOOM mode will change automatically. When you want to return to the previous ZOOM mode, press the c button to choose the ZOOM mode again.

• If you bring a magnetised device such as a speaker near to your TV, a picture may be warped or unnatural colours appear at the corners of the screen. In this case, keep the device apart from your TV. If the speakers causes such phenomena, use the magnetic-shielded speakers instead.

• A picture may be tilted due to the influence of the earth’s magnetism. In this case, use the “PICTURE TILT (Only for AV-32T5SP)” on page 32 to complete the tilt.

• It takes a short period of time from the time an operation such as changing channels is performed until an image is displayed. This is not a malfunction. This is the time required for the image to stabilize before it can be displayed.

• The TV may emit a crackling sound due to a sudden change in temperature. It does not matter if a picture or sound does not show any abnormality. If you hear crackling sounds frequently while you are viewing the TV, other causes may be assumed. For precautionary purposes, request your service technician to inspect it.

• Touching the screen may cause you feel a slight electric shock due to its static electricity. It is an unavoidable phenomenon due to the construction of the picture tube. It is not a problem with the TV. You can rest assured that this static discharge does not have harmful influence over the human body.

Troubleshooting

ENGLISH

Specifications

Item

Broadcasting systems CCIR B/G, I, L Colour systems PAL, SECAM

Channels and frequencies • E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY

Sound-multiplex systems A2 (B/G), NICAM (B/G, I, L) system Teletext systems FLOF (Fastext), TOP, WST (World Standard System) Power requirements 220 - 240 V AC, 50 Hz Power consumption 110 W, Standby: 2.7 W 110 W, Standby: 2.7 W Picture tube size Viewable area 76 cm

Audio output Rated Power output: 10 W + 10 W Speakers (13 cm × 6.5 cm) oval × 2 EXT-1 terminal Euroconnector (21-pin, SCART)

EXT-2 terminal Euroconnector (21-pin, SCART)

EXT-3 terminal Euroconnector (21-pin, SCART)

EXT-4 terminal RCA connectors × 3

Model

• The EXT terminals also support the NTSC 3.58/4.43 MHz system.

H+2, F2-F10, F21-F69

• French cable TV channel of broadcast frequencies 116 - 172 MHz and 220 469 MHz

(measured diagonally)

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

• Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available.

• Video and Audio L/R outputs are available.

• T-V LINK functions are available.

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video input and Audio L/R inputs are available.

AA/R6 dry cell battery × 2

AV-32T5SP AV-28T5SP

Viewable area 66 cm (measured diagonally)

Design and specifications subject to change without notice.

LCT1795-001A-U 0205MKH-CR-MU

JVC AV-32T5SK, AV-32T5BK, AV-28T5SK, AV-28T5BK, AV-32T5SR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Setting up your TV

Connecting the aerial and video cassette recorder (VCR)

Connecting the power cord to the AC outlet

Putting the batteries into the remote control

Initial settings

T-V LINK functions

TV buttons and functions

Turn the main power on

Turn the TV on from standby mode

Choose a TV channel

Adjust the volume

Remote control buttons and functions

Turn the TV on or off from standby mode

Choose a TV channel and watch images from external devices

Adjust the volume

Information function

ZOOM function

HYPER SOUND function

Return to TV channel instantly

Operating a JVC brand VCR or DVD player

Teletext function

Basic operation

Using the List Mode

Hold

Sub-page

Reveal

Size

Index

Cancel

Using the TV’s menu

Basic operation

PICTURE menu

PICTURE MODE

CONTRAST

BRIGHT

COLOUR

COLOUR TEMP.

SHARP

FEATURES

SOUND menu

STEREO / I • II

BASS

HYPER SOUND

TREBLE

BALANCE

FEATURES menu

SLEEP TIMER

BLUE BACK

CHILD LOCK

SET UP menu

AUTO PROGRAM

EDIT/MANUAL

LANGUAGE

DECODER (EXT-2)

EXT SETTING

Additional preparation

Connecting external equipment

Troubleshooting

Specifications

Setting up your TV

Connecting the aerial and VCR

Connecting the power cord to the AC outlet

Putting the batteries into the Remote control

Initial settings

T-V LINK functions

TV buttons and functions

Turn the Main power on

Turn the TV on from standby mode

Choose a TV channel

Adjust the volume

Remote control buttons and functions

Turn the TV on or off from standby mode

Choose a TV channel and watch images from external devices

Adjust the volume

Information function

ZOOM function
