SCHEMATIC DIAGRAMS
COLOUR TELEVISION
YA26020052
AV-32T5SP, AV-32T5SK, AV-32T5SR, AV-32T5BR, AV-32T5BK
CD-ROM No.SML200503
BASIC CHASSIS
JW2
1
2
3
4
5
6
7
8
9
0
AV
MENU
P
TV OK
P
/L
.T
F
TV
COPYRIGHT © 2005 Victor Company of Japan, Limited
No.YA260
2005/3
AV-32T5SP, AV-32T5SK,AV-32T5SR,
AV-32T5BR,AV-32T5BK
STANDARD CIRCUIT DIAGRAM
NOTE ON USING CIRCUIT DIAGRAMS
1.SAFETY
The components identified by the symbol and shading are
critical for safety. For continued safety replace safety ciritical
components only with manufactures recommended parts.
2.SPECIFIED VOLTAGE AND WAVEFORM VALUES
The voltage and waveform values have been measured under the
following conditions.
(1)Input signal : Colour bar signal
(2)Setting positions of
each knob/button and
variable resistor
(3)Internal resistance of tester
(4)Oscilloscope sweeping time
(5)Voltage values
Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.
: Original setting position
when shipped
: DC 20kΩ/V
: H
: V
: Othters
: All DC voltage values
20µs / div
5ms / div
Sweeping time is
specified
3.INDICATION OF PARTS SYMBOL [EXAMPLE]
In the PW board
: R209
R209
Type
No indication
MM
PP
MPP
MF
TF
BP
TAN
(3)Coils
No unit
Others
(4)Power Supply
Respective voltage values are indicated
(5)Test point
: Test point
(6)Connecting method
: Ceramic capacitor
: Metalized mylar capacitor
: Polypropylene capacitor
: Metalized polypropylene capacitor
: Metalized film capacitor
: Thin film capacitor
: Bipolar electrolytic capacitor
: Tantalum capacitor
: [µH]
: As specified
: B1
: 9V
: Connector
: Receptacle
: Only test point display
: Wrapping or soldering
: B2 (12V
: 5V
)
4.INDICATIONS ON THE CIRCUIT DIAGRAM
(1)Resistors
Resistance value
No unit : [Ω]
K
M
Rated allowable power
No indication : 1/16 [W]
Others : As specified
Type
No indication
OMR
MFR
MPR
UNFR
FR
Composition resistor 1/2 [W] is specified as 1/2S or Comp.
(2)Capacitors
Capacitance value
1 or higher : [pF]
less than 1
Withstand voltage
No indication : DC50[V]
Others : DC withstand voltage [V]
AC indicated
Electrolytic Capacitors
47/50[Example]: Capacitance value [µF]/withstand voltage[V]
: [kΩ]
: [MΩ]
: Carbon resistor
: Oxide metal film resistor
: Metal film resistor
: Metal plate resistor
: Uninflammable resistor
: Fusible resistor
: [µF]
: AC withstand voltage [V]
(7)Ground symbol
: LIVE side ground
: ISOLATED(NEUTRAL) side ground
: EARTH ground
: DIGITAL ground
5.NOTE FOR REPAIRING SERVICE
This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be
taken for the following points.
(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. if the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.
(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected, a fuse or any parts will be broken.
Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.
NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.
(No.YA260)2-1
)
CONTENTS
SEMICONDUCTOR SHAPES ......................................................................2-2
BLOCK DIAGRAM ........................................................................................ 2-3
CIRCUIT DIAGRAMS
MAIN PWB CIRCUIT DIAGRAM ................................................................................................................ 2-5
CRT SOCKET PWB CIRCUIT DIAGRAM .................................................................................................. 2-11
AV JACK PWB CIRCUIT DIAGRAM ......................................................................................................... 2-13

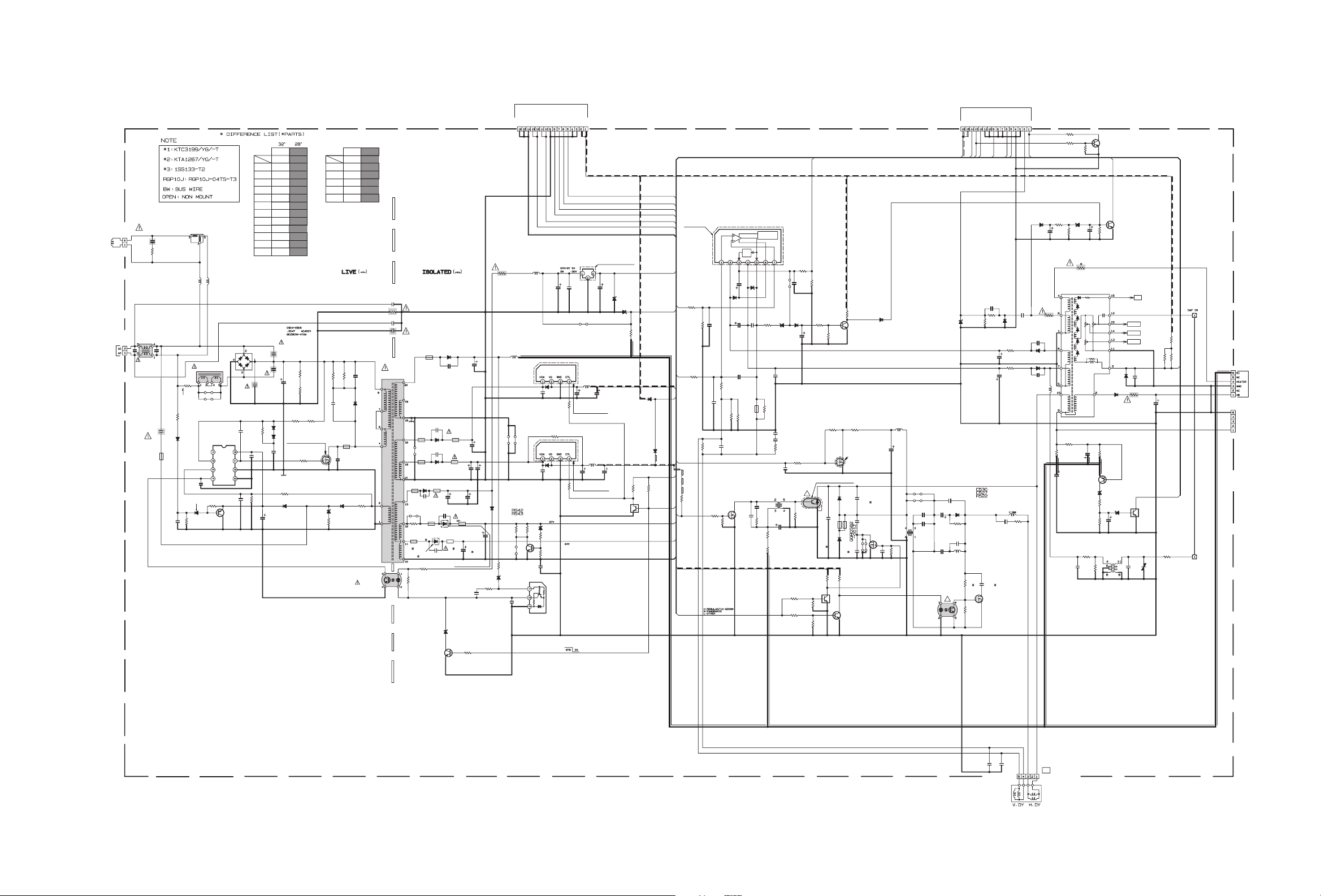

POWER & DEF PWB CIRCUIT DIAGRAM ............................................................................................... 2-15
FRONT BOARD PWB CIRCUIT DIAGRAM .............................................................................................. 2-17
SIDE BOARD PWB CIRCUIT DIAGRAM .................................................................................................. 2-19
PATTERN DIAGRAMS

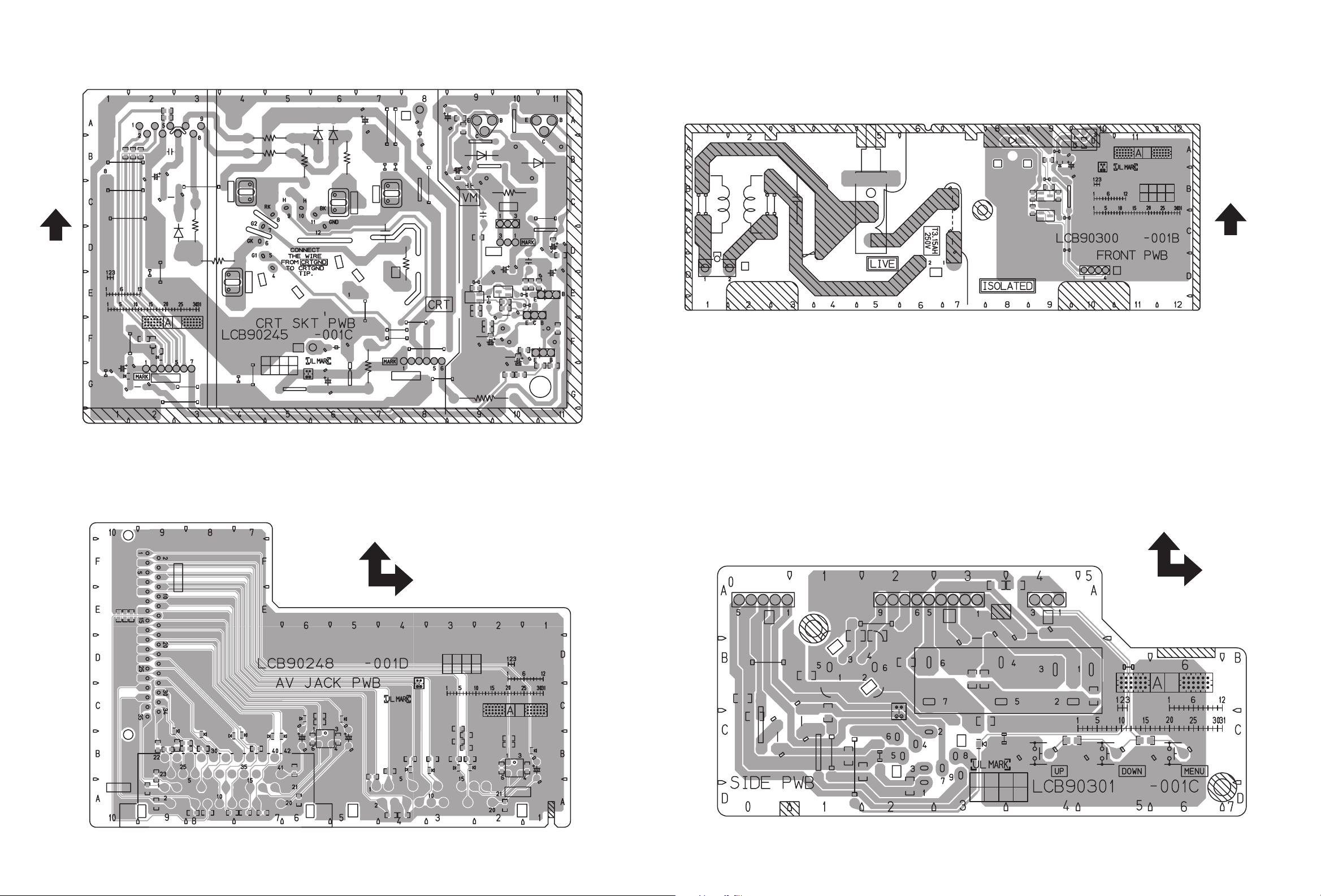

MAIN PWB PATTERN .............................................................................................................................. 2-21

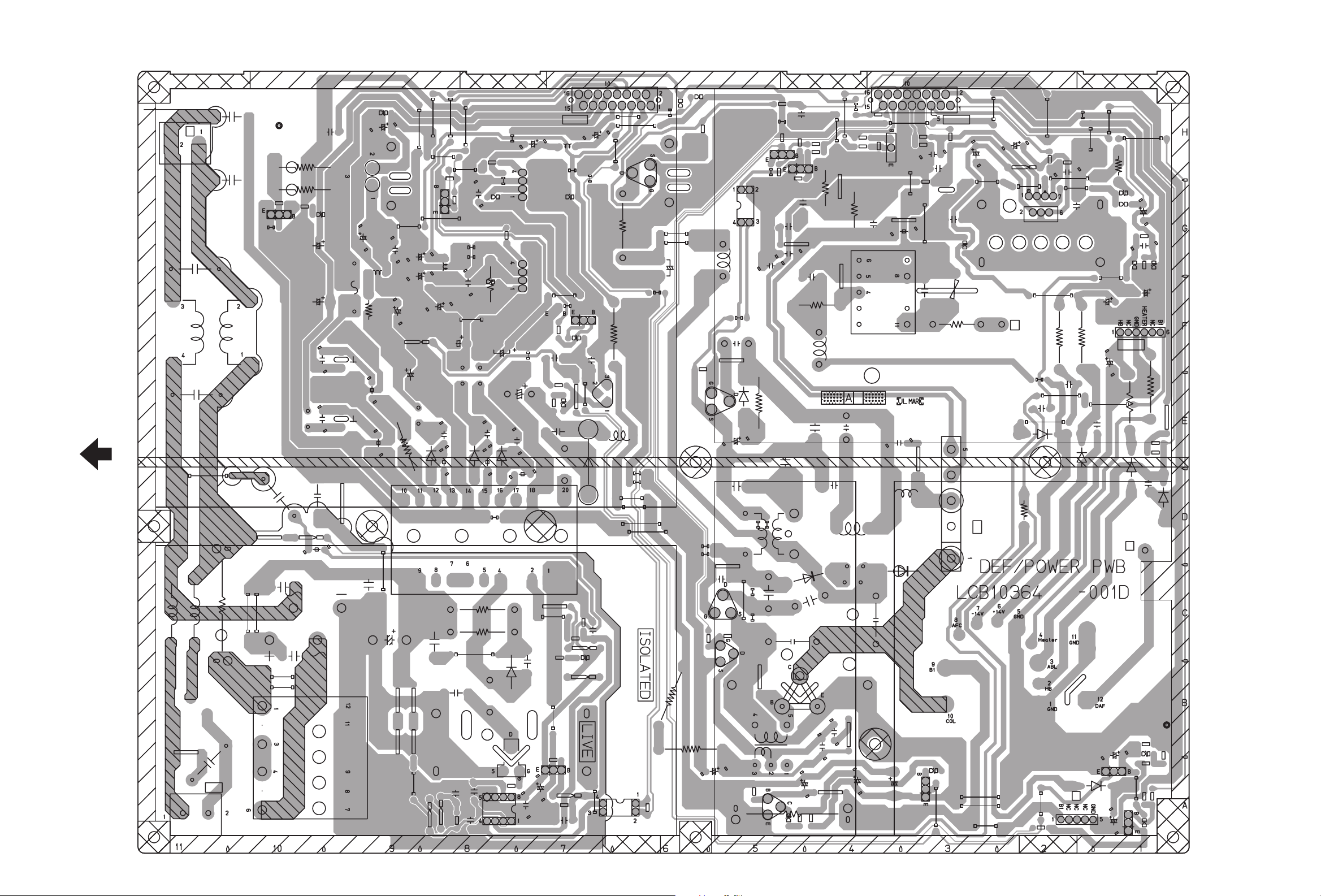

POWER & DEF PWB PATTERN ............................................................................................................... 2-23
CRT SOCKET PWB PATTERN ................................................................................................................. 2-25
AV JACK PWB PATTERN ........................................................................................................................ 2-25
FRONT BOARD PWB PATTERN .............................................................................................................. 2-26
SIDE BOARD PWB PATTERN .................................................................................................................. 2-26
VOLTAGE CHARTS .................................................................................. 2-27

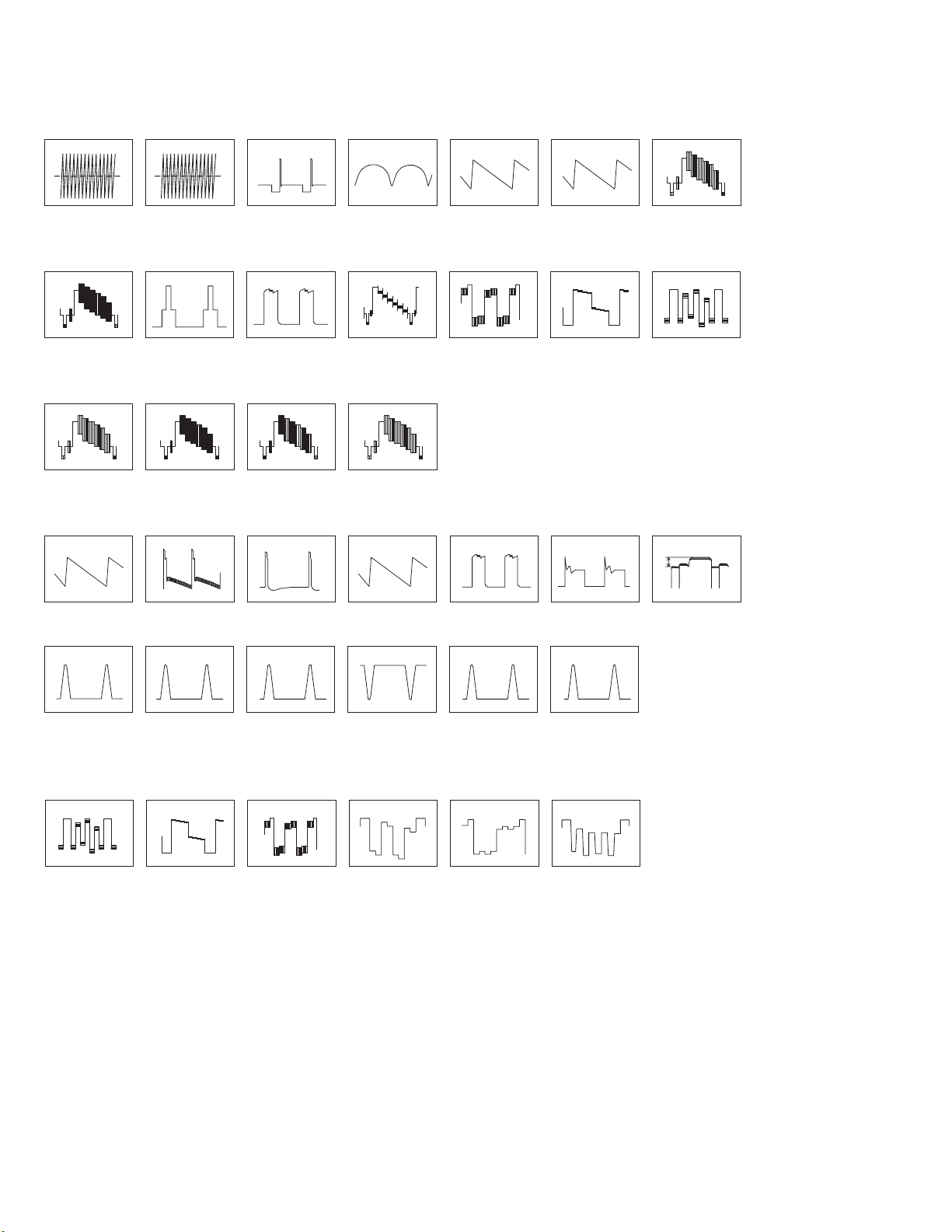

WAVE FORMS ........................................................................................... 2-28
USING P.W. BOARD
P.W.B ASS’Y name
MAIN P.W. BOARD
CRT SOCKET P.W. BOARD
AV JACK P.W. BOARD
POWER & DEF P.W. BOARD
FRONT BOARD P.W. BOARD
SIDE BOARD P.W. BOARD
AV-32T5SPA
SJW-1011A-U2
SJW-3011A-U2
SJW0J011A-U2
SJW-2011A-U2
SJW-8011A-U2
SJW-8111A-U2
AV-32T5SKA AV-32T5SRA AV-32T5BRA AV-32T5BKA
SJW-1911A-U2 SJW-1011A-U2 SJW-1911A-U2
SEMICONDUCTOR SHAPES
TRANSISTOR
BOTTOM VIEW FRONT VIEW TOP VIEW
E
C
B
IC
BOTTOM VIEW FRONT VIEW TOP VIEW
OUT
E
IN
ECB
IN OUTE
B
(G)E(S)C(D)
1 N
ECB
ECB
1 N
CHIP TR
1
C
BE
N
CHIP IC
N
1
2-2(No.YA260)
TOP VIEW
1
N
BLOCK DIAGRAM
EXT-1
EXT-2
EXT-3
TU101
TUNER
TV OUT
LTV/RTV
R1/G1/B1
V1
L1/R1
R2/G2/B2
V2
Y2/C2
L2/R2
L2/R2 OUT
V2 OUT
V3
Y3/C3
L3/R3
AV JACK
PWB
MAIN PWB
SAW FILTER
SAW FILTER
V_TV
V1
V2
V3
V4
Y2/C2
Y3/C3
LTV/RTV
L1/R1
L2/R2
L3/R3
L4/R4
SF101
SF102
IC201
Y/C
AV S W
V1
V2
L1/R1
VIF
SIF
R1/G1/B1
R2/G2/B2
LT V /
RTV
V_TV
M_Y/C
IC701
MAIN CPU/TELETEXT DECODE/IF PROCESS/MULTISOUND PROCESS/
VIDEO IF/AGC/AFT
VIDEO AMP
QSS SOUND IF/
AM DEMODULATOR
A/D CONVERTER
STEREO DECODER
D/A CONVERTER
V
VIDEO SW/
VIDEO FILTER
VIDEO PROCESS/RGB PROCESS/SYNC. SEP./DEF. PROCESS
SDA0/SCL0
RGB CONTROL/
OSD/TEXT INSERT
RGB MATRIX
VELOCITY SCAN
MODULATION
I/O PORT
H/V SYNC SEP./
H OSC. & DRIVE
V DRIVE
AGC/
C
Y
CPU/
TELETEXT DECODER/
DSP
DECODER/
DELAY LINE
RGB INSERT
KEY REMOCON
R/G/B
VM
ROTATION
EW
VD
HD
IC702
MEMORY
L/R
IC551
ROTATION
DRIVE
IC602
AUDIO OUT
IC603
TONE/VOLUME
CONTROL
L/R
ROTATION
COIL
CRT SOCKET
PWB
R/G/B
VM
SIDE CONTROL
PWB
IC3101
RGB OUT
Q3304
Q3305
Q3306
Q3309
Q3310
VM AMP
HEAD
PHONE
CRT
VM COIL
SPEAKER L
SPEAKER R
EXT-4
AC IN
V4
L4
R4
L4/R4
KEY
SIDE
CONTROL
PWB
IC8851
REMOTE-CONTROL
RECEIVER
F8901
REMOCON
POWER SW
FRONT
CONTROL
PWB
LF8901
L2/R2
POWER & DEF PWB
IC901
IC901
POWER REG.
POWER REG.
T901
SW
TRANS.
D901
PC901
VOLTAGE
FEEDBACK
B1
IC951
ERROR AMP
VD
IC401
V.OUT
T551
HVT
HD
Q521
H.OUT
SCREEN
EHT
FOCUS2
FOCUS1
DEF YOKE
V
Q461
EW OUT
H
2-4(No.YA260)(No.YA260)2-3
