JVC AV 32P903 User Manual

COLOR TELEVISION USER'S GUIDE

For models:

AV-36P903 AV-32P903

Illustration of AV-36P903 and RM-C324G

IMPORTANT NOTE TO THE CUSTOMER

In the spaces below, enter the model and serial number of your television (located at the

rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this

guide. Keep this user's guide in a convenient place for future reference. Keep the carton

and original packaging for future use.

Serial Number

LCT1169-001A-A

0602-TN-FAA-JIM

Model Number

PLEASE NOTE

This web based PDF File for this instruction book is not an exact replica

of the instruction book that comes with the TV.

IMPORTANT SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS TV SET TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOL-

LOWING RULES REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

CAUTION:To reduce the risk of electric shock.

Do not remove cover (or back).

No user serviceable parts inside.

Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

IMPORTANT SAFEGUARDS

CAUTION:

Please read and retain for your safety.

Electrical energy can perform many useful functions. This TV set has been engineered and manufactured to assure your personal safety. But improper use can result in potential elec- trical shock or fire hazards! In order not to defeat the safeguards incorporated in this TV set, observe the following basic rules for its installation, use and servicing. And also follow all warnings and instructions marked on your TV set.

INSTALLATION

1 Your TV set is equipped with a polarized AC line plug (one blade of the plug is wider than

the other).

This safety feature allows the plug to fit into the power outlet only one way. Should you be unable to insert the plug fully into the outlet, try reversing the plug. Should it still fail to fit, contact your electrician.

2 Operate the TV set only from a power source as indicated on the TV set or refer to the oper-

ating instructions for this information. If you are not sure of the type of power supply to your home, consult your TV set dealer or local power company. For battery operation, refer to the operating instructions.

3 Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords

and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

4 Do not allow anything to rest on or roll over the power cord, and do not place the TV set

where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

5 Do not use this TV set near water — for example, near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near swimming pool, etc.

6 If an outside antenna is connected to the TV set, be sure the antenna system is grounded so

as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection requirements for the grounding electrode.

(POLARIZED-TYPE)

IMPORTANT RECYCLING INFORMATION

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

7 An outside antenna system should not be located in the vicinity of overhead power lines or

other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

8 TV sets are provided with ventilation openings in the cabinet to allow heat generated during

operation to be released. Therefore: — Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,

rug, etc. — Never place a TV set in a “built-in” enclosure unless proper ventilation is provided. — Never cover the openings with a cloth or other material. — Never place the TV set near or over a radiator or heat register.

9 To avoid personal injury:

— Do not place a TV set on a sloping shelf unless properly secured. — Use only a cart or stand recommended by the TV set manufacturer. — Do not try to roll a cart with small casters across thresholds or deep pile carpets. — Wall or shelf mounting should follow the manufacturer’s instructions, and should use a

mounting kit approved by the manufacturer.

USE

10 Caution children about dropping or pushing objects into the TV set through cabinet open-

ings. Some internal parts carry hazardous voltages and contact can result in a fire or electrical shock.

11 Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol

cleaner.

12 Never add accessories to a TV set that has not been designed for this purpose. Such addi-

tions may result in a hazard.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

13 For added protection of the TV set during a lightning storm or when the TV set is to be left

unattended for an extended period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to product due to lightning storms or power line surges.

14 ATVset and cart combination should be moved with care. Quick stops, excessive force,

and uneven surfaces may cause the TV set and cart combination to overturn.

SERVICE

15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel

under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the TV set. C. If the TV set has been exposed to rain or water. D. If the TV set does not operate normally by following the operating instructions. Adjust

only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a quali-

fied technician to restore the TV set to normal operation. E. If the TV set has been dropped or damaged in any way. F. When the TV set exhibits a distinct change in performance — this indicates a need for

service.

16 Do not attempt to service this TV set yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

17 When replacement parts are required, have the service technician verify in writing that the

replacement parts he uses have the same safety characteristics as the original parts. Use of manufacturer’s specified replacement parts can prevent fire, shock, or other hazards.

18 Upon completion of any service or repairs to this TV set, please ask the service technician

to perform the safety check described in the manufacturer’s service literature.

19 When a TV set reaches the end of its useful life, improper disposal could result in a picture

tube implosion. Ask a qualified service technician to dispose of the TV set.

20 Note to CATV system installer.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ONSCREEN MENUS (Cont.)

Sound Settings

Bass ..............40

Treble .............40

Balance ............40

MTS (Multi-channel Sound) . . 40

General Items

On/Off Timer ..........41

TV Speaker ..........42

Audio Out . . . . . . . . . . . 42

Tilt Correction . . . . . . . . . 42

Purity . . . . . . . . . . . . . 43

Closed Caption . . . . . . . . 43

Front Panel Lock . . . . . . . 44

Auto Shut Off . . . . . . . . . 44

XDS ID . . . . . . . . . . . . 44

Auto Demo . . . . . . . . . . 45

BUTTON FUNCTIONS .....46

Menu...................46

Exit and PIP Off..............46

Display ..................46

Video Status ...............47

Sleep Timer ................47

Muting ..................47

100+ ...................47

Return+..................48

Input. . . . . . . ............48

Light...................48

Sound . . . . . . . . . . . . . . . . . . 49

Natural Cinema . . . . . . . . . . . . . 49

16:9 Mode . . . . . . . . . . . . . . . . 49

Theater Pro . . . . . . . . . . . . . . . 50

Index ...................50

EZ Surf . . . . . . . . . . . . . . . . . 50

VCR Buttons ...............51

DVD Buttons ...............51

TV/CATV Switch .............51

VCR/DVD Switch ............51

PIP (Picture-In-Picture) . . . . . . . . . 52

PIP/Move . . . . . . . . . . . 52

Freeze.............53

Swap..............53

Channel +/– . . . . . . . . . . 53

Source.............53

APPENDICES .........54

Troubleshooting . . . . . . . . . . . . . 54

Warranty . . . . . . . . . . . . . . . . . 55

Authorized Service Centers . . . . . . . 57

Search Codes . . . . . . . . . . . . . . 58

Specifications . . . . . . . . . . . . . . 59

Table of Contents

UNPACKING YOUR TV .... 7

Panel Diagrams ........8

TV models and remotes guide . 9

QUICK SETUP . ........10

CONNECTIONS ........13

Connecting to Cable or an Antenna . . . . 13

Connecting to a Cable Box . . . . . . . . 13

Connecting to a Cable Box and VCR . . . 14 Connecting to a DVD Player,

DTV Decoder and D-VHS . . . . . . . . 15

Connecting to a Digital TV Receiver . . . 16 Connecting to an External Amplifier . . . 17

Connecting to a Camcorder . . . . . . . . 17

Connecting to JVC AV Compu Link III . . .18

GETTING STARTED ......19

Remote Control Basics ..........19

Changing The Batteries . . . . . . . . . 19

Setting Cable Box or Satellite Codes . . . 20

Setting VCR Codes . ..........21

Setting DVD Codes . ..........22

ONSCREEN MENUS . . . . . . 23

Using the Guide .............23

The Onscreen Menus . . . . . . . . . . 23

Plug In Menu

Instruction..........25

Language...........25

Auto Tuner Setup .......25

Auto Clock Set .........26

Manual Clock Set .......27

Channel Summary ............28

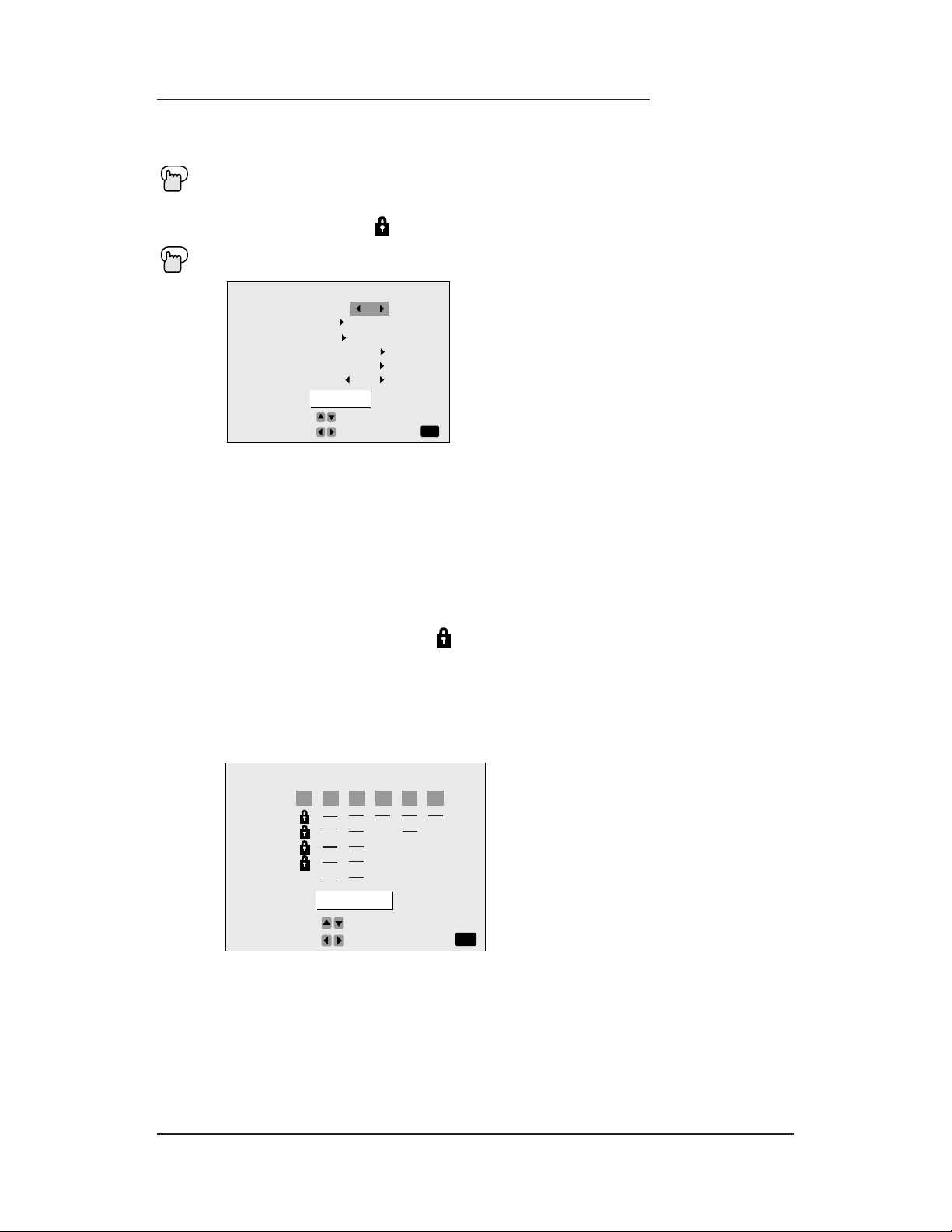

V-Chip...................29

Set Lock Code . . ......36

Picture Settings

Tint ..............37

Color ..............37

Picture . . . . . . . . . . . . 37

Bright .............37

Detail .............37

Color Temperature . . . . . . . 38

Digital Noise Clear . .....38

Noise Muting . . . . . . . . . . 38

VSM . . . . . . . . . . . . . . 39

Digital-In . . . . . . . . . . . . 39

POWER

NATURAL CINEMA

SLEEP TIMER

LIGHT

SOUND

CHANNEL

DISPLAY

SOURCE

FREEZE

MULTISCREEN/PIP

SWAP

PIP/MOVE

INDEX

100+

RETURN+

MUTING

V CHIP

PIP OFF

EXIT

VOL

REC STOP

PAUSE

PLAY FFREW

CATV

DVD

VCR

VCR CHANNEL

TV/VCR

VCR/DVD

POWER

PREV NEXT

OPEN/CLOSE STILL/PAUSE

RM-C324G

VIDEO STATUS

16:9

MODE

INPUT

THEATER PRO EZ SURF

2 AA Batteries

1 Television

1 Remote Control

Thank you for your purchase of JVC’s model AV-36P903 or AV-32P903 Color Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:

Once you have unpacked your television, the next step is to connect it to your antenna/cable or satellite system and to connect the audio/video devices you want to use with your television. To make these connections you will use plugs like the ones illustrated below.

A/V Input Plug

RF Connectors

Used to connect a coaxial cable from an external antenna or Cable TV system.

A matching TV stand is also available (optional).

Used to make video connections with VCRs, DVDs, Camcorders, etc (optional).

Used to connect JVC AV Compu Link capable components for an automated home theater.

Used to connect audio/video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc.

S-Video Plug

AV Compu Link Cable

We recommend that before you start using your new television, you read your entire User’s Guide so you can learn about your new television’s many great features. But if you’re anxious to start using your television right away, a quick setup guide follows on page 10 - 12.

Unpacking Your Television

NOTE: To open and close the front panel, gently push it until you hear a click.

Panel Diagrams

Rear Panel Diagram

Front Panel Diagram

OVER

INPUT 4

CHANNEL

VOLUME

S VIDEO L MONO

VIDEO

AUDIO R

OPERATE

Remote Control

Remote Control RM-C324G

16:9

INDEX

INPUT

CATV

DVD

VCR

MODE

MULTISCREEN/PIP

CHANNEL

SOURCE

FREEZE

POWER

PIP/MOVE

SWAP

DISPLAY

SLEEP TIMER

VIDEO STATUS

NATURAL CINEMA

THEATER PRO EZ SURF

RM-C324G

MUTING

100+

SOUND

VOL

PLAY FFREW

VCR/DVD

POWER

VCR CHANNEL

PREV NEXT

VOL

RETURN+

LIGHT

V CHIP

EXIT

PIP OFF

TV/VCR

REC STOP

OPEN/CLOSE STILL/PAUSE

PAUSE

Slide the cover on the back of the remote down towards the bottom of the remote control. Insert two batteries (included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first. Slide the cover back into place.

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. This information includes basic instructions on operating your remote control, making a simple cable/antenna and optional VCR connection and, finally, information on programming your television's Auto Tuner.

If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual.

Step One - The Remote Control

The remote control is the key to operating your television's many great features. Before you can operate your remote control, you first need to install the batteries (included).

Basic Operation

Turn the television on and off by pressing the POWER button at the top right corner of the remote.

The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are also used with JVC's onscreen menu system. You will need to use these buttons later in the Quick Setup.

The next step is to connect your television to an antenna or cable.

Power Button

Key Feature Buttons

Proceed to Step Two

Quick Setup 1

POWER

Cable/RF connector

Step Two - Making Basic Connections

Next you will need to connect your television to an antenna, VCR or cable system. The most basic VCR and antenna/cable connection is shown below. For more detailed connections, such as ones where a cable box is required, or connecting with a combination of a cable box and VCR, home stereo system, etc., see pages 13 to 18.

1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.

1) Connect the Red Cable from VCR Audio Output into the Red TV Audio In.

2) Connect the White Cable from VCR Audio Output into the White TV Audio In.

3) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an

S-Video Cable from VCR S-Video Out into the S-Video In on the back of the TV.

NOTE:

• White, Yellow and Red are the most common colors for VCR Cables. Some models may

vary in color. Please consult the user’s manual for your VCR Player for more information.

• See page 21 for instructions on programming your remote control to operate the basic func-

tions of your VCR Player.

Connecting to a VCR

Proceed to Step Three

Quick Setup 2

Press the button to move to AUTO TUNER SETUP

¥

To choose CABLE (if you are connected to a cable system) or AIR (if you use an antenna) or SKIP (if you need to)



To move to START

The Auto Tuner will now memorize all of the clear, active channels your television can receive. This will take one or two minutes.

NOW

PROGRAMMING!

Step Three - The Plug In Menu

When you turn your television on for the first time the Plug In Menu will appear. This menu sets some of the basic settings for your television. A complete description of the Plug In Menu can be found starting on page 25. We recommend you complete the Plug In Menu items before you start using your television. But to begin watching your television right away you only need to run the Auto Tuner Setup. This lets your television learn the channels it is able to receive. To run the Auto Tuner Setup follow the steps below.

The Auto Tuner is finished when the message PROGRAMMING OVER! appears on screen.

Your Quick Setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on connecting audio/video devices, programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience.

The Quick Setup is complete

Quick Setup 3

STOP

1) Connect an RF Cable from the wall outlet into the RF Cable In on the Cable Box.

2) Connect an RF cable from the Cable Out on the cable box into the RF Cable In on the back

of the TV.

NOTE:

• Please see page 52 for more information on using the PIP feature with a cable box.

Connecting to a Cable Box

Diagram #2

Connections

There are three basic types of antenna or cable connections:

• If you have an antenna or have a cable system that does not require you use a cable

box to select channels, please refer to Diagram #1.

• If you have a cable system that requires the use of a cable box to access all the

channels, please refer to Diagram #2.

• If you have a cable system that requires the use of a cable box to access certain

premium channels, but not “basic” cable channels, please refer to Diagram #3.

•For your convenience, connection to a VCR is also shown in the following diagrams. A VCR is not necessary for operation of the television or Picture-In-Picture (PIP) function. You may omit the VCR from your connections if you wish.

• For instructions on connecting a VCR only, please see the Quick Setup on page 11.

• For information on using PIP, please see page 52.

Connecting to Cable or an Antenna

Diagram #1

Cable/RF connector

1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.

Connections

Connecting to a Cable Box and VCR

Diagram #3

1) Connect an RF Cable from the wall outlet into the RF Cable Box In.

2) Connect an RF Cable from the Cable Box Out into the VCR In.

3) Connect an RF Cable from the VCR Out into the RF In on the back of the TV.

4) Connect the Red Cable from VCR Right Audio Output into the Red TV Audio In.

5) Connect the White Cable from VCR Left Audio Output into the White TV Audio In.

6) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an S-Video Cable from VCR S-Video Out into the S-Video In on the back of the TV.

NOTE:

• White, Yellow and Red are the most common colors for VCR Cables. Some models may

vary in color. Please consult the user’s manual for your VCR Player for more information.

• See page 21 for instructions on programming your remote control to operate the basic func-

tions of your VCR Player.

The connection diagrams are intended to show some basic general connections. Some cable companies may require special connections to properly use your television or 2-tuner PIP function. If you follow these diagrams and either the television or PIP does not work properly, contact your local cable operator for more connection information. Please see page 52 for more information on the PIP feature.

AUDIO OUT

Rear Panel

Connections

1) Connect Green Cable Out from DVD Player “Y” Component Output into TV “Y” Component Input 2 or 3.

2) Connect Blue Cable Out from DVD Player “P

B” Component Output into TV “PB”

Component Input 2 or 3.

3) Connect Red Cable Out from DVD Player “PR” Component Output into TV “PR” Component Input 2 or 3.

4) Connect White Audio Cable Out from DVD Left Audio Output into TV Left Audio Input 2 or 3.

5) Connect Red Audio Cable Out from DVD Right Audio Output into TV Right Audio Input 2 or 3.

6) Connect the Yellow Cable Out from DVD Player Output into the Yellow TV In, OR connect an S-Video Cable from DVD Player S-Video Out into the S-Video In on the back of the TV.

NOTE:

• Green, Blue and Red are the most common colors for DVD Cables. Some models may

vary in color. Please consult the user’s manual for your DVD Player for more information.

• See page 22 for instructions on programming your remote control to operate the basic func-

tions of your DVD Player.

Connecting to a DVD player, DTV Decoder and D-VHS

NOTE: This illustration is for connecting to Input 3

DVD Rear Pan

Connections

Connecting to a Digital TV Receiver

ecoder

By inputting a High-bandwidth Digital Content Protection high-definition picture source to the Digital-In terminal of this television, high-definition pictures can be displayed on the screen in their digital form. (This terminal is for use in the future when High-bandwidth Digital Content Protection DTV decoders, DVD players and D-VHS are put on the market.)

1) Connect the DTV Digital RGB Output Terminal to the DIGITAL-IN Digital Input Terminal on the back of the TV.

2) Connect the Red Cable from the DTV Decoder Right Audio Output into the Right Audio Input. VCR Audio Output into the Red TV Audio In.

3) Connect the White Cable from the DTV Decoder Left Audio Output into the Left Audio Input. VCR Audio Output into the White TV Audio In.

NOTE:

• The Digital-In Terminal can only be used with 1080i and 720p and 480p picture signals. Set

the DTV Decode Digital-Out Terminal Output setting to 1080i or 720p or 480p. For detailed information, refer to the DTV decoder instruction manual. If you cannot display the picture because your DTV decoder does not have a Digital-Out Terminal Output setting, use the component Video Input (or the S-Video Input or Video Input). (Refer to page 14 or 15.) In this case the picture will be displayed as an analog signal.

• The Digital-In Terminal is not compatible with the picture signal of a personal computer.

• Use a DVI 25-pin cable (commercially available) in order to digitally connect the TV with a

DTV Decoder.

• If the connection shown above is used, the DTV signal will be available on Digital-In on the

Input Menu. (Refer to page 39.)

If 480p signals (640 x 480 or 720 x 480) are displayed on the screen, the horizontal balance may be slightly shifted. In cases such as this, the horizontal balance can be adjusted by accessing “DIGITAL-IN” in the PICTURE ADJUST Menu. (Refer to page 39.)

TV Rear Panel

Tighten screws

after connections

AUDIO OU

DIGITAL OUT

DTV D

Connections

1) Connect the Yellow Video Cable Out from the Camcorder’s Video Output into the TV’s Video Input Jack, OR connect an S-Video Cable from the Camcorder’s S-Video Output to the TV’s S-Video Input.

2) Connect the White Audio Cable Out from the Camcorder’s Left Audio Output into the TV’s Left Audio Input Jack.

3) Connect the Red Audio Cable Out from the Camcorder’s Right Audio Output into the TV’s Right Audio Input Jack.

NOTE:

• If your Camcorder is a mono sound model it will have only one audio jack. Connect it to

the TV’s Left Audio jack.

Connecting to an External Amplifier

Connecting to a Camcorder

1) Connect the White Audio Cable from the TV’s Left Audio Output Jack to the Amplifier’s Left Audio Input Jack.

2) Connect the Red Audio Cable from the TV’s Right Audio Output Jack to the Amplifier’s Right Audio Input Jack.

NOTE:

• See also “TV Speaker” and “Audio Out” on page 42 for more information on using external

speakers.

You may connect a camcorder to your television by using the front Input Jacks (Input 4) located under the front panel door. To access, gently press on the door to open it. You may also connect a game console or other equipment using these jacks. Camcorders may also be connected to the television’s rear input jacks.

CHANNEL

OPERATE

VOLUME

amcorder

Connections

1) Plug one end of the AV Compu Link Cable into the AV Compu Link Input on your VCR, DVD, or other Compu Link device.

2) Plug the other end of the AV Compu Link Cable into the AV Compu Link Input at the rear of the TV.

NOTE:

• In order for the VCR playback to begin automatically, the recording tabs must be remove

from the VHS tape. If the tab is in place, automatic switching will occur when you push the VCR’s Play button.

• The AV Compu Link cable has a male 3.5 mm (mono) plug on each end.

• If your JVC-brand VCR has “A Code/B Code Remote Control Switching” (see your VCR’s

instruction book), using VCR A Code will switch the TV to Input 1.

• To connect a JVC HiFi receiver or amplifier for a completely automated home theater, see

the HiFi’s connection instructions for detailed connection information.

• AV COMPU LINK III is compatible with any AV Compu Link III receiver.

Connecting to JVC AV Compu Link III

JVC’s AV Compu Link feature makes playing video tapes or DVDs totally automatic. Simply insert a pre-recorded tape into your JVC-brand VCR or DVD into your JVC DVD Player and the device will automatically turn on and begin playback. At the same time, using the AV Compu Link, the VCR or DVD player sends a signal to the television telling it to turn on and switch to the proper video input.

• The AV Compu Link cable may be included with the JVC AV Compu Link accessory you wish to connect. If it is not, contact an authorized JVC Service Center for part # EWP 805-012.

• AV Compu Link can only be used with JVC-brand products.

+ 42 hidden pages
