JVC AV-29TX1EP, AV-29TX1EPS User Manual

AV-29TX1EP
AV-29TX1EPS

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

COLOUR TELEVISION

FARBFERNSEHGERÄT
TELEVISEUR COULEUR
KLEURENTELEVISIE
TELEVISOR A COLOR
TELEVISORE A COLORI

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

COLOUR TELEVISION

AV-29TX1EP
AV-29TX1EPS

Instructions

Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV,
please read this manual thoroughly before you begin.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EX­POSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO ENSURE PERSONAL SAFETY, OBSERVE THE
FOLLOWING RULES REGARDING THE USE OF THIS
UNIT.

1. Operate only from the power source specified (AC
220 – 240 V, 50 Hz) on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid improper installation and never position the
unit where good ventilation is unattainable.
When installing this television, distance recommen­dations must be maintained between the floor and
wall, as well as instalment in a tightly enclosed area
or piece of furniture. Adhere to the minimum dis­tance guidelines shown for safe operation.

15 cm

ENGLISH

CONTENTS

Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

T-V LINK Functions . . . . . . . . . . . . . . . . . . . . . . . 5

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control Buttons and Functions . . . . . . . . 8

Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . 14

Picture Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Picture Features. . . . . . . . . . . . . . . . . . . . . . . . . 16

Sound Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

EXT Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

10 cm 15 cm

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of a fault, unplug the unit and call a
service technician. Do not attempt to repair it your­self or remove the rear cover.

When you don’t use this TV set for a long period of time,
be sure to disconnect the power plug from the AC socket.

10 cm

Additional Preparation . . . . . . . . . . . . . . . . . . . . 26

Connecting an Audio System. . . . . . . . . . . . . . . 27

Channel Table . . . . . . . . . . . . . . . . . . . . . . . . . . 28

TV Buttons and Parts. . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 32

1

Preparation

1 Connecting the Aerial and VCR

If connecting a VCR, follow A → B → C → D.
If not connecting a VCR, follow 1 → 2.

AC Outlet
(AC 220 – 240 V, 50 Hz)

Power Cord

VHF/UHF Aerial

75-ohm
Coaxial Cable

Notes:

• For further details, refer to the
manuals provided with the devic­es to be connected.

• The connecting cables are not
provided.

• A video can be viewed from the
VCR without performing

C

. For

details, refer to the VCR manual.

• The shaded Items are not
provided.

• To connect additional external de­vices, please refer to page 26.

• To connect an audio system,
please refer to page 27.

Aerial Plug

L

EXT-1

EXT-2 EXT-3

*1

Aerial Plug

S

75-ohm Coaxial Cable

To Aerial
Input

To Aerial
Output

Aerial Plug

R

AUDIO OUT

21-pin Scart Cable

VCR/S-VHS VCR

AV IN/OUT
Terminal

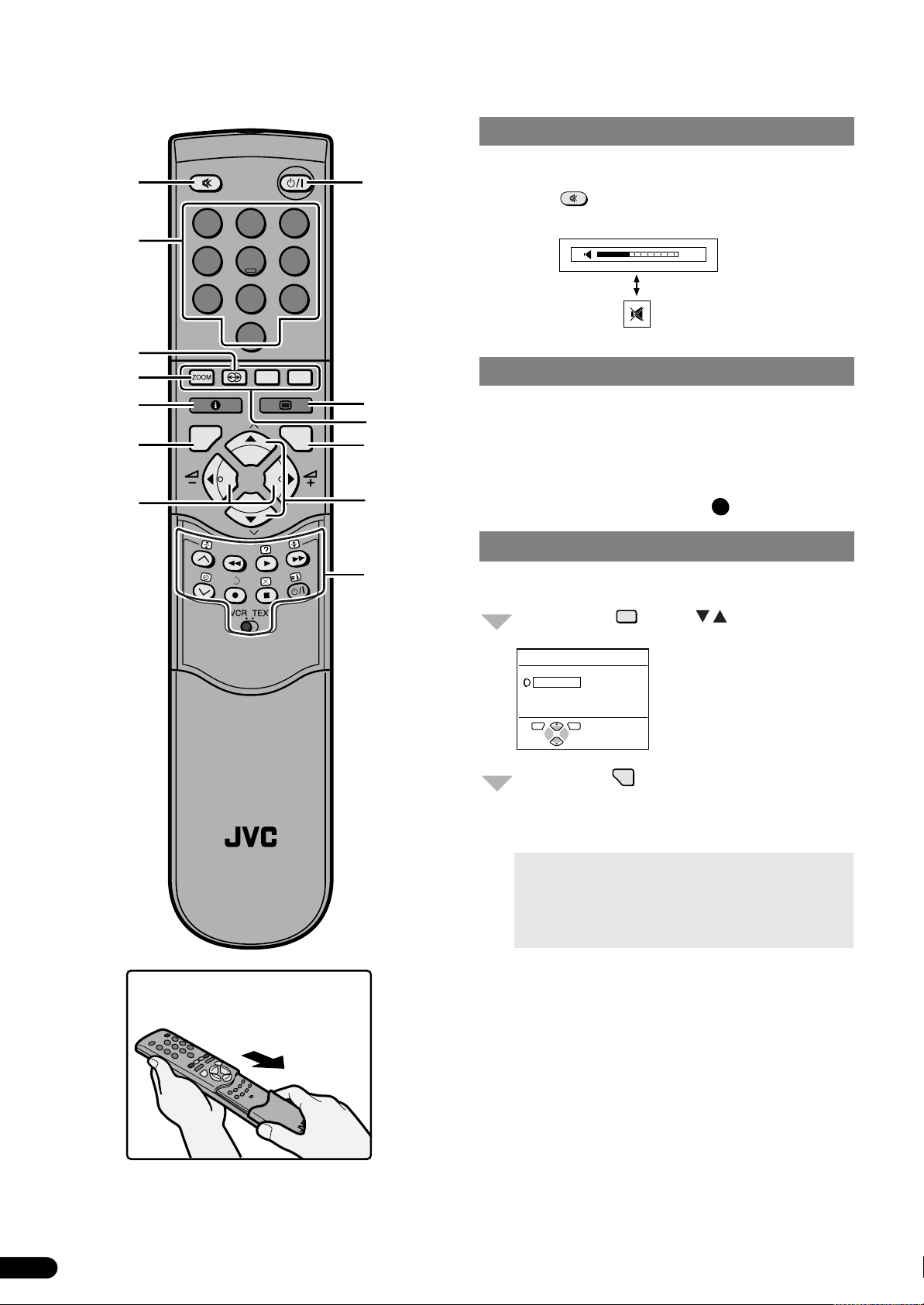

2 Putting Batteries into the Remote Control

Use two AAA/R03 dry cell batteries.
Insert the batteries from the · end, making sure the ª and · polarities are correct.

To open the battery compartment,
slide the door downwards and lift off,
replace by sliding the door upwards
until it is secure.

*1 This TV is T-V LINK compatible.

To operate T-V LINK, a T-V LINK
compatible VCR must be con­nected to the EXT-2 Terminal on
the TV.

Notes:

• For details about T-V LINK, re­fer to page 5.

• When a decoder is connected to
a T-V LINK compatible VCR, set
the Decoder (EXT-2) in the Fea­tures menu to ON. (See “De­coder (EXT-2)” on page 20.)
Otherwise, you will not be able
to view scrambled channels.

Notes:

• Follow the warnings printed on
the batteries.

• Battery life is about six months
to one year, depending on fre­quency of use.

• If the remote control doesn’t
work properly, replace the bat­teries.

• The batteries we supply are only
for setting up and testing your
TV, please replace them as
soon as necessary.

• Always use good quality batter­ies.

2

3 Initial Setting

Blue button

You can automatically set up to 99 TV stations to PR channels PR 1 to PR 99 on this TV.

Preparation

1

Press the Main power button.

The Power lamp lights red (power on), then green (TV on).

Power lamp

■ When the TV is first turned on, it enters the initial
setting mode, and the JVC logo is displayed.

MENU

OK

OK

2

Press .

Main power button

ECO

Notes:

• If the power lamp stays red and
does not change to green:
Your TV is in the standby mode.
Press (Standby) on the
remote control to turn your TV
on.

• The TV only enters the initial
setting mode the first time it is
switched on. If you want to
change the language and pro­gramme settings after this,
please refer to page 21.

1 2 3

4 5 6

7 8

9

0

AV

ENGLISH

3

4

5

6

Press to choose ENGLISH.

P

P

Press .

Press to choose your country.

/

OK

MENU

The language is set for the on-screen display descripti on,

OK

and the Country menu appears.

COUNTRY

DEUTSCHLAND
FRANCE
ITALIA
ESPAZA
NEDERLAND
BELGIUM
LUXEMBOURG

TV OK

/

/

/

P

P

SWITZERLAND
DANMARK
SVERIGE

ZSTERREICH

NORGE
SUOMI
PORTUGAL

Press the blue button.

The Auto Programming starts.

The EDIT menu is displayed after the PR channels have
been set.

START

MENU

P

TV OK

P

Notes:

• If this TV identifies a broadcast
station name, that station ID is
also automatically registered in a
PR channel.

• To cancel the Auto program­ming, press .

TV

• To edit PR channels or allocate a
station to the PR0 (AV) channel,
refer to page 22 “Edit/Manual”.

(Continued to the next page)

3

Preparation

AUTO PROGRAM

CH 10

20%

TV OK

EDIT

PR ID
AV
01
02
03
04
05
06
07
08
09

TV OK

BBC1

MOVE

When the ACI menu is displayed:

If your Cable TV station supports ACI (Automatic Channel Installation),
the ACI menu is displayed. Please operate it according to the “ACI Op­eration” procedures at the bottom of this page. The channel is set quickly
to the PR channel according to the order decided for all the channels.

7

Press to exit the Edit menu.

OK

MENU

The T-V LINK menu is displayed.

OK

T-V LINK

DOWNLOAD TV VCR

TV OK

EXIT

■ When a T-V LINK compatible VCR is

connected

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26
CC 01
CC 02
CC 03

ID
INSERT
DELETE
MANUAL

Note:

• If a station you want to view is
not set to a PR channel, manual­ly set it using the Edit menu.
(See page 22.)

■ When a T-V LINK compatible VCR is

not connected

8

Turn the VCR on.

8

Press .

TV

TV

The menu disappears.

This completes the Initial Settings

9

MENU

OK

OK

TRANSFER.....

Press .

procedure.

The transmission of PR channel data from the TV to the VCR begins. The display disappears once the data tra ns­mission ends.

This completes the Initial Setting procedure.

Notes:

• For details about T-V LINK, refer to page 5.

• Depending on the type of VCR, the display may change once data transmission ends. In this case, refer to the VCR’s In­struction manual.

ACI Operation

Press to choose your area.

1

Press .

2

“ACI” is displayed in the AUTO PROGRAM menu and the ACI starts.
The EDIT menu is displayed after the channels have been set.

If “ACI ERROR” is displayed, press to re-start the ACI.

• If “ACI ERROR” is displayed anyway, press and cancel ACI, then start the
ordinary Auto Programming.

/

OK

Note:

OK

• The ACI may not work correctly
if you don’t have good reception.

4

T-V LINK Functions

■ When a T-V LINK compatible VCR is connected to the EXT-2 Terminal on the TV, the procedures for setting up the VCR and
viewing videos are simplified.

■ T-V LINK uses the following features:

Function Features Remarks

1

2

3

■ To use T-V LINK:

• a T-V LINK compatible VCR is necessary.

• the VCR must be connected to the EXT-2 terminal on the TV by a fully wired

■ T-V LINK compatible VCRs:

In addition to all JVC VCRs that have the T-V LINK logo, any VCR that has one of
the following logos are available for use:

“Q-LINK” (a trademark of Panasonic Corporation)
“Data Logic” (a trademark of Metz Corporation)
“Easy Link” (a trademark of Phillips Corporation)
“Megalogic” (a trademark of Grundig Corporation)
“SMARTLINK” (a trademark of Sony Corporation)

• These VCRs may support some or all of the features described above. For de-

■ When “FEATURE NOT AVAILABLE” is displayed:

If “FEATURE NOT AVAILABLE” is displayed after download execution, the down­load was not performed correctly. Confirm the following before re-executing down­load:

• that the VCR power is turned on.

• that the VCR is T-V LINK compatible.

• that the VCR is connected to the EXT-2 terminal.

• that the SCART cable is fully wired.

■ Operating Precautions for DIRECT REC:

• Generally, the VCR cannot record a channel that cannot be received properly by

• In the following conditions, the VCR will stop recording if the TV is turned off, if

Preset

Download

DIRECT REC

(WYSIWYR)

TV Auto

Power On

VCR Image

View

SCART cable.

tails, refer to the VCR Instruction Manual.

the VCR’s tuner even though that channel could be viewed on the TV.
the TV channel or input is switched, or if the menu is displayed on the TV:

– When recording images from an external device connected to the EXT-1,

EXT-3 or EXT-4 terminal.
– When recording a channel after it has been unscrambled on a decoder.
– When recording a channel by using the TV’s output because that channel can-

not be properly received on the VCR’s tuner.

Downloads the PR channel tuning information from
the TV to the VCR.

– What You See Is What You Record –
You can record to VCR the images that you are
currently viewing on TV by one-touch operation.
For details, read the manual for your VCR.

When the VCR starts playing, the TV automatically
turns on and switches to the EXT-2 input mode.

When the VCR menu is operated, the TV automat­ically turns on and switches to EXT-2 input mode.

•Starts automatically when the initial setting is
complete or whenever the Auto Program or Edit/
Manual operations from the Install menu are per­formed.

•This function can be operated via VCR operation.

•Operate via the VCR. (Operation via the TV is not
possible.) “VCR IS RECORDING” is displayed.

• This function does not operate if your TV’s main
power is turned off. Set your TV’s main power to
on (standby mode).

ENGLISH

Note:

• Not all VCRs support this type of
data communication. Some may
support certain features and not
support others. For complete
details, refer to the VCR Instruc­tion Manual.

Note:

• Some VCRs can record a chan­nel by using the TV’s output if
that channel can be viewed on
the TV, even though the channel
cannot be received properly by
the VCR’s tuner.
For details, refer to the VCR In­struction Manual.

5

Basic Operation

P

P

Operating with the Remote Control

Turn the Main power on.

The Power lamp lights red and your TV is in the standby
mode.

• If the Power lamp lights green, the TV is already on.

● To turn the Main power off:

The Power lamp goes off.

• To save energy, turn the main power off if not using the
TV for a long period of time.

1 2 3

4 5 6

7 8 9

0

AV

MENU

P

TV OK

P

F.T/L

FREEZE

SUB-P

RM-C795

1

Turn the TV on from standby mode.

The Power lamp lights red to green.

● To turn the TV off:

2

Choose a TV channel.

P

P

Use the PR List:

1

2

1 2 3

oror

4 5 6

7 8 9

0

AV

The Power lamp changes from green to red.
The TV enters standby mode.

1 2 3

or

4 5 6

7 8 9

0

AV

Example

• PR12 = press ~ and Ÿ. .

•PR6 = press ¤.

Display the PR List.

PR LIST

PR ID

AV
01
02
03
04
05
06
07
08
09

TV OK

Choose a TV channel.

P

P

BBC1

+10-10

Notes:

• For channels with Child Lock

• Using the PR List, the EXT ter-

• If you don’t have a clear picture

set, a

(Locked) mark is dis­played next to the channel
number.

minal can also be chosen. Each
EXT terminal is after the PR 99
channel.

or no colour appears, change
the colour system manually.
See “Colour System” on page

16.

MENU

OK

OK

3

Press .

3

Adjust the volume.

The Volume indicator appears and the vol ume change s
as –/+ are pressed.

6

Watch images from external devices.

PR LIST

PR ID

97
98
99
E1
E2
E3
E4
AV
01
02

TV OK

+10-10

BBC1

Choosing an EXT terminal or PR 0 (AV) channel.

PR LIST

P

0

AV

P

oror

• The EXT terminals are registered after the PR 99 channel.

• Pressing button changes the choice as follows:

PR channel

0

AV

TV mode EXT modes

number

EXT-1

E1

EXT-4

● To return to a TV channel:

TV

P

P

PR ID

97
98
99
E1
E2
E3
E4
AV

BBC1

01
02

TV OK

EXT-2

E2orS2

EXT-3

E3orS3E4orS4

1 2 3

4 5 6

7 8 9

+10-10

0

AV

Basic Operation

Notes:

• To use S-Video mode to view in­put from an S-VHS VCR, see
“To choose S-VIDEO input” on
page 18. When choosing EXT­2, EXT-3 or EXT-4 input termi­nals as S-VIDEO input, E2, E3
or E4 changes to S2, S3 or S4 in
the display.

• If you don’t have a clear picture
or no colour appears, change
the colour system manually.
(See “Colour System” on page

16.)

• When choosing an EXT terminal
with no input signal, the EXT
number and ID become fixed on
screen.

oror or

ENGLISH

● When the TV and VCR are connected only by the RF cable, the VCR
RF channel* must be preset to the PR 0 (AV) channel to view VCR
video. Choosing the PR 0 (AV) channel allows you to view images
from VCR video.

number

0

AV

TV mode

PR 0 channel

AV

EXT modes

EXT-1

E1

EXT-4

Pressing button changes the choice as follows:

PR channel

Operating with the Buttons on the TV

(Behind the front cover)

1

P

2

Turn the TV on from standby mode.

Choose a channel or an EXT terminal.

EXT-2

E2orS2

EXT-3

E3orS3E4orS4

Note:

• The VCR RF channel is the
channel that is sent as the RF
signal from the VCR. To set the
VCR RF channel to the PR 0
(AV) channel, refer to “Edit/Man­ual” on page 22. Also refer to the
manual provided with the VCR.

P

3

Adjust the volume.

Press .

1

The volume level indicator appears.

Press –/+ while the volume level indicator is displayed.

2

Indicator is displayed.

7

Remote Control Buttons and Functions

20

1

2

1

Muting Button

You can turn the volume off instantly.

18

1 2 3

2

4 5 6

7 8 9

0

4

AV

3
5

6

7

MENU

P

TV OK

C
9
0

A

Pressing (Muting) changes the current volume to “0”.

2

Number Buttons

You can choose a channel by entering the channel number.
Example:

•PR 12→ press ~ and Ÿ. .

•PR 6 → press ¤.

■ You can choose an EXT terminal or PR 0 (AV) channel by
pressing button repeatedly.

0

AV

F.T/L

RM-C795

P

B

3

ZOOM Button

You can change the screen size. (See page 9.)

Press and press to choose ZOOM

ZOOM

/

mode.

ZOOM

AUTO
REGULAR
ZOOM1
ZOOM2
16:9

TV OK

Press .

The picture expands and the chosen ZOOM mode is
displayed in about 5 seconds.

Notes:

• For details, see next page.

• The TV returns to REGULAR mode when the PR

OK

channel or input is changed while in a Zoom mode.

How to open the cover

8

Remote Control Buttons and Functions

ZOOM Button (continued)

Mode Recommended Picture (Aspect) Display Remarks

REGULAR Normal Picture

The image is enlarged and the top, bot-

ZOOM1 14:9 Aspect Ratio

tom, left and right of the picture are
cropped.

ENGLISH

ZOOM2 16:9 Aspect Ratio

16:9

AUTO

*WSS (Wide Screen Signal)

Squeezed to the 16:9
Aspect Ratio

16:9 Aspect Ratio
With a WSS* Signal

The image is enlarged and the top, bot­tom, left and right of the picture are
cropped.

The image is displayed with black bands
on the top and bottom.

When a 16:9 aspect ratio broadcast with a
WSS signal is received, the image is auto­matically enlarged to ZOOM1.

9

Remote Control Buttons and Functions

Current time
No indication

PR LIST

PR ID

AV
01
02
03
04
05
06
07
08
09

BBC1

TV OK

+10-10

21:30

4

Hyper Sound Button

You can enjoy sounds with a wider ambiance.

6

TV Button

You can return to the TV mode instantly by pressing .

TV

Pressing (Hyper Sound) turns the Hyper Sound on or
off.

• HYPER SOUND can be also set to ON by operating MENU.
For details, refer to “Hyper Sound” on page 17.

5

Information Button

Pressing (Information) changes the dis­play as follows.

■ The

You can adjust the volume.

■ The

TV

button is also used for the menu operation.

Please refer to “Menu Operation” on page 14 for more in­formation.

7

buttons are also used for the menu operation.

Please refer to “Menu Operation” on page 14 for more in­formation.

8

Standby Button

Buttons

/

Pressing (Standby) button turns the TV
on or off.

• When the TV is turned on, the power lamp changes
from red to green.

9

Colour Buttons

The colour buttons are used for the teletext operations or the
menu operations. Please refer to “Teletext Control Buttons
and VCR/TEXT Switch” on page 12 or “Menu operation” on
page 14 for more information.

About the PR List:

You can choose TV channels and EXT terminals operating
the PR List. For details, see “ Use the PR List ” on page 6.

About the current time display:

This TV uses teletext data to set the current time.

• If the TV has not received a station that has teletext data
since it was turned on, the time display is blank. To see the
current time, choose a station that is broadcasting teletext
data. As long as you do not turn off the TV, then even if you
choose other stations, the time will still be displayed.

• When watching videos, the wrong current time is some­times displayed.

Note:

• When an EXT terminal with no input signal is chosen,
the EXT number and ID become fixed on the screen.

■ The (Information) button is also used for the menu
operation.
Please refer to “Menu Operation” on page 14 for more in­formation.

0

OK Button

OK

button is used for menu operation.

The
Please refer to “Menu Operation” on page 14 for more infor­mation.

-

You can choose a channel by pressing the buttons.

■ The buttons are also used for the menu operation.

Please refer to “Menu Operation” on page 14 for more in­formation.

Buttons

/

/

10

=

F.T/L

VCR Control Buttons and VCR/
TEXT Switch

You can control your JVC VCR using the VCR Control but­tons.

Set the VCR/TEXT Switch to the VCR side.

1

VCR TEXT VCR TEXT

Press a VCR control button to control your

2

JVC VCR.

Notes:

• For details on the VCR Control buttons, see the
VCR manual.

• Depending on your VCR, the remote control may
not operate perfectly, and may not even control the
VCR at all.

Remote Control Buttons and Functions

ENGLISH

11

1

2

1 2 3

4 5 6

7 8 9

0

AV

3

1

2

Hold indication

Remote Control Buttons and Functions

9 = ~

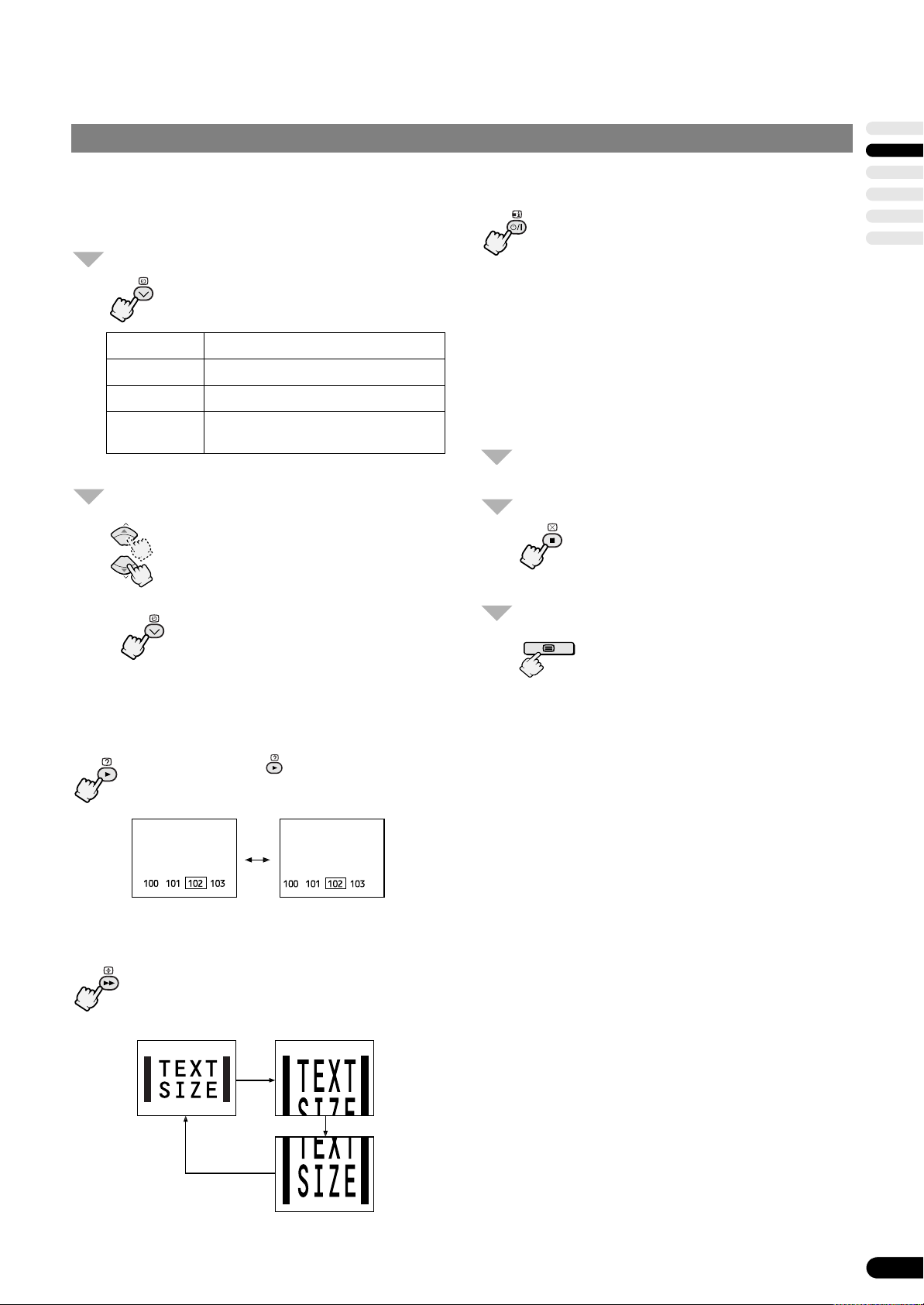

Teletext Control Buttons and VCR/TEXT Switch

■ Basic operation

You can view three types of teletext broadcasts on the TV;
Fastext, TOP and WST.

Choose a channel with a teletext broadcast.

1

Set the VCR/TEXT switch to the TEXT side.

2

VCR TEXT VCR TEXT

Display the teletext.

3

Pressing (Text) change the mode as follows:

TV mode

■ Using the List Mode

You can store the numbers of your favourite teletext pages
and call them up quickly using the colour buttons.

To store the page numbers

Engage the List mode.

F.T/L

Stored page numbers are displayed at the
bottom of the screen.

Choose the position, then enter the page
number.

Press (Store) and hold on.

TEXT--­TEXT---

Text mode

Choose a teletext page.

4

P

or

P

●

To return to the TV mode:

or

1 2 3

4 5 6

7 8 9

0

AV

TV

Notes:

• If you have trouble receiving teletext broadcasts, consult
your local dealer or the teletext station.

• Category names of teletext pages may appear instead of
page numbers.

• In Text mode, ZOOM mode is fixed to REGULAR mode.

• None of the Menu operations are possible when viewing
a teletext programme.

The four page numbers blink white to indicate
that they are stored in memory.

To call up a stored page

Engage the List mode.

F.T/L

To cancel the List mode:

F.T/L

Press a colour button to which a page has
been assigned.

■ Hold

You can hold a teletext page on the screen for as long as you
want, even while several other teletext pages are being re­ceived.

12

To cancel the hold:

1

2

3

Remote Control Buttons and Functions

Sub Page

■

Some teletext pages include sub-pages that are automa tically
displayed. You can hold any sub-page, or view it at any time.

Display the sub-page list.

1

Sub-page numbers are displayed at the left
of the screen.

Colour* Meaning of sub-page number

Yellow Currently being displayed.
White Can be displayed.
Blue or Red Cannot be displayed and it is not sent.

*: Background colour of the sub-page number.

Choose a sub-page.

2

P

P

●

To cancel sub-page:

Index

■

You can return to the index page instantly.

Fastext/TOP/WST:

Returns to page 100 or a previously specified page.

List mode:

Returns to the page number displayed in the lower left
area of the screen.

Cancel

■

You can search for a teletext page while watching TV.

Choose a teletext page.

The TV searches for a teletext page.

Cancel teletext mode temporarily.

The TV programme appears.
When the TV finds the teletext page, its
page number appears in the upper left of
the screen.

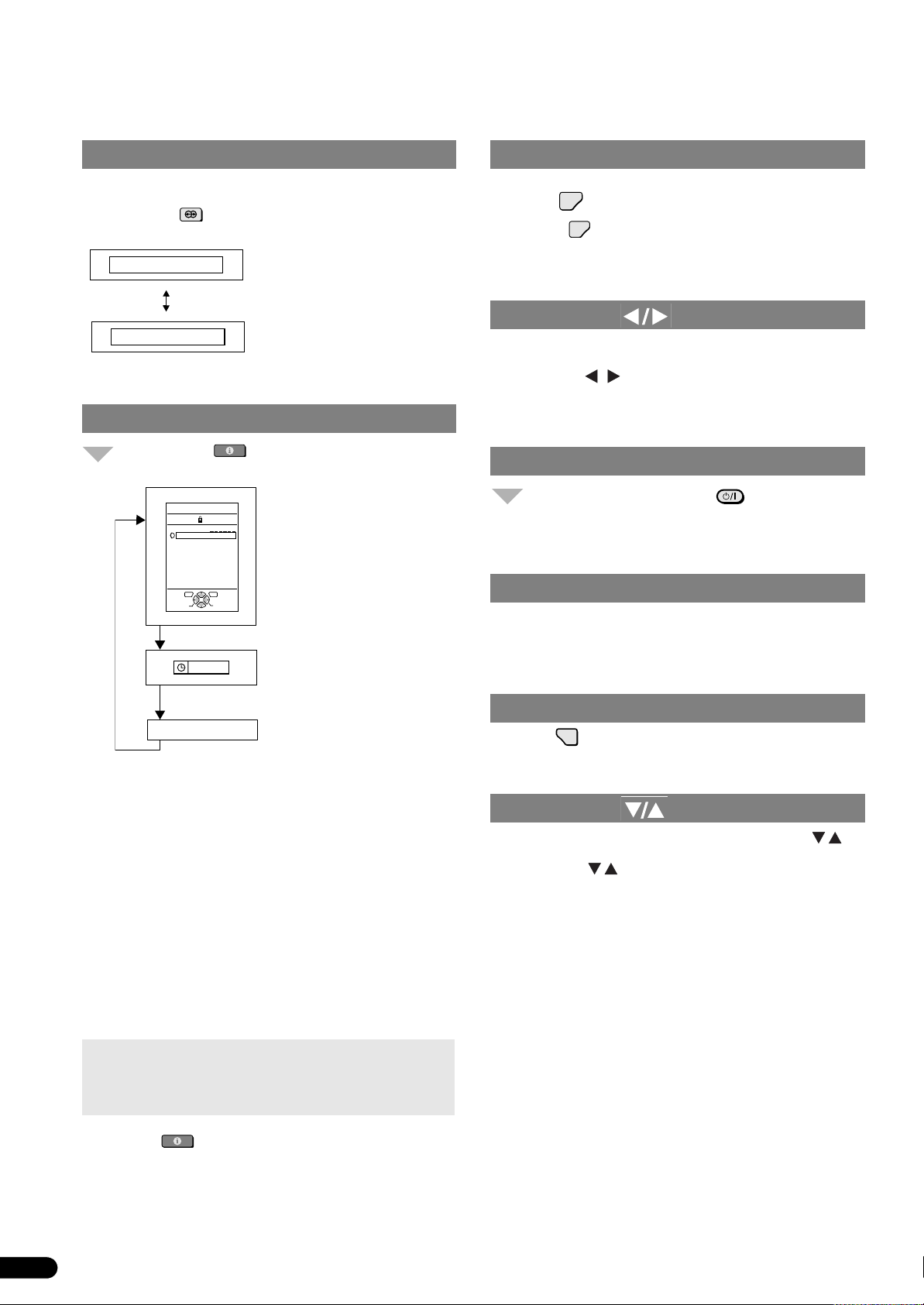

Return to a teletext page when the page
number is on the screen.

ENGLISH

Reveal

■

Some teletext pages include hidden text (such as answers to
a quiz).

Each time you press (Reveal), text is hidden or
revealed.

1 + 2 =
2 x 3 =

Size

■

You can double the height of the teletext display.

1 + 2 = 3
2 x 3 = 6

13

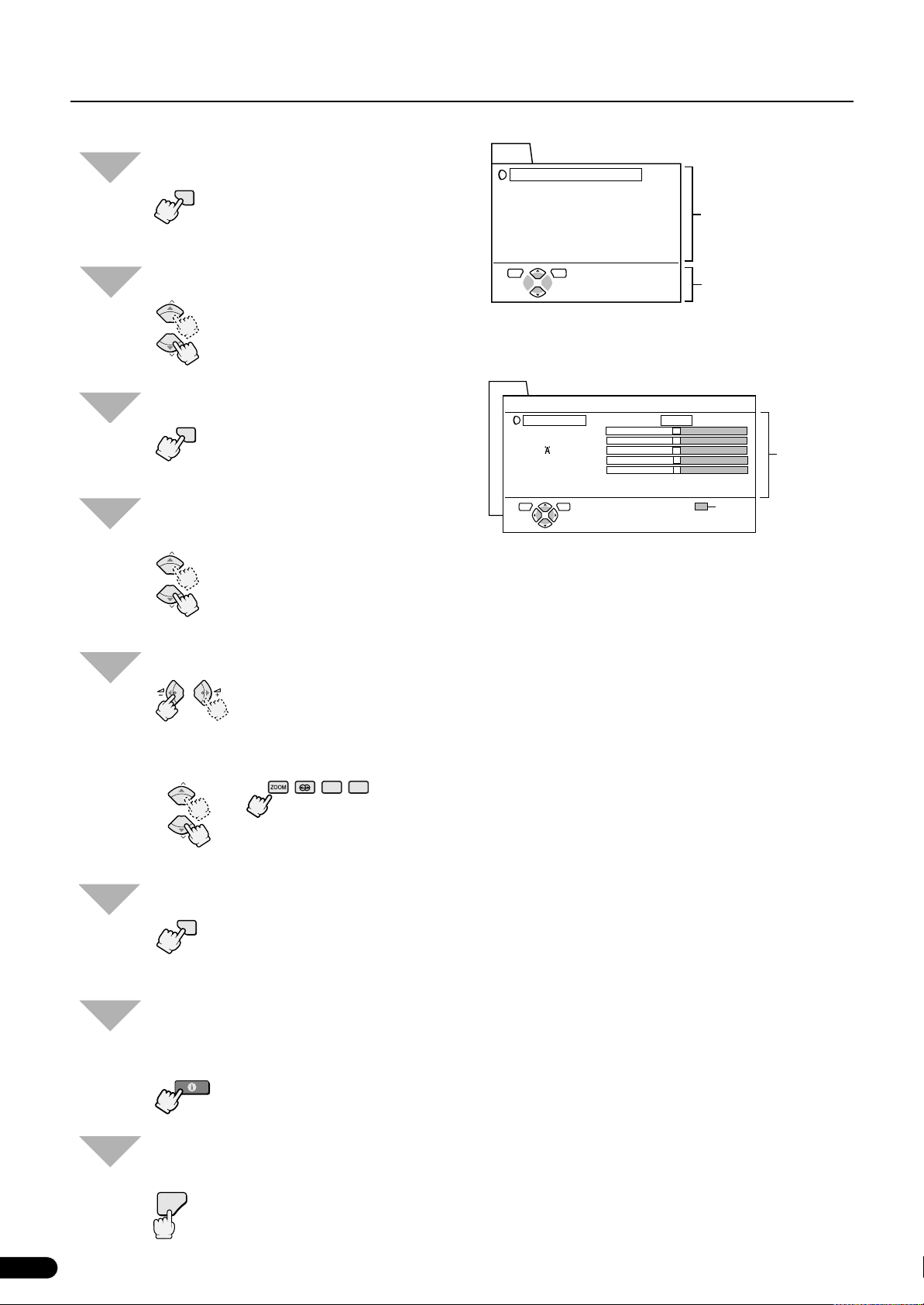

Menu Operation

PICTURE SETTING
PICTURE FEATURES
SOUND SETTING
EXT SETTING
FEATURES
INSTALL
INDEX
DEMO

MENU

TV OK

items

Buttons on the Remote
Controll to operate the
menu.

Sub-menu
items

1

2

3

4

Display MENU.

MENU

The MENU (main menu) appears.

OK

Choose an item.

P

P

Display the sub-menu.

MENU

OK

Choose a Sub-menu item.

P

P

MENU

PICTURE SETTING

TINT WARM
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE

TV OK

OFF

ON

RESET

5

6

Change the setting.

• Depending on the Sub-menu display, the fol­lowing buttons can be used.

P

P

Complete the setting.

MENU

The menu disappears.

OK

To return to the previous menu or
exit the MENU.

14

To exit the MENU instantly.

TV

Picture Setting

1

2

3

1

2

3

MENU

PICTURE SETTING

TINT WARM
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE

TV OK

Display MENU.

1

MENU

OK

Choose PICTURE SETTING.

2

P

P

Display the Picture Setting menu.

3

MENU

OK

OFF

ON

RESET

Picture Adjustment

You can adjust the picture to your liking.

Press to choose an item.

Press to adjust the setting.

Note:

• You can adjust the HUE (picture hue) only when

• To return to the default settings, press the blue but­ton.

/

/

Item

Lower CONTRAST

(picture contrast)

Darker BRIGHT

(picture brightness)

Softer SHARP

(picture sharpness)

Lighter COLOUR

(picture colour)

Reddish HUE

(picture hue)

the colour system is NTSC 3.58 or NTSC 4.43.

Higher

Brighter

Sharper

Deeper

Greenish

ENGLISH

Tint

You can choose one of three Tint modes to adjust the picture
settings automatically.

Press to choose TINT.

1

Press to choose a mode.

2

COOL:

A cool white colour base with a boost in the colour and
contrast levels that creates a more vivid picture.

WARM:

A warm orange/red colour base that creates the appro­priate colour and contrast levels for watching films.

NORMAL:

A normal white colour base with normal colour and con­trast levels.

Press .

3

This completes the setting.

/

/

OK

Press .

OK

This completes the setting.

Eco Mode

When you set the Eco Mode to ON, the screen contrast is au­tomatically adjusted to a setting suitable for the brightness of
your room.
This reduces eye strain and the power consumption of the
TV.

Press to choose ECO MODE.

Press to choose ON.

• To cancel the Eco Mode, choose OFF.

Press .

This completes the setting.

• If you set the Eco Mode to ON, the Eco lamp lights.

/

/

OK

15

Picture Features

1

PAL

TV OK

COLOUR SYSTEM

2

3

MENU

PICTURE FEATURES

DIGITAL VNR
DigiPure
COLOUR SYSTEM

TV OK

Display MENU.

1

MENU

OK

Choose PICTURE FEATURES.

2

P

P

Display the Picture Features menu.

3

MENU

OK

OFF
OFF

ON
ON

Colour System

The colour system is automatically chosen, but if the picture
is not clear or no colour appears, choose the colour system
manually.

Press to choose COLOUR SYSTEM. Then
Press

.

Press to choose the appropriate colour
system.

PAL:

PAL system.

SECAM:

SECAM system.

NTSC3.58:

NTSC 3.58 MHz system.

NTSC4.43:

NTSC 4.43 MHz system.

AUTO:

Automatic colour system selection.

/

OK

.

/

Digital VNR

When you set the Digital VNR to ON, you can reduce the
noise on the screen to improve picture quality further.

Press to choose DIGITAL VNR.

1

Press to choose ON.

2

/

/

• To cancel the Digital VNR, choose OFF.

Press .

3

OK

This completes the setting.

DigiPure

When the DigiPure is set to ON, optimum edge compensation
is applied to each portion of the same picture through digital
edge compensation. Thus, Clear and natural looking images
are obtained.

Press to choose DigiPure.

1

Press to choose ON.

2

• To cancel the DigiPure, choose OFF.

Press .

3

This completes the setting.

/

/

OK

Notes:

• The AUTO may not function properly with poor sig­nal quality. If the picture is abnormal in AUTO
mode, choose another colour system manually.

• When in the TV mode (PR 1 to PR 99), you cannot
choose AUTO, NTSC 3.58 or NTSC 4.43.

• When in the TV mode (PR 0), you cannot choose
NTSC 3.58 or NTSC 4.43.

Press .

OK

This completes the setting.

16

Notes:

• Set the DigiPure to ON normally.

• The DigiPure setting can be changed using the buttons
on the TV's front panel. Pressing the button for 5
seconds or longer causes the current DigiPure setting to
be displayed. Change the DigiPure setting while it is be­ing displayed using the - / + buttons.

Sound Setting

1

2

3

1

2

3

1

2

3

MENU

SOUND SETTING

STEREO/I•II
BASS
TREBLE
BALANCE
HYPER SOUND
SPEAKER

TV OK

Display MENU.

1

MENU

OK

Choose SOUND SETTING.

2

P

P

Display the Sound Setting menu.

3

MENU

OK

0

OFF ON
OFF ON

Sound Adjustment

You can adjust the sound to your liking.

Press to choose an item.
Press to adjust it.

Press .

This completes the settings.

/

/

Item

Weaker BASS Stronger
Weaker TREBLE Stronger

Left BALANCE Right

OK

Hyper Sound

You can enjoy sounds with a wider ambiance.

Press to choose HYPER SOUND.

Press to choose ON.

• To cancel the Hyper Sound, choose OFF.

/

/

ENGLISH

Stereo / I • II

You can choose Multi Sound mode for stereo broadcast pro­grammes and bilingual programmes.

Note:

• Multi Sound has no effect on programmes other than A2
(B/G) or NICAM (B/G, L) broadcast programmes.

Press to choose STEREO / I • II.

1

Notes:

• The Multi Sound mode display is different from the

• The Multi Sound function does not work in the EXT

Press to choose a Multi Sound mode.

2

Press .

3

This completes the setting.

/

broadcast programme.

modes. And the STEREO / I•II does not appear in
SOUND SETTING menu.

/

: Stereo sound
: Bilingual I (Sub I)
: Bilingual II (Sub II)
: Normal sound

OK

Press .

This completes the setting.

OK

Using the (Hyper Sound) button.

You can turn on the Hyper Sound with one touch. For
details, refer to “Hyper Sound Button” on page 10.

Speaker

It is possible to prevent the sound from being emitted from the
TV speakers. This function should only be used to emit the
sound from an audio system connected to the television as a
substitute for the TV speakers.

When you use your audio system instead of the TV
speakers:

Please refer to “Connecting an Audio System” on page 27.

To output the sound from TV speakers:

Press to choose SPEAKER.

Press to choose ON.

Press .

This completes the setting.

/

/

OK

Note:

• When you display the current PR channel number,
the current Multi Sound mode appears for approx­imately 3 seconds.

17

EXT Setting

1

2

3

4

5

1

2

3

MENU

EXT SETTING

EXT-1

EXT-3

EXT-4

TV

TV OK

Display MENU.

1

MENU

OK

Choose EXT SETTING.

2

P

P

Display the EXT Setting menu.

3

MENU

OK

DUBBING
EXT-2

ID LIST
S-IN

■ To give an EXT ID

Press to choose an EXT terminal.

P

P

Press the blue button.

The ID LIST appears.

MENU

EXT SETTING

EXT-1

EXT-3

EXT-4

TV

TV OK

/

/

/

EXT-1

EXT-3

EXT-2

EXT-4

TV

ID LIST

VHS
S-VHS

DUBBING
EXT-2

DVC
SAT
STB
GAME
LD
DVD
8mm
Hi-8

EXT Setting

You can choose S-VIDEO or normal input for EXT-2, EXT-3
and EXT-4 terminals, and you can give an EXT ID to each
EXT input terminal.

■ To choose S-VIDEO input

Press to choose an EXT terminal.

1

P

P

Press the yellow button.

2

The S-VIDEO input indication appears.

• To choose normal input, press the yellow button
again.

/

/

/

EXT-1

EXT-3

EXT-2

EXT-4

TV

Press to choose a EXT ID.

/

Note:

• To erase the EXT ID, choose a blank space.

Press .

OK

The EXT ID is set to the EXT terminal.

Press .

OK

This completes the setting.

Dubbing

You can choose output to a VCR or other device connected
to the EXT-2 terminal. Note that you cannot output from the
EXT-2 terminal when the TV is turned off.

Note:

• RGB signals from TV games and Teletext screens can­not be output from EXT-2 terminal.

Press to choose EXT-2.

Press to choose the output.

/

/

Press .

3

This completes the setting.

OK

If you choose TV:

The sound and picture of the currently chosen channel
is output to EXT-2 and this output can be recorded on a
VCR connected to the EXT-2 terminal while watching a
video input from other terminals.

Press .

OK

This completes the setting.

18

Features

1

2

3OK1

2

3

CHILD LOCK

CH/CC

PR ID
AV
01
02
03
04
05
06
07
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CC 01
CC 02
CC 03

TV OK

LOCK

MENU

FEATURES

SLEEP TIMER
BULE BACK
CHILD LOCK
DECODER(EXT-2)

TV OK

Display MENU.

1

MENU

OK

Choose FEATURES.

2

P

P

Display the Features menu.

3

MENU

OK

OFF

ON

ONOFF

Note:

• One minute before the Sleep Timer turns off the TV,
“GOOD NIGHT!” appears.

Blue Back

You can set the TV to automatically change to a blue screen
and mute the sound when a weak signal or no signal is re­ceived or when there is no input from an external device.

Press to choose BLUE BACK.

Press to choose ON.

/

/

• To cancel the Blue Back, choose OFF.

Press .

This completes the setting.

Child Lock

You can lock some channels to prevent your children from
watching them.

To set the CHILD LOCK

■

ENGLISH

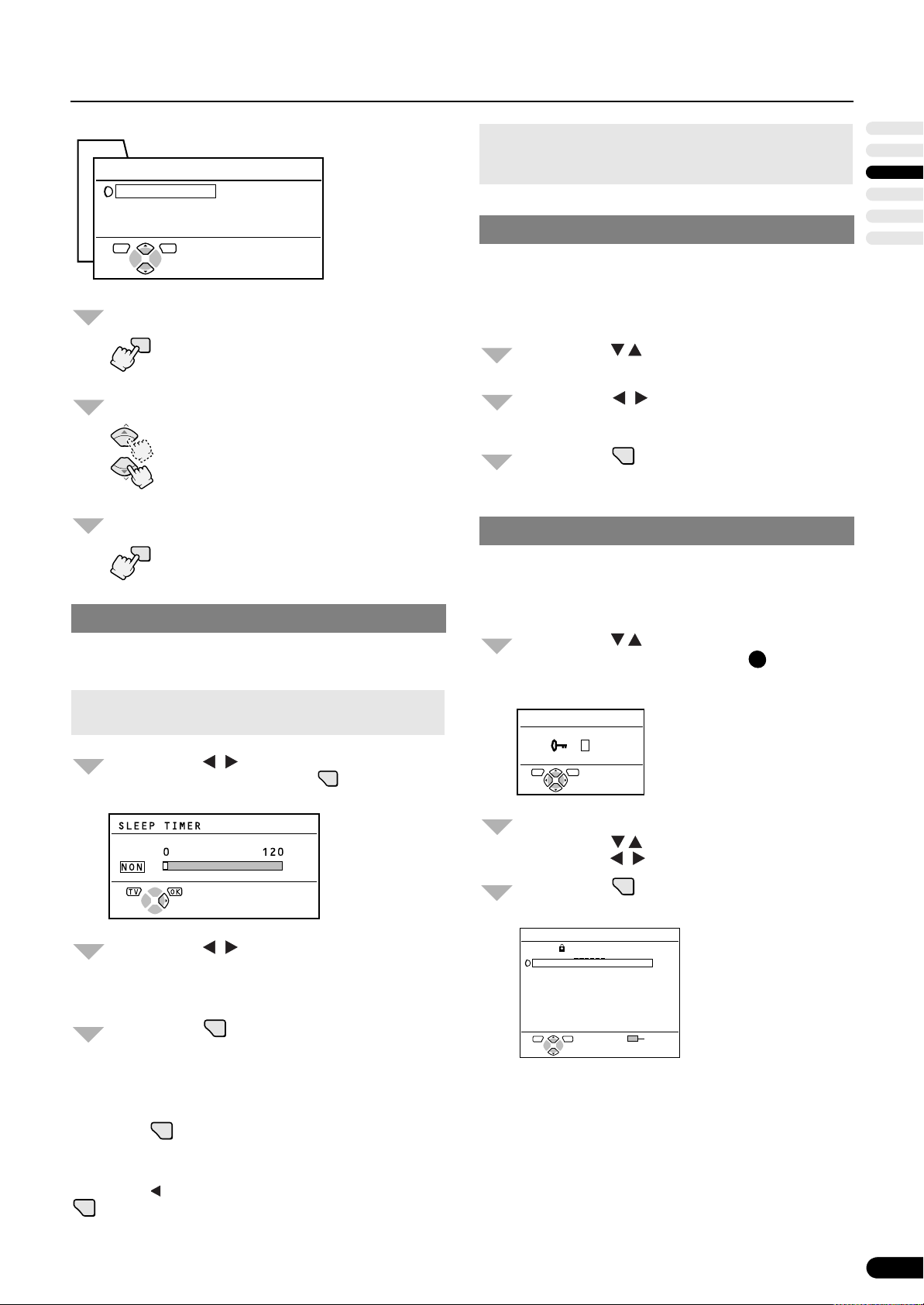

Sleep Timer

You can set the TV to automatically turn off after a specified
period of time.

Note:

• The Sleep Timer does not turn off the Main power.

Press to choose SLEEP TIMER. Then

1

press .

The Sleep Timer menu appears.

SLEEP TIMER

Press to choose a period of time.

2

You can set the period of time a maximu m of 120 mi n­utes in 10 minute increments.

Press .

3

The Sleep Timer lamp lights if you set the Sleep Timer.

/

OK

0 120

OFF

TV OK

/

OK

Press to choose CHILD LOCK. Then
press (number 0).

/

0

AV

The Set ID No. menu appears.

SET ID NO.

0000

TV OK

Enter the ID number.

1. Press to choose a number.

2. Press to move the cursor.

Press .

The Child Lock menu appears.

/

/

OK

To display the remaining time:

Do step 1 to display the Sleep Timer menu, and press
after checking the remaining time.

To cancel the Sleep Timer:

Do step 1 to display the Sleep Timer menu.
Press to choose “OFF”, and then press .

•

The Sleep Timer lamp goes out.

OK

OK

19

Features

5

5

ID NO.:

1

2

3

4

5

6

7

Press to choose a channel, then press the

4

blue button.

The (locked) mark appears, and the chosen channel
is locked.

• To cancel the Child Lock, press the blue button again.

• Repeat step 4 to lock all channels which you want to

Press .

5

This completes the setting.

Notes:

• You cannot choose a locked channel using the but­tons on the remote control nor the P
TV.

• Even if a locked channel is displayed, the programme
cannot be watched.

■ To watch a locked channel

Press the number buttons to choose a locked

1

channel.

The (locked) mark appears.

lock.

/

OK

buttons on the

Decoder (EXT-2)

When you connect a Decoder to a T-V LINK compatible VCR,
you have to set the Decoder (EXT-2) to ON for watching
scrambled channels.

Choose a scrambled channel.

The scrambled picture appears.

• If the picture is unscrambled you don’t need to
change the Decoder (EXT-2) setting.

Press to display MENU. Then Press to
choose FEATURES.

Press to display the Features menu.
Press to choose DECODER (EXT-2).

Press to choose ON.

Press .

The T-V LINK menu appears.

T-V LINK

DOWNLOAD TV VCR

OK

OK

/

/

/

OK

Press (Information).

2

The ID No. input menu appears.

Press the number buttons to enter the ID

3

number.

The locked channel can now be watched.

If you forget the ID number:

Do steps 1 of “To set the Child Lock”. After confirming
the ID number, press to exit the menu.

TV

TV OK

EXIT

Press .

TRANSFER.....

OK

The translation of channel data from the TV to the
VCR begins. The display disappears once the data
transmission ends.

• Repeat steps 1 to 7 watch a different channel using
the decoder.

Note:

• Depending on the type of VCR, the display may
change once data transmission ends.
In this case, refer to the VCR’s manual.

20

Install

COUNTRY

DEUTSCHLAND
FRANCE
ITALIA
ESPAZA
NEDERLAND
BELGIUM
LUXEMBOURG

SWITZERLAND
DANMARK
SVERIGE

ZSTERREICH

NORGE
SUOMI
PORTUGAL

START

TV OK

2

3

4

T-V LINK

DOWNLOAD TV VCR

EXIT

TV OK

MENU

INSTALL

LANGUAGE
AUTO PROGRAM
EDIT/MANUAL

TV OK

Display MENU

1

MENU

OK

Choose INSTALL.

2

P

P

Display the Install menu.

3

MENU

OK

Language

You can choose one of 10 languages for the on-screen display.

Press to choose LANGUAGE.

1

The Language menu appears.

/

The Country menu appears.

Press to choose your country.

/

/

/

Press the blue button.

The Auto Programming starts. The Edit menu appears
after the PR channels have been set.

If the ACI menu is displayed:

If your Cable TV station supports ACI (Automatic Chan­nel Installation), the ACI menu is displayed. Please op­erate it according to “ACI Operation” procedures at the
bottom of page 4. The channel is set quickly to the PR
channel according to the order decided for all the chan­nels.

Notes:

• If this TV identifies a broadcast station name, that
station ID is also automatically registered in a PR
channel.

• To cancel the Auto programming, press .

• If a station you want to view is not set to a PR chan­nel, manually set it using the Edit menu. (See page

22.)

• To edit PR channels or set a station to PR 0 (AV)
channel, refer to page 22 “Edit/Manual”.

Press .

OK

This completes the procedure and the T-V LINK menu
appears.

TV

ENGLISH

2
3

Auto Program

You can automatically allocate up to 99 stations to the PR
channels (PR 1 to PR 99) on this TV.

1

Press to choose a language.

Press .

/

OK

This completes the setting.

Press to choose AUTO PROGRAM, then
press .

/

OK

When a T-V LINK compatible VCR is connected:

You can transmit the latest PR channel data from the
TV to the VCR. Carry out the procedure described in
“Downloading the PR channel data to the VCR” on page

24.

When a T-V LINK compatible VCR is not connected:

You cannot transmit the latest PR channel data from the
TV to the VCR.

TV

Press to exit the T-V LINK menu.

21

Install

T-V LINK

DOWNLOAD TV VCR

EXIT

TV OK

EDIT

CH/CC

PR ID
AV
01
02
03
04
05
06
07
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CC 01
CC 02
CC 03

TV OK

ID
INSERT
DELETE
MANUAL

MOVE

1

2

3

1

EDIT

CH/CC

PR ID
AV
01
02
03
04
05
06
07
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CC 01
CC 02
CC 03

TV OK

ID LIST

2

EDIT

CH/CC

PR ID
AV
01
02
03
04
05
06
07 M
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CC 01

CC 02

CC 03

TV OK

ID LIST

Edit/Manual

You can change PR channel settings.

• You can delete an unwanted station from a PR channel,

• You can change the PR channel number of a station,

• You can add station IDs to PR channels,

• You can insert a new station to a PR channel, or

• You can manually set the desired station to a PR channel.

Press to choose EDIT/MANUAL.

1

/

The Edit menu appears.

EDIT

PR ID
AV
01
02
03
04
05
06
07
08
09

TV OK

Use any of the following procedures to edit the

2

BBC1

MOVE

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26
CC 01
CC 02
CC 03

ID
INSERT
DELETE
MANUAL

PR channel setting.
Press .

3

This completes the procedure and the T-V LINK menu
appears.

OK

■ Changing the PR channel number

Press to choose the station, then press

EDIT

Press to move the station to the desired
PR channel number.

EDIT

• To cancel the operation, press (Information).

.

PR ID
AV
01
02
03
04
05
06
07
08
09

TV OK

PR ID
AV
01
02
03
04
05
06
07
08
09

TV OK

/

BBC1

STORE

/

BBC1

STORE

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26

CC 02
CC 03

CH/CC

CH 21
CH 22

CH 23
CH 24
CH 25
CH 26
CC 02
CC 03

CC 01

CC 01

When a T-V LINK compatible VCR is connected:

You can transmit the latest PR channel data from the
TV to the VCR. Carry out the procedure described in
“Downloading the PR channel data to the VCR” on page

24.

When a T-V LINK compatible VCR is not connected:

You cannot transmit the latest PR channel data from the
TV to the VCR. Press to exit the T-V LINK menu.

TV

■ Deleting a station

Press to choose the station you want to

1

delete then press the yellow button.

/

EDIT

PR ID
AV
01

BBC1
02
03
04
05
06
07
08
09

TV OK

MOVE

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26
CC 02
CC 03
CC 04

ID
INSERT
DELETE
MANUAL

Press .

■ Adding a Station ID

Press to choose the station, then press
the red button.

Press to choose the first character of the
desired Station ID.

/

/

22

Note:

• If you delete a station from a PR channel, the fol­lowing stations’ PR channel numbers move back
by one.

Install

EDIT

CH/CC

PR ID
AV
01
02
03
04
05
06
07
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CH

**
CC 01
CC 02

TV OK

CH/CC

0

-

9

3

1

EDIT

CH/CC

PR ID
AV
01
02
03
04
05
06
07
08
09

CH 21

CH 23

BBC1

CH 22

CH 26

CH 25

CH 24

CC 01

CC 02

CC 03

TV OK

ID
INSERT
DELETE
MANUAL

MOVE

2

3

Press the blue button.

3

The ID List menu appears.

EDIT

PR ID
AV
01
02
03
04
05
06
07 M
08
09

TV OK

Press to choose the station ID.

4

BBC1

/

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26
CC 01

CC 02

CC 03

ID LIST

M6
MBC
MCM
MDR
MOVIE
MTV
MTV3

• To cancel the operation, press (Information).

Press .

5

OK

Adding a Station ID name of your own:

Do the following procedure in place of “Adding a Station ID”.

Press to choose the station, then press

1

/

the red button.
Press to choose a character, then press

2

Repeat step 2 to complete the Station ID, then

3

press .

/

to move the cursor.

/

OK

Press the number buttons to enter the channel
number.

The channel number blinks. When the channel setting
is complete, the blinking goes off.

• To enter a one-digit channel number, enter the
number and press .

OK

Note:

• When you insert a station, the station preset to
PR99 is deleted.

Setting a station to a PR channel

■

manually

If you want to set French stations to the PR channels:

You have to set the Country setting to FRANCE before setting
French stations to the PR channels.
If your Country setting is not FRANCE, change the Country
setting to FRANCE. To change the Country Setting, refer to
“Changing the Country Setting” on page 24.

Press to choose a PR channel number,
then press the blue button.

Note:

• PR channel number “AV” appears on the screen

/

as PR 0 channel. We recommend setting this PR
channel to the VCR RF channel from a VCR con­nected to the aerial socket.

ENGLISH

Inserting a new station

■

If you want to insert French stations to the PR channels:

You have to set the Country setting to FRANCE before insert­ing French stations to the PR channels.
If your Country setting is not FRANCE, change the Country
setting to FRANCE. To change the Country Setting, refer to
“Changing the Country Setting” on page 24.

Press to choose the PR channel, then

1

/

press the green button.

Press to choose CC or CH

2

CH: to insert the terrestrial broadcast stations
CC: to insert the cable TV stations

To set a French station:

Choose CH1, CH2, CC1 or CC2.

• To cancel the operation, press

/

(Information).

EDIT

PR ID
AV
01
02
03
04
05
06
07
08
09

TV OK

BBC1

CH/CC

CH 21
CH 22
CH 23
CH 24
CH 25
CH 26
CC 01
CC 02
CC 03

SEARCH+
SEARCH­FINE+
FINE-

Press the green or red button to search for a
station.

Scanning stops when the TV finds a station.
To continue searching, press the red or green button
again and repeat until the station you want appears.

CH: The terrestrial broadcast stations
CC: The cable TV stations

If reception is poor:

Press the blue or yellow button to fine-tune the station.

When your COUNTRY setting is FRANCE:

The boradcast system is displayed as “(B/G)”, “(I)” or
“(L)” to the right of the CH/CC number.

• If a broadcast is not received correctly, press to
choose the correct broadcast system.

• If the broadcast system is not set correctly, you may
be unable to find the station you want to view. At such
a time, press to select the correct broadcast sys­tem, then return to Step 2 and repeat it.

Note:

• For details on the relationship between the dis­played CH/CC number and the actual channel
number, see the Channel Table on page 28.

Note:

• For details on the relationship between the dis­played CH/CC number and the actual channel
number, see the Channel Table on page 28.

Press .

OK

23

Install

T-V LINK

DOWNLOAD TV VCR

EXIT

TV OK

TRANSFER.....

■ Downloading the PR channel data to

the VCR.

You can transmit the latest PR channel data from the TV to
the VCR with T-V LINK.

Make sure that the T-V LINK menu is dis-

1

played.

Notes:

• You cannot display the T-V LINK menu directly by
choosing it from a menu.

• You cannot transmit the PR channel data to the
VCR when a T-VLINK compatible VCR is not con­nected. Press to exit the menu.

• For details about T-V LINK, refer to page 5.

TV

Turn the VCR on.

2

Press .

3

The data transmission begins.
The display disappears once the data transmission
ends.

Note:

• Depending on the type of VCR, the display may

OK

change once data transmission ends.
In this case, refer to the VCR’s manual.

■ Changing the Country Setting

Display the Install menu.

1

• To return to the Install menu from the Edit menu,
press

(information).

Press to choose AUTO PROGRAM. Then

2

press .

The Country menu appears.

Press to choose a Country. This

3

completes the setting.

/

OK

/

/

/

4

24

Press to exit the MENU.

• To return to the Install menu, press (informa-

TV

tion).

Index

MENU

INDEX

BASS
BLUE BACK
BRIGHT
CHILD LOCK
COLOUR
COLOUR SYSTEM
CONTRAST
COUNTRY
DIGITAL VNR
ECO MODE

TV OK

Display MENU.

1

MENU

OK

Choose INDEX.

2

P

P

The functions in each menu are listed in the Index menu. The
required function can be found in the Index menu and the op­erating menu for that function can be entered with one touch.

1
2

Press to choose a function.

If the desired function is not displayed, press

/

Press .

The chosen function’s operating menu will be
displayed.

• To return to the MENU (Main Menu), press

/

until it appears.

OK

(Information).

ENGLISH

Display the Index menu.

3

MENU

OK

Demo

MENU

DEMO

OFF
ON

TV OK

Display MENU.

1

MENU

OK

You can see the main features of your TV by using the Demo
function.

When the Demo is set to ON:

Each time the TV is turned on, the demonstration starts auto­matically. If you do not want that to happen, set the Demo set­ting to OFF.

1

2

Press to choose ON.

• To cancel the Demo function, choose OFF.

Press .

The demonstration will start.

To stop the demonstration, press one of the
buttons on the remote control.

/

OK

Choose DEMO.

2

P

P

Display the Demo menu.

3

MENU

OK

25

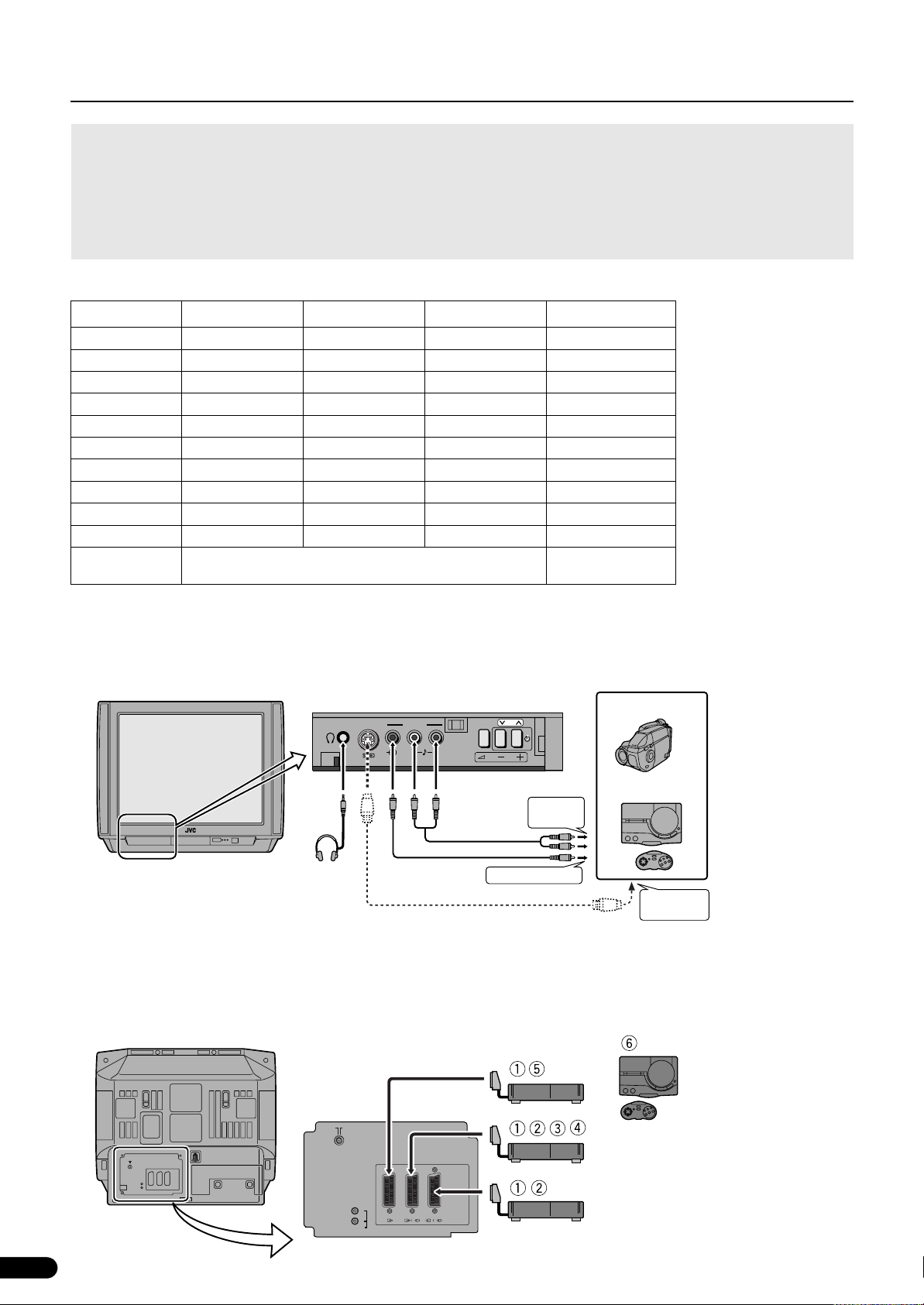

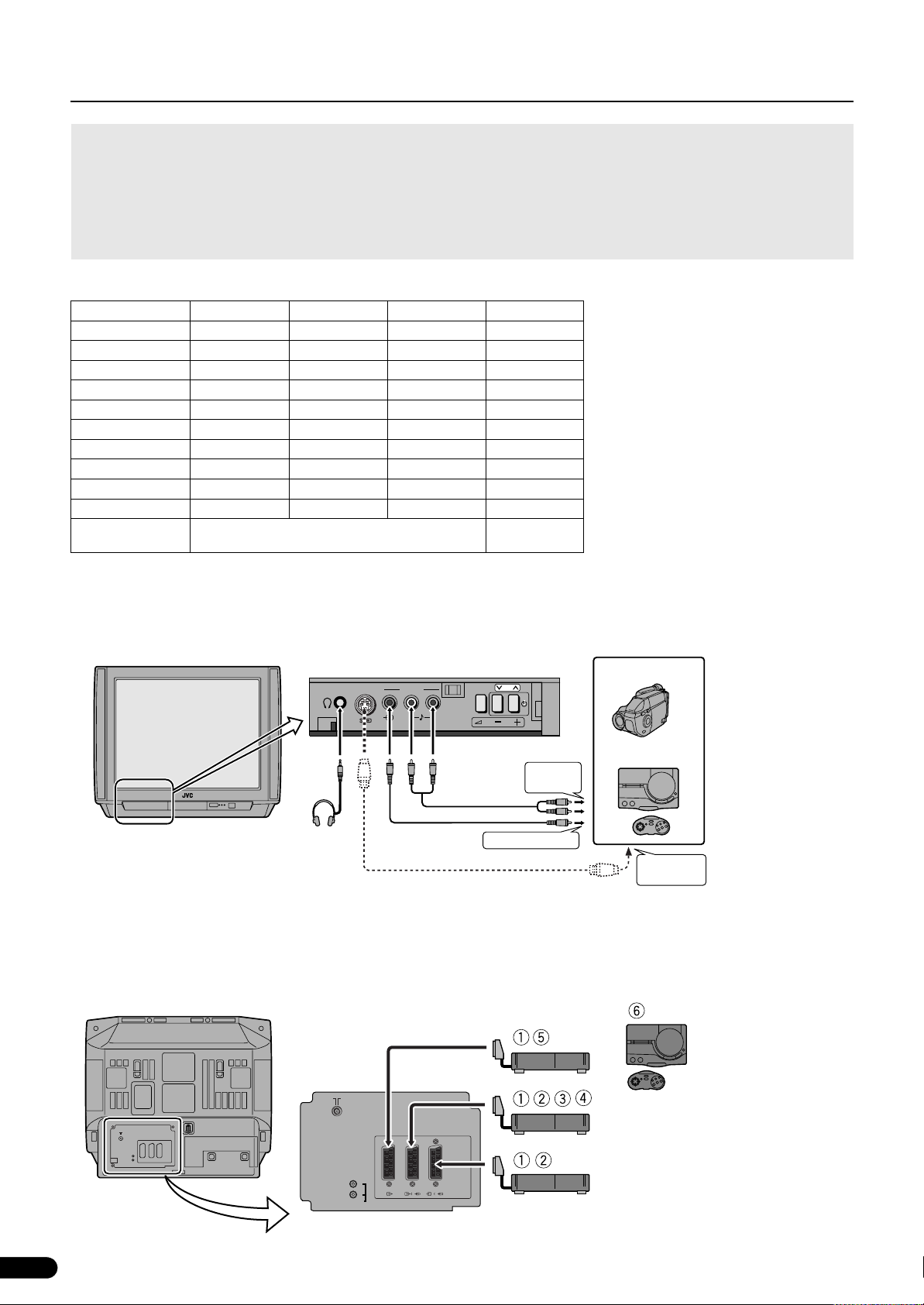

Additional Preparation

Notes:

• Use headphones with a stereo mini jack (dia. 3.5 mm). When using headphones, the speakers will not output sound.

• For further details, refer to manuals provided with the devices you are connecting.

• Connecting cables are not supplied.

• This TV set has external device connectors to which you can connect external devices. However, there are some differences
in functions among them. Consult the table below before making connections.

■ External terminals specifications

EXT-1 EXT-2 EXT-3 EXT-4 (front)
VIDEO IN
VIDEO OUT
S-VIDEO IN –
S-VIDEO OUT – – – –
RGB IN
AUDIO-L IN
AUDIO-R IN
AUDIO-L OUT
AUDIO-R OUT
T-V LINK –
Others

√

√

*2

√
√√√√
√√√√

√

*2

√

*2

• Automatic detection and switching of input mode.

• Automatic detection and switching of ZOOM mode.

√

*1

√

*3 – –

√

*1

–––

√

*3 – –

√

*3 – –

√

√

*1

√

*1

––

√

*1

√

*1

*1 Choose VIDEO or S-VIDEO mode from the EXT Setting menu. For details, see page18 “EXT Setting”.
*2 Only the TV broadcast is output.
*3 TV broadcasts or inputs from other EXT terminals can be output. For details, see page18 “Dubbing”.

■ Front panel connections

(Behind the cover)

EXT-4

LR

Headphones

P

To audio
output

To video output

■ Rear panel connections

VCR

1

S-VHS VCR

2

T-V LINK compatible VCR

3

T-V LINK compatible S-VHS VCR

4

Decoder

5

TV game

6

Camcorder

or

TV game

To S-video
output

26

AUDIO OUT

or

L

EXT-1

EXT-2 EXT-3

R

S

Connecting an Audio System

5

6

7

You can use your audio system as front speakers instead of
the front speakers on the TV.

Caution:
Do the following before connecting,

• Turn the power of all the equipment off.

• Set the amplifier volume to low.

• Read the manuals provided with the amplifiers and
speakers.

1: Stereo amplifier
2: Front speakers (Magnetic-shielded Type, L, R)

2

1

L

R

AUDIO OUT

(Terminals on rear)

Notes:

• Use the AUDIO OUT terminals for connecting an audio
system.
The volume output is controlled via the TV and The AU­DIO OUT terminal output is not interrupted by head­phone connection.

• Use magnetic-shielded speakers for front speakers

2

to prevent interference by the TV.

Press to choose SPEAKER and press

/

to choose OFF. Then press .

/

OK

To output sound from the TV speakers:

Set SPEAKER to ON.

Press .

OK

This completes the settings.

Turn the stereo amplifier on and re-adjust the
volume setting, then press to adjust the

/

ENGLISH

volume.

Note:

• Setting the volume of the stereo amplifier too high
may damage the speakers.

Connect your stereo amplifier 1 to the AUDIO

1

OUT terminals.
Turn the TV on and set the volume to the low-

2

est setting.
Press .

3

The MENU appears.

Press to choose SOUND SETTING. Then

4

press .

The Sound Setting menu appears.

MENU

OK

/

OK

SOUND SETTING

STEREO/I•II
BASS
TREBLE
BALANCE
HYPER SOUND
SPEAKER

TV OK

0

OFF ON
OFF ON

27

Channel Table

• The following table shows the relationship between the displayed CH/CC channel number and the actual channel number.

• The actual channel numbers for the “CC” channel numbers from CC110 to CC161 differ depend ing on the cable TV station.
Check which actual channel numbers correspond to which “CC” channels while refe rring to the broadcast frequenci es which
are indicated in the channel tables of each cable TV station. If you can not find the broadcast frequency for a channel, contact
the cable TV station.

CH Channel

CH 02 / CH 202 E2
CH 03 / CH 203 E3, ITALY A
CH 04 / CH 204 E4, ITALY B
CH 05 / CH 205 E5, ITALY D
CH 06 / CH 206 E6, ITALY E
CH 07 / CH 207 E7, ITALY F
CH 08 / CH 208 E8
CH 09 / CH 209 E9, ITALY G
CH 10 / CH 210 E10, ITALY H
CH 11 / CH 211 E11, ITALY H+1
CH 12 / CH 212 E12, ITALY H+2
CH 21 / CH 221 E21
CH 22 / CH 222 E22
CH 23 / CH 223 E23
CH 24 / CH 224 E24
CH 25 / CH 225 E25
CH 26 / CH 226 E26
CH 27 / CH 227 E27
CH 28 / CH 228 E28
CH 29 / CH 229 E29
CH 30 / CH 230 E30
CH 31 / CH 231 E31
CH 32 / CH 232 E32
CH 33 / CH 233 E33
CH 34 / CH 234 E34
CH 35 / CH 235 E35
CH 36 / CH 236 E36
CH 37 / CH 237 E37
CH 38 / CH 238 E38
CH 39 / CH 239 E39

CH Channel

CH 40 / CH 240 E40
CH 41 / CH 241 E41
CH 42 / CH 242 E42
CH 43 / CH 243 E43
CH 44 / CH 244 E44
CH 45 / CH 245 E45
CH 46 / CH 246 E46
CH 47 / CH 247 E47
CH 48 / CH 248 E48
CH 49 / CH 249 E49
CH 50 / CH 250 E50
CH 51 / CH 251 E51
CH 52 / CH 252 E52
CH 53 / CH 253 E53
CH 54 / CH 254 E54
CH 55 / CH 255 E55
CH 56 / CH 256 E56
CH 57 / CH 257 E57
CH 58 / CH 258 E58
CH 59 / CH 259 E59
CH 60 / CH 260 E60
CH 61 / CH 261 E61
CH 62 / CH 262 E62
CH 63 / CH 263 E63
CH 64 / CH 264 E64
CH 65 / CH 265 E65
CH 66 / CH 266 E66
CH 67 / CH 267 E67
CH 68 / CH 268 E68
CH 69 / CH 269 E69

CC Channel

CC 01 / CC 201 S1
CC 02 / CC 202 S2
CC 03 / CC 203 S3
CC 04 / CC 204 S4
CC 05 / CC 205 S5
CC 06 / CC 206 S6
CC 07 / CC 207 S7
CC 08 / CC 208 S8
CC 09 / CC 209 S9
CC 10 / CC 210 S10
CC 11 / CC 211 S11
CC 12 / CC 212 S12
CC 13 / CC 213 S13
CC 14 / CC 214 S14
CC 15 / CC 215 S15
CC 16 / CC 216 S16
CC 17 / CC 217 S17
CC 18 / CC 218 S18
CC 19 / CC 219 S19
CC 20 / CC 220 S20
CC 21 / CC 221 S21
CC 22 / CC 222 S22
CC 23 / CC 223 S23
CC 24 / CC 224 S24
CC 25 / CC 225 S25
CC 26 / CC 226 S26
CC 27 / CC 227 S27
CC 28 / CC 228 S28
CC 29 / CC 229 S29
CC 30 / CC 230 S30

CC Channel

CC 31 / CC 231 S31
CC 32 / CC 232 S32
CC 33 / CC 233 S33
CC 34 / CC 234 S34
CC 35 / CC 235 S35
CC 36 / CC 236 S36
CC 37 / CC 237 S37
CC 38 / CC 238 S38
CC 39 / CC 239 S39
CC 40 / CC 240 S40
CC 41 / CC 241 S41
CC 75 / CC 275 X
CC 76 / CC 276 Y
CC 77 / CC 277 Z, ITALY C
CC 78 / CC 278 Z+1
CC 79 / CC 279 Z+2

CH Channel

CH 102 F2
CH 103 F3
CH 104 F4
CH 105 F5
CH 106 F6
CH 107 F7
CH 108 F8
CH 109 F9
CH 110 F10
CH 121 F21
CH 122 F22
CH 123 F23
CH 124 F24
CH 125 F25
CH 126 F26
CH 127 F27
CH 128 F28
CH 129 F29
CH 130 F30
CH 131 F31
CH 132 F32
CH 133 F33
CH 134 F34
CH 135 F35
CH 136 F36
CH 137 F37
CH 138 F38
CH 139 F39
CH 140 F40

CH Channel

CH 141 F41
CH 142 F42
CH 143 F43
CH 144 F44
CH 145 F45
CH 146 F46
CH 147 F47
CH 148 F48
CH 149 F49
CH 150 F50
CH 151 F51
CH 152 F52
CH 153 F53
CH 154 F54
CH 155 F55
CH 156 F56
CH 157 F57
CH 158 F58
CH 159 F59
CH 160 F60
CH 161 F61
CH 162 F62
CH 163 F63
CH 164 F64
CH 165 F65
CH 166 F66
CH 167 F67
CH 168 F68
CH 169 F69

CC (MHz)

Frequency

CC 110 116 - 124
CC 111 124 - 132
CC 112 132 - 140
CC 113 140 - 148
CC 114 148 - 156
CC 115 156 - 164
CC 116 164 - 172
CC 123 220 - 228
CC 124 228 - 236
CC 125 236 - 244
CC 126 244 - 252
CC 127 252 - 260
CC 128 260 - 268
CC 129 268 - 276
CC 130 276 - 284
CC 131 284 - 292
CC 132 292 - 300
CC 133 300 - 306
CC 141 306 - 311
CC 142 311 - 319
CC 143 319 - 327
CC 144 327 - 335
CC 145 335 - 343
CC 146 343 - 351
CC 147 351 - 359
CC 148 359 - 367
CC 149 367 - 375
CC 150 375 - 383

CC (MHz)

Frequency

CC 151 383 - 391
CC 152 391 - 399
CC 153 399 - 407
CC 154 407 - 415
CC 155 415 - 423
CC 156 423 - 431
CC 157 431 - 439
CC 158 439 - 447
CC 159 447 - 455
CC 160 455 - 463
CC 161 463 - 469

28

TV Buttons and Parts

Front Panel

(Behind the cover)

EXT-4

LR

P

CAUTION:

• Do not hold the front panel cover
when moving the TV set. If you
do, you may break it.

ENGLISH

(Push to open)

ECO

Headphone jack (mini jack)

1

EXT-4 terminals pages 18, 26

2

(Volume) button page 7

3

P buttons / –/+ buttons page 7

4

5

/

Remote control sensor

Rear Panel

page 26

ECO sensor

6

ECO lamp page 15

7

Sleep timer lamp page 19

8

Power lamp pages 3, 6

9

Main power button pages 3, 6

0

L

EXT-1

EXT-2 EXT-3

AUDIO OUT

R

S

Aerial socket page 2

-

EXT-1 terminal pages 2, 18, 26

=

EXT-2 terminal pages 2, 5, 18, 26

~

EXT-3 terminal pages 18, 26

!

AUDIO OUT terminal page 27

@

29
