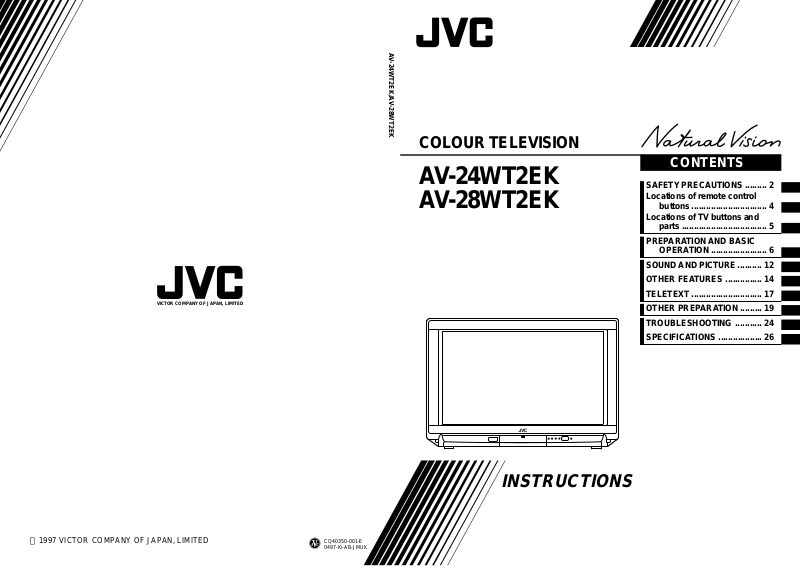

Page 1
COLOUR TELEVISION
CONTENTS
AV -24WT2EK
AV -28WT2EK
SAFETY PRECAUTIONS ......... 2
Locations of remote control
buttons............................... 4
Locations of TV buttons and
parts ................................... 5
PREP ARATION AND BASIC
OPERA TION ....................... 6
SOUND AND PICTURE.......... 12
OTHER FEATURES ............... 14
TELETEXT ............................. 17
OTHER PREPARATION......... 19
TROUBLESHOOTING ........... 24
SPECIFICA TIONS .................. 26
INSTRUCTIONS
Page 2
Thank you for purchasing this JVC colour television.
To ensure your complete understanding, please read this manual
thoroughly before operation.
SAFETY PRECAUTIONS
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES
REGARDING THE USE OF THIS UNIT.
• Operate only from the power source specified (AC 220 – 240V, 50 Hz) on the unit.
• Avoid damaging the AC plug and power cord.
• Avoid improper installation and never position the unit where good ventilation is
unattainable.
When installing this television, distance
recommendations must be maintained
between the floor and wall, as well as
installment in a tightly enclosed area or
piece of furniture. Please adhere to the
minimum distance guidelines show for
safe operation.
• Do not allow objects or liquid into the cabinet openings.
• In the event of a fault, unplug the unit and call a service technician. Do not
attempt to repair it yourself or remove the rear cover.
* When you do not use this TV set for a long period of time, be sure to disconnect
the power plug from the AC outlet.
10 cm 10 cm 15 cm
15 cm
WARNING: DO NOT cut off the mains plug from this equipment. If the plug fitted is not
suitable for the power points in your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved extension lead or adaptor or
consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug
immediately, to avoid a possible shock hazard by inadvertent connection to the
mains supply.
If a new mains plug has to be fitted, then follow the instruction given below:
IMPORTANT.
DO NOT make any connection to the larger terminal which is marked with the letter
E or by the safety earth symbol or coloured green or green-and-yellow.
The wires in the mains lead on this product are coloured in accordance with the
following code:
Blue: Neutral
Brown: Live
As these colours may not correspond with the coloured marking identifying the
terminals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked
with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
When replacing the fuse only a correctly rated approved type should be used and be
sure to re-fit the fuse cover.
IF IN DOUBT — CONSULT A COMPETENT
ELECTRICIAN.
How To Replace The Fuse
Open the fuse compartment with the blade screwdriver,
and replace the fuse.
Fuse
2
Page 3
Some Do’s And Don’ts On The Safe Use Of Equipment
This equipment has been designed and manufactured to meet international safety
standards but, like any electrical apparatus, care must be taken if you are to obtain
the best results and safety is to be assured.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension
leads and interconnections between pieces of equipment) are properly
made and in accordance with the manufacturer’s instructions.
DO consult your dealer if you are ever in doubt about the installation or
operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
DON’T continue to operate the equipment if you are in any doubt about it working
normally, or if it is damaged in any way — switch off — withdraw the mains
plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically
stated that it is designed for unattended operation or has a standby mode.
Switch off using the switch on the equipment and make sure that your family
know how to do this. Special arrangements may need to be made for infirm
or handicapped people.
DON’T use equipment such as personal stereos or radios that may distract you
when driving. It is illegal to watch television while driving.
DON’T listen to headphones at high volume, as such use can permanently damage
your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft
furnishings. Overheating will cause damage and shorten the life of the
equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure
complete safety always fit the manufacturer’s approved stand or legs with
the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
ABOVE ALL
— NEVER let anyone especially children push anything into holes, slots or any
other opening in the case — this could result in a fatal electrical shock.
— NEVER guess or take chances with electrical equipment of any kind. It is
better to be safe than sorry.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3
Page 4
Locations of remote control buttons
OUTSIDE BUTTONS INSIDE BUTTONS
How to open the cover.
1
2
3
1 2 3
4 5 6
7 8 9
0
ZOOM
AV
8
9
4
5
6
7
MENU
P
TV OK
P
0
=
~
1 Mute button p.12
2 Number buttons p.9
3 ZOOM button p.16
4 Hyper Sound button p.12
5 Information button p.9, 14
6 TV button
7 Volume –/+ buttons p.10
8 Standby button p.8, 10
9 Colour buttons
0 TV/text button p.17
- OK button
= PR channel
/
~
/
/
! Teletext/VCR control buttons p.17
@ VCR/TEXT selector switch
• When switched to the VCR side, the ! buttons function as
the JVC VCR control buttons.
Notes:
• For details on button functions, see the JVC VCR
manual.
• Depending on your VCR, the remote control may not
operate perfectly, and may not even control the VCR at
all.
• When switched to the TEXT side, the ! buttons function
as teletext control buttons.
buttons p.9
/
buttons
MENU
P
TV OK
P
HOLD
SUBPAGE
MODE
STORE
REVEAL
CANCEL
VCR TEXT
SIZE
INDEX
!
@
Inserting batteries into your remote
control
Use two AAA/R03 dry cell batteries.
Insert two batteries, observing the and
polarities, inserting the end first.
CAUTION:
• Follow the cautions printed on the batteries.
Notes:
• Battery life is approx. six months to one year, depending on
frequency of use.
• If the remote control operates erratically, replace the batteries.
• We recommend that you use the supplied batteries
temporarily and replace them as soon as operation becomes
erratic. The supplied batteries are for operational testing of the
remote control, not for regular use.
4
Page 5
Locations of TV buttons and parts
FRONT PANEL
Push to open
(behind the door)
21
REAR PANEL
=
~
!
3
L R
EXT-3
4
EXT-1
P
5 0 -
ECO
9876
1 Remote control sensor
2 ECO sensor
3 Headphone jack (mini jack) p.7
4 EXT-3 terminals p.6, 19
5 Volume button p.10
(Press this button to display the volume
level indicator. Press the 6 Up/down
buttons to change volume while the
volume level indicator is displayed.)
6 Up/down buttons p.10
(You can use this button as the
buttons of the PR channel. Pressing the
5 Volume button makes this button
function as the Volume –/+ buttons.)
/
7 Hyper Sound lamp p.12
8 ECO lamp p.13
9 Sleep timer lamp p.14
0 Power lamp p.8, 10
- Main power button p.8, 10
= EXT-2 terminal p.6, 19
EXT-2
S
S
~ EXT-1 terminal p.6, 19
! Aerial socket p.6
5
Page 6
PREPARATION AND BASIC OPERATION
1. Connecting the aerial and VCR
If not connecting a VCR, do 1 only.
If connecting a VCR, proceed 1 → 2 → 3.
2
To RF
output
To AV IN / OUT
terminal
1
VCR / S-VHS VCR
VHF/UHF outdoor aerial
1
EXT-1
EXT-2
S
To aerial input
Notes:
• For further details, refer to manuals
provided with the devices you are
connecting.
• Connecting cables are not supplied.
• You can view video from a VCR
without doing 3. For details, refer to
the manual provided with your VCR.
S
3
2. Connecting other external devices
Conditions:
• This TV set has external device connectors, EXT-1 to EXT-3 to which
you can connect a VCR. However, there are some differences in
functions among them. Consult the following table before making
connections.
EXT-1 EXT-2 EXT-3 (front)
VIDEO IN √ *1 √ *1 √
VIDEO OUT √ *2 √ *3 –
S-VIDEO IN √ *1 √ *1 –
S-VIDEO OUT – – –
RGB IN √ ––
AUDIO-L IN √√√
AUDIO-R IN √√√
AUDIO-L OUT √ *2 √ *3 –
AUDIO-R OUT √ *2 √ *3 –
Others
• Automatic detection and
switching of input mode.
• Automatic detection and
switching of ZOOM mode.
• Use headphones with a stereo mini jack (dia. 3.5 mm).
When using headphones, the speakers will not output sound.
• For further details, refer to manuals provided with the devices you are
connecting.
• Connecting cables are not supplied.
*1 Select VIDEO or S-VIDEO
mode from the EXT SETTING
menu. For details, see page 19
“EXT SETTING.”
*2 Only the TV broadcast is
output.
*3 TV broadcasts or inputs from
EXT-1 or 3 can be output. For
details, see page 19
“DUBBING.”
6
Page 7
Devices which can be connected to the terminals on the rear panel
1 VCR
2 S-VHS VCR
3 Decoder
4 TV game
4
1 2 3
or
1 2
EXT-1
EXT-2
S
S
Devices which can be connected to the terminals on the front panel
(behind the door)
Camcorder
L R
EXT-3
Push to open
To audio
output
or
TV game
Headphones
To video output
3. Connecting the power cord
Insert the power plug into an AC outlet (AC 220 – 240 V,
50 Hz).
Power cord
AC outlet
7
Page 8
4. Turning the power and TV on
Press the Main power button on the TV to turn
1.
the power on.
The Power lamp lights red (power on), then green (TV
on).
If the power lamp stays red and does not change to green:
Your TV is in the standby mode. Press the Standby button on the
remote control to turn your TV on.
5. Initial Settings
Note:
• You can also press the PR channel
button, a number button or the
/
up/down button on the front panel to
turn the TV on.
• When the TV is first turned ON, it enters into the initial setting mode, and
the JVC logo is displayed.
Press any button on the remote control.
1.
LANGUAGE menu appears.
Selecting the on-screen language
You can select your language from ten languages listed on the LANGUAGE
menu. The displayed menus on the screen are described in the selected
language.
Press
2.
ENGLISH.
Press OK button.
3.
English is set for the on-screen display
description, and the AUTO PROGRAM menu
appears.
button to select
/
LANGUAGE
ENGLISH
FRAN¸CAIS
DEUTSCH
ITALIANO
CASTELLANO
NEDERLANDS
DANSK
NORSK
SVENSKA
SUOMI
TV
:EXIT :OK
AUTO PROGRAM
START
CANCEL
TV
:EXIT :OK
OK
OK
Note:
• The TV enters into the initial setting
mode only once when the TV is first
turned ON. If you turn the TV off or exit
from the setting menu while performing
the initial settings by mistake, you must
redo the initial settings, “LANGUAGE”
and “AUTO PROGRAM”, following the
procedures described in page 20.
Automatically allocating stations to PR channels
To view a TV programme, you must first allocate broadcast stations to PR
channels. You can automatically allocate up to 99 stations to PR channels
PR1 to PR 99 on this TV. Broadcast stations that can be received are
automatically determined and set to PR channels.
8
Page 9
Press OK button.
4.
Broadcast stations are automatically allocated
to the PR channels.
AUTO PROGRAM
CH 60
81%
TV
:EXIT :OK
Note:
• If you want to quit automatic allocation
OK
in the middle, press the TV button.
The EDIT menu is displayed after the
allocation is completed.
• If you want to edit PR channels or allocate a
station to PR0 (AV) channel, see page 21
“EDIT/MANUAL” for procedural description.
• When carrying out automatic programming,
the following broadcast channels and Station
IDs are automatically set to PR channels
PR1 to 6 by the AUTO PROGRAM function.
PR channel Broadcast channel Station ID
PR 1 BBC1 BBC1
PR 2 BBC2 BBC2
PR 3 ITV ITV
PR 4 CHANNEL4 CH4
PR 5 CHANNEL5 CH5
PR 6 SKY1* No indication
●The procedure is complete.
Press the TV button to exit the menu.
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
Notes:
• When the previous tables broadcast
channels cannot be received, nothing
is set to that particular PR channels.
• To store different broadcast channels
to PR 1 to 6, see "EDIT/MANUAL" on
page 21.
* To receive SKY1, a satellite broadcast
reception tuner is required. Before
carrying out automatic setting, receive
SKY1 on the satellite broadcast
reception tuner.
6. Viewing a television programme
Select a PR channel.
1.
Selection
P
P
• Press the PR channel
Direct channel selection
1 2 3
• Press the corresponding number buttons.
Example: To select channel 6, press “6”.
4 5 6
7 8 9
0
AV
To select channel 12, press “1” and “2”.
To use the PR LIST to select a PR channel
1. Press Information button.
The PR LIST appears.
• To exit the PR LIST, press TV
button.
/
button.
PR LIST
PR ID
AV -----
1 BBC1
2 BBC2
3 ITV
4 CH4
5 CH5
6
7
8
9
TV
:EXIT
OK
:OK
Notes:
• If the picture is not clear or no colour
appears, change the colour system
manually (see page 13 for details).
• Enter “0” when selecting an AV
channel (PR 0 channel).
9
Page 10
P
2. Press
button to select a PR
/
channel.
• Press button to view the next
page of the PR LIST.
P
• Press button to view the
previous page of the PR LIST.
MENU
OK
Press the Volume -/+ button.
2.
3. Press OK button.
The Volume level indicator appears and the
volume changes as you press the Volume -/+
buttons.
Turning the TV and power off
Press the Standby button to turn the TV off.
1.
The Power lamp changes from green to red.
The TV enters standby mode.
PR LIST
PR ID
AV -----
1 BBC1
2 BBC2
3 ITV
4 CH4
5 CH5
6
7
8
9
TV
:EXIT
OK
:OK
20
Note:
• The mark will appear on the PR
channel when the CHILD LOCK setting
is on (see page 15).
Press the Main power button on the TV to turn
2.
the main power off.
The Power lamp goes off.
To select a channel without using the remote
control
You can also use the buttons on the front panel of the TV.
Press the Up/down button to turn your TV on.
1.
The Power lamp changes from red to green.
P
Press the Up/down button to select the PR
2.
channel.
Adjust the volume.
3.
1. Press the Volume button.
The volume level indicator appears.
P
2. Press the Up/down button while the volume level
indicator is displayed.
Note:
• To save energy, we recommend that
you turn the main power off if you do
not plan to use your TV for a long time.
Note:
• If your TV does not turn on, press the
Main power button, and then press the
Up/down button again.
Note:
• PR channel selection is not available
while the volume level indicator is
displayed.
●To turn off your TV, press the Main power button.
The Power lamp goes off.
10
Page 11
Viewing images from external devices
Repeatedly press the 0 button to select the EXT
1.
terminal.
The current selection appears, and disappears after several
0
AV
seconds.
When a station is not registered to the PR 0 (AV) channel, pressing
the 0 button changes the selection as follows:
TV mode
PR channel
number
EXT-1 EXT-2
E1orS1 E2orS2
When a station is registered to the PR 0 (AV) channel, pressing the
0 button changes the selection as follows:
TV modes
PR channel
number
PR 0 channel
AV
EXT modes
EXT-3
E3
EXT modes
EXT-1 EXT-2
E1orS1 E2orS2
EXT-3
E3
Notes:
• If the picture is not clear or no colour
appears, change the colour system
manually (see page 13).
• When selecting an EXT terminal with
no input signal, the EXT number and
ID become fixed on screen.
TV mode:
Shows images input from an external device (such as a VCR) or TV
aerial connected to the aerial socket of your TV.
EXT modes:
Shows images input from an external device (such as a VCR)
connected to the selected EXT terminal.
• To use S-Video mode to view input from an S-VHS VCR, see “To
select S-VIDEO input for a terminal” on page 19. When selecting
EXT-1 or EXT-2 input terminals as S-VIDEO input, E1 or E2 changes
to S1 or S2 in the display.
11
Page 12
SOUND AND PICTURE
MUTE
You can mute the volume to 0
instantly. This is convenient when
answering the phone or when
receiving visitors.
1.
Press (Mute).
The sound is muted.
To restore the sound:
Press the Mute button again.
HYPER SOUND
You can enjoy sounds with a wider
ambiance by Hyper sound.
1.
Press (Hyper Sound).
The HYPER SOUND ON appears.
• The Hyper Sound lamp lights.
HYPER SOUND ON
To return to normal sound:
Press the Hyper Sound button again.
• HYPER SOUND can be also set to
ON by operating MENU.
1. Press the OK button.
The MENU appears.
2. Press
SOUND SETTING, and press OK
button.
The SOUND SETTING menu
appears.
3. Press
HYPER SOUND.
4. Press
OFF.
5. Press the OK button.
This completes the setting.
• If you turned on HYPER
SOUND, the Hyper Sound
lamp lights.
button to select
/
button to select
/
SOUND SETTING
STEREO/I•II I II
BASS
TREBLE
BALANCE
HYPER SOUND OFF
TV
:EXIT :OK
/
OK
button to select ON,
MUL TI SOUND
You can select the multi sound mode
for stereo broadcast programmes
and bilingual programmes.
Note:
• The MULTI SOUND function has no
effect on programmes other than A2 or
NICAM broadcast programmes.
1.
Press OK.
The MENU appears.
MENU
PICTURE SETTING
SOUND SETTING
EXT SOURCE
FEATURES
INSTALL
DEMO
TV
:EXIT :OK
2.
Press
to select
/
SOUND SETTING, then
press OK.
The SOUND SETTING menu
3.
appears.
Press
SOUND SETTING
STEREO/I•II I II
BASS
TREBLE
BALANCE
HYPER SOUND OFF
TV
:EXIT :OK
to select
/
STEREO/I•II.
Notes:
• The multi sound mode display is
different from the broadcast
programme.
• The multi sound function does not
work in EXT modes.
The STEREO/I•II does not appear
in SOUND SETTING menu.
4.
Press
/
to select a
multi sound mode.
: Stereo sound
: Bilingual I (Sub I)
: Bilingual II (Sub II)
: Normal sound
5.
Press OK.
This completes the setting.
Note:
• When you display the current PR
channel number, the current multi sound
mode appears for approximately 3
seconds.
OK
OK
TINT
You can choose from among three
TINT modes.
1.
Press OK.
The MENU appears.
2.
Press
PICTURE SETTING, then
press OK.
The PICTURE SETTING menu
appears.
3.
Press
PICTURE SETTING
TINT NORMAL
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE OFF
COLOUR SYSTEM PAL
4:3 AUTO ASPECT REGULAR
TV
4.
Press
mode.
COOL:
A cool white colour base with a
boost in the colour and contrast
levels. Creating a more vivid
picture.
WARM:
Use this mode when viewing film
programmes.
NORMAL:
A normal white colour base with no
boost in the colour or contrast
levels.
5.
Press OK.
This completes the setting.
to select
/
to select TINT.
/
:EXIT :OK
OK
:RESET
/
to select a tint
12
Page 13
COLOUR SYSTEM
The colour system is automatically
selected, but if the picture is not
clear or no colour appears, select
the colour system manually.
1.
Press OK.
The MENU appears.
2.
Press
PICTURE SETTING, then
press OK.
The PICTURE SETTING menu
appears.
3.
Press
COLOUR SYSTEM.
PICTURE SETTING
TINT NORMAL
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE OFF
COLOUR SYSTEM NTSC3.58
4:3 AUTO ASPECT REGULAR
4.
Press
appropriate colour system.
PAL:
PAL system.
NTSC3.58:
NTSC 3.58 MHz system.
NTSC4.43:
NTSC 4.43 MHz system.
AUTO:
Automatic colour system selection.
Notes:
• Auto may not function properly
depending on signal quality. If the
picture is abnormal in AUTO mode,
select another colour system
manually.
• When in TV mode (PR 1 to PR 99),
you cannot select AUTO, NTSC
3.58 or NTSC 4.43.
• When in TV mode (PR 0), you
cannot select NTSC 3.58 or NTSC
4.43.
5.
Press OK.
This completes the setting.
to select
/
to select
/
TV
:EXIT :OK
/
to select the
OK
:RESET
PICTURE/SOUND
ADJUSTMENT
You can adjust the picture and
sound as you like.
To adjust the picture
1.
Press OK.
The MENU appears.
2.
Press
PICTURE SETTING, then
press OK.
The PICTURE SETTING menu
appears.
PICTURE SETTING
TINT NORMAL
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE OFF
COLOUR SYSTEM PAL
4:3 AUTO ASPECT REGULAR
TV
3.
Press
item, and press
adjust it.
• To return to the default settings,
press blue button.
Lower CONTRAST Higher
Darker BRIGHT Brighter
Softer SHARP Sharper
Lighter COLOUR Deeper
Reddish HUE Greenish
Note:
• You can adjust the HUE (picture
hue) only when the colour system
is NTSC 3.58 or NTSC 4.43.
4.
Press OK.
This completes the setting.
To adjust the sound
to select
/
:EXIT :OK
(picture brightness)
(picture sharpness)
OK
:RESET
to select an
/
CONTRAST
Item
(picture contrast)
(picture colour)
(picture hue)
/
to
2.
Press
to select
/
SOUND SETTING, then
press OK.
The SOUND SETTING menu
appears.
SOUND SETTING
STEREO/I•II I II
BASS
TREBLE
BALANCE
HYPER SOUND OFF
3.
Press
item, and press
TV
:EXIT :OK
/
OK
to select an
to
/
adjust it.
Item
Weaker BASS Stronger
(low frequency sound)
Weaker TREBLE Stronger
(high frequency sound)
Left BALANCE Right
(audio balance)
4.
Press OK.
This completes the setting.
ECO MODE
When you set ECO MODE to ON,
the screen contrast is automatically
adjusted to a setting suitable for the
brightness of your room.
This reduces eye strain and the
power consumption of the TV.
1.
Press OK.
The MENU appears.
2.
Press
PICTURE SETTING, then
press OK.
The PICTURE SETTING menu
appears.
3.
Press
MODE.
PICTURE SETTING
TINT NORMAL
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE OFF
COLOUR SYSTEM PAL
4:3 AUTO ASPECT REGULAR
TV
to select
/
to select ECO
/
:EXIT :OK
OK
:RESET
1.
Press OK.
The MENU appears.
4.
Press
to select ON,
/
OFF.
5.
Press OK.
This completes the setting.
• If you turned on ECO MODE, the
ECO lamp lights.
13
Page 14
OTHER FEATURES
INFORMATION
You can display the PR LIST or the
current time.
1.
Press (Information)
repeatedly.
The display changes cyclically in
the following order.
PR LIST
PR ID
AV -----
1 BBC1
2 BBC2
3 ITV
4 CH4
5 CH5
6
7
8
9
TV
:EXIT
OK
:OK
21:30
Current time
SLEEP TIMER
You can set the TV to automatically
turn off after a specified period of
time.
Note:
• The SLEEP TIMER does not turn off the
Main power.
1.
Press OK.
The MENU appears.
2.
Press
FEATURES, then press OK.
The FEATURES menu appears.
3.
Press
TIMER, then press OK.
The SLEEP TIMER menu appears.
to select
/
FEATURES
SLEEP TIMER
BLUE BACK
CHILD LOCK
TV
:EXIT :OK
to select SLEEP
/
SLEEP TIMER
60
OFF 120
TV
:EXIT :OK
OK
OK
BLUE BACK
When viewing a PR channel with no
or poor reception, or if there is no
input from an external device, you
can mute the sound and change the
picture into a blue picture.
1.
Press OK.
The MENU appears.
2.
Press
FEATURES, then press OK.
The FEATURES menu appears.
3.
Press
BACK, then press OK.
The BLUE BACK menu appears.
to select
/
FEATURES
SLEEP TIMER
BLUE BACK
CHILD LOCK
TV
:EXIT :OK
to select BLUE
/
BLUE BACK
ON
OFF
TV
:EXIT :OK
OK
OK
No indication
About PR LIST:
• Ten positions including the currently
selected PR channel will be displayed
as a list.
/
Press
desired PR channel. For details see
page 9.
/
to select the
/
About the current time display:
This TV uses teletext data to determine
the current time.
• If the TV has not received a station
that has teletext data since it was
turned on, the time display is blank.
To view the current time, select a
station that is broadcasting teletext
data. As long as you do not turn off
the TV, then even if you select other
stations, the time will still be
displayed.
4.
Press
to select a
/
period of time.
You can set the period of time a
maximum of 120 minutes in 10
minute increments.
OFF:
Turns off the SLEEP TIMER.
5.
Press OK.
The selected period of time is
displayed for approx. 3 seconds.
SLEEP TIMER 60
• The Sleep timer lamp lights if you
set the SLEEP TIMER.
To display the remaining Sleep timer
time:
Perform steps 1 to 3 to display the
SLEEP TIMER menu, and press OK
button when you finish checking the
time.
To turn off the Sleep timer:
Perform steps 1 to 3 to display the
SLEEP TIMER menu, press
select “OFF”, and then press OK button.
• The Sleep timer lamp goes out.
Note:
• One minute before the SLEEP TIMER
turns off the TV, “GOOD NIGHT!”
appears. Three seconds before the
SLEEP TIMER turns off the TV, “JVC” is
displayed on the screen.
button to
4.
Press
to select ON or
/
OFF.
5.
Press OK.
This completes the setting.
14
Page 15
CHILD LOCK
You can lock some PR channels to
prevent your children from watching
them.
To set the CHILD LOCK
1.
Press OK.
The MENU appears.
2.
Press
FEATURES, then press OK.
The FEATURES menu appears.
3.
Press
LOCK, then press 0 button.
The SET ID NO menu appears.
4.
Enter the ID number.
1. Press
2. Press
5.
Press OK.
The CHILD LOCK menu appears.
to select
/
FEATURES
SLEEP TIMER
BLUE BACK
CHILD LOCK
TV
:EXIT :OK
to select CHILD
/
SET ID NO
TV
:EXIT :OK
to select a number.
/
to move the cursor.
/
CHILD LOCK
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
TV
:EXIT :OK
OK
0000
OK
OK
:LOCK
7.
Press OK.
This completes the setting.
Notes:
• You cannot select a locked PR channel
using the PR channel
• Even if you can select a locked channel
and display it, you can not view the
programme of the locked channel.
buttons.
/
To view a locked PR
channel
1.
Select a locked PR channel.
• Use the number buttons to select
the PR channel.
The locked channel is displayed.
7
2.
Press (Information).
The ID NO. input menu appears.
7
ID NO. :
3.
Press the number buttons
to enter the ID number.
You are now viewing the locked PR
channel.
If you forget the ID number:
Perform steps 1 to 3 of “To set the
CHILD LOCK”. After you confirm the ID
number, press the TV button to exit the
menu.
DEMONSTRATION
The demonstration runs
automatically and introduces the
menus of this TV’s main features.
1.
Press OK.
The MENU appears.
2.
Press
then press OK.
The demonstration begins.
• To stop the demonstration, press
any button on the remote control.
to select DEMO,
/
6.
Press
to select a PR
/
channel, then press blue
button.
The selected PR channel is locked.
CHILD LOCK
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
TV
:EXIT :OK
• To cancel the CHILD LOCK:
Press blue button again.
• Repeat step 6 to lock all PR
channels which you want to lock.
OK
:CANCEL
15
Page 16
OTHER FEATURES
ZOOM
Select a ZOOM mode to change the
picture format. You can enlarge the
picture to fill the wide TV screen
(16:9 aspect ratio). In addition, you
can stretch a normal picture (4:3
aspect ratio) to fill the wide TV
screen.
Notes:
• The picture format information of the
present broadcasting programme may
be received as WSS (Wide Screen
Signalling). When AUTO mode is
selected for ZOOM mode and the WSS
signal is received, this TV automatically
selects the optimum ZOOM mode
corresponding to the WSS signal.
However, in the case of weak WSS
signal reception, this function may not
work correctly. In this case, select the
optimum ZOOM mode manually.
• If the EXT-1 terminal’s input is from a
picture signal with a 16:9 aspect ratio
picture format, the ZOOM mode may
automatically changes to FULL mode.
This is because the TV detects an
identification signal which is not an WSS
signal.
Manual ZOOM selection
You can select a ZOOM mode
manually.
1.
Press ZOOM repeatedly to
select a ZOOM mode.
The picture expands.
REGULAR mode:
Use to view a normal picture (4:3
aspect ratio) unchanged.
PANORAMIC mode:
Stretches the left and right sides of
a normal picture to fill the screen, in
a way that does not appear
unnatural.
(PANORAMIC)
Note:
• In PANORAMIC mode, the top,
bottom, left and right of the picture
are slightly cut off.
16:9 ZOOM mode:
Use to expand a wide picture (16:9
aspect ratio).
(16:9 ZOOM)
14:9 ZOOM mode:
Use to expand a picture with a 14:9
aspect ratio.
(14:9 ZOOM)
16:9 ZOOM SUBTITLE mode:
Use to expand a picture with a 16:9
aspect ratio having subtitles at the
bottom of the screen.
SUBTITLE SUBTITLE
Note:
• In 16:9 ZOOM SUBTITLE mode,
the top of the picture are slightly
cut off.
FULL mode:
Uniformly stretches the left and right
sides of a normal picture (4:3 aspect
ratio) to fill the wide TV screen.
Note:
• For pictures with a 16:9 aspect
ratio that have been squeezed into
a normal picture (4:3 aspect ratio),
select FULL mode to restore their
original dimensions.
SUBTITLE SUBTITLE
(16:9 ZOOM SUBTITLE)
(FULL)
To move the picture vertically:
If you cannot see subtitles at the
bottom of the screen, or if the top or
bottom is cut off, move the picture
vertically.
Note:
• You cannot move the picture vertically in
AUTO, REGULAR and FULL mode.
1.
Press ZOOM.
The current ZOOM mode is
displayed.
16:9 ZOOM
2.
Before the display
disappears, press
to
/
move the picture up or
down.
, :Default position
, :The picture is moved from
default position.
Note:
• If you change the ZOOM mode, the
picture returns to its default
position.
Automatic ZOOM
selection (AUTO mode)
You can set your TV to automatically
select the optimum ZOOM mode to
suit the picture format.
1.
Press ZOOM repeatedly to
select AUTO.
Your TV automatically selects the
optimum ZOOM mode to suit the current
programme’s picture format.
Note:
• This function may not work
correctly depending on the
programme. In this case, select the
optimum ZOOM mode manually.
To preset a ZOOM mode for the
normal picture:
You can preset one of the three
ZOOM modes, REGULAR,
PANORAMIC or 14:9 ZOOM, as the
ZOOM mode for the normal picture
(4:3 aspect ratio).
1.
Press OK
The MENU appears.
2.
Press
PICTURE SETTING, then
press OK.
The PICTURE SETTING menu
appears.
3.
Press
4:3 AUTO ASPECT.
PICTURE SETTING
TINT NORMAL
CONTRAST
BRIGHT
SHARP
COLOUR
HUE
ECO MODE OFF
COLOUR SYSTEM PAL
4:3 AUTO ASPECT REGULAR
4.
Press to select ZOOM
mode.
5.
Press OK.
This completes the setting.
to select
/
to select
/
TV
:EXIT :OK
OK
:RESET
16
Page 17
TELETEXT
0
TEXT
Note:
• If you have trouble receiving teletext
broadcasts, consult your local dealer or
the teletext station.
(Outside buttons)
(Inside buttons)
4
5
6
ZOOM
TV OK
HOLD
SUBPAGE
P
P
MODE
STORE
VCR TEXT
P
AV
REVEAL
CANCEL
MENU
SIZE
INDEX
7
3
1 Colour buttons
2 TV/text button
3 VCR/TEXT selector switch
• When this switch is set to the
TEXT side, the following buttons
function as the teletext control
button.
4 MODE button
5 HOLD button
6 SUB PAGE button
7 STORE button
8 REVEAL button
9 SIZE button
0 INDEX button
- DISPLAY CANCEL button
BASIC TELETEXT
OPERATION
1
2
8
9
0
-
2.
Press (TV/text).
TV mode
TEXT TEXT TEXT
TEXT TEXT TEXT
TEXT TEXT TEXT
P100 P101 P102 P103
Text mode
3.
Select a page number.
Browse:
Press the PR channel
the remote control.
Direct selection:
Press the number buttons to enter a
three-digit page number.
Colour button selection:
Press a colour button to select the
corresponding page number on the
bottom line of the screen.
Notes:
• Category names of teletext pages
may appear instead of page
numbers.
• In principle, ZOOM mode is fixed to
FULL mode when you view Teletext
programmes.
• Some Teletext programmes display
a mixture of regular TV
programmes and Text information.
When viewing these Teletext
programmes, pay attention to the
following points.
– Teletext pages cannot be
selected with the Colour buttons.
To change to other Teletext
pages, select the Teletext page
that you want to view with the
Channel
buttons.
– ZOOM mode returns to the mode
you selected before you started
viewing Teletext programmes. If
part of the Teletext information is
missing at the top or bottom of
the screen, press the ZOOM
button to switch ZOOM mode to
FULL mode or REGULAR mode.
/
buttons or number
/
button on
DISPLAY CANCEL
You can search for a teletext page
while watching TV.
1.
Select a teletext page.
The TV searches for a teletext
page.
2.
Press DISPLAY CANCEL.
The TV programme appears.
When the TV finds the teletext page,
its page number appears in the
upper left of the screen.
Note:
• If selecting something other than
REGULAR or FULL mode for
ZOOM mode, the page number
does not appear on the screen.
3.
Press (TV/text) when
the page number is on the
screen.
SIZE
You can double the height of the
teletext display.
1.
Press SIZE repeatedly.
TEXT
SIZE
TEXT
SIZE
You can view two types of teletext
broadcasts on the TV: Fastext and
WST. The TV automatically
recognizes the type of teletext
broadcast.
Condition:
• The VCR/TEXT selector switch must
already be set to the TEXT side.
1.
Select a channel with a
teletext broadcast.
●To return to TV mode, press the
TV/text again.
Note:
• You can also return to TV mode by
pressing the TV button.
17
Page 18
TELETEXT
HOLD
You can hold a teletext page on the
screen for a desired length of time,
even while several other teletext
pages are being received.
1.
Press HOLD.
is displayed in the upper left of
the screen, and the teletext page is
held on the screen.
P100 P101 P102 P103
To release hold mode:
Press HOLD button again.
INDEX
Just press INDEX button to return to
the index page.
1.
Press INDEX.
Fastext/WST:
Returns to page 100 or a previously
specified page.
LIST mode:
Returns to the page number displayed in
the lower left area of the screen.
LIST MODE
If you store the numbers of teletext
pages you view often, you can
quickly call up a desired teletext
page whenever you like.
Note:
• You can store up to 64 pages in
memory. You can store four pages in
each channel from 1 to 15 (60 pages),
and four pages that are the same for all
channels above channel 15 (4 pages).
To store the page
numbers
1.
Press MODE to engage
LIST mode.
Stored page numbers are displayed
at the bottom of the screen.
2.
Press a colour button, then
enter the number of the
teletext page.
To assign other pages to remaining
colour buttons, repeat this
operation.
3.
Press and hold STORE.
The four page numbers blink white
to indicate that they are stored in
memory.
SUB PAGE
Some teletext pages include subpages that are automatically
displayed. You can hold any subpage, or view it at any time.
1.
Call up a teletext page with
sub-pages.
2.
Press SUB PAGE.
3.
Enter the number of the
sub-page.
Example:
To select the 3rd sub-page, press
number buttons “0”, “0”, “0”, and “3”.
Note:
• You can also select a sub page by
pressing the red or green colour button.
REVEAL
Some teletext pages include hidden
text (such as answers to a quiz).
1.
Press REVEAL.
Each time you press REVEAL
button, text is hidden or revealed.
1 + 2 =
2 x 3 =
P100 P101 P102 P103
1 + 2 = 3
2 x 3 = 6
P100 P101 P102 P103
To call up a stored page
1.
Press MODE to engage
LIST mode.
Stored page numbers are displayed
at the bottom of the screen.
To release LIST mode:
Press MODE button again.
2.
Press a colour button to
which a page has been
assigned.
18
Page 19
OTHER PREPARATION
EXT SETTING
You can select S-VIDEO or normal
input for the EXT-1 and EXT-2
terminals, and you can give an EXT
ID to each EXT input terminal.
To select S-VIDEO input
for a terminal
1.
Press OK.
The MENU appears.
2.
Press
SOURCE, then press OK.
The EXT SOURCE menu appears.
3.
Press
SETTING, then press OK.
The EXT SETTING menu appears.
4.
Press
EXT input terminal.
5.
Press yellow button.
The S-VIDEO input indication
appears.
• To select normal input, press
yellow button again.
• If you want to set an EXT ID here,
perform the operation procedures
from the step 4 in the next
column.
6
. Press OK.
The menu disappears.
to select EXT
/
EXT SOURCE
EXT SETTING
DUBBING
TV
:EXIT :OK
to select EXT
/
EXT SETTING
EXT S-IN ID
EXT-1
EXT-2
EXT-3
TV
:EXIT :OK
to select an
/
EXT SETTING
EXT S-IN ID
EXT-1 S
EXT-2
EXT-3
TV
:EXIT :OK
OK
OK
:S
:ID
OK
:S
:ID
To give an EXT ID to an
EXT input terminal
1.
Press OK.
The MENU appears.
2.
Press
SOURCE, then press OK.
The EXT SOURCE menu appears.
3.
Press
SETTING, then press OK.
The EXT SETTING menu appears.
4.
Press
EXT input terminal.
5.
Press blue button.
6.
Repeatedly press
select a character.
7.
Press to move the
cursor forward.
• Pressing button moves the
cursor backward.
• To cancel the operation, press the
8.
Press OK.
Note:
• To erase EXT ID, reset the EXT ID to a
blank space.
●This completes the procedure.
Press the TV button to exit the
menu.
to select EXT
/
to select EXT
/
to select an
/
EXT SETTING
EXT S-IN ID
EXT-1
EXT-2
EXT-3
TV
:EXIT :OK
OK
:S
/
EXT SETTING
EXT S-IN ID
EXT-1 V
EXT-2
EXT-3
TV
:EXIT :OK
(Information) button.
EXT SETTING
EXT S-IN ID
EXT-1 VCR-1
EXT-2
EXT-3
TV
:EXIT :OK
OK
:S
OK
:S
to
DUBBING
Select output to a VCR or other
device connected to the EXT-2
terminal. Note that you cannot
output from the EXT-2 terminal when
the TV is turned off.
Note:
• RGB signals from TV games and
TELETEXT screens cannot be output
from EXT-2 terminal.
1.
Press OK.
The MENU appears.
2.
Press
SOURCE, then press OK.
The EXT SOURCE menu appears.
3.
Press
DUBBING, then press OK.
The DUBBING menu appears.
4.
Press
input which you want to
output from EXT-2.
TV:
The sound and picture of the
currently selected PR channel is
output from EXT-2, so you can
record the output on a VCR
connected to the EXT-2 terminal
while watching a video input from
the EXT-1 or EXT-3 terminal.
to select EXT
/
to select
/
DUBBING
EXT-1
EXT-2
EXT-3
TV
TV
:EXIT :OK
to select the
/
DUBBING
EXT-1
EXT-2
EXT-3
TV
TV
:EXIT :OK
DUBBING
EXT-1
EXT-2
EXT-3
TV
TV
:EXIT :OK
OK
OK
OK
5.
Press OK.
The menu disappears.
19
Page 20
OTHER PREPARATION
LANGUAGE
You can select one of ten languages
for the on-screen display.
1.
Press OK.
The MENU appears.
2.
Press
INSTALL, then press OK.
The INSTALL menu appears.
3.
Press
LANGUAGE, then press
OK.
The LANGUAGE menu appears.
4.
Press
language.
5.
Press OK.
This completes the setting.
to select
/
INSTALL
LANGUAGE
AUTO PROGRAM
EDIT/MANUAL
TV
:EXIT :OK
to select
/
LANGUAGE
ENGLISH
FRAN¸CAIS
DEUTSCH
ITALIANO
CASTELLANO
NEDERLANDS
DANSK
NORSK
SVENSKA
SUOMI
TV
:EXIT :OK
to select a
/
OK
OK
AUTO PROGRAM
You can automatically allocate up to
99 stations to PR channels PR 1 to
PR99 on this TV.
When the TV receives a signal
describing the station’s name, it
allocates those stations, station IDs,
and registers then as they were
preset at the JVC factory.
1.
Press OK.
The MENU appears.
2.
Press
INSTALL, then press OK.
The INSTALL menu appears.
3.
Press
PROGRAM, then press OK.
The AUTO PROGRAM menu
appears.
Note:
• If you make a mistake when
selecting your country, or do not
want to use the Automatic
allocation function, select
CANCEL, and then press OK
button to return to the INSTALL
menu.
4.
Press OK.
The PR channel is automatically set
and the EDIT menu is displayed.
• If you want to edit PR channels or
allocate a station to PR0 (AV)
channel, see page 21 “EDIT/
MANUAL” for procedural
description.
to select
/
to select AUTO
/
AUTO PROGRAM
START
CANCEL
TV
:EXIT :OK
OK
AUTO PROGRAM
CH 60
81%
TV
:EXIT :OK
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
TV
:ID
:INSERT
OK
OK
:MOVE
:DELETE
:MANUAL
Note:
• If a station you want to view is not
allocated to a PR channel, perform
Manual allocation (see page 23).
●The procedure is complete.
Press the TV button to exit the
menu.
20
Page 21
EDIT/MANUAL
You can change PR channel settings
by doing any of the following:
• You can delete an unwanted
station from a PR channel,
• You can change the PR channel
number of a station,
• You can add station IDs to PR
channels,
• You can add a new station to a PR
channel, or
• You can manually allocate the
desired station to a PR channel.
To edit PR channels
1.
Press OK.
The MENU appears.
2.
Press
INSTALL, then press OK.
The INSTALL menu appears.
3.
Press
MANUAL, then press OK.
The EDIT menu appears.
4.
Use any of the procedures
described in the following
pages to change the PR
channel settings.
●This completes the procedure.
Press the TV button to exit the
menu.
to select
/
to select EDIT/
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
To delete a station from a
PR channel
1.
Press
station you want to delete.
2.
Press yellow button.
Note:
• Stations allocated to PR channels
following the deleted PR channel
number are shifted back by one to
the preceding PR channel number.
to select the
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 28
8 CH 29
9 CH 30
TV
:ID
:INSERT
OK
:ID
:INSERT
:MOVE
:MOVE
:DELETE
:MANUAL
:DELETE
:MANUAL
To change the PR channel
number of a station
1.
Press
station.
2.
Press .
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
3.
Press
selected station to the
desired PR channel
number.
• To cancel the operation, press the
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 CH 27
4 ITV CH 23
5 CH4 CH 24
6 CH5 CH 25
7 CH 26
8 CH 28
9 CH 29
OK
TV
4.
Press .
to select the
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
STORE:
to move the
/
:MOVE
(Information) button
STORE:
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 CH 27
4 ITV CH 23
5 CH4 CH 24
6 CH5 CH 25
7 CH 26
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
:DELETE
:MANUAL
21
Page 22
OTHER PREPARATION
To add a station ID to a
station
1.
Press
station.
2.
Press red button.
3.
Press
first letter of the desired
station’s ID.
4.
Press OK.
The ID LIST appears.
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 M6 CH 27
8 CH 28
9 CH 29
TV
5.
Press
station ID.
• To cancel the operation, press the
to select the
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
TV
to select the
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 M CH 27
8 CH 28
9 CH 29
TV
OK
:STORE
to select the
/
:ID
:INSERT
OK
:LIST
OK
:LIST
:MOVE
:DELETE
:MANUAL
(Information) button.
ID LIST
M6
MBC
MCM
MDR
MOVIE
MTV
MTV3
6.
Press OK.
Returns to the EDIT menu.
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 MOVIE CH 27
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
Programming a station’s ID
manually:
Follow the operations below in place of
steps 3 thru 5.
(1) Press the
select a character.
(2) Press the
to input position.
• Pressing the
cursor backward.
(3) To complete station ID, follow steps
(1) and (2) repeatedly.
• A station ID can have up to 5
characters.
button repeatedly to
/
button to move cursor
button moves the
To add a new station to a
PR channel
1.
Press
row containing the PR
channel number to which
you want to add a station.
2.
Press green button.
• To cancel the operation, press the
Note:
• For details on the relationship
between the displayed CH number
and the actual channel number,
see the Channel table on page 25.
3.
Press the number buttons
to enter the channel
number.
• To enter a one-digit channel
number, enter the corresponding
number and press OK button.
Note:
• When you add a station, the station
preset to PR99 is deleted.
to select the
/
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
(Information) button.
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH --
8 CH 27
9 CH 28
OK
TV
09
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 50
8 CH 27
9 CH 28
OK
TV
:ID
:INSERT
:MOVE
:DELETE
:MANUAL
22
Page 23
To manually allocate a
station to PR channel
(Manual allocation)
1.
Press blue button.
Your TV enters the Manual
allocation mode.
EDIT
PR ID CH/CC
AV -----
1 BBC1 CH 21
2 BBC2 CH 22
3 ITV CH 23
4 CH4 CH 24
5 CH5 CH 25
6 CH 26
7 CH 27
8 CH 28
9 CH 29
OK
TV
:STORE
:SEARCH+
:SEARCH-
2.
Press
to select a PR
/
channel number.
Note:
• PR channel number “AV” appears
on the screen as PR 0 channel.
We recommend that you allocate
this PR channel to a VCR
connected to the aerial socket.
:FINE+
:FINE-
3.
Press green or red button
to search for a station.
Scanning stops when the TV
receives a broadcast.
Press green or red button to search
for another station, and keep
searching until you see the station
you want.
If reception is poor:
Press the blue or yellow button to
fine-tune the station.
Note:
• For details on the relationship
between the displayed CH number
and the actual channel number,
see the Channel table on page 25.
4.
Press OK.
The station is allocated to a PR
channel.
23
Page 24
TROUBLESHOOTING
• If the plug is disconnected from the AC socket, or the TV aerial has problems, you may think there is a problem
with the TV itself. Be sure to check the following before calling for service.
IMPORTANT
• Review all instructions in this manual.
■ GENERAL
■ PICTURE
Problem
No power supply.
No picture or sound.
The power shuts off
automatically.
Inoperable remote control.
Poor colour.
The screen mode suddenly
changed.
Lines or streaks in picture
(interference).
Spots (crosstalk).
Double pictures (ghosts).
Action
Insert the plug in an AC socket.
Press the Main power button (see page 8).
Check aerial connections (see page 6).
Press the number 0 button to select the correct mode (see page 11).
Select the correct colour system manually (see page 13).
Press the Standby button to turn the power on again (see page 8).
Replace the batteries (see page 4).
Insert the batteries correctly (see page 4).
Use the remote control within about 7 metres of the TV.
Adjust COLOUR and BRIGHT (see page 13).
Select the correct colour system manually (see page 13).
The ZOOM mode’s automatic selective function is working
(see page 16).
Move the components apart until the interference is eliminated.
Reposition the aerial.
Reposition the aerial.
Replace with an aerial with better directionality.
Reposition the aerial.
Replace with an aerial with better directionality.
Snowy pictures (noise).
The screen turns blue.
■ SOUND
■ TELETEXT
The following are normal and are NOT malfunctions:
• When you touch the CRT surface, you might feel a slight charge of static electricity. This is because the CRT contains static
electricity; it does not affect the human body.
• The TV may emit a crackling sound due to a sudden change in temperature. There is no problem unless the picture or
sound is abnormal.
• When a bright a still image (of a white dress, for example) appears on the screen, the image may be coloured. This problem
occurs in all CRTs, and as the bright image disappears, such colouration also disappears.
• This TV is equipped with a microcomputer that may operate abnormally due to interference from external components. If
this happens, turn off the main power and disconnect the power cord from the AC socket. Then reconnect the power cord to
AC socket and turn on the main power again.
No sound from the TV’s
speakers.
No stereo sound.
No “SUB-I” or “SUB-II” sound in
a multisound broadcast.
No teletext reception.
The current time is not
displayed.
Check aerial connections.
Redirect the aerial.
Replace or repair the aerial.
The BLUE BACK function is on (see page 14).
Disconnect the headphones.
Change STEREO/I•II to
Change STEREO/I•II to the correct mode (see page 12).
Tune to a teletext broadcast channel (see page 17).
We recommend that you not videotape teletext, as it may not be
recorded correctly.
Tune to a teletext broadcast channel (see page 14).
(stereo sound) mode (see page 12).
24
Page 25
Channel table
• The following table shows the relationship between the displayed CH channel number and the actual channel
number.
CH -- Channel
CH 21 E21
CH 22 E22
CH 23 E23
CH 24 E24
CH 25 E25
CH 26 E26
CH 27 E27
CH 28 E28
CH 29 E29
CH 30 E30
CH 31 E31
CH 32 E32
CH 33 E33
CH -- Channel
CH 34 E34
CH 35 E35
CH 36 E36
CH 37 E37
CH 38 E38
CH 39 E39
CH 40 E40
CH 41 E41
CH 42 E42
CH 43 E43
CH 44 E44
CH 45 E45
CH 46 E46
CH -- Channel
CH 47 E47
CH 48 E48
CH 49 E49
CH 50 E50
CH 51 E51
CH 52 E52
CH 53 E53
CH 54 E54
CH 55 E55
CH 56 E56
CH 57 E57
CH 58 E58
CH 59 E59
CH -- Channel
CH 60 E60
CH 61 E61
CH 62 E62
CH 63 E63
CH 64 E64
CH 65 E65
CH 66 E66
CH 67 E67
CH 68 E68
CH 69 E69
25
Page 26
SPECIFICATIONS
Item AV-24WT2EK AV-28WT2EK
TV RF systems CCIR I
Colour systems PAL (NTSC 3.58 / 4.43 MHz only in EXT modes)
Channels and frequencies E21-E69
Sound-multiplex systems NICAM system
Teletext systems Fastext (United Kingdom system) / WST (standard system)
Power requirements AC 220 – 240 V, 50 Hz
Power consumption Maximum 136 W, Maximum 140 W,
Picture tube size Visible area 56 cm Visible area 66 cm
Audio output Rated Power output 5 W + 5 W
Speakers 3 × 10 cm oval × 2 10 cm round × 2
External input / output EXT-1, EXT-2 21-pin Euroconnector (SCART)
Dimensions (W × H × D) 645 mm × 427 mm × 443 mm 716 mm × 489 mm × 496 mm
Weight 23.0 kg 32.9 kg
Accessories Remote control unit RM-C794 × 1
Model
Average 111 W, Standby 1.5 W Average 121 W, Standby 1.5 W
(measured diagonally) (measured diagonally)
EXT-3 VIDEO IN (RCA)
AUDIO L / R IN (RCA)
Headphone jack (stereo mini jack, dia. 3.5 mm)
AAA (R03) dry cell battery × 2
Design and specifications subject to change without notice.
Pictures displayed on the screen using this TV’s image-processing functions should not be shown for any
commercial or demonstration purpose in public places (tearooms and halls in hotels, etc.) without the consent of
the owners of copyright of the original picture sources, as this constitutes an infringement of copyright.
26
Page 27
27
Page 28
AV-24WT2EK/AV-28WT2EK
VICTOR COMPANY OF JAPAN, LIMITED
1997 VICTOR COMPANY OF JAPAN, LIMITED
CQ40350-001-E
0497-Ki-AB-JMUK
Loading...
