JVC AV-24F703, AV-20F703 User Manual
For models:
AV-24F703
COLOR TELEVISION
USER'S GUIDE
CATV
VCR
DVD
TV
POWER
STANDARD
INPUT
2
1
3
BBE
4
6
5
DISPLAY
7
9
8
RETURN
SLEEP TIMER
0
C.C.
AUDIO SELECT
LIGHT
RM-C309G
MUTING
ENTER
CH
VOL VOL
CH
EXITMENU
+
— VCR CHANNEL
VCR/DVD
TV/VCR
PREV NEXT
POWER
PLAY
STOPREC
OPEN/CLOSE STILL/PAUSE
TV
FFREW
PAUSE
POWER
AV-20F703
Illustration of AV-24F703 and RM-C309G
IMPORTANT NOTE TO THE CUSTOMER:
In the space below, enter the serial number for your
television (located on the rear of the television cabinet).
Staple your sales receipt or invoice to the inside cover of this guide.
Keep this user's guide in a convenient place for future reference.
Keep the carton and original packaging for future use.
Serial Number
CAUTION:
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION:
TO REDUCE THE RISK OF
Changes or modifications not expressly approved by the party responsible for compliance with the FCC
Rules could void the user's authority to operate this equipment.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
WARNING:
CAUTION:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning
the exterior cabinet only.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table.
The unit may fall, causing serious injury, and serious damage to the unit.
8A. An appliance and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to
protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing
the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source.
This unit should not be placed in a built-in installations such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of
power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery
power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose
of the polarized plug, if your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug
will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet,
contacts your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3126A
2
13. LIGHTNING
To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line
surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits, as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide
some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA
70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE
Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c . If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by
the operating instructions, as an improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f . When the unit exhibits a distinct change in performance, this indicates a need for service.
20. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or
those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the
unit is in proper operating condition.
22. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
23. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT (NEC
ELECTRIC
SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION
810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)
3
IMPORTANT RECYCLING INFORMATION
This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For
disposal or recycling information, please contact your local athorities, or the Electronic Industries Alliance: http://www.eiae.org
TABLE OF CONTENTS
FEATURES ......................................................... 4
LOCATION OF CONTROLS............................... 5
REMOTE CONTROL .......................................... 6
ANTENNA/CATV CONNECTIONS................... 11
CONNECTION TO OTHER EQUIPMENT ........ 12
SETTING LANGUAGE...................................... 13
SETTING CLOCK ............................................. 13
TO MEMORIZE CHANNES .............................. 14
SETTING V-CHIP ............................................. 15
TV BASIC OPERATION.................................... 17
INPUT button .................................................... 18
STEREO AND SEPARATE AUDIO
PICTURE ADJUSTMENTS............................... 19
SOUND ADJUSTMENTS.................................. 19
CLOSED CAPTION .......................................... 20
ON/OFF TIMER ................................................ 21
BBE ................................................................... 22
SLEEP TIMER button ....................................... 22
VCR buttons...................................................... 22
DVD buttons...................................................... 22
TV/CATV swich ................................................. 22
VCR/DVD swich ................................................ 22
TROUBLESHOOTING GUIDE.......................... 23
SPECIFICATIONS ..............................Back Cover
PROGRAM (SAP) ............................. 18
DISPLAY button ................................................ 18
FEATURES
• Flat Picture Tube - It reduces the influence of surrounding light resulting in outstanding image detail and clarity.
• 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that are available in
your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel
frequencies. The actual number of channels received depends upon channel reception in your area or your cable system.
• On-Screen 3 Language Display - Consists of channel, sleep timer, volume level, muting, text/caption indicators and picture
control adjustments. These can be displayed in English, Spanish or French.
• ON/OFF Timer - Allows you to automatically turn on or off your TV at a set time.
• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically.
• V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this
information. The V-Chip will allow you to set a restriction level.
• Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, COLOR,
CONTRAST, SHARPNESS, TINT and COMPONENT.
• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired viewers.
• Stereo/SAP Reception - This TV is designed to receive stereo and separate audio program (SAP) broadcasts where available.
• BBE- BBE gives you the vivid sound with so much presence.
• Video Input Jacks - This unit is equipped 3 types of video input jacks. The component video in jacks and S-video in jack enable
you to watch the DVD player or the video devices with high quality picture.
• Remote Control - You can operate your VCR, Cable Box, Satellite Dish and DVD after you have registered the 3-digit codes for
their brand name.
4
LOCATION OF CONTROLS
Illustration of AV-24F703
BACKFRONT
POWER
POWER
ON TIMER
CHANNEL VOLUME
VIDEO L/MONO
VIDEO 3 IN
AUDIO R
1524 673
HOW TO OPEN THE FRONT DOOR
1. POWER Button - Press to turn the TV on or off.
2. Remote Sensor - Signals from the Remote
Control unit are received here.
3. ON TIMER Indicator - This indicator lights up
when the powered up. It also lights up when ON
TIMER program is turned ON while power is OFF.
4. CHANNEL +/– Buttons - Press to select a higher
or lower numbered channel set into memory.
5. VOLUME +/– Buttons - Press to raise or lower the
volume of the sound.
6. VIDEO 3 IN Jacks (Front) - Audio and video signal
cables from an external source can be connected
here.
7. HEADPHONES JACK - Plug an earphone or headphones with an 1/8 miniplug into this jack for listening.
8. VHF/UHF IN (ANT) Jack - Connect a VHF/UHF
antenna or CATV cable to this jack.
ANT(75‰)
VIDEO
L/MONO
S-VIDEO
OUTIN
VIDEO
L/MONO
AUDIO
AUDIO
RR
VIDEO 2VIDEO 1
810 12119
9. VIDEO 1 IN Jacks (Rear) - Audio and video signal
cables from an external source (ex. VCR) can be
connected here. If your video device has S-video out
jack, connect to S-video in jack.
10. VIDEO 2 IN Jacks - Audio and video signal cables
from an external source (ex. DVD) can be connected
here.
If you have a DVD with component video out jacks,
connect to the component video in jacks. If you have
a video device without the component video out,
connect to video in jack.
11. REAR AUDIO (L / R) /VIDEO OUT Jacks - Used to
output audio and video signals to a TV, amplifier or
VCR.
NOTE: This video out jack does not output the signal
from component video in jacks.
12. AC Power Cord - Connect to a 120V, 60Hz outlet.
5

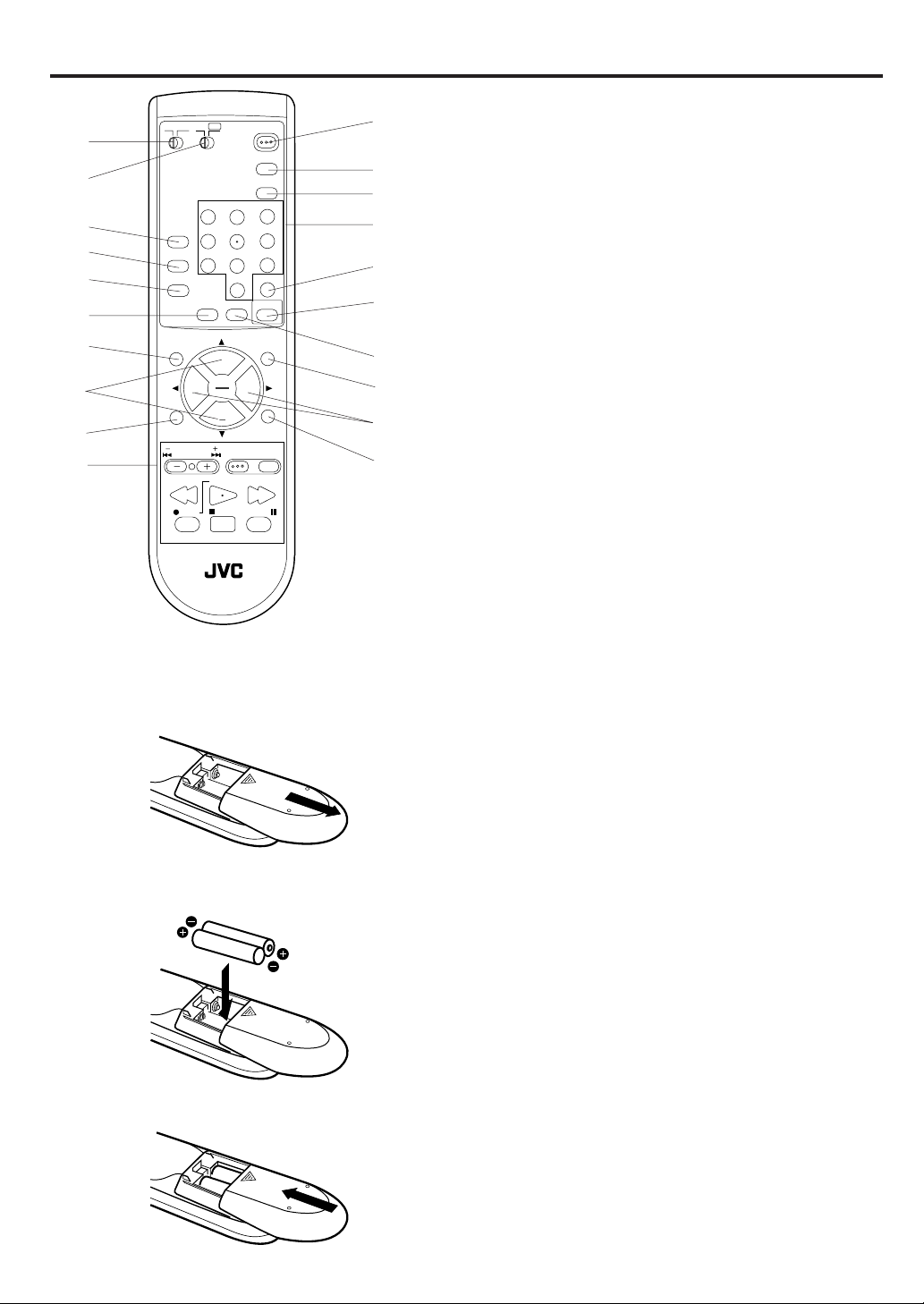

REMOTE CONTROL
VCR
DVD
CATV
10
TV
1
2
3
4
5
6
7
8
9
BBE
DISPLAY
SLEEP TIMER
RM-C309G
MUTING
VOL
MENU
VCR CHANNEL
PREV NEXT
REC
OPEN/CLOSE
POWER
STANDARD
INPUT
123
456
789
RETURN
0
C.C.
AUDIO SELECT
LIGHT
ENTER
+
CH
VOL
+
CH
EXIT
VCR /DVD
TV/VCR
POWER
PLAY FFREW
STOP
PAUSE
STILL/PAUSE
TV
BATTERY INSTALLATION
1. Slide the battery compartment cover in the direction
of the arrow.
2. Install two “AA” (penlight size) batteries, paying
attention to the polarity diagram in the battery
compartment.
3. Replace the compartment cover.
11
12
13
14
15
16
17
18
19
20
1.TV/CATV Switch - Used to select the TV or Cable
Box to be operated. (You can operate your cable box
after you have programed the remote control.)
2.VCR/DVD switch - Used to select the VCR or DVD
to be operated. (You can operate your VCR or DVD
after you have programed the remote control.)
3.BBE Button - Press to turn BBE On or Off.
4.DISPLAY Button - Displays the current status time,
channel (or Input), the present settings on the TV
screen.
5.SLEEP TIMER Button - Sets the TV to turn off
automatically after up to 120 minutes.
6.C.C. (Closed Caption) Button - Switches between
Caption, Text and TV modes for Closed-Captioned
programs.
7.MUTING Button - Press to turn off the sound. Press
again to turn the sound back on.
8.CH +/– Buttons - Press the + button to change to a
higher numbered channel set into memory. Press the
– button to change to a lower numbered channel set
into memory. Press to select the desired item during
On-Screen operations.
9.MENU Button - Press to display the On-Screen
menu function.
10.VCR or DVD Operation Buttons - Press to operate
your VCR or DVD.
11.POWER Button - Press to turn the TV on or off.
12.STANDARD Button - Press to reset the On-Screen
picture adjustments or Audio adjustment to their
factory preset positions.
13.INPUT Button - Switches between the TV and
external input sources.
14.10-key pad - Allows direct access to any channel of
the TV, VCR or Cable box.
15.RETURN Button - Switches between the present
channel and the last channel selected.
16.LIGHT Button - Press to turn the illumination on for
CH +/– and VOL +/– buttons.
17.AUDIO SELECT Button - Switches sound between
mono and stereo, and SAP when receiving broadcasts in stereo or SAP.
18.ENTER Button - Press to enter selected setup.
19.VOL +/– Buttons - Press the + button to increase, or
the – button to decrease the volume level. Press to
select the desired setting or arrangement during OnScreen operations.
20.EXIT Button - Press to exit the On-Screen menu
function.
6
REMOTE CONTROL (CONTINUED)
REMOTE CONTROL BASICS
• Before you can operate the remote control, you must
first install the batteries (included). See “Changing the
Batteries” on this
illustration, please see page 6.)
• Press the POWER button to turn the television on or
off.
• Make sure the TV/CATV switch is set to TV. Move the
switch to
CATV only if you need to operate a cable box.
• Slide the VCR/DVD selector switch to VCR to control
a VCR, slide to DVD to control a DVD player. Please
see pages 8 to 10 for instructions on programming
your remote control to operate a Cable box, VCR or
DVD player.
• Press the CH + and CH – buttons to scan through the
channels. Tap the CH + or CH – button to move
through the channels one channel at a time.
• Press VOL + or VOL – to raise or lower the volume.
An indicator bar will appear onscreen to show you the
television volume level.
• The CH +/– and VOL +/– buttons are also used to
navigate JVC’s onscreen menu system.
• You can directly access specific channels using the
10-key pad.
• This remote includes illuminated buttons for key
features like CH +/–
Press the LIGHT button to turn the
page above for instructions. (For an
buttons, and VOL +/– buttons.
illumination on.
BATTERY PRECAUTIONS
The precautions below should be followed when using
batteries in this device:
1.Use only the size and type of batteries specified.
2.Be sure to follow the correct polarity when installing
the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
To avoid a potential short circuit, insert the “–” end
first.
3.Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.
4.If the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
5.Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturer’s directions.)
6.When you change the batteries, try to complete the
task within three minutes. If you take longer than three
minutes, the remote control codes for your Cable Box
may have to be reset (see page 8).
EFFECTIVE DISTANCE OF THE REMOTE
CONTROL TRANSMITTER
CHANGING THE BATTERIES
Push down on the remote’s back cover and slide
towards the bottom to remove it.
Insert two AA batteries (supplied), carefully noting the
“+” and “–” markings on the batteries and on the remote
control. To avoid a potential short circuit, insert the “–”
end first.
Be sure to use only size AA batteries.
When batteries are installed, slide the cover back into
place (until it clicks into position).
• If the remote control acts erratically, replace the
batteries. Typical battery life is six months to one year.
We recommend using alkaline batteries for longer
battery life.
When you change the batteries, try to complete the
task within three minutes. If you take longer than three
minutes, the remote control codes for
and/or Cable Box may have to be reset (pages 8-10).
your VCR, DVD,
15 FEET
30˚ 30˚
NOTES: • When there is an obstacle between the TV
and the transmitter, the transmitter may not
operate.
• When direct sunlight, an incandescent lamp,
fluorescent lamp or any other strong light
shines on the Remote sensor of the TV, the
remote operation may be unstable.
7
REMOTE CONTROL (CONTINUED)
REMOTE PROGRAMMING
Setting the CATV, VCR and DVD Codes
You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the
instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the
code search function, use the remote control supplied by the manufacturer.
Cable Box or Satellite setup
The remote control is programmed with CATV and/or Satellite codes for power on, power off, channel up, channel
down, and 10 key operation.
1) Find the CATV/Satellite brand from the list of codes shown below.
2) Slide the 2-way selector switch to “CATV ”.
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed using the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the Cable Box/Satellite receiver.
• If your CATV or Satellite box does not respond to the first code, try the others listed. If it does not respond to any
code, try the Search Codes Function as shown below.
Cable Box CODES Cable Box CODES
ABC
Archer
Cableview
Citizen
Curtis
Diamond
Eagle
Eastern
GC Brand
Gemini
General Instrument
Hamlin
Hitachi
Jerrold
Macom
Magnavox
Memorex
Movietime
Oak
Panasonic
Paragon
Philips
Pioneer
Digital Satellite
Systems
Echostar
Express VU
G.E.
G.I.
Gradiente
Hitachi
HNS (Hughes)
Pranasonic
032, 025
051, 032
022, 051
058, 059
024, 032, 025
029
034
032, 051
022, 043
065, 024, 025, 026, 027, 020, 021, 022, 057, 023
040, 041, 042, 045, 058, 064
049, 024
065, 024, 025, 026, 027, 020,021, 022, 057, 023
049, 050, 051, 054
033
030
032, 051
039, 037, 048
055, 056, 060, 071
063
028, 029, 030, 052, 053, 031, 069
047, 062
CODES
100, 113, 114
100, 113
106
108
112
104, 111
104
105
Pulsar024
Puser
RCA
Realistic
Regal
Regency
Rembrandt
Samsung
Scientific Atlanta
SLMark
Sprucer
Stargate
Telecaption
Teleview
Texscan
Tocom
Toshiba
Unika
Universal
Videoway
Viewstar
Zenith 063, 046
Zenith/Drake Satellite
Digital Satellite
Systems
Philips
Primestar
Proscan
RCA
Sony
Star Choice
Toshiba
Uniden
051, 032
032
061, 070
032
058, 064, 040, 041, 042, 045, 068
034
037, 032, 051, 038
051
057, 058, 059
051, 047
051, 056
032, 051
067
047, 051
044
035, 036, 066
050
032, 025
022, 032
052
029, 030
046
CODES
102, 103
108
106, 109, 110
106, 109, 110
107
104, 108
101
102, 103
Cable/Satellite Search Codes Function:
1) Slide the 2-Way Mode Selector switch to CATV.
2) Press the TV POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press TV POWER, see if the CATV or Satellite box responds.
4)
If there was a response, press RETURN. The operating codes are now set. If there was no response, repeat Step 3.
If you repeat Step 3 a total of 52 times without a response, use the remote control which came with the equipment.
5) Press RETURN to exit.
8
VCR setup
The remote control is programmed with VCR codes for power on, power off, play, stop, fast-forward, rewind, pause,
record, channel up, and channel down operation.
1) Find the VCR brand from the list of codes shown below.
2) Slide the first 2-way selector switch to “TV ”and the other 2-way selector switch to “VCR ”.
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed with the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the VCR.
• If your VCR does not respond to the first code, try the others listed. If it does not respond to any code, try the
Search Codes Function as shown below.
• Some manufacturer’s VCR’s may not respond to the TV/VCR button, even if other buttons work properly.
• To record, hold down the REC button on the remote and press PLAY.
VCRs CODES
Admiral
Aiwa
Akai
Audio Dynamic
Bell & Howell
Broksonic
Canon
CCE
Citizen
Craig
Curtis Mathes
Daewoo
DBX
Dimensia
Emerson
Fisher
Funai
G.E.
Go Video
Goldstar
Gradiente
Hitachi
Instant Replay
Jensen
JVC
Kenwood
LXI 027, 064, 058, 065, 066, 063, 067
Magnavox
Marantz
Marta
Memorex
MGA
Minolta
Mitsubishi
Multitech
NEC
Olympic
035
027, 032, 095
029, 072, 073, 074
003, 005
063, 071
020, 026, 094
023, 025
043
064
063, 029, 064
045, 024, 027, 093
043, 059, 024, 092
003, 004, 005
045, 093
043, 026, 077, 061, 025, 042, 020, 076
063, 066, 067, 065, 071, 091
027, 026, 020, 000
033, 045, 024
037, 051, 049, 050, 089
064
083, 084, 081, 000, 001
023, 045, 058, 027, 081, 093
024, 023
003
000, 001, 002, 003, 004, 005
003, 004, 064, 005
031, 023, 024, 086
003, 004, 005
064
024, 067
038, 040, 047, 048, 041, 042
058, 045, 093
038, 040, 047, 048, 041, 042, 078, 090
047, 027, 062
003, 004, 005, 000
024, 023
VCRs CODES
Optimus
Orion
Panasonic
Penney
Pentax
Philco
Philips
Pioneer
Proscan
Quasar
Radio Shack
RCA
Realistic 024, 063, 036, 067, 040, 027
Samsung
Samtron
Sansui
Sanyo
Scott
Sears
Shintom
Sharp
Signature 2000
Singer
Sony
SV 2000
Sylvania
Symphonic
Tashiro
Tatung
Teac
Technics
Teknika
Toshiba
Vector Research
Wards
Yamaha
Zenith 044, 082, 064, 094
028, 021, 035, 064
026, 020
023, 024, 021, 022
024, 058, 045, 063, 003, 004, 005, 093
058, 005, 045, 093
031, 024, 027, 023, 026, 020, 043
031, 023, 024, 086
023
045, 058, 023, 024, 031, 046, 059, 060, 033, 087, 093
021, 022, 023, 024
033, 024, 063, 036, 067, 040, 027
033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093
037, 060, 062,033, 089
089
003, 026, 020, 052
063, 067, 091, 071
059, 060, 062, 067, 038, 040, 047, 048, 026, 020
063, 064, 065, 066, 058, 000, 001
075
035, 036, 080,088
027, 035
075
028, 029, 030, 053, 054, 055
027
031, 023, 024, 027
027, 081
064
003, 004, 005
003, 004, 027, 005
021, 022, 023, 024
024, 027, 070
059, 046, 079
005
035, 036, 067, 044, 064
063, 003, 004, 005
VCR Search Codes Function:
1) Slide the first 2-way selector switch to “TV ” and the other 2-way selector switch to “VCR ”.
2) Press the VCR POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press VCR POWER, see if the VCR responds.
4)
If there was a response, press RETURN. The operating codes are now set. If there was no response, repeat Step 3.
If you repeat Step 3 a total of 80 times without a response, use the manufacturers remote control which came
with the VCR.
5) Press RETURN to exit.
9
REMOTE CONTROL (CONTINUED)
DVD setup
The remote control is programmed with DVD codes for power on, power off, play, stop, fast-forward, rewind, previous
chapter, next chapter, tray open/close, and still/pause operation.
1) Find the DVD player brand from the list of codes shown below.
2) Slide the first 2-way selector switch to “TV ” and the other 2-way selector switch to “DVD ”.
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed with the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the DVD player.
• If your DVD player does not respond to the first code, try the others listed. If it does not respond to any code, try
the Search Codes Function as shown below.
• After you program your remote, some DVD buttons may not work properly. If some buttons do not work
properly, use the remote control which came with your DVD player.
DVD Player CODES
Aiwa
Apex
Denon
Hitachi
JVC
Kenwood
Konka
Mitsubishi
Onkyo
Oritron
Panasonic
Philips
Pioneer
043
040
020, 037
030, 031
000
035
039
025
041
044
020
023, 036
022
DVD Player CODES
Raite
RCA
Sampo
Samsung
Sharp
Silvania
Sony
Technics
Toshiba
Wave
Yamaha
Zenith
033
021, 026
034
030
028
038
024, 045, 046, 047
020
023
042
020
027, 032
DVD Player Search Codes Function:
1) Slide the first 2-way selector switch to “TV ” and the other 2-way selector switch to “DVD ”.
2) Press the DVD POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press DVD POWER, see if the DVD player responds.
4)
If there was a response, press RETURN. The operating codes are now set. If there was no response, repeat Step 3.
If you repeat Step 3 a total of 30 times without a response, use the manufacturers remote control which came with
the DVD player.
5) Press RETURN to exit.
10
ANTENNA/CATV CONNECTIONS
Combination VHF/UHF Antenna
Single 75 ohm Cable
300 ohm Twin-lead Wire
Splitter
UHF Antenna
300 ohm Twin-lead Wire
VHF Antenna
Single 75 ohm Cable
300 ohm Twin-lead Wire
Incoming CATV
Combination VHF/UHF Antenna (Single 75 ohm
Cable or 300 ohm Twin-lead Wire)
Connect the 75 ohm cable from a combination VHF/UHF
antenna to the Antenna Jack. If your combination antenna has
a 300 ohm Twin-lead Wire, use the 300-75 ohm Matching
Transformer (not supplied).
Combination VHF/UHF Antenna (Separate VHF and
UHF 300 ohm Twin-leads)
Connect the UHF Twin-lead Wire to a Combiner (not supplied).
Connect the VHF Twin-lead to the 300-75 ohm Matching
Transformer (not supplied).
Combiner. Attach the Combiner to the Antenna Jack.
Take off the Splitter
Converter/Descrambler
Converter/Descrambler
A/B SwitchSplitter
Attach the Transformer to the
300-75 ohm
Matching Transformer
(not supplied)
Combiner
300-75 ohm
Matching Transformer
(not supplied)
A
B
(not supplied)
Separate VHF/UHF Antennas
Connect the 75 ohm Cable from the VHF antenna and the UHF
antenna Twin-lead to a combiner (not supplied). Attach the
Combiner to the Antenna Jack.
NOTE: If your VHF antenna has a Twin-lead Wire, use the 30075 ohm Matching Transformer (not supplied), then connect the
Transformer to the Combiner.
For Subscribers to Basic Cable TV Service
For basic cable service not requiring a Converter/Descrambler
box, connect the CATV 75 ohm Coaxial Cable directly to the
Antenna Jack on the back of the television.
For Subscribers to Scrambled Cable TV Service
If you subscribe to a cable service which requires the use of a
Converter/Descrambler box, connect the incoming cable to the
Converter/Descrambler box and connect the output of the box
to the Antenna Jack on the back of the television. Follow the
connections shown left. Set the television to the output of the
Converter/Descrambler box (usually channel 3 or 4) and use
the Converter/Descrambler box to select channels.
For Subscribers to Unscrambled Basic Cable with
Scrambled Premium Channels
If you subscribe to a cable service in which basic cable
channels are unscrambled and premium channels require the
use of a Converter/Descrambler box, you may wish to use a
two-set signal splitter (sometimes called a "two-set coupler")
and an A/B Switch box from the cable installer or an electronics
supply store. Follow the connections shown left. With the switch
in the "B" position, you can directly tune any nonscrambled
channels on your TV. With the switch in the "A" position, tune
your TV to the output of the Converter/Descrambler box (usually
channel 3 or 4) and use the box to tune scrambled channels.
OUTIN
ANT(75‰)
OUTIN
VIDEO
VIDEO
L/MONO
L/MONO
AUDIO
AUDIO
S-VIDEO
RR
VIDEO 2VIDEO 1
Illustration of AV-24F703
This television has an extended
tuning range and can tune most
cable channels without using a
cable company supplied
converter box. Some cable
companies offer "premium pay
channels" in which the signal is
scrambled. Descrambling these
signals for normal viewing
requires the use of a descrambler
device which is generally
provided by the cable company.
11
CONNECTION TO OTHER EQUIPMENT
The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model
and features of each component. Check the User’s Guide provided with each component for the location of video and audio
inputs and outputs.
The connection diagrams in the following are offered as suggestions. You may need to modify them to accommodate your
particular assortment of components. The diagrams are intended to show component video and audio interconnections only.
Press the INPUT button to select the AV mode to use the TV as a monitor.
Operate your VCR as usual.
TV/AV SELECTION
If you connect the TV to VCR, camcorder, TV game or DVD you can select by pressing the INPUT button.
Press the INPUT button repeatedly to select the desired
mode.
1. To connect the TV to a VCR
(ex. Use VIDEO 1 IN jacks to connect it.)
Rear of TV
AUDIO (R)
OUTIN
Y
VIDEO
P
B
L/MONO
AUDIO
P
R
VIDEO 2VIDEO 1
VCR
To Audio(L/R)/
Video OUT
(not supplied)
VIDEO
AUDIO (L)
• Select “VIDEO 1” by pressing the INPUT button to
display the VCR picture.
2. To connect the TV to a VCR with an S-VIDEO jack
If you connect a VCR with an S-video jack to the SVIDEO jack on the rear of TV, you must also connect the
audio cables to the AUDIO IN (VIDEO 1) jacks on the
rear of the TV. The S-video cable only carries the video
signal. Audio signal is separate.
VCR
AUDIO (L)
S-VIDEO
(Not supplied)
(Not supplied)
ANT(75Ω)
Rear of TV
VIDEO
L/MONO
AUDIO
S-VIDEO
R
VIDEO 2VIDEO 1
AUDIO (R)
OUTIN
Y
VIDEO
L/MONO
AUDIO
R
TV VIDEO 1
COMPONENT
VIDEO 2
VIDEO 3
VIDEO 1
An indication of input source will display
on the screen for 4 seconds.
3. To connect the TV to a camcorder
To playback from the camcorder, connect the camcorder
to the TV as shown.
VIDEO
L/MONO
AUDIO
RR
To Audio(L/R)/
Video OUT
VIDEO
AUDIO (L)
(not supplied)
Front of TV
VIDEO 3 IN
VIDEO L/MONO
AUDIO R
AUDIO (R)
• Select “VIDEO 3” by pressing the INPUT button to
display the camcorder picture.
4. To connect the TV to a DVD with COMPONENT
VIDEO OUT Jacks.
If you connect a DVD with the COMPONENT VIDEO
OUT jacks to the COMPONENT VIDEO IN (Y, PB, PR)
jacks on the rear of TV, you must also connect the audio
cables to the AUDIO IN (VIDEO 2 IN) jacks on the rear of
the TV.
Rear of TV
DVD
AUDIO (L)
VIDEO
L/MONO
AUDIO
R
OUTIN
Y
P
B
P
R
VIDEO 2VIDEO 1
AUDIO (R)
(Not supplied)
(Not supplied)
NOTE: When the S-video cable and the video cable are
connected to each jack at the same time, the S-video
cable takes precedence over the video cable.
12
• Select “COMPONENT” by pressing the INPUT button
to display the DVD picture.
• If you have a DVD without COMPONENT VIDEO OUT
jacks, connect the video cable to VIDEO IN (VIDEO 2
IN) jack. In this case, select “VIDEO 2” by pressing the
INPUT button to display the DVD picture.
SETTING LANGUAGE
This TV can display the channel number, on-screen displays and picture adjustments on the screen in English, Spanish or
French.
On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially.
Select the language you prefer first, then proceed with the other menu options.
Press the MENU button.
1
Press the CH + (▲) or – (▼)
2
button to select the LANGUAGE
mode, then press the ENTER
button.
NOTE:
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
Press the CH + (▲) or – (▼)
3
button until the "
" indicator
points to the desired language:
English (ENGLISH), Spanish
(ESPAÑOL) or French
(FRANCAIS), then press the
ENTER button.
Press the EXIT button.
4
LANGUAGE / IDIOMA / LANGUE
▲
/ ▼ / ENTER / MENU / EXIT
If Spanish or French is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption text
will not be affected by the language selection.
SETTING CLOCK
You must set the time manually for DISPLAY and ON/OFF TIMER.
Press the MENU button.
1
Press the CH + (▲) or CH –
2
(▼) button until the indicator
next to "CLOCK SET" begins
to flash, then Press the
ENTER button.
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
Press the CH + (▲) or CH – (▼) button to set
4
the minute.
CLOCK SET
10 : 00 AM
▲
/ ▼ / / / ENTER / MENU/ EXIT
Press the EXIT button.
5
Press the CH + (▲) or CH –
3
(▼) button to set the hour,
then press the VOL + ( )
button.
CLOCK SET
12 : 00 AM
▲
/ ▼ / / / ENTER / MENU/ EXIT
NOTES:
• After a power failure or disconnection of the
power plug, the time display will be lost. In this
case, set present time again.
• When you set the minute, you can change in 10minutes by holding down the CH + (▲) or CH –
(▼) button.
13
TO MEMORIZE CHANNELS
This TV is equipped with a channel memory feature which
allows channels to skip up or down to the next channel set
into memory, skipping over unwanted channels.
Before selecting channels, they must be programmed into
the TV's memory. In addition to normal VHF and UHF
channels, this TV can receive up to 113 Cable TV channels.
To use this TV with an antenna, set the TV/CATV menu
option to the TV setting. When shipped from the factory, this
menu option is in the CATV setting.
TV/CATV SELECTION
Press the MENU button.
1
Press the CH + (▲) or – (▼) button
2
until the indicator next to "CH SETUP" begins to flash, then press the
ENTER button.
Press the CH + (▲) or – (▼) button
3
until the indicator next to "TV/CATV"
begins to flash.
Press the VOL + (
4
) or – ( ) button
to select the TV or CATV mode. The
arrow indicates the selected mode.
Press the EXIT button.
5
NOTE: Contact your cable company to determine the
type of cable system used in your area.
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
CH SET-UP
TV CATV
AUTO CH MEMORY
ADD / DELETE
CH LABEL
▲
/ ▼ / / / MENU / EXIT
AUTOMATIC CHANNEL MEMORY
Press the MENU button.
1
Press the CH + (▲) or – (▼) button
2
until the indicator next to "CH SETUP" begins to flash, then press the
ENTER button.
Press the CH + (▲) or – (▼) button
3
until the indicator next to "AUTO CH
MEMORY" begins to flash, then press
the ENTER button. The TV will begin
memorizing all the channels available
in your area.
Press the EXIT button.
4
TO ADD/DELETE CHANNELS
Press the MENU button.
1
Press the CH + (▲) or – (▼) button
2
until the indicator next to "CH SETUP" begins to flash, then press the
ENTER button.
Press the CH + (▲) or – (▼) button
3
until the indicator next to "ADD/
DELETE" begins to flash, then press
the ENTER button.
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
CH SET-UP
CATV
TV
AUTO CH MEMORY
ADD / DELETE
CH LABEL
▲
/ ▼ / ENTER / MENU / EXIT
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
CH SET-UP
TV CATV
AUTO CH MEMORY
ADD / DELETE
CH LABEL
▲
/ ▼ / ENTER / MENU / EXIT
Select the desired channels to be
4
added or deleted using the 10-key
pad (0-9) or the CH + or – button.
5 Press the VOL + ( ) or – ( ) button to select ADD or
DELETE.
If an unmemorized channel was selected (step 4), the
channel indication will be red. Press the VOL + (
(
) button if you wish to ADD the unmemorized
channel. The channel indicator will change from red to
green when a channel is added and the channel will be
memorized. If a memorized channel was selected (step
4), the channel indication will be green.
Press the VOL + ( ) or – ( ) button if
you wish to DELETE the channel from
ADD CH 012
memory. The channel indicator will
change from green to red when a
channel is deleted.
Repeat Steps 4 and 5 for each
0
-9 ▲ / ▼
channel to be added or deleted.
Press the EXIT button after adding or deleting all of the
6
desired channels, to return to normal TV viewing.
) or –
/ / / MENU / EXIT
14
TO MEMORIZE CHANNELS (CONTINUED)
CH LABEL
You can labal every channel up to 4 characters.
Channel labels will appear over the channel number display each time you select a channel.
Select a channel you want to label by pressing
1
the 10-key pad or CH + or - button.
Press the MENU button.
2
Press the CH + (▲) or – (▼) button until the indicator
3
next to "CH SET-UP" begins to
flash, then press the ENTER
button.
Press the CH + (▲) or – (▼) button until the indicator
4
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
next to "CH LABEL" begins to
flash, then press the ENTER
button.
Press the VOL + ( ) or – ( ) button to select "SET"
5
or "CLEAR". Select "SET" in case
you have a channel to label or
change. Select "CLEAR" in case
you have a channel to delete.
Then press the ENTER button.
CH SET-UP
TV
CATV
AUTO CH MEMORY
ADD / DELETE
CH LABEL
▲
/ ▼ / ENTER / MENU / EXIT
CH LABEL : CH 012
SET/CLEAR
SET CLEAR
LABEL
----
▼
▼▼
▲ / ▼ / / /ENTER / MENU / EXIT
Go to step 7 when you select the "SET".
6
Go to step 9 when you select the "CLEAR".
Now the bar for the first space is flashing. Press the
7
VOL + (
enter a character in the first
space. Press the button
repeatedly until the character
you want appears on the
screen. Then press the ENTER
) or – ( ) button to
CH LABEL : CH 012
SET/CLEAR
LABEL
----
▼
▼▼
▲ / ▼ / / /ENTER / MENU / EXIT
button.
NOTE:
The character will change as below.
–0 9
Z SPACE
Repeat step 7 to enter the rest of the characters
8
from second to fourth.
Press the ENTER button to register.
9
Press the EXIT button.
10
• • •
+
A
–
SET
• • •
SETTING V-CHIP
This TV is fitted with a V-CHIP controller which provides you with channel viewing access controls and restrictions. This
function is to prevent your children from watching violence or sexual scenes that may be harmful.
Press the MENU button and
1
press the CH + (▲) or – (▼)
button to select the V-CHIP SET
option, then press the ENTER
button.
Enter your password (4 digits)
2
using the 10-key pad (0-9). In
the event of entering incorrect
password press the VOL – ( )
button. Then press the ENTER
button.
• After registration of password, step 3 will not
appear.
Enter the same password for
3
confirmation, then press the
ENTER button.
MENU
CLOCK SET
ON/OFF TIMER
CH SET-UP
AUDIO
LANGUAGE / IDIOMA / LANGUE
V-CHIP SET
▲ / ▼ / ENTER / MENU / EXIT
V-CHIP SET
NEW
PASSWORD :
▼
0-9/ / ENTER / MENU / EXIT
V-CHIP SET
CONFIRM
PASSWORD :
▼
0-9/ / ENTER / MENU / EXIT
-
----
Press the CH + (▲) or – (▼)
4
button to select the V-CHIP
option.
Press the VOL + ( ) or – ( )
button to select the ON.
For U.S.
5
Press the CH + (▲) or – (▼)
button to select the US TV RATING
or MOVIE RATING option.
For Canadian
Press the CH + (▲) or – (▼)
button to select the CAN ENG RATING or CAN FRE
RATING option.
Press the VOL + ( ) or – ( )
6
button to select the desired
rating for the applicable video
or TV channel.
Press the EXIT button.
7
V-CHIP SET
V-CHIP : OFF
US TV RATING : OFF
MOVIE RATING : OFF
CAN ENG RATING : OFF
CAN FRE RATING : OFF
CHANGE PASSWORD
▲
/ ▼ / / / MENU / EXIT
V-CHIP SET
V-CHIP : ON
US TV RATING : OFF
MOVIE RATING : OFF
CAN ENG RATING : OFF
CAN FRE RATING : OFF
CHANGE PASSWORD
▲
/ ▼ / / / MENU / EXIT
V-CHIP SET
V-CHIP : ON
US TV RATING : TV-14
MOVIE RATING : OFF
CAN ENG RATING : OFF
CAN FRE RATING : OFF
CHANGE PASSWORD
DISPLAY TO SET CONTENTS
▲
/ ▼ / / / MENU / EXIT
15
Loading...
