COLOR TELEVISION
AV-14FN14
AV-20NN14
AV-21CN14
AV-21YN14
Contents
Knowing your TV’s features
Remote control buttons and basic functions.3
TV buttons and functions
Setting up your TV
Basic setting for picture
Advanced setting for picture
Original features for picture
Advanced setting for sound
Favorite channel and video setting
Customized setting
TV channel presetting
Additional preparation
Troubleshooting
Specifications
........................................
..........................................
..............................................
..........................
..............................
.................................
.........................
...........................
..........................
.............
.....................................
.................................
.................................
10
11
12
13
13
14
2
5
6
8
9
9
9
INSTRUCTIONS
GGT0030-001B-H
Thank you for buying this JVC color television.
To make sure you understand how to use your new TV, please read this manual
throughly before you begin.
Safety Instructions
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING
RULES REGARDING THE USE OF THIS TV.
1 Operate only from the power source indicated on the rear of the TV.
2 Avoid damaging the power cord and AC plug. When unplugging the TV, grasp the AC plug.
Do not pull on the power cord.
3 Never block or cover the cabinet ventilation
openings. Never install the TV where good
ventilation is unattainable. When installing
this TV, leave space for ventilation around the
TV more than the minimum distances as
shown in the diagram.
4 Do not allow objects or liquid into the cabinet
10 cm
openings.
5 In the event of a fault, unplug the unit and call a JVC service technician.
Do not attempt to repair it yourself or remove the rear cover.
6 The surface of the TV screen is easily damaged. Be very careful with it when handling
the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it
forcefully. Never use any cleaner or detergent on it.
7 If you are not going to use this TV for a long period of time, be sure to disconnect the
AC plug from the AC socket.
8 The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
15 cm
15 cm10 cm
Knowing your TV’s functions
Main features
Function Description
Closed caption You can display dialog on the screen from TV broadcasts with Closed caption
Favorite CH (Channel) You can register up to four favorite channels for quick recall with one press.
AI Volume TV adjusts automatically the volume to the same level for all TV channels to
VNR You can reduce the picture noise when you viewing noisy TV programs or video
White balance You can choose one of three tones of white to match to the video source such
Child lock To prevent accidental operation by your children, you can disable the control
2
system. You also may be able to display some information in text form if available.
avoid sudden change of the volume when selecting different TV channel.
sources.
as movie, sports, etc. Changing White balance affects the appearance of all other
colors on the screen.
buttons on the TV.
Remote control buttons and basic functions
1
6
9
8
0
2
3
7
4
RM-C1262
No.Press To
1 POWER Turn on or off the TV from standby mode.
2 MENU/OK Display menu and confirm selected function.
3 5/∞/2/3 Select and adjust menu function.
4 CHANNEL M Select the desired channel number.
5 VOLUME M Adjust the volume level.
6 TV/VIDEO Select TV or VIDEO terminal input.
7 MUTING Turn off the volume. Press this button again to resume the volume.
8 DISPLAY/BACK Display the program number or video terminal number on the screen.
On the other hand, you can use this button to return to the previous menu.
9 CLOSED CAPTION Display information in text which are broadcasted by some TV channels.
0 0-9, 100+ Select the program number. For three-digit program numbers, press 100+,
then press the number button.
- RETURN, a) Return to the frequently viewed channels with one touch.
1 Choose the channel you want to register.
2 Press and hold RETURN, button until “RETURN PLUS PROGRAMMED!”
appears.
To cancel, press and hold RETURN, button until “RETURN PLUS CANCELED!”
appears.
b) Return to the previously viewed channel, if you have not set or have
canceled the Return channel as above.
5
3
Remote control buttons and basic functions
How to operate menus and menu locations
TO Operation Note
Display the MENU. Press the MENU/OK button 2.To exit the MENU, press the
Display the top menu. Press 5/∞ buttons 3 to choose a menu title. Press ∞ button 3 to display the
Display the 2nd menu. Press 5/∞ buttons 3 to choose a menu title.
Display the 3rd menu. Press 5/∞ buttons 3 to choose a menu title.
Return to the previous Press the DISPLAY/BACK button* 8.–
menu.
Choose the setting of Press 5/∞ buttons 3 to choose a function. Press the MENU/OK button 2 to
a function. Then press the 2/3 buttons 3 to change the exit from the menu.
Adjust the effect level Press 5/∞ buttons 3 to choose a function.
of a function. Then press the 2/3 buttons 3 to adjust the
Display the sub menu Press 5/∞ buttons 3 to choose a function.
of a function. Then press MENU/OK button 2 to display –
Then press MENU/OK button 2. next page for more functions.
Then press MENU/OK button 2.
Then press MENU/OK button 2.
setting.
effect level.
the sub menu.
DISPLAY/BACK button* 8 or
choose EXIT menu.
The following chart shows locations of functions in menus.
In this manual, location of a function is described as follows:
MENU Top menu 2nd menu
MENU Top menu 2nd menu
3rd menu
Note: Some functions have the 4th menus as the sub-menus.
*To exit the menu, the on screen display will show BACK indicated in blue. But it doesn’t refer to the
blue button on the remote control. Instead, it refers to the DISPLAY/BACK button on the remote
control.
Top menu 2nd menu Location 3rd menu Location
MENU INPUT EXT. INPUT P.11 - -
DISPLAY P.11 - -
CLOSED CAPTION P.9 - -
PICTURE PICTURE MODE P.8 - -
* If you want to
adjust
SETTING
menu, you must
set PICTURE
MODE menu to
USER.
SOUND AI VOLUME P.9 - -
FEATURES OFF TIMER P.11 - -
INSTALL AUTO PROGRAM P.12 - -
EXIT - - - -
PICTURE SETTING P.8 - -
WHITE BALANCE P.8 - -
PICTURE FEATURES - VNR P.11
FAVORITE CH SETTING P.10
VIDEO SETTING P.10
COLOR SYSTEM P.8
PICTURE BOOSTER P.8
CHILD LOCK P.11 - -
CHANNEL SUMMARY P.12 - -
BLUE BACK P.9 - -
AUTO SHUTOFF P.11 - -
4
TV buttons and functions
The following illustrations are for AV-14FN14 and AV-21YN14 only, which are used for
explanation purposes. Your TV may not look exactly like the illustration.
Front of the TV
9 7 4 3 2 18 6 5
AV-14FN14
VIDEO AUDIO
IN (VIDEO-2)
MENU
OK
9 7 4 23 18 56
AV-21YN14
VIDEO AUDIO
IN (VIDEO-2)
MENU CHANNEL VOLUME
OK
Rear of the TV
VIDEO-1
AV-14FN14 AV-21YN14
No. Button/terminal Description
1I(main power) Press to turn on or turn off the TV’s main power.
2 Power lamp Indicate the TV is being turned on or off.
3 TIMER lamp Lights when the TV is in the OFF TIMER mode.
4 Remote control sensor
5 VOLUME M Press to adjust the volume level.
6 CHANNELM Press to select the desired channel.
7 MENU Press to display the menu.
8 IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode.
9 Headphone jack.
0 Antenna socket.
- OUTPUT Video and audio output jacks.
= VIDEO-1 INPUT Video and audio input jacks for VIDEO-1 mode.
How to operate the menus with the TV button
TV button
MENU MENU/OK button To display main menu and exit
CHANNEL M ∞/5 button To select menu function.
VOLUME M 2/3 button To adjust the desired function.
OUTPUT
INPUT
VIDEO
AUDIO
=
0-
No color : TV’s main power is being turned off.
Red : TV’s main power is being turned on.
Work as same as the button on the
remote control unit
POWERTIMER
VIDEO-1
OUTPUT
INPUT
VIDEO
AUDIO
0-=
Note
menu after finish setting.
5
Setting up your TV
CAUTION
• Turn off the equipment including the TV before connecting.

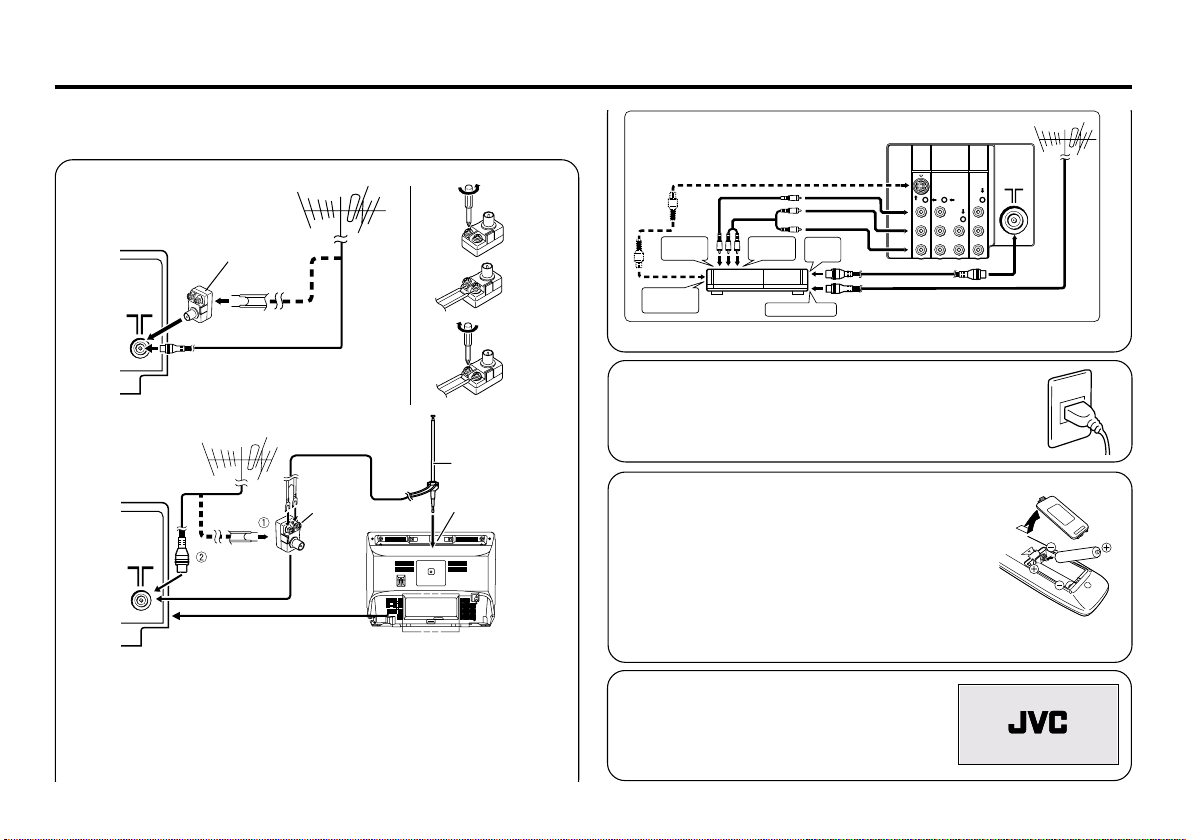

1 Connecting the antenna

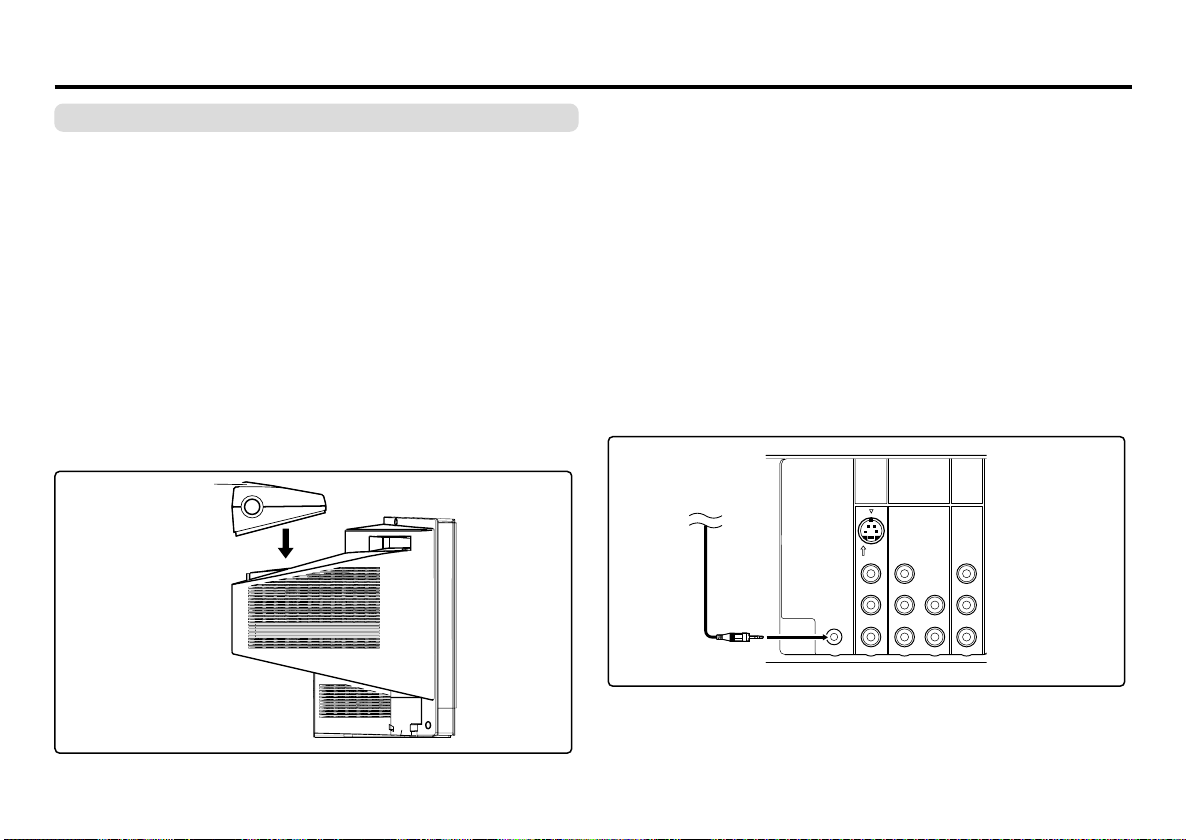

To install rod antenna
Install into the top-rear holder. Once installed, it cannot be removed.
* Except AV-21CN14
Indoor antenna
Rod antenna
(1)
*
Antenna holder
VIDEO-1
OUTPUT
INPUT
VIDEO
AUDIO
(2)
(3)
VIDEO-1
INPUT
VHF/UHF outdoor antenna
OUTPUT
VIDEO
AUDIO
Matching
antenna
adapter
(supplied)
Illustration of AV-14FN14 only
If you connect a VCR, connect the antenna output jack of your VCR and the antenna jack on the TV
with the antenna cable. Then connect the output jacks of your VCR and the VIDEO-1 input jacks of
the TV with the video cable and audio cables. For details, see the manual of your VCR.
VHF/UHF outdoor antenna
Rear of the TV
VIDEO-1
OUTPUT
INPUT
3 Inserting batteries into the remote
control.
Insert two batteries by following the ª and
· polarities and inserting the · end first.
CAUTION:
Follow the cautions printed on the batteries.
Notes:
• Use AA/R6/UM-3 dry cell batteries.
• If the remote control does not work
properly, install new batteries. The supplied
batteries are for testing, not regular use.
To audio/video
output
VCR
To RF
output
To antenna input
VIDEO
AUDIO
The illustration shown is just a sample. It may
not be same as your TV.
2 Connecting the compatible AC plug
to the AC outlet.
6
4Turn on the TV by pressing the main
power button.
JVC logo appears on the screen.
Setting up your TV (continued)
5 Making the initial settings
Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then the TV will operate
by following steps as below:
7
•Press 5/∞ button to select AIR or CABLE,
press the MENU/OK button. TV will start
searching for the channels.
≠
To stop AUTO PROGRAM, press MENU/OK
button.
• Press the red button to cancel the SETUP
TOUR RESTART function.
If you want to make initial settings again
when the next time you turn on the TV,
press the MENU/OK button to activate the
SETUP TOUR RESTART function.
≠
•To complete the initial setting, press the
MENU/OK button. To set undesired
channels to be skipped, see page 12.
■
■
■
■
• If the JVC logo does not appear, use AUTO PROGRAM function to make the initial
settings. This function is located in the INSTALL menu.
• If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO
button to exit from initial settings.
7
Basic setting for picture
COLOR SYSTEM
You can select the appropriate color system when
the picture is not clear or no color appears.
Press the COLOR SYSTEM button to select a
setting.
In TV mode: NTSC 3.58 MHz (Fixed)
In VIDEO mode:
AUTO PAL SECAM
NTSC3.58NTSC4.43
To operate this function with a menu:
❇
MENU PICTURE PICTURE FEATURES
COLOR SYSTEM
For the color system in each country or region,
see the table below:
Area Country or Region System
Asia, Middle Thailand, India, etc.
East China, Vietnam, etc. PAL
Europe
Oceania Australia, New Zealand, etc. PAL
Africa Nigeria, etc. PAL
Bahrain, Kuwait, Oman, Qatar,
United Arab Emirates, Yemen, etc.
Indonesia, Malaysia, Singapore,
Hong Kong, etc. PAL
Islamic Republic of Iran, Lebanon,
Saudi Arabia, etc.
Philippines, Taiwan, Myanmar, etc. NTSC
Russia, etc. SECAM
Czech Republic, Poland, etc. PAL
Germany, Holland, Belgium, etc. PAL
UK, etc. PAL
Republic of South Africa, etc. PAL
Egypt, Morocco, etc. SECAM
PAL
SECAM
PICTURE MODE
You can choose the desired picture setting with
one touch.
Press the PICTURE MODE button to select a
setting.
SOFT Softens contrast and sharpness.
BRIGHT Heightens contrast and sharpness.
STANDARD Standard picture setting.
USER You can change this picture setting
as you like.
Select USER and adjust following
items in the PICTURE SETTING menu.
(PICTURE, BRIGHT, DETAIL, COLOR,
TINT*)
*TINT can only be adjusted in NTSC system.
8
To operate this function with a menu:
MENU PICTURE PICTURE MODE
❇
To return the USER setting to the default, press
the blue button when the PICTURE SETTING
menu appears.
Adjusting the picture - USER
You can adjust the desired picture setting when
selecting USER in PICTURE MODE.
1 Select the USER in PICTURE MODE under
PICTURE menu.
MENU PICTURE PICTURE MODE
❇
USER
2 Select the PICTURE SETTING in PICTURE
menu, then adjust the setting.
MENU PICTURE PICTURE SETTING
❇
PICTURE 2 : Lower 3 : Higher
BRIGHT 2 : Darker 3 : Brighter
DETAIL 2 : Softer 3 : Higher
COLOR 2 : Lighter 3 : Deeper
TINT* 2 : Reddish 3 : Greenish
*TINT can only be adjusted in NTSC system.
PICTURE BOOSTER (Except AV-21CN14)
You can improve picture clarity when the picture
is unclear due to the low signal reception.
Press the PICTURE BOOSTER button to select the
desired mode.
❇
MENU PICTURE PICTURE FEATURES
PICTURE BOOSTER
HIGH Perform at maximum level.
LOW Perform at minimum level.
OFF Cancel the function.
WHITE BALANCE
You can change the white balance of the picture
to better match the type of video being viewed.
Select the WHITE BALANCE in the PICTURE
menu, then choose the desired setting.
MENU PICTURE WHITE BALANCE
❇
NORMAL Normal white balance.
COOL Bluish white.
WARM Reddish white.
❇ About the basic operations of the menu,
please see the “How to operate menus
and menus locations” on page 4.
Advance setting for picture
BLUE BACK
You can set the TV to automatically change to a
blue screen and mute the sound if the signal is
weak or absent, or when there is no input from
an antenna.
Select the BLUE BACK in the INSTALL menu,
then choose ON or OFF.
MENU INSTALL BLUE BACK
❇
If you wish to continue viewing the poor picture,
cancel the BLUE BACK function.
Original features for picture
CLOSED CAPTION
If they are included in a program, you can view
closed captions or text information.
Press the CLOSED CAPTION button to select a
setting.
OFF TEXTCLOSED CAPTION
To operate this function with a menu:
1 Select the CLOSED CAPTION in INPUT
menu, then choose “CAPTION” or
“TEXT”.
MENU INPUT CLOSED CAPTION
❇
2 Press the 2/3 button to select the desired
caption or text channel.
Advanced setting for sound
AI VOLUME
You can adjust the volume of all the channels
and video inputs to the same level automatically.
Select the AI VOLUME in SOUND menu, then
choose ON or OFF.
MENU SOUND AI VOLUME
❇
❇ About the basic operations of the menu,
please see the “How to operate menus
and menus locations” on page 4.
9
Favorite channel and video setting
VIDEO SETTING
MENU
PICTURE FEATURES
VIDEO SETTING
VIDEO STATUS
To register the favorite channel
You can register and recall 4 favorite channels by
using the color buttons (red, green, yellow, blue).
1 In TV mode, select a TV channel (CH02-
CH69, CC01-CC125) you desired to register.
2 Press and hold a color button for 3
seconds or more.
“FAVORITE CHANNEL 7 PROGRAMMED!”
appears on the screen and current channel
is registered.
3 To register other favorite channels, repeat
Step 1 to 2.
To recall the favorite channel, press the color
button.
When the TV is in menu mode, favorite channel
function is not available.
To adjust favorite channel setting
(FAVORITE CH SETTING)
You can adjust the picture settings for the favorite
channels.
1 Display the PICTURE menu and select
FAVORITE CH SETTING in PICTURE
FEATURES menu.
MENU PICTURE PICTURE FEATURES
❇
FAVORITE CH SETTING
2 Select FAVORITE CHANNEL in FAVORITE
CH SETTING menu, then choose the
desired favorite channel.
FAVORITE CH SETTING
❇
FAVORITE CHANNEL
To adjust the video setting
(VIDEO SETTING)
You can adjust the picture settings for video
inputs.
1 Display the PICTURE menu and select
VIDEO SETTING in PICTURE FEATURES
menu.
❇
2 Select VIDEO STATUS in VIDEO SETTING
menu, then choose the desired video
input.
❇
3 Select EFFECT, then press 2/3 button to
choose ON. To cancel the settings, choose
OFF.
4 Select the desired item that you wish to
adjust.
PICTURE BRIGHT DETAIL
TINT COLOR
5 Press the MENU/OK button to exit the
menu.
3 Select EFFECT, then press 2/3 button to
choose ON.
To cancel the settings, choose OFF.
4 Select the desired item that you wish to
adjust.
PICTURE BRIGHT DETAIL
TINT COLOR
5 Press the MENU/OK button to exit the
menu.
10
❇ About the basic operations of the menu,
please see the “How to operate menus
and menus locations” on page 4.
Customized setting
MENU INPUT EXT.INPUT
VNR
You can reduce the noise.
Select the VNR in the PICTURE FEATURES menu
under PICTURE menu, then choose a setting of
VNR function.
❇
MENU PICTURE PICTURE FEATURES
VNR
OFF VNR is turned off.
AUTO Effect of VNR is automatically controlled.
MIN Effect of VNR becomes minimum level.
MAX Effect of VNR becomes maximum level.
If you select MAX, the picture becomes softer
even if the original picture is sharp.
CHILD LOCK
You can disable the front control buttons of the
TV.
Select the CHILD LOCK in the FEATURES menu,
then choose ON or OFF.
❇
MENU FEATURES CHILD LOCK
OFF TIMER
You can set the TV to turn off automatically to
standby mode after a set time.
Press the OFF TIMER button to select a desired
period of time.
OFF TIMER
AUTO SHUTOFF
You can set the TV to turn off automatically
when no signal is received for about 15 minutes
or longer after the end of a broadcast.
Select AUTO SHUTOFF in INSTALL menu, then
choose ON or OFF.
MENU INSTALL AUTO SHUTOFF
❇
The AUTO SHUTOFF function does not turn off
the TV’s main power.
The AUTO SHUTOFF function is not available in
video mode.
EXT. INPUT (TV/ VIDEO)
You can select TV or video terminal input with
one touch.
Press the TV/VIDEO button to select an input.
To operate this function with a menu:
❇
DISPLAY
You can display the program number, video
terminal number on the screen.
Press the DISPLAY button to display the indication on screen.
To operate this function with a menu:
MENU INPUT DISPLAY
❇
0 120
10
You can set the period of time to a maximum of
120 minutes in 10-minute steps.
To operate this function with a menu:
❇
MENU FEATURES OFF TIMER
When the elapsed of time left one minute,
“GOOD NIGHT!” appears on the screen.
You can display the OFF TIMER menu again to
confirm or change the remaining time.
❇ About the basic operations of the menu,
please see the “How to operate menus
and menus locations” on page 4.
11
TV channel presetting
To register the TV channels automatically
You can register the TV channels into the TV’s
channel list automatically.
1 Display the INSTALL menu.
MENU INSTALL
❇
2 Choose AUTO PROGRAM, then press the
MENU/OK button.
3 Press the 5/∞ button to select AIR or
CABLE, then press the MENU/OK button.
AUTO PROGRAM function starts, and the
channels received are registered automatically.
4 “SETUP TOUR RESTART?” appears.
To start the Press the MENU/OK button.
SETUP TOUR Then proceed to step 5 of
To skip the Press the Red button.
SETUP TOUR
5 The CHANNEL SUMMARY menu appears.
For details of “SETUP TOUR”, see page 7.
CHANNEL SUMMARY
You can set undesired channels to be skipped.
Channels set to be skipped cannot be selected by
the CHANNEL M button.
1 Display the INSTALL menu.
MENU INSTALL
❇
2 Choose CHANNEL SUMMARY, then press
the MENU/OK button. CHANNEL SUMMARY menu appears.
■
■
■
■
3 Choose the channel which you want to
skip. The skip can be set to all channels of
AIR (CH02-CH69) and CABLE (CC01CC125).
4 Press the yellow button to skip the
channel. To cancel the skip, press the blue
button.
5 Press the MENU/OK button to exit the
menu.
12
“Setting up your TV” on page
7.
❇ About the basic operations of the menu,
please see the “How to operate menus
and menus locations” on page 4.
Loading...
