COLOUR TELEVISION
INSTRUCTIONS
Contents
Safety precautions ......................... 2
Connections .................................. 3
Initial settings ................................. 3
PREPARATION FUNCTIONS REFERENCE
AV-21B17 AV-21B17B AV-21BMG7 AV-21BMG7B AV-21BMG7S AV-21BMG8 AV-21Y17 AV-21Y18 AV-21YMG7
This illustration shows AV-14UMG7.
The illustrations of AV-14UMG7 is used in this instruction manual for explanation purpose. Your TV may not look exactly the same as illustrated.
AV-21YMG7B
AV-14A17 AV-14AMG7 AV-14U17 AV-14UMG7 AV-14UMG7B
Remote control buttons
and functions ................................. 4
TV buttons and functions ............... 4
Using the TVʼs MENU ....................5
Presetting TV channels .................6
Using the timer ..............................7
Playing game ................................. 7
Sound and Colour system in your
country or region ........................... 7
Troubleshooting ............. Back cover
Specifications ................ Back cover
GGT0130-001D-H
POWER / ON TIMER
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
Thank you for buying this JVC colour television.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not allow objects or liquid into the cabinet openings.
• Operate only from the power source indicated on the rear of the TV.
• Avoid damaging the power cord and mains plug. When unplugging the TV, grasp the mains plug. Do not pull on the power cord.
• This TV can be turned on/off power by connecting/disconnecting the AC plug into AC outlet. While this TV is being installed, enough space should be reserved for connection/disconnecting the AC plug into AC outlet by hand.
In the event of
a fault, unplug the unit
and call a service technician. Do
not attempt to repair it yourself or
remove the rear cover.
CAUTION
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS TV.
• Never block or cover the ventilation openings.
• Never install the TV where good ventilation is unattainable.
• When installing this TV, leave spaces for ventilation around the TV of more than the minimum distances as shown.
• The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.
• Insert two batteries by following the and polarities and inserting
the end first.
• Use AA/R6/UM-3 dry cell batteries.
• If the remote control does not work properly, fit new batteries.
The supplied batteries are for
testing, not regular use.
WARNING:
Batteries shall not be exposed to excessive heat such as direct sunshine, fire or the like.
If this symbol is shown, it is only valid in the European Union.
2

Connections Initial settings

LANGUAGE
MENU
DISPLAY
OK
: AUTO PROGRAM
: EXIT
: BACK
FRANÇAIS
AUTO PROGRAM
OK
: MANUAL PROGRAM
VH
MANUAL PROGRAM
VOLUME-/+ : SEARCH-/+ / : FINE-/
+
DISPLAY : SOUND SYSTEM
PR CH /CC 05 B/G CC 06 06 B/G CH 05 07 B/G CH 08 08 B/G CH 10 09 B/G CH 12
Turn on the TV.
CAUTION
Ensure to turn off all equipments including the TV before connecting the AC mains plug to the AC outlet.
Connecting to the aerial cable and VCR
* This illustration shows AV-14UMG7.
TV rear terminals
VHF/UHF outdoor aerial
1
JVC logo appears.
Select a language.
2
or wait 15 seconds to run Setup Tour
Searching for the channels.
PREPARATION
VCR (for recording)
Connecting to the TV front terminals
* This illustration shows AV-14UMG7.
TV front terminals
After all the connections have been made, insert the mains plug to the AC outlet.
75-ohm coaxial cable (not supplied)
VCR
Camcorder TV gameHeadphones
OR
Select
to stop or wait until AUTO PROGRAM finishes
Proceed to AUTO PROGRAM
Note
This Language Menuʼs on screen is used for explanation purpose only. Your TV may not show the same as this on screen.
Search a channel manually or fine-tune a channel.
3
To perform manual search and fine-tune (FINE), \ page 6.
or
To complete
Setup Tour
To restart Setup Tour after above setup has completed
(while the cursor is pointing to PICTURE MODE and within 3 seconds)
If you press when LANGUAGE is displayed (Step 2), the screen will exit to MENU.
3
POWER /
ON TIMER

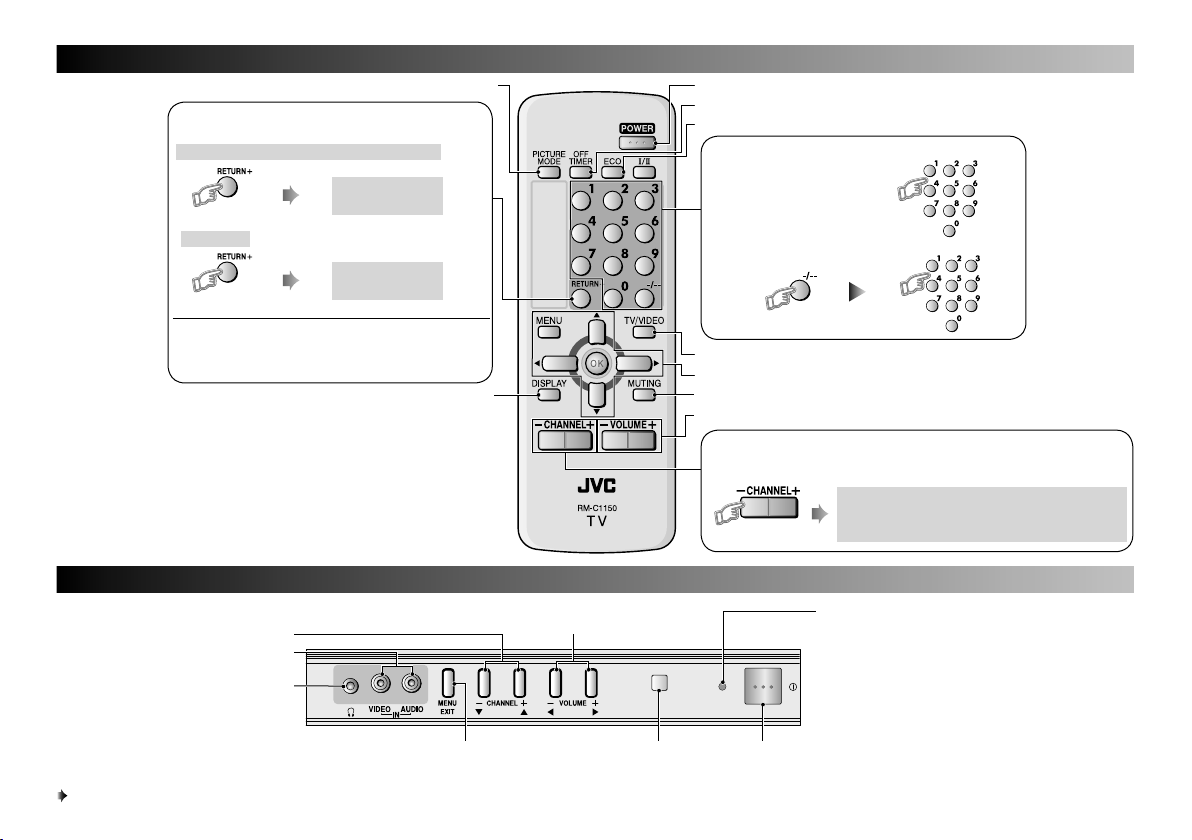

Remote control buttons and functions

Select PICTURE MODE (\ page 5)
RETURN PLUS function
Return to the frequently viewed channel.
Choose the channel you want to programme
RETURN PLUS
Press and hold
To cancel
Press and hold
PROGRAMMED!
RETURN PLUS
CANCELED!
RETURN function
If you have not set or have canceled the RETURN PLUS channel, this will return to the previously viewed channel.
Display the programme number or video terminal number.
TV buttons and functions
* This illustration shows AV-14UMG7.
Video and audio input jack
4
Select Channel
Headphone jack
Display the TVʼs MENU, Exit after finish setting
Adjust volume level
Turn the TV on from standby and vice versa
Set OFF TIMER (\ page 7) Select ECO MODE (\ page 5)
Select TV or video input Operating the menus (\ page 5) Turn the volume Off / On Adjust the volume level, Turn off Muting
Remote control sensor
Select programme number
For two digits programme number
Select Channel Select the desired channel number.
For Hyper Scan:
PR changes without changing the picture. Once you stop pressing CHANNEL+ or CHANNEL-
Press and hold
button, picture will change to the desired PR.
POWER lamp - Indicates the TVʼs status. No colour : TVʼs main power is being turned off. Red : TVʼs main power is being turned on. Blink : While the TV is in standby mode, ON
TIMER function is in used. While the TV is in turn on mode, OFF TIMER function is in used.
Note: When you turn off the power switch while
TVʼs main power on/off
TV is in standby mode, the power lamp will go off in 5 -10 seconds. When you operate the TV, POWER Lamp will blink.
PICTURE MODE
PICTURE SETTING WHITE BALANCE NORMAL ECO MODE ON TIMER OFF TIMER
MENU (1 / 3)
Using the TVʼs MENU
Operating the menus
Display MENU
Showing MENU page 1 of 3
/ Select function, go to
previous/next page
On-screen guide
/ Display function setting.
/ Change setting
To return to previous screen
To exit from Menu or
MENU Item
PICTURE MODE USER Change picture settings
VIVID Heightens contrast and sharpness SOFT Softens contrast and sharpness
PICTURE SETTING
PICTURE SETTING can
CONTRAST Adjust contrast (Lower j Higher)
BRIGHT Adjust brightness operate when PICTURE MODE is set to USER (\ PICTURE MODE)
On screen scale colour Center position : Yellow Others position : Green
SHARP Adjust sharpness
COLOUR Adjust colour (Lighter j Deeper)
TINT Adjust colour tint
RESET Reset all items level to center
WHITE BALANCE NORMAL Normal white balance
COOL Bluish white
ECO MODE
Adjust picture contrast
according to room brightness
WARM Reddish white
OFF Cancel the function
ECO-1 Mild contrast (recommended)
ECO-2 Even contrast
Description (Setting / Adjustment)
(\ PICTURE SETTING)
(Darker j Brighter)
(Softer j Higher)
(Reddish j Greenish)
ON TIMER Turns on the TV from standby mode (\ page 7) OFF TIMER Turns off the TV to standby mode (\ page 7) AI VOLUME ON Sets the volume level for all
channels and video inputs automatically depends on the strength of signal from the source.
OFF Volume can be adjusted individually
for each channel
CHILD LOCK ON Disable the front buttons of the TV
OFF Cancel the function
BLUE BACK ON Displays a blue screen and mutes
the sound when signal from the aerial is weak or absent
OFF Cancel the function
VNR
To reduces the picture
noise
AUTO Effect of VNR is automatically
controlled MIN Effect of VNR becomes minimum MAX Effect of VNR becomes maximum OFF Cancel the function
GAME Select a game to play (PUZZLE / TWINS)
(\ page 7)
LANGUAGE Choose your desired on screen display language. AUTO PROGRAM Automatically registers channels (\ page 6) MANUAL PROGRAM Manually search channels and fine-tunes
channels (\ page 6)
INSERT / DELETE Add, delete and move registered channels
(\ page 6)
COLOUR SYSTEM Select the appropriate system
In TV mode : (AV-14A17 / AV-14U17 / AV-21B17 / AV-21B17B / AV-21Y17 / AV-21Y18 : AUTO / PAL / SECAM) (Other models : AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43) In VIDEO mode (All models) : (AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43) (\ page 7)
SOUND SYSTEM Select the appropriate system
(AV-14A17 / AV-14U17 / AV-21B17 / AV-21B17B / AV-21Y17 / AV-21Y18 :BG / I / DK) (Other models : BG / I / DK / M) (\ page 7)
5
FUNCTIONS

Presetting TV channels

MANUAL PROGRAM

VOLUME-/+ : SEARCH-/+ / : FINE-/
+
DISPLAY : SOUND SYSTEM
PR CH /CC 05 B/G CC 06 06 B/G CH 05 07 B/G CH 08 08 B/G CH 10 09 B/G CH 12

AUTO PROGRAM

OK
: MANUAL PROGRAM
VH

INSERT / DELETE

MOVE
VOLUME+ : INSERT
MUTING : DELETE
PR CH /CC 05 B/G CC 06 06 B/G CH 05 07 B/G CH 08 08 B/G CH 10 09 B/G CH 12
AUTO PROGRAM
1 2
3
MANUAL PROGRAM screen appears (\ MANUAL PROGRAM).
4
MANUAL PROGRAM
MENU
1 2
To search for a
3
channel manually (SEARCH)
To fine-tune a channel (FINE)
If noisy sound is heard and unsuitable sound system for your broad­casting (\ Page 7)
4
6
AUTO PROGRAMMENU
or
to stop or when AUTO PROGRAM finishes.
MANUAL PROGRAM
or
1. Select the PR number you wish to store the channel.
2. Press the VOLUME +/- button to start searching from the present channel. Searching stops when the following channel is found.
1. Select the channel you wish to fine-tune.
2. Press the or button until a clear picture is obtained.
1. Press DISPLAY button then on screen will change to Sound System,
2. Choose an appropriate sound system.
to exit.
INSERT / DELETE
After this operation, other channel's PR number will be changed.
1
INSERT / DELETEMENU
2
or
To add the new
3
channel (INSERT)
To delete a channel (DELETE)
To change the PR number (MOVE)
4
to exit.
Channel table
CH/CC CCIR OIRT CH/CC CCIR OIRT CH/CC CCIR OIRT
CH02 E2 R1 CH21 E21 CC01 S-1 CH03 E3 CH22 E22 CC02 S-2 CH04 E4 R2 CH05 E5 R6 CH06 E6 R7 CH07 E7 R8 CC41 S-41 CH08 E8 R9 CC75 X CH09 E9 CC76 Y R3 CH10 E10 R10 CC77 Z R4 CH11 E11 R11 CC78 Z+1 R5 CH12 E12 R12 CH69 E69 CC79 Z+2
CCIR: Middle East, Southeast Asia, etc.. OIRT: Russia etc..
1. Select the PR number you wish to store the new channel.
2. Press the VOLUME+ button.
3. Press button to choose “CH” or “CC”.
4. Enter the CH/CC number for the channel you wish to add. The TV starts to search for the channel. Certain channels are not available in some countries.
If you cannot receive a channel by INSERT, use
MANUAL PROGRAM.
Select the channel you wish to delete and press .
1. Select the PR number you wish to move.
2. Press the button.
3. Press or button to move it to the new PR number.
4. Press button.

Using the timer Playing game

ON TIMER

ON TIMER
1 2
3
4
5

OFF TIMER

1
2
3
4
5
ON TIMERMENU
or
Choose the PR (channel) that you want to watch when the TV turns on. External input, AV position and any un-preset channel cannot be chosen for PR.
Set the ON TIMER to your desired period of time. When the ON TIMER is set to other than 00:00, the ON TIMER is activated. You can set the period of time to a maximum of 12 hours in 15-minute intervals.
To off the ON TIMER, set the time to 00:00.
MENU
OFF TIMER
Note You can select OFF TIMER function by direct key.
You can set the period of time to a maximum of 120 minutes in 10 minutes intervals.
When the remaining elapse time is one minute, “GOOD NIGHT!” appears on the screen.
You can display the OFF TIMER screen again to confirm or change the remaining time.
To off the OFF TIMER, select OFF or turn off the TVʼs main power.
1 2
Instructions to play
Down
To open a card (TWINS only) To restart the game To exit the game

Sound and Colour system in your country or region

Area Country or Region
Asia, Middle East
Europe
Oceania
Africa
MENU
GAME
Select a game.
PUZZLE This game needs you to rearrange the numbers 1 to 15 in order
TWINS This game needs you to find all the matching pairs of cards. If
Left
by swapping the blank card with the numbered card.
you open a correct pair, the card will stay uncovered. If you miss, they will flip back.
Up
OR
Right
To move
Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. Indonesia, Malaysia, Singapore, Thailand, India, etc
China, Vietnam, etc. Hong Kong, etc. Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. Philippines, Taiwan, Myanmar, etc. Russia, etc. Czech Republic, Poland, etc. Germany, Holland, Belgium, etc. UK, etc. Australia, New Zealand, etc. Republic of South Africa, etc. Nigeria, etc. Egypt, Morocco, etc.
Up Left RightDown
To move
Sound
System
Colour
System
B/G
D/K
I
B/G SECAM
M NTSC
SECAM
D/K
B/G
I
B/G PAL
I
B/G
SECAM
PAL
PAL
PAL
7

Troubleshooting Specifications

If a problem occurs when you are using the TV, check the below trouble­shooting guide before calling for repair.
Problem Cause / Solution
No or poor picture • Turn OFF BLUE BACK if it is ON. (\ page 5)
Snowy picture • Check the aerial and TV connections. (\ page 3) Stripes or coloured
patches appeared Double-picture
(ghosting)
No or poor sound • Choose the appropriate sound system. (\ page 5) White and bright still
image looks as if it is coloured
Image from video input is distorted
Cannot operate the remote control
Cannot operate the MENU
Cannot operate the front panel buttons
Image takes a while to be displayed
TV emits crackling sound
Static shock when touch the TV screen
The TV turns off suddenly
• Adjust the COLOUR or BRIGHT setting. Refer to “PICTURE SETTING”. (\ page 5)
• Choose the appropriate colour system. (\ page 5)
• Interference caused by electrical appliances or speakers. Move them away from the TV.
• Interference caused by signal reflecting from mountains or buildings. Adjust the aerialʼs direction or use another antenna.
• Inevitable phenomenon due to the nature of the picture tube. This is not a malfunction.
• The image was not properly recorded. This is not a malfunction.
• Replace the batteries. (\ page 2)
• Operate it at less than 7 meters from the TV.
• Exit and enter the MENU again.
• Turn OFF CHILD LOCK if it is ON.
• Image requires time to stabilize before display. This is not a malfunction.
• Caused by a sudden change in temperature and it is not a malfunction. Call a service technician for inspection.
• Caused by static electricity of the picture tube and it will not harm the human body. This is not a malfunction.
• This is not a malfunction. If you had set the BLUE BACK function to ON, TV will be turned off automatically when no signals are received from an antenna for about 15 minutes or longer.
TV RF systems
Colour systems
Receiving channels
Power requirements
For Malaysia / Australia
For others AC 110 to 240 V, 50 Hz / 60 Hz
External input / output
INPUT VIDEO input, AUDIO input
OUTPUT VIDEO output, AUDIO output
Headphone jack Stereo mini jack (3.5 mm diameter)
Design and specifications are subject to change without notice.
AV-14A17 / AV-14U17 / AV-21B17 / AV-21B17B / AV-21Y17 / AV-21Y18: B, G, I, D, K Others models : B, G, I, D, K, M
AV-14A17 / AV-14U17 / AV-21B17 / AV-21B17B / AV-21Y17 / AV-21Y18 : PAL, SECAM, NTSC 3.58 MHz / NTSC 4.43 MHz (in VIDEO mode only) Others models : PAL, SECAM, NTSC 3.58 MHz / NTSC 4.43 MHz
VHF low channel (VL), VHF high channel (VH), UHF channel (U) Receives cable channels in mid band, super band and hyper band.
AC 160 to 240 V, 50 Hz / 60 Hz
© 2008 Victor Company of Japan, Limited 0508SCT-NF-MT
Loading...
