Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

1 Operate only from the power source indicated on the rear of the TV. 2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

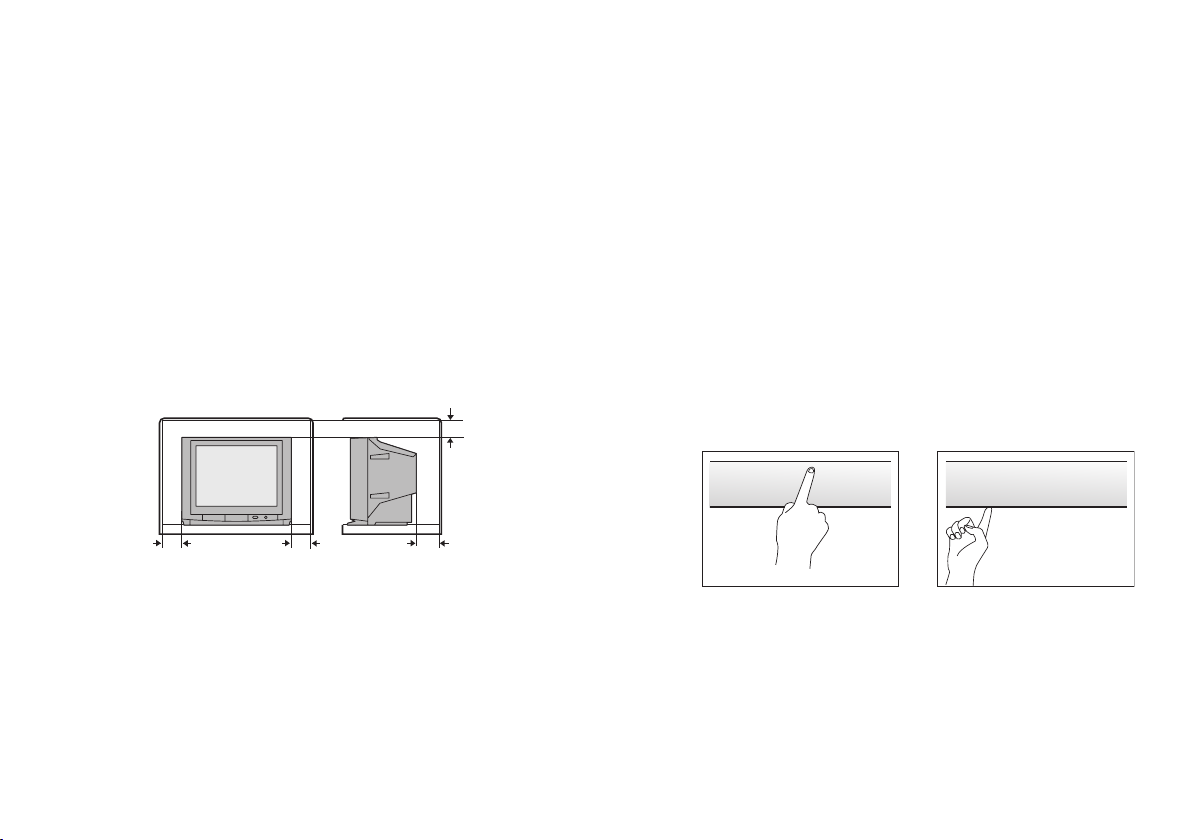

Never install the TV where good ventilation is unattainable. When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings. 5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FOLLOWING RULES REGARDING THE USE OF THIS TV.

15 cm

10 cm 10 cm

15 cm

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING: <AV-21M, AV-25M Series>

YOU CAN DETACH THE PROTECT SHEET ON THE TOP AND BOTTOM OF FRONT FRAME IF YOU NEEDED. THE FRONT BUTTON DOOR OF THE TV SHOULD BE PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE UPPER PART, OR YOUR FINGER MAY BE PINCHED.

✘✓

PULL PULL

2

Knowing your TV’s features

Main features

RM-C1286

DVD FUNCTION Just connect DVD player to the television. The television will detect DVD signal and display

EXIT

A2/NICAM You can listen to the stereo sound or bilingual sound from TV programme broadcasting by A2 (STEREO / I■II) or NICAM Sound-multiplex system.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

VNR You can reduce the picture noise when viewing noisy TV programmes or video sources.

WHITE BALANCE You can choose one of three tones of white to match to the video source such as movie,

1

Confirm your TV’s functions

Some functions written in this instruction manual may not be available for your TV. Please see the chart below and check the functions that are equipped for your TV’s model number. The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not available for your TV, it does not work and the logo “Ø” appears on the screen.

NO.

Function

1 BASS ––_ –– –

picture on the screen automatically and you can adjust pictures and sound while you are watching DVD as your desire.

suitable level for a better eye care.

change of the volume when selecting different TV channel or selecting Video Mode.

sport, etc. Changing White balance affects the appearance of all other colours on the screen.

Model No.

AV-25M515

AV-25M315

AV-21M535

AV-21M515

AV-21V315

AV-21M315

3

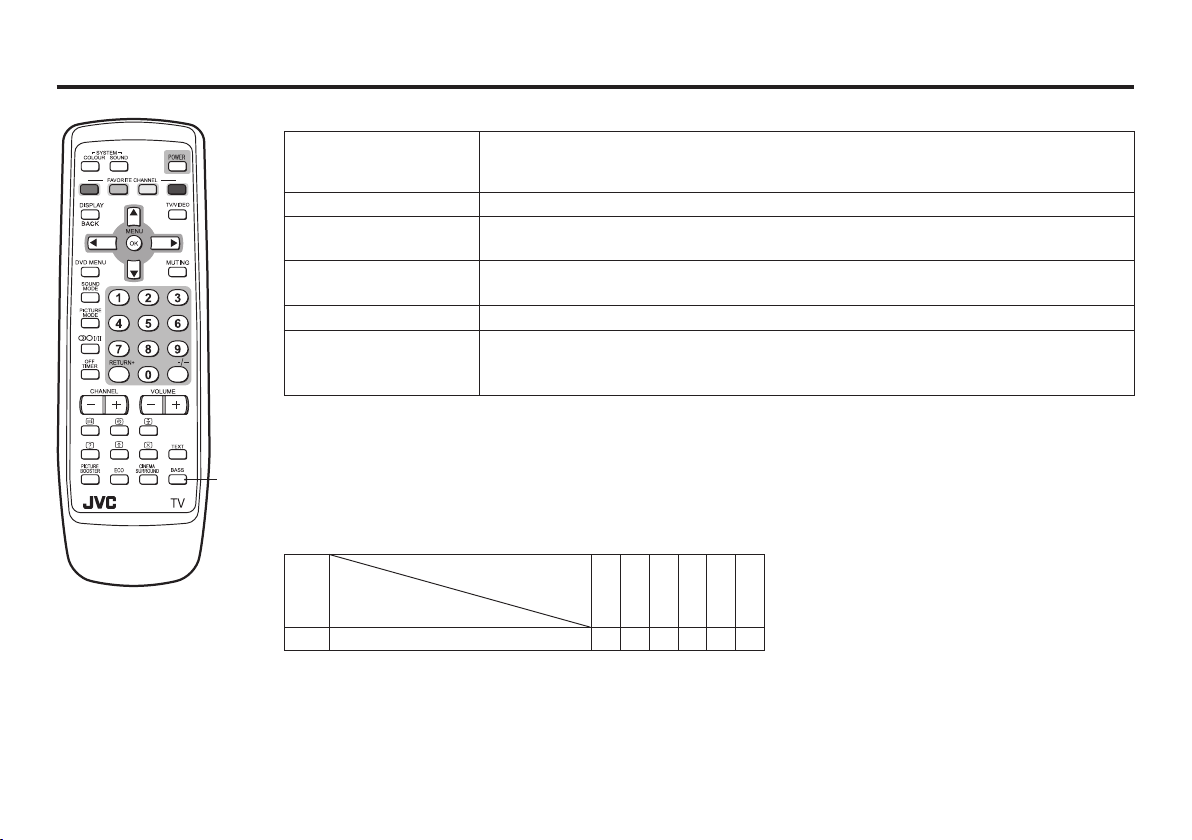

Remote control buttons and basic functions

No. Press To

1 POWER Turn on or off the TV from standby mode. 2 MENU/OK Display menu and confirm selected function. 3 5 / ∞ / 2 / 3 Select and adjust menu function. 4 CHANNEL -/+ Select the desired channel number. 5 VOLUME -/+ Adjust the volume level. 6 TV/VIDEO Select TV or video terminal input.

EXIT On the other hand, you can use this button to EXIT from the menu.

7 MUTING Turn off the volume.

Press this button again to resume the volume.

8 DISPLAY Display the programme number or video terminal number, stereo/bilingual broadcast system

/BACK and PR list (channel list) on the screen.

You can select the channel using the PR list.

1 Press the DISPLAY button once to display the PR list. 2 Press 5 / ∞ / 2 / 3 buttons to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite channels are indicated with coloured mark.

1 "

8

2

! 4

6

EXIT

3

7

9

5

On the other hand, you can use this button to return to the previous menu.

9 0~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

number button.

! RETURN

+

a) Return to the frequently view channel with one touch.

1 Choose the channel you want to register. 2 Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

FAVORITE Register and recall 4 favorite channels.

"

CHANNEL 1. Choose the TV channel you want to register then press and hold a colour button until (colour buttons : red, green, yellow, blue)

"FAVORITE CHANNEL ■ PROGRAMMED!" appears.

2. To register other favorite channels, repeat step 1. To recall the favorite channel, press the colour button. When the TV is in menu mode, the favorite channel function is not available.

4

RM-C1286

Remote control buttons and basic functions (continued)

How to operate menus and menus locations

To

Display the MENU

Display the top menu

Display the 2nd menu

Display the 3rd menu

Return to the previous menu

Choose the setting of a function

Adjust the effect level of a function

Display the sub menu of a function.

Press the MENU/OK button 2.

Press 5/∞ buttons 3 to choose a menu title. Then press MENU/OK button 2.

Press the DISPLAY/BACK button

8. Press 5/∞ buttons 3 to choose

a function. Then press the 2/3 buttons 3 to change the setting.

Press 5/∞ buttons 3 to choose a function. Then press the 2/3 buttons 3 to adjust the effect level.

Press the 5/∞ buttons 3 to choose a function. Then press MENU/OK button 2 to display the sub menu.

The following chart shows locations of functions in menus. In this manual, location of a function is described as follows:

MENU Top menu

MENU 2nd menu

Top menu

Note: Some functions have the 4th menus as the sub-menus.

Operation

2nd menu

Note

To exit the MENU, press the DISPLAY/ BACK button 8 or choose EXIT menu or TV/VIDEO/EXIT button 6.

Press ∞ button 3 to display the next page for more functions.

–

Press the TV/VIDEO/ EXIT button 6 to exit from the menu.

–

3rd menu

Top menu 2nd menu Location 3rd menu Location

MENU PICTURE PICTURE MODE P.9 – –

SOUND STEREO/

FEATURES DVD MENU P.14

INSTALL SETUP TOUR P.16 – –

EXIT – – – –

PICTURE SETTING P.10 CONTRAST P.10

WHITE BALANCE P.10 – – VNR P.15 – –

I■II

AI VOLUME P.13 – – SOUND MODE P.12 – – EQUALIZER P.13 – – BALANCE P.12 – – CINEMA SURROUND SUPER BASS P.13 – –

OFF TIMER P.15 – – CHILD LOCK P.15 – – COMPRESS (16:9) AI ECO SENSOR P.11 – –

AUTO PROGRAM P.17 – – EDIT/MANUAL P.17 DELETE, MOVE, P.17-

COLOUR SYSTEM P.9 – – LANGUAGE P.15 LANGUAGE P.15 VIDEO-2 SETTING P.16 – – BLUE BACK P.11 – –

BRIGHT P.10 SHARP P.10 COLOUR P.10 TINT P.10

P.13 – –

AUTO SIGNAL DETECT DVD PICTURE MODE TINT COLOUR WHITE BALANCE SOUND MODE CINEMA SURROUND

P.11 – –

MANUAL, INSERT P.18

P.14 P.14 P.14 P.14 P.14 P.14

5

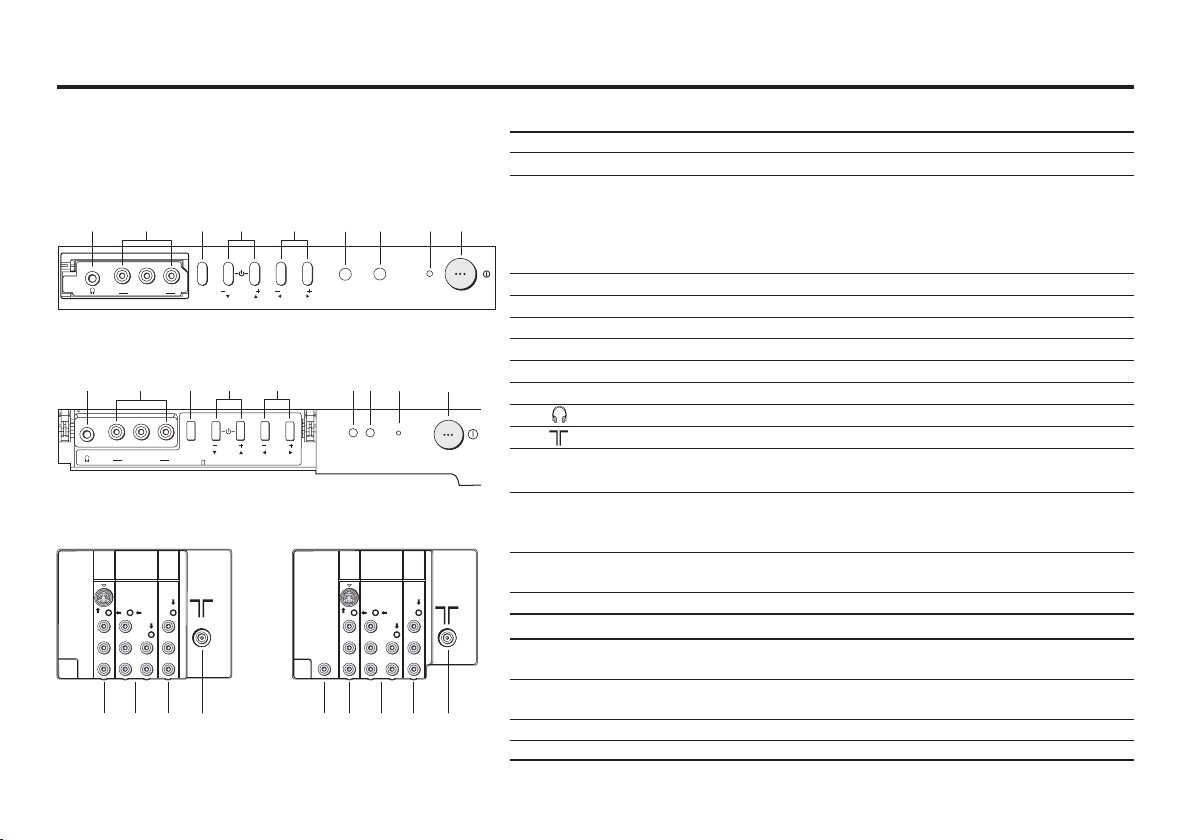

TV buttons and functions

The illustrations shown below is for AV-21M535 and AV-21V315 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Front of the TV

AV-21M535

98

V

R

L

/ M

O

N

O

IN

(

V

ID

E

O

-

3

)

76 5

CHANNEL

MENU

OK

VOLUME

2431

POWER

AV-21V315

98 765

V

R

L

/ M

O

N

O

IN

MENU

(V

ID

E

O

-

3

)

OK

VOLUME

C

H

ANN

EL

4

3

21

POWER

Rear of the TV

AV-21M535 AV-21V315

VIDEO-1

INPUT

S

OVER

V

L

/

MONO

R

$

COMPONENT

(VIDEO-2)

INPUT

Y

/ V

B

C

R

#

/

MONO

OUTPUT

V

LRRL

"

!

BASS

SPEAKER

OUT

VIDEO-1

INPUT

S

OVER

V

L

/

MONO

R

$%

COMPONENT

(VIDEO-2)

INPUT

Y

/ V

B

C

R

#

/ MONO

OUTPUT

V

LRRL

"

!

No. Button/terminal Description Page

1 L (main power) Press to turn on or turn off the TV’s main power. – 2 POWER lamp Indicate the TV is being turned on or off. –

No colour : TV’s main power is being turned off. Red : TV’s main power is being turned on. Note: When you turn off the power switch while TV is in standby mode, the light of power lamp will be off in 10 -15 seconds.

3 ECO sensor – 4 Remote control sensor – 5 VOLUME -/+ Press to adjust the volume level. – 6 CHANNEL -/+ Press to select the desired channel. – 7 MENU Press to display the menu. – 8 IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 20 9 Headphone jack. 20 ! Aerial socket. 7 " OUTPUT Video and audio output jacks. (The component video 20

signal cannot be output.)

# COMPONENT Video or component video, and audio input jacks for 20

(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING” function (see page 16).

$ VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1 7

mode

%

BASS SPEAKER OUT

Twin Port Bass Blaster Unit output terminal. 21

How to operate the menus with the TV button

TV button

Work as same as the button on the remote control unit

MENU MENU/OK button To display main menu and exit

CHANNEL -/+ ∞/5 button To select menu function. VOLUME -/+ 2/3 button To adjust the desired function.

Note

menu after finish setting.

6

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

1 Connecting the aerial cable.

(1)

VHF/UHF outdoor aerial

Matching aerial adapter (supplied)

(2)

(3)

75-ohm coaxial cable (not supplied)

If you connect a VCR, connect the aerial output jack of your VCR and the aerial jack on the TV with aerial cable. Then connect the output jacks of your VCR and the VIDEO-1 input jacks of the TV with the video cable (or S-VIDEO cable if available) and audio cables. For details, see the manual of your VCR.

Rear of TV

To video output

To S-video output

VCR

To audio output

To aerial input

AV-21V315

To R F output

VHF/UHF outdoor aerial

COMPONENT

VIDEO-1

(VIDEO-2)

OUTPUT

INPUT

S

OVER

V

Y

V

/

V

LRRL

L

C

B

/

MONO

C

R

The illustration shown is just a sample. It may not be same as your TV.

2 Connecting the compatible main plug to the AC outlet.

3 Inserting batteries into the remote control.

Insert two batteries by following the + and polarities and inserting the - end first.

CAUTION:

Follow the cautions printed on the batteries. Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, fit new

batteries. The supplied batteries are for testing, not regular use.

4 Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

JVC logo will appear on the screen again at the phase of “SETUP TOUR RESTART?” function. Then the initial setting can be performed according to page 8.

7

Setting up your TV (continued)

5 Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by following the steps as below:

LANGUAGE

ENGLISH

¿“…“‰∑¬

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

• Press 5/∞ button to select your desired language.

8

AUTO PROGRAM

CC 12

22%

MENU : OK

• TV will start searching for the channels.

To stop AUTO PROGRAM, press MENU/OK button.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

• To complete the initial setting, press the MENU/OK button. To edit the channel list, see page 17.

AUTO PROGRAM

SETUP TOUR RESTART?

■

: YES

MENU : NO

• After that, when turn on the TV at the next time. “SETUP TOUR RESTART?” will be displayed. Press the MENU/OK button to cancel the SETUP TOUR RESTART function. If you want to make initial settings again when the next time you turn on the TV, press the Red button to activate the SETUP TOUR RESTART function.

Basic setting for picture

COLOUR SYSTEM

You can select the appropriate colour system when the picture is not clear or no colour appears. Press the COLOUR SYSTEM button to select a setting. In TV mode: <AV-21M315, AV-25M315, AV-21V315>

AUTO SECAMPAL

AUTO SECAMPAL

NTSC4.43 NTSC3.58

In VIDEO mode:

AUTO SECAMPAL

NTSC4.43 NTSC3.58

To operate this function with a menu:

❇

MENU INSTALL menu

COLOUR SYSTEM

For the colour system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. PAL East Hong Kong, etc. PAL

Europe

Oceania Australia, New Zealand, etc. PAL

Africa Nigeria, etc. PAL

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. PAL Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM Philippines, Taiwan, Myanmar, etc. NTSC Russia, etc. SECAM Czech Republic, Poland, etc. PAL Germany, Holland, Belgium, etc. PAL UK, etc. PAL

Republic of South Africa, etc. PAL

Egypt, Morocco, etc. SECAM

PICTURE MODE

You can choose the desired picture setting with one-touch. Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness. BRIGHT Heightens contrast and sharpness. STANDARD Standard picture setting. USER You can change this picture setting as you like.

When you select to VIDEO-2 Mode. You cannot adjust SHARP and TINT.

*TINT can only be adjusted in NTSC system. To operate this function with a menu:

❇

MENU

To return the USER setting to the default, press the blue button when the PICTURE SETTING menu appears.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Select USER and adjust following items in the PICTURE SETTING menu. (CONTRAST, BRIGHT, SHARP, COLOUR, TINT*)

PICTURE menu

PICTURE MODE

9

Basic setting for picture (continued)

PICTURE SETTING

You can adjust the desired picture setting when selecting USER in PICTURE MODE.

1 Select the USER in PICTURE MODE under PICTURE menu.

❇

MENU

USER

PICTURE menu

PICTURE MODE

2 Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

❇

MENU

CONTRAST 2 : Lower contrast 3 : Higher contrast BRIGHT 2 : Darker 3 : Brighter SHARP 2 : Softer 3 : Higher COLOUR 2 : Lighter 3 : Deeper TINT* 2 : Reddish 3 : Greenish

When you select to VIDEO-2 Mode. You cannot adjust SHARP and TINT.

* TINT can only be adjusted in NTSC system.

PICTURE menu

PICTURE SETTING

WHITE BALANCE

You can change the white balance of the picture to better match the type of video being viewed. Select the WHITE BALANCE in the PICTURE menu, then choose the desired setting.

❇

MENU

NORMAL Normal white balance. COOL Bluish white. WARM Reddish white.

When you select to VIDEO-2. You cannot adjust WHITE BALANCE. You can adjust it in DVD Menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

PICTURE menu

WHITE BALANCE

10

Advanced setting for picture

AI ECO SENSOR (ECO)

You can adjust TV screen contrast according to the brightness of your room. Press the ECO button to select the desired mode.

OFF Cancel the function. MODE-1 Mild contrast (recommended). MODE-2 Even contrast. DISPLAY Display the graphic of the function.

To operate this function with a menu:

❇

MENU

FEATURES menu

AI ECO SENSOR

COMPRESS (16:9)

You can convert a normal picture (4:3 aspect ratio) into a wide picture (16:9 aspect ratio). Select the COMPRESS (16:9) in the FEATURES menu, then choose ON or OFF.

❇

MENU

FEATURES menu

COMPRESS (16:9)

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an antenna.

Select the BLUE BACK in the INSTALL menu, then choose ON or OFF.

❇

MENU INSTALL menu

If you wish to continue viewing the poor picture, cancel the BLUE BACK function.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

BLUE BACK

11

Basic setting for sound

SOUND SYSTEM

You can select an appropriate sound system when abnormal sound occurs even when the picture appears normally. Press the SOUND SYSTEM button to select a setting.

B/G I D/K M

* The sound system of I, D/K and M are not available for 315 series.

This function is not available in video mode. For the sound system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. D/K East Hong Kong, etc. I

Europe

Oceania Australia, New Zealand, etc. B/G

Africa Nigeria, etc. B/G

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. B/G Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G Philippines, Taiwan, Myanmar, etc. M Russia, etc. D/K Czech Republic, Poland, etc. D/K Germany, Holland, Belgium, etc. B/G UK, etc. I

Republic of South Africa, etc. I

Egypt, Morocco, etc. B/G

***

SOUND MODE

You can choose the desired sound setting. Select the SOUND MODE in SOUND menu, then choose the setting.

❇

MENU

USER You can change this sound setting as you like.

SOUND TURBO THEATER MUSIC Emphasize on music effect. NEWS Emphasize on vocal sound.

SOUND menu

Select USER and adjust the frequencies in EQUALIZER (100, 300, 1K, 3K, 8K Hz). For details, see “EQUALIZER” on page 13. Emphasize on low and high frequency levels. Emphasize on movie sound.

SOUND MODE

When you select to VIDEO-2. You cannot adjust SOUND MODE function. You can adjust it in DVD Menu.

BALANCE

You can adjust the volume balance between the left and right speakers. Select the BALANCE in SOUND menu, then adjust the setting.

❇

MENU

❇ About the basic operations of the menu, please see the “How to

operate menus and menus locations” on page 5.

SOUND menu

BALANCE

12

Advanced setting for sound

CINEMA SURROUND

You can enjoy an enhanced sound for wider audience. Press the CINEMA SURROUND button to select a setting.

OFF Cancel the function. ON Listen to sound with wider audience effect.

This function is not available when the SOUND MODE is set to SOUND TURBO. To operate this function with a menu:

❇

MENU

SOUND menu

CINEMA SURROUND

When you select to VIDEO-2. You cannot adjust CINEMA SURROUND function. You can adjust it in DVD Menu.

STEREO / I■II ( )

You can enjoy the stereo and bilingual broadcasted programmes. Press the

* Select stereo sound.

* Select monaural sound.

I Select bilingual I (sub I). II Select bilingual II (sub II).

button to select the desired mode.

This function is not available in video mode. To operate this function with a menu:

❇

MENU

* Stereo sound (

SOUND menu

STEREO / I■II

) and monaural sound ( ) are not available

for 315 series.

SUPER BASS (BASS)

You can enjoy powerful bass sound with the Twin Port Bass Blaster unit. Press the BASS button to select ON or OFF. To operate this function with a menu:

❇

MENU

For attaching the Twin Port Bass Blaster unit, please see in page 21.

SOUND menu

SUPER BASS

EQUALIZER

You can adjust the sound level of each frequencies when selecting USER mode in SOUND MODE.

1 Select the USER in SOUND MODE under SOUND menu.

❇

MENU

SOUND menu

SOUND MODE USER

2 Select the EQUALIZER in SOUND menu.

❇

MENU

The following display appears.

SOUND menu

EQUALIZER

IIIIIIIIIIIIIIII

100 300 1K 3K 8K Hz

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

IIIIIII

IIIIIIIIIIIIIIII

IIIIIIII

EQUALIZER

3 Select and adjust the desired frequencies. 4 Press the MENU/OK button to exit the menu.

Adjust high frequency will affect higher pitch sound and vice versa.

AI VOLUME

You can adjust the volume of all the channels and video inputs to the same level automatically depends on the strength of signal of the sources. Select the AI VOLUME in SOUND menu, then choose ON or OFF.

❇

MENU

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

SOUND menu

AI VOLUME

13

DVD function

AUTO SIGNAL DETECT

When the DVD input signal is detected. The input mode will be changed to VIDEO-2 automatically.

For The DVD player, press the “POWER ON” button of the machine so that the signal can be detected.

For the VCR, press the “POWER ON” button of the machine, and then press the “PLAY” button, so that the signal can be detected and display DVD menu.

Select the AUTO SIGNAL DETECT in DVD MENU under FEATURES menu then choose ON or OFF (Factory setting is ON).

❇

MENU

AUTO SIGNAL DETECT

FEATURES menu

DVD MENU

DVD PICTURE MODE

You can enhance the picture quality of the DVD or VIDEO-2. Select the DVD PICTURE MODE in DVD MENU under FEATURES

menu, then choose the desired setting.

❇

MENU

DVD PICTURE MODE

OFF Cancel the function. CLEAR-1 CLEAR-2

FEATURES menu

Select when the disc is with lots of noise (To soften the picture). Select when the disc is with less noise (To sharpen the picture).

DVD MENU

TINT COLOUR

You can adjust the picture colour tone of the DVD. Select the TINT COLOUR in DVD MENU under FEATURES menu,

then adjust the level.

❇

MENU FEATURES menu

TINT COLOUR

DVD MENU

14

WHITE BALANCE

You can change the white balance of the DVD picture. Select the WHITE BALANCE in DVD MENU under FEATURES menu,

then choose the desired setting.

❇

MENU

WHITE BALANCE

FEATURES menu

DVD MENU

For details, see “WHITE BALANCE” on page 10.

SOUND MODE

You can choose the desired sound setting for the DVD. Select the SOUND MODE in DVD MENU under FEATURES menu,

then choose the desired setting.

❇

MENU FEATURES menu

SOUND MODE

DVD MENU

For details, see “SOUND MODE” on page 12.

CINEMA SURROUND

You can enjoy an enhanced sound for the DVD. Select the CINEMA SURROUND in DVD MENU under FEATURES

menu, then choose the desired setting.

❇

MENU FEATURES menu

CINEMA SURROUND

For details, see “CINEMA SURROUND” on page 13. This function is not available when the SOUND MODE is set to SOUND TURBO. ❇❇ When you use VIDEO-2 to display the DVD signal or Video

signal then WHITE BALANCE, VNR function in PICTURE menu/SHARP, TINT function in PICTURE SETTING menu/ SOUND MODE, CINEMA SURROUND function in SOUND menu cannot operate.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

DVD MENU

Customized setting

VNR

You can reduce the picture noise. Select the VNR in the PICTURE menu, then choose a setting of VNR function.

❇

MENU

OFF VNR is turned off. AUTO Effect of VNR is automatically controlled. MIN Effect of VNR becomes minimum level. MAX Effect of VNR becomes maximum level.

PICTURE menu

VNR

If you select MAX, the picture becomes softer even if the original picture is sharp.

When you select to VIDEO-2. You cannot adjust VNR function.

LANGUAGE

You can choose your desired on screen display language. Select the LANGUAGE in the INSTALL menu, then choose a language.

❇

MENU

INSTALL menu

LANGUAGE

CHILD LOCK

You can disable the front control buttons of the TV. Select the CHILD LOCK in the FEATURES menu, then choose ON or OFF.

❇

MENU

FEATURES menu

CHILD LOCK

OFF TIMER

You can set the TV to turn off automatically to standby mode after a set time. Press the OFF TIMER button to select a desired period of time.

OFF TIMER

0 120

20

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

To operate this function with a menu:

❇

MENU

FEATURES menu

When the elapsed of time left one minute, “GOOD NIGHT!” appears on the screen. You can display the OFF TIMER menu again to confirm or change the remaining time.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

You can set the period of time to a maximum of 120 minutes in 10 minutes step.

OFF TIMER

15

Customized setting (continued)

VIDEO-2 SETTING

You can set the VIDEO-2 SETTING according to the video signal output from the external devices connected to the VIDEO-2 terminal. Select the VIDEO-2 SETTING in INSTALL menu, then choose a setting (Factory setting is COMPONENT).

❇

MENU

VIDEO If a normal video signal (composite video signal) is input. COMPONENT If a component video signal (Y/CB/CR) is input.

INSTALL menu

VIDEO-2 SETTING

You must choose a setting follow as signal that you input to VIDEO-2. (If you input the VIDEO Signal or VCR Signal to VIDEO-2, you must choose VIDEO-2 SETTING to VIDEO.)

For connecting methods, see “Additional Preparation” on page 20.

SETUP TOUR

You may use the SETUP TOUR function to perform the initial setting. When selecting SETUP TOUR, the LANGUAGE menu, AUTO PROGRAM menu and EDIT menu will be displayed as shown on page 8. But “SETUP TOUR RESTART?” will not be displayed.

Select SETUP TOUR in the INSTALL menu.

❇

MENU

INSTALL menu

SETUP TOUR

DISPLAY

You can display the programme number, video terminal number and PR list on the screen. Press the DISPLAY button to select the desired mode:

ON OFF PR LIST

Choose a TV channel or a VIDEO terminal.

1 Press the DISPLAY button to display the PR LIST. 2 Select a programme number or video terminal by pressing the

5/∞ button to move up/down on the programme number or press the 2/3 button to skip for each 7 programme numbers, then press MENU/OK button.

PR LIST

PR

V1 V2 V3 AV 1 2 3

-7 +7

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

■

MENU : OK

CH/CC

CH 09 CC 76 CC 78

16

TV channel presetting

To register the TV channels automatically

(AUTO PROGRAM)

You can register the TV channels into the TV’s channel list automatically.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose AUTO PROGRAM, then press the MENU/OK button.

AUTO PROGRAM function starts, and the channels received are registered in the channel list (PR LIST) automatically.

3 The EDIT menu appears.

To edit the channel Proceed to the Step 3 of “To edit the channel list list (PR LIST)” on page 18. If a channel is not Proceed to the Step 3 of “To register the TV registered channels manually” on this page. To exit the menu Press the MENU/OK button.

To register the TV channels manually (MANUAL in the EDIT menu)

You can register the TV channels into the TV’s channel list manually.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

3 Choose the channel which you want to register. 4 Press the blue button to activate the MANUAL function.

The sound system of the channel appears at the right of the CH/CC number.

5 Press the 3 button to choose an appropriate sound system.

For details, see “SOUND SYSTEM” on page 12.

6 Press the green or red button to search for the TV channel.

Searching stops when a channel is found and displayed.

7 Repeat step 5 until your desired TV channel appears.

If the reception is poor Press the blue or yellow button to fine tune

If noisy sound is heard Press the 3 button to choose an appropriate

the TV channel.

sound system.

8 Press the MENU/OK button to exit the menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

17

TV channel presetting (continued)

To edit the channel list (PR LIST) (MOVE and DELETE in the EDIT menu)

You can edit the TV channel list as you like. Note: After this operation, other channel’s PR numbers will be changed.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

3 Choose the channel which you want to change PR number, or

delete.

4 Do the following action:

To change the PR Press the 3 button. Then move it to the PR number (MOVE) number you want to use it for the channel.

Finally press the 2 button. To delete the Press the yellow button. channel (DELETE)

5 Press the MENU/OK button to exit the menu.

To add in the new channel (INSERT in the EDIT menu)

You can add in the new channel in the TV channel list as you like. You need to find the “CH/CC” number for the TV channel. Find the “CH/CC” number corresponding to the channel number of the TV channel from the attached sheet “CH/CC number list” on page 19.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

3 Choose the PR number for which you will register a new TV

channel. When you add a new TV channel of NTSC-M system, press the SOUND SYSTEM button to change the sound system to M. Then proceed to the next step.

4 Press the green button, then press 3 buttons to choose “CC”

or “CH”.

5 Press the number button to enter the remaining CH/CC

number. The TV starts to search the TV channel, and the picture of the TV channel appears. If the TV finds no TV channel, a noisy

picture appears. When a TV channel has already been registered in PR99, using the INSERT function deletes that TV channel.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

18

TV channel presetting (continued)

CH/CC number

When you want to use the INSERT function on page 18, find the CH/CC number corresponding to the channel number of the TV channel from this table.

Channel No. Country

US United States, Philippines, etc.. CCIR Middle East, Southeast Asia,

OIRT Eastern Europe, Russia,

AUSTRALIA Australia, etc..

Channel

CH US CCIR OIRT AUSTRALIA

CH 02 US-2 E2 R1 AU-0 CH 03 US-3 E3 AU-1 CH 04 US-4 E4 R2 AU-2 CH 05 US-5 E5 R6 AU-6 CH 06 US-6 E6 R7 AU-7 CH 07 US-7 E7 R8 AU-8 CH 08 US-8 E8 R9 AU-9 CH 09 US-9 E9 CH 10 US-10 E10 R10 AU-10 CH 11 US-11 E11 R11 AU-11 CH 12 US-12 E12 R12 CH 13 US-13 CH 14 US-14, W+29 CH 15 US-15, W+30 CH 16 US-16, W+31 CH 17 US-17, W+32 CH 18 US-18, W+33 CH 19 US-19, W+34 CH 20 US-20, W+35 CH 21 US-21, W+36 E21 CH 22 US-22, W+37 E22 CH 23 US-23, W+38 E23 CH 24 US-24, W+39 E24 CH 25 US-25, W+40 E25 CH 26 US-26, W+41 E26 CH 27 US-27, W+42 E27 CH 28 US-28, W+43 E28 AU-28 CH 29 US-29, W+44 E29 AU-29 CH 30 US-30, W+45 E30 AU-30 CH 31 US-31, W+46 E31 AU-31/AU-32 CH 32 US-32, W+47 E32 AU-33

etc..

Vietnam, etc..

CH US CCIR OIRT AUSTRALIA

CH 33 US-33, W+48 E33 AU-34 CH 34 US-34, W+49 E34 AU-35 CH 35 US-35, W+50 E35 AU-36 CH 36 US-36, W+51 E36 AU-37 CH 37 US-37, W+52 E37 AU-38 CH 38 US-38, W+53 E38 AU-39/AU-40 CH 39 US-39, W+54 E39 AU-41 CH 40 US-40, W+55 E40 AU-42 CH 41 US-41, W+56 E41 AU-43 CH 42 US-42, W+57 E42 AU-44 CH 43 US-43, W+58 E43 AU-45 CH 44 US-44, W+59 E44 AU-46 CH 45 US-45, W+60 E45 AU-47/AU-48 CH 46 US-46, W+61 E46 AU-49 CH 47 US-47, W+62 E47 AU-50 CH 48 US-48, W+63 E48 AU-51 CH 49 US-49, W+64 E49 AU-52 CH 50 US-50, W+65 E50 AU-53 CH 51 US-51, W+66 E51 AU-54 CH 52 US-52, W+67 E52 AU-55/AU-56 CH 53 US-53, W+68 E53 AU-57 CH 54 US-54, W+69 E54 AU-58 CH 55 US-55, W+70 E55 AU-59 CH 56 US-56, W+71 E56 AU-60 CH 57 US-57, W+72 E57 AU-61 CH 58 US-58, W+73 E58 AU-62 CH 59 US-59, W+74 E59 AU-63/AU-64 CH 60 US-60, W+75 E60 AU-65 CH 61 US-61, W+76 E61 AU-66 CH 62 US-62, W+77 E62 AU-67 CH 63 US-63, W+78 E63 AU-68 CH 64 US-64, W+79 E64 AU-69 CH 65 US-65, W+80 E65 CH 66 US-66, W+81 E66 CH 67 US-67, W+82 E67 CH 68 US-68, W+83 E68 CH 69 US-69, W+84 E69

CC US CCIR OIRT AUSTRALIA

CC 01 S-1 AU-5 CC 02 S-2 CC 03 S-3 CC 04 S-4 CC 05 S-5 CC 06 S-6 AU-5A CC 07 S-7 CC 08 S-8 CC 09 S-9 CC 10 S-10 CC 11 S-11 CC 12 S-12 CC 13 S-13 CC 14 A S-14 CC 15 B S-15 CC 16 C S-16 CC 17 D S-17

CC US CCIR OIRT AUSTRALIA

CC 18 E S-18 CC 19 F S-19 CC 20 G S-20 CC 21 H S-21 CC 22 I S-22 CC 23 J S-23 CC 24 K S-24 CC 25 L S-25 CC 26 M S-26 CC 27 N S-27 CC 28 O S-28 CC 29 P S-29 CC 30 Q S-30 CC 31 R S-31 CC 32 S S-32 CC 33 T S-33 CC 34 U S-34 CC 35 V S-35 CC 36 W S-36 CC 37 W+1 S-37 CC 38 W+2 S-38 CC 39 W+3 S-39 CC 40 W+4 S-40 CC 41 W+5 S-41 CC 42 W+6 CC 43 W+7 CC 44 W+8 CC 45 W+9 CC 46 W+10 CC 47 W+11 CC 48 W+12 CC 49 W+13 CC 50 W+14 CC 51 W+15 CC 52 W+16 CC 53 W+17 CC 54 W+18 CC 55 W+19 CC 56 W+20 CC 57 W+21 CC 58 W+22 CC 59 W+23 CC 60 W+24 CC 61 W+25 CC 62 W+26 CC 63 W+27 CC 64 W+28 CC 75 X CC 76 Y R3 CC 77 Z R4 AU-3 CC 78 Z+1 R5 CC 79 Z+2 AU-4 CC 95 A-5 CC 96 A-4 CC 97 A-3 CC 98 A-2 CC 99 A-1

19

Additional preparation

The illustrations shown in this section are for AV-21M535 and AV-21V315 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Before connecting

• Read the manuals provided with the devices for the proper connection.

• Turn off all the devices including the TV.

• Note that connecting cables are not supplied.

Connecting to front video input terminal

Front of TV

Headphones

AV-21M535

AV-21V315

Camcorder or TV game

MENU

V

OK

R

L

/

M

O

N

O

IN

(V

ID

E

O

-3

)

R

L

/ M

O

N

O

MENU

IN

(V

ID

EO-3)

OK

Connecting to rear component/video input terminal and output terminal

Rear of TV

AV-21V315

COMPONENT

VIDEO-1

(VIDEO-2)

OUTPUT

INPUT

V

Y

/

V

LRRL

B

C

/

MONO

C

R

S

OVER

V

L

R

INPUT

/

MONO

When you use VIDEO-1 INPUT, you should choose to connect S-VIDEO or video input. If S-VIDEO connector and video input are connected at the same time, no picture displays on the screen and the message “PLEASE DISCONNECT VIDEO-1 CABLE!” appears. In this case, you should disconnect either S-VIDEO or video input. When connecting to COMPONENT (VIDEO-2) input, depending on the connection, choose the appropriate video input using the menu (see page 16).

VCR (for playing) DVD player (composite signals)

VCR (for recording)

DVD player (component video signals)

20

Additional preparation (continued)

Attaching the Twin Port Bass Blaster Unit

<AV-21M535 only>

The Twin Port Bass Blaster Unit is packaged together with the TV. Before you use the TV, mount the Twin Port Bass Blaster unit correctly on the TV.

• The SUPER BASS (BASS) function do not work unless the Twin Port Bass Blaster Unit is connected correctly to the TV. For details on the SUPER BASS (BASS) function, see page

13.

1 Place the unit on top of the TV making sure that the mounting

pin on the bottom of the unit fits into the mounting hole on the top of the TV.

• When you mount the unit, make sure that the mounting pin fits properly into the mounting hole. Otherwise, it may slide off the top of the TV. This may cause damage or cause unexpected injury.

Twin Port Bass Blaster Unit

2 Firmly insert the Twin Port Bass Blaster Unit connector into the

BASS SPEAKER OUT terminal.

COMPONENT

VIDEO-1

(

)

OUTPUT

VIDEO-2

INPUT

S

OVER

Y

V

BASS

SPEAKER

OUT

C

L

/

MONO

RR

CAUTION:

The Twin Port Bass Blaster Unit is just placed on top of the TV and is not held in place by a screw. When using the unit, pay attention to the following cautions. Otherwise, the unit or TV may fall over and be damaged, or cause unexpected injury.

• Do not rest your hands or elbows on the Twin Port Bass Blaster Unit.

• Do not move the TV with the Twin Port Blaster Unit mounted on top of the TV. Before you move the TV, be sure to remove the unit.

• Do not move the TV by holding the Twin Port Bass Blaster Unit.

V

/

V

B

L

/

MONO

RC

R

21

Troubleshooting

If a problem occurs when you are using the TV, check the below troubleshooting guide before calling for repair.

• No picture, no sound

• Snowy picture

• Stripes appear on the


• Double-pictures (ghosting) occur

• Poor picture

• White and bright still

image look as if it were coloured

• Top of the image from software products or video tape is distorted

• Poor sound

• Stereo or bilingual

sound is unclear

• Cannot operate the remote control

• Cannot operate the menus

• Cannot operate the front control buttons

• Deactivate the BLUE BACK function if it is turned on.

• Choose the appropriate sound system. Refer to “SOUND SYSTEM” on page 12.

• Check the aerial cable and its connection with the TV.

• Interference occurs caused by other devices such as

an amplifier, personal computer, or a hair drier. Move such devices away from your TV.

• Interference occurs caused by signal reflecting from mountains or building. Try to adjust the aerial’s direction or use a better directionality antenna.

• Choose the appropriate colour system. Refer to “COLOUR SYSTEM” on page 9.

• Adjust the COLOUR or BRIGHT setting. Refer to “PICTURE SETTING” on page 10.

• Inevitable phenomenon due to the nature of the

picture tube. This is not a malfunction.

• This is due to the condition of the video signal whereby the image was not recorded properly. This is not a malfunction.

• Adjust the sound frequency properly. Refer to “EQUALIZER” on page 13.

• TV channel reception is poor. Change the stereo/

bilingual mode to mono sound (see page 13).

• The batteries may be exhausted. Replace with new batteries (see page 7).

• Ensure that you are operating the remote less than seven meters from the front of your TV.

• Press TV/VIDEO button to return to TV mode and try operating the menus.

• Deactivate the CHILD LOCK function if it is turned on (see page 15).

• Colour patches appear at the corner of the screen

• Image takes a short period to be displayed

• TV may emitted crackling sound

• Feel a slight electric shock when touching the TV screen

• After you connect the signal to VIDEO-2 and playback VCR or DVD Player, the Auto Detect does not work.

•

When you are watching another channel that is not VIDEO-2, AUTO SIGNAL DETECT works while DVD Player

•

While you are watching TV on the other channels, AUTO SIGNAL DETECT works when you press 1,7,3,¡ or

8

on the front panel of

VCR or DVD Player.

•

After TV was on, AUTO

SIGNAL DETECT works.

VCR or

was on.

• This may due to the magnetized device such as a speaker near to your TV. Keep the device apart from your TV. Alternately, you can also use the magneticshielded speaker.

• Image required time to stabilize before display. This is not a malfunction.

•

This is due to a sudden change in temperature and it is not a malfunction. If the crackling sound is too frequent, request your service technician for inspection.

• This is due to the static electricity of the picture tube and it will not harm the human body. This is not a malfunction.

• Please check that the AUTO SIGNAL DETECT function is on or off.

• Press button (VCR or DVD Player) to turn the machine off and turn it on again; do not turn the machine off and on suddenly.

• Inspect the video cable connection on VIDEO-2 that they are connected properly.

• In a certain VCR or DVD Player, the function might operate by the discontinuity of the signal.

• Video signal from VCR or DVD Player cause the function runs properly to indicate that there are video signal on VIDEO-2 channel.

22

Specifications

Model AV-21M315 AV-21V315 AV-25M315

TV RF system B, G Colour system

Channel and Frequencies VHF low channel (VL) : 46.25 to 140.25 MHz

Power input AC 110 to 240 V, 50/60 Hz (operating AC 90 to 260 V, 50/60 Hz) Power consumption MAX: 112 W MAX: 112 W MAX: 132 W

Screen size Picture tube: 546.9 mm Picture tube: 546.9 mm Picture tube: 649 mm (Measured diagonally) Visible area: 508 mm Visible area: 508 mm Visible area: 600 mm Audio output (Rated power output)

Speaker (6.5 x 13) cm X 2 External input/output VIDEO-1: S-VIDEO input, VIDEO input, AUDIO L/R input

Dimension (W x H x D) 649 X 465.3 X 469.2 mm 649 X 465.5 X 473.5 mm 728 X 536 X 476.5 mm Weight 24 kg 24 kg 32 kg Accessories • Remote control unit: RM-C1286 X 1

(RF mode) (VIDEO mode)

PAL, SECAM

PAL, SECAM, NTSC 3.58 MHz, NTSC 4.43 MHz

VHF high channel (VH) : 147.25 to 423.25 MHz UHF channel (U) : 431.25 to 863.25 MHz

*

Receives cable channel in mid band (X to Z, S1 to S10), super band (S11 to S20) and hyper band (S21 to S41)

AVG: 80 W AVG: 80 W AVG: 92 W

7 W + 7 W

VIDEO-2/COMPONENT: VIDEO input, AUDIO L/R input, COMPONENT VIDEO (Y/CB/CR) input VIDEO-3: VIDEO input, AUDIO L/R input OUTPUT: VIDEO output, AUDIO L/R output Headphone jack: Stereo mini jack (3.5 mm diameter)

• AA/R6/UM-3 dry cell battery X 2

• Matching aerial adapter X 1

Design and specifications subject to change without notice.

23

Specifications

Model AV-21M515 AV-25M515 AV-21M535

TV RF system B, G, I, D, K, M Colour system

Channel and Frequencies VHF low channel (VL) : 46.25 to 140.25 MHz

Power input AC 110 to 240 V, 50/60 Hz (operating AC 90 to 260 V, 50/60 Hz) Power consumption MAX: 112 W MAX: 132 W MAX: 134 W

Screen size Picture tube: 546.9 mm Picture tube: 649 mm Picture tube: 546.9 mm (Measured diagonally) Visible area: 508 mm Visible area: 600 mm Visible area: 508 mm Audio output (Rated power output)

Speaker

External input/output VIDEO-1: S-VIDEO input, VIDEO input, AUDIO L/R input

Dimension (W x H x D) 649 X 465.3 X 469.2 mm 728 X 536 X 476.5 mm 649 X 478 X 469.2 mm Weight 24 kg 32 kg 26.4 kg Accessories • Remote control unit: RM-C1286 X 1

Design and specifications subject to change without notice.

(RF mode) (VIDEO mode)

PAL, SECAM, NTSC 3.58 MHz, NTSC 4.43 MHz

VHF high channel (VH) : 147.25 to 423.25 MHz UHF channel (U) : 431.25 to 863.25 MHz *

Receives cable channel in mid band (X to Z, S1 to S10), super band (S11 to S20) and hyper band (S21 to S41)

AVG: 80 W AVG: 92 W AVG: 90 W

7 W + 7 W 7 W + 7 W + 13W

(6.5 x 13) cm X 2

VIDEO-2/COMPONENT: VIDEO input, AUDIO L/R input, COMPONENT VIDEO (Y/CB/CR) input VIDEO-3: VIDEO input, AUDIO L/R input OUTPUT: VIDEO output, AUDIO L/R output Headphone jack: Stereo mini jack (3.5 mm diameter)

• AA/R6/UM-3 dry cell battery X 2

• Matching aerial adapter X 1

(6.5 x 13) cm X 2

(Ø 13) cm X 1

0705-FLE-JMT

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

GGT0073-001A-E

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

1 Operate only from the power source indicated on the rear of the TV. 2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable. When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings. 5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FOLLOWING RULES REGARDING THE USE OF THIS TV.

15 cm

10 cm 10 cm

15 cm

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING: <AV-21M, AV-25M Series>

YOU CAN DETACH THE PROTECT SHEET ON THE TOP AND BOTTOM OF FRONT FRAME IF YOU NEEDED. THE FRONT BUTTON DOOR OF THE TV SHOULD BE PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE UPPER PART, OR YOUR FINGER MAY BE PINCHED.

✘✓

PULL PULL

2

Knowing your TV’s features

Main features

RM-C1286

DVD FUNCTION Just connect DVD player to the television. The television will detect DVD signal and display

EXIT

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

VNR You can reduce the picture noise when viewing noisy TV programmes or video sources.

WHITE BALANCE You can choose one of three tones of white to match to the video source such as movie,

Confirm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

1

Please see the chart below and check the functions that are equipped for your TV’s model number. The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not available for your TV, it does not work and the logo “Ø” appears on the screen.

NO.

Function

1 BASS _ ––_ ––

picture on the screen automatically and you can adjust pictures and sound while you are watching DVD as your desire.

suitable level for a better eye care.

change of the volume when selecting different TV channel or selecting Video Mode.

sport, etc. Changing White balance affects the appearance of all other colours on the screen.

Model No.

AV-25M335

AV-25M315

AV-25V315

AV-21M335

AV-21V315

AV-21M315

3

Remote control buttons and basic functions

No. Press To

1 POWER Turn on or off the TV from standby mode. 2 MENU/OK Display menu and confirm selected function. 3 5 / ∞ / 2 / 3 Select and adjust menu function. 4 CHANNEL -/+ Select the desired channel number. 5 VOLUME -/+ Adjust the volume level. 6 TV/VIDEO Select TV or video terminal input.

EXIT On the other hand, you can use this button to EXIT from the menu.

7 MUTING Turn off the volume.

Press this button again to resume the volume.

8 DISPLAY Display the programme number or video terminal number, stereo/bilingual broadcast system

/BACK and PR list (channel list) on the screen.

You can select the channel using the PR list.

1 Press the DISPLAY button once to display the PR list. 2 Press 5 / ∞ / 2 / 3 buttons to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite channels are indicated with coloured mark.

1

"

8

2

! 4

6

EXIT

3

7

9

5

On the other hand, you can use this button to return to the previous menu.

9 0~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

number button.

! RETURN

+

a) Return to the frequently view channel with one touch.

1 Choose the channel you want to register. 2 Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

FAVORITE Register and recall 4 favorite channels.

"

CHANNEL 1. Choose the TV channel you want to register then press and hold a colour button until (colour buttons: red, green, yellow, blue)

"FAVORITE CHANNEL ■ PROGRAMMED!" appears.

2. To register other favorite channels, repeat step 1. To recall the favorite channel, press the colour button. When the TV is in menu mode, the favorite channel function is not available.

4

RM-C1286

Remote control buttons and basic functions (continued)

How to operate menus and menus locations

To

Display the MENU

Display the top menu

Display the 2nd menu

Display the 3rd menu

Return to the previous menu

Choose the setting of a function

Adjust the effect level of a function

Display the sub menu of a function.

Press the MENU/OK button 2.

Press 5/∞ buttons 3 to choose a menu title. Then press MENU/OK button 2.

Press the DISPLAY/BACK button

8. Press 5/∞ buttons 3 to choose

a function. Then press the 2/3 buttons 3 to change the setting.

Press 5/∞ buttons 3 to choose a function. Then press the 2/3 buttons 3 to adjust the effect level.

Press the 5/∞ buttons 3 to choose a function. Then press MENU/OK button 2 to display the sub menu.

The following chart shows locations of functions in menus. In this manual, location of a function is described as follows:

MENU Top menu

MENU 2nd menu

Top menu

Note: Some functions have the 4th menus as the sub-menus.

Operation

2nd menu

Note

To exit the MENU, press the DISPLAY/ BACK button 8 or choose EXIT menu or TV/VIDEO/EXIT button 6.

Press ∞ button 3 to display the next page for more functions.

–

Press the TV/VIDEO/ EXIT button 6 to exit from the menu.

–

3rd menu

Top menu 2nd menu Location 3rd menu Location

MENU PICTURE PICTURE MODE P.9 – –

SOUND AI VOLUME P.13 – –

FEATURES DVD MENU P.14

INSTALL SETUP TOUR P.16 – –

EXIT – – – –

PICTURE SETTING P.10 CONTRAST P.10

WHITE BALANCE P.10 – – VNR P.15 – – PICTURE BOOSTER

SOUND MODE P.12 – – EQUALIZER P.13 – – BALANCE P.12 – – CINEMA SURROUND SUPER BASS P.13 – –

OFF TIMER P.15 – – CHILD LOCK P.15 – – COMPRESS (16:9) AI ECO SENSOR P.11 – –

AUTO PROGRAM P.17 – – EDIT/MANUAL P.17 DELETE, MOVE, P.17-

COLOUR SYSTEM P.9 – – LANGUAGE P.15 LANGUAGE P.15 VIDEO-2 SETTING P.16 – – BLUE BACK P.11 – –

BRIGHT P.10 SHARP P.10 COLOUR P.10 TINT P.10

P.10 – –

P.13 – –

AUTO SIGNAL DETECT DVD PICTURE MODE TINT COLOUR WHITE BALANCE SOUND MODE CINEMA SURROUND

P.11 – –

MANUAL, INSERT P.18

P.14 P.14 P.14 P.14 P.14 P.14

5

TV buttons and functions

The illustrations shown below is for AV-25V315 and AV-21M335 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Front of the TV

AV-25V315

98 765

V

R

L

/ M

O

N

O

I

N

MENU

(

V

ID

E

O

-

3

)

OK

VOLUME

CH

AN

N

EL

4

3

21

POWER

AV-21M335

L / MO

IN

(

8

V

I

D

E

R

N

O O

-

3

)

76

MENU

OK

9

V

CHANNEL

5

VOLUME

243 1

POWER

Rear of the TV

AV-25V315 AV-21M335

BASS

SPEAKER

OUT

VIDEO-1

INPUT

S

OVER

V

L

/

MONO

R

$%

COMPONENT

(VIDEO-2)

INPUT

Y

/ V

B

C

R

#

/

MONO

OUTPUT

V

LRRL

" !

VIDEO-1

INPUT

S

OVER

V

L

/

MONO

R

$

COMPONENT

(VIDEO-2)

INPUT

Y

/

V

B

C

R

#

/ MONO

OUTPUT

V

LRRL

" !

No. Button/terminal Description Page

1 L (main power) Press to turn on or turn off the TV’s main power. – 2 POWER lamp Indicate the TV is being turned on or off. –

No colour : TV’s main power is being turned off. Red : TV’s main power is being turned on. Note: When you turn off the power switch while TV is in standby mode, the light of power lamp will be off in 10 -15 seconds.

3 ECO sensor – 4 Remote control sensor – 5 VOLUME -/+ Press to adjust the volume level. – 6 CHANNEL -/+ Press to select the desired channel. – 7 MENU Press to display the menu. – 8 IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 20 9 Headphone jack. 20 ! Aerial socket. 7 " OUTPUT Video and audio output jacks. (The component video 20

signal cannot be output.)

# COMPONENT Video or component video, and audio input jacks for 20

(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING” function (see page 16).

$ VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1 7

mode

%

BASS SPEAKER OUT

Twin Port Bass Blaster Unit output terminal. 21

How to operate the menus with the TV button

TV button

Work as same as the button on the remote control unit

MENU MENU/OK button To display main menu and exit

CHANNEL -/+ ∞/5 button To select menu function. VOLUME -/+ 2/3 button To adjust the desired function.

Note

menu after finish setting.

6

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

1 Connecting the aerial cable.

(1)

VHF/UHF outdoor aerial

Matching aerial adapter (supplied)

(2)

(3)

75-ohm coaxial cable (not supplied)

If you connect a VCR, connect the aerial output jack of your VCR and the aerial jack on the TV with aerial cable. Then connect the output jacks of your VCR and the VIDEO-1 input jacks of the TV with the video cable (or S-VIDEO cable if available) and audio cables. For details, see the manual of your VCR.

Rear of TV

To video output

To S-video output

VCR

To audio output

To aerial input

AV-25V315

To R F output

VHF/UHF outdoor aerial

COMPONENT

VIDEO-1

(VIDEO-2)

OUTPUT

INPUT

S

OVER

V

Y

V

/

V

LRRL

L

C

B

/

MONO

C

R

The illustration shown is just a sample. It may not be same as your TV.

2 Connecting the compatible main plug to the AC outlet.

3 Inserting batteries into the remote control.

Insert two batteries by following the + and polarities and inserting the - end first.

CAUTION:

Follow the cautions printed on the batteries. Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, fit new

batteries. The supplied batteries are for testing, not regular use.

4 Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

JVC logo will appear on the screen again at the phase of “SETUP TOUR RESTART?” function. Then the initial setting can be performed according to page 8.

7

Setting up your TV (continued)

5 Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by following the steps as below:

LANGUAGE

ENGLISH

Vieät

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

✵

• Press 5/∞ button to select your desired language.

8

AUTO PROGRAM

CC 12

22%

MENU : OK

• TV will start searching for the channels.

To stop AUTO PROGRAM, press MENU/OK button.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

• To complete the initial setting, press the MENU/OK button. To edit the channel list, see page 17.

AUTO PROGRAM

SETUP TOUR RESTART?

■

: YES

MENU : NO

• After that, when turn on the TV at the next time. “SETUP TOUR RESTART?” will be displayed. Press the MENU/OK button to cancel the SETUP TOUR RESTART function. If you want to make initial settings again when the next time you turn on the TV, press the Red button to activate the SETUP TOUR RESTART function.

Basic setting for picture

COLOUR SYSTEM

You can select the appropriate colour system when the picture is not clear or no colour appears. Press the COLOUR SYSTEM button to select a setting.

AUTO PAL SECAM NTSC3.58

NTSC4.43

To operate this function with a menu:

❇

MENU INSTALL menu

For the colour system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. PAL

East Hong Kong, etc. PAL

Europe

Oceania Australia, New Zealand, etc. PAL

Africa Nigeria, etc. PAL

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. PAL Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM Philippines, Taiwan, Myanmar, etc. NTSC Russia, etc. SECAM Czech Republic, Poland, etc. PAL Germany, Holland, Belgium, etc. PAL UK, etc. PAL

Republic of South Africa, etc. PAL

Egypt, Morocco, etc. SECAM

COLOUR SYSTEM

PICTURE MODE

You can choose the desired picture setting with one-touch. Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness. BRIGHT Heightens contrast and sharpness. STANDARD Standard picture setting. USER You can change this picture setting as you like.

When you select to VIDEO-2 Mode. You cannot adjust SHARP and TINT.

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

❇

MENU PICTURE menu

To return the USER setting to the default, press the blue button when the PICTURE SETTING menu appears.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Select USER and adjust following items in the PICTURE SETTING menu. (CONTRAST, BRIGHT, SHARP, COLOUR, TINT*)

PICTURE MODE

9

Basic setting for picture (continued)

PICTURE SETTING

You can adjust the desired picture setting when selecting USER in PICTURE MODE.

1 Select the USER in PICTURE MODE under PICTURE menu.

❇

MENU

USER

PICTURE menu

PICTURE MODE

2 Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

❇

MENU

CONTRAST 2 : Lower contrast 3 : Higher contrast BRIGHT 2 : Darker 3 : Brighter SHARP 2 : Softer 3 : Higher COLOUR 2 : Lighter 3 : Deeper TINT* 2 : Reddish 3 : Greenish

When you select to VIDEO-2 Mode. You cannot adjust SHARP and TINT.

* TINT can only be adjusted in NTSC system.

PICTURE BOOSTER

You can improve picture clarity when the picture is unclear due to the low signal reception. Press the PICTURE BOOSTER button to select the desired mode.

HIGH Perform at maximum level. LOW Perform at minimum level. OFF Cancel the function

To operate this function with a menu:

❇

MENU

PICTURE menu

PICTURE SETTING

PICTURE BOOSTER

WHITE BALANCE

You can change the white balance of the picture to better match the type of video being viewed. Select the WHITE BALANCE in the PICTURE menu, then choose the desired setting.

❇

MENU

NORMAL Normal white balance. COOL Bluish white. WARM Reddish white.

When you select to VIDEO-2. You cannot adjust WHITE BALANCE. You can adjust it in DVD Menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

PICTURE menu

WHITE BALANCE

10

Advanced setting for picture

AI ECO SENSOR (ECO)

You can adjust TV screen contrast according to the brightness of your room. Press the ECO button to select the desired mode.

OFF Cancel the function. MODE-1 Mild contrast (recommended). MODE-2 Even contrast. DISPLAY Display the graphic of the function.

To operate this function with a menu:

❇

MENU

FEATURES menu

AI ECO SENSOR

COMPRESS (16:9)

You can convert a normal picture (4:3 aspect ratio) into a wide picture (16:9 aspect ratio). Select the COMPRESS (16:9) in the FEATURES menu, then choose ON or OFF.

❇

MENU

FEATURES menu

COMPRESS (16:9)

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an antenna.

Select the BLUE BACK in the INSTALL menu, then choose ON or OFF.

❇

MENU INSTALL menu

If you wish to continue viewing the poor picture, cancel the BLUE BACK function.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

BLUE BACK

11

Basic setting for sound

SOUND SYSTEM

You can select an appropriate sound system when abnormal sound occurs even when the picture appears normally. Press the SOUND SYSTEM button to select a setting.

B/G I D/K M

This function is not available in video mode. For the sound system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. D/K East Hong Kong, etc. I

Europe

Oceania Australia, New Zealand, etc. B/G

Africa Nigeria, etc. B/G

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. B/G Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G Philippines, Taiwan, Myanmar, etc. M Russia, etc. D/K Czech Republic, Poland, etc. D/K Germany, Holland, Belgium, etc. B/G UK, etc. I

Republic of South Africa, etc. I

Egypt, Morocco, etc. B/G

SOUND MODE

You can choose the desired sound setting. Select the SOUND MODE in SOUND menu, then choose the setting.

❇

MENU

USER You can change this sound setting as you like.

SOUND TURBO THEATER MUSIC Emphasize on music effect. NEWS Emphasize on vocal sound.

SOUND menu

Select USER and adjust the frequencies in EQUALIZER (100, 300, 1K, 3K, 8K Hz). For details, see “EQUALIZER” on page 13. Emphasize on low and high frequency levels. Emphasize on movie sound.

SOUND MODE

When you select to VIDEO-2. You cannot adjust SOUND MODE function. You can adjust it in DVD Menu.

BALANCE

You can adjust the volume balance between the left and right speakers. Select the BALANCE in SOUND menu, then adjust the setting.

❇

MENU

❇ About the basic operations of the menu, please see the “How to

operate menus and menus locations” on page 5.

SOUND menu

BALANCE

12

Advanced setting for sound

CINEMA SURROUND

You can enjoy an enhanced sound for wider audience. Press the CINEMA SURROUND button to select a setting.

OFF Cancel the function. ON Listen to sound with wider audience effect.

This function is not available when the SOUND MODE is set to SOUND TURBO. To operate this function with a menu:

❇

MENU

SOUND menu

CINEMA SURROUND

When you select to VIDEO-2. You cannot adjust CINEMA SURROUND function. You can adjust it in DVD Menu.

SUPER BASS (BASS)

You can enjoy powerful bass sound with the Twin Port Bass Blaster unit.

Press the BASS button to select ON or OFF. To operate this function with a menu:

❇

MENU SOUND menu

For attaching the Twin Port Bass Blaster unit, please see in page

21.

SUPER BASS

EQUALIZER

You can adjust the sound level of each frequencies when selecting USER mode in SOUND MODE.

1 Select the USER in SOUND MODE under SOUND menu.

❇

MENU

SOUND menu

SOUND MODE USER

2 Select the EQUALIZER in SOUND menu.

❇

MENU

The following display appears.

SOUND menu

EQUALIZER

IIIIIIIIIIIIIIII

100 300 1K 3K 8K Hz

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

IIIIIII

IIIIIIIIIIIIIIII

IIIIIIII

EQUALIZER

3 Select and adjust the desired frequencies. 4 Press the MENU/OK button to exit the menu.

Adjust high frequency will affect higher pitch sound and vice versa.

AI VOLUME

You can adjust the volume of all the channels and video inputs to the same level automatically depends on the strength of signal of the sources. Select the AI VOLUME in SOUND menu, then choose ON or OFF.

❇

MENU

SOUND menu

AI VOLUME

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

13

DVD function

AUTO SIGNAL DETECT

When the DVD input signal is detected. The input mode will be changed to VIDEO-2 automatically.

For The DVD player, press the “POWER ON” button of the machine so that the signal can be detected.

For the VCR, press the “POWER ON” button of the machine, and then press the “PLAY” button, so that the signal can be detected and display DVD menu.

Select the AUTO SIGNAL DETECT in DVD MENU under FEATURES menu then choose ON or OFF (Factory setting is ON).

❇

MENU

AUTO SIGNAL DETECT

FEATURES menu

DVD MENU

DVD PICTURE MODE

You can enhance the picture quality of the DVD or VIDEO-2. Select the DVD PICTURE MODE in DVD MENU under FEATURES

menu, then choose the desired setting.

❇

MENU

DVD PICTURE MODE

OFF Cancel the function. CLEAR-1 CLEAR-2

FEATURES menu

Select when the disc is with lots of noise (To soften the picture). Select when the disc is with less noise (To sharpen the picture).

DVD MENU

TINT COLOUR

You can adjust the picture colour tone of the DVD. Select the TINT COLOUR in DVD MENU under FEATURES menu,

then adjust the level.

❇

MENU FEATURES menu

TINT COLOUR

DVD MENU

14

WHITE BALANCE

You can change the white balance of the DVD picture. Select the WHITE BALANCE in DVD MENU under FEATURES menu,

then choose the desired setting.

❇

MENU

WHITE BALANCE

FEATURES menu

DVD MENU

For details, see “WHITE BALANCE” on page 10.

SOUND MODE

You can choose the desired sound setting for the DVD. Select the SOUND MODE in DVD MENU under FEATURES menu,

then choose the desired setting.

❇

MENU FEATURES menu

SOUND MODE

DVD MENU

For details, see “SOUND MODE” on page 12.

CINEMA SURROUND

You can enjoy an enhanced sound for the DVD. Select the CINEMA SURROUND in DVD MENU under FEATURES

menu, then choose the desired setting.

❇

MENU FEATURES menu

CINEMA SURROUND

For details, see “CINEMA SURROUND” on page 13. This function is not available when the SOUND MODE is set to SOUND TURBO. ❇❇ When you use VIDEO-2 to display the DVD signal or Video

signal then WHITE BALANCE, VNR function in PICTURE menu/SHARP, TINT function in PICTURE SETTING menu/ SOUND MODE, CINEMA SURROUND function in SOUND menu can’t operate.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

DVD MENU

Customized setting

VNR

You can reduce the picture noise. Select the VNR in the PICTURE menu, then choose a setting of VNR function.

❇

MENU

OFF VNR is turned off. AUTO Effect of VNR is automatically controlled. MIN Effect of VNR becomes minimum level. MAX Effect of VNR becomes maximum level.

PICTURE menu

VNR

If you select MAX, the picture becomes softer even if the original picture is sharp.

When you select to VIDEO-2. You cannot adjust VNR function.

LANGUAGE

You can choose your desired on screen display language. Select the LANGUAGE in the INSTALL menu, then choose a language.

❇

MENU

INSTALL menu

LANGUAGE

CHILD LOCK

You can disable the front control buttons of the TV. Select the CHILD LOCK in the FEATURES menu, then choose ON or OFF.

❇

MENU

FEATURES menu

CHILD LOCK

OFF TIMER

You can set the TV to turn off automatically to standby mode after a set time. Press the OFF TIMER button to select a desired period of time.

OFF TIMER

0 120

20

MENU : OK DISPLAY : BACK TV/VIDEO : EXIT

To operate this function with a menu:

❇

MENU

FEATURES menu

When the elapsed of time left one minute, “GOOD NIGHT!” appears on the screen. You can display the OFF TIMER menu again to confirm or change the remaining time.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

You can set the period of time to a maximum of 120 minutes in 10 minutes step.

OFF TIMER

15

Customized setting (continued)

VIDEO-2 SETTING

You can set the VIDEO-2 SETTING according to the video signal output from the external devices connected to the VIDEO-2 terminal. Select the VIDEO-2 SETTING in INSTALL menu, then choose a setting (Factory setting is COMPONENT).

❇

MENU

VIDEO If a normal video signal (composite video signal) is input. COMPONENT If a component video signal (Y/CB/CR) is input.

INSTALL menu

VIDEO-2 SETTING

You must choose a setting follow as signal that you input to VIDEO-2. (If you input the VIDEO Signal or VCR Signal to VIDEO-2, you must choose VIDEO-2 SETTING to VIDEO.)

For connecting methods, see “Additional Preparation” on page 20.

SETUP TOUR

You may use the SETUP TOUR function to perform the initial setting. When selecting SETUP TOUR, the LANGUAGE menu, AUTO PROGRAM menu, and EDIT menu will be displayed as shown on page 8. But “SETUP TOUR RESTART?” will not be displayed.

Select SETUP TOUR in the INSTALL menu.

❇

MENU

INSTALL menu

SETUP TOUR

DISPLAY

You can display the programme number, video terminal number and PR list on the screen. Press the DISPLAY button to select the desired mode:

ON OFF PR LIST

Choose a TV channel or a VIDEO terminal.

1 Press the DISPLAY button to display the PR LIST. 2 Select a programme number or video terminal by pressing the

5/∞ button to move up/down on the programme number or press the 2/3 button to skip for each 7 programme numbers, then press MENU/OK button.

PR LIST

PR CH/CC V1 V2 V3 AV 1 2 3

-7 +7

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

■

MENU : OK

CH 09 CC 76 CC 78

16

TV channel presetting

To register the TV channels automatically

(AUTO PROGRAM)

You can register the TV channels into the TV’s channel list automatically.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose AUTO PROGRAM, then press the MENU/OK button.

AUTO PROGRAM function starts, and the channels received are registered in the channel list (PR LIST) automatically.

3 The EDIT menu appears.

To edit the channel Proceed to the Step 3 of “To edit the channel list list (PR LIST)” on page 18. If a channel is not Proceed to the Step 3 of “To register the TV registered channels manually” on this page. To exit the menu Press the MENU/OK button.

To register the TV channels manually (MANUAL in the EDIT menu)

You can register the TV channels into the TV’s channel list manually.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

3 Choose the channel which you want to register. 4 Press the blue button to activate the MANUAL function.

The sound system of the channel appears at the right of the CH//CC number.

5 Press the 3 button to choose an appropriate sound system.

For details, see “SOUND SYSTEM” on page 12.

6 Press the green or red button to search for the TV channel.

Searching stops when a channel is found and displayed.

7 Repeat step 5 until your desired TV channel appears.

If the reception is poor Press the blue or yellow button to fine tune

If noisy sound is heard Press the 3 button to choose an appropriate

the TV channel.

sound system.

8 Press the MENU/OK button to exit the menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

17

TV channel presetting (continued)

To edit the channel list (PR LIST) (MOVE and DELETE in the EDIT menu)

You can edit the TV channel list as you like. Note: After this operation, other channel’s PR numbers will be changed.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC AV

■

1 CH 04

■

2 CH 76

■

3 CH 78

■

4 CH 05 5 CH 28 6 CH 10

MENU : OK

MOVE

3

■

INSERT

■

DELETE

■

MANUAL

3 Choose the channel which you want to change PR number, or

delete.

4 Do the following action:

To change the PR Press the 3 button. Then move it to the PR number (MOVE) number you want to use it for the channel.

Finally press the 2 button. To delete the Press the yellow button. channel (DELETE)

5 Press the MENU/OK button to exit the menu.

To add in the new channel (INSERT in the EDIT menu)

You can add in the new channel in the TV channel list as you like. You need to find the “CH/CC” number for the TV channel. Find the “CH/CC” number corresponding to the channel number of the TV channel from the attached sheet “CH/CC number list” on page 19.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

3 Choose the PR number for which you will register a new TV

channel. When you add a new TV channel of NTSC-M system, press the SOUND SYSTEM button to change the sound system to M. Then proceed to the next step.

4 Press the green button, then press 3 buttons to choose “CC”

or “CH”.

5 Press the number button to enter the remaining CH/CC

number. The TV starts to search the TV channel, and the picture of the TV channel appears. If the TV finds no TV channel, a noisy

picture appears. When a TV channel has already been registered in PR99, using the INSERT function deletes that TV channel.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

18

TV channel presetting (continued)

CH/CC number

When you want to use the INSERT function on page 18, find the CH/CC number corresponding to the channel number of the TV channel from this table.

Channel No. Country

US United States, Philippines, etc.. CCIR Middle East, Southeast Asia,

OIRT Eastern Europe, Russia,

AUSTRALIA Australia, etc..

Channel

CH US CCIR OIRT AUSTRALIA

CH 02 US-2 E2 R1 AU-0 CH 03 US-3 E3 AU-1 CH 04 US-4 E4 R2 AU-2 CH 05 US-5 E5 R6 AU-6 CH 06 US-6 E6 R7 AU-7 CH 07 US-7 E7 R8 AU-8 CH 08 US-8 E8 R9 AU-9 CH 09 US-9 E9 CH 10 US-10 E10 R10 AU-10 CH 11 US-11 E11 R11 AU-11 CH 12 US-12 E12 R12 CH 13 US-13 CH 14 US-14, W+29 CH 15 US-15, W+30 CH 16 US-16, W+31 CH 17 US-17, W+32 CH 18 US-18, W+33 CH 19 US-19, W+34 CH 20 US-20, W+35 CH 21 US-21, W+36 E21 CH 22 US-22, W+37 E22 CH 23 US-23, W+38 E23 CH 24 US-24, W+39 E24 CH 25 US-25, W+40 E25 CH 26 US-26, W+41 E26 CH 27 US-27, W+42 E27 CH 28 US-28, W+43 E28 AU-28 CH 29 US-29, W+44 E29 AU-29 CH 30 US-30, W+45 E30 AU-30 CH 31 US-31, W+46 E31 AU-31/AU-32 CH 32 US-32, W+47 E32 AU-33

etc..

Vietnam, etc..

CH US CCIR OIRT AUSTRALIA

CH 33 US-33, W+48 E33 AU-34 CH 34 US-34, W+49 E34 AU-35 CH 35 US-35, W+50 E35 AU-36 CH 36 US-36, W+51 E36 AU-37 CH 37 US-37, W+52 E37 AU-38 CH 38 US-38, W+53 E38 AU-39/AU-40 CH 39 US-39, W+54 E39 AU-41 CH 40 US-40, W+55 E40 AU-42 CH 41 US-41, W+56 E41 AU-43 CH 42 US-42, W+57 E42 AU-44 CH 43 US-43, W+58 E43 AU-45 CH 44 US-44, W+59 E44 AU-46 CH 45 US-45, W+60 E45 AU-47/AU-48 CH 46 US-46, W+61 E46 AU-49 CH 47 US-47, W+62 E47 AU-50 CH 48 US-48, W+63 E48 AU-51 CH 49 US-49, W+64 E49 AU-52 CH 50 US-50, W+65 E50 AU-53 CH 51 US-51, W+66 E51 AU-54 CH 52 US-52, W+67 E52 AU-55/AU-56 CH 53 US-53, W+68 E53 AU-57 CH 54 US-54, W+69 E54 AU-58 CH 55 US-55, W+70 E55 AU-59 CH 56 US-56, W+71 E56 AU-60 CH 57 US-57, W+72 E57 AU-61 CH 58 US-58, W+73 E58 AU-62 CH 59 US-59, W+74 E59 AU-63/AU-64 CH 60 US-60, W+75 E60 AU-65 CH 61 US-61, W+76 E61 AU-66 CH 62 US-62, W+77 E62 AU-67 CH 63 US-63, W+78 E63 AU-68 CH 64 US-64, W+79 E64 AU-69 CH 65 US-65, W+80 E65 CH 66 US-66, W+81 E66 CH 67 US-67, W+82 E67 CH 68 US-68, W+83 E68 CH 69 US-69, W+84 E69

CC US CCIR OIRT AUSTRALIA

CC 01 S-1 AU-5 CC 02 S-2 CC 03 S-3 CC 04 S-4 CC 05 S-5 CC 06 S-6 AU-5A CC 07 S-7 CC 08 S-8 CC 09 S-9 CC 10 S-10 CC 11 S-11 CC 12 S-12 CC 13 S-13 CC 14 A S-14 CC 15 B S-15 CC 16 C S-16 CC 17 D S-17

CC US CCIR OIRT AUSTRALIA

CC 18 E S-18 CC 19 F S-19 CC 20 G S-20 CC 21 H S-21 CC 22 I S-22 CC 23 J S-23 CC 24 K S-24 CC 25 L S-25 CC 26 M S-26 CC 27 N S-27 CC 28 O S-28 CC 29 P S-29 CC 30 Q S-30 CC 31 R S-31 CC 32 S S-32 CC 33 T S-33 CC 34 U S-34 CC 35 V S-35 CC 36 W S-36 CC 37 W+1 S-37 CC 38 W+2 S-38 CC 39 W+3 S-39 CC 40 W+4 S-40 CC 41 W+5 S-41 CC 42 W+6 CC 43 W+7 CC 44 W+8 CC 45 W+9 CC 46 W+10 CC 47 W+11 CC 48 W+12 CC 49 W+13 CC 50 W+14 CC 51 W+15 CC 52 W+16 CC 53 W+17 CC 54 W+18 CC 55 W+19 CC 56 W+20 CC 57 W+21 CC 58 W+22 CC 59 W+23 CC 60 W+24 CC 61 W+25 CC 62 W+26 CC 63 W+27 CC 64 W+28 CC 75 X CC 76 Y R3 CC 77 Z R4 AU-3 CC 78 Z+1 R5 CC 79 Z+2 AU-4 CC 95 A-5 CC 96 A-4 CC 97 A-3 CC 98 A-2 CC 99 A-1

19

Additional preparation

The illustrations shown in this section are for AV-25V315 and AV-21M335 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Before connecting

• Read the manuals provided with the devices for the proper connection.

• Turn off all the devices including the TV.

• Note that connecting cables are not supplied.

Connecting to front video input terminal

Front of TV

Headphones

AV-25V315

AV-21M335

V

IN (VIDEO-3)

L

/

I

N (V

L / MONO

MO

Camcorder or TV game

R

MENU

OK

MENU

OK

R

NO

ID

E

O

-3

)

Connecting to rear component/video input terminal and output terminal

Rear of TV

AV-25V315

COMPONENT

VIDEO-1

(VIDEO-2)

OUTPUT

INPUT

V

Y

/

V

LRRL

B

C

/

MONO

C

R

S

OVER

V

L

R

INPUT

/

MONO

When you use VIDEO-1 INPUT, you should choose to connect S-VIDEO or video input. If S-VIDEO connector and video input are connected at the same time, no picture displays on the screen and the message “PLEASE DISCONNECT VIDEO-1 CABLE!” appears. In this case, you should disconnect either S-VIDEO or video input. When connecting to COMPONENT (VIDEO-2) input, depending on the connection, choose the appropriate video input using the menu (see page 16).

VCR (for playing) DVD player (composite signals)

VCR (for recording)

DVD player (component video signals)

20

Additional preparation (continued)

Attaching the Twin Port Bass Blaster Unit

<AV-21M335, AV25M335 only>

The Twin Port Bass Blaster Unit is packaged together with the TV. Before you use the TV, mount the Twin Port Bass Blaster unit correctly on the TV.

• The SUPER BASS (BASS) function do not work unless the Twin Port Bass Blaster Unit is connected correctly to the TV. For details on the SUPER BASS (BASS) function, see page

13.

1 Place the unit on top of the TV making sure that the mounting

pin on the bottom of the unit fits into the mounting hole on the top of the TV.

• When you mount the unit, make sure that the mounting pin fits properly into the mounting hole. Otherwise, it may slide off the top of the TV. This may cause damage or cause unexpected injury.

Twin Port Bass Blaster Unit

2 Firmly insert the Twin Port Bass Blaster Unit connector into the

BASS SPEAKER OUT terminal.

COMPONENT

VIDEO-1

(

)

OUTPUT

VIDEO-2

INPUT

S

OVER

Y

V

BASS

SPEAKER

L

C

/

MONO

OUT

RR

CAUTION:

The Twin Port Bass Blaster Unit is just placed on top of the TV and is not held in place by a screw. When using the unit, pay attention to the following cautions. Otherwise, the unit or TV may fall over and be damaged, or cause unexpected injury.

• Do not rest your hands or elbows on the Twin Port Bass Blaster Unit.

• Do not move the TV with the Twin Port Blaster Unit mounted on top of the TV. Before you move the TV, be sure to remove the unit.

• Do not move the TV by holding the Twin Port Bass Blaster Unit.

V

/

V

B

L

/

MONO

RC

R

21

Troubleshooting

If a problem occurs when you are using the TV, check the below troubleshooting guide before calling for repair.

• No picture, no sound

• Snowy picture

• Stripes appear on the


• Double-pictures (ghosting) occur

• Poor picture

• White and bright still

image look as if it were coloured

• Top of the image from software products or video tape is distorted

• Poor sound

• Cannot operate the

remote control

• Cannot operate the menus

• Cannot operate the front control buttons

• Deactivate the BLUE BACK function if it is turned on.

• Choose the appropriate sound system. Refer to “SOUND SYSTEM” on page 12.

• Check the aerial cable and its connection with the TV.

• Interference occurs caused by other devices such as

an amplifier, personal computer, or a hair drier. Move such devices away from your TV.

• Interference occurs caused by signal reflecting from mountains or building. Try to adjust the aerial’s direction or use a better directionality antenna.

• Choose the appropriate colour system. Refer to “COLOUR SYSTEM” on page 9.

• Adjust the COLOUR or BRIGHT setting. Refer to “PICTURE SETTING” on page 10.

• Inevitable phenomenon due to the nature of the

picture tube. This is not a malfunction.

• This is due to the condition of the video signal whereby the image was not recorded properly. This is not a malfunction.

• Adjust the sound frequency properly. Refer to “EQUALIZER” on page 13.

• The batteries may be exhausted. Replace with new

batteries (see page 7).

• Ensure that you are operating the remote less than seven meters from the front of your TV.

• Press TV/VIDEO button to return to TV mode and try operating the menus.

• Deactivate the CHILD LOCK function if it is turned on (see page 15).

• Colour patches appear at the corner of the screen

• Image takes a short period to be displayed

• TV may emitted crackling sound

• Feel a slight electric shock when touching the TV screen

• After you connect the signal to VIDEO-2 and playback VCR or DVD Player, the Auto Detect does not work.

•

When you are watching another channel that is not VIDEO-2, AUTO SIGNAL DETECT works while DVD Player

•

While you are watching TV on the other channels, AUTO SIGNAL DETECT works when you press or 8 on the front panel of VCR or DVD Player.

•

After TV was on, AUTO

SIGNAL DETECT works.

VCR or

was on.

1, 7, 3, ¡

• This may due to the magnetized device such as a speaker near to your TV. Keep the device apart from your TV. Alternately, you can also use the magneticshielded speaker.

• Image required time to stabilize before display. This is not a malfunction.

•

This is due to a sudden change in temperature and it is not a malfunction. If the crackling sound is too frequent, request your service technician for inspection.

• This is due to the static electricity of the picture tube and it will not harm the human body. This is not a malfunction.

• Please check that the AUTO SIGNAL DETECT function is on or off.

• Press button (VCR or DVD Player) to turn the machine off and turn it on again; do not turn the machine off and on suddenly.

• Inspect the video cable connection on VIDEO-2 that they are connected properly.

• In a certain VCR or DVD Player, the function might operate by the discontinuity of the signal.

• Video signal from VCR or DVD Player cause the function runs properly to indicate that there are video signal on VIDEO-2 channel.

22

Specifications

Model AV-21M335 AV-21M315 AV-21V315 AV-25M335 AV-25M315 AV-25V315

TV RF system B, G, I, D, K, M Colour system

(RF mode and VIDEO mode) Channel and Frequencies VHF low channel (VL) : 46.25 to 140.25 MHz

Power input AC 110 to 240 V, 50/60 Hz (operating AC 90 to 260 V, 50/60 Hz) Power consumption MAX: 134 W MAX: 112 W MAX: 112 W MAX: 167 W MAX: 132 W MAX: 132 W

Screen size (Measured diagonally) Audio output (Rated power output)

Speaker

External input/output VIDEO-1: S-VIDEO input, VIDEO input, AUDIO L/R input

Dimension (W x H x D) Weight 26.4 kg 24 kg 24 kg 34.4 kg 32 kg 32 kg Accessories • Remote control unit: RM-C1286 X 1

VHF high channel (VH) : 147.25 to 423.25 MHz UHF channel (U) : 431.25 to 863.25 MHz *

Receives cable channel in mid band (X to Z, S1 to S10), super band (S11 to S20) and hyper band (S21 to S41)

AVG: 90 W AVG: 80 W AVG: 80 W AVG: 109 W AVG: 92 W AVG: 92 W

Picture tube: 546.9 mm Picture tube: 546.9 mm Picture tube: 546.9 mm Picture tube: 649 mm Picture tube: 649 mm Picture tube: 649 mm

Visible area: 508 mm Visible area: 508 mm Visible area: 508 mm Visible area: 600 mm Visible area: 600 mm Visible area: 600 mm

(6.5 x 13) cm X 2

(Ø 13) cm X 1

VIDEO-2/COMPONENT: VIDEO input, AUDIO L/R input, COMPONENT VIDEO (Y/C VIDEO-3: VIDEO input, AUDIO L/R input OUTPUT: VIDEO output, AUDIO L/R output Headphone jack: Stereo mini jack (3.5 mm diameter)

649 X 478 X 469.2 mm 649 X 465.3 X 469.2 mm 649 X 465.5 X 473.5 mm 728 X 549.8 X 476.5 mm 728 X 536 X 476.5 mm 728 X 536 X 481.5 mm

• AA/R6/UM-3 dry cell battery X 2

• Matching aerial adapter X 1

(6.5 x 13) cm X 2

PAL, SECAM, NTSC 3.58 MHz, NTSC 4.43 MHz

7 W + 7 W 7 W + 7 W

(6.5 x 13) cm X 2

7 W + 7 W + 13 W7 W + 7 W + 13 W

(6.5 x 13) cm X 2

(Ø 13) cm X 1

7 W + 7 W

(6.5 x 13) cm X 2

B/CR

7 W + 7 W

(6.5 x 13) cm X 2

) input

Design and specifications subject to change without notice.

23

0705-FLE-JMT

JVC AV-21M535, AV-21M515, AV-21M315, AV-21V315, AV-25M515 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

Contents

GGT0070-001A-H

Knowing your TV’s features

Remote control buttons and basic functions

TV buttons and functions

Setting up your TV

Basic setting for picture

Advanced setting for picture

Basic setting for sound

Advanced setting for sound

DVD function

Customized setting

TV channel presetting

Additional preparation

Troubleshooting

Specifications

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

Contents

GGT0073-001A-E

Knowing your TV’s features

Remote control buttons and basic functions

TV buttons and functions

Setting up your TV

Basic setting for picture

Advanced setting for picture

Basic setting for sound

Advanced setting for sound

DVD function

Customized setting

TV channel presetting

Troubleshooting

Specifications
