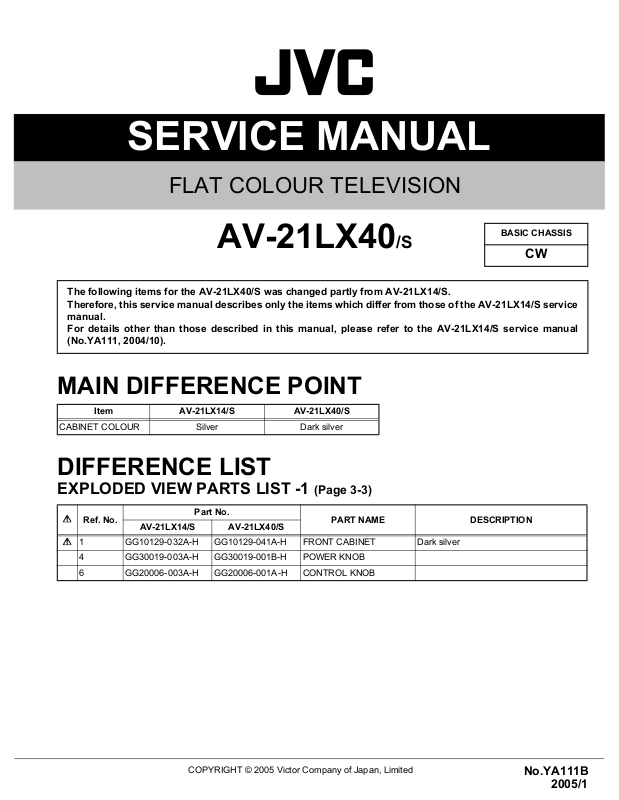

JVC AV-21LX40/S Service Manual
SERVICE MANUAL
FLAT COLOUR TELEVISION
YA111B20051
BASIC CHASSIS
AV-21LX40/S
The following items for the AV-21LX40/S was changed partly from AV-21LX14/S.
Therefore, this service manual describes only the items which differ from those of the AV-21LX14/S service
manual.
For details other than those described in this manual, please refer to the AV-21LX14/S service manual
(No.YA111, 2004/10).
MAIN DIFFERENCE POINT
Item AV-21LX14/S AV-21LX40/S
CABINET COLOUR Silver Dark silver
CW
DIFFERENCE LIST
EXPLODED VIEW PARTS LIST -1 (Page 3-3)
Ref. No.
1 GG10129-032A-H GG10129-041A-H FRONT CABINET Dark silver
4 GG30019-003A-H GG30019-001B-H POWER KNOB
6 GG20006-003A-H GG20006-001A-H CONTROL KNOB
AV-21LX14/S AV-21LX40/S
Part No.
PART NAME DESCRIPTION
COPYRIGHT © 2005 Victor Company of Japan, Limited
No.YA111B
2005/1
SECTION 1
PRECAUTION
Please refer to "AV-21LX14/S (No.YA111)" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "AV-21LX14/S (No.YA111)" about this section.
SECTION 3
DISASSEMBLY
Please refer to "AV-21LX14/S (No.YA111)" about this section.
SECTION 4
ADJUSTMENT
Please refer to "AV-21LX14/S (No.YA111)" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "AV-21LX14/S (No.YA111)" about this section.
Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
(No.YA111B)
Printed in Japan
