JVC AV-21FT1SUG, AV-29FT1SUG, AV-29FT1BUG User Manual

Download

AV-21FT1SUG

AV-21FT1BUG

AV-29FT1SUG

AV-29FT1BUG

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

FARBFERNSEHGERÄT

TELEVISEUR COULEUR KLEURENTELEVISIE TELEVISOR A COLOR TELEVISORE A COLORI TELEVISOR A CORES

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

INSTRUZIONI

INSTRUCÖES

(SOMENTE PARA MODELO AV-29FT1)

Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WATER AND MOISTURE

The apparatus shall not be exposed to dripping or splashing water and no object filled with liquids, such as vases , should be placed on the apparatus.

HEAT

Never place the set near heat sources. Never put a naked flame, such as a candle, on the top of TV set.

VENTILATION

Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as in a bookcase or built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and coins, in the ventilation openings.

LIGHTNING STRIKE

You should disconnect the set from the mains and the aerial system during thunderstorms.

CLEANING

Unplug the set from the mains while cleaning.

AFTER MOVING THE SET

If the set is moved or turned, the MAIN POWER button must be switched off for at least 15 minutes in order to take out colour patches on the screen.

CAUTION

There is danger of choking or suffocation if the cap which is removed from the TV is accidentally swallowed by children. Store the cap out of the reach of children.

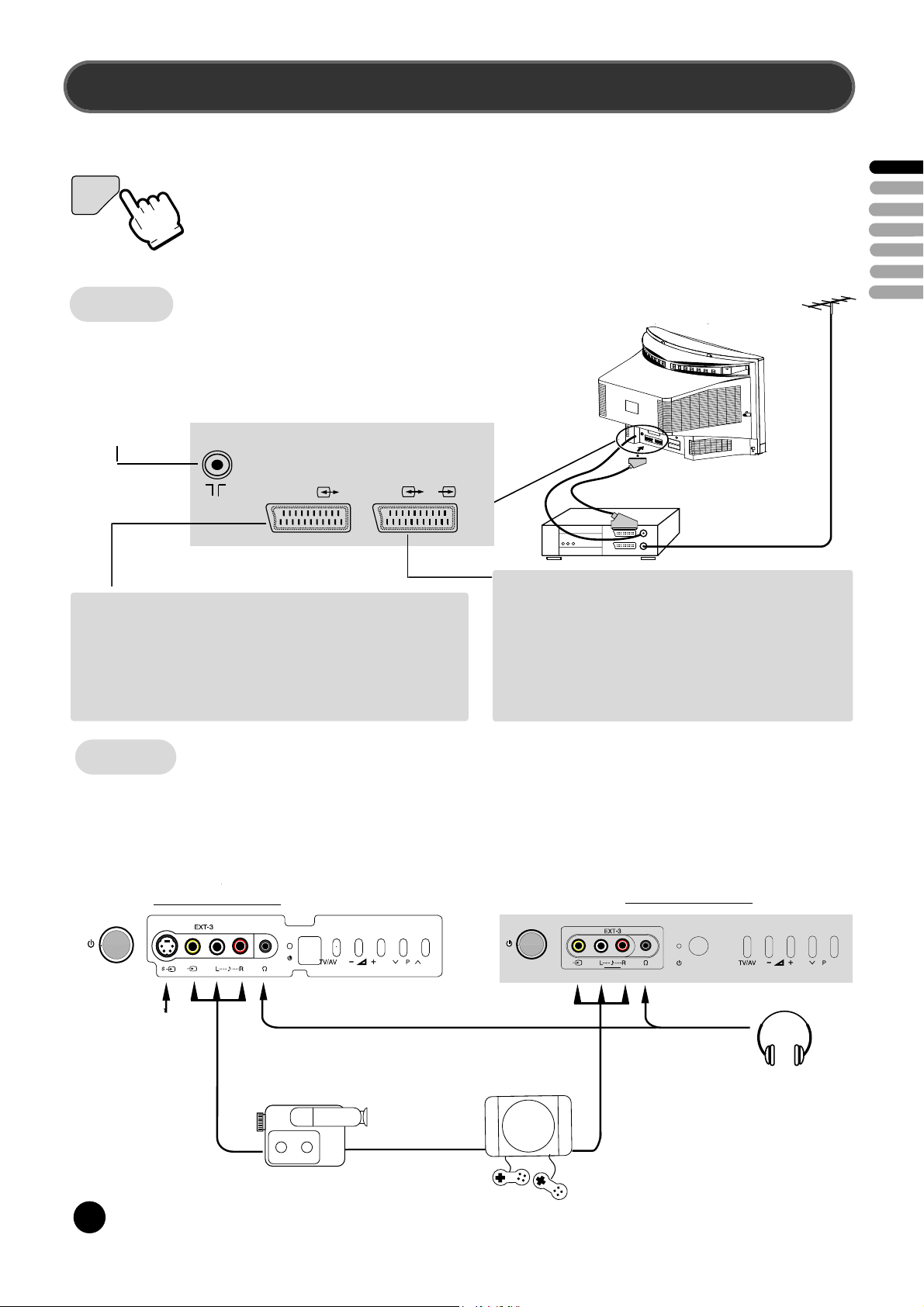

IDENTITY OF LOCAL & REMOTE CONTROL

LOCAL CONTROL

Front

MAIN POWER button

FRONT S-VIDEO INPUT socket Ext-3

B3 B4 B5 B6 B7 B8 B9 B10

(only for AV-29FT1)

FRONT VIDEO INPUT socket Ext-3 FRONT AUDIO INPUT socket Ext-3

HEADPHONE socket STAND-BY indicator REMOTE sensor

TV / AV button VOLUME UP/DOWN buttons PROGRAM UP/DOWN buttons

Rear

AERIAL socket

SCART 1 socket EXT-1

SCART 2 socket EXT-2

REMOTE CONTROL

AV-21FT1 MODEL

B1 B3 B4 B5 B6 B7 B8 B9 B10

ANT

EXT-1

EXT-2

AV-29FT1 MODEL

ENGLISH

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10

(S )

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26

TV mode

SOUND MUTE

POWER

NUMBER 0..9

zoom

ZOOM / SKIP SOUND EFFECT / MOVE SLEEP / DELETE Not used

PICTURE/OK

TV > TELETEXT PICTURE / OK

MENU PROGRAM UP (CURSOR UP) PROGRAM DOWN (CURSOR DOWN) VOLUME DOWN (CURSOR LEFT) VOLUME UP (CURSOR RIGHT)

TV / AV Not used Not used Not used Not used Not used Not used Not used Not used

INFORMATION

VCR / TELETEXT / DVD switch

I/II

MODE Stereo/Mono

Dual language

I/II

A11

A15

A13

A17

A16

A20

A21

A24

A25

RM-C1514

PICTURE/OK

RM-C1514

A10

A14

A12

A18

A19

A23

A22

A26

TELETEXT mode

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10

A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26

SOUND MUTE

POWER

NUMBER 0..9 RED GREEN YELLOW CYAN TELETEXT > TV Not used

VOL / BRIGHTNESS MENU SELECTION PAGE UP PAGE DOWN VOL / BRIGHTNESS DOWN VOL / BRIGHTNESS UP Not used PAGE HOLD Not used

REVEAL DOUBLE SIZE Not used Not used

CANCEL

INDEX SUBPAGE VCR / TELETEXT / DVD switch Not used

INSTALLATION

AUTO TUNING SYSTEM

MENU SELECTION

Press remote control MENU button (A10) to display the MAIN MENU.

Move the cursor to INSTALL by using the remote control CURSOR

PICTURE SOUND

UP (A11),DOWN(A12) buttons.

Then press the remote control OK button (A9).

Note: All menus are removed within 60 seconds if you don't press

INSTALL

FEATURES

any button.

COUNTRY SELECTION

Position the cursor at ATSS Menu and select country code where TV is

used by pressing the remote control CURSOR LEFT (A13), RIGHT(A14) buttons.

The following countries can be selected.

A, B, CH, CZ, D, DK

E, F, FIN, GB, H, I,

ATSS

EDIT

SYSTEM

CHANNEL

FREQUENCY

NAME

PROGRAM

STORE TO

INSTALL

C 31

551.25

BBC1

IRL, N, NL, PL, S, Others

ATSS - Auto Tuning and Sorting System

After selecting country code, press and hold OK button for 3 - 4 seconds until "Please wait!" is displayed, then auto program tuning starts searching all the available TV stations in your area. When auto tuning and sorting is completed, the EDIT menu with the recorded programs appears on the screen.

To exit the EDIT menu, press MENU button 3 times, then the menu display will disappear from TV screen. Now you can select program using the remote control UP (A11) or DOWN (A12) buttons.

ENGLISH

EDIT MENU

The EDIT menu shows you the programme position assignment. When using the AUTO TUNING method, the broadcasts may not be found and stored in the order you desired. For example, BBC1 may not be allocated to programme number 01, and BBC2 may not be allocated to programme number 02, etc. The EDIT menu enables you to change the programme position assignment according to your personal preference.

To reach the EDIT menu you have to first select INSTALL menu from the MAIN menu.

CHANGING ORDER OF CHANNELS

Position the cursor to the programme number you want to move and press the remote control GREEN (A5) MOVE button. The programme turns to red colour. Then use the UP (A11) or DOWN (A12) buttons to move the programme number you wish to store it to and press MOVE button again to confirm the operation. Press MENU to return to INSTALL menu.

DELETE PROGRAMME POSITION DATA

Position the cursor to the programme number you wish to delete using the remote control UP (A11) or DOWN (A12) buttons. Press the YELLOW/DELETE (A6) button.

The delete programme is instantly moved to programme N° 99. The programme which was located at N° 99 will automatically move to N° 98.

NAME

CH 4

S4C

CH 4

ITV

BBC 2

BBC 1

-----

PICTURE/OK

C46

C39

C05

C31

C34

C37 C21

EDIT

SKIP

SKIPPING THE CHANNELS

Position the cursor to the programme number you wish to skip, then press the RED (SKIP) (A4) button. A skipped programme is marked with the sign " " at its right end. The channel corresponding to a skipped programme will not appear on screen when changing channels using PROGRAM UP (A11) /

DOWN (A12) buttons.

MANUAL CHANNEL TUNING

PICTURE/OK

Tuning by ATSS (Auto Tuning Sorting System) is recommendable, as it is the easiest tuning method. But Manual Tuning is also possible using the following

procedure.

BROADCASTING SYSTEM SELECTION

Select INSTALL menu and using the remote control CURSOR UP (A11) / DOWN

(A12) buttons, move the cursor to SYSTEM menu and select the appropriate system by the LEFT (A13) or RIGHT (A14) button.

"FRANCE" France SECAM L/L' "GB" Great Britain / Ireland PAL-I/I' "EURO" Westen Europe PAL-SECAM B/G "E/EURO" Eastern Europe PAL-SECAM D/K

ATSS

EDIT

SYSTEM

CHANNEL

FREQUENCY

NAME

PROGRAM

STORE TO

551.25

BBC1

ACTIVATING MANUAL TUNING

Move the cursor to FREQUENCY (channel frequency) menu and press and hold for more than 2 seconds the remote

control CURSOR LEFT (A13) or RIGHT (A14) buttons. When one channel is tuned, the corresponding station name is indicated automatically in NAME menu.

To tune the next channel, press the remote control CURSOR LEFT (A13) or RIGHT (A14) buttons again.

CHANNEL AND FREQUENCY MENU

If you know the channel or frenquency number you want to search, enter the data by 0...9 buttons.

TV will tune that channel quickly.

INSTALL

ENGLISH

C 49

PERFORM FINE TUNING

If you are unable to obtain good picture or reasonable sound volume due to poor reception it is possible to perform fine tuning.

- Select the "FREQUENCY" menu.

- Press for less than 2 seconds, the remote control CURSOR LEFT (A13) and CURSOR RIGHT (A14) buttons to activate FINE TUNING in steps of 0.05 MHz(50kHz).

STORING CHANNEL NAME

When one channel is tuned, the corresponding station NAME will be detected automatically. But in some cases, NAME will not be detected due to the broadcasting situation. You may put in the channel NAME yourself.

Position the cursor to NAME menu and press the remote control CURSOR RIGHT(A14) button. A cursor appears on the

left end of NAME line ("-----"). Then press CURSOR UP (A11) or DOWN (A12) buttons untill you get the right letter or symbol. Move the cursor to the next position by using CURSOR LEFT (A13) or RIGHT (A14) buttons and repeat the operation. Press OK (A9) button to store the NAME.

PROGRAM MENU

The number on the right side of the PROGRAM menu indicates the program number of the currently displayed channel.

STORE TO MENU

Select STORE TO menu and select the program number by 0....9 buttons or CURSOR LEFT (A13) or RIGHT (A14) buttons

to which you want to store the currently displayed channel then press OK button. Warning ! If you store the number already programmed, the previous programmes will be erased automatically.

DAILY USE

SWITCHING ON AND OFF TV SET

SWITCHING ON

If stand-by indicator (B6) is not lit, then the TV set is

powered off.

Switch the set ON with POWER (ON/OFF) Button (B1), then, stand-by indicator turns to red. Press again PROGRAM UP or DOWN buttons (B10) on the front of the set, or POWER button (A2) or UP/DOWN button (A11) or, one of the NUMBER 0...9 button on the remote control, then stand-by indicator turn to green and picture appears on the screen.

If stand-by indicator (B6) is flashing red and green, TV set is in CHILD LOCK mode. To deblock CHILD LOCK, press the remote control POWER button (A2) or one of NUMBER 0...9 buttons (A3) or PROGRAM UP (A11) / DOWN (A12) buttons.

ENGLISH

Note : The front panel PROGRAM UP or DOWN (B10)

button will not function when CHILD LOCK is ON.

SWITCHING OFF

Press POWER button (A2) on the remote control to return the

set to its STAND BY mode. If you don't use the set for an extended period of time, turn it off with MAIN POWER button (B1) on the set.

PROGRAM SELECTION (FROM 0 TO 99)

DIRECT SELECTION

Use the remote control NUMBER 0..9 buttons (A3). For two digit program numbers, enter the second digit within 2 seconds.

From AV mode, you can select TV program directly by pressing remote

control 0.....9 buttons (A3).

UP/DOWN SELECTION

Use the remote control PROGRAM UP (A11) / DOWN (A12) buttons or the TV set front panel PROGRAM UP / DOWN buttons (B9).

SPATIAL

STEREO

18:20

SOUND CONTROL

Volume adjustment

Use the remote control VOLUME UP (A14) / DOWN (A13) buttons or the TV set front panel VOLUME UP / DOWN buttons (B9).

Mono forcing, dual language

- If you are unable to get good sound quality for a program due to poor reception, you can force a change from stereo to mono transmission by pressing the remote control MODE button (A26). Then the program status display will indicate "MONO" in red.

I/II

Mute

- Mute the sound by pressing the remote control SOUND

MUTE button (A1).

- Then, logo is displayed. The previous sound setting is returned after pressing the same button a second time.

- If a sound related function is used (e.g. VOLUME, ) then the MUTE will also be cancelled.

Sound effects

A SPATIAL sound effect is available, by using the remote control (A5) button.

PICTURE/OK

The following display appears:

Spatial sound effect Sound transmission mode Clock

ENGLISH

To return to initial sound effect, press again the (A5) button.

The following display appears:

- On the other hand, during a program with dual

language transmission, the MODE button (A26) allows you to toggle between the first and second language. The program status display will indicate "DUAL 1" or "DUAL 2" (plus NICAM according to the received signal) instead of Stereo or Mono.

- To return to initial state, press again the MODE

button (A26).

For other adjustments such as BASS or TREBLE, BALANCE, use the SOUND menu (here under).

OFF

STEREO

18:20

SOUND MENU

Select SOUND menu from the MAIN menu.

- Select VOLUME function to adjust the volume level.

- Select the BASS and TREBLE functions to adjust the tone levels.

- Select BALANCE function to adjust sound balance between the

left and right speakers. If the indicator is highlighted in red, then the central balance position has been found.

No sound effect Sound transmission mode Clock

SOUND

VOLUME

BASS

TREBLE

BALANCE

PICTURE CONTROL

BRIGHTNESS

CONTRAST

COLOUR

SHARPNESS

TINT

Select PICTURE menu from the MAIN menu.

- Select and adjust the level of each function: BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, TINT (see below).

- The above modified values are automatically stored in FAVOURITE mode.

- The FAVOURITE preset contains the settings that you lastly entered.

If the NTSC standard is detected (eg from VHS player connected to EXT-1), then TINT indicator will appear and you can adjust TINT. Otherwise, TINT will not be displayed.

PICTURE/OK

%%&

1250$/,



You can select three pictures settings, by pressing repeatedly the remote control PICTURE/OK button (A9) :

- NORMAL I (standard hard picture)

- NORMAL II (standard soft picture)

- FAVORITE.

%%&

1250$/,,



PROGRAM STATUS DISPLAY (INFORMATION)


ENGLISH

01 BBC1

FAVOURITE

11:11

Use the remote control i button (A24) to display (for 4 seconds only) program status information. This display appears also after a program selection or after switching on the TV set.

Channel number

01 BBC1

STEREO

Clock

11:11

Channel name

Sound transmission Mode:

In case Mono is forced by MODE button (A26), then it is displayed in red color. (see page 7)

SLEEP FUNCTION

The set will turn off (to stand-by mode) after a period of time that you can select. By pressing repeatedly the remote control YELLOW button (A6), you can enter one of the following settings :

OFF > 20 min > 40 min > 60 min > 80 min > 100 min > 120 min > OFF

The SLEEP time remaining (before TV turn-off) can be seen again at any time by one touch on the remote control YELLOW button (A6). A second touch (while the status display is on screen) will modify the SLEEP time remaining.

01 BBC1

STEREO

SLEEP

Remaining time (in minutes) before the TV switches off

FORMAT SELECTION

AUTO setting: If picture format signalling data is received, then the most appropriate ZOOM format will be automatically

selected. Otherwise, the preferred mode of the user can be forced by repeated pressing of the remote control ZOOM button (A4): The following picture formats are available:

AUTO > FULL SCREEN > 14:9 > 16:9 > AUTO.

FEATURES MENU

Select the FEATURES MENU from the main MENU as follows :

PICTURE/OK

Press on the button MENU Position cursor on FEATURES menu Press on the OK button

FEATURES menu contains the following sub-menus.

1. LANGUAGE selection (see below).

2. When CHILD LOCK is set to ON,

Prevents the use of the TV set without remote control.

3. TV Clock setting

When TV is turn on with MAIN POWER

button (B1), clock will be set automatically with Program N° 1 teletext signal, if transmitted.

IfyouturnofftheTVwithMAINPOWER

button, the clock setting is lost.

4. Wake up function

This function is available when the clock is set and TV is set in stand-by mode. The TV sets turns on automatically at the WAKE TIME and with the WAKE UP TV programme number entered.

5. Shared with WAKE TIME.

6. Noise Reduction is picture noise reduction

feature.

LANGUAGE

CHILD LOCK

CLOCK

WAKE TIME

WAKE PROG.

NOISE RED.

FEATURES

OFF

14:30

07:15

1. The currently selected LANGUAGE is

displayed. Press CURSOR LEFT (A13) / RIGHT (A14) to change the selection.

2. Adjust this value ON or OFF.

- In stand-by mode, the stand-by indicator flashes red and green to indicate the CHILD LOCK is set.

- The front panel TV buttons (B10) become inactive and the TV will only respond to the remote control.

3. TV clock timer can be also entered manually. By manual clock setting, clock will start at 00 seconds upon entry of the 4th figure.

4. - Switch the WAKE UP function 'OFF' or

'ON' (the time will be shown e.g. 07:15) with the remote control CURSOR LEFT (A13) / RIGHT (A14) buttons.

-Enterthewakeuptimewiththeremote control 0..9 NUMBER (A3) buttons.

5. Select WAKE UP TV program number.

6. Adjust to be ON or OFF.

- When ON, the Noise Reduction is active

for all programs (0 to 99).

- When OFF, the function is inactive.

ENGLISH

LANGUAGE SELECTION

Select LANGUAGE selection from the FEATURES menu.

The following languages are available :

BG>CZ>>D>DK>E>F>FIN>GB>GR>H>I>N>NL>PL>RO>RUS>S>SK

- Select the preferred LANGUAGE by use of the CURSOR LEFT (A13), RIGHT (A14) buttons.

- Press MENU button twice to confirm the selection and exit from the MENU. Note : The languages shown are subject to modification without prior notice.

TELETEXT

ENTERING/LEAVING TELETEXT MODE

- Set the VCR / / DVD switch (A25) to the (teletext) position.

- Press the remote control TELETEXT ( ) button (A8) to select teletext mode.

- To return to TV mode, press again the TELETEXT ( ) button (A8).

- Note : Some of the buttons may not work if the VCR / / DVD switch is not set to the

(teletext) position.

PAGE SELECTION

- You can directly enter the 3 figure page number by using the remote control NUMBER 0..9 buttons (A3).

- You can sequentially select teletext pages by pressing the remote control PAGE UP (A11) / DOWN (A12) buttons.

COLOUR buttons FOR TELETEXT

- A red, green, yellow, and blue field is shown at the bottom of the screen. If TOP or FLOF teletext (FASTTEXT) is transmitted by the station, pressing the corresponding colour button on the remote controller, you can select the desired page easily.

Once a request is made, the page number is shown in the extreme top left corner of the screen. If the requested page is not immediately available the rolling header will be active until the page arrives.

PICTURE/OK

ENGLISH

USEFUL TELETEXT FUNCTIONS

INDEX button (A23)

Allows you to return directly to the initial teletext page.

PAGE HOLD button (A16)

Several sub pages can be combined under a page number and are scrolled at an interval determined by the television station. The presence of sub pages is indicated by, for example, 3/6 beneath the time, which means that you are looking at the 3rd page of a total of 6 pages. If you want to look at a subpage for a longer period of time, press the HOLD button. " HOLD " appears at the top of the screen and the contents of the subpage shown are kept on the screen and no longer updated or switched to other subpages. Pressing the HOLD button again, the current subpage appears.

SUBPAGE button (A24)

Allows you to request a specific subpage:

- Press the SUBPAGE button. The letter before the page number in the teletext will change from "P" to "S" to indicate that the

subpage fuction is active.

- In place of the telext clock, in the top right hand corner of the display, --:-- will appear in red. This is ready to accept the

subpage number.

- Enter directly the subpage number you want with the remote control NUMBER 0..9 buttons (A3): for example to request the

2nd subpage, type 0002.

- The clock will then be replaced in the header. Once found, only the requested subpage will be displayed.

- At any time, another subpage number can be entered with the remote control NUMERO 0...9 (A3), and new figures displayed

in place of the clock.

- To exit subpage mode, press the SUBPAGE button (A24) again. The letter before the page number will change back from

"S" to"P" again.

Warning: If the subpage does not exist, then the rolling header will roll continuously and no new page will be found.

DOUBLE SIZE button

Repeadly pressing the SIZE button doubles the character size in the following order :

Upper half of the page> Lower half of the page > Return to normal size

(A19)

REVEAL ANSWER button

This fonction can be used on certain pages to reveal the solution of riddles. Press the REVEAL button to reveal a hidden answer and press again to hide it.

(A18)

VOLUME, BRIGHTNESS CONTROL

VOLUME (and sound MUTE), BRIGHNESS controls are all possible in teletext mode. The BRIGHTNESS control is dedicated to the teletext display.

Volume change is always possible, but brightness control is only possible if teletext covers all of the screen (eg. brightness is disabled when teletext is being used for subtitles).

- Access the VOLUME control by pressing the MENU button (A10) in teletext mode.

- A bargraph will appear at the base of screen. A second press on the MENU button (A10) will access the BRIGHTNESS

control (if available).

- Then, the brightness or volume can be adjusted by using the remote control CURSOR RIGHT (A14) / LEFT (A13) buttons.

ME N U

ENGLISH

- Mute can be activated in teletext mode at any time by pressing the SOUND MUTE button (A1).

- If volume mute is active, the volume bargraph indicator will flash.

- Any change to the volume level will cancel the volume mute.

WATCHING TV WHILE PAGE SEARCHING

The CANCEL function can be used to make the teletext page transparent, thus revealing the TV picture:

- To enter cancel mode, press the CANCEL button (A22) while in teletext mode. The TV

program will reappear on the screen, while only the teletext header remains at the top of the screen.

- If you enter a new page number in this mode: the requested page number will be in red and the page number in the header will be rolling. Once the page entered has arrived, the rolling number will stop and the requested page number will return to cyan.

- The teletext page can be made visible again by pressing the CANCEL button (A22).

- It should be noted that the TV program cannot be changed while teletext is active, or in cancel mode.

WATCHING TV WITH TELETEXT SUBTITLES

If the actual teletext page is a news flash or subtitle page, then most of the TV picture becomes visible.

CONNECTING EXTERNAL EQUIPMENT

The rear Scart EXT-1, Scart EXT-2 sockets, the front EXT -3 socket are three dedicated sockets to connect audio-video equipment.

TV/AV SELECTION

Rear

VCR / DVD / Video Game / Pay-TV decoder

Important: If your video equipment does not have SCART socket(s), or if you wish to

use only the aerial (RF) connection (not recommended), then you should make use of program number 00 on the TV set for best performance.

Allows to switch between TV and external modes. By repeatedly pressing the remote control AV (A15) or the TV front panel TV /AV button (B8), the on-screen display is changed as shown :

EXT-1 > EXT-2 > EXT-2 S > EXT-3 > EXT-3 S > TV (AV-29FT1 model) EXT-1 > EXT-2 > EXT-2 S > EXT-3 > TV (AV-21FT1 model)

Remark: If the signal source from the rear SCART socket (EXT-1) is RGB (e.g.normally from a DVD player)

ENGLISH

AERIAL socket

ANT

EXT- 1

EXT- 2

( S )

REAR SCART SOCKET (EXT-2)

REAR SCART SOCKET (EXT-1)

This socket has video / audio inputs and outputs. It is recommended to connect to this socket automatic AV switching equipment such as pay-TV decoders, video games, DVD players and most VCR's.

In most cases, when connecting powered equipment to this socket, the TV set switches automatically to AV mode. If not, then use the AV buttons (A15 or B8) to select EXT-1.

This socket has video / audio inputs and outputs. Automatic AV switching equipment (for example most VCR's) can be connected to this socket. In most cases, when connecting powered equipment to this socket, the TV set switches automatically to AV mode. If not, then use the AV buttons (A15 or B8) to select EXT-2.

You can also receive an S-VHS signal by selecting EXT-2 S with the AV buttons (A15 or B8).

Front

FRONT AV SOCKET (EXT-3)

The front AV socket has audio and video inputs. Without the video input connection, audio output is not available. To switch from TV to these inputs, use the AV buttons (A15 or B8) and select EXT-3.

Note (ONLY FOR AV-29FT1 MODEL): Do not connect the cables to front video input and S-video input at the same time. If do so, picture will not be displayed properly.

$9)702'(/

FRONT S-VHS JACK

The front S-VHS jack (B2) has video inputs only. It is necessary to connect the audio inputs to socket (B4) in order to have audio and video. To watch TV from these inputs, use the AV buttons (A15 or B8) and select EXT-3 S.

$9)702'(/

HEADPHONE SOCKET

To hear TV sound with headphones, insert a 3.5mm headphone plug into the headphone socket. The speaker's sound will be automatically cut off.

VIDEO GAMECAMCORDER

TROUBLESHOOTING

z If the plug is disconnected from the AC socket, or the TV aerial has problems, you may think there is a problem with the TV itself. Be sure to check the following before calling for service.

IMP O R TA NT

z Review all instruction in this manual

PROBLE M

ACTION

 GENERAL

 PICTURE

The TV cannot be turned on.

No picture or sound.

The TV shuts off automatically.

The TV turns on automatically.

Inoperable remote control.

Poor colour.

z Insert the plug in an AC socket. z Turn the main power on. (See page 3) z The buttons on the front panel of the TV will not work if the CHILD LOCK

is operating (see FEATURES menu, on page 9). Use the POWER button on the remote control to turn the TV on.

z Check aerial connections. (See page 3). z Select the correct input source (See page 12). z Change the SYSTEM setting manually (see Manual Channel Tuning on

page 5).

z Did you set the SLEEP function? (See page 8). z If the broadcast signal is not present for about 30 minutes, the set will be

automatically turned off.

z For safety reasons, the TV will automatically turn off if no operations are

made within approximately 3 hours after the TV is turned on with the WAKE UP function.

z Did you set the WAKE UP function? (See page 9).

z Replace the batteries. (See page 3). z Insert the batteries correctly. (See page 3). z Use the remote control within about 7 metres of the TV.

z Change the SYSTEM setting manually (see Manual Channel Tuning on

page 5).

ENGLISH

z Move any external equipment away until the interference is eliminated. z Reposition the aerial.

z Reposition the aerial. z Replace with an aerial with better directionality.

z Check aerial connections. z Redirect the aerial. z Replace or repair the aerial.

z Disconnect the headphones.

 SOUND

Lines or streaks in picture (interference)

Spots (crosstalk)

Double pictures (ghosts)

Snowy pictures (noise)

No sound from the TV's speakers

The following are normal and are NOT malfunctions:

z When touching the picture tube surface, you might feel a slight charge of static electricity. This is because the picture tube contains static electricity; it does not affect the human body.

z The TV may emit a crackling sound due to a sudden change of temperature. There is no problem unless the picture or sound is abnormal.

z When a still, bright image (of a white dress, for example) appears on the screen, the image may be coloured. This problem occurs in all picture tubes, and as the bright image disappears, the colour also disappears.

z This TV is equipped with a microcomputer that may operate abnormally due to interference from external equipment. If this happens, turn off the main power and disconnect the power cord from the AC socket. Then reconnect the power cord to the AC socket and turn on the main power again.

SPECIFICATIONS

Item

Broad casting systems Colour systems

Channels and frequencies

Sound-multiplex systems Teletext systems Power requirements

Power consumption

Picture tube size

Audio output

Ext-1 terminal

Ext-2 terminal

Ext-3 terminal

Headphone jack

Dimensions (W x H x D )

Weight

Remote control unit

Model

AV-21FT1SUG / AV-21FT1BUG

CCIR B/G, I , D/K, L/L' PAL, SECAM The EXT terminals also s upport the NTSC 3.58/4.43 MHz system.

* E 2-E12, E21-E70, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY H+2, F2-F10,

F21-F70, R1-R12, R21-R70

* F rench cable T V channel of broadcast frequencies 116 - 172 MHz and 220 - 469 MHz

A2 (B/G, D/K), NICAM (B/G, D/K, I, L) systems FLOF (Fastext) / TOP / WST (World s tandard s ystem AC 220-240V, 50 Hz

59W, s tand-by 3W

Visible area 51cm (measured diagonally

Rated P ower output: 4.5W + 4.5W

Euroconnector (21-pin,SCART)

input, Audio L /R inputs and RGB inputs are available

* Video

* TV broadcast outputs (Video and Audio L/R) are a vailable.

Euroconnector (21-pin, SCART)

* V ideo input, S-VIDEO (Y/C) input, A udio L/R inputs are available

* V ideo and Audio L/R outputs are available

RCA connerctors x 3

* V ideo input and Audio L/R inputs are

available.

Stereo mini-jack (3.5mm in diameter)

626 mm x 472 mm x 473 mm

23 kg

RM-C1514, battery AA / R 6 x 2

)

AV-29FT1SUG / AV-29FT1BUG

)

AC 230-240V, 50 Hz

72W, s tand-by 3W

Visible area 68cm (measured diagonally

Rated P ower output: 7W + 7W

RCA connerctors x 3 S-VIDEO connector x 1 * V ideo input, S-VIDEO (Y/C) input and Audio L /R inputs are available.

812 mm x 600 mm x 522 mm

46 kg

ENGLISH

)

Design and s pecifications are subject to change without notice

Pictures displayed on the s creen using this T V's image processing functions s hould not be shown for any commercial or demonstration purpose in public places (tearooms and halls in hotels, etc.) withoutthe consent of the owners of copyright of the original picture sources, as this constitutes an infringement of c opyright.

JVC AV-21FT1SUG, AV-29FT1SUG, AV-29FT1BUG User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

IDENTITY OF LOCAL & REMOTE CONTROL

LOCAL CONTROL

REMOTE CONTROL

INSTALLATION

AUTO TUNING SYSTEM

EDIT MENU

MANUAL CHANNEL TUNING

DAILY USE

SWITCHING ON AND OFF TV SET

PROGRAM SELECTION (FROM 0 TO 99)

SOUND CONTROL

SOUND MENU

PICTURE CONTROL

PROGRAM STATUS DISPLAY (INFORMATION)

SLEEP FUNCTION

FORMAT SELECTION

FEATURES MENU

LANGUAGE SELECTION

TELETEXT

ENTERING/LEAVING TELETEXT MODE

PAGE SELECTION

USEFUL TELETEXT FUNCTIONS

VOLUME, BRIGHTNESS CONTROL

WATCHING TV WHILE PAGE SEARCHING

WATCHING TV WITH TELETEXT SUBTITLES

CONNECTING EXTERNAL EQUIPMENT

TROUBLESHOOTING

SPECIFICATIONS
