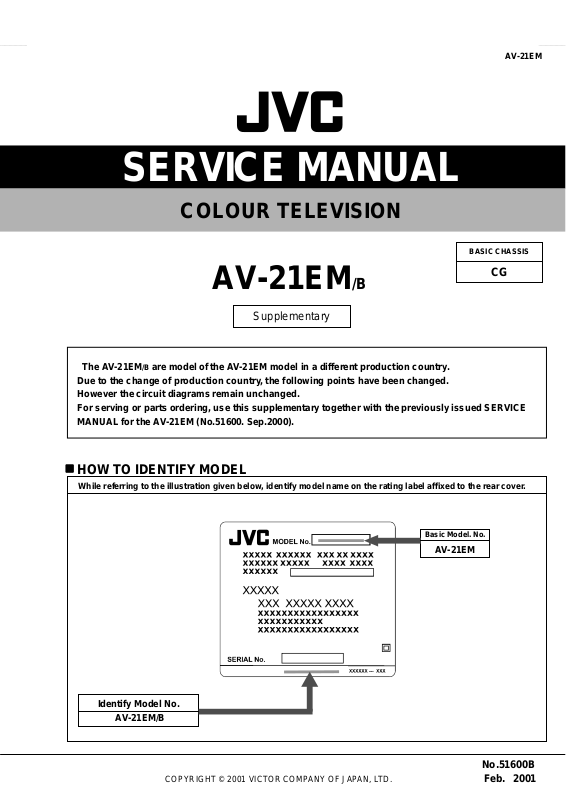

SERVICE MANUAL

COLOUR TELEVISION

AV-21EM

Supplementary

AV-21EM

BASIC CHASSIS

The AV-21EM Due to the change of production country, the following points have been changed. However the circuit diagrams remain unchanged. For serving or parts ordering, use this supplementary together with the previously issued SERVICE MANUAL for the AV-21EM (No.51600. Sep.2000).

HOW TO IDENTIFY MODEL

!!!!

While referring to the illustration given below, identify model name on the rating label affixed to the rear cover.

are model of the AV-21EM model in a different production country.

Basic Model. No.

AV-21EM

Identify Model No.

AV-21EM/B

No.51600B

Feb. 2001

CHANGED PARTS LIST

Ref.

No. AV-21EM

Parts No.

#EXPLODED VIEW PARTS LIST (Page.2)

1 GG10048-003A-C

12 GG10049-002A-C

13 LC-20748-001A-C

GG10048-003A-H GG10049-002A-H

LC20377-001B-H

#PACKING PARTS LIST (Page.4)

1 LC10660-006A-C

2 LC40830-001A-C

3 GG10117-001B-C

4 LC31224-001A-C

6 LC31262-001A-C

7 LCT0907-001A-C

8 　　　　CP30992-001-C

GG10056-038A-H CM47385-00B-H GG10117-002A-H CP30967-003H CP30966-001-H LCT0907-002A-H

————————————

AV-21EM/B

Part Name Remarks

Front Cabinet Interchangeable

Rear Cover

Rating Label Not Interchangeable

Packing Case Not Interchangeable

Pos. Serial Label Not Interchangeable

Cushion Assy Interchangeable

Poly Bag Interchangeable

Poly Bag

Inst. Book Interchangeable

Top Cover Delete

↑

VICTOR COMPANY OF JAPAN, LIMITED

HOME AV NETWORK BUSINESS UNIT 1106 Heta, Iwai-city, Ibaraki-prefecture, 306-0698, Japan

AV21EMB/H #4

VP0102 DP1057
