JVC AV-20N83/BK, AV-20N83/VT, AV-21D83/BK, AV-21D83/VT Parts List

AV-20N83 AV-21D83

PARTS LIST

CAUTION

q The parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the

safety .

q The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied . q P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied .

ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

C R Carbon Resistor

F R Fusible Resistor

P R Plate Resistor

V R Variable Resistor

HV R High Voltage Resistor

MF R Metal Film Resistor

MG R Metal Glazed Resistor

MP R Metal Plate Resistor

OM R Metal Oxide Film Resistor

CMF R Coating Metal Film Resistor

UNF R Non-Flammable Resistor

CH V R Chip Variable Resistor

CH MG R Chip Metal Glazed Resistor

COMP. R Composition Resistor

LPTC R Linear Positive Temperature Coefficient Resistor

C CAP. Ceramic Capacitor

E CAP. Electrolytic Capacitor

M CAP. Mylar Capacitor

CH CAP. Chip Capacitor

HV CAP. High Voltage Capacitor

MF CAP. Metalized Film Capacitor

MM CAP. Metalized Mylar Capacitor

MP CAP. Metalized Polystyrol Capacitor

PP CAP. Polypropylene Capacitor

PS CAP. Polystyrol Capacitor

TF CAP. Thin Film Capacitor

MPP CAP. Metalized Polypropylene Capacitor

TAN. CAP. Tantalum Capacitor

CH C CAP. Chip Ceramic Capacitor

BP E CAP. Bi-Polar Electrolytic Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor

CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor

CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor

RESISTORS

FGJKMNRHZP

±1% ±2% ±5% ±10% ±20% ±30%

No. 52076 41

+30% +50% +80% +100%

-10% -10% -20% 0%

AV-20N83 AV-21D83

USING P.W. BOARD & REMOTE CONTROL UNIT

AV-20N83 AV-21D83

P. W.B ASS’Y

MAIN PWB (include CRT SOCKET PWB) SCH-1090A-BK SCH-1122A-BK SCH-1315A-CK SCH-1316A-CK REMOTE CONTROL UNIT RM-C1017-1H RM-C1027-1H

Model

EXPLODED VIEW PARTS LIST -1 [AV-20N83

!

Ref.No. Part No. Part Name Description Local

16 LC10438-028A-H FRONT CABI [AV-20N83/BK] 16 LC10438-034A-HK FRONT CABI [AV-20N83/VT] 17 LC30665-001A-H REMOCON LENS 18 LC30663-003A-H POWER KNOB 19 LC20318-003A-H CONTROL KNOB 20 LC30664-001B-H E.E. WINDOW 21 CM48006-007-C JVC MARK 22 CM35235-003-H SPRING

AV-20N83/BK

AV-21D83/BK AV-21D83/VT AV-20N83/VT

/BK

, AV-20N83

/VT

]

EXPLODED VIEW -1 [AV-20N83/BK, AV-20N83/VT]

19

16

21

20

22

18

17

No. 52076 43

AV-20N83

EXPLODED VIEW PARTS LIST -2 [AV-20N83

!

Ref.No. Part No. Part Name Description Local

! V01 A48LWX10X PICTURE TUBE [AV-20N83/BK] ! V01 A48JLL91X01 PICTURE TUBE (ITC) Inc. DEF YOKE [AV-20N83/VT] ! L01 QQW0156-001 DEG COIL ! DY01 QQD0081-001 DEFLECTION YOKE [AV-20N83/BK] ! T1551 QQH0143-001 FBT [AV-20N83/BK] ! T1551 QQH0142-001 FBT [AV-20N83/VT] ! 1 QMPR420-165-K2 POWER CORD [AV-20N83/BK] ! 1 QMPR400-200-JC POWER CORD [AV-20N83/VT]

! 2 CM47005-A01-H CORD CLAMP

3 CM36623-B01-H CHASSIS RAIL (X2) 4WJY0008-002A BRAIDED ASS’Y 5 A48457-3-H SPRING 6 A75034-B PC MAGNET [AV-20N83/BK] 7 CE40764-00A WEDGE ASS’Y (X3) [AV-20N83/BK] 8 QAS0101-001 SPEAKER (X2) SP01, SP02 9 QYSBSF4012Z TAPPING SCREW (X4)

10 QYSBSF4012Z TAPPING SCREW (X4) [AV-20N83/BK]

! 11 LC10448-005A-H REAR COVER [AV-20N83/BK] ! 11 LC10448-005A-HK REAR COVER [AV-20N83/VT]

12 QYSBSFG4016Z TAPPING SCREW (X6) 13 QYSBSF3010Z TAPPING SCREW (X4)

! 14 GG20029-001A-H RATING LABEL

15 CM48144-002-H PB STOPPER

/BK

, AV-20N83

/VT

]

44 No. 52076

EXPLODED VIEW -2 [AV-20N83/BK, AV-20N83/VT]

!

V101

AV-20N83

10

9

8

10

!

DY01

7

6

3

!

2

1

!

11

8

!

T1551

15

9

!

L01

5

4

13

No. 52076 45

12

!

14

AV-21D83

EXPLODED VIEW PARTS LIST -3 [AV-21D83

!

Ref.No. Part No. Part Name Description Local

16 LC11129-024A-H FRONT CABI [AV-21D83/BK] 16 LC11129-025A-HK FRONT CABI [AV-21D83/VT] 17 GG30021-002A-H LED LENS 18 GG30019-003A-H POWER KNOB 19 GG20006-003A-H CONTROL KNOB 20 GG30020-001A-H E.E. WINDOW 21 GG40023-001A-H JVC MARK 22 CM35235-003-H SPRING

/BK

, AV-21D83

EXPLODED VIEW -3 [AV-21D83/BK, AV-21D83/VT]

/VT

]

16

19

21

20

46 No. 52076

18

17

22

AV-21D83

EXPLODED VIEW PARTS LIST -

!

Ref.No. Part No. Part Name Description Local

! V01 A51LMV10X PICTURE TUBE [AV-21D83/BK] ! V01 A51JSW51X07 PICTURE TUBE (ITC) Inc. DEF YOKE [AV-21D83/VT] ! L01 QQW0157-001 DEG COIL ! DY01 CE20336-00A DEFLECTION YOKE [AV-21D83/BK] ! T1551 QQH0142-001 FBT ! 1 QMPR420-165-K2 POWER CORD [AV-21D83/BK] ! 1 QMPR400-200-JC POWER CORD [AV-21D83/VT] ! 2 CM47005-A01-H CORD CLAMP

3 CM36623-B01-H CHASSIS RAIL (X2) 4 CHGB0028-0A BRAIDED ASS’Y 5 A48457-3-H SPRING (X2) 6 A75034-B PC MAGNET [AV-21D83/BK] 7 CE42728-00A WEDGE ASS’Y (X3) [AV-21D83/BK] 8 QAS0101-001 SPEAKER (X2) SP01, SP02 9 QYSBSB4012Z TAPPING SCREW (X4) 10 QYSBSB4012Z TAPPING SCREW (X4) [AV-21D83/VT]

! 11 GG10130-001A-H REAR COVER [AV-21D83/BK] ! 11 GG10130-011A-HK REAR COVER [AV-21D83/VT]

12 QYSBSFG4016Z TAPPING SCREW (X7) 13 QYSBSF3010Z TAPPING SCREW (X4)

! 14 GG20029-001A-H RATING LABEL [AV-21D83/BK] ! 14 GG20016-025A-E RATING LABEL [AV-21D83/VT]

15 CM48144-002-H PB STOPPER

15

[AV-21D83

/BK

, AV-21D83

/VT

]

No. 52076 47

AV-21D83

EXPLODED VIEW -15 [AV-21D83/BK, AV-21D83/VT]

!

V01

10

!

DY01

7

6

3

9

!

2

8

10

!

3

1

!

8

T1551

15

9

!

11

!

L01

4

5

48 No. 52076

12

!

14

13

AV-20N83

PRINTED WIRING BOARD PARTS LIST [AV-20N83/BK]

MAIN PW BOARD ASS’Y (SCH-1090A-BK)

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

RESISTOR

R1001 NRSA63J-221X MG R 220¸ 1/16W J R1002 NRSA63J-221X MG R 220¸ 1/16W J R1003 NRSA63J-392X MG R 3.9k¸ 1/16W J R1004 NRSA63J-221X MG R 220¸ 1/16W J R1005 QQR1214-001Y FERRITE BEADS R1006 NRSA63J-273X MG R 27k¸ 1/16W J R1007 NRSA63J-750X MG R 75¸ 1/16W J R1101 NRSA63J-100X MG R 10¸ 1/16W J

R1102 NRSA63J-682X MG R 6.8k¸ 1/16W J R1103 NRSA63J-272X MG R 2.7k¸ 1/16W J R1104 NRSA63J-181X MG R 180¸ 1/16W J R1105 NRSA63J-220X MG R 22¸ 1/16W J R1106 NRSA63J-101X MG R 100¸ 1/16W J R1107 NRSA63J-472X MG R 4.7k¸ 1/16W J R1108 NRSA63J-222X MG R 2.2k¸ 1/16W J R1109 NRSA63J-222X MG R 2.2k¸ 1/16W J

R1111 NRSA63J-102X MG R 1k¸ 1/16W J R1117 NRSA63J-102X MG R 1k¸ 1/16W J R1130 NRSA63J-472X MG R 4.7k¸ 1/16W J R1131 NRSA63J-471X MG R 470¸ 1/16W J R1132 NRSA63J-222X MG R 2.2k¸ 1/16W J R1133 NRSA63J-152X MG R 1.5k¸ 1/16W J R1134 NRSA63J-182X MG R 1.8k¸ 1/16W J R1135 NRSA63J-561X MG R 560¸ 1/16W J

R1136 NRSA63J-472X MG R 4.7k¸ 1/16W J R1137 NRSA63J-103X MG R 10k¸ 1/16W J R1138 NRSA63J-471X MG R 470¸ 1/16W J R1139 NRSA63J-222X MG R 2.2k¸ 1/16W J R1140 NRSA63J-152X MG R 1.5k¸ 1/16W J R1141 NRSA63J-182X MG R 1.8k¸ 1/16W J R1142 NRSA63J-561X MG R 560¸ 1/16W J R1143 NRSA63J-471X MG R 470¸ 1/16W J

R1144 NRSA63J-220X MG R 22¸ 1/16W J R1145 NRSA63J-821X MG R 820¸ 1/16W J R1146 NRSA63J-103X MG R 10k¸ 1/16W J R1147 NRSA63J-101X MG R 100¸ 1/16W J R1148 NRSA63J-332X MG R 3.3k¸ 1/16W J R1301 NRSA63J-222X MG R 2.2k¸ 1/16W J R1302 NRSA63J-222X MG R 2.2k¸ 1/16W J R1303 NRSA63J-562X MG R 5.6k¸ 1/16W J

R1304 NRSA63J-222X MG R 2.2k¸ 1/16W J R1305 NRSA63J-222X MG R 2.2k¸ 1/16W J R1306 NRSA63J-562X MG R 5.6k¸ 1/16W J R1351 NRSA63J-151X MG R 150¸ 1/16W J R1352 QRL029J-123 OM R 12k¸ 2W J R1353 NRSA63J-182X MG R 1.8k¸ 1/16W J R1354 NRSA63J-331X MG R 330¸ 1/16W J R1355 NRSA63J-101X MG R 100¸ 1/16W J

R1356 QRE121J-102Y C R 1k¸ 1/2W J R1357 QRZ0107-152Z C R 1.5k¸ 1W K R1358 QRE121J-272Y C R 2.7k¸ 1/2W J R1359 QRE121J-561Y C R 560¸ 1/2W J R1361 NRSA63J-151X MG R 150¸ 1/16W J R1362 QRL029J-123 OM R 12k¸ 2W J R1363 NRSA63J-182X MG R 1.8k¸ 1/16W J R1364 NRSA63J-331X MG R 330¸ 1/16W J

R1365 NRSA63J-101X MG R 100¸ 1/16W J R1366 QRE121J-102Y C R 1k¸ 1/2W J R1367 QRZ0107-152Z C R 1.5k¸ 1W K R1368 NRSA63J-332X MG R 3.3k¸ 1/16W J

! R1369 QRZ9017-150 F R 15¸ 1/4W J

R1370 NRSA63J-151X MG R 150¸ 1/16W J R1371 QRL029J-123 OM R 12k¸ 2W J R1372 NRSA63J-182X MG R 1.8k¸ 1/16W J

R1373 NRSA63J-331X MG R 330¸ 1/16W J R1374 NRSA63J-101X MG R 100¸ 1/16W J R1375 QRE121J-102Y C R 1k¸ 1/2W J R1376 QRZ0107-152Z C R 1.5k¸ 1W K R1377 NRSA63J-330X MG R 33¸ 1/16W J R1378 NRSA63J-223X MG R 22k¸ 1/16W J R1379 NRSA63J-103X MG R 10k¸ 1/16W J R1383 QRE121J-394Y C R 390k¸ 1/2W J

RESISTOR

R1384 NRSA63J-103X MG R 10k¸ 1/16W J R1385 QRE141J-393Y C R 39k¸ 1/4W J R1401 NRSA63J-224X MG R 220k¸ 1/16W J R1403 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1405 NRSA63J-682X MG R 6.8k¸ 1/16W J R1406 NRSA63J-123X MG R 12k¸ 1/16W J R1408 NRSA63J-682X MG R 6.8k¸ 1/16W J R1410 NRSA63J-123X MG R 12k¸ 1/16W J

R1411 QRG01GJ-221 OM R 220¸ 1W J R1412 QRE121J-1R0Y C R 1¸ 1/2W J R1413 QRX01GJ-3R9 MF R 3.9¸ 1W J R1414 QRE121J-680Y C R 68¸ 1/2W J R1425 NRSA63J-683X MG R 68k¸ 1/16W J R1521 NRSA63J-101X MG R 100¸ 1/16W J R1522 NRSA63J-102X MG R 1k¸ 1/16W J R1524 QRL039J-220 OM R 22¸ 3W J

R1526 QRG01GJ-181 OM R 180¸ 1W J R1527 QRL039J-103 OM R 10k¸ 3W J R1528 QRX029J-R47 MF R 0.47¸ 2W J R1529 QRX029J-R47 MF R 0.47¸ 2W J R1531 NRSA63J-222X MG R 2.2k¸ 1/16W J

! R1532 QRZ9017-4R7 F R 4.7¸ 1/4W J ! R1540 QRZ9021-4R7 F R 4.7¸ 1W J

R1541 QRE121J-124Y C R 120k¸ 1/2W J

R1542 QRE121J-334Y C R 330k¸ 1/2W J R1545 QRE121J-220Y C R 22¸ 1/2W J R1546 QRE121J-822Y C R 8.2k¸ 1/2W J R1591 QRE121J-222Y C R 2.2k¸ 1/2W J R1594 QRE121J-223Y C R 22k¸ 1/2W J R1595 NRSA63J-222X MG R 2.2k¸ 1/16W J R1596 QRT029J-1R8 MF R 1.8¸ 2W J R1597 QRT029J-1R5 MF R 1.5¸ 2W J

R1621 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1622 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1624 NRSA63J-101X MG R 100¸ 1/16W J R1625 NRSA63J-101X MG R 100¸ 1/16W J R1627 NRSA63J-102X MG R 1k¸ 1/16W J R1650 NRSA63J-103X MG R 10k¸ 1/16W J R1651 NRSA63J-153X MG R 15k¸ 1/16W J R1654 NRSA63J-103X MG R 10k¸ 1/16W J

R1655 NRSA63J-153X MG R 15k¸ 1/16W J R1658 QRE121J-2R2Y C R 2.2¸ 1/2W J R1659 QRE121J-2R2Y C R 2.2¸ 1/2W J R1660 NRSA63J-103X MG R 10k¸ 1/16W J R1661 NRSA63J-683X MG R 68k¸ 1/16W J R1662 NRSA63J-333X MG R 33k¸ 1/16W J R1663 NRSA63J-103X MG R 10k¸ 1/16W J R1664 NRSA63J-222X MG R 2.2k¸ 1/16W J

R1686 NRSA63J-102X MG R 1k¸ 1/16W J R1687 NRSA63J-103X MG R 10k¸ 1/16W J R1688 NRSA63J-273X MG R 27k¸ 1/16W J R1690 NRSA63J-104X MG R 100k¸ 1/16W J R1698 NRSA63J-104X MG R 100k¸ 1/16W J R1699 NRSA63J-104X MG R 100k¸ 1/16W J R1701 NRSA63J-101X MG R 100¸ 1/16W J R1702 NRSA63J-101X MG R 100¸ 1/16W J

R1703 NRSA63J-101X MG R 100¸ 1/16W J R1704 NRSA63J-102X MG R 1k¸ 1/16W J R1705 NRSA63J-102X MG R 1k¸ 1/16W J R1706 NRSA63J-102X MG R 1k¸ 1/16W J R1707 NRSA63J-472X MG R 4.7k¸ 1/16W J R1708 NRSA63J-472X MG R 4.7k¸ 1/16W J R1709 NRSA63J-472X MG R 4.7k¸ 1/16W J R1710 NRSA63J-472X MG R 4.7k¸ 1/16W J

R1711 NRSA63J-101X MG R 100¸ 1/16W J R1712 NRSA63J-101X MG R 100¸ 1/16W J R1713 NRSA63J-101X MG R 100¸ 1/16W J R1714 NRSA63J-101X MG R 100¸ 1/16W J R1715 NRSA63J-103X MG R 10k¸ 1/16W J R1716 NRSA63J-103X MG R 10k¸ 1/16W J R1717 NRSA63J-103X MG R 10k¸ 1/16W J R1718 NRSA63J-221X MG R 220¸ 1/16W J

AV-20N83

No. 52076 49

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

RESISTOR

R1719 NRSA63J-221X MG R 220¸ 1/16W J R1720 NRSA63J-102X MG R 1k¸ 1/16W J R1721 NRSA63J-221X MG R 220¸ 1/16W J R1722 NRSA63J-221X MG R 220¸ 1/16W J R1723 NRSA63J-221X MG R 220¸ 1/16W J R1724 NRSA63J-221X MG R 220¸ 1/16W J R1725 NRSA63J-103X MG R 10k¸ 1/16W J R1726 NRSA63J-472X MG R 4.7k¸ 1/16W J

R1727 NRSA63J-104X MG R 100k¸ 1/16W J R1728 NRSA63J-103X MG R 10k¸ 1/16W J R1729 NRSA63J-470X MG R 47¸ 1/16W J R1730 NRSA63J-223X MG R 22k¸ 1/16W J R1731 NRSA63J-101X MG R 100¸ 1/16W J R1732 NRSA02F-393X MG R 39k¸ 1/10W F R1733 NRSA63J-273X MG R 27k¸ 1/16W J R1734 NRSA63J-391X MG R 390¸ 1/16W J

R1735 NRSA63J-104X MG R 100k¸ 1/16W J R1736 NRSA63J-333X MG R 33k¸ 1/16W J R1737 NRSA63J-272X MG R 2.7k¸ 1/16W J R1738 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1739 NRSA63J-101X MG R 100¸ 1/16W J R1740 NRSA63J-101X MG R 100¸ 1/16W J R1741 NRSA63J-101X MG R 100¸ 1/16W J R1742 NRSA63J-0R0X MG R 0.0¸ 1/16W J

R1743 NRSA63J-681X MG R 680¸ 1/16W J R1744 NRSA63J-561X MG R 560¸ 1/16W J R1745 NRSA63J-105X MG R 1M¸ 1/16W J R1746 NRSA63J-333X MG R 33k¸ 1/16W J R1747 NRSA63J-103X MG R 10k¸ 1/16W J R1748 NRSA02J-475X MG R 4.7M¸ 1/10W J R1749 NRSA02J-475X MG R 4.7M¸ 1/10W J R1750 NRSA63J-0R0X MG R 0.0¸ 1/16W J

R1755 NRSA63J-101X MG R 100¸ 1/16W J R1756 NRSA63J-101X MG R 100¸ 1/16W J R1757 NRSA63J-222X MG R 2.2k¸ 1/16W J R1758 NRSA63J-222X MG R 2.2k¸ 1/16W J R1760 NRSA63J-682X MG R 6.8k¸ 1/16W J R1770 QRE121J-271Y C R 270¸ 1/2W J R1771 NRSA63J-102X MG R 1k¸ 1/16W J R1772 QRE121J-271Y C R 270¸ 1/2W J

R1773 NRSA63J-102X MG R 1k¸ 1/16W J R1775 NRSA63J-332X MG R 3.3k¸ 1/16W J R1776 NRSA63J-392X MG R 3.9k¸ 1/16W J R1777 NRSA63J-682X MG R 6.8k¸ 1/16W J R1779 NRSA63J-272X MG R 2.7k¸ 1/16W J R1780 NRSA63J-471X MG R 470¸ 1/16W J R1781 NRSA63J-122X MG R 1.2k¸ 1/16W J R1782 NRSA63J-181X MG R 180¸ 1/16W J

R1783 NRSA63J-221X MG R 220¸ 1/16W J R1784 NRSA63J-331X MG R 330¸ 1/16W J R1785 NRSA63J-471X MG R 470¸ 1/16W J R1786 NRSA63J-202X MG R 2k¸ 1/16W J R1803 NRSA63J-333X MG R 33k¸ 1/16W J R1804 NRSA63J-750X MG R 75¸ 1/16W J R1805 NRSA63J-750X MG R 75¸ 1/16W J R1806 NRSA63J-750X MG R 75¸ 1/16W J

R1807 NRSA63J-750X MG R 75¸ 1/16W J R1808 NRSA63J-823X MG R 82k¸ 1/16W J R1809 NRSA63J-391X MG R 390¸ 1/16W J R1810 NRSA63J-823X MG R 82k¸ 1/16W J R1811 NRSA63J-391X MG R 390¸ 1/16W J R1812 NRSA63J-104X MG R 100k¸ 1/16W J R1813 NRSA63J-222X MG R 2.2k¸ 1/16W J R1815 NRSA63J-101X MG R 100¸ 1/16W J

R1818 NRSA63J-222X MG R 2.2k¸ 1/16W J R1820 NRSA63J-101X MG R 100¸ 1/16W J R1821 NRSA63J-222X MG R 2.2k¸ 1/16W J R1823 NRSA63J-101X MG R 100¸ 1/16W J R1824 NRSA63J-222X MG R 2.2k¸ 1/16W J R1826 NRSA63J-101X MG R 100¸ 1/16W J R1829 NRSA63J-750X MG R 75¸ 1/16W J R1830 NRSA63J-222X MG R 2.2k¸ 1/16W J

RESISTOR

R1831 NRSA63J-222X MG R 2.2k¸ 1/16W J R1832 NRSA63J-122X MG R 1.2k¸ 1/16W J R1833 NRSA63J-102X MG R 1k¸ 1/16W J R1834 NRSA63J-562X MG R 5.6k¸ 1/16W J R1835 NRSA63J-562X MG R 5.6k¸ 1/16W J R1836 NRSA63J-750X MG R 75¸ 1/16W J R1837 NRSA63J-101X MG R 100¸ 1/16W J R1838 QRK126J-121X UNF R 120¸ 1/2W J

R1839 QRE121J-221Y C R 220¸ 1/2W J R1840 QRE121J-221Y C R 220¸ 1/2W J R1841 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1842 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1843 NRSA63J-821X MG R 820¸ 1/16W J R1844 NRSA63J-222X MG R 2.2k¸ 1/16W J R1845 NRSA63J-102X MG R 1k¸ 1/16W J R1846 NRSA63J-222X MG R 2.2k¸ 1/16W J

R1847 NRSA63J-103X MG R 10k¸ 1/16W J R1848 NRSA63J-471X MG R 470¸ 1/16W J R1849 NRSA63J-221X MG R 220¸ 1/16W J R1880 NRSA63J-202X MG R 2k¸ 1/16W J R1881 NRSA63J-103X MG R 10k¸ 1/16W J R1882 NRSA63J-471X MG R 470¸ 1/16W J R1883 NRSA63J-181X MG R 180¸ 1/16W J R1902 QRF154K-2R2 UNF R 2.2¸ 15W K

R1904 QRE121J-681Y C R 680¸ 1/2W J R1905 QRM034J-R22 MP R 0.22¸ 3W J R1907 NRSA63J-563X MG R 56k¸ 1/16W J R1908 QRL039J-333 OM R 33k¸ 3W J R1909 QRE121J-474Y C R 470k¸ 1/2W J R1910 QRE121J-152Y C R 1.5k¸ 1/2W J R1911 QRE121J-562Y C R 5.6k¸ 1/2W J R1912 NRSA63J-122X MG R 1.2k¸ 1/16W J

R1913 QRE121J-120Y C R 12¸ 1/2W J

! R1915 QRZ0111-474 C R 470k¸ 1W K

R1952 NRSA63J-332X MG R 3.3k¸ 1/16W J R1953 NRSA63J-101X MG R 100¸ 1/16W J R1957 QRE121J-6R8Y C R 6.8¸ 1/2W J R1960 NRSA63J-391X MG R 390¸ 1/16W J R1961 QRL029J-183 OM R 18k¸ 2W J R1962 NRSA63J-561X MG R 560¸ 1/16W J

R1963 QRE121J-103Y C R 10k¸ 1/2W J R1964 NRSA63J-473X MG R 47k¸ 1/16W J R1965 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1966 NRSA63J-682X MG R 6.8k¸ 1/16W J R1967 NRSA63J-473X MG R 47k¸ 1/16W J R1970 NRSA63J-153X MG R 15k¸ 1/16W J R1971 NRSA63J-183X MG R 18k¸ 1/16W J R1972 NRSA63J-391X MG R 390¸ 1/16W J

! R1991 QRZ9046-825Z C R 8.2M¸ 1W J

CAPACITOR

C1001 NCB31HK-103X C CAP. 0.01µF 50V K C1002 QETN1HM-106Z E CAP. 10µF 50V M C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J C1004 QETN1CM-477Z E CAP. 470µF 16V M C1005 NCB31HK-222X C CAP. 2200pF 50V K C1006 QETN1CM-336Z E CAP. 33µF 16V M C1007 NCB31HK-103X C CAP. 0.01µF 50V K C1101 NCB31HK-472X C CAP. 4700pF 50V K

C1102 NCB31HK-472X C CAP. 4700pF 50V K C1103 NCB31HK-472X C CAP. 4700pF 50V K C1104 NCB31HK-472X C CAP. 4700pF 50V K C1105 NCB31HK-472X C CAP. 4700pF 50V K C1106 NDC21HJ-180X C CAP. 18pF 50V J C1107 NCB31HK-103X C CAP. 0.01µF 50V K C1109 QETN1HM-106Z E CAP. 10µF 50V M C1130 NCB31HK-103X C CAP. 0.01µF 50V K

50 No. 52076

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

CAPACITOR

C1131 NCB31HK-103X C CAP. 0.01µF 50V K C1132 NCB31HK-103X C CAP. 0.01µF 50V K C1133 QETN1CM-107Z E CAP. 100µF 16V M C1134 NCB31HK-103X C CAP. 0.01µF 50V K C1135 QETN1AM-477Z E CAP. 470µF 10V M C1136 NCB31HK-103X C CAP. 0.01µF 50V K C1137 NCB31HK-103X C CAP. 0.01µF 50V K C1138 NCB31HK-103X C CAP. 0.01µF 50V K

C1140 NCB31HK-103X C CAP. 0.01µF 50V K C1141 NCB31HK-103X C CAP. 0.01µF 50V K C1142 NCB31HK-103X C CAP. 0.01µF 50V K C1143 QETN1HM-106Z E CAP. 10µF 50V M C1144 NCB31HK-223X C CAP. 0.022µF 50V K C1308 NCB31HK-103X C CAP. 0.01µF 50V K C1310 NRSA63J-0R0X MG R 0.0¸ 1/16W J C1350 NDC21HJ-471X C CAP. 470pF 50V J

C1351 NDC31HJ-681X C CAP. 680pF 50V J C1352 QETN2EM-475Z E CAP. 4.7µF 250V M C1353 QETN1HM-107Z E CAP. 100µF 50V M C1354 QETN1HM-105Z E CAP. 1µF 50V M C1360 NDC21HJ-471X C CAP. 470pF 50V J C1361 NDC31HJ-681X C CAP. 680pF 50V J C1370 NDC21HJ-471X C CAP. 470pF 50V J C1371 NDC31HJ-821X C CAP. 820pF 50V J

C1372 NRSA63J-273X MG R 27k¸ 1/16W J C1374 QCZ0364-222 C CAP. 2200pF C1375 QETN1CM-477Z E CAP. 470µF 16V M C1401 QETN1HM-105Z E CAP. 1µF 50V M C1402 QCB31HK-682Z C CAP. 6800pF 50V K C1403 QEHR1VM-227Z E CAP. 220µF 35V M C1406 QFLC2AJ-683Z M CAP. 0.068µF 100V J C1407 QCS32HJ-180Z C CAP. 18pF 500V J

C1408 QFV71HJ-184Z MF CAP. 0.18µF 50V J C1411 NCF21HZ-334X C CAP. 0.33µF 50V Z C1412 NCF21HZ-334X C CAP. 0.33µF 50V Z C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J C1422 QEHQ1VM-108 E CAP. 1000µF 35V M C1521 QETN1VM-476Z E CAP. 47µF 35V M C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J

C1524 QFZ0200-103 MPP CAP. 0.01µF 1.5kVH±3% C1527 QFZ0199-474 MPP CAP. 0.47µFAC250V J C1529 QEHR2EM-475Z E CAP. 4.7µF 250V M C1531 QEHR1EM-108Z E CAP. 1000µF 25V M C1533 QEHR1EM-108Z E CAP. 1000µF 25V M C1535 QCB32HK-101Z C CAP. 100pF 500V K C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J

C1541 QETN2EM-226Z E CAP. 22µF 250V M C1542 QETN2EM-226Z E CAP. 22µF 250V M C1550 NCB31CK-104X C CAP. 0.1µF 16V K C1591 QETN1AM-107Z E CAP. 100µF 10V M C1592 QEZ0203-107 E CAP. 100µF 160V M C1593 QETN1EM-476Z E CAP. 47µF 25V M C1625 QETN1HM-475Z E CAP. 4.7µF 50V M C1626 QETN1HM-475Z E CAP. 4.7µF 50V M

C1628 NCB31HK-472X C CAP. 4700pF 50V K C1629 NCB31EK-104X C CAP. 0.1µF 25V K C1630 QETN1HM-475Z E CAP. 4.7µF 50V M C1631 NCB31EK-104X C CAP. 0.1µF 25V K C1632 QETN1HM-475Z E CAP. 4.7µF 50V M C1633 QETN1HM-475Z E CAP. 4.7µF 50V M C1634 QETN1HM-475Z E CAP. 4.7µF 50V M C1635 QETN1HM-107Z E CAP. 100µF 50V M

C1636 QETN1HM-475Z E CAP. 4.7µF 50V M C1637 QETN1HM-475Z E CAP. 4.7µF 50V M C1638 NCB31EK-104X C CAP. 0.1µF 25V K C1639 NCF21CZ-105X C CAP. 1µF 16V Z C1640 QETN1HM-475Z E CAP. 4.7µF 50V M C1641 NCB31EK-104X C CAP. 0.1µF 25V K C1642 NCB31HK-472X C CAP. 4700pF 50V K C1644 QETN1HM-475Z E CAP. 4.7µF 50V M

CAPACITOR

C1645 QETN1HM-475Z E CAP. 4.7µF 50V M C1650 QEHR1HM-106Z E CAP. 10µF 50V M C1651 QEHR1VM-476Z E CAP. 47µF 35V M C1652 QETN1HM-106Z E CAP. 10µF 50V M C1655 QEHQ1VM-108 E CAP. 1000µF 35V M C1656 QEHQ1VM-108 E CAP. 1000µF 35V M C1659 NCF21HZ-224X C CAP. 0.22µF 50V Z C1660 NCF21HZ-224X C CAP. 0.22µF 50V Z

C1661 NCF21HZ-224X C CAP. 0.22µF 50V Z C1662 QEHR1VM-227Z E CAP. 220µF 35V M C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z C1681 QETN1CM-227Z E CAP. 220µF 16V M C1682 QETN1CM-227Z E CAP. 220µF 16V M C1683 QETN1CM-336Z E CAP. 33µF 16V M C1684 QETN1HM-106Z E CAP. 10µF 50V M C1685 NRSA63J-0R0X MG R 0.0¸ 1/16W J

C1686 NRSA63J-0R0X MG R 0.0¸ 1/16W J C1701 QETN1CM-227Z E CAP. 220µF 16V M C1702 QETN1HM-106Z E CAP. 10µF 50V M C1703 NDC31HJ-330X C CAP. 33pF 50V J C1704 NDC31HJ-330X C CAP. 33pF 50V J C1705 NCB31HK-102X C CAP. 1000pF 50V K C1706 NCB21EK-224X C CAP. 0.22µF 25V K C1707 QETN1CM-107Z E CAP. 100µF 16V M

C1709 QETN1CM-107Z E CAP. 100µF 16V M C1710 NCB21EK-224X C CAP. 0.22µF 25V K C1711 NCB31CK-104X C CAP. 0.1µF 16V K C1713 NCB31CK-104X C CAP. 0.1µF 16V K C1714 QETN1CM-476Z E CAP. 47µF 16V M C1720 QETN1CM-476Z E CAP. 47µF 16V M C1725 NCB31HK-681X C CAP. 680pF 50V K C1730 NCB21EK-224X C CAP. 0.22µF 25V K

C1731 NCB21EK-224X C CAP. 0.22µF 25V K C1732 QETN1CM-107Z E CAP. 100µF 16V M C1733 NCB31CK-104X C CAP. 0.1µF 16V K C1734 NCB31HK-222X C CAP. 2200pF 50V K C1735 NCB31HK-222X C CAP. 2200pF 50V K C1736 QETN1HM-105Z E CAP. 1µF 50V M C1737 QETN1HM-105Z E CAP. 1µF 50V M C1738 NCB31CK-104X C CAP. 0.1µF 16V K

C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J C1740 QETN1HM-225Z E CAP. 2.2µF 50V M C1741 NCB31CK-104X C CAP. 0.1µF 16V K C1742 NCB31CK-104X C CAP. 0.1µF 16V K C1743 QETN1CM-107Z E CAP. 100µF 16V M C1744 NCB31HK-102X C CAP. 1000pF 50V K C1745 NCB31EK-473X C CAP. 0.047µF 25V K C1746 NCB31EK-473X C CAP. 0.047µF 25V K

C1747 NCB31EK-473X C CAP. 0.047µF 25V K C1748 QETN1CM-476Z E CAP. 47µF 16V M C1749 QETN1HM-106Z E CAP. 10µF 50V M C1751 NCB31CK-104X C CAP. 0.1µF 16V K C1752 NCB31CK-104X C CAP. 0.1µF 16V K C1753 NCB31CK-104X C CAP. 0.1µF 16V K C1760 NCB31HK-104X C CAP. 0.1µF 50V K C1761 QETN1CM-107Z E CAP. 100µF 16V M

C1770 QETN1HM-106Z E CAP. 10µF 50V M C1801 QETN1HM-106Z E CAP. 10µF 50V M C1802 QETN1HM-106Z E CAP. 10µF 50V M C1803 QETN1HM-106Z E CAP. 10µF 50V M C1804 QETN1HM-106Z E CAP. 10µF 50V M C1805 NCB31HK-104X C CAP. 0.1µF 50V K C1807 NCF31AZ-105X C CAP. 1µF 10V Z C1808 NCF31AZ-105X C CAP. 1µF 10V Z

C1810 NCF31AZ-105X C CAP. 1µF 10V Z C1811 NCB31HK-104X C CAP. 0.1µF 50V K C1812 NCF31AZ-105X C CAP. 1µF 10V Z C1813 NCB31HK-103X C CAP. 0.01µF 50V K C1814 NCB31HK-104X C CAP. 0.1µF 50V K C1815 NCF31AZ-105X C CAP. 1µF 10V Z C1817 NCF31AZ-105X C CAP. 1µF 10V Z C1819 NCB31HK-104X C CAP. 0.1µF 50V K

AV-20N83

No. 52076 51

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

CAPACITOR

C1820 NCF31AZ-105X C CAP. 1µF 10V Z C1821 NCF31AZ-105X C CAP. 1µF 10V Z C1822 QETN1CM-477Z E CAP. 470µF 16V M C1823 QETN1CM-107Z E CAP. 100µF 16V M C1824 QETN1CM-107Z E CAP. 100µF 16V M C1825 NCB31HK-103X C CAP. 0.01µF 50V K C1826 NCB31HK-104X C CAP. 0.1µF 50V K C1827 NCB31HK-103X C CAP. 0.01µF 50V K

C1829 NCB31HK-103X C CAP. 0.01µF 50V K C1830 NCB31HK-103X C CAP. 0.01µF 50V K C1831 NCB31HK-103X C CAP. 0.01µF 50V K C1833 QETN1HM-226Z E CAP. 22µF 50V M C1834 NDC31HJ-181X C CAP. 180pF 50V J

! C1901 QFZ9072-224 MM CAP. 0.22µF ! C1902 QFZ9072-104 MM CAP. 0.1µF

C1903 QCZ9015-102Z C CAP. 1000pF AC250V Z

C1904 QCZ9015-102Z C CAP. 1000pF AC250V Z C1905 QCZ9015-102Z C CAP. 1000pF AC250V Z

! C1906 QFZ9072-224 MM CAP. 0.22µF

C1907 QEZ0552-227 E CAP. 220µF C1908 QFZ0209-222 MPP CAP. 2200pF C1910 NDC31HJ-471X C CAP. 470pF 50V J C1911 QEHR1EM-227Z E CAP. 220µF 25V M C1914 QETN1EM-227Z E CAP. 220µF 25V M

C1915 QFLC1HJ-222Z M CAP. 2200pF 50V J C1952 QCB32HK-471Z C CAP. 470pF 500V K C1953 QEHQ1VM-108 E CAP. 1000µF 35V M C1954 NCB31HK-102X C CAP. 1000pF 50V K C1957 QCB32HK-471Z C CAP. 470pF 500V K C1958 QEHQ1EM-228 E CAP. 2200µF 25V M C1959 QCZ0364-561 C CAP. 560pF C1960 QEZ0203-107 E CAP. 100µF 160V M

C1961 QETN1HM-225Z E CAP. 2.2µF 50V M C1962 QETN1HM-106Z E CAP. 10µF 50V M C1964 QETN1CM-476Z E CAP. 47µF 16V M C1965 QETN1HM-225Z E CAP. 2.2µF 50V M C1968 NCB31CK-104X C CAP. 0.1µF 16V K C1972 QEHR1VM-476Z E CAP. 47µF 35V M C1973 QEHR1CM-107Z E CAP. 100µF 16V M C1974 NCB31CK-104X C CAP. 0.1µF 16V K

C1975 QEHR1CM-227Z E CAP. 220µF 16V M C1976 QEHR1CM-107Z E CAP. 100µF 16V M C1977 QEHR1AM-477Z E CAP. 470µF 10V M C1978 NCB31HK-104X C CAP. 0.1µF 50V K C1980 QETN1CM-107Z E CAP. 100µF 16V M

! C1991 QCZ9079-102 C CAP. 1000pF AC250V M ! C1992 QCZ9079-102 C CAP. 1000pF AC250V M ! C1993 QCZ9079-152 C CAP. 1500pF AC250V M

TRANSFORMER

T1521 CE40203-00CJ1 DRIVE TRANSF

! T1551 QQH0143-001 FB TRANSF ! T1901 QQS0182-001 SW TRANSF

COIL

L1001 CE42050-001Z BEADS CORE L1002 CE42050-001Z BEADS CORE L1101 QQLZ014-R82 COIL 0.82µH L1524 QQLZ034-320 COIL 32µH L1701 QQL244K-100Z COIL 10µHK L1702 QQL244K-100Z COIL 10µHK L1731 QQL244J-5R6Z COIL 5.6µHJ L1732 QQL244J-5R6Z COIL 5.6µHJ

L1951 QQLZ034-460 COIL 46µH L1953 QQL244J-5R6Z COIL 5.6µHJ L1954 QQL244J-5R6Z COIL 5.6µHJ

DIODE

D1101 1SS268-X SI. DIODE D1350 1SS244-T2 SI. DIODE D1352 RGP10J-5025-T3 SI. DIODE D1353 MA111-X SI. DIODE D1354 MA111-X SI. DIODE D1355 MA111-X SI. DIODE D1356 MA111-X SI. DIODE D1357 MA111-X SI. DIODE

D1358 MA111-X SI. DIODE D1360 1SS244-T2 SI. DIODE D1370 1SS244-T2 SI. DIODE D1372 MA3075/M/-X ZENER DIODE D1373 MA111-X SI. DIODE D1374 MA111-X SI. DIODE D1401 RGP10J-5025-T3 SI. DIODE D1402 MTZJ75-T2 ZENER DIODE

D1405 1N4003-T2 SI. DIODE D1408 MA111-X SI. DIODE D1523 RGP10J-5025-T3 SI. DIODE D1541 RGP10J-5025-T3 SI. DIODE D1550 MA111-X SI. DIODE D1551 RGP10J-5025-T3 SI. DIODE D1553 RGP10J-5025-T3 SI. DIODE D1554 RGP10J-5025-T3 SI. DIODE

D1592 MA3075/H/-X ZENER DIODE D1652 MA3330/L/-X ZENER DIODE D1653 MA3330/L/-X ZENER DIODE D1655 MA111-X SI. DIODE D1682 MA111-X SI. DIODE D1702 MA3024-X ZENER DIODE D1703 MA3051/M/-X ZENER DIODE D1704 MA3033-X ZENER DIODE

D1730 MA111-X SI. DIODE D1731 MA111-X SI. DIODE D1732 MA111-X SI. DIODE D1733 MA111-X SI. DIODE D1760 SLR-342VR-T16 LED D1761 SLR-342MC-T16 LED D1770 MA111-X SI. DIODE D1771 P1241-04 PHOTO CONDUCTOR

D1801 MA3120/M/-X ZENER DIODE D1802 MA3120/M/-X ZENER DIODE D1807 MA3100/M/-X ZENER DIODE D1808 MA3100/M/-X ZENER DIODE D1901 GSIB460 BRIDGE DIODE D1903 MTZJ12C-T2 ZENER DIODE D1904 EG01C-T2 SI. DIODE D1906 EG01C-T2 SI. DIODE

D1907 MA3150/M/-X ZENER DIODE D1908 MTZJ27B-T2 ZENER DIODE D1909 MA111-X SI. DIODE D1910 NRSA63J-0R0X MG R 0.0¸ 1/16W J D1911 RGP10J-TS-T3 SI. DIODE D1912 1SS133-T2 SI. DIODE D1914 ERC30-02L38 SI. DIODE D1952 ERC30-02L38 SI. DIODE

D1954 RGP30B-F1 SI. DIODE D1956 RU3AM-LFC4 SI. DIODE D1964 MA3330/L/-X ZENER DIODE D1965 1SS133-T2 SI. DIODE D1966 MA3068/M/-X ZENER DIODE D1968 MA111-X SI. DIODE D1969 MA111-X SI. DIODE D1971 MA111-X SI. DIODE

52 No. 52076

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

TRANSISTOR

Q1101 2SC5083/L-P/-T TRANSISTOR Q1102 UN2212-X DIGI. TRANSISTOR Q1104 2SB709A/QR/-X TRANSISTOR Q1108 2SD601A/QR/-X TRANSISTOR Q1130 2SB709A/QR/-X TRANSISTOR Q1131 UN2212-X DIGI. TRANSISTOR Q1132 2SD601A/QR/-X TRANSISTOR Q1133 2SB709A/QR/-X TRANSISTOR

Q1134 UN2212-X DIGI. TRANSISTOR Q1135 UN2212-X DIGI. TRANSISTOR Q1136 2SD601A/QR/-X TRANSISTOR Q1137 2SD601A/QR/-X TRANSISTOR Q1301 2SB709A/QR/-X TRANSISTOR Q1302 2SB709A/QR/-X TRANSISTOR Q1350 STC344-T TRANSISTOR Q1351 2SA1321-T TRANSISTOR

Q1352 2SB709A/QR/-X TRANSISTOR Q1360 STC344-T TRANSISTOR Q1361 2SA1321-T TRANSISTOR Q1370 STC344-T TRANSISTOR Q1371 2SA1321-T TRANSISTOR Q1374 2SD601A/QR/-X TRANSISTOR Q1375 2SD601A/QR/-X TRANSISTOR Q1376 2SD601A/QR/-X TRANSISTOR

Q1521 2SC2655/Y/-T TRANSISTOR Q1522 2SD2634-YD POWER TRANSISTOR Q1591 2SA1208/ST/Z1-T TRANSISTOR Q1592 UN2212-X DIGI. TRANSISTOR Q1660 2SD601A/QR/-X TRANSISTOR Q1661 2SD601A/QR/-X TRANSISTOR Q1683 2SB709A/QR/-X TRANSISTOR Q1684 2SB709A/QR/-X TRANSISTOR

Q1685 DTC323TK-X DIGI. TRANSISTOR Q1686 DTC323TK-X DIGI. TRANSISTOR Q1701 2SB709A/QR/-X TRANSISTOR Q1702 2SB709A/QR/-X TRANSISTOR Q1703 FMC2A-X D.TRANSISTOR Q1720 2SB709A/QR/-X TRANSISTOR Q1770 2SB709A/QR/-X TRANSISTOR Q1801 DTC323TK-X DIGI. TRANSISTOR

Q1802 DTC323TK-X DIGI. TRANSISTOR Q1803 2SB709A/QR/-X TRANSISTOR Q1804 2SC1740S/QR/-T TRANSISTOR Q1860 2SD601A/QR/-X TRANSISTOR Q1861 2SB709A/QR/-X TRANSISTOR Q1862 2SB709A/QR/-X TRANSISTOR Q1952 2SD601A/QR/-X TRANSISTOR Q1953 2SD601A/QR/-X TRANSISTOR

Q1954 2SD601A/QR/-X TRANSISTOR

IC

IC1130 M52342SP I.C(MONO-ANA) IC1401 AN5522 I.C(MONO-ANA) IC1602 NJW1138M-X I.C(MONO-ANA) IC1650 AN5276 I.C(MONO-ANA) IC1701 TDA9386N22S0902 I.C(MCU) IC1702 AT24C08-21WS3 I.C(MEMORY-OTH) (SERVICE) IC1760 GP1UM281QK IR DETECT UNIT IC1801 MM1492AF I.C(MONO-ANA)

IC1901 STR-F6707A/F7 I.C(HYBRID) IC1951 SE115N-LF12 I.C(HYBRID) IC1972 R1141Q331B-X REGULATE IC1974 AN80T36 REG I.C

OTHERS

LC30114-001C-H LED HOLDER

CF1130 QAX0694-001Z C FILTER CF1131 QAX0694-001Z C FILTER CF1140 QAX0695-001Z C FILTER CL1001 QZW0027-002 WIRE CLAMP CL1002 QZW0027-001 WIRE CLAMP CL1003 QZW0027-004 WIRE CLAMP

! CP1951 ICP-N75-Y IC PROTECTOR ! CP1953 ICP-N75-Y IC PROTECTOR ! F1901 QMF51E2-4R0J4 FUSE

FC1901 CEMG002-001Z FUSE CLIP J1770 QNS0155-001 3.5 JACK J1771 QNN0282-003 PIN JACK J1772 QNN0282-002 PIN JACK J1773 QNN0282-001 PIN JACK

J1801 QNN0349-001 PIN JACK J1802 QNN0349-002 PIN JACK J1803 QNN0348-001 PIN JACK J1804 QNN0349-001 PIN JACK K1104 QQR1113-001Z FERRITE BEADS K1105 QQR1113-001Z FERRITE BEADS K1106 QQR1113-001Z FERRITE BEADS K1701 QQR1113-001Z FERRITE BEADS

K1902 QQR1114-001Z FERRITE BEADS K1903 QQR1114-001Z FERRITE BEADS K1951 QQR1113-001Z FERRITE BEADS K1954 QQR1113-001Z FERRITE BEADS K1955 QQR1214-001Y FERRITE BEADS

! LF1902 QQR1035-001 LINE FILTER ! PC1901 PC123F2 IC(PHOTO COUPLE) ! RY1901 QSK0092-001 RELAY

S1780 QSW0619-003Z TACT SWITCH MENU S1781 QSW0619-003Z TACT SWITCH CHS1782 QSW0619-003Z TACT SWITCH CH+ S1783 QSW0619-003Z TACT SWITCH VOLS1784 QSW0619-003Z TACT SWITCH VOL+

! S1901 QSW0846-001 PUSH SWITCH POWER

SF1101 QAX0325-001 SAW FILTER SF1102 QAX0731-001 SAW FILTER

! SK1351 QNZ0537-001 CRT SOCKET

TH1901 QAD0134-4R5 P THERMISTOR TU1001 QAU0186-002 TUNER

! VA1901 QAF0052-621 VARISTOR

W1010 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1052 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1071 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1096 NRSA63J-0R0X MG R 0.0¸ 1/16W J

W1239 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1257 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1307 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1309 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1317 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1322 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1325 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1326 NRSA63J-0R0X MG R 0.0¸ 1/16W J

W1330 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1333 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1375 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1379 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1388 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1417 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1418 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1430 NRSA63J-0R0X MG R 0.0¸ 1/16W J

X1701 QAX0737-001 CRYSTAL Y1001 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1003 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1005 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1301 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1601 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1604 NRSA63J-0R0X MG R 0.0¸ 1/16W J

CM35921-B02 CDS HOLDER

AV-20N83

No. 52076 53

AV-20N83 AV-21D83

DIFFERENCE PARTS LIST BETWEEN AV-20N83

/BK AND AV-21D83/BK

In the DIFFERENCE PARTS LIST BETWEEN AV-20N83/BK and AV-21D83/BK, only difference points between these models are written. For other parts not mentioned in the list, please refer to the PARTS LIST (P49 – P53) for the AV20N83

/BK.

DIFFERENCE PARTS LIST

Symbol

!

----------------------------------------------------------------------------------------------------------------------------------------------------

! T1551 QQH0143-001 QQH0142-001 FBT

No.

R1413 QRX01GJ-3R9 (3.9¸, 1W, J) QRX01GJ-2R7 (2.7¸, 1W, J) MF R

R1414 QRE121J-680Y (68¸, 1/2W, J) — CR

R1542 QRE121J-334Y (330k¸, 1/2W, J) QRE121J-274Y (270k¸, 1/2W, J) CR

AV-20N83

SCH-1090A-BK SCH-1122A-BK MAIN PWB

/BK AV-21D83/BK

Part No.

Part Name

54 No. 52076

AV-20N83

PRINTED WIRING BOARD PARTS LIST [AV-20N83/VT]

MAIN PW BOARD ASS’Y (SCH-1316A-CK)

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

RESISTOR

R1001 NRSA63J-221X MG R 220¸ 1/16W J R1002 NRSA63J-221X MG R 220¸ 1/16W J R1003 NRSA63J-392X MG R 3.9k¸ 1/16W J R1004 NRSA63J-221X MG R 220¸ 1/16W J R1005 QQR1214-001Y FERRITE BEADS R1006 NRSA63J-273X MG R 27k¸ 1/16W J R1007 NRSA63J-750X MG R 75¸ 1/16W J R1101 NRSA63J-100X MG R 10¸ 1/16W J

R1102 NRSA63J-682X MG R 6.8k¸ 1/16W J R1103 NRSA63J-272X MG R 2.7k¸ 1/16W J R1104 NRSA63J-181X MG R 180¸ 1/16W J R1105 NRSA63J-220X MG R 22¸ 1/16W J R1106 NRSA63J-101X MG R 100¸ 1/16W J R1107 NRSA63J-472X MG R 4.7k¸ 1/16W J R1108 NRSA63J-222X MG R 2.2k¸ 1/16W J R1109 NRSA63J-222X MG R 2.2k¸ 1/16W J

R1111 NRSA63J-102X MG R 1k¸ 1/16W J R1112 NRSA63J-103X MG R 10k¸ 1/16W J R1117 NRSA63J-102X MG R 1k¸ 1/16W J R1119 NRSA63J-102X MG R 1k¸ 1/16W J R1120 NRSA63J-471X MG R 470¸ 1/16W J R1130 NRSA63J-472X MG R 4.7k¸ 1/16W J R1131 NRSA63J-471X MG R 470¸ 1/16W J R1132 NRSA63J-222X MG R 2.2k¸ 1/16W J

R1133 NRSA63J-152X MG R 1.5k¸ 1/16W J R1134 NRSA63J-182X MG R 1.8k¸ 1/16W J R1135 NRSA63J-561X MG R 560¸ 1/16W J R1136 NRSA63J-472X MG R 4.7k¸ 1/16W J R1137 NRSA63J-103X MG R 10k¸ 1/16W J R1138 NRSA63J-471X MG R 470¸ 1/16W J R1139 NRSA63J-222X MG R 2.2k¸ 1/16W J R1140 NRSA63J-152X MG R 1.5k¸ 1/16W J

R1141 NRSA63J-182X MG R 1.8k¸ 1/16W J R1142 NRSA63J-561X MG R 560¸ 1/16W J R1143 NRSA63J-471X MG R 470¸ 1/16W J R1144 NRSA63J-220X MG R 22¸ 1/16W J R1145 NRSA63J-821X MG R 820¸ 1/16W J R1146 NRSA63J-103X MG R 10k¸ 1/16W J R1147 NRSA63J-101X MG R 100¸ 1/16W J R1148 NRSA63J-332X MG R 3.3k¸ 1/16W J

R1155 NRSA63J-471X MG R 470¸ 1/16W J R1301 NRSA63J-222X MG R 2.2k¸ 1/16W J R1302 NRSA63J-222X MG R 2.2k¸ 1/16W J R1303 NRSA63J-562X MG R 5.6k¸ 1/16W J R1304 NRSA63J-222X MG R 2.2k¸ 1/16W J R1305 NRSA63J-222X MG R 2.2k¸ 1/16W J R1306 NRSA63J-562X MG R 5.6k¸ 1/16W J R1312 NRSA63J-331X MG R 330¸ 1/16W J

R1314 NRSA63J-331X MG R 330¸ 1/16W J R1315 NRSA63J-333X MG R 33k¸ 1/16W J R1316 NRSA63J-682X MG R 6.8k¸ 1/16W J R1350 NRSA63J-151X MG R 150¸ 1/16W J R1352 QRL029J-123 OM R 12k¸ 2W J R1353 NRSA63J-182X MG R 1.8k¸ 1/16W J R1354 NRSA63J-331X MG R 330¸ 1/16W J R1355 NRSA63J-101X MG R 100¸ 1/16W J

R1356 QRE121J-102Y C R 1k¸ 1/2W J R1357 QRZ0107-152Z C R 1.5k¸ 1W K R1358 QRE121J-272Y C R 2.7k¸ 1/2W J R1359 QRE121J-561Y C R 560¸ 1/2W J R1360 NRSA63J-151X MG R 150¸ 1/16W J R1362 QRL029J-123 OM R 12k¸ 2W J R1363 NRSA63J-182X MG R 1.8k¸ 1/16W J R1364 NRSA63J-331X MG R 330¸ 1/16W J

R1365 NRSA63J-101X MG R 100¸ 1/16W J R1366 QRE121J-102Y C R 1k¸ 1/2W J R1367 QRZ0107-152Z C R 1.5k¸ 1W K R1368 NRSA63J-332X MG R 3.3k¸ 1/16W J

! R1369 QRZ9017-150 F R 15¸ 1/4W J

R1370 NRSA63J-151X MG R 150¸ 1/16W J R1371 QRL029J-123 OM R 12k¸ 2W J R1372 NRSA63J-182X MG R 1.8k¸ 1/16W J

RESISTOR

R1373 NRSA63J-331X MG R 330¸ 1/16W J R1374 NRSA63J-101X MG R 100¸ 1/16W J R1375 QRE121J-102Y C R 1k¸ 1/2W J R1376 QRZ0107-152Z C R 1.5k¸ 1W K R1377 NRSA63J-330X MG R 33¸ 1/16W J R1378 NRSA63J-223X MG R 22k¸ 1/16W J R1379 NRSA63J-103X MG R 10k¸ 1/16W J R1383 QRE121J-394Y C R 390k¸ 1/2W J

R1384 NRSA63J-103X MG R 10k¸ 1/16W J R1385 QRE141J-393Y C R 39k¸ 1/4W J R1401 NRSA63J-224X MG R 220k¸ 1/16W J R1403 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1405 NRSA63J-682X MG R 6.8k¸ 1/16W J R1406 NRSA63J-123X MG R 12k¸ 1/16W J R1408 NRSA63J-682X MG R 6.8k¸ 1/16W J R1410 NRSA63J-123X MG R 12k¸ 1/16W J

R1411 QRG01GJ-221 OM R 220¸ 1W J R1412 QRE121J-1R0Y C R 1¸ 1/2W J R1413 QRX01GJ-3R9 MF R 3.9¸ 1W J R1414 QRE121J-390Y C R 39¸ 1/2W J R1425 NRSA63J-683X MG R 68k¸ 1/16W J R1521 NRSA63J-101X MG R 100¸ 1/16W J R1522 NRSA63J-102X MG R 1k¸ 1/16W J R1524 QRL039J-220 OM R 22¸ 3W J

R1526 QRG01GJ-181 OM R 180¸ 1W J R1527 QRL039J-103 OM R 10k¸ 3W J R1528 QRX029J-R47 MF R 0.47¸ 2W J R1529 QRX029J-R47 MF R 0.47¸ 2W J R1531 NRSA63J-222X MG R 2.2k¸ 1/16W J

! R1532 QRZ9017-4R7 F R 4.7¸ 1/4W J ! R1540 QRZ9021-4R7 F R 4.7¸ 1W J

R1541 QRE121J-154Y C R 150k¸ 1/2W J

R1542 QRE121J-334Y C R 330k¸ 1/2W J R1543 QRE121J-471Y C R 470¸ 1/2W J R1545 QRE121J-220Y C R 22¸ 1/2W J R1546 QRE121J-822Y C R 8.2k¸ 1/2W J R1591 QRE121J-222Y C R 2.2k¸ 1/2W J R1594 QRE121J-223Y C R 22k¸ 1/2W J R1595 NRSA63J-222X MG R 2.2k¸ 1/16W J R1596 QRT029J-1R8 MF R 1.8¸ 2W J

R1597 QRT029J-1R5 MF R 1.5¸ 2W J R1621 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1622 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1624 NRSA63J-101X MG R 100¸ 1/16W J R1625 NRSA63J-101X MG R 100¸ 1/16W J R1627 NRSA63J-102X MG R 1k¸ 1/16W J R1650 NRSA63J-103X MG R 10k¸ 1/16W J R1651 NRSA63J-153X MG R 15k¸ 1/16W J

R1654 NRSA63J-103X MG R 10k¸ 1/16W J R1655 NRSA63J-153X MG R 15k¸ 1/16W J R1658 QRE121J-2R2Y C R 2.2¸ 1/2W J R1659 QRE121J-2R2Y C R 2.2¸ 1/2W J R1660 NRSA63J-103X MG R 10k¸ 1/16W J R1661 NRSA63J-683X MG R 68k¸ 1/16W J R1662 NRSA63J-333X MG R 33k¸ 1/16W J R1663 NRSA63J-103X MG R 10k¸ 1/16W J

R1664 NRSA63J-222X MG R 2.2k¸ 1/16W J R1686 NRSA63J-102X MG R 1k¸ 1/16W J R1687 NRSA63J-103X MG R 10k¸ 1/16W J R1688 NRSA63J-273X MG R 27k¸ 1/16W J R1690 NRSA63J-104X MG R 100k¸ 1/16W J R1698 NRSA63J-104X MG R 100k¸ 1/16W J R1699 NRSA63J-104X MG R 100k¸ 1/16W J R1701 NRSA63J-101X MG R 100¸ 1/16W J

R1702 NRSA63J-101X MG R 100¸ 1/16W J R1703 NRSA63J-101X MG R 100¸ 1/16W J R1704 NRSA63J-102X MG R 1k¸ 1/16W J R1705 NRSA63J-102X MG R 1k¸ 1/16W J R1706 NRSA63J-102X MG R 1k¸ 1/16W J R1707 NRSA63J-472X MG R 4.7k¸ 1/16W J R1708 NRSA63J-472X MG R 4.7k¸ 1/16W J R1709 NRSA63J-472X MG R 4.7k¸ 1/16W J

AV-20N83

No. 52076 55

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

RESISTOR

R1710 NRSA63J-472X MG R 4.7k¸ 1/16W J R1711 NRSA63J-101X MG R 100¸ 1/16W J R1712 NRSA63J-101X MG R 100¸ 1/16W J R1713 NRSA63J-101X MG R 100¸ 1/16W J R1714 NRSA63J-101X MG R 100¸ 1/16W J R1715 NRSA63J-103X MG R 10k¸ 1/16W J R1716 NRSA63J-103X MG R 10k¸ 1/16W J R1717 NRSA63J-103X MG R 10k¸ 1/16W J

R1718 NRSA63J-221X MG R 220¸ 1/16W J R1719 NRSA63J-221X MG R 220¸ 1/16W J R1720 NRSA63J-102X MG R 1k¸ 1/16W J R1721 NRSA63J-221X MG R 220¸ 1/16W J R1722 NRSA63J-221X MG R 220¸ 1/16W J R1723 NRSA63J-221X MG R 220¸ 1/16W J R1724 NRSA63J-221X MG R 220¸ 1/16W J R1725 NRSA63J-103X MG R 10k¸ 1/16W J

R1726 NRSA63J-472X MG R 4.7k¸ 1/16W J R1727 NRSA63J-104X MG R 100k¸ 1/16W J R1728 NRSA63J-103X MG R 10k¸ 1/16W J R1729 NRSA63J-470X MG R 47¸ 1/16W J R1730 NRSA63J-223X MG R 22k¸ 1/16W J R1731 NRSA63J-101X MG R 100¸ 1/16W J R1732 NRSA02F-393X MG R 39k¸ 1/10W F R1733 NRSA63J-273X MG R 27k¸ 1/16W J

R1734 NRSA63J-391X MG R 390¸ 1/16W J R1735 NRSA63J-104X MG R 100k¸ 1/16W J R1736 NRSA63J-333X MG R 33k¸ 1/16W J R1737 NRSA63J-272X MG R 2.7k¸ 1/16W J R1738 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1739 NRSA63J-101X MG R 100¸ 1/16W J R1740 NRSA63J-101X MG R 100¸ 1/16W J R1741 NRSA63J-101X MG R 100¸ 1/16W J

R1742 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1743 NRSA63J-681X MG R 680¸ 1/16W J R1744 NRSA63J-561X MG R 560¸ 1/16W J R1745 NRSA63J-105X MG R 1M¸ 1/16W J R1746 NRSA63J-333X MG R 33k¸ 1/16W J R1747 NRSA63J-103X MG R 10k¸ 1/16W J R1748 NRSA02J-475X MG R 4.7M¸ 1/10W J R1749 NRSA02J-475X MG R 4.7M¸ 1/10W J

R1750 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1755 NRSA63J-101X MG R 100¸ 1/16W J R1756 NRSA63J-101X MG R 100¸ 1/16W J R1757 NRSA63J-222X MG R 2.2k¸ 1/16W J R1758 NRSA63J-222X MG R 2.2k¸ 1/16W J R1760 NRSA63J-682X MG R 6.8k¸ 1/16W J R1770 QRE121J-271Y C R 270¸ 1/2W J R1771 NRSA63J-102X MG R 1k¸ 1/16W J

R1772 QRE121J-271Y C R 270¸ 1/2W J R1773 NRSA63J-102X MG R 1k¸ 1/16W J R1775 NRSA63J-332X MG R 3.3k¸ 1/16W J R1776 NRSA63J-392X MG R 3.9k¸ 1/16W J R1777 NRSA63J-682X MG R 6.8k¸ 1/16W J R1779 NRSA63J-272X MG R 2.7k¸ 1/16W J R1780 NRSA63J-471X MG R 470¸ 1/16W J R1781 NRSA63J-122X MG R 1.2k¸ 1/16W J

R1782 NRSA63J-181X MG R 180¸ 1/16W J R1783 NRSA63J-221X MG R 220¸ 1/16W J R1784 NRSA63J-331X MG R 330¸ 1/16W J R1785 NRSA63J-471X MG R 470¸ 1/16W J R1786 NRSA63J-202X MG R 2k¸ 1/16W J R1803 NRSA63J-333X MG R 33k¸ 1/16W J R1804 NRSA63J-750X MG R 75¸ 1/16W J R1805 NRSA63J-750X MG R 75¸ 1/16W J

R1806 NRSA63J-750X MG R 75¸ 1/16W J R1807 NRSA63J-750X MG R 75¸ 1/16W J R1808 NRSA63J-823X MG R 82k¸ 1/16W J R1809 NRSA63J-391X MG R 390¸ 1/16W J R1810 NRSA63J-823X MG R 82k¸ 1/16W J R1811 NRSA63J-391X MG R 390¸ 1/16W J R1812 NRSA63J-104X MG R 100k¸ 1/16W J R1813 NRSA63J-222X MG R 2.2k¸ 1/16W J

RESISTOR

R1815 NRSA63J-101X MG R 100¸ 1/16W J R1818 NRSA63J-222X MG R 2.2k¸ 1/16W J R1820 NRSA63J-101X MG R 100¸ 1/16W J R1821 NRSA63J-222X MG R 2.2k¸ 1/16W J R1823 NRSA63J-101X MG R 100¸ 1/16W J R1824 NRSA63J-222X MG R 2.2k¸ 1/16W J R1826 NRSA63J-101X MG R 100¸ 1/16W J R1829 NRSA63J-750X MG R 75¸ 1/16W J

R1830 NRSA63J-222X MG R 2.2k¸ 1/16W J R1831 NRSA63J-222X MG R 2.2k¸ 1/16W J R1832 NRSA63J-122X MG R 1.2k¸ 1/16W J R1833 NRSA63J-102X MG R 1k¸ 1/16W J R1834 NRSA63J-562X MG R 5.6k¸ 1/16W J R1835 NRSA63J-562X MG R 5.6k¸ 1/16W J R1836 NRSA63J-750X MG R 75¸ 1/16W J R1837 NRSA63J-101X MG R 100¸ 1/16W J

R1838 QRK126J-121X UNF R 120¸ 1/2W J R1839 QRE121J-221Y C R 220¸ 1/2W J R1840 QRE121J-221Y C R 220¸ 1/2W J R1841 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1842 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1843 NRSA63J-821X MG R 820¸ 1/16W J R1844 NRSA63J-222X MG R 2.2k¸ 1/16W J R1845 NRSA63J-102X MG R 1k¸ 1/16W J

R1846 NRSA63J-222X MG R 2.2k¸ 1/16W J R1847 NRSA63J-103X MG R 10k¸ 1/16W J R1848 NRSA63J-471X MG R 470¸ 1/16W J R1849 NRSA63J-221X MG R 220¸ 1/16W J R1880 NRSA63J-202X MG R 2k¸ 1/16W J R1881 NRSA63J-103X MG R 10k¸ 1/16W J R1882 NRSA63J-471X MG R 470¸ 1/16W J R1883 NRSA63J-181X MG R 180¸ 1/16W J

R1902 QRF154K-2R2 UNF R 2.2¸ 15W K R1904 QRE121J-681Y C R 680¸ 1/2W J R1905 QRM034J-R22 MP R 0.22¸ 3W J R1907 NRSA63J-563X MG R 56k¸ 1/16W J R1908 QRL039J-333 OM R 33k¸ 3W J R1909 QRE121J-474Y C R 470k¸ 1/2W J R1910 QRE121J-152Y C R 1.5k¸ 1/2W J R1911 QRE121J-562Y C R 5.6k¸ 1/2W J

R1912 NRSA63J-122X MG R 1.2k¸ 1/16W J R1913 QRE121J-120Y C R 12¸ 1/2W J

! R1915 QRZ0111-474 C R 470k¸ 1W K

R1952 NRSA63J-332X MG R 3.3k¸ 1/16W J R1953 NRSA63J-101X MG R 100¸ 1/16W J R1957 QRE121J-6R8Y C R 6.8¸ 1/2W J R1960 NRSA63J-391X MG R 390¸ 1/16W J R1961 QRL029J-183 OM R 18k¸ 2W J

R1962 NRSA63J-561X MG R 560¸ 1/16W J R1963 QRE121J-103Y C R 10k¸ 1/2W J R1964 NRSA63J-473X MG R 47k¸ 1/16W J R1965 NRSA63J-0R0X MG R 0.0¸ 1/16W J R1966 NRSA63J-682X MG R 6.8k¸ 1/16W J R1967 NRSA63J-473X MG R 47k¸ 1/16W J R1970 NRSA63J-153X MG R 15k¸ 1/16W J R1971 NRSA63J-183X MG R 18k¸ 1/16W J

R1972 NRSA63J-391X MG R 390¸ 1/16W J

! R1991 QRZ9046-825Z C R 8.2M¸ 1W J

CAPACITOR

C1001 NCB31HK-103X C CAP. 0.01µF 50V K C1002 QETN1HM-106Z E CAP. 10µF 50V M C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J C1004 QETN1CM-477Z E CAP. 470µF 16V M C1005 NCB31HK-222X C CAP. 2200pF 50V K C1006 QETN1CM-336Z E CAP. 33µF 16V M C1007 NCB31HK-103X C CAP. 0.01µF 50V K C1101 NCB31HK-472X C CAP. 4700pF 50V K

56 No. 52076

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

CAPACITOR

C1102 NCB31HK-472X C CAP. 4700pF 50V K C1103 NCB31HK-472X C CAP. 4700pF 50V K C1104 NCB31HK-472X C CAP. 4700pF 50V K C1105 NCB31HK-472X C CAP. 4700pF 50V K C1106 NDC21HJ-180X C CAP. 18pF 50V J C1107 NCB31HK-103X C CAP. 0.01µF 50V K C1109 QETN1HM-106Z E CAP. 10µF 50V M C1130 NCB31HK-103X C CAP. 0.01µF 50V K

C1131 NCB31HK-103X C CAP. 0.01µF 50V K C1132 NCB31HK-103X C CAP. 0.01µF 50V K C1133 QETN1CM-107Z E CAP. 100µF 16V M C1134 NCB31HK-103X C CAP. 0.01µF 50V K C1135 QETN1AM-477Z E CAP. 470µF 10V M C1136 NCB31HK-103X C CAP. 0.01µF 50V K C1137 NCB31HK-103X C CAP. 0.01µF 50V K C1138 NCB31HK-103X C CAP. 0.01µF 50V K

C1140 NCB31HK-103X C CAP. 0.01µF 50V K C1141 NCB31HK-103X C CAP. 0.01µF 50V K C1142 NCB31HK-103X C CAP. 0.01µF 50V K C1143 QETN1HM-106Z E CAP. 10µF 50V M C1144 NCB31HK-223X C CAP. 0.022µF 50V K C1308 NCB31HK-103X C CAP. 0.01µF 50V K C1310 NCB31HK-104X C CAP. 0.1µF 50V K C1313 NCF31AZ-105X C CAP. 1µF 10V Z

C1350 NDC21HJ-471X C CAP. 470pF 50V J C1351 NDC31HJ-681X C CAP. 680pF 50V J C1352 QETN2EM-475Z E CAP. 4.7µF 250V M C1353 QETN1HM-107Z E CAP. 100µF 50V M C1354 QETN1HM-105Z E CAP. 1µF 50V M C1360 NDC21HJ-471X C CAP. 470pF 50V J C1361 NDC31HJ-681X C CAP. 680pF 50V J C1370 NDC21HJ-471X C CAP. 470pF 50V J

C1371 NDC31HJ-821X C CAP. 820pF 50V J C1372 NRSA63J-273X MG R 27k¸ 1/16W J C1374 QCZ0364-222 C CAP. 2200pF C1375 QETN1CM-477Z E CAP. 470µF 16V M C1401 QETN1HM-105Z E CAP. 1µF 50V M C1402 QCB31HK-682Z C CAP. 6800pF 50V K C1403 QEHR1VM-227Z E CAP. 220µF 35V M C1406 QFLC2AJ-683Z M CAP. 0.068µF 100V J

C1407 QCS32HJ-180Z C CAP. 18pF 500V J C1408 QFV71HJ-184Z MF CAP. 0.18µF 50V J C1411 NCF21HZ-334X C CAP. 0.33µF 50V Z C1412 NCF21HZ-334X C CAP. 0.33µF 50V Z C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J C1422 QEHQ1VM-108 E CAP. 1000µF 35V M C1521 QETN1VM-476Z E CAP. 47µF 35V M C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J

C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J C1524 QFZ0200-942 MPP CAP. 9400pF 1.5kVH±3% C1527 QFZ0199-124 MPP CAP. 0.12µFAC250V J C1529 QEHR2EM-475Z E CAP. 4.7µF 250V M C1530 QCB32HK-561Z C CAP. 560pF 500V K C1531 QEHR1EM-108Z E CAP. 1000µF 25V M C1533 QEHR1EM-108Z E CAP. 1000µF 25V M C1535 QCB32HK-101Z C CAP. 100pF 500V K

C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J C1541 QETN2EM-226Z E CAP. 22µF 250V M C1542 QETN2EM-226Z E CAP. 22µF 250V M C1550 NCB31CK-104X C CAP. 0.1µF 16V K C1591 QETN1AM-107Z E CAP. 100µF 10V M C1592 QEZ0203-107 E CAP. 100µF 160V M C1593 QETN1EM-476Z E CAP. 47µF 25V M

C1625 QETN1HM-475Z E CAP. 4.7µF 50V M C1626 QETN1HM-475Z E CAP. 4.7µF 50V M C1628 NCB31HK-472X C CAP. 4700pF 50V K C1629 NCB31EK-104X C CAP. 0.1µF 25V K C1630 QETN1HM-475Z E CAP. 4.7µF 50V M C1631 NCB31EK-104X C CAP. 0.1µF 25V K C1632 QETN1HM-475Z E CAP. 4.7µF 50V M C1633 QETN1HM-475Z E CAP. 4.7µF 50V M

CAPACITOR

C1634 QETN1HM-475Z E CAP. 4.7µF 50V M C1635 QETN1HM-107Z E CAP. 100µF 50V M C1636 QETN1HM-475Z E CAP. 4.7µF 50V M C1637 QETN1HM-475Z E CAP. 4.7µF 50V M C1638 NCB31EK-104X C CAP. 0.1µF 25V K C1639 NCF21CZ-105X C CAP. 1µF 16V Z C1640 QETN1HM-475Z E CAP. 4.7µF 50V M C1641 NCB31EK-104X C CAP. 0.1µF 25V K

C1642 NCB31HK-472X C CAP. 4700pF 50V K C1644 QETN1HM-475Z E CAP. 4.7µF 50V M C1645 QETN1HM-475Z E CAP. 4.7µF 50V M C1650 QEHR1HM-106Z E CAP. 10µF 50V M C1651 QEHR1VM-476Z E CAP. 47µF 35V M C1652 QETN1HM-106Z E CAP. 10µF 50V M C1655 QEHQ1VM-108 E CAP. 1000µF 35V M C1656 QEHQ1VM-108 E CAP. 1000µF 35V M

C1659 NCF21HZ-224X C CAP. 0.22µF 50V Z C1660 NCF21HZ-224X C CAP. 0.22µF 50V Z C1661 NCF21HZ-224X C CAP. 0.22µF 50V Z C1662 QEHR1VM-227Z E CAP. 220µF 35V M C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z C1681 QETN1CM-227Z E CAP. 220µF 16V M C1682 QETN1CM-227Z E CAP. 220µF 16V M C1683 QETN1CM-336Z E CAP. 33µF 16V M

C1684 QETN1HM-106Z E CAP. 10µF 50V M C1685 NRSA63J-0R0X MG R 0.0¸ 1/16W J C1686 NRSA63J-0R0X MG R 0.0¸ 1/16W J C1701 QETN1CM-227Z E CAP. 220µF 16V M C1702 QETN1HM-106Z E CAP. 10µF 50V M C1703 NDC31HJ-330X C CAP. 33pF 50V J C1704 NDC31HJ-330X C CAP. 33pF 50V J C1705 NCB31HK-102X C CAP. 1000pF 50V K

C1706 NCB21EK-224X C CAP. 0.22µF 25V K C1707 QETN1CM-107Z E CAP. 100µF 16V M C1709 QETN1CM-107Z E CAP. 100µF 16V M C1710 NCB21EK-224X C CAP. 0.22µF 25V K C1711 NCB31CK-104X C CAP. 0.1µF 16V K C1713 NCB31CK-104X C CAP. 0.1µF 16V K C1714 QETN1CM-476Z E CAP. 47µF 16V M C1720 QETN1CM-476Z E CAP. 47µF 16V M

C1725 NCB31HK-681X C CAP. 680pF 50V K C1730 NCB21EK-224X C CAP. 0.22µF 25V K C1731 NCB21EK-224X C CAP. 0.22µF 25V K C1732 QETN1CM-107Z E CAP. 100µF 16V M C1733 NCB31CK-104X C CAP. 0.1µF 16V K C1734 NCB31HK-222X C CAP. 2200pF 50V K C1735 NCB31HK-222X C CAP. 2200pF 50V K C1736 QETN1HM-105Z E CAP. 1µF 50V M

C1737 QETN1HM-105Z E CAP. 1µF 50V M C1738 NCB31CK-104X C CAP. 0.1µF 16V K C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J C1740 QETN1HM-225Z E CAP. 2.2µF 50V M C1741 NCB31CK-104X C CAP. 0.1µF 16V K C1742 NCB31CK-104X C CAP. 0.1µF 16V K C1743 QETN1CM-107Z E CAP. 100µF 16V M C1744 NCB31HK-102X C CAP. 1000pF 50V K

C1745 NCB31EK-473X C CAP. 0.047µF 25V K C1746 NCB31EK-473X C CAP. 0.047µF 25V K C1747 NCB31EK-473X C CAP. 0.047µF 25V K C1748 QETN1CM-476Z E CAP. 47µF 16V M C1749 QETN1HM-106Z E CAP. 10µF 50V M C1751 NCB31CK-104X C CAP. 0.1µF 16V K C1752 NCB31CK-104X C CAP. 0.1µF 16V K C1753 NCB31CK-104X C CAP. 0.1µF 16V K

C1760 NCB31HK-104X C CAP. 0.1µF 50V K C1761 QETN1CM-107Z E CAP. 100µF 16V M C1770 QETN1HM-106Z E CAP. 10µF 50V M C1801 QETN1HM-106Z E CAP. 10µF 50V M C1802 QETN1HM-106Z E CAP. 10µF 50V M C1803 QETN1HM-106Z E CAP. 10µF 50V M C1804 QETN1HM-106Z E CAP. 10µF 50V M C1805 NCB31HK-104X C CAP. 0.1µF 50V K

AV-20N83

No. 52076 57

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

CAPACITOR

C1807 NCF31AZ-105X C CAP. 1µF 10V Z C1808 NCF31AZ-105X C CAP. 1µF 10V Z C1810 NCF31AZ-105X C CAP. 1µF 10V Z C1811 NCB31HK-104X C CAP. 0.1µF 50V K C1812 NCF31AZ-105X C CAP. 1µF 10V Z C1813 NCB31HK-103X C CAP. 0.01µF 50V K C1814 NCB31HK-104X C CAP. 0.1µF 50V K C1815 NCF31AZ-105X C CAP. 1µF 10V Z

C1817 NCF31AZ-105X C CAP. 1µF 10V Z C1819 NCB31HK-104X C CAP. 0.1µF 50V K C1820 NCF31AZ-105X C CAP. 1µF 10V Z C1821 NCF31AZ-105X C CAP. 1µF 10V Z C1822 QETN1CM-477Z E CAP. 470µF 16V M C1823 QETN1CM-107Z E CAP. 100µF 16V M C1824 QETN1CM-107Z E CAP. 100µF 16V M C1825 NCB31HK-103X C CAP. 0.01µF 50V K

C1826 NCB31HK-104X C CAP. 0.1µF 50V K C1827 NCB31HK-103X C CAP. 0.01µF 50V K C1829 NCB31HK-103X C CAP. 0.01µF 50V K C1830 NCB31HK-103X C CAP. 0.01µF 50V K C1831 NCB31HK-103X C CAP. 0.01µF 50V K C1833 QETN1HM-226Z E CAP. 22µF 50V M C1834 NDC31HJ-181X C CAP. 180pF 50V J

! C1901 QFZ9075-224 MPP CAP. 0.22µF

! C1902 QFZ9075-104 MPP CAP. 0.1µF

C1903 QCZ9015-102Z C CAP. 1000pF AC250V Z C1904 QCZ9015-102Z C CAP. 1000pF AC250V Z C1905 QCZ9015-102Z C CAP. 1000pF AC250V Z

! C1906 QFZ9072-224 MM CAP. 0.22µF

C1907 QEZ0552-227 E CAP. 220µF C1908 QFZ0209-222 MPP CAP. 2200pF C1910 NDC31HJ-471X C CAP. 470pF 50V J

C1911 QEHR1EM-227Z E CAP. 220µF 25V M C1914 QETN1EM-227Z E CAP. 220µF 25V M C1915 QFLC1HJ-222Z M CAP. 2200pF 50V J C1952 QCB32HK-471Z C CAP. 470pF 500V K C1953 QEHQ1VM-108 E CAP. 1000µF 35V M C1954 NCB31HK-102X C CAP. 1000pF 50V K C1957 QCB32HK-471Z C CAP. 470pF 500V K C1958 QEHQ1EM-228 E CAP. 2200µF 25V M

C1959 QCZ0364-561 C CAP. 560pF C1960 QEZ0203-107 E CAP. 100µF 160V M C1961 QETN1HM-225Z E CAP. 2.2µF 50V M C1962 QETN1HM-106Z E CAP. 10µF 50V M C1964 QETN1CM-476Z E CAP. 47µF 16V M C1965 QETN1HM-225Z E CAP. 2.2µF 50V M C1968 NCB31CK-104X C CAP. 0.1µF 16V K C1972 QEHR1VM-476Z E CAP. 47µF 35V M

C1973 QEHR1CM-107Z E CAP. 100µF 16V M C1974 NCB31CK-104X C CAP. 0.1µF 16V K C1975 QEHR1CM-227Z E CAP. 220µF 16V M C1976 QEHR1CM-107Z E CAP. 100µF 16V M C1977 QEHR1AM-477Z E CAP. 470µF 10V M C1978 NCB31HK-104X C CAP. 0.1µF 50V K C1980 QETN1CM-107Z E CAP. 100µF 16V M

! C1991 QCZ9079-102 C CAP. 1000pF AC250V M

! C1992 QCZ9079-102 C CAP. 1000pF AC250V M ! C1993 QCZ9079-152 C CAP. 1500pF AC250V M

TRANSFORMER

T1521 CE40203-00CJ1 DRIVE TRANSF

! T1551 QQH0142-001 FB TRANSF ! T1901 QQS0182-001 SW TRANSF

COIL

L1001 CE42050-001Z BEADS CORE L1002 CE42050-001Z BEADS CORE L1101 QQLZ014-R82 COIL 0.82µH L1104 QQL244K-180Z COIL 18µHK L1523 QQR1005-002 LINEARITY COIL L1524 QQLZ018-760 COIL 76µH L1701 QQL244K-100Z COIL 10µHK L1702 QQL244K-100Z COIL 10µHK

L1731 QQL244J-5R6Z COIL 5.6µHJ L1732 QQL244J-5R6Z COIL 5.6µHJ L1951 QQLZ034-460 COIL 46µH L1953 QQL244J-5R6Z COIL 5.6µHJ L1954 QQL244J-5R6Z COIL 5.6µHJ

DIODE

D1101 ISS268-X SI. DIODE D1350 1SS244-T2 SI. DIODE D1352 RGP10J-5025-T3 SI. DIODE D1353 MA111-X SI. DIODE D1354 MA111-X SI. DIODE D1355 MA111-X SI. DIODE D1356 MA111-X SI. DIODE D1357 MA111-X SI. DIODE

D1358 MA111-X SI. DIODE D1360 1SS244-T2 SI. DIODE D1370 1SS244-T2 SI. DIODE D1372 MA3075/M/-X ZENER DIODE D1373 MA111-X SI. DIODE D1374 MA111-X SI. DIODE D1401 RGP10J-5025-T3 SI. DIODE D1402 MTZJ75-T2 ZENER DIODE

D1405 1N4003-T2 SI. DIODE D1408 MA111-X SI. DIODE D1523 RGP10J-5025-T3 SI. DIODE D1541 RGP10J-5025-T3 SI. DIODE D1550 MA111-X SI. DIODE D1551 RGP10J-5025-T3 SI. DIODE D1553 RGP10J-5025-T3 SI. DIODE D1554 RGP10J-5025-T3 SI. DIODE

D1592 MA3075/H/-X ZENER DIODE D1652 MA3330/L/-X ZENER DIODE D1653 MA3330/L/-X ZENER DIODE D1655 MA111-X SI. DIODE D1682 MA111-X SI. DIODE D1702 MA3024-X ZENER DIODE D1703 MA3051/M/-X ZENER DIODE D1704 MA3033-X ZENER DIODE

D1730 MA111-X SI. DIODE D1731 MA111-X SI. DIODE D1732 MA111-X SI. DIODE D1733 MA111-X SI. DIODE D1760 SLR-342VR-T16 LED D1761 SLR-342MC-T16 LED D1770 MA111-X SI. DIODE D1771 P1241-04 PHOTO CONDUCTOR

D1801 MA3120/M/-X ZENER DIODE D1802 MA3120/M/-X ZENER DIODE D1807 MA3100/M/-X ZENER DIODE D1808 MA3100/M/-X ZENER DIODE D1901 GSIB460 BRIDGE DIODE D1903 MTZJ12C-T2 ZENER DIODE D1904 EG01C-T2 SI. DIODE D1906 EG01C-T2 SI. DIODE

D1907 MA3150/M/-X ZENER DIODE D1908 MTZJ27B-T2 ZENER DIODE D1909 MA111-X SI. DIODE D1910 NRSA63J-0R0X MG R 0.0¸ 1/16W J D1911 RGP10J-TS-T3 SI. DIODE D1912 1SS133-T2 SI. DIODE D1914 ERC30-02L38 SI. DIODE D1952 ERC30-02L38 SI. DIODE

58 No. 52076

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

DIODE

D1954 RGP30B-F1 SI. DIODE D1956 RU3AM-LFC4 SI. DIODE D1964 MA3330/L/-X ZENER DIODE D1965 1SS133-T2 SI. DIODE D1966 MA3068/M/-X ZENER DIODE D1968 MA111-X SI. DIODE D1969 MA111-X SI. DIODE D1971 MA111-X SI. DIODE

TRANSISTOR

Q1101 2SC5083/L-P/-T TRANSISTOR Q1102 UN2212-X DIGI. TRANSISTOR Q1104 2SB709A/QR/-X TRANSISTOR Q1105 UN2212-X DIGI. TRANSISTOR Q1106 UN2212-X DIGI. TRANSISTOR Q1108 2SD601A/QR/-X TRANSISTOR Q1109 2SB709A/QR/-X TRANSISTOR Q1110 UN2212-X DIGI. TRANSISTOR

Q1111 2SD601A/QR/-X TRANSISTOR Q1130 2SB709A/QR/-X TRANSISTOR Q1131 UN2212-X DIGI. TRANSISTOR Q1132 2SD601A/QR/-X TRANSISTOR Q1133 2SB709A/QR/-X TRANSISTOR Q1134 UN2212-X DIGI. TRANSISTOR Q1135 UN2212-X DIGI. TRANSISTOR Q1136 2SD601A/QR/-X TRANSISTOR

Q1137 2SD601A/QR/-X TRANSISTOR Q1301 2SB709A/QR/-X TRANSISTOR Q1302 2SB709A/QR/-X TRANSISTOR Q1305 2SC2412K/QR/-X TRANSISTOR Q1306 2SC2412K/QR/-X TRANSISTOR Q1307 2SA1037AK/QR/-X TRANSISTOR Q1350 STC344-T TRANSISTOR Q1351 2SA1321-T TRANSISTOR

Q1352 2SB709A/QR/-X TRANSISTOR Q1360 STC344-T TRANSISTOR Q1361 2SA1321-T TRANSISTOR Q1370 STC344-T TRANSISTOR Q1371 2SA1321-T TRANSISTOR Q1374 2SD601A/QR/-X TRANSISTOR Q1375 2SD601A/QR/-X TRANSISTOR Q1376 2SD601A/QR/-X TRANSISTOR

Q1521 2SC2655/Y/-T TRANSISTOR Q1522 2SD2634-YD POWER TRANSISTOR Q1591 2SA1208/ST/Z1-T TRANSISTOR Q1592 UN2212-X DIGI. TRANSISTOR Q1660 2SD601A/QR/-X TRANSISTOR Q1661 2SD601A/QR/-X TRANSISTOR Q1683 2SB709A/QR/-X TRANSISTOR Q1684 2SB709A/QR/-X TRANSISTOR

Q1685 DTC323TK-X DIGI. TRANSISTOR Q1686 DTC323TK-X DIGI. TRANSISTOR Q1701 2SB709A/QR/-X TRANSISTOR Q1702 2SB709A/QR/-X TRANSISTOR Q1703 FMC2A-X D.TRANSISTOR Q1720 2SB709A/QR/-X TRANSISTOR Q1770 2SB709A/QR/-X TRANSISTOR Q1801 DTC323TK-X DIGI. TRANSISTOR

Q1802 DTC323TK-X DIGI. TRANSISTOR Q1803 2SB709A/QR/-X TRANSISTOR Q1804 2SC1740S/QR/-T TRANSISTOR Q1860 2SD601A/QR/-X TRANSISTOR Q1861 2SB709A/QR/-X TRANSISTOR Q1862 2SB709A/QR/-X TRANSISTOR Q1952 2SD601A/QR/-X TRANSISTOR Q1953 2SD601A/QR/-X TRANSISTOR

Q1954 2SD601A/QR/-X TRANSISTOR

IC

IC1130 M52342SP I.C(MONO-ANA) IC1401 AN5522 I.C(MONO-ANA) IC1602 NJW1138M-X I.C(MONO-ANA) IC1650 AN5276 I.C(MONO-ANA) IC1701 TDA9386N22S0902 I.C(MCU) IC1702 AT24C08-21WS3 I.C(MEMORY-OTH) (SERVICE) IC1760 GP1UM281QK IR DETECT UNIT IC1801 MM1492AF I.C(MONO-ANA)

IC1901 STR-F6707A/F7 I.C(HYBRID) IC1951 SE115N-LF12 I.C(HYBRID) IC1972 R1141Q331B-X REGULATE IC1974 AN80T36 REG I.C

OTHERS

LC30114-001C-H LED HOLDER

CF1106 QAX0639-001Z C TRAP CF1130 QAX0642-001Z C FILTER CF1140 QAX0695-001Z C FILTER CF1142 QAX0697-001Z C FILTER CL1001 QZW0027-002 WIRE CLAMP CL1002 QZW0027-001 WIRE CLAMP

CL1003 QZW0027-004 WIRE CLAMP

! CP1951 ICP-N75-Y IC PROTECTOR ! CP1953 ICP-N75-Y IC PROTECTOR ! F1901 QMF51E2-4R0J4 FUSE

FC1901 CEMG002-001Z FUSE CLIP J1770 QNS0155-001 3.5 JACK J1771 QNN0282-003 PIN JACK J1772 QNN0282-002 PIN JACK

J1773 QNN0282-001 PIN JACK J1801 QNN0349-001 PIN JACK J1802 QNN0349-002 PIN JACK J1803 QNN0348-001 PIN JACK J1804 QNN0349-001 PIN JACK K1104 QQR1113-001Z FERRITE BEADS K1105 QQR1113-001Z FERRITE BEADS K1106 QQR1113-001Z FERRITE BEADS

K1401 CE42050-001Z BEADS CORE K1701 QQR1113-001Z FERRITE BEADS K1902 QQR1114-001Z FERRITE BEADS K1903 QQR1114-001Z FERRITE BEADS K1951 QQR1113-001Z FERRITE BEADS K1954 QQR1113-001Z FERRITE BEADS K1955 QQR1214-001Y FERRITE BEADS

! LF1902 QQR1035-001 LINE FILTER

! PC1901 PC123F2 IC(PHOTO COUPLE) ! RY1901 QSK0092-001 RELAY

S1780 QSW0619-003Z TACT SWITCH MENU S1781 QSW0619-003Z TACT SWITCH CHS1782 QSW0619-003Z TACT SWITCH CH+ S1783 QSW0619-003Z TACT SWITCH VOLS1784 QSW0619-003Z TACT SWITCH VOL+

! S1901 QSW0846-001 PUSH SWITCH POWER

SF1101 QAX0325-001 SAW FILTER SF1102 QAX0731-001 SAW FILTER

! SK1351 QNZ0537-001 CRT SOCKET

TH1901 QAD0134-4R5 P THERMISTOR TU1001 QAU0186-002 TUNER

! VA1901 QAF0052-621 VARISTOR

W1010 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1052 NRSA63J-0R0X MG R 0.0¸ 1/16W J

W1071 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1096 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1239 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1257 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1307 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1309 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1317 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1322 NRSA63J-0R0X MG R 0.0¸ 1/16W J

CM35921-B02 CDS HOLDER

AV-20N83

No. 52076 59

AV-20N83

! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local

OTHERS

W1325 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1326 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1330 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1333 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1375 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1379 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1388 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1417 NRSA63J-0R0X MG R 0.0¸ 1/16W J

W1418 NRSA63J-0R0X MG R 0.0¸ 1/16W J W1430 NRSA63J-0R0X MG R 0.0¸ 1/16W J X1701 QAX0737-001 CRYSTAL Y1001 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1002 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1005 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1130 NRSA63J-0R0X MG R 0.0¸ 1/16W J Y1601 NRSA63J-0R0X MG R 0.0¸ 1/16W J

Y1604 NRSA63J-0R0X MG R 0.0¸ 1/16W J

60 No. 52076

AV-20N83 AV-21D83

DIFFERENCE PARTS LIST BETWEEN AV-21D83

/VT AND AV-20N83/VT

In the DIFFERENCE PARTS LIST BETWEEN AV-21D83/VT and AV-20N83/VT, only difference points between these models are written. For other parts not mentioned in the list, please refer to the PARTS LIST (P55 – P60) for the AV20N83

/VT.

DIFFERENCE PARTS LIST

Symbol

!

----------------------------------------------------------------------------------------------------------------------------------------------------

No.

R1413 QRX01GJ-3R3 (3.3¸, 1W, J) QRX01GJ-3R9 (3.9¸, 1W, J) MF R

R1414 QRE121J-220Y (22¸, 1/2W, J) QRE121J-390Y (39¸, 1/2W, J) CR

C1524 QFZ0200-902 (9000pF, 1.5kVH±3%) QFZ0200-942 (9400pF, 1.5kVH±3%) MPP CAP

C1527 QFZ0199-564 (0.56µF, AC250V, J) QFZ0199-124 (0.12µF, AC250V, J) MPP CAP

AV-21D83

SCH-1315A-CK SCH-1316A-CK MAIN PWB

/VT AV-20N83/VT

Part No.

Part Name

REMOTE CONTROL UNIT PARTS LIST

RM-C1017-1H [AV-20N83/BK, AV-21D83/BK] RM-C1027-1H [AV-21D83

! Ref. No. Part No. Part Name Description Local

25-1168F BATTERY COVER

/VT, AV-20N83/VT]

No. 52076 61

AV-20N83

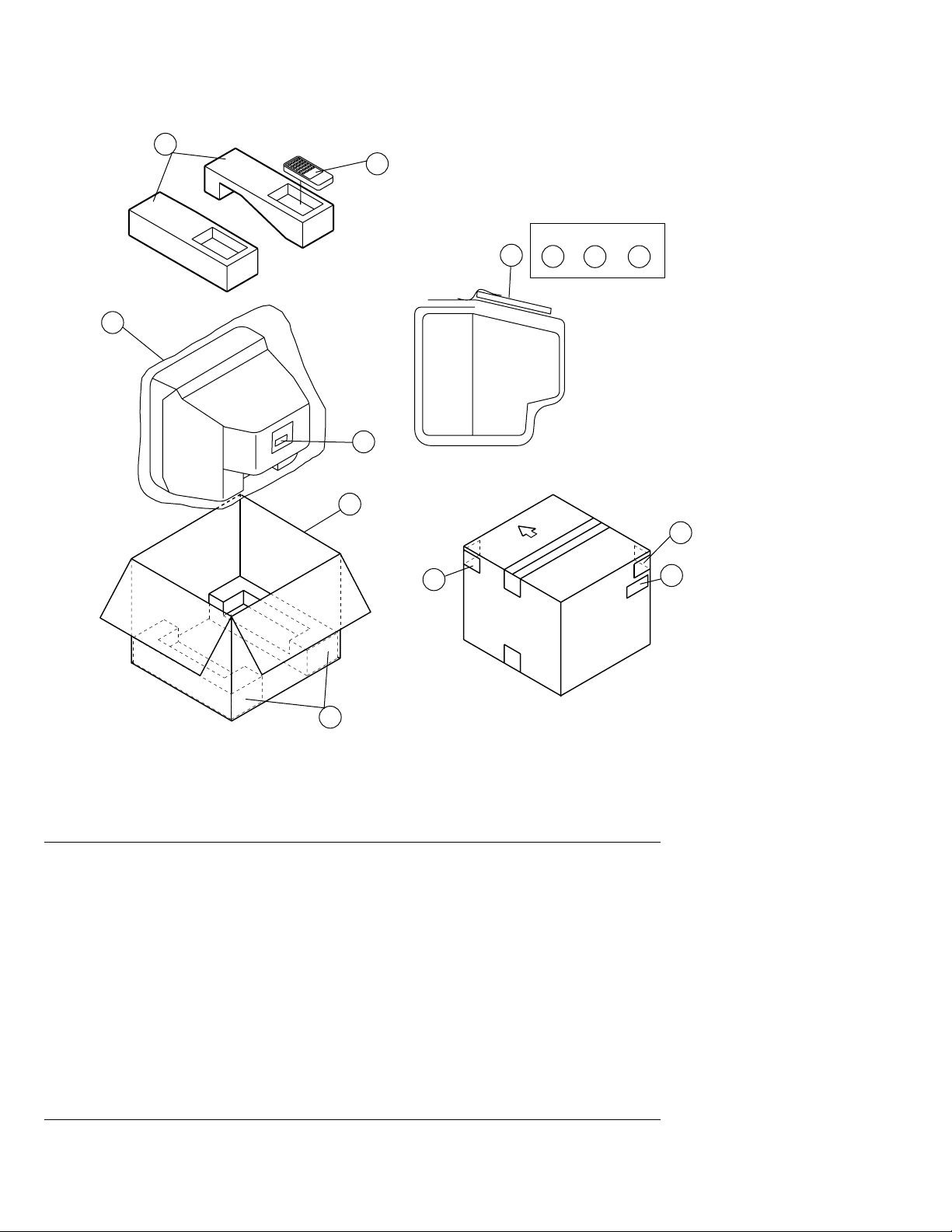

PACKING [AV-20N83

3

1

/BK

, AV-20N83

2

10

/VT

4

]

!

5

6

7 8

9

3

PACKING PARTS LIST [AV-20N83

!

Ref.No. Part No. Part Name Description Local

1 CP30967-003-H POLY BAG [AV-20N83/BK] 1 GG30033-001A-E POLY BAG [AV-20N83/VT] 2 GG10056-075A-H P CASE [AV-20N83/BK] 2 GG10007-024A-E P CASE [AV-20N83/VT] 3 LC10469-002A-H CUSHION ASSY [AV-20N83/BK] 3LC10469-004A CUSHION ASSY [AV-20N83/VT] 4RM-C1017-1H RC HAND UNIT 5 CP30966-001-H POLY BAG [AV-20N83/BK]

5 GG30034-001A-E POLY BAG [AV-20N83/VT]

! 6LCT1204-001A-H INST BOOK [AV-20N83/BK] ! 6 LCT1211-001A INST BOOK [AV-20N83/VT]

7ATEAB001-00A MATCHING BOX [AV-20N83/BK] 7 CEAB005-00AJ1 MATCHING BOX [AV-20N83/VT] 8 CM35847-00B-H ROD ANTENNA [AV-20N83/VT] 9 GG20025-003A-H CORNER LABEL (x2) [AV-20N83/BK] 10 GG40015-001A-E SERIAL LABEL (x2) [AV-20N83/VT]

/BK

, AV-20N83

/VT

]

10

62 No. 52076

AV-21D83

PACKING [AV-21D83

3

4

1

/BK

, AV-21D83

10

2

/VT

]

5

!

6

8

7

9

3

PACKING PARTS LIST [AV-21D83

!

Ref.No. Part No. Part Name Description Local

1CP30967-003-H POLY BAG [AV-21D83/BK] 1 GG30033-001A-E POLY BAG [AV-21D83/VT] 2 GG10056-078A-H P CASE [AV-21D83/BK] 2 GG10007-025A-E P CASE [AV-21D83/VT] 3 GG10131-001B-H CUSHION ASSY [AV-21D83/BK] 3 GG10131-003A-E CUSHION ASSY [AV-21D83/VT] 4RM-C1027-1H RC HAND UNIT 5CP30966-001-H POLY BAG [AV-21D83/BK]

5 GG30034-001A-E POLY BAG [AV-21D83/VT]

! 6LCT1204-001A-H INST BOOK [AV-21D83/BK] ! 6 LCT1211-001A INST BOOK [AV-21D83/VT]

7ATEAB001-00A MATCHING BOX [AV-21D83/BK] 7 CEAB005-00AJ1 MATCHING BOX [AV-21D83/VT] 8 CM35847-00B-H ROD ANTENNA [AV-21D83/VT] 9 GG20025-003A-H CORNER LABEL (x2) [AV-21D83/BK] 10 GG40015-001A-E SERIAL LABEL (x2) [AV-21D83/VT]

/BK

, AV-21D83

/VT

]

9

10

No. 52076 63

JVC AV-20N83/BK, AV-20N83/VT, AV-21D83/BK, AV-21D83/VT Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

PARTS LIST

CONTENTS

USING P.W. BOARD & REMOTE CONTROL UNIT

EXPLODED VIEW -1 [AV-20N83/BK, AV-20N83/VT]

EXPLODED VIEW -2 [AV-20N83/BK, AV-20N83/VT]

EXPLODED VIEW -3 [AV-21D83/BK, AV-21D83/VT]

PRINTED WIRING BOARD PARTS LIST [AV-20N83/BK]

DIFFERENCE PARTS LIST

PRINTED WIRING BOARD PARTS LIST [AV-20N83/VT]

DIFFERENCE PARTS LIST

REMOTE CONTROL UNIT PARTS LIST
