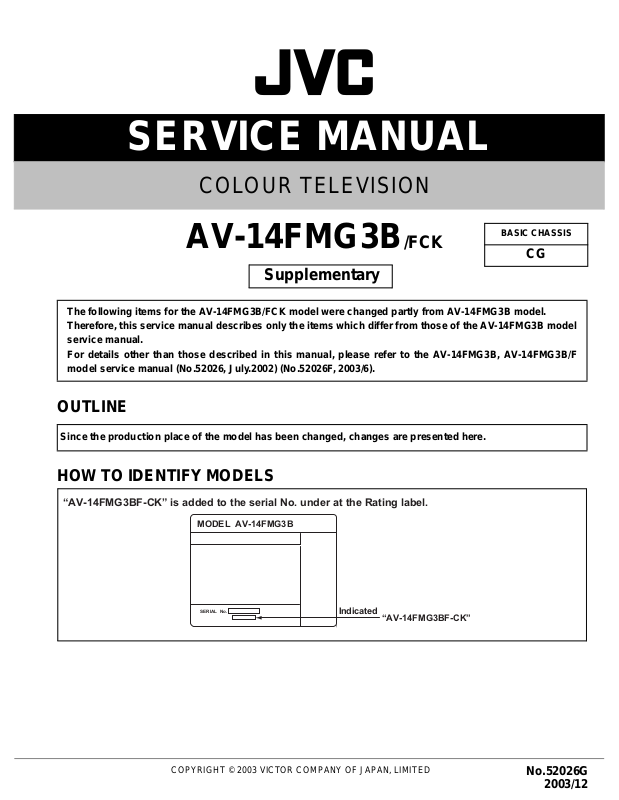

SERVICE MANUAL
COLOUR TELEVISION
52026G200312
BASIC CHASSIS
AV-14FMG3B/FCK
Supplementary
The following items for the AV-14FMG3B/FCK model were changed partly from AV-14FMG3B model.
Therefore, this service manual describes only the items which diffe r fro m thos e of the AV-14F MG3B mode l
service manual.
For details other than those described in this manual, please refer to the AV-14FMG3B, AV-14FMG3B/F
model service manual (No.52026, July.2002) (No.52026F, 2003/6).
OUTLINE
Since the production place of the model has been changed, changes are presented here.
CG
HOW TO IDENTIFY MODELS
“AV-14FMG3BF-CK” is added to the serial No. under at the Rating label.
MODEL AV-14FMG3B
SERIAL No.
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED
Indicated
“AV-14FMG3BF-CK”
No.52026G
2003/12
DIFFERENCE LIST
USING P.W. BOARD (Page 34)
P.W.B ASS'Y Name A V-14FMG3B A V-14FMG3B/F AV-14FMG3B/FCK DESCRIPTION
MAIN PWB SCG-1421A-H2 SCG-1494A-H2 SCG-1500A-CK Non compatible
EXPLODED VIEW PARTS LIST (1) (Page 35)
Ref. No.
AV-14FMG3B AV-14FMG3B/F AV-14FMG3B/FCK
1 LC10831-029A-H LC10831-029A-H LC10831 -029A-HK FRONT CABINET
PARTS No.
PARTS NAME DESCRIPTION
EXPLODED VIEW PARTS LIST (2) (Page 36)
Ref. No.
AV-14FMG3B AV-14FMG3B/F AV-14FMG3B/FCK
V01 A34KQW42X A34JXV70X
L01 QQW0096-001 QQW0171-001
DY01 QQD0052-001 CE20301-00A ← DEF YOKE
16 CM12961-E01-VH CM12961-E01-VH CM12961-E01-KH REAR COVER
20 LC20377-001B-H GG20024-001B-H GG20014-010A-H RATING LABEL
PARTS No.
PARTS NAME DESCRIPTION
← PICTURE TUBE
← DEG COIL
PACKING PARTS LIST (Page 67)
Ref. No.
AV-14FMG3B AV-14FMG3B/F AV-14FMG3B/FCK
1 GG10056-066B-H GG10056-066D-H GG10056-066C-H PACKING CASE
PARTS No.
PARTS NAME DESCRIPTION
2 GG20025-005A-H GG20025-005A-H GG20025-003A-H CORNER LABEL (X2)
1-2 (No.52026G)
PRINTED WIRING BOARD PARTS LIST
MAIN P.W. BOARD ASS'Y (SCG-1500A-CK)
Ref No. Part No. Part Name Description Local
IC1301 NN5198K IC
IC1421 AN5522 IC
IC1651 AN5265 IC
IC1701 MN1873287JJ1 IC
IC1702 AT24C08-21DMG3 IC (SERVICE)
IC1703 L78LR05E-MA IC
IC1704 GP1UM281QK IR DETECT UNIT 38kHz
IC1921 STR-W5753A/F5 IC
IC1971 L7809CP IC
IC1972 L7805CP IC
Q1102 2SC5083/L-P/-T TRANSISTOR
Q1103 UN2212-X DIGI TRANSISTOR
Q1161 2SC3928A/QR/-X TRANSISTOR
Q1301 2SA1530A/QR/-X TRANSISTOR
Q1302 2SC3928A/QR/-X TRANSISTOR
Q1351 STC344-T TRANSISTOR
Q1352 STC344-T TRANSISTOR
Q1353 STC344-T TRANSISTOR
Q1401 DTC124ESA-T DIGI TRANSISTOR
Q1402 2SC3928A/QR/-X TRANSISTOR
Q1521 2SC2655/Y/-T TRANSISTOR
Q1522 2SD2658LS-YB11 POW TRANSISTOR H.OUT
Q1571 2SA1208/ST/Z1-T TRANSISTOR
Q1572 2SC3928A/QR/-X TRANSISTOR
Q1651 2SC3928A/QR/-X TRANSISTOR
Q1652 2SC3928A/QR/-X TRANSISTOR
Q1653 2SA1530A/QR/-X TRANSISTOR
Q1702 2SC3928A/QR/-X TRANSISTOR
Q1703 2SC3928A/QR/-X TRANSISTOR
Q1708 UN2212-X DIGI TRANSISTOR
Q1709 2SA1530A/QR/-X TRANSISTOR
Q1803 KTC3199/YG/-T TRANSISTOR
Q1804 2SC3928A/QR/-X TRANSISTOR
Q1974 2SA966/OY/-T TRANSISTOR
Q1975 UN2212-X DIGI TRANSISTOR
D1001 MTZJ33A-T2 Z DIODE
D1102 MA859-T2 SI DIODE
D1301 MTZJ9.1B-T2 Z DIODE
D1302 MTZJ9.1B-T2 Z DIODE
D1303 MA3091/M/-X Z DIODE
D1305 AK04-T2 SB DIODE
D1306 QRE122J-561 C RESISTOR 560Ω 1/2W J
D1341 MA111-X SI DIODE
D1421 MTZJ75-T2 Z DIODE
D1423 1SR124-400A-T2 SI DIODE
D1425 MA111-X SI DIODE
D1427 MTZJ27B-T2 Z DIODE
D1501 MTZJ6.8C-T2 Z DIODE
D1551 RGP10J-5025-T3 SI DIODE
D1552 RGP10J-5025-T3 SI DIODE
D1553 MTZJ9.1B-T2 Z DIODE
D1554 MA111-X SI DIODE
D1557 1SR124-400A-T2 SI DIODE
D1571 MTZJ7.5S-T2 Z DIODE
D1581 MTZJ20B-T2 Z DIODE
D1582 RGP10J-5025-T3 SI DIODE
D1651 MA111-X SI DIODE
D1652 MTZJ12C-T2 Z DIODE
D1653 MA111-X SI DIODE
D1654 MTZJ12C-T2 Z DIODE
D1655 MA111-X SI DIODE
D1656 MA111-X SI DIODE
D1657 MA111-X SI DIODE
D1701 MA111-X SI DIODE
D1704 LH22440-T16 LED(RED) POWER
D1705 LE22440-T16 LED(ORG) ON TIMER
D1707 MA111-X SI DIODE
D1731 MA111-X SI DIODE
D1920 1SS133-T2 DIODE
D1921 RGP10J-5025-T3 SI DIODE
D1925 RGP10J-5025-T3 SI DIODE
D1927 MTZJ36A-T2 Z DIODE
D1928 MTZJ3.3A-T2 Z DIODE
D1930 RGP10M-5010-T3 SI DIODE
D1931 MA111-X SI DIODE
D1933 MTZJ16C-T2 Z DIODE
D1941 RU3AM-LFC4 SI DIODE
D1942 RGP30B-F1 SI DIODE
D1943 RGP10J-5025-T3 SI DIODE
D1982 MA111-X SI DIODE
D1983 MA111-X SI DIODE
Ref No. Part No. Part Name Description Local
C1001 QETM1HM-106 E CAPACITOR 10uF 50V M
C1002 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1004 QETM1CM-477 E CAPACITOR 470uF 16V M
C1005 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C1008 QETM1HM-475 E CAPACITOR 4.7uF 50V M
C1103 QETM1EM-476 E CAPACITOR 47uF 25V M
C1104 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1105 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1106 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1107 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1109 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1110 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
C1112 QETM1EM-476 E CAPACITOR 47uF 25V M
C1113 NCB21HK-472X C CAPACITOR 4700pF 50V K
C1114 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1115 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1116 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1117 QFVF1HJ-224Z MF CAPAC ITOR 0.22uF 50V J
C1119 QETM1HM-474 E CAPACITOR 0.47uF 50V M
C1120 NDC21HJ-121X C CAPACITOR 120pF 50V J
C1121 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1122 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1161 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1162 NCB21HK-152X C CAPACITOR 1500pF 50V K
C1164 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1165 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1166 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C1301 NCB21HK-123X C CAPACITOR 0.012uF 50V K
C1302 QETM1HM-475 E CAPACITOR 4.7uF 50V M
C1303 NDC21HJ-100X C CAPACITOR 10pF 50V J
C1304 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C1305 QETM1HM-474 E CAPACITOR 0.47uF 50V M
C1306 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1307 QETM1CM-477 E CAPACITOR 470uF 16V M
C1308 QETM1CM-107 E CAPACITOR 100uF 16V M
C1309 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1310 NDC21HJ-221X C CAPACITOR 220pF 50V J
C1311 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1312 QENB1HM-474 BP E CAPACITOR 0.47uF 50V M
C1313 QETM1HM-335 E CAPACITOR 3.3uF 50V M
C1314 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1315 QETM1CM-107 E CAPACITOR 100uF 16V M
C1316 QETM1HM-106 E CAPACITOR 10uF 50V M
C1317 NCB21HK-473X C CAPACITOR 0.047uF 50V K
C1321 NDC21HJ-120X C CAPACITOR 12pF 50V J
C1322 NCB21EK-273X C CAPACITOR 0.027uF 25V K
C1323 QETM1HM-474 E CAPACITOR 0.47uF 50V M
C1324 QETM1HM-106 E CAPACITOR 10uF 50V M
C1325 QENB1HM-106 BP E CAPACITOR 10uF 50V M
C1326 NCS21HJ-221X C CAPACITOR 220pF 50V J
C1341 QETM1HM-106 E CAPACITOR 10uF 50V M
C1352 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C1354 NDC21HJ-271X C CAPACITOR 270pF 50V J
C1355 NDC21HJ-221X C CAPACITOR 220pF 50V J
C1356 NDC21HJ-331X C CAPACITOR 330pF 50V J
C1357 QETM1AM-477 E CAPACITOR 470uF 10V M
C1365 QENB1HM-105 BP E CAPACITOR 1uF 50V M
C1366 QENB1HM-105 BP E CAPACITOR 1uF 50V M
C1367 QENB1HM-105 BP E CAPACITOR 1uF 50V M
C1401 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C1423 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C1424 QFLB2AJ-103 M CAPACITOR 0.01uF 100V J
C1426 QCB32HK-331Z C CAPACITOR 330pF 500V K
C1427 QETM1VM-107 E CAPACITOR 100uF 35V M
C1428 QETM1VM-107 E CAPACITOR 100uF 35V M
C1429 QETM1HM-106 E CAPACITOR 10uF 50V M
C1430 QFLB2AJ-102 M CAPACITOR 1000pF 100V J
C1433 QEHQ1HM-475 E CAPACITOR 4.7uF 50V M
C1435 QETM1EM-228 E CAPACITOR 2200uF 25V M
C1436 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J
C1437 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C1501 QETM1EM-476 E CAPACITOR 47uF 25V M
C1502 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1503 QETM1HM-106 E CAPACITOR 10uF 50V M
C1523 QETM1EM-476 E CAPACITOR 47uF 25V M
C1525 QFZ0200-652 MPP CAPACITOR 6500pF 1.5kV H
C1526 QFLB1HJ-103 M CAPACITOR 0.01uF 50V J
C1527 QFZ0199-684 MPP CAPACITOR 0.68uF
C1529 QFLB2AJ-102 M CAPACITOR 1000pF 100V J
C1531 QEZ0203-107 E CAPACIT OR 100uF 160V M
C1552 QETM1VM-108 E CAPACITOR 1000uF 35V M
C1554 QETM2EM-475 E CAPACITOR 4.7uF 250V M
C1555 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C1557 QETM1HM-107 E CAPACITOR 100uF 50V M
C1571 QETM1AM-107 E CAPACITOR 100uF 10V M
C1572 QETM1EM-476 E CAPACITOR 47uF 25V M
(No.52026G)1-3
Ref No. Part No. Part Name Description Local
Ref No. Part No. Part Name Description Local
C1581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C1652 NCB21HK-473X C CAPACITOR 0.047uF 50V K
C1653 QETM1HM-106 E CAPACITOR 10uF 50V M
C1654 QETM1CM-477 E CAPACITOR 470uF 16V M
C1655 QETM1HM-106 E CAPACITOR 10uF 50V M
C1656 QENB1HM-105 BP E CAPACITOR 1uF 50V M
C1657 QETM1EM-107 E CAPACITOR 100uF 25V M
C1658 QETM1EM-227 E CAPACITOR 220uF 25V M
C1659 QETM1HM-475 E CAPACITOR 4.7uF 50V M
C1663 NCB21HK-102X C CAPACITOR 1000pF 50V K
C1664 QETM1CM-107 E CAPACITOR 100uF 16V M
C1665 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1701 QETM1HM-106 E CAPACITOR 10uF 50V M
C1705 QETM1CM-477 E CAPACITOR 470uF 16V M
C1706 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C1707 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1708 QETM1AM-108 E CAPACITOR 1000uF 10V M
C1709 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1710 QETM1CM-107 E CAPACITOR 100uF 16V M
C1711 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1712 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1713 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1716 NDC21HJ-181X C CAPACITOR 180pF 50V J
C1717 NDC21HJ-181X C CAPACITOR 180pF 50V J
C1718 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1719 QETM1HM-105 E CAPACITOR 1uF 50V M
C1720 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1721 NCB21EK-333X C CAPACITOR 0.033uF 25V K
C1722 NDC21HJ-101X C CAPACITOR 100pF 50V J
C1724 NDC21HJ-560X C CAPACITOR 56pF 50V J
C1728 NDC21HJ-181X C CAPACITOR 180pF 50V J
C1729 NDC21HJ-181X C CAPACITOR 180pF 50V J
C1730 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1744 NCB21HK-103X C CAPACITOR 0.01uF 50V K
C1805 QETM1CM-227 E CAPACITOR 220uF 16V M
C1806 QETM1CM-477 E CAPACITOR 470uF 16V M
C1811 QETM1HM-106 E CAPACITOR 10uF 50V M
C1841 NCB21HK-152X C CAPACITOR 1500pF 50V K
C1901 QFZ9073-224 MPP CAPACITOR 0.22uF 250V M
C1904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C1905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C1907 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C1909 QEZ0649-127 E CAPACITOR 120uF 400V M
C1910 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K
C1922 QFLB1HJ-104 M CAPACITOR 0.1uF 50V J
C1924 QETM1HM-475 E CAPACITOR 4.7uF 50V M
C1925 QETN1VM-476Z E CAPACITOR 47uF 35V M
C1926 QFLC1HJ-332Z M CAPACITOR 3300pF 50V J
C1929 QFKA2JK-103 C CAPAC ITOR 0.01uF 630V K
C1931 QCZ0364-681 C CAPACITOR 680pF 2kV K
C1932 NDC21HJ-221X C CAPACITOR 220pF 50V J
C1941 QCZ0364-561 C CAPACITOR 560pF 2kV K
C1942 QEZ0203-107 E CAPACITOR 100uF 160V M
C1944 QCB32HK-222Z C CAPACITOR 2200pF 500V K
C1945 QEHQ1EM-108 E CAPACITOR 1000uF 25V M
C1946 QETM1EM-108 E CAPACITOR 1000uF 25V M
C1947 QCB32HK-222Z C CAPACITOR 2200pF 500V K
C1948 QETM1EM-108 E CAPACITOR 1000uF 25V M
C1949 NDC21HJ-471X C CAPACITOR 470pF 50V J
C1976 QETM1EM-227 E CAPACITOR 220uF 25V M
C1977 QETM1CM-227 E CAPACITOR 220uF 16V M
C1978 QETM1EM-227 E CAPACITOR 220uF 25V M
C1979 QETM1AM-227 E CAPACITOR 220uF 10V M
C1991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C1992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C1993 QCZ9079-152 C CAPACITOR 1500pF AC250V M
R1002 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1003 NRSA02J-221X MG RESISTOR 220
R1004 NRSA02J-563X MG RESISTOR 56k
R1102 NRSA02J-750X MG RESISTOR 75
R1103 NRSA02J-100X MG RESISTOR 10
R1109 NRSA02J-682X MG RESISTOR 6.8k
R1110 NRSA02J-272X MG RESISTOR 2.7k
R1111 NRSA02J-181X MG RESISTOR 180
R1112 NRSA02J-220X MG RESISTOR 22
R1113 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1114 NRSA02J-472X MG RESISTOR 4.7k
R1115 NRSA02J-222X MG RESISTOR 2.2kΩ 1/10W J
R1117 NRSA02J-0R0X MG RESISTOR 0
R1118 NRSA02J-222X MG RESISTOR 2.2kΩ 1/10W J
R1120 NRSA02J-391X MG RESISTOR 390
R1121 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1159 NRSA02J-184X MG RESISTOR 180k
R1161 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1162 NRSA02J-122X MG RESISTOR 1.2k
R1163 NRSA02J-222X MG RESISTOR 2.2k
R1164 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1165 NRSA02J-220X MG RESISTOR 22Ω 1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
R1166 NRSA02J-821X MG RESISTOR 820Ω 1/10W J
R1301 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1302 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1303 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1304 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1305 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1306 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1307 NRSA02J-122X MG RESISTOR 1.2k
R1308 NRSA02J-182X MG RESISTOR 1.8k
R1312 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R1313 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1314 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1321 NRSA02J-152X MG RESISTOR 1.5kΩ 1/10W J
R1322 NRSA02J-272X MG RESISTOR 2.7kΩ 1/10W J
R1323 NRSA02J-103X MG RESISTOR 10k
R1324 NRSA02J-102X MG RESISTOR 1k
R1326 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1327 NRSA02J-475X MG RESISTOR 4.7MΩ 1/10W J
R1341 NRSA02J-332X MG RESISTOR 3.3kΩ 1/10W J
R1345 NRSA02J-151X MG RESISTOR 150Ω 1/10W J
R1346 NRSA02J-151X MG RESISTOR 150Ω 1/10W J
R1353 NRSA02J-151X MG RESISTOR 150Ω 1/10W J
R1354 NRSA02J-331X MG RESISTOR 330
R1355 NRSA02J-331X MG RESISTOR 330
R1356 NRSA02J-331X MG RESISTOR 330Ω 1/10W J
R1357 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1358 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1359 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1360 QRZ0111-152 C RESISTOR 1.5kΩ 1/2W K
R1361 QRZ0111-152 C RESISTOR 1.5kΩ 1/2W K
R1362 QRZ0111-152 C RESISTOR 1.5kΩ 1/2W K
R1363 QRL029J-123 OMF RESISTOR 12kΩ 2W J
R1364 QRL029J-123 OMF RESISTOR 12kΩ 2W J
R1365 QRL029J-123 OMF RESISTOR 12kΩ 2W J
R1366 NRSA02J-182X MG RESISTOR 1.8kΩ 1/10W J
R1367 NRSA02J-182X MG RESISTOR 1.8kΩ 1/10W J
R1368 NRSA02J-182X MG RESISTOR 1.8kΩ 1/10W J
R1372 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R1374 NRSA02J-682X MG RESISTOR 6.8kΩ 1/10W J
R1401 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1421 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1423 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R1424 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R1425 NRSA02J-332X MG RESISTOR 3.3kΩ 1/10W J
R1426 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
R1429 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1430 NRSA02J-823X MG RESISTOR 82kΩ 1/10W J
R1431 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1432 QRE122J-3R9 C RESISTOR 3.9Ω 1/2W J
R1433 QRE122J-3R9 C RESISTOR 3.9Ω 1/2W J
R1436 NRSA02J-823X MG RESISTOR 82kΩ 1/10W J
R1440 QRE122J-471 C RESISTOR 470Ω 1/2W J
R1441 NRSA02J-822X MG RESISTOR 8.2kΩ 1/10W J
R1442 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1443 QRE122J-1R0 C RESISTOR 1Ω 1/2W J
R1445 QRE122J-471 C RESISTOR 470
R1453 NRSA02J-272X MG RESISTOR 2.7kΩ 1/10W J
R1502 NRSA02J-0R0X MG RESISTOR 0
R1503 NRSA02J-682X MG RESISTOR 6.8kΩ 1/10W J
R1525 QRL029J-680 OMF RESISTOR 68
R1526 QRE122J-271 C RESISTOR 270Ω 1/2W J
R1529 QRL039J-221 OMF RESISTOR 220Ω 3W J
R1531 NRSA02J-331X MG RESISTOR 330Ω 1/10W J
R1532 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1551 QRZ9011-1R0 FUSI RESISTOR 1Ω 1/2W J
R1552 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J
R1554 QRE122J-681 C RESISTOR 680
R1571 QRE122J-272 C RESISTOR 2.7k
R1573 QRT029J-2R2 MF RESISTOR 2.2
R1574 QRT029J-2R2 MF RESISTOR 2.2
R1576 QRE122J-223 C RESISTOR 22k
R1577 NRSA02J-562X MG RESISTOR 5.6k
R1578 NRSA02J-103X MG RESISTOR 10k
R1581 QRE122J-182 C RESISTOR 1.8k
R1582 NRSA02J-273X MG RESISTOR 27k
R1583 NRSA02J-393X MG RESISTOR 39k
R1651 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1652 NRSA02J-102X MG RESISTOR 1k
R1653 NRSA02J-331X MG RESISTOR 330Ω 1/10W J
R1654 NRSA02J-223X MG RESISTOR 22k
R1655 NRSA02J-473X MG RESISTOR 47kΩ 1/10W J
R1656 NRSA02J-822X MG RESISTOR 8.2k
R1657 NRSA02J-222X MG RESISTOR 2.2kΩ 1/10W J
R1658 NRSA02J-222X MG RESISTOR 2.2k
R1659 QRE122J-4R7 C RESISTOR 4.7Ω 1/2W J
R1660 NRSA02J-153X MG RESISTOR 15k
R1661 QRE122J-271 C RESISTOR 270
R1662 QRE122J-271 C RESISTOR 270Ω 1/2W J
R1664 NRSA02J-682X MG RESISTOR 6.8kΩ 1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/2W J
Ω
1/10W J
Ω
Ω
1/2W J
Ω
1/2W J
Ω
Ω
Ω
1/2W J
Ω
1/10W J
Ω
1/10W J
Ω
1/2W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/2W J
2W J
2W J
2W J
1-4 (No.52026G)
Ref No. Part No. Part Name Description Local
Ref No. Part No. Part Name Description Local
R1665 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1666 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1667 QRE122J-101 C RESISTOR 100Ω 1/2W J
R1668 QRT029J-5R6 MF RESISTOR 5.6Ω 2W J
R1701 NRSA02J-562X MG RESISTOR 5.6kΩ 1/10W J
R1702 NRSA02J-682X MG RESISTOR 6.8kΩ 1/10W J
R1703 NRSA02J-392X MG RESISTOR 3.9kΩ 1/10W J
R1704 NRSA02J-221X MG RESISTOR 220
R1705 NRSA02J-221X MG RESISTOR 220
R1706 NRSA02J-561X MG RESISTOR 560Ω 1/10W J
R1707 NRSA02J-561X MG RESISTOR 560Ω 1/10W J
R1708 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1709 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1710 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1711 NRSA02J-472X MG RESISTOR 4.7k
R1712 NRSA02J-472X MG RESISTOR 4.7k
R1713 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1714 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1715 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1716 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1718 NRSA02J-561X MG RESISTOR 560Ω 1/10W J
R1719 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1720 NRSA02J-472X MG RESISTOR 4.7k
R1721 NRSA02J-103X MG RESISTOR 10k
R1723 QRL039J-270 OMF RESISTOR 27Ω 3W J
R1725 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1726 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1727 NRSA02J-153X MG RESISTOR 15kΩ 1/10W J
R1728 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1729 NRSA02J-102X MG RESISTOR 1kΩ 1/10W J
R1730 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1731 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1736 NRSA02J-823X MG RESISTOR 82kΩ 1/10W J
R1737 NRSA02J-104X MG RESISTOR 100kΩ 1/10W J
R1738 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1739 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1740 NRSA02J-392X MG RESISTOR 3.9kΩ 1/10W J
R1741 NRSA02J-561X MG RESISTOR 560Ω 1/10W J
R1742 NRSA02J-563X MG RESISTOR 56kΩ 1/10W J
R1746 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1747 NRSA02J-0R0X MG RESISTO R 0Ω 1/10W J
R1748 NRSA02J-101X MG RESISTOR 100Ω 1/10W J
R1749 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W J
R1771 NRSA02J-821X MG RESISTOR 820Ω 1/10W J
R1772 NRSA02J-821X MG RESISTOR 820Ω 1/10W J
R1791 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1792 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1793 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1794 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1795 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1796 NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1797 NRSA02J-153X MG RESISTOR 15kΩ 1/10W J
R1802 NRSA02J-750X MG RESISTOR 75Ω 1/10W J
R1806 QRE122J-271 C RESISTOR 270Ω 1/2W J
R1807 NRSA02J-680X MG RESISTOR 68Ω 1/10W J
R1810 QRG01GJ-560 OMF RESISTOR 56
R1811 NRSA02J-221X MG RESISTOR 220Ω 1/10W J
R1815 QRE121J-181Y C RESISTOR 180
R1816 NRSA02J-681X MG RESISTOR 680Ω 1/10W J
R1817 NRSA02J-472X MG RESISTOR 4.7k
R1901 QRF074K-4R7 UN F WW RESISTOR 4.7Ω 7W K
R1903 QRL029J-104 OMF RESISTOR 100kΩ 2W J
R1906 QRL029J-104 OMF RESISTOR 100kΩ 2W J
R1921 QRE121J-1R8Y C RESISTOR 1.8Ω 1/2W J
R1922 QRE122J-221 C RESISTOR 220
R1923 QRM034J-R18 MP RESISTOR 0.18Ω 3W J
R1924 NRSA02J-154X MG RESISTOR 150k
R1925 NRSA02J-105X MG RESISTOR 1M
R1928 QRL039J-683 OMF RESISTOR 68k
R1933 QRE122J-4R7 C RESISTOR 4.7
R1934 NRSA02J-683X MG RESISTOR 68k
R1935 QRE121J-392Y C RESISTOR 3.9k
R1974 NRSA02J-222X MG RESISTOR 2.2k
R1976 QRL029J-120 OMF RESISTOR 12
R1977 QRE122J-122 C RESISTOR 1.2k
R1978 NRSA02J-473X MG RESISTOR 47k
R1979 QRL039J-470 OMF RESISTOR 47Ω 3W J
R1980 QRL029J-152 OMF RESISTOR 1.5k
R1991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K
L1001 QQL242K-8R2 PEAKING COIL 8.2uH K
L1101 QQL244J-2R2Z PEAKING COIL 2.2uH J
L1103 QQL242K-8R2 PEAKING COIL 8.2uH K
L1551 QQLZ034-380 HEATER CHOKE 38uH
L1552 QQL244J-151Z PEAKING COIL 150uH J
L1701 QQL242K-5R6 PEAKING COIL 5.6uH K
L1941 QQL26AK-820Z CHOKE COIL 82uH K
L1942 QQL242K-4R7 PEAKING COIL 4.7uH K
L1943 QQL242K-4R7 PEAKING COIL 4.7uH K
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
Ω
1/2W J
Ω
1/10W J
Ω
1/2W J
Ω
1/10W J
Ω
1/10W J
Ω
Ω
1/2W J
Ω
1/10W J
Ω
1/2W J
Ω
1/10W J
Ω
Ω
1/2W J
Ω
1/10W J
Ω
1W J
3W J
2W J
2W J
T1501 CE40203-00CJ1 DRIVE TRANSF
T1921 QQS0161-001 SW TRANSF
CF1161 QAX0642-001Z C FILTER 4.500MHz
CN100T QJL001-052210 SIN CR B-B WIRE
CN100U CHGC04-260 CONNECTOR ASSY
CN10E1 CHGT0015-0A CONNECTOR ASSY
CN10HV QGZ5004C1-04 CONNECTOR (1-4)
CN10PW QGA7901F1-02 CONNECTOR W-B (1-2)
CN10S1 QGA2501C5-05 CONNECTOR W-B (1-5)
CN10S3 WJK0136-002A E-SI C WIRE C-B
CN1DEG QGZ5004C1-02 CONNECTOR (1-2)
CP1981 ICP-N50-Y IC PROTECTOR 2.0A
CP1982 ICP-N75-Y IC PROTECTOR 2.7A
F1901 QMF51E2-3R15J4 FUSE 3.15A AC250V
FR1557 QRJ146J-2R2X UNF C RESISTOR 2.2
H1001 LC31334-002A HEAT SINK/AL-F/
H1002 LC31722-001A HEAT SINK/FE-P/
H1003 LC32126-001A HEAT SINK/FE-P/
H1006 CEHE007-001KH HEAT SINK
J1002 QNN0384-001 PIN JACK V/A IN OUT
J1003 QNN0281-003 PIN JACK V IN
J1004 QNN0281-002 PIN JACK A IN
J1005 QNS0197-001 3.5 JACK HEADPHONE
K1001 QQR0621-002Z FERRITE BEADS
K1351 QQR0621-002Z FERRITE BEADS
K1421 QQR1113-001Z FERRITE BEADS
K1901 QQR1113-001Z FERRITE BEADS
K1902 QQR1113-001Z FERRITE BEADS
K1941 QQR1113-001Z FERRITE BEADS
K1942 QQR1113-001Z FERRITE BEADS
K1943 QQR1113-001Z FERRITE BEADS
LF1901 QQR0673-002 LINE FILT ER
S1701 QSW0619-003Z TACT SWITCH VOL+
S1702 QSW0619-003Z TACT SWITCH VOLS1703 QSW0619-003Z TACT SWITCH CH+
S1704 QSW0619-003Z TACT SWITCH CHS1705 QSW0619-003Z TACT SWITCH MENU
S1901 QSW0750-001 PUSH SWITCH POWER SW
SF1102 QAX0731-001 SAW FILTER
SF1122 QAX0325-001 SAW FILTER
PC1701 P1241-04 PHOTO CONDUCTOR
SK1351 CE42554-001 CRT SOCKET
TH1901 QAD0121-9R0 P THERMISTOR 9
TU1001 QAU0287-001 TUNER
VA1901 ERZV10V621CS ZNR
X1301 QAX0705-001Z CRYSTAL 4.433619MHz
X1302 CE41651-001Z CRYSTAL
X1701 QAX0307-001 C RESONATOR 12.000MHz
Ω
1/4W J
Ω
(No.52026G)1-5
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
(No.52026G)
Printed in Japan
WPC
Loading...
