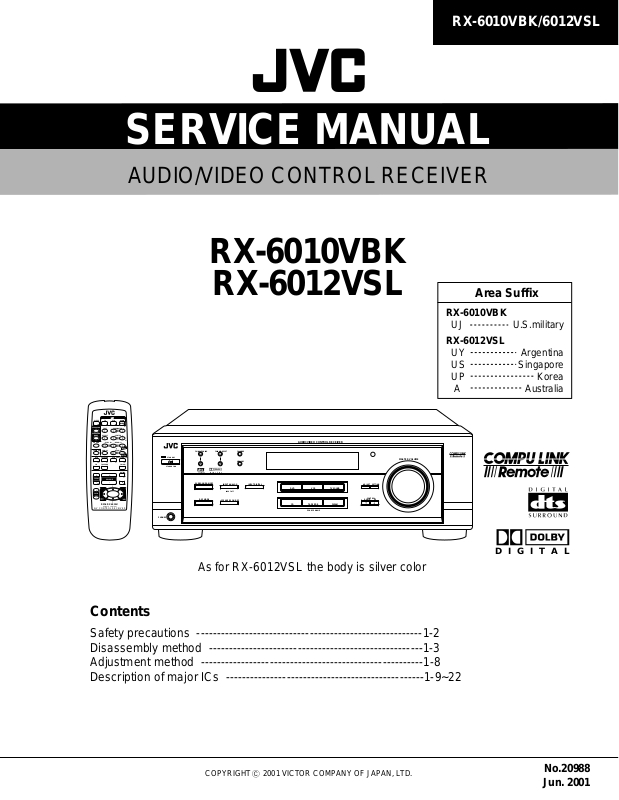

JVC RX 6010VBK, 6012VSL Service Manual

RX-6010VBK/6012VSL

SERVICE MANUAL

AUDIO/VIDEO CONTROL RECEIVER

RX-6010VBK

TV

SLEEP

VCR

SURROUND

– SUBWOOFER +TEST

1

SURROUND

EFFECT

– CENTER +

MODE

54

5

– REAR•L + – VCR CH +

SOUND

7/P

CD-DISC

TV/VIDEO

– REAR•R +

10

DVD

TV SOUND

VCR

CD

TAPE/CDR

+

+

TV VOL

VOLUME

–

–

£

1

+

TV CH

–

7

RM-SRX6010U

REMOTE CONTROL

A/V CONTROL RECEIVER

AUDIO

5

5

ANALOG/DIGITAL

FM/AM

MUTING

RX-6012VSL

Area Suffix

RX-6010VBK

UJ

RX-6012VSL

UY
US
UP
A

32

6

5

98

MENU

+10

ENTER

8

1

PHONES

STANDBY

STANDBY/ON

FM/AM TUNING

DIGITAL

SURROUND

SURROUND ON/OFF

DSP MODE

FM/AM PRESET FM MODE

DIGITAL

INPUT ATT

SPEAKERS ON/OFF

MEMORY

INPUT DIGITALINPUT ANALOG

AUDIO/VIDEO CONTROL RECEIVER

DVD VCR TV SOUND

CD TAPE/CDR

SOURCE NAME

FM/AM

ADJUST

DOWN UP

MASTER VOLUME

SETTING

CONTROL

U.S.military

Argentina

Singapore

Korea

Australia

DIGITAL

As for RX-6012VSL the body is silver color

Contents

Safety precautions --------------------------------------------------------1-2
Disassembly method -----------------------------------------------------1-3
Adjustment method -------------------------------------------------------1-8
Description of major ICs -------------------------------------------------1-9~22

COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.

No.20988

Jun. 2001

RX-6010VBK/ RX-6012VSL

1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.

2. Alterations of the design or circuitr y of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer`s warranty and will fur ther
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics. These

characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement par ts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by ( ) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the product
(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the
product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.

Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor
between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and meausre the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Voltage measured any must not exceed 0.75 V
AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).

0.15 F AC TYPE

1500 10W

Good earth ground

AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)

Place this
probe on
each exposed
metal part.

!

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.

3. Repairs m ust be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided, check setting for local voltage.

Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.

In regard with component parts appearing on the silk-screen pr inted side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the JC version)

1-2

RX-6010VBK/ RX-6012VSL

Disassembly method

Removing the top cover (See Fig.1)

Remove the four screws A attaching the top cover

1.
on both sides of the body.

Remove the three screws B on the back of the body.

2.
Remove the top cover from behind in the direction of

3.
the arrow while pulling both sides outward.

Removing the front panel assembly

(See Fig.2 and 3)

Prior to performing the following procedure, remove
the top cover.

Disconnect the card wire from connector CN402 on

1.
the audio board and CN201 on the power supply
board in the front panel assembly.

Cut off the tie band fixing the harness.

2.

Tie band

Main

board

CN402

A

Top cover

2

A

2

C

B

Fig.1

Front panel assembly

C

CN201

Power supply

board

Remove the three screws C attaching the front

3.
panel assembly.

Remove the four screws D attaching the front panel

4.
assembly on the bottom of the body. Detach the front
panel assembly toward the front.

Removing the rear panel (See Fig.4)

Prior to performing the following procedure, remove
the top cover.

Remove the power cord stopper from the rear panel

1.
by moving it in the direction of the arrow.

Remove the nineteen screws E attaching the each

2.
boards to the rear panel on the back of the body.

Audio board

E

E

E

E

D

E

Fig.2

Front panel assembly

Fig.3

E

D

Cord stopper

E

Remove the four screws F attaching the rear panel

3.
on the back of the body.

F

Rear panel

F

Fig.4

E

F

F

1-3

RX-6010VBK/ RX-6012VSL

Removing each board connected to the
rear side of the audio board

(See Fig.5 to 8)

Prior to performing the following procedure, remove
the top cover and the rear panel.

Cut off the tie band fixing the harness.

1.
Disconnect the DSP board from connector CN481 on

2.
the audio board.

Audio

board

DSP

board

CN481

Tie band

Disconnect the audio input board, DVD board and

3.
the video board from connector CN421, CN431 and
CN441 on the audio board.

Disconnect the tuner board from connector CN411

4.
on the audio board.

CN421

Audio

input

board

CN431

CN481

DVD

Video

board

board

DSP board

CN441

Fig.5

Fig.6

Tuner

board

CN411

1-4

CN421

CN431

CN441

Fig.8

Tie band

CN411

Tuner

board

Audio

input

board

CN421

DVD

board

CN431

Video
board

CN441

Fig.7

RX-6010VBK/ RX-6012VSL

Removing the audio board (See Fig.9)

Prior to performing the following procedure, remove
the top cover and the rear panel.

Disconnect the card wire from connector CN402 on

1.
the audio board.

Disconnect the relay board from the audio board and

2.
the power supply board. (CN291,CN491)

Disconnect the harness from connector CN473,

3.
CN471, CN472, and CN385.

Remove the three screws G attaching the audio

4.
board assembly.

Remove the screw H attaching the audio board

5.
assembly.

Removing the main board (See Fig.10)

Prior to performing the following procedure, remove
the top cover, the rear panel and audio board.

CN473

G

CN402

G

Audio board

CN471

I

J

I

CN472

CN385

G

Fig.9

I

Relay board

CN491

H

CN241

power
supply
board

CN291

Power
transformer

J

CN203

I

Disconnect the harness from connector CN241 and

1.
CN203 on the power supply board respectively.

Remove the four screws I and the two screws J

2.
attaching the main board.

Removing the Heat sink
(See Fig.11 and 12)

Remove the ten screws K and four screws L

1.
attaching the heat sink.

Remove the two screws L' attaching the heat sink

2.
from the rear side of main board.

Main

board

Heat sink

L

K

Fig.10

Fig.11

K

K

L

L'

L'

Main board

rear side

Fig.12

1-5

RX-6010VBK/ RX-6012VSL

Removing the power transformer

(See Fig.13)

Prior to performing the following procedures, remove
the top cover.

Cut off the tie band fixing the harness.

1.
Unsolder the two harnesses connected to the power

2.
transformer.

Disconnect the harness from connector CN251 and

3.
unsolder the harnesses connected to FW201 on the
power transformer board.

Remove the four screws M attaching the power

4.
transformer.

Removing the voltage selector board and
the power / fuse board (See Fig.13)

Prior to performing the following procedure, remove
the top cover and the rear panel.

Unsolder the six harnesses connected to the power

1.
transformer board and remove the voltage board.

Remove the screw N attaching the power / fuse

2.
board.

FW201

CN251

M

M

Solder
(from the
power/ fuse
board)

Power cord

Voltage selector

board

Fig.13

Power
supply
board

Solder

Tie band
Power

transformer
board

Power
transformer

Power
transformer board

Solder (from the
voltage selector
board)

Tie band

N

Solder

Power / fuse board

Unsolder the power cord and other harnesses

3.
connected to the power / fuse board.

Removing the power supply board

(See Fig.14 and 15)

Prior to performing the following procedure, remove
the top cover and the front panel.

Remove the one nut attaching the headphone jack of

1.
the power supply board on the front side of the body.

Disconnect the harness connected to connector

2.
CN241,CN201,CN203 and CN291 on the power
transformer board.

Remove the three screws O attaching the power
supply board and pull out the power supply board

3.
from the front bracket backward.

Unsolder the three harnesses connected to the
power supply board.

4.

Power

supply

board

O

CN241

CN203
CN291

Hook

CN201

Fig.14

Power
supply board

Headphone jack

Nut

Headphone jack

O

Solder

O

1-6

Solder

Fig.15

RX-6010VBK/ RX-6012VSL

Removing the system control board /
power switch board (See Fig.16 to 18)

Prior to performing the following procedure, remove
the top cover and the front panel assembly.

Pull out the volume knob on the front side of the front

1.
panel and remove the nut attaching the system
control board.

Remove the two screws P attaching the power

2.
switch board.

Disconnect the harness from connector CN714 on

3.
the power switch board.

Remove the six screws Q attaching the system

4.
control board on the back of the front panel.

On the back of the front panel, release the eight

5.
joints by pushing the joint tabs inward.
Remove the operation switch panel toward the front.

Release the two hook attaching the system control

6.
board.

Operation switch panel

Fig.16

Q

Joint

Joint

Q

Nut

Joint

Front panel assembly

Volume knob

Power switch

board

Joint

P

Joint

Joint

Hook

Joint

Fig.17

System control board

Fig.18

Hook

Joint

CN714

1-7

RX-6010VBK/ RX-6012VSL

Adjustment method

Tuner section

1.Tuner range
FM 87.5MHz~108.0MHz
AM(MW) 531kHz~1710kHz

Power amplifier section

Adjustment of idling current

Measurement location TP301(Lch) , TP302(Rch)
Adjustment part VR301(Lch) , VR302(Rch)

Attention
This adjustment does not obtain a correct adjustment value immediately after the amplifier is
used (state that an internal temperature has risen).
Please adjust immediately after using the amplifier after turning off the power supply of the
amplifier and falling an internal temperature.

<Adjustment method>

1.Set the volume control to minimum during this adjustment.(No signal & No load)

2.Set the surround mode OFF.

2.Turn VR301 and VR302 fully counterclockwise to warm up before adjustment.
If the heat sink is already warm from previous use the correct adjustment can not be made.

3.For L-ch,connect a DC voltmeter between TP301's B216 and B217 (Lch)
And,connect it between TP302's B218 and B219(Rch).

4.30 minutes later after power on, adjust VR301 for L-ch, or VR302 for R-ch so that the DC voltmeter
value has 1mV~10mV.

* It is not abnormal though the idling current might not become 0mA even if it is finished to turn variable
resistance (VR301,VR302) in the direction of counterclockwise.

TP302(Rch)

VR302 (Rch)

VR301 (Lch)

TP301(Lch)

Heat sink

1-8

Description of major ICs

UPD784215AGC103 (IC671) : Unit CPU

1.Pin layout

75 ~ 51

76

~

50

~

RX-6010VBK/ RX-6012VSL

100

1 ~ 25

26

2.Pin function

Pin No. Symbol I/O Function

1~8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

25~32

33

34,35

36

37,38

39
40
41
42
43
44

45,46

47
48
49
50

51,52

53

54~63

64,65

66
67
68

69,70

71
72

73~80

81
82
83
84
85
86
87
88
89

90~93

94

95~100

VDD

X2
X1

VSS

XT2
XT1

RESET

AUTODAT A

LOCK

DIGITAL0

FORMAT

CHANNEL

ERR

RSTDET

AVDD

AVREF0

AVSS

AV REF1

RX,TX

DSPCOM

DSPSTS
DSPCLK
DSPRDY

MIDIO_IN/OUT

MICK
MICS
MILP

MIACK

DSPRST

CDTI/CDTO

CCLK

CS

XTS

PD

GND

VDD
3D-ON
3D-ON

ANA/T-TONE

REF-MIX

D.MUTE
S.MUTE

ASW1~4

TEST

Non connect

­Power supply terminal

­Connecting the crystal oscillator for system main clock

O

Connecting the crystal oscillator for system main clock

I

Connect to GND

­Connecting the crystal oscillator for system sub clock

O

Connecting the crystal oscillator for system sub clock

I

System reset signal input

I

Output of DSP to general-purpose port

I

Output of DSP to general-purpose port

I

Output of DSP to general-purpose port

I

Output of DSP to general-purpose port

I

Output of DSP to general-purpose port

I

Output of DSP to general-purpose port

I

Reset signal input

I

Power supply terminal

­Connect to GND

­Connect to GND

­Connect to GND

­Non connect

­Power supply terminal

­Not use

­Non connect

­Communication port from IC701

I

Status communication port to IC701

O

Clock input from IC701

I

Ready signal input from IC701

I

Non connect

­Interface I/O terminal with microcomputer

I/O

Interface I/O terminal with microcomputer of clock signal

O

Interface I/O terminal with microcomputer of chip select

O

Interface I/O terminal with microcomputer

O

Interface I/O terminal with microcomputer

O

Non connect

­Reset signal output of DSP

O

Non connect

­Interface I/O terminal with microcomputer

I/O

Interface I/O terminal with microcomputer of clock signal

O

Interface I/O terminal with microcomputer of chip select

O

OSC Select

O

Non connect

­Reset signal output

O

Connect to GND

­Non connect

­Power supply

­Non connect

­Switch at output destination of surround channel

O

Test tone control

O

Control at output destination of LFE channel

O

Non connect

­Mute of the digital out terminal is controlled

O

Mute of the audio signal is controlled

O

Non connect

­Selection of digital input selector

O

Test terminal

­Non connect

-

1-9

RX-6010VBK/ RX-6012VSL

AK4527BVQ (IC601) : A/D,D/A Converter

1.Pin layout

LOOP1

LOOP0/SDA/CDTI

DIF1/SCL/CCLK

DIF0/CSN

P/S

MCLK

DZF1

AVSS

AVDD

VREFH

VCOM

SDOS
I2C
SMUTE
BICK
LRCK
SDTI1
SDTI2
SDTI3
SDTO
DAUX
DFS

2. Pin function (1/2)
No.

1

2

3

4
5
6
7
8
9
10
11

12

13

14
15
16
17

18

Pin name
SDOS

I2C

SMUTE

BICK
LRCK
SDTI1
SDTI2
SDTI3
SDTO
DAUX
DFS

NC

DZEF

TVDD
DVDD
DVSS
PDN

TST

4443424140393837363534

1
2
3
4
5
6
7
8
9
10
11

I/O

I

SDTO Source Select Pin (Note 1)

AK4527BVQ

T op Vie w

1213141516171819202122

NC

DZFE

TVDD

DVDD

DVSS

PDN

TSTNCADIF

Function

CAD1

CAD0

33
32
31
30
29
28
27
26
25
24
23

DZF2/OVF
RIN+
RIN­LIN+
LIN­ROUT1
LOUT1
ROUT2
LOUT2
ROUT3
LOUT3

"L" : Internal ADC output, "H" : DAUX input

I

Control Mode Select Pin
"L" : 3-wire Serial, "H" : I

I

Soft Mute Pin (Note 1)

2

C Bus

When this pin goes to "H", soft mute cycle is initialized.
When returning to "L", the output mute releases.

I

Audio Serial Data Clock Pin

I/O

Input Channel Clock Pin

I

DAC1 Audio Serial Data Input Pin

I

DAC2 Audio Serial Data Input Pin

I

DAC3 Audio Serial Data Input Pin

O

Audio Serial Data Output Pin

I

Sub Audio Serial Data Input Pin

I

Double Speed Sampling Mode Pin (Note 1)
"L" : Normal Speed, "H" : Double Speed

-

No Connect
No internal bonding.

I

Zero Input Detect Enable Pin
"L" : mode 7 (disable) at parallel mode,
zero detect mode is selectable by DZFM2-0 bits at serial mode.
"H" : mode 0 (DZF is AND of all six channels)

-

Output Buffer Power supply Pin, 2.7V~5.5V

-

Digital Power Supply Pin, 4.5V~5.5V

-

De-emphasis Pin, 0V

I

Power-Down & Reset Pin
When "L", the AK4527B is powered-do wn and the control registers are reset to def ault
state. If the state of P/S or CAD0-1 changes, then the AK4527B m ust be reset b y PDN.

I

Test Pin
This pin should be connected to DVSS.

AK4527(1/2)

1-10

RX-6010VBK/ RX-6012VSL

Pin function (2/2)

No.
19

20

21
22
23
24
25
26
27
28
29
30
31
32
33

Pin name
NC

ADIF

CAD1
CAD0
LOUT3
ROUT3
LOUT2
ROUT2
LOUT1
ROUT1
LIN­LIN+
RIN­RIN+
DZF2

OVF

34

35
36
37
38

39
40

41

VCOM

VREFH
AVDD
AVSS
DZF1

MCLK
P/S

DIF0
CSN

42

DIF1
SCL/CCLK

43

LOOP0

SAD/CDTI

44

LOOP1

No Connect

I/O

No internal bonding.

-

Function

Analog Input Format Select Pin
"H" : Full-differential input, "L" : Single-ended input

I

Chip Address 1 Pin
Chip Address 0 Pin

I

DAC3 Lch Analog Output Pin

I

DAC3 Rch Analog Output Pin

O

DAC2 Lch Analog Output Pin

O

DAC2 Rch Analog Output Pin

O

DAC1 Lch Analog Output Pin

O

DAC1 Rch Analog Output Pin

O

Lch Analog Negative Input Pin

O

Lch Analog Positive Input Pin

I

Rch Analog Negative Input Pin

I

Rch Analog Positive Input Pin

I

Zero Input Detect 2 Pin (Note 2)

I

When the input data of the group 1 follow total 8192LRCK cycles with "0" input data,

O

this pin goes to "H".
Analog Input Overflow Detect Pin (Note 3)
This pin goes to "H" if the analog input of Lch or Rch is overflows.

O

Common Voltage Output Pin,AVDD/2
Large external capacitor around 2.2uF is used to reduce power-supply noise.

O

Positive Voltage Reference Input Pin,AVDD
Analog Power Supply Pin,4.5V~5.5V

I

Analog Ground Pin,0V

­Zero Input Detect 1 Pin (Note 2)

­ When the input data of the group 1 follow total 8192 LRCK cycles with "0" input data,

O

this pin goes to "H".
Master Clock Input Pin
Parallel / Serial Select Pin

I

"L" : Serial control mode, "H" : Parallel control mode

I

Audio Data Interface Format 0 Pin in parallel mode
Chip select pin in 3-wire serial control mode

I

This pin should be connected to DVDD at I2C bus control mode

I

Audio Data Interface Format 1 Pin in parallel mode
Control Data Clock Pin in serial control mode

I

I2C = "L" : CCLK(3-wire Serial), I2C = "H" : SCL(I2CBus)

I

Loopback Mode 0 Pin in parallel control mode
Enables digital loop-back from ADC to 3 DACs.

I

Control Data Input Pin in serial control mode
I2C = "L" : CDTI(3-wire Serial), I2C = "H" : SDA(I2CBus)

I/O

Loopback Mode 1 Pin (Note 1)
Enable all 3 DAC channels to be input from SDTII.

I

AK4527(1/2)

Notes : 1. SDOS, SMUTE, DFS, and LOOP1 pins are ORed with register data if P/S = "L".

2. The group 1 and 2 can be selected by DZFM2-0 bit if P/S = "L" and DZFME = "L".

3. This pin becomes OVF pin if OVFE bit is set to "1" at serial control mode.

4. All input pins should not be left floating.

1-11

RX-6010VBK/ RX-6012VSL

M62446FD(IC428) : 6CH Master volume

1.Block Diagram

OUT4
OUT3
OUT2
OUT1

AVDD

SWIN

GNDS

SRin

SLin

GNDC

Cin

GNDR

Rin

GNDL

Lin

BYPASSR

BYPASSL

LTRE
LBASS3
LBASS2
LBASS1

10
11
12
13
14
15
16
17
18
19
20
21

1
2
3
4
5
6
7
8
9

OUT­PUT
PORT

tone

volume

volume

volume

volume

volume

volume

MCU
I/F

tone

42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22

DVDD
CLK
DATA
LATCH
DGND
AGND
SWout
SRout
SLout
Cout
Rout
Lout
AVSS
CL1
CL2
CR1
CR2
RTRE
RBASS3
RBASS2
RBASS1

1-12

2.Pin Function

RX-6010VBK/ RX-6012VSL

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

16,17

18

19~21

22

23,24

25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

Symbol I/O Descriptions

SURROUND

BASS BOOST

INPUT-ATT

MUTING

AVDD

SWIN

A.GND

RR IN

RL IN

A.GND

C IN

A.GND

R IN

A.GND

L IN

BYPASSR,L

LTRE

LBASS3~1

CR2

RBASS2,4

RTRE

RBASS1

CR1

CL2
CL1

AVSS

L OUT
R OUT
C OUT

RL OUT

RR OUT

SW OUT

A.GND
D.GND

VOL STB

VOL DATA

VOL CLK

DVDD

O
O
O
O

­I

­I
I

­I

­I

­I

-

-

-

O

-

-

­I

O

I

­O
O
O
O
O
O

-

-

I
I
I

-

SURROUND control terminal
BASS BOOST control terminal
Input attenuator control terminal
MUTING control terminal
Analog positive power supply terminal
SUB Woofer volume signal input terminal
Analog ground terminal
R ch volume signal input terminal for rear speaker
L ch volume signal input terminal for rear speaker
Analog ground terminal
Center volume signal input terminal
Analog ground terminal
R ch volume signal input terminal
Analog ground terminal
L ch volume signal input terminal
Non connect
Frequency adjustment terminal tone/treble
Frequency adjustment terminal tone/bass
Tone output terminal
Frequency adjustment terminal tone/bass
Frequency adjustment terminal tone/treble
Frequency adjustment terminal tone/bass
L/R volume input terminal
Tone output terminal
L/R volume input terminal
Analog negative power supply terminal
L ch output
R ch output
Center volume signal output terminal
L ch volume signal output terminal for rear speaker
R ch volume signal output terminal for rear speaker
SUB Woofer volume signal output terminal
Analog ground terminal
Digital ground terminal
Latch input terminal
Volume data input terminal
Clock input terminal for data transfer
Digital power supply terminal

1-13

RX-6010VBK/ RX-6012VSL

MN101C35DHK1 (IC701) : System controller

100 76

1

75

Pin function (1/2)

Pin No.

1

TXD/SB00/P00
2
3
4
5
6
7
8

9,10

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

RNOUT/TM0I0/P10
28
29
30
31
32
33
34

SENS/IRQ1/P21
35
36
37
38
39
40

25

26 50

Symbol

RXD/SBI0/P01

SBT0/P02
SB01/P03

SBI1/P04

SBT1/P05

BUZZER/P06

VDD

OSC1,2

VSS

XI

X0

MMOD

VREF­AN0/PA0
AN1/PA1
AN2/PA2
AN3/PA3
AN4/PA4
AN5/PA5
AN5/PA5
AN5/PA5

VREF+

P07

RST /P27

TM1I0/P11
TM2I0/P12
TM3I0/P13
TM4I0/P14

P15

IRQ0/P20

IRQ2/P22
IRQ3/P23
IRQ4/P24

P25

SB02/P30

SBI2/P31

51

I/O

I
I

I/O

O
O

I
I

-

I/O

­I

O

I

­I
I
I
I
I
I
I
I

­I
I

O

I

O

I

O

I/O

I
I
I
I
I
I

O

I

Function

VOL.JOG IN_1
VOL.JOG IN_2
DATA (PLL)
CLK (PLL)
DE (PLL)
VIDEO S/C DVD
VIDEO S/C VCR
Power supply +5V
OSC (8MHz)
GND
GND
OPEN
GND
GND
KEY INPUT 1 (7KEY)
KEY INPUT 2 (7KEY)
KEY INPUT 3 (7KEY)
KEY INPUT 4 (7KEY)
KEY INPUT 5 (7KEY)
INH IN
CHIP SELECT 1
CHIP SELECT 2
Power supply +5V
VIDEO S/C DBS
RESET INPUT
RDS CLK OUT (RDS)
DCS INPUT
DCS OUTPUT
A VLINK VCR IN
A VLINK VCR OUT
RDS DATA (RDS)
PROTECTOR IN
REMOCON INPUT
TUNED IN (TUNER)
STEREO IN (TUNER)
RDS DAVN (RDS)
SELF CHECK INPUT
COMMAND (DSP)
STATUS (DSP)

1-14

Pin function (2/2)

RX-6010VBK/ RX-6012VSL

Pin No.

41
42
43
44
45
46
47

48
49 64
65 80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

Symbol

SBT2/P32

P50
P51
P52
P53

P54
DGT17/P67
DGT16/P66

G16 G1

P87 P90

SEG24/PC2
SEG25/PC1
SEG26/PC0
SEG27/PB7
SEG28/PB6
SEG29/PB5
SEG30/PB4
SEG31/PB3
SEG32/PB2
SEG33/PB1
SEG34/PB0
SEG35/PD7
SEG36/PD6
SEG37/PD5
SEG38/PD4
SEG39/PD3
SEG40/PD2
SEG41/PD1
SEG42/PD0

VPP

I/O

O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O

Function

CLK (DSP)
READY (DSP)
RESET (DSP)
RELAY S
RELAY C
RELAY L/R 1
RELAY L/R 2
RELAY HEADPHONE
FL GRID SIGNAL CONTROL OUT
FL SEGMENT SIGNAL CONTROL OUT
LED8 SIGNAL CONTROL OUT (FM/AM)
LED7 SIGNAL CONTROL OUT (TV/DBS)
LED6 SIGNAL CONTROL OUT (TAPE/CDR)
LED5 SIGNAL CONTROL OUT (VCR)
LED4 SIGNAL CONTROL OUT (CD)
LED3 SIGNAL CONTROL OUT (DVD)
LED2 SIGNAL CONTROL OUT (PHONO)
LED1 SIGNAL CONTROL OUT (DVD MULTI)
SOUSE MUTE
SUBWOOFER MUTE
TUNER MUTE
POWER ON (STANDBY)
SURROUND
DATA (A.SW)
CLK (A.SW)
STB (A.SW)
LATCH (A.SW)
DATA (VOL)
CLK (VOL)
VPP

1-15

RX-6010VBK/ RX-6012VSL

LA1838 (IC102) : FM AM IF amp &detector, FM MPX decoder

1. Block Diagram
30

ALC

BUFF

FM
S-METER

FM IF

1

2. Pin Function

Pin

Symbol

No.

FM IN

1

AM MIX

2

3

FM IF

AM IF

4

GND

5

TUNED

6

STEREO

7

8

VCC

9

FM DET

10

AM SD

FM VSM

11

AM VSM

12
13

MUTE

14

FM/AM

MONO/ST O

15

29

28

AM

OSC

SD
COMP

S-CLRVE

PM
DET

2

I/O

I

This is an input terminal of FM IF

REG

AM

MIX

AM/FM
IF-BUFF

3

27

FM

RF.AMP

AM IF

4

26

AGC

AM
S-METER

GND

Function

DET

TUNING
DRIVE

5

signal.
This is an out put terminal for AM

O

mixer.

I

Bypass of FM IF

Input of AM IF Signal.

I

I

This is the device ground terminal.

When the set is tuning, this terminal

O

becomes "L".

O

Stereo indicator output. Stereo "L",
Mono: "H"

III

This is the power supply terminal.

I

FM detect transformer.

I

This is a terminal of AM ceramic filter.

O

Adjust FM SD sensitivity.

O

Adjust AM SD sensitivity.

I/O

When the signal of IF REQ of IC121(
LC72131) appear, the signal of FM/AM
IF output. //Muting control input.

Change over the FM/AM input.

I

"H" :FM, "L" : AM

Stereo : "H", Mono: "L"

25

6

24

STEREO
DRIVE

7

22

23

P-DET

VCC

89

Pin

Symbol

No.

16

L OUT

17

R OUT

18

19

20

21

22

23

24

25

26

27
28

29

30

L IN

R IN

RO
LO

IF IN

FM OUT
AM DET

AM AGC

AFC

AM RF

REG

AM OSC

OSC BUFFER

21

DECODER
ANIT-BIRDIE

VCO
384KHz

10

20

STEREO
5N
SW

FF
38k

11

I/O

O

Left channel signal output.

O

Right channel signal output.

Input terminal of the left channel post

I

18

19

MUTE

FF

/

19k

2

12 13

FF
19k

/

LS

Function

17 16

PILOT
DET

14

AMP.
Input terminal of the right channel

I

post AMP.
Mpx Right channel signal output.

O

O

Mpx Left channel signal output.

I

Mpx input terminal

FM detection output.

O

AM detection output.

O

This is an AGC voltage input terminal

I

for AM

I

This is an output terminal of voltage
for FM-AFC.

AM RF signal input.

I

Register value between pin 26 and pin28

O

desides the frequency width of the
input signal.

I

This is a terminal of AM Local
oscillation circuit.

AM Local oscillation Signal output.

O

15

1-16

LC72136N (IC121) : PLL frequency synthesizer

1. Pin layout

FM/AM

CLOCK

FM/ST/VCO

AM/FM

2. Block diagram

XT

CE

DI

DO

SDIN

1
2
3
4
5
6
7
8
9
10
11

22
21
20
19
18
17
16
15
14
13
12

XT
GND
LPFOUT
LPFIN
PD
VCC
FMIN
AMIN

IFCONT
IFIN

RX-6010VBK/ RX-6012VSL

1

22

16

15

3

4
5

6

17

21

3. Pin function

Pin

Symbol

No.
1
2
3

4

5
6

7

8
9
10
11

XT

FM/AM

CE

DI

CLOCK

DO

FM/ST/VCO

AM/FM

LW

MW

SDIN

Reference

Driver

Swallow Counter

1/2

C

2

B

I/F

Power

on

Reset

Function

I/O

X'tal oscillator connect (75kHz)

I

LOW:FM mode

O

When data output/input for 4pin(input) and

I

Swallow Counter

1/16,1/17 4bit

1/16,1/17 4bit

12bit

Programmable

DriverS

Data Shift Register & Latch

782

6pin(output): H
Input for receive the serial data from

I

controller
Sync signal input use

I

Data output for Controller

O

Output port
"Low": MW mode

O

Open state after the power on reset

O

Input/output port

I/O

Input/output port

I/O

Data input/output

I/O

Phase

Detector

Charge Pump

Unlock

Detector

Universal

Counter

11

13

Pin

Symbol

No.

IFIN

12

IFCONT

13
14

AMIN

15

FMIN

16

VCC

17

18
19

20

12

I/O

Function
IF counter signal input

I

IF signal output

O

Not use

-

AM Local OSC signal output

I

FM Local OSC signal input

I

Power suplly(VDD=4.5-5.5V)

­When power ON:Reset circuit move
PLL charge pump output(H: Local OSC

18

PD

O

frequency Height than Reference frequency.
L: Low Agreement: Height impedance)
Input for active lowpassfilter of PLL

19
20
21
22

LPFIN

LPFOUT

GND

XT

I

Output for active lowpassfilter of PLL

O

Connected to GND

­X'tal oscillator(75KHz)

I

1-17

RX-6010VBK/ RX-6012VSL

TC9162AF (IC423) : Analog switch

VSS
L-S1
L-S2

L-COM1

L-S3
L-S4

L-COM2

L-S5
L-S6

L-COM3

L-S7

L-COM4

ST

GND

L-S1

1
2
3
4
5
6
7
8
9
10
11
12
13
14

2

28
27
26
25
24
23
22
21
20
19
18
17
16
15

VDD
R-S1
R-S2
R-COM1
R-S3
R-S4
R-COM2
R-S5
R-S6
R-COM3
R-S7
R-COM4
DATA
CK

VSS

GND VDD

1

14

28

27

R-S1

L-S2

L-COM1

L-S3

L-S4

L-COM2

L-S5

L-S6

L-COM3

L-S7

L-COM4

ST

3

4

5

6

7

8

9

10

11

12

13

LEVEL SHIFTER

LATCH CIRCUIT

LATCH CIRCUIT

LEVEL SHIFTER

26

25

24

23

22

21

20

19

18

17

16

R-S2

R-COM1

R-S3

R-S4

R-COM2

R-S5

R-S6

R-COM3

R-S7

R-COM4

DATA

1-18

SHIFT REGISTER

15

CK
