DIGITAL HD
VIDEO CAMERA
GR-HD1
Please visit our Homepage on the World Wide
Web for Digital Video Camera:
http://www.jvc-victor.co.jp/english/cyber/
For Accessories:
http://www.jvc-victor.co.jp/english/accessory/
ENGLISH
GETTING STARTED 12
VIDEO RECORDING &
PLAYBACK
DIGITAL STILL CAMERA
(D.S.C.) RECORDING &
PLAYBACK
20
28
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No. which is
located on the bottom of the camcorder. Retain this
information for future reference.
Model No.
Serial No.
ADVANCED FEATURES
REFERENCES
TERMS
LYT1154-001C
35
69
88
EN
2 EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
● All major sections are listed in the Table Of Contents on the cover page.
● Notes appear after most subsections. Be sure to read these as well.
● Basic and advanced features/operation are separated for easier reference.
It is recommended that you…
… refer to the Index (墌 pg. 84 – 87) and familiarize yourself with button locations, etc. before use.
… read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely
important information regarding the safe use of this product.
You are recommended to carefully read the cautions on pages 78 through 80 before use.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The AA-V40U AC Power Adapter/Charger should
be used with:
AC 120 Vd, 60 Hz in the USA and Canada, AC
110 V - 240 Vd, 50 Hz/60 Hz in other countries.
CAUTION (applies to the AA-V40U)
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION (s’applique à l’AA-V40U)
POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE
DE LA PRISE ET POUSSER JUSQU’AU FOND.
NOTES:
● The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of
the main unit.
● The rating plate (serial number plate) of the AC
Power Adapter/Charger is on its bottom.
CAUTIONS:
● This camcorder is designed to be used with
NTSC-type color television signals. It cannot be
used for playback with a television of a different
standard. However, live recording and LCD
monitor/viewfinder playback are possible
anywhere.
● Use the JVC BN-V416U/V428U battery packs
and, to recharge them or supply power to the
camcorder from an AC outlet, use the provided
multi-voltage AC Power Adapter/Charger. (An
appropriate conversion adapter may be
necessary to accommodate different designs of
AC outlets in different countries.)
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
EN 3
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides
to allow for ventilation (10 cm (3-15/16”) or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,
potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
This product has a fluorescent lamp that contains a small amount of mercury. Disposal of these materials
may be regulated in your community due to environmental considerations.
For disposal or recycling information please contact your local authorities, or the Electronics Industries
Alliance:
<http://www.eiae.org>
4 EN
A
IMPORTANT PRODUCT SAFETY
INSTRUCTIONS
Electrical energy can perform many useful functions.
But improper use can result in potential electrical
shock or fire hazards. This product has been
engineered and manufactured to assure your
personal safety. In order not to defeat the built-in
safeguards, observe the following basic rules for its
installation, use and servicing.
TTENTION:
Follow and obey all warnings and instructions
marked on your product and its operating
instructions. For your safety, please read all the
safety and operating instructions before you operate
this product and keep this manual for future
reference.
INSTALLATION
1. Grounding or Polarization
(A)Your product may be equipped with a polarized
alternating-current line plug (a plug having one
blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety
feature.
If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
(B) Your product may be equipped with a 3-wire
grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety
feature.
If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
grounding-type plug.
2. Power Sources
Operate your product only from the type of power
source indicated on the marking label. If you are not
sure of the type of power supply to your home,
consult your product dealer or local power
company. If your product is intended to operate from
battery power, or other sources, refer to the
operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in
a risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation of the
product and to protect it from overheating, these
openings must not be blocked or covered.
● Do not block the openings by placing the product
on a bed, sofa, rug or other similar surface.
● Do not place the product in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected
to the product, be sure the antenna or cable system
is grounded so as to provide some protection against
voltage surges and built-up static charges. Article
810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode.
2. Lightning
For added protection for this product during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due
to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside
antenna system, extreme care should be taken to
keep from touching such power lines or circuits as
contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD IN WIRE
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION
ELECTRIC SERVICE
EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC – NATIONAL ELECTRICAL CODE
810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EN 5
USE
1. Accessories
To avoid personal injury:
● Do not place this product on an unstable cart,
stand, tripod, bracket or table. It may fall, causing
serious injury to a child or adult, and serious
damage to the product.
● Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer or sold
with the product.
● Use a mounting accessory recommended by the
manufacturer and follow the manufacturer’s
instructions for any mounting of the product.
● Do not try to roll a cart with small casters across
thresholds or deep-pile carpets.
2. Product and Cart Combination
A product and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may cause
the product and cart
combination to overturn.
3. Water and Moisture
Do not use this product near
water-for example, near a
bath tub, wash bowl, kitchen sink or laundry tub, in
a wet basement, or near a swimming pool and the
like.
4. Object and Liquid Entry
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind
on the product.
5. Attachments
Do not use attachments not recommended by the
manufacturer of this product as they may cause
hazards.
6. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
PORTABLE CART WARNING
(Symbol provided by RETAC)
SERVICING
1. Servicing
If your product is not operating correctly or exhibits
a marked change in performance and you are
unable to restore normal operation by following the
detailed procedure in its operating instructions, do
not attempt to service it yourself as opening or
removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power supply cord or plug is
damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or damaged in
any way.
f. When the product exhibits a distinct change in
performance-this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or
other hazards.
4. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in safe
operating condition.
6 EN
SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and use the provided strap. Carrying or holding the
camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the
camcorder, as they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the
camcorder.
CAUTION!
Connecting cables (S/AV/Editing, USB, etc.) to the camcorder and leaving it on top of the TV is not
recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
䡲 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and
MultiMediaCard. Only cassettes marked “ ” and memory cards marked “ ” or
“ ” can be used with this unit.
Before recording an important scene…
… make sure you only use cassettes with the Mini DV mark .
… make sure you only use memory cards with the mark or .
… remember that this camcorder is not compatible with other digital video formats.
… remember that this camcorder is intended for private consumer use only. Any commercial use without
proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for
personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
Provided Accessories
EN 7
AC Power Adapter/
Charger AA-V40U
Remote Control Unit
RM-V717U
Lens Hood
(Already attached to the
camcorder; 墌 pg. 8)
S/AV/Editing Cable Editing Extension Cable Component Video Cable Audio Extension Cable
Audio Cable x 2
(for connection of
optional headphones
and external microphone
墌 pg. 10)
NOTES:
● In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or
more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to
the camcorder.
● Make sure to use the provided cables for connections. Do not use any other cables.
DC Cord Battery Pack
AAA (R03) Battery x 2
(for remote control unit)
Lens Cap
(墌 pg. 8 for attachment)
Cleaning Cassette Core Filter
BN-V428U
CD-ROM USB Cable
Shoulder Strap
(墌 pg. 10 for attachment)
(墌 pg. 9 for attachment)
•Large x 1
•Medium x 3
•Small x 3
Memory Card 8 MB
(Already inserted in the
camcorder)
Handle
(墌 pg. 10 for attachment)
8 EN
How To Detach/Attach The Lens
Hood
The provided lens hood helps block out glare when
shooting under bright sunlight, the same way
professional photographers do.
Lens hood
Screw
To det ach
1 Loosen the screw on the lens hood.
2 Turn the lens hood counterclockwise.
To att ach
1 While slanting the lens hood, align the lens hood
with the camcorder’s lens, and then turn it
clockwise.
2 Tighten the screw on the lens hood.
NOTE:
Normally, use the camcorder with the lens hood
attached. Remove the lens hood only when you use
the optional wide or telephoto conversion lens.
How To Attach The Lens Cap
To protect the lens, attach the provided lens cap to
the lens hood when camcorder is not in use.
NOTE:
You cannot attach the lens cap directly to the
camcorder.
Place here during shooting.
EN 9
How To Attach The Core Filter
Attach the core filters to the cables. The core filter
reduces interference.
Types of core filters
Size Cable
Large i.LINK cable* Twice
USB cable** Once
Medium
Small
* Optional
(If you have an optional JVC i.LINK cable
VC-VDV206U or VC-VDV204U with core
filters, it is not necessary to attach the provided
core filter. If you are going to use any other
i.LINK cable, attach the provided core filter.)
** Attach two core filters to both ends of the cable.
*** Not necessary to wind the cable.
The procedure below is an example of winding
cable once.
Component video
cable***
DC cord
Audio cable
Times to
wind
—
Once
1 Release the stoppers on both ends of the core
filter.
Stopper
2 Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter. Wind the cable once around
the outside of the core filter as shown in the
illustration.
● Wind the cable so that it is not slack.
3 cm
3 Close the core filter until it clicks shut.
To attach the core filter to the component video
cable
1) Release the stoppers on both ends of the core
filter.
2) Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter.
3 cm
3) Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camcorder.
Wind once.
10 EN
How To Attach The Strap
1 Following the illustration, thread the strap
through the eyelet a.
2 Fold it back and thread it through the buckle b.
3 Repeat the procedure to attach the other end of
the strap to the other eyelet c.
4 Confirm the strap is not twisted.
How To Attach The Handle
Mount the Handle on the Shoe and tighten the
screw. You can attach the optional Video Light or
Stereo Microphone to the Shoe on the Handle or on
the camcorder’s Shoe. When using the Microphone
or Video Light, refer also to its instruction manual.
Screw
How To Use The Audio Cable
When using optional headphones or external
microphone, connect to the provided audio cable
(with a core filter attached), then connect the audio
cable to the camcorder. The core filter reduces
interference.
Microphone
Headphones
Audio cable
(provided)
Core filter
To (headphones)
To MI C
Open the connector cover.
CONTENTS
EN 11
GETTING STARTED 12
Power .......................................................................12
Grip Adjustment .......................................................14
Tripod Mounting ......................................................14
LCD Monitor And Viewfinder ...................................14
Viewfinder Adjustment .............................................15
Brightness Adjustment Of The Display ......................15
Operation Mode .......................................................16
Date/Time Settings ....................................................17
Loading A Cassette
/Unloading A Cassette ..........................................18
Loading A Memory Card
/Unloading A Memory Card .................................19
VIDEO RECORDING & PLAYBACK 20
VIDEO RECORDING ....................................................20
Basic Recording ........................................................20
Recording Mode .......................................................21
Tape Remaining Time ...............................................22
Zooming ...................................................................22
Journalistic Shooting .................................................22
Interface Shooting .....................................................22
Time Code ................................................................23
Recording From The Middle Of A Tape ....................23
VIDEO PLAYBACK ......................................................24
Normal Playback ......................................................24
Still Playback ............................................................24
Frame-By-Frame Playback ........................................24
Shuttle Search ...........................................................25
Blank Search ............................................................25
Connections To A TV Or VCR .................................. 26
DIGITAL STILL CAMERA (D.S.C.) RECORDING &
PLAYBACK 28
D.S.C. RECORDING .....................................................28
Basic Shooting (D.S.C. Snapshot) ..............................28
D.S.C. PLAYBACK .......................................................29
Normal Playback Of Images .....................................29
Auto Playback Of Images .........................................29
Index Playback Of Files ............................................30
Viewing File Information ..........................................30
Removing On-Screen Display ...................................30
Protecting Files .........................................................31
Deleting Files ...........................................................32
Resetting The File Name ...........................................33
Setting Print Information (DPOF Setting) ...................33
Initializing A Memory Card ......................................34
ADVANCED FEATURES 35
MENUS FOR DETAILED ADJUSTMENT .......................... 35
Changing The Menu Settings .................................... 35
RECORDING MENUS .................................................. 36
PLAYBACK MENUS ..................................................... 41
FEATURES FOR RECORDING ....................................... 43
Self-Timer .................................................................43
Snapshot (For Video Recording) ...............................44
Exposure Control ......................................................44
Iris Lock ...................................................................45
Backlight Compensation ........................................... 45
Manual Shutter Speed Adjustment ............................46
Manual Iris Adjustment ............................................ 46
Auto Focus ...............................................................46
Manual Focus ........................................................... 47
Manual Zooming ...................................................... 47
White Balance Adjustment ....................................... 48
Manual White Balance Adjustment .......................... 49
Wipe Or Fader Effects ..............................................50
Program AE .............................................................. 50
Special Effects ..........................................................51
NAVIGATION Function ........................................... 52
DUBBING .................................................................. 54
Dubbing To Or From A VCR .................................... 54
Dubbing To Or From A Video Unit Equipped With
An i.LINK Connector (Digital Dubbing) ................ 55
Dubbing Still Images Recorded On A Tape To
A Memory Card .................................................... 57
USING THE REMOTE CONTROL UNIT ...........................58
Audio Dubbing (DV only) ........................................60
Insert Editing (DV only) ............................................61
Random Assemble Editing [R.A.Edit] (DV only) ........62
SYSTEM CONNECTIONS .............................................. 67
Connection To A Personal Computer .......................67
Using The Camcorder As A WebCam .......................68
REFERENCES 69
DETAILS .................................................................... 69
TROUBLESHOOTING ................................................... 70
CAUTIONS ................................................................. 78
USER MAINTENANCE .................................................. 81
SPECIFICATIONS ........................................................ 82
INDEX ....................................................................... 84
TERMS 88
12 EN
A
Power
This camcorder’s 2-way power supply system lets
you choose the most appropriate source of power.
Do not use provided power supply units with other
equipment.
Charging The Battery Pack
Battery pack
BN-V416U or
BN-V428U
GETTING STARTED
POWER indicator
AC Power Adapter/
Charger
CHARGE indicator
Make sure you unplug the camcorder’s DC cord
1
from the AC Power Adapter/Charger.
2 Plug the AC Power Adapter/Charger’s power cord
into an AC outlet. The POWER indicator lights.
3 Attach the battery pack with the YZ mark
aligned with the corresponding marks on the AC
Power Adapter/Charger. The CHARGE indicator
begins blinking to indicate charging has started.
4 When the CHARGE indicator stops blinking but
stays lit, charging is finished. Remove the battery
pack.
5 Unplug the AC Power Adapter/Charger’s power
cord from the AC outlet.
Battery pack Charging time
BN-V416U Approx. 2 hr.
BN-V428U* Approx. 3 hr. 20 min.
*Provided
NOTES:
● If the protective cap is attached to the battery
pack, remove it first.
● If you connect the camcorder’s DC cord to the AC
Power Adapter/Charger during battery charging,
power is supplied to the camcorder and charging
stops.
● Charging is not possible if the wrong type of
battery is used.
● When charging the battery pack for the first time
or after a long storage period, the CHARGE
indicator may not light. In this case, remove the
DC OUT connector
To AC ou tl et
battery pack from the AC Power Adapter/Charger,
then try charging again.
● If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.
● For other notes, 墌 pg. 69.
Using The Battery Pack
Power Switch
Arrow
Lock Button
BATT.RELEASE Switch
1
With the arrow on the battery pack pointing
upward, push the battery pack slightly against the
battery pack mount a.
2 Slide up the battery pack until it locks in place b.
To detach the battery pack...
Slide the battery pack down slightly while sliding
BATT. RELEASE to detach it.
NOTES:
● Recording time is reduced significantly under the
following conditions:
• Zoom or Record-Standby mode is engaged
repeatedly.
• The LCD monitor is used repeatedly.
• The playback mode is engaged repeatedly.
● Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
TTENTION:
Before detaching the power source, make sure
that the camcorder’s power is turned off. Failure to
do so can result in a camcorder malfunction.
INFORMATION:
The optional extended-use battery pack kit is a set
composed of a battery pack and AC Power Adapter/
Charger:
VU-V840 KIT: BN-V840U battery pack & AA-V15U
AC Power Adapter/Charger
VU-V856 KIT: BN-V856U battery pack & AA-V80U
AC Power Adapter/Charger
Read the kit’s instruction manual before using.
Also, by using the optional JVC VC-VBN856U DC
Cord, it will be possible to connect BN-V840U or
BN-V856U battery packs to the camcorder and
supply power directly to the camcorder.
EN 13
Using AC Power
Open the cover.
To DC connector
To AC outlet
Power cord
AC Power Adapter/
To DC OU T
connector
Make sure you unplug the camcorder’s DC cord
1
from the AC Power Adapter/Charger.
Charger
DC cord
2 Plug the AC Power Adapter/Charger’s power cord
into an AC outlet. The POWER indicator lights.
3 Plug the DC cord jack with smaller diameter to
the camcorder’s DC connector.
4 Plug the DC cord jack with larger diameter to the
DC OUT connector on the AC Power Adapter/
Charger.
NOTES:
● The provided AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
● For other notes, 墌 pg. 69.
About Batteries
Lithium-ion is vulnerable in colder temperatures.
DANGER! Do not attempt to take the batteries apart,
or expose them to flame or excessive heat, as it may
cause a fire or explosion.
WARNING! Do not allow the battery or its terminals
to come in contact with metals, as this can result in
a short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large
power capacity. However, when one is exposed to
cold temperatures (below 10°C/50°F), its usage time
becomes shorter and it may cease to function. If this
happens, place the battery pack in your pocket or
other warm, protected place for a short time, then
re-attach it to the camcorder. As long as the battery
pack itself is not cold, it should not affect
performance.
(If you’re using a heating pad, make sure the battery
pack does not come in direct contact with it.)
For other notes, 墌 pg. 69.
GETTING STARTED
14 EN
Grip Adjustment Tripod Mounting
1 Adjust the velcro strip.
2 Pass your right hand through the loop and grasp
the grip.
3 Adjust your thumb and fingers through the grip to
easily operate the Recording Start/Stop Button,
Power Switch, SNAPSHOT and Power Zoom
Switch. Be sure to fasten the velcro strip to your
preference.
NOTE:
The grip can rotate 90º downward. It is useful to
shoot images below.
To attach the camcorder to a tripod, align the
direction stud and screw to the mounting socket and
stud hole on the camcorder. Then tighten the screw
clockwise.
● Some tripods are not equipped with studs.
CAUTION:
When attaching the camcorder to a tripod, extend
its legs to stabilize the camcorder. It is not advised
to use small sized tripods. This may cause damage
to the unit by falling over.
LCD Monitor And Viewfinder
While using the LCD monitor:
Make sure the viewfinder is pushed back in. Press
PUSH OPEN and open the LCD monitor fully. It can
rotate 270º (90º downward, 180º upward).
While using the viewfinder:
Make sure the LCD monitor is closed and locked.
Pull out the viewfinder fully.
● Be sure to pull out the viewfinder until you hear a
click, otherwise it may be pushed back in during
use.
180˚
PUSH OPEN Button
EN 15
PAUSE
BR IGHT
NOTES:
● When the viewfinder is pulled out while the LCD
monitor is opened, you can select whether you
use the LCD monitor and the viewfinder
simultaneously or individually. Set “PRIORITY” to
the desired mode in SYSTEM Menu.
(墌 pg. 35, 38)
● The image on the LCD monitor (or viewfinder) and
the image on the TV screen may look differently in
terms of the brightness and color. Confirm the final
image on the TV screen.
● Colored bright spots may appear all over the LCD
monitor or the viewfinder. However, this is not a
malfunction. (墌 pg. 74)
Viewfinder Adjustment
1 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
2 Make sure the LCD monitor is closed and locked.
Pull out the viewfinder fully and adjust it
manually for best viewability.
3 Turn the Diopter Adjustment Control until the
indications in the viewfinder are clearly focused.
Brightness Adjustment Of The Display
1 Set the Power Switch to “M” or “P” while
pressing down the Lock Button located on the
switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press the MENU Wheel in. The Menu Screen
appears.
4 Rotate the MENU Wheel to select “n”, and
press it. The CAMERA DISPLAY Menu appears.
5 Rotate the MENU Wheel to select “BRIGHT”,
and press it. The Menu Screen closes and the
brightness control indicator appears.
6 Rotate the MENU Wheel until the appropriate
brightness is reached.
7 Press the MENU Wheel in.
● It is also possible to adjust the brightness of the
viewfinder.
GETTING STARTED
MENU Wheel
Diopter Adjustment Control
CAUTION:
When retracting the viewfinder, take care not to
pinch your fingers.
16 EN
Operation Mode
To turn on the camcorder, turn the Power Switch to
align any operation mode except “OFF” to the
Power Lamp while pressing down the Lock Button
located on the switch.
Lock Button
Power Lamp
Power Switch
MEMORY
Playback Mode Switch
Recording Mode Switch
Choose the appropriate operation mode according
to your preference using Power Switch and
Recording Mode Switch for recording or Playback
Mode Switch for playback.
Power Switch Position
A (Full Auto Recording):
Allows you to record using NO special effects or
manual adjustments. Suitable for standard
recording.
The “A” indicator appears on the display.
M (Manual Recording):
Allows you to set various recording functions
using the Menus. (墌 pg. 35)
If you want more creative capabilities than Full
Auto Recording, try this mode.
There is no indication on the display.
OFF:
Allows you to switch off the camcorder.
P:
● Allows you to play back a recording on the tape.
● Allows you to display a still image stored in the
memory card or to transfer a still image stored in
the memory card to a PC.
● Allows you to set various playback functions
using the Menus. (墌 pg. 35)
Recording Mode Switch Position
MEMORY:
Allows you to record still images on a memory
card.
HD/SD/DV:
Allows you to record on a tape in MPEG2 (480p/
720p) format or DV format (480i).
For details, refer to “Recording Mode” (墌 pg. 21).
Playback Mode Switch Position
VIDEO:
Allows you to play back a tape.
MEMORY:
Allows you to play back images stored in a
memory card or access data stored in a memory
card.
Power-Linked Operation
When the Power Switch is set to “A” or “M”, you
can also turn on/off the camcorder by opening/
closing the LCD monitor or pulling out/pushing in
the viewfinder.
EN 17
Date/Time Settings
The date/time is recorded onto the tape at all times,
but its display can be turned on or off during
playback. (墌 pg. 35, 42)
Lock Button
Power Switch
MENU Wheel
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press the MENU Wheel in.
The Menu Screen appears.
4 Rotate the MENU Wheel
to select “n”, and press
it. The CAMERA DISPLAY
Menu appears.
5 Rotate the MENU Wheel
to select “CLOCK ADJ.”,
and press it. The
parameter for “Month” is highlighted.
6 Rotate the MENU Wheel
to input the month, and
press it. Repeat to input
the day, year, hour and
minute.
7 Rotate the MENU Wheel
to select “BRETURN”, and
press it twice. The Menu Screen closes.
CL C 2
AD . 3:5
C
E
MODRE
O
I
NRETUR
ASERA CM I
I
HTBR G
E
J AD .
NRETUR
D
ASERA CM
OK
J
NRETUR
ME A CA R
–
12D –OUN DV S tib
40
– ZO M
x
AG
– UP GA N
C
MAIOV–GAT NA I N AUN L
LA
YP
D
NCREON S
T/D
LC –
AUMET–/TI DA E OT
OFDEM– CO TI E
F
DE OK CL C 2 C
I Y
P
LA
DEC
V
5'0 3
0 PM
3:5
5'0 3
0 PM
Built-in Clock’s Rechargeable Lithium Battery
To store the date/time in memory, the clock’s
rechargeable lithium battery is integrated in the
camcorder. While the camcorder is connected to an
AC outlet using the AC Power Adapter/Charger, or
while the battery pack attached to the camcorder
continues to supply power, the clock’s rechargeable
lithium battery is always charged. However, if the
camcorder is not used for approx. 3 months, the
clock’s lithium battery will become discharged and
the date/time stored in memory will be lost. When
this occurs, first connect the camcorder to an AC
outlet using the AC Power Adapter/Charger for over
24 hours to charge the clock’s rechargeable lithium
battery. Then perform the date/time setting before
using the camcorder.
Note that the camcorder can be used without setting
the date/time.
NOTE:
Even if you select “CLOCK ADJ.”, if the parameter is
not highlighted, the camcorder’s internal clock
continues to operate. Once you move the highlight
bar to the first date/time parameter (month), the
clock stops. When you finish setting the minute and
press the MENU Wheel in, the date and time begin
operation from the date and time you have just set.
GETTING STARTED
18 EN
Loading A Cassette /Unloading A Cassette
The camcorder needs to be powered up to load or
eject a cassette.
Erase protection tab
Make sure the
window side is facing
out.
PUSH HERE
1 Loosen the grip strap.
2 Slide and hold OPEN/EJECT in the direction of
the arrow, then pull the cassette holder cover
open until it locks. The cassette holder opens
automatically.
● Do not touch internal components.
3 Insert or remove a tape and press “PUSH HERE”
to close the cassette holder.
● Be sure to press only the section labeled
“PUSH HERE” to close the cassette holder;
touching other parts may cause your finger to
get caught in the cassette holder, resulting in
injury or product damage.
● Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely
before closing the cassette holder cover.
● When the battery pack’s charge is low, you
may not be able to close the cassette holder
cover. Do not apply force. Replace the battery
pack with a fully charged one or use AC power
before continuing.
4 Close the cassette holder cover firmly until it
locks into place.
To protect valuable recordings…
Slide the erase protection tab on the back of the tape
in the direction of “SAVE”. This prevents the tape
from being recorded over. To record on this tape,
slide the tab back to “REC” before loading it.
Cassette holder
Cassette holder
OPEN/EJECT Switch
cover
Approximate recording time
Ta pe
30 min. 30 min. 45 min.
60 min. 60 min. 90 min.
80 min. 80 min. 120 min.
To switch the recording mode, refer to pages 35 and
36.
NOTES:
● It takes a few seconds for the cassette holder to
open. Do not apply force.
● If you wait a few seconds and the cassette holder
does not open, close the cassette holder cover and
try again. If the cassette holder still does not open,
turn the camcorder off then on again.
● If the tape does not load properly, open the
cassette holder cover fully and remove the
cassette. A few minutes later, insert it again.
● When the camcorder is suddenly moved from a
cold place to a warm environment, wait a short
time before opening the cassette holder cover.
● Closing the cassette holder cover before the
cassette holder recedes may cause damage to the
camcorder.
● Even when the camcorder is switched off, a
cassette can be loaded or unloaded. After the
cassette holder is closed with the camcorder
switched off, however, it may not recede. It is
recommended to turn the power on before
loading or unloading.
● When resuming recording, once you open the
cassette holder cover a blank portion will be
recorded on the tape or a previously recorded
scene will be erased (recorded over) regardless of
whether the cassette holder came out or not. See
“Recording From The Middle Of A Tape”
(墌 pg. 23).
Recording mode
SP LP
EN 19
A
Loading A Memory Card /Unloading A Memory Card
The provided memory card is already inserted in the
camcorder at the time of purchase.
Clipped edge
Label
Card Cover (MEMORY CARD)
1 Make sure the camcorder’s power is off.
2 Slide to open the card cover (MEMORY CARD).
3 To load a memory card, firmly insert it with its
clipped edge first.
To unload a memory card, push it once. After the
memory card comes out of the camcorder, pull it
out.
● Do not touch the terminal on the reverse side
of the label.
4 Close the card cover.
Memory card
To protect valuable files (available only for SD
Memory Card)…
Write/erase protection tab
Slide the write/erase protection tab on the side of the
memory card in the direction of “LOCK”. This
prevents the memory card from being recorded over.
To record on this memory card, slide the tab back to
the position opposite to “LOCK” before loading it.
NOTES:
● Be sure to use only SD Memory Cards marked
“ ” or MultiMediaCards marked
“”.
● Some brands of memory cards are not compatible
with this camcorder. Before purchasing a memory
card, consult its manufacturer or dealer.
● Before using a new memory card, it is necessary to
FORMAT the card. (墌 pg. 34)
TTENTION:
Do not insert or remove the memory card while the
camcorder is turned on, as this may cause the
memory card to be corrupted or cause the
camcorder to become unable to recognize whether
or not the card is installed.
GETTING STARTED
20 EN
VIDEO RECORDING
Basic Recording
NOTE:
Before continuing, perform the procedures listed
below:
● Power (墌 pg. 12)
● Loading A Cassette (墌 pg. 18)
Recording Mode
Switch
PUSH
OPEN
VIDEO RECORDING & PLAYBACK
Power Lamp
MEMORY
Power Zoom
Switch
Power Switch
Lock Button
Recording Start/Stop Button
Tally Lamp
(Lights while recording is in
progress.)
1 Remove the lens cap.
2 Press PUSH OPEN and open the LCD monitor
fully, or pull out the viewfinder fully.
3 Set the Recording Mode Switch to “HD”, “SD” or
“DV”. For details, refer to “Recording Mode”
(墌 pg. 21).
4 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
● The power lamp lights and the camcorder
enters the Record-Standby mode. “PAUSE” is
displayed.
5 To start recording, press the Recording Start/Stop
Button. The tally lamp lights and “T REC”
appears on the display while recording is in
progress.
6 To stop recording, press the Recording Start/Stop
Button again. The camcorder re-enters the
Record-Standby mode.
NOTES:
● To listen to the sound during recording, connect
the optional headphones to the (Headphones)
jack.
● If the Record-Standby mode continues for
5 minutes, the camcorder’s power shuts off
automatically. To turn the camcorder on again,
push back and pull out the viewfinder again or
close and re-open the LCD monitor.
● LCD monitor/viewfinder indications:
• When power is supplied from a battery: the
“ ” battery indicator is displayed. (墌 pg. 75)
• When power is supplied from an AC outlet: the
“ ” battery indicator does not appear.
● When a blank portion is left between recorded
scenes on the tape, the time code is interrupted
and errors may occur when editing the tape. To
avoid this, refer to “Recording From The Middle
Of A Tape” (墌 pg. 23).
● To turn the tally lamp or beep sounds off,
墌 pg. 35, 38.
● To record in LP (Long Play) mode, 墌 pg. 35, 36.
● For other notes, 墌 pg. 69.
EN 21
Recording Mode
Following procedure is an example of the operation;
to change the position of the Recording Mode
Switch from “DV” to “MEMORY”.
1 Slide the Recording Mode
Switch to right.
● The switch’s position is at
“SD”.
2 Slide the Recording Mode
Switch upward.
● The switch’s position is at
“HD”.
3 Slide the Recording Mode
Switch to left.
● The switch’s position is at
“MEMORY”.
Features for Video Recording Mode
DV:
Allows you to record on a tape in DV format (480i).
The camcorder records signals in the interlace scan
mode (half of 525 scanning lines at 1/60th of a
second).
The image will be recorded in an aspect ratio of 4:3.
The DV mode is suitable for playback on a
conventional 4:3-screen TV.
SD:
Allows you to record on a tape in MPEG2 format
(480p). The camcorder records signals in the
progressive scan mode (525 scanning lines at 1/60th
a second at one time)
The SD mode reduces flickering more effectively
than a recording in DV mode.
The image will be recorded in an aspect ratio of
16:9. The SD mode is suitable for playback on a
wide-screen TV or high definition TV.
MEMORY
MEMORY
MEMORY
HD:
Allows you to record on a tape in MPEG2 format
(720p). The camcorder records signals in the
progressive scan mode (750 scanning lines at 1/30th
of a second for recording and 1/60th of a second for
playback at one time)
The HD mode enables digital high definition
recording that offers higher picture quality than a
recording in SD or DV mode.
The image will be recorded in an aspect ratio of
16:9. The HD mode is suitable for playback on a
wide-screen TV or high definition TV.
Recording modes and features
There are some features which are not available
depending on the recording mode.
Yes: Available
No: Not Available
: Some features are not available.
Features DV SD HD
Frame-By-Frame Playback
(墌 pg. 24)
5-Second Recording (墌 pg. 37)
Wipe Or Fader Effects (墌 pg. 50)
Special Effects (墌 pg. 51)
Slow-Motion Playback (墌 pg. 59)
Playback Zoom (墌 pg. 59)
Playback Special Effects
(墌 pg. 60)
Audio Dubbing (墌 pg. 60)
Insert Editing (墌 pg. 61)
Random Assemble Editing
[R.A.Edit] (墌 pg. 62)
Ye s No N o
Ye s No N o
Ye s Ye s
Ye s Ye s
Ye s N o N o
Ye s N o N o
Ye s N o N o
Ye s N o N o
Ye s N o N o
Ye s N o N o
Supported formats
Horizontal lines Vertical lines Aspect ratio
Frames per sec.
(REC)
Scan mode Recording mode
1280 720 16:9 30 Progressive HD
704 480 16:9 60 Progressive SD
704 480 4:3 60 Interlaced DV
Maximum continuous recording time
Battery pack
DV mode HD/SD mode DV mode HD/SD mode
Viewfinder on LCD monitor on
BN-V416U 1 hr. 30 min. 1 hr. 15 min. 1 hr. 10 min. 1 hr.
BN-V428U* 2 hr. 50 min. 2 hr. 15 min. 2 hr. 10 min. 1 hr. 50 min.
BN-V840U 4 hr. 3 hr. 20 min. 3 hr. 10 min. 2 hr. 50 min.
BN-V856U 5 hr. 40 min. 4 hr. 50 min. 4 hr. 30 min. 4 hr.
*Provided
VIDEO RECORDING & PLAYBACK
22 EN
0h25
m
VIDEO RECORDING (cont.)
Tape Remaining Time
Approximate tape remaining time appears on the
display. “– h – – m” means the camcorder is
calculating the remaining time. When the remaining
time reaches 2 minutes, the indication starts
blinking.
– h– – m1 h 0 m0
h 5 9
0
h 3
m
m
(Now calculating)
0
h 2
m0 h 1 m0 h 0 m
(Blinking) (Blinking) (Blinking)
Zooming
Produces the zoom in/out effect, or an instantaneous
change in image magnification.
Zoom In
Press the “T” side on the Power Zoom Switch.
Zoom Out
Press the “W” side on the Power Zoom Switch.
● The further you press the Power Zoom Switch, the
quicker the zoom action.
Zoom in (T: Telephoto)
1xW
T
10xW
T
20xW
T
40xW
T
● Zoom magnification of over 10X is done through
Digital image processing, and is therefore called
Digital Zoom.
● During Digital zoom, the quality of image may
suffer.
● Digital zoom cannot be used when the Recording
Mode Switch is set to “MEMORY” or “HD”.
● Macro shooting (as close as approx. 5 cm (2”) to
the subject) is possible when the Power Zoom
Lever is set all the way to “W”. Also see “TELE
MACRO” in MANUAL Menu on page 37.
● For other notes, 墌 pg. 69.
Journalistic Shooting
In some situations, different
shooting angles may provide
more dramatic results. Hold
the camcorder in the desired
position and tilt the LCD
monitor and the grip in the
most convenient direction.
The LCD monitor can rotate
270º (90º downward, 180º
upward). The grip can rotate
90º downward.
Interface Shooting
The person you shoot can view himself/herself in the
LCD monitor, and you can even shoot yourself while
viewing your own image in the LCD monitor.
Self Recording
Zoom out (W: Wide angle)
10xW
T
Approximate zoom ratio
Digital zoom zone
10X (optical) zoom zone
NOTES:
● Focusing may become unstable during Zooming.
In this case, set the zoom while in RecordStandby, lock the focus by using the manual focus
(墌 pg. 47), then zoom in or out in Record mode.
● Zooming is possible to a maximum of 200X, or it
can be switched to 10X magnification using the
optical zoom. (墌 pg. 36)
1) Open the LCD monitor and tilt it upward to 180º
so that it faces forward.
● When the LCD monitor is tilted upward to an
angle of over approx. 105º, the monitor image
is inverted vertically. If the viewfinder is pulled
out at that time, it also switches on.
2) Point the lens toward the subject (yourself when
self-recording) and start recording.
● During Interface Shooting, the monitor image
appears inverted as it would when viewing a
mirror. However, the actual recorded image
does not appear inverted.
EN 23
Time Code
During recording, a time code is recorded on the
tape. This code is to confirm the location of the
recorded scene on the tape during playback.
If recording starts from a blank portion, the time
code begins counting from “00:00:00”
(minute:second:frame). If recording starts from the
end of a previously recorded scene, the time code
continues from the last time code number.
To perform Random Assemble Editing (墌 pg. 62 –
66), time code is necessary. If during recording a
blank portion is left partway through the tape, the
time code is interrupted. When recording is
resumed, the time code starts counting up again
from “00:00:00”. This means the camcorder may
record the same time codes as those existing in a
previously recorded scene. To prevent this, perform
“Recording From The Middle Of A Tape” in the
following cases;
● When shooting again after playing back a
recorded tape.
● When power shuts off during shooting.
● When a tape is removed and re-inserted during
shooting.
● When shooting using a partially recorded tape.
● When shooting on a blank portion located
partway through the tape.
● When shooting again after shooting a scene then
opening/closing the cassette holder cover.
Display
12:34:24
Frames are not displayed
during recording.
Minutes
Seconds
Frames
(30 frames = 1 second)
Recording From The Middle Of A Tape
1) Play back a tape or use Blank Search (墌 pg. 25)
to find the spot at which you want to start
recording, then engage the Still Playback mode.
(墌 pg. 24)
2) Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch, then start recording.
NOTES:
● The time code cannot be reset.
● During fast-forwarding and rewinding, the time
code indication does not move smoothly.
● The time code is displayed only when “TIME
CODE” is set to “ON”. (墌 pg. 39)
When a blank portion is recorded on a tape
Time code
00:00:00
Tape
recorded scene
Shooting start
point
Proper recording
Time code
00:00:00
Ta pe
recorded scene
Shooting start
Already
Already
point
Time code
05:43:21
Blank
Shooting stop
point
Time code
05:43:21
New
scene
Shooting start
point
Time code
00:00:00
Newly recorded
Shooting start
Time code
05:44:00
Latest scene
Shooting start
scene
point
point
VIDEO RECORDING & PLAYBACK
24 EN
VIDEO PLAYBACK
Normal Playback
Lock Button
Power Switch
Play/Pause Button (4·9)
Stop Button (8)
Playback Mode Switch
Speaker
Rewind Button (3)
MENU Wheel (VOLUME)
Fast-Forward Button (5)
1 Load a cassette. (墌 pg. 18)
2 Set the Playback Mode Switch to “VIDEO”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 To start playback, press 4·9.
5 To stop playback, press 8.
● During Stop mode, press 3 to rewind, or
5 to fast-forward the tape.
NOTES:
● Clean the video heads using an optional dry
cleaning cassette when:
• No picture during playback.
• Blocks of noise appear during playback.
For details, 墌 pg. 79.
● If Stop mode continues for 5 minutes when power
is supplied from a battery, the camcorder shuts off
automatically. To turn on again, set the Power
Switch to “OFF”, then to “P”.
● The playback picture can be viewed in the LCD
monitor, viewfinder or on a connected TV.
(墌 pg. 26)
● You can also view the playback picture on the
LCD monitor with it flipped over and pushed
against the camcorder body.
● LCD monitor/viewfinder indications:
• When power is supplied from a battery: the
“ ” battery indicator is displayed. (墌 pg. 75)
• When power is supplied from an AC outlet: the
“ ” battery indicator does not appear.
● When a cable is connected to the AV connector,
the sound is not heard from the speaker.
To control the speaker volume…
Rotate the MENU Wheel towards “+” to turn up the
volume, or towards “–” to turn down the volume.
Still Playback
Pauses during video playback.
1) Press 4·9 during playback.
2) To resume normal playback, press 4·9 again.
● If still playback continues for more than about
3 minutes, the camcorder’s Stop mode is
automatically engaged.
● When 4·9 is pressed, the image may not
pause immediately while the camcorder
stabilizes the still image.
Frame-By-Frame Playback
Allows frame-by-frame search during video
playback. This feature is available only with a tape
recorded in DV recording mode.
1) Press 4·9 during playback.
2) Rotate the MENU Wheel toward R for forward
and T for reverse.
EN 25
A

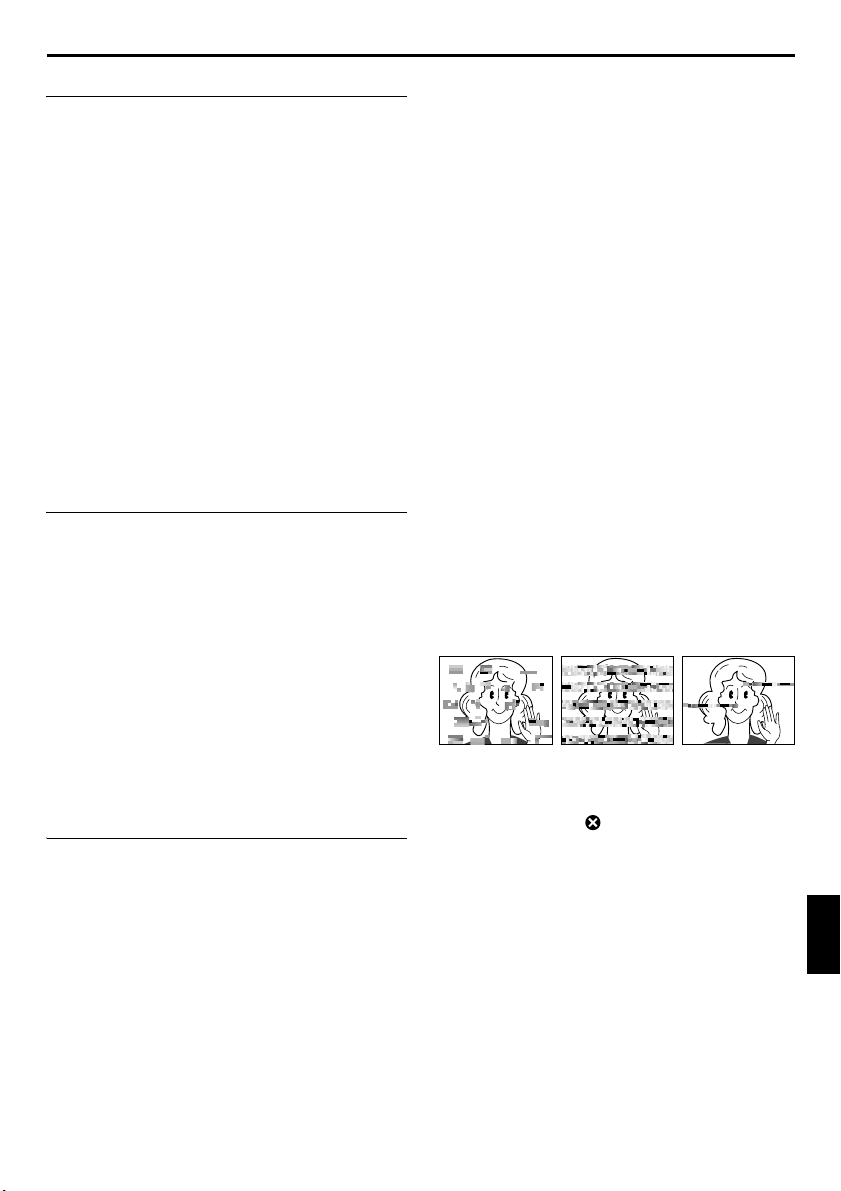

Shuttle Search
Allows high-speed search in either direction during
video playback.
1) During playback, press 5 for forward search,
or 3 for reverse search.
2) To resume normal playback, press 4·9.
● During playback, press and hold 5 or 3.
The search continues as long as you hold the
button. Once you release the button, normal
playback resumes.
● A slight mosaic effect appears on the display
during Shuttle Search. This is not a
malfunction.
TTENTION:
(DV mode only)
During Shuttle Search, parts of
the picture may not be clearly
visible, particularly on the left
side of the screen.
Blank Search
Helps you find where you should start recording in
the middle of a tape to avoid time code interruption.
(墌 pg. 23)
1 Load a cassette. (墌 pg. 18)
2 Set the Playback Mode Switch to “VIDEO”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 During Stop mode,
press BLANK
SEARCH.
● The “BLANK
SEARCH”
indication appears
and the camcorder
automatically starts
reverse or forward search, then stops at the
spot which is about 3 seconds of tape before
the beginning of the detected blank portion.
● To cancel Blank Search midway, press 8.
BLANK SEARCH
PUSH "STOP" BUTTON
TO CANCEL
NOTES:
● Before starting Blank Search, if the current position
is at a blank portion, the camcorder searches in
the reverse direction. If the current position is at a
recorded portion, the camcorder searches in the
forward direction.
● Blank Search does not work if “HEAD CLEANING
REQUIRED. USE CLEANING CASSETTE” has
appeared with the tape.
● If the beginning or end of the tape is reached
during Blank Search, the camcorder stops
automatically.
● A blank portion which is shorter than 5 seconds of
tape may not be detected.
● The detected blank portion may be located
between recorded scenes. Before you start
recording, make sure there is no recorded scene
after the blank portion.
Slow-Motion Playback
Playback Zoom
Playback Special Effects
Available only with the remote control (provided).
(墌 pg. 59)
VIDEO RECORDING & PLAYBACK
26 EN
VIDEO PLAYBACK (cont.)
Connections To A TV Or VCR
These are some basic types of connections. When
making the connections, refer also to your VCR and
TV instruction manuals.
To Connect A Conventional TV or VCR
Connector
To S/ AV
12345
A Not required for connection.
B Black to S-VIDEO IN*
C Yellow to VIDEO IN**
D White to AUDIO L IN***
E Red to AUDIO R IN***
* Connect when your TV/VCR has S-VIDEO IN
and A/V input connectors. In this case, it is not
necessary to connect the yellow video cable.
** Connect when your TV/VCR has only A/V input
connectors.
*** Not required for watching still images only.
**** When connecting the cable, open the cover.
Cover****
S/AV/Editing cable
(provided)
VCR
TV
To Connect To A TV or VCR Equipped With The
Component Video Connectors
Connector Cover**
To S/ AV
S/AV/Editing cable
(provided)
To Y/ PB/PR
456
Push to connect or
disconnect
Component video cable
(provided)
Audio extension cable
(provided)
123
A To component video connectors
B White to AUDIO L IN*
C Red to AUDIO R IN*
D Not required for connection.
E Not required for connection.
F Not required for connection.
* Not required for watching still images only.
** When connecting the cable, open the cover.
Wide-screen TV or
high definition TV
VCR
23
EN 27
1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as shown
in the illustration.
If using a VCR, go to step 3.
If not, go to step 4.
3 Connect the VCR output to the TV input,
referring to your VCR’s instruction manual.
4 For S-video or video connection
Set “S/VIDEO” to “16:9 TV” or “4:3 TV”
depending on the aspect ratio of the TV you are
connecting. (墌 pg. 35, 42)
For component video connection
Set “Y/Pb/Pr” to any picture size depending on
the TV to which you are connecting.
(墌 pg. 35, 42)
5 Turn on the VCR and the TV.
6 Set the VCR to its AUX input mode, and set the
TV to appropriate input mode.
To choose whether or not the following displays
appear on the connected TV…
● Date/Time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(墌 pg. 35, 42)
Or, press DISPLAY on the remote control to turn
on/off the date indication.
● Time Code
Set “TIME CODE” to “ON” or “OFF”.
(墌 pg. 35, 42)
● Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.
(墌 pg. 35, 42)
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 13)
● To monitor the picture and sound from the
camcorder without inserting a tape or memory
card, set the camcorder’s Power Switch to “A” or
“M”, then set your TV to the appropriate input
mode.
● Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.
● If you have a TV or speakers that are not specially
shielded, do not place the speakers adjacent to the
TV as interference will occur in the camcorder
playback picture.
● During playback in HD mode, the images may not
appear on the camcorder’s LCD monitor or
viewfinder if the component video cable is
connected.
● When a cable is connected to the S/AV or
headphone connector, sound cannot be heard
from the speaker.
● According to the type of the connected TV and the
recording mode, the playback picture may be
squeezed vertically or horizontally. For details,
refer to the Instructions of the TV.
VIDEO RECORDING & PLAYBACK
28 EN
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
Basic Shooting (D.S.C. Snapshot)
You can use your camcorder as a Digital Still
Camera for taking snapshots. Still images are stored
in the memory card.
NOTE:
Before continuing, perform the procedures listed
below:
● Power (墌 pg. 12)
● Loading A Memory Card (墌 pg. 19)
Recording Mode
MEMORY
PUSH
OPEN
1 Remove the lens cap.
2 Press PUSH OPEN and open the LCD monitor
fully, or pull out the viewfinder fully.
3 Set the Recording Mode Switch to “MEMORY”.
4 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
5 Press SNAPSHOT. The “O” indication
appears while the snapshot is being taken.
● To check how the image looks before
recording it in the memory card, press
SNAPSHOT halfway and hold. The “ ”
indicator appears and stops blinking when the
captured image is focused. To cancel the
recording, release SNAPSHOT. To record it in
the memory card, press SNAPSHOT fully.
● Still images are recorded in
the snapshot mode with no
frame. There is the sound of
a shutter closing.
● To delete unwanted still
images, refer to “Deleting
Files” (墌 pg. 32).
● When you do not want to hear the shutter
sound, set “BEEP” to “OFF”. (墌 pg. 35, 38)
● To change the Image Size and/or Picture
Quality, 墌 pg. 35, 40.
Switch
SNAPSHOT Button
Power Switch
Lock Button
D.S.C. RECORDING
A Image Size (墌 pg. 40, 86)
B Focus Icon (墌 pg. 86)
C Shooting Icon (墌 pg. 86)
D Card Icon (墌 pg. 86)
E Picture Quality (墌 pg. 40, 86)
F Remaining Number Of Shots (墌 pg. 86)
NOTES:
● Even if “OIS” is set to “ON” (墌 pg. 37), the
Stabilizer will be disabled.
● If Special Effects (墌 pg. 51) is engaged, certain
modes are disabled during Snapshot recording. In
such a case, the icon blinks.
● If shooting is not performed for approx. 5 minutes
when the Power Switch is set to “A” or “M” and
power is supplied from the battery pack, the
camcorder shuts off automatically to save power.
To perform shooting again, push back and pull out
the viewfinder again or close and re-open the LCD
monitor.
● The Motor Drive mode (墌 pg. 44) is disabled
when the Recording Mode Switch is set to
“MEMORY”.
● When a cable is connected to the AV connector,
the shutter sound is not heard from the speaker,
however it is recorded onto the tape.
● Still images taken are compliant to DCF (Design
rule for Camera File system). They do not have any
compatibility with devices which are not
compliant to DCF.
D.S.C. PLAYBACK
EN 29
Normal Playback Of Images
Images shot with the camcorder are automatically
numbered, then stored in numerical order in the
memory card. You can view the stored images, one
at a time, much like flipping through a photo album.
Lock Button
Power Switch
Rewind Button (3)
Stop Button (8)
Playback Mode Switch
INFO Button
MENU Wheel
Fast-Forward Button (5)
Play/Pause Button (4·9)
1 Load a memory card. (墌 pg. 19)
2 Set the Playback Mode Switch to “MEMORY”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Open the LCD monitor fully, or pull out the
viewfinder fully.
● The still image which has been played back at
the last time is displayed.
5 Press 3 to display the previous file. Press 5
to display the next file.
● Pressing INFO gives you details on the
displayed file. (墌 pg. 30)
● You can also look for the desired file using
Index Screen. (墌 pg. 30)
● You can turn off the on-screen playback
display. (墌 pg. 30)
NOTES:
● Even if you shoot a new image after playing back a
low-numbered one, this will not overwrite an
existing image, because new images are
automatically stored after the last-recorded one.
● Images shot in a file size other than “640 x 480”,
“848 x 480”, “1280 x 720” and “1280 x 960”
with another devices will be displayed thumbnail
images. These thumbnail images cannot be
transferred to a PC.
● Images shot with devices (such as JVC GRDVM70) that are not compatible with DCF cannot
be viewed with this camcorder; “UNSUPPORTED
FILE!” will be displayed.
Playback Zoom
Available only with the remote control (provided).
(墌 pg. 59)
Auto Playback Of Images
You can run through all the images stored in
memory card automatically.
1 Perform steps 1 – 4 in “Normal Playback Of
Images”.
2 Press 4·9 to start Auto Playback. Files are
displayed in descending order.
● If you press 3 during Auto Playback, files
are displayed in ascending order.
3 To end Auto Playback, press 8.
[For Normal Playback]
To display the next image
Image playback screen (IMAGE)
[For Auto Playback]
100-0013
100-0014
100-0015
To display the previous image
100-0016
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
30 EN
D.S.C. PLAYBACK (cont.)
Index Playback Of Files
You can view several different files stored in the
memory card at a time. This browsing capability
makes it easy to locate a particular file you want.
1 Perform steps 1 – 4 in “Normal Playback Of
Images” (墌 pg. 29).
2 Press INDEX. The Index Screen of the image files
appears.
Selected file
Index number
Index Screen
3
2
1
4
5
6
8 9
7
3 Rotate the MENU Wheel to move the frame to
the desired file.
● Press 3 to display the previous page. Press
5 to display the next page.
4 Press the MENU Wheel in. The selected file is
displayed.
● Pressing INFO gives you details on the
displayed file. (See below.)
Viewing File Information
You can get the relevant file information by pressing
the INFO Button during normal playback or Index
Playback.
FOLDER : Folder name (墌 pg. 33)
FILE : File name (墌 pg. 33)
DATE : Date the file was made
SIZE : Image size
QUALITY : Picture quality
PROTECT : When set to “ON”, the file is
protected from accidental erasure.
(墌 pg. 31)
F
O
L
D
E
R
:
1
0
0
J
V
C
F
I
L
E
D
A
T
E
S
I
Z
E
Q
U
A
L
P
R
O
T
G
:
D
V
C
0
0
0
1
OCT 0
3
:
:
1
2
8
0
X
9
6
I
T
Y
:
F
I
N
E
E
C
T
:
O
F
F
R
0
3
0
0
Information Screen
● Press the INFO Button again to close the
Information Screen.
NOTE:
With images shot with other devices or processed on
a PC, “QUALITY: – – –” will be displayed.
Removing On-Screen Display
1 Perform steps 1 – 4 in “Normal Playback Of
Images” (墌 pg. 29).
2 Press the MENU Wheel in. The Menu Screen
appears.
3 Rotate the MENU Wheel to select “DISPLAY”,
and press it. The Sub Menu appears.
4 Rotate the MENU Wheel to select “OFF”, and
press it. The operation mode indicator, folder/file
number and battery indicator ( ) disappear.
● To display the indicators again, select “ON”.
Operation mode indicator
Folder/file number
100-0013
DISPLAYM E NU
OFF
ON
RETURN
Battery indicator
EN 31
Protecting Files
The Protect mode helps prevent the accidental
erasure of files.
Lock Button
Power Switch
Rewind Button (3)
Playback Mode Switch
MENU Wheel
Fast-Forward Button (5)
1 Load a memory card. (墌 pg. 19)
2 Set the Playback Mode Switch to “MEMORY”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Open the LCD monitor fully, or pull out the
viewfinder fully.
● The still image which has been played back at
the last time is displayed.
5 Press the MENU Wheel in. The Menu Screen
appears.
6 Rotate the MENU Wheel
to select “PROTECT”, and
press it. The Sub Menu
appears.
MENU
PROTECT
DELE TE
DPOF
NO . RESE T
FORMAT
DISPLAY
G
BR I H T
END
To protect the currently displayed file
7 Rotate the MENU Wheel
to select “CURRENT”, and
press it. The PROTECT
screen appears.
8 Press 3 or 5 to
select the desired file.
9 Rotate the MENU Wheel
to select “EXECUTE”, and
press it.
● To cancel protection,
select “RETURN”.
● Repeat steps 8 and 9 for
all files you want to
protect.
To protect all files stored in the memory
card
CUR
PROTECTM E NURENT
PROT.ALL
CANC.ALL
RETURN
ROT ECTP
PROTECTED
RETURN
7 Rotate the MENU Wheel to select “PROT.ALL”,
and press it. The PROTECT screen appears.
8 Rotate the MENU Wheel to select “EXECUTE”,
and press it.
● To cancel protection, select “RETURN”.
NOTES:
● If the “ ” mark appears, the currently displayed
file is protected.
● When the memory card is initialized or corrupted,
even protected files are deleted. If you do not want
to lose important files, transfer them to a PC and
save them.
To Remove Protection
Before doing the following, perform steps 1 – 6 in
“Protecting Files” in the left column.
To remove protection from the currently
displayed file
7 Rotate the MENU Wheel to select “CURRENT”,
and press it. The PROTECT screen appears.
8 Press 3 or 5 to select the desired file.
9 Rotate the MENU Wheel to select “EXECUTE”,
and press it.
● To cancel selection, select “RETURN”.
● Repeat steps 8 and 9 for all files you want to
remove protection.
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
CONTINUED ON NEXT PAGE
32 EN
D.S.C. PLAYBACK (cont.)
To remove protection from all files stored
in the memory card
7 Rotate the MENU Wheel to select “CANC.ALL”,
and press it. The PROTECT screen appears.
8 Rotate the MENU Wheel to select “EXECUTE”,
and press it.
● To cancel selection, select “RETURN”.
Deleting Files
Previously stored files can be deleted either one at a
time or all at once.
Lock Button
Power Switch
Rewind Button (3)
Playback Mode Switch
MENU Wheel
Fast-Forward Button (5)
1 Load a memory card. (墌 pg. 19)
2 Set the Playback Mode Switch to “MEMORY”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Open the LCD monitor fully, or pull out the
viewfinder fully.
● The still image which has been played back at
the last time is displayed.
5 Press the MENU Wheel in. The Menu Screen
appears.
6 Rotate the MENU Wheel to select “DELETE”, and
press it. The Sub Menu appears.
To delete the currently displayed file
7 Rotate the MENU Wheel
to select “CURRENT”, and
press it. The DELETE
screen appears.
DELE TE M E NURENT
CUR
ALL
RET URN
8 Press 3 or 5 to
select the desired file.
9 Rotate the MENU Wheel
to select “EXECUTE”, and
press it.
● To cancel deletion,
select “RETURN”.
● Repeat steps 8 and 9 for
all files you want to
delete.
NOTE:
If the “ ” mark appears, the selected file is
protected and cannot be deleted.
ELETED
DELE TE?
EXECUTE
RETURN
To delete all files stored in the memory
card
7 Rotate the MENU Wheel to select “ALL”, and
press it. The DELETE screen appears.
8 Rotate the MENU Wheel to select “EXECUTE”,
and press it.
● To cancel deletion, select “RETURN”.
NOTES:
● Protected files (墌 pg. 31) cannot be deleted. To
delete them, remove protection first.
● Once files are deleted, they cannot be restored.
Check files before deleting.
CAUTION:
Do not remove the memory card or perform any
other operation (such as turning off the
camcorder) during deletion. Also, be sure to use
the provided AC Power Adapter/Charger, as the
memory card may be corrupted if the battery
becomes exhausted during deletion. If the
memory card becomes corrupted, initialize it.
(墌 pg. 34)
EN 33
Resetting The File Name Setting Print Information (DPOF
By resetting the file name, a new folder will be
made. The new files you are going to make will be
stored in the new folder. It is convenient to separate
the new files from previously made files.
1 Load a memory card. (墌 pg. 19)
2 Set the Playback Mode Switch to “MEMORY”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Open the LCD monitor fully, or pull out the
viewfinder fully.
● The still image which has been played back at
the last time is displayed.
5 Press the MENU Wheel in. The Menu Screen
appears.
6 Rotate the MENU Wheel to select “NO. RESET”,
and press it. The NO. RESET screen appears.
7 Rotate the MENU Wheel to select “EXECUTE”,
and press it. The new folder (such as
“101JVCGR”) will be made and the file made of
the next shot starts from DVC00001.
Folder and File names
Each time shooting takes place, a file name is made
using a number which is larger by one than the
largest number of the file names which are in use.
Even if you delete an image file with a number in the
middle of range, the number will not be used for a
new shot; a gap will remain in the numerical
sequence. If the file name reaches DVC09999, a
new folder (such as “101JVCGR”) will be made and
the file name will start again from DVC00001.
Setting)
This camcorder is compatible with the DPOF
(Digital Print Order Format) standard in order to
support future systems such as automatic printing.
You can select one of the 2 print information settings
for images stored in the memory card: “To Print All
Still Images (One Print For Each)” or “To Print By
Selecting Still Images And Number Of Prints”.
NOTES:
● If you load a memory card already set as shown
below in a printer compatible with DPOF, it will
make prints of the selected still images
automatically.
● To print images recorded on a tape, first dub them
to a memory card. (墌 pg. 57)
To Print All Still Images (One Print For Each)
1
Load a memory card. (墌 pg. 19)
2 Set the Playback Mode Switch to “MEMORY”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Open the LCD monitor fully, or pull out the
viewfinder fully. The still image which has been
played back at the last time is displayed.
5 Press the MENU Wheel in. The Menu Screen
appears.
6 Rotate the MENU Wheel
to select “DPOF”, and
press it. The Sub Menu
appears.
7 Rotate the MENU Wheel
to select “ALL 1”, and
press it. The DPOF screen
appears.
8 Rotate the MENU Wheel
to select “EXECUTE”, and
press it. The normal
playback screen appears.
● To cancel selection,
select “RETURN”.
DPOF M E NURENT
CUR
ALL 1
RESET
RETURN
DPOF
ALL1 ?
EXECUTE
RETURN
CONTINUED ON NEXT PAGE
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
34 EN
D.S.C. PLAYBACK (cont.)
To Print By Selecting Still Images And Number
Of Prints
Perform steps 1 – 6 in “To Print All Still Images
1
(One Print For Each)” (墌 pg. 33).
2 Rotate the MENU Wheel
to select “CURRENT”, and
DPOF
press it. The DPOF screen
appears.
3 Press 3 or 5 to
SHEETS
00
RETURN
select the desired file.
4 Rotate the MENU Wheel to select the number
indication (00), and press it.
5 Select the number of prints
by rotating the MENU
DPOF
Wheel towards “R” to
increase number, or
towards “T” to decrease
SHEETS
05
the number, and press it.
● Repeat steps 3 through 5
for the desired number of prints.
● The number of prints can be set up to 15.
● To correct the number of prints, select the
image again and change the number.
6 Rotate the MENU Wheel
to select “RETURN”, and
press it. The “SAVE?”
appears.
● If you did not change
any settings in step 3
DPOF
SAVE?
EXECUTE
CANCEL
through 5, the Menu
Screen reappears.
7 Rotate the MENU Wheel to select “EXECUTE” to
save the setting you have just made, and press it.
● To cancel selection, select “CANCEL”.
To Reset The Number Of Prints
1
Perform steps 1 – 6 in “To Print All Still Images
(One Print For Each)” (墌 pg. 33).
2 Rotate the MENU Wheel to select “RESET”, and
press it. The DPOF screen appears.
3 Rotate the MENU Wheel to select “EXECUTE”,
and press it. The normal playback screen
appears.
● To cancel selection, select “RETURN”.
● The number of prints is reset to 0 for all still
images.
Initializing A Memory Card
You can initialize a memory card any time.
After initializing, all files and data stored in the
memory card, including those which have been
protected, are cleared.
1 Set the Playback Mode Switch to “MEMORY”.
2 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
3 Open the LCD monitor fully, or pull out the
viewfinder fully.
4 Press the MENU Wheel in.
The Menu Screen appears.
5 Rotate the MENU Wheel
to select “FORMAT”, and
press it. The FORMAT
screen appears.
6 Rotate the MENU Wheel
to select “EXECUTE”, and
press it. The memory card
is initialized.
● When initialization is finished, “NO IMAGES
STORED” appears.
● To cancel initialization, select “RETURN”.
CAUTION:
Do not perform any other operation (such as
turning off the camcorder) during initialization.
Also, be sure to use the provided AC Power
Adapter/Charger, as the memory card may be
corrupted if the battery becomes exhausted during
initialization.
MENU
PROTECT
DELE TE
DPOF
NO . RESE T
FORMAT
DISPLAY
BR I GHT
END
ORMATF
ERASE A LL
EXECUTE
RETURN
DATA ?EX IST ING
CAUTION:
While performing the above, never disconnect
power, as this may cause the memory card to be
corrupted.
MENUS FOR DETAILED ADJUSTMENT
EN 35
Changing The Menu Settings
This camcorder is equipped with an easy-to-use, onscreen menu system that simplifies many of the
more detailed camcorder settings. (墌 pg. 36 – 42)
Lock Button
Power Switch
Playback Mode Switch
MENU Wheel
1 For Video and D.S.C. Recording Menus:
Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
For Video Playback Menus:
1) Set the Playback Mode Switch to “VIDEO”.
2) Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
For D.S.C. Playback Menus:
For details, refer to “D.S.C. PLAYBACK”
(墌 pg. 29).
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press the MENU Wheel in. The Menu Screen
appears.
CMODRE
Menu Screen for Video
and D.S.C. Recording
Menu
4 Rotate the MENU Wheel to select the desired
function, and press it. The selected function
menu appears.
5 Rotate the MENU Wheel to select the desired
function, and press it. The Sub Menu appears.
NRETUR
ME A CA R
E
–
12D –OUN DV S tib
40
– ZO M
O
x
AG
– UP GA N
I
C
MAIOV–GA T NA I N AUN L
ID O V E
Menu Screen for Video
Playback Menu
DU
ST RE–EO
DMSO N EO
OF. –ARR DV N F
±0 N–HRO SY C
E C–MOD RE
OFCO Y P F–
L.V.DENA I
OFPUA IN S/ V T F–
NRE TUR
0
.
Example: m CAMERA Menu
Selected function
Selected menu icon blinks.
6 Rotate the MENU Wheel to
C
E
MODRE
O
I
NRETUR
Sub Menu
ME A CA R
–
12D –OUN DV S tib
40
– ZO M
x
AG
– UP GA N
C
MAIOV–GAT NA I N AUN L
select the desired
parameter.
7 Press the MENU Wheel in.
Selection is complete.
● Repeat the procedure if
you wish to set other
function menus.
8 Press the MENU Wheel in.
The Menu Screen returns.
● Repeat the procedure if
you wish to set other
function menus.
9 Press the MENU Wheel in
ME A CA R
MODRE
NRE TUR
MODRE
NRET UR
MODRE
NRET UR
E
E
– ZO M
O
x
– UP GA N
I
C
E
– ZO M
O
x
– UP GA N
I
C
–
ME A CA R
–
12D –OUN DV S tib
40
AG
MAIOV–GA T NA I N AUN L
ME A CA R
–
12D –OUN DV S tib
40
AG
MAIOV–GA T NA I N AUN L
C
C
C
again. The Menu Screen closes.
NOTES:
● The “m” settings are effective when the Power
Switch is set to both “A” and “M”. However, the
menu settings can be changed only when the
Power Switch is set to “M”.
● The “q” settings are effective only when the
Power Switch is set to “M”.
● The “s” functions which are set when the Power
Switch is set to “M” are also applied when the
Power Switch is set to “P”.
● The “n” (CAMERA DISPLAY) settings are
effective even when the Power Switch is set to
“A”. However, the menu settings can be changed
only when the Power Switch is set to “M”.
● The “n” (CAMERA DISPLAY) settings are
effective only for shooting except “BRIGHT”.
● The “n” (VIDEO DISPLAY) settings are effective
only for video playback except “BRIGHT”.
● The date indication can also be turned on/off by
pressing the DISPLAY Button on the remote
control (provided). (墌 pg. 27, 54, 63)
ADVANCED FEATURES
36 EN
RECORDING MENUS
Camera Menu
CAMERA
Recording mode
Allows you to set the recording mode (SP or LP)
depending on your preference.
REC MODE (Factory-preset: SP)
SP: Standard Play
LP: Long Play—more economical, providing 1.5
times the recording time.
NOTES:
● Audio Dubbing (墌 pg. 60) and Insert Editing
(墌 pg. 61) are possible on tapes recorded in the
SP mode.
● If the recording mode is switched during
recording, the playback picture will be blurred at
the switching point.
● It is recommended that tapes recorded in the LP
mode on this camcorder be played back on this
camcorder.
● During playback of a tape recorded on another
camcorder, blocks of noise may appear or there
may be momentary pauses in the sound.
Sound mode
DV SO UND (Factory-preset: 12 bit)
12 bit: Enables video recording of stereo sound
on four separate channels, and is recommended
for use when performing Audio Dubbing.
(Equivalent to the 32 kHz mode of previous
models)
16 bit: Enables video recording of stereo sound
on two separate channels. (Equivalent to the 48
kHz mode of previous models)
Zooming
ZOOM (Factory-preset: 40X)
10X: When set to “10X”, only the optical zoom
magnification is engaged.
40X*: Allows you to use the Digital Zoom. By
digitally processing and magnifying images,
zooming is possible from 10X (the optical zoom
limit), to a maximum of 40X digital magnification.
200X*: Allows you to use the Digital Zoom. By
digitally processing and magnifying images,
zooming is possible from 10X (the optical zoom
limit), to a maximum of 200X digital
magnification.
* Not available when the Recording Mode Switch
is set to “HD” or “MEMORY”.
Gain up
GAIN UP (Factory-preset: AGC)
OFF: Allows you to shoot dark scenes with no
picture brightness adjustment.
AGC : The overall appearance may be grainy, but
the image is bright.
Navigation time
NAVIGATION (Factory-preset: MANUAL)
5SEC / 15SEC / 30SEC / 60SEC:
The captured image is stored in the memory card
as a thumbnail image when the recording time is
over the navigation time.
For example, “5SEC” is suitable to record short
scenes with the thumbnail images. (墌 pg. 52)
However, the stored thumbnail images may take
up a lot of memory. In this case, using the
memory card with large capacity is
recommended.
MANUAL: Enables thumbnail images to be made
manually. (墌 pg. 52)
EN 37
Manual Menu
MANUAL
Optical Image Stabilization
To compensate for unstable images caused by
camera-shake, particularly at high magnification.
OIS (Factory-preset: ON)
OFF / ON
NOTES:
● Accurate stabilization may not be possible if hand
shake is excessive, or under the following
conditions:
• When shooting subjects with vertical or
horizontal stripes.
• When shooting dark or dim subjects.
• When shooting subjects with excessive
backlighting.
• When shooting scenes with movement in
various directions.
• When shooting scenes with low-contrast
backgrounds.
● Switch off this mode when recording with the
camcorder on a tripod.
● The “ ” indicator blinks or goes out if the
Stabilizer cannot be used.
Self-Timer
For details, refer to “Self-Timer” (墌 pg. 43).
SELF-TIMER (Factory-preset: OFF)
OFF / ON
5-Second Recording
Record a vacation or an important event in 5-second
clips to keep the action moving. This function is
available only when the Recording Mode Switch is
set to “DV”.
1 Set “5S” to “5S”. (墌 pg. 35)
● “5S” appears.
2 Press the Recording Start/Stop Button to start
recording, and after 5 seconds the camcorder
enters Record-Standby mode automatically.
● Even if you press the Recording Start/Stop
Button again within 5 seconds after recording
starts, Record-Standby mode is not engaged.
3 To exit the 5S mode, select “OFF” in step 1.
To take a snapshot in the 5-second recording
mode…
Instead of pressing the Recording Start/Stop Button
in step 2, press SNAPSHOT. The camcorder records
a 5-second still. When “5S” is set to “Anim.”, this
function is not available.
5S (Factory-preset: OFF)
OFF: Disables 5-Second Recording.
5S: Enables 5-Second Recording.
Anim.: Allows you to record a few frames only. By
using an inanimate object and changing its
position between shots, you can record the
subject as though it is moving.
NOTE:
When “5S” is set to “Anim.”, the 5-Second
Recording mode is not available. Animation
recording of a few frames only is taken instead.
Maximum telephoto setting
Usually the distance to a subject where the lens is in
focus depends on the zoom magnification. Unless
there is a distance more than 1 m (3.3 ft) to the
subject, the lens is out of focus at the maximum
telephoto setting.
TELE MACRO (Factory-preset: OFF)
OFF: Disables the function.
ON: When set to “ON”, you can shoot a subject
as large as possible at a distance of approx. 60 cm
(2 ft).
NOTE:
Depending on the zoom position, the lens may go
out of focus.
ADVANCED FEATURES
38 EN
RECORDING MENUS (cont.)
Wide mode
DV WIDE (Factory-preset: OFF)
OFF: Records with no change in the screen ratio.
For playback on a TV with a normal screen ratio.
SQUEEZE* : For playback on TVs with an
aspect ratio of 16:9. Naturally expands the image
to fit the screen without distortion. The
indicator appears. When using this mode, refer to
your wide-screen TV’s instruction manual. During
playback/recording on 4:3 TVs/LCD monitor/
viewfinder, the image is elongated vertically.
D.WIDE* : The indicator appears. The
zoom range is extended beyond the maximum
optical zoom wide angle range. This mode’s wide
angle setting is equivalent to using a 0.7X wide
conversion lens. Zooming is possible from 0.7X to
a magnification set in CAMERA Menu. This mode
is suitable for shooting in a small room.
* Not available when the Recording Mode Switch
is set to “HD” or “MEMORY”.
Wind cut
WIND CUT (Factory-preset: OFF)
OFF: Disengages the function.
ON : Helps cut down on noise created by
wind. The “ ” indicator appears. The quality of
the sound will change. This is normal.
System Menu
SYSTEM
Beep, melody and shutter sound
BEEP (Factory-preset: OFF)
OFF: Even though not heard while shooting,
shutter sound is recorded on the tape.
BEEP: The beep sounds when the power is turned
on or off, and at the beginning and end of
recording. It also activates the shutter sound
effect. (墌 pg. 28, 44)
MELODY: Instead of a beep, a melody sounds
when any operation is performed. It also activates
the shutter sound effect. (墌 pg. 28, 44)
Tally lamp sett ing
TALLY (Factory-preset: ON)
OFF: The tally lamp remains off at all times.
ON: The tally lamp comes on to signal the start of
recording.
Remote control setting
For details, refer to “USING THE REMOTE
CONTROL UNIT” (墌 pg. 58).
REMOTE (Factory-preset: ON)
OFF: Disables the remote control operations.
ON: Enables the remote control operations.
Priority setting
When the viewfinder is pulled out while the LCD
monitor is opened, you can select which one to use.
PRIORITY (Factory-preset: LCD)
LCD: Allows you to use the LCD monitor.
FINDER: Allows you to use the viewfinder.
BOTH: Allows you to use both the LCD and
viewfinder.
EN 39
Component video output setting
When connecting the camcorder to a TV or video
unit equipped with component video inputs
(墌 pg. 26), select the output picture size depending
on the connected TV or video unit.
Y/Pb/Pr (Factory-preset: NO CONV.)
NO CONV.: Outputs with the original size.
Signals are output in 480p during recording.
720 to 1080: Converts to 1080i. Signals are
output in 480p during recording.
ALL to 480p: Converts to 480p.
ALL to 480i: Converts to 480i.
ALL to 1080: Converts to 1080i. Select this setting
if your TV is compatible to 1080i input only.
Signals are not output during recording (in any
mode) or playback in DV mode.
NOTE:
Signals are output in 480i during recording or
playback in DV mode regardless of the output
setting.
S-Video output setting
When connecting the camcorder to a 4:3 TV or
wide-screen TV using the S/AV/Editing cable
(墌 pg. 26), select the aspect ratio of the connected
TV.
S/VIDEO (Factory-preset: 4:3 TV)
16:9 TV: For a TV which has an aspect ratio of
16:9.
4:3 TV: For a TV which has an aspect ratio of 4:3.
i.LINK output setting
During digital tape dubbing, select whether the
video signal outputs according to the Switch setting.
i.LINK OUT (Factory-preset: SW)
SW: Normally, set to this position. Outputs the DV
or MPEG2 format signal selected with the i.LINK
OUT Switch.
AUTO: For future use. If the connected video unit
automatically detects the input signal via an
i.LINK connector, set to “AUTO”.
Display Menu
CAMERA DISPLAY
Brightness adjustment of the display
BRIGHT
For details, refer to “Brightness Adjustment Of The
Display” (墌 pg. 15).
Display setting
ON SCREEN (Factory-preset: LCD/TV)
LCD: Keeps the camcorder’s display (except the
date, time and time code) from appearing on the
connected TV screen.
LCD/TV: Makes the camcorder’s display appear
on screen when the camcorder is connected to a
TV.
Date and time display setting
DATE/TIME (Factory-preset: AUTO)
OFF: The date/time does not appear.
AUTO: Displays the date/time for approx.
5 seconds when the Power Switch is set from
“OFF” to “A” or “M”.
ON: The date/time is always displayed.
Time code setting
TIME CODE (Factory-preset: OFF)
OFF: Time code is not displayed.
ON: Time code is displayed on the camcorder
and on the connected TV. Frame numbers are not
displayed during recording.
Clock adjustment
CLOCK ADJ.
Allows you to set the current date and time.
(墌 pg. 17)
ADVANCED FEATURES
Resetting menu settings
CAM RESET
EXECUTE: Resets all settings to the factory-preset.
RETURN: Does not reset all settings to the factory-
preset.
40 EN
RECORDING MENUS (cont.)
DSC Menu
DSC
Picture quality
The Picture Quality mode can be selected to best
match your needs. Two Picture Quality modes are
available: FINE ( ) and STANDARD ( ) (in order
of quality).
QUALITY (Factory-preset: FINE)
FINE / STANDARD
NOTE:
The number of storable images depends on the
selected picture quality as well as the composition
of the subjects in the images and the type of memory
card being used. (墌 pg. 44)
Image size
The Image Size mode can be selected to best match
your needs.
IMAGE SIZE (Factory-preset: 1280 x 960)
640 x 480 / 1280 x 960
NOTES:
● The settings can be changed only when the
Recording Mode Switch is set to “MEMORY”.
● To shoot still images in 848 x 480 pixels or
1280 x 780 pixels, set “REC SELECT” to " /
" (墌 “Recording media selection”), set the
Recording Mode Switch to “SD” or “HD”.
(墌 “Snapshot (For Video Recording)”, pg. 44)
Approximate Number of Storable Images
Image Size/Picture
Quality
640 x 480/FINE 30 68 144 297
640 x 480/
STANDARD
848 x 480/FINE 25 55 117 241
848 x 480/
STANDARD
1280 x 720/FINE 10 22 48 99
1280 x 720/
STANDARD
1280 x 960/FINE 7 17 36 74
1280 x 960/
STANDARD
SD Memory Card
8 MB** 16 MB* 32 MB* 64 MB*
80 178 376 772
66 148 313 643
26 59 125 257
20 44 94 193
Image Size/Picture Quality
640 x 480/FINE 36 74 149
640 x 480/STANDARD 95 192 388
848 x 480/FINE 29 60 121
848 x 480/STANDARD 79 160 323
1280 x 720/FINE 12 24 49
1280 x 720/STANDARD 31 64 129
1280 x 960/FINE 9 18 37
1280 x 960/STANDARD 23 48 97
* Optional
** Provided
MultiMediaCard
8 MB* 16 MB* 32 MB*
Recording media selection
REC SELECT (Factory-preset: )
: When Snapshot recording is performed with
the Recording Mode Switch set to “HD”, “SD” or
“DV”, still images are recorded only onto the
tape.
/ : When Snapshot recording is
performed with the Recording Mode Switch set to
“HD”, “SD” or “DV”, still images are recorded not
only onto the tape but also in the memory card
(1280 x 720 pixels in HD mode, 848 x 480 pixels
in SD mode, 640 x 480 pixels in DV mode).
PLAYBACK MENUS
EN 41
Video Menu
VIDEO
Playback sound
During tape playback, the camcorder detects the
sound mode in which the recording was made, and
plays the sound back. Select the type of sound to
accompany your playback picture. According to the
menu access explanation on page 35, select
“SOUND MODE” or “DV NARR.” from the Menu
Screen and set it to the desired parameter.
SOUND MODE (Factory-preset: STEREO )
STEREO : Sound is output on both “L” and “R”
channels in stereo.
SOUND L : Sound from the “L” channel is
output.
SOUND R : Sound from the “R” channel is
output.
DV NARR. (Factory-preset: OFF)
OFF: Original sound is output on both “L” and
“R” channels in stereo.
ON: Dubbed sound is output on both “L” and “R”
channels in stereo.
MIX: Original and dubbed sounds are combined
and output in stereo on both “L” and “R”
channels.
NOTES:
● The “SOUND MODE” setting is available for both
12-bit and 16-bit sound. (In previous models’
functions, “12-bit” is called “32 kHz” and “16-bit”
is called “48 kHz”.)
● The camcorder cannot detect the sound mode in
which the recording was made during fast-forward
or rewind. During playback the sound mode is
displayed in the upper left corner.
Synchro adjustment
For details, refer to “For More Accurate Editing”
(墌 pg. 66).
SYNCHRO (Factory-preset: ±0.0)
Recording mode
Allows you to set the video recording mode (SP or
LP) depending on your preference. It is
recommended you use “REC MODE” in VIDEO
Menu when using this camcorder as a recorder
during dubbing. (墌 pg. 54, 56)
REC MODE (Factory-preset: SP)
SP / LP
NOTE:
“REC MODE” can be set when the Power Switch is
set to “P” or “M”.
Dubbing from tape to memory card
COPY (Factory-preset: OFF)
OFF: When the SNAPSHOT button is pressed
during tape playback, the playback image pauses
and normal playback will resume after
approximately 6 seconds. (The still image is not
recorded.)
ON: Enables dubbing of images recorded on a
tape to a memory card. (墌 pg. 57)
Deleting thumbnail images
For details, refer to “To delete thumbnail images”
(墌 pg. 53).
NAVI.DEL.
IMAGE SEL. / TAPE SEL. / ALL / RETURN
S-Video/AV input
S/AV INPUT (Factory-preset: OFF)
OFF: Enables audio/video signal output to a TV,
VCR, etc. via the S/AV connector. (墌 pg. 26, 56)
A/V IN: Enables audio and video signal input
from the S/AV connector. (墌 pg. 54)
S IN: Enables audio and S-video signal input from
the S/AV connector.
ADVANCED FEATURES
42 EN
PLAYBACK MENUS (cont.)
System Menu
SYSTEM
Each setting is linked with “s”, which appears
when the Power Switch is set to “M”. (墌 pg. 35) The
parameters are the same as in the description on
page 38.
BEEP (Factory-preset: OFF)
OFF / BEEP / MELODY
TALLY (Factory-preset: ON)
OFF / ON
REMOTE (Factory-preset: ON)
OFF / ON
PRIORITY (Factory-preset: LCD)
LCD / FINDER / BOTH
Y/Pb/Pr (Factory-preset: NO CONV.)
NO CONV. / 720 to 1080 / ALL to 480p /
ALL to 480i / ALL to 1080
S/VIDEO (Factory-preset: 4:3 TV)
16:9 TV / 4:3 TV
i.LINK OUT (Factory-preset: SW)
SW / AUTO
CAM RESET
EXECUTE / RETURN
Display Menu
TIME CODE (Factory-preset: OFF)
OFF / ON
NOTE:
The date indication can also be turned on/off by
pressing the DISPLAY Button on the remote control
(provided). (墌 pg. 27, 54, 63)
Display
ON SCREEN Setting:
DV 2
bi t/DV NARR.
1
L
12: 34: 24
4
For playback mode,
playback sound, tape
speed and tape running
during video playback.
DATE/TIME Setting:
For date/time.
0
3
'
C
52
ED
5: 03
PM
TIME CODE Setting:
For time code.
Minutes
Seconds
Frames*
* 30 frames = 1 second
VIDEO DISPLAY
The parameters (except “OFF” in ON SCREEN
settings) are the same as in the description on
page 39.
Brightness adjustment of the display
BRIGHT
For details, refer to “Brightness Adjustment Of The
Display” (墌 pg. 15).
ON SCREEN (Factory-preset: LCD)
OFF / LCD / LCD/TV
When set to “OFF”, the camcorder’s display
disappears.
DATE/TIME (Factory-preset: OFF)
OFF / AUTO / ON
When set to “AUTO”, the date/time are displayed
in the following cases:
•When playback starts. The camcorder displays
the date/time when scenes are recorded.
•When the date is changed during playback.
FEATURES FOR RECORDING
EN 43
Self-Timer
SNAPSHOT Button
Power Switch
Lock Button
Once the camcorder is set, the camcorder operator
can become part of the scene in a more natural way,
adding the final touch to a memorable picture.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
● You can tilt the LCD monitor upward to 180°
so that it faces forward and view yourself while
self-recording with the viewfinder pushed
back.
3 Set “SELF-TIMER” to
“ON ”. (墌 pg. 35, 37)
4 To engage the Self-Timer
for video recording, press
the Recording Start/Stop
Button.
● After 15 seconds, the
beep sounds and video
recording starts.
To stop Self-Timer
recording, press the
Recording Start/Stop
Button again.
Self-Timer indication
● The camcorder re-enters
Record-Standby mode.
OR
4 Press SNAPSHOT.
● After 15 seconds, the beep sounds and
snapshot recording starts. After that, the
camcorder re-enters Record-Standby mode.
5 To end Self-Timer recording, select “OFF” in
step 3.
NRETUR
NU L MA A
OMEL –TI SE F R FF–
O
N
NOTE:
If “BEEP” and “TALLY” are set to “OFF” (墌 pg. 38),
the beep does not sound and the tally lamp does not
light.
When the Recording Start/
Stop Button or SNAPSHOT is
pressed, the tally lamp
changes as shown:
Begins blinking
(Self-Timer starts)
(Self-Timer shooting starts
Stops blinking and stays on
(Self-Timer video recording
Blinks quickly
soon)
starts)
After approx.
15 sec.
OR
(Self-Timer snapshot
Turns off
recording occurs)
ADVANCED FEATURES
44 EN
Lock Button
FEATURES FOR RECORDING (cont.)
● When a cable is connected to the AV connector,
the shutter sound is not heard from the speaker,
however it is recorded onto the tape.
Power Switch
SNAPSHOT Button
Recording
Mode Switch
BACK LIGHT Button
EXPOSURE Wheel
Snapshot (For Video Recording)
This feature lets you record still images that look like
photographs onto a tape.
1 Set the Recording Mode Switch to “HD”, “SD” or
“DV”.
2 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
3 Open the LCD monitor fully, or pull out the
viewfinder fully.
4 Press SNAPSHOT.
● The “O” indication appears and a still
image will be recorded for approx. 6 seconds,
then the camcorder re-enters the RecordStandby mode.
● You can perform Snapshot also during
recording. A still image will be recorded for
approx. 6 seconds, then the normal recording
resumes.
To record still images not only on the tape but also
in the memory card
Set “REC SELECT” to “ / ”. (墌 pg. 40)
•The image size recorded in the memory card
differs depending on the recording mode; 640 x
480 (DV), 848 x 480 (SD) or 1280 x 720 (HD).
NOTES:
● To remove the shutter sound, refer to “BEEP” on
page 38.
● Certain modes of Program AE (墌 pg. 50) are
disabled during Snapshot recording. In such a
case, the icon blinks.
● If SNAPSHOT is pressed when “OIS” is set to
“ON” (墌 pg. 37), the Stabilizer will be disabled.
● During Snapshot recording, the image displayed
in the viewfinder may be partially missing.
However, there is no effect in the recorded image.
Motor Drive Mode
Keeping SNAPSHOT pressed in step 4 provides an
effect similar to serial photography. (Interval
between still images: approx. 1 second)
The Motor Drive mode is disabled when “REC
SELECT” is set to “ / ”. (墌 pg. 40)
Exposure Control
Manual exposure control is recommended in the
following situations:
● When shooting using reverse lighting or when the
background is too bright.
● When shooting on a reflective natural background
such as at the beach or when skiing.
● When the background is overly dark or the subject
is bright.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press the EXPOSURE Wheel in.
● The exposure control indicator appears.
4 To brighten the image, rotate the EXPOSURE
Wheel towards “+”. To darken the image, rotate
the EXPOSURE Wheel towards “–”. (maximum
±10)
● +3 exposure has the same effect as the
backlight compensation. (墌 pg. 45)
● –3 exposure has the same effect as when “r”
is set to “SPOTLIGHT”. (墌 pg. 50)
To return to automatic exposure control...
Press the EXPOSURE Wheel in. Or, set the Power
Switch to “A”.
NOTE:
You cannot use the manual exposure control at the
same time when “r” is set to “SPOTLIGHT” or
“SNOW” (墌 pg. 50), or with the backlight
compensation. (墌 pg. 45)
EN 45
3
Iris Lock
Like the pupil of the human eye, the iris contracts in
well-lit environments to keep too much light from
entering, and dilates in dim environments to allow
in more light.
Use this function in the following situations:
● When shooting a moving subject.
● When the distance to the subject changes (so its
size in the LCD monitor or the viewfinder
changes), such as when the subject is backing
away.
● When shooting on a reflective natural background
such as at the beach or when skiing.
● When shooting objects under a spotlight.
● When zooming.
When the subject is close, keep the iris locked. Even
when the subject moves away from you, the image
will not darken or brighten.
1 Perform steps 1 to 3 of “Exposure Control”.
● The exposure control indicator appears.
2 Adjust zoom so that the
subject fills the LCD
monitor or the viewfinder,
then press and hold the
EXPOSURE Wheel for over
2 seconds. The exposure
control indicator and the
“ ” indication appear.
To return to automatic iris
control...
Press the EXPOSURE Wheel in. Or, set the Power
Switch to “A”.
● The exposure control indicator and “ ”
disappear.
To lock the exposure control and the iris…
Adjust the exposure by rotating the EXPOSURE
Wheel in step 4 of “Exposure Control”. Then lock
the iris in step 2 of “Iris Lock”.
Iris Lock Indicator
Backlight Compensation
Backlight compensation brightens the subject
quickly.
Press BACK LIGHT. The indicator is displayed
and the subject is brightened. If pressed again,
disappears and the brightness returns to the previous
level.
● Using the BACK LIGHT Button may cause the light
around the subject to become too bright and the
subject to become white.
● Backlight compensations is also available when
the Power Switch is set to “A”.
ADVANCED FEATURES
46 EN
Lock Button
FEATURES FOR RECORDING (cont.)
To return to automatic iris adjustment...
Press S/A. Or, set the Power Switch to “A”.
Power Switch
S/A Button
MENU Wheel
Manual Shutter Speed Adjustment
Changing the shutter speed manually allows a fastmoving subject to be shot as if it is stationary, or to
be intentionally blurred for vivid playback.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the Switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press S/A.
● The shutter speed level indicator appears.
4 For the fast shutter speed, rotate the MENU
Wheel toward “R” (fastest 1/1000 sec.).
For the slow shutter speed, rotate the MENU
Wheel toward “T” (slowest 1/15 sec.).
To return to automatic shutter speed adjustment...
Press S/A twice. Or, set the Power Switch to “A”.
Manual Iris Adjustment
Adjusting the iris manually provides an image
special effect by changing the range of focusing.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the Switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press S/A twice.
● The iris level indicator appears.
4 To close the iris, rotate the MENU Wheel toward
“R” (maximum F 22.0). To open the iris, rotate
the MENU Wheel towards “T” (minimum F 1.8).
● Closing the iris (increasing the value) enables
focusing on both a subject and background.
● Opening the iris (decreasing the value) allows
appropriate brightness in poor lighting
conditions, while the range of focusing will
decrease.
Auto Focus
The camcorder’s Full Range AF system offers
continuous shooting ability from close-up (as close
as approx. 5 cm (2”) to the subject) to infinity.
Focus detection zone
However, correct focus may not be obtainable in the
situations listed below (in these cases perform
“Manual Focus”):
● When two subjects overlap in the same scene.
● When illumination is low.*
● When the subject has no contrast (difference in
brightness and darkness), such as a flat, one-color
wall, or a clear, blue sky.*
● When a dark object is barely visible in the LCD
monitor or the viewfinder.*
● When the scene contains minute patterns or
identical patterns that are regularly repeated.
● When the scene is affected by sunbeams or light
reflecting off the surface of a body of water.
● When shooting a scene with a high-contrast
background.
* The following low-contrast warnings appear
blinking: , , and
NOTES:
● If the lens is smeared or blurred, accurate focusing
is not possible. Keep the lens clean. (墌 pg. 81)
When condensation occurs, wipe with a soft cloth
or wait for it to dry naturally.
● When shooting a subject close to the lens, zoom
out first. (墌 pg. 22) If zoomed-in in the auto focus
mode, the camcorder may automatically zoom
out depending on the distance between the
camcorder and the subject. This will not occur
when “TELE MACRO” is set to “ON”. (墌 pg. 37)
Lock Button
Power Switch
Zoom Ring
Manual Focus
Ring
FOCUS Button
Manual Focus
NOTE:
If you are using the viewfinder, you should already
have performed “Viewfinder Adjustment”
(墌 pg. 15).
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Press FOCUS. The manual focus indicator
appears.
3 To focus on a further subject, rotate the Manual
Focus Ring counterclockwise.
While focusing on a
further subject
EN 47
To reset to Auto Focus...
Press FOCUS or set the Power Switch to “A”.
NOTES:
● Be sure to focus the lens in the maximum
telephoto position when you use the Manual
Focus mode. If you focus in on a subject in the
wide-angle position, sharply focused images
cannot be obtained when zoomed up because the
depth-of-field is reduced at longer focal lengths.
● When the focus level cannot be adjusted any
further or closer, “ ” or “ ” will blink.
Manual Zooming
Zooming manually using the Zoom Ring enables
controlling the shooting angle or zooming speed to
your preference.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Zoom In
Rotate the Zoom Ring counterclockwise.
Zoom Out
Rotate the Zoom Ring clockwise.
NOTE:
Digital zoom cannot be used when the Recording
Mode Switch is set to “HD” or “MEMORY”.
(墌 pg. 16)
ADVANCED FEATURES
To focus on a nearer subject, rotate the Manual
Focus Ring clockwise.
While focusing on a nearer
subject
48 EN
FEATURES FOR RECORDING (cont.)
White Balance Adjustment
The white balance that refers to the correctness of
color reproduction under various lighting. If the
white balance is correct, all other colors will be
accurately reproduced.
The white balance is usually adjusted automatically.
However, more advanced camcorder operators
control this function manually to achieve a more
professional color/tint reproduction.
AUTO: White balance is adjusted automatically.
MWB: Adjust the white balance manually
when shooting under various types of lighting.
(墌 “Manual White Balance Adjustment”, pg. 49)
FINE: Outdoors on a sunny day.
CLOUD: Outdoors on a cloudy day.
HALOGEN: A video light or similar type of
lighting is used.
Lock Button
Power Switch
W.B Button
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the Switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press W.B . The WHITE BALANCE screen
appears.
4 Rotate the MENU Wheel to select the desired
mode, and press it.
● The selected mode indicator except “AUTO”
appears.
● If you select “ MWB”, refer to “Manual
White Balance Adjustment”.
5 Press the MENU Wheel in. The white balance
adjustment is complete.
● The selected mode indicator except “AUTO”
appears.
To return to automatic white balance…
Select “AUTO” in step 4. Or, set the Power Switch to
“A”.
NOTE:
White balance cannot be used when “Special
Effects” is set to “SEPIA” or “MONOTONE”.
(墌 pg. 51)
MENU Wheel
EN 49
Manual White Balance Adjustment
Adjust the white balance manually when shooting
under various types of lighting.
Lock Button
Power Switch
White paper
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press W.B. The WHITE BALANCE screen
appears.
4 Rotate the MENU Wheel to select “MWB”, and
press it.
5 Hold a sheet of plain white paper in front of the
subject. Adjust zoom or position yourself so that
the white paper fills the screen.
6 Press the MENU Wheel in until begins
blinking rapidly.
When the setting is completed, resumes
normal blinking.
7 Press the MENU Wheel in. The Menu Screen
closes and the Manual White Balance indicator
is displayed.
W.B Button
MENU Wheel
NOTES:
● In step 5, it may be difficult to focus on the white
paper. In such a case, adjust focus manually.
(墌 pg. 47)
● A subject can be shot under various types of
lighting conditions indoors (natural, fluorescent,
candlelight, etc.). Because the color temperature is
different depending on the light source, the
subject tint will differ depending on the white
balance settings. Use this function for a more
natural result.
● Once you adjust white balance manually, the
setting is retained even if the power is turned off or
the battery removed.
ADVANCED FEATURES
50 EN
FEATURES FOR RECORDING (cont.)
Wipe Or Fader Effects
Wipe/Fader effects let you make pro-style scene
transitions. Use them to spice up the transition from
one scene to the next.
Wipe or Fader works when video recording is started
or stopped.
Lock Button
Power Switch
P.AE Bu t ton
FADE/WIPE Button
MENU Wheel
EFFECT Button
There are 9 types of Fader/Wipe Effects for scene
transition.
FADER–WHITE: Fade in or out with a white
screen.
FADER–BLACK: Fade in or out with a black
screen.
FADER–B.W: Fade in to a color screen from a
black and white screen, or fade out from color to
black and white.
WIPE–CORNER: Wipe in on a black screen
from the upper right to the lower left corner, or wipe
out from lower left to upper right, leaving a black
screen.
WIPE–WINDOW: The scene starts in the
center of a black screen and wipes in toward the
corners, or comes in from the corners, gradually
wiping out to the center.
WIPE–SLIDE: Wipe in from right to left, or
wipe out from left to right.
WIPE – DOOR: Wipe in as the two halves of a
black screen open to the left and right, revealing the
scene, or wipe out and the black screen reappears
from left and right to cover the scene.
WIPE–SCROLL: The scene wipes in from the
bottom to the top of a black screen, or wipes out
from top to bottom, leaving a black screen.
WIPE – SHUTTER: Wipe in from the center of
a black screen toward the top and bottom, or wipe
out from the top and bottom toward the center
leaving a black screen.
1 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
2 Open the LCD monitor fully, or pull out the
viewfinder fully.
3 Press FADE/WIPE. The WIPE/FADER screen
appears.
4 To activate the Fade-in or Wipe-in:
Rotate the MENU Wheel to select the desired
effect and press it during Record-Standby mode.
● The selected effect indicator appears.
To activate the Fade-out or Wipe-out:
Rotate the MENU Wheel to select the desired
effect and press it during recording.
● The selected effect indicator appears.
5 Press the Recording Start/Stop Button to activate
the Fade-in/out or Wipe-in/out.
To deactivate the selected effect…
Select “OFF” in step 4. Or, set the Power Switch to
“A”.
NOTES:
● You can extend the length of a Wipe or Fader by
pressing and holding the Recording Start/Stop
Button.
● Wipe Effects is not activated when the recording
mode is set to “HD”.
IMPORTANT:
Some Wipe/Fader Effects cannot be used with
certain modes of Program AE or Special Effects. If an
unusable Wipe/Fader Effect is selected, its indicator
blinks in blue or goes out.
Program AE
Program AE allows you to shoot images according to
various situations.
SPORTS
(Variable Shutter Speed: 1/250 – 1/1000)
This setting allows fast-moving images to be
captured one frame at a time, for vivid, stable slowmotion playback. The faster the shutter speed, the
darker the picture becomes. Use the shutter function
under good lighting conditions.
SNOW: Compensates for subjects that may
otherwise appear too dark when shooting in
extremely bright surroundings such as in the snow.
SPOTLIGHT: Compensates for subjects that
may otherwise appear too bright when shooting
under extremely strong direct lighting such as
spotlights.
NOTE:
“SPOTLIGHT” has the same effect as –3 with the
exposure control. (墌 pg. 44)
EN 51
TWILIGHT: Makes evening scenes look more
natural. White Balance (墌 pg. 48) is automatically
set to “ ”, but can be changed to your desired
setting. When Twilight is chosen, the camcorder
automatically adjusts the focus from approx. 10 m
(32 ft) to infinity. From less than 10 m (32 ft), adjust
the focus manually.
1 Set the Recording Mode Switch to “HD”, “SD” or
“DV”.
● Some modes of Program AE cannot be used
with the Switch set to “MEMORY”.
2 Set the Power Switch to “M” while pressing down
the Lock Button located on the switch.
3 Open the LCD monitor fully, or pull out the
viewfinder fully.
4 Press P. A E . The PROGRAM AE screen appears.
5 Rotate the MENU Wheel to select the desired
mode, and press it.
6 Press the MENU Wheel in to activate the selected
effect.
● The selected effect indicator appears.
To deactivate the selected effect…
Select “OFF” in step 5. Or, set the Power Switch to
“A”.
NOTE:
Program AE can be changed during recording or
during Record-Standby.
IMPORTANT:
Some modes of Program AE cannot be used with
certain Wipe/Fader effects. If an unusable mode is
selected, the indicator of Wipe/Fader effects blinks
or goes out.
Special Effects
Using the following 4 Effect Modes allows you to
provide special effects for your shooting.
SEPIA: Recorded scenes have a brownish tint
like old photos. Using this effect with “DV WIDE”
set to ”SQUEEZE” (墌 pg. 38) provides “classic film”
effect.
MONOTONE: Like classic black and white
films, your footage is shot in B/W. Using this effect
with “DV WIDE” set to ”SQUEEZE” (墌 pg. 38)
provides “classic film” effect.
CLASSIC FILM: Gives recorded scenes a
strobe effect.
STROBE: Your recording looks like a series of
consecutive snapshots.
NOTES:
● When the Recording Mode Switch is set to “HD”
or “MEMORY”, “MONOTONE” is only available.
● “SEPIA”, “CLASSIC FILM” and ”STROBE” are not
activated when the recording mode is set to “HD”.
1 Set the Recording Mode Switch to “SD” or “DV”.
● Some modes of Special Effects cannot be used
in “HD” or “MEMORY” mode.
2 Set the Power Switch to “M” while pressing down
the Lock Button located on the Switch.
3 Open the LCD monitor fully, or pull out the
viewfinder fully.
4 Press EFFECT. The EFFECT screen appears.
5 Rotate the MENU Wheel to select the desired
mode, and press it.
6 Press the MENU Wheel in to activate the selected
effect.
● The selected effect indicator appears.
To deactivate the selected effect...
Select “OFF” in step 5. Or, set the Power Switch to
“A”.
IMPORTANT:
Some modes of Special Effects cannot be used with
certain Wipe/Fader effects. If an unusable mode is
selected, the indicator of Wipe/Fader effects blinks.
ADVANCED FEATURES
52 EN
PAUSE
FEATURES FOR RECORDING (cont.)
NAVIGATION Function
The Navigation Function helps you check tape
contents by making thumbnail images on a memory
card.
Fast-Forward Button (5)
Rewind Button (3)
Playback Mode Switch
NAVI Button
NAVI STORE Button
To make thumbnail images during video
recording automatically
Load a cassette. (墌 pg. 18)
1
2 Load a memory card. (墌 pg. 19)
3 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
4 Set “NAVIGATION” to the desired navigation
storing time. (墌 pg. 35, 36)
● If the “ ” indicator appears blinking on the
screen, wait until it stops blinking. If it does not
stop blinking after a while, check if a memory
card is loaded.
5 Press the Recording Start/Stop Button to start
recording.
● When the recording time
is over the navigation
time set in step 5, “ ”
appears briefly, then the
image of the point where
recording is started is
captured and stored in
the memory card as a
thumbnail image.
● If the Recording Start/
Stop button is pressed
before “ ” stops
blinking, the image of the point where the
loaded memory card is recognized is captured.
6 Press the Recording Start/Stop Button to stop
recording.
Lock Button
Power Switch
MENU Wheel
1h m1
hm
100
PAUSE
PAUSE
Displayed while the
captured image is
being stored in the
memory card.
To make thumbnail images after video recording
manually...
1) Perform steps 1 to 3 above.
2) Set “NAVIGATION” to “MANUAL”.
(墌 pg. 35, 36)
3) After the recording, press NAVI STORE.
•The “ ” indicator appears briefly and the
captured image is stored in the memory card as
a thumbnail image.
NOTES:
● The remaining number of storable thumbnail
images also appears on the screen when it reaches
10 or less. If “REC SELECT” is set to “ / ”
in DSC Menu, the number shows how many
640 x 480 pixel images can be stored.
● If “5S” is set to “5S” or “Anim.” in MANUAL
Menu, the NAVIGATION function will not work
properly.
To find scenes on tape using thumbnail images
(NAVIGATION Search)
1
Load a cassette. (墌 pg. 18)
2 Load a memory card. (墌 pg. 19)
3 Set the Playback Mode switch to “VIDEO”.
4 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
5 Press NAVI during video playback or stop mode.
● The loaded cassette’s
NAVIGATION thumbnail
image screen appears.
● Press 3 to display the
previous page. Press 5
to display the next page.
TC : 13 : 23 :1 5
1 2 3
4 5 00 6
ONITNAV I GA
3 224YDA TE : AM :’30:329AM
6 Rotate the MENU Wheel to select the desired
image, and press it.
● The “NAVIGATION SEARCH” indication
appears blinking and the camcorder starts
searching the tape for the relevant point of the
selected thumbnail image.
To cancel NAVIGATION search midway...
Press 8 or 4·9.
EN 53
To add thumbnail images during video
playback
Perform steps 1 to 4 in “To find scenes on tape
1
using thumbnail images (NAVIGATION Search)”.
2 Press 4·9 to start video playback.
3 Press NAVI STORE at the desired point.
● The “ ” indicator appears briefly and the
image of the point where NAVI STORE is
pressed is stored in the memory card as a
thumbnail image.
● If you use the tape recorded in SD or HD
mode, it will enter the playback pause mode.
To play, press 4·9.
To delete thumbnail images
1
Load a memory card. (墌 pg. 19)
2 Set the Playback Mode switch to “VIDEO”.
3 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
4 Press the MENU Wheel in. The Menu Screen
appears.
5 Rotate the MENU Wheel to select “t VIDEO”,
and press it. The VIDEO Menu appears.
ID O V E
6 Rotate the MENU Wheel to
select “NAVI.DEL.”, and
press it. The Sub Menu
appears.
7 By rotating the MENU
Wheel...
Select “IMAGE SEL.” to delete the currently
displayed thumbnail image.
Select “TAPE SEL.” to delete all thumbnail images
for the tape which contains the currently
displayed image.
Select “ALL” to delete all thumbnail images
stored in the memory card at once.
8 Press the MENU Wheel in.
The NAVIGATION screen
appears.
9 Rotate the MENU Wheel to
select “EXECUTE”, and
press it.
● Press 3 to display the previous page. Press
5 to display the next page.
● To cancel deletion, select “RETURN”.
● Thumbnail images cannot be deleted during
video playback.
CAUTION:
Do not remove the memory card or perform any
other operation (such as turning off the camcorder)
during deletion. Also, be sure to use the provided
AC Power Adapter/Charger, as the memory card may
DU
ST– ERE O
DMSO N EO
OF. –ARR DV N F
0
±0 N–HRO SY C
.
E C–MO D RE
OFCO Y P F–
L.V.DENA I
OFPUA IN S/ V T F–
NRETUR
IG NANAV T I O
ETEDEL CURR ENT?
3 CED:2060’0 P3M
EXECUTE
RETURN
be corrupted if the battery becomes exhausted
during deletion. If the memory card becomes
corrupted, initialize it.
NOTE:
Once images are deleted, they cannot be restored.
Check images before deleting.
IMPORTANT:
● Be sure to always use the same tape and memory
card together as they were during recording;
otherwise, the camcorder cannot recognize Tape
and Memory Card IDs to perform NAVIGATION
function properly.
● Check if an appropriate tape and memory card are
loaded when the following messages appear: “NO
ID ON TAPE OR CARD”, “UNABLE TO USE
NAVIGATION”, “THIS MEMORY CARD IS NOT
COMPATIBLE”.
● If you change the memory card while shooting on
one tape, two memory cards will share the tape’s
thumbnail images. We recommend that you use
one memory card for one tape.
● NAVIGATION Search does not work if the current
position is at a blank portion on the tape. Also, do
not leave a blank portion partway through the tape
when shooting; otherwise, NAVIGATION function
does not work properly.
● Before shooting newly over a recorded tape, be
sure to delete all thumbnail images of the previous
recording from the relevant memory card.
● If you copy thumbnail images from one memory
card to another via a PC, NAVIGATION Search
does not work with the copied memory card.
ADVANCED FEATURES
54 EN
DUBBING
Dubbing To Or From A VCR
Connector Cover**
To AV
S/AV/Editing cable
(provided)
12345
TV
VCR
A Not required for connection.
B To S-VIDEO* IN or OUT
C Yellow to VIDEO IN or OUT
D White to AUDIO L IN or OUT
E Red to AUDIO R IN or OUT
* Connect when your TV/VCR has an S-VIDEO
IN/OUT connector. In this case, it is not
necessary to connect the yellow video cable.
** When connecting the cable, open the cover.
To use this camcorder as a player
1 Following the illustrations, connect the
camcorder and the VCR. Also refer to page 26.
2 Set the camcorder’s Playback Mode Switch to
“VIDEO”.
3 Set the camcorder’s Power Switch to “P”
while pressing down the Lock Button located on
the switch.
4 Turn on the VCR’s power.
5 Insert the source cassette in the camcorder.
6 Insert the recording cassette in the VCR.
7 Engage the VCR’s AUX and Record-Pause modes.
● Refer to the instruction manual for the VCR.
8 Press 4·9 on the camcorder to start playback of
the source tape.
9 At the point you want to start dubbing, engage
the VCR’s Record mode.
10 To pause dubbing, engage the VCR’s Record-
Pause mode and press 4·9 on the camcorder.
11 Repeat steps 8 – 10 for additional editing. Stop
the VCR and camcorder.
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 13)
● As the camcorder starts to play your footage, it will
appear on your TV. This will confirm the
connections and the AUX channel for dubbing
purposes.
● Before you start dubbing, make sure that the
indications do not appear on the connected TV. If
they do, they are being recorded onto the new
tape.
To choose whether or not the following displays
appear on the connected TV...
• Date/time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(墌 pg. 35, 42) Or, press DISPLAY on the remote
control to turn on/off the date indication.
• Time code
Set “TIME CODE” to “OFF” or “ON”.
(墌 pg. 35, 42)
• Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/
TV”. (墌 pg. 35, 42)
• Playback images recorded in HD or SD mode
with this camcorder will be converted to DV
format (480i) image.
To use this camcorder as a recorder
1) Perform steps 1 to 3 in the left column.
2) Set “S/AV INPUT” to “A/V IN”. (墌 pg. 35, 41)
● If your VCR has an S-VIDEO OUT connector,
set “S/AV INPUT” to “S IN”.
3) Set “REC MODE” to “SP” or “LP”. (墌 pg. 35, 36)
4) Insert the recording cassette in this camcorder.
5) Press the Recording Start/Stop Button to engage
the Record-Pause mode. The “ ” or “ ”
indication appears on the screen.
6) Press the Recording Start/Stop Button to start
recording. The indication rotates.
7) Press the Recording Start/Stop Button again to
stop recording. The indication stops rotating.
NOTES:
● After dubbing, set “S/AV INPUT” back to “OFF”.
● Analog signals can be converted to digital signals
with this procedure.
● It is also possible to dub from another camcorder.
● Depending on the tape source input, images may
appear with horizontal jitter on the camcorder’s
LCD monitor and viewfinder during dubbing. This
does not affect the actual recording.
A/V IN
S IN
EN 55
Dubbing To Or From A Video Unit
Equipped With An i.LINK
Connector (Digital Dubbing)
Using an i.LINK cable (optional), it is possible to dub
recorded scenes in DV format from the camcorder
onto another video unit equipped with i.LINK
connector. Since a digital signal is sent, there is little
if any image or sound deterioration.
Scenes recorded in SD or HD mode can be dubbed
only to a D-VHS VCR with HS mode or another
same model of this unit.
i.LINK Output Select
Switch
To i.LINK IN/OUT
Video unit equipped with
i.LINK connector
* When connecting the cable, open the cover.
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 13)
● When using an i.LINK cable, be sure to use the
optional JVC VC-VDV204U i.LINK cable.
● If the remote control is used when both the player
and recorder are JVC video units, both units will
perform the same operation. To prevent this from
happening, press the buttons on both units.
Connector Cover*
To i.LINK IN/OUT
i.LINK cable
(optional)
To use this camcorder as a player
1 Make sure all units are turned off.
2 Connect this camcorder to a video unit equipped
with an i.LINK input connector using an i.LINK
cable as shown in the illustration.
3 Set this camcorder’s Playback Mode Switch to
“VIDEO”.
4 Set this camcorder’s Power Switch to “P”
while pressing down the Lock Button located on
the switch.
5 Set “i.LINK OUT” to “SW”. (墌 pg. 35, 39)
● If, in future, the connected video unit
automatically detects the DV and MPEG2
formats, set “i.LINK OUT” to “AUTO”. In this
case, proceed to step 7.
6 Set the i.LINK Output Select Switch on this
camcorder to “DV” to output scenes recorded in
DV mode, or “MPEG2” to output scenes
recorded in HD or SD mode.
7 Turn on the video unit’s power.
8 Insert the source cassette in this camcorder.
9 Insert the recording cassette in the video unit.
10 Press 4·9 on this camcorder to start playback
of the source cassette.
11 At the point you want to start dubbing, engage
the video unit’s Record mode.
12 To pause dubbing, engage the video unit’s
Record-Pause mode and press 4·9 on this
camcorder.
13 Repeat steps 10 – 12 for additional editing.
Stop the video unit and camcorder.
NOTES:
● If a blank portion or disturbed image is played
back on the player during dubbing, unusual
images may be dubbed or the dubbing may stop.
● If a scene which has been paused during
recording is dubbed to other devices, playback
may stop at the point.
● If “Wipe Or Fader Effects” (墌 pg. 50), “Special
Effects” (墌 pg. 51), “Playback Zoom (DV only)”
(墌 pg. 59) or “TIME CODE” (墌 pg. 39) is set,
only the original playback image is output from
the i.LINK IN/OUT connector.
ADVANCED FEATURES
CONTINUED ON NEXT PAGE
56 EN
DUBBING (cont.)
To use this camcorder as a recorder
Dubbing from other devices in MPEG2 format is
possible if the connected device is another same
model of this unit. It is also possible to dub in
MPEG2 format from a D-VHS VCR, if the source
tape (D-VHS) has been originally dubbed from this
digital HD video camera in MPEG2 format.
● However, if signals on the D-VHS tape are
originally from an ATSC tuner etc., dubbing from a
D-VHS VCR in MPEG2 format is not possible.
1 Perform step 1 to 4 of “To use this camcorder as a
player” (墌 pg. 55).
2 Set “REC MODE” to “SP” or “LP”. (墌 pg. 35, 36)
3 Turn on the video unit’s power.
4 Insert the source cassette in the video unit.
5 Insert the recording cassette in this camcorder.
6 Press the Recording Start/Stop Button to engage
the Record-Pause mode.
● The “ ” indication appears on the
i.LINK IN
screen.
7 Press the Recording Start/Stop Button to start
recording.
● The indication rotates.
8 Press the Recording Start/Stop Button again to
engage the Record-Pause mode.
● The indication stops rotating.
9 Repeat steps 7 – 8 for additional editing. Stop the
video unit and camcorder.
NOTES:
DV to DV dubbing
● If a blank portion or disturbed image is played
back on the player during dubbing, unusual
images may be dubbed or the dubbing may stop.
MPEG2 to MPEG2 dubbing
● It is not possible to dub signals in MPEG2 format
from devices other than D-VHS VCRs or another
same model of this camcorder.
● MPEG2 signals that are copy-guarded may not be
recorded with this camcorder.
● When dubbing MPEG2 video to the camcorder,
image may not appear on the LCD monitor or
viewfinder. However, the recording is performed
properly.
Notes on dubbing to a D-VHS VCR
Dubbing cannot be conducted properly when
dubbing a tape which is recorded in both DV and
HD (or SD) mode. In this case, perform the
following procedure.
1) Disconnect the i.LINK cable.
2) Reset the i.LINK device number on the D-VHS
VCR.
● For the operation, refer to the instruction
manual of the D-VHS VCR.
3) Set “i.LINK OUT” to “SW” on this camcorder.
(墌 pg. 35, 39)
4) Set the i.LINK Output Select Switch on this
camcorder to “DV” to output scenes recorded
in DV mode, or “MPEG2” to output scenes
recorded in HD or SD mode.
5) Connect the i.LINK cable again.
6) Start playback on this camcorder, and then start
recording on the D-VHS VCR.
EN 57
Dubbing Still Images Recorded On A Tape To A Memory Card
Still images can be dubbed from a tape to a memory
card.
Lock Button
Power Switch
SNAPSHOT Button
Playback Mode Switch
MENU Wheel
Play/Pause Button (4·9)
1 Load a cassette. (墌 pg. 18)
2 Load a memory card. (墌 pg. 19)
3 Set the Playback Mode Switch to “VIDEO”.
4 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
5 Set “ COPY” to “ON”. (墌 pg. 35, 41)
6 Press 4·9 to start playback.
7 At the point you want to dub, press 4·9 again to
engage Still Playback.
8 To dub the image, press SNAPSHOT.
● The “ ” indication appears during
dubbing.
● The selected image is stored in the memory
card.
NOTES:
● If SNAPSHOT is pressed in step 8 when a memory
card is not loaded, the message “COPYING
FAILED” is displayed.
● If an image recorded on the tape using “DV
WIDE” (墌 pg. 38) is dubbed to a memory card,
the WIDE mode identifying signal is not dubbed
with it.
● To use Playback Special effects with a video image
you wish to dub, perform up to step 8 using the
remote control (provided). (墌 pg. 60)
● Images are dubbed in the following image sizes:
Scenes recorded in HD mode: 1280 x 720 pixels
Scenes recorded in SD mode: 848 x 480 pixels
Scenes recorded in DV mode: 640 x 480 pixels
ADVANCED FEATURES
58 EN
USING THE REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate
this camcorder from a distance as well as the basic
operations (Playback, Stop, Pause, Fast-Forward and
Rewind) of your VCR. It also makes additional
playback functions possible. (墌 pg. 59)
Installing The Batteries
The remote control uses two “AAA (R03)” size
batteries. Refer to “General Battery Precautions”
(墌 pg. 78).
1 Remove the battery compartment cover while
pushing up the tab as illustrated.
2 Insert two “AAA (R03)” size batteries in the
correct direction.
3 Re-attach the battery compartment cover.
1
3
Ta b
Insert the minus (–) end first.
+
2
–
–
+
Beam Effective Area (indoor use)
When using the remote
control, be sure to point it at
the remote sensor. The
transmitted beam’s
approximate effective
distance for indoor use is
5 m (16 ft).
NOTE:
The transmitted beam may not be effective or may
cause incorrect operation when the remote sensor is
directly exposed to sunlight or powerful lighting.
Remote sensor
Buttons And Functions
A Infrared beam transmitting window
Transmits the beam signal.
The following buttons are available only when the
camcorder’s Power Switch is set to “P”.
B DISPLAY Button (墌 pg. 27, 54, 63)
C SHIFT Button (墌 pg. 59, 62)
D SLOW Rewind/Forward Buttons (墌 pg. 59)
Left/Right Buttons (墌 pg. 59)
E REW Button
•Rewind/Reverse Shuttle Search on a tape
(墌 pg. 25)
•Displays previous file in a memory card
(墌 pg. 29)
F FADE/WIPE Button (墌 pg. 64)
G EFFECT ON/OFF Button (墌 pg. 60)
H EFFECT Button (墌 pg. 60)
I PAUSE IN Connector (墌 pg. 63)
J MBR SET Button (墌 pg. 62)
K Up Button (墌 pg. 59)
INSERT Button (墌 pg. 61)
L Down Button (墌 pg. 59)
A. DUB Button (墌 pg. 60)
M PLAY Button
•Starts Playback of a tape (墌 pg. 24)
•Starts Auto Playback of images in a memory
card (墌 pg. 29)
N FF Button
•Forward/Forward Shuttle Search on a tape
(墌 pg. 25)
•Displays next file in a memory card
(墌 pg. 29)
O STOP Button
•Stops the tape (墌 pg. 24)
•Stops Auto Playback (墌 pg. 29)
P PAUSE B utton
Pauses the tape (墌 pg. 59)
Q R.A.EDIT Buttons (墌 pg. 62 – 66)
The following buttons are available when the
camcorder’s Power Switch is set to “A” or “M”.
a Zoom (T/W) Buttons
Zoom in/out (墌 pg. 22, 59)
(Also available with the Power Switch set to
“P”)
b START/STOP Button
Functions the same as the Recording Start/Stop
Button on the camcorder.
c SNAPSHOT Button
Functions the same as SNAPSHOT on the
camcorder.
.
Zoom Buttons
SHIFT
Left or SLOW
Rewind Button
Right or SLOW
Forward Button
Up Button
Down Button
PLAY
PAUS E
STOP
Slow-Motion Playback (DV only)
Allows slow-speed search in either direction during
video playback.
During normal video playback, press SLOW (YI or
IU) more than approx. 2 seconds.
● After approx. 5 minutes (approx. 20 seconds with
an 80-minute cassette) in Slow Rewind or approx.
5 minutes in Slow Forward, normal playback
resumes.
● To pause Slow-Motion playback, press PAUS E (9).
● To stop Slow-Motion playback, press PLAY (U).
NOTES:
● You can also engage Slow-Motion Playback from
Still Playback by pressing SLOW (YI or IU) more
than approx. 2 seconds.
● During Slow-Motion Playback, due to digital
image processing, the picture may take on a
mosaic effect.
● After SLOW (YI or IU) is pressed and held, the still
image may be displayed for a few seconds,
followed by a blue screen for a few seconds. This
is not a malfunction.
● There may be a small margin between the slowmotion playback start point you chose and the
actual start point for Slow-Motion Playback.
● During Slow-Motion Playback, there will be
disturbances in video and the picture may seem
unstable, especially with steady images. This is not
a malfunction.
EN 59
Playback Zoom (DV only)
Magnifies the recorded image up to 20X at any time
during video playback and D.S.C. playback.
1) Press PLAY (U) to start video
playback. Or perform normal
playback of images.
2) At the point you want to zoom
in, press the Zoom Button (T).
● To zoom out, press the Zoom
Button (W).
3) You can move the image on the
screen around to find a particular
portion of the picture. While
holding down SHIFT, press L
(Left), (Right), U (Up) and E
(Down).
● To end zoom, press and hold W until
magnification returns to normal. Or, press
STOP (8) and then press PLAY (U) during video
playback.
NOTES:
● Zoom can also be used during slow-motion and
still playback.
● Due to digital image processing, the quality of the
image may suffer.
ADVANCED FEATURES
Frame-By-Frame Playback (DV only)
Allows frame-by-frame search during video
playback.
During normal or still playback, press SLOW (IU)
repeatedly for forward or SLOW (YI) repeatedly for
reverse. Each time SLOW (YI or IU) is pressed, the
frame is played back.
CONTINUED ON NEXT PAGE
60 EN
USING THE REMOTE CONTROL UNIT (cont.)
Playback Special Effects (DV only)
Allows you to add creative effects to the video
playback image that was recorded in DV mode.
The effects that can be used during playback are
CLASSIC FILM, MONOTONE, SEPIA and STROBE.
The effects work the same in playback as they did in
recording. (墌 pg. 50)
CLASSIC FILM: Gives recorded scenes a
strobe effect. Using this effect with “DV WIDE” set
to ”SQUEEZE” (墌 pg. 38) provides “classic film”
effect.
MONOTONE: Like classic black and white
films, your footage is shot in B/W. Used together
with the Cinema mode, it enhances the “classic
film” effect. Using this effect with “DV WIDE” set to
”SQUEEZE” (墌 pg. 38) provides “classic film”
effect.
SEPIA: Recorded scenes have a brownish tint
like old photos. Combine this with the Cinema
mode for a classic look.
STROBE: Your recording looks like a series of
consecutive snapshots.
1) To start playback, press PLAY (U).
2) Press EFFECT. The PLAYBACK EFFECT Select
Menu appears.
3) Press EFFECT repeatedly to move the highlight
bar to the desired effect.
● The selected function is activated and after
2 seconds the menu disappears.
● To deactivate the selected effect, press EFFECT
ON/OFF. To reactivate the selected effect press
EFFECT ON/OFF again.
● To change the selected effect, repeat from
step 2 above.
Audio Dubbing (DV only)
The audio track of a tape recorded in DV format can
be customized only when recorded in the 12-bit and
SP modes. (墌 pg. 36)
Stereo Microphone
Headphone Connector
A.DUB
PLAY
PAUSE
STOP
Speaker
1 Play back the tape to locate the point where
editing will start, then press PAUS E (9).
2 While holding A. DUB (D) on the remote
control, press PAUSE (9). The “9D” and “MIC”
indicators appear.
3 Press PLAY (U), then begin “narrating”. Speak
into the microphone.
● To pause dubbing, press PAU SE (9).
4 To end Audio Dubbing, press PAUSE (9), then
STOP (8).
To hear the sound during Audio Dubbing...
Connect optional headphones to the headphone
connector or use the S/AV connector, and set “DV
NARR.” to the desired mode;
•“OFF” for the playback sound.
•“ON” for the dubbed sound.
•“MIX” for the playback and dubbed sound.
To hear the dubbed sound during playback…
Set “DV NARR.” to “ON” or “MIX”. (墌 pg. 35, 41)
EN 61
NOTES:
● When editing onto a tape that was recorded at
12-bit, the old and new soundtracks are recorded
separately.
● If you dub onto a blank space on the tape, the
sound may be disrupted. Make sure you only edit
recorded areas.
● If feedback or howling occurs during TV playback,
move the camcorder’s microphone away from the
TV, or turn down the TV’s volume.
● If you change from 12-bit to 16-bit in midrecording and then use the tape for Audio
Dubbing, it is not effective from the point where
16-bit recording began.
● During Audio Dubbing, when the tape moves to
scenes recorded in the LP mode, scenes recorded
in 16-bit audio or a blank portion, Audio Dubbing
stops.
● To perform Audio Dubbing while watching on the
television, make connections. (墌 pg. 26)
● To perform Audio Dubbing with a video unit
connected to the camcorder’s S/AV connector, first
set “S/AV INPUT” to “A/V IN” or “S IN” in VIDEO
Menu. (墌 pg. 35, 41)
The “AUX” indication appears instead of “MIC”.
Insert Editing (DV only)
You can record a new scene into a previously
recorded tape, replacing a section of the original
recording with minimal picture distortion at the in
and outpoints. The original audio remains
unchanged.
A tape that was recorded in HD or SD mode cannot
be used for Insert Editing.
indicator and the Time Code (min.:sec.) appear
and the camcorder enters Insert-Pause mode.
4 Press START/STOP to begin editing.
● Confirm the insert at the time code you
checked in step 1.
● To pause editing, press START/STOP. Press it
again to resume editing.
5 To end Insert Editing, press START/STOP, then
STOP (8).
NOTES:
● During Insert Editing, set the Recording Mode
Switch to “DV”.
● Special Effects (墌 pg. 51) can be used to spice up
the scenes being edited during Insert Editing.
● During Insert Editing, the date and time
information changes.
● If you perform Insert Editing onto a blank space on
the tape, the audio and video may be disrupted.
Make sure you only edit recorded areas.
● During Insert Editing, when the tape moves to
scenes recorded in the LP mode or a blank
portion, Insert Editing stops. (墌 pg. 76)
● If a memory card is loaded and “NAVIGATION” is
set to other than “MANUAL”, a NAVIGATION
thumbnail image is stored in the memory card.
(墌 pg. 52)
ADVANCED FEATURES
START/STOP
REW
STOP
NOTES:
● Before performing the following steps, make sure
that “TIME CODE” is set to “ON”. (墌 pg. 35, 42)
● Insert Editing is not possible on a tape recorded in
the LP mode or on a blank portion of a tape.
● To perform Insert Editing while watching in the
television, make connections. (墌 pg. 26)
INSERT
PLAY
PAUSE
1 Play back the tape, locate the Edit-Out point and
press PAUSE (9). Confirm the time code at this
point. (墌 pg. 42)
2 Press REW (
then press PAUSE (9).
3
) until the Edit-In point is located,
3 Press and hold INSERT (I) on the remote
control, then press PAUSE (9). The “9I”
62 EN
USING THE REMOTE CONTROL UNIT (cont.)
Random Assemble Editing
[R.A.Edit] (DV only)
Create edited videos easily using your camcorder as
the source player. You can select up to 8 “cuts” for
automatic editing, in any order you like. R.A.Edit is
more easily performed when the MBR (Multi-Brand
Remote) is set to operate with your brand of VCR
(see “VCR CODE LIST”), but can also be performed
by operating the VCR manually.
Before operation, make sure the batteries are
installed in the remote control. (墌 pg. 58)
NOTE:
Random Assemble Editing is not possible with a tape
recorded in HD or SD mode.
SHIFT
Set Remote/VCR Code
1 Turn off the power to the VCR and point the
remote towards the VCR’s infrared sensor. Then,
referring to the VCR CODE LIST, press and hold
MBR SET, and enter the brand code.
The code is automatically set once you release
MBR SET, and the VCR’s power comes on.
2 Make sure the VCR’s power is on. Then, while
holding SHIFT, press the button on the remote
for the desired function. The functions the remote
can control are PLAY, STOP, PAUSE, FF, REW
and VCR REC STBY (you do not need to press
SHIFT for this one).
You are now ready to try Random Assemble
Editing.
IMPORTANT:
Although the MBR is compatible with JVC VCRs
and those of many other makers, it may not work
with yours or may offer limited functions.
NOTES:
● If the VCR’s power does not come on in step 1, try
another code from the VCR CODE LIST.
● Some brands of VCR do not come on
automatically. In this case, turn the power on
manually and try step 2.
● If the remote control is not able to control the
VCR, use the controls on the VCR.
MBR SET
● When the remote control’s batteries run out, the
VCR brand you have set will be erased. In that
case, replace the old battery with a new one to
reset the VCR brand.
VCR CODE LIST
VCR BRAND
NAME
DAEWOO AH
GE A
HITACHI FFF
JVC A
B
C
LG/GOLDSTAR AA
MAGNAVOX I
MITSUBISHI FFG
NEC CCG
PHILIPS A
CODE
A
B
I
I
I
D
C
I
A
I
F
I
C
E
A
A
A
G
F
G
H
H
I
E
I
A
A
D
I
A
I
F
I
B
A
C
C
B
G
VCR BRAND
NAME
PANASONIC A
RCA I
SAMSUNG ID
SANYO CCF
SHARP AAE
SONY F
TOSHIBA FFI
ZENITH AF
CODE
A
A
I
A
I
F
F
I
F
C
C
C
G
A
D
H
B
D
F
C
E
E
I
A
A
EN 63
Make Connections
Also refer to page 26.
Connector Cover**
To S/ AV
S/AV/Editing cable
(provided)
Editing extension cable
(provided)***
ABTo Remote PAUSE or
CTo PAUSE IN
DISPLAY
A Black to S-VIDEO IN*
B Yellow to VIDEO IN
C White to AUDIO L IN
D Red to AUDIO R IN
* Connect when your TV/VCR has an S-VIDEO IN
connector. In this case, it is not necessary to
connect the yellow video cable.
** When connecting the cable, open the cover.
*** If necessary, use this cable for connections.
R.A.EDIT
1234
VCR
TV
1 A A JVC VCR equipped with a Remote PAUSE
connector…
…Connect the editing cable to the Remote
PAUSE connector.
B A JVC VCR not equipped with a Remote
PAUSE connector but equipped with an
R.A.EDIT connector…
…Connect the editing cable to the R.A.EDIT
connector.
C A VCR other than above…
…Connect the editing cable to the remote
control’s PAUSE IN connector.
2 Insert a recorded tape into the camcorder.
3 Set the Playback Mode Switch to “VIDEO”.
4 Set the Power Switch to “P” while pressing
down the Lock Button located on the switch.
5 Turn the VCR power on, insert a recordable tape
and engage the AUX mode.
● Refer to the VCR’s instructions.
NOTES:
● Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If
they do, they will be recorded onto the new tape.
To choose whether or not the following displays
appear on the connected TV…
• Date/time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(墌 pg. 35, 42) Or, press DISPLAY on the remote
control to turn on/off the date indication.
• Time code
Set “TIME CODE” to “OFF” or “ON”.
(墌 pg. 35, 42)
• Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/
TV”. (墌 pg. 35, 42)
ADVANCED FEATURES
CONTINUED ON NEXT PAGE
64 EN
USING THE REMOTE CONTROL UNIT (cont.)
Select Scenes
FADE/WIPE
EFFECT
EDIT IN/OUT
CANCEL
PLAY
R.A.EDIT
ON/OFF
6 Press PLAY (U) and then press R.A.EDIT ON/OFF
on the remote control.
The Random Assemble
Editing Menu appears.
7 If using a Wipe/Fader at
the beginning of the
scene, press FADE/WIPE
on the remote control.
● Cycle through the
effects by pressing
Selected parameter
NIOUT
1
––: –– ~
––
2
3
4
5
6
7
8
TOTAL
~
~
~
~
~
~
~
–
:
––
–
CODETIME
0:000
MOD E
repeatedly, and stop
when the one you want is displayed.
● You cannot use a Picture Wipe/Dissolve at the
beginning of Program 1.
8 At the beginning of the scene, press EDIT IN/
OUT on the remote control. The Edit-In position
appears in the Random Assemble Editing Menu.
9 At the end of the scene, press EDIT IN/OUT. The
Edit-Out position appears in the Random
Assemble Editing Menu.
10 If using a Wipe/Fader at the end of the scene,
press FADE/WIPE.
● Cycle through the effects by pressing
repeatedly, and stop when the one you want is
displayed.
● If you select a Wipe/Fader effect for an Edit-Out
point, the effect is automatically applied to the
following Edit-In point.
● You cannot use a Picture Wipe/Dissolve at the
end of the last scene.
● When you use Fader/Wipe effects, that time is
included in the total time (this does not apply
to Picture Wipe/Dissolve).
11 If using Playback Special Effects, press EFFECT.
(墌 pg. 60)
12 Repeat steps 8 through 11 to register
additional scenes.
● To change previously registered points, press
CANCEL on the remote control. The registered
points disappear, one at a time, from the most
recently registered point.
● If you are not using Wipe/Fader or Program AE
with special effects, repeat steps 8 and 9 only.
NOTES:
● When choosing a scene, set Edit-In and Edit-Out
points so that there is a relatively large difference
between them.
● If the search time for an in-point exceeds
5 minutes, the recording deck’s Record-Standby
mode will be cancelled and editing will not take
place.
● If there are blank portions before or after the EditIn and Edit-Out points, a blue screen may be
included in the edited version.
● Since time codes register time only as accurately
as seconds, the time code total time may not
match the total program time exactly.
● Turning off the camcorder’s power erases all
registered Edit-In and Edit-Out points.
● If you select Sepia or Monotone mode from
Special Effects, you cannot use the Dissolve or
Black & White Fader. In this case the Dissolve or
Black & White indicator begins blinking. Once the
next Edit-In point is registered, the effect is turned
off. To combine these effects, use Sepia or
Monotone during recording, then use the Dissolve
or Black & White Fader during Random Assemble
Editing.
● It is not possible to use Wipe/Fader effects,
Program AE and Special Effects during Random
Assemble Editing using i.LINK cable.
EN 65
Picture Wipe And Dissolve Menu
(available only for Random Assemble Editing)
You can use not only the wipe/fader effects on page
50 but also the picture wipe and dissolve effects
below.
DISSOLVE: The new scene gradually appears
as the old one gradually disappears.
WIPE – CORNER: The new scene wipes in
over the previous one from the upper right corner to
the lower left corner.
WIPE – WINDOW: The next scene gradually
wipes in from the center of the screen toward the
corners, covering the previous scene.
WIPE – SLIDE: The next scene gradually wipes
in over the previous one from right to left.
WIPE – DOOR: The previous scene wipes out
from the center to the right and left, like a door
being pushed open to reveal the next scene.
WIPE – SCROLL: The new scene wipes in over
the last one from the bottom of the screen to the top.
WIPE – SHUTTER: The new scene wipes in
over the previous one from the center toward the top
and bottom of the screen.
Automatic Editing To VCR
PAUSE
VCR REC STBY
13 Rewind the tape in the camcorder to the
beginning of the scene you want to edit and press
PAUSE (9).
14 Press VCR REC STBY (79), or manually
engage the VCR’s Record-Pause mode.
15 Press the Recording Start/Stop Button on the
camcorder. Editing proceeds as programmed,
right through to the end of the last registered
scene.
● When dubbing is complete, the camcorder
enters the Pause mode, and the VCR enters its
Record-Pause mode.
● If you do not register an Edit-Out point, the
tape will be dubbed all the way to the end
automatically.
● If you operate the camcorder during automatic
editing, the VCR will enter its Record-Pause
mode and automatic editing will stop.
16 Engage the Stop modes for the camcorder and
the VCR.
To make the R.A.Edit counter display disappear,
press R.A.EDIT ON/OFF on the remote control.
NOTES:
● Pressing R.A.EDIT ON/OFF on the remote control
clears all settings registered during Random
Assemble Editing.
● When the editing cable is connected to the remote
control’s PAUSE IN connector during dubbing,
make sure the remote control is pointed at the
VCR’s sensor, and the path between the two is
unobstructed.
● Random Assemble Editing may not function
properly when using a tape including several
duplicated time codes. (墌 pg. 23)
ADVANCED FEATURES
CONTINUED ON NEXT PAGE
66 EN
USING THE REMOTE CONTROL UNIT (cont.)
For More Accurate Editing
R.A.EDIT
ON/OFF
Some VCRs make the transition from Record-Pause
to Record mode faster than others. Even if you begin
editing for the camcorder and the VCR at exactly the
same time, you may lose scenes you wanted, or find
that you have recorded scenes you did not want. For
a cleanly edited tape, confirm and adjust the timing
of the camcorder against your VCR.
Diagnosing VCR/Camcorder Timing
1 Play back the tape in the camcorder, then point
the remote control at the camcorder’s remote
sensor and press R.A.EDIT ON/OFF.
Random Assemble Editing Menu appears.
Program 1
NIOUT
––
1
––: –– ~
2
3
4
5
6
7
8
CODETIME
TOTAL
MOD E
Random Assemble
~
~
~
~
~
~
~
–
:
–
––
0:000
Editing Menu
Adjustment Of VCR/Camcorder Timing
4 Press R.A.EDIT ON/OFF to make the Random
Assemble Editing menu disappear, then press the
MENU Wheel in. The Menu Screen appears.
5 Rotate the MENU Wheel to select “t VIDEO”,
and press it. The VIDEO Menu appears.
6 Rotate the MENU Wheel to select “SYNCHRO”,
and press it. The value for “SYNCHRO” is
highlighted.
7 Based on the diagnostics performed, you can
now advance the VCR’s record timing by rotating
the MENU Wheel towards “+”. You can also
delay the VCR’s record timing by rotating the
MENU Wheel towards “–”.
The adjustment range is from –1.3 to +1.3
seconds, in 0.1-second increments.
Press the MENU Wheel in to finish the setting.
8 Rotate the MENU Wheel to select “BRETURN”,
and press it twice.
Now perform Random Assemble Editing
beginning with step 6 on page 64.
NOTES:
● Before performing actual Random Assemble
Editing, do a few Random Assemble Editing trial
runs to check whether the value you have input is
appropriate or not, and make adjustments
accordingly.
● Depending on the recorder, there may be
situations where the timing difference cannot be
fully corrected.
2 Perform Random Assemble Editing on Program 1
only. In order to check VCR and camcorder
timing, select the beginning of a scene transition
as your Edit-In point.
3 Play back the dubbed scene.
● If any images from the scene prior to the
transition you chose for your Edit-In point were
recorded, that means your VCR moves too
quickly from Record-Pause to Record mode.
● If the scene you tried to dub starts in progress,
the VCR is slow to start recording.
SYSTEM CONNECTIONS
Connection To A Personal Computer
[A] Using USB cable
EN 67
To USB connector
USB cable (provided)
To US B
[B] Using i.LINK cable
To i.LINK IN/OUT
[A] Using USB cable
It is possible to do the following things:
● Transfer still images stored on a memory card to a
PC.
● Use this camcorder as a WebCam. (墌 pg. 68)
[B] Using i.LINK cable
It is also possible to transfer still/moving images to a
PC with an i.LINK connector by using the provided
software, software equipped with the PC or
commercially available software.
NOTES:
● Refer to “SOFTWARE INSTALLATION AND USB
CONNECTION GUIDE” for the installation of the
bundled software and drivers.
● The software operation manual is provided as PDF
file on the CD-ROM.
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 13)
● Never connect the USB cable and the i.LINK
cable simultaneously to the camcorder. Connect
only the cable you wish to use to the camcorder.
PC
OR
i.LINK cable
(optional)
● When using an i.LINK cable, be sure to use the
optional JVC VC-VDV206U or VC-VDV204U
i.LINK cable depending on the type of i.LINK
connector (4 or 6 pins) on the PC.
● If the PC connected to the camcorder via the USB
cable is not powered, the camcorder does not
enter the USB mode.
● The date/time information cannot be captured into
the PC.
● Refer to the instruction manuals of the PC and
Software.
● The still images can also be transferred to a PC
with an i.LINK connector-equipped capture board.
● The system may not work properly depending on
the PC or capture board you are using.
“USB MODE” and/or “ACCESSING FILES”
appears on the LCD monitor while the PC is
accessing data in the camcorder or the camcorder
is transferring a file to the PC.
NEVER disconnect the USB cable while
“ACCESSING FILES” is displayed on the LCD
monitor since this can result in product damage.
To i. LI NK
connector
PC with i.LINK
connector
ADVANCED FEATURES
68 EN
SYSTEM CONNECTIONS (cont.)
Using The Camcorder As A WebCam
This camcorder can be used as a WebCam via USB
connection.
Connector Cover*
To US B
USB cable
(provided)
To USB connector
1 Make sure all necessary software (provided) are
installed in your PC.
2 Set the Recording Mode Switch to “MEMORY”.
3 Set the Power Switch to “A” or “M” while
pressing down the Lock Button located on the
switch.
4 Connect the camcorder to your PC using the USB
cable.
● “ ” appears on the screen.
● If the PC is not powered on, the camcorder
does not enter the Web Camera mode.
5 When finished, turn off the PC first, then the
camcorder. Disconnect the USB cable from the
camcorder and PC.
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 13)
● You can also use the camcorder for video
conference over the Internet by using Microsoft
Windows
instruction manual of the provided software.
● In the Web Camera mode, the following buttons
cannot be operated: SNAPSHOT, INDEX, NAVI,
NAVI STORE, the Recording Start/Stop Button.
Refer to the instruction manuals of the PC and
provided Software.
®
Messenger®. For details, refer to the
USB-equipped PC
* When connecting the cable, open the cover.
DETAILS
ITEMS NOTES
V Power (墌 pg. 12) ● Perform charging where the temperature is between 10°C and 35°C (50°F and
V VIDEO
RECORDING
(墌 pg. 20)
95°F). 20°C to 25°C (68°F to 77°F) is the ideal temperature range for charging. If
the environment is too cold, charging may be incomplete.
● Charging times are for a fully discharged battery pack.
● Charging time varies according to the ambient temperature and the status of the
battery pack.
● To avoid interference with reception, do not use the AC Power Adapter/Charger
near a radio.
● Since the AC Power Adapter/Charger processes electricity internally, it becomes
warm during use. Be sure to use it only in well-ventilated areas.
● When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may
be difficult to see. If this happens, use the viewfinder instead.
● The cassette holder cannot be opened unless a power supply is attached.
● There may be a delay after you open the cassette holder cover until the cassette
holder opens. Do not use force.
● Once the cassette holder is closed, it recedes automatically. Wait until it recedes
completely before closing the cassette holder cover.
● When the Recording Start/Stop button is pressed, it may take a few seconds before
actual recording starts. The “T” indicator starts rotating when the camcorder
actually starts recording.
● The time required to calculate and display the remaining tape length, and the
accuracy of the calculation, may vary according to the type of tape used.
● “TAPE END” appears when the tape reaches its end, and the power goes off
automatically if left in this condition for 5 minutes. “TAPE END” also appears
when a cassette at its end is loaded.
● During recording, sound is not heard from the speaker. To hear the sound, connect
optional headphones to the headphone connector. Adjust the sound volume by
rotating the MENU Wheel. (墌 pg. 24)
● During Interface Shooting, the “Tape Running” indicator and warning indications
(墌 pg. 75 – 77) are the only ones that are shown; they appear reversed in the
display as they would when viewing a mirror, but are not reversed in the
recording.
● The tape remaining indicator does not appear during interface shooting. However,
when the remaining time reaches 2 minutes, the indicator appears showing the
remaining time: (blinking) (blinking) (blinking)
EN 69
REFERENCES
70 EN
If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio,
etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery
pack, AC Power Adapter/Charger, etc.) and wait a few minutes; and then re-connect it and proceed as usual
from the beginning.
TROUBLESHOOTING
Power
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1. No power is supplied. 1. •The power is not connected
properly.
•The battery is dead.
•The LCD monitor is not open
fully or the viewfinder is not
pulled out when recording.
1. •Connect the AC Power
Adapter/Charger securely.
(墌 pg. 13)
•Replace the dead battery
with a fully charged one.
(墌 pg. 12, 13)
•Open the LCD monitor fully
or pull out the viewfinder.
Video and D.S.C. Recording
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
2. Recording cannot be
performed.
3. When shooting a subject
illuminated by bright light,
vertical lines appear.
4. When the screen is under
direct sunlight during shooting,
the screen becomes red or
black for an instant.
5. During recording, the date/
time does not appear.
6. During recording, sound
cannot be heard.
2. •The Power Switch is set to
“P” or “OFF”.
— For Video Recording —
•The tape’s erase protection
tab is set to “SAVE”.
•The Recording Mode Switch
is set to “MEMORY”.
•“TAPE END” appears.
•The cassette holder cover is
open.
— For D.S.C. Recording —
•The Recording Mode Switch
is not set to “MEMORY”.
3. •This is a result of exceedingly
high contrast, and is not a
malfunction.
4. •This is not a malfunction. 4.
5. •“DATE/TIME” is set to “OFF”. 5. • Set “DATE/TIME” to “ON”.
6. •The optional headphones are
not connected to the
headphones connector.
2. •Set the Power Switch to “A”
or “M”. (墌 pg. 20, 28)
— For Video Recording —
•Set the tape’s erase
protection tab to “REC”.
(墌 pg. 18)
•Set the Recording Mode
Switch to “VIDEO”.
•Replace with new cassette.
(墌 pg. 18)
•Close the cassette holder
cover.
— For D.S.C. Recording —
•Set the Recording Mode
Switch to “MEMORY”.
3.
—
—
(墌 pg. 35, 39)
6. •Connect the optional
headphones to the
headphone connector.
(墌 pg. 85)
EN 71
7. The LCD monitor or
viewfinder indications blink.
8. Digital Zoom does not work. 8. • 10X optical zoom is selected.
7. •Certain Wipe/Fader effects,
certain modes of Program
AE, “OIS” and other
functions that cannot be used
together are selected at the
same time.
•The Recording Mode Switch
is set to “MEMORY”.
Video and D.S.C. Playback
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
9. Play, Rewind and Fast-Forward
functions do not work.
10. The tape is moving, but there is
no picture.
11. Blocks of noise appear during
playback, or there is no
playback picture and the
screen becomes blue.
12. A memory card cannot be
played back.
13. The image on the 4:3 TV is
elongated vertically (squeeze).
14. The screen of the LCD monitor
or viewfinder is blackened or
blocks of noise appear on its
right side when the Power
Switch is set to “P” for
dubbing (but 4·9 is not
pressed).
9. •The Power Switch is set to
“A” or “M”.
•The Playback Mode Switch is
set to “MEMORY”.
10. •Your TV has AV input
terminals, but is not set to its
VIDEO mode.
•The cassette holder cover is
open.
11.
—
12. •The Power Switch is set to
“A” or “M”.
•The Playback Mode Switch is
set to “VIDEO”.
13. •This occurs during recording
in HD or SD mode when a
tape (its erase protection tab
is set to “REC”) is loaded.
•The component video cable
and S/AV/Editing cable are
connected simultaneously.
14. •The S/AV/Editing cable is
connected and “S/AV
INPUT” (墌 pg. 41) is set to
“A/V IN” or “S IN”.
7. •Re-read the sections covering
Wipe/Fader effects, Program
AE and “OIS”. (墌 pg. 37, 50)
8. •Set “ZOOM” to “40X” or
“200X”. (墌 pg. 36)
•Set the Recording Mode
Switch to an appropriate
position except “MEMORY”.
9. •Set the Power Switch to
“P”. (墌 pg. 24)
•Set the Playback Mode
Switch to “VIDEO”.
10. •Set the TV to the mode or
channel appropriate for
video playback. (墌 pg. 26)
•Close the cassette holder
cover. (墌 pg. 18)
11. •Clean the video heads with
an optional cleaning
cassette.
12. •Set the Power Switch to
“P”. (墌 pg. 29)
•Set the Playback Mode
Switch to “MEMORY”.
13. •This is not a malfunction.
•Disconnect either of two
cables.
14. •This is not a malfunction.
After dubbing, set “S/AV
INPUT” back to “OFF”.
REFERENCES
72 EN
Advanced features
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
15. The focus does not adjust
automatically.
16. In the 5-Second mode,
recording ends before
5 seconds have elapsed.
17. Snapshot mode cannot be
used.
18. The color of Snapshot looks
strange.
19. The image taken using
Snapshot is too dark.
20. The image taken using
Snapshot is too bright.
21. White Balance cannot be
activated.
22. Wipe/Fader effects do not
work.
23. The Black & White Fader does
not work.
24. Program AE does not work. 24. • The Power Switch is set to
25. Cannot record signals from a
device which is connected to
the i.LINK IN/OUT connector.
15. • Focus is set to the Manual
mode.
•The recording was done in a
dark place, or the contrast
was low.
•The lens is dirty or covered
with condensation.
16. • The 5-Second mode is set to
“Anim.” in MANUAL Menu.
17. • The Squeeze mode
(SQUEEZE) is selected.
18. • The light source or the
subject does not include
white. Or there are various
different light sources behind
the subject.
•The Sepia (SEPIA) or
Monotone (MONOTONE)
mode is activated.
19. • Shooting was performed
under backlit conditions.
20. • The subject is too bright. 20. • Press P. A E and set
21. • The Sepia (SEPIA) or
Monotone (MONOTONE)
mode is activated.
22. • The Power Switch is set to
“A”.
23. • The Sepia (SEPIA) or
Monotone (MONOTONE)
mode is activated.
“A”.
25. • The connected device is not
compatible with this
camcorder.
TROUBLESHOOTING (cont.)
15. •Set Focus to the Auto mode.
(墌 pg. 46)
•Clean the lens and check the
focus again. (墌 pg. 81)
16. •Set “5S” to “5S” in MANUAL
Menu. (墌 pg. 35, 37)
17. •Disengage the Squeeze
(SQUEEZE) mode.
(墌 pg. 35, 38)
18. •Find a white subject and
compose your shot so that it
also appears in the frame.
(墌 pg. 28, 44)
•Disengage the Sepia (SEPIA)
and Monotone
(MONOTONE). (墌 pg. 35,
51)
19. •Press BACK LIGHT.
(墌 pg. 45)
“PROGRAM AE” to
“SPOTLIGHT”. (墌 pg. 50)
21. •Disengage the Sepia (SEPIA)
or Monotone (MONOTONE)
mode before setting White
Balance. (墌 pg. 51)
22. •Set the Power Switch to “M”.
(墌 pg. 16)
23. •Disengage the Sepia (SEPIA)
and Monotone
(MONOTONE).
(墌 pg. 35, 51)
24. •Set the Power Switch to “M”.
(墌 pg. 16)
25. •Dubbing from other devices
in MPEG2 format is possible
if the connected device is
another same model of this
unit. It is also possible to dub
in MPEG2 format from a DVHS VCR, if the source tape
(D-VHS) has been originally
dubbed from this digital HD
video camera in MPEG2
format.
Other problems
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
26. The CHARGE indicator on the
AC Power Adapter/Charger
does not light.
27. “SET DATE/TIME!” appears. 27. • The built-in clock’s
28. There is no picture. 28. •The camcorder is not getting
29. Some functions are not
available using the MENU
Wheel.
30. Files stored in the memory
card cannot be deleted.
31. When the image is printed
from the printer, a black bar
appears at the bottom of the
screen.
32. When the camcorder is
connected via the i.LINK
connector, the camcorder does
not operate.
33. The rear of the LCD monitor is
hot.
34. Images on the LCD monitor
appear dark or whitish.
26. •The temperature of the
battery is extremely high/low.
•Charging is difficult in places
subject to extremely high/
low temperatures.
rechargeable lithium battery
is discharged.
•The previously set date/time
is erased.
power, or some other
malfunction exists.
29. •The Power Switch is set to
“A”.
30. •Files stored in the memory
card are protected.
31. •This is not a malfunction. 31. • By recording with “OIS”
32. •The i.LINK cable was
plugged/unplugged with
power turned on.
33. •The light used to illuminate
the LCD monitor causes it to
become hot.
34. •In places subject to low
temperature, images become
dark due to the
characteristics of the LCD
monitor. When this happens,
the displayed colors differ
from those that are actually
recorded. This is not a defect
of the camcorder.
•When the LCD monitor’s
fluorescent light reaches the
end of its service life, images
on the LCD monitor become
dark. Consult your nearest
JVC dealer.
EN 73
26. •To protect the battery, it is
recommended to charge it in
places with a temperature of
10°C to 35°C (50°F to 95°F).
(墌 pg. 78)
27. •Connect the camcorder to an
AC outlet using the AC Power
Adapter/Charger for over 24
hours to charge the clock’s
lithium battery. (墌 pg. 17)
28. •Turn the camcorder’s power
off and on again. (墌 pg. 16)
29. •Set the Power Switch to “M”.
(墌 pg. 16)
30. •Remove protection from the
files stored in the memory
card and delete them.
(墌 pg. 31 – 32)
activated (墌 pg. 35, 37) this
can be avoided.
32. •Turn the camcorder’s power
off and on again, then
operate it.
33. •Close the LCD monitor to
turn it off or set the Power
Switch to “OFF”, and let the
unit cool down.
34. •Adjust the brightness and
angle of the LCD monitor.
(墌 pg. 14, 15)
REFERENCES
CONTINUED ON NEXT PAGE
74 EN
TROUBLESHOOTING (cont.)
35. Colored bright spots appear all
over the LCD monitor or the
viewfinder.
36. The indicators and the image
color on the LCD monitor are
not clear.
37. The cassette will not load
properly.
38. The memory card cannot be
removed from the camcorder.
39. Picture does not appear on the
LCD monitor.
40. Images on the LCD monitor
are jittery.
41. The LCD monitor, the
viewfinder and the lens have
become dirty (ex. fingerprints).
42. Time code does not appear. 42. • “TIME CODE” is set to
43. An error indication (E01, E02
or E06) appears.
44. An error indication (E03 or
E04) appears.
45. The remote control does not
work.
35. •The LCD monitor and the
viewfinder are made with
high-precision technology.
However, black spots or
bright spots of light (red,
green or blue) may appear
constantly on the LCD
monitor or the viewfinder.
These spots are not recorded
on the tape. This is not due to
any defect of the unit.
(Effective dots: more than
99.99 %)
36. •This may occur when the
surface or the edge of the
LCD monitor is pressed.
37. •The battery’s charge is low. 37. •Install a fully charged battery.
38.
39. •The viewfinder is pulled out
and “PRIORITY” is set to
“FINDER”.
•The LCD monitor’s brightness
setting is too dark.
40. •The speaker volume is too
great.
41.
“OFF”.
43. •A malfunction of some kind
has occurred. In this case the
camcorder’s functions
become unusable.
44. •A malfunction of some kind
has occurred. In this case the
camcorder’s functions
become unusable.
45. •“REMOTE” is set to “OFF”.
•The remote control does not
point at the remote sensor.
•The remote control batteries
are exhausted.
—
—
35.
—
36.
—
(墌 pg. 12, 13)
38. •Push in the memory card a
few more times. (墌 pg. 19)
39. •Push the viewfinder back in
or set “PRIORITY” to “LCD”
or “BOTH”.
(墌 pg. 14, 35, 38)
•Adjust the brightness of the
LCD monitor. (墌 pg. 15)
•If the monitor is tilted
upward 180 degrees, open
the monitor fully. (墌 pg. 14)
40. •Turn the speaker volume
down. (墌 pg. 24)
41. •Wipe them gently with soft
cloth. Wiping strongly can
cause damage. (墌 pg. 81) To
clean the viewfinder, please
consult your nearest JVC
dealer.
42. •Set “TIME CODE” to “ON”.
(墌 pg. 35, 39, 42)
43. •墌 pg. 77.
44. •墌 pg. 77.
45. •Set “REMOTE” to “ON”.
(墌 pg. 35, 38)
•Point at the remote sensor.
(墌 pg. 58)
•Replace the batteries with
fresh ones. (墌 pg. 58)
Warning Indications
Indications Meaning
Displays the battery remaining power.
Remaining power level: high
Remaining power level: exhausted
As the battery power comes close to nil, the battery indicator blinks.
When the battery power is exhausted, power turns off automatically.
Appears when no tape is loaded. (墌 pg. 18)
CHECK TAPE’S ERASE
PROTECTION TAB
HEAD CLEANING
REQUIRED USE
CLEANING CASSETTE
CONDENSATION
OPERATION PAUSED
PLEASE WAIT
TAPE!
TAPE END Appears when the tape ends during recording or playback. (墌 pg. 69)
SET DATE/TIME!
LENS CAP Appears for 5 seconds after power is turned on if the lens cap is attached.
CAN NOT PLAY BACK
THIS TAPE
CAN NOT CHANGE
RECORDING MODE
RECORDING IS
STOPPED
INVALID DATA!
CAN NOT RECORD
COPY PROTECTED
CAN NOT RECORD
Appears when the erase protection tab is set to “SAVE” while the Power Switch is
set to “A” or “M” and the Recording Mode Switch is set to any mode except
“MEMORY”. (墌 pg. 16)
Appears if dirt is detected on the heads during recording. Use an optional
cleaning cassette.
Appears if condensation occurs. When this indication is displayed, wait more
than 1 hour until condensation disappears.
Appears if a tape is not loaded when the Recording Start/Stop Button or
SNAPSHOT Button is pressed while the Power Switch is set to “A” or “M” and
the Recording Mode Switch is set to any mode except “MEMORY”.
● Appears when the date/time is not set. (墌 pg. 17)
● Appears when the built-in clock (lithium) battery is discharged and the
previously set date/time is erased. (墌 pg. 17)
Appears when you attempt to play back a tape that is not compatible with this
camcorder.
Appears when you attempt to change the recording mode during recording.
Appears when you attempt to record signals which are copygurded or not
compatible with this camcorder.
EN 75
(墌 pg. 21)
REFERENCES
CONTINUED ON NEXT PAGE
76 EN
Warning Indications
Indications Meaning
CAN NOT DISPLAY
ON LCD MONITOR
AND VIEWFINDER
IN THIS MODE
i.LINK CONNECTION
ERROR! CHECK
CABLE CONNECTION
TO CHANGE i.LINK
OUTPUT SETTING,
DISCONNECT i.LINK
CABLE, FIRST
INVALID DATA!
CAN NOT INPUT
COPY PROTECTED
CAN NOT INPUT
CAN NOT DECODE
VIDEO OR AUDIO
A. DUB ERROR! Appears if Audio Dubbing is attempted on a blank portion of a tape. (墌 pg. 60)
A. DUB ERROR!
<MPEG2 RECORDED>
<CANNOT DUB ON A
LP RECORDED TAPE>
<CANNOT DUB ON A
16bit RECORDING>
<CHECK TAPE’S
ERASE PROTECTION
TAB>
INSERT ERROR! Appears if Insert Editing is attempted on a blank portion of a tape. (墌 pg. 61)
INSERT ERROR!
<MPEG2 RECORDED>
<CANNOT EDIT ON A
LP RECORDED TAPE>
<CHECK TAPE’S
ERASE PROTECTION
TAB>
<CHANGE REC. MODE
TO DV>
CAN NOT R.A.E.
THIS TAPE
Appears when dubbing a scene recorded in HD mode through the component
video connectors. (墌 pg. 55)
Appears when an i.LINK cable is connected but not detected. Disconnect the
cable once and connect it again, or disconnect other connected cables.
Appears when you attempt to change the i.LINK output mode while an i.LINK
cable is connected. (墌 pg. 55)
Appears when you attempt to dub signals which are copygurded or not
compatible with this camcorder through an i.LINK cable.
● Appears if Audio Dubbing is attempted on a tape recorded in SD or HD mode.
● Appears if Audio Dubbing is attempted on a tape recorded in the LP mode.
● Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio.
● Appears if A. DUB (D) on the remote control is pressed when the erase
protection tab is set to “SAVE”. (墌 pg. 60)
● Appears if Insert Editing is attempted on a tape recorded in SD or HD mode.
● Appears if Insert Editing is attempted on a tape recorded in the LP mode.
● Appears if INSERT (I) on the remote control is pressed when the erase
protection tab is set to “SAVE”. (墌 pg. 61)
Appears if Random Assemble Editing is attempted on a tape recorded in SD or
HD mode. (墌 pg. 62)
TROUBLESHOOTING (cont.)
(墌 pg. 55)
(墌 pg. 60)
(墌 pg. 60)
(墌 pg. 60)
(墌 pg. 61)
(墌 pg. 61)
Warning Indications
Indications Meaning
MEMORY IS FULL Appears when the memory card’s memory is full and shooting is not possible.
● Appears if dubbing of copyguarded signals is attempted while this camcorder is
being used as a recorder.
● Appears in the following cases when dubbing still images from a tape to a
COPYING FAILED
MEMORY CARD!
PLEASE FORMAT
NO IMAGES STORED
CARD ERROR!
UNSUPPORTED FILE!
CHECK CARD’S WRITE
PROTECTION SWITCH
E01, E02 or E06
UNIT IN SAFEGUARD
MODE REMOVE AND
REATTACH BATTERY
E03 or E04
UNIT IN SAFEGUARD
MODE EJECT AND
REINSERT TAPE
memory card:
– when no memory card is loaded.
– when the memory card’s memory is full.
– when the memory card is not formatted.
– when a write-protected SD Memory Card is loaded. (墌 pg. 57)
Appears if there is no memory card loaded when you attempt to record on a
memory card or access data on a memory card.
Appears when there is a problem with a memory card and its memory is corrupt,
or it has not been initialized. Initialize the memory card. (墌 pg. 34)
Appears if there are no image files stored in the memory card when you attempt
memory card playback.
Appears when the camcorder does not recognize the loaded memory card.
Remove the memory card once and insert it again. Repeat these procedures until
no indication appears. If the indication still appears, the memory card is
corrupted.
Appears when playing back a file that is not compatible with DCF or a file with a
size that is not compatible with this camcorder.
● Appears when you attempt to shoot digital still images when the write
protection tab on the SD Memory Card is set to the “LOCK” position.
● Appears when you attempt MEMORY SELECT menu operation with a writeprotected SD Memory Card loaded.
The error indications (E01, E02 or E06) show what type of malfunction has
occurred. When an error indication appears, the camcorder turns off
automatically. Remove the power supply (battery, etc.) and wait a few minutes for
the indication to clear. When it does, you can resume using the camcorder. If the
indication remains, consult your nearest JVC dealer.
The error indications (E03 or E04) show what type of malfunction has occurred.
When an error indication appears, the camcorder turns off automatically. Eject
the cassette once and re-insert it, then check if the indication clears. When it
does, you can resume using the camcorder. If the indication remains, consult
your nearest JVC dealer.
EN 77
REFERENCES
78 EN
CAUTIONS
When using the AC Power Adapter/Charger in areas
other than the USA
䡲 The provided AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
USING HOUSEHOLD AC PLUG ADAPTER
In case of connecting the unit’s power cord to an AC
wall outlet other than American National Standard
C73 series type use an AC plug adapter, called a
“Siemens Plug”, as shown.
For this AC plug adapter, consult your nearest JVC
dealer.
Plug adapter
General Battery Precautions
If the remote control is not functioning even if it is
being operated correctly, the batteries are
exhausted. Replace them with fresh ones.
Use only the following batteries: AAA (R03) size x 2
Please make note of the following rules for battery
use. When misused, the batteries can leak or
explode.
1. When replacing batteries, refer to page 58.
2. Do not use any different size of batteries from
those specified.
3. Be sure to install batteries in the correct
direction.
4. Do not use rechargeable batteries.
5. Do not expose the batteries to excessive heat as
they can leak or explode.
6. Do not dispose of the batteries in a fire.
7. Remove the batteries from the unit if it is to be
stored for an extended period to avoid battery
leakage which can cause malfunctions.
8. Do not recharge the provided batteries.
Battery Packs
The supplied battery pack
is a lithium-ion battery.
Before using the supplied
battery pack or an
optional battery pack, be
sure to read the following
cautions:
1. To avoid hazards…
... do not burn.
... do not short-circuit the terminals. When
transporting, make sure the provided battery
cap is attached to the battery. If the battery cap
is misplaced, carry the battery in a plastic bag.
... do not modify or disassemble.
Terminals
... do not expose the battery to temperatures
exceeding 60°C (140°F), as this may cause the
battery to overheat, explode or catch fire.
... use only specified chargers.
2. To prevent damage and prolong service life…
... do not subject to unnecessary shock.
... charge in an environment where temperatures
are within the tolerances shown in the chart
below. This is a chemical reaction type
battery — cooler temperatures impede
chemical reaction, while warmer
temperatures can prevent complete charging.
... store in a cool, dry place. Extended exposure
to high temperatures will increase natural
discharge and shorten service life.
... fully charge and then fully discharge the
battery every 6 months when storing the
battery pack over a long period time.
... remove from charger or powered unit when
not in use, as some machines use current even
when switched off.
NOTES:
● It is normal for the battery pack to be warm after
charging, or after use.
Temperature Range Specifications
Charging........10°C to 35°C (50°F to 95°F)
Operation ......0°C to 40°C (32°F to 104°F)
Storage ..........–20°C to 50°C (–4°F to 122°F)
● Recharging time is based on room temperature of
20°C (68°F).
● The lower the temperature, the longer recharging
takes.
Cassettes
To properly use and store your cassettes, be sure to
read the following cautions:
1. During use…
... make sure the cassette bears the Mini DV
mark.
... be aware that recording onto prerecorded
tapes automatically erases the previously
recorded video and audio signals.
... make sure the cassette is positioned properly
when inserting.
... do not load and unload the cassette
repeatedly without allowing the tape to run at
all. This slackens the tape and can result in
damage.
... do not open the front tape cover. This exposes
the tape to fingerprints and dust.
2. Store cassettes…
... away from heaters or other heat sources.
... out of direct sunlight.
... where they won’t be subject to unnecessary
shock or vibration.
... where they won’t be exposed to strong
magnetic fields (such as those generated by
motors, transformers or magnets).
... vertically, in their original cases.
EN 79
Memory Cards
To properly use and store your memory cards, be
sure to read the following cautions:
1. During use…
... make sure the memory card bears the SD or
MultiMediaCard mark.
... make sure the memory card is positioned
properly when inserting.
2. While the memory card is being accessed
(during recording, playback, deletion,
initialization, etc.)…
... never unload the memory card and never turn
off the camcorder.
3. Store memory cards…
... away from heaters or other heat sources.
... out of direct sunlight.
... where they won’t be subject to unnecessary
shock or vibration.
... where they won’t be exposed to strong
magnetic fields (such as those generated by
motors, transformers or magnets).
LCD Monitor
1. To prevent damage to the LCD monitor,
DO NOT…
... push it strongly or apply any shocks.
... place the camcorder with the LCD monitor on
the bottom.
2. To prolong service life…
... avoid rubbing it with coarse cloth.
3. Be aware of the following phenomena for LCD
monitor use.
These are not malfunctions:
•While using the camcorder, the surface around
the LCD monitor and/or the back of the LCD
monitor may heat up.
•If you leave power on for a long time, the
surface around the LCD monitor becomes hot.
Main Unit
1. For safety, DO NOT…
... open the camcorder’s chassis.
... disassemble or modify the unit.
... short-circuit the terminals of the battery pack.
Keep it away from metallic objects when not
in use.
... allow inflammables, water or metallic objects
to enter the unit.
... remove the battery pack or disconnect the
power supply while the power is on.
... leave the battery pack attached when the
camcorder is not in use.
2. Avoid using the unit…
... in places subject to excessive humidity or
dust.
... in places subject to soot or steam such as near
a cooking stove.
... in places subject to excessive shock or
vibration.
... near a television set.
... near appliances generating strong magnetic or
electric fields (speakers, broadcasting
antennas, etc.).
... in places subject to extremely high (over 40°C
or 104°F) or extremely low (under 0°C or
32°F) temperatures.
3. DO NOT leave the unit…
... in places of over 50°C (122°F).
... in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
... in direct sunlight.
... in a closed car in summer.
... near a heater.
4. To protect the unit, DO NOT…
... allow it to become wet.
... drop the unit or strike it against hard objects.
... subject it to shock or excessive vibration
during transportation.
... keep the lens directed at extremely bright
objects for long periods.
... expose the lens and viewfinder’s lens to direct
sunlight.
... carry it by holding the LCD monitor or the
viewfinder.
... swing it excessively when using the hand strap
or the grip.
... swing the soft camera case excessively when
the camcorder is inside it.
5. Dirty heads can cause the following problems:
•No picture during playback.
•Blocks of noise appear during playback.
•During recording or playback, the Head Clog
Warning indicator “ ” appears.
•Recording cannot be performed properly.
In such cases, use the provided cleaning cassette.
Insert it and play back. If the cassette is used more
than once consecutively, damage to the video heads
may result. After the camcorder plays back for about
20 seconds, it stops automatically. Also refer to the
cleaning cassette’s instructions.
If, after using the cleaning cassette, the problems still
exist, consult your nearest JVC dealer.
Mechanical moving parts used to move the video
heads and video tape tend to become dirty and
worn out over time. In order to maintain a clear
picture at all times, periodic check-ups are
recommended after using the unit for about 1,000
hours. For periodic check-ups please consult your
nearest JVC dealer.
CONTINUED ON NEXT PAGE
REFERENCES
80 EN
CAUTIONS (cont.)
How To Handle A CD-ROM
•Take care not to soil or scratch the mirror surface
(opposite to the printed surface). Do not write
anything or put a sticker on either the front or back
surface. If the CD-ROM gets dirty, gently wipe it
with a soft cloth outward from the center hole
using a circular motion.
•Do not use conventional disc cleaners or cleaning
spray.
•Do not bend the CD-ROM or touch its mirror
surface.
•Do not store your CD-ROM in a dusty, hot or
humid environment. Keep it away from direct
sunlight.
About moisture condensation...
● You have observed that pouring a cold liquid
into a glass will cause drops of water to form on
the glass’ outer surface. This same phenomenon
occurs on the head drum of a camcorder when
it is moved from a cool place to a warm place,
after heating a cold room, under extremely
humid conditions or in a place directly
subjected to the cool air from an air conditioner.
● Moisture on the head drum can cause severe
damage to the video tape, and can lead to
internal damage to the camcorder itself.
Serious malfunctioning
If malfunctioning occurs, stop using the unit
immediately and consult your local JVC dealer.
The camcorder is a microcomputer-controlled
device. External noise and interference (from a TV,
a radio, etc.) might prevent it from functioning
properly. In such cases, first disconnect its power
supply unit (battery pack, AC Power Adapter/
Charger, etc.) and wait a few minutes and then reconnect it and proceed as usual from the
beginning.
Declaration of Conformity
Model Number : GR-HD1U
Trade Name : JVC
Responsible party : JVC AMERICAS CORP.
Address : 1700 Valley Road Wayne,
N. J. 07470
Telephone Number : 973-317–5000
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Change or modifications not approved by the
party responsible for compliance could void the
user’s authority to operate the equipment. This
equipment has been tested and found to comply
with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/ TV
technician for help.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
USER MAINTENANCE
EN 81
After Use
1 Turn off the camcorder.
2 Loosen the grip strap.
3 Slide and hold OPEN/EJECT in the direction of
the arrow, then pull the cassette holder cover
open until it locks. The cassette holder opens
automatically. Remove the cassette.
4 Press “PUSH HERE” to close the cassette holder.
● Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely
before closing the cassette holder cover.
5 Slide BATT.RELEASE 1 and remove the battery
pack 2 3.
Remove.
PUSH HERE
Cassette holder
Cassette holder
OPEN/EJECT Switch
cover
Cleaning The Camcorder
1 To clean the exterior, wipe gently with a soft
cloth.
Put the cloth in diluted mild soap and wring it
well to wipe off heavy dirt. Then wipe again with
a dry cloth.
2 Press PUSH OPEN and open the LCD monitor.
Wipe gently with a soft cloth. Be careful not to
damage the monitor. Close the LCD monitor.
3 To clean the lens, blow it with a blower brush,
then wipe gently with lens cleaning paper.
4 To clean the viewfinder, raise the viewfinder to
the vertical position.
5 Open the viewfinder cleaning hatch in the
direction of the arrow A.
Insert a lens blower or soft cloth into the gap at
the bottom of the viewfinder and clean the
interior of the viewfinder with it B.
6 Close the hatch. Tilt the viewfinder back to the
horizontal position and push it back in.
Lens blower
Hatch
BATT.RELEASE Switch
NOTES:
● Avoid using strong cleaning agents such as
benzine or alcohol.
● Cleaning should be done only after the battery
pack has been removed or other power units have
been disconnected.
● Mould may form if the lens is left dirty.
● When using a cleaner or chemically treated cloth
refer to the cautions of each product.
REFERENCES
82 EN
SPECIFICATIONS
Camcorder
For General
Power supply : DC 6.3 V (Using AC Power Adapter/Charger)
Power consumption
LCD monitor off, viewfinder on : Approx. 6.8 W (DV)/8.0 W (HD, SD)
LCD monitor on, viewfinder off : Approx. 8.5 W (DV)/9.7 W (HD, SD)
Dimensions (W x H x D) : 114.5 mm x 99 mm x 271.5 mm (4-9/16" x 3-15/16" x 10-3/4")
Weight : Approx. 1270 g (2.8 lbs)
Operating temperature : 0°C to 40°C (32°F to 104°F)
Operating humidity : 35% to 80%
Storage temperature : –20°C to 50°C (–4°F to 122°F)
Pickup : 1/3" CCD
Lens : F 1.8, f = 5.2 mm to 52 mm, 10:1 power zoom lens
Filter diameter : ø52 mm
LCD monitor : 3.5" diagonally measured, LCD panel/TFT active matrix system
Viewfinder : Electronic viewfinder with 0.44" color LCD
Speaker : Monaural
For Digital Video Camera
Signal format :NTSC standard
Cassette : Mini DV cassette
Tape spe ed : SP: 18.8 mm/s
Maximum recording time
(using 80 min. cassette)
DC 7.2 V (Using battery pack)
(with the LCD monitor closed and the viewfinder pushed back in)
(without cassette, memory card and battery)
Approx. 1490 g (3.3 lbs)
(incl. cassette, memory card and battery)
LP: 12.5 mm/s
: SP: 80 min.
LP: 120 min.
For Digital Still Camera
Storage media : SD Memory Card/MultiMediaCard
Compression system : JPEG (compatible)
File size : 2 modes (1280 x 960 pixels/640 x 480 pixels)
Picture quality : 2 modes (FINE/STANDARD)
Approximate number of storable images
: 墌 pg. 40
For Connectors
S/AV
S-Video input : Y: 0.8 V to 1.2 V (p-p), 75 Ω, analog
C: 0.2 V to 0.4 V (p-p), 75 Ω, analog
S-Video output : Y: 1.0 V (p-p), 75 Ω, analog
C: 0.29 V (p-p), 75 Ω, analog
Video input : Y: 0.8 V to 1.2 V (p-p), 75 Ω, analog
Video output : Y: 1.0 V (p-p), 75 Ω, analog
Audio input : 300 mV (rms), 50 kΩ, analog, stereo
Audio output : 300 mV (rms), 1 kΩ, analog, stereo
Headphone output :Stereo
Microphone input :Stereo
i.LINK
Input/output : 4-pin, IEEE 1394 compliant
USB :5-pin
Y/Pb/Pr output : Y: 1.0 V (p-p), 75 Ω, analog
Pb: 0.7 V (p-p), 75 Ω, analog
Pr: 0.7 V (p-p), 75 Ω, analog
AC Power Adapter/Charger
For General
Power requirement
U.S.A. and Canada : AC 120 Vd, 60 Hz
Other countries : AC 110 V to 240 Vd, 50 Hz/60 Hz
Power consumption : 23W
Output
Charge :DC 7.2 VG, 1.2 A
VTR :DC 6.3 VG, 1.8 A
EN 83
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
REFERENCES
84 EN
INDEX Controls, Connectors And Indicators
INDEX
EN 85
Controls
a Power Switch [A, M, P, OFF] (墌 pg. 16)
b Recording Start/Stop Button (墌 pg. 20)
c Lock Button (墌 pg. 16)
d Snapshot Button [SNAPSHOT] (墌 pg. 28, 44)
e Power Zoom Switch [T/W] (墌 pg. 22)
f Information Button [INFO] (墌 pg. 30)
g Index Button [INDEX] (墌 pg. 30)
h Playback Mode Switch [VIDEO/MEMORY]
i Stop Button [8](墌 pg. 24)
j Rewind Button [
k Play/Pause Button [4·9](墌 pg. 24)
l Fast-Forward Button [
m Thumbnail Storing Button [NAVI STORE]
n Program AE Button [P.AE] (墌 pg. 50)
o Shutter Speed/Iris Control Button [S/A]
p Manual White Balance button
[WHITE BALANCE] (墌 pg. 48)
q •Menu Wheel [MENU] (墌 pg. 35)
•Speaker/Headphone Volume Control
[VOLUME +, –] (墌 pg. 24)
r i.LINK Output Select Switch [DV/MPEG2]
s Blank Search Button [BLANK SEARCH]
t Navigation Button [NAVI] (墌 pg. 52)
u Wipe or Fader Effect Button [FADE/WIPE]
v Special Effects Button [EFFECT] (墌 pg. 51)
w Manual Zoom Ring (墌 pg. 47)
x Cassette Open/Eject Switch
[OPEN/EJECT] (墌 pg. 18)
y Recording Mode Switch
[MEMORY/HD/SD/DV] (墌 pg. 16)
z Manual Focus Ring (墌 pg. 47)
j Backlight Compensation Button [BACK LIGHT]
k Manual Focus Button [FOCUS] (墌 pg. 47)
l Exposure Adjustment Wheel
[EXPOSURE] (墌 pg. 44)
; Monitor Opening Button
[PUSH OPEN] (墌 pg. 20)
z Battery Release Switch [BATTERY] (墌 pg. 12)
x Diopter Adjustment Control (墌 pg. 15)
3
](墌 pg. 24)
5
](墌 pg. 24)
(墌 pg. 16)
(墌 pg. 53)
(墌 pg. 46)
(墌 pg. 55)
(墌 pg. 25)
(墌 pg. 50)
(墌 pg. 45)
j USB (Universal Serial Bus) Connector
(墌 pg. 67)
k DC Input Connector [DC] (墌 pg. 12, 13)
l Digital Video Connector
[i.LINK IN/OUT] (i.Link*) (墌 pg. 55, 56, 67)
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.Link
standard.
m Component Video Connectors [Y/Pb/Pr]
(墌 pg. 26)
Indicators
Y Power Lamp (墌 pg. 16, 20)
Z Ta lly Lam p ( 墌 pg. 20, 38)
Other Parts
q Battery Pack Mount (墌 pg. 12)
r Shoulder Strap Eyelet (墌 pg. 10)
s Grip Strap (墌 pg. 14)
t •Cassette Holder Cover (墌 pg. 18)
•Rotating Grip (墌 pg. 14)
u Camera Sensor
Be careful not to cover this area, a sensor
necessary for shooting is built-in here.
v Lens Hood (墌 pg. 8)
w Remote Sensor (墌 pg. 58)
x LCD Monitor (墌 pg. 14, 22)
y Speaker (墌 pg. 24)
z Stereo Microphone (墌 pg. 60)
Shoe
Attach the provided Handle, optional Stereo
Microphone or Video Light. Make sure to turn off
the power of the camcorder and the video light
or microphone before attaching and removing
them.
Viewfinder (墌 pg. 15)
Card Cover [MEMORY CARD] (墌 pg. 19)
Stud Hole (墌 pg. 14)
Tripod Mounting Socket (墌 pg. 14)
Viewfinder Cleaning Hatch (墌 pg. 81)
REFERENCES
Connectors
The connectors are located beneath the covers.
g Microphone connector [MIC] (墌 pg. 10)
Open the connector cover, and attach the
optional microphone.
h S/AV connector (墌 pg. 26, 54, 63)
i Headphone Connector [ ] (墌 pg. 10, 60)
No sound is output from the speaker when
headphones are connected to this connector.
86 EN
INDEX Indications
LCD Monitor/Viewfinder
Indications
During Video Recording Only
DV
15:55
a Recording Mode Indicator (墌 pg. 21)
b Navigation Indicator (墌 pg. 52)
(Appears when “NAVIGATION” is set to other
than “MANUAL”.)
c Operation Mode Indicator (墌 pg. 16)
d Selected Wipe/Fader Effect Indicator
e Tape Running Indicator (墌 pg. 20)
(Rotates while tape is running.)
f Selected Wide Mode Indicator (墌 pg. 38)
g Thumbnail Storing Indicator (墌 pg. 52)
(Appears while the captured image is being
stored as a thumbnail image in the memory
card.)
h Recording Speed Mode (SP/LP) (墌 pg. 36)
i Tape Remaining Time (墌 pg. 22)
j •REC: (Appears during recording.) (墌 pg. 20)
•PAUSE: (Appears during Record-Standby
mode.) (墌 pg. 20)
k 5S/Anim.: Displays the 5-Second Recording
mode or Animation recording mode. (墌 pg. 37)
l Insert Editing/Insert Editing Pause Mode
m Wind Cut Indicator (墌 pg. 38)
n Time Code (墌 pg. 39, 42)
1h40m
(墌 pg. 50)
(墌 pg. 61)
During D.S.C. Recording Only
51
a Image Size: 1280 (1280 x 960) or 640
(640 x 480) (墌 pg. 40)
b Focus Icon (墌 pg. 28)
(Blinks while the focus is being adjusted and
stops blinking when the focus is locked.)
c Shooting Icon (墌 pg. 28)
(Appears and blinks during shooting.)
d Card Icon (墌 pg. 28)
: Appears during shooting.
: Blinks when a memory card is not loaded.
e Picture Quality: (FINE) and
(STANDARD) (in order of quality) (墌 pg. 40)
f Remaining Number Of Shot (墌 pg. 28)
(Displays the approximate remaining number of
shots that can be stored during D.S.C. recording,
or the remaining number of storable thumbnail
images when it reaches 10 or less during video
recording. The number increases or decreases
depending on the Picture Quality/Image Size,
etc.)
During Both Video And D.S.C. Recording
g
89 0
O
1
2
3
4
5
6
BRIGHT
7
a Shutter Speed/Iris Adjustment Indicator
(Appears during manual shutter speed or iris
adjustment.)
b White Balance Indicator (墌 pg. 48)
c •±: Exposure Adjustment Indicator (墌 pg. 44)
• : Backlight Compensation Indicator
d Selected Program AE Indicator (墌 pg. 50)
e Selected Special Effects Indicator (墌 pg. 51)
f Iris Lock Indicator (墌 pg. 45)
g Optical Image Stabilizer (“OIS”) (墌 pg. 37)
h Approximate Zoom Ratio (墌 pg. 22)
(Appears during zooming.)
i Zoom Indicator (墌 pg. 22)
(Appears during zooming.)
(The level indicator g moves.)
q
w
g
e
rt
(墌 pg. 46)
(墌 pg. 45)
EN 87
j Self-Timer Recording Indicator (墌 pg. 43)
k O: (Appears when taking Snapshot.)
l BRIGHT: Brightness Control Indicator (LCD
monitor/Viewfinder) (墌 pg. 15)
(The level indicator g moves.)
m Battery Indicator (墌 pg. 75)
n Date/Time (墌 pg. 17)
o Manual Focus Adjustment Indicator (墌 pg. 47)
(墌 pg. 44)
During Video Playback
21
BLANK SEARCH
PUSH "STOP" BUTTON
TO CANCEL
q
a Video Playback Mode Indicator (墌 pg. 21)
b Sound Mode Indicator (墌 pg. 41)
c Blank Search Indicator (墌 pg. 25)
d Thumbnail Storing Indicator (墌 pg. 53)
(Appears while the captured image is being
stored as a thumbnail image in the memory
card.)
e Tape Spe e d ( 墌 pg. 36)
f •U : Playback
•
5
: Fast-Forward/Shuttle Search
•
3
: Rewind/Shuttle Search
•9 : Pause
•9 U : Forward Frame-By-Frame Playback/
Slow-Motion
•Y 9 : Reverse Frame-By-Frame Playback/SlowMotion
•D : Audio Dubbing
•9D : Audio Dubbing Pause
(Appear while a tape is running.)
g Input Mode Indicator (墌 pg. 54, 56)
h Battery Indicator (墌 pg. 75)
i Date/Time (墌 pg. 39, 42)
j •VOLUME : Volume Level Indicator (Speaker or
headphone) (墌 pg. 24)
(The level indicator g moves.)
•BRIGHT : Brightness Control Indicator (LCD
monitor/Viewfinder) (墌 pg. 15)
(The level indicator g moves.)
k Time Code (墌 pg. 39, 42)
0
5
4
3
g
6
i.LINK IN
:
9
7
8
During D.S.C. Playback
1
BR I GHT
4
a Operation Mode Indicator (墌 pg. 30)
b Folder/File Number (墌 pg. 30)
c Battery Indicator (墌 pg. 75)
d Brightness Control Indicator (LCD monitor/
Viewfinder) (墌 pg. 15)
(The level indicator g moves.)
100-0013
g
2
3
REFERENCES
88 EN
TERMS
A
AC Power Adapter/Charger ...........................12, 13
Animation ...........................................................37
Audio Dubbing ...................................................60
Auto Focus ..........................................................46
Auto Playback Of Images ....................................29
Auto Shut Off ................................................20, 28
B
Backlight Compensation ......................................45
Battery Pack ............................................12, 13, 78
Beep (BEEP) .........................................................38
Blank search ........................................................25
Brightness Adjustment Of The Display
(BRIGHT) ............................................................15
Built-in Clock’s Rechargeable Lithium Battery .....17
C
Changing The Menu Settings ...............................35
Channels (Left/Right) ...........................................41
Charging The Battery Pack ..................................12
Cleaning The Camcorder .....................................81
Clock adjustment (CLOCK ADJ.) .........................17
Component video output setting (Y/Pb/Pr) ...........26
Connections
Charging .......................................................12
Dubbing ...............................................54 – 57
Random Assemble Editing .....................62 – 66
To A PC ........................................................67
To A TV Or VCR ...........................................26
WebCam ......................................................68
D
Date/Time
Display (DATE/TIME) ..............................39, 42
Settings .........................................................17
DCF (Design rule for Camera File system) .....28, 29
Deleting Files (DELETE) .......................................32
Deleting thumbnail images (NAVI.DEL.) ..............41
Display ................................................................42
DPOF Setting (Digital Print Order Format) .....33, 34
Dubbing ......................................................54 – 57
Dubbing from tape to memory card
( COPY) .........................................41, 57
E
Erase Protection .............................................18, 19
Exposure Control (EXPOSURE) ............................44
F
Fade-In/Out .........................................................50
Fast-Forward The Tape ........................................24
Frame-By-Frame Playback ...................................59
TERMS
G
Gain Up (GAIN UP) ............................................36
Grip Adjustment .................................................14
I
i.LINK output setting (i.LINK OUT) ...................... 39
Image Size (IMAGE SIZE) .................................... 40
Index Playback Of Files ......................................30
Indications on the LCD Monitor/Viewfinder .. 86, 87
Initialising A Memory Card (FORMAT) ................ 34
Insert Editing .......................................................61
Interface Shooting ...............................................22
Iris ...................................................................... 45
Iris Lock .............................................................. 45
J
Journalistic Shooting ........................................... 22
L
Loading A Cassette .............................................. 18
Loading A Memory Card .....................................19
M
Manual Focus ..................................................... 47
Manual Iris .......................................................... 46
Manual Shutter Speed .........................................46
Manual Zooming ................................................ 47
Memory Card ................................................ 19, 79
Menu Screen
CAMERA ...................................................... 36
CAMERA DISPLAY ....................................... 39
D.S.C. Playback .................................... 30 – 34
DSC .............................................................. 40
MANUAL ..................................................... 37
SYSTEM .................................................. 38, 42
VIDEO .......................................................... 41
VIDEO DISPLAY ........................................... 42
Motor Drive Mode ..............................................44
MultiMediaCard ............................................ 19, 79
N
Navigation (NAVIGATION) ....................36, 52, 53
O
Optical Image Stabilization (OIS) ........................37
EN 89
P
Picture Quality (QUALITY) ..................................40
Playback Mode Switch Position ...........................16
Playback sound
(SOUND MODE, NARRATION) ..........................41
Playback Special Effects ......................................60
Playback Zoom ...................................................59
Power Switch Position .........................................16
Priority Setting (PRIORITY) ..................................38
Program AE (PROGRAM AE)
Snow (SNOW) ..............................................50
Sports (SPORTS) ............................................50
Spotlight (SPOTLIGHT) .................................50
Twilight (TWILIGHT) ....................................51
Protecting Files (PROTECT) .................................31
Provided Accessories .............................................7
R
Random Assemble Editing ...........................62 – 66
Recording media selection (REC SELECT) ............40
Recording Mode (REC MODE) ......................36, 41
Recording Mode Switch Position ...................16, 21
Recording Time
Tape .............................................................18
Record-Standby ...................................................20
Remaining Power Level .......................................75
Remote Control ...................................................58
Remote control setting (REMOTE) ........................38
Resetting Menu Settings (CAM RESET) .................39
Resetting The File Name ......................................33
Rewind The Tape ................................................24
S
SD Memory Card ..........................................19, 79
Self-Timer (SELF-TIMER) ................................37, 43
Set Remote/VCR Code .........................................62
Shuttle Search .....................................................25
Slow-Motion Playback ........................................59
Snapshot .......................................................28, 44
Sound Mode (DV SOUND) .................................36
Sound Mode (SOUND MODE) ............................41
Speaker Volume ..................................................24
Special Effects (EFFECT)
Classic Film (CLASSIC FILM) .........................51
Monotone (MONOTONE) ............................51
Sepia (SEPIA) .................................................51
Strobe (STROBE) ...........................................51
Specifications ................................................82, 83
Still Playback .......................................................24
S-Video output setting (S/VIDEO) ........................39
S-Video/AV input (S/AV INPUT) ....................41, 54
Synchro adjustment (SYNCHRO) .........................66
T
Tally Lamp (TALLY) ....................................... 20, 38
Telephoto setting (TELE MACRO) ........................37
Time Code (TIME CODE) ........................23, 39, 42
Tripod Mounting ................................................. 14
U
Unloading A Cassette .......................................... 18
Unloading A Memory Card .................................19
V
Viewfinder Adjustment .......................................15
W
WebCam ............................................................ 68
White Balance (W.BALANCE) .............................48
Wide Mode (DV WIDE)
Squeeze (SQUEEZE) .....................................38
Wide (D.WIDE) ............................................38
Wipe In/Out ........................................................ 50
Z
Zooming (ZOOM) ......................................... 22, 36
5-Second Recording (5S) .....................................37
TERMS
90 EN
EN 91
EN
GR-HD1
COPYRIGHT© 2003 VICTOR COMPANY OF JAPAN, LTD.
US
Printed in Japan
0403-FO-ID-VP
SOFTWARE INSTALLATION AND USB/i.LINK CONNECTION GUIDE
ENGLISH
LYT1155-001A
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.
This document explains the basic information such as system requirements, installation and connections, etc.
for the provided software.
For details on the operation, refer to the software instruction manual included on the CD-ROM in PDF format.
CAUTION:
● Operate this equipment according to the operating procedures described in this manual.
● Use only the provided CD-ROM. Never use any other CD-ROM to run this software.
● Do not attempt to modify this software.
● Changes or modifications not approved by JVC could void user’s authority to operate the equipment.
M3D8
Printed in Japan
0403-FO-ID-VP
How to handle a CD-ROM
● Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything
or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft
cloth outward from the center hole using a circular motion.
● Do not use conventional disc cleaners or cleaning spray.
● Do not bend the CD-ROM or touch its mirror surface.
● Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight.
You can find the latest information (in English) on the provided software program at our world wide web
server at http://www.jvc-victor.co.jp/english/index-e.html
—1—
Notice for Users
Use of this software is authorized according to the terms of the software license.
When contacting the nearest JVC office or agency in your country about this software (refer to the JVC
Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/index-e.html), please fill out the
following and have the appropriate information ready.
Product Name
Model
Problem
Error Message
Manufacturer
Model □ Desktop □ Laptop
CPU
PC
OS
Memory MB
Available Hard Disk Space MB
Please note that it may take some time to respond to your questions, depending on their subject matter.
JVC cannot answer questions regarding basic operation of your PC, or questions regarding specifications or
performance of the OS, other applications or drivers.
—2—
System Requirements
䡲 For copying still image files to a PC
The following requirements must be satisfied to connect the camcorder to a PC using the USB cable, and to
copy still image files from the memory card in the camcorder.
OS : Windows® XP Home Edition (pre-installed)
Windows
Connector : USB connector
䡲 For using HD Capture Utility, MPEG Edit StudioTM Pro LE, ImageMixer DVD
The following requirements must be satisfied to connect the camcorder to a PC using an i.LINK cable, to
import MPEG-format video stream, and to edit video clips on a PC.
OS : Windows
Windows
CPU : Intel Pentium
RAM 256 MB (DDR SDRAM or DRD RAM) or more
384 MB or more if the main RAM is used for the video memory
(512 MB recommended)
Hard disk drive : UltraATA100 (7200 rpm or faster recommended)
Connector : IEEE1394 (i.LINK) connector
Display : 1024 x 768 or greater
Video memory : 32 MB or more
䡲 For creating a DVD Video
In addition to the system requirements above, a DVD recording drive which is compatible with
ImageMixer DVD is required. (DVD-RAM disc is not supported by ImageMixer DVD.)
For details on compatible DVD recording drives, visit the web site of Pixela Corporation.
http://www.imagemixer.com/
®
XP Professional (pre-installed)
®
XP Home Edition (pre-installed)
®
XP Professional (pre-installed)
®
4 (2 GHz or faster)
—3—
CONTINUED ON NEXT PAGE
䡲 For holding a video conference over the Internet
The following requirements must be satisfied to use a camcorder as a web camera for video conference over
the Internet.
Hardware
OS : Windows
Connector : USB connector
Windows
Software
Windows® Messenger Ver4.6 or later is required. If an old version is installed, download and install the
latest version from the web site of Microsoft Corporation.
http://www.microsoft.com/
Miscellaneous
Internet access and an e-mail address are required.
You can also find the latest information (in English) at our world web site.
http://www.jvc-victor.co.jp/english/index-e.html
NOTES:
● Some functions may not work properly depending on the PC environment.
● If your counter party uses Windows
Use Windows
● If you are using a dial-up router or a broadband router, refer to the router’s instruction manual.
● If you are using a firewall or a router with the dial-up connection, it is not possible to connect to the Internet
properly.
● Consult your Internet service provider whether Windows
● The quality of images or sound during video conference may differ depending on the condition of Internet
access.
● The system requirements information is not a guarantee that the provided software will work on all personal
computers meeting those requirements.
● Microsoft
United States and/or other countries.
● Other product and company names included in this instruction manual are trademarks and/or registered
trademarks of their respective holders.
®
NetMeeting® 3.0 or later.
®
and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
®
XP Home Edition (pre-installed)
®
XP Professional (pre-installed)
®
NetMeeting®, you cannot communicate using Windows® Messenger.
®
Messenger can be used or not.
—4—
Software Installation
Follow the procedure described below to install the software. From the [Setup] dialog box in step 3, you can
install the following software.
HD Capture Utility
This application is used to import MPEG-format video stream from a camcorder, or to export the edited video
clip back to the camcorder.
Audio converter
This application is used to convert audio files into different format. You can add background music or audio
effect to the video clip. This application is installed automatically when installing HD Capture Utility.
MPEG Edit StudioTM Pro LE
This application is used to edit MPEG-format video clips.
● The provided MPEG Edit Studio
cannot be selected.
ImageMixer DVD
This application is used to create a DVD Video.
Adobe® Acrobat® Reader 5.0
This application is used to read PDF files.
1 Load the provided CD-ROM in the PC.
After a moment, the [Important Notice] dialog box appears.
● If the [Important Notice] dialog box does not appear, click [My Computer] from the [Start] menu and
then double-click the CD-ROM icon.
2 Confirm the contents, and then click [Next].
After a moment, the [Setup] dialog box appears.
● From the [Setup] dialog box, you can install the desired software.
3 Click [Install] on the right side of the desired software.
The installation of the selected software starts.
● The procedure differs depending on the software. Follow the onscreen instructions to complete the installation.
TM
Pro LE is an application with limited functions and some setting items
Following steps are the example of HD Capture Utility.
4 In the [Choose Setup Language] dialog box, select [English],
and then click [OK].
The [InstallShield Wizard] dialog box appears.
5 Click [Next].
The [Welcome to the installation wizard for capture utility] dialog
box appears.
6 Click [Yes].
The [License Agreement] dialog box appears.
—5—
CONTINUED ON NEXT PAGE
7 Click [Next].
The [Customer Information] dialog box appears.
8 Input your information in all boxes, and then click [Next].
● If you do not input your information in all boxes, you cannot click
[Next].
● When you are a personal user, input any letters in the [Company
Name] box.
The [Choose Destination Location] dialog box appears.
9 Click [Next].
The installation begins.
10 Click [Next].
After a moment, the [Install Shield Wizard Complete] dialog box
appears.
11 Click [Finish].
Repeat the procedure to install other software.
Note on installing MPEG Edit StudioTM Pro LE
Enter the serial number which is printed on the label on the CD-ROM case.
● When entering the serial number, consider the case (upper or lower) and difference between number and
alphabet.
NOTES:
● The software instruction manual is included on the CD-ROM in PDF format. Double-click the [JVC] folder
and then double-click the [Docs] folder. Open the “Start.pdf” file and click the button of the desired
language. Note that Adobe
● For details on how to use Windows
the software instruction manual on the CD-ROM.
● If you perform installation of a software that is already installed, uninstallation will start. In this case,
perform the installation again after uninstallation is finished.
®
Acrobat® Reader must be installed to read PDF files.
®
Messenger, refer to “VIDEO CONFERENCE OVER THE INTERNET” in
—6—
CONTINUED ON NEXT PAGE
Connections
Use the USB cable or i.LINK cable to connect the camcorder to a PC.
● For the operation on the camcorder, refer to the camcorder’s instruction manuals.
USB connection
Enables you to copy still image files in a memory card to a PC or to use the camcorder as a web camera for
video conference over the Internet.
To USB connector
USB cable
(provided)
To US B
PC
To copy still image files to a PC
1 Make sure that there is a memory card in the camcorder.
2 Set the camcorder’s Playback Mode Switch to “MEMORY”.
3 Set the camcorder’s Power Switch to “P” while pressing down the Lock Button located
on the switch.
The camcorder turns on.
4 Connect the camcorder to the PC with a USB cable.
On the camcorder’s LCD monitor [USB MODE] appears.
To use the camcorder as a web camera and hold a videoconference over the Internet
1 Set the camcorder’s Recording Mode Switch to “MEMORY”.
2 Set the camcorder’s Power Switch to “A” or “M” while pressing down the Lock Button
located on the switch.
The camcorder turns on.
3 Connect the camcorder to the PC with a USB cable.
The “ ” indicator appears on the camcorder’s LCD monitor.
● When connecting an USB cable for the first time, the [Found New Hardware Wizard] dialog box
appears. (墌 pg. 10 “Installing the drivers for using the camcorder as a web camera”)
● For details on holding a video conference over the Internet, refer to the software instruction manual on
the CD-ROM.
—7—
CONTINUED ON NEXT PAGE
i.LINK connection
Enables you to import MPEG-format video stream to the PC (or export edited video clip to the camcorder).
To i.LINK connector
i.LINK cable (S400 compatible)
(optional: VC-VDV204 or VC-VDV206)
To i.LINK IN/OUT
PC
1 Set the camcorder’s Power Switch to “P” while pressing down the Lock Button located
on the switch.
● The camcorder turns on.
2 Set [i.LINK OUT] to [SW] in the camcorder’s system setting menu.
3 Set the camcorder’s output mode select switch to [MPEG2].
4 Connect the camcorder to the PC with an i.LINK cable.
● When connecting an i.LINK cable for the first time, the [Found New Hardware Wizard] dialog box
appears. (墌 pg. 9 “Installing the driver for importing MPEG-format video stream”)
NOTES:
● It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack.
● Do not turn on or off the camcorder or switch the playback mode on the camcorder when the USB cable is
connected.
● If you connect the camcorder to the PC through a USB hub, compatibility issues between the hub and the
PC may result in instability in the operation of the PC. If this happens, connect the camcorder directly to the
PC, not through the hub.
● Do not use an extension USB cable.
● Never disconnect the USB cable while the message [ACCESSING FILES] appears on the camcorder’s LCD
monitor.
—8—
