DIGITAL VIDEO PRINTER

G V -DT1

Please visit our CyberCam Homepage on the World Wide Web and answer our Consumer Survey (in English only):

ENGLISH

http://www.jvc-victor.co.jp/index-e.html

INSTRUCTIONS

LYT0119-001A

EN 1

SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

n When you are not using the unit for a long

period of time, it is recommended that you disconnect the power cord from the mains outlet.

n Dangerous voltage inside. Refer internal

servicing to qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

The STANDBY/ON button does not completely shut off mains power to the unit, but

switches operating current on and off. " " shows electrical power standby and " " shows

ON. The mains outlet shall be installed near the unit and shall be easily accessble.

IMPORTANT (for U. K. owners)

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for

the power points in your home or the cable is too short to reach a power point, then obtain a proper safety approved extension lead/adapter or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured Black. Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

NOTE:

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

2 EN

Some Do's And Don'ts On The Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and

interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of

your equipment.

DO be careful with glass panels or doors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally,

or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it

is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the

requirements of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your

hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete

safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL...

— NEVER let anyone especially children push anything into holes, slots or any other

opening in the case — this could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be

safe than sorry!

CAUTIONS

EN 3

Exercise caution when moving the printer. If you drop the unit, do not attempt to use it. If during use you notice that the cabinet is damaged, shut the printer down, unplug it and contact your JVC dealer. Use of the printer under these conditions can lead to fire or electric shock.

DO NOT place heavy objects on the printer’s power cord, or leave the cord near any heatgenerating appliance, as this can damage the cord. Avoid excessive pulling or twisting of the power cord. If the power cord becomes cut or otherwise damaged, contact your JVC dealer. When unplugging the printer, DO NOT pull on the cord. Hold the plug itself and remove it from the AC outlet. Use of the printer with a damaged power cord can lead to fire, electric shock and unit malfunctions.

DO NOT remove the cover and attempt to repair or modify the printer. There are high-voltage components within the unit, and the risk of electric shock and unit malfunctions exists. If a problem occurs, contact your JVC dealer.

Illustrations of this video printer maydiffer slightly from production models.

ABOUT THERMAL HEADS

•The thermal heads, necessary for printing, are located within the unit. The heads can become extremely warm. To prevent possible burns and injuries, do not touch the thermal heads.

•When the printer is used for extended periods, the thermal heads experience wear and tear just like VCR heads. As the thermal heads become worn, print quality will gradually decrease. When you notice a decline in quality, it is possible that the heads may need to be replaced. Consult your JVC dealer.

MOISTURE CONDENSATION

If condensation occurs inside the printer, it may adhere to print paper during printing, causing poor quality prints and paper jams. If you think condensation may exist within the unit, let the unit sit for at least 2 hours (with the power on) to dry sufficiently. If paper is stuck within the unit, remove it before turning the power on. Unused print paper subjected to moisture should not be used for printing.

•Condensation may occur in the following situations:

1) In a room when the heater suddenly comes on;

2) In the direct path of cool air from an air

conditioner;

3) When the unit is moved from a cool place to a

warm place.

DUST

Due to dust or lint adhering to print paper, or to extreme variations in temperature, a small degree of colour smearing or lines may be visible in prints.

Failure to heed the following precautions may result in damage to the printer.

1. DO NOT place the printer . . .

... in an environment prone to extreme temperatures

or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields

are generated. ... on a surface that is unstable or subject to

vibration.

2. DO NOT block the printer’s ventilation openings.

3. DO NOT place heavy objects on the printer.

4. DO NOT place anything which might spill on top of the printer.

5. AVOID violent shocks to the printer during transport.

CAUTION:

Changes or modifications not approved by JVC could void user’s authority to operate the equipment.

4 EN

MAJOR FEA TURES

Printing Directly from Your Digital Camcorder

● A desired scene may be printed directly from your digital camcorder by connecting this unit to it with a DV connector.

Cordless Printing with IrTran-P

● This printer conforms to the IrTran-P standard which ensures a greater compatibility in the field of video communications. It therefore offers a superior system extendibility for the future providing system compatibility with the products of different manufacturers.

● With this unit you can print from any digital still camera compatible with IrTran-P without using a cable connection.

Sending a Picture Stored in the Printer to your PC

● You can store a picture from a digital camcorder or a digital still camera in the printer and transfer it to your PC.

● More creative printing work may be achieved by processing your picture data with the provided MGI PhotoSuite or other commercially available painting software.

EN 5

6 EN

CAUTIONS

CONTENTS

MAJOR FEATURES CONTROLS, INDICATORS AND CONNECTORS

Front View ....................................................................................... 8

Rear View ....................................................................................... 9

HOW TO MAKE CONNECTIONS (DV CONNECTION) HOW TO MAKE CONNECTIONS (IrDA RECEPTION)

INSTALLATION OF INK CASSETTE LOADING THE PAPER TRAY PREPARATION

PRINTING FROM A DIGITAL CAMCORDER (DV CONNECTION)

PRINTING FROM A DIGITAL STILL CAMERA (IrDA RECEPTION)

PERSONAL COMPUTER PRINTER SECTION INTRODUCTION

4 8

10 11

12 14 15 16 18 21 22

PERIPHERAL UNIT CONNECTIONS HOW TO INSTALL THE SOFTWARE OPEN & CLOSE (Basic Operation Procedure) CONTROLS AND OPERATIONS PRINTING PROCEDURE CAPTURING A PICTURE INTO the PC

24 25 26 28 31 32

PRINTING FROM the PC

How the Setup Dialog Works .............................................................. 34

How the Spooler Window Works ......................................................... 35

EN 7

INDICATIONS AND MESSAGES

Lamp Indications ............................................................................. 36

Printer Section ............................................................................... 39

PC Printer Section ............................................................................ 40

Other Problems: ............................................................................. 42

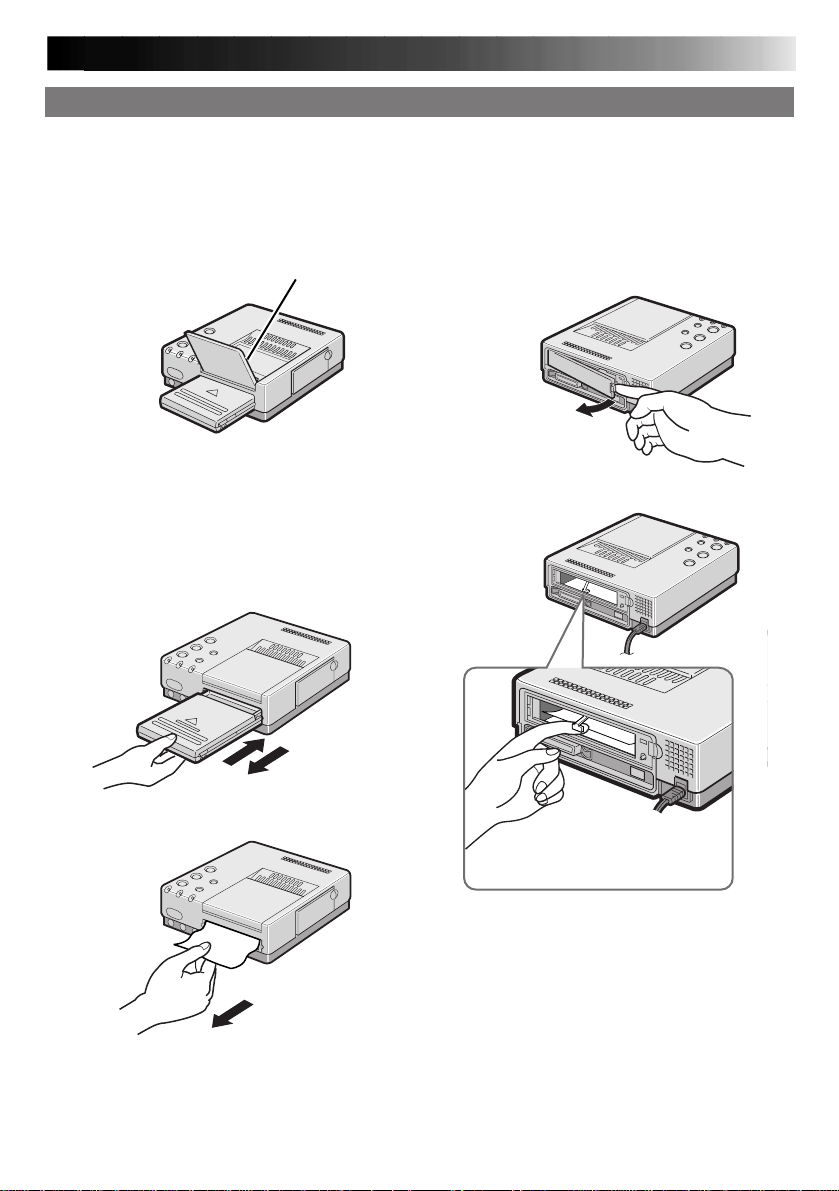

When Paper Jams ........................................................................... 43

SPECIFICATIONS

PROVIDED ACCESSORIES

CD-ROM

•MGI PhotoSuite

Floppy Disk

Paper Tray

•It should be noted that it may be unlawful to print from pre-recorded tapes or discs without the consent of the owner of copyright in the video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

•The copyright for the program which provides IrDA infrared communications for this software is owned by Okaya Systemware Co., Ltd. IrDA Protocol Stack "Deep Core

Blank Paper Sheet Set

•Standard Print Paper (10 sheets)

•Ink Cassette (10 prints)

" Okaya Systemware Co., LTD.

DV cable

8 EN

Front View

CONTROLS, INDICA TORS AND CONNECTORS

1 2345 6

7 8 9

!@#

PRINT button

IrDA/DV button

•Switches the video input between IrDA and DV.

STANDBY/ON button

•Turns the printer on and off.

MEMORY button

•Used to store a video picture delivered through the DV connector.

ON LINE button

•Press this for video communications with your PC.

Vent holes

•Periodically clean these holes with a vacuum cleaner. Make sure the printer’s power cord is unplugged.

IrDA lamp

DV lamp

ON LINE lamp

•Lights when the PC mode is on.

IrDA sensor

•Receives a video data through the IrDA communication system.

Paper Tray Insertion Slot

•Insert the paper tray into this slot.

Output Tray

•Printed sheets are stacked here. * Be sure to open the tray when using the

printer.

Ink Cassette Insertion Slot

•Open this to load or unload the ink cassette.

Rear View

EN 9

PARALLEL Connector

•Connect to the parallel (printer) terminal of a computer using a commercially available printer cable.

Service Door for Jammed Paper Removal

•Open this door when paper is jammed.

* Do not open this door unless paper is

jammed. Be sure to close this after clearing the paper jam.

DV connector

•Used to receive a video data from a digital camcorder with a DV connector.

Power Cord

•Plug into an AC outlet (AC 220 – 240 V).

10 EN

Some televisions and video cassette recorders require a specific type of output cable. Refer to their instruction manuals for details on television and VCR connections to the GV-DT1.

HOW TO MAKE CONNECTIONS (DV CONNECTION)

WHEN PRINTING FROM A DIGITAL CAMCORDER WITH A DV CONNECTOR

Digital camcorder

To DV connector

DV cable (provided) Core Filter Connect the end provided with the Core Filter to the Printer.

To DV input connector

DV IN

Printer

HOW TO MAKE CONNECTIONS (IrDA RECEPTION)

WHEN PRINTING FROM AN IrTran-P COMPATIBLE DIGITAL STILL CAMERA

IrTran-P (Infrared Transfer Picture): An infrared video data communications format which enables infrared communications of video data between compatible units of different manufacturers.

IrTran-P compatible digital still camera

EN 11

Approx. 15° Approx. 15°

IrDA sensor

Printer

Video data communications with the IrDA infrared communications system can be accomplished only between one transmitter and one receiver.

If a picture is sent from one digital still camera to more than one printer, the picture can be received and printed only by the printer that has first responded to the transmission.

Within an approx. 50 cm distance

Data communications may not be possible between some units when they are too close or too distant.

12 EN

mark

INST ALLA TION OF INK CASSETTE

Install the ink cassette included with the available blank paper sheet set.

INST ALLA TION OF INK CASSETTE

OPEN CASSETTE DOOR

Pull the right top of the door in the direction indicated by the arrow to open it.

TAKE UP SLACK

Turn the roller on the side with the “ ” mark in the direction of the arrow. Do not turn the part marked with

INSTALL INK CASSETTE

Insert the cassette label-side up from the end marked. Push it until you hear a click.

Lock lever

CLOSE CASSETTE DOOR

Push the right side of the door.

•The door clicks when it is fully closed.

When removing ink cassette

Push the lock lever in the direction of arrow. The ink cassette is unlocked and can be removed.

CAUTION

Do not stick your fingers into the ink cassette storage space. You may be burned or injured.

About Blank Paper Sheet Sets (optional)

You must use one of the sets shown in the following chart:

EN 13

SET

PV-50SFAE (Standard type)

PV-25SFSAE

(Sticker type)

PV-25UFAU (Super Fine HG type)

* This unit does not incorporate a function for splitting the screen into 16 pictures. Printing on 16-picture multi-print sticker paper is impossible unless the digital still camera or the application software has a 16-picture splitting function. When multiple pictures are printed on a sheet, the print positions may vary from the intended positions.

Before Printing

● Do not touch printing side of the paper.

● Do not use paper that is torn or curled, as

this can result in paper jamming.

● Do not use paper that is wet or damp. Printing may not be possible and paper jamming may occur.

● Do not touch or pull out the ink cassette’s ink sheet.

● Keep young children away from the ink cassette’s ink sheet.

● When the ink cassette is empty, replace it with a new one. An empty ink cassette cannot be used. Do not try to rewind and re-use cassette.

● Do not expose the paper to high temperatures, high humidity and/or direct sunlight.

● You can write on one side of a PV-50SFAE print sheet.

● If you want to write something or stick a stamp on a PV-50SFAE sheet, wait until printing is finished. If you write something or stick something on before printing, the printer may not work properly.

● Carefully read the precautions in the blank paper sheet set box and on the back of the blank sheet set before using.

•Standard Print Paper (50 Sheets)

•Ink Cassette (50 Prints)

•1-Picture Single-Print Sticker Paper (15 Sheets)

• 16-Picture Multi-Print Sticker Paper (10 Sheets)

•Ink Cassette (25 Prints)

•Standard Print Paper (25 Sheets)

•Ink Cassette (25 Prints)

CONTENTS

USES

Print your favorite images, just like snapshots.

Make customized seals and stick them on greeting cards, envelopes, letters, etc.

Suitable for storing Print paper.

After Printing

● If you touch a fresh print with wet hands, the print image may be discolored.

● If a print absorbs organic cleaning solvents (alcohol, ester, keton, etc.), the colours will fade.

● If cellophane tape or soft PVC are affixed to a print, the chemical reaction will cause accelerated colour fading.

● When writing on a PV-50SFAE print sheet, be sure to use a pencil or an oil-based writing utensil. If you apply too much pressure, you’ll leave imprints on the print sheet.

Storage

● Avoid storing prints in areas subject to high temperatures or humidity, or near a heater or heat-generating device.

● Do not store prints in a soft plastic folder. Accelerated colour fading may result due to the chemical reaction, or the print(s) may stick to the file.

● Do not store 2 prints with the printed sides touching, as the sheets may stick together.

● Store print paper in its box, on a level surface. Failure to do so may cause the print paper to curl or bend, which can result in a paper jam within the unit.

14 EN

To printer

Detection marks

Printing side

Partition panel

Output tray

Cautions

LOADING THE P APER TRA Y

Opening the paper tray

● Open the lid while pushing A.

Inserting blank paper sheets in the paper tray

1. Keep the partition panel upright. If it is

tilted, get it upright by pushing the back of the paper tray.

2. Load print sheets in the tray, placing the

side with the detection marks toward you, face down.

•Sticker sheets are not provided with detection marks. Simply load them so that the printing side faces upward.

•The tray can hold up to 25 sheets at one time.

Be sure to read “Precautions when inserting printing paper” on the back of the paper tray lid.

Loading/unloading the paper tray

● When loading, push the tray until it clicks.

● When unloading, push the tray slightly to

unlock the latch, then pull it out.

PREP ARA TION

● Before printing, make sure everything is set up and ready.

Have a Blank Paper Sheet Set ready. (page 13)

Install the ink cassette in the printer (page 12)

Place the blank paper sheets in the paper tray and load the tray (page 14).

● Use print sheets and ink cassette from the same kit.

Open the output tray.

Connect image source to the printer (page 10).

Plug the printer’s power cable into an AC outlet and press the

button.

● Power comes on and the indicator lights.

EN 15

You are now ready to print. For specific printing instructions, read the page corresponding to the type of printing you want to do (pages 16 through 19).

16 EN

PRINTING FROM A DIGITAL CAMCORDER (DV CONNECTION)

Preparation

● See page 10 for connection.

SET THE CAMCORDER TO PLAY

•Refer to the instruction manual of your camcorder.

PRESS THE IrDA/DV BUTTON OF THE

IrDA/DV

IrDA

MEMORY

ON LINE

DV ON LINE

PRINTER

•When the DV lamp is Blinking : Video data is being received by

Lighting : Video data is not under reception.

WHEN YOU HAVE REACHED THE

SCENE YOU WANT TO PRINT, SET THE CAMCORDER TO STILL PICTURE

the printer. Check for proper connection

referring to page 10.

IrDA/DV

IrDA

MEMORY

ON LINE

DV ON LINE

PRESS THE PRINTER MEMORY

BUTTON

•The picture you want to print is stored in memory.

•The PRINT lamp is blinking during video data conversion (for about 40 seconds).

When you want to transmit the stored picture to your PC, see “Capturing a Picture into the PC” on page 32.

EN 17

IrDA/DV

IrDA

MEMORY

ON LINE

DV ON LINE

WHEN THE PRINT LAMP STOPS

BLINKING AND LIGHTS, PRESS THE PRINT BUTTON

•The PRINT lamp blinks and printing starts.

•Printing is finished when the print paper is discharged with the PRINT lamp lit.

•If you want to print the same picture again,

press the PRINT button again after printing has once finished. Every pressing of the PRINT button produces one print copy.

•If you want to print another picture, repeat

the steps 3 to 5.

18 EN

When using a digital still camera compatible with IrTran-P, please refer also to the instruction manual provided with the camera.

PRINTING FROM A DIGITAL STILL CAMERA (IrDA RECEPTION)

Preparation

When only storing a picture When storing and printing a picture

Remove the paper tray from the printer. Load the paper tray containing print sheets.

When picture data is sent from the digital still camera, a copy is automatically printed.

PRESS THE PRINTER IrDA/DV

IrDA/DV

MEMORY

BUTTON TO START THE IrDA LAMP LIGHTS

IrDA sensor

IrDA

ON LINE

DV ON LINE

STORE THE PICTURE YOU

WANT TO PRINT IN THE DIGITAL STILL CAMERA

•Refer to the instruction manual provided with the camera for details.

TRANSMIT THE PICTURE IN THE

CAMERA TO THE PRINTER

•Aim the IrDA transmitter of the digital still camera at the IrDA sensor of the printer.

•The picture data is sent from the digital still camera to the printer.

• Refer to the instruction manuals provided with the machines in use for details of their operation.

• The DV and ON LINE lamps blink with the paper tray removed. Press the ON LINE button to light the ON LINE lamp, so as to cancel blinking. If you want to transmit the stored picture to your PC, refer to “Capturing a Picture into the PC” on page 32.

The picture is automatically transmitted to the printer. A copy is then automatically printed.

• When transmission is finished, the IrDA lamp changes from blinking to lighting.

• Printing is finished when the print sheets are discharged and the PRINT lamp lights.

q Procedure from Picture Data Transmission to Printing

The picture data sent from the digital still camera is automatically printed. The PRINT lamp lights and blinks as indicated below until printing is finished.

EN 19

DV ON LINE

IrDA

Blinking slowly

DV ON LINE

IrDA

Lighting Blinking

DV ON LINE

IrDA

Lighting Blinking slowly

DV ON LINE

IrDA

Lighting Lighting

PICTURE DATA BEING TRANSMITTED

FROM CAMERA TO PRINTER

PRINTER CONVERTING THE PICTURE

DATA AFTER TRANSMISSION

•This may take several minutes depending on the machines in use or the volume of data transmission.

DATA CONVERSION FINISHED

•Printing automatically starts with the paper tray loaded.

PRINTING FINISHED

• The picture data is being stored in memory as long as the PRINT lamp is lit. Every pressing of the PRINT button produces a print copy of the same picture.

• When you want to print another picture, repeat the steps 2 and 3 on the previous page.

• Data communications may be variable or impossible depending on the lighting condition, battery consumption, communications distance and sending and receiving angles.

20 EN

MEMO

EN 21

PERSONAL COMPUTER PRINTER SECTION

q The Readme.TXT file provides additional information for setup and information

that is not included in the instruction manual. Please read the file before installing the provided software program.

q You can find the latest information (in English) on the provided software program

at our www server: <www>http://www.jvc-victor.co.jp/

q If you want to process the picture, see the Idea Guide of the MGI PhotoSuite

included in the CD-ROM.

22 EN

INTRODUCTION

REQUIRED HARDWARE

q Bi-Directional 25-pin printer interface q 486DX2 or higher CPU

OPERATING ENVIRONMENT

q Personal computer with MicrosoftT* WindowsT* Operating System Version 3.1

(also verified to run with MicrosoftT WindowsT 95) *MicrosoftT and WindowsT are trademarks of the Microsoft Corporation registered in the

United States and other countries.

q 16 MB RAM or more q At least 8 MB available hard disk space q Colour display capable of handling at least 640 x 480 dots and 256 colours

(Recommended: true colour 24-bit)

q WindowsT-compatible mouse connected to PC q 3.5” 1.44MB floppy disk drive q CD-ROM drive

THINGS YOU’LL NEED IN ADDITION THE PROVIDED ACCESSORIES

A commercially available printer cable (3 m or shorter). Use one capable of all-pin wiring. Some PCs are compatible only with a particular design of printer cable. Consult your dealer before purchasing a cable. When using a printer cable which is over 3 m long, a transmission error may occur.

(Example)

25-pin male D-sub

36-pin male Micro ribbon

EN 23

SOFTWARE FEATURES

DRIVER WINDOW

Print orientation, number of prints and image adjustment can be selected in this window.

•Print orientation :Portrait/Landscape

•No. of prints : 1 to 25

•Image adjustment Contrast :Low — High (11 grades from –5 — +5) Brightness : Dark — Bright (11 grades from –5 — +5)

CAPTURE UTILITY WINDOW FOR IMAGE CAPTURING

Images stored in the GV-DT1 can be processed and stored in your computer in the bitmap (BMP) format.

Storage format

File Image capture / Save /

The GV-DT1 “Driver and capture utility software” is not operable as a network printer.

Extension: *.BMP format (full colour / 256 tone / gray scale) Image size 640 x 480 / 320 x 240 / 160 x 120

Save as / Exit

Edit Undo / Copy / Rotate 90° /

Resize / Change colour mode

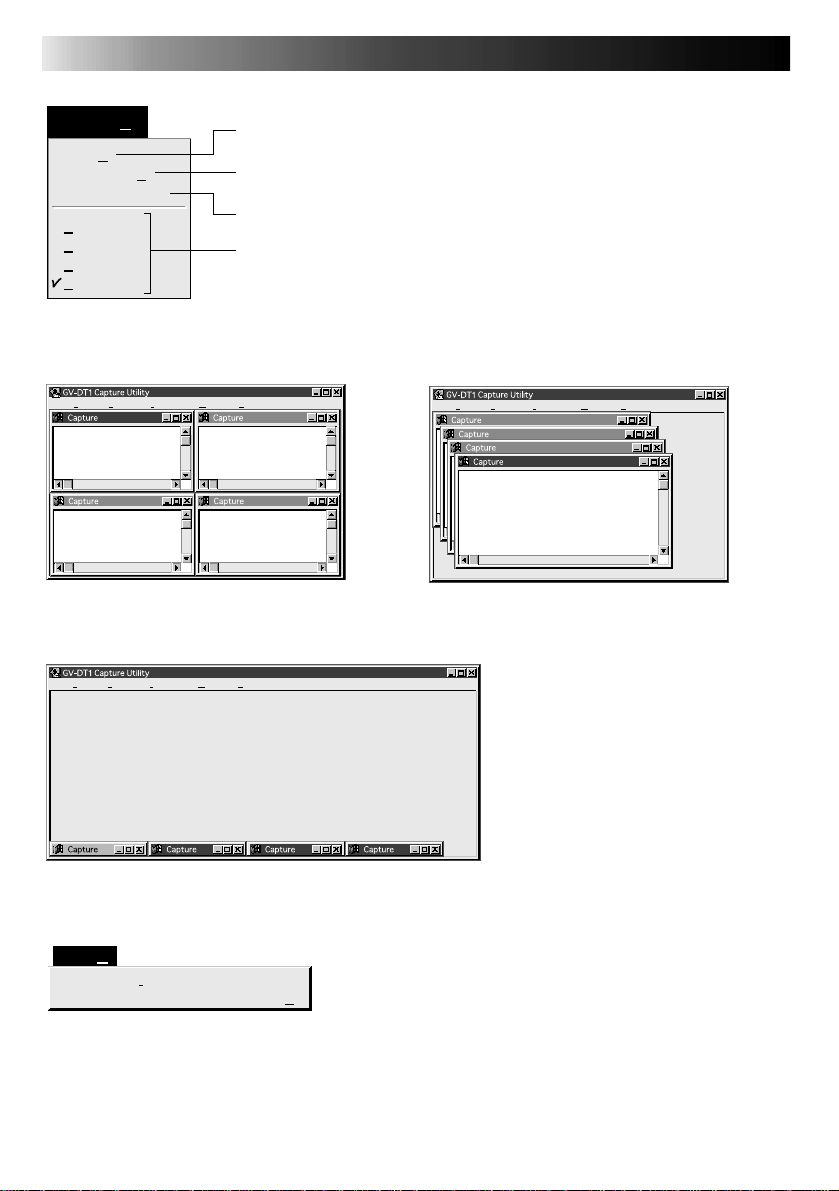

Image Enlarge / Reduce Window Tile / Cascade / Arrange

icons / Select file

Help Help menu / Version

24 EN

Some televisions and video cassette recorders require a specific type of output cable. Refer to their instruction manuals for details on television and VCR connections to the GV-DT1.

When Printing from PC

q When connecting components, make sure all units are turned off.

Printer

PERIPHERAL UNIT CONNECTIONS

To PARALLEL connector

Commercially available printer cable (bidirectional parallel interface)

Parallel (printer) connector

HOW TO INST ALL THE SOFTW ARE

INSTALLING IN A WINDOWS

See the instruction manual of WindowsT or the PC in use for the basic operation of W indows T.

COMPATIBLE PC

EN 25

In the case of WindowsT 95

Start up WindowsT 95.

• If you have any other applications open, close them all.

Insert the “Driver & Capture Utility

Software” into the floppy disk drive.

Double-click the My Computer icon on

the desktop.

Double-click the floppy disk icon.

• The SETUP icon appears on the display.

Double-click the SETUP icon.

• Installation begins.

• Follow the instruction messages on the display.

• If you agree to the Software Licensing Agreement, press [Yes]. If not, press [No], and the processing is closed.

In the case of WindowsT 3.1

Start up WindowsT 3.1.

• If you have any other applications open, close them all.

Insert the “Driver & Capture Utility

Software” into the floppy disk drive.

Select [File Manager] from the [Main]

group on the WindowsT display.

Select a floppy disk drive.

The setup. exe file appears on the display.

•

Double-click the setup. exe file.

• Installation begins.

• Follow the instruction messages on the display.

• If you agree to the Software Licensing Agreement, press [Yes]. If not, press [No], and the processing is closed.

Click the [Reboot] button.

• WindowsT is once closed and then opened again.

• This completes the installation procedure.

The provided software is capable of displaying 6 languages including English, German, French, Spanish, Italian and Dutch. The language used by the software is selected automatically at the time of installation according to the language setup of your personal computer. English is used when your personal computer is set to a language other than one listed above.

Click the [Reboot] button.

• WindowsT is once closed and then opened again.

• This completes the installation procedure.

26 EN

OPEN & CLOSE (Basic Operation Procedure)

GETTING STARTED

You can launch this program using the standard procedure for WindowsT. There are some differences between WindowsT 3.1 and WindowsT 95.

WindowsT 3.1 offers a number of ways to launch an application.

1. Open the group of application icons on the program manger and double-click the application you want to open.

2. Select Run in the program manger, select the file name of the application and click the RUN button.

3. Double-click the application name in the File Manager menu.

File(F) Edit(E) View(V) Help(H)

With WindowsT 95, click the [START] button on the taskbar, and the program menu appears on the screen. Move the cursor to the program you want to run and click to start the program.

Accessories

StartUp MS-DOS Prompt Windows Explorer

Now let’s actually launch the program. If you’re using WindowsT 3.1, open the JVC GV-DT1 Capture group on the program manager

and double-click the JVC GV-DT1 Capture icon. If you’re using WindowsT 95, select JVC GV-DT1 Capture on the start menu and start it.

Once the program has loaded, WindowsT 3.1 displays the screen shown below.

Icon button

Control menu button

File(F) Edit(E) Image(I) Window(W) Help(H)

Titlebar

Maximize button

The titlebar and menubar look different on WindowsT 95.

Icon button

Control menu button

Titlebar

Close button

EN 27

File(F) Edit(E) Image(I) Window(W) Help(H)

Maximize button

CLOSING THE PROGRAM

Double-click the control menu button in WindowsT 3.1 or click Close GV-DT1 Capture Utility (X) on the [File (F)] menu.

With WindowsT 95, simply click the Close button.

28 EN

CONTROLS AND OPERA TIONS

MENUBAR

File(F) Edit(E) Image(I) Window(W) Help

Capture New(N)

Save(S)

Save As(A)

Exit Capture Utility(X)

The menubar provides several menus with lists of commands that enable you to execute various program functions.

Click the desired item on the menubar to pull down the menu. Then click on the desired command in the pulldown menu.

Some commands may not be executable depending on where you are in the program. Disabled functions look lighter than other items.

Each menu is configured as shown below

File(F)

Capture New(N)

Save(S)

Save As(A)

Exit Capture Utility(X)

Select to capture the image stored in printer into the computer.

Select to change the file content without changing the file name. This erases all the content previously entered.

Select to save as a new file. Closes the capture utility program.

EN 29

Edit(E)

Undo(Z) Copy(C) Rotate 90° Clockwise(9) Rotate 90° Counterclockwise(0) Resize(S) Change Colour Mode(C)

Select to undo the most recent work done. Select to copy to the clipboard. The copy is displayed in

colour according to the monitor setup. Select to rotate through 90° clockwise. Select to rotate through 90° counterclockwise. Select to reduce the captured image to 1/4 or 1/16. Select to change the number of colours (colour grade scale)

of the capture image.

Captured image

File(E) Edit(E) Image(I) Window(W) Help(H)

Rotate 90° clockwise

File(E) Edit(E) Image(I) Window(W) Help(H)

Click Undo when you want to restore the previous image.

Edit(E)

Undo(Z)

Copy(C) Rotate 90° Clockwise(9)

If you want to restore the previous size after resizing, click Undo. If you resized the image more than once, you cannot restore the original size.

Rotate 90° Counterclockwise(0)

Resize(S)

Change Colour Mode(C)

Captured image

File(E) Edit(E) Image(I) Window(W) Help(H)

640x480->320x240 640x480->160x120

1/4

File(E) Edit(E) Image(I) Window(W) Help(H)

Rotate 90° counterclockwise

File(E) Edit(E) Image(I) Window(W) Help(H)

Reduces the current image to 1/4. Reduces the current image to 1/16.

1/16

File(E) Edit(E) Image(I) Window(W) Help(H)

Edit(E)

Undo(Z)

Copy(C) Rotate 90° Clockwise(9) Rotate 90° Counterclockwise(0) Resize(S)

Change Colour Mode(C)

Image(I)

800% 400%

Displays the captured image at the desired magnification.

200% 100%

50% 25%

256-Tone Index Colour

Grey Scale

Switches between full-colour mode, 256tone index colour mode and Grey Scale mode.

30 EN

CONTROLS AND OPERA TIONS

(cont.)

Window(W)

Tile(T) Cascade(C) Arrange Icons

1 Capture1 2 Capture2 3 Capture3

Arranges the captured images side by side and stacked one upon another. A maximum of four tiles are visible at one time.

Arranges the captured images in cascade. Shows a maximum of four images overlapping one another.

Arranges the minimized images side by side. Temporary file names for the captured images.

4 Capture4

• Tile • Cascade

File(F) Edit(E) Image(I) Window(W) Help(H)

• Arrange Icons

File(F) Edit(E) Image(I) Window(W) Help(H)

4 3

Help(H)

Contents(I) About GV-DT1 Capture Utility(A)

Displays contents of the help file. Displays the software version information.

PRINTING PROCEDURE

Store the picture you want to transmit to the PC in the printer.

TRANSMITTING

Capture the picture you want to print into the PC.

Work on the characters and other data with the MGI PhotoSuite provided or other optional software programs.

EN 31

Start printing.

32 EN

This is to capture a picture into the PC and display it on the monitor.

CAPTURING A PICTURE INTO the PC

Preparation:

• Capture a picture from a digital camcorder or a digital still camera into the printer in advance.

• See “Printing from a Digital Camcorder” (page 16) or “Printing from a Digital Still Camera” (page 18) for details of capturing.

• The PRINT lamp lights when capturing into the printer is finished.

Press the printer ON LINE button to bring the on LINE lamp into lighting.

IrDA/DV

MEMORY

IrDA

Capture the image

•Select [Capture New (N)] in the File menu to transfer the image data from printer to PC.

•The printer ON LINE lamp blinks during capturing the picture.

•The captured image from the DV connection is framed in white.

Capturing is finished

•The picture captured is shown on the PC display.

If you want to keep the picture in the PC, store it in the hard disk or similar by selecting [File] - [Save As].

Capture in progress

ON LINE

DV ON LINE

10%

Cancel

PRINTING FROM the PC

You cannot print the captured image with the provided Driver & Capture Utility Software. Use a commercially available Paint or other photo editing software program to print the image.

EN 33

Preparation:

Capture the picture referring to “Capturing a Picture into the PC” on the previous page.

Work on the characters and other data with the MGI PhotoSuite provided or other commercially available painting software.

•See the instruction manual provided with the software for details.

Press the printer ON LINE button to bring the ON LINE lamp into lighting.

Set up the printer. (Example)

•WindowsT 95 Select [Print (P)] of the File menu to call up the print display. Select [JVC GV-DT1] in the printer name box.

•WindowsT 3.1 Select [Printer Setup (R)] of the File menu to call up the printer setup display. Select [JVC GV-DT1] as the printer name.

Operations and displays may be different than described above in some applications. Refer to the application’s instruction manual for details.

Call up the printer setup display (setup dialog). (Example)

•WindowsT 95 Click (Properties (P)) on the print display and the (Setup Dialog) box appears. (See page 34)

•WindowsT 3.1 Click [Option (O)] on the printer setup display, and the [Setup Dialog] box appears. (See page 34)

•Select print orientation, number of prints and image adjustment.

•When this is done, click OK. The new settings are saved and the Setup Dialog box closes.

To start printing ...

•Click (OK) on the print display to open the (Spooler) window. (See page 35) When the all the print data is transferred to the printer (the spooler bar reaches the end), printing starts.

NOTE : Printing may not work properly with some software programs.

Do not give a printing instruction to the PC while the printer is printing with the PRINT button pressed, as this may result in the picture printed being abnormal.

34 EN

4 5 6 7 8

HOW THE SETUP DIALOG WORKS

PRINTING FROM the PC

(cont.)

No. of prints

Print orientation

Image adjustment

Print orientation

Select when printing. Portrait : Select when printing a

Landscape: Select when printing a

Number of prints

Enter a number when you want to make multiple prints of the same image. Up to 25 prints possible.

Image adjustment

Select when you want to adjust how the image looks. Contrast (Low/High adjustment): Adjustable between –5 (min.) and +5 (max.). Brightness: Adjustable between –5 (min.) and +5 (max.)

GV-DT1 Setup Dialog

Orientation

Image Adjustment

Normal

vertical image layout. (Maximum size: H 480 dots x V 640 dots)

horizontal image layout. (Maximum size: H 640 dots x V 480 dots)

Portrait

Landscape

Dark Bright

Number of Prints

Contrast

Brightness

HighLow

[OK]

Click to validate the change you have made.

[Cancel]

Click to cancel the change you have made and close this window.

[Normal (N)]

Click to set contrast and brightness to normal.

[Help (H)]

Click to call up help information.

[Version (A)]

Click to display the GV-DT1 printer driver version.

Cancel

Normal(N)

Help(H)…

Version(A)

HOW THE SPOOLER WINDOW WORKS

6 7

8 9

GV-DT1 Spooler

Information(I) Help(H)

EN 35

Control button

Signal indicator box

File name box

Message box

Signal indicator box

Red :Print data capture in pause. Blue : Print data capture in progress.

File name box

Displays the name of the file or the application which you have specified for printing.

Message box

Displays the current status.

Control button

:Click to pause the spooler. :Click to re-open the spooler. When

an error message appears, click [Close] and then

:Click to delete the spooler bar.

2 3

Transmitting now.

Spooler bar box

Help button

Printer icon Information button

Setup button

Spooler bar box

Displays progress of the data transfer from PC to printer. Print starts when the bar is fully down.

Help button

Click to call up help information for the spooler window. Same as [Help] on the menu bar.

Printer icon

Displays the current printer status. See Help for details.

Information button

Displays the spooler version.

Setup button

Spooler setup can be changed depending on how WindowsT is used.

•Shape when opening the spooler

•State when opening the spooler

•How to open the spooler

•How to close the spooler See Help for details.

36 EN

Lamp Indications

INDICA TIONS AND MESSAGES

Lamp indication

IrDA

Blinking quickly

IrDA

One of the input mode lamps lights during the blinking of the PRINT lamp.

ON LINE

Blinking quickly

ON LINE

Blinking quickly

v Appears when: m Recommended actions:

v Ink running out or ink cassette not

loaded.

m Replace with new one or insert ink

cassette.

One of the following items applies.

1) v Rear door is open. m Close the rear door.

2) v Output tray is closed. m Open the output tray.

3) v Paper tray not loaded. m Fill the paper sheets and load the tray.

4) v Print paper running out or jammed. m Refill print sheets or remove the sheet

jammed.

5) v Print paper is not compatible with the

ink cassette type or the direction of print paper is wrong.

m Open the rear door and remove the

jammed paper. Make sure that the print paper is compatible with the ink cassette.

v Temperature within the printer is high.

PRINT lamp may blink quickly also during printing.

m Wait while until PRINT lamp stops

blinking.

Reference

pages

| 14 43

—

IrDA

Lighting

ON LINE

v IrDA mode selected, with no picture

stored in memory.

EN 37

Lamp indication

Lighting

ON LINE

IrDA

Blinking

IrDA

Lighting

IrDA DV

Lighting

IrDA DV

Blinking

Lighting

v Appears when: m Recommended actions:

v IrDA data being received.

v IrDA data being converted.

v Printing with IrDA reception finished. m Every pressing of the PRINT button after

finishing printing produces another copy of the same picture.

v DV mode selected, with no picture

stored in memory.

Reference

pages

18 19

IrDA

Blinking

Lighting

ON LINE

Blinking

v DV data being received.

v DV data being converted.

16 17

38 EN

Lamp Indications (cont.)

INDICA TIONS AND MESSAGES (cont.)

Lamp indication

Lighting

ON LINE

Lighting

ON LINE

Blinking

IrDA DV

IrDA

Lighting

v Appears when: m Recommended actions:

v DV data converted.

Pressing the PRINT button allows

printing of the stored picture. Every pressing of the PRINT button produces another copy of the same picture.

v Ready to receive picture data from PC.

v Picture data being captured from printer

to PC.

Reference

pages

16 17

IrDA

IrDA DV

ON LINE

Blinking

ON LINE

Lighting

v Picture data being received from PC.

v Picture data communications with the

PC has finished.

PRINTER SECTION

EN 39

Picture data cannot be transmitted through the DV connection

Picture blurred when printed from the camcorder with the DV connector

Picture data cannot be transmitted through IrDA reception

Check to see if

v Printer is in DV mode.

Press IrDA/DV button to light the DV lamp.

v Cable is in correct connection.

Make sure of proper connection.

v Picture is recorded on the DV tape.

Use a tape with picture data recorded.

v Camcorder with the DV connector is in Still

Picture mode. When installing a picture from the camcorder by

the DV connector to the printer, set the camcorder with the DV connector in Still Picture.

v Printer is in IrDA mode.

Press IrDA/DV button to light the IrDA lamp.

v Picture data is being transmitted at a correct

distance and angle. Aim the transmitter right in front of the IrDA sensor

of printer and transmit within an approx. 50 cm distance. Data communications may be difficult at a too close or too remote distance depending on the machines in use.

Reference

pages

10 16

11 18

40 EN

INDICA TIONS AND MESSAGES (cont.)

IF YOU HAVE THE FOLLOWING MEASSAGES ON THE DISPLAY

PC PRINTER SECTION

Message

Printer is internally overheated. Please wait.

No ink cassette loaded. Set ink cassette and close cover.

Check the back door or the paper/output trays.

IrDA mode or DV mode is selected. Switch to the PC mode.

Paper is not compatible with ink cassette. Open back door and remove paper .

Ink cassette is empty. Replace ink cassette. Pull out paper tray and check paper.

Paper jammed. Remove paper.

v Appears when: m Recommended actions

v Temperature in the printer rises too high for the

installation environment, continuous printing and other reasons.

m Wait a while until the message disappears. v The ink cassette is not installed or is improperly

installed.

m Insert the ink cassette and close the door.

v Paper tray is running out of paper; rear door is

open; output tray is closed; and paper tray is not loaded.

m Make sure that there is paper in the paper tray and

check for the items mentioned above.

v Picture is captured or printed from a PC with the

printer ON LINE lamp kept off.

m Let the ON LINE lamp light by pressing the ON

LINE button.

v Print sheets are not compatible with the ink

cassette model or the paper orientation is wrong.

m Open the jammed paper removing door and

remove the jammed paper. Make sure that the print paper is compatible with the ink cassette model.

v Ink cassette is running out. m Replace with a new one. m When the ink cassette has been consumed,

remove the paper tray and check for jammed paper. If paper is jammed, place the jammed paper in the tray and load it on the printer.

m Make sure that the print paper is compatible with

the ink cassette model.

v Paper jams during printing. m Remove jammed paper referring to page 43.

Reference

pages

—

9 14

43 13

IF YOU HAVE THE FOLLOWING MEASSAGES ON THE DISPLAY

EN 41

Message

Pull out paper tray and check paper.

Printer has malfunctioned unexpectedly. Printing will be cancelled.

Failed in connecting with a printer. Check printer type, cable connection, and power.

Now Printing. Please wait until printing is over.

v Appears when: m Recommended actions

v The paper tray is running out of paper or paper

feeding is not working.

m Remove the paper tray and set print sheets

correctly.

v Any abnormality occurs during printing. m Turn the power off, unplug the power cord, then

plug the cord back in and turn the power on again. If the message remains, consult your dealer or your local JVC service center.

v PC is connected with any other printer; printer

power is not turned on; or cable is not in correct connection.

m Turn the printer power on after checking to make

sure connections are correct.

v Another operation is done during printing. m Do not do another operation during printing.

Reference

pages

–

42 EN

TROUBLESHOOTING

(cont.)

JVC 0298MNV'SW'VP, LYT0119-001A, GV-DT1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
