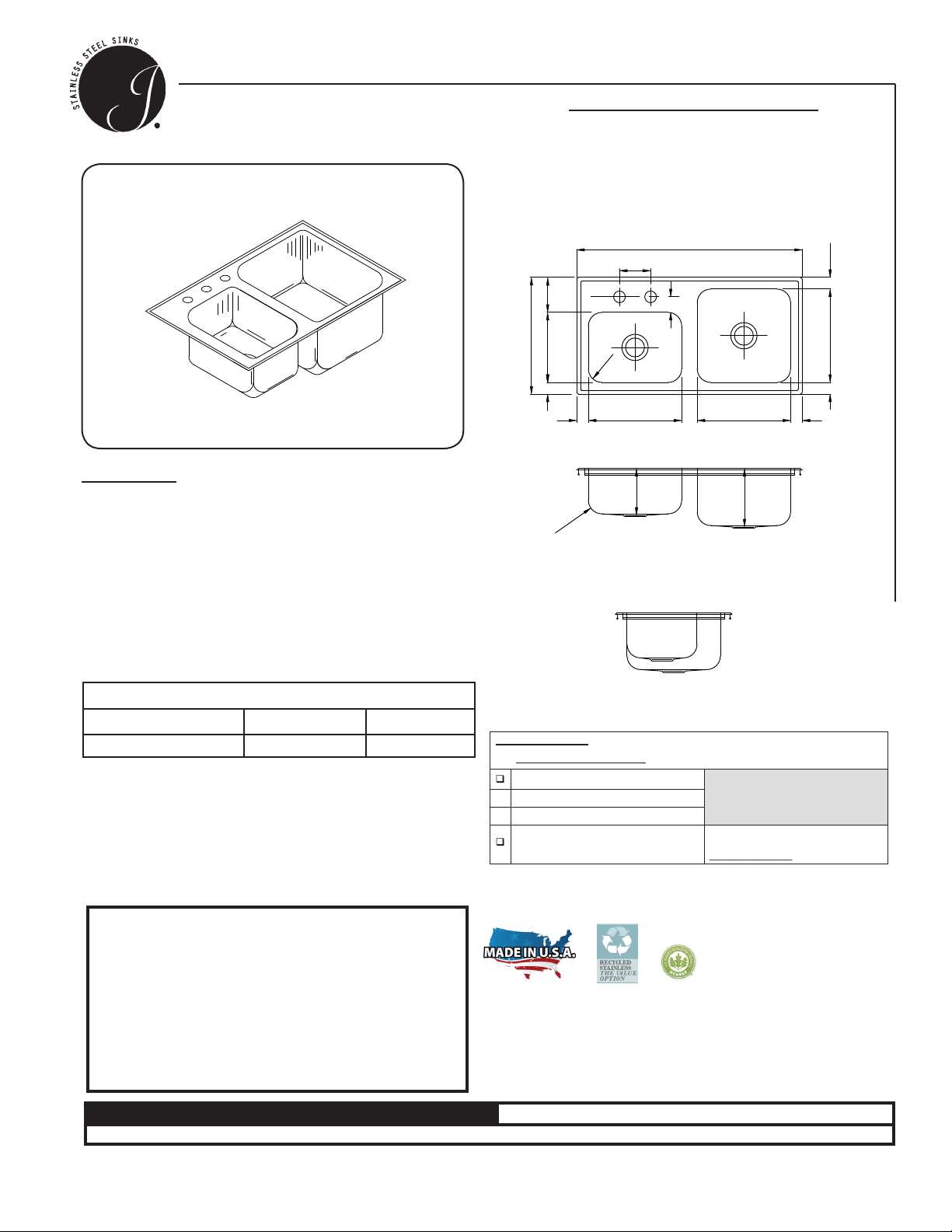

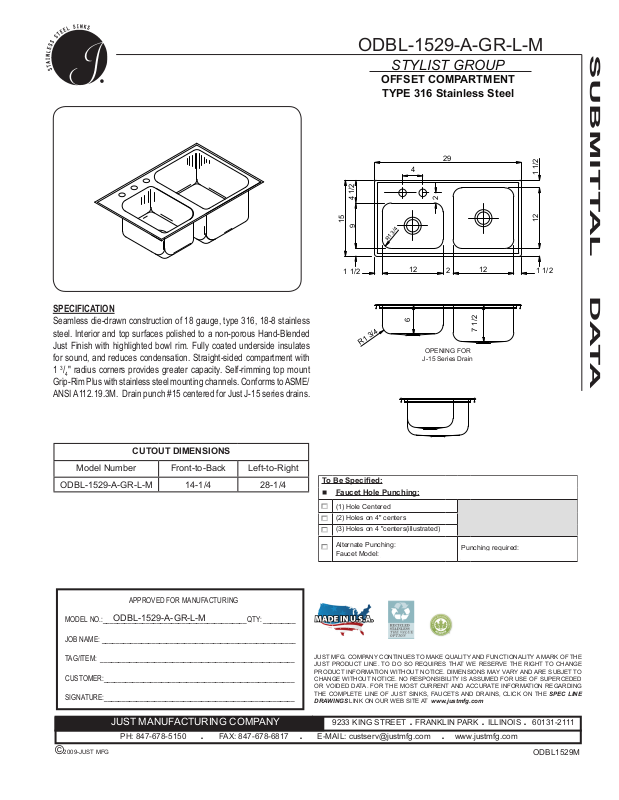

ODBL-1529-A-GR-L-M
STYLIST GROUP
OFFSET COMPARTMENT
TYPE 316 Stainless Steel
29
4
SUBMITTAL DATA
1 1/2
SPECIFICATION
Seamless die-drawn construction of 18 gauge, type 316, 18-8 stainless
steel. Interior and top surfaces polished to a non-porous Hand-Blended
Just Finish with highlighted bowl rim. Fully coated underside insulates
for sound, and reduces condensation. Straight-sided compartment with
1 3/4" radius corners provides greater capacity. Self-rimming top mount
Grip-Rim Plus with stainless steel mounting channels. Conforms to ASME/
ANSI A112.19.3M. Drain punch #15 centered for Just J-15 series drains.
CUTOUT DIMENSIONS
Model Number Front-to-Back Left-to-Right
ODBL-1529-A-GR-L-M 14-1/4 28-1/4
4 1/2
15
9
R1 3/4
1 1/2
R1 3/4
To Be Specied:
n
Faucet Hole Punching:
(1) Hole Centered
(2) Holes on 4" centers
(3) Holes on 4 "centers(illustrated)
Alternate Punching:
Faucet Model: ______________
12
6
OPENING FOR
J-15 Series Drain
2
2
Punching required:
______________
12
7 1/2
12
1 1/2
APPROVED FOR MANUFACTURING
MODEL NO.:________________________________________QTY: _________
JOB NAME: ______________________________________________________
TAG/ITEM: ______________________________________________________
CUSTOMER:_____________________________________________________
SIGNATURE:_____________________________________________________
ODBL-1529-A-GR-L-M
JUST MFG. COMPANY CONTINUES TO MAKE QUALITY AND FUNCTIONALITY A MARK OF THE
JUST PRODUCT LINE. TO DO SO REQUIRES THAT WE RESERVE THE RIGHT TO CHANGE
PRODUCT INFORMATION WITHOUT NOTICE. DIMENSIONS MAY VARY AND ARE SUBJET TO
CHANGE WITHOUT NOTICE. NO RESPONSIBILITY IS ASSUMED FOR USE OF SUPERCEDED
OR VOIDED DATA. FOR THE MOST CURRENT AND ACCURATE INFORMATION REGARDING
THE COMPLETE LINE OF JUST SINKS, FAUCETS AND DRAINS, CLICK ON THE SPEC LINE
DRAWINGS LINK ON OUR WEB SITE AT www.justmfg.com
©2009-JUST MFG
9233 KING STREET . FRANKLIN PARK . ILLINOIS . 60131-2111JUST MANUFACTURING COMPANY
ODBL1529M
