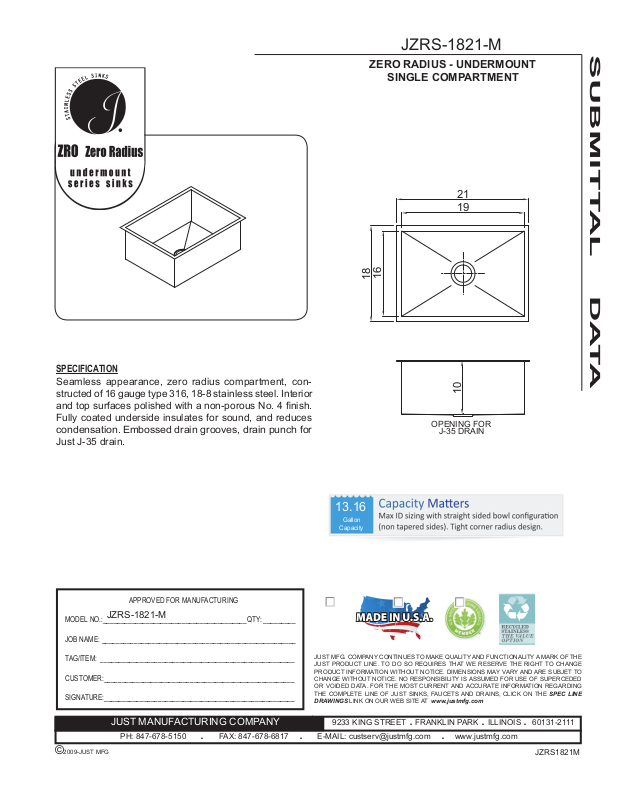

Page 1
JZRS-1821-M
ZERO RADIUS - UNDERMOUNT
SINGLE COMPARTMENT
21
19
16
18
SUBMITTAL DATA
SPECIFICATION
Seamless appearance, zero radius compartment, constructed of 16 gauge type 316, 18-8 stainless steel. Interior
and top surfaces polished with a non-porous No. 4 fi nish.
Fully coated underside insulates for sound, and reduces
condensation. Embossed drain grooves, drain punch for
Just J-35 drain.
APPROVED FOR MANUFACTURING
MODEL NO.:________________________________________QTY: _________
JOB NAME: ______________________________________________________
TAG/ITEM: ______________________________________________________
CUSTOMER:_____________________________________________________
SIGNATURE:_____________________________________________________
JZRS-1821-M
JUST MFG. COMPANY CONTINUES TO MAKE QUALITY AND FUNCTIONALITY A MARK OF THE
JUST PRODUCT LINE. TO DO SO REQUIRES THAT WE RESERVE THE RIGHT TO CHANGE
PRODUCT INFORMATION WITHOUT NOTICE. DIMENSIONS MAY VARY AND ARE SUBJET TO
CHANGE WITHOUT NOTICE. NO RESPONSIBILITY IS ASSUMED FOR USE OF SUPERCEDED
OR VOIDED DATA. FOR THE MOST CURRENT AND ACCURATE INFORMATION REGARDING
THE COMPLETE LINE OF JUST SINKS, FAUCETS AND DRAINS, CLICK ON THE SPEC LINE
DRAWINGS LINK ON OUR WEB SITE AT www.justmfg.com
13.16
Gallon
Capacity
10
OPENING FOR
J-35 DRAIN
©2009-JUST MFG
9233 KING STREET . FRANKLIN PARK . ILLINOIS . 60131-2111JUST MANUFACTURING COMPANY
JZRS1821M
