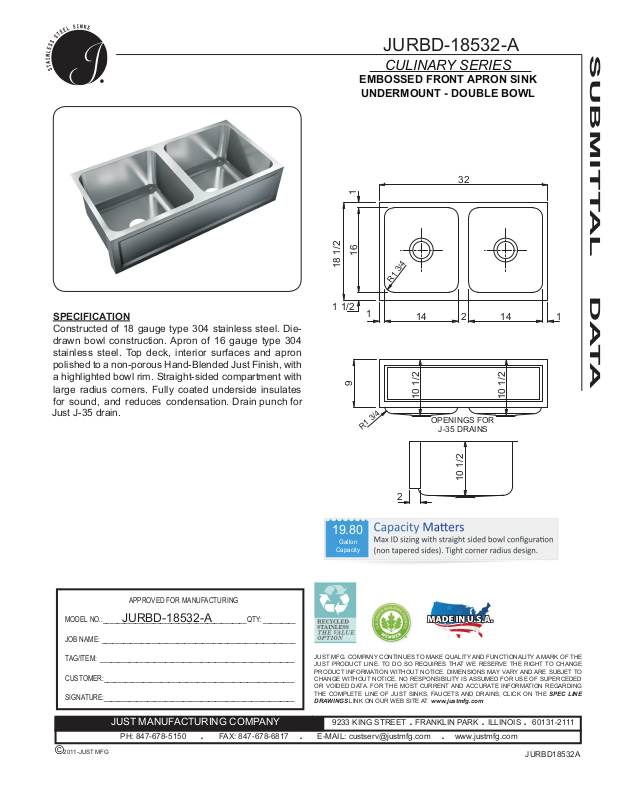

Page 1
JURBD-18532-A
CULINARY SERIES
EMBOSSED FRONT APRON SINK
UNDERMOUNT - DOUBLE BOWL
32
1
16
18 1/2
R1 3/4
SUBMITTAL DATA
SPECIFICATION
Constructed of 18 gauge type 304 stainless steel. Diedrawn bowl construction. Apron of 16 gauge type 304
stainless steel. Top deck, interior surfaces and apron
polished to a non-porous Hand-Blended Just Finish, with
a highlighted bowl rim. Straight-sided compartment with
large radius corners. Fully coated underside insulates
for sound, and reduces condensation. Drain punch for
Just J-35 drain.
1 1/2
9
19.80
Gallon
Capacity
1
R1 3/4
14 14
2
10 1/2
OPENINGS FOR
J-35 DRAINS
10 1/2
2
1
10 1/2
APPROVED FOR MANUFACTURING
MODEL NO.:________________________________________QTY: _________
JOB NAME: ______________________________________________________
TAG/ITEM: ______________________________________________________
CUSTOMER:_____________________________________________________
SIGNATURE:_____________________________________________________
JURBD-18532-A
JUST MFG. COMPANY CONTINUES TO MAKE QUALITY AND FUNCTIONALITY A MARK OF THE
JUST PRODUCT LINE. TO DO SO REQUIRES THAT WE RESERVE THE RIGHT TO CHANGE
PRODUCT INFORMATION WITHOUT NOTICE. DIMENSIONS MAY VARY AND ARE SUBJET TO
CHANGE WITHOUT NOTICE. NO RESPONSIBILITY IS ASSUMED FOR USE OF SUPERCEDED
OR VOIDED DATA. FOR THE MOST CURRENT AND ACCURATE INFORMATION REGARDING
THE COMPLETE LINE OF JUST SINKS, FAUCETS AND DRAINS, CLICK ON THE SPEC LINE
DRAWINGS LINK ON OUR WEB SITE AT www.justmfg.com
©2011-JUST MFG
9233 KING STREET . FRANKLIN PARK . ILLINOIS . 60131-2111JUST MANUFACTURING COMPANY
JURBD18532A
