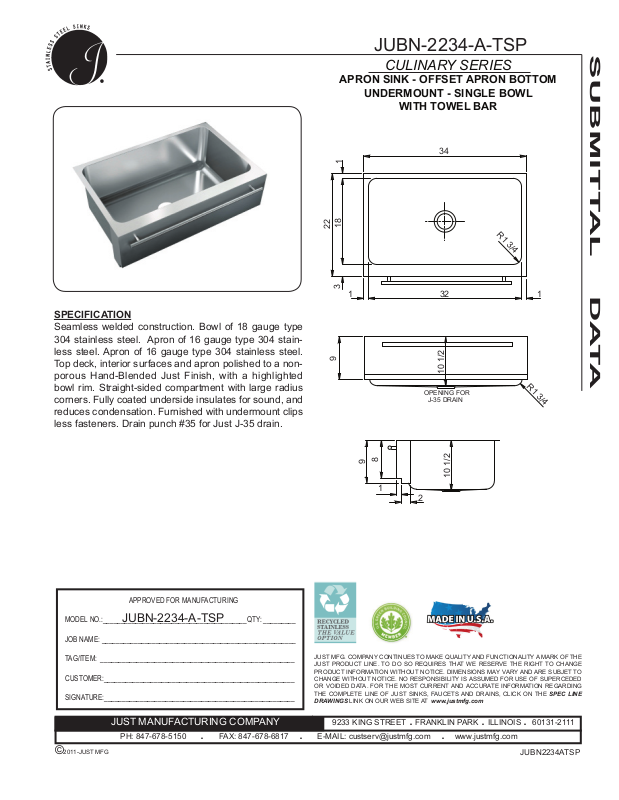

Page 1
JUBN-2234-A-TSP
CULINARY SERIES
APRON SINK - OFFSET APRON BOTTOM
UNDERMOUNT - SINGLE BOWL
WITH TOWEL BAR
SUBMITTAL DATA
SPECIFICATION
Seamless welded construction. Bowl of 18 gauge type
304 stainless steel. Apron of 16 gauge type 304 stainless steel. Apron of 16 gauge type 304 stainless steel.
Top deck, interior surfaces and apron polished to a nonporous Hand-Blended Just Finish, with a highlighted
bowl rim. Straight-sided compartment with large radius
corners. Fully coated underside insulates for sound, and
reduces condensation. Furnished with undermount clips
less fasteners. Drain punch #35 for Just J-35 drain.
22
1
18
3
1
9
34
32
10 1/2
OPENING FOR
J-35 DRAIN
R1 3/4
1
R1 3/4
APPROVED FOR MANUFACTURING
MODEL NO.:________________________________________QTY: _________
JOB NAME: ______________________________________________________
TAG/ITEM: ______________________________________________________
CUSTOMER:_____________________________________________________
SIGNATURE:_____________________________________________________
JUBN-2234-A-TSP
JUST MFG. COMPANY CONTINUES TO MAKE QUALITY AND FUNCTIONALITY A MARK OF THE
JUST PRODUCT LINE. TO DO SO REQUIRES THAT WE RESERVE THE RIGHT TO CHANGE
PRODUCT INFORMATION WITHOUT NOTICE. DIMENSIONS MAY VARY AND ARE SUBJET TO
CHANGE WITHOUT NOTICE. NO RESPONSIBILITY IS ASSUMED FOR USE OF SUPERCEDED
OR VOIDED DATA. FOR THE MOST CURRENT AND ACCURATE INFORMATION REGARDING
THE COMPLETE LINE OF JUST SINKS, FAUCETS AND DRAINS, CLICK ON THE SPEC LINE
DRAWINGS LINK ON OUR WEB SITE AT www.justmfg.com
©2011-JUST MFG
8
9
10 1/2
1
9233 KING STREET . FRANKLIN PARK . ILLINOIS . 60131-2111JUST MANUFACTURING COMPANY
OPENING FOR
2
J-35 DRAIN
JUBN2234ATSP
