JA95-N42
Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
Rev. A
Jupiter Avionics Corporation
1959 Kirschner Road
Kelowna BC
Canada V1Y 4N7
Tel: 778-478-2232
Toll-Free: 855-478-2232
www.jupiteravionics.com
RECORD OF REVISIONS
Revision
Rev Date
Description
A
Aug 2015
Initial release, Serial number 1001 and higher.
Prepared:
Checked:
Approved:
IMPORTANT:
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
Copyright 2015 Jupiter Avionics Corp.
All rights reserved
Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express
use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this
copyright notice. Any unauthorized commercial distribution of this manual is strictly prohibited. Except as described
above, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded, or stored in any
storage medium for any purpose without the express prior written consent of JAC.
Information in this document is subject to change without notice.
To confirm the current revision status of this manual, visit the JAC website:
www.jupiteravionics
.com
ECR
3677
MPB
Rev A Page ii
JAC
09-11-15
AH
JAC
09-11-15
KDV
JA95-N42 Audio Controller - Passenger RX ISO - NVG
SECTION 1 - DESCRIPTION ........................................................................................................................................... 1
1.1 System Overview .............................................................................................................................................. 1
1.2 Features Overview ............................................................................................................................................ 1
1.3 Inputs and Outputs ........................................................................................................................................... 2
1.3.1 Inputs ........................................................................................................................................................ 2
1.3.2 Outputs ..................................................................................................................................................... 2
1.3.3 Bi-directional Ports .................................................................................................................................... 2
1.4 Specifications .................................................................................................................................................... 3
1.4.1 Electrical Specifications ............................................................................................................................ 3
1.4.2 Mechanical Specifications ........................................................................................................................ 5
1.4.3 Flammability of Materials .......................................................................................................................... 5
SECTION 2 – INSTALLATION ........................................................................................................................................ 6
2.1 Introduction ....................................................................................................................................................... 6
2.2 Continued Airworthiness ................................................................................................................................... 6
2.3 Unpacking and Inspecting Equipment .............................................................................................................. 6
2.3.1 Warranty ....................................................................................................................................................... 6
2.4 Installation Procedures ..................................................................................................................................... 6
2.4.1 Cabling and Wiring ....................................................................................................................................... 6
2.4.2 Mechanical Installation ................................................................................................................................. 7
2.4.3 In-Line PTT Cordsets .................................................................................................................................... 7
2.4.4 Legend Replacement .................................................................................................................................... 7
2.4.5 Post Installation Checks ............................................................................................................................... 7
2.5 Adjustments and Configuration using ProCS™ ............................................................................................... 8
2.5.1 Configuration Cabling Requirements ........................................................................................................ 8
2.5.2 ProCS™ Setup ......................................................................................................................................... 8
2.5.3 Configurable Settings ............................................................................................................................... 8
2.5.3 Other Configuration Features ................................................................................................................. 15
2.6 Installation Kit ................................................................................................................................................. 15
2.6.1 Recommended Crimp tools .................................................................................................................... 15
2.7 Installation Drawings ....................................................................................................................................... 15
2.7.1 Generation of Custom Drawings ............................................................................................................ 15
SECTION 3 – OPERATION ........................................................................................................................................... 16
3.1 Introduction ..................................................................................................................................................... 16
3.2 Front Panel Controls ....................................................................................................................................... 16
(1) Transceiver Select Switches and Legends ................................................................................................. 17
(2) Receiver Select Switches and Legends ..................................................................................................... 17
(3) Receive Volume Control ............................................................................................................................. 17
(4) Mode Switch ............................................................................................................................................... 17
(5) Passenger RX Isolation Switch (PXRX/ISO) .............................................................................................. 18
(6) Music/Configuration Connector (♫/io) ........................................................................................................ 18
(7) Transmit Annunciator - TX .......................................................................................................................... 18
(8) Transmit Selector ........................................................................................................................................ 18
(9) VOX Threshold Control ............................................................................................................................... 19
(10) CALL Annunciator ....................................................................................................................................... 19
(11) ICS Volume Control ................................................................................................................................... 19
Rev A Page iii
Installation and Operating Manual
Table of Contents
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
3.3 Normal Operation Mode ................................................................................................................................. 19
3.3.1 Panel Lighting ......................................................................................................................................... 19
3.3.2 Receiving ................................................................................................................................................ 20
3.3.3 Transmitting (Transmit Operation) .......................................................................................................... 20
3.3.4 FM2 PTT Operation ................................................................................................................................ 20
3.3.5 VOX Operation ....................................................................................................................................... 20
3.3.6 ICS Operation ......................................................................................................................................... 20
3.3.7 Call Annunciator Operation..................................................................................................................... 20
3.4 Emergency Operation Mode ........................................................................................................................... 21
3.4.1 Auto Emergency Mode ........................................................................................................................... 21
3.4.2 Selected Emergency Mode..................................................................................................................... 21
Appendix A - Installation Drawings ........................................................................................................................... A1
A1 Introduction ..................................................................................................................................................... A1
A2 Installation Drawings ....................................................................................................................................... A1
Appendix B - Installation Documents ........................................................................................................................ B1
B1 Airworthiness Approval ................................................................................................................................... B2
B2 Instructions for Continued Airworthiness ........................................................................................................ B2
Rev A Page iv
JA95-N42 Audio Controller - 3DVVHQJHU RX ISO - NVG
SECTION 1 - DESCRIPTION
1.1 System Overview
The JA95-N42 Audio Controller - Passenger RX ISO - NVG is a centralized audio management system that
distributes and controls all transceiver, receiver and alert audio in an aircraft. It enables the selected transmission of
microphone audio to a transceiver and distributes all intercom audio.
The JA95-N42 Audio Controller - Passenger RX ISO - NVG can be used in a standalone configuration or a star
configuration to prevent the loss of the entire system due to the failure of one controller. It provides a passive
emergency mode that directs the primary user (pilot) to the COM1 transceiver, NAV1 receiver and Direct Audio
receiver.
The JA95-N42 is set up on a per-installation basis using a configuration cable and a PC running the product
configuration tool to download system configuration settings via the front panel music / configuration connector (♫/io)
without the necessity of removing the unit from the panel. To facilitate future customizations and certification, no
software or complex electronic devices are used in the JA95-N42 design.
1.2 Features Overview
Many of the JA95-N42 input and output levels are adjustable, several audio paths are selectable, and alert audio
analog waveforms can be loaded using the configuration program ProCS™ (Product Configuration Software) to write
configuration commands via the JA99-001 configuration cable to the front panel music / configuration connector. The
audio waveforms are stored in non-volatile devices.
The JA95-N42 provides intercom functions for up to seven users. It supports up to 6 transceivers, each selectable
from a rotary switch, and up to 5 receivers (two on one toggle switch and three on another).
The JA95-N42 features individual VOX gating, and supports two Direct Audio inputs to provide audio at a fixed level to
the users.
The JA95-N42 has a CVR output and a Call Alert Generator.
The JA95-N42 allows transmit access for two crew members (Pilot and Co-pilot).
A Music / Configuration connector is provided on the faceplate of the JA95-N42 for configuration of audio levels and
routing. The port can also be used as a music input and is compatible with most music players.
The JA95-N42 has two modes of operation: Normal Mode and Emergency Mode.
The JA95-N42 is NVIS Type I Class B compliant.
The JA95-N42 has a Passenger Receive Isolation switch.
Rev A Page 1
Name
Qty
Type
ALERT ENABLE
1
Active high discrete
CALL ANNUNCIATOR
1
Active low discrete
CONFIG DATA TO JA95
1
Data signal
DIRECT AUDIO 1 HI/LO
1
Audio signal
DIRECT AUDIO 2 HI/LO
1
Audio signal (selected via ProCS)
FRONT PANEL MUSIC L/R
2
Audio signal
LIGHTS INPUT
1
Analog control signal
MIC HI/LO
7
Audio signal
MODE SELECT / CONFIG AUDIO
1
Multi format signal
MUSIC LEFT HI/LO
1
Audio signal (selected via ProCS)
MUSIC RIGHT HI/LO
1
Audio signal
PILOT and COPILOT ICS PTT
2
Active low discrete
PILOT and COPILOT TX PTT
2
Active low discrete
POWER INPUT
1
14 to 28 Vdc power supply
RX AUDIO HI/LO
11
Audio signal
Name
Qty
Type
CVR HI/LO
1
Audio signal (selected via ProCS)
CONFIG DATA FROM JA95
1
Data signal
PHONES
7
Audio signal
MIC HI/LO
6
Audio signal
PTT
6
Active low discrete
RX COMP OUT HI/LO
1
Audio signal (selected via ProCS)
Name
Qty
Type
ICS TIE HI/LO
1
Audio signal (selected via ProCS)
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
1.3 Inputs and Outputs
Refer to the JA95-N42 connector maps for the mating connector designators and pin assignments for the
input and output signals.
1.3.1 Inputs
1.3.2 Outputs
1.3.3 Bi-directional Ports
Note: There are 6 outputs for driving 7 phones.
Rev A Page 2
JA95-N42 Audio Controller - Passenger RX ISO - NVG
1.4 Specifications
1.4.1 Electrical Specifications
Power Input
Primary nominal voltage 28 Vdc
Secondary nominal voltage 14 Vdc
Maximum voltage 32.2 Vdc
Minimum voltage 10.2 Vdc
Emergency voltage 9.0 Vdc
Input current at 28 Vdc ≤ 0.7 A
Input current at 14 Vdc ≤ 1.4 A
1.4.1.1 Audio Performance
Rated Input Level
Receive audio rated input level 7.75 Vrms ± 10%
Direct audio rated input level 7.75 Vrms ± 10%
Direct audio 2 rated input level 2.50 Vrms ± 10%
Music rated input level 400 mVrms ± 10%
Microphone input level 250 mVrms ± 10%
Intercom Tie Line type 1 input level 340 mVrms ± 10%
Intercom Tie Line type 2 input level 1.20 Vrms ± 10%
CONFIG AUDIO input level 400 mVrms ± 10%
Installation and Operating Manual
Rated Output Level
Phone rated output 7.75 Vrms ± 10%
Pilot Phone rated output,
in emergency mode or with power input ≤6 Vdc 2.20 Vrms ± 10%
Phone rated output power,
with MUSIC input 3.88 Vrms ± 10%
Microphone rated output 250 mVrms ± 10%
CVR rated output 500 mVrms ± 10%
CVR rated output with input as MUSIC 250 mVrms ± 10%
CVR rated output with input as PILOT MIC 1.00 Vrms ± 10%
CVR rated output, in emergency mode, 500 mVrms ± 10%
Receive Composite rated output 2.5 Vrms ± 10%
Intercom Tie Line type 1 rated output 340 mVrms ± 10%
Intercom Tie Line type 2 rated output 1.2 Vrms ± 10%
Audio Frequency Response
Audio output audio frequency response ≤3dB from 300 to 6000 Hz
Alert audio output audio frequency response ≤3dB from 300 to 3000 Hz
Distortion Characteristics
Audio output distortion at rated power ≤ 10%
Audio output distortion at 10% of rated power ≤ 3%
Input Impedance
Microphone input Impedance 150 Ω ± 10%
Direct Audio input Impedance 1000 Ω ± 10%
Direct Audio 2 input Impedance 100 Ω ± 10%
Receive Audio input Impedance 1000 Ω ± 10%
Music Audio input Impedance 1000 Ω ± 10%
Intercom Tie Line Audio input Impedance 2000 Ω ± 10%
Rev A Page 3
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Output Load
Phone load 600 Ω ± 10%
Transceiver Microphone load 150 Ω ± 10%
CVR load 5000 Ω ± 10%
Receive Composite Audio load 600 Ω ± 10%
Intercom Tie Line type 1 rated load 2000 Ω ± 10%
Intercom Tie Line type 2 rated load 2000 Ω ± 10%
Intercom Tie Line type 1 maximum load 666 Ω max (3 loads)
Intercom Tie Line type 2 maximum load 285 Ω max (7 loads)
Volume Controls
Receive Audio control variation 32 ± 3dB
ICS Audio control variation 42 ± 3dB
Input to output Crosstalk and Bleed-through Level
Input to Output crosstalk ≤ 55 dB
Input to Input Crosstalk Level
Input to Input crosstalk ≤ 60 dB
Installation and Operating Manual
Audio Noise Level without Signal
Noise level below the rated output ≥ 60 dB
1.4.1.2 Audio Performance, Other
CVR HI / LO output circuitry type (Normal) differential
CVR HI / LO output circuitry type (Emergency) single ended
Microphone inputs designed for MIC type amplified dynamic
Microphone inputs bias voltage 11 Vdc ±10%
Microphone inputs circuitry type single ended
MUSIC LEFT / RIGHT HI / LO audio input circuitry type differential
FRONT MUSIC LEFT / RIGHT audio input circuitry type: single ended
MUSIC attenuation 40 dB max
RECEIVE AUDIO input circuitry type differential
PHN HI / LO output circuitry type single ended
MIC output circuitry type differential
RX Composite Audio output circuitry type differential
ICS TIE HI / LO Circuitry Type differential
PHN HI / LO output music fade in duration 2.5 ± 1.0 seconds
VOX Threshold level range relative to rated MIC input -30 to +12 dB
VOX Delay Time range 0.5 to 2.0 seconds
Transmit Timer duration 90 ± 30 seconds
1.4.1.3 Discrete Signals
Active low control input, active signal level ≤ +3 Vdc
Active low control input, inactive signal level ≥ +10 Vdc
Active low control input, current ≤ 10 mAdc
Active low control output, active output ≤ +2 Vdc
Active low control output, active, current ≤ 1 Adc
ALERT ENABLE signal active signal level ≥ +9 Vdc
ALERT ENABLE signal, when active, sinks ≤ 10 mAdc
ALERT ENABLE signal inactive signal level ≤ +3 Vdc
1.4.1.4 Lights Input
LIGHTS INPUT ranges 0 to 28, 0 to 14 and 0 to 5 Vdc
LIGHTS INPUT current 10 mA max.
Rev A Page 4
JA95-N42 Audio Controller - Passenger RX ISO - NVG
1.4.2 Mechanical Specifications
Height 1.875 in [47.63 mm] max
Behind panel depth 5.48 in [139 mm] max
Faceplate width 5.75 in [146 mm] max
Behind panel width 5.00 in [127 mm] max
Weight 1.64 lbs. [0.74 kg] max
Connectors (3): One 4 pole 3.5mm stereo jack
One 37-pin D-Sub male
One 50-pin D-Sub male
Mounting 4 Dzus fasteners
Bonding ≤ 2.5 mΩ
Installation kit part number INST-JA95
1.4.3 Flammability of Materials
Installation and Operating Manual
The JA95-N42 complies with the requirements of RTCA/DO-160G Sec 26.3.3 'Flammability', through equivalent
flammability testing of materials and the Small Parts Exemption.
Rev A Page 5
JA95-N42 Audio Controller - 3DVVHQJHU RX ISO - NVG
SECTION 2 – INSTALLATION
2.1 Introduction
This section contains unpacking and inspection procedures, installation information, and post-installation checks.
2.2 Continued Airworthiness
Maintenance of the JA95-N42 is on condition only. Scheduled inspection and/or periodic maintenance of this unit is
not required.
2.3 Unpacking and Inspecting Equipment
Unpack the equipment carefully. Check for shipping damage and report any problems to the relevant carrier. Confirm
that the Authorized Release Certificate or Certificate of Conformance is included. Complete the on-line warranty card
from the Jupiter Avionics Corporation (JAC) website – www.jupiteravionics.com.
2.3.1 Warranty
Products manufactured by JAC are warranted to be free of defects in workmanship or performance for 2 years from
the date of installation by an approved JAC dealer or agency. This warranty covers the cost of all materials and labour
to repair or replace the unit, but does not include the cost of transporting the defective unit to and from JAC or its
designated warranty repair centre, or of removing and replacing the defective unit in the aircraft. This warranty does
not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.
THIS WARRANTY IS VOID IF THE PRODUCT IS NOT INSTALLED BY AN AUTHORIZED JAC DEALER. If the online warranty card is not completed, the product will be warranted from the date of manufacture.
Contact JAC for return authorization, and for any questions regarding this warranty and how it applies to your unit(s).
JAC is the final arbiter concerning warranty issues.
2.4 Installation Procedures
WARNING: Loud noise can cause hearing damage. Set the headset volume to minimum before
conducting tests, and slowly increase the volume to a comfortable listening level.
CAUTION: The power input circuitry of the unit may be damaged if the installation does not conform to the
wiring instructions in this manual.
2.4.1 Cabling and Wiring
All wire shall be selected in accordance with the original aircraft manufacturer’s maintenance instructions, or AC43.131B Change 1, Paragraphs 11-76 through 11-78. Unshielded wire types shall qualify to MIL-W-22759 as specified in
AC43.13-1B Change 1, Paragraphs 11-85, 11-86, and listed in Table 11-11. For shielded wire applications, use Tefzel
MIL-C-27500 shielded wire with tag ring or equivalent (for shield terminations) to make the most compact and easily
terminated interconnect. Follow the Connector Map in Appendix A of this manual.
Allow 3” from the end of the shielded wiring to the shield termination to allow the connector hood to be easily installed.

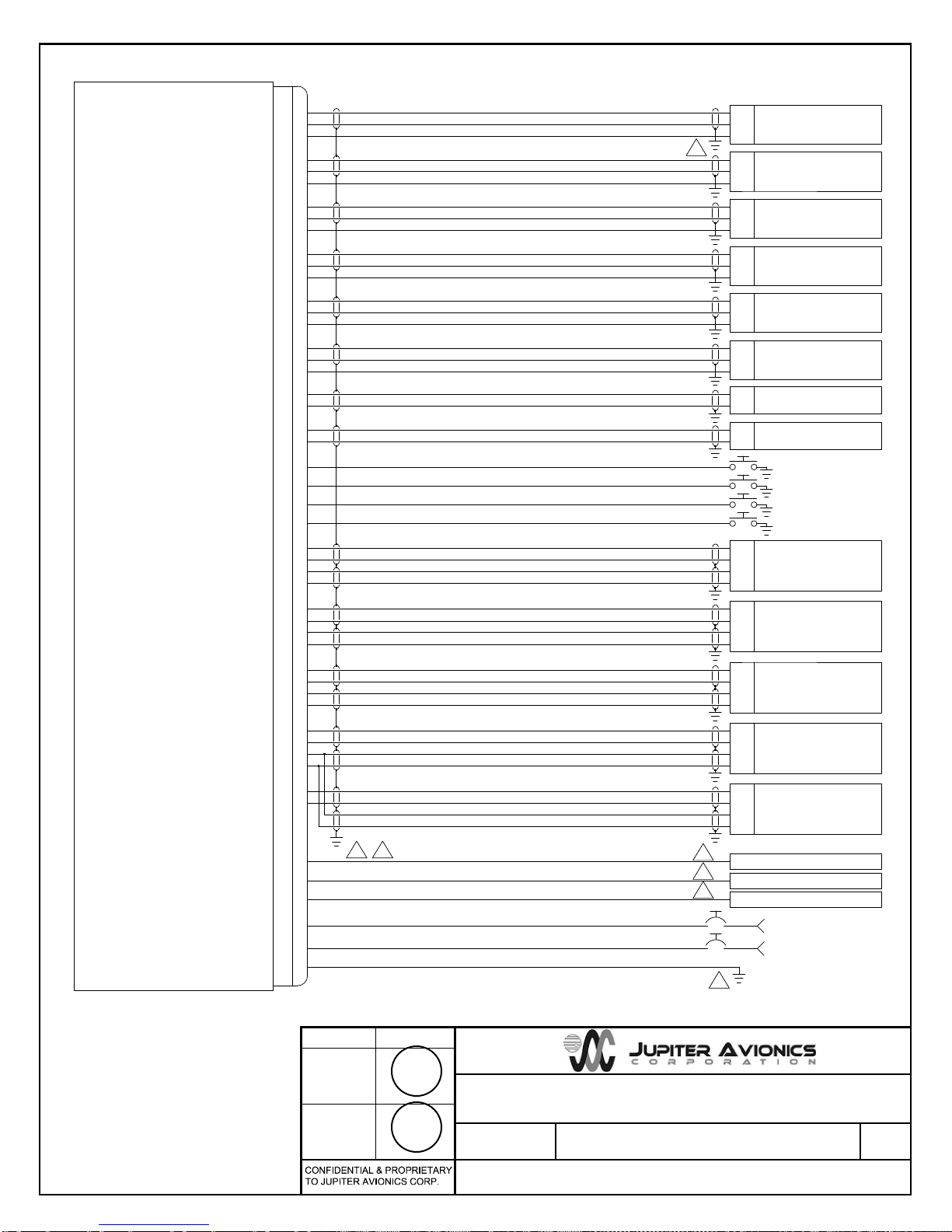

Refer to the Interconnect drawing in Appendix A of this manual for shield termination details. Note that this unit has a
‘clamshell’ hood that is installed after the wiring is complete.
Maintain wire segregation and route wiring in accordance with the original aircraft manufacturer’s maintenance
instructions.
Rev A Page 6
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
Unless otherwise noted, all wiring shall be a minimum of 24 AWG, except power and ground lines, which shall be a
minimum of 22 AWG. Refer to the Interconnect drawing for additional specifications. Check that the ground
connection is clean and well secured, and that it shares no path with any electrically noisy aircraft accessories such
as blowers, turn-and-bank instruments, or similar loads.
2.4.2 Mechanical Installation
The JA95-N42 can be mounted in any attitude and location with adequate space for the front panel and sufficient
clearance for the connector and wiring harness. It requires no direct cooling.

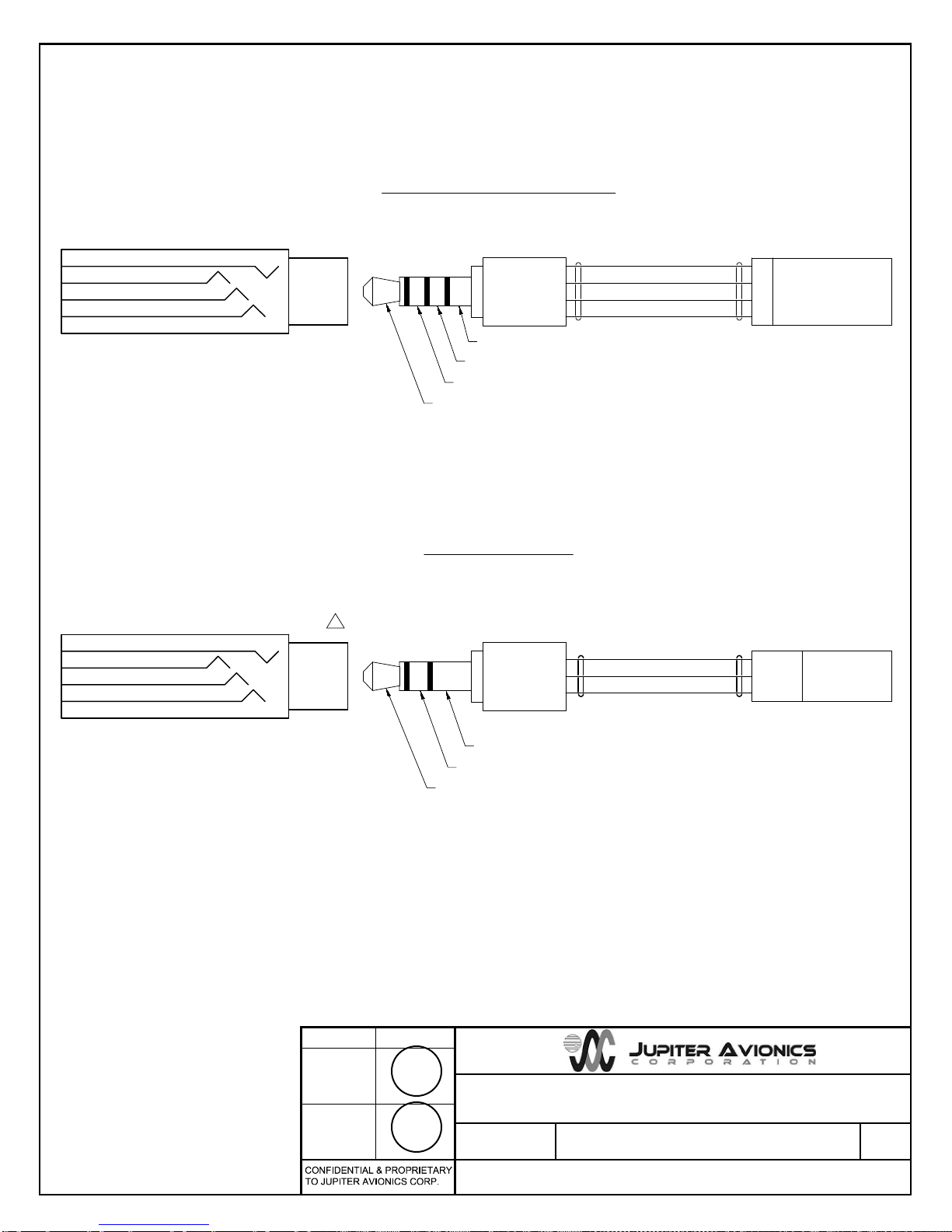

2.4.3 In-Line PTT Cordsets
If in-line PTT cordsets (drop cords) are used, be aware that incorrectly configured or improperly shielded in-line PTT
cordsets can lead to significant audio problems.
2.4.4 Legend Replacement
The JA95-N42 illuminated legends are field replaceable. For further information, refer to the ‘Legend Replacement’
document in Appendix A of this manual.
2.4.5 Post Installation Checks
2.4.5.1 Voltage/Resistance checks.
Do not attach this unit until the following conditions are met:
a) Check P1 pin 19 for lights buss voltage.
b) Check P2 pins 16 and 17 for +28 Vdc relative to ground.
c) Check P2 pin 34 for continuity to ground (less than 0.5 Ω).
d) Check P2 pins 7 thru 10 for continuity to ground (less than 0.5 Ω) when the relevant switch is closed.
e) Check all pins for shorts to ground or adjacent pins.
2.4.5.2 Configuration
Ensure that the JA95-N42 contains the correct configuration settings. This may be done at the factory, on the
maintenance bench or in the aircraft before the power on checks are performed. Refer to section 2.5.1.
2.4.5.3 Power on Checks.
Power up the aircraft’s systems and confirm normal operation of all functions of the JA95-N42. Refer to
Section 3 (Operation) for specific operational details.
a) Begin with only the pilot’s headset attached. Confirm correct ICS and radio operation for both receive and
transmit. Check yoke or cyclic switch action. Check the radio selection and inputs. Do not proceed until the
radios are functioning correctly.
b) If there is a music source in the system, turn it on and check for proper mute operation.
c) Unusual buzzes, hums or other background audio are symptomatic of multiple grounds, or noisy external
systems such as blowers or pumps sharing wiring with the audio system. If a transmitter fails to key or
correctly modulate it is often the result of not connecting all required grounds to the radio or external audio
system.
d) Check the ICS and Emergency operation.
e) Plug in the co-pilot’s headset. Check for correct ICS operation. Check yoke or cyclic switch functions.
f) Plug in any remaining headsets, and check for correct ICS operation. Note that an incorrect cordset (drop cord)
or improper jack wiring may cause a wide range of problems, from loss of audio to a tone heard in the headset.
g) Check that all configurations settings are correct.
When all performance checks are satisfied, complete the necessary regulatory documentation before releasing the
aircraft for service. Refer to Appendix B.
Rev A Page 7
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual

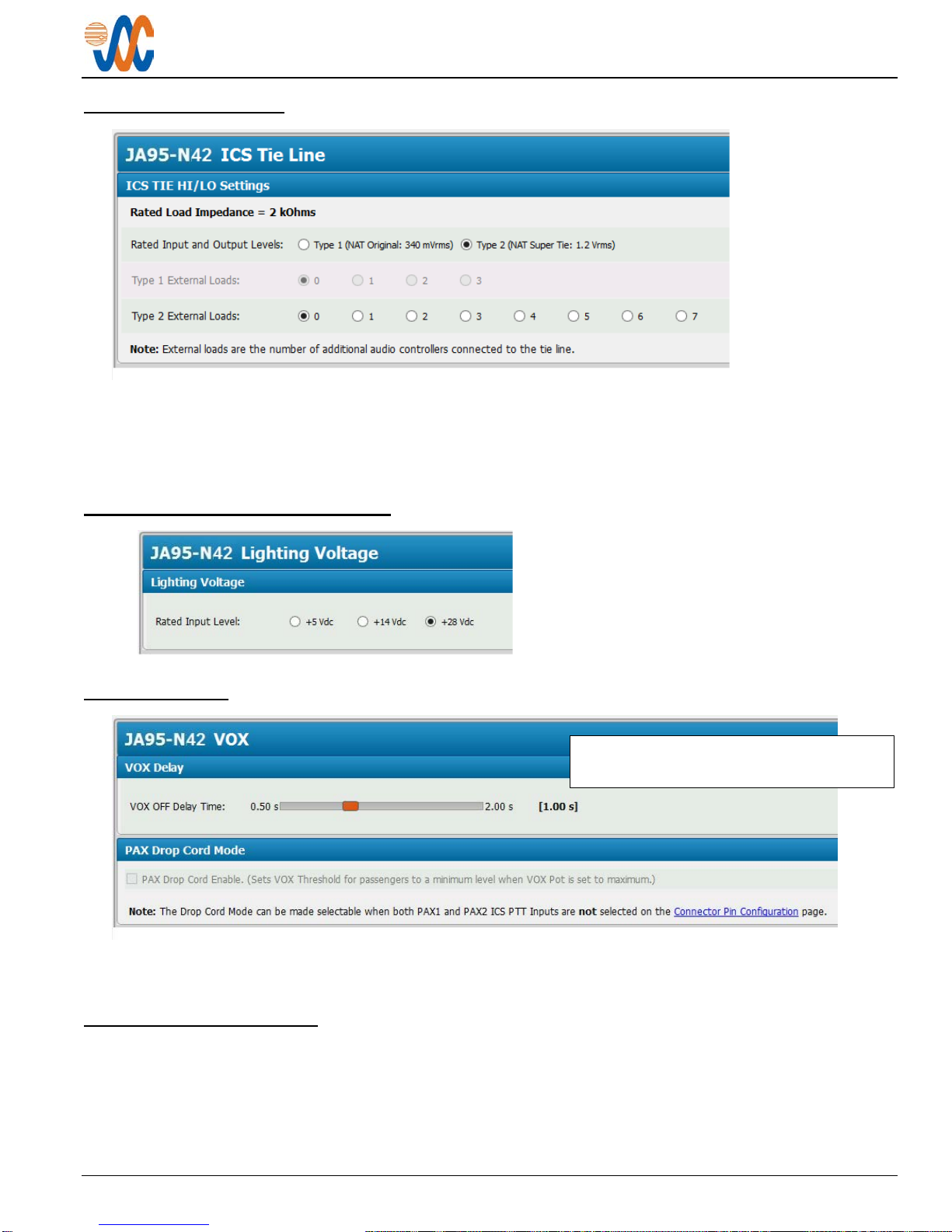

2.5 Adjustments and Configuration using ProCS™
All the JA95-N42 internal adjustments are set from the Product Configuration Software ProCS™. Configuration data
is sent to the JA95-N42 via the front panel connector (♫/io), using the Configuration Cables and a computer running
the ProCS™ software. . For configuration requirements, see section 2.5.1.
For full information on the configuration process, refer to the ProCS™ manual on the Jupiter Avionics website.
For full information on the configuration process, and for installation of ProCS™ on your computer, refer to the
ProCS™ manual on the Jupiter Avionics website - www.jupiteravionics.com/productsoftware.
2.5.1 Configuration Cabling Requirements
To configure the JA95-N42, it is necessary to load the Product Configuration Software ProCS™ onto a Windows-
based computer as described in the ProCS™ manual.
The cables required to configure the JA95-N42 are not included with the unit.
Cabling option 1:
Quantity Description JAC Part #
1 USB A to RS232 9-Pin Cable CAB-USB-0002
1 Configuration Cable JA99-001
Cabling option 2:
Quantity Description JAC Part #
1 USB A Male to RS232 3.5mm Plug CAB-USB-0006
2.5.2 ProCS™ Setup
The JA95-N42 menu item 'ProCS Setup' provides a drawing showing the cabling arrangement (using the
JA99-001 and CAB-USB-0002) for connecting the JA95-N42 to a computer to allow configuration using ProCS™.
2.5.3 Configurable Settings
A standard unit is shipped from the factory with all internal adjustments configured to the default levels. At installation,
it may be desirable to change some of these settings to suit the local operating environment.
Note: To properly configure the JA95-N42 power must be applied
Within ProCS™, the configurable settings are grouped together as shown in sections 2.5.3.1 to 2.5.3.14.
Rev A Page 8
The Radios window is used to define the
radios for the transceivers and receivers.
JA95-N42 Audio Controller - Passenger RX ISO - NVG
2.5.3.1 Front Panel Switches
Installation and Operating Manual
The Front Panel Switches window is used to specify the text for each legend.
Note: If the name of a front panel switch is changed using this software, the change will be incorporated in
every other section that refers to that switch name, including the connector maps, to give truly customized
installation diagrams.
2.5.3.2 Radios
Rev A Page 9

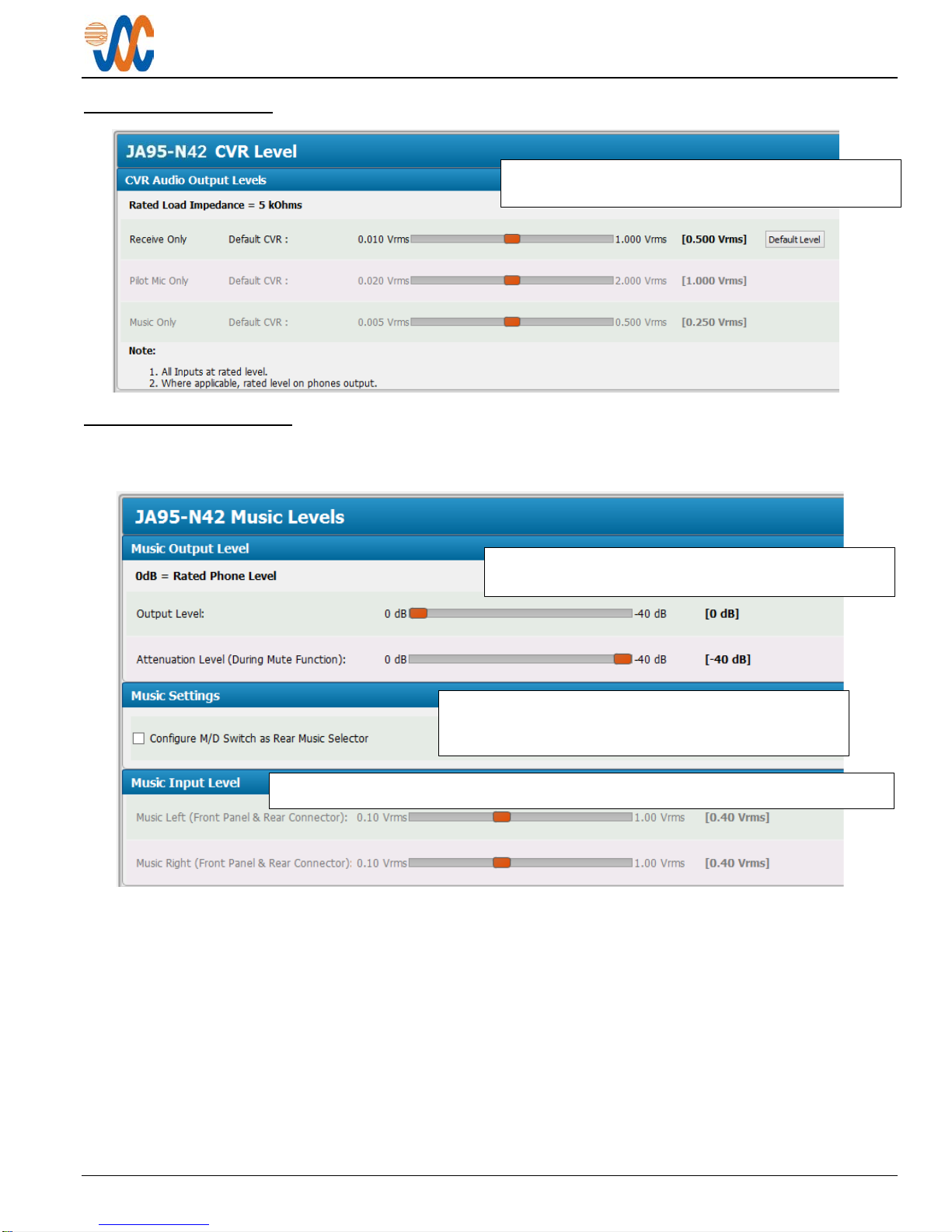

The receive and direct audio input level of each of the eleven RX and the
DIRECT AUDIO inputs can be adjusted from 1 to 10 Vrms. (Default 7.75 Vrms)
The Receive Audio Detector threshold can be adjusted from
-36 to -12 dB of rated input level. (Default -24 dB)
The level of the receive composite audio output (RX COMP OUT)
JA95-N42 Audio Controller - Passenger RX ISO - NVG
2.5.3.3 Receive Levels
Installation and Operating Manual
Rev A Page 10
The level of each of the six Transceiver MIC output signals can be
adjusted from 0.01 to 1 Vrms. (Default 250 mVrms)
The Receive Sidetone Level can be adjusted from 0 to
-12 dB of the rated phone Level. (Default -6 dB)
Several of the connector pins can be
JA95-N42 Audio Controller - Passenger RX ISO - NVG
2.5.3.4 Transmit Levels
Installation and Operating Manual
When the Transmit Timeout check box is checked the transmit time-out
is enabled (Default not checked)
When the FM2 Duplex check box is checked the COM5 (FM2) radio is
set to duplex operation (Default not checked) (see section 3.3.4)
2.5.3.5 Sidetone Levels
2.5.3.6 Connector Pin Configuration
Rev A Page 11
configured to meet the requirements of
specific installations.
Refer to JA95-N42 Interconnect sheet 5 of 5.
If a new audio file is selected, it may be played using the arrow
The level of the Alert Audio signal is adjustable from 0 to -40 dB of
the rated phone level.(Default -12 dB)
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual

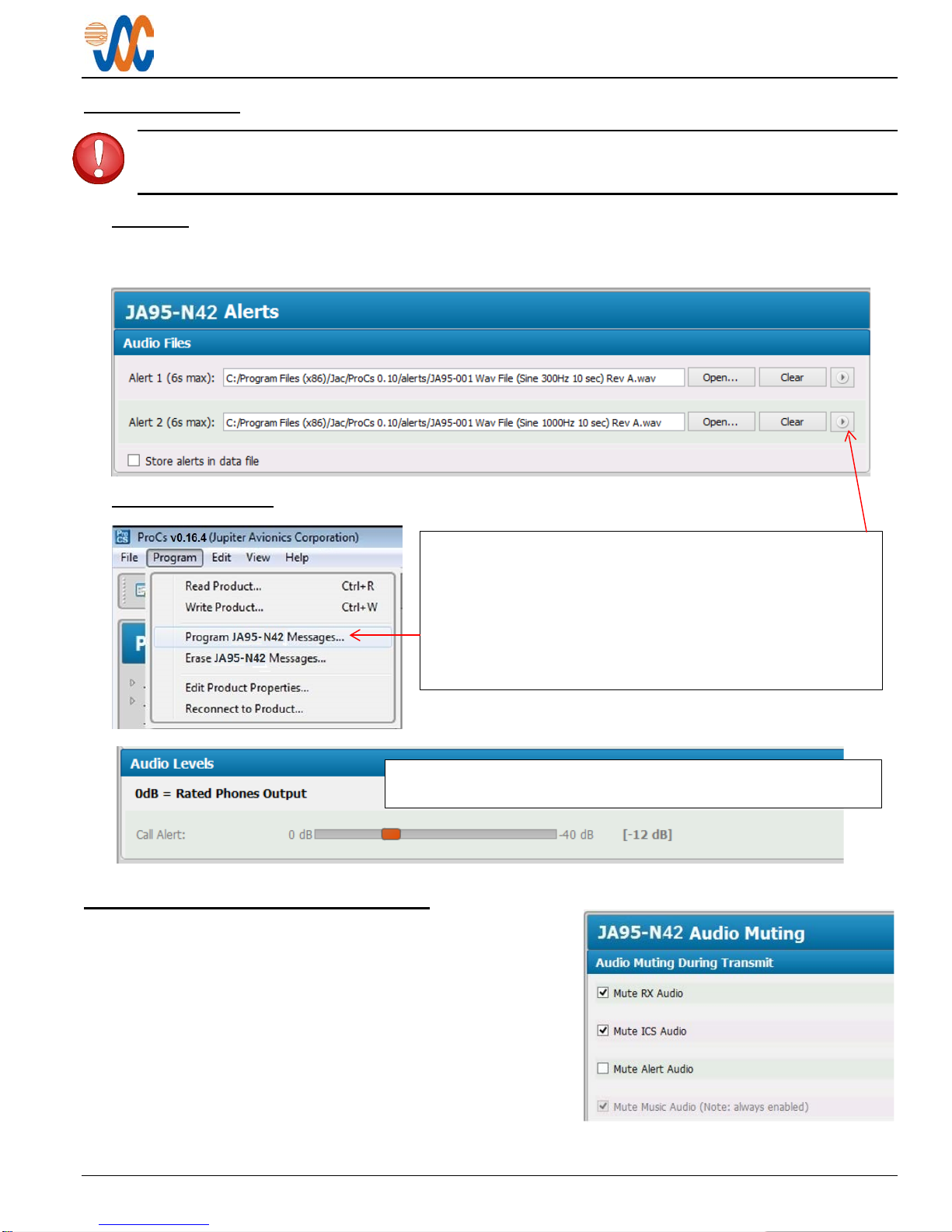

2.5.3.7 Alerts
WARNING: The internal audio alert is intended only to supplement, NOT replace, airframe alerts such
as ‘low rotor RPM’, ‘engine out’ or ‘decision height alerting’. The alert audio feature is intended for
use as a secondary alerting system where another device provides the primary annunciation.
Audio Files
The JA95-N42 has standard audio signals for the alert, and the audio files window allows this signal to be
customized with other recordings during the configuration process.
Saving new Audio Files
to the right of the Message line.
It may be uploaded to the JA95-N
42 using the 'Program' menu
and selecting 'Program JA95-N42 Messages…'
Note that this pane will have different content if a JA95-N42
not connected.
2.5.3.8 Audio Muting (During Transmit)
is
When the Mute RX Audio check box is checked the Receive
Audio is muted during transmit. (Default checked)
When the Mute ICS Audio check box is checked the ICS Audio
is muted during transmit. (Default checked)
When the Mute Alert Audio check box is checked the Alert
Audio is muted during transmit. (Default not checked)
The Mute Music Audio check box is always checked
(i.e. Mute Music Audio is always enabled.)
Rev A Page 12
When the 'Configure M/D Switch as Music Selector'
select switch (Default not checked)
The output levels of the Cockpit Voice Recorder audio
may be adjusted as shown.
The Music Input Levels may be adjusted from 0.10 to 1.00 Vrms. (Default 0.40 Vrms).
The attenuation level during muting of the music signal
can be adjusted from 0 to -40 dB (Default -40 dB).
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
2.5.3.9 CVR Level
2.5.3.10 Music Levels
The music output level of the four Music input signals to the Phones audio can be adjusted from -40 to 0 dB of
rated phone level (Default 0 dB).
check box is checked the M/D switch becomes a music
Rev A Page 13
The VOX OFF Delay Time can be adjusted
JA95-N42 Audio Controller - Passenger RX ISO - NVG
2.5.3.11 ICS Tie Line
Installation and Operating Manual
The rated input and output levels of the intercom tie line can be selected as Type 1 or Type 2 (Default Type 2).
The quantity of external loads for a type1 intercom tie line can be selected from 0 to 3 (Default 0).
The quantity of external loads for a type 2 intercom tie line can be selected from 0 to 7 (Default 0).
2.5.3.12 Lighting Voltage Selection
The rated input level for the lighting voltage
may be selected from
+5 Vdc, +14 Vdc or +28Vdc
(Default +28 Vdc).
2.5.3.13 VOX
from 0.50 to 2.00 sec (Default 1 sec).
When the PAX Drop Cord Enable check box is checked, the VOX circuits for the passenger microphones are
configured for use with drop cords (Default not checked)
2.5.2.14 Connector Maps
This section contains connector maps and interconnects that are automatically generated to show changes that affect
the installation of the JA95-N42, such as switch labels and voltages. See section 2.7.1.
Rev A Page 14
Connector Type
Hand crimp tool
Positioner
Insertion/extraction tool
Positronic
9507
9502-3
M81969/1-04
Positronic
AFM8 (Daniels)
M22520/2.08 KB-1
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
2.5.3 Other Configuration Features
The model number, serial number and check sum of the JA95-N42 Audio Controller - Passenger RX ISO - NVG can
be entered and viewed in the Comments pane of the JA95-N42 Product Information Window for future reference.
2.6 Installation Kit
The kit required to install this unit is not included with the unit.
The installation kit (Part # INST-JA95) consists of the following:
Quantity Description JAC Part #
2 TAG ring CON-5500-0625
1 D-Sub 37-pin connector, hood and 37 crimp pins CON-3420-0037
1 D-Sub 50-pin connector, hood and 50 crimp pins CON-3420-0050
2 Heat Shrink Tubing WIR-HTSK-1000
2.6.1 Recommended Crimp tools
2.7 Installation Drawings
The drawings and documents required for Installation can be found in Appendix A of this manual.
2.7.1 Generation of Custom Drawings
The interconnects and connector maps in Appendix A of this manual are generic drawings based on the standard
version of the JA95-N42. However, if a unit has been configured using JAC’s ProCS™ software to change switch
legends or lighting voltages, the software can be used to generate fully customized interconnects and connector maps
for use by the installer.
Rev A Page 15
JA95-N42 Audio Controller - 3DVVHQJHU RX ISO -
1 2 3
10
6 5 4
7 8 11
9
SECTION 3 – OPERATION
3.1 Introduction
This section contains the operating instructions for the JA95-N42.
3.2 Front Panel Controls

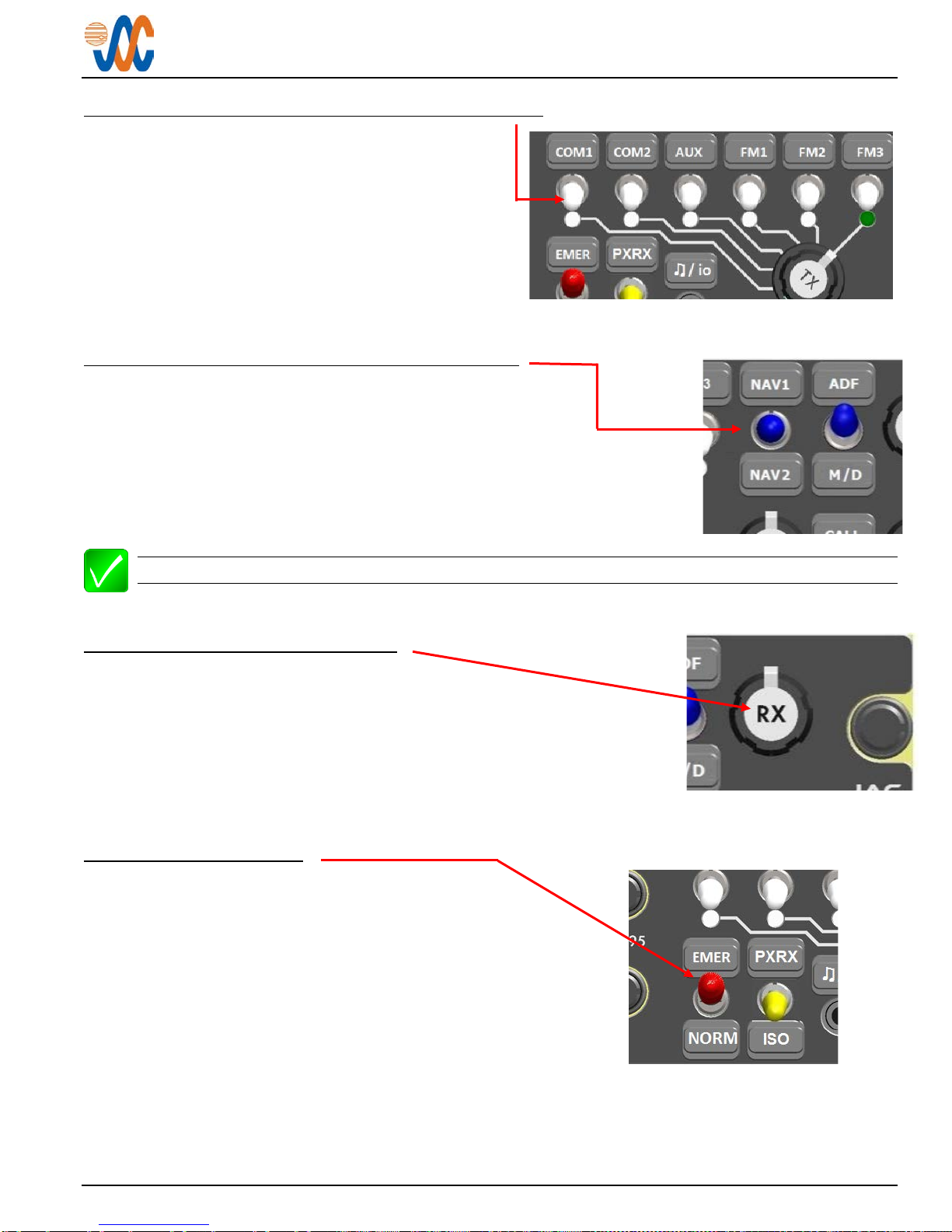

Note: The 15 legends and two annunciators are removable and may be replaced with custom ordered parts.
For the purpose of this manual the controls will be referred to by the default legend and annunciator names as
shown below.
NVG
1. Transceiver select switches, TX select annunciators and associated legends
2. Receiver select switches and associated legends
3. Receive volume control
4. Mode switch
5. Passenger Receive Isolation Switch
6. Music/configuration input connector and legend
7. Transmit annunciator (deadfront)
8. Transmit selector
9. VOX threshold control
10. CALL annunciator (deadfront)
11. ICS volume control
Rev A Page 16
JA95-N42 Audio Controller - Passenger RX ISO - NVG
(1) Transceiver Select Switches and Legends
The Transceiver Receive Switches are six white
two-position toggle switches. When a switch is
set to the ‘up’ position, audio from the
associated transceiver is routed to the phones.
The legends (above the switches) are
interchangeable to allow customization.
(Default – COM1, COM2, AUX, FM1, FM2,
FM3.)
(2) Receiver Select Switches and Legends
These are two blue three-position centre-off toggle switches.
When a switch is set to the ‘up’ or ‘down’ position audio from
the selected receiver is routed to the phones.
The legends (three above and three below the switches) are
interchangeable to allow customization. (Default – NAV1,
NAV2, ADF, M/D.)
Installation and Operating Manual
Note: The M/D switch position is used to select both Marker (MKR) and Distance Measuring Equipment
(3) Receive Volume Control
This is a rotary knob that adjusts the phones volume of the
receive audio from minimum (CCW) to maximum (CW).
Individual radio volume controls should be set to a nominal level,
and then adjusted for changing flight conditions using this
control.
(4) Mode Switch
This is a red two-position locking toggle switch. When
set to the ‘up’ position, the unit is Emergency mode,
and when set to the ‘down’ position, the unit is in
Normal mode. The legends are interchangeable to
allow customization. (Default – EMER, NORM.)
(DME).
The switch is lockable to prevent accidental changing of
the mode. The switch must be lifted to release the lock.
For full information on Emergency and Normal Mode
operation, see sections 3.3 and 3.4 below.
Rev A Page 17
JA95-N42 Audio Controller - Passenger RX ISO - NVG
(5) Passenger RX Isolation Switch (PXRX/ISO)
This is a yellow two-position toggle switch labeled PXRX/ISO
that enables or disables the Receive Audio to the Passenger
phones.
When the switch is in the PXRX (up) position, the Passengers
can hear audio from any selected receiver. When the switch is in
the ISO (down) position, the Passengers are isolated from the
receive audio
The default legends are ‘PXRX' and 'ISO', but they are
interchangeable to allow customization.
(6) Music/Configuration Connector (♫/io)
This is a music input that is compatible with most music players.
It accepts a 3 pole 3.5mm stereo plug with a slim diameter
connector housing.
Installation and Operating Manual
(This connector is also used during installation to change
configuration settings.)
CAUTION: If an unapproved connector or cable is used, damage to the unit or to any attached device may
occur. If in doubt, contact JAC for a list of approved cables, music sources and devices.
(7) Transmit Annunciator - TX
This is a deadfront annunciator that will
illuminate when the JA95-N42 is transmitting.
The default legend is ‘TX’, but it is
interchangeable to allow customization.
(8) Transmit Selector
This is a rotary six-position control that is used to
select transmission via one of the six transceivers.
Each of the transmit selector positions is linked by
a white line to the corresponding transmit select
annunciator, transceiver switch and legend.
Rev A Page 18
The appropriate annunciator will light green to
show which transceiver is selected for transmit ‘FM3’ in this example.
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
(9) VOX Threshold Control
This is a rotary knob that is used to select the VOX
threshold of the unit. See below.
When rotated fully clockwise (cw), the threshold will be
at maximum and VOX ICS operation is disabled and ICS
PTT input is required for ICS operation.
When rotated fully counterclockwise (ccw), the threshold
will be at minimum (almost live).
To adjust the unit for VOX (Voice activated) use, the VOX control should be set fully ccw and then slowly rotated cw to
the point where no intercom audio can be heard. The VOX control should be adjusted for proper operation according
to the ambient noise.
(10) CALL Annunciator
This is a customizable deadfront annunciator activated
by an external switch.
It illuminates when a ground is applied to the CALL
ANNUNCIATOR input from another user’s audio
controller (for example the JA95-N32 Med Crew Audio
Controller CALL switch) or by a remote ‘call’ button
within the aircraft.
Note: Check with your installing agency for confirmation of the operation of this annunciator. The legend is
replaceable to allow customization.
(11) ICS Volume Control
This is a rotary control used to adjust the volume of all
ICS audio to suit the ambient conditions. Rotating the
control completely cw gives rated level, and completely
ccw reduces the output to minimum level.
3.3 Normal Operation Mode
Note: Numbers in parentheses refer to the front panel controls shown in section 3.2.
The JA95-N42 is in Normal mode when the front panel EMER / NORM switch (4) is in the NORM position and suitable
electrical power is supplied to the unit.
3.3.1 Panel Lighting
The legends and annunciators will be illuminated (when appropriate) and dim through the aircraft lighting buss.
Rev A Page 19
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
3.3.2 Receiving
When the JA95-N42 receives an incoming transmission on a transceiver or receiver that has been selected, either by
the white transceiver receive switches (1) or the transmit selector (8), the incoming audio will be directed to the user’s
phones.
The audio level of any incoming transmission will depend upon the level selected by the front panel RX volume control
(3). It will be muted if the unit is transmitting and muting of receive audio during transmit is enabled.
3.3.3 Transmitting (Transmit Operation)
To select a transceiver, rotate the Transmit Select Switch until it aligns with the line leading to the Transceiver Select
switch legend (see 1) - default legends COM1, COM2, AUX, FM1, FM2, or FM3. The corresponding Transmit Select
annunciator will illuminate.
When the user’s TX PTT is activated, the unit will transmit on the selected transceiver, and the deadfront Transmit
Annunciator (7) will illuminate ‘TX’. All MIC and sidetone audio will be routed to the user’s phones, and any music will
be muted for the duration of the transmission.
3.3.4 FM2 PTT Operation
Note: If the FM2 transceiver has been configured as duplex, it can be used with a cellphone or
sat-phone. Check your configuration with the installing agency.
If the unit has been configured for cellphone or sat-phone use and FM2 has been selected for transmit, momentarily
activating the TX PTT (either from the faceplate or by some other method) will keep the FM2 transmitting. A second
momentary activation of the TX PTT, or moving the Transmit Selector away from FM2, will stop the FM2 from transmitting.
3.3.5 VOX Operation
A user’s MIC audio is routed to the ICS when the MIC audio level exceeds the VOX threshold.
A user’s MIC audio is disconnected from the ICS when the MIC audio level falls below the VOX threshold for 0.5 to 2
seconds.
3.3.6 ICS Operation
ICS audio is the sum of all the MIC audio from users with ICS KEY active or with MIC audio level exceeding the VOX
Threshold level.
The ICS audio also includes the audio input on the ICS TIE from other Audio Controllers unless isolation status (ISO)
has been selected on the ISO/ALL switch.
The ICS audio is output on the phones of each user.
The ICS audio is muted during transmit.
The ICS audio level at the phones is controlled by the ICS volume control (11).
3.3.7 Call Annunciator Operation
When another audio controller's CALL SWITCH output signal (i.e. from a JA95-N32) is connected to the JA95-N42's
CALL ANNUNCIATOR input signal then the JA95-N42's CALL ANNUNCIATOR will illuminate and the CALL ALERT
aural message will be played when the other audio controller's CALL switch is operated.
Rev A Page 20
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
3.4 Emergency Operation Mode
Emergency mode can be selected by the Mode switch on the front panel, or entered automatically if power to the unit
is lost.
3.4.1 Auto Emergency Mode
If the unit is in emergency mode because power has been lost to the unit, the sum of the COM1 transceiver, NAV1
receive, and DIRECT AUDIO will be routed to the pilot’s phones and the CVR. The pilot's microphone and transmit
key are connected to the COM1 transceiver. No other function in the JA95-N42 will operate when power is lost. All
indicator LEDs, legends and annunciators will be dark.
3.4.2 Selected Emergency Mode
If the unit is in emergency mode because the EMER / NORM switch is in the EMER position and sufficient power is
applied to the JA95-N42, the sum of the COM1 receive, NAV1 receive, DIRECT AUDIO and Alert audio will be routed
to the pilot’s phones and the CVR. The pilot's microphone and transmit key are connected to the COM1 transceiver.
The pilot is disconnected from the ICS. The COM1 transceiver and NAV1 receiver and DIRECT AUDIO are not
available to the other users. All other functions of the JA95-N42 will operate. The LEDs, legends and annunciators will
retain normal functionality.
Rev A Page 21
JA95-N42 Audio Controller - 3DVVHQJHU RX ISO - NVG
Installation and Operating Manual
Appendix A - Installation Drawings
A1 Introduction
The drawings necessary for installation and troubleshooting of the JA95-N42 Audio Controller - Passenger RX ISO NVG are in this Appendix, as listed below.
Note: A fully customized set of Connector Maps and Interconnects can be created using the ProCS™
software. Refer to the ProCS™ manual for further information.
A2 Installation Drawings
DOCUMENT Rev
JA95-N42 Connector Map A
JA95-N42 Interconnect A

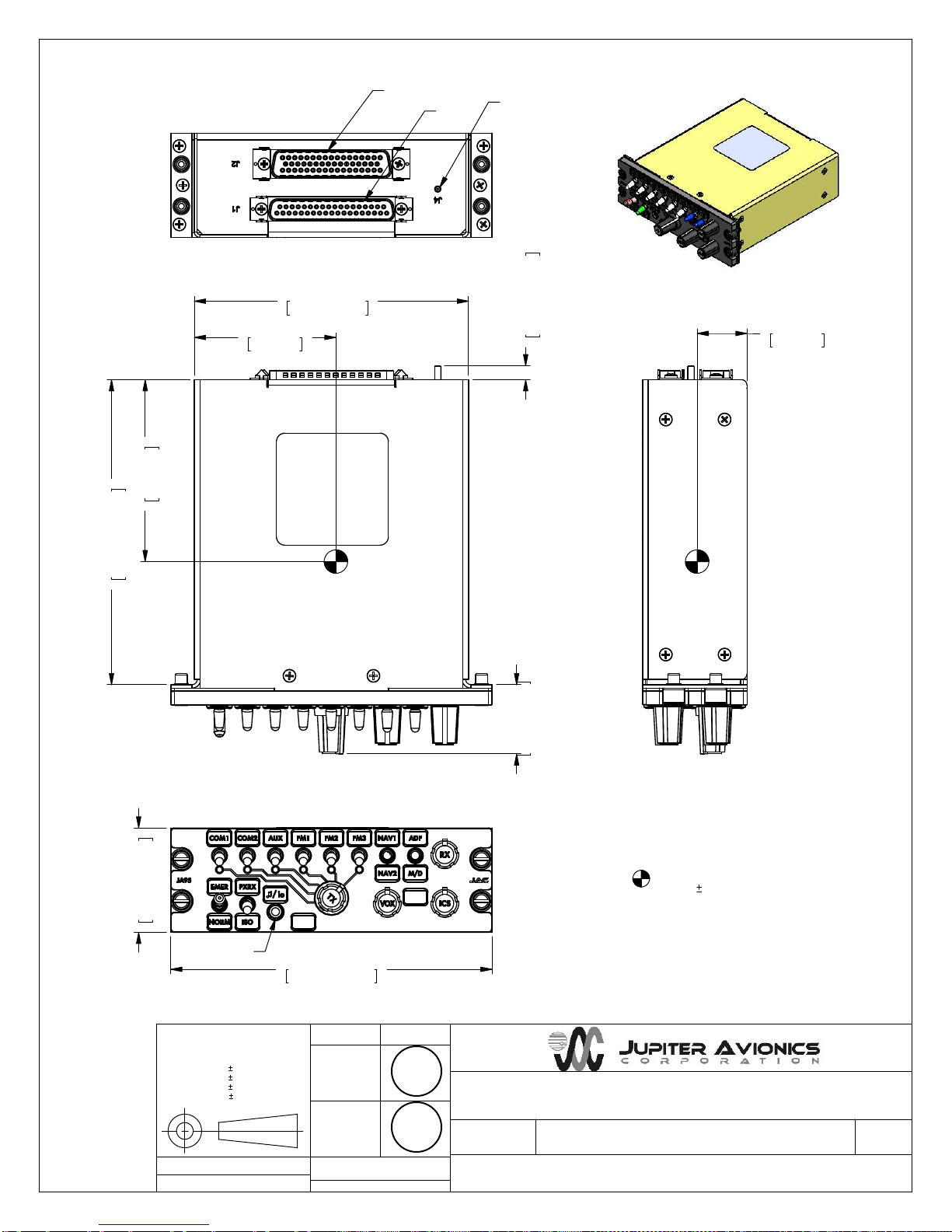

JA95-N42 Mechanical Installation A
Reference Documents
TOL-CUST-EXTR Legend Replacement A
Rev A Page A1
1 2 3 4 5 6 7 8 9 10 11 12 13
14
15 16 17
20 21 22 23 24 25 26 27 28 29 30 31 32
33
34 35
18 19
36 37
CVR HI / DIRECT AUDIO 2 HI
COM 1 RX HI
COM 2 RX HI
AUX RX HI
FM 1 RX HI
FM 2 RX HI
NAV 1 RX HI
NAV 2 RX HI
FM 3 RX HI
ADF RX HI
DME RX HI
MKR RX HI
DIRECT AUDIO 1 HI
MUSIC LEFT HI / RX COMP OUT HI
MUSIC RIGHT HI / DIGITAL TIE IN+
ICS TIE HI / DIGITAL TIE OUT +
COPILOT PHN HI
PILOT PHN HI
LIGHTS INPUT
CVR LO / DIRECT AUDIO 2 LO
COM 1 RX LO
COM 2 RX LO
AUX RX LO
FM 1 RX LO
FM 2 RX LO
NAV 1 RX LO
NAV 2 RX LO
FM 3 RX LO
ADF RX LO
DME RX LO
MKR RX LO
DIRECT AUDIO 1 LO
MUSIC LEFT LO / RX COMP OUT LO
MUSIC RIGHT LO / DIGITAL TIE IN-
ICS TIE LO / DIGITAL TIE OUT -
COPILOT PHN LO
PILOT PHN LO
P1
37 PIN FEMALE DMIN
MATING CONNECTOR
RECEIVE CONNECTOR
VIEW IS FROM REAR OF MATING CONNECTOR
1 1 1
1 1 1
NOTE:
1 CONFIGURABLE CONTACT
1
1
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Audio Controller - Passenger RX ISO - NVG
P1 Connector Map
JA95-N42 1/3
JA95-N42 Connector Map Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
1 2 3 4 5 6 7 8 9 10 11 12 13
14
15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30
31
32 33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
COM 1 PTT
COM 1 MIC HI
COM 1 MIC LO
COM 2 MIC HI
COM 2 MIC LO
AUX MIC HI
AUX MIC LO
FM 1 MIC HI
FM 1 MIC LO
FM 2 MIC HI
FM 2 MIC LO
PAX 1 MIC HI
PAX 1 MIC LO
PILOT MIC HI
PILOT MIC LO
COPILOT MIC HI
COPILOT MIC LO
PAX 2 MIC HI
PAX 2 MIC LO
PAX 3 MIC HI
PAX 3 MIC LO
PAX 4 MIC HI
PAX 4 MIC LO
PAX 5 MIC HI
PAX 5 MIC LO
PAX 1 PHN HI
PAX 1 PHN LO
PAX 2 PHN HI
PAX 2 PHN LO
PAX 4 & 5 PHN HI
PAX 4 & 5 PHN LO
COM 2 PTT
AUX PTT
FM 1 PTT
FM 2 PTT
PAX 1 TX PTT
PILOT TX PTT
PILOT ICS PTT
COPILOT TX PTT
COPILOT ICS PTT
PAX 1 ICS PTT / ALERT 1 KEY
ALERT 2 KEY / CALL
FM 3 PTT
FM 3 MIC HI
FM 3 MIC LO
ALERT ENABLE
POWER INPUT
POWER GROUND
P2
50 PIN FEMALE DMIN
MATING CONNECTOR
PTT OUT PTT IN
MIC OUT MIC IN PAX PHN OUT
VIEW IS FROM REAR OF MATING CONNECTOR
PAX 3 PHN HI
PAX 3 PHN LO
TRANSMIT CONNECTOR
1 1
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Audio Controller - Passenger RX ISO - NVG
P2 Connector Map
JA95-N42 2/3
JA95-N42 Connector Map Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
P3
4 POLE MALE 3.5MM STEREO
TIP: TX DATA
1ST RING: RX DATA
2ND RING: GROUND
3RD RING: CONFIG AUDIO
ACCEPTS THE FOLLOWING PLUG FORMATS
JA99 CONFIGURATION CABLE
IPHONE 3GS OR 4
TIP: LEFT MUSIC
1ST RING: RIGHT MUSIC
2ND RING: GROUND
MP3 STEREO PLAYER,
MATING PLUG NAMES JA95 SIGNAL NAMES
CONFIG DATA TO JA95
CONFIG DATA FROM JA95
GROUND
MODE SELECT / CONFIG AUDIO
FRONT PANEL MUSIC LEFT
FRONT PANEL MUSIC RIGHT
GROUND
FRONT PANEL MUSIC/CONFIGURATION CONNECTOR
3 POLE MALE 3.5MM STEREO
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Audio Controller - Passenger RX ISO - NVG
P3 Connector Map
JA95-N42 3/3
JA95-N42 Connector Map Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV

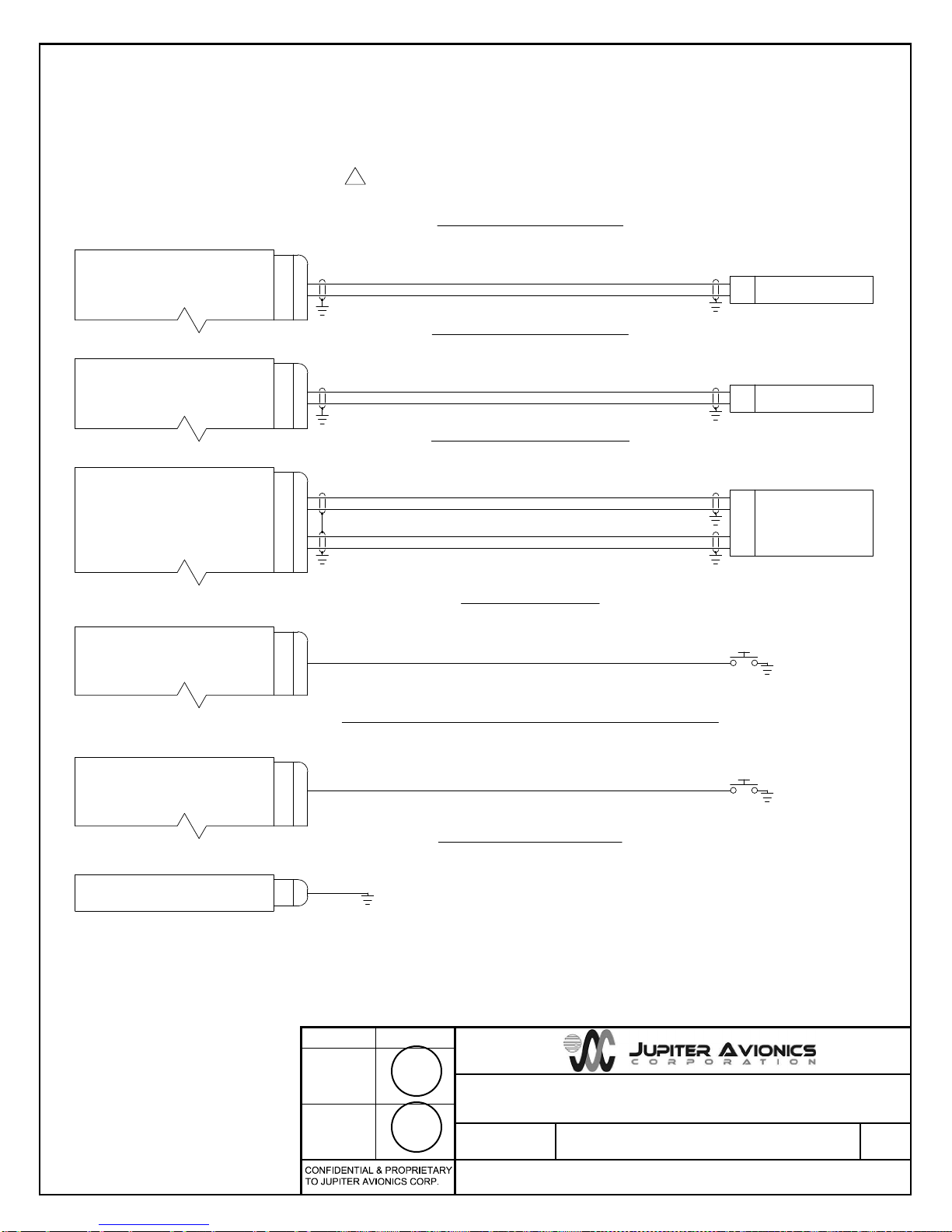

JA95-N42 INTERCONNECT WIRING NOTES
NOTES
ALL WIRE SIZE SHOULD BE 24 AWG MIN UNLESS OTHERWISE SPECIFIED. UNSHIELDED WIRE
SHOULD BE SELECTED PER FAA AC43.13-1B CHANGE 1 PARA 11-76 TO 11-78. WIRE TYPES
SHOULD BE IN ACCORDANCE WITH MIL-W-22759 AS DESCRIBED IN FAA AC43.13-1B CHANGE 1
PARA 11-85 AND 11-86 AND LISTED IN TABLE 11-11 OR 11-12. ALL SHIELDED CABLE SHOULD BE IN
ACCORDANCE WITH MIL-DTL-27500 (REVISION H OR LATER).
CONNECTION TO AIRFRAME GROUND SHOULD BE MADE WITH 20 AWG WIRE. LENGTH NOT TO
EXCEED 3 FT (0.9 M).
CABLE SHIELDS AT THE JA95-N42 CONNECTOR PINS SHOULD BE TERMINATED TO AIRFRAME
GROUND USING A TAG RING P/N: MS27741-5 OR EQUIVALENT.
CONNECTOR PIN HAS MORE THAN ONE FUNCTION. SEE THE OPTIONS SECTION OF THIS
DRAWING FOR ALTERNATE INTERCONNECT WIRING.
ONLY +28 VDC OR +14 VDC OR +5 VDC LIGHTS INPUT VOLTAGE MAY BE APPLIED AT ONE TIME.
THE FRONT PANEL MUSIC INPUT SHALL NOT BE CONNECTED TO ANY OTHER AUDIO INPUT.
THE DIRECT AUDIO 2 SHALL NOT BE WIRED IN PARALLEL WITH ANY OTHER AUDIO INPUT.
THE DIRECT AUDIO 2 INPUT IS BEST SUITED FOR AUDIO SIGNALS THAT ARE TO BE ROUTED TO
THE PILOT PHONES WHEN IN EMERGENCY MODE.
2
1.
3
4
CONNECTOR PIN LEGENDS
LEGEND
RESERVED INTERNAL CIRCUITS MAY EXIST AND MAY BE ACTIVATED FOR FUTURE USE. NO EXTERNAL
WIRE CONNECTION.
5
6
7
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Audio Controller - Passenger RX ISO - NVG
Interconnect Notes
JA95-N42 1/5
JA95-N42 Interconnect Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
COM 1 RX HI
COM 1 RX LO
RX
LO
COM 1
2
21
COM 2 RX HI
COM 2 RX LO
RX
LO
COM 2
3
22
AUX RX HI
AUX RX LO
RX
LO
AUX
4
23
FM 1 RX HI
FM 1 RX LO
RX
LO
FM 1
5
24
FM 2 RX HI
FM 2 RX LO
RX
LO
FM 2
6
25
NAV 1 RX HI
NAV 1 RX LO
RX
LO
NAV 1
7
26
NAV 2 RX HI
NAV 2 RX LO
RX
LO
NAV 2
8
27
FM 3 RX HI
FM 3 RX LO
RX
LO
FM 3
9
28
ADF RX HI
ADF RX LO
RX
LO
ADF
10
29
DME RX HI
DME RX LO
RX
LO
DME
11
30
MKR RX HI
MKR RX LO
RX
LO
MKR
12
31
DIRECT AUDIO 1 HI
DIRECT AUDIO 1 LO
RX
LO
DIRECT AUDIO 1
13
32
MUSIC LEFT HI
MUSIC LEFT LO
RX
LO
MUSIC LEFT
14
33
MUSIC RIGHT HI
MUSIC RIGHT LO
RX
LO
MUSIC RIGHT
15
34
ICS TIE HI
ICS TIE LO
HI
LO
ICS TIE
EXPANSION
16
35
COPILOT PHN HI
COPILOT PHN LO
PHN
LO
COPILOT
HEADSET JACK
17
36
PILOT PHN HI
PILOT PHN LO
PHN
LO
PILOT
HEADSET JACK
18
37
LIGHTS INPUT + 28 VDC LIGHTS19
JA95-N42 J1
P1
37 PIN FEMALE DMIN
MATING CONNECTOR
2 3
2
4
4
4
HI
LO
1
20
5
+ 14 VDC LIGHTS
5
+ 5 VDC LIGHTS
5
CVR HI
CVR LO
CVR
4
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Audio Controller - Passenger RX ISO - NVG
J1 Interconnect
JA95-N42 2/5
JA95-N42 Interconnect Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
JA95-N42 J2
P2
50 PIN FEMALE DMIN
MATING CONNECTOR
COM 1 MIC HI
COM 1 MIC LO
MIC
LO COM 1
18
35
COM 1 PTT 1 KEY
COM 2 MIC HI
COM 2 MIC LO
MIC
LO COM 2
19
36
COM 2 PTT
2 KEY
AUX MIC HI
AUX MIC LO
MIC
LO
AUX
20
37
AUX PTT
3
KEY
FM 1 MIC HI
FM 1 MIC LO
MIC
LO FM 1
21
38
FM 1 PTT
4
KEY
FM 2 MIC HI
FM 2 MIC LO
MIC
LO FM 2
22
39
FM 2 PTT
5 KEY
PILOT MIC HI
PILOT MIC LO
MIC
LO
PILOT
HEADSET JACK
24
41
COPILOT MIC HI
COPILOT MIC LO
MIC
LO
COPILOT
HEADSET JACK
25
42
PILOT TX PTT 7
PILOT TX SWITCH
PILOT ICS PTT 9
PILOT ICS SWITCH
COPILOT TX PTT 8
COPILOT TX SWITCH
COPILOT ICS PTT 10
COPILOT ICS SWITCH
MIC
LO
PAX 1
HEADSET JACK
PHN
LO
PAX 1 MIC HI
PAX 1 MIC LO
23
40
PAX 1 PHN HI
PAX 1 PHN LO
30
47
MIC
LO
PAX 2
HEADSET JACK
PHN
LO
PAX 2 MIC HI
PAX 2 MIC LO
26
43
PAX 2 PHN HI
PAX 2 PHN LO
31
48
MIC
LO
PAX 3
HEADSET JACK
PHN
LO
PAX 3 MIC HI
PAX 3 MIC LO2744
PAX 3 PHN HI
PAX 3 PHN LO3249
MIC
LO
PAX 4
HEADSET JACK
PHN
LO
PAX 4 MIC HI
PAX 4 MIC LO2845
PAX 4 & 5 PHN HI
PAX 4 & 5 PHN LO3350
MIC
LO
PAX 5
HEADSET JACK
PHN
LO
PAX 5 MIC HI
PAX 5 MIC LO
29
46
FM 3 MIC HI
FM 3 MIC LO
MIC
LO FM 3
14
15
PAX 1 TX PTT
6 PAX 1 TX PTT
PAX 1 ICS PTT 11
PAX 1 ICS PTT
ALERT 2 KEY
12 ALERT 2 KEY
ALERT ENABLE
+ 28 VDC ALERT POWER16
POWER INPUT
+ 28 VDC POWER
17
POWER GROUND
AIRFRAME GROUND
34
1A
22 AWG
22 AWG
2 3
2
2
4
4
4
FM 3 PTT KEY13
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Audio Controller - Passenger RX ISO - NVG
J2 Interconnect
JA95-N42 3/5
JA95-N42 Interconnect Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
PART OF JA99-001
CONFIGURATION CABLE
JA95-N42 FRONT PANEL MUSIC/CONFIGURATION INPUT
P3
4 POLE MALE 3.5MM STEREO
MATING CONNECTOR
OPTION: PROGRAMMING FROM JA99-001
LEFT MUSIC
STEREO PLAYER
RIGHT MUSIC
GROUND
P3
3 POLE MALE 3.5MM STEREO
MATING CONNECTOR
OPTION: STEREO PLAYER
J3
FRONT PANEL MUSIC LEFT
FRONT PANEL MUSIC RIGHT
GROUND
TIP
1ST RING
2ND RING
RESERVED
FRONT PANEL MUSIC LEFT
FRONT PANEL MUSIC RIGHT
GROUND
3RD RING
TIP
1ST RING
2ND RING
J3
CONFIG DATA TO JA95
CONFIG DATA FROM JA95
GROUND
MODE SELECT/CONFIG AUDIO
CONFIG DATA TO JA95
CONFIG DATA FROM JA95
GROUND
3RD RING
TIP
1ST RING
2ND RING
MODE SELECT/CONFIG AUDIO
6
JA95-N42 FRONT PANEL MUSIC/CONFIGURATION INPUT
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Audio Controller - Passenger RX ISO - NVG
Interconnect Options
JA95-N42 4/5
JA95-N42 Interconnect Rev A.dwg
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
RX COMP OUT HI
RX COMP OUT LO
HI
LO
RECORDER
14
33
DIGITAL TIE IN+
DIGITAL TIE IN-
TX+
TX-
JAC
DIGITAL
ICS TIE LINE
15
34
DIGITAL TIE OUT+
DIGITAL TIE OUT-
RX+
RX-
16
35
JA95-N42
P/O J1
P/O P1
37 PIN FEMALE DMIN
MATING CONNECTOR
OPTION: RX COMPOSITE OUT
JA95-N42
P/O J1
P/O P1
37 PIN FEMALE DMIN
MATING CONNECTOR
OPTION: DIGITAL ICS TIE LINE
CALL 12
JA95-N42
P/O J2
P/O P2
50 PIN FEMALE DMIN
MATING CONNECTOR
OPTION: CALL INPUT
CALL
ALERT 1 KEY
11
JA95-N42
P/O J2
P/O P2
50 PIN FEMALE DMIN
MATING CONNECTOR
OPTION: CONFIGURABLE SWITCH INPUTS (ALERT 1 KEY)
ALERT 1 KEY
CHASSIS GROUND
JA95-N42
J4 THREADED STUD 4-40 0.25 in.
OPTION: CHASSIS GROUND
22 AWG
DIRECT AUDIO 2 HI
DIRECT AUDIO 2 LO
HI
LO
DIRECT AUDIO 2
1
20
JA95-N42
P/O J1
P/O P1
37 PIN FEMALE DMIN
MATING CONNECTOR
OPTION: DIRECT AUDIO 2 IN
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Audio Controller - Passenger RX ISO - NVG
Interconnect Options
JA95-N42 5/5
JA95-N42 Interconnect Rev A.dwg
TAT
7
JAC
09-10-15
DS
JAC
09-10-15
KDV
J2
J1
J4
3.25in
139.2mm MAX
5.48in MAX
82.6mm
2.53in
64.3mm
5.00in MAX
127mm MAX
7.62mm MAX
0.30in MAX
0.89in
22.6mm
47.6mm MAX
1.875in MAX
qu
J3
146.1mm MAX
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005
ANGLES:
MATERIAL:
JUPITER AVIONICS TEMPLATE SOLIDWORKS PORT R AI T SI Z EA REVB . D RW D O T
FINISH:
0.5 DEG
N/A
N/A
PREPARED
CHECKED
APPROVED
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
`^ii
5.75in MAX
TAT
JAC
09-10-15
DS
JAC
09-10-15
KDV
DRAWING NOT TO SCALE
32mm MAX
1.26in MAX
CENTER OF GRAVITY
0.03in [0.8mm]
WEIGHT: 1.64 lbs [0.74 kg] MAX.
TITLE
Audio Controller - Passenger RX ISO - NVG
NCAGE CODE
L00N3
DOC. NO.
PART NO.
JA95-N42
JA95-N42 Mechanical Installation Rev A.SLDDRW
SHEET
1/1
Jupiter Avionics Corporation Audio Controllers
Jupiter Avionics Corporation (JAC) products have field-replaceable illuminated
To facilitate legend removal, JAC provides a legend extractor tool - part #
To remove a legend, hold the extractor firmly between
Pull the legend away from the faceplate as shown in figure 3.
Figure 1
Figure 2
Legend
Extractor tool
recess
Legend Replacement
Field-Replaceable Legends
legends. This permits easy customization, and allows the same units to be used
in multiple different configurations with only minimal changes.
The internal circuitry ensures that, although the legends are individually
illuminated, the illumination is consistent and uniform throughout all legends, and
never needs to be balanced. This means that if it is a requirement to change the
labelling due to damage or for a different project, there is no need for costly and
time-consuming illumination checks.
Legend Removal
Caution: Take care not to scratch or otherwise damage the faceplate or the legend.
TOL-CUST-EXTR (figure 1) that fits into the recesses on the legend.
the forefinger and thumb, and use a tweezer-like action
to grip the legend (figure 2).
Figure 3
Legend Replacement
To replace a legend, align the text correctly, and then apply gentle pressure until the body of the legend support seats
firmly into the faceplate.
Once the new legend is in place, ensure that it has seated correctly by checking that it illuminates. The unit is now
ready for use.
TOL-CUST-EXTR – Legend Replacement Page 1 of 1
JA95-N42 Audio Controller - 3DVVHQJHU RX ISO - NVG
Installation and Operating Manual
Appendix B - Installation Documents
Rev A Page B1
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
B1 Airworthiness Approval
Airworthiness approval of the JA95-N42 may require completion of a TCCA Major Modification Report per CAR STD
(AWM) 571 Appendix L, or a FAA Form 337. The sample wording for a description of the work is provided to assist
the Installing Agency in preparing Instructions for Continued Airworthiness (ICA) when replacing an existing audio
panel with a Jupiter Avionics JA95-N42 Audio Controller - Passenger RX ISO - NVG. This sample may be modified
appropriately for new installations. It is the installer’s responsibility to determine the applicability of the method used.
Installations performed outside Canada must follow the applicable aviation authority’s regulations
Sample Wording:
Removed the existing [model] audio panel and replaced with a Jupiter Avionics JA95-N42 Audio Controller Passenger RX ISO - NVG in [aircraft location].
The JA95-N42 meets RTCA DO-160F environmental qualifications for this installation. See Section 1 of the JA95-N42
Installation Manual.
Installed in accordance with the JA95-N42 Installation Manual, Revision [ ], and AC 43.13-2, Chapters 2, and 3.
The JA95-N42 interfaces with existing aircraft radios per the Installation Manual instructions.
The JA95-N42 Installation Manual provides detailed installation instructions and wiring diagrams (Section 2, and
Appendices A and B).
Power is supplied to the JA95-N42 through an existing [ ]-Amp circuit breaker that was previously used by the original
audio panel. The net electrical load is unchanged.
Aircraft equipment list, weights and balance amended. Compass compensation checked and found to conform to
applicable regulations.
B2 Instructions for Continued Airworthiness
Maintenance of the JA95-N42 Audio Controller - Passenger RX ISO - NVG is “on condition” only. Refer to the JA95N42 Maintenance Manual. Periodic maintenance of the JA95-N42 is not required.
The following sample Instructions for Continued Airworthiness (ICA) provides assistance in preparing ICA for the
Jupiter Avionics JA95-N42 unit installation as part of a Type Certificate (TC) or Supplemental Type Certificate (STC)
project to comply with CAR STD (AWM) 523/527/525/529.1529 or FAR 23/25/27/29.1529 “Instructions for Continued
Airworthiness”.
Items that may vary by aircraft make and model are shown in brackets (“[ ]”) and should be filled in as appropriate.
Some of the checklist items do not apply, in which case they should be marked “N/A” (Not Applicable).
Instructions for Continued Airworthiness, Jupiter Avionics JA95-N42 Audio
Controller - Passenger RX ISO - NVG in an [Aircraft Make and Model]
1. Introduction
[Aircraft that has been altered: Registration number, Make, Model and Serial Number]
Content, Scope, Purpose and Arrangement: This document identifies the Instructions for Continued
Airworthiness for a Jupiter Avionics JA95-N42 installed in an [aircraft make and model].
Applicability: Applies to a Jupiter Avionics JA95-N42 installed in an [aircraft make and model].
Definitions/Abbreviations: None, N/A.
Precautions: None, N/A.
Units of Measurement: None, N/A.
Referenced Publications: JA95-N42 Installation and Operating Manual
JA95-N42 Maintenance Manual
JA95-N42 Operating Manual
STC/TC # [applicable STC/TC number for the specific aircraft installation]
Distribution: This document should be a permanent aircraft record.
Rev A Page B2
JA95-N42 Audio Controller - Passenger RX ISO - NVG
Installation and Operating Manual
2. Description of the System/Alteration
Jupiter Avionics JA95-N42 Audio Controller - Passenger RX ISO - NVG with interface to external transceivers and
[include other equipment/systems as appropriate]. Refer to Appendix A of this manual for interconnect
information. Refer to aircraft manufacturer approved interconnect for actual installation.
3. Control, Operation Information
Refer to section 3 of this manual or to the Jupiter Avionics JA95-N42 Operating Manual.
4. Servicing Information
N/A
5. Maintenance Instructions
Maintenance of the JA95-N42 is ‘on condition’ only. Periodic maintenance is not required. Refer to the
JA95-N42 Maintenance Manual.
6. Troubleshooting Information
Refer to the JA95-N42 Maintenance Manual.
7. Removal and Replacement Information
Refer to Section 2 of this manual - the JA95-N42 Installation and Operating Manual. If the unit is removed and
reinstalled, a functional check of the equipment should be conducted.
8. Diagrams
Refer to Appendix A of this manual - the JA95-N42 Installation and Operating Manual - for installation drawings
and interconnect examples.
9. Special Inspection Requirements
N/A
10. Application of Protective Treatments
N/A
11. Data: Relative to Structural Fasteners
JA95-N42 and appropriate mounting hardware installation, removal and replacement should be in accordance
with applicable provisions of AC 43.13-1B and AC 43.13-2A.
12. Special Tools
N/A
13. This Section is for Commuter Category Aircraft Only
A. Electrical loads: Refer to Section 1 of the JA95-N42 Installation and Operating Manual.
B. Methods of balancing flight controls: N/A.
C. Identification of primary and secondary structures: N/A.
D. Special repair methods applicable to the airplane: N/A.
14. Overhaul Period
No additional overhaul time limitations.
15. Airworthiness Limitation Section
N/A
Rev A Page B3
Loading...
