User Manual
Product Story
Specially designed for RGB enthusiasts who
desire superior performance from their case fans.
The Jupiter AJ120 fans feature seven blades,
sleeve bearings with a long lifespan, ARGB LEDs
with 16.8 million color options and a one-click RGB
Controller.
Package Contents
Triple Pack
1. Jupiter AJ120 Fans x 3
2. Addressable RGB Controller x 1
3. Screws x 12
4. 3-Pin Headers x 3
Single Pack
1. Jupiter AJ120 Fan x 1
2. Screws x 4
3. 3-Pin Header x 1

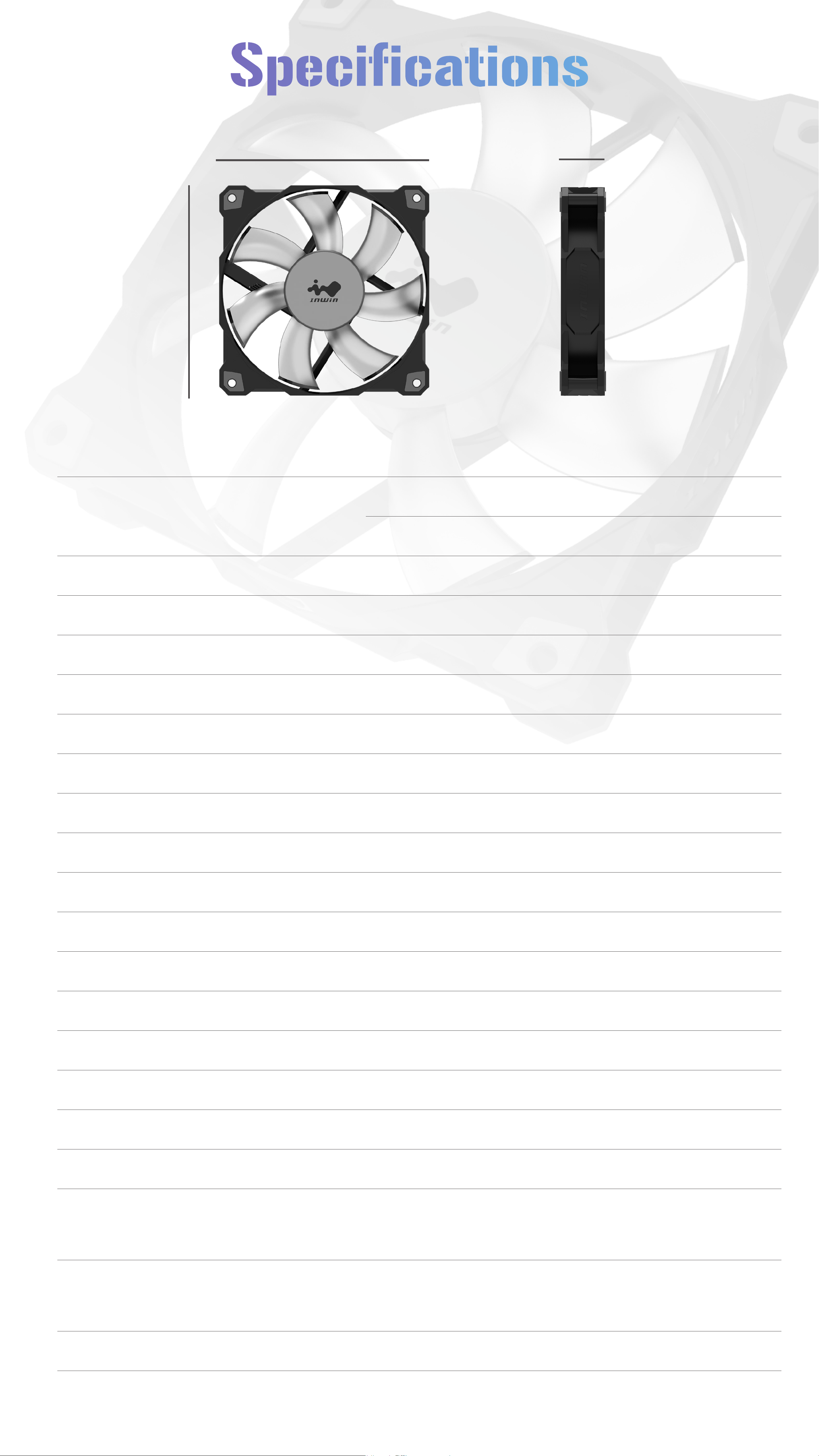

Specifications
120mm
120mm
25mm
Product Name Jupiter AJ120
Single Pack IW-FN-AJ120-1PK
Model Number
Triple Pack IW-FN-AJ120-3PK
Fan Size 120 x 120 x 25mm
Material PBT, PC
Rated Voltage DC 12V
Rated Power 2.4W
Rated Current 0.20A
ADD RGB Rated Voltage DC 5V
ADD RGB Rated Power 1.1W
ADD RGB Rated Current 0.22A
Speed Mode PWM 500~1800 RPM
Air Flow 70.32 CFM
Air Pressure 2.62mm/ H2O
LED Addressable RGB
Connector 4-Pin
Noise Level 35 dB(A)
Bearing Type Long Lifespan Sleeve Bearing
MTBF >30,000 hrs
Single Pack 200g
Net Weight
Triple Pack 600g
Package Dimension
(H x L x W)
Warranty 2 years
* Specications may vary based on different regions.
* Our products comply with RoHS regulations.
Single Pack 185 x 125 x 30mm
Triple Pack 185 x 125 x 80 mm

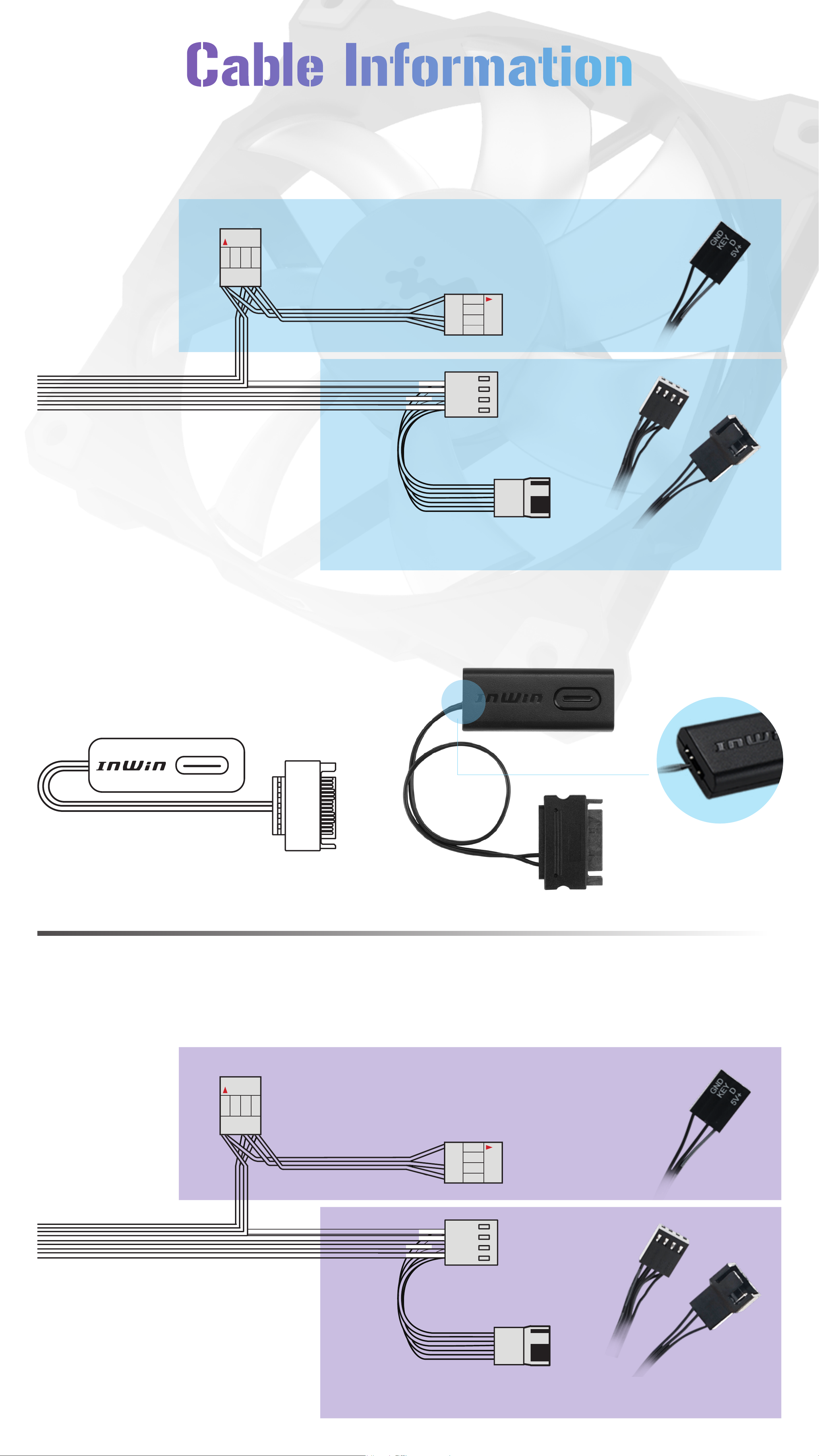

Cable Information
Triple Pack
5V+DKEY
GND
Addressable RGB Y-Cable
5V+
D
KEY
GND
Addressable RGB Controller
Addressable RGB Fan Cable
Single Pack
5V+DKEY
GND
Addressable RGB Y-Cable
5V+
D
KEY
GND
Addressable RGB Fan Cable
Installation
Installation
1. Please make sure the power is off.
Video
2. Install the fans in your PC case and mount
them in the designated areas.

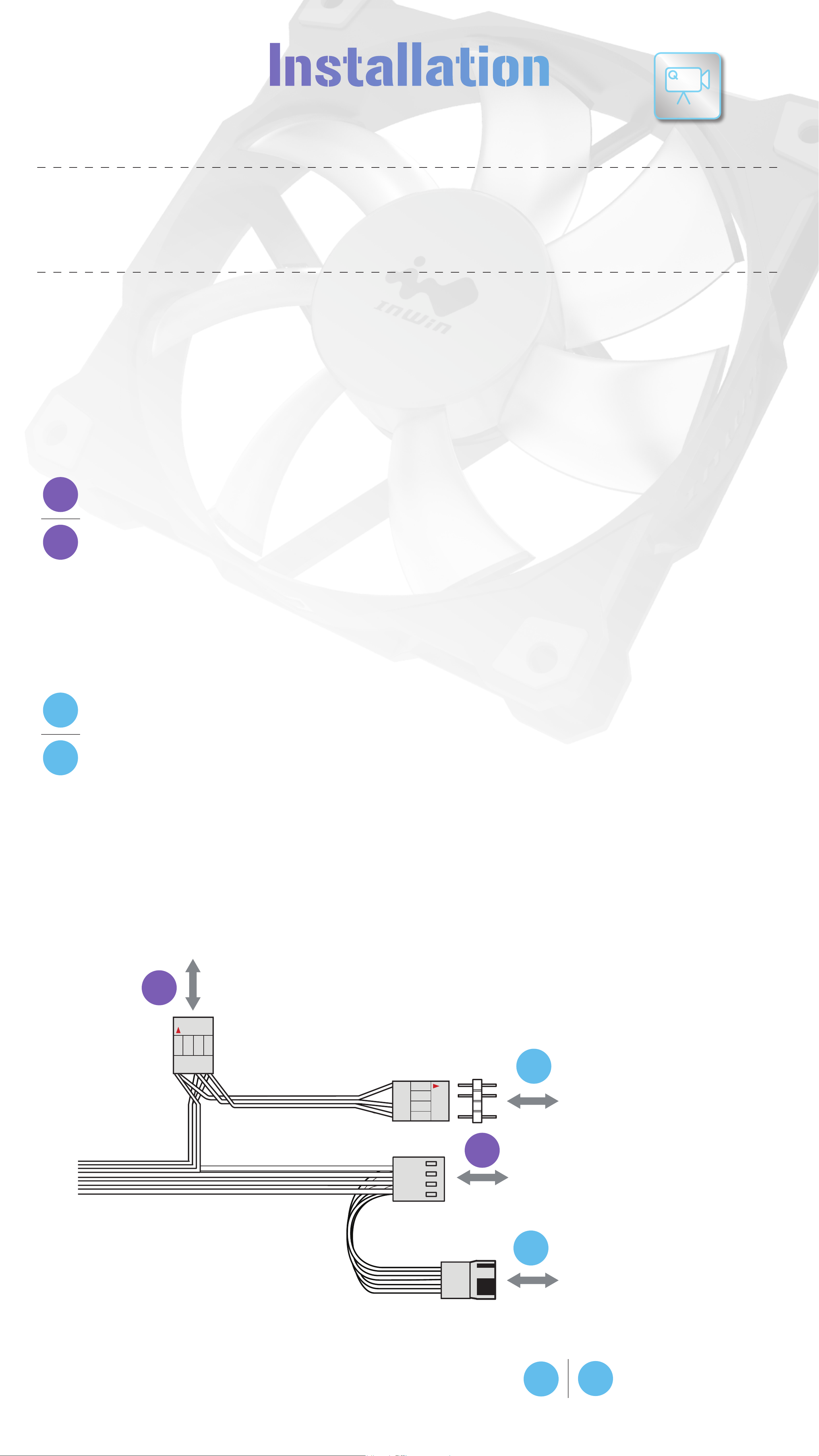

3. The fan cable, Addressable RGB Y-Cable and
their counterparts are attached to each fan.
Please connect as followed:
Connect the fan’s Addressable RGB Y-Cable
a
to a motherboard’s 3-pin addressable RGB
b
c
header. Connect the attached fan cable to the
motherboard’s fan header.
Installing the 2nd fan: Connect the Addressable
RGB Y-Cable and connect it to the available
d
3-pin Addressable RGB header on the previous
fan. Connect the fan to the available fan header
from the previous fan.
Motherboard’s 3-pin
addressable RGB header
a
2nd fan’s
c
addressable RGB
Y-Cable
b
Motherboard’s
4. Installing the 3rd fan: Repeat
Fan Header
d
2nd fan’s fan
cable
c
d
*
Installation

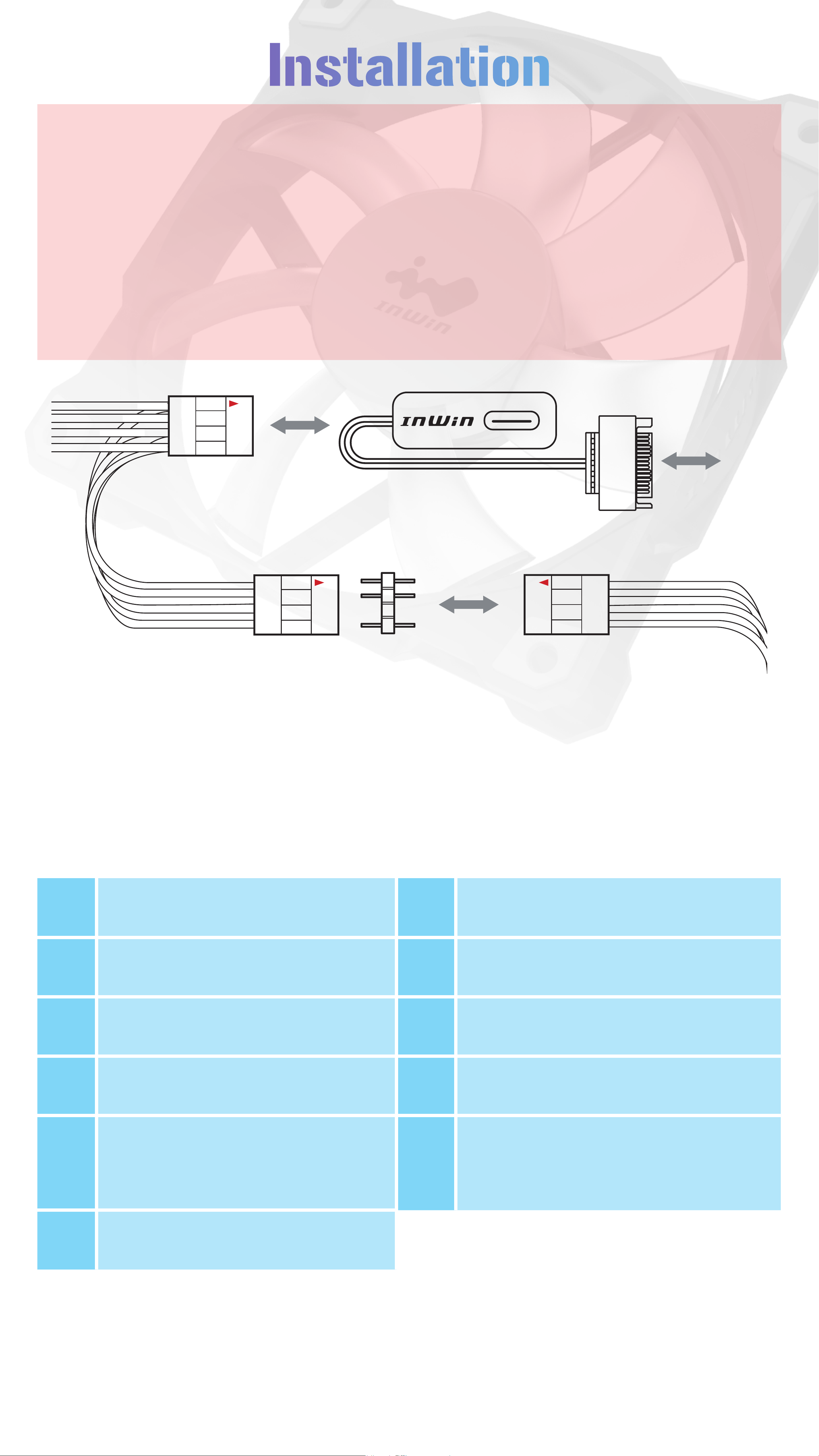

If your motherboard does not support an
addressable header, please use the included
Addressable RGB Controller to connect to your
PSU’s SATA cable and the fan’s Addressable
RGB Y-Cable in order to use the 11 different
lighting effects. (Only in Triple Pack)
PSU’s
SATA
cable
1st fan’s addressable
RGB Y Cable
Addressable RGB
Controller
3-Pin Header
2nd fan’s addressable
RGB Y Cable
Hold the button to turn on or off the lights.
Tap the button to change the lighting
modes.
1 Rainbow 7 Diagonal Transition
2 Breathing 8 LED-Red
3 Full Circle 9 LED-Green
4 Two-Tone Ring 10 LED-Blue
Light at the end of
5
11 LED-White
the Tunnel
6 Rotating LED Trio
* InWin reserves the right to change the lighting
modes.
Troubleshooting
If your fan does not operate properly,
please follow the instructions below:
1. Please check your system’s power.
2. Please make sure all the connectors are
connected properly.
Important Notes
1. Please install the fans by following our
instructions.
2. When storing the fans, please keep this product
away from high temperatures. Keep it away from
machines such as heaters that might cause high
temperatures.
3. Please do not put anything in the impeller.
4. Please do not modify the wires or the connectors
provided by InWin.
5. Please do not touch the fan blades when the fan
is in operation.
6. Please only use your fan in a computer case.
7. Please keep this product away from any liquids.
