JUOKU TECHNOLOGY 341FDA User Manual

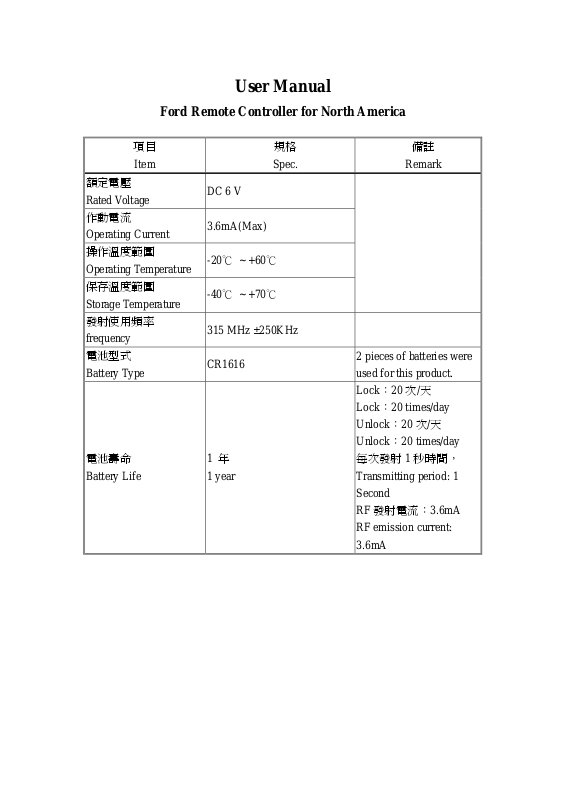

User Manual

Ford Remote Controller for North America

項目

Item
額定電壓
Rated Voltage

作動電流
Operating Current
操作溫度範圍
Operating Temperature
保存溫度範圍
Storage Temperature
發射使用頻率
frequency
電池型式
Battery T yp e

規格

Spec.

DC 6 V

3.6mA(Max)

-20℃ ~ +60℃

-40℃ ~ +70℃

315 MHz ±250KHz

CR1616

備註

Remark

2 pieces of batteries were
used for this product.
Lock：20 次/天
Lock：20 times/day

電池壽命
Battery Life

1 年
1 year

Unlock：20 次/天
Unlock：20 times/day
每次發射 1 秒時間，
Transmitting period: 1
Second
RF 發射電流：3.6mA
RF emission current:

3.6mA

3-key Remote Controller Function

1. Door Lock/Unlock

Lock: push the Lock button.
Unlock: push the Unlock button.

2. Panic

Push the Panic button.
Push the Panic button again: Disable Panic function

4-key Remote Controller Function

1. Door Lock/Unlock

Lock: push the Lock button.
Unlock: push the Unlock button.

2. Panic

Push the Panic button.
Push the Panic button again: Disable Panic function

3. Automatic Trunk

Push the Trunk button to unlock the trunk.

NOTICE:
“Changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment.”
" This device complies with Industry Canada licence-exempt RSS standard(s) and part
15 of the FCC Rules.Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation"
French:"Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. 'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement."
