Junos OS Release 19.4R3 User Manual

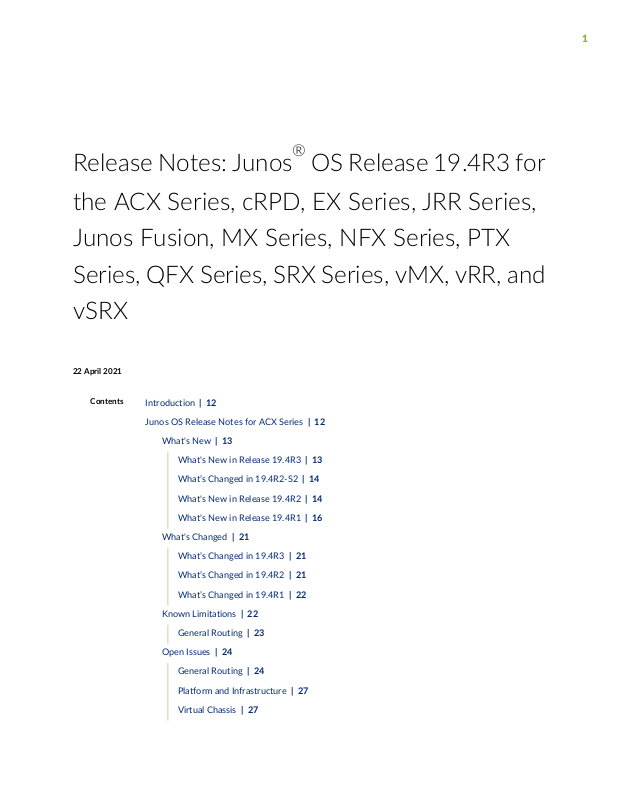

Release Notes: Junos®OS Release 19.4R3 for
the ACX Series, cRPD, EX Series, JRR Series,
Junos Fusion, MX Series, NFX Series, PTX
Series, QFX Series, SRX Series, vMX, vRR, and
vSRX
1
22 April 2021
Introduction | 12
Junos OS Release Notes for ACX Series | 12
What's New | 13
What's New in Release 19.4R3 | 13
What’s Changed in 19.4R2-S2 | 14
What's New in Release 19.4R2 | 14
What's New in Release 19.4R1 | 16
What's Changed | 21
What’s Changed in 19.4R3 | 21
What’s Changed in 19.4R2 | 21
What’s Changed in 19.4R1 | 22
Known Limitations | 22
General Routing | 23
Open Issues | 24
General Routing | 24
Platform and Infrastructure | 27
Virtual Chassis | 27
Resolved Issues | 27
Resolved Issues: 19.4R3 | 28
Resolved Issues: 19.4R2 | 29
Resolved Issues: 19.4R1 | 30
Documentation Updates | 33
Feature Guides Are Renamed As User Guides | 33
Migration, Upgrade, and Downgrade Instructions | 33
Upgrade and Downgrade Support Policy for Junos OS Releases | 34
Junos OS Release Notes for cRPD | 35
What’s New | 35
What's Changed | 35
Known Limitations | 35
Open Issues | 36
Resolved Issues | 36
2
Junos OS Release Notes for EX Series Switches | 36
What's New | 37
What's New in 19.4R3 | 37
What's New in 19.4R2 | 37
What's New in 19.4R1 | 38
What's Changed | 47
What's Changed in 19.4R3 | 48
What's Changed in 19.4R2 | 48
What's Changed in 19.4R1 | 49
Known Limitations | 50
Platform and Infrastructure | 50
Open Issues | 51
Infrastructure | 51
Interfaces and Chassis | 52
Layer 2 Features | 52
Platform and Infrastructure | 52
Routing Protocols | 53
Virtual Chassis | 54
Resolved Issues | 54
Resolved Issues: 19.4R3 | 55
Resolved Issues: 19.4R2 | 57
Resolved Issues: 19.4R1 | 60
Documentation Updates | 65
Feature Guides Are Renamed As User Guides | 66
Migration, Upgrade, and Downgrade Instructions | 66
Upgrade and Downgrade Support Policy for Junos OS Releases | 66
Junos OS Release Notes for JRR Series | 67
What's New | 68
What’s New in 19.4R3 Release | 68
What’s New in 19.4R2 Release | 68
What’s New in 19.4R1 Release | 68
What's Changed | 69
3
Known Limitations | 70
Open Issues | 70
Resolved Issues | 71
Resolved Issues: 19.4R3 | 71
Resolved Issues: 19.4R2 | 71
Resolved Issues: 19.4R1 | 71
Documentation Updates | 72
Feature Guides Are Renamed As User Guides | 72
Migration, Upgrade, and Downgrade Instructions | 73
Upgrade and Downgrade Support Policy for Junos OS Releases | 73
Junos OS Release Notes for Junos Fusion Enterprise | 74
What’s New | 75
What’s Changed | 75
Known Limitations | 76
Open Issues | 76
Junos Fusion for Enterprise | 76
Resolved Issues | 77
Resolved Issues: Release 19.4R3 | 77
Resolved Issues: Release 19.4R2 | 78
Resolved Issues: Release 19.4R1 | 78
Documentation Updates | 78
Feature Guides Are Renamed As User Guides | 78
Migration, Upgrade, and Downgrade Instructions | 79
Basic Procedure for Upgrading Junos OS on an Aggregation Device | 79
Upgrading an Aggregation Device with Redundant Routing Engines | 81
Preparing the Switch for Satellite Device Conversion | 82
Converting a Satellite Device to a Standalone Switch | 83
Upgrade and Downgrade Support Policy for Junos OS Releases | 83
Downgrading from Junos OS | 84
Junos OS Release Notes for Junos Fusion Provider Edge | 85
What's New | 85
What's Changed | 86
Known Limitations | 86
Open Issues | 87
4
Resolved Issues | 87
Resolved Issues: 19.4R3 Release | 88
Resolved Issues: 19.4R2 Release | 88
Resolved Issues: 19.4R1 Release | 88
Documentation Updates | 88
Feature Guides Are Renamed As User Guides | 89
Migration, Upgrade, and Downgrade Instructions | 89
Basic Procedure for Upgrading an Aggregation Device | 90
Upgrading an Aggregation Device with Redundant Routing Engines | 92
Preparing the Switch for Satellite Device Conversion | 93
Converting a Satellite Device to a Standalone Device | 94
Upgrading an Aggregation Device | 96
Upgrade and Downgrade Support Policy for Junos OS Releases | 97
Downgrading from Junos OS Release 19.4 | 97
Junos OS Release Notes for MX Series 5G Universal Routing Platform | 98
What's New | 98
What’s New in 19.4R3 Release | 99
What’s New in 19.4R2 Release | 99
What’s New in 19.4R1 Release | 101
What's Changed | 121
What’s Changed in 19.4R3-S3 Release | 121
What’s Changed in 19.4R3-S2 Release | 122
What’s Changed in 19.4R3 Release | 122
What’s Changed in 19.4R2-S1 Release | 124
What’s Changed in 19.4R2 Release | 124
What’s Changed in 19.4R1 Release | 125
Known Limitations | 129
EVPN | 129
General Routing | 129
Interfaces and Chassis | 131
Platform and Infrastructure | 131
Routing Protocols | 132
5
Open Issues | 132
Class of Service (CoS) | 133
EVPN | 133
Forwarding and Sampling | 133
General Routing | 134
Infrastructure | 142
Interfaces and Chassis | 142
Layer 2 Features | 143
MPLS | 143
Network Address Translation (NAT) | 144
Network Management and Monitoring | 144
Platform and Infrastructure | 144
Routing Protocols | 146
Services Applications | 147
VPNs | 148
Resolved Issues | 148
Resolved Issues: 19.4R3 | 149
Resolved Issues: 19.4R2 | 158
Resolved Issues: 19.4R1 | 170
Documentation Updates | 191
Advanced Subscriber Management Provider | 192
Feature Guides Are Renamed As User Guides | 192
Migration, Upgrade, and Downgrade Instructions | 192
Basic Procedure for Upgrading to Release 19.4 | 193
Procedure to Upgrade to FreeBSD 11.x based Junos OS | 193
Procedure to Upgrade to FreeBSD 6.x based Junos OS | 196
Upgrade and Downgrade Support Policy for Junos OS Releases | 198
Upgrading a Router with Redundant Routing Engines | 198
Downgrading from Release 19.4 | 199
Junos OS Release Notes for NFX Series | 199
What’s New | 200
What's New in Release 19.4R3 | 200
What's New in Release 19.4R2 | 200
6
What's New in Release 19.4R1 | 201
What's Changed | 202
What’s Changed in 19.4R3 Release | 202
What’s Changed in 19.4R2 Release | 203
What’s Changed in 19.4R1 Release | 203
Known Limitations | 203
High Availability | 204
Platform and Infrastructure | 204
Open Issues | 204
Platform and Infrastructure | 205
Virtual Network Functions (VNFs) | 205
Resolved Issues | 205
Resolved Issues: 19.4R3 | 206
Resolved Issues: 19.4R2 | 206
Resolved Issues: 19.4R1 | 208
Documentation Updates | 210
Feature Guides Are Renamed As User Guides | 211
Migration, Upgrade, and Downgrade Instructions | 211
Upgrade and Downgrade Support Policy for Junos OS Releases | 211
Basic Procedure for Upgrading to Release 19.4 | 212
Junos OS Release Notes for PTX Series Packet Transport Routers | 213
What's New | 214
What's New in 19.4R3 | 214
What's New in 19.4R2 | 214
What's New in 19.4R1 | 215
What's Changed | 221
What's Changed in 19.4R3-S2 | 222
What's Changed in 19.4R3 | 222
What's Changed in 19.4R2 | 222
What's Changed in 19.4R1 | 223
Known Limitations | 225
General Routing | 225
MPLS | 226
Open Issues | 226
7
General Routing | 227
MPLS | 229
Routing Protocols | 229
Resolved Issues | 229
Resolved Issues: 19.4R3 | 230
Resolved Issues: 19.4R2 | 231
Resolved Issues: 19.4R1 | 232
Documentation Updates | 235
Feature Guides Are Renamed as User Guides | 235
Migration, Upgrade, and Downgrade Instructions | 236
Basic Procedure for Upgrading to Release 19.4 | 236
Upgrade and Downgrade Support Policy for Junos OS Releases | 239
Upgrading a Router with Redundant Routing Engines | 240
Junos OS Release Notes for the QFX Series | 241
What's New | 241
What's New in Release 19.4R3 | 242
What's New in Release 19.4R2 | 242
What's New in Release 19.4R1 | 242
What's Changed | 254
What’s Changed in 19.4R3 | 254
What’s Changed in 19.4R2 | 255
What’s Changed in 19.4R1 | 256
Known Limitations | 258
Layer 2 Features | 258
Layer 2 Ethernet Services | 258
Network Management and Monitoring | 258
Platform and Infrastructure | 259
Routing Protocols | 259
Open Issues | 260
EVPN | 260
Infrastructure | 260
8
Interfaces and Chassis | 261
Junos Fusion Provider Edge | 261
Layer 2 Features | 261
MPLS | 261
Platform and Infrastructure | 261
Routing Protocols | 263
Virtual Chassis | 264
Resolved Issues | 264
Resolved Issues: 19.4R3 | 265
Resolved Issues: 19.4R2 | 268
Resolved Issues: 19.4R1 | 274
Documentation Updates | 280
Feature Guides Are Renamed As User Guides | 281
Migration, Upgrade, and Downgrade Instructions | 281
Upgrading Software on QFX Series Switches | 282
Installing the Software on QFX10002-60C Switches | 284
Installing the Software on QFX10002 Switches | 284
Upgrading Software from Junos OS Release 15.1X53-D3X to Junos OS Release
15.1X53-D60, 15.1X53-D61.7, 15.1X53-D62, and 15.1X53-D63 on QFX10008 and QFX10016 Switches | 285
Installing the Software on QFX10008 and QFX10016 Switches | 287
Performing a Unified ISSU | 291
Preparing the Switch for Software Installation | 292
Upgrading the Software Using Unified ISSU | 292
Upgrade and Downgrade Support Policy for Junos OS Releases | 294
Junos OS Release Notes for SRX Series | 295
What’s New | 296
Release 19.4R3 New and Changed Features | 296
Release 19.4R2 New and Changed Features | 296
Release 19.4R1 New and Changed Features | 296
What's Changed | 304
What's Changed in 19.4R3 | 305
What’s Changed in Release 19.4R2-S4 | 305
What’s Changed in Release 19.4R2 | 305
What’s Changed in Release 19.4R1 | 306
9
Known Limitations | 310
Application Layer Gateways (ALGs) | 311
Class of Service (CoS) | 311
Flow-Based and Packet-Based Processing | 311
J-Web | 311
Platform and Infrastructure | 312
Routing Policy and Firewall Filters | 312
Switching | 312
VPNs | 312
Open Issues | 313
ATP Cloud | 314
Chassis Clustering | 314
Flow-Based and Packet-Based Processing | 314
Intrusion Detection and Prevention (IDP) | 314
J-Web | 315
Platform and Infrastructure | 315
Routing Policy and Firewall Filters | 315
VPNs | 315
Resolved Issues | 317
Resolved Issues: 19.4R3 | 317
Resolved Issues: 19.4R2 | 319
Resolved Issues: 19.4R1 | 323
Documentation Updates | 330
Feature Guides Are Renamed As User Guides | 330
Migration, Upgrade, and Downgrade Instructions | 330
Upgrade and Downgrade Support Policy for Junos OS Releases and Extended End-Of-Life
Releases | 331
Junos OS Release Notes for vMX | 331
What’s New | 332
What's Changed | 332
Known Limitations | 332
Open Issues | 332
10
Platform and Infrastructure | 333
Resolved Issues | 333
CLI | 333
Platform and Infrastructure | 333
Licensing | 334
Upgrade Instructions | 334
Junos OS Release Notes for vRR | 334
What’s New | 335
What's Changed | 335
Known Limitations | 335
Open Issues | 336
Resolved Issues | 336
Junos OS Release Notes for vSRX | 336
What’s New | 337
Release 19.4R3 New and Changed Features | 337
What's Changed | 337
Management | 338
Known Limitations | 338
J-Web | 338
Platform and Infrastructure | 339
Unified Threat Management (UTM) | 339
User Access and Authentication | 339
Open Issues | 339
VPNs | 340
Resolved Issues | 340
Application Security | 340
CLI | 341
Flow-Based and Packet-Based Processing | 341
Intrusion Detection and Prevention (IDP) | 341
J-Web | 341
Platform and Infrastructure | 341
Routing Policy and Firewall Filters | 342
Unified Threat Management (UTM) | 342
VPNs | 342
11
Migration, Upgrade, and Downgrade Instructions | 342
Upgrading Software Packages | 343
Validating the OVA Image | 348
Upgrading Using ISSU | 349
Licensing | 349
Compliance Advisor | 350
Finding More Information | 350
Documentation Feedback | 350
Requesting Technical Support | 352
Self-Help Online Tools and Resources | 352
Creating a Service Request with JTAC | 353
Revision History | 353

Introduction

Junos OS runs on the following Juniper Networks®hardware: ACX Series, EX Series, M Series, MX Series,
NFX Series, PTX Series, QFabric systems, QFX Series, SRX Series, T Series, JRR Series, and Junos Fusion.
These release notes accompany Junos OS Release 19.4R3 for the ACX Series, cRPD, EX Series, JRR Series, Junos Fusion, MX Series, NFX Series, PTX Series, QFX Series, SRX Series, vMX, vRR, and vSRX. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
Feature Guides Are Renamed As User Guides—Starting with Junos OS 19.4R1, we renamed our Feature
Guides to User Guides to better reflect the purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
12
New In Focus Guide—Starting on Junos Release 19.4, we are introducing a new document called In
Focus that provides details on the most important features for the release in one place. We hope this document will quickly get you to the latest information about Junos features. Let us know if you find this information useful by sending email to techpubs-comments@juniper.net.
Important Information:
Upgrading Using ISSU on page 349
Licensing on page 349
Compliance Advisor on page 350
Finding More Information on page 350
Documentation Feedback on page 350
Requesting Technical Support on page 352

Junos OS Release Notes for ACX Series

IN THIS SECTION
What's New | 13
What's Changed | 21
Known Limitations | 22
Open Issues | 24
Resolved Issues | 27
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33
These release notes accompany Junos OS Release 19.4R3 for the ACX Series. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.
13

What's New

IN THIS SECTION
What's New in Release 19.4R3 | 13
What’s Changed in 19.4R2-S2 | 14
What's New in Release 19.4R2 | 14
What's New in Release 19.4R1 | 16
Learn about new features introduced in the Junos OS main and maintenance releases for ACX Series routers.

What's New in Release 19.4R3

There are no new features or enhancements to existing features for ACX Series Junos OS Release 19.4R3.

What’s Changed in 19.4R2-S2

General Routing
Support for gigether-options statement (ACX5048, ACX5096)—Junos OS supports the gigether-options
statement at the edit interfaces interface-name hierarchy on the ACX5048 and ACX5096 routers. Previously, support for the gigether-statement was deprecated. See gigether-options and

What's New in Release 19.4R2

Dynamic Host Configuration Protocol (DHCP)
Support for DHCPv6-PD on EVPN IRB synchronization between multiple PE routers (ACX 5448,
ACX5448-M and ACX5448-D)—Starting in Junos OS Release 19.4R2, you can use DHCPv6 prefix delegation (DHCPv6-PD) to automate the delegation of IPv6 prefixes to a requesting router on EVPN IRB. DHCPv6 prefix delegation is configured on EVPN IRB and provides IPv6 prefixes to the requesting clients, instead of the unique address. The DHCPv6-PD server acts as a provider edge (PE) router that provides the delegates through the relay (PE router) operating in the EVPN instance.
14
If one PE router fails, appropriate DHCPv6-PD state is made available for the remaining PE routers participating in the DHCP-PD process for the given VLAN. This is done using automatic synchronization of DHCPv6-PD states between multiple PE routers connected to the same Ethernet Segment Identifier (ESI) through EVPN BGP messages.
Support for DHCP Option 82 over EVPN (ACX5448, ACX5448-M and ACX5448-D)—Starting in Junos
OS Release 19.4R2, we have inserted Option 82 flags in the DHCP packets for enhanced security when the packet is sent to the server. The provider edge router that is part of the EVPN instance acts as the relay agent and inserts these flags to the DHCP packets.
DHCPv4 and DHCPv6 relay of packets uses this process. With the introduction of EVPN IRB, the relay agent uses the IRB interface with EVPN for forwarding the requests and replies to and from the client or the server instead of using the default routing.
Support for persistent storage of DHCPv4 and DHCPv6 bindings over EVPN IRB (ACX5448, ACX5448-M
and ACX5448-D)—Starting in Junos OS Release 19.4R2, ACX5448, ACX5448-M and ACX5448-D routers, when configured to function as a DHCP relay agent, can also be configured to preserve the DHCPv4 and DHCPv6 subscriber bindings across reboots. Existing bindings are written to a local file in /var/preserve. After reboot, the binding table is populated with the contents of the file and the router identifies each subscriber that was on the deleted interface, and resumes normal packet processing for subscribers when the interface is restored. To preserve the subscriber binding information, enable the perisistent-storage statement under the [edit system services dhcp-local-server] hierarchy.
[See Preserving Subscriber Binding Information and DHCPv6 Relay Agent Overview.]
EVPN
Multicast with IGMP or MLD snooping across VLANs for EVPN-MPLS (ACX5448)—Starting in Junos OS
Release 19.4R2, ACX5448 routers support inter-VLAN multicast forwarding with IGMP or MLD snooping in an EVPN over MPLS network as follows:
Multicast sources are external to the EVPN instance in a Layer 3 Protocol Independent Multicast (PIM)
domain.
All provider edge (PE) devices in the EVPN instance connect to a PIM gateway router in the PIM
domain using Layer 3 interfaces, and send PIM join messages toward the PIM rendezvous point (RP) for their receivers that want to join a multicast group.
The PIM gateway router forwards traffic for the multicast group from the external sources to all PE
devices in the EVPN instance.
On each PE device, you configure IRB interfaces with PIM in distributed designated router (DDR)
mode. The PE device uses these IRB interfaces only to forward or route the multicast traffic on one or more VLANs to interested receivers locally (on its own device), rather than to send traffic out to other PE devices in the EVPN-MPLS network.
15
You can configure IGMP or MLD snooping in one or more routing instances of type evpn.
You must configure all VLANs on all PE devices.
Receivers in an EVPN instance can be single-homed to one PE device or multihomed to multiple PE
devices in all-active mode. Peer PE devices for an EVPN segment synchronize IGMP or MLD state information by using BGP EVPN Type 7 and Type 8 (Join Sync and Leave Sync Route) messages.
The PE devices support IGMPv2 and IGMP snooping with any-source multicast (ASM) [(*,G)].
The PE devices support MLDv1, MLDv2, and MLD snooping as follows:
By default when you enable MLD snooping, the PE devices process MLDv1 and MLDv2 reports
only in ASM (*,G) mode. They discard MLDv2 source-specific multicast (SSM) (S,G) reports.
If you enable MLD snooping with the SSM-only processing option (set evpn-ssm-reports-only at
the [edit routing-instance instance-name protocols mld-snooping] hierarchy level), the PE devices process MLDv2 reports as SSM (S,G) only. They discard MLDv1 or MLDv2 ASM (*,G) reports. We also recommend that you configure MLDv2 on all IRB interfaces used for inter-VLAN routing in this case.
PE devices can’t process both ASM and SSM reports together.
[See Overview of Multicast Forwarding with IGMP or MLD Snooping in an EVPN-MPLS Environment.]
Multicast with IGMP or MLD snooping within VLANs for EVPN-MPLS (ACX5448, ACX5448-M, and
ACX5448-D)—Starting in Junos OS Release 19.4R2, ACX5448 routers support intra-VLAN multicast forwarding with IGMP or MLD snooping in an EVPN over MPLS network as follows:
The multicast sources and receivers must be within an EVPN instance. You can configure IGMP or
MLD snooping for one or more routing instances of type evpn.
Receivers can be single-homed to one provider edge (PE) device or multihomed to multiple PE devices
(in all-active mode only).
The PE devices support IGMPv2 and IGMP snooping with any-source multicast (ASM).
The PE devices support MLDv1, MLDv2, and MLD snooping in intra-VLAN configurations as follows:
By default with MLD snooping enabled, the PE devices can process MLDv1 ASM (*,G) reports but
discard MLDv2 reports.
With MLD snooping enabled, if you configure all interfaces that receive multicast traffic with MLDv2,
the PE devices can process both MLDv1 and MLDv2 reports in ASM (*,G) mode, but they discard MLDv2 source-specific multicast (SSM) (S,G) reports.
You must configure each VLAN on all PE devices in an EVPN instance.
The PE devices flood multicast source traffic on a VLAN into the EVPN instance to reach all other PE
devices. When they receive the traffic from the EVPN network, the PE devices use snooping information to forward the traffic only to the interested listeners in the VLAN.
16
Multihoming peer PE devices for an Ethernet segment (ES) exchange BGP EVPN Type 7 and Type 8
(Join Sync and Leave Sync Route) messages to synchronize the IGMP or MLD state information. When they receive multicast traffic from the EVPN core, the designated forwarder (DF) PE device forwards the traffic only to interested receivers based on IGMP snooping reports and Type 7 routes.
[See Overview of Multicast Forwarding with IGMP or MLD Snooping in an EVPN-MPLS Environment.]
Support for IRB and IRBv6 on EVPN-MPLS networks (ACX5448)—Starting with Junos OS Release
19.4R2, you can configure EVPN with IRB or IRBv6 over an EVPN-MPLS network to extend Layer 2 connectivity across data centers. Both EVPN type 2 (MAC/IP Advertisement) and EVPN type 5 (IP Prefix Advertisement) routes are supported.
[See EVPN with IRB Solution Overview.]
Support for EVPN E-Tree service (ACX5448)—Starting in Junos OS 19.4R2, you can configure an Ethernet
VPN Ethernet Tree (E-Tree) service on ACX5448 routers.
[See EVPN-ETREE Overview.]

What's New in Release 19.4R1

EVPN
SPRING support for EVPN (ACX5448)—Starting in Junos OS Release 19.4R1, you can use Source Packet
Routing in Networking (SPRING) as the underlay transport in EVPN on ACX5448 routers. SPRING tunnels enable routers to steer a packet through a specific set of nodes and links in the network.
To configure SPRING, use the source-packet-routing statement at the [edit protocols isis] hierarchy level.
[See Understanding Source Packet Routing in Networking (SPRING).]
Support for EVPN features on new hardware (ACX5448)—Starting with Release 19.4R1, Junos OS
supports the following EVPN features:
ARP/NDP proxy and suppression with proxy MAC responses. [See EVPN Proxy ARP and ARP
Suppression, and Proxy NDP and NDP Suppression.]
EVPN with segment routing (SPRING). [See Understanding Source Packet Routing in Networking
(SPRING).]
EVPN E-LAN services over MPLS, including support for VLAN-based and VLAN-bundles services. [See
EVPN Overview and Overview of VLAN Services for EVPN.]
EVPN multihoming active/active. [See EVPN Multihoming Overview.]
Support for EVPN routing policies (ACX5448, EX4600, EX4650, EX9200, MX Series, QFX Series, and
vMX)—Starting in Junos OS Release 19.4R1, Junos OS has expanded routing policy support to include the creation and application of policy filters specific to EVPN routes. You can create policies and apply policy filters to import and export EVPN routes at the routing-instance level or at the BGP level. Junos OS supports the following matching criteria for EVPN routes:
17
Route distinguisher ID
NLRI route type
EVPN Ethernet tag
BGP path attributes
Ethernet Segment Identifier
MAC Address on EVPN route type 2 routes
IP address on EVPN route type 2 and EVPN route type 5 routes
Extended community
[See Routing policies for EVPN.]
General Routing
Support for full inheritance paths of configuration groups to be built into the database by default (ACX
Series, MX Series, PTX Series, and SRX Series)—Starting with Junos OS Release 19.4R1, the persist-groups-inheritance option at the [edit system commit] hierarchy level is enabled by default. To
disable this option, use no-persist-groups-inheritance.
[See commit (System).]
Support for gigether-options statement (ACX5048, ACX5096)—Junos OS supports the gigether-options
statement at the edit interfaces interface-name hierarchy on the ACX5048 and ACX5096 routers. Previously, support for the gigether-statement was deprecated. See gigether-options and
Junos OS XML API and Scripting
Automation script library upgrades (ACX Series, EX Series, MX Series, PTX Series, QFX Series, and SRX
Series)—Starting in Junos OS Release 19.4R1, devices running Junos OS that support the Python extensions package include upgraded Python modules. Python scripts can leverage the upgraded versions of the following modules:
idna (2.8)
jinja2 (2.10.1)
jnpr.junos (Junos PyEZ) (2.2.0)
lxml (4.3.3)
markupsafe (1.1.1)
ncclient (0.6.4)
18
packaging (19.0)
paho.mqtt (1.4.0)
pyasn1 (0.4.5)
yaml (PyYAML package) (5.1)
[See Overview of Python Modules Available on Devices Running Junos OS.]
Python 3 support for commit, event, op, and SNMP scripts (ACX Series, EX Series, MX Series, PTX
Series, QFX Series, and SRX Series)—Starting in Junos OS Release 19.4R1, you can use Python 3 to execute commit, event, op, and SNMP scripts on devices running Junos OS. To use Python 3, configure the language python3 statement at the [edit system scripts] hierarchy level. When you configure the language python3 statement, the device uses Python 3 to execute scripts that support this Python version and uses Python 2.7 to execute scripts that do not support Python 3 in the given release.
The Python 2.7 end-of-support date is January 1, 2020, and Python 2.7 will be EOL in 2020. The official upgrade path for Python 2.7 is to Python 3. As support for Python 3 is added to devices running Junos OS for the different types of onbox scripts, we recommend that you migrate supported script types from Python 2 to Python 3, because support for Python 2.7 might be removed from devices running Junos OS in the future.
[See Understanding Python Automation Scripts for Devices Running Junos OS.]
MPLS
Support for Topology Independent Loop-Free Alternate, advertising MPLS labels, and configuring SRGB
for SPRING for ISIS and OSPF (ACX5448-D and ACX5448-M)—Starting with Junos OS Release 19.4R1, ACX5448-D and ACX5448-M router supports topology independent (TI)-loop-free alternate (LFA), advertise MPLS labels (ISIS, OSPF), and segment routing global block (SRGB) for SPRING (ISIS, OSPF).
[See Understanding Topology-Independent Loop-Free Alternate with Segment Routing for IS-IS,
Understanding Source Packet Routing in Networking (SPRING).]
OAM
Support for Ethernet OAM and Metro Ethernet services over segment routing (ACX5448-D, ACX5448-M,
MX Series)—Starting with Junos OS Release 19.4R1, ACX5448-D, ACX5448-M and MX Series routers support Ethernet OAM and Metro Ethernet services over segment routing.
[See Understanding Adjacency Segments, Anycast Segments, and Configurable SRGB in SPRING for IS-IS Protocol, Understanding Topology-Independent Loop-Free Alternate with Segment Routing for IS-IS, Ethernet OAM Connectivity Fault Management .]
19
Routing Protocols
Support for configurable SRGB used by SPRING in OSPF protocols (ACX5448)— Starting in Junos OS
Release 19.4R1, you can configure the segment routing global block (SRGB) range label used by segment routing. Labels from this range are used for segment routing functionality in OSPF domain.
The SRGB is a range of the label values used in the segment routing. Prior to Junos OS Release 19.4R1, you could not configure the range for the SRGB block.
Locally you can configure srgb start-label <label-range> index-range <index-range> command under [edit protocols ospf source-packet-routing] hierarchy or globally under [edit protocols mpls label-range] hierarchy.
Following are the SRGB precedences for OSPF protocol:
Local SRGB
Global SRGB
Node-segment implementation of 256 label block
Unnumbered interface support for IS-IS and OSPFv2 with topology-independent loop-free alternate
(ACX Series, MX Series and PTX Series)—Starting in Junos OS Release 19.4R1, you can enable IPv4 processing on a point-to-point interface without assigning it an explicit IPv4 address. The router borrows the IPv4 address of another Ethernet or loopback interface already configured on the router and assigns it to the unnumbered interface to conserve IPv4 addresses.
To enable IPv4 processing for unnumbered interfaces include unnumbered-address source at the [edit interfaces [name] unit [name] family inet] hierarchy level.
[See Configuring an Unnumbered Interface.]
System Logging
Improved intermodule communication between FFP and MGD (ACX Series, EX Series, MX Series, PTX
Series, QFX Series, and SRX Series)—Starting in Junos OS Release 19.4R1, intermodule communication is improved to enhance software debugging. To enhance error messages with more context, the exit conditions from libraries have been updated as follows:
Additional information is now logged for MGD-FFP intermodule communication.
Commit errors that previously were only shown onscreen are now logged.
We provide a new operational command, request debug information, to speed up the initial information-gathering phase of debugging.
[See request debug information.]
Software Defined Networking (SDN)
Tunnel templates for PCE-initiated segment routing LSPs (ACX Series)—Starting in Junos OS Release
19.4R1, you can configure a tunnel template for Path Computation Element (PCE)-initiated segment routing LSPs and apply it through policy configuration. These templates enable dynamic creation of segment routing tunnels with two additional parameters – Bidirectional forwarding detection (BFD) and LDP tunneling.
20
With the support for tunnel configuration, the LSPs that you would configure statically can now be automatically created from the PCE, thereby providing the benefit of reduced configuration on the device.
[See Understanding Static Segment Routing LSP in MPLS Networks.]
SEE ALSO
What's Changed | 21
Known Limitations | 22
Open Issues | 24
Resolved Issues | 27
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33

What's Changed

IN THIS SECTION
What’s Changed in 19.4R3 | 21
What’s Changed in 19.4R2 | 21
What’s Changed in 19.4R1 | 22
Learn about what changed in the Junos OS main and maintenance releases for ACX Series routers.

What’s Changed in 19.4R3

Routing Protocols
21
Advertising /32 secondary loopback addresses to Traffic Engineering Database (TED) as prefixes (ACX
Series, EX Series, MX Series, PTX Series, QFX Series, and SRX Series)—In Junos OS Release, multiple loopback addresses export into lsdist.0 and lsdist.1 routing tables as prefixes. This eliminates the issue of advertising secondary loopback addresses as router-ids instead of prefixes. In earlier Junos OS releases, multiple secondary loopback addresses in TED were added into lsdist.0 and lsdist.1 routing tables as part of node characteristics and advertised them as the router-id.

What’s Changed in 19.4R2

There are no changes in behavior of Junos OS features and changes in the syntax of Junos OS statements and commands in Junos OS Release 19.4R2 for ACX Series routers.

What’s Changed in 19.4R1

General Routing
Support for full inheritance paths of configuration groups to be built into the database by default (ACX
Series, MX Series, PTX Series, and SRX Series)—Starting with Junos OS Release 19.4R1, the persist-groups-inheritance option at the [edit system commit] hierarchy level is enabled by default. To
disable this option, use no-persist-groups-inheritance.
[See commit (System).]
Routing Protocols
XML RPC equivalent included for the show bgp output-scheduler | display xml rpc CLI command (ACX
Series, EX Series, MX Series, PTX Series, QFX Series, and SRX Series)—Starting in Junos OS Release
19.4R1, we have included an XML RPC equivalent for the show bgp output-scheduler | display xml rpc CLI command. In Junos OS releases before Release 19.4R1, the show bgp output-scheduler | display xml rpc CLI command does not have an XML RPC equivalent.
[See show bgp output-scheduler.]
22
SEE ALSO
What's New | 13
Known Limitations | 22
Open Issues | 24
Resolved Issues | 27
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33

Known Limitations

IN THIS SECTION
General Routing | 23
Learn about known limitations in Junos OS Release 19.4R3 for ACX Series routers. For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem
Report Search application.

General Routing

All PTP packets go to the best-effort queue instead of the network control queue. This is because of
the limitation on Qumran where DSCP values are not preserved. PR1361315
ACX6360 Junos telemetry interface or telemetry infrastructure does not support the interface-filtering
capability. Therefore, after you enable a particular sensor for telemetry, it is turned on for all the interfaces.
PR1371996
When a timing configuration and the corresponding interface configuration are flapped for multiple
times in iteration, PTP is stuck in "INITIALIZE" state where the ARP for the neighbor is not resolved. In issue state, BCM hardware block get into inconsistency state, where the lookup is failing. PR1410746
The port LEDs glowing during system/vmhost halt state is the expected behavior across all ACX Series
platforms. Even the system LED glows during halt state. PR1430129
23
If L2VPN sessions have OAM control-channel option set to router-alert-label, the no-control-word
option in L2VPN shouldn't be used for BFD sessions to come up. PR1432854
The IFL statistics in ACX5448, will display the full packet size similar to the behavior in ACX5000 series.
PR1439124
With an asymmetric network connection, EX: 10G Macsec port connected to a 10GbE channelized port,
high and asymmetric T1 and T4 time errors introduce a high two-way time error.This introduces different CF updates in forward and reverse paths. PR1440140
With the MACsec feature enabled and introduction of traffic, the peak-to-peak value varies with the
percentage of traffic introduced. Find the maximum and mean values of the Time errors with different traffic rates(two-router scenario). Can have maximum value jumps as high as 1054ns with 95% traffic, 640ns with 90% traffic, and 137ns with no traffic. PR1441388
ACX Series platforms do not support directly associating a policer in an a logical interface. The association
needs to be achieved using "filters" only. In this case, "family any" filter can be configured. Also, the ACX5448 hardware ASIC does not support "egress policing". Egress shaping (H-QoS at the logical-interface level) can be used instead. PR1446376
ACX Series routers support only 900 joins of IGMPv3 users per second. PR1448146
This is hardware limitation and this is expected behavior on ACX5448. The mac-ageing on ACX5448
will not be at the granularity of per second. Ageing is at the granularity of an ageing cycle. Ageing cycle is defined as 1/6th of the age configured. Only 16000 entries can be aged in each ageing cycle. Meaning that if we have more than 16000 entries ageing in an ageing cycle, only 16000 will be aged out. Rest would be aged out in the subsequent cycles. 16000 can be achieved in ideal scenario when we don't have another learning event in the same cycle. Also, this number can vary in the event of more load on the system. This is a hardware limitation. PR1509590
SEE ALSO
What's New | 13
What's Changed | 21
Open Issues | 24
Resolved Issues | 27
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33

Open Issues

IN THIS SECTION
24
General Routing | 24
Platform and Infrastructure | 27
Virtual Chassis | 27
Learn about open issues in Junos OS Release 19.4R3 for ACX Series routers. For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report
Search application.

General Routing

Loopback status is not shown for OT interfaces on CLI (available from vty only). PR1358017
The SD (Signal Degrade) threshold is normally lower than the SF threshold (that is, so that as errors
increase, SD condition is encountered first). For the ACX6360 optical links there is no guard code to prevent the user from setting the SD threshold above the SF threshold which would cause increasing errors to trigger the SF alarm before the SD alarm. This will not cause any issues on systems with correctly provisioned SD/SF thresholds. PR1376869
Enhancement is needed for FRR BER threshold SNMP support. PR1383303
On ACX6360/PTX10001 router, Tx power cannot be configured using + sign. PR1383980
The switchover time observed was more than 50 minutes under certain soak test conditions with an
increased scale with a multiprotocol multirouter topology. PR1387858
The ccc logs are not compressed after rotation. PR1398511
A jnxIfOtnOperState trap notification is sent for all ot-interfaces. PR1406758
On ACX 1000/2000/4000/5048/5096 platforms, after a new child IFL with VLAN and filter is added
on an aggregated Ethernet physical interface or if the VLAN ID of a child logical interface is changed with filter, traffic over the aggregated Ethernet physical interface might get filtered with that filter on the child logical interface. For example, ae-0/0/0 is a physical interface and ae-0/0/0.100 is a logical interface. PR1407855
Layer 2 rewrite is happening on regular bridge domain and VLAN interfaces, although there are some
service dependencies (VPLS in this case) due to which, the egress interface map table is not updated properly with the Layer 2 rewrite map ID; as a result, the rewrite does not work. PR1414414
On ACX5048/ACX5096 platforms, traffic loss and SNMP slow response issues could be seen where an
optic transceiver is removed and inserted back to the same interface. Manually restarting Packet Forwarding Engine might also trigger this defect. PR1418696
On an ACX5000 platform, high CPU usage by the fxpc process might be seen under a rare condition if
parity errors are detected in devices. This issue has no direct service/traffic impact. However, because CPU utilization is high during this issue, there are some side effects. For example, the issue could impact time-sensitive features such as BFD. PR1419761
25
On an ACX5448, the request system reboot command triggers a reboot on the host (Linux) instead of
just being limited to Junos OS. PR1426486
The em2 interface configuration causes FPC to crash during initialization and FPC does not come online.
After deleting the em2 configuration and restarting the router, FPC comes online. PR1429212
Protocols get forwarded when using a nonexisting SSM map source address in IGMPv3 instead of pruning.
This is a day 1 design issue, and needs a design solution. PR1435648
Timing on 1G, performance is not at par compared with 10G, compensation is done to bring the mean
value under class-A but the peak-to-peak variations are high and can go beyond 100ns. It has a latency variation with peak to peak variations of around 125ns-250ns(that is, 5-10% of the mean latency introduced by the each phy which is of around 2.5us) without any traffic. PR1437175
Memory leaks are expected in this release. PR1438358
ACX Series routers support only 900 joins of IGMPv3 users per second. PR1448146
Drop profile maximum threshold may not be reached when the packet size is other than 1000 bytes.
This is due to the current design limitation. PR1448418
In some cases when there is a failure of the I2C daemon, this might result in riofeb crash on ACX5448.
PR1455928
IPv6 BFD sessions when configured below 100ms was getting flapped which will not after this bug.
PR1456237
On the PTX10001/ACX6360 platforms, the unionfs filesystem may get full on vmhost, this bacause
there is a mail package in the WRlinux 8 continue to fill the mail logs into the unionfs filesystem. This issue will cause the router to hand and bring traffic down. PR1470217
On PTX1000/ACX6360 Series platforms, the vmhost disk usage might keep increasing due to an incorrect
sensor path. PR1480217
ACX platforms - BFD over L2VPN/ L2Circuit will not work due to ACX platforms' SDK upgrade to version
6.5.16. PR1483014
On PTX1000/PTX10001/ACX6360 Series platforms, the port mirror will not work when the port-mirroring
is configured with firewall filter. PR1491789
When the DF interface is flapped, the traffic is doubled. As the current Non-DF also forwards the traffic
in EVPN Multihoming scenario. Work around is to clear the multicast route, with that the issue won't be seen. PR1502411
ACX6360: Observed core-ripsaw-node-aftd-expr. PR1504717
MPLS : mpls_lsp check is failing while verifying basic lsp_retry_limit After the fix for PR-1487532, we
reset the src_address of the lsp to 0 (if src_address is not configured) whenever it changes its state from Up to down. So when the ingress-lsp goes to down state, we are resetting it to 0. The script is failing because the script is checking for src_address to be present for the ingress-lsp session. Script change is required. PR1505474
26
In PTP environment some vendor devices acting as slave expecting announce messages at an interval
of -3 (8pps) from upstream master device. As of today announce message are configurable in range of 0 to 3. To support the above requirement engineering provided a hidden cli knob "set protocol ptp master announce-interval -3". In the networks/design where we have this requirement we can configure the hidden cli otherwise regular cli which is in the range (0 to 3) can be configurable. Both the cli knobs are mutually exclusive, commit error is expected if both are configured. This new change is applicable to ACX platforms only excluding ACX5000. PR1507782
CLI mentioned in workaround is required when same User MAC is configured on both EVPN DH routers.
PR1509808
After link connection flap between the PHP node and the egress PE node, the VRF traffic which supposed
to PHP and sent only with VPN label out to egress PE, would wrongly tagged with both MPLS label and VPN label. PR1512821
Interface not coming up with Auto-negotiation setting between ACX1100 and QFX/MX/ACX as other
end. PR1523418
This classifier display got blocked due to PR 1353828, where they are blocking the classifier display
function as ACX supports only IFD based classification. PR1531413
The CLI output of chassis network-services is not reflecting the configured mode though the configured
mode is correctly programmed in Kernel. PR1538869
Ospf neighbor state is INIT instead of expected FULL. PR1543667

Platform and Infrastructure

The CFM remote MEP not coming up after configuration or remains in Start state. PR1460555

Virtual Chassis

ACX5000 reports false parity error messages like soc_mem_array_sbusdma_read. The ACX5000 SDK
can raise false alarms for parity error messages like soc_mem_array_sbusdma_read. This is a false positive error message. PR1276970
SEE ALSO
What's New | 13
What's Changed | 21
Known Limitations | 22
27
Resolved Issues | 27
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33

Resolved Issues

IN THIS SECTION
Resolved Issues: 19.4R3 | 28
Resolved Issues: 19.4R2 | 29
Resolved Issues: 19.4R1 | 30
Learn which issues were resolved in the Junos OS main and maintenance releases for ACX Series routers.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Resolved Issues: 19.4R3

General Routing
Policer discarded count is also shown incorrectly to the enq count of the interface-Queue But Traffic
Behavior is fine as expected. PR1414887
gigether-options configuration statement enabled again under interface hierarchy. PR1430009
While performing repeated power-off/power-on of device, we see SMBUS Transactions timeout.
PR1463745
The links may not come up when 100-Gigabit Ethernet interface is channelized to 4x25-Gigabit Ethernet
interfaces. PR1479733
Memory utilization enhancement on ACX Series platforms. PR1481151
The packets might not get processed on the interfaces after unified ISSU. PR1483959
FPC might crash on ACX5448 platform. PR1485315
The queue statistics are not as expected after configuring the IFD and logical interface shaping with the
transmit rate and scheduler-map. PR1488935
28
ACX5448 chassis mac-address and label mac-address may not match. PR1489034
IEEE 802.1p Priority and DEI values in locally generated VLAN-based IP packets may be changed when
sourced from IRB interface on ACX5000. PR1490966
VPLS flood gorups results in IPv4 traffic drop after core interface flap. PR1491261
LACP control packets may be dropped due to high CPU utilization in ACX5048/ACX5096. PR1493518
During speed mismatch, QSFP28/QSFp+ the optics/cables may or may not work. PR1494600
Outbound SSH connection flap or memory leak issue might be observed when pushing configuration
to ephemeral database with high rate. PR1497575
ACX5448 EXP rewrite is not working for L3VPN sends all traffic with incorrect EXP. PR1500928
The error message mpls_extra NULL might be seen during MPLS route add/change/delete operation.
PR1502385
SFW sessions might not get updated on ms interfaces in ACX500. PR1505089
PIC slot may be shut down less than 240 seconds due to the over-temperature start time is handled
incorrectly. PR1506938
BFD flapping with the error ACX_OAM_CFG_FAILED: ACX Error (oam):dnx_bfd_l3_egress_create :
Unable to create egress object after random time interval. PR1513644
In ACX platforms, the loopback filter cannot take more than 2 TCAM slices. PR1513998
The VM process generates a core file while running stability test in a multidimensional scenario.
PR1515835
L2ALD crash is seen during stability test with traffic on scaled set-up. PR1517074
IPV6 neighbor state change causes "Local Outlif" to leak by two values leads to
DNX_NH::dnx_nh_tag_ipv4_hw_install errors. PR1519372
The show class-of-service interface does not show classifier information on ACX Series devices.
PR1522941
The statement vlan-id-list may not work as expected on the ACX5448/ACX710 platforms. PR1527085
Memory leak in Local OutLif in VPLS/CCC topology. PR1532995
Interfaces and Chassis
FPC crash might be observed with inline mode CFM configured. PR1500048
Routing Protocols
The BGP route-target family might prevent the route reflector from reflecting Layer 2 VPN and Layer
3 VPN routes. PR1492743
The rpd might report 100% CPU usage with BGP route damping enabled. PR1514635
29
VPNs
The l2circuit neighbor might be stuck in RD state at one end of MC-LAG peer. PR1498040
The rpd crash could be seen in certain conditions after deleting l2circuit configuration. PR1502003

Resolved Issues: 19.4R2

General Routing
On ACX5000, MacDrainTimeOut and bcm_port_update failed: Internal error. PR1284590
On ACX5048 and ACX5096 platforms, high CPU for fxpc processes might be observed on class-of-service
configuration changes on interfaces. PR1407098
Drift messages in ACX2200, which is a PTP hybrid (PTP + Synchronous Ethernet) device. PR1426910
ACX5448-D interfaces support: The input bytes value in the show interfaces extensive is not in par
with older ACX or MX. PR1430108
The l2cpd process might crash and generate a core file when interfaces are flapping. PR1431355
Fans on an ACX5448-M might not be running at the correct speed. PR1448884
ACX5048 SNMP polling is stalled after the link is flapped or the SFP transceiver is replaced, and
ACX_COS_HALP(acx_cos_gport_sched_set_strict_priority:987): Failed to detach logs is seen. PR1455722
ACX5448-D and ACX5448-M devices do not display airflow information and temperature sensors as
expected. PR1456593
[interface] [generic] [ACX] not able to add more than 16 links in a LAG. PR1463253
RED drop on interface is seen even when there is no congestion. PR1470619
CoS: Egress queue statistics are not applicable to ae interfaces on ACX5048. PR1472467
dcpfe core files are generated when you disable and then enable MACsec through Toby scripts.
PR1479710
ACX5448 Layer2 VPN with interface ethernet-ccc input-vlan-map/output-vlan-map might cause traffic
to be silently dropped. PR1485444
LSP (primary/standby) does not Act/Up after routing or rpd restart. PR1494210
Interfaces and Chassis
MC-AE interface might display unknown status if the subinterface is added as part of the VLAN on the
peer MC-AE node. PR1479012
Layer 2 Ethernet Services
Member links state might be asychronized on a connection between PE and CE devices in an EVPN A/A
scenario. PR1463791
30
MPLS
BGP session might keep flapping between two directly connected BGP peers because of the incorrect
TCP-MSS in use. PR1493431

Resolved Issues: 19.4R1

General Routing
On ACX5000 MacDrainTimeOut and bcm_port_update failed: Internal error error is seen. PR1284590
bcmDPC task is high even though Interuppt START_BY_START flag is set to 0. PR1329656
The AE interface with LACP stays down after the router reboots if link-speed is configured. PR1357012
On ACX Series devices, the LED on the GE interface goes down when speed 10M is added. PR1385855
Link Fault Signaling (LFS) doesn not work on ACX5448 10-, 40-, and 100-Gigabit Ethernet interfaces.
PR1401718
The optic comes with Tx enabled by default. Because the port is administratively disabled, the port is
stopped. However, because the port has not been started, it does not disable Tx. PR1411015
The ACX5448:40G FEC on ACX5448, which is FEC enabled by default, must be aligned with the MX
and QFX platforms, where FEC is NONE. PR1414649
On the ACX5448-X:SKU and ACX5448-D, 96000 ARPs get populated. However, only 47000 NH entries
are present. Around 50 percent of packet drop is observed. PR1426734
Chassisd might crash with unsupported hcos configuration when an MX104 is used as a fusion aggregation
device. PR1430076
The l2cpd process might crash and generate a core file when interfaces flaps. PR1431355
Deviation in traffic rate in the queue is around 8 % to 10% percent in some cases. PR1436297
1PPS performance metrics (class A) of G.8273.2 are not met for 1G interfaces because of the variable
latency added by the Vittesse PHY. PR1439231
The interface on ACX1100 devices remains down when using SFP-1FE-FX (740-021487). PR1439384
Transit DHCP packets are not punted to CPU and are transparently passthrough. PR1439518
When the interface is flapped between channelized configurations, 25-Gigabit Ethernet to 100-Gigabit
the aggregated Ethernet interface configuration is not cleaned up properly. PR1441374
In an ACX5448 platforms, when the PFE failed to allocate packet buffer, portion of packet memories
may not be freed. PR1442901
RED drops might be seen after link flaps or CoS configuration changes. PR1443466
ACX5448/18.3R1-S4.1 is not performing proper dot1p CoS rewrite on interfaces configured with
l2circuit/local-switching/family ccc. PR1445979
On ACX Series, the auto exported route between VRFs might not respond for icmp echo requests.
PR1446043
31
l2circuit with a backup-neighbor (hot-standby) configured might stop forwarding traffic after failovers.
PR1449681
oper-state for et interface does not transition from 'init' to 'Normal'. PR1449937
RMPC core files are found after configuration changes done on the network for PTP/Clock
Synchronization. PR1451950
After disabling 100G and 40G interface Laser output power in show interfaces diagnostics optics shows
some values. PR1452323
ACX5448 FPC crashed due to segmentation fault. PR1453766
Incorrect operating state is displayed in snmp trap for fan removal. PR1455577
Enable gigether option to configure Ethernet FEC on client ports. PR1456293
ACX5448-D and ACX5448-M Devices does not display airflow information and temperature sensors
as expected. PR1456593
ACX5448 Layer2 VPN with encapsulation-type ethernet stops passing traffic after a random port is
added with vlan configuration. PR1456624
The rpd crash might be seen if BGP route is resolved over same prefix protocol next-hop in inet.3 table
which has both RSVP and LDP routes. PR1458595
Route resolve resolution is not happening when the packet size is 10000. PR1458744
The traffic might be blackholed during link recovery in an open ethernet access ring with ERPS configured.
PR1459446
ACX5000: SNMP mib walk for jnxOperatingTemp not returning anything for FPC in new versions.
PR1460391
ACX5448-M Interfaces and Optics support: on enabling local loopback 10G interface is going down.
PR1460715
ACX5448-D Interfaces and Optics support: sometimes during the bring up of AE interface there are
ARP resolution issues. PR1461485
ACX Series routers LLDP neighbor not up on lag after software upgrade to Junos OS Release 18.2R3-S1.
PR1461831
RED drop on interface, no congestion. PR1470619
Layer 2 Ethernet Services
DHCP request might get dropped in DHCP relay scenario. PR1435039
Platform and Infrastructure
REST API process will get non-responsive when a number of request coming with a high rate. PR1449987
32
Routing Protocols
Loopback address are exported into other VRF instance might not work on EX/QFX/ACX platforms.
PR1449410
MPLS LDP might still use stale MAC of the neighbor even the LDP neighbor's MAC changes. PR1451217
The rpd might crash continuously due to memory corruption in an IS-IS setup. PR1455432
SEE ALSO
What's New | 13
What's Changed | 21
Known Limitations | 22
Open Issues | 24
Documentation Updates | 33
Migration, Upgrade, and Downgrade Instructions | 33

Documentation Updates

IN THIS SECTION
Feature Guides Are Renamed As User Guides | 33
This section lists the errata and changes in Junos OS Release 19.4R3 for the ACX Series documentation.

Feature Guides Are Renamed As User Guides

Starting with Junos OS 19.4R1, we renamed our Feature Guides to User Guides to better reflect the
purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
33
SEE ALSO
What's New | 13
What's Changed | 21
Known Limitations | 22
Open Issues | 24
Resolved Issues | 27
Migration, Upgrade, and Downgrade Instructions | 33

Migration, Upgrade, and Downgrade Instructions

IN THIS SECTION
Upgrade and Downgrade Support Policy for Junos OS Releases | 34
This section contains the upgrade and downgrade support policy for Junos OS for the ACX Series Router. Upgrading or downgrading Junos OS might take several minutes, depending on the size and configuration of the network.
For information about software installation and upgrade, see the Installation and Upgrade Guide.

Upgrade and Downgrade Support Policy for Junos OS Releases

Support for upgrades and downgrades that span more than three Junos OS releases at a time is not provided, except for releases that are designated as Extended End-of-Life (EEOL) releases. EEOL releases provide direct upgrade and downgrade paths—you can upgrade directly from one EEOL release to the next EEOL release even though EEOL releases generally occur in increments beyond three releases.
You can upgrade or downgrade to the EEOL release that occurs directly before or after the currently installed EEOL release, or to two EEOL releases before or after. For example, Junos OS Releases 17.1,
17.2, and 17.3 are EEOL releases. You can upgrade from Junos OS Release 17.1 to Release 17.2 or from Junos OS Release 17.1 to Release 17.3.
34
You cannot upgrade directly from a non-EEOL release to a release that is more than three releases ahead or behind. To upgrade or downgrade from a non-EEOL release to a release more than three releases before or after, first upgrade to the next EEOL release and then upgrade or downgrade from that EEOL release to your target release.
For information about software installation and upgrade, see the Installation and Upgrade Guide.
For more information about EEOL releases and to review a list of EEOL releases, see
https://support.juniper.net/support/eol/software/junosevo/.
SEE ALSO
What's New | 13
What's Changed | 21
Known Limitations | 22
Open Issues | 24
Resolved Issues | 27
Documentation Updates | 33

Junos OS Release Notes for cRPD

IN THIS SECTION
What’s New | 35
What's Changed | 35
Known Limitations | 35
Open Issues | 36
Resolved Issues | 36
These release notes accompany Junos OS Release 19.4R3 for the containerized routing protocol process (cRPD) container. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
35
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.

What’s New

There are no new features for cRPD in Junos OS Release 19.4R3.

What's Changed

There are no changes in behavior or syntax for cRPD in Junos OS Release 19.4R3.

Known Limitations

There are no known behavior or limitations for cRPD in Junos OS Release 19.4R3.

Open Issues

There are no known issues for cRPD in Junos OS Release 19.4R3.

Resolved Issues

There are no resolved issues for cRPD in Junos OS Release 19.4R3.

Junos OS Release Notes for EX Series Switches

36
IN THIS SECTION
What's New | 37
What's Changed | 47
Known Limitations | 50
Open Issues | 51
Resolved Issues | 54
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66
These release notes accompany Junos OS Release 19.4R3 for the EX Series. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.

What's New

IN THIS SECTION
What's New in 19.4R3 | 37
What's New in 19.4R2 | 37
What's New in 19.4R1 | 38
Learn about new features introduced in the Junos OS main and maintenance releases for EX Series switches.
NOTE: The following EX Series switches are supported in Release 19.4R3: EX2300, EX2300-C,
EX3400, EX4300, EX4600-40F, EX4650, EX9200, EX9204, EX9208, EX9214, EX9251, and EX9253.
37

What's New in 19.4R3

There are no new features or enhancements to existing features for EX Series switches in Junos OS Release
19.4R3.

What's New in 19.4R2

There are no new features or enhancements to existing features for EX Series switches in Junos OS Release
19.4R2.

What's New in 19.4R1

Authentication, Authorization, and Accounting
Disable LLDP TLV messages (EX4300-48MP switches)—Starting in Junos OS Release 19.4R1, you can
disable nonmandatory time, length, and value (TLV) messages so they will not be advertised by the Link Layer Discovery Protocol (LLDP) or Link Layer Discovery Protocol–Media Endpoint Discovery (LLDP-MED).
[See Device Discovery Using LLDP and LLDP-MED on Switches.]
Class of Service
Support for 802.1p rewrite of host outbound traffic (EX4300-MP)—Starting in Junos OS Release 19.4R1,
support is provided for 802.1p rewrite of host outbound traffic on EX4300-MP devices.
[See Applying Egress Interface Rewrite Rules to the IEEE 802.1p Field for All Host Outbound Traffic on
the Interface.]
EVPN
38
Support for EVPN routing policies (ACX5448, EX4600, EX4650, EX9200, MX Series, QFX Series, and
vMX)—Starting in Junos OS Release 19.4R1, Junos OS has expanded routing policy support to include the creation and application of policy filters specific to EVPN routes. You can create policies and apply policy filters to import and export EVPN routes at the routing-instance level or at the BGP level. Junos OS supports the following matching criteria for EVPN routes:
Route distinguisher ID
NLRI route type
EVPN Ethernet tag
BGP path attributes
Ethernet segment identifier
MAC address on EVPN Type 2 routes
IP address on EVPN Type 2 and EVPN Type 5 routes
Extended community
[See Routing policies for EVPN.]
Access security support in EVPN-VXLAN overlay networks (EX4300-48MP)—Starting in Junos OS
Release 19.4R1, we support access security features on EX4300-48MP switches that function as Layer 2 VXLAN gateways in an EVPN-VXLAN centrally-routed overlay network (two-layer IP fabric). We support the following features on Layer 2 server-facing interfaces that are associated with VXLAN-mapped VLANs:
DHCPv4 and DHCPv6 snooping. [See DHCP Snooping.]
Dynamic ARP inspection (DAI). [See Understanding and Using Dynamic ARP Inspection (DAI).]
Neighbor discovery inspection (NDI). [See IPv6 Neighbor Discovery Inspection.]
IPv4 and IPv6 source guard. [See Understanding IP Source Guard for Port Security on Switches.]
Router advertisement (RA) guard. [See Understanding IPv6 Router Advertisement Guard.]
The access security features function the same and you configure them in the same way in an EVPN-VXLAN environment as you do in a non-EVPN-VXLAN environment. However, keep these differences in mind:
We do not support these features on multihomed servers.
These features do not influence the VXLAN tunneling and encapsulation process.
Layer 3 VXLAN gateway support in EVPN-VXLAN overlay network (EX4300-48MP)—Starting in
Junos OS Release 19.4R1, the EX4300-48MP switch can function as a Layer 3 VXLAN gateway in an EVPN-VXLAN centrally-routed bridging overlay (two-layer IP fabric) and an edge-routed bridging overlay (collapsed IP fabric). As a Layer 3 VXLAN gateway, the switch supports these features:
Default gateway function through the configuration of an IRB interface. [See Using a Default Layer 3
Gateway to Route Traffic in an EVPN-VXLAN Overlay Network].
39
Routing of IPv6 data traffic through an EVPN-VXLAN overlay network with an IPv4 underlay. [See
Routing IPv6 Data Traffic through an EVPN-VXLAN Network with an IPv4 Underlay.]
EVPN pure Type 5 routes. [See Understanding EVPN Pure Type-5 Routes.]
Features supported on EX4650 and QFX5120 switches—Starting with Junos OS Release 19.4R1, the
following Junos OS features are supported on EX4650 and QFX5120 switches:
Automatically generated Ethernet segment identifiers (ESIs) in EVPN-VXLAN and EVPN-MPLS networks.
[See Understanding Automatically Generated and Assigned ESIs in EVPN Networks.]
Firewall filtering and policing on EVPN-VXLAN traffic.
[See Understanding VXLANs and Overview of Firewall Filters.]
Graceful restart on EVPN-VXLAN.
[See Graceful Restart in EVPN.]
IGMPv2 snooping for EVPN-VXLAN in a multihomed environment.
[See Overview of IGMP Snooping in an EVPN-VXLAN Environment.]
IPv6 data traffic support through an EVPN-VXLAN overlay network.
[See Routing IPv6 Data Traffic through an EVPN-VXLAN Network with an IPv4 Underlay.]
Layer 2 and 3 families, encapsulation types, and VXLAN on the same physical interface.
[See Understanding Flexible Ethernet Services Support with EVPN-VXLAN.]
MAC limiting, storm control, and port mirroring support in EVPN-VXLAN overlay networks.
[See MAC Limiting, Storm Control, and Port Mirroring Support in an EVPN-VXLAN Environment.]
Multihomed proxy advertisement.
[See EVPN Multihoming Implementation.]
Selective multicast forwarding and SMET route support in EVPN-VXLAN.
[See Overview of Selective Multicast Forwarding.]
Standard class-of-service (CoS) features—classifiers, rewrite rules, and schedulers—are supported on
VXLAN interfaces.
[See Understanding CoS on OVSDB-Managed VXLAN Interfaces.]
VMTO for ingress traffic.
[See Ingress Virtual Machine Traffic Optimization.]
Exclusion list with MAC pinning in an EVPN network (EX9200 and MX Series)—When you enable
mac-pinning on an interface, all MAC addresses that are learned on that interface will be pinned and cannot be relearned on the other interfaces in the EVPN network. Starting in Junos OS Release 19.4R1, you can create a list of MAC addresses that would be excluded from being pinned and the MAC address can be moved and relearned on another interface within the EVPN network. While MAC pinning is configured on the interface, the exclusion list is configured for the device. To create an exclusion list, include a list of MAC addresses with the exclusive-mac parameter at the [edit protocols l2-learning global-mac-move] hierarchy level.
40
[See Creating exclusion list for MAC Pinning.]
Junos OS XML, API, and Scripting
Python 3 support for commit, event, op, and SNMP scripts (ACX Series, EX Series, MX Series, PTX
Series, QFX Series, and SRX Series)—Starting in Junos OS Release 19.4R1, you can use Python 3 to execute commit, event, op, and SNMP scripts on devices running Junos OS. To use Python 3, configure the language python3 statement at the [edit system scripts] hierarchy level. When you configure the language python3 statement, the device uses Python 3 to execute scripts that support this Python version and uses Python 2.7 to execute scripts that do not support Python 3 in the given release.
The Python 2.7 end-of-support date is January 1, 2020, and Python 2.7 will be EOL in 2020. The official upgrade path for Python 2.7 is to Python 3. As support for Python 3 is added to devices running Junos OS for the different types of onbox scripts, we recommend that you migrate supported script types from Python 2 to Python 3, because support for Python 2.7 might be removed from devices running Junos OS in the future.
[See Understanding Python Automation Scripts for Devices Running Junos OS.]
Automation script library upgrades (ACX Series, EX Series, MX Series, PTX Series, QFX Series, and SRX
Series)—Starting in Junos OS Release 19.4R1, devices running Junos OS that support the Python extensions package include upgraded Python modules. Python scripts can leverage the upgraded versions of the following modules:
idna (2.8)
jinja2 (2.10.1)
jnpr.junos (Junos PyEZ) (2.2.0)
lxml (4.3.3)
markupsafe (1.1.1)
ncclient (0.6.4)
packaging (19.0)
paho.mqtt (1.4.0)
pyasn1 (0.4.5)
yaml (PyYAML package) (5.1)
[See Overview of Python Modules Available on Devices Running Junos OS.]
Junos Telemetry Interface
41
JTI Packet Forwarding Engine and Routing Engine sensor support (EX4300-MP switches)—Starting in Junos OS Release 19.4R1, you can use the Junos Telemetry Interface (JTI) and remote procedure calls (gRPC) to stream statistics from EX4300-MP switches to an outside collector.
The following Routing Engine statistics are supported:
LACP state export
Chassis environmentals export
Network discovery chassis and components
LLDP export and LLDP model
BGP peer information (RPD)
RPD task memory utilization export
Network discovery ARP table state
Network discovery NDP table state
The following Packet Forwarding Engine statistics are supported:
Congestion and latency monitoring
Logical interface
Filter
Physical interface
NPU/LC memory
Network discovery NDP table state
To provision a sensor to export data through gRPC, use the telemetrySubscribe RPC to specify telemetry parameters. Streaming telemetry data through gRPC also requires the OpenConfig for Junos OS module. Starting in Junos OS Release 18.3R1, OpenConfig and Network Agent packages are bundled into the Junos OS image by default. Both packages support the Junos Telemetry Interface (JTI).
[See Configuring a Junos Telemetry Interface Sensor (CLI Procedure), Configure a Telemetry Sensor in
Junos and Guidelines for gRPC Sensors (Junos Telemetry Interface).]
JTI and OpenConfig support for VLAN sensors (EX4650, QFX5120)—Junos OS Release 19.4R1 supports the export of VLAN statistics using either Junos Telemetry Interface (JTI) services or remote procedure call (gRPC) services. You can export statistics at configurable intervals to an outside collector.
This feature includes OpenConfig support for the data model openconfig-vlan.yang for VLAN configuration version 1.0.2.
Use the following resource paths in a gRPC or gNMI subscription:
42
/vlans/
/vlans/vlan/state/name
/vlans/vlan/state/vlan-id
/vlans/vlan/state/status
/vlans/vlan/members/
/vlans/vlan/members/member/interface-ref/state/interface/
/vlans/vlan/members/member/interface-ref/state/interface/switched-vlan/state/interface-mode
/vlans/vlan/members/member/interface-ref/state/interface/switched-vlan/state/native-vlan
/vlans/vlan/members/member/interface-ref/state/interface/switched-vlan/state/access-vlan
/vlans/vlan/members/member/interface-ref/state/interface/switched-vlan/state/trunk-vlan
/vlans/vlan/members/member/interface-ref/state/interface/vlan/state/vlan-id
Streaming telemetry data through gRPC or gNMI also requires the OpenConfig for Junos OS module.
[See Guidelines for gRPC and gNMI Sensors (Junos Telemetry Interface).]
Layer 2 Features
Redundant trunk group support (EX4650 and QFX5120)—Starting with Junos OS Release 19.4R1,
EX4650 and QFX5120 switches support redundant trunk group (RTG) links.
[See Redundant Trunk Groups.]
Ethernet ring protection switching (ERPS)(EX4300-MP)—Starting in Junos OS Release 19.4R1, the
EX4300-MP supports Ethernet ring protection switching (ERPS) to reliably achieve carrier-class network
requirements for Ethernet topologies forming a closed loop. The ITU-T Recommendation is G.8032 version 1.
ERPS version 1 comprises the following features:
Revertive mode of operation of the Ethernet ring
Multiple ring instances on the same interfaces
Multiple ring instances on different interfaces
Interworking with Spanning Tree Protocol, Multiple Spanning Tree Protocol, and redundant trunk
groups
[See Ethernet Ring Protection Switching Overview.]
Ethernet ring protection switching (ERPS)(EX4650 and QFX5120)—Starting in Junos OS Release 19.4R1,
the EX4650 and QFX5120 support Ethernet ring protection switching (ERPS) to reliably achieve carrier-class network requirements for Ethernet topologies forming a closed loop. The ITU-T Recommendation is G.8032 version 1.
ERPS version 1 comprises the following features:
43
Revertive mode of operation of the Ethernet ring
Multiple ring instances on the same interfaces
Multiple ring instances on different interfaces
Interworking with Spanning Tree Protocol, Multiple Spanning Tree Protocol, and redundant trunk
groups
[See Ethernet Ring Protection Switching Overview.]
MPLS
MPLS scaling enhancements (EX4650 and QFX5120)—Starting in Junos OS Release 19.4R1, MPLS
scaling is enhanced on EX4650 and QFX5120 switches. For instance, you can increase the scale from its default 1024 to 8192 on QFX5120 switches. This enhancement optimizes and increases the ingress tunnel scale to address the current needs of data center networks either in IP-CLOS or IP over MPLS application spaces.
[See Supported MPLS Scaling Values.]
Multicast
Multicast VLAN registration (MVR) (EX4300-48MP switches and Virtual Chassis)—Starting in Junos
OS Release 19.4R1, EX4300 multigigabit (EX4300-48MP) switches and Virtual Chassis support multicast VLAN registration (MVR). MVR efficiently distributes IPTV multicast streams across an Ethernet ring-based Layer 2 network and reduces the bandwidth needed for this traffic. MVR uses a multicast VLAN (MVLAN) as a source VLAN associated with one or more multicast group addresses, and you designate other VLANs as MVR receiver VLANs that have listeners interested in the MVLAN traffic. The device selectively forwards the traffic from source interfaces on the MVLAN to receiver interfaces that are on the MVR receiver VLANs (but not on the MVLAN).
44
[See Understanding Multicast VLAN Registration.]
Operation, Administration, and Maintenance (OAM)
Ethernet CFM support (EX4300-MP switches)—Starting with Junos OS Release 19.4R1, the EX4300-MP
switch supports Ethernet connectivity fault management (CFM). You can use Ethernet CFM to:
Monitor faults, using the continuity check messages (CCM) protocol to discover and maintain adjacencies
at the VLAN or link level.
Discover paths and verify faults, using the linktrace protocol to map the path taken to a destination
MAC address.
Isolate faults, using loopback messages, and troubleshoot.
You configure Ethernet CFM using the set protocols oam ethernet connectivity-fault-management command, and verify the configuration using the show oam ethernet connectivity-fault-management command.
Support for Ethernet CFM (EX4650)—Starting with Junos OS Release 19.4R1, the EX4650 switch
supports Ethernet connectivity fault management (CFM). You can use Ethernet CFM to:
Monitor faults, using the continuity check messages (CCMs) to discover and maintain adjacencies at
the VLAN or link level.
Discover paths and verify faults, using the Link Trace protocol to map the path taken to a destination
MAC address.
Isolate and troubleshoot faults, using loopback messages.
NOTE: Only down maintenance association end points (MEPs) are supported in CFM.
You configure Ethernet CFM using the set protocols oam ethernet connectivity-fault-management command, and verify the configuration using the show oam ethernet connectivity-fault-management command.
[See Understanding Ethernet OAM Connectivity Fault Management for Switches.]
Support for LFM (EX4650)—Starting with Junos OS Release 19.4R1, the EX4650 switch supports OAM
link fault management (LFM). You can configure OAM LFM on point-to-point Ethernet links that are connected directly or through Ethernet repeaters, and on aggregated Ethernet interfaces. The LFM status of individual links determines the LFM status of the aggregated Ethernet interface. The EX4650 supports the following OAM LFM features:
Discovery and link monitoring
Remote fault detection
45
Remote loopback
[See IEEE 802.3ah OAM Link-Fault Management Overview.]
Port Security
Stateless address autoconfiguration (SLAAC) snooping (EX4300-48MP)—Starting in Junos OS Release
19.4R1, the EX4300-48MP switch supports Stateless address auto configuration (SLAAC) snooping. The switch validates IPv6 clients that use SLAAC for dynamic address assignment against the SLAAC snooping binding table before allowing the clients access to the network.
[See IPv6 Stateless Address Auto-configuration (SLAAC) Snooping.]
Untrusted mode on trunk interfaces for DHCP security (EX4300-48MP)—Starting in Junos OS Release
19.4R1, you can configure a trunk interface as untrusted for DHCP security features on EX4300-48MP switches. Trunk interfaces in untrusted mode support DHCP snooping and DHCPv6 snooping, dynamic ARP inspection (DAI), and IPv6 neighbor discovery inspection.
[See Understanding Trusted and Untrusted Ports.]
MACsec license enforcement (EX4300-48MP)—Starting in Junos OS Release 19.4R1, you must install
a Media Access Security (MACsec) feature license if you want MACsec functionality on your EX4300-48MP switch. If the MACsec license is not installed, MACsec functionality cannot be activated. You add the MACsec license using the request system license add command.
[See Understanding Media Access Control Security (MACsec).]
Routing Policy and Firewall Filters
Firewall filter support on IPv6 egress interfaces (EX4300-48MP)—Starting in Junos OS Release 19.4R1,
you can configure a firewall filter on an IPv6 egress interface to match the specified IPv6 source or destination addresses, for example, to protect a third-party device connected to the switch.
[See eracl-ip6-match and Configuring an Egress Filter Based on IPv6 Source or Destination IP Addresses.]
System Logging
Improved intermodule communication between FFP and MGD (ACX Series, EX Series, MX Series, PTX
Series, QFX Series, and SRX Series)—Starting in Junos OS Release 19.4R1, intermodule communication is improved to enhance software debugging. To enhance error messages with more context, the exit conditions from libraries have been updated as follows:
Additional information is now logged for MGD-FFP intermodule communication.
Commit errors that previously were only shown onscreen are now logged.
We provide a new operational command, request debug information, to speed up the initial information-gathering phase of debugging.
46
[See request debug information.]
System Management
Change status LED for network port to chassis beacon light (EX2300, EX2300 Virtual Chassis, EX3400,
EX3400 Virtual Chassis)—By default, when a network port and its associated link are active, the status LED for that port blinks green 8 times per second. Starting in Junos OS Release 19.4R1, you can use the request chassis beacon command to slow down the current blinking rate to 2 blinks per second. The slower-blinking and steadier green light acts as a beacon that leads you to an EX2300 or EX3400 switch or a particular port in a busy lab.
Using options with the request chassis beacon command, you can do the following for one or all network port status LEDs on a specified FPC):
Turn on the beacon light for:
5 minutes (default)
A specified number of minutes (1 through 120)
Turn off the beacon light:
Immediately
After a specified number of minutes (1 through 120)
After the beacon light is turned off, the blinking rate for the network port’s status LED returns to 8 blinks per second.
[See request chassis beacon.]
User Interface and Configuration
Support for configuring the ephemeral database using the NETCONF and Junos XML protocols
(EX4300-48MP, EX9251, and EX9253 switches)—Starting in Junos OS Release 19.4R1, NETCONF and Junos XML protocol client applications can configure the ephemeral configuration database on EX4300-48MP, EX9251, and EX9253 switches. The ephemeral database provides a fast programmatic interface that enables multiple clients to simultaneously load and commit configuration changes on a device running Junos OS and with significantly greater throughput than when committing data to the candidate configuration database. The device’s active configuration is a merged view of the committed configuration database and the configuration data in all instances of the ephemeral configuration database.
[See Understanding the Ephemeral Configuration Database.]
SEE ALSO
47
What's Changed | 47
Known Limitations | 50
Open Issues | 51
Resolved Issues | 54
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66

What's Changed

IN THIS SECTION
What's Changed in 19.4R3 | 48
What's Changed in 19.4R2 | 48
What's Changed in 19.4R1 | 49
Learn about what changed in Junos OS main and maintenance releases for EX Series.

What's Changed in 19.4R3

Routing Protocols
Advertising /32 secondary loopback addresses to Traffic Engineering Database (TED) as prefixes (ACX
Series, EX Series, MX Series, PTX Series, QFX Series, and SRX Series)—In Junos OS Release, multiple loopback addresses export into lsdist.0 and lsdist.1 routing tables as prefixes. This eliminates the issue of advertising secondary loopback addresses as router-ids instead of prefixes. In earlier Junos OS releases, multiple secondary loopback addresses in TED were added into lsdist.0 and lsdist.1 routing tables as part of node characteristics and advertised them as the router-id.
Juniper Extension Toolkit (JET)
Set the trace log to only show error messages (ACX Series, EX Series, MX Series, PTX Series, QFX
Series, SRX Series)—You can set the verbosity of the trace log to only show error messages using the error option at the [edit system services extension-service traceoptions level] hierarchy.
[See traceoptions (Services).]
48

What's Changed in 19.4R2

Class of Service (CoS)
We’ve corrected the output of the show class-of-service interface | display xml command. The output
is of the following sort: <container> <leaf-1> data </leaf-1><leaf-2>data </leaf-2> <leaf-3> data</leaf-3> <leaf-1> data </leaf-1> <leaf-2> data </leaf-2> <leaf-3> data </leaf-3> </container> will now appear correctly as <container> <leaf-1> data </leaf-1><leaf-2>data </leaf-2> <leaf-3> data</leaf-3></container> <container> <leaf-1> data </leaf-1> <leaf-2> data </leaf-2> <leaf-3> data </leaf-3> </container>.
General Routing
Support for full inheritance paths of configuration groups to be built into the database by default (EX
Series and QFX Series)—Starting with Junos OS Release 19.4R2, the persist-groups-inheritance option at the [edit system commit] hierarchy level is enabled by default. To disable this option, use no-persist-groups-inheritance.
[See commit (System).]
LLDP ON_CHANGE statistics support with JTI (ACX Series, EX Series, MX Series, PTX Series, QFX
Series, SRX Series)—Enhanced telemetry ON_CHANGE event support provides the following LLDP attributes: - When LLDP is enabled on interfaces, LLDP interface counters are notified along with other interface-level attributes. - ON_CHANGE event reports LLDP neighbor age and custom TLVs, as well as when a neighbor is initially discovered
See Guidelines for gRPC and gNMI Sensors (Junos Telemetry Interface).
Multicast
Multicast Layer 2 transit traffic statistics by multicast source and group (EX4600, EX4650, and the
QFX5000 line of switches)—Starting in Junos OS Release 19.4R2, EX4600, EX4650, and the QFX5000 line of switches provide statistics on the packet count for each multicast group and source when passing multicast transit traffic at Layer 2 with IGMP snooping. Run the show multicast snooping route extensive CLI command to see this count in the Statistics: … n packets output field. The other statistics in that output field, kBps and pps, are not available (values displayed there are not valid statistics for multicast traffic at Layer 2). In earlier Junos OS releases, all three values in the Statistics output field for kBps, pps, and packets do not provide valid statistics for multicast traffic at Layer 2.
[See show multicast snooping route.]
Routing Protocols
Advertising /32 secondary loopback addresses to Traffic Engineering Database (TED) as prefixes (ACX
Series, EX Series, MX Series, PTX Series, QFX Series, and SRX Series)—In Junos OS Release, multiple loopback addresses export into lsdist.0 and lsdist.1 routing tables as prefixes. This eliminates the issue of advertising secondary loopback addresses as router-ids instead of prefixes. In earlier Junos OS releases, multiple secondary loopback addresses in TED were added into lsdist.0 and lsdist.1 routing tables as part of node characteristics and advertised them as the router-id.
49

What's Changed in 19.4R1

Interfaces and Chassis
Logical Interface is created along with physical interface by default (MX Series, QFX Series, EX
Series)—Starting in Junos OS Release 19.4R1, logical interfaces are created on ge, et, and xe interfaces along with the physical interface, by default. In earlier Junos OS releases, by default, only physical interfaces are created.
For example, for ge interfaces, previously when you viewed the show interfaces command, by default, only the physical interface (ge-0/0/0), was displayed. Now, the logical interface (ge-0/0/0.16386) is also displayed.
Routing Protocols
XML RPC equivalent included for the show bgp output-scheduler | display xml rpc CLI command (ACX
Series, EX Series, MX Series, PTX Series, QFX Series, and SRX Series)—Starting in Junos OS Release
19.4R1, we have included an XML RPC equivalent for the show bgp output-scheduler | display xml rpc CLI command. In Junos OS releases before Release 19.4R1, the show bgp output-scheduler | display xml rpc CLI command does not have an XML RPC equivalent.
[See show bgp output-scheduler.]
SEE ALSO
What's New | 37
Known Limitations | 50
Open Issues | 51
Resolved Issues | 54
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66

Known Limitations

IN THIS SECTION
Platform and Infrastructure | 50
50
Learn about known limitations in this release for EX Series. For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Platform and Infrastructure

The following error message might appear: Failed to complete DFE tuning. This error message has no
functional impact and can be ignored. PR1473280
Because of storage issue ZTP functionality fails. Follow the methods given in the Knowledge Base to
clean up the storage space as cleanup packages os-package.tgz and package-hooks-ex.tgz are not present in Junos OS Release 19.4X. PR1497123
SEE ALSO
What's New | 37
What's Changed | 47
Open Issues | 51
Resolved Issues | 54
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66

Open Issues

IN THIS SECTION
Infrastructure | 51
Interfaces and Chassis | 52
Layer 2 Features | 52
Platform and Infrastructure | 52
Routing Protocols | 53
Virtual Chassis | 54
Learn about open issues in Junos OS Release 19.4R3 for EX Series. For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
51

Infrastructure

When xSTP/RTG is not configured in the network and there is a traffic loop, after the network loop is
broken, sometimes MAC address learning might not happen. As a workaround, restart the PFEM.
PR473454
On EX Series switches, if you are configuring a large-scale number of firewall filters on some interfaces,
the FPC might crash and generate core files. PR1434927
On an EX9251 switch, IFDE: Null uint32 set vector, ifd and IFFPC: 'IFD Ether uint32 set' (opcode 151)
error message is observed continuously in AD with base configurations. PR1485038
OID ifOutDiscards reports zero and sometimes shows a valid value. PR1522561

Interfaces and Chassis

After GRES, the VSTP port cost on aggregated Ethernet interfaces might get changed, leading to a
topology change. PR1174213

Layer 2 Features

GARP error message DND_ANUPAM_JUNE_10_client eswd[1203]: vlan_interface_admin_up: vif ifl flags
0xc000 is generated when there is a deletion or addition of MAC address in the FDB. PR1192520

Platform and Infrastructure

On an EX2300 switch, the output of the show chassis routing-engine command might display an incorrect
value of Router rebooted after a normal shutdown for the last reboot reason field. PR1331264
When VLAN is added as an action for changing the VLAN in both ingress and egress filters, the filter is
not installed. PR1362609
52
Scale of 150 VRRP is not tested before; there are no issues observed for 100 VRRP groups. At the higher
scale, there are no drops but traffic gets flooded for groups beyond 100. PR1371520
On an EX9208 switch, a few xe- interfaces go down with the following error message:
if_msg_ifd_cmd_tlv_decode ifd xe-0/0/0 #190 down with ASIC Error. PR1377840
On EX Series platforms, the DHCP/PPP subscribers might fail to bind. The reason is that when you install
a new software image, its shared memory (created by the previously running image) might not be cleared out. The issue persists until the previous values in the shared memory are removed and the daemons affected by the data in the shared memory continue generating core files. Thus they will not be able to function properly. PR1396470
On EX Series platforms, unicast RPF check in strict mode might not work properly. PR1417546
When the chassisd process receives incorrect values from LCMD for the RPM values, the fan status
changes to Failed from OK, and vice versa. PR1417839
The runt counter never incremented in the output of the show interface x/x/x extensive command when
a runt packet with less than 64 Bytes frame size is received. The packet will be dropped as expected.
PR1419724
On the EX9208 devices, traffic loss is observed if ingress and egress ports are in different FPCs.
PR1429714
The EX4300-48MP switch cannot learn MAC address through some access ports that are directly
connected to a host when autonegotiation is used. PR1430109
On the EX9214 switch, if the MACsec-enabled link flaps after reboot, the error errorlib_set_error_log():
err_id(-1718026239) is observed. PR1448368
On EX9208 switches, 33 percent degradation in MAC learning rate is observed in Junos OS Release
19.3R1 while comparing with Junos OS Release 18.4R1. PR1450729
In overall commit time, the evaluation of mustd constraints is taking 2 seconds more than usual. This is
because the persist-group-inheritance feature has been made as a default feature in the latest Junos OS releases. Eventually, this feature helps improve the subsequent commit times for scaled configurations significantly. The persist-group-inheritance feature is useful in customer scenarios where groups and nested groups are used extensively. In those scenarios, the group inheritance paths are not built every time, thus subsequent commits are faster. PR1457939
On EX2300 and EX3400 platforms, when doing an upgrading operation, as image size grows over a
period of time and subsequently storage is insufficient to install images, the upgrade might fail with the error message not enough space to unpack. PR1464808
On an EX9214, while verifying the last-change op-state value through XML, rpc-reply message is
inappropriate. PR1492449
On the EX4300-48MP and EX4300 Virtual Chassis, if the LAG interface with member interfaces of 40G
or 100G is configured across the master and the standby FPCs of the Virtual Chassis, the OSPF configured on the IRB interface over this LAG might be stuck in ExStart state. The issue impacts the establishment of the OSPF neighbor. PR1498903
53
On EX4300-48MP platforms with multi-rate gigabit ethernet (mge) interfaces, if a mge interface which
is located within port range 24-47 is connected with some specific devices (for example: a bypass module from DELL), when the far end of the link goes down, the mge interface might still stay up. It leads to traffic drop when sending traffic through the affected link. PR1502467
A 35-second delay is added in reboot time from Junos OS Release 20.2R1 compared to Junos OS Release
19.4R2. PR1514364
LLDP might not work on non-aggregated Ethernet interfaces. PR1538401
In Junos fusion, l2cpd core file might be generated upon deactivating and activating chassis
satellite-management multiple times. PR1545310

Routing Protocols

On EX9251 platform, ECDSA256+SHA256 is not used for software integrity checking because of issue
with FIPS mode and telnet to device does not work. PR1504211
On EX4300 platforms, OSPFv3 configured with IPsec authentication, the OSPFv3 adjacency is not
established after device reboot. PR1525870

Virtual Chassis

EX4650 switches generate the following messages during booting:
bcmsdk_5_9_x kldKLD bcmsdk_5_9_x.ko: depends on acb - not available or version mismatch
linker_load_file: Unsupported file type
kldload: an error occurred while loading the module
This message does not have any effect on the feature or functionality. PR1527170
SEE ALSO
What's New | 37
What's Changed | 47
Known Limitations | 50
54
Resolved Issues | 54
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66

Resolved Issues

IN THIS SECTION
Resolved Issues: 19.4R3 | 55
Resolved Issues: 19.4R2 | 57
Resolved Issues: 19.4R1 | 60
Learn which issues were resolved in Junos OS main and maintenance releases for EX Series.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Resolved Issues: 19.4R3

Authentication and Access Control
On the EX4600 and EX4300 switches, MAC entry is not present in the Ethernet Switching table for the
MAC-RADIUS client in a server fail scenario when tagged traffic is sent for the second client. PR1462479
The authd process might have memory leak in dot1x scenario with RADIUS authentication. PR1503117
On the EX2300-48MP switch, authentication failure might occur on the captive portal. PR1504818
The Junos OS event DOT1XD_AUTH_SESSION_DELETED might not be triggered with a single supplicant
mode. PR1512724
The dot1x client will not be moved to the hold state when the authenticated PVLAN is deleted.
PR1516341
EVPN
The l2ald memory leak might be observed in any EVPN scenario. PR1498023
The VXLAN function might be broken due to a timing issue. PR1502357
55
Unable to create a new VTEP interface. PR1520078
Infrastructure
The fxpc process might crash when configuring scaled configuration with 4093 VLANs. PR1493121
The IP communication between directly connected interfaces on the EX4600 switch might fail. PR1515689
Interfaces and Chassis
A stale IP address might be seen after a specific order of configuration changes under logical-systems
scenario. PR1477084
Traffic over MC-LAG drops because the next-hop points ICL link instead of MC-LAG. PR1486919
Layer 2 Features
On EX4650 switches with Q-in-Q, the third VLAN tag is not pushed onto the stack and SWAP is being
done instead. PR1469149
Traffic imbalance might be observed on EX4600 switches if hash-params is not configured. PR1514793
MAC address in hardware table might become out of sync between master and member in Virtual Chassis
after MAC flap. PR1521324
Platform and Infrastructure
Virtual Chassis split is seen after the network topology is changed. PR1427075
On the EX4600 switch, traffic loss might be seen with framing errors or runts if MACsec is configured.
PR1469663
On the EX4600 switch, DSCP marking might not work as expected if the fixed classifiers are applied to
interfaces. PR1472771
MAC learning under bridge domain stops after MC-LAG interface flaps. PR1488251
On EX2300 switches, high CPU load due to receipt of specific multicast packets on Layer 2 interface.
PR1491905
IPv6 neighbor solicitation packets might be dropped in a transit device. PR1493212
Packets get dropped when the next hop is IRB over LT-interface. PR1494594
On the EX4300 switch, the NSSU upgrade might fail due to a storage issue in the /var/tmp directory.
PR1494963
High CPU load due to receipt of specific IPv4 packets. PR1495129
The fxpc process might crash when renumbering the master member ID value of the EX2300 and EX3400
Virtual Chassis. PR1497523
Outbound SSH connection flap or memory leak issue might be observed when pushing configuration
to ephemeral database with high rate. PR1497575
56
Traffic might get dropped if aggregated Ethernet member interface is deleted and then added or a SFP
of the aggregated Ethernet member interface is unplugged or plugged. PR1497993
Firewall filter might not get applied on EX4600 switches. PR1499647
On the EX4300, EX3400, and EX2300 Virtual Chassis with NSB and xSTP enabled, the continuous traffic
loss might be observed while doing GRES. PR1500783
On the EX4300 switch, traffic loss might be seen with framing errors or runts if MACsec is configured.
PR1502726
LLDP packets are not acquired when native-vlan-id configured is the same as tagged vlan-id. PR1504354
The isolated VLAN from the RADIUS server is not deleted when the interface flaps. PR1506427
The output VLAN push might not work. PR1510629
LLDP might not work when PVLAN is configured on EX Series Virtual Chassis. PR1511073
On EX4300 switches, LACP goes down after performing Routing Engine switchover if the MACsec is
enabled on the LAG members. PR1513319
Last commit line in configuration is updated after the backup configuration has been done. PR1513499
The 100M SFP-FX is not supported on satellite device in Junos fusion setup. PR1514146
The "dot1x" memory leak is observed. PR1515972
The dcpfe process might crash because of memory leak. PR1517030
On EX4300 switches, redirected IP traffic is being duplicated. PR1518929
MPPE-Send/Recv-key attribute is not extracted correctly by dot1xd. PR1522469
The show interface extensive output Drops and Dropped Packets counters are double counting.
PR1525373
Routing Protocols
The FPC process goes to the NotPrsnt state after upgrading the QFX5100 Virtual Chassis and Virtual
Chassis Fabric. PR1485612
The BGP route-target family might prevent the route reflector from reflecting Layer 2 VPN and Layer
3 VPN routes. PR1492743
On EX4300-MP and EX4600 switches, high CPU load due to receipt of specific Layer 2 frames in
EVPN-VXLAN deployment and specific Layer 2 frames when deployed in a Virtual Chassis configuration.
PR1495890
Firewall filter could not work in certain conditions in a Virtual Chassis setup. PR1497133
The rpd process might report 100 percent CPU usage with BGP route damping enabled. PR1514635
Packet loss might be observed while verifying traffic from access to core network for IPv4 and IPv6
interfaces. PR1520059
57
User Interface and Configuration
Installing J-Web application package might fail on the EX2300 and EX3400 switches. PR1513612
J-Web does not display the correct flow-control status on EX Series devices. PR1520246

Resolved Issues: 19.4R2

Class of Service (CoS)
Shaping does not work after the reboot if shaping-rate is configured. PR1432078
The traffic is placed in network-control queue on an extended port even if it comes in with a different
DSCP marking. PR1433252
EVPN
The ESI of IRB interfaces does not update after an autonomous-system number change if the interface
is down. PR1482790
Forwarding and Sampling
Type 1 ESI/AD route might not be generated locally on an EVPN PE device in all-active mode. PR1464778
General Routing
The l2cpd process might crash and generate a core file when interfaces are flapping. PR1431355
IRB over VTEP unicast traffic might get dropped on EX9200 platforms. PR1436924
The MAC pause frames will increment in the receive direction if half-duplex mode on 10-Mbps or
100-Mbps speed is configured. PR1452209
Link-up delay and traffic drop might be seen on mixed service provider Layer 2 or Layer 3 type and
enterprise style Layer 2 type configurations. PR1456336
MAC addresses learned on an RTG might not be aged out after the aging time. PR1461293
The RTG link is nearly 20 seconds down when the backup node is rebooting. PR1461554
On EX Series switches with ELS, some command lines to disable MAC learning are not working.
PR1464797
The jdhcpd might consume high CPU and no further subscribers can be brought up if there are more
than 4000 DHCP relay clients in the MAC move scenario. PR1465277
The MAC move message might have an incorrect from interface when rapid MAC moves happen.
PR1467459
FPCs might get disconnected from the EX3400 Virtual Chassis briefly after image upgrade or reboot.
PR1467707
58
Optics measurements might not be streamed for interfaces of a PIC over JTI. PR1468435
SSH session closes while you check for the show configuration | display set command for both local and
non-local users. PR1470695
EX3400 is advertising only 100 Mbps when configured with 100-Mbps speed with autonegotiation
enabled. PR1471931
The shaping of CoS does not work after reboot. PR1472223
CoS 802.1p bits rewrite might not happen in Q-in-Q mode. PR1472350
The RIPv2 packets forwarded across a Layer 2 circuit connection might be dropped. PR1473685
On EX4300 switches, the output of the show security macsec statisitics command shows incorrect high
values. PR1476719
The dhcpd process might crash in a Junos fusion environment. PR1478375
Core files are generated at cassis_alloc_list_timed_free in cassis_free_thread_entry. PR1478392
TFTP installation from the loader prompt might not succeed on the EX Series switches. PR1480348
ARP request packets for unknown hosts might get dropped in the remote PE device in an EVPN-VXLAN
scenario. PR1480776
On EX2300, SNMP traps are not generated when the MAC addresses limit is reached. PR1482709
DHCP binding fails while verifying DHCPv4 snooping fucntionality in a private VLAN with a firewall to
block or allow certain IPv4 packets. PR1490689
Traffic loss might be seen under MC-LAG scenario on EX4650. PR1494507
Infrastructure
Continuous dcpfe error messages and eventd process hog might be seen in an EX2300 Virtual Chassis
scenario. PR1474808
Kernel core file might be generated if you deactivate daemon on EX2300 and EX3400 platforms.
PR1483644
Interfaces and Chassis
Executing commit might hang because of a stuck dcd process. PR1470622
Junos Fusion for Enterprise
The SDPD generates core files at vfpc_all_eports_deletion_complete vfpc_dampen_fpc_timer_expiry.
PR1454335
Loop detection might not work on extended ports in a Junos fusion scenario. PR1460209
Junos Fusion Satellite Software
Temperature sensor alarms are seen on EX4300 switches in a Junos fusion scenario. PR1466324
59
Layer 2 Features
The LLDP function might fail when a Juniper Networks device connects to a non-Juniper device.
PR1462171
Traffic might be affected if composite next hop is enabled. PR1474142
Layer 2 Ethernet Services
Member links state might be asychronized on a connection between a PE device and a CE device in an
EVPN A/A scenario. PR1463791
Confirm and reply packets might not get processed correctly because of issues with DHCPv6 relay
processing. PR1496220
MPLS
BGP session might keep flapping between two directly connected BGP peers because of the incorrect
usage of the TCP-MSS. PR1493431
Platform and Infrastructure
The IRB traffic might drop after a mastership switchover. PR1453025
The OSPF neighbor might go down when mDNS or PTP traffic is received at a rate higher than 1400
pps. PR1459210
Traffic loss might be observed for more than 20 seconds when performing NSSU on EX4300 Virtual
Chassis. PR1461983
IGMP reports are dropped with mixed enterprise/SP configuration styles on EX4300 switches.PR1466075
The switch might not be able to learn MAC addresses with dot1x and interface-mac-limit configured.
PR1470424
On an EX4300, the input firewall filter attached to isolated or community VLANs is not matching dot1p
bits on the VLAN header. PR1478240
The traffic destined to a VRRP VIP might be dropped after the IRB interface is disabled on the initial
VRRP master. PR1491348
Routing Protocols
BGP IPv4 or IPv6 convergence and RIB install or delete time degraded in Junos OS Releases 19.1R1,
19.2R1, 19.3R1, and 19.4R1. PR1414121
The MUX state in an LACP interface does not go to collecting and distributing and remains attached
after enabling the aggregated Ethernet interface. PR1484523
FPC might go to "NotPrsnt" state after upgrading with non-tvp image in Virtual Chassis or Virtual Chassis
Fabric setup. PR1485612
User Interface and Configuration
60
The umount: unmount of /.mount/var/val/chroot/packages/mnt/jweb-ex32-d2cf6f6b failed: Device
busy message is seen when Junos OS is upgraded with the validate option. PR1478291
Virtual Chassis
Disabling one of the VCP ports might result in other VCP port to flap. PR1469257

Resolved Issues: 19.4R1

Authentication and Access Control
After rebooting the preloaded box, the SSL certificate is not displayed. PR1431086
EVPN
In EVPN scenario, the IRB logical interface might not come up when the local Layer 2 interface is down.
PR1436207
ARP request or Neighbor Solicitation (NS) message might be sent back to the local segment by the DF
router. PR1459830
The rpd might crash after changing EVPN related configuration. PR1467309
General Routing
On the EX3400, when me0 ports are connected between two EX3400 switches, the link does not come
up. PR1351757
Transit OSPF traffic over Q-in-Q tunneling might be dropped if a firewall filter is applied to the Lo0
interface. PR1355111
The l2ald process might crash and generate a core file on EX2300 Virtual Chassis when converted a
trunk port is converted to a dot1x access port with tagged traffic flowing. PR1362587
The interface on the failed member FPC of EX2300 and EX3400 Virtual Chassis might stay up for 120
seconds. PR1422507
IPv6 multicast traffic received on one Virtual Chassis member might be dropped when egressing on
another Virtual Chassis member if MLD snooping is enabled. PR1423310
MAC addresses overlaps between different switches. PR1425123
The delay in transmission of BPDUs after GRES might result in loss of traffic on EX2300 and EX3400
Virtual Chassis. PR1428935
Erroneous log messages and chassis environment output related to the fan tray in EX4300MP and
EX4300-48P Virtual Chassis. PR1431263
The l2cpd process might crash and generate a core file when interfaces flap. PR1431355
Packet drop might be seen if native VLAN is configured along with flexible VLAN tagging. PR1434646
Micro BFD session might flap upon inserting a QSFP to other port. PR1435221
61
The mc-ae interface might get stuck in waiting state in a dual mc-ae scenario. PR1435874
Commit check error for VSTP on the EX9200 line of switches xSTP:Trying to configure too many
interfaces for given protocol. PR1438195
LED turns on even after the Virtual Chassis members are powered off. PR1438252
The DHCP snooping table might be cleared for VLAN ID 1 after adding a new VLAN ID to it. PR1438351
The rpd process might generate a core file when the router boots up because of a file pointer issue
because there are two code paths that can close the file. PR1438597
The dot1x might not work when captive-port is also configured on the interface on the backup or
nonmaster FPC. PR1439200
DHCPv6 relay binding is not up while verifying DHCP snooping along with DHCPv6 relay. PR1439844
EX4600 Virtual Chassis does not come up after replacing the Virtual Chassis port from fiber connection
to DAC cable. PR1440062
CPU might hang or interface might get stuck on a particular 100-Gigabit Ethernet port on EX Series
switches. PR1440526
MAC addresses learned on RTG might not be aged out after a Virtual Chassis member is rebooted.
PR1440574
Clients in isolated VLAN might not get IP addresses after completing authentication when both
dhcp-security and dot1x are configured. PR1442078
On the EX3400, the fan alarm Fan X not spinning appears and disappears repeatedly after the fan tray
is removed. PR1442134
The rpd might crash when the BGP sends a notification message. PR1442786
DHCPv6 client might fail to get an IP address. PR1442867
Non-designated port does not move to the backup port role. PR1443489
The /var/host/motd does not exist message is flooded every 5 seconds in chassisd logs. PR1444903
On the EX4300-MP, the following log messages is generated continuously: rpd[6550]: task_connect:
task AGENTD I/O.128.0.0.1+9500 addr 128.0.0.1+9500: Connection refused. PR1445618
On the EX3400 dot1xd core file is found at macsec_update_intf macsec_destroy_ca. PR1445764
Major alarm log messages for temperature conditions are generated for the EX4600 at 56 degrees
Celsius. PR1446363
Traffic might be dropped when a firewall filter rule uses 'then vlan' as the action in a Virtual Chassis
scenario. PR1446844
The phone-home feature might fail on EX3400 switches because sysctl cannot read the device serial
number. PR1447291
On EX3400, Virtual Chassis might hang when a disk error occurs. PR1447853
62
Unicast ARP requests do not receive a reply with the no-arp-trap option. PR1448071
On EX3400, IPv6 routes received through BGP do not show the correct age time. PR1449305
Except one aggregated Ethernet member link, the other links do not send out sFlow sample packets for
ingress traffic. PR1449568
DHCP snooping static binding does not take effect after deleting and readding the entries. PR1451688
The l2ald and eventd processes are hogging 100 percent after issuing the clear ethernet-switching table
command. PR1452738
Configuration change in the VLAN all option might affect the per-VLAN configuration. PR1453505
Version compare in PHC might fail and the same image might be downloaded. PR1453535
Packet drops might be seen after removing and reinserting the SFP transceiver of the 40-Gigabit Ethernet
uplink module ports. PR1456039
Syslog message Timeout connecting to peer database-replication is generated when the command show
version detail is issued. PR1457284
SNMP trap messages are generated after an upgrade even though the temperature is within the system
thresholds. PR1457456
The correct VoIP VLAN information in LLDP-MED packets might not be sent after commit if dynamic
VoIP VLAN assignment is used. PR1458559
The fxpc process might crash because the BGP IPv6 session flaps. PR1459759
Storage space limitation leads to image installation failure when the phone-home client is used on EX2300
and EX3400 devices. PR1460087
Configure any combination of VLANs and interfaces under VSTP/MSTP might cause VSTP/MSTP related
configuration cannot be committed. PR1463251
The Virtual Chassis function might brake after an upgrade on EX2300 and EX3400 devices. PR1463635
On the EX2300, FXPC core file is generated after mastership election based on user priority. PR1465526
Infrastructure
The operations on the console might not work if the system ports console log-out-on-disconnect
statement is configured. PR1433224
The recovery snapshot cannot be created after system zeroization. PR1439189
On EX4300 CLI configuration on-disk-failure is not supported in Junos OS Release 18.2R3-S2. PR1450093
Certain EX Series platforms might generate VM core files by panic and reboot. PR1456668
Error messages related to soft reset of port because the queue buffers are stuck might be seen on
EX4600-EX4300 VC. PR1462106
The traffic is dropped on EX4300-48MP device acting as a leaf in Layer 2 IP fabric EVPN VXLAN
environment. PR1463318
63
Interfaces and Chassis
VRRP-V6 state flaps with init and idle states after configuring vlan-tagging. PR1445370
The traffic might be forwarded to incorrect interfaces in MC-LAG scenario. PR1465077
Junos Fusion Enterprise
Reachability issue of the host connected to the SD might be affected in a Junos Fusion Enterprise
environment with EX9200 Series devices as AD. PR1447873
Junos Fusion Satellite Software
The dpd might crash on satellite devices in a Junos Fusion Enterprise environment. PR1460607
J-Web
Some error messages might be seen when using J-Web. PR1446081
Layer 2 Ethernet Services
The jdhcpd_era log files constantly consume 121M of space out of 170M, resulting in a full file system
and affecting traffic. PR1431201
DHCP request might get dropped in DHCP relay scenario. PR1435039
On EX9200, the DHCP relay strips the 'GIADDR' field in messages towards the DHCP clients. PR1443516
Layer 2 Features
Ethernet Ring Protection Switching (ERPS) nodes might not converge to IDLE state after failure recovery
or reboot. PR1431262
The MAC/ARP learning might not work for copper base SFP-T on EX4600. PR1437577
The fxpc core files might be generated when committing the configuration. PR1467763
Platform and Infrastructure
LACP DDoS policer is incorrectly triggered by other protocols traffic on all EX92XX Series platforms.
PR1409626
Over temperature SNMP trap is generated incorrectly for LC (EX4300-48P) based on master Routing
Engine (EX4300-48MP) temperature threshold value. PR1419300
Packet drops, replication failure, or ksyncd crash might be seen on the logical system of a Junos OS
device after Routing Engine switchover. PR1427842
IPv6 traffic might be dropped when static /64 IPv6 routes are configured. PR1427866
Unicast ARP requests are not replied to with no-arp-trap option. PR1429964
64
The device might not be accessible after the upgrade. PR1435173
The FPC/pfex might crash due to DMA buffer leaking. PR1436642
The laser TX might be enabled while the interface is disabled. PR1445626
The PoE might not work after upgrading the PoE firmware on EX4300 platforms. PR1446915
The firewall filters might not be created due to TCAM issues. PR1447012
NSSU causes traffic loss again after the backup to master transitions. PR1448607
On certain MPC line cards, cm errors need to be reclassified. PR1449427
The REST service might become nonresponsive when the REST API receives several continuous HTTP
requests. PR1449987
The traffic for some VLANs might not be forwarded when vlan-id-list is configured. PR1456879
ERP might not revert to idle state after reload or reboot of multiple switches. PR1461434
Routing Protocols
Host-destined packets with filter log action might not reach to the Routing Engine if log/syslog is enabled.
PR1379718
On EX9208, BGP IPv4/IPv6 convergence and RIB install/delete time is degraded in Junos OS Releases
19.1R1, 19.2R1, 19.3R1, and 19.4R1. PR1414121
The fxpc core file might be generated during the reboot of EX4600 switches. PR1432023
Error message RPD_DYN_CFG_GET_PROF_NAME_FAILED: Get profile name for session XXX failed:
-7 might be seen in syslog after restarting the routing daemon. PR1439514
Traffic might be dropped after the Q-in-Q enabled interface flaps or a change is made to the vlan-id-list.
PR1441402
IPv6 connectivity between MC-LAG peers might fail when multiple IRB interfaces are present. PR1443507
Junos OS BFD sessions with authentication flaps after a certain time. PR1448649
Loopback address exported into other VRF instance might not work on EX Series platforms. PR1449410
MPLS LDP might still use stale MAC of the neighbor even when the LDP neighbor's MAC changes.
PR1451217
Changing "other querier present interval" timer is not working on IGMP/MLD snooping device in the
existing bridge domain (BD) or listener domain (LD). PR1461590
User Interface and Configuration
EX4600 switches are unable to commit baseline configuration after zeroization. PR1426341
Problem with access to J-Web after updating from Junos OS Release 18.2R2 to 18.2R3. PR1454150
Virtual Chassis
65
Current MAC address might change after deleting one of the multiple Layer 3 interfaces. PR1449206
SEE ALSO
What's New | 37
What's Changed | 47
Known Limitations | 50
Open Issues | 51
Documentation Updates | 65
Migration, Upgrade, and Downgrade Instructions | 66

Documentation Updates

IN THIS SECTION
Feature Guides Are Renamed As User Guides | 66
This section lists the errata and changes in Junos OS Release 19.4R3 for the EX Series switches documentation.

Feature Guides Are Renamed As User Guides

Starting with Junos OS 19.4R1, we renamed our Feature Guides to User Guides to better reflect the
purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
SEE ALSO
What's New | 37
What's Changed | 47
66
Known Limitations | 50
Open Issues | 51
Resolved Issues | 54
Migration, Upgrade, and Downgrade Instructions | 66

Migration, Upgrade, and Downgrade Instructions

IN THIS SECTION
Upgrade and Downgrade Support Policy for Junos OS Releases | 66
This section contains the upgrade and downgrade support policy for Junos OS for the EX Series. Upgrading or downgrading Junos OS can take several hours, depending on the size and configuration of the network. For information about software installation and upgrade, see the Installation and Upgrade Guide.

Upgrade and Downgrade Support Policy for Junos OS Releases

Support for upgrades and downgrades that span more than three Junos OS releases at a time is not provided, except for releases that are designated as Extended End-of-Life (EEOL) releases. EEOL releases
provide direct upgrade and downgrade paths—you can upgrade directly from one EEOL release to the next EEOL release even though EEOL releases generally occur in increments beyond three releases.
You can upgrade or downgrade to the EEOL release that occurs directly before or after the currently installed EEOL release, or to two EEOL releases before or after. For example, Junos OS Releases 17.1,
17.2, and 17.3 are EEOL releases. You can upgrade from Junos OS Release 17.1 to Release 17.2 or from Junos OS Release 17.1 to Release 17.3.
You cannot upgrade directly from a non-EEOL release to a release that is more than three releases ahead or behind. To upgrade or downgrade from a non-EEOL release to a release more than three releases before or after, first upgrade to the next EEOL release and then upgrade or downgrade from that EEOL release to your target release.
For more information about EEOL releases and to review a list of EEOL releases, see
https://support.juniper.net/support/eol/software/junos/.
SEE ALSO
67
What's New | 37
What's Changed | 47
Known Limitations | 50
Open Issues | 51
Resolved Issues | 54
Documentation Updates | 65

Junos OS Release Notes for JRR Series

IN THIS SECTION
What's New | 68
What's Changed | 69
Known Limitations | 70
Open Issues | 70
Resolved Issues | 71
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73
These release notes accompany Junos OS Release 19.4R3 for JRR Series. They describe new and changed features, limitations, and known and resolved problems in the hardware.
You can find these release notes on the Juniper Networks Junos OS Documentation webpage, located at
https://www.juniper.net/documentation/product/en_US/junos-os.

What's New

IN THIS SECTION
What’s New in 19.4R3 Release | 68
What’s New in 19.4R2 Release | 68
What’s New in 19.4R1 Release | 68
68
Learn about new features introduced in the Junos OS main release and the maintenance releases for JRR Series.

What’s New in 19.4R3 Release

There are no new features or enhancements to existing features for JRR Series in Junos OS Release
19.4R3.

What’s New in 19.4R2 Release

There are no new features or enhancements to existing features for JRR Series in Junos OS Release
19.4R2.

What’s New in 19.4R1 Release

Hardware
JRR200 Route Reflector—Starting with Junos OS Release 19.4R1, JRR200 Route Reflector a 1U form
factor appliance with a multicore x86 CPU and preinstalled vRR software that can host one route reflector instance is available. JRR200 is suitable for large enterprises, data centers and service providers for hosting vRR software to scale up to 30 million routing information base (RIB) entries. The JRR200 route reflector comes with eight 1/10 Gigabit Ethernet SFP+ ports, 64 GB of DDR4 memory, and two 240 GB solid-state drives (SSDs) in a RAID1 configuration. It is available in both AC and DC
models which support Zero Touch Provisioning mode (ZTP) to ensure seamless insertion into the network and provide operational simplicity.
[See JRR200 Route Reflector Hardware Guide and JRR200 Route Reflector Quick Start]
ZTP Support for JRR200 Route Reflector—Starting in Junos OS Release 19.4R1, ZTP can automate the
provisioning of the device configuration and software image on JRR200 Route Reflector. ZTP supports self image upgrades and automatic configuration updates using ZTP DHCP options. In this release, ZTP supports revenue ports em2 thru em9, in addition to management port em0 which is supported in Junos OS Releases before 19.4R1.
[See Zero Touch Provisioning.]
SEE ALSO
What's Changed | 69
Known Limitations | 70
69
Open Issues | 70
Resolved Issues | 71
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73

What's Changed

There are no changes in behavior and syntax for JRR Series in Junos OS Release 19.4R3.
SEE ALSO
What's New | 68
Known Limitations | 70
Open Issues | 70
Resolved Issues | 71
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73

Known Limitations

There are no known limitations for JRR Series in Junos OS Release 19.4R3.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
SEE ALSO
What's New | 68
What's Changed | 69
Open Issues | 70
Resolved Issues | 71
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73
70

Open Issues

There are no open issues in hardware and software for JRR Series in Junos OS Release 19.4R3.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
SEE ALSO
What's New | 68
What's Changed | 69
Known Limitations | 70
Resolved Issues | 71
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73

Resolved Issues

IN THIS SECTION
Resolved Issues: 19.4R3 | 71
Resolved Issues: 19.4R2 | 71
Resolved Issues: 19.4R1 | 71
Learn which issues were resolved in Junos OS main release and the maintenance releases for JRR Series devices.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
71

Resolved Issues: 19.4R3

General Routing
tcp_timer_keep log messages floods continuously on JRR200. PR1533168

Resolved Issues: 19.4R2

General Routing
USB install image does not work for JRR200 platform. PR1471986
Link state of virtual em interfaces in Junos OS might not reflect the true link status of corresponding
physical interfaces in the Linux host. PR1492087

Resolved Issues: 19.4R1

There are no fixed issues in Junos OS Release 19.4R1 for JRR Series.
SEE ALSO
What's New | 68
What's Changed | 69
Known Limitations | 70
Open Issues | 70
Documentation Updates | 72
Migration, Upgrade, and Downgrade Instructions | 73

Documentation Updates

IN THIS SECTION
Feature Guides Are Renamed As User Guides | 72
This section lists the errata and changes in Junos OS Release 19.4R3 documentation for JRR Series.
72

Feature Guides Are Renamed As User Guides

Starting with Junos OS 19.4R1, we renamed our Feature Guides to User Guides to better reflect the
purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
SEE ALSO
What's New | 68
What's Changed | 69
Known Limitations | 70
Open Issues | 70
Resolved Issues | 71
Migration, Upgrade, and Downgrade Instructions | 73

Migration, Upgrade, and Downgrade Instructions

IN THIS SECTION
Upgrade and Downgrade Support Policy for Junos OS Releases | 73
This section contains the upgrade and downgrade support policy for Junos OS for the JRR Series Route Reflector. Upgrading or downgrading Junos OS might take several minutes, depending on the size and configuration of the network.
For information about software installation and upgrade, see the Installation and Upgrade Guide.

Upgrade and Downgrade Support Policy for Junos OS Releases

73
Support for upgrades and downgrades that span more than three Junos OS releases at a time is not provided, except for releases that are designated as Extended End-of-Life (EEOL) releases. EEOL releases provide direct upgrade and downgrade paths—you can upgrade directly from one EEOL release to the next EEOL release even though EEOL releases generally occur in increments beyond three releases.
You can upgrade or downgrade to the EEOL release that occurs directly before or after the currently installed EEOL release, or to two EEOL releases before or after. For example, Junos OS Releases 17.1,
17.2, and 17.3 are EEOL releases. You can upgrade from Junos OS Release 17.1 to Release 17.2 or from Junos OS Release 17.1 to Release 17.3.
You cannot upgrade directly from a non-EEOL release to a release that is more than three releases ahead or behind. To upgrade or downgrade from a non-EEOL release to a release more than three releases before or after, first upgrade to the next EEOL release and then upgrade or downgrade from that EEOL release to your target release.
For more information about EEOL releases and to review a list of EEOL releases, see
https://www.juniper.net/support/eol/junos.html.
For information about software installation and upgrade, see the Installation and Upgrade Guide and
JRR200 Route Reflector Quick Start.
SEE ALSO
What's New | 68
What's Changed | 69
Known Limitations | 70
Resolved Issues | 71
Open Issues | 70
Documentation Updates | 72

Junos OS Release Notes for Junos Fusion Enterprise

IN THIS SECTION
What’s New | 75
What’s Changed | 75
Known Limitations | 76
74
Open Issues | 76
Resolved Issues | 77
Documentation Updates | 78
Migration, Upgrade, and Downgrade Instructions | 79
These release notes accompany Junos OS Release 19.4R3 for Junos Fusion Enterprise. Junos Fusion Enterprise is a Junos Fusion that uses EX9200 switches in the aggregation device role. These release notes describe new and changed features, limitations, and known problems in the hardware and software.
NOTE: For a complete list of all hardware and software requirements for a Junos Fusion
Enterprise, including which Juniper Networks devices can function as satellite devices, see
Understanding Junos Fusion Enterprise Software and Hardware Requirements.
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.

What’s New

There are no new features or enhancements to existing features in Junos OS Release 19.4R3 for Junos fusion for enterprise.
NOTE: For more information about the Junos fusion for enterprise features, see the Junos Fusion
Enterprise User Guide.
SEE ALSO
What’s Changed | 75
Known Limitations | 76
75
Open Issues | 76
Resolved Issues | 77
Documentation Updates | 78
Migration, Upgrade, and Downgrade Instructions | 79

What’s Changed

There are no changes in behavior of Junos OS features and changes in the syntax of Junos OS statements and commands in Junos OS Release 19.4R3 for Junos fusion for enterprise.
SEE ALSO
What’s New | 75
Known Limitations | 76
Open Issues | 76
Resolved Issues | 77
Documentation Updates | 78
Migration, Upgrade, and Downgrade Instructions | 79

Known Limitations

There are no known behaviors, system maximums, and limitations in hardware and software in Junos OS Release 19.4R3 for Junos fusion for enterprise.
For the most complete and latest information about known Junos OS problems, use the Juniper Networks online Junos Problem Report Search application.
SEE ALSO
What’s New | 75
What’s Changed | 75
Open Issues | 76
Resolved Issues | 77
Documentation Updates | 78
76
Migration, Upgrade, and Downgrade Instructions | 79

Open Issues

IN THIS SECTION
Junos Fusion for Enterprise | 76
Learn about open issues in this release for Junos fusion for enterprise. For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Junos Fusion for Enterprise

In a Junos fusion for enterprise environment, when traffic originates from a peer device connected to
the aggregation device and the ICL is a LAG, there might be a reachability issue if the cascade port is disabled and traffic has to flow through the ICL LAG to reach the satellite device. As a workaround, use single interface as the ICL instead of a LAG. PR1447873
On a Junos fusion for enterprise system, intermediate traffic drop is sometime seen between the
aggregation device and satellite device when sFlow is enabled on the ingress interface. PR1450373
In Junos fusion for enterprise, the dpd process generate a core file on satellite devices running SNOS.
PR1460607
SEE ALSO
What’s New | 75
What’s Changed | 75
Known Limitations | 76
Open Issues | 76
Documentation Updates | 78
Migration, Upgrade, and Downgrade Instructions | 79
77

Resolved Issues

IN THIS SECTION
Resolved Issues: Release 19.4R3 | 77
Resolved Issues: Release 19.4R2 | 78
Resolved Issues: Release 19.4R1 | 78
Learn which issues were resolved in Junos OS main release and the maintenance releases for Junos fusion for enterprise.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Resolved Issues: Release 19.4R3

There are no resolved issues in Junos OS Release 19.4R3 for Junos fusion for enterprise.

Resolved Issues: Release 19.4R2

The SDPD process generates a core file at vfpc_all_eports_deletion_complete
vfpc_dampen_fpc_timer_expiry. PR1454335
Loop detection might not work on extended ports in a Junos fusion scenario. PR1460209
The temperature sensor alarm is seen on EX4300 in a Junos fusion scenario. PR1466324

Resolved Issues: Release 19.4R1

There are no resolved issues in Junos OS Release 19.4R1 for Junos fusion for enterprise.
SEE ALSO
What’s New | 75
78
What’s Changed | 75
Known Limitations | 76
Open Issues | 76
Documentation Updates | 78
Migration, Upgrade, and Downgrade Instructions | 79

Documentation Updates

This section lists the errata and changes in Junos OS Release 19.4R3 documentation for Junos fusion for enterprise.

Feature Guides Are Renamed As User Guides

Starting with Junos OS 19.4R1, we renamed our Feature Guides to User Guides to better reflect the
purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
SEE ALSO
What’s New | 75
What’s Changed | 75
Known Limitations | 76
Open Issues | 76
Resolved Issues | 77
Migration, Upgrade, and Downgrade Instructions | 79

Migration, Upgrade, and Downgrade Instructions

IN THIS SECTION
Basic Procedure for Upgrading Junos OS on an Aggregation Device | 79
Upgrading an Aggregation Device with Redundant Routing Engines | 81
79
Preparing the Switch for Satellite Device Conversion | 82
Converting a Satellite Device to a Standalone Switch | 83
Upgrade and Downgrade Support Policy for Junos OS Releases | 83
Downgrading from Junos OS | 84
This section contains the procedure to upgrade or downgrade Junos OS and satellite software for a Junos fusion for enterprise. Upgrading or downgrading Junos OS and satellite software might take several hours, depending on the size and configuration of the Junos fusion for enterprise topology.

Basic Procedure for Upgrading Junos OS on an Aggregation Device

When upgrading or downgrading Junos OS for an aggregation device, always use the junos-install package. Use other packages (such as the jbundle package) only when so instructed by a Juniper Networks support representative. For information about the contents of the junos-install package and details of the installation process, see the Installation and Upgrade Guide.
NOTE: Before upgrading, back up the file system and the currently active Junos OS configuration
so that you can recover to a known, stable environment in case the upgrade is unsuccessful. Issue the following command:
user@host> request system snapshot
The installation process rebuilds the file system and completely reinstalls Junos OS. Configuration information from the previous software installation is retained, but the contents of log files might be erased. Stored files on the routing platform, such as configuration templates and shell scripts (the only exceptions are the juniper.conf and ssh files), might be removed. To preserve the stored files, copy them to another system before upgrading or downgrading the routing platform. See the Junos OS Installation and Upgrade Guide.
To download and install Junos OS:
80
1. Using a Web browser, navigate to the Download Software URL on the Juniper Networks webpage:
https://www.juniper.net/support/downloads/
2. Log in to the Juniper Networks authentication system using the username (generally your e-mail address) and password supplied by Juniper Networks representatives.
3. Select By Technology > Junos Platform > Junos Fusion to find the software that you want to download.
4. Select the release number (the number of the software version that you want to download) from the Version drop-down list on the right of the page.
5. Select the Software tab.
6. Select the software package for the release.
7. Review and accept the End User License Agreement.
8. Download the software to a local host.
9. Copy the software to the routing platform or to your internal software distribution site.
10. Install the new junos-install package on the aggregation device.
NOTE: We recommend that you upgrade all software packages out of band using the console
because in-band connections are lost during the upgrade process.
Customers in the United States and Canada, use the following commands:
user@host> request system software add validate reboot source/package.tgz
All other customers, use the following commands, where n is the spin number.
user@host> request system software add validate reboot source/package-limited.tgz
Replace source with one of the following values:
/pathname—For a software package that is installed from a local directory on the router.
For software packages that are downloaded and installed from a remote location:
81
ftp://hostname/pathname
http://hostname/pathname
scp://hostname/pathname (available only for Canada and U.S. version)
The validate option validates the software package against the current configuration as a prerequisite to adding the software package to ensure that the router reboots successfully. This is the default behavior when the software package being added is a different release.
Adding the reboot command reboots the router after the upgrade is validated and installed. When the reboot is complete, the router displays the login prompt. The loading process might take 5 to 10 minutes.
Rebooting occurs only if the upgrade is successful.

Upgrading an Aggregation Device with Redundant Routing Engines

If the aggregation device has two Routing Engines, perform a Junos OS installation on each Routing Engine separately to minimize disrupting network operations as follows:
1. Disable graceful Routing Engine switchover (GRES) on the master Routing Engine and save the configuration change to both Routing Engines.
2. Install the new Junos OS release on the backup Routing Engine while keeping the currently running software version on the master Routing Engine.
3. After making sure that the new software version is running correctly on the backup Routing Engine, switch over to the backup Routing Engine to activate the new software.
4. Install the new software on the original master Routing Engine that is now active as the backup Routing Engine.
For the detailed procedure, see the Installation and Upgrade Guide.

Preparing the Switch for Satellite Device Conversion

There are multiple methods to upgrade or downgrade satellite software in your Junos fusion for enterprise. See Configuring or Expanding a Junos Fusion Enterprise.
For satellite device hardware and software requirements, see Understanding Junos Fusion Enterprise
Software and Hardware Requirements.
Use the following command to install Junos OS on a switch before converting it into a satellite device:
user@host> request system software add validate reboot source/package-name
82
NOTE: The following conditions must be met before a Junos switch that is running Junos OS
Release 14.1X53-D43 can be converted to a satellite device when the action is initiated from the aggregation device:
The switch running Junos OS can be converted only to SNOS 3.1 and later.
Either the switch must be set to factory-default configuration by using the request system
zeroize command, or the following command must be included in the configuration: set chassis auto-satellite-conversion.
When the interim installation has completed and the switch is running a version of Junos OS that is compatible with satellite device conversion, perform the following steps:
1. Log in to the device using the console port.
2. Clear the device:
[edit] user@satellite-device# request system zeroize
NOTE: The device reboots to complete the procedure for resetting the device.
If you are not logged in to the device using the console port connection, your connection to the device is lost after you enter the request system zeroize command.
If you lose connection to the device, log in using the console port.
3. (EX4300 switches only) After the reboot is complete, convert the built-in 40-Gbps QSFP+ interfaces from Virtual Chassis ports (VCPs) into network ports:
user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port port-number
For example, to convert all four built-in 40-Gbps QSFP+ interfaces on an EX4300-24P switch into network ports:
user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 0 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 1 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 2 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 3
83
This step is required for the 40-Gbps QSFP+ interfaces that will be used as uplink interfaces in a Junos fusion topology. Built-in 40-Gbps QSFP+ interfaces on EX4300 switches are configured into VCPs by default, and the default settings are restored after the device is reset.
After this initial preparation, you can use one of three methods to convert your switches into satellite devices—autoconversion, manual conversion, or preconfiguration. See Configuring or Expanding a Junos
Fusion Enterprise for detailed configuration steps for each method.

Converting a Satellite Device to a Standalone Switch

If you need to convert a satellite device to a standalone device, you must install a new Junos OS software package on the satellite device and remove it from the Junos fusion topology. For more information, see
Converting a Satellite Device to a Standalone Device.

Upgrade and Downgrade Support Policy for Junos OS Releases

Support for upgrades and downgrades that span more than three Junos OS releases at a time is not provided, except for releases that are designated as Extended End-of-Life (EEOL) releases. EEOL releases provide direct upgrade and downgrade paths—you can upgrade directly from one EEOL release to the next EEOL release even though EEOL releases generally occur in increments beyond three releases.
You can upgrade or downgrade to the EEOL release that occurs directly before or after the currently installed EEOL release, or to two EEOL releases before or after. For example, Junos OS Releases 17.1,
17.2, and 17.3 are EEOL releases. You can upgrade from Junos OS Release 17.1 to Release 17.2 or from
Junos OS Release 17.1 to Release 17.3.
You cannot upgrade directly from a non-EEOL release to a release that is more than three releases ahead or behind. To upgrade or downgrade from a non-EEOL release to a release more than three releases before or after, first upgrade to the next EEOL release and then upgrade or downgrade from that EEOL release to your target release.
For more information about EEOL releases and to review a list of EEOL releases, see
https://www.juniper.net/support/eol/junos.html

Downgrading from Junos OS

Junos fusion for enterprise is first supported in Junos OS Release 16.1, although you can downgrade a standalone EX9200 switch to earlier Junos OS releases.
NOTE: You cannot downgrade more than three releases.
For more information, see the Installation and Upgrade Guide.
84
To downgrade a Junos fusion for enterprise, follow the procedure for upgrading, but replace the junos-install package with one that corresponds to the appropriate release.
SEE ALSO
What’s New | 75
What’s Changed | 75
Known Limitations | 76
Open Issues | 76
Resolved Issues | 77
Documentation Updates | 78

Junos OS Release Notes for Junos Fusion Provider Edge

IN THIS SECTION
What's New | 85
What's Changed | 86
Known Limitations | 86
Open Issues | 87
Resolved Issues | 87
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89
85
These release notes accompany Junos OS Release 19.4R3 for the Junos Fusion Provider Edge. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.

What's New

There are no new features or enhancements to existing features for Junos Fusion Provider Edge in Junos OS Release 19.4R3.
SEE ALSO
What's Changed | 86
Known Limitations | 86
Open Issues | 87
Resolved Issues | 87
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89

What's Changed

There are no changes in the behavior of Junos OS features or in the syntax of Junos OS statements and commands in Junos OS Release 19.4R3 for Junos fusion for provider edge.
SEE ALSO
What's New | 85
Known Limitations | 86
Open Issues | 87
Resolved Issues | 87
86
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89

Known Limitations

There are no known limitations for Junos Fusion Provider Edge in Junos OS Release 19.4R3.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
SEE ALSO
What's New | 85
What's Changed | 86
Open Issues | 87
Resolved Issues | 87
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89

Open Issues

There are no open issues in the Junos OS Release 19.4R3 for Junos Fusion Provider Edge.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.
SEE ALSO
What's New | 85
What's Changed | 86
Known Limitations | 86
Resolved Issues | 87
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89
87

Resolved Issues

IN THIS SECTION
Resolved Issues: 19.4R3 Release | 88
Resolved Issues: 19.4R2 Release | 88
Resolved Issues: 19.4R1 Release | 88
Learn which issues were resolved in Junos OS main release and the maintenance releases for Junos Fusion Provider Edge.
For the most complete and latest information about known Junos OS defects, use the Juniper Networks online Junos Problem Report Search application.

Resolved Issues: 19.4R3 Release

Junos Fusion Provider Edge
The statistics of extended ports on the satellite device cluster might show incorrect values from the
aggregation device. PR1490101

Resolved Issues: 19.4R2 Release

Junos Fusion for Provider Edge
The sdpd process might continuously crash if there are more than 12 cascade-ports configured to a
satellite device. PR1437387
The aggregated Ethernet interface might flap whenever a new logical interface is added. PR1441869

Resolved Issues: 19.4R1 Release

88
There are no fixed issues in the Junos OS Release 19.4R1 for Junos Fusion Provider Edge.
SEE ALSO
What's New | 85
What's Changed | 86
Known Limitations | 86
Open Issues | 87
Documentation Updates | 88
Migration, Upgrade, and Downgrade Instructions | 89

Documentation Updates

IN THIS SECTION
Feature Guides Are Renamed As User Guides | 89
This section lists the errata and changes in Junos OS Release 19.4R3 for Junos Fusion Provider Edge.

Feature Guides Are Renamed As User Guides

Starting with Junos OS 19.4R1, we renamed our Feature Guides to User Guides to better reflect the
purpose of the guides. For example, the BGP Feature Guide is now the BGP User Guide. We didn’t change the URLs of the guides, so any existing bookmarks you have will continue to work. To keep the terminology consistent on our documentation product pages, we renamed the Feature Guides section to User Guides. To find documentation for your specific product, check out this link.
SEE ALSO
What's New | 85
What's Changed | 86
Known Limitations | 86
Open Issues | 87
Resolved Issues | 87
89
Migration, Upgrade, and Downgrade Instructions | 89

Migration, Upgrade, and Downgrade Instructions

IN THIS SECTION
Basic Procedure for Upgrading an Aggregation Device | 90
Upgrading an Aggregation Device with Redundant Routing Engines | 92
Preparing the Switch for Satellite Device Conversion | 93
Converting a Satellite Device to a Standalone Device | 94
Upgrading an Aggregation Device | 96
Upgrade and Downgrade Support Policy for Junos OS Releases | 97
Downgrading from Junos OS Release 19.4 | 97
This section contains the procedure to upgrade Junos OS, and the upgrade and downgrade policies for Junos OS for Junos fusion for provider edge. Upgrading or downgrading Junos OS might take several hours, depending on the size and configuration of the network.

Basic Procedure for Upgrading an Aggregation Device

When upgrading or downgrading Junos OS, always use the jinstall package. Use other packages (such as the jbundle package) only when so instructed by a Juniper Networks support representative. For information about the contents of the jinstall package and details of the installation process, see the Installation and
Upgrade Guide.
NOTE: Before upgrading, back up the file system and the currently active Junos OS configuration
so that you can recover to a known, stable environment in case the upgrade is unsuccessful. Issue the following command:
user@host> request system snapshot
The installation process rebuilds the file system and completely reinstalls Junos OS. Configuration information from the previous software installation is retained, but the contents of log files might be erased. Stored files on the routing platform, such as configuration templates and shell scripts (the only exceptions are the juniper.conf and ssh files), might be removed. To preserve the stored files, copy them to another system before upgrading or downgrading the routing platform. See the Installation and Upgrade Guide.
90
The download and installation process for Junos OS Release 19.4R2 is different from that for earlier Junos OS releases.
1. Using a Web browser, navigate to the Download Software URL on the Juniper Networks webpage:
https://www.juniper.net/support/downloads/
2. Log in to the Juniper Networks authentication system by using the username (generally your e-mail address) and password supplied by Juniper Networks representatives.
3. Select By Technology > Junos Platform > Junos Fusion to find the software that you want to download.
4. Select the release number (the number of the software version that you want to download) from the Version drop-down list to the right of the page.
5. Select the Software tab.
6. Select the software package for the release.
7. Review and accept the End User License Agreement.
8. Download the software to a local host.
9. Copy the software to the routing platform or to your internal software distribution site.
10. Install the new jinstall package on the aggregation device.
NOTE: We recommend that you upgrade all software packages out-of-band using the console,
because in-band connections are lost during the upgrade process.
Customers in the United States and Canada, use the following commands.
For 64-bit software:
NOTE: We recommend that you use 64-bit Junos OS software when implementing Junos
Fusion Provider Edge.
91
user@host> request system software add validate reboot
source/jinstall64-19.4R2.SPIN-domestic-signed.tgz
For 32-bit software:
user@host> request system software add validate reboot
source/jinstall-19.4R2.SPIN-domestic-signed.tgz
All other customers, use the following commands.
For 64-bit software:
NOTE: We recommend that you use 64-bit Junos OS software when implementing Junos
Fusion Provider Edge.
user@host> request system software add validate reboot
source/jinstall64-19.4R2.SPIN-export-signed.tgz
For 32-bit software:
user@host> request system software add validate reboot
source/jinstall-19.4R2.SPIN-export-signed.tgz
Replace source with one of the following values:
/pathname—For a software package that is installed from a local directory on the router.
For software packages that are downloaded and installed from a remote location:
ftp://hostname/pathname
http://hostname/pathname
scp://hostname/pathname (available only for the Canada and U.S. version)
The validate option validates the software package against the current configuration as a prerequisite for adding the software package to ensure that the router reboots successfully. This is the default behavior when the software package being added is for a different release.
Adding the reboot command reboots the router after the upgrade is validated and installed. When the reboot is complete, the router displays the login prompt. The loading process might take 5 to 10 minutes.
Rebooting occurs only if the upgrade is successful.
92
NOTE: After you install a Junos OS Release 19.4R2 jinstall package, you cannot return to the
previously installed software by issuing the request system software rollback command. Instead, you must issue the request system software add validate command and specify the jinstall package that corresponds to the previously installed software.

Upgrading an Aggregation Device with Redundant Routing Engines

If the aggregation device has two Routing Engines, perform a Junos OS installation on each Routing Engine separately as follows to minimize disrupting network operations:
1. Disable graceful Routing Engine switchover (GRES) on the master Routing Engine and save the configuration change to both Routing Engines.
2. Install the new Junos OS release on the backup Routing Engine while keeping the currently running software version on the master Routing Engine.
3. After making sure that the new software version is running correctly on the backup Routing Engine, switch over to the backup Routing Engine to activate the new software.
4. Install the new software on the original master Routing Engine that is now active as the backup Routing Engine.
For the detailed procedure, see the Installation and Upgrade Guide.

Preparing the Switch for Satellite Device Conversion

Satellite devices in a Junos fusion topology use a satellite software package that is different from the standard Junos OS software package. Before you can install the satellite software package on a satellite device, you first need to upgrade the target satellite device to an interim Junos OS software version that can be converted to satellite software. For satellite device hardware and software requirements, see
Understanding Junos Fusion Software and Hardware Requirements
NOTE: The following conditions must be met before a standalone switch that is running Junos
OS Release 14.1X53-D43 can be converted to a satellite device when the action is initiated from the aggregation device:
The switch can be converted to only SNOS 3.1 and later.
Either the switch must be set to factory-default configuration by using the request system
zeroize command, or the following command must be included in the configuration: set chassis auto-satellite-conversion.
93
Customers with EX4300 switches, use the following command:
user@host> request system software add validate reboot
source/jinstall-ex-4300-14.1X53-D43.3-domestic-signed.tgz
Customers with QFX5100 switches, use the following command:
user@host> request system software add reboot
source/jinstall-qfx-5-14.1X53-D43.3-domestic-signed.tgz
When the interim installation has completed and the switch is running a version of Junos OS on one line that is compatible with satellite device conversion, perform the following steps:
1. Log in to the device by using the console port.
2. Clear the device:
[edit] user@satellite-device# request system zeroize
NOTE: The device reboots to complete the procedure for resetting the device.
If you are not logged in to the device by using the console port connection, your connection to the device is lost after you enter the request system zeroize command.
If you lose your connection to the device, log in using the console port.
3. (EX4300 switches only) After the reboot is complete, convert the built-in 40-Gbps QSFP+ interfaces from Virtual Chassis ports (VCPs) into network ports:
user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port port-number
For example, to convert all four built-in 40-Gbps QSFP+ interfaces on an EX4300-24P switch into network ports:
user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 0 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 1 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 2 user@satellite-device> request virtual-chassis vc-port delete pic-slot 1 port 3
94
This step is required for the 40-Gbps QSFP+ interfaces that will be used as uplink interfaces in a Junos Fusion topology. Built-in 40-Gbps QSFP+ interfaces on EX4300 switches are configured into VCPs by default, and the default settings are restored after the device is reset.
After this initial preparation, you can use one of three methods to convert your switches into satellite devices—autoconversion, manual conversion, and preconfiguration. See Configuring Junos Fusion Provider
Edge for detailed configuration steps for each method.

Converting a Satellite Device to a Standalone Device

If you need to convert a satellite device to a standalone device, you must install a new Junos OS software package on the satellite device and remove the satellite device from the Junos Fusion topology.
NOTE: If the satellite device is a QFX5100 switch, you need to install a PXE version of Junos
OS. The PXE version of Junos OS is software that includes pxe in the Junos OS package name when it is downloaded from the Software Center—for example, the PXE image for Junos OS Release 14.1X53-D43 is named install-media-pxe-qfx-5-14.1X53-D43.3-signed.tgz . If the satellite device is an EX4300 switch, you install a standard jinstall-ex-4300 version of Junos OS.
The following steps explain how to download software, remove the satellite device from Junos fusion, and install the Junos OS software image on the satellite device so that the device can operate as a standalone device.
1. Using a Web browser, navigate to the Junos OS software download URL on the Juniper Networks webpage:
https://www.juniper.net/support/downloads
2. Log in to the Juniper Networks authentication system by using the username (generally your e-mail address) and password supplied by Juniper Networks representatives.
3. Select By Technology > Junos Platform > Junos Fusion from the drop-down list and select the switch platform series and model for your satellite device.
4. Select the Junos OS Release 14.1X53-D30 software image for your platform.
5. Review and accept the End User License Agreement.
6. Download the software to a local host.
95
7. Copy the software to the routing platform or to your internal software distribution site.
8. Remove the satellite device from the automatic satellite conversion configuration.
If automatic satellite conversion is enabled for the satellite device’s member number, remove the member number from the automatic satellite conversion configuration. The satellite device’s member number is the same as the FPC slot ID.
[edit] user@aggregation-device# delete chassis satellite-management auto-satellite-conversion
satellite member-number
For example, to remove member number 101 from Junos Fusion:
[edit] user@aggregation-device# delete chassis satellite-management auto-satellite-conversion
satellite 101
You can check the automatic satellite conversion configuration by entering the show command at the [edit chassis satellite-management auto-satellite-conversion] hierarchy level.
9. Commit the configuration.
To commit the configuration to both Routing Engines:
[edit] user@aggregation-device# commit synchronize
Otherwise, commit the configuration to a single Routing Engine:
[edit] user@aggregation-device# commit
10. Install the Junos OS software on the satellite device to convert the device to a standalone device.
[edit] user@aggregation-device> request chassis satellite install URL-to-software-package fpc-slot
member-number
For example, to install a PXE software package stored in the /var/tmp directory on the aggregation device onto a QFX5100 switch acting as the satellite device using FPC slot 101:
[edit] user@aggregation-device> request chassis satellite install
/var/tmp/install-media-pxe-qfx-5-14.1X53-D43.3-signed.tgz fpc-slot 101
96
For example, to install a software package stored in the var/tmp directory on the aggregation device onto an EX4300 switch acting as the satellite device using FPC slot 101:
[edit] user@aggregation-device> request chassis satellite install
/var/tmp/jinstall-ex-4300-14.1X53-D30.3-domestic-signed.tgz fpc-slot 101
The satellite device stops participating in the Junos Fusion topology after the software installation starts. The software upgrade starts after this command is entered.
11. Wait for the reboot that accompanies the software installation to complete.
12. When you are prompted to log back into your device, uncable the device from the Junos Fusion topology. See Removing a Transceiver from a QFX Series Device or Remove a Transceiver, as needed. Your device has been removed from Junos Fusion.
NOTE: The device uses a factory-default configuration after the Junos OS installation is
complete.

Upgrading an Aggregation Device

When you upgrade an aggregation device to Junos OS Release 19.4R2, you must also upgrade your satellite device to Satellite Device Software version 3.1R1.

Upgrade and Downgrade Support Policy for Junos OS Releases

Support for upgrades and downgrades that span more than three Junos OS releases at a time is not provided, except for releases that are designated as Extended End-of-Life (EEOL) releases. EEOL releases provide direct upgrade and downgrade paths—you can upgrade directly from one EEOL release to the next EEOL release even though EEOL releases generally occur in increments beyond three releases.
You can upgrade or downgrade to the EEOL release that occurs directly before or after the currently installed EEOL release, or to two EEOL releases before or after. For example, Junos OS Releases 17.1,
17.2, and 17.3 are EEOL releases. You can upgrade from Junos OS Release 17.1 to Release 17.2 or from
Junos OS Release 17.1 to Release 17.3.
You cannot upgrade directly from a non-EEOL release to a release that is more than three releases ahead or behind. To upgrade or downgrade from a non-EEOL release to a release more than three releases before or after, first upgrade to the next EEOL release and then upgrade or downgrade from that EEOL release to your target release.
For more information about EEOL releases and to review a list of EEOL releases, see
https://www.juniper.net/support/eol/junos.html.
97

Downgrading from Junos OS Release 19.4

To downgrade from Release 19.4 to another supported release, follow the procedure for upgrading, but replace the 19.4 jinstall package with one that corresponds to the appropriate release.
NOTE: You cannot downgrade more than three releases.
For more information, see the Installation and Upgrade Guide.
SEE ALSO
What's New | 85
What's Changed | 86
Known Limitations | 86
Open Issues | 87
Resolved Issues | 87
Documentation Updates | 88

Junos OS Release Notes for MX Series 5G Universal Routing Platform

IN THIS SECTION
What's New | 98
What's Changed | 121
Known Limitations | 129
Open Issues | 132
Resolved Issues | 148
Documentation Updates | 191
Migration, Upgrade, and Downgrade Instructions | 192
98
These release notes accompany Junos OS Release 19.4R3 for the MX Series. They describe new and changed features, limitations, and known and resolved problems in the hardware and software.
You can also find these release notes on the Juniper Networks Junos OS Documentation webpage, located at https://www.juniper.net/documentation/product/en_US/junos-os.

What's New

IN THIS SECTION
What’s New in 19.4R3 Release | 99
What’s New in 19.4R2 Release | 99
What’s New in 19.4R1 Release | 101
Learn about new features introduced in the Junos OS main release and the maintenance releases for MX Series routers.

What’s New in 19.4R3 Release

There are no new features or enhancements to existing features for MX Series Junos OS Release 19.4R3.

What’s New in 19.4R2 Release

Hardware
NOTE: The MX2K-MPC11E line card is not supported in any Junos OS 19.4 releases. It is
supported in Junos OS 19.3R2 and later 19.3 releases and in Junos OS 20.1R1 and later Junos OS releases.
99
EVPN
EVPN on MPLS-over-UDP tunnels (MX series and vMX)—In Junos OS Release 19.4R2, Junos OS supports
an EVPN network in MPLS-over-UDP tunnels. EVPN uses indirect next hop while MPLS-over-UDP tunnels use tunnel composite next hop (TCNH) in resolving routes in the routing table. Prior to this release, indirect next hops for EVPN traffic on MPLS-over-UDP tunnels resolve into unicast next hops. With this release, the indirect next hops for EVPN traffic on MPLS-over-UDP tunnels will resolve into TCNH.
[See EVPN Overview and Example: Configuring Next-Hop-Based MPLS-Over-UDP Dynamic Tunnels.]
Interfaces and Chassis
Transparent forwarding of CFM packets over VPLS (MX Series)—In Junos OS Release 19.4R2, an MX
Series router continues to forward CFM packets over a VPLS even if the packets contain more VLAN tags than the number configured on an interface. In earlier releases of Junos OS, irrespective of the number of tags in a packet, the router forwards or drops the packet based on the interface configuration. In those releases, all CFM messages are parsed at the provider edge. But as a result of this feature support, only those CFM packets are parsed for which the number of VLAN tags matches the number configured on the provider edge interface.
100
NOTE: We do not support transparent forwarding on untagged and triple-tagged CFM packets.
[See Example: Configuring Ethernet CFM over VPLS.]
MPLS
Delegate segment routing LSPs to a PCE (MX Series)—Starting in Junos OS Release 19.4R2, you can
enable a Path Computation Client (PCC, ingress MX Series router) to delegate locally configured IPv4 non-colored segment routing LSPs to a Path Computation Element (PCE) controller. The PCE controls the delegated LSPs and can modify LSP attributes for traffic steering. A PCC with delegation capability can take back control of the delegated segment routing LSPs from the PCE when the PCEP session goes down; the LSPs would otherwise be deleted from the PCC. You can thus ensure LSP data protection by averting a situation where packets are silently discarded or dropped (also known as a traffic black-hole condition).
[See Example: Configuring Path Computation Element Protocol for SR-TE LSPs.]
Subscriber Management and Services
Loading...
