Juno LIH2060 Specifications Sheet

G1.10.0G2

2” IC 600 AND 1000 LUMENS

Project:

LED ROUND DOWNLIGHT BAFFLE

Fixture Type:

Location:

Contact/Phone:

PRODUCT DESCRIPTION

2 inch aperture recessed downlight is IC rated for insulated or non-in­sulated applications • Luminaire produces up to 1000 lumens and is
available with optical distributions approximating that of 75W MR16
halogen lamps • Low profile form factor allows luminaire to fit in
2 x 6 construction • Designed to provide 50,000 hours of life

• 5 year limited warranty on LED Components.

ENVIRONMENTALLY FRIENDLY, ENERGY EFFICIENT

• No harmful ultraviolet or infrared wavelengths

• No lead or mercury, RoHS compliant

• Comparable light output up to a 75W MR16 halogen lamp

PRODUCT SPECIFICATIONS

LED Light Engine Exceptional fixture to fixture color consistency

within a 3-step MacAdam ellipse • 2700K, 3000K, 3500K, and
4000K color temperatures are available with 80 CRI or 90 CRI
minimum.

Modular Optics Available with field interchangeable optics in 18°
Spot, 24° Narrow Flood, or 40° Flood distributions.

Aesthetic Trim Trim features die cast beveled knife edge trim ring
for clean ceiling interface available in white, black, satin nickel, or
brushed bronze • Die cast baffles are available in white, black, satin
nickel, or brushed bronze

LED Driver Choice of dedicated 120 volt (120) driver or universal
voltage (MVOLT) driver that accommodates input voltages from
120-277 volts AC at 50/60Hz • Power factor > 0.9 • Dedicated
120 volt driver (120) is dimmable with the use of most incandescent,
magnetic low voltage and electronic low voltage dimmers

• Universal voltage driver (MVOLT) is dimmable with the use of most
0-10V protocol dimmers

• For a list of compatible dimmers, see JUNO2ING2-DIM.

Life Rated for 50,000 hours at 70% lumen maintenance.
Labels ENERGY STAR® Certified • 90CRI fixtures are certified to

the high efficacy requirements of California T24 JA8-2016 • Meets
energy code Air Leakage requirements per ASTM E283 • UL and
cUL listed for wet locations.

Junction Box Includes (2) ½” knock-outs equipped with pryout slots

• Push-in electrical connectors for field connections.
Mounting Remodel style plaster frame installs from below the

ceiling and accommodates ceiling thicknesses from ½” to 1”

• For thicker ceilings up to 1 ½”, order 2JCTA150

• New Construction mounting frame, 2NCMF, is also available
with Patented (US Patent D552,969) Real Nail 3® telescoping
bar hangers to position fixture and locate wiring prior to ceiling
installation • Recommend a minimum of 5.5” cavity depth to install
properly • Flexible supply is recommended and non-flexible supply
requires top access.

Specifications subject to change without notice.

2LEDTRIM G2 DB

Downlight Baffle Finishes

WWH

BZBZ

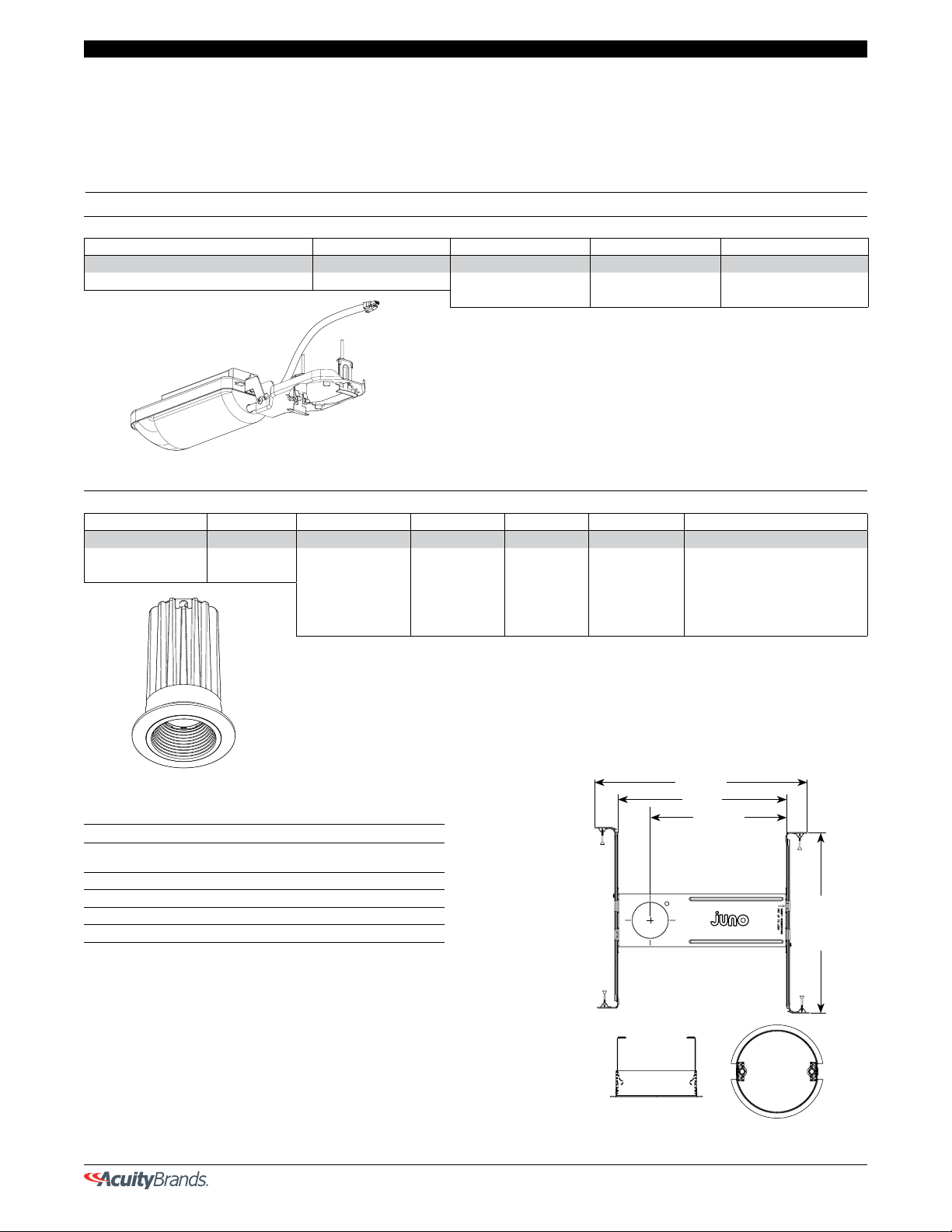

DIMENSIONS

7”

2 5/8” CEILING CUTOUT

SNSN

11 9/16”

2” APERTURE

BBL

BWH

4 1/8”

3 1/8”

ENGINEERING DATA (600L)

Dedicated 120V

(120)

Voltage 120 120 277
Input Power 7.5 (± 5%) 7.2 7.5 (± 5%)
Input Current .06 .06 .03
Frequency 50/60Hz 50/60Hz
Power Factor >0.9 >0.9 >0.9

1300 S. Wolf Road • Des Plaines, IL 60018 • Phone [phone] • Fax [phone] • Visit us at www.acuitybrands.com/juno-recessed
Printed in U.S.A. ©2017 Acuity Brands Lighting, Inc. Rev. 03/01/17

Universal Voltage

(MVOLT)

ENGINEERING DATA (1000L)

Dedicated 120V

(120)

Voltage 120 120 277
Input Power 11.5 (± 5%) 10.9 11.4 (± 5%)
Input Current .10 .09 .04
Frequency 50/60Hz 50/60Hz
Power Factor >0.9 >0.9 >0.9

Universal Voltage

(MVOLT)

1 of 4

2” IC 600 AND 1000 LUMENS

LED ROUND DOWNLIGHT BAFFLE

2LEDTRIM G2 DB

ORDERING INFORMATION DRIVER AND TRIM EACH ORDERED SEPARATELY.

DRIVER:

Example: 2LEDDRIVER G2 06LM 120 FRPC

Series Generation Lumens Voltage Driver

2LEDDRIVER

Juno Recessed 2” Driver

MOUNTING FRAME/DRIVER ASSEMBLY

TRIM:

Example: 2LEDTRIM G2 DB 27K 80CRI FL BBL

G2

Generation 2

06LM

600 Nominal Lumens

10LM

1000 Nominal Lumens

Note: Driver assembly only intended for use with
Gen2 LED trim modules. Not backward compatible
with previous generation.

120

MVOLT

120V

Multi-Volt (120-277V)

G1.10.0G2

FRPC

Forward/Reverse Phase Cut

ZT

0-10V Dimming

Note: 120V must be ordered with FRPC.
MVOLT must be ordered with ZT

Series Generation Trim Designation Color Temperature CRI Distribution Trim Finish

2LEDTRIM

Juno Recessed
2” LED Trim

TRIM/LED ASSEMBLY

ACCESSORIES

Catalog No. Description
2NCMF

2J C TA150

LEDOPTIC2 SP

LEDOPTIC2 NFL

LEDOPTIC2 FL

G2

Generation 2

New Construction Mounting Frame with Real Nail
bar hangers

Thick Ceiling adapter for 1” - 1½” thick ceiling
18° Spot Optic
24° Narrow Flood Optic
40° Flood Optic

DB

Downlight Baffle Trim

27K

30K

35K

40K

80CRI

2700K

90CRI

3000K

3500K

4000K

®

3

80+ CRI

90+ CRI

FL

NFL

SP

Flood

Narrow Flood

Spot

BBL

BWH

BZBZ

SNSN

WWH

15 15/16”

12 5/8”

10 13/64”

Black Baffle, Black Trim Ring

Black Baffle, White Trim Ring

Bronze Baffle, Bronze Trim Ring

Satin Nickel Baffle, Satin Nickel Trim Ring

White Baffle, White Trim Ring

13 1/2” will
expand to 25”
(Reduces to
9 1/8” with
breakaway feature)

2NCMF

2J C TA150

1300 S. Wolf Road • Des Plaines, IL 60018 • Phone [phone] • Fax [phone] • Visit us at www.acuitybrands.com/juno-recessed
Printed in U.S.A. ©2017 Acuity Brands Lighting, Inc. Rev. 03/01/17

2 of 4

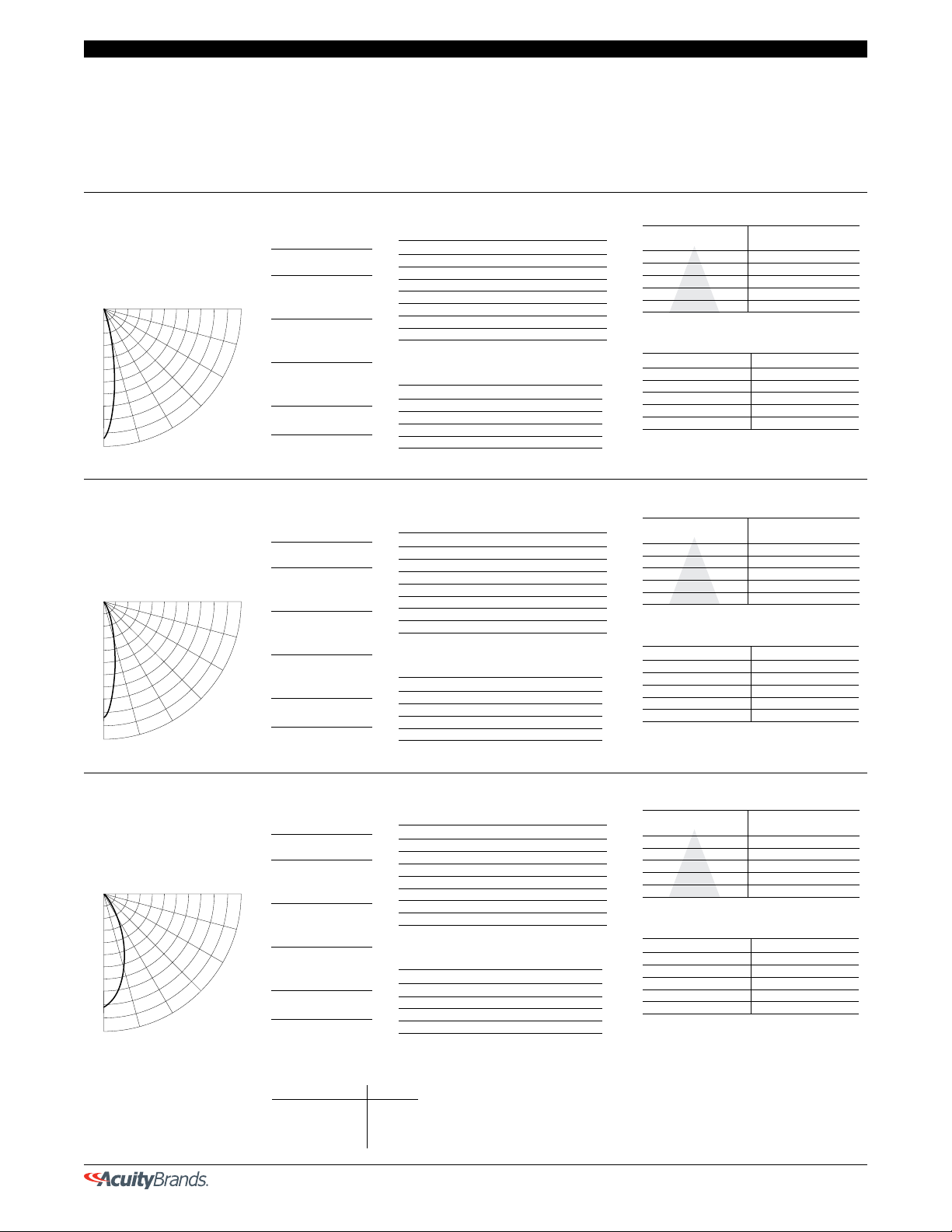

PHOTOMETRICS

PHOTOMETRIC REPORT

Test Report#: PT07161801
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
SP WWH (600L), White Baffle

with Spot Optic

Luminaire Spacing Criteria: 0.34
Luminaire LPW: 93

700

1400

2100

2800

3500

15°

0°

45°

30°

G1.10.0G2

2” IC 600 AND 1000 LUMENS

LED ROUND DOWNLIGHT BAFFLE

2LEDTRIM G2 DB

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 3492
5 2934

90°

15 926
25 286
35 45

75°

45 16

60°

55 12
65 8
75 4
85 1
90 0

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 49 44 41
5' 31 28 26
6' 22 20 18
7' 18 16 15
8' 14 13 12
9' 11 10 9
10' 8 7 7

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 629 N/A 89.9
0-40° 662 N/A 94.6
0-60° 686 N/A 98.2
0-90° 699 N/A 100.0

INITIAL FOOTCANDLES

(One Unit, 7.5W, 18.9° Beam)

Distance to

Illuminated Plane (Feet)

4' 218.3 1.3
6' 97.0 2.0

8' 54.6 2.7
10' 34.9 3.3
12' 24.3 4.0

Footcandles

Beam Center

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 10385
55° 9995
65° 8744
75° 6956
85° 3805

Beam

Diameter

2

)

PHOTOMETRIC REPORT

Test Report#: PT07161805
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
NFL WWH (600L), White Baffle

with Narrow Flood Optic

Luminaire Spacing Criteria: 0.42
Luminaire LPW: 89

500

1000

1500

2000

2500

15°

0°

45°

30°

PHOTOMETRIC REPORT

Test Report#: PT07161809
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
FL WWH (600L), White Baffle

with Flood Optic

Luminaire Spacing Criteria: 0.72
Luminaire LPW: 94

250

500

750

1000

1250

15°

0°

45°

30°

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 2532
5 2228

90°

15 926
25 308
35 48

75°

45 17

60°

55 13
65 8
75 4
85 1
90 0

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 1187
5 1141

90°

15 879
25 492
35 135

75°

45 27

60°

55 11
65 8
75 4
85 1
90 0

Fixtures tested to IES recommended standard for solid state lighting per LM-79-08. Photometric performance
on a single unit represents a baseline of performance for the fixture. Results may vary in the field.

Multiplier: 80CRI 90CRI

27K = .94 27K = .83
30K = .97 30K = .86
35K = 1.00 35K = .88
40K = 1.03 40K = .90

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 46 42 38
5' 30 27 24
6' 21 18 17
7' 17 15 14
8' 13 12 11
9' 10 9 8
10' 7 7 6

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 591 N/A 89.0
0-40° 627 N/A 94.4
0-60° 652 N/A 98.1
0-90° 664 N/A 100.0

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 49 43 38
5' 31 27 24
6' 22 19 17
7' 18 15 14
8' 14 12 11
9' 11 9 8
10' 8 7 6

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 568 N/A 80.9
0-40° 656 N/A 93.3
0-60° 689 N/A 98.0
0-90° 703 N/A 100.0

INITIAL FOOTCANDLES

(One Unit, 7.5W, 24.4° Beam)

Distance to

Illuminated Plane (Feet)

4' 158.3 1.7

6' 70.3 2.6

8' 39.6 3.5
10' 25.3 4.3
12' 17.6 5.2

Footcandles

Beam Center

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 11256
55° 10325
65° 8744
75° 6773
85° 2718

INITIAL FOOTCANDLES

(One Unit, 7.5W, 44.9° Beam)

Distance to

Illuminated Plane (Feet)

4' 74.2 3.3

6' 33.0 5.0

8' 18.5 6.6
10' 11.9 8.3
12' 8.2 9.9

Footcandles

Beam Center

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 18024
55° 9169
65° 9193
75° 8054
85° 4349

Beam

Diameter

2

)

Beam

Diameter

2

)

1300 S. Wolf Road • Des Plaines, IL 60018 • Phone [phone] • Fax [phone] • Visit us at www.acuitybrands.com/juno-recessed
Printed in U.S.A. ©2017 Acuity Brands Lighting, Inc. Rev. 03/01/17

3 of 4

PHOTOMETRICS

PHOTOMETRIC REPORT

Test Report#: PT07161913
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
SP WWH (1000L), White Baffle

with Spot Optic

Luminaire Spacing Criteria: 0.32
Luminaire LPW: 92

1050

2100

3150

4200

5250

15°

0°

45°

30°

G1.10.0G2

2” IC 600 AND 1000 LUMENS

LED ROUND DOWNLIGHT BAFFLE

2LEDTRIM G2 DB

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 5297
5 4423

90°

15 1390
25 434
35 69

75°

45 25

60°

55 19
65 13
75 6
85 1
90 0

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 74 67 61
5' 47 43 39
6' 33 30 27
7' 27 24 22
8' 21 19 17
9' 16 15 13
10' 12 11 10

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 945 N/A 89.5
0-40° 996 N/A 94.3
0-60° 1035 N/A 98.0
0-90° 1056 N/A 100.0

INITIAL FOOTCANDLES

(One Unit, 11.5W, 18.6° Beam)

Distance to

Illuminated Plane (Feet)

4' 331.1 1.3
6' 147.1 2.0
8' 82.8 2.6

10' 53.0 3.3
12' 36.8 3.9

Footcandles

Beam Center

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 16550
55° 15859
65° 14013
75° 11532
85° 7610

Beam

Diameter

2

)

PHOTOMETRIC REPORT

Test Report#: PT07161917
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
NFL WWH (1000L), White Baffle

with Narrow Flood Optic

Luminaire Spacing Criteria: 0.42
Luminaire LPW: 88

800

1600

2400

3200

4000

30°

15°

0°

60°

45°

PHOTOMETRIC REPORT

Test Report#: PT07161921
Catalog No: 2LEDTRIM G2 DB 35K 80CRI
FL WWH (1000L), White Baffle

with Flood Optic

Luminaire Spacing Criteria: 0.72
Luminaire LPW: 94

400

800

1200

1600

2000

30°

15°

0°

60°

45°

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 3827
5 3375

90°

15 1423
25 469
35 73

75°

45 25
55 19
65 12
75 6
85 1
90 0

CANDLEPOWER
DISTRIBUTION

(Candelas)

Degrees
Vertical 0°

0 1822
5 1752

90°

15 1351
25 757
35 208

75°

45 42
55 17
65 13
75 7
85 2
90 0

Fixtures tested to IES recommended standard for solid state lighting per LM-79-08. Photometric performance
on a single unit represents a baseline of performance for the fixture. Results may vary in the field.

Multiplier: 80CRI 90CRI

27K = .94 27K = .83
30K = .97 30K = .86
35K = 1.00 35K = .88
40K = 1.03 40K = .90

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 71 63 58
5' 45 40 37
6' 31 28 26
7' 25 23 21
8' 20 18 17
9' 15 14 13
10' 11 10 9

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 902 N/A 89.2
0-40° 955 N/A 94.4
0-60° 992 N/A 98.1
0-90° 1011 N/A 100.0

AVERAGE INITIAL FOOTCANDLES

Multiple Units (Square Array, 60’x60’ room)

Reflectances: Ceiling 80%, Wall 50%, Floor 20%

Spacing RCR1 RCR3 RCR5

4' 75 66 58
5' 48 42 37
6' 33 29 26
7' 27 24 21
8' 21 19 17
9' 16 14 13
10' 12 10 9

ZONAL LUMEN SUMMARY

Zone Lumens %Lamp %Fixture

0-30° 873 N/A 80.7
0-40° 1008 N/A 93.2
0-60° 1059 N/A 97.9
0-90° 1082 N/A 100.0

INITIAL FOOTCANDLES

(One Unit, 11.5W, 24.6° Beam)

Distance to

Illuminated Plane (Feet)

4' 239.1 1.7
6' 106.3 2.6
8' 59.8 3.5

10' 38.3 4.4
12' 26.6 5.2

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 16818
55° 15281
65° 13228
75° 10617
85° 6523

INITIAL FOOTCANDLES

(One Unit, 11.5W, 45° Beam)

Distance to

Illuminated Plane (Feet)

4' 113.9 3.3
6' 50.6 5.0
8' 28.5 6.6

10' 18.2 8.3
12' 12.7 9.9

LUMINANCE (Average cd/m

Degrees Average Luminance

45° 28007
55° 14373
65° 14686
75° 13180
85° 9785

Footcandles

Beam Center

Footcandles

Beam Center

Beam

Diameter

2

)

Beam

Diameter

2

)

1300 S. Wolf Road • Des Plaines, IL 60018 • Phone [phone] • Fax [phone] • Visit us at www.acuitybrands.com/juno-recessed
Printed in U.S.A. ©2017 Acuity Brands Lighting, Inc. Rev. 03/01/17

4 of 4
