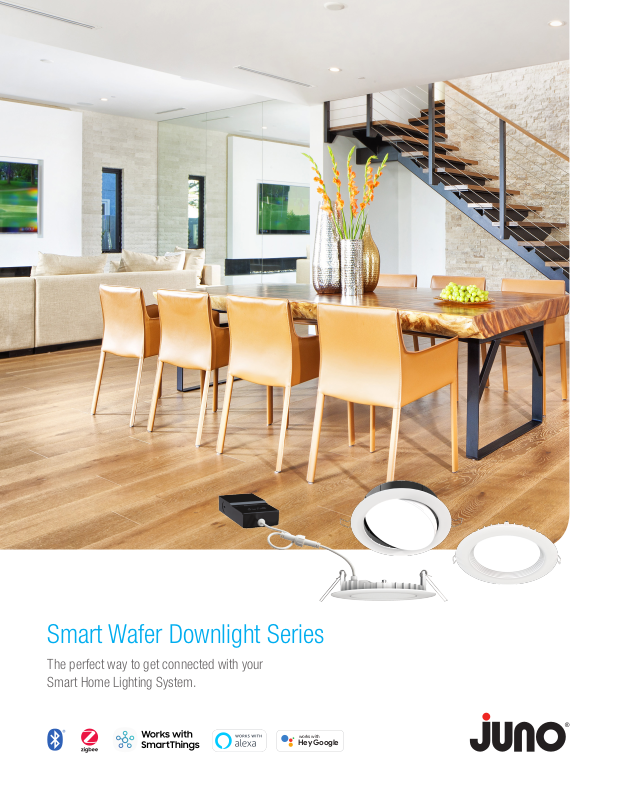

Smart Wafer Downlight Series
The perfect way to get connected with your
Smart Home Lighting System.
works with
Hey Google
Page 2
All of the benefits of the ultra-thin recessed
Wafer and so much more!
DIMMABLE
Canless Design
Easy retrofit, remodel or new
construction installation from below
the ceiling, no housing required.
Ultimate Flexibility
For SmartThings mobile
app pairing, no hub
required
*Directly with Echo Plus, Echo Show, Echo Studio and Google Home
Wafer™ 4" & 6" LED Downlight
Enable voice
control
Pair with Alexa or
Google Home directly*
or via a SmartThings
Hub
State of the Art LED Lighting
Delivers up to 1000 lumens and
dims down to 1%
(Perfect for use as a nightlight).
Tunable White
Change the color
temperature from 2700K
to 5000K from the app
Edge-lit LED technology
Light guided plate and
polycarbonate lens provides even
illumination throughout the space.
Personalization
Control individually or
create zones using a
simple app
Control from
anywhere
When connected to a
smart hub, control or
monitor lighting from
anywhere with your app
Page 3
Smart Wafer LED Downlight Trim Styles
With an IC rated design, the Smart Wafer is available in 3 trim styles and 2 aperture sizes in either a
flat smooth, regressed baffle, or adjustable to enhance the aesthetics of any application. For enhanced
glare control, the Regressed Baffle provides a ½” regression which reduces glare and shadows at the
ceiling plane. The crisp baffle lines soften the light output delivering comfortable light in the space. The
adjustable provides 110º directional beam, 20º tilt, and 180º rotation for accent lighting.
Flat Wafer
WF4C | WF6C
800L | 1000L
General Lighting
Laundry/Utility Rooms
Bedrooms
Basements
Hallways
Use these 3 styles of Wafer to stay connected throughout your entire home
Regressed Wafer
WF4C REG | WF6C REG
650L | 950L
Task/Low Glare Lighting
Living Rooms
Kitchens
Bathrooms
Home Offices
Adjustable Wafer
WF4C ADJ | WF6C ADJ
785L | 1175L
Accent Lighting
Wall Washing
Grazing
Highlighting Artwork
Sloped Ceilings
Wafer™ 4" & 6" LED Downlight
Page 4
Ordering Information
HIGH EFFICACY LED LIGHT
SOURCE REQUIREMENTS
Example: WF4C RD TUWH MW
Flat Wafer Series Trim Style Color Temperature Finish
WF4C 4" Smart Flat Wafer LED Downlight RD Round TUWH Tunable White (2700K-5000K) MW Matte White
WF6C 6" Smart Flat Wafer LED Downlight RD Round TUWH Tunable White (2700K-5000K) MW Matte White
Regressed Wafer Series Trim Style Color Temperature Finish
WF4C 4" Smart Regressed Wafer LED Downlight REG Round Baffle TUWH Tunable White (2700K-5000K) MW Matte White
WF6C 6" Smart Regressed Wafer LED Downlight REG Round Baffle TUWH Tunable White (2700K-5000K) MW Matte White
Adjustable Wafer Series Trim Style Color Temperature Finish
WF4C 4" Smart Adjustable Wafer LED Downlight ADJ Round Adjustable TUWH Tunable White (2700K-5000K) MW Matte White
WF6C 6" Smart Adjustable Wafer LED Downlight ADJ Round Adjustable TUWH Tunable White (2700K-5000K) MW Matte White
Accessories: Order as separate catalog number
WF8643 PAN U Universal new construction pan
WF4 PAN R12 4" New construction pan, retail pack of 12
WF4GR MW JZ 4" Round Oversized Trim Ring
WF6 PAN R12 6" New construction pan, retail pack of 12
WF6GR MW JZ 6" Round Oversized Trim Ring
WFJB Remodel Joist bar
WF8643 Universal
New Construction Pan
WF4_WF6 New
Construction Pan
WFEXCx SW3PIN
FT4 Cable
WFEXC6 SW3PIN FT4 3-Pin 6ft Cable
WFEXC10 SW3PIN FT4 3-Pin 10ft Cable
WFEXC20 SW3PIN FT4 3-Pin 20ft Cable
WFJB Remodel Joist Bar
Lead times vary depending on options selected. Consult your sales representative.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. BluetoothMD est une marque depose de Bluetooth SIG, Inc.
Bluetooth® es una marca commercial registrada de Bluetooth SIG, Inc.
Amazon, Alexa and all related logos are trademarks of
Amazon.com, Inc. or its affiliates
Amazon, Alexa et tous les logos associés sont des marques
commerciales d'Amazon.com, Inc. ou de ses filiales
Amazon, Alexa y todos los logotipos relacionados son
marcas comerciales de Amazon.com, Inc. o sus filiales
Google Assitant is a registered trademark of Google, Inc.
Google Assistant est une marque déposée de Google, Inc.
Google Assitant es una marca registrada de Google, Inc.
For more information go to juno.acuitybrands.com/connected
The Works with SmartThings words and logo are trademarks of
Samsung Electronics Co. Ltd.
Les mots et logo Works with SmartThings sont des marques de
commerce de Samsung Electronics Co. Ltd.
Las palabras y el logotipo de Works with SmartThings son marcas
comerciales de Samsung Electronics Co.
Zigbee Certified logo is a trademark of the Zigbee Alliance
Zigbee Certified logo est une marque de commerce de l’Alliance Zigbee
El logotipo de Zigbee Certified es una marca comercial de Zigbee Alliance
CAN BE USED TO
COMPLY WITH 2019
Wafer™ 4" & 6" LED Downlight
