Juno JSI4362B, JSI4362S, JSI4362E User Manual

Geschirrspüler Dishwasher

JSI 4362

Gebrauchsanweisung Instruction booklet

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Important safety information

PSI01GB

Installation

■ This appliance is heavy. Care should be taken

when moving it.

■ It is dangerous to alter the specifications or

attempt to modify this product in any way.

■ Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

■ Any electrical work required to install this

appliance should be carried out by a qualified electrician or competent person.

■ Any plumbing work required to install this

appliance should be carried out by a qualified plumber or competent person.

Child Safety

■ This appliance is designed to be operated by

adults. Children should not be allowed to tamper with the controls or play with the product.

■ Keep all packaging well away for children.

■ Keep all detergents in a safe place out of

children's reach.

During Use

■ Items that are contaminated by petrol, paint,

steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

■ Under no circumstances should you open the

door whilst the appliance is in operation. Always turn off the appliance before opening the door.

■ Only use detergent specifically designed for use

in dishwashers.

■ When finishing loading or unloading close the

door, as an open door can be a hazard.

■ Do not sit or stand on the open door.

■ Isolate the appliance from the power supply and

turn off the water supply after use.

■ Care should be taken when cleaning the

bottom door seal and hinge area as any exposed metal edges may cut if care is not taken.

■ This product should be serviced by an

authorised Service engineer, and only genuine spare parts should be used.

■ Under no circumstances should you attempt

to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

■ Materials marked with the symbol are

recyclable.

■ Check with your local Council or

Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.

■ When the appliance is to be scrapped, cut

off the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

■ Help to keep your country tidy - use

authorised disposal sites for your old appliance.

ENGLISH

For the user

Important safety information 26 Guide to use the instruction book 27 Description of the appliance 28 The control panel 29 Before use 30

Setting the water softener 30 Rinse aid 32 Use of detergent 33

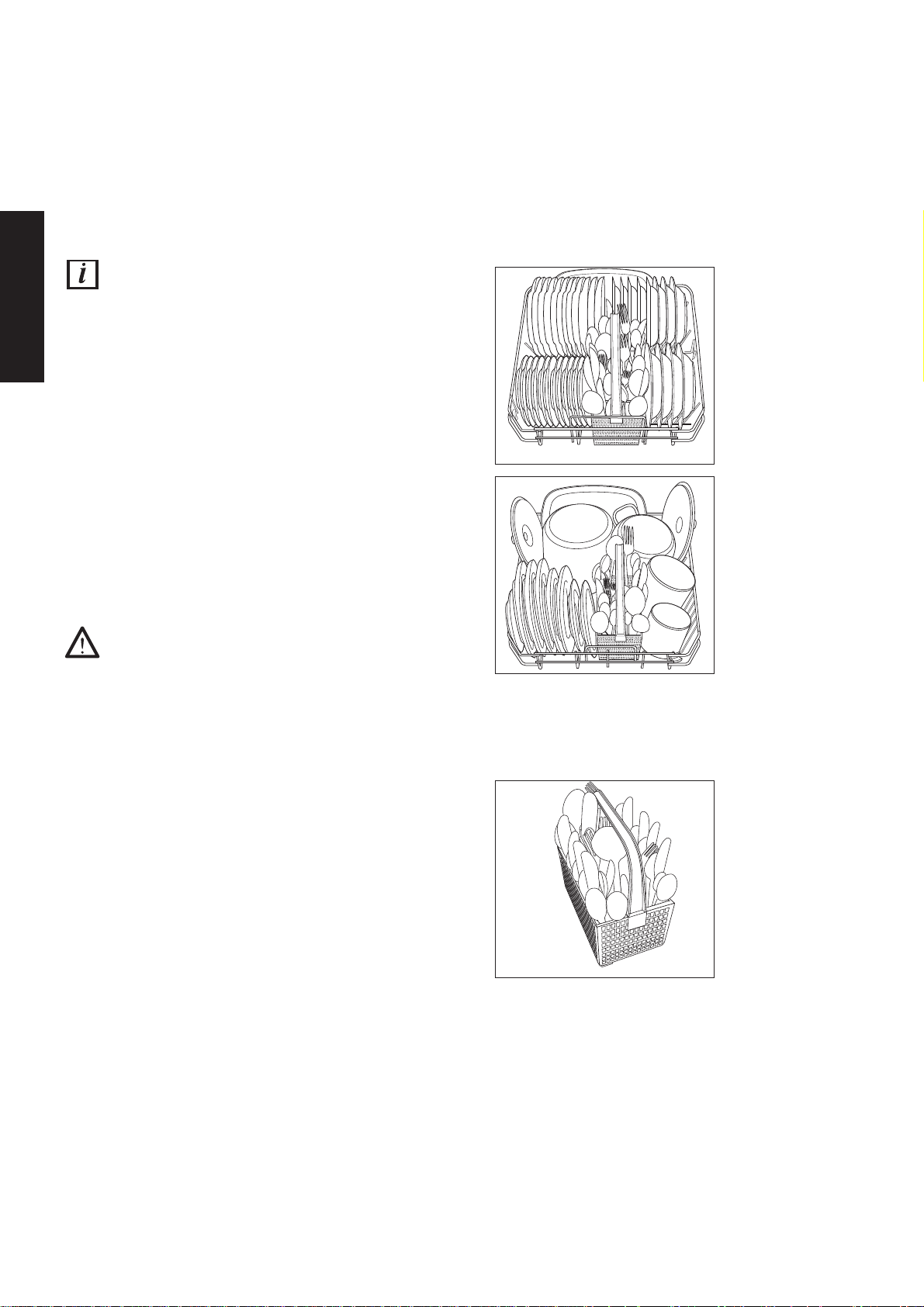

Using your appliance 34 Loading your appliance 34 Adjusting the height of the upper basket 35

Hints and tips 36 Washing programmes 37 Operating sequence 38 Maintenance and cleaning 39

Internal cleaning 39 Cleaning the central filter 39 Cleaning the large filter 39 External cleaning 40 Prolonged periods of non-operation 40 Frost precautions 40 Moving the machine 40

Something not working 41 Protection against flooding 42 Service and spare parts 42

For the installer

Installation instruction 43

Technical specifications 43 Water supply connections 44 Water outlet hose connection 45 Electrical connection 45

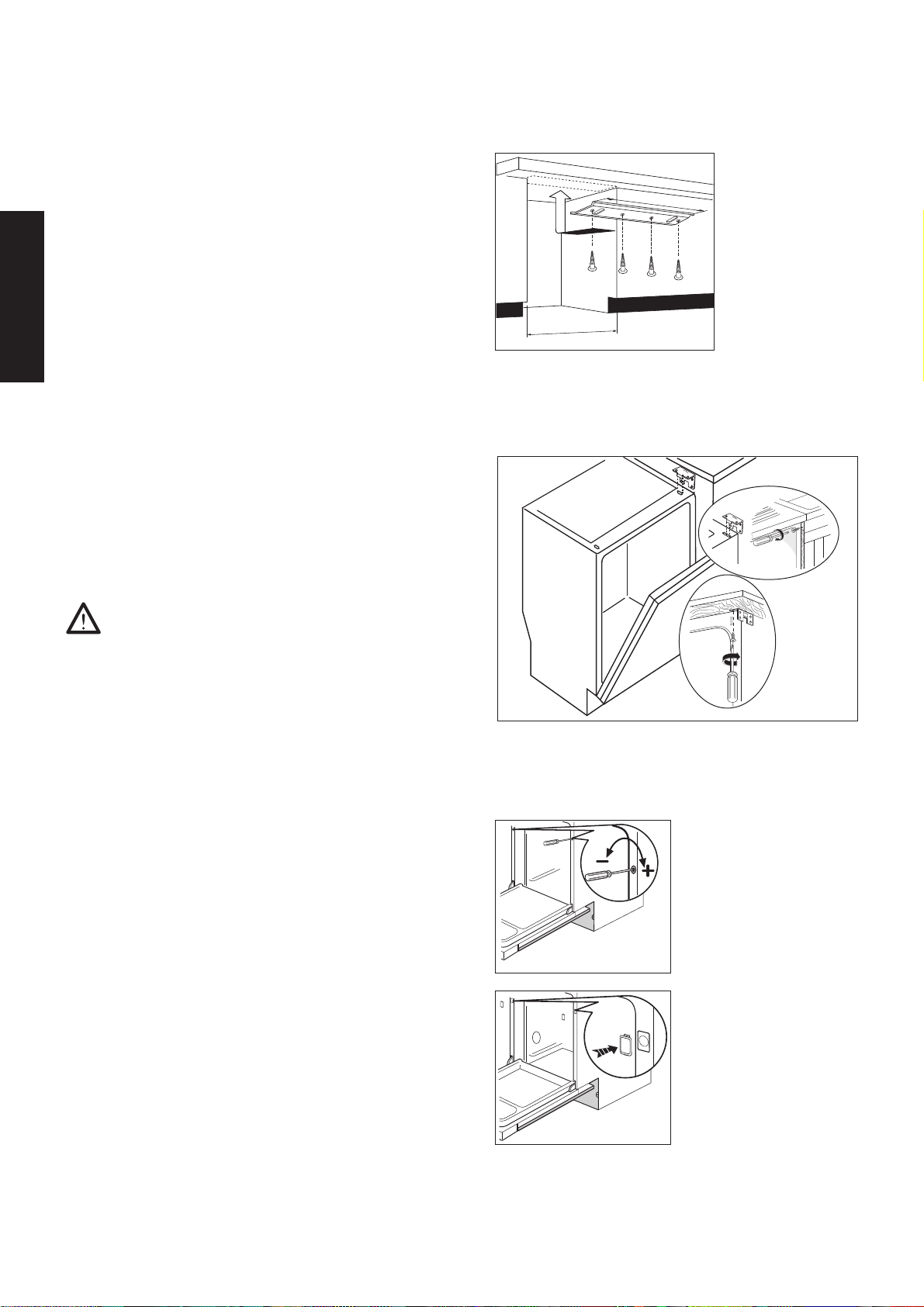

Building-in 46 Adjusting the height of the appliance 46 The furniture door 47 Fixing to the adjacent units 48 Adjusting the door balance 48 Kitchen plinth adjustment 49

Contents

PCO12GB

Guide to use the instrucion book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Step by step instructions

Hints and tips

☞

ENGLISH

Description of the appliance

PDA06GB

2 3

4 5

6 7

IN66

1. Water hardness adjustment

2. Levelling spacers

3. Upper basket stop

4. Door balancers

5. Salt container

6. Lower spray arm

7. Detergent dispenser

8. Control panel

9. Rating plate

10. Rinse aid dispenser

11. Large filter

12. Central filter

13. Upper spray arm

14. Upper basket

ENGLISH

1. On/Off indicator light

2. On/Off pushbutton

By depressing this button the machine starts operating and, at the same time the On/Off indicator light illuminates.

Off

When the washing programme has finished, the machine stops automatically and the pilot light remains on. To switch the indicator light off or to stop the machine at any time, press this button.

3. Door handle

To open the door press the catch in the top of the recess and pull the door toward you at the same time. To close the door simply push it.

4. Programme marker

5. Programme selector dial

To select a programme, turn the programme selector dial clockwise, making sure that the programme marker is in line with the programme you wish to select.

The control panel

PCP22GB

1 2 3 4 5

ENGLISH

Before using your dishwasher for the first time:

ensure that the electrical and water connections comply with the installation instructions

remove all packaging from inside the appliance set the water softener fill the salt container fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, for example German, French degrees, and parts per million.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 2. If this level is not suitable for your area the softener

should be adjusted.

To adjust the water softener:

With a screwdriver turn the selector on the upper front corner of the machine until the level required corresponds with the marker.

☞

☞☞☞☞☞

Before use

PBU01GB

AA05

Level

Use of

salt

French

degrees

(°TH)

PPM

(Parts per

million)

German degrees

(°dH)

0 1 2 3 4 5

5-11 12-22 23-34 35-50 51-67

SI SI SI SI SI

8-20 21-40 41-60 61-90

91-120

0-80

81-200 201-400 401-600 601-900 901-1200

Water hardness

ENGLISH

Filling with salt

If your water is "level 0" it is already soft and therefore there is no need to use salt.

Salt must be used from level 1 upward.

Only use salt specifically designed for use in dishwashers.

All other types of salt not specifically designed for use in dishwasher, specially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme). This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. To fill with salt, unscrew the cap of the salt

container.

2. Pour about 1 litre of water inside the container, or until it is full (this is necessary only before filling with salt for the first time).

3. Then using the funnel provided, pour in the salt until the container is full (approx. 1.5 - 1.8 kg).

Do not worry if water over flows from the unit when filling with salt, this is quite normal.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Screw on the cap tightly.

The salt container will require topping up periodically. The salt cap has a refill indicator window in the centre. A green floater is clearly visible when there is salt inside the container, and almost disappears when the salt has finished, (ie. every 30 - 50 washes depending on the setting of the water softener) reminding you to add salt.

☞

PFS01GB

SALE

SALT

SALZ

SEL

SR06

ENGLISH

SR11

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring through rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with Rinse Aid:

1. Open the container by turning the lid (A)

anticlockwise.

2. Add the rinse aid until the container is completely full (approx. 110 ml). The indicator (B) will be completely dark.

3. Top up the rinse aid when the indicator (B) becomes clear.

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid department. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage). (Start from position

3). Gradually increase the dose if there are drops

of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes.

PFR01GB

BR01

ENGLISH

BR02

BR03

Use of detergent

Only use detergents specifically designed for use in dishwashers.

To fill the dishwasher with detergent proceed as follows:

1. Open the dispenser lid by pulling the catch (D).

2. Add the detergent according to the

recommendations in the programme chart. As all detergents are not the same, you should also consult the instructions on the packet specially for tablets.

To help correctly dose the right amount of detergent, inside the container there are two reference marks:

- MIN = 15 ml

- MAX = 30 ml

3. Always close the lid.

4. If the programme has a prewash add the

required detergent over the lid of the

dispenser.

Insufficient quantities of detergent will produce poor washing results, whereas an excessive amounts of detergent will not improve washing results and is also wasteful. Using no more than the correct amount also contributes to reducing pollution.

Phosphate free detergents with enzymes

In these low-alkaline compact powders the environment unfriendly components have been replaced by natural enzymes and other more biodegradable substances. These new compact powders are generally phosphate-free. As phosphates have water softening properties, we suggest you add salt to the salt container even if the hardness of your water is as low as 4°dH (7°TH). This will avoid lime deposits on crockery and the inner tub.

PUD01GB

MIN

MAX

DE07

ENGLISH

DE02
