CONTENTS
Safety information 2
Safety instructions 3
Product description 6
Before first use 6
Daily use 7
Clock functions 9
Using the accessories 10
Additional functions 11
Hints and tips 11
Care and cleaning 20
Troubleshooting 23
Installation 24
Energy efficiency 26
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
Keep children and pets away from the appliance when it
•
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, this should be
•
activated.
Children shall not carry out cleaning and user maintenance
•
of the appliance without supervision.
Children aged 3 years and under must be kept away from
•
this appliance when it is in operation at all times.
General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories or
ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before replacing
the lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
To remove the shelf supports first pull the front of the shelf
•
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
3
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
4
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially when
the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
WARNING! Risk of injury, burns
and electrical shock or
explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
5
furniture panel until the appliance has
cooled down completely after use.
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING! Risk of electrical
shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
8
7
12
11
5
4
1
2
3
4 631 52
9
10
6

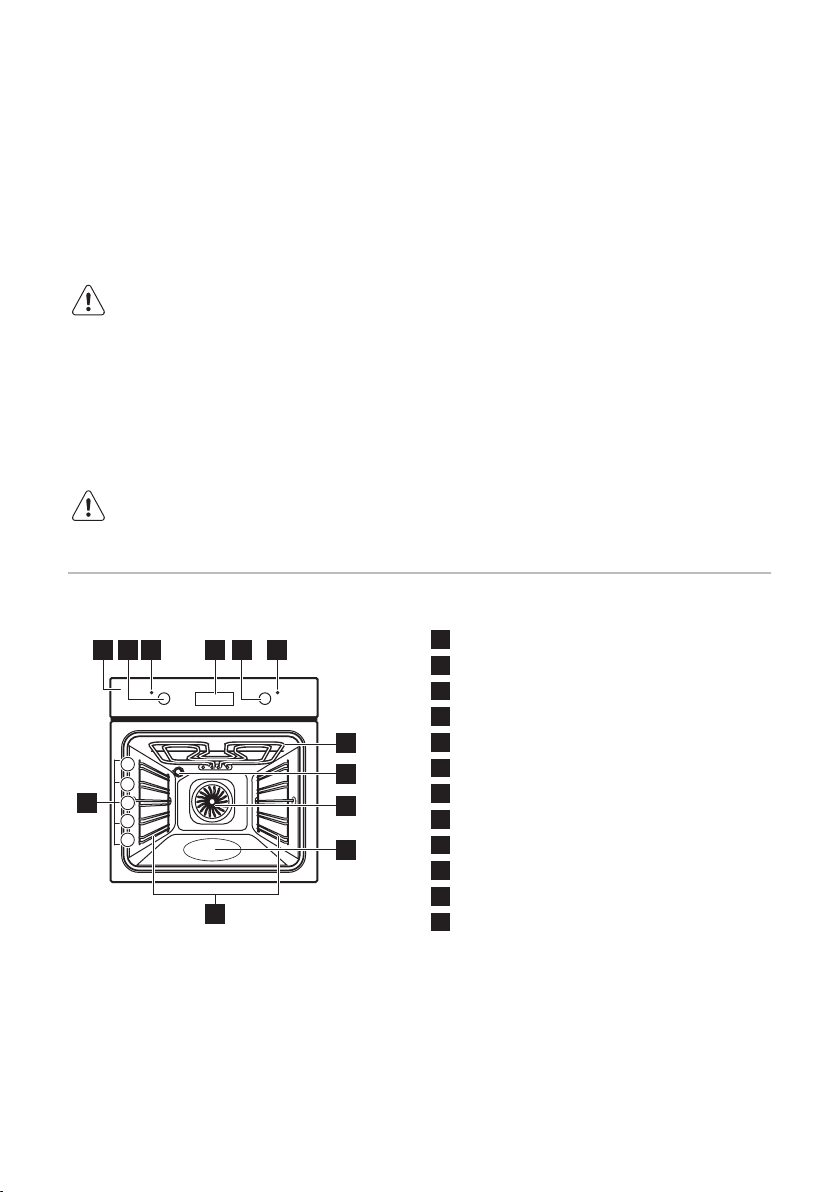

PRODUCT DESCRIPTION
General overview
Control panel
1
Knob for the oven functions
2
Power lamp / symbol
3
Electronic programmer
4
Knob for the temperature
5
Temperature indicator / symbol
6
Heating element
7
Lamp
8
Fan
9
Cavity embossment
10
Shelf support, removable
11
Shelf positions
12
Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Combi pan
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
To set the Time of day refer to
"Clock functions" chapter.
Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
Preheating
Preheat the empty appliance before first
use.
For cakes and biscuits. To bake and
roast or as a pan to collect fat.
For True Fan Cooking PLUS
function refer to "Activating the
True Fan Cooking PLUS
function".
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function
and set the
maximum temperature.
4. Let the appliance operate for 15
minutes.
5.
Set the function
and set the
maximum temperature.
6.
Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
DAILY USE
7
WARNING! Refer to Safety
chapters.
Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
Activating and deactivating the appliance
It depends on the model if
your appliance has lamps,
knob symbols or indicators:
• The lamp comes on when
the appliance operates.
• The symbol shows whether
the knob controls the oven
functions or the temperature.
• The indicator comes on when
the oven heats up.
Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the lamp without a cooking function.
1. Turn the knob for the oven functions to
select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
True Fan Cooking PLUS
True Fan Cooking / Defrost
Top / Bottom
Heat
Top Heat To brown bread, cakes and pastries. To finish cooked
To add humidity during the cooking. To get the right colour
and crispy crust during baking. To give more juiciness during reheating.
To bake on up to three shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower than
for Top / Bottom Heat.
This function can be used for defrosting frozen foods, such
as vegetables and fruits. The defrosting time depends on
the amount and size of the frozen food.
To bake and roast food on one shelf position.
dishes.
A B C
8
Oven function Application
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on one
shelf position. Also to make gratins and to brown.
Pizza Setting To bake food on one shelf position for a more intensive
browning and a crispy bottom. Set the temperature 20 40 °C lower than for Top / Bottom Heat.
Activating the True Fan Cooking PLUS function
This function allows to have an
improvement of humidity during the
cooking.
WARNING! Risk of burns and
damage to the appliance.
Released humidity can cause burns:
• Open the appliance door with care after
the True Fan Cooking PLUS operation.
Refer to “Hints and tips”
chapter.
1.
Open the oven door.
2.
Fill the cavity embossment with tap
water.
The maximum capacity of the cavity
embossment is 250 ml.
CAUTION! Fill the cavity
embossment with water only
when the oven is cold.
Display
3. Put food in the appliance and close the
oven door.
4. Set the True Fan Cooking PLUS
function: .
5. Turn the knob for the temperature to
select a temperature.
CAUTION! Do not refill the
cavity embossment with
water during cooking or
when the oven is hot.
6. To deactivate the appliance, turn the
knobs for the oven functions and
temperature to the off position.
7.
Remove water from the cavity
embossment.
WARNING! Make sure that
the appliance is cool before
you remove the remaining
water from the cavity
embossment.
A. Function indicators
B. Time display
C. Function indicator
Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
CLOCK FUNCTIONS
Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates.
TIME DELAY To combine DURATION and END function.
MINUTE MINDER To set countdown time. This function has no effect on the oper-
ation of the appliance.
9
Setting and changing the time
You must set the time before you operate
the oven.
The flashes when you connect the
appliance to the electrical supply, when
there was a power cut or when the timer is
not set.
Press the or to set the correct time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
To change the time of day press again
and again until starts to flash.
Setting the DURATION
1.
Set an oven function and temperature.
2.
Press
starts to flash.
again and again until
3. Press or to set the DURATION
time.
The display shows .
4. When the time ends, flashes and an
acoustic signal sounds. The appliance
deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Turn the knob for the oven functions
and the knob for the temperature to the
off position.
Setting the END
1.
Set an oven function and temperature.
2. Press again and again until starts
to flash.
3. Press
The display shows .
or to set the time.
10
4. When the time ends, flashes and an
acoustic signal sounds. Press any
button to stop the signal.
5. Turn the knob for the oven functions
and the knob for the temperature to the
off position.
6. The appliance deactivates
automatically.
Setting the TIME DELAY
1. Set an oven function and temperature.
2. Press
starts to flash.
3.
Press
DURATION.
4.
Press .
5.
Press
6.
Press
Appliance turns on automatically later on,
works for the set DURATION time and
stops at the set END time. At the set time
an acoustic signal sounds.
7.
Turn the knob for the oven functions
and the knob for the temperature to the
off position.
again and again until
or to set the time for
or to set the time for END.
to confirm.
USING THE ACCESSORIES
8. The appliance deactivates
automatically.
Setting the MINUTE MINDER
1. Press again and again until starts
to flash.
2. Press or to set the necessary
time.
The Minute Minder starts automatically after
5 seconds.
3. When the set time ends, an acoustic
signal sounds. Press any button to stop
the acoustic signal.
4.
Turn the knob for the oven functions
and the knob for the temperature to the
off position.
Cancelling the clock functions
1.
Press the again and again until the
necessary function indicator starts to
flash.
2. Press and hold .
The clock function goes out after some
seconds.
WARNING! Refer to Safety
chapters.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Deep pan:
Push the deep pan between the guide bars
of the shelf support.
Wire shelf and the deep pan together:
Push the deep pan between the guide bars
of the shelf support and the wire shelf on
the guide bars above and make sure that
the feet point down.
ADDITIONAL FUNCTIONS
11
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim around
the shelf prevents cookware
from slipping of the shelf.
Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
Safety thermostat
Incorrect operation of the appliance or
defective components can cause
HINTS AND TIPS
WARNING! Refer to Safety
chapters.
The temperature and baking
times in the tables are guidelines
only. They depend on the
recipes and the quality and
quantity of the ingredients used.
General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is
dangerous overheating. To prevent this, the
oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put aluminium
foil on the components when you cook.
This can change the baking results and
cause damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
12
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
True Fan Cooking PLUS
Before preheating fill the cavity
embossment with water only
when the oven is cold.
Refer to "Activating the True Fan Cooking
PLUS function"
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Bakery products
Food Water in the
cavity embossment
(ml)
Bread 100 180 35 - 40 2
Bread rolls 100 200 20 - 25 2
Homestyle
pizza
Focaccia 100 200 - 210 10 - 20 2
Cookies,
scones,
croissants
Plum cake,
apple pie,
cinnamon
rolls
1)
Preheat in an empty oven for 5 minutes before cooking.
100 230 10 - 20 2
100 150 - 180 10 - 20 2
100 - 150 160 - 180 30 - 60 2 Use cake
Cook from frozen
Temperature (°C)
Time
(min)
Shelf
position
Comments
Use baking tray.
Use baking tray.
Use baking tray.
Use baking tray.
Use baking tray.
1)
mould.
1)
1)
1)
1)
1)
Food Water in the
cavity embossment (ml)
Pizza frozen 150 200 - 210 10 - 20
Temperature
(°C)
Time (min) Shelf posi-
tion
1)
2
13
Food Water in the
cavity embossment (ml)
Frozen lasagna 200 180 - 200 35 - 50
Frozen croissant 150 170 - 180 15 - 25
1)
Preheat in an empty oven for 10 minutes before cooking.
Temperature
(°C)
Time (min) Shelf posi-
tion
2
2
Food regeneration
Food Water in the
cavity embossment (ml)
Bread 100 110 15 - 25 2
Bread rolls 100 110 10 - 20 2
Homestyle pizza 100 110 15 - 25 2
Focaccia 100 110 15 - 25 2
Vegetables 100 110 15 - 25 2
Rice 100 110 15 - 25 2
Pasta 100 110 15 - 25 2
Meat 100 110 15 - 25 2
Temperature
(°C)
Time (min) Shelf posi-
tion
Roasting
Food
Roast pork 200 180 65 - 80 2 Pyrex round tray
Roast beef 200 200 50 - 60 2 Pyrex round tray
Chicken 200 210 60 - 80 2 Pyrex round tray
Water in
the cavity
embossment (ml)
Temperature (°C)
Time
(min)
Shelf
position
Comments
1)
1)
Baking and roasting table
Cakes
Food
Whisked
recipes
Top / Bottom Heat True Fan Cooking Time
Temperature (°C)
170 2 160 3 (2 and
Shelf
position
Temperature
(°C)
Shelf
position
4)
Com-
(min)
45 - 60 In a cake
ments
mould
14
Food Top / Bottom Heat True Fan Cooking Time
Temperature (°C)
Shelf
position
Temperature
Shelf
position
(min)
Comments
(°C)
Shortbread
170 2 160 3 (2 and
4)
20 - 30 In a cake
mould
dough
Buttermilk
cheese-
170 1 165 2 60 - 80 In a 26
cm cake
mould
cake
Apple
cake (Ap-
ple pie)
170 2 160 2 (left and
1)
right)
80 - 100 In two 20
cm cake
moulds on
a wire
shelf
Strudel 175 3 150 2 60 - 80 In a bak-
ing tray
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26
cm cake
mould
Sponge
cake
170 2 160 2 50 - 60 In a 26
cm cake
mould
Christmas
cake /
160 2 150 2 90 - 120 In a 20
cm cake
mould
Rich fruit
1)
cake
Plum
1)
cake
Small
cakes -
175 1 160 2 50 - 60 In a bread
tin
170 3 140 - 150 3 20 - 30 In a bak-
ing tray
one level
Small
cakes -
- - 140 - 150 2 and 4 25 - 35 In a baking tray
two levels
Small
cakes -
- - 140 - 150 1, 3 and
5
30 - 45 In a bak-
ing tray
three levels
15
Food Top / Bottom Heat True Fan Cooking Time
Temperature (°C)
Shelf
position
Temperature
Shelf
position
(°C)
Biscuits /
140 3 140 - 150 3 30 - 35 In a bakpastry
stripes one level
Biscuits /
- - 140 - 150 2 and 4 35 - 40 In a bakpastry
stripes two levels
Biscuits /
pastry
- - 140 - 150 1, 3 and
5
stripes three levels
Merin-
120 3 120 3 80 - 100 In a bakgues one level
Merin-
- - 120 2 and 4 80 - 100 In a bakguestwo lev-
1)
els
1)
Buns
Eclairs -
190 3 190 3 12 - 20 In a bak-
190 3 170 3 25 - 35 In a bak-
one level
Eclairs -
- - 170 2 and 4 35 - 45 In a baktwo levels
Plate
180 2 170 2 45 - 70 In a 20
tarts
Rich fruit
160 1 150 2 110 - 120 In a 24
cake
Victoria
sandwich
1)
Preheat the oven for 10 minutes.
170 1 160 2 (left and
right)
Com-
(min)
ments
ing tray
ing tray
35 - 45 In a bak-
ing tray
ing tray
ing tray
ing tray
ing tray
ing tray
cm cake
mould
cm cake
mould
50 - 60 In a 20
cm cake
mould
16
Bread and pizza
Food Top / Bottom Heat True Fan Cooking Time
(min)
White
bread
Temperature
(°C)
Shelf position
Temperature
(°C)
Shelf position
190 1 190 1 60 - 70 1 - 2
1)
Rye bread 190 1 180 1 30 - 45 In a bread
Bread
1)
rolls
1)
Pizza
Scones
1)
Preheat the oven for 10 minutes.
190 2 180 2 (2 and
25 - 40 6 - 8 rolls
4)
230 - 250 1 230 - 250 1 10 - 20 In a bak-
200 3 190 3 10 - 20 In a bak-
1)
Comments
pieces,
500 gr
per piece
tin
in a baking tray
ing tray or
a deep
pan
ing tray
Flans
Food
Top / Bottom Heat True Fan Cooking Time
Temperature
(°C)
Shelf position
Temperature
(°C)
Shelf position
(min)
Pasta flan 200 2 180 2 40 - 50 In a
Vegetable
200 2 175 2 45 - 60 In a
flan
180 1 180 1 50 - 60 In a
1)
Quiches
180 - 190 2 180 - 190 2 25 - 40 In a
1)
Lasagne
Cannello-
1)
ni
1)
Preheat the oven for 10 minutes.
180 - 190 2 180 - 190 2 25 - 40 In a
Comments
mould
mould
mould
mould
mould
Meat
Food Top / Bottom Heat True Fan Cooking Time
Temperature
(°C)
Beef 200 2 190 2 50 - 70 On a wire
Pork 180 2 180 2 90 - 120 On a wire
Veal 190 2 175 2 90 - 120 On a wire
English
roast
beef, rare
English
roast
beef, medium
English
roast
beef, well
done
Shoulder
of pork
Shin of
pork
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
Hare 190 2 175 2 150 - 200 Cut in
Pheasant 190 2 175 2 90 - 120 Whole
210 2 200 2 50 - 60 On a wire
210 2 200 2 60 - 70 On a wire
210 2 200 2 70 - 75 On a wire
180 2 170 2 120 - 150 With rind
180 2 160 2 100 - 120 2 pieces
Shelf position
Temperature
(°C)
Shelf position
(min)
Comments
shelf
shelf
shelf
shelf
shelf
shelf
pieces
pieces
17
Loading...
