Page 1
IB Size: 105.5 x 210mm (A5)
32 INCH
32 INCH
STEREO SOUND BAR
STEREO SOUND BAR
®
with Bluetooth
with Bluetooth® Wireless Technology
Wireless Technology
Owner's Manual
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Model:CHT939
Page 2
FCC Warnings
WARNING:Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: 1) this
device may not cause harmful interference, and 2) this
device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
•
Increase the separation between the
•
equipment and receiver.
Connect the equipment into an outlet on a
•
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
•
technician for help.
FCC NOTICE:
To assure continued compliance, follow the attached installation
instructions and use only shielded cables when connecting to other
devices. Modifications not authorized by the manufacturer may void
user’s authority to operate this device.
Page 3
Page 4
1. Insert the plug from the supplied AC/DC adaptor
to the DC In Jack on the top of unit.
2. Insert the small plug from the supplied AC Power
Cord to the AC In Jack on the AC/DC Adaptor.
3. Insert the AC Plug from the supplied to the wall
outlet Having AC 100-240V~; 50/60Hz.
NOTE:
If Long period of time will not use the unit, unplug the AC Cord from the wall outlet.
To the DC IN jack on the top of the unit.
To the wall outlet
To the AC In Jack
1. Placing on the table
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar
for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat
generated from the Sound Bar could produce a potential heat hazard.
2. Mounting the Speaker Bar onto a wall
We recommend having this speaker professionally mounted. By using the included
wall mounting accessories, the sound bar can be mounted onto a wall.
Distance Between Two Brackets
22.4 inches
Page 5
2.1 Mounting on the wooden wall
You may use
22.4 inches
2 pieces screws
(Included)
1. Mark the position of the mounting screws on the wall using a pencil.
2. Drill the supplied screws directly into the marks that you have made on the wall
and leave approx. 0.3 inch length to hook the sound bar.
3. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mounting on the wall
2.2 Mounting on the wooden wall:
You may use
2 pieces screws
(Included)
1. Mark the position of the mounting screws on the wall using a pencil.
2. Drill 2 x 7/32 inch diameter holes by a powerful electric drill ( Not Supplied ).
3. Insert the supplied plastic inserts into the holes by hammer .
4. Secure the supplied screws into the plastic insert and leave approx. 0.3 inch
length to hook the sound bar.
5. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
(1)
2 pieces plastic inserts
(Included)
( Not Supplied )
22.4 inches
(2)
4
Page 6
Front View
1. Indicator
3. Speakers
Top View
FM ANT
OPTI CAL
2 3 4 5 6 7 8 9 10 11
1
1. OPTICAL (Optical In Jack)
2. FM ANT ( FM Antenna )
3. AUX IN 1 jack
4. AUX IN 2 jacks
5. DC IN jack
6. POWER/SOURCE button
AUX IN1
2.Remote sensor
AUX IN 2
FM ANT
L
DC IN
DC 16V, 1.8A
AUX IN 1
R
OPTICAL
AUX IN2
L
R
DC IN
DC 16V, 1.8 A
TUNE- TUNE+
PLAY/
VOL+
POWER/
VOL-
PAUSE
SOURCE
POWER /
VOL-
SOURC E
3. Speakers
PLAY/
VOL+
PAUSE
TUNE-
TUNE+
7. VOL- ( Volume Down ) button
8. VOL+ ( Volume Up ) button
9. PLAY/PAUSE button
10. TUNE-/ ( Skip Backward ) button
11. TUNE+/ ( Skip Forward ) button
5
Page 7
1
TUNE+
2
TUNE-
EQ
7
8
3
MO/S T
4
SOURCE
9
5
TREB LE-
TREBLE+
VOL-
10
VOL+
BASS -
6
BASS +
11

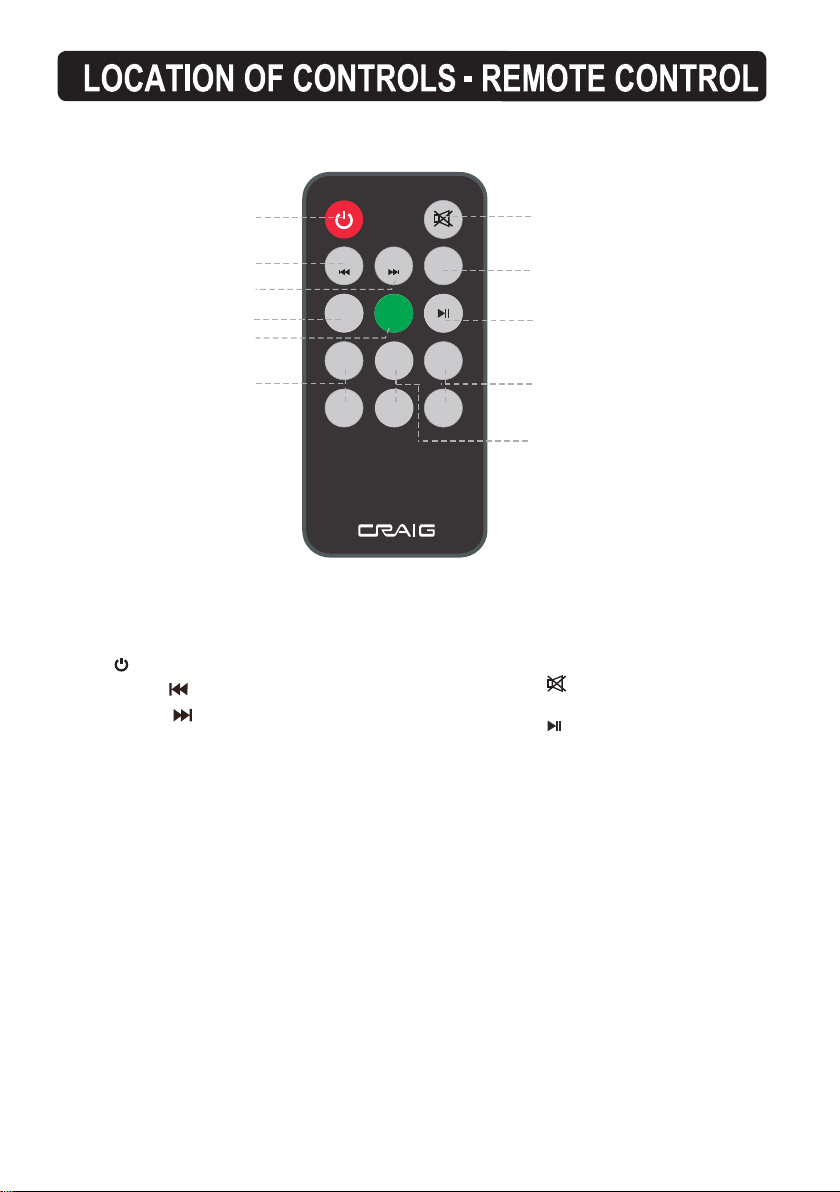

1. Power ON/OFF button
2. TUNE-/ ( Skip Backward ) button
3. TUNE+/ ( Skip Forward ) button
4. MO/ST ( Mono/Stereo ) button
5. SOURCE button
6. BASS +/- buttons
7. ( Mute ) button
8. EQ ( Equalizer ) button
9. ( Play/Pause ) button
10. VOL ( Volume ) +/- buttons
11. TREBLE +/- buttons
6
Page 8

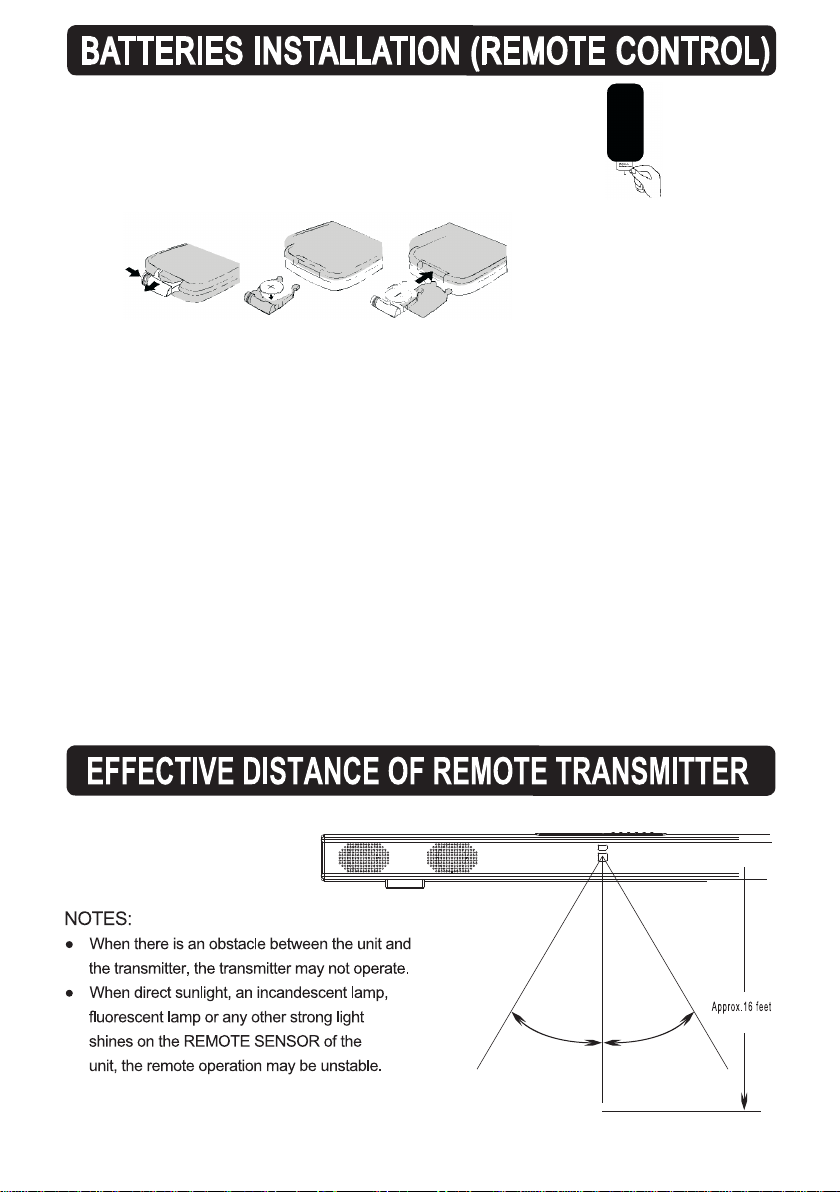

- First Time Use
Remove and discard the insulation tab as figure on the right.
- If the battery is consume, replace it as below:
1. Push and slide out the battery holder as figure 1 below.
2. Replace the battery with a new CR2025 button cell as the polarity
markings on the rear of the Remote Control.
3. Close the battery holder.
Fig.1 Fig.2
Fig.3
BATTERY PRECAUTIONS
Folloe these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery
compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc ) or old
batteries with fresh ones.
4. If the batteries in the device are consumed or device is not to be used for a long period of
time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture.
( Follow battery manufacturer's instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burn in just 2 hours and can lead to death. Keep new and used
batteries away from children. If the battery compartment does not close securely, stop using the
product and keep it away from children. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention.
Remote Sensor
30
°
30
°
7
Page 9
GENERAL OPERATIONS
1. Connect the AC/DC adapter to the unit and wall outlet as the previous procedure. The Red
Indicator will light.
2. Press the POWER/SOURCE button on the unit or press the Power button on the remote
control to power on the unit from standby mode. The color of the Indicator will turn to
correspondence color.
3. Press the POWER/SOURCE button on the unit or press SOURCE button on the remote control
repeatedly to switch to desired mode, the color of the Indicator will turn to:
Blue--------------------------------------------------------------- Bluetooh
Purple------------------------------------------------------------FM Radio
Green-----------------------------------------------------------Yellow----------------------------------------------------------- AUX IN 2
Cyan---------------------------------------------------------------- Optical
4. During Playback:
~ Press the VOL ( Volume ) + or - buttons to adjust volume level as desired.
~ Press the EQ button repeatedly to select and set equalizer mode as desired.
(To reset the EQ to normal mode; power off the unit then power on again)
~ Press the ( Mute ) button to turn off the sound. Press again to resume.
~ Press the BASS +/- buttons to adjust the sound level of bass.
~ Press the TREBLE +/- buttons to adjust the sound level of treble.
5. When finished listening, press and hold the POWER/SOURCE button on the unit or press the
button on the remote control to power off
6. If long period of time will not use the unit, unplug the AC/DC Adaptor from the wall outlet.
AUX IN 1
( Standby mode ) the unit.
LISTEN TO FM RADIO
1. Connect the Sound Bar to the power as previous procedures.
2. Press the
POWER/SOURCE button on the unit or the button on the remote control
to power on the unit.
3. Press the POWER/SOURCE button on unit or press the SOURCE button on the
remote control repeatedly until the color of the Indicator turns to Purple.
Press and hold the TUNE -/ or TUNE +/ buttons until the Indicator start blinking
4.
to search and plays the searched available FM station.
Press and release the TUNE - / or TUNE + / buttons repeatedly to fine tune.
5.
6. If the available FM station is stereo, the unit will play it in stereo mode automatically.
If the reception is no good, press the MO/ST button on the remote control to switch it
to Mono mode. Press again to turn back to Stereo mode.
FM Antenna
The Antenna wire on the top of the unit is for radio reception. If reception is weak, unwind
and extend the wire or relocate the wire to improve the radio reception.
8
Page 10
BLUETOOTH PARING AND PLAYBACK
Blue tooth
In first time use or re-pairing to new BT Device, pairing the unit to the external
BT Device as follows:
1. Power on the unit as previous procedures.
2. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
remote control repeatedly until the color of the Indicator turns to Blue.
3. Power on the external BT Device and enter to searching mode. Start pairing as the on
screen instructions on the external BT Device. After paired,
blinking.
( For details pairing procedures, please refer to the user's manual of your BT Device.)
Notes:
1. When the external BT Device searched the unit, our model number
" CHT939 " will appear on the display of external BT Device.
2. Pairing code "0000" or "1234" may need to enter.
Normal operation after paired:
1. Power on the unit and selected the playback source to BT as previous procedures.
2. Turn on the BT function of the external BT Device.
3. Wait a few seconds until the unit paired to the external BT Device automatically. The
Blue indicator stop blinking.
4. Play the music in the connected BT Device as usual.
5. During playback:
~ Press the TUNE -/ or TUNE +/ buttons to skip the tracks.
~ Press the PLAY/PAUSE button on the unit or button on the remote control to
pause. Press again to resume normal playback.
The Indicator will stop
9
Page 11

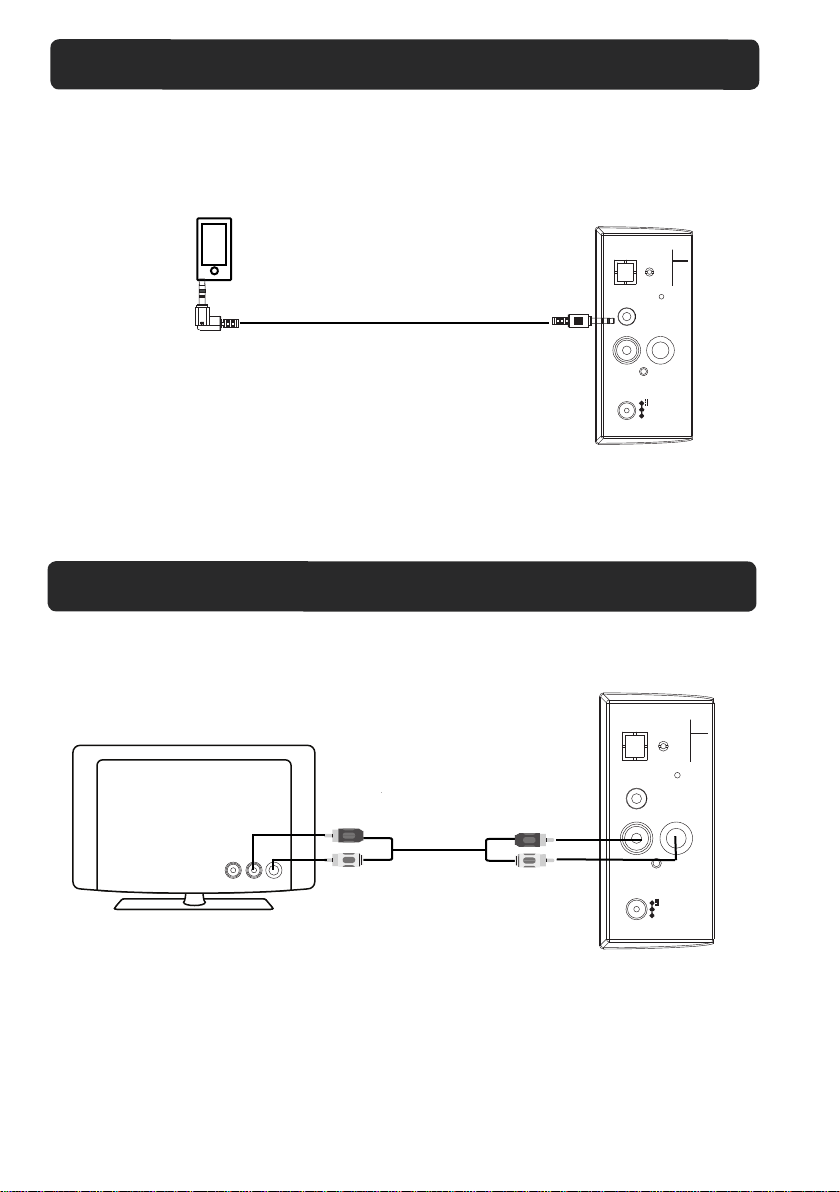

AUX IN 1 : LISTEN TO EXTERNAL AUDIO DEVICES
1. Connect the Headphone/Earphone; Aux
audio player
(such like MP3 player; Discman … etc) to the AUX IN 1 jack on the top of
out jack or Line out jack from the external
unit by the supplied Audio Connection Cable as the figure below:
Audio
Player
To Phone Jack
2. Connect the unit to the power as previous procedures.
OPTICAL
FM ANT
AUX IN1
R
L
AUX IN2
DC 16V, 1.8 A
DC IN
3. Press the POWER/SOURCE button on the unit or press the
SOURCE button on the remote control repeatedly until the
Top view of the unit
color of the Indicator turns to Green.
4. Power on the connected external player and start playback music as usual.
AUX IN 2 : LISTEN TO TV/DVD/VCR/DVR
1. Connect the Aux out jacks from the external audio player (such like TV, DVD player,
VCR …etc.) to the AUX IN 2 jacks on the top of unit by the RCA Connection Cable
as the figure below:
OPTICAL
FM ANT
TV
Red
AUX IN1
R
L
AUX IN2
VIDEO
R
L
To Audio Out Jacks
White
DC 16V, 1.8 A
DC IN
Top of the unit
2. Connect the Sound Bar to the power as previous procedures.
3. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
remote control repeated until the Indicator turns to Yellow.
4. Power on the connected external player and start playback the Video/Music as usual.
10
Page 12
OPTICAL IN

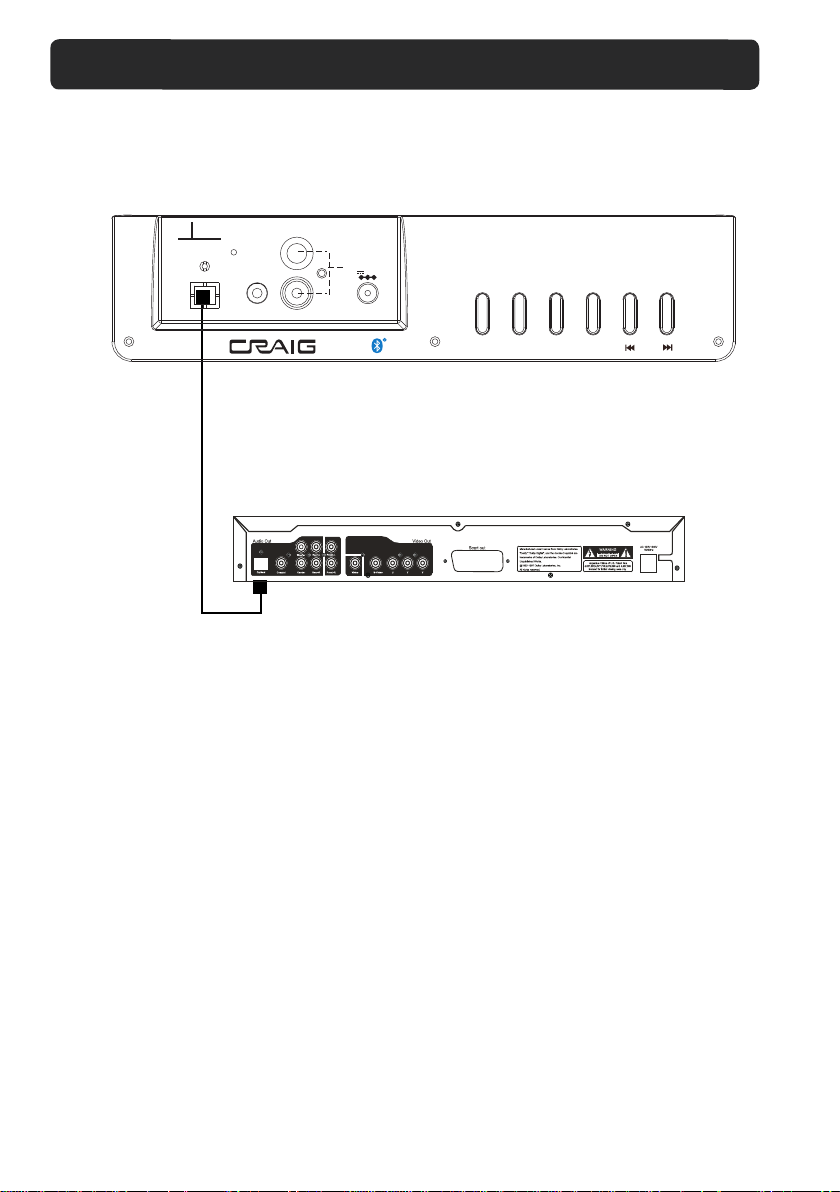

1. Connect the Optical out jack from the external audio player (such like TV, DVD
VCR …etc.) to the OPTICAL jack on the top of unit by the Optical Connection
Cable as the figure below: ( F or PCM format only )
AUX IN1
AUX IN2
L
R
DC IN
DC 16V, 1.8 A
POWER /
SOURC E
VOL-
PAUSE
TUNE+
TUNE-
PLAY/
VOL+
FM ANT
OPTI CAL
Top view of the unit
DVD or TV, etc.
Optical Cable ( not included )
2. Connect the Sound Bar to the power as previous procedures.
3. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
remote control repeated until the Indicator turns to Cyan.
4. Power on the connected external player and start playback the Music as usual.
11
Page 13
TROUBLESHOOTING GUIDE
Check the followings before requesting service
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
No power
No sound
Sound distortion
Remote not
working
Poor FM reception
Power AC/DC adapter
not connected
The unit is in Standby mode
Volume in minimum position
The paired/connected device
is not in payback mode
Input source incorrect
Bass level of the connected
device too high
Volume level too high
The battery
is consumed
Connect the power AC/DC adapter.
Press the button to turn on the unit.
Raise volume level by pressing the VOL
(Volume) + button.
Play music/movie in the paired/connected
device as usual
volume level of it is in high level.
Press the POWER/SOURCE button on the
unit or press SOURCE on the remote
control repeatedly to set the input source
to the desired mode.
Reduce the bass level of the connected
device.
Press the BASS - button on the
Sound Bar to reduce bass level.
Reduce the volume level by pressing
the
VOL (Volume ) - button.
Reduce the volume level of the paired/
connected device.
Replace with new battery.
Relocate and unwind the FM antenna wire.
and make sure the
Bluetooth
reception failure
The external device is far from
the unit
Have not paired
12
Put the external BT device close to the
unit.
Pair the unit with the BT Device as the
procedures on page 9.
Page 14
Power Source................................................................................... DC 16V; 1.8A,
Radio Coverage..........................................................................................FM 87.5-108 MHz
Impedance of Speakers:
Loud Speakers
Audio Power:
Loud Speakers:
Total:................................................................................................................................20W
Bluetooth Effective Range in Open Area............................................................Up to 32 feet
Remote Effective Range.....................................................................................Up to 16 feet
..............................................................................................
............................................................................................
---
8 Ohm,10 W x 2
10 W ( RMS ) x 2
1 x AC/DC Adaptor ( Input: AC 100-240V~; 50/60Hz; 1A.
1 x Remote Control, using CR 2025 button cell ( Included, already installed in remote control )
1 x Stereo Audio Connection Cable with 3.5mm stereo plugs
1 x User's Manual
2 x Plastic Inserts ( For Wall Mount )
2 x Metallic Screws ( For Wall Mount )
Output: DC 16V; 1.8 A, )
---
13
Page 15
CHT939_WC_E0CL1_B0US
Loading...
